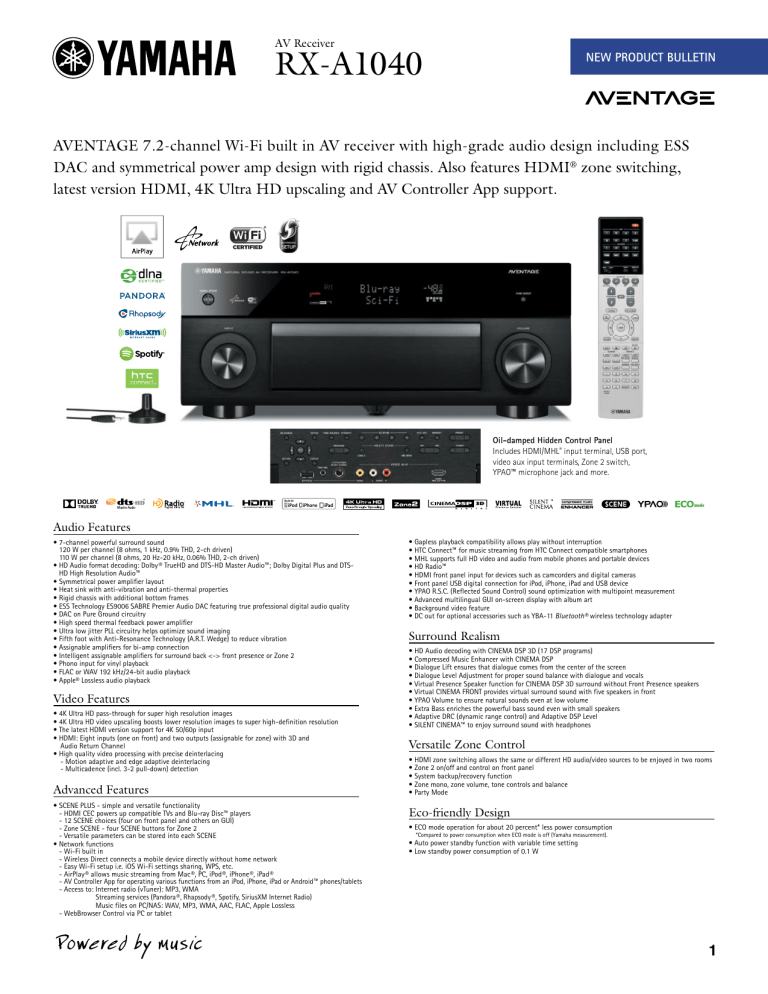

RX-A1040 - Sound Advice
AV Receiver
RX-A1040
NEW PRODUCT BULLETIN
AVENTAGE 7.2-channel Wi-Fi built in AV receiver with high-grade audio design including ESS
DAC and symmetrical power amp design with rigid chassis. Also features HDMI® zone switching,
latest version HDMI, 4K Ultra HD upscaling and AV Controller App support.
Oil-damped Hidden Control Panel
Includes HDMI/MHL® input terminal, USB port,
video aux input terminals, Zone 2 switch,
YPAO™ microphone jack and more.
Audio Features
• 7-channel powerful surround sound
120 W per channel (8 ohms, 1 kHz, 0.9% THD, 2-ch driven)
110 W per channel (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
• HD Audio format decoding: Dolby® TrueHD and DTS-HD Master Audio™; Dolby Digital Plus and DTSHD High Resolution Audio™
• Symmetrical power amplifier layout
• Heat sink with anti-vibration and anti-thermal properties
• Rigid chassis with additional bottom frames
• ESS Technology ES9006 SABRE Premier Audio DAC featuring true professional digital audio quality
• DAC on Pure Ground circuitry
• High speed thermal feedback power amplifier
• Ultra low jitter PLL circuitry helps optimize sound imaging
• Fifth foot with Anti-Resonance Technology (A.R.T. Wedge) to reduce vibration
• Assignable amplifiers for bi-amp connection
• Intelligent assignable amplifiers for surround back <-> front presence or Zone 2
• Phono input for vinyl playback
• FLAC or WAV 192 kHz/24-bit audio playback
• Apple® Lossless audio playback
Video Features
• 4K Ultra HD pass-through for super high resolution images
• 4K Ultra HD video upscaling boosts lower resolution images to super high-definition resolution
• The latest HDMI version support for 4K 50/60p input
• HDMI: Eight inputs (one on front) and two outputs (assignable for zone) with 3D and
Audio Return Channel
• High quality video processing with precise deinterlacing
- Motion adaptive and edge adaptive deinterlacing
- Multicadence (incl. 3-2 pull-down) detection
Advanced Features
• SCENE PLUS - simple and versatile functionality
- HDMI CEC powers up compatible TVs and Blu-ray Disc™ players
- 12 SCENE choices (four on front panel and others on GUI)
- Zone SCENE - four SCENE buttons for Zone 2
- Versatile parameters can be stored into each SCENE
• Network functions
- Wi-Fi built in
- Wireless Direct connects a mobile device directly without home network
- Easy Wi-Fi setup i.e. iOS Wi-Fi settings sharing, WPS, etc.
- AirPlay® allows music streaming from Mac®, PC, iPod®, iPhone®, iPad®
- AV Controller App for operating various functions from an iPod, iPhone, iPad or Android™ phones/tablets
- Access to: Internet radio (vTuner): MP3, WMA
Streaming services (Pandora®, Rhapsody ®, Spotify, SiriusXM Internet Radio)
Music files on PC/NAS: WAV, MP3, WMA, AAC, FLAC, Apple Lossless
- WebBrowser Control via PC or tablet
• Gapless playback compatibility allows play without interruption
• HTC Connect™ for music streaming from HTC Connect compatible smartphones
• MHL supports full HD video and audio from mobile phones and portable devices
• HD Radio™
• HDMI front panel input for devices such as camcorders and digital cameras
• Front panel USB digital connection for iPod, iPhone, iPad and USB device
• YPAO R.S.C. (Reflected Sound Control) sound optimization with multipoint measurement
• Advanced multilingual GUI on-screen display with album art
• Background video feature
• DC out for optional accessories such as YBA-11 Bluetooth® wireless technology adapter
Surround Realism
• HD Audio decoding with CINEMA DSP 3D (17 DSP programs)
• Compressed Music Enhancer with CINEMA DSP
• Dialogue Lift ensures that dialogue comes from the center of the screen
• Dialogue Level Adjustment for proper sound balance with dialogue and vocals
• Virtual Presence Speaker function for CINEMA DSP 3D surround without Front Presence speakers
• Virtual CINEMA FRONT provides virtual surround sound with five speakers in front
• YPAO Volume to ensure natural sounds even at low volume
• Extra Bass enriches the powerful bass sound even with small speakers
• Adaptive DRC (dynamic range control) and Adaptive DSP Level
• SILENT CINEMA™ to enjoy surround sound with headphones
Versatile Zone Control
• HDMI zone switching allows the same or different HD audio/video sources to be enjoyed in two rooms
• Zone 2 on/off and control on front panel
• System backup/recovery function
• Zone mono, zone volume, tone controls and balance
• Party Mode
Eco-friendly Design
• ECO mode operation for about 20 percent* less power consumption
*Compared to power consumption when ECO mode is off (Yamaha measurement).
• Auto power standby function with variable time setting
• Low standby power consumption of 0.1 W
1
AV Receiver
RX-A1040
Superlative Audio Quality
The RX-A1040 delivers the kind of superb audio
quality you expect from a high-end Yamaha receiver.
It incorporates the ES9006 Premier Audio DAC from
ESS Technology, a solution with exceptionally good S/N
ratio and dynamic range that provides true professional
digital audio quality.
The RX-A1040 also
uses ultra-low jitter
PLL circuitry, which
prevents the type of
digital distortion known
as jitter from affecting
the sound quality.
Main Specifications
Audio Section
Rated Output Power (8 ohms, 1 kHz, 0.9% THD, 2-ch driven)
Front L/R
Center Surround L/R
Surround Back L/R Rated Output Power (8 ohms, 20 Hz-20 kHz, 0.06% THD, 2-ch driven)
Front L/R
Center Surround L/R
Surround Back L/R Dynamic Power/Channel (Front L/R, 8/6/4/2 ohms) NEW PRODUCT BULLETIN
Built-in Wi-Fi Provides Superior
Functionality with Easy Setup
HDMI Zone Switching and
Latest HDMI Version
Built-in Wi-Fi improves installation flexibility. WPS
and other types of Wi-Fi setup are supported. By
using Wireless Direct, you can connect the AV receiver
wirelessly and directly
to a smartphone,
making it possible to
enjoy music files on
the phone via AirPlay
or HTC Connect
and to operate
the receiver via AV
Controller App.
HDMI zone switching provides enhanced zone customization
for expanded AV enjoyment. With zone switching, people
in two different rooms can enjoy, not just one HD audio/
video source, but two different ones. In addition, the
receiver supports the latest version of HDMI for 4K 50/60p
transmission, ensuring compatibility with future versions of
super high definition video.
120 W / 120 W
120 W
120 W / 120 W
120 W / 120 W
110 W / 110 W
110 W
110 W / 110 W
110 W / 110 W
135/165/210/280 W
General
Standby Power Consumption
HDMI Control Off, Standby Through Off HDMI Control On, Standby Through On Network Standby On Dimensions (W x H x D)
Weight
0.1 W
1.8 W
2.8 W (Wired)
17-1/8” x 7-1/8” x 17”
(With antenna: 17-1/8” x 9-1/2” x 17-1/4”)
435 x 182 x 432 mm
(With antenna: 435 x 242 x 439 mm)
32.8 lbs.; 14.9 kg
USA Model
Extensive Connections
Inputs
HDMI*1 (Audio Input Assignable*2, Front HDMI: MHL Input Compatible) 8
Network (Ethernet / Wi-Fi)
1/1
USB*11
1/1
Radio Antenna (FM/AM) Incl. HD Radio*3
Optical Digital (Assignable)
3
Coaxial Digital (Assignable)
3
5/5
Analog AV *1 / Audio (with Phono)
Component Video (Assignable) 3
5
Composite*1 Multichannel Input
8-ch
Outputs
HDMI
2 (Zone Assignable)
Optical Digital
1
Analog Audio
1
Pre Out
7.2-ch
Component Video Monitor*41
Composite Monitor*41
AV Out (Composite)
1
Speaker
7-ch (Nine Terminals)
Subwoofer 2 x Mono
DC Out*5 1
Headphone Jack
1
Others
Zone 2 Out with Volume and Tone Controls
1
Remote In/Out
1/1
+12 V / Total 100 mA Trigger Out*62
RS-232C 1
Terminal for Detachable Power Cable 1
1
Including
front
panel
terminals.
*2 Front HDMI input is not assignable.
*3 For USA only.
*4 Assignable to monitor out or Zone 2 out.
*5 For optional accessories.
*6 Yamaha subwoofer system control support.
*
• “Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible
for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, or iPad may affect wireless performance. iTunes, AirPlay, iPad, iPhone, iPod, iPod nano, iPod touch, and Safari are trademarks of
Apple Inc., registered in the U.S. and other countries. • The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance. The Wi-Fi Protected Setup Identifier Mark is a mark of the Wi-Fi Alliance. • DLNA™ and DLNA CERTIFIED™ are trademarks or registered trademarks of
Digital Living Network Alliance. All rights reserved. Unauthorized use is strictly prohibited. • The HTC Connect™ Logo is a trademark of HTC Corporation. • HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and
the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital • Spotify and Spotify logo are registered trademarks of the Spotify Group. • Pandora and Pandora Internet Radio logo are registered trademarks or trademarks of Pandora Media, Inc. in the United
States and/or other countries. • Rhapsody and the Rhapsody logo are registered trademarks of Rhapsody International, Inc. • SIRIUS, XM and all related marks and logos are trademarks of Sirius XM Radio Inc. and its subsidiaries. All rights reserved. Service not available in Alaska
and Hawaii. • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Yamaha Corporation is under license. Other trademarks and trade names are those of their respective owners. • Dolby and the double-D
symbol are registered trademarks of Dolby Laboratories. • DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI Licensing LLC. • MHL and the MHL logo are a trademark, registered trademark or service mark of MHL, LLC in the United States and/or other countries. • CINEMA DSP is a trademark of Yamaha Corporation. • SILENT CINEMA is a trademark of Yamaha Corporation. • Product
designs and specifications are subject to change without notice.
