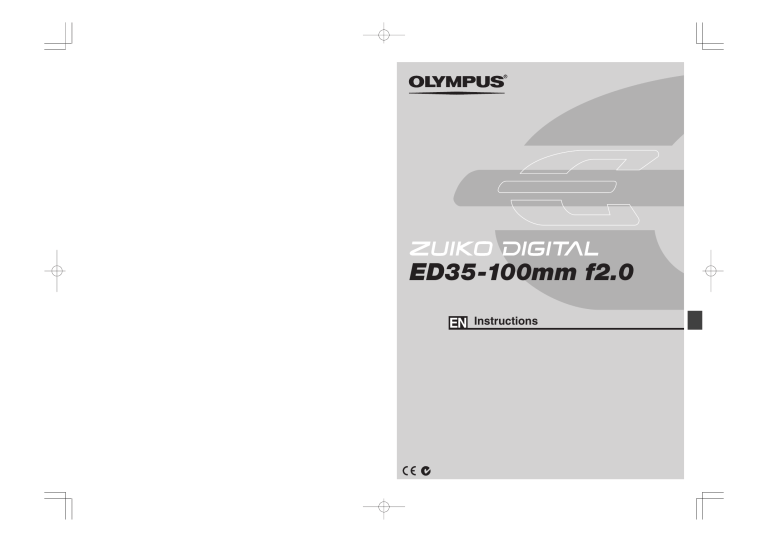

ED35-100mm f2.0
ED35-100mm f2.0
Instructions
Checking the Package Contents
For customers in Europe
The “CE” mark indicates that this product complies with the European requirements for safety, health,
environment and customer protection. CE-mark products are for sale in Europe.
For customers in USA
FCC Notice
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate.
For customers in CANADA
This Class B digital apparatus complies with Canadian ICES-003.
Lens main body
Features
Focusing Method
Shooting Range
Magnification
(Equivalent 35mm values are shown in parentheses)
①
③
②
①Front cap
②Focus stop buttons (x4)
③Mounting index
④Rear cap
⑤Focus limit switch
⑥Focus ring
⑦Filter mount thread
⑤
⑦
④
⑥
Not usable because focusing is impossible.
35 mm
60 mm
MF
30.9 cm – 32.1 cm
(1.03 ft – 1.07 ft)
0.40x – 0.42x
(0.80x – 0.84x)
100 mm
MF
52.9 cm – 54.4 cm
(1.76 ft – 1.81 ft)
0.25x – 0.30x
(0.50x - 0.60x)
This lens cannot be used in combination with the Olympus Macro Flash System.
⑧Electrical contacts
⑨Tripod mount
⑩Lens hood
⑪Filter handling window
⑪
Contents
• Features ....................................................................................................................................... 10
• Checking the Package Contents .................................................................................................. 11
• Nomenclature .............................................................................................................................. 11
• Lens Case (Provided) .................................................................................................................. 11
• Attaching the Hood ...................................................................................................................... 12
• Storing the Hood .......................................................................................................................... 12
• Using the Filter Handling Window ................................................................................................ 12
• Attaching and Detaching the Tripod Mount .................................................................................. 13
• Focus Limit Switch ....................................................................................................................... 13
• Focus Stop Buttons ..................................................................................................................... 13
• Shooting Cautions ....................................................................................................................... 13
• Precautions: Be Sure to Read the Following ............................................................................... 14
• Main Specifications ...................................................................................................................... 15
10
Lens Case LSH-1326
Nomenclature
• The ED35-100mm f2.0 is a lens with high imaging capability, designed exclusively for use with
Olympus FOUR THIRDS single-lens-reflex digital cameras.
• Dustproof and drip-proof construction.
• Telephoto zoom lens equivalent to a 70 - 200 mm lens on a 35 mm film camera.
• High-image-quality, 18-group, 21-element F2.0 lens system that includes one Super ED lens and
four ED elements (Extra-low Dispersion glass lenses).
• Can be used in combination with the optional EC-14 teleconverter. Set the aperture at composite
f-stop of f4 or more.
• Can be used in combination with the optional EX-25 extension tube under the following conditions:
Focal Distance
Lens Hood LH-82
⑩
⑨
⑧
Lens Case (Provided)
• Attaching the lens case strap.
Pull the end of the
strap at least 5 cm
away from the
buckle.
11
Attaching the Hood
Attaching and Detaching the Tripod Mount
• Turn it until it clicks.
Focus Limit Switch
Storing the Hood
∞-1.4m
∞-3m
3-1.4m
This switch limits the autofocus range to speed up focusing in each
range.
Select the optimum mode according to the shooting distance.
Close-up shooting : Autofocus is performed between 3 meters
(9.8 ft) and 1.4 meters (4.6 ft).
Normal shooting : Autofocus is performed from ∞ (infinity) to
1.4 meters (4.6 ft).
Distant shooting : Autofocus is performed from ∞ (infinity) to
3 meters (9.8 ft).
Focus Stop Buttons
• By holding down one of the focus stop buttons, you
can deactivate autofocus operation and fix focus at the
point where the button was pressed.
• Four buttons are provided. All have the same effect.
Using the Filter handling window
• This opening provides access to the circular polarizing filter without having to remove the hood. Open the
sliding lid and manipulate the circular polarizing filter
as required.
• Be sure to close the sliding lid before you start
shooting.
Shooting Cautions
• Be sure to attach the hood when shooting against the light.
• When two or more filters are used or a thick filter is used, part of the picture may be cut off or
obscured.
12
13
Precautions: Be Sure to Read the Following
Main Specifications
Warnings: Safety Precautions
Do not view the sun
through the lens.
Mount
Focal distance
Max. aperture
Image angle
Lens configuration
Do not leave the lens without the cap.
If solar light is converged through the
lens, a fire may result.
Do not point the camera lens at the sun. Sunlight
will converge in the lens and focus inside the camera, possibly causing a malfunction or fire.
Handling Precautions
: Four Thirds mount
: 35-100 mm
: f2.0
: 34°-12°
: 21 elements in 18 groups
Multi-layer coating (partial single-layer coating)
Iris control
: f2.0 to f22
Shooting range
: 1.4 m (4.6 ft) to ∞ (infinity)
Focus adjustment
: AF/MF switching
Weight
: 1650 g (58.2 oz) (w/o tripod mount. Tripod mount weight: 150 g (5.3 oz))
Dimensions
: Max. dia. ø96.5 mm (3.8 in) x Overall length 213.5 mm (8.4 in)
Lens hood mount
: Bayonet
Filter mount thread diameter : 77 mm (3.0 in)
• Design and specifications are subject to change without any notice or obligation on the part of
the manufacturer.
Working temperature
range
Abrupt temperature
changes
Do not put the lens with
its contacts facing down.
Too much pressure
Lens configuration diagram
Do not touch the lens.
Submergence
Do not touch the
contacts.
Do not drop
Organic solvents
Excessive moisture
Magnetism
Do not hold the camera by the section of
the lens extruded by
the focusing operation.
Storage Precautions
Lens cleaning tissue or
soft cloth
Cap the lens when it is
not used.
14
Moth repellents
Lens cleaning
15
●Technical Support (USA)
24/7 online automated help: http://www.olympusamerica.com/E1
Phone customer : Tel.1-800-260-1625 (Toll-free)
Our phone customer support is available from 8 am to
10 pm (Monday to Friday) ET
E-Mail : [email protected]
●European technical Customer Support
Please visit our homepage http://www.olympus-europa.com
or call NUMBER : Tel.00800-67 10 83 00 (Toll-free)
+49 1805-67 10 83 or +49 40-23 77 38 99 (Charged)
16
