HP 3PAR StoreServ 7450 Storage

HP 3PAR StoreServ 7450 Storage

QuickSpecs

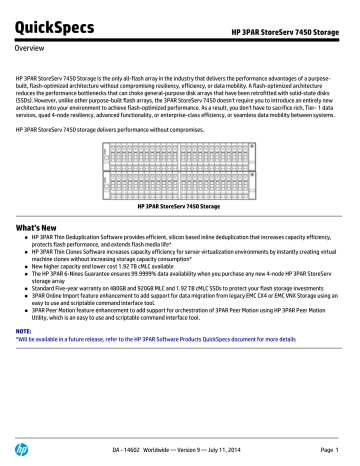

Overview

HP 3PAR StoreServ 7450 Storage

HP 3PAR StoreServ 7450 Storage is the only all-flash array in the industry that delivers the performance advantages of a purposebuilt, flash-optimized architecture without compromising resiliency, efficiency, or data mobility. A flash-optimized architecture reduces the performance bottlenecks that can choke general-purpose disk arrays that have been retrofitted with solid-state disks

(SSDs). However, unlike other purpose-built flash arrays, the 3PAR StoreServ 7450 doesn't require you to introduce an entirely new architecture into your environment to achieve flash-optimized performance. As a result, you don't have to sacrifice rich, Tier- 1 data services, quad 4-node resiliency, advanced functionality, or enterprise-class efficiency, or seamless data mobility between systems.

HP 3PAR StoreServ 7450 storage delivers performance without compromises.

HP 3PAR StoreServ 7450 Storage

What's New

HP 3PAR Thin Deduplication Software provides efficient, silicon based inline deduplication that increases capacity efficiency, protects flash performance, and extends flash media life*

HP 3PAR Thin Clones Software increases capacity efficiency for server virtualization environments by instantly creating virtual machine clones without increasing storage capacity consumption*

New higher capacity and lower cost 1.92 TB cMLC available

The HP 3PAR 6-Nines Guarantee ensures 99.9999% data availability when you purchase any new 4-node HP 3PAR StoreServ storage array

Standard Five-year warranty on 480GB and 920GB MLC and 1.92 TB cMLC SSDs to protect your flash storage investments

3PAR Online Import feature enhancement to add support for data migration from legacy EMC CX4 or EMC VNX Storage using an easy to use and scriptable command interface tool.

3PAR Peer Motion feature enhancement to add support for orchestration of 3PAR Peer Motion using HP 3PAR Peer Motion

Utility, which is an easy to use and scriptable command interface tool.

NOTE:

*Will be available in a future release, refer to the HP 3PAR Software Products QuickSpecs document for more details

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 1

QuickSpecs

Overview

Summary

Number of Controller Nodes

HP 3PAR Gen4 ASICs

Processors

Cache

Maximum Host Ports

Fibre Channel Host Ports

10Gb/s iSCSI and FCoE Host Ports

Maximum Initiators Supported

2U Controller Enclosure SAS Drive Capacity

Number of Solid State Drives

Raw Capacity (approx.)

2

Capacity Details

RAID Levels

RAID 5 Data to Parity Ratios

RAID 6 Data to Parity Ratios

Drive Capacities (approximate GB

3

)

(RAID levels, parity ratios, and drive capacities all mixable within the same Storage System)

Number of Add-on Drive Enclosures

(Each Drive Enclosure holds up to 24 drives in 2U for small form factor drives and 4U for large form factor drives)

NOTES:

1

The minimum drive quantity is permitted as long as the total raw capacity is at least 0.8 TB.

2

Maximum raw capacity currently supported with solid state drives.

3

For storage capacity, 1 GB = 1,000,000,000 bytes and 1 TB = 1,000 GB.

4

SSDs are Solid State Drives.

3PAR StoreServ 7450

2 or 4

2 or 4

2 - 4 eight-core 2.3 GHz

64 - 128 GB

24 ports

4 - 24 ports

0 - 8 ports

1024 or 2048

24

8

1

- 240

0.8 - 460.8 TB

3

3PAR StoreServ 7450

RAID 0, 1, 5, 6

2:1 - 8:1

4:2, 6:2, 8:2, 10:2, 14:2

100GB SSD4, 200GB SSD, 400GB SSD, 480GB SSD, 920GB SSD,

1.92TB cMLC SSD

0 - 8 enclosures

NOTE: Specifications are subject to change without notice.

HP 3PAR StoreServ 7450 Storage

Host OS Support

Citrix® XenServer® | HP-UX® | HP OpenVMS | IBM® AIX®

Microsoft® Windows® Server, including Microsoft® Hyper-V™

Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris

Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization

SUSE® Linux Enterprise | Ubuntu | VMware vSphere™

For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HP Storage Products

(SPOCK): http://www.hp.com/storage/spock

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 2

QuickSpecs

Features

Accelerated

Efficient

Bulletproof

HP 3PAR StoreServ 7450 Storage

HP 3PAR StoreServ 7450 Storage provides hundreds of thousands of IOPS to allow the highest level of performance for any application environment. With 3PAR system wide striping, data and I/O for each volume are striped widely across all system resources including CPUs, Ports, Cache and Drives. This wide striping enables the system to deliver accelerated performance levels (all resources supporting each volume) while avoiding any single point of bottleneck. Even a small volume can leverage the performance of hundreds of flash devices and all the system's controller nodes for optimal performance. In addition, the massively parallel architecture allows 3PAR to serve the IOPS at sub-millisecond latency levels, enabling high quality IOPS for each of the applications running on HP 3PAR 7450 storage system.

Quality of Service - With HP 3PAR Priority Optimization, you can consolidate multiple workloads on highperforming HP 3PAR 7450 Storage system without compromising on performance of their key applications. A highly automated approach allows you to quickly and easily assign a minimum goal for I/O per second, bandwidth and latency to protect mission critical applications in enterprise environments. Or assign performance thresholds on workloads with lower service level requirements. This capability allow you to consolidate more applications on less infrastructure while delivering predictable performance to meet even the most demanding service level requirements.

Reduce capacity requirements and extend flash media lifespan to lower costs. Stretch your Flash media investment for improved return on investment. 3PAR StoreServ is the only platform to guarantee to reduce your capacity requirements by 50%. 3PAR StoreServ can also extend the life of your Flash media by providing additional media endurance.

Get thin and stay thin - Thin technologies unique to the HP 3PAR StoreServ family can reduce capacity requirements by 50%. Purchase only what you need, as you need it so you can focus resources on growing your business, not maintaining your storage. Additionally, the HP 3PAR ASIC with Thin Built In features an efficient, silicon-based zero-detection mechanism. This unique hardware capability gives HP 3PAR

StoreServ Storage the power to remove allocated but unused space without impacting performance.

Data center virtualization - Increase virtualization return on investment. Double virtual machine density on your physical servers, spend up to 90 percent less time managing your storage, and support your virtualization deployment with 50 percent less storage capacity. HP 3PAR StoreServ is built from the ground up to deliver performance that exceeds the demands of virtualized data centers along with transformative levels of simplicity, agility, and efficiency.

Do more with less -HP 3PAR StoreServ 7450 Storage delivers hundreds of thousands of IOPS at under 1ms latency with less equipment to house, far fewer disks to power and cool, less hardware to retire after it has reached its end of life, and a reduced carbon footprint.

Eliminate downtime for performance-critical applications - A unique suite of persistent technologies power HP 3PAR StoreServ 7450 Storage in delivering high availability and Tier 1 resiliency to performance critical applications. Achieve higher service levels for more users and applications with less infrastructure.

Deliver higher performance levels, greater availability, and next-generation functionality to multiple user groups and applications from a single storage system.

High Availability - With the Get 6-Nines Guarantee, HP ensures 99.999% data availability with all HP 3PAR

StoreServ 7450 systems giving you the peace of mind that your performance critical applications are back with Tier-1 resiliency Intelligent data striping across all available enclosures provides HA Cage, the ability to maintain availability even when a whole drive enclosure fails. HP 3PAR Persistent Cache in four node configurations eliminates performance impacts that result from unplanned component failures, making it

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 3

QuickSpecs

Features

Futureproof

HP 3PAR StoreServ 7450 Storage

a must-have for maintaining service levels in the virtual data center-a feature that you can't get from any all-flash storage platform built with 2-controllers architecture.

Move data seamlessly across systems and sites to balance performance and cost - HP 3PAR StoreServ platform is autonomic (or effortless), and delivers polymorphic simplicity from midrange to high end to flash. Federated data mobility is yet another example of Polymorphic Simplicity. Simply and nondisruptively shift data between any model HP 3PAR StoreServ system without additional management layers or appliances. This helps balance cost and performance to meet service-level requirements at the lowest cost while increasing business agility and minimizing risk. HP 3PAR Peer Motion enables you to move applications that require flash-performance on 7450 at the right time without impacting its availability. This seamless application movement on and off of flash storage enables you to put your investment into flash technology to its most optimum usage. Simply and non-disruptively shift data between any model HP 3PAR StoreServ system without additional management layers or appliances.

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 4

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

Warranty

HP 3PAR StoreServ 7450 Storage

3 Year, On-site Warranty Service for hardware components. 7x24 4-hour remote response with next business day on-site response

The warranty on the following HP 3PAR StoreServ 7000 SSD product numbers is five years, parts only:

HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive E7W54B

HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive E7W55B

HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive E7W24B

HP 3PAR StoreServ M6720 920GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive E7W25B

HP 3PAR StoreServ M6710 1.92TB 6G SAS SFF(2.5in) cMLC 5yr Wty Solid State Drive E7Y57A

Warranty on other HP 3PAR StoreServ 7000 SSDs excluding the ones listed above is 3 years, parts only.

HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery.

For more information about HP's Global Limited Warranty and Technical Support, visit: http://www.hp.com/products/storageworks/warranty

Service and Support Technology Services for increased uptime, productivity and ROI

Trust HP storage technology experts for every level of service and support. Our integrated portfolio of services for storage help customers reduce costs, optimize data, streamline storage management, and improve backup and recovery. Capitalizing on HP Storage Systems' capabilities requires a service partner who understands your increasingly complex environment. Team with the people who know HP infrastructure hardware and software best-the experienced professionals at HP Services.

Protect your business beyond warranty

Warranty protects against manufacturer defects, however warranty uplifts, such as HP Care Pack Services protect the business-by reducing downtime risks and providing operational consistency for missioncritical and standard business computing.

NOTE: SSDs have a limited number of writes that can occur before reaching the SSD's write endurance limit. This limit is generally high enough so wear out will not occur during the expected service life of an HP

3PAR StoreServ under the great majority of configurations, IO patterns, and workloads. HP 3PAR

StoreServ tracks all writes to SSDs and can report the percent of the total write endurance limit that has been used. This allows any SSD approaching the write endurance limit to be proactively replaced before they are automatically spared out. An SSD has reached the maximum usage limit once it exceeds its write endurance limit. Following the product warranty period, SSDs that have exceeded the maximum usage limit will not be repaired or replaced under HP support contracts.

What HP Storage Technology Services can do for you

HP Storage Technology Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. HP storage lifecycle support services offers a full spectrum of customer carefrom technology support to complex migrations to complete managed services.

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 5

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Service and Support, HP Care Pack, and Warranty Information

Optimized Care - delivers best performance and stability through deployment and proactive management practices

Choose the right level of support, deployment and integration services

HP support recommendations are designed to help you enhance technology operations and lower risk-and make it easier for you to seek the right balance between affordability and service-level commitments.

Depending on your individual support needs, choose from three levels of care that cover the entire lifecycle to better address your needs-Optimized Care, Standard Care, and Basic Care. If none of our support recommendations meet your needs, we can tailor a service solution for your unique support requirements. Only HP brings together deep expertise, proactive and business critical support and a strong partner network-together with, a full set of infrastructure services designed to power a Converged

Infrastructure

HP Critical Service - This service delivers 24x7 monitoring of your environment, making it the right choice when uninterrupted uptime is essential. We implement improvement projects to mitigate risks and reduce incidents to maximize uptime. If outages do occur, they will be addressed immediately through access to our dedicated critical support escalation resources, with a six-hour call-to-repair commitment from our mission-critical call center.

Standard Care - maintains high level of uptime, along with expert help to cut the cost and complexity of implementation and support

Additional Option:

10 Proactive Select credits per year per array - HP Proactive Select is a flexible way to purchase services to fit your particular environment or situation. Working with an HP Account Support Manager, you select a package of services in the form of services credits that include proactive services spanning many technologies and processes, such as on-site firmware upgrades, health checks, assessments, and education. You tailor the service delivery to improve time to production, optimize performance, or build in continuous improvements.

HP Proactive Care 24x7- for a higher return on your storage investment, Proactive Care delivers hardware and software support services designed specifically for your technology; rapid access to Advanced

Solution Center Specialists plus, Firmware/Software management and best practice advice. Customers can optimize the return on their IT investment and realize the advantage of running their business critical applications on virtualized infrastructure. Plus, HP Proactive Select 20 credits per year, select from an extensive menu of consultancy and technical services, such as onsite firmware upgrades, health checks, assessments, and education.

Basic Care - Minimum recommended support

Additional Option:

HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for an increased personalization of the Proactive Care support experience through the assignment of an

Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.

The ASM will develop an annual support plan, provide four days of operational and technical advice, and conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the customer's priorities. This option is only available for Proactive Care customers and may be purchased once per environment.

HP Personalized Support Additional Day - Customers who require more time than is provided by the

Personalized Support option can elect to purchase additional days through the Personalized Support

Additional Day option. The time may be used to provide extra support reviews and/or more operational & technical advice.

HP Proactive Care 24x7 - for a higher return on your storage investment, Proactive Care delivers hardware and software support services designed specifically for your technology; rapid access to Advanced

Solution Center Specialists plus, Firmware/Software management and best practice advice. Customers can

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 6

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Service and Support, HP Care Pack, and Warranty Information optimize the return on their IT investment and realize the advantage of running their business critical applications on virtualized infrastructure. Plus, 10 credits per year, select from an extensive menu of consultancy and technical services, such as onsite firmware upgrades, health checks, assessments, and education.

Implementation

Additional Option:

HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for an increased personalization of the Proactive Care support experience through the assignment of an

Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects.

The ASM will develop an annual support plan, provide four days of operational and technical advice, and conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the customer's IT priorities. This option is only available for Proactive Care customers and may be purchased once per environment.

HP Personalized Support Additional Day - Customers who require more time than is provided by the

Personalized Support option can elect to purchase additional days through the Personalized Support

Additional Day option. The time may be used to provide extra support reviews and/or more operational & technical advice.

Installation:

Whichever level of care you select, consider our Installation and Startup Services for a smooth implementation.

HP 3PAR StoreServ 7000 Storage Installation and Startup Service - For smooth startup, this service provides you with deployment of your HP 3PAR StoreServ 7000 Storage, ensuring proper installation into your storage environment and helping you realize the maximum benefit from your storage investment.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2568ENW.pdf

Related Services

HP Storage Data Migration Service- HP expertise and tools help you migrate data across your data center or around the globe. Take the burden of migration off your shoulders and put it in the capable hands of expert HP storage migration consultants. Our proven approach helps orchestrate the complete data migration and consolidation process while maintaining consistent data availability during the transfer process.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf

HP Enhanced Implementation Service for SANs - HP delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI storage area network (SAN) connectivity components. This service includes three levels of support based on the type of environment, ranging from simple to more complex. A trained service specialist guides the implementation of the storage switches in the SAN environment according to HP quality standards.

http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-8527EN.pdf

HP Data Replication Solution Service for 3PAR Virtual Copy- HP Data Replication Solution Service for HP

3PAR Virtual Copy Software helps create, manage and configure local replication data mirroring and snapshot capabilities of 3PAR storage systems. This service enables snapshots and mirroring to facilitate data restores, minimize downtime for backups, perform application testing, support data mining use with decision-support tools.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0217ENW.pdf

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 7

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Service and Support, HP Care Pack, and Warranty Information

HP Data Replication Solution Service for 3PAR Remote Copy- HP Data Replication Solution Service for

3PAR Remote Copy Software configures real-time data mirroring between local and remote 3PAR storage systems to safeguard critical business information. Provides scalable deployment of HP Remote Copy

Software real-time data mirroring between a local and a remote 3PAR storage system.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8627ENW.pdf

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-9431ENW.pdf

HP 3PAR 7000 Replication Software Suite Installation and Startup Service - Provides implementation of the HP 3PAR 7000 Replication Software Suite product. Replication Suite includes 3PAR Remote Copy,

3PAR Virtual Copy, and 3PAR Peer Persistence. The service is designed to help get HP 3PAR 7000

Replication Software Suite up and running quickly and to provide a demonstration of the product's key features using sample or test data only.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2570ENW.pdf

HP 3PAR Peer Persistence Software Installation and Startup Service - Provides implementation of the

HP 3PAR Peer Persistence Software product. The service is designed to help get HP 3PAR Peer Persistence up and running quickly and to provide a demonstration of the product's key features using sample or test data only.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2772ENW.pdf

HP 3PAR Adaptive Optimization Policy Implementation Service - HP 3PAR Adaptive Optimization Policy

Implementation Service provides analysis, recommendations, and implementation of HP 3PAR Adaptive

Optimization policies to enable storage tiering using data collected from the HP 3PAR Storage system over time. With the assistance of a designated IT storage administrator, a service specialist works with the customer to implement Adaptive Optimization policies on the HP 3PAR Storage system to help deliver service level optimization for virtual and cloud data centers while reducing cost, increasing agility and minimizing risk.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

HP Storage Virtual Volume Design and Implementation Service- When redeploying an HP StorageWorks

Disk Array, the HP Virtual Volume Design and Implementation Service provides the necessary activities required to design and implement a new virtual volume configuration.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3764ENN.pdf

HP Thin Volume Conversion Service - Provides evaluation and execution of conversion from standard to thin provisioned virtual volumes for HP 3PAR Storage. A service specialist advises the customer on HP thin provisioning best practices, provides evaluation of potential disk capacity savings if target virtual volumes are converted, and plans and implements thin conversion processing. The service leverages 3PAR thin provisioning capabilities to help optimize storage capacity, reduce cost, increase agility and maintain performance.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

HP Performance Analysis Service for HP Disk Arrays - The service provides data collection, detailed I/O analysis and enhancement recommendations for HP 3PAR StoreServ Storage disk arrays, HP EVA P6000

Storage disk arrays and HP XP P9000 Storage disk arrays. HP Performance Analysis Service for HP Storage

Disk Arrays provides a single engagement concerning the performance of a single HP 3PAR StoreServ

Storage disk array, HP EVA P6000 Storage disk array and HP XP P9000 Storage disk array http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6668EN.pdf

HP 3PAR Health Check Service- The HP 3PAR Health Check service is delivered as a single engagement, providing data collection, analysis, report creation, and a briefing session concerning the performance of a

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 8

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Service and Support, HP Care Pack, and Warranty Information single HP 3PAR StoreServ Storage System. This health check service is best for HP 3PAR StoreServ Storage

Systems that have been installed and are in normal production mode. It can also be used to establish a baseline for future reference to improve the effective use of your storage system.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-3225ENW.pdf

For more information

HP 3PAR Storage Assessment Service- The HP 3PAR Assessment Service is delivered remotely for a single HP 3PAR StoreServ Storage System and does not include performance analysis, testing, or modeling. The service requires that remote monitoring be enabled on the HP 3PAR StoreServ Storage

System being assessed. The assessment findings are compared to HP best practices and a summary report is provided that includes recommendations intended to improve availability and ongoing management of your HP 3PAR StoreServ Storage System.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-2346ENW.pdf

HP 3PAR Storage Rebalance Service- The HP 3PAR Rebalance Service helps balance data across your HP

3PAR StoreServ Storage to take advantage of the capabilities of the array architecture. The service provides analysis, planning, and implementation of data movement and/or physical movement of drive magazines within the array.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0280ENW.pdf

HP EVA to 3PAR Acceleration Service - The HP EVA to 3PAR Acceleration Service can help guide you or even execute data migration activities on your behalf that can not only optimize, but provide OPEX and

CAPEX savings as a result of your journey from EVA to 3PAR. This service provides customers with an alternative DIY ("do-it-yourself") data migration option with guidance from TS Storage migration specialists. With the help of migration experts, this service allows customers to execute an EVA to 3PAR data migration at their own pace and lowered cost.

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-4234ENW.pdf

HP 3PAR Dynamic Optimization I&S - For Dynamic Optimization, implementation by HP of tasks required to balance the HP 3PAR storage system; the service provides the Customer with a product overview, advice, and suggested strategies for use of Dynamic Optimization, and extended/ongoing analysis and/or implementation of Dynamic Optimization strategies can be accommodated at additional cost

The Service has further been described in the HP 3PAR 7000 Software Installation and Startup Service

Datasheet: http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf

www.hp.com/services/storage

To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized

Channel Partner

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.

Customers purchasing from a commercial reseller can find HP Care Pack Services at: www.hp.com/go/lookuptool

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 9

QuickSpecs

Configuration

HP 3PAR StoreServ 7450 Storage

Step 1 - Choose a Base configuration

HP 3PAR StoreServ 7450 configurations start with the selection of the Base. The Base includes controller nodes, bays for small form factor drives, and PCIe slots for host adapter cards. SAN Kits are also considered base configurations. The SAN Kits simplify ordering for SAN configurations with the array and extend the switch warranty to 3-years by including switches with an HP 3PAR StoreServ

7450 Storage Base.

HP 3PAR StoreServ 7450 Base Configurations

HP 3PAR StoreServ 7450 2-node Base

HP 3PAR StoreServ 7450 4-node Base

HP 3PAR StoreServ 7450 2-node Base for Storage Centric Rack

HP 3PAR StoreServ 7450 4-node Base for Storage Centric Rack

A minimum of one (1) configuration base must be ordered.

The HP 3PAR StoreServ 7450 2-node base configuration includes (2) controller nodes, 64 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards one slot per node, (4) 2m SAS cables, (2) 1U rack filler panels to reserve 2U of rack space above the 2-node Storage Base for a future upgrade to a 4-node configuration, (1) mounting rail kit, and power cords.

The HP 3PAR StoreServ 7450 4-node base configuration includes (4) controller nodes, 128 GB of cache, (48) small form factor drive bays, (8) built-in 8 Gb/sec FC ports, (8) 8Gb shortwave FC SFP, (4) PCIe adapter slots for host adapter cards one slot per node, (8) 2m SAS cables, (4) node link cables, (2) mounting rail kits, and power cords.

All base configurations include built-in Gigabit Ethernet ports for management and Remote Copy over IP.

*Storage Centric Configuration

The Storage Centric rack versions of HP 3PAR StoreServ 7450 are for CTO

(factory Configure-To-Order) only. With a Storage Centric configuration, the storage system gets placed in the center of the rack so that future expansion of that storage system becomes easier.

In Storage Centric configurations, non-3PAR components, with the exception of certain StoreFabric Storage Networking switches, if added to the same order, get placed in a separate rack.

The following drawings show example configurations for a HP 3PAR StoreServ 7450 4node in Storage Centric and non-Storage Centric configurations

HP 3PAR StoreServ 7450 4N Storage Centric configuration

C8R35A

C8R37A

E7W52A

E7W53A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 10

QuickSpecs

Configuration

HP 3PAR StoreServ 7450 Storage

StoreServ 7450 4-node Storage system in a storage centric configuration in a HP

Intelligent Series Rack

StoreServ 7450 4-node Storage system in a non-storage centric configuration in a

HP Intelligent Series Rack

HP 3PAR StoreServ 7450 Upgrade Node Pair

Used to upgrade the C8R35A HP 3PAR StoreServ 7450 2-node Storage Base to a

4-node configuration.

One (1) pair of controller nodes beyond the base configuration is supported on the 3PAR StoreServ 7450.

The 3PAR StoreServ 7450 Upgrade Node Pair includes (2) controller nodes, 64 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per node, (4) 2m SAS cables, (4) node link cables, (1) mounting rail kit, and power cords

The upgrade node pair includes built-in Gigabit Ethernet ports for management and Remote Copy over IP.

HP 3PAR StoreServ 7450 Upgrade Controller Node Pair

Use the HP 3PAR StoreServ 7450 Upgrade Node Pair to convert an existing previously installed HP 3PAR StoreServ 7450 2-node

Storage Base into a 4-node configuration.

C8R36A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 11

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

Step 2 - Choose Host Adapter

Host adapters can be ordered separately to be installed in the field or they can be factory configured into controller nodes. Host adapter cards provide the array with additional FC ports or with 10Gb/sec iSCSI/FCoE ports. The additional FC ports can be used for connection to hosts or used to connect to other HP 3PAR StoreServ Storage systems in a Remote Copy relationship. The iSCSI/FCoE ports permit host connection in iSCSI and FCoE environments.

NOTE: Host adapters used with HP 3PAR StoreServ 7450 are the same as the ones used with HP 3PAR StoreServ 7000 family.

HP 3PAR StoreServ 7000 Host Adapters

HP 3PAR StoreServ 7000 4-port 8Gb/sec Fibre Channel Adapter

HP 3PAR StoreServ 7000 2-port 10Gb/sec iSCSI/FCoE Adapter

Used in the Storage Base products (C8R35A, and C8R37A) and the Upgrade Node

Pair (C8R36A).

Because the Storage Base products and the Upgrade Node Pair include built-in FC ports, the host adapter cards are optional.

QR486A and QR487A include one adapter card each. Adapters must be purchased in pairs.

The QR486A includes (4) 8 Gb/s shortwave FC SFPs and the QR487A includes (2) 10

Gb/s SFPs.

Each node in a node pair (a node pair is composed of the two controller nodes in a single 2U enclosure) must have the same number and type of adapters. FC and iSCSI/FCoE adapters may not be intermixed in a node pair.

The 4 ports of the FC adapter can be individually configured to connect to a host or to a remote array in an RC configuration.

The two ports of the iSCSI/FCoE adapter can be individually configured by the user as iSCSI or FCoE.

QR486A

QR487A

Permitted Adapter Configurations

Product Nodes

C8R35A

Node 0

Node 1

C8R36A

C8R37A

Node 2

Node 3

Node 0

Node 1

Node 2

Node 3

A*

Empty

Empty

Empty

Empty

Empty

Empty

Empty

Empty

B*

FC

FC

FC

FC

FC

FC

Empty

Empty

C* iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE

Empty

Empty

D

Empty

Empty

FC

FC

E

Empty

Empty iSCSI/FCoE iSCSI/FCoE

F *

FC

FC iSCSI/FCoE iSCSI/FCoE

G iSCSI/FCoE iSCSI/FCoE

FC

FC

H *

FC

FC

FC

FC

* Factory default configurations for given quantities of adapters.

NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are purchased as the built in ports will not offer sufficient connectivity.

I * iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 12

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

Step 3 - Choose Drive Enclosures

Add drive enclosures to expand the configuration and to add large form factor drives to the configuration. Drive enclosures can be ordered separately for installation in the field, or they can be factory configured in a rack. Drive enclosures are optional. Because the

Storage Base products and the Upgrade Node Pair include small form factor drive bays, the minimum configuration does not require any additional drive enclosures. For larger configurations, attach drive enclosures. Each drive enclosure includes 24 drive bays. The HP

3PAR StoreServ 7450 supports up to four (4) added drive enclosures per node pair. The two drive enclosure types can be intermixed in a single array.

NOTE: Drive enclosures used with HP 3PAR StoreServ 7450 are the same as the ones used with HP 3PAR StoreServ 7000 family.

HP M6710 2.5 inch 2U SAS Drive Enclosure

Drive Enclosures

HP M6720 3.5 inch 4U SAS Drive Enclosure

HP M6710 2.5 inch 2U SAS Drive Enclosure

HP M6720 3.5 inch 4U SAS Drive Enclosure

Each drive enclosure includes 24 drive bays, (2) IO modules, (2) 1m SAS cables,

(1) mounting rail kit, and power cables.

The M6710 2U drive enclosure provides 24 SFF drive bays arranged in a single row.

The M6720 4U drive enclosure provides 24 LFF drive bays, arranged in four (4) columns of six (6) slots each.

Minimum of zero (0) drive enclosures, maximum of four (4) attached to C8R35A.

Minimum of zero (0) drive enclosures, maximum of (8) attached to C8R37A.

Drive enclosures are connected in daisy chains from the SAS ports of the controller nodes.

The best practice is to balance the drive enclosures across the SAS ports, remembering that the controller node enclosures include (24) drives attached to the SAS port labeled DP-1.

The best practice when including LFF and SFF drive enclosures in the same array is to arrange them in the rack so that all of the 2U enclosures that belong to one node pair are together and all of the 4U enclosures for that node pair are together. When connecting the backend SAS cables, intermix the M6710 and

M6720 enclosures on each SAS port.

With a four node configuration, the best practice is to attach the same number of drive enclosures to each node pair.

To achieve highest availability in multi-enclosure configurations, configure a minimum of two (2) enclosures per node pair for RAID 1, a minimum of four (4) enclosures per node pair if RAID 5 is included, and a minimum of three (3) enclosures per node pair if RAID 6 is included. Include enclosures containing node pairs in the count with the M6710 enclosures.

Drive bays that are not filled with a drive must be covered with a drive blank to preserve proper air flow.

If future capacity upgrades are expected, include enough Drive Enclosures so that there are some empty bays in each enclosure after all drives are added.

QR490A

QR491A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 13

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

Step 4 (a) - Choose Encryption (if needed)

At the time of initial system purchase, it must be decided if that system is supposed to be an encrypted system. Encryption functionality, once turned ON, cannot be turned OFF on a given StoreServ system. If an encrypted system is desired, only encrypted drives shall be included on the order along with the encryption LTU.

The HP 3PAR StoreServ Data Encryption enables the encryption for all the data that is stored on the internal drives of the 3PAR

StoreServ Storage. The 3PAR Encryption solution encrypts the data so that data cannot be read off a drive that is removed from the

3PAR Storage. In the event of a failure of the drive or the theft of a drive, the proper authentication key is required to be entered to gain access to the data stored within the drive. This method of encryption allows the user the comfort knowing all data contained on the drive is protected against internal and external risks. Organizations within the healthcare industry, financial services and public sectors are increasingly required to protect their sensitive information (patient records, personal identifying information, and intellectual property) from threats like unauthorized insider access, accidental disclosure, or theft.

NOTE: Encryption Drives used with HP 3PAR StoreServ 7450 are the same as the ones used with HP 3PAR StoreServ 7000 family.

HP 3PAR StoreServ Data Encryption

HP 3PAR StoreServ 7450 Data at Rest Encryption LTU BC985A

HP 3PAR StoreServ 7450 Data at Rest Encryption E-LTU

HP 3PAR StoreServ M6710 400GB 6Gb SAS SFF(2.5-in) MLC Encrypt Solid State Drive

BC985AAE

C8R57A

A StoreServ system can either have encrypted or non-encrypted drives, not a mixture of both. So, if encrypted drive(s) listed above have been chosen for a configuration, you may skip directly to step 5.

All configuration rules listed under step 4 (b) apply to an encrypted system as well.

Only one data encryption license (LTU) is required to enable encryption on a 3PAR StoreServ system.

Once encryption is enabled on the 3PAR StoreServ Storage, it cannot be disabled.

The local key manager is included in the 3PAR Inform OS. There is not a separately orderable partnumber for the local key manager

Step 4 (b) - Choose Drives

Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Unlike other

HP 3PAR StoreServ Storage systems where drives are sold in magazines of four, HP 3PAR StoreServ 7000 drives are sold as single drives. Note that these drives are only compatible with the M6710 and M6720 drive enclosures.

NOTE: SSD Drives used with HP 3PAR StoreServ 7450 are the same as the ones used with HP 3PAR StoreServ 7000 family.

HP 3PAR StoreServ 7000 SAS SSD Drives

HP M6710 100GB 6G SAS SFF (2.5-inch) SLC Solid State Drive

HP M6710 200GB 6G SAS SFF (2.5-inch) SLC Solid State Drive

HP M6720 100GB 6G SAS LFF (3.5-inch) SLC Solid State Drive

HP M6720 200GB 6G SAS LFF (3.5-inch) SLC Solid State Drive

HP 3PAR StoreServ M6710 400GB 6Gb SAS SFF(2.5in) MLC Solid State Drive

HP 3PAR StoreServ M6720 400GB 6Gb SAS LFF(3.5in) MLC Solid State Drive

HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive

HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive

HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive

QR502A

QR503A

QR506A

QR507A

QR504A

QR508A

E7W54B

E7W55B

E7W24B

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 14

QuickSpecs

Configuration

HP 3PAR StoreServ 7450 Storage

HP 3PAR StoreServ M6720 920GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive

HP 3PAR StoreServ M6710 1.92TB 6G SAS SFF(2.5in) cMLC 5yr Wty Solid State Drive

The minimum recommended initial quantity is eight (8) drives * per node pair

Minimum upgrade quantity is 4 drives per node pair or 2 drives per enclosure, whichever is larger. Best practice is to run Autonomic Rebalance (also known as tunesys) after adding the drives.

All node enclosures must contain either zero (0) or an even number of drives. All drive enclosures must contain an even number of drives, with a minimum of two.

Minimum raw capacity is 0.8TB per node pair.

Best practice is to add equal numbers of drives to all enclosures compatible with the drive type being added.

With a four node configuration, the best practice is to attach the same number and type of drives to each node pair.

Small Form Factor (SFF)-specific configuration practices

SFF drives may be loaded into the Storage Base enclosures, the Upgrade

Node Pair enclosure and the M6710 drive enclosure.

SFF drives must be loaded in pairs of identical drives, beginning with the leftmost slot, slot 0, and filling to the right, leaving no empty slots between drives.

Large Form Factor (LFF)-specific configuration practices

LFF drives may be loaded into the M6720 drive enclosure.

LFF drives must be loaded in pairs of identical drives starting at the bottom of a column, leaving no empty slots between drives in the column.

It is permitted to have empty columns between columns containing drives.

Different columns do not have to contain the same number of drives.

An all LFF drive configuration is permitted, leaving the Storage Base

Enclosure empty.

SSD specific configuration practices

SSD-only configurations are permitted.

Maximum of 120 SSDs per node pair.

The SFF and LFF SSDs allow the user to create SSD volumes that stripe across SFF and LFF enclosures.

* 8 drives support RAID 1 and RAID 5. For RAID 6 choose 12 drives.

E7W25B

E7Y57A

Step 5 - Choose Service Processor Implementation

The HP 3PAR Service Processor monitors the HP 3PAR StoreServ 7450 and enables remote monitoring and remote servicing of the array. The key capabilities of the Service Processor is to:

Enable rapid, proactive response to issues

Provide a secure communication channel between the customer's data center and HP 3PAR Central for:

Remote Online Software Upgrade; upgrade software with no application disruption

Remote Diagnostics; key diagnostic information maintained centrally on a historical basis

Remote Serviceability; provides fast predictive response and remediation

Each HP 3PAR StoreServ 7000 requires its own Service Processor. The Service Processor functions as the communication interface between a customer's IP network and HP 3PAR Central by managing all service-related communications. The Service Processor leverages the industry-standard HTTP over Secure Sockets Layer (HTTPS) protocol to secure and encrypt data communication.

Virtual Service Processor

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 15

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

The Service Processor can be deployed either as a Virtual Service processor or a Physical Service Processor. A Virtual Service Processor

(VSP) is included free with the 3PAR Base Operating System. The Virtual Service Processor can be installed on a that is provided by the customer before installation that, meet the following specifications:

VMware vSphere 4.1 and above

Server listed in VMware Compatibility Guide and with the following features

1GB RAM (minimum for the VSP Virtual Machine)

320GB free disk space (NOTE: Virtual SP storage must not reside on the array it is managing.)

DVD ROM or DVD RW

1Gb Ethernet port

The customer must provide any hardware required to host the remote support software when deploying a Virtual Service Processor.

For scheduled service calls, the customer shall make the Virtual Service Processor available to HP for remedial activities at the agreedupon time. The customer is responsible for maintaining the appropriate HP 3PAR Remote Support Technology with a secure connection to HP and any passwords required to access the local network and Virtual Service Processor. The customer is responsible for providing all necessary resources in accordance with the HP 3PAR Service Processor Release Notes in order to enable the delivery of the service and options. Please contact a local HP representative for further details on requirements, specifications, and exclusions.

Physical Service Processor

If a physical Service Processor is desired, order the following product:

HP 3PAR 7000 Service Processor QR516B

The physical Service Processor is a dedicated storage appliance located within the storage rack providing close proximity to the HP

3PAR StoreServ 7000 Storage. The physical Service Processor is fully supported and maintained by HP Services. The physical Service

Processor has serial port connectivity that provides maintenance access for trouble shooting capabilities. If a VMware server is not available to run the virtual Service Processor, the physical Service Processor is the alternative choice for remote monitoring and remote service.

HP 3PAR Policy Server

HP 3PAR Policy Server works to implement customer-configurable remote service access policies. Installed on a customer-provided host, Policy Server provides the customer with ultimate flexibility and control to allow or deny outbound communication or remote service connections to and from an HP 3PAR StoreServ Storage system. Policy Server also serves as the centralized point for collecting and storing audit logs of all diagnostic data transfers and authorized remote service connections to and from all configured HP 3PAR Storage systems. HP 3PAR Policy Server provides the following benefits:

The customer has complete control over policy administration.

A centralized policy administration for all HP 3PAR Storage systems is provided.

A centralized audit log to facilitate security audits is provided.

HP 3PAR Policy Manager Software LTU TE400B

Step 6 - Choose Cables for host connection and remote copy connection

The optical cables listed below support 8 Gb/s FC and 10 Gb/s iSCSI/FCoE for host connect (FC and iSCSI/FCoE) and for Remote Copy connections (FC only). The copper1GbE cables are used for Remote Copy over IP and for connection to the Management Port.

Cables

FC and 10GbE

HP 3PAR 4m 50/125 (LC-LC) Fiber Cable QL281B

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 16

QuickSpecs

Configuration

1GbE

HP 3PAR 6m 50/125 (LC-LC) Fiber Cable

HP 3PAR 10m 50/125 (LC-LC) Fiber Cable

HP 3PAR 25m 50/125 (LC-LC) Fiber Cable

HP 3PAR 50m 50/125 (LC-LC) Fiber Cable

HP 3PAR 100m 50/125 (LC-LC) Fiber Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

HP 4.3m/14ft CAT5 RJ45 M/M Ethernet Cable

HP 7.6m/25ft CAT5 RJ45 M/M Ethernet Cable

HP 15.2m/50ft CAT5 RJ45 M/M Ethernet Cable

HP 3PAR StoreServ 7450 Storage

QR631A

QL266B

QR593A

QL267B

QL268B

QK732A

QK733A

QK734A

QK735A

QK736A

QK737A

C7536A

C7537A

C7542A

Step 7 - Choose Racking Options

The HP 3PAR StoreServ 7450 is compatible with most industry standard 4-post EIA 19 inch racks with square mounting holes, including the HP Intelligent Series Rack and the HP 10000 G2 Series Rack. The HP 3PAR StoreServ 7450 can be factory configured and shipped in a rack or shipped without a rack for field integration into an existing rack. The rack used for factory integration is the HP Intelligent

Series Rack.

HP Rack and Rack Options

Factory Integration

Primary Configuration

Rules

Select a rack to house your HP 3PAR StoreServ 7450.

NOTE: The HP Intelligent Series Rack is the only series supported for factory configuration.

The HP 3PAR StoreServ 7450 will be configured into an HP Intelligent Series Rack with the appropriate power distribution units (PDUs). If other products such as servers or back-up products are included in the cab, a different PDU will be added (if required) or can be chosen from a list of appropriate offerings shown in the configuration tool. The

HP Intelligent Series Rack must be purchased for factory configuration. Additional 3PAR

StoreServ 7450 controller node enclosures and drive enclosures may be ordered for multiple subsystem integration at the factory.

The 3PAR StoreServ 7450 is also supported in HP 10000 G2 Series racks for field installation.

When calculating available U-space, assume that no space will be placed between the mounted components. For redundancy, order PDUs in quantities of two. Refer to the

Configuration and User Guide in the Information Library at the Rack Solutions webpage.

HP Intelligent Series

Racks

NOTE: The number of components that will fit in a rack varies and is determined by the interior U-space of the rack.

HP 647 1075mm Shock Intelligent Series Rack

HP 47U 1075mm Side Panel Kit

HP 642 1075mm Shock Intelligent Series Rack

HP 42U 1075mm Side Panel Kit

BW912A

BW915A

BW904A

BW906A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 17

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

HP PDU Pivot Kit

Performance Optimized

Data Centers

Non-HP rack and power requirements

HP 636 1075mm Shock Intelligent Series Rack

HP 36U 1075mm Side Panel Kit

HP 622 1075mm Pallet Intelligent Series Rack (22U) (available in a later release)

For more information on the HP rack offerings, please see the following URL: http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html

.

For more information on rack options, see: http://www.hp.com/products/rackoptions .

For more information on PDUs, see: http://h18004.www1.hp.com/products/servers/proliantstorage/powerprotection/pdu.html

.

HP EVA PDU Pivot Kit

Used to reclaim 2U of space in an HP Intelligent Series Rack with HP 3PAR StoreServ

7000 configurations. This kit allows the PDUs to be placed in the back of the rack without requiring any rack U space.

NOTE: The use of the PDU Pivot Kit is strongly recommended and is the default option when orders are configured, as it will save 2U of valuable rack space.

NOTE: 0D1 will appear after this part number to indicate factory integration where appropriate.

HP 3PAR StoreServ 7450 Storage is qualified for use in HP Performance Optimized Data

Centers. Go to www.hp.com/go/POD for more information.

The Storage Bases, the Upgrade Node Pair, and the Drive Enclosures include mounting rails that are compatible with industry standard 4-post EIA 19 inch racks with square mounting holes. For detailed information on determining compatibility of a non-HP rack, please review the information included in the HP 3PAR StoreServ 7450 User Guide.

BW896A

BW898A

BW893A

AG730A

Expansion Options

HP provides a variety of SAS cable kits to allow expansion of the HP3PAR StoreServ 7450. Note that the Storage Base products, the

Upgrade Node Pair and the Drive Enclosures all include SAS cables. Most configurations will not require a SAS expansion cable kit.

SAS expansion cable kit

HP 6 Meter Expansion Cable Kit AP879A

If an HP 3PAR StoreServ 7450 needs to be expanded into an adjacent rack, one 6 meter

SAS expansion cable kit is required for every node pair that must access drive enclosures in the expansion rack. Each 6 meter SAS expansion cable kit contains four 6 meter SAS cables.

HP 2 Meter Expansion Cable Kit f an HP 3PAR StoreServ 7450 needs to be expanded within the same rack, but the new drive enclosure must be located some distance from the nearest existing drive enclosure within the same rack, one or two 2 meter SAS expansion cable kits is needed, depending on configuration. Each 2 meter SAS expansion cable kit contains two 2 meter

SAS cables.

HP 1 Meter SAS Expansion Cable Kit

The 1 meter SAS expansion cable kit is provided for cases where a shorter SAS cable is required. Each 1 meter SAS expansion cable kit contains two 1 meter SAS cables.

NOTE: The 2-node Storage Bases and Upgrade Node Pair come with four 2 meter SAS cables each and the 4-node Storage Base comes with eight 2 meter SAS cables. The

Drive Enclosures come with two 1 meter SAS cables each.

AW566A

QR514A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 18

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

Step 8 - Choose Software

HP provides an extensive selection of features for HP 3PAR StoreServ Storage. All of the features available on the HP 3PAR StoreServ

10000 Storage system are also available on the HP 3PAR StoreServ 7450 Storage system, the result of a common architecture that spans from small and medium businesses to the largest global enterprise. For convenient ordering, the 3PAR StoreServ 7450 provides the features in Suites.

Two types of software licensing methods are employed with the HP 3PAR StoreServ 7450. Some software titles are licensed per system; other titles are licensed by drive. With system-based licensing one license covers the whole array, independent of configuration or capacity. Drive-based licensing, in contrast, is licensed per installed drive. A software title with drive-based licensing includes two Licenses to Use (LTU), a Base LTU that enables the software feature for the system and a Drive LTU that licenses the use of one drive. For each software title, purchase one Base LTU per title per array, and one Drive LTU, for every drive, that is installed in the array, independent of drive type.

For more information regarding HP 3PAR software see http://h18006.www1.hp.com/storage/solutions/3par/software.html

.

HP 3PAR 7450 Operating System Software Suite (Required)

HP 3PAR OS SW Suite -

3PAR Operating System,

System Setup, and

Management Software

HP 3PAR 7450 Operating System Software Suite is the foundation software of HP 3PAR

StoreServ 7450 Storage, combining advanced virtualization capabilities with simple storage management, high efficiency, and world class performance. The included comprehensive thin provisioning capabilities allow your storage to start thin, get thin and stay thin. System Tuner and Autonomic Rebalance help maintain high performance over time. Migrating your existing data from HP EVA, EMC CX4 or EMC VNX Storage and

3PAR systems to HP 3PAR StoreServ 7450 is easy with the included 180 day Online

Import license. HP 3PAR SmartStart Software, included in the suite, guides you through the configuration of the service processor, HP 3PAR StoreServ Storage and the application hosts - making storage setup quick and easy. HP 3PAR 7450 Operating

System Software Suite is a required purchase. It uses drive-based licensing. For more information see www.hp.com/go/3PAR .

HP 3PAR 7450 Operating System Software Suite Base Media LTU

HP 3PAR 7450 Operating System Software Suite Base E-LTU

HP 3PAR 7450 Operating System Software Suite Drive LTU

HP 3PAR 7450 Operating System Software Suite Drive E-LTU

HP 3PAR 7450 Replication Software Suite

HP 3PAR 7000 Replication

Software Suite - Local

Replication, Remote

Replication and

Transparent Failover

The HP 3PAR Replication Software Suite offers automatic replication, transparent failover and Point-in-Time (PIT) copies enabling seamless disaster recovery for critical data. These features provide an agile, efficient and simple solution to protect against the unpredictable. This suite is ideal for virtualized data centers demanding data availability and business continuity 24x7. HP 3PAR 7450 Replication Software Suite consists of HP 3PAR Remote Copy Software, HP 3PAR Peer Persistence Software and

HP 3PAR Virtual Copy Software, which are also available separately. Replication

Software Suite uses drive-based licensing. For more information see

NOTE: The Peer Persistence feature provides transparent failover in VMware cluster environments and requires the Remote Copy feature as a prerequisite.

HP 3PAR 7450 Replication Software Suite Base LTU

HP 3PAR 7450 Replication Software Suite Base E-LTU

BC890B

BC890BAE

BC891A

BC891AAE

BC892A

BC892AAE

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 19

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

HP 3PAR 7450 Replication Software Suite Drive LTU BC893A

HP 3PAR 7450 Replication Software Suite Drive E-LTU

NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are purchased as the built in ports will not offer sufficient connectivity

BC893AAE

HP 3PAR 7450 Security Software Suite

HP 3PAR 7000 Security

Software Suite

HP 3PAR 7450 Security Software Suite provides secure administrative segregation of users and hosts, allowing individual user groups and applications to confidently share a

3PAR StoreServ 7450 system. It also allows you to secure volumes and copies so they cannot be deleted, even by a 3PAR StoreServ 7450 user with the highest level privileges. When coupled with reservationless, non-duplicative, read-only virtual copies

(snapshots), the Virtual Lock feature enables you to retain frozen, point-in-time copies of your data to assist internal data retention and simplify compliance with internal governance procedures. HP 3PAR 7450 Security Software Suite consists of HP 3PAR

Virtual Domains Software and HP 3PAR Virtual Lock Software, which are also available separately. Security Software Suite uses drive-based licensing.

HP 3PAR 7450 Security Software Suite Base LTU

HP 3PAR 7450 Security Software Suite Base E-LTU

HP 3PAR 7450 Security Software Suite Drive LTU

HP 3PAR 7450 Security Software Suite Drive E-LTU

HP 3PAR 7450 Data Optimization Software Suite

HP 3PAR 7450 Data

Optimization Software

Suite - Rebalance,

Redistribute, and Refresh

The HP 3PAR 7450 Data Optimization Software Suite makes sure that data is on the right storage asset at the right time. This suite rebalances, redistributes and refreshes storage non-disruptively with features that provide autonomic storage tiering and dynamic data mobility, reducing cost and increasing agility. HP 3PAR 7450 Data

Optimization Software Suite consists of HP 3PAR Priority Optimization , HP 3PAR

Dynamic Optimization, HP 3PAR Adaptive Optimization and HP 3PAR Peer Motion

(providing federation capability for data mobility), which are also available separately.

Data Optimization Software Suite uses drive-based licensing. For more information see

NOTE: The Adaptive Optimization feature requires HP 3PAR Reporting Software Suite as a prerequisite.

HP 3PAR 7450 Data Optimization Software Suite V2 Base LTU

HP 3PAR 7450 Data Optimization Software Suite V2 Base E-LTU

HP 3PAR 7450 Data Optimization Software Suite V2 Drive LTU

HP 3PAR 7450 Data Optimization Software Suite V2 Drive E-LTU

HP 3PAR 7450 Reporting Software Suite

HP 3PAR Reporting

Software Suite -

Historical Performance and Capacity

Management Tool

The HP 3PAR 7450 Reporting Software Suite includes System Reporter, a historical performance and capacity management tool for storage reporting, monitoring, and troubleshooting. Also included is 3PARInfo, a command line tool that allows you to view

HP 3PAR StoreServ Storage configuration information. Reporting Software Suite uses system-based licensing. For more information see

HP 3PAR 7450 Reporting Software Suite LTU

HP 3PAR 7450 Reporting Software Suite E-LTU

HP 3PAR Application Software Suite for Oracle

BC908A

BC908AAE

BC909A

BC909AAE

BD272A

BD272AAE

BD273A

BD273AAE

BC914B

BC914BAE

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 20

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

HP 3PAR Application

Software Suite for Oracle

- Application Protection

The HP 3PAR Application Software Suite for Oracle provides everything you need for protecting Oracle databases, including Recovery Manager for Oracle and Oracle Space

Reclamation capabilities. Recovery Manager for Oracle is an extension to 3PAR Virtual

Copy that intelligently creates, manages, and presents time-consistent snapshot images of Oracle® databases for rapid application recovery, near-continuous data protection, data sharing, and non-disruptive backup. Application Software Suite for

Oracle uses system-based licensing. For more information see.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP 3PAR Replication Software Suite.

HP 3PAR 7450 Application Software Suite Oracle Media LTU

HP 3PAR 7450 Application Software Suite for Oracle E-LTU

HP 3PAR Application Software Suite for SQL

HP 3PAR Application

Software Suite for SQL -

Application Protection

The HP 3PAR Application Software Suite for SQL protects Microsoft® SQL databases with Recovery Manager for Microsoft® SQL and the 3PAR VSS Provider software. 3PAR

Recovery Manager for Microsoft® SQL Server is an extension to 3PAR Virtual Copy that eases costs and administration by providing rapid, affordable online recovery of

Microsoft® SQL Server databases from multiple, highly granular point-in-time snapshots. Quickly recover a database to a known point in time, speeding up a variety of operations including rapid recovery of the production SQL server. Application

Software Suite for SQL uses system-based licensing. For more information see

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP 3PAR Replication Software Suite.

HP 3PAR 7450 Application Software Suite SQL Media LTU

HP 3PAR 7450 Application Software Suite for SQL E-LTU

HP 3PAR Application Software Suite for Exchange

HP 3PAR Application

Software Suite for

Exchange - Application

Protection

The HP 3PAR Application Software Suite for Exchange provides you the essentials for protecting your Microsoft Exchange data, including Recovery Manager for Exchange and the VSS Provider software. Recovery Manager for Exchange is an extension to 3PAR

Virtual Copy that intelligently creates and manages snapshots that can be used to quickly restore Exchange instances or databases (or non-disruptively back them up to tape) for near-continuous data protection. Application Software Suite for Exchange uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/as-exchange/index.html

.

BC918B

BC918BAE

BC917B

BC917BAE

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP 3PAR Replication Software Suite.

HP 3PAR 7450 Application Software Suite Exchange Media LTU

HP 3PAR 7450 Application Software Suite for Exchange E-LTU

HP 3PAR Application Software Suite for VMware

HP 3PAR Application

Software Suite for

VMware - Application

Protection

The HP 3PAR Application Software Suite for VMware provides everything you need to make your VMware environment more agile and efficient-including Recovery Manager for VMware, Host Explorer for VMware, VASA support, and three essential plug-ins: the

VMware Site Replication Manager (SRM) Adapter, the 3PAR VAAI plug-in, and the 3PAR management plug-in for VMware View. Application Software Suite for VMware uses system-based licensing. For more information see.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in

BC916B

BC916BAE

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 21

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration the HP 3PAR Replication Software Suite.

HP 3PAR 7450 Application Software Suite VMware Media LTU

HP 3PAR 7450 Application Software Suite for VMware E-LTU

HP 3PAR Application Software Suite for Microsoft Hyper-V

HP 3PAR Application

Software Suite for Hyper-

V - Application Protection

The HP 3PAR Application Software Suite for Hyper-V provides you the essentials for protecting your Microsoft Hyper-V environment, including Recovery Manager for Hyper-

V and the VSS Provider software. Recovery Manager for Hyper-V is an extension to

3PAR Virtual Copy that intelligently creates and manages snapshots that can be used to quickly restore Hyper-V VMs (or non-disruptively back them up to tape) for nearcontinuous data protection. Application Software Suite for Hyper-V uses system-based licensing.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP 3PAR Replication Software Suite.

HP 3PAR 7450 Application Software Suite for Hyper-V Media LTU

HP 3PAR 7450 Application Software Suite for Hyper-V E-LTU

HP Cluster Extension Software

HP Cluster Extension

Software- High

Availability

HP Cluster Extension Software (CLX) offers protection against application downtime from fault, failure, or site disaster by extending a local cluster between data centers over metropolitan distance. CLX reinstates critical applications at a remote site within minutes or seconds after an adverse event. CLX integrates with the OS clustering software (such as MS Cluster Service in Windows) and the remote mirroring software on storage (such as HP 3PAR Remote Copy Software on HP 3PAR systems) to automate failover and failback between sites. This dual integration enables the cluster service to verify the status of the storage as well as the server cluster; thus allowing the correct failover and failback decisions to be made which minimize downtime, and accelerates recovery without human intervention. Thus the Cluster Extension Software can help customers achieve 'zero' RPO and RTO in minutes or seconds. For more information, including how Cluster Extension Software is licensed, see http://h18006.www1.hp.com/storage/software/ces/index.html

.

BC915B

BC915BAE

BD190B

BD190BAE

Step 9 - Choose Options for Storage Networking

HP's comprehensive portfolio of Storage Area Network infrastructure products and solutions are designed to meet a range of storage networking needs from small and midsized businesses to the largest corporate enterprises. HP StoreFabric storage networking SAN

Solutions deliver scalability, performance, and broad interoperability required for critical data and applications.

For additional details on SAN infrastructure components and options and storage compatibility information, please visit: http://hp.com/go/san or select from the part numbers below.

Fibre Channel

Host Bus Adapters

Brocade Fibre Channel HBAs

HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter AP769B

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP 41B 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 42B 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

Emulex Fibre Channel HBAs

AP770B

AP767B

AP768B

HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter AJ762B

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 22

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP FC2142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP FC2242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

QLogic Fibre Channel HBAs

HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP FC1142SR 4Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP FC1242SR 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

Fibre Channel Switches HP B-series

8 Gb Fibre Channel Switches

HP 8/8 Base (0) e-port SAN Switch

HP 8/8 (8) Full Fabric Ports Enabled SAN Switch

HP 8/24 Base (16) Full Fabric Ports Enabled SAN Switch

HP 8/40 Base (24) Full Fabric Ports Enabled SAN Switch

HP 8/40 Power Pack+ (24) Full Fabric Ports Enabled SAN Switch

HP 8/80 Base (48) Full Fabric Ports Enabled SAN Switch

HP 8/80 Power Pack+ (48) Full Fabric Ports Enabled SAN Switch

16 Gb Fibre Channel Switches

HP SN3000B 16Gb 24-port/12-port Active Fibre Channel Switch

HP SN3000B 16Gb 24-port/24-port Active Fibre Channel Switch

HP SN6000B 16Gb 48-port/24-port Active Fibre Channel Switch

HP SN6000B 16Gb 48-port/48-port Active Fibre Channel Switch

HP SN6000B 16Gb 48-port/24-port Active Power Pack+ Fibre Channel Switch

HP SN6000B 16Gb 48-port/48-port Active Power Pack+ Fibre Channel Switch

8 Gb and 16 Gb Director Switches

HP SN8000B 8-Slot Power Pack+ SAN Backbone Director Switch

HP SN8000B 4-Slot Power Pack+ SAN Director Switch

HP SN8000B 4-Slot SAN Director Switch

HP DC SAN Backbone Director Switch

HP DC04 SAN Director Switch

HP DC04 Power Pack+ SAN Director Switch

FCoE, Extension and Embedded Switches

HP 1606 FCIP 4-pt Enabled 8Gb FC 2-pt Enabled 1GbE Base Switch

HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Full Switch

HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Power Pack+ Switch

HP 2408 FCoE 24-pt 10GbE 8-pt 8Gb FC Base Converged Network Switch

HP 2408 FCoE 24-10GbE 8-8Gb FC Power Pack+ Converged Network Switch

Brocade 8/12c SAN Switch for BladeSystem c-Class

Brocade 8/24c SAN Switch for BladeSystem c-Class

Brocade 8/24c Power Pack+ SAN Switch for BladeSystem c-Class

AM866B

AM867B

AM868B

AM869B

AM870B

AM871B

AM872B

QW937A

QW938A

QK753B

QR480B

QK754B

QR481B

QK710B

QK711B

QK712B

AK857C

AR478B

AR479B

AP862B

AP863B

AP864B

AP801B

AP802B

AJ820B

AJ821B

AJ822B

AJ763B

A8002B

A8003B

AK344A

AJ764A

AE311A

AE312A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 23

QuickSpecs

Configuration

HP 3PAR StoreServ 7450 Storage

HP H-series

HP 8/20q Fibre Channel 8-ports Active Switch

NOTE: 8 device ports active, upgradeable to 20 device ports active

HP 8Gb Simple SAN Connection Kit

NOTE: 8 device ports active, upgradeable to 20 device ports active

HP 8/20q Fibre Channel Switch

NOTE: 16 switch ports active, upgradeable to 20 device ports active

HP SN6000 Stackable 8Gb 24-port Single Power Fibre Channel Switch

NOTE: 20 device ports active/4 stacking (ISL) ports active

HP SN6000 Stackable 8Gb 24-port Dual Power Fibre Channel Switch

NOTE: 20 device ports active/4 stacking (ISL) ports active

HP SN6000 Stackable 12-port Single Power FC Switch

NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device ports active

HP C-series

HP SN8000C 13-Slot Supervisor 2A Fabric 3 Director Switch

HP SN8000C 6-Slot Supervisor 2A Director Switch

HP SN8000C 9-Slot Supervisor 2A Director Switch

HP SN6000C 8Gb 16-port Fibre Channel Switch

HP SN6000C 8Gb 32-port Fibre Channel Switch

Cisco MDS 8/12c Fabric Switch for HP BladeSystem c-Class

AQ233B

AK241B

AK242B

AW575B

AW576B

BK780B

QW927A

AE388C

AE389C

AW585A

AW586A

AW563A

HP Intelligent

Infrastructure

Analyzer Software (IIAS)

HP Intelligent

Infrastructure

Analyzer Software (IIAS)

HP Virtual Connect

PremierFlexOM4 cable options

Cisco MDS 8/24c Fabric Switch for HP BladeSystem c-Class

Cisco MDS 9124 8-ports Active Fabric Switch

Cisco MDS 9124 16-ports Active Fabric Switch

Cisco MDS 9222i Multiservice with 0 SFP Transceiver Modular Fabric Switch

HP Intelligent Infrastructure Analyzer Software LTU

HP Intelligent Infrastructure Analyzer Software E-LTU

An online monitoring and diagnostic solution intended to manage the physical layer of a

Storage Area Network (SAN) consisting of HP B-series and/or H-series Fibre Channel switches and directors. It uses industry-standard protocols (such as SNMP, SMI-S,

Telnet) to monitor the physical layer across the SAN and to diagnose changes/events in

Small Form-factor Pluggable (SFP) transceiver states/characteristics. It also presents the SAN topology, inventory and diagnostic information to the user in real-time.

HP 3PAR StoreServ 7000 Storage supports direct attach with HP Virtual Connect

FlexFabric. Please refer to SPOCK for HP Virtual Connect information.

http://h20272.www2.hp.com/index.aspx

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

AW564A

AG646A

AG647A

AG851B

TC400A

TC400AAE

QK732A

QK733A

QK734A

QK735A

QK736A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 24

QuickSpecs

Configuration

OM3 FC LC-LC cables options

HP 3PAR StoreServ 7450 Storage

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

QK737A

AJ833A

AJ834A

AJ835A

AJ836A

AJ837A

AJ838A

AJ839A

Step 10 - Federation / Data Migration

HP provides several ways to migrate your data from older arrays. Peer Motion provides federation with other 3PAR arrays, which includes the ability to migrate data to HP 3PAR StoreServ 7450 Storage.

(Peer Motion is part of the HP 3PAR 7450 Data Optimization Software Suite). Peer Motion Software is also available as a standalone license

HP 3PAR Peer Motion

Software

HP 3PAR 7450 Peer Motion Base LTU

HP 3PAR 7450 Peer Motion Drive LTU

BC906A *

BC907A *

* Insert AE at the end of a part number for an electronic LTU (XXXXXAAE). E-Delivery should be ordered with any Standalone or

Upgrade software order.

Online Import allows you to easily migrate data from HP EVA, EMC CX4 or EMC VNX Storage arrays to the HP 3PAR StoreServ 7450, a

180-day Online Import license is built into the HP 3PAR 7450 Operating System Software Suite. Additional licenses are available to order.

HP 3PAR Online Import

Software

HP 3PAR 7450 Online Import 180 day LTU BD195A *

* Insert AE at the end of a part number for an electronic LTU (XXXXXBAE). E-Delivery should be ordered with any Standalone or

Upgrade software order.

In addition HP supports the MPX200.

HP MPX200 Multi-protocol and Heterogeneous Data Migration

The HP MPX200 Multiprotocol Router provides support for HP 3PAR StoreServ 7000 and 10000 as well as 3PAR F/T, including 1GbE iSCSI and 10GbE iSCSI and FCoE target support. MPX200 iSCSI provides an alternative option for HP 3PAR storage systems if you don't want to dedicate native iSCSI ports on your array. The MPX200 also facilitates the sharing of iSCSI/FCoE connectivity simultaneously for HP 3PAR storage systems from the same MPX200. For Data Migration the MPX200 provides high performance migration from

P6000/EVA to HP 3PAR storage systems and simplifies Data Migration from third party storage such as IBM and EMC to HP 3PAR.The

MPX200 is an ideal solution enabler for HP 3PAR customers. http://www.hp.com/go/mpx200

MPX200 Multifunction

Router

HP MPX200 1GbE Base Multifunction Router AP771B

HP MPX200 Multifunction Router 1GbE Upgrade Blade

HP MPX200 10-1GbE Base Multifunction Router

AP772B

AP773B

HP MPX200 Multifunction Router 10-1GbE Upgrade Blade

HP 42B 4Gb 2-port PCIe Fibre Channel Host Bus Adapter

AP774B

AP768B

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 25

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

FCIP Software

HP MPX200 Half Chassis FCIP License

HP MPX200 Full Chassis FCIP License

Data Migration Software HP MPX200 1TB Full Chassis Data Migration License

HP MPX200 5TB Full Chassis Data Migration License

HP MPX200 Full Chassis 1 Array Data Migration License

TA766A

TA767A

TA762A

TA763A

TA764A

Step 11- Adding a File Controller

If file services are needed to on HP 3PAR StoreServ 7450 storage system, a file controller can be added. These models come with factory-installed drives and the Microsoft Windows Storage Server 2012 Standard Edition or Windows Storage Server 2012 R2

Standard Edition operating system pre-installed

Choose a Pre-configured Model

HP 3PAR StoreServ File Controller

Specifications

Operating System Microsoft Windows Storage Server 2012 R2, Standard

Processor

Memory

Intel® Xeon® E5-2609v2 (2.50GHz/4-core/10MB/80W) Processor

16 GB (4 x 4GB)

Storage Controller Smart Array P420i with 1 GB FBWC Controller with internal SAS port for O/S drives)

Internal Storage 2 x 300GB 6G SAS 10K 2.5" ENT hot-plug SFF HDDs (O/S mirror)

Expansion Slots

Network Ports

Form Factor

3 x PCIe (6 with option PCIe Riser)

4 x 1GbE

2U Rack

HP 3PAR StoreServ File Controller

Specifications

Operating System Microsoft Windows Storage Server 2012, Standard

Processor

Memory

Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor

16 GB (4 x 4GB)

Storage Controller Smart Array P420i with 1 GB FBWC Controller with internal SAS port for O/S drives)

Internal Storage 2 x 450GB 6G SAS 10K 2.5" ENT hot-plug SFF HDDs (O/S mirror)

Expansion Slots

Network Ports

Form Factor

3 x PCIe (6 with option PCIe Riser)

4 x 1GbE

2U Rack

Part Number

E7X02A

Part Number

C8S69A

Add a second processor

Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) Processor Kit

NOTE: For E7X02A only

Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor Kit

NOTE: For C8S69A only

715222-B21

662252-B21

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 26

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

Add More Memory

NOTE: HP recommends that you add the same type memory to the product that is shipped standard with the product.

NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8

Servers.

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low

Voltage Memory Kit

NOTE: For E7X02A only

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low

Voltage Memory Kit

NOTE: For C8S69A only

NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration

Tool: www.hp.com/go/ddr3memory-configurator .

NOTE: PC3L is a low voltage memory.

See the HP ProLiant Gen 8 QuickSpecs for information on memory configurations.

http://h18004.www1.hp.com/products/quickspecs/14212_div/14212_div.html

713981-B21

647893-B21

Add 3PAR StoreServ File Controller v2 Performance Kit

HP 3PAR StoreServ File Controller 1Gb Performance Kit

NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a 1GbE 4 port NC365T Adapter to the 3PAR File Controller v2

HP 3PAR StoreServ File Controller 10Gb Performance Kit

NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a 10GbE 2 port 560SFP+ Adapter to the 3PAR File Controller v2

E7X04A

E7X05A

Add additional options

NOTE: Multifunction Server Adapters support the installed Microsoft Windows Server Scalable Networking Pack, which enables TCP

Chimney offload, Receive-side Scaling (RSS), and Network Direct Memory Access (NetDMA) features.

HP Networking Gigabit Ethernet adapters

HP NC112T PCI Express Gigabit Server Adapter

HP NC365T 4-port Ethernet Server Adapter

HP Ethernet 1Gb 4-port 331T Adapter

HP Ethernet 1Gb 2-port 361T Adapter

HP Ethernet 1Gb 2-port 332T Adapter

10 Gigabit Ethernet Adapters

NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC523SFP 10Gb 2-port Server Adapter

HP Ethernet 10Gb 2-port 530SFP Adapter

503746-B21

593722-B21

647594-B21

652497-B21

615732-B21

593717-B21

652503-B21

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 27

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Configuration

HP Infiniband

HP Fibre Channel

HP Ethernet 10Gb 2-port 530T Adapter

HP Ethernet 10Gb 2-port 560SFP+ Adapter

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA

HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA

NOTE: For the following two InfiniBand Adapters, only 1 FlexibleLOM can be added to the server, which is selected in Step 2 for the "Configuration Information - Factory Integrated

Models" section. These two options are for upgrade or change from original configuration.

NOTE: FLR Indicates new HP FlexibleLOM Adapter series.

656596-B21

665249-B21

614203-B21

583211-B21

592520-B21

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544FLR-QSFP Adapter

HP Infiniband QDR/Ethernet 10Gb 2-port 544FLR-QSFP Adapter

HP InfiniBand FDR 2-port 545QSFP Adapter

NOTE: 10Gb Ethernet requires the use of the QSFP to SFP+ adapter P/N 655874-B21.

NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

649282-B21

649283-B21

702211-B21

HP Optical Drives

HP 12.7mm Slim SATA DVD-ROM JackBlack Optical Drive

HP 12.7mm Slim SATA DVD-RW JackBlack Optical Drive

HP I/O Expansion Options HP DL380p/385p/560 Gen8 3 Slot PCI-E Riser Kit

NOTE: When populating the second optional riser slot, the second processor must be installed.

652232-B21

652235-B21

653206-B21

HP Security

HP Trusted Platform Module Option

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption

(BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version

1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline.

For more information about TPM, including a white paper, go to: www.hp.com/go/TPM .

NOTE: The TPM key is unique to every TPM deployed server and must be retained.

Misplacing or losing the key could result in data loss.

488069-B21

HP 3PAR StoreServ File Controller is designed and optimized for connection to 3PAR StoreServ Storage and uses HBAs, rather than additional Storage Controllers.

NOTE: HBAs are not included standard. HBA selection is left as your choice based on existing SAN infrastructure.

Storage Fibre Channel HBA

NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000,

Windows Server 2003 and Linux, please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

Emulex Fibre Channel HBAs

AP770B

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

AJ763B

QR559A

C8R39A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 28

QuickSpecs

Configuration

HP 3PAR StoreServ 7450 Storage

QLogic Fibre Channel HBAs

HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

Converged Network Adapter

HP CN1100E Dual Port Converged Network Adapter

HP CN1000Q Dual Port Converged Network Adapter

HP StoreFabric CN1100R Dual Port Converged Network Adapter

AJ764A

QW972A

BK835A

BS668A

QW990A

Add a Power Cord

The HP 3Par StoreServ File Controller comes standard with at least one rack (IEC-IEC) PDU power cord. If you wish to use wall outlet power instead, you can choose a country- or region-specific power cord.

3Par StoreServ File

Controller

HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord AF556A

HP C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord

HP C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord

AF557A

AF558A

HP C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord

HP C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord

HP C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord

HP C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord

AF559A

AF560A

AF561A

AF562A

HP C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord

HP C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord

HP C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord

HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord

HP C13 - SI-32 IL 250V 10Amp 1.83m Power Cord

AF569A

AF565A

AF566A

AF568A

AF564A

HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord

HP C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord

HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord

HP C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord

AF571A

AF572A

AF570A

AF567A

AF591A

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 29

QuickSpecs

Features and Benefits

HP 3PAR StoreServ 7450 Product Dimensions, and Weight

Physical Dimensions

42U Intelligent Series

Rack

HP 3PAR StoreServ 7450

2-node Storage Base (no host adapters, no drives)

HP 3PAR StoreServ 7450

2-node Storage Base

(with two host adapters, no drives)

HP 3PAR StoreServ 7450

4-node Storage Base (no host adapters, no drives)

HP 3PAR StoreServ 7450

4-node Storage Base

(with four host adapters, no drives)

HP M6710 2.5 inch 2U SAS

Drive Enclosures (without drives)

HP M6720 3.5 inch 4U SAS

Drive Enclosures (without drives)

SFF SAS drive with carrier

Height in/mm/U

79.0/2006.6

3.46/87.95/2

3.46/87.95/2

6.925/175.9/4

6.925/175.9/4

3.46/87.95/2

6.89/175/4

3.42/86.85

**

Width in/mm

23.5/597.8

19/483

19/483

19/483

19/483

19/483

19/483

0.78/19.9

**

LFF SAS drive with carrier 1.18/30.0

** 4.36/110.84

**

* includes length of ejector handles

** includes RFI clips

Power Requirements

Input Voltage (VAC)

Frequency (Hz)

HP 3PAR StoreServ 7450 Storage

Depth in/mm

42.7/1125.2

26.6/676.1

*

26.6/676.1

*

26.6/676.1

*

26.6/676.1

*

24.8/630.7

24.9/631.4

896/227.7

8.67/220.26

Max Weight lb/kg

243/110 (empty)

47.7/21.6

48.7/22.1

97.8/44.4

99.8/45.3

33.5/15.2

42.9/19.5

0.7/0.32

(varies by type)

1.9/0.86

(varies by type)

100 - 240 VAC

50 - 60

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 30

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Features and Benefits

Component Idle

(watts / BTU/hr)

344 / 1173 Node Pair (7450), no drives, no add-on host adapters

4-port 8Gb/sec Fibre Channel Adapter 24 / 81.7

2-port 10Gb/sec iSCSI/FCoE Adapter

HP M6710 2.5 inch 2U SAS Drive Enclosure, no drives

34 / 115.8

150 / 512 (average)

HP M6720 3.5 inch 4U SAS Drive Enclosure, no drives

164 / 559 (average)

100GB SLC SSD

200GB SLC SSD

400GB MLC SSD

1.4 / 4.8

1.4 / 4.8

2.2 / 7.5

Environmental Specifications

Operating Temperature

Shipping Temperature

Altitude (ft/m) max.

Shipping Altitude (ft/m) max.

Humidity

Shipping Humidity

Operating Vibration

Non-operating Vibration

Operating Shock

Non-operating Shock

Maximum Air Flow

Electromagnetic Compatibility

Acoustics

Sound pressure level measured per ISO 7779 specifications during normal operating fan conditions, from a minimum of 4,000 RPM to a maximum of 10,000

RPM

Transactional

(watts / BTU/hr)

363 / 1238

32.6 / 111

40 / 136.4

150 / 512 (average)

164 / 559 (average)

2.2 / 7.5

2.1 / 7.2

3.7 / 12.6

41° to 104° F (5° to 40° C) - Reduce rating by 1° F for each 1000 ft altitude

(1.8° C/1,000 m)

32° to 140° F (0° to 60° C)

10,000 ft / 3,048 m

40,000ft/ 12,192 m

10% to 90% non condensing

10% to 90% non condensing

0.25 G, Sine, 5-500 Hz, 0.1 Grms, Random 10-100Hz

0.5 G, 5 - 500 Hz, Sine

2 G, 11ms, half-sine

10 G, 11ms, half-sine

Storage Base and Upgrade Node Pair - 109 CFM per enclosure

M6710 Drive Enclosure - 105 CFM

M6720 Drive Enclosure - 109 CFM

CISPR 22:2008/ EN55022:2010 Class A

CISPR 24:2010/ EN 55024:2010

IEC 61000-3-2:2005/ EN 61000-3-2:2006 +A1:2009 +A2:2009

IEC/ EN 61000-3-3:2008

AS/NZS CIPSR 22: 2009 Class A

CNS 13438:2006 Class A

47 CFR Part 15 Subpart b Class A

ICES-003 Issue 4 Class A

V-3/2012.04 Class A

RRA Notice No. 2011-24 (2011.12.23) Class A

RRA Notice No. 2011-25 (2011.12.23)

Fan Speed

(RPM)

Typical

Maximum

7450 2 node

Storage Base

72

93

7450

4 node

Storage Base

74

97

M6710 2.5"

2U SAS Drive

Enclosure

66

85

M6720 3.5"

4U SAS Drive

Enclosure

67

88

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 31

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Features and Benefits

Safety

Certifications / Markings

Typical operations assume 20 degrees centigrade ambient with a fan speed of 4000 RPM.

IEC 60950-1:2005 (2nd Edition)

EN 60950-1:2006 +A11:2009

EN 62479:2010

CNS 14336-1 2nd Edition

UL 60950-1 2nd Ed.

CAN/CSA C22.2 No. 60950-1 cTUVus Mark

TUV T-mark (EN 60950)

CE Mark

FCC Class A

IC Class A

VCCI Class A

BSMI Class A

KCC

GOST-R

C-Tick

WEEE

China RoHS

EU RoHS

NOTE: Specifications are subject to change without notice. Acoustics and power consumption for the node pair has been measured with Gold efficiency PCM.

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 32

QuickSpecs

Overview

HP 3PAR StoreServ 7450 Storage

HP 3PAR StoreServ File Controller v2 is a new converged storage capability on the HP 3PAR StoreServ Storage platform. It adds support for file services to the 3PAR StoreServ. The HP 3PAR StoreServ File Controllerv2 is designed to deliver efficient, secure, and highly available file capability that supports hundreds to thousands of concurrent users.

New 3PAR StoreServe File Controller v2

The HP 3PAR StoreServ File Controller v2 sets the standard for performance and expandability for file services for the 3PAR StoreServ platform. It leverages the 3PAR StoreServ Storage data services and extends the benefits to file workloads. Please refer to the respective sections for details on the data services.

Models

HP 3PAR StoreServ File Controller v2 (WSS2012 R2)

HP 3PAR StoreServ File Controller 1Gb Performance Kit

NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a

1GbE 4 port NC365T Adapter to the 3PAR File Controller v2

HP 3PAR StoreServ File Controller 10Gb Performance Kit

NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a

10GbE 2 port 560SFP+ Adapter to the 3PAR File Controller v2

HP 3PAR StoreServ File Controller (WSS2012)

E7X02A

E7X04A

E7X05A

C8S69A

Front View:

1.

2.

3.

4.

Quick removal access panel

Second Intel Processor

First Intel Processor

24 DIMM slots: DDR3 Registered (RDIMM), Load Reduced

(LRDIMM), or Unbuffered (UDIMM) memory

5.

Air Baffle

Rear View:

1.

2.

3.

4.

PCIe 3.0 Slots 1, 2, 3-PCIe 2.0 top to bottom

N/A

Power supply 1

Power supply 1 Power LED

5.

Power supply 1 Power connection (with Intelligent PDU communication)

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 33

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Overview

6.

Hot-plug fans, full N+1 redundancy 6.

Power supply 2 Power connection (with Intelligent PDU communication)

7.

8.

Health LED 7.

Power On /Standby button and system power LED button 8.

9.

USB connector

10.

Unit ID LED

9.

Power supply 2 Power LED

Power supply 2

Unit ID LED/Button

10.

USB connectors (4)

11.

Systems Insight Display

12.

Asset Tag

13.

USB connector

14.

Drive Bays

11.

Video connector

12.

iLO connector

13.

Serial connector

14.

FlexibleLOM ports (Shown: 4 ports 1Gb each /Optional: 2 ports 10Gb each)

15.

Optional Slim Optical Bay (SATA DVD-RW /ROM Optical

Drive)

16.

Video connector

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 34

QuickSpecs

Features and Benefits

HP 3PAR StoreServ 7450 Storage

Efficient: Save money and time

The HP 3PAR StoreServ File Controller v2 supports thousands users concurrently accessing their files.

Non-intrusive variable chunk de-duplication delivers an average 50-60% space savings, and included evaluation tool facilitates capacity planning.

Consolidate multiple diverse file protocols (NFS: v2, v3, v4.1 | SMB: 2.0, 2.1, 3.0 | WebDAV | FTP/FTPS |

HTTP/HTTPS) as well as IT services (e.g. print, DNS, DHCP) in a single platform.

Hosted BranchCache reduces your branch office WAN usage by automatically caching frequently accessed headquarter datacenter files.

Straightforward and consistent management experience that provides storage management for both file and block based workloads.

Bulletproof: Protect your data and organization always

Built in file system encryption and optional BitLocker Drive Encryption secures data at rest while SMB

Encryption protects data in flight.

File Classification Infrastructure facilitates sophisticated access controls and support for Active Directory

Rights Management Services protects files no matter where they go.

Effortless: Simple to

Manage and Monitor

Online snapshots enable users to directly recover files and prior file versions.

Broad support for onboard endpoint protection (antivirus) software eliminates the need to purchase additional external infrastructure.

Broad support for agent-based data protection enhances the ability to meet backup and recovery SLAs.

Turnkey clustered controller configurations with transparent failover for SMB and NFS provide continuous availability.

Cluster aware updates enable online maintenance.

File system online self-healing, online verification, and precise and rapid repair massively reduce downtime from file corruption.

HP Active Health System, mirrored OS disks, RAID for data disks, redundant fans and power, and advanced memory protection maximize uptime.

Three year onsite parts and labor warranty for the system, and one year of software telephone support.

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 35

QuickSpecs

Standard Features

Operating System

HP 3PAR StoreServ 7450 Storage

Microsoft Windows Storage Server 2012 R2, Standard Edition

Windows Storage Server 2012 R2 (WSS2012 R2) includes a robust range of file serving and storage capabilities. It addresses heterogeneous file workload environments and enables more efficient storage utilization. It allows for a flexible mix of configurations and includes advanced data management tools. WSS2012 leverages your Windows Server management skill sets and tools including Active Directory, PowerShell and System Center.

SMB 3.0: Leverage high performance continually available file shares to deliver feature-rich storage for continuously available file services, business-critical applications and virtual servers using advanced new functionality.

New VHDX Standard: Deploy larger capacity virtual storage that can grow to 16 terabytes, is more resilient against corruption, and provides more efficient usage of new 4 KB sector hard disks with the new VHDX virtual storage standard.

Live Storage Migration: Maintain maximized service-level availability even while moving virtual machine storage between host servers independent of the actual virtual machine.

SMB Multi-channel: Enable aggregation of network bandwidth and network fault tolerance when multiple paths are available between SMB clients and file servers.

NFS v4.1: For Windows Storage Server 2012 R2, Server for NFS has been updated to support continuous availability. These improvements make it possible to reliably store and run VMware ESX on a virtual machine that is running Windows Server 2012 by using the NFS protocol to share files.

Additional improvements in failover clustering take advantage of better resilience to hardware and software outages that may afflict individual cluster nodes. At the same time, failover clustering isolates VMware ESX hypervisor hosts from intermittent glitches during failovers.

Data Deduplication: Data deduplication enables Windows Storage Server 2012 R2 to store more data in less physical space and achieve storage efficiency that is significantly higher than was possible in previous releases of Windows Storage Server that used Single Instance Storage (SIS) or

NTFS file system compression. Data deduplication uses variable size chunking and compression, which deliver optimization ratios of 2:1 for general file servers and up to 20:1 for virtualization data. Evaluate your savings with the Deduplication Evaluation Tool.

Volume Shadow Copy Service: Creates point-in-time copies (snapshots) of files and folders at predetermined time intervals that can then be accessed from client computers.

VSS for Remote SMB File Shares: Leverage proven Volume Shadow Copy Service (VSS) to offload snapshot and backup operations to remote storage from VSS hardware providers within Hyper-V virtual machines.

Hosted Branch Cache: Using client/server architecture, Windows 7 and above client computers can cache content on the local network via the Hosted Cache running on the 3PAR StoreServ File

Controller. Other clients who need the same content retrieve it directly from the Hosted Cache.

DFS Namespaces: Enables you to group shared folders that are located on different servers into one or more logically structured namespaces. Each namespace appears to users as a single shared folder with a series of subfolders. However, the underlying structure of the namespace can consist of numerous file shares that are located on different servers and in multiple sites.

Distributed File System Replication (DFS-R): Enables you to efficiently replicate folders (including those referred to by a DFS namespace path) across multiple servers and sites. DFS Replication uses a compression algorithm known as remote differential compression (RDC). RDC detects changes to the data in a file, and it enables DFS Replication to replicate only the changed file blocks instead of the entire file.

Work Folders: With Work Folders users can store and access work files on personal computers and devices, often referred to as bring-your-own device (BYOD), in addition to corporate PCs. Users gain a convenient location to store work files, and they can access them from anywhere. Organizations maintain control over corporate data by storing the files on centrally managed file servers, and

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 36

QuickSpecs

Standard Features

HP 3PAR StoreServ 7450 Storage

optionally specifying user device policies such as encryption and lock-screen passwords. Work

Folders can be deployed with existing deployments of Folder Redirection, Offline Files, and home folders. Work Folders stores user files in a folder on the server called a sync share. You can specify a folder that already contains user data, which enables you to adopt Work Folders without migrating servers and data or immediately phasing out your existing solution.

File Server Resource Manager (FSRM): File Server Resource Manager is a set of features that allow you to manage and classify data that is stored on file servers. File Server Resource Manager includes the following features:

Storage reports: Storage reports are used to help you identify trends in disk usage and how your data is classified. You can also monitor a selected group of users for attempts to save unauthorized files.

File Classification Infrastructure: File Classification Infrastructure provides insight into your data by automating classification processes so that you can manage your data more effectively. You can classify files and apply policies based on this classification. Example policies include dynamic access control for restricting access to files, file encryption, and file expiration. Files can be classified automatically by using file classification rules or manually by modifying the properties of a selected file or folder.

File Management Tasks: File Management Tasks enables you to apply a conditional policy or action to files based on their classification. The conditions of a file management task include the file location, the classification properties, the date the file was created, the last modified date of the file, or the last time the file was accessed. The actions that a file management task can take include the ability to expire files, encrypt files, or run a custom command.

Quota management: Quotas allow you to limit the space that is allowed for a volume or folder, and they can be automatically applied to new folders that are created on a volume.

You can also define quota templates that can be applied to new volumes or folders.

File screening management: File screens help you control the types of files that user can store on a file server. You can limit the extension that can be stored on your shared files. For example, you can create a file screen that does not allow files with an MP3 extension to be stored in personal shared folders on a file server.

Initial Configuration Tasks Wizard: Simplifies and accelerates new device deployment by presenting basic system settings on your first boot.

Server Manager

Print Management Console: Manage multiple printers (license for unlimited printer support) from a single console, whether locally or over the WAN

Unlimited Client Access Licenses (CALs) included

NOTE: Windows Storage Server 2012 R2 and Windows Server 2012 R2 are built on the same code base.

Applications certified for Windows Server are expected to have the same application compatibility profile on Windows Storage Server. Windows Storage Server 2012 R2 and Windows Server 2012 R2 have the same application frameworks, services and plumbing to support running the full breadth of Windowcompatible applications. Applications that rely upon certain roles that are removed from Windows Storage

Server 2012 R2, such as fax server, active directory domain controller or terminal services will not be able to leverage those roles. Independent Software Vendors (ISVs) ultimately decide what versions and editions of Windows are supported by their products and users should review ISV compatibility and support information before purchasing. HP StoreEasy customers should review the End User License

Agreement (EULA) to see the types of applications that are permitted for installation. All versions of

Windows Storage Server can join Active Directory domains, but cannot be a domain controller.

More information on Windows Storage Server 2012 R2, Standard Edition can be found here: http://www.microsoft.com/en-us/server-cloud/windows-storage-server/default.aspx

http://technet.microsoft.com/en-us/library/jj643303

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 37

QuickSpecs

Standard Features

HP 3PAR StoreServ 7450 Storage

Processor / Cache Memory Intel® Xeon® E5-2609v2 (2.50GHz/4-core/10MB/80W) Processor (3PAR StoreServ File Controller v2)

Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor (3PAR StoreServ File Controller)

Memory

Type

Standard

DIMM Sockets

DDR3 Registered (RDIMM) standard

16GB (4 x 4GB)

24

Network Controller

NIC Ports

Controller

4

HP Ethernet 1Gb 4-port 331FLR Adapter

HP 3PAR StoreServ File Controller v2

Expansion Slots

Primary Riser

(Standard)

PCIe Riser

(Optional 3slot)

Expansion

Slots #

1

Technology Bus

Width

**

X16

Connector

Width

X16

Bus Number

*

Form Factor Notes

2

3

PCIe 3.0

PCIe 3.0

PCIe 2.0

X8

X4

X8

X8

7

10

13

Full Length, Full

Height Slot

Half Length,

Full Height Slot

Half Length,

Full Height Slot

Proc 1

Proc 1

Chipset

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number

** Indicates the number of physical electrical lanes running to the connector.

NOTE: When populating the second optional riser slot, the second processor must be installed.

NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (PN 669777-B21). See

Option Section below for offering.

Expansion

Slots #

Technology Bus

Width

**

Connector

Width

Bus Number

*

Form Factor Notes

4

5

6

PCIe 3.0

PCIe 3.0

PCIe 3.0

X16

X8

X4

X16

X8

X8

16

20

23

Full Length, Full

Height Slot

Half Length,

Full Height Slot

Half Length,

Full Height Slot

Proc 2

Proc 2

Proc 2

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number

** Indicates the number of physical electrical lanes running to the connector.

NOTE: When populating the second optional riser slot, the second processor must be installed.

NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (669777-B21). See

Option Section below for offering

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 38

QuickSpecs

Standard Features

Storage Controller

HP 3PAR StoreServ 7450 Storage

NOTE: HP 3PAR StoreServ File Controller includes a storage controller designed for internal drives housing the O/S mirror only; an HBA is required to address connectivity to the 3PAR StoreServ Storage array.

Controller(s) HP Smart Array P420i/1GB with FBWC

RAID Needed for internal drive mirror only

Storage

Hard Drives

Internal Eight 2.5" (Small Form Factor) hot-plug bays

2 x 300GB 6G SAS 10K SFF HDDs for OS mirror

(3PAR File Controller v2)

2 x 450GB 6G SAS 10K SFF HDDs for OS mirror

(3PAR File Controller)

3PAR StoreServ Storage using Fibre Channel External

Power Supply

2 x 460 Watts Platinum

Power Cords

System Fans

Form Factor

NOTE: The HP 3PAR StoreServ File Controller is primarily connected to PDU's in data center racks so they now ship standard with only a PDU 6-foot C-14 to C13 power cord (142258-001). If a user wishes to power a system using a110V receptacle see Power Cord option section for more options.

(4) (N+1 redundancy standard)

2U Rack form factor

Host Bus Adapter (HBA)

Support

HP 3PAR StoreServ File Controller is designed to be connected to a HP 3PAR StoreServ Storage array by adding a recommended Fibre Channel HBA.

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 39

QuickSpecs

Service and Support, HP Care Pack, and Warranty Information

HP 3PAR StoreServ 7450 Storage

Warranty

3 Year, On-site Warranty Service. 7x24 4-hour remote response with next business day on-site response.

HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery.

Services Included with the

Product

One year of HP Software Support, standard 9x5 business hours (software advisory and remedial software telephone support, new version license rights, and media and documentation distribution service).

For increased uptime, productivity and ROI-HP Care Pack packaged services for Storage

These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products and solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as: flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment, bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for Storage.

Protect your business beyond the warranty

When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of downtime- but not the business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply put,

HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned downtime.

Extending warranties with HP Care Pack Services

For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive hardware and software support services that are sold separately, or combined as with our Foundation Care 24x7 services. The portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition, with HP

Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the specific proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of technical or per-event type service options - including server, storage, and network, SAN device, and software, environment, installation and education services.

Services that you can mix and match depending on your specific requirements, from preliminary planning and equipment delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our HP Care Pack packaged services for

Storage assures help when you need it most. And for many products, post-warranty HP Care Pack Services are available when your original warranty has expired.

HP Storage Services: Offering reliability, flexibility and value-just like your storage

HP Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete completely managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP

Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage software to help your IT staff get the most out of your investments. And HP Financial solutions extend innovative financing and asset management programs to cost-effective buy, manage and eventually retire your older equipment.

HP Storage Services, the trusted business technology experts who manage your technology in action, because when technology works, business works. http://www.hp.com/hps/storage

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 40

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Service and Support, HP Care Pack, and Warranty Information

Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.

Customers purchasing from a commercial reseller can find HP Care Pack Services at: http://www.hp.com/go/lookuptool

Recommended HP Care Pack Services for optimal satisfaction with your HP product.

Recommended Support

HP Foundation Care 24x7 connects you to HP 24 hours a day, seven days a week for assistance on resolving issues - hardware onsite response within four hours and software call back within two hours after opening your case. Three years' coverage recommended with HP Care Pack Service.

HP Installation and Startup Service for 3PAR StoreServ File Controller

For smooth startup, HP Installation and Startup Service provides for deployment of your HP 3PAR

StoreServ File Controller while helping you establish readily available access to and management of your critical data and applications. Leverage the full strength of HP Technology Services - customers can trust the services professionals at HP to work collaboratively with them, putting our strategic and technical know-how to work across their entire infrastructure.

System installation and setup by a HP technical specialist

Reduced implementation time and cost

Verification prior to installation that all service prerequisites are met

Availability of an HP service specialist to answer basic questions related to this service during the orientation session

Potential expansion of the number of shares and hosts http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-6112ENL.pdf

HP Proactive Select Service

HP Proactive Select Service improves your IT performance and manageability through the use of cost effective flexible services. HP provides technical expertise and best practices to accelerate ROI of your technology investment. Selectable proactive services span a wide range of technology and process services - a flexible way to purchase proactive services that fit your particular environment and situation.

HP Proactive Select Service is technology agnostic and purchased in addition to your choice of underlying reactive support.

Access to a list of flexible and customizable proactive service activities

Enhance customers' in-house IT team with complementary assistance from HP

Improved time to solution

Reduce business risk and project costs by accessing HP specialists

Simplify IT operational procedures by leveraging HP best practices http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 41

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Service and Support, HP Care Pack, and Warranty Information

Optional HP Care Pack Services that will enhance your HP product experience.

Optional Services HP Data Migration Service for Windows

For customers who need to safely migrate Windows data within their TCP/IP networks with minimal impact to their operations:

You have a need to migrate data between Windows servers within your TCP/IP network. Or you have a need to migrate storage for your Windows servers. Or both. And you need to accomplish these migrations efficiently while minimizing risk at the same time.

HP Data Migration Service for Windows offers you a cost competitive and convenient way to accommodate data migration triggered by a need to refresh or consolidate storage, or to create different storage tiers.

This service offers a migration cost in line with the costs of storage products in small and medium-sized storage environments. The service is delivered via a skilled HP service specialist with special consideration for data availability, integrity, and ongoing operational performance during the transfer process.

http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-4734ENW.pdf

eSupport

Customer Technical

Training

HP Services Awards

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal

The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

Access to self-solve tools (including search technical knowledge base)

Efficient logging and tracking of support cases

Collaboration with other business and IT professionals

Download of patches and drivers

Access to diagnostic tools

Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

Consider education as an integral part of your strategy to get the best return on investment for your HP storage solution. HP offers a variety of training courses on storage software, networking, archiving and disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led courses at one of our 80 training centers worldwide to on-site training customized to your needs or online.

www.hp.com/learn/storage

HP Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit: http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.html

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 42

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Service and Support, HP Care Pack, and Warranty Information

Additional Services

Information

For more information about HP Care Pack Services for Storage, please visit: http://www.hp.com/hps/storageIf you have specific questions, contact your local HP representative.

Contact information for a representative in your area can be found at "Contact HP" http://www.hp.com

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 43

QuickSpecs

Storage

HP 3PAR StoreServ 7450 Storage

1-8 Eight 3.5" (LFF) hot plug hard drive bays (File Controller ships with only two SAS drives for OS)

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 44

QuickSpecs

Technical Specifications

HP 3PAR StoreServ 7450 Storage

3PAR StoreServ File Controller

System Unit

Dimensions (H x W x D)

(with bezel)

Weight (approximate)

Input Requirements

(per power supply)

BTU Rating

Power Supply Output

(per power supply)

SFF Drives: 3.44 x 17.54 x 27.50 in (8.73 x 44.55 x 69.85 cm)

Maximum

(all hard drives, power supply, and processor installed)

Minimum

(one hard drive, power supply, and processor installed)

Rated Line Voltage

61.00 lb (27.66 kg)

41.0 lb (18.59 kg)

Rated Input Current

100 to 120 VAC

200 to 240 VAC

For 1200 W Power Supply:

10 A (at 100 VAC),

4.9 A (at 200 VAC)

For 750 W Power Supply:

8.9 A (at 100 VAC),

4.3 A (at 200 VAC)

For 460 W Power Supply:

5.5 A (at 100 VAC),

2.6 A (at 200 VAC)

50 to 60 Hz Rated Input Frequency

Rated Input Power

Maximum

For 1200 W Power Supply:

930 W (at 100 VAC),

1348 W (at 200 VAC)

For 750 W Power Supply:

857 W (at 100 VAC),

824 W (at 200 VAC)

For 460 W Power Supply:

526 W (at 100 VAC),

505 W (at 200 VAC)

For 1200 W Power Supply:

3530 BTU/hr (at 100 VAC),

4600 BTU/hr (at 200 VAC)

For 750 W Power Supply:

2925 BTU/hr (at 100 VAC),

2812 BTU/hr (at 200 VAC)

For 460 W Power Supply:

1794 BTU/hr (at 100 VAC),

1725 BTU/hr (at 200 VAC)

Rated Steady-State Power For 1200 W Power Supply:

800 W (at 100 VAC),

900 W (at 120 VAC),

1200 W (at 200 to 240 VAC)

For 750 W Power Supply:

750 W (at 100 to 120 VAC),

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 45

QuickSpecs

Technical Specifications

HP 3PAR StoreServ 7450 Storage

System Inlet

Temperature

Relative Humidity

(non-condensing)

Altitude

Acoustic Noise

Maximum Peak Power

Operating

Non-operating

Operating

Non-operating

Operating

750 W (at 200 to 240 VAC)

For 460 W Power Supply:

460 W (at 100 to 120 VAC),

460 W (at 200 to 240 VAC)

For 1200 W Power Supply:

800 W (at 100 VAC),

900 W (at 120 VAC),

1200 W (at 200 to 240 VAC)

For 750 W Power Supply:

750 W (at 100 to 120 VAC),

750 W (at 200 to 240 VAC)

For 460 W Power Supply:

460 W (at 100 to 120 VAC),

460 W (at 200 to 240 VAC)

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 10°C/hr

(18°F/hr). The upper limit may be limited by the type and number of options installed.

System performance may be reduced if operating with a fan fault or above 30°C (86°F).

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, noncondensing.

10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, noncondensing.

3048 m (10,000 ft). This value may be limited by the type and number of options installed.

Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Non-operating 9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

NOTE: The Listed sound levels apply to standard shipping configurations.

Additional options may result in increased sound levels.

Idle

LWAd 4.1 B

LpAm 25 dBA

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 46

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Technical Specifications

Emissions Classification

(EMC)

Operating

LWAd 4.3 B

LpAm 27 dBA

Class A FCC Rating

Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15;

ICES-003; CNS13438; GB9254; K22;K24; EN

61000-3-2; EN 61000-3-3; EN 60950-1; IEC

60950-1

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE: The Listed sound levels apply to standard shipping configurations.

Additional options may result in increased sound levels.

HP iLO 4 On System

Management

Architecture

Processor

PCI Express based health and remote management ASIC

Embedded ARM processor core operating at 400MHz

Upgradeability

Video Support

Firmware upgradeable via Flash ROM

1920 x 1200 (16 bpp) DVR max resolution

Interfaces

Memory

HP iLO Dedicated* Network connection (10/100/1000 Mbps) on ML, DL and SL systems

*Optional Module on some servers

HP iLO Shared Network connection (10/100/1000 Mbps) on ML, DL and SL systems

HP iLO Network connection (10/100 Mbps) to Onboard Administrator

(with 10/100/1000 Mbps uplink) to BladeSystem link is 1Gbps

16 MB Flash

256 MB DDR 3 with ECC (112 MB after ECC and video)

Operating System

Support

For information on HP's Certified and Supported ProLiant Servers for OS and

Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS Support Site at: http://www.hp.com/go/ossupport

Client System Support

For information on Client System Support, please visit the HP iLO Feature

Comparison Site at: www.hp.com/go/compareilo

Client Browser Support

Microsoft Internet Explorer 9

NOTE: For customers using Protected Mode, please use the Java based version of Integrated Remote Console.

Microsoft Internet Explorer 8

NOTE: For customers using Protected Mode, please use the Java based version of Integrated Remote Console.

Microsoft Internet Explorer 7

Firefox Extended Support Release (ESR) 10 (on supported Windows and Linux systems)

Firefox 3.6 (on supported Windows and Linux systems)

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 47

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Technical Specifications

Command Line Support

Secure Shell and serial port access

Secure Socket Layer

Secure Shell version 2

Security

Advanced Encryption Standard (AES) and Triple Data Encryption Standard

(3DES) on browser, CLP and XML scripting interface

AES encryption of video

RC4 encryption of video

Active Directory v1.0 (Windows 2003)

Directory Support

Services

Driver Support

HP ProLiant iLO 4 Management Controller Driver Package

Management protocols supported

SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management

Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP

RIBCL XML

HP Smart Array P420i

Controller

Dimensions

Disk Drive and Enclosure

Interface - Transfer rate

Embedded

6Gb/s SAS (Serial Attached SCSI)

3Gb/s SATA (Serial ATA)

2 internal 4X connectors

SAS Connectors

Cache Memory Speed

Server Interface

SAS Speed

512MB FBWC - DDR3-1333MHz with 40-bit wide bus, 1GB or 2GB FBWC DDR3-

1333MHz with 72-bit wide bus x8 PCIe 3.0 provides 8GB/s maximum bandwidth

(8) 6Gb/s SAS links provide 4.8GB/s maximum bandwidth

Cache Memory

Zero Memory RAID has no cache memory

40-bit 256MB ECC protected cache (battery upgrade available)

72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC

Logical Drives Supported Zero Memory, Up to 2 logical volumes (8SFF or 4LFF physical drives)

Up to 64 logical drives with cache

Host Memory Addressing 64-bit, supporting greater than 4GB server memory space

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 48

QuickSpecs

HP 3PAR StoreServ 7450 Storage

Technical Specifications

HP Ethernet 1Gb 4-port

331FLR Adapter

HP Flexible Network

Technology

Network Interface

Compatibility

HP Flexible Network Technology consists of replaceable network solutions to meet the customers require now or in the future.

10Base-T/100Base-TX/1000Base-TX

IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3ad 1000Base-TX

IEEE 802.1p 100Base-TX

IEEE 802.1q 100Base-TX

PCI Express, four lanes (x4)

Data Transfer Method

Controller

Cable Support

BCM5719

Network Transfer Rate

10Base-T (Half-Duplex) 10 Mb/s

10Base-T (Full-Duplex) 20 Mb/s

100Base-TX (Half-Duplex) 100 Mb/s

100Base-TX (Full-Duplex) 200 Mb/s

2000 Mb/s

Connector

1000Base-TX (Half and

Full-Duplex)

Two RJ-45

10Base-T

10/100/1000Base-TX

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

Category 5 or higher UTP; up to 328 ft (100 m)

Environment-friendly

Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green . To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities.

This information (product disassembly instructions) is posted on the Hewlett

Packard web site at: http://www.hp.com/go/green . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 49

QuickSpecs

Technical Specifications

© Copyright 2014 Hewlett-Packard Development Company, L.P.

HP 3PAR StoreServ 7450 Storage

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For drives, 1 TB = 1 trillion bytes. Actual formatted capacity is less.

DA - 14602 Worldwide — Version 9 — July 11, 2014 Page 50

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
