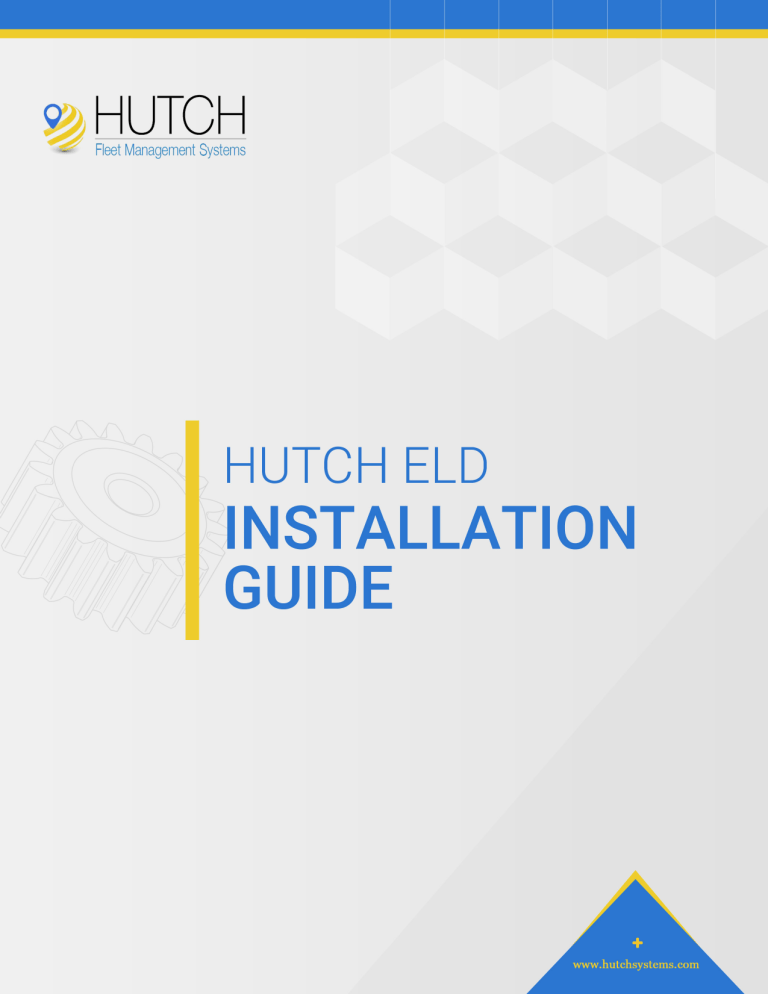

 =" Feet Management Systems
HUTCH ELD
INSTALLATION
GUIDE
р <
Contents
[à] Component Overview 2
2 Installation Planning 3-7
3 Hutch BTB Installation 8-9
E Selecting a Mounting Location for Tablet 10-11
E Connecting DC/DC Converter 11-13
6 Connecting DC/DC Converter 13-15
Troubleshooting Guidelines 15-33
8 Glossary 33 - 34
Hutch ELD Installation Guide
1 Component Overview
Hutch ELD Installation Guide
Hutch BTB
Hutch BTB is a device that uses serial port to transfer data from the ECM
and broadcasts the data back to ELD.
Harness
It is a device that is connected to ELD for easy charging.
Smart Mount
It is a stand in which ELD can be fixed for the purpose of safeguarding it
against any breakage.
DC/DC Converter
It provides power to the tablet.
Locking Key
This key helps you lock the Smart Mount to the tablet.
Connecting Base
This is a base that fixes the Hutch ELD to the truck.
Tablet
Hutch ELD is installed in the Samsung SM-T377A Model.
2 Installation Planning
(% Regulatory Compliance Information
Note : May Contain U.S Canada and International Export Controlled Information
(% FCC/IC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
Conditions:
» This device may not cause harmful interference.
» This device must accept any interference received, including interference that may cause undesired
operation.
Note:
This equipment has been tested and found to comply with the limits for a Class À digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
Cet appareil est conforme aux exigences gouvernementales en ce qui concerne l'exposition aux ondes radio.
Cet appareil est conçu et fabriqué pour ne pas dépasser les limites d'exposition aux radiofréquences (RF) de
la Federal Communications Commission (FCC) des États-Unis et d'Industrie Canada (IC). Pour profiter d’un
rendement optimal et pour éviter de dépasser les limites d'exposition aux RF de la FCC et d'IC, veuillez tou-
jours orienter l'appareil en mode paysage en positionnant l'antenne cellulaire (située dans le coin supérieur
droit de l'appareil) loin du corps ou d'autres objets.
Hutch ELD Installation Guide 3
La norme d'exposition emploie le débit d'absorption spécifique (DAS) comme unité de mesure. Le DAS
maximum établi par la FCC est de 1,6 W/kg (sur 1 g de tissus) pour le corps et de 4,0 W/kg (sur 10 g
de tissus) pour les extrémités. Les essais pour le DAS ont été menés en utilisant des positions de
fonctionnement standard acceptées par la FCC et IC, et le matériel a I'essai transmettait sur différents
canaux au niveau de puissance spécifié. Bien que le DAS soit mesuré au niveau de puissance le plus
élevé pour chaque fréquence, le DAS réel de l'appareil en fonctionnement peut être bien en deçà du
maximum permis, parce que l'appareil regle la puissance de la transmission en partie selon la prox-
imité du réseau cellulaire. Règle générale, plus vous êtes près d'une station cellulaire, plus la puis-
La valeur de DAS la plus élevée rapportée pour cet appareil par la FCC est de 1,26 W/kg (sur 1 g de tissus)
pres du corps et de 0,68 W/kg (sur 10 g de tissus) pour l'exposition des extrémités.
Lappareil a été testé selon les normes et procédures de mesure décrites dans le supplément C du Bul-
letin 65 de l'Office of Engineering and Technology de la FCC (édition 01-01), et par la norme CNR-102
au Canada. La FCC et IC ont accordé leur autorisation à cet appareil et déterminé que tous les niveaux
de DAS mesurés sont conformes aux directives sur l'exposition aux RF. Les données sur le DAS de cet
appareil sont enregistrées à la FCC et se trouvent dans la section « Display Grant » (afficher une de-
mande) de la page www.fcc.gov/oet/ea/fccid, a l'aide du numéro FCC A3LSMT377W. Vous pouvez
aussi consulter la section Nomenclature du matériel radio du site d'Industrie Canada et rechercher le
numéro de certification A3LSMT377W.
(= Caution
Any changes or modifications not expressly approved by the party responsible for
compliance to this equipment would void the users authority to operate this device.
This device complies with Industry Canadas license-exempt RSSs. Operation is sub-
ject to the following two conditions:
Hutch ELD Installation Guide E
e This device may not cause interference.
e This device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de li-
cence. L'exploitation est autorisée aux deux conditions suivantes :
e l'appareil ne doit pas produire de brouillage.
e l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement. CAN ICES-3 (A)/NMB-3(A)
(» RF Exposure Information (SAR)
This device meets the government's requirements for exposure to radio waves. This device is designed
and manufactured to not exceed the emission limits for exposure to radio frequency (RF) energy set by
the Federal Communications Commission (FCC) of the United States Government and Industry Canada
(IC) of Canada. For optimal device performance and so that human exposure to RF energy does not
exceed the FCC and IC guidelines, always follow these instructions and precautions: Orient the device in
landscape mode with the cellular antenna (located at the top right corner of the device) away from your
body or other objects.
The exposure standard employs a unit of measurement known as the Specific Absorption Rate, or SAR.
The SAR limit set by the FCC is 1.6W/kg(1g) for body exposure and 4.0W/ kg(10g) for extremity expo-
sure. Tests for SAR are conducted using standard operating positions accepted by the FCC/IC with the
EUT transmitting at the specified power level in different channels. Although SAR is determined at the
highest certified power level in each frequency band, the actual SAR level of the device while in operation
can be well below the maximum value because device adjusts its cellular transmitting power based, in
part, on proximity to the wireless network.
In general, the closer you are to a cellular base station, the lower the cellular transmitting power level.
The highest SAR value for the device as reported to the FCC is 1.26 W/kg(1g) when placed next to the
body and 0.68 W/kg(10g) when exposed to extremities.
Hutch ELD Installation Guide 5
The device was tested according to measurement standards and procedures specified in FCC OET
Bulletin 65, Supplement C (Edition 01-01) and Canada RSS 102. The FCC/IC has granted an Equipment
Authorization for this device with all reported SAR levels evaluated as in compliance with the defined RF
exposure guidelines. SAR information on this device is on file with the FCC and can be found under the
Display Grant section of www.fcc.gov/oet/ea/fccid and searching on FCC ID: A3LSMT377W.
(> Installation Guidelines
Typical Installation Steps:
e Install Hutch BTB
e Install Smart Mount
e Run Initial Setup
e System Verification
(= Safety, Reliability and Accessibility
Follow these safety instructions while installing Hutch ELD:
Use eye protection when using a drill/performing work that may be hazardous to the eyes.
e Use ear protection in noisy work areas.
e Wear appropriate clothing/uniforms and safety shoes.
e Maintain three points of contact when climbing in and out of cab.
e Make sure you know what is behind the area before you drill.
e Install equipment in such a way that it becomes loose over time and no damage is done to
vehicle in any way.
e Make sure there are no loose components/cables and no unsecured components.
e Use solid mounting surfaces.
e Route all cables away from hot or abrasive areas.
e Choose installation locations where components can be easily serviced.
e Choose installation locations where components are safe from tampering and damage.
Hutch ELD Installation Guide 6
(> Tools And Supplies Recommended for Installation
The following tools are required for Installation of ELD device:
Crimpers
e Soldering iron and solder
e Diagonal Wire Cutters
e Wire Strippers
e Screwdrivers: Phillips 42 and Slotted
e Torx Drivers; #10, #20 and #25
e Volt/Ohm Meter
e Flush Cutters
e Flash/Drop Light
® ЗМ 1" wide double sided tape
e Electrical Tape
Hutch ELD Installation Guide
3 Hutch BTB Installation
The Hutch ELD KIT is prepared for a specific vehicle when your order is placed with Hutch Systems. The kit
includes a Hutch BTB Harness specific to your vehicle.
(+ Harnesses
| Connector Type
9-pin
6-pin
9-pin ring connector
OBD2 Style
9-pin 500kbps green connector
9-pin 500kbps green ring connector
(% Connecting BTB Harness
Hutch ELD Installation Guide
Connector Type
Most 2006 and newer trucks
Most 2005 and older trucks
2007 and newer Kenworth, Peterbilt trucks
2014 and newer Volvo/Mack trucks
2016 and newer Freightliner trucks
2016 and newer Kenworth, Peterbilt trucks
With vehicle's ignition switch OFF, locate and remove the existing diagnostic connector.
Check the connector for corrosion and make sure that there are no bent pins.
Connect the harness to the truck's diagnostic connector. Verify that the outer ring is
twisted and clicks into place so the ends do not become disconnected by accident. Pull
on the connector to verify it does not come loose.
Install the other connector at the same place on the harness where you originally
removed the first connector.
Connect the DB15 connector to the BTB and secure it by tightening the screws.
Cut a small amount of 3M double side tape and place it on the BTB.
Locate a flat surface and clean it with rubbing alcohol (Let it dry for few moments).
Install the BTB and hold on for few seconds for the 3M double sided tape to stick (Make
sure you remove the tape covering).
Note:
» Make sure BTB is not installed behind solid steel
» BTB must be supplied with +12V DC constant power.
Hutch ELD Installation Guide E
4 Selecting a Mounting Location for Tablet
IMPORTANT SAFETY INFORMATION: Do not locate the display unit where it obstructs the driver's field of vision,
distracts the driver from the driving task, interferes with the driver's operation of controls or displays, or creates a
safety hazard. Follow all laws and regulations governing the placement of equipment and mounts.
(> Install The Tablet Where
O It can be safely installed on a secured bracket that is robust enough to
minimize any vibration and sustain the weight of Smart Mount and Tablet.
® The mounting surface is strong enough to support the mounting hardware.
® The mounting surface is flat.
O ltis in the driver's line-of-sight, easy to touch, but does not block the view of the road or the mirrors.
@® The surrounding area is clear of dash controls and gauges.
O It is not mounted in constant, direct sunlight.
© It does not limit a passenger's leg room or block access to any other compartments.
© It does not interfere with anyone entering or exiting the vehicle cab.
© It is not likely to impact the driver or passenger in case of an accident or collision.
© It is not located in an area where driver or passenger can spill liquid on the tablet.
(> Do Not Install The Tablet Where
O It obstructs the driver's field of vision
© It distracts the driver from driving task
Hutch ELD Installation Guide E
© It interferes with driver's operation of controls or shifting of gears
O It obstructs the area swept by the windshield wipers
© It blocks the deployment of airbags
© It blocks access to locking mechanism of the smart mount
© It blocks access to power and volume buttons on tablet
(+ Additional Information For Selecting An Installation Location
© Installation of ELD should not obstruct the driver's field of vision while operating the vehicle, and
should comply with all applicable federal and state/provincial laws and regulations when selecting
an installation location (including restriction against the mounting of objects on a vehicles windshield)
and driver distraction.
O Consider the owner's preference in selecting the installation location and check whether it is a team
driver or a single driver operation.
O Adhere to the ELD mandate. The driver must be able to see the screen when seated in driver seat.
5 Connecting DC/DC Converter
When supplying power to tablet, always use the Hutch supplied DC/DC converter. Do not
substitute as it may damage the tablet and void all warranty.
Turn off the ignition switch. (
Hutch ELD Installation Guide
© Locate unswitched +12V DC power source (Always test with volt meter). (
© Splice into the wire and peel away the plastic casing (Do not peel excessively). (
о Connect the RED/BLACK wire and solder it. (
© Wrap electrical tape around the connection (Make sure the tape does not unwrap). (
о Locate solid truck chassis ground. (
© Connect BLACK to chassis ground (Make sure there is not painted, rusted surface). (
Step Verify that the indicator on the DC/DC converter is illuminated (It will be illuminated (
8 green when the ignition is on or off).
Hutch ELD Installation Guide
© Find a flat and clean surface to mount the DC/DC converter. (
O Using the double side tape, mount the DC/DC converter. (
O Connect the USB Port from the Smartmount to DC/DC Converter. (
о Tie down all excess/loose wires. (
о Mount the tablet in the holster and make sure the tablet starts charging. (
6 Completing Initial Setup
During the setup, Hutch ELD verifies various functions of the system. Complete this procedure prior to assem-
bling back the vehicle.
Hutch ELD Installation Guide 13
Step
Step
Step
Step
Step
Step
Step
Step
Step
Turn off ignition and switch to ACC (Verify that parking brakes are set and vehicle is in
neutral or park).
Power the tablet by holding power button down for about 5 seconds (This may take few
minutes to boot up).
Click on the ELD icon. Enter Starting Odometer, Engine Hours (From vehicle gauges).
Select vehicle type (Heavy or Passenger); Heavy = J1939&J1587 Passenger =
OBD/OBD2.
Enter Installer ID (Contact Hutch if you do not know your installer ID).
Click the Proceed arrow (Hutch ELD will check various functions).
Select the BTB installed in the vehicle (If you are not able to see the BTB, please make
sure BTB is powered with 12V DC).
Start the vehicle when requested. Verify that all of the information is displayed
(Odometer reading, engine hour, RPM, VIN).
Turn Off the vehicle.
Hutch ELD Installation Guide
Click the proceed button.
Verify Hutch ELD is able to detect GPS satellites.
Click the proceed button.
Verify the setup was successful.
Step
‘ 4 Reboot the Tablet.
Step
Click on the ELD (This is Login Screen will be displayed).
15
>> Finalize installation by reassembly of all panels in vehicle and clean up the left debris.
/ Troubleshooting Guidelines
Hutch ELD Installation Guide
(= Troubleshooting Guidelines
During the setup, Hutch ELD verifies various functions of the system. Complete this procedure prior to
assembling back the vehicle.
© Tablet
© Smart Mount
© DC/DC Converter
© BIB Harness
© Hutch BTB
Always verify determined defected parts on a different vehicle, or on a test bench. If the part is deemed
defective, it must be RMA'd or replaced in the event of harness or DC/DC converter.
(% Perform a Visual Inspection of the Installed Hutch ELD
O Check for damaged cables, improper electrical connections, loose connections, and the integrity of
the installation
© Bad mounts or excessive vibration may contribute to system problems.
o Blocking or Interference with bluetooth radio may degrade the system performance or intermittent
BTB connection failure
O If Hutch ELD is installed in direct sunlight, tablet may overheat or screen may not be readable, there-
fore always follow the location selection guidelines.
(+ Reseat Cables or Connectors
O Always inspect and reseat the cable connector prior to replacing the parts.
© Check for pinched or broken cables
© Inspection for corrosion and bent, broken, pushed, missing pins, and/or sockets.
O Verify all Hutch ELD status indicator are in Normal State. Some status indicators may be RED, but
always reference Hutch ELD Operator Manual.
Hutch ELD Installation Guide 16
(% Check System Voltage Measurements and Grounding
© Always find check fuses when Hutch ELD or BTB is not receiving power.
©
Always use good ground
© Verify the verify the vehicle battery and cables are in good condition.
® Check voltages with Volt/Ohm meter. DC/DC and BTB must be powered with +12V
(% Replace Only Faulty Parts
Typically, only one part is bad. Once the system is operating, you can substitute suspect parts back into
the system to verify which part is bad, or use a test beach equipped with known good spare parts to
retest suspect parts.
(+ Determine If the Problem Is Intermittent
Check for bad or loose electrical connections including cable connectors, ring terminals, butt splices,
and power/ground connections. These can contribute to intermittent system performance.
=» J1587/J1708 Packet Detection Fails
Vehicle engine must be running for Hutch ELD to detect J1587/J1708 data packets.
© Note: If the Core Data Items and J1939 tests pass (i.e. green check), it's acceptable for the J1587
Packet Detection test to fail. This would mean that the Hutch ELD is getting its vehicle data from the
J1939 link.
© Some 2012 and newer trucks do not supply J1587 packets. In order to get J1587 data, a trucks engine
must be supplying the J1587 data, a connection must be made to the J1587 wires (power 1/0 cable).
© If packets are not detected, check and reseat Hutch BTB Harness connections at the truck's diagnostic
plug.
Hutch ELD Installation Guide
© |f some Core Data Items are missing, the vehicle may not support them. You may need to contact
Hutch Support to get further information.
O Note: Many newer trucks do not provide J1587 data. The Hutch ELD will auto-detect data bus, in-
cluding J1587 bus traffic, and automatically select the most reliable source for vehicle data.
(= J7939 Packet Detection Fails
Vehicle engine must be running for Hutch ELD to detect J1939 data packets.
O Note: Many pre-2007 trucks do not submit J1939 packets. If the Core Data Items and J1587 tests pass
(i.e. green check), it's acceptable for the J1939 Packet Detection test to fail. This would mean that Hutch
ELD is getting its vehicle data from the J1587 link.
© Hutch ELD will auto-detect bus traffic, including J1939 bus traffic (250 kbps and 500 kbps), and automat-
ically select the most reliable source for vehicle data. In order to get J1939 data, a truck's engine must
be supplying the J1939 data, a connection must be made to the J1939 wires.
© Many old trucks/engines do not transmit J1939 packets.
(> OBD/OBD? Packet Detection Fails
Vehicle engine must be running for Hutch ELD to detect OBD/OBD2 data packets. You must also choose
Passenger Vehicle if installing Hutch ELD in light duty vehicle(s).
O Note: Many pre-2008 passenger vehicles do not support CAN; therefore you must install OBD2 to J1587
converter.
O Hutch ELD will auto-detect bus traffic (250 kbps and 500 kbps) and vehicle must support Core Data
items.
(> GPS Fix Problem
© Check if the vehicle has clear view of the Sky.
© Make sure GPS Location is turned on in the tablet
Hutch ELD Installation Guide 18
© Make tablet is installed behind metals.
© Hutch ELD make take a up to 5 minutes to detect GPS Satellites
(= Cellular Signal Strength Problem
If the Cellular Signal Strength test is failing when performing a system verification, or the cellular icon at
the top of the screen shows not data activity, follow the steps below.
Check SIM CARD is active
Check Tablet is in cellular coverage area
Check SIM CARD is installed correctly
Check mobile data is enabled in tablet
Check roaming is enabled if operating on roaming network
(> Hutch System Connection Problem
Note: Cellular signal must be passed for this.
O Verify device is activated and assigned to correct vehicle
O Verify all android permission enabled for Hutch ELD
O Verify unidentified account has been created in Web Portal
(> Hutch BTB Connection Problem
O Verify Hutch BTB is receiving +12V unswitched power
Hutch ELD Installation Guide i
O Verify Bluetooth is enabled in Tablet
©
Verify Tablet and Hutch BTB is with 3 meter range.
©
Verify Hutch BTB bluetooth signal is not obstructed by metals or wires.
© Verify Hutch BTB is installed in the assigned vehicle.
(= Appendix
O Wire Diagram and Charts
O Environment and Power Requirements
©) General Wiring and Installation Guidelines.
O Preventative Maintenance Inspection
© Hutch RMA Procedure
A Wire Diagram and Charts
HUTCH ELD Wiring Components
% HUTCH
Smart Mount
Tel: 360-353-4093
www.hutchsystem.co!
m
Hutch ELD Installation Guide 20
(» 6-pin Power 1/0 Cable
SIGNAL PIN
J1708/J1587 DATA LINK+ A
J1708/J1587 DATA LINK- B
+12VDC C
N/C D
o
BATTERY GROUND E
N/C F
(» 9-pin Power 1/0 Cable and Paccar Adapter Cable
SIGNAL PIN
BATTERY GROUND A
+12VDC B
J1939 DATA LINK+ C
J1939 DATA LINK- D
J1708/J1587 DATA LINK+ F
J1708/J1587 DATA LINK- G
OEM_CAN_H H
OEM_CAN_L J
Hutch ELD Installation Guide 21
(> Hutch BTB DB-15 style Connector
SIGNAL
J1939 HIGH (BUS 1)
J1939 LOW (BUS 1)
J1939 LOW (BUS 0)
J1939 HIGH (BUS 0)
J1708/J1587 DATA LINK -
J1708/J1587 DATA LINK +
PIN
10
12
13
14
15
(> Newer OBDI! style Connector
SIGNAL
J1939 CAN (HIGH)
CHASSIS GROUND
SIGNAL GROUND
J1939 CAN (LOW)
J1708/J1587 DATA LINK +
J1708/J1587 DATA LINK -
(= HINO
PIN
11
12
13
C P2: BLUE US-BUILT VEHICLE
C P3: WHITE: JAPANESE-BUILT VEHICLE
Hutch ELD Installation Guide
8 7 6 5 4 3 2 1
O Vers
15 14 13 12 11 10 9
( HUTCH BTB DB-15 STYLE CONNECTOR
( NEWER OBDII STYLE CONNECTOR
SIGNAL
BATTERY
CHASSIS GROUND (BATT RETURN)
CAN HIGH
CAN LOW
IGNITION
P2 P3
H J
A B
F G
C D
B C
O Environmental and Power Requirements
CONDITION
OPERATING TEMPERATURE
HUMIDITY TABLET HUTCH BTB
POWER HUTCH BTB
POWER TABLET
POWER DC/DC CONVERTER
OPERATING AT +12V (HUTCH ELD)
ASLEEP
FREQUENCY OF MODEMS
REQUIREMENT
-30° C TO 70° C (-35° F TO 158° F)
NOT WATERTIGHT. DO NOT GET WET.
NOT WATERTIGHT. TURN OVER IMMEDIATELY IF LIQUIDS ARE
SPILLED ON IT.
+12 TO +36 VOLTS DC
+5 VOLTS DC
+12 VOLTS DC
HUTCH DRAWS A MAXIMUM OF 1.5 AMPS.
AVERAGE CURRENT DRAW IS LESS THAN 1 AMP.
HUTCH ELD DRAWS 10 MA.
850/1900/2100/LTE Mhz
The HUTCH system has no user-serviceable parts. The HUTCH ELD Tablet contains a permanent lithium
ION battery ; proper recycling or disposal per local law is required for all components of the HUTCH ELD.
O General Wiring and Installation Guidelines
(> Making Electrical Connections - Standard Installations
For standard HUTCH installations, the only electrical connection needed to the truck will be the
power 1/0 cable (harness).
(> Cutting and Splicing Power 1/0 Cable - Non-standard Installation
Some trucks may use a different 9-pin diagnostic connector than supplied on the HUTCH “Y” cable.
The connector on the HUTCH cable will mount easily in the dash. Therefore, no cutting is required.
Hutch ELD Installation Guide
If the available power 1/O cable does not mate to the truck's diagnostic connector, the “Y” portion of the
cable can be cut off and the leads spliced into an appropriate source:
CABLE Truck
BATT_V 12 VDC UNSWITCHED SOURCE
BATT_RTN CHASSIS GROUND
J1708+ POSITIVE J1587/J1708 TRUCK WIRE
J1708- NEGATIVE J1587/J1708 TRUCK WIRE
CAN_H J1939+ TRUCK WIRE (YELLOW TO YELLOW)
CAN_L J1939- TRUCK WIRE (GREEN TO GREEN)
(> Approved Hutch Electrical Connectors
The wiring for the HUTCH system is expected to
be inside the cab. The only Hutch-approved
electrical connections other than standard
connectors are crimp butt splices and crimp ring
terminals. Connections are typically made by
mating the two connectors. Many of the following
general guidelines apply to non-standard HUTCH
connections where the power I/O cable must be
cut because it does easily mount in the trucks
dashboard.
Caution
Not following proper wiring guidelines and using improper crimps and butt splices
may cause intermittent connections and may result in unexpected truck down time
or system failure.
Hutch ELD Installation Guide E
(= Wire Stripping
Caution
Use care in stripping wires. Vibration can cause nicked wires to fail. Using wire cutters,
knives, or other tools can damage the conductor wire and/or insulation.
Knowing and following proper wire stripping techniques is essential for performing successful and safe
electrical connections of all system components.
Using a wire stripper, strip approximately 1/4" off the end of an insulated wire
—* approx. [=
1/4
1
After stripping the wire, verify that the wire is not severed, nicked, or damaged by the stripping
tool. If the wire has been properly stripped, it is ready to be butt spliced. If the wire has been
damaged, restrip the wire (see step 1.)
(= Butt Splicing
© Hutch recommends Nylon insulated, seamless butt connectors with inspection windows.
© Heat-shrinkable butt connectors are preferred.
Hutch ELD Installation Guide 25
Make sure the size of the butt splice is appropriate for the job. A good butt splice has these
characteristics:
® The ends of the bare wires are visible through an inspection window.
© The ends of the wires “butt” up against the stop.
© The wires are not exposed beyond splice shielding.
® Crimping does not sever or damage the wires or insulation.
(= Crimping
® When crimping a butt-spliced wire or cable, be sure the insulated butt splice is crimped using the
insulated position on the crimp tool and not the crimping “tooth” of the tool.
@® Crimping butt splices incorrectly can result in a severed wire and a failed wire connection.
Caution
DO NOT crimp on the crimp "tooth"
Crimp tooth
Crimp here
Do NOT crimp wire here
Hutch ELD Installation Guide РЗ
Using a crimping tool, crimp the butt splice one end at a time. First, crimp the inside crimp
area where the wire has been stripped. Apply necessary pressure to this inside area.
Note:
The objective is to apply the necessary pressure to crimp the butt splice closed and hold the wire
connections together. Do not apply so much pressure as to crush the butt splice and sever the wire
or the insulation on the wire.
WRONG CORRECT
Butt splice is visibly crushed, Crimping is done properly, protecting
possibly damaging the wire the wire and the wire connection.
and the wire connection. No exposed wires.
After crimping the inside of both ends of the butt splice on the “insulated” area of the crimping
tool, next crimp the outside of both ends of the butt splice.
Wire crimp
+ Insulation crimp
Crimp here
Hutch ELD Installation Guide
Crimping locations
Outside crimp (insulated wire) — | | | |“—Outside crimp (insulated wire)
|
|
Inside crimp (stripped wire) —> i | <—|nside crimp (stripped wire)
Verify that the crimps are good and the wires have not been damaged. Ring Terminals
Do a pull test. Pull on both ends of the wires to ensure a solid butt-spliced connection exists.
The crimped butt splice securely grips the insulated wires.
WARNING
If using heat shrinkable crimps, DO NOT use a heat gun or open flame near
combustible materials. Use a heat gun only when it is safe and appropriate to do so.
Protect surrounding wiring and other components when using a heat gun
Hutch ELD Installation Guide EB
(> Ring Terminals
When making electrical connections, crimp ring terminals onto the ends of the wires to ensure
good contacts. A properly crimped ring terminal has these characteristics:
O The barrel crimping indent is well-formed and properly positioned.
© The insulated wire’s grip impression is well-formed and provides proper support without
crushing the insulation
O The wire does not move independently of the lug. Firmly tug on the ring terminal to ensure it
does not pull loose.
® The end of the bare wire protrudes through the crimp barrel approximately 0.03 to 0.125"
depending on the lug size and crimp tool.
Wire gripping impression
is well formed
Bare wire
protrudes 0.03 to
0.125 inch
> Install the ring terminal on the ground connection using one of the following options:
Nut (ESP
Lock Washer
Star Washer Flat Washer (Œ
Flat Washer ( €£
Terminal Connector
Terminal Connector |
Flat Washer [€
Hutch ELD Installation Guide 29
(= Proper Grounding
When establishing a good chassis ground, avoid areas that may be potentially isolated from ground by
a hinge or bad welds. It is extremely important that you create clean, secure, tight, metal-to-metal
grounds. If grounding terminals are not available, remove the paint from the surface of the metal
connected to the chassis to make the ground. Make sure the wires are not strained or vulnerable to
damage.
WARNING
Not following proper grounding guidelines may cause intermittent connections and may
result in unexpected truck downtime or system failure.
(> General Installation Guidelines
® Determine the most direct and protected route when routing cables to connect the
components to each other and to the vehicle.
O Do not trim cable lengths to fit a specific vehicle.
© Use only wire strippers for stripping wires.
© Use only the appropriate insulated crimping tool for crimping insulated connectors.
O Use existing holes for cable routing whenever possible.
© Avoid running cable over or near heat sources.
(% Routing and Protecting Cables
O Provide strain relief for all cables
© Use tie wraps
O Debur any drilled holes
Hutch ELD Installation Guide 30
С) DO NOT route cables:
O Near audio system amplifiers
O Near exhaust pipes and other sources of heat
© Near the brake, clutch, or accelerator pedals, and linkage
O Near foot traffic areas
O Near the windshield wiper mechanism
© Near CB radio wires
© Over sharp edges
O Over moving parts
(% Routing and Protecting Cables
O Route cables under kick plates or carpets.
® Avoid high foot traffic areas.
® When reinstalling dash panels, be careful that screws do not penetrate cables.
O Route cables with any existing vehicle cables.
(+ Storing Excess Cabling
O Secure excess cabling with tie wraps.
O Stow out of sight.
(> Stress Relief
O Ensure cables have enough slack so connections are not being pulled.
Hutch ELD Installation Guide 31
© Preventative Maintenance Inspection
(% How Often Should Inspections Be Performed?
O Hutch recommends inspections to be performed at least once every 90 days.
© During normally scheduled vehicle preventive maintenance inspections.
(= Perform System Verification
Access System Diagnose via System Menu >> Settings >> Diagnose
Click Run Diagnose
Verify the following (These must be marked green) :
o Cellular Connection
O Hutch BTB Connection
O Hutch Systems Connection
O GPS Fix
O Core Data ltems (Vehicle ECM information)
(= Inspecting Hutch ELD
Hutch ELD Installation Guide 32
O Verify that tablet screen is clean. Hutch recommends that you use a soft cloth and either plain water,
glass cleaner, or mild soap to gently clean the surfaces of the tablet as well as the display screen.
O Hutch ELD components are not watertight. Do not spray any liquid directly on the display screen or
other components.
© Do not use pencils, pens, metal objects, or any other devices which could possibly scratch the touch-
screen.
O Verify the display screen is readable in any lighting condition.
O Make sure the display is securely lockable Smart Mount.
O Make sure Smart Mount has no damaged or missing parts
O Make sure the Charging Port is clean and PINS are not worn or missing.
O Make sure Smart Mount mountings screws are secure in place.
© Hutch RMA Procedure
Launch a ticket via Hutch Ticketing Systems. Our technician will diagnose the system and if any
part is found defective, you will be issued a RMA number. Please return the defective part(s) to Hutch
Systems USA LLC if returning from USA or to Hutch System Canada Inc if returning from Canada.
Make sure that the RMA number is marked clearly on the outside of the box.QQ
Hutch Systems USA LLC Hutch Systems Canada Inc Support Contact
115 1st Street Unit 201 2580 Cedar Park Place 604-776-3564
Sumas, WA. 98295 Abbotsford, BC. V2T 3S4
a
To prevent damage during shipment and handling, carefully package all equipment being returned. If
the original shipping container and packing material are available, please use them to return the
equipment.
8 Glossary
Hutch ELD Installation Guide BS
Term
Data Bus
DOT (Department of Transportation)
ELD (Electronic Logging Device)
FMCSA (Federal Motor Carrier Safety
Administration)
AOBRD (Automatic Onboard Recording
Device)
ECM (Electronic Control Module)
USB (Universal Serial Bus)
OBD (On Board Diagnostics)
Hutch ELD Installation Guide
Definition
A link that transmits data from the ELD to the ECM
(Engine Control Module) of vehicle.
The governmental department that regulates
transportation (including Commercial Motor Vehicle).
An electronic solution that automatically records the
driver logs and track the Hours of Service(HOS). This
term was used in the 2015 DOT rule that mandates the
usage of electronic logs complying with standards.
An agency in the United States DOT that regulates
the commercial transportation and works to boost
the general safety.
It is used to calculate HOS compliance by using
electronic logging device and is regulated in 49 CFR
395.15.
It is the embedded systems in motor carriers utilized
to manage the functioning of electrical system used
to manage the functions of electrical systems within
a vehicle.
It is an industry standard that is used to connect
electronic device to a computer system. It can be re-
ferred to connectors and cables that are used for
communication and connection between devices and
computers.
It is self-diagnostic ability of a vehicle that can be
used to access the status of vehicles subsystems.
° HUTCH
=" Fleet Management Systems
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
