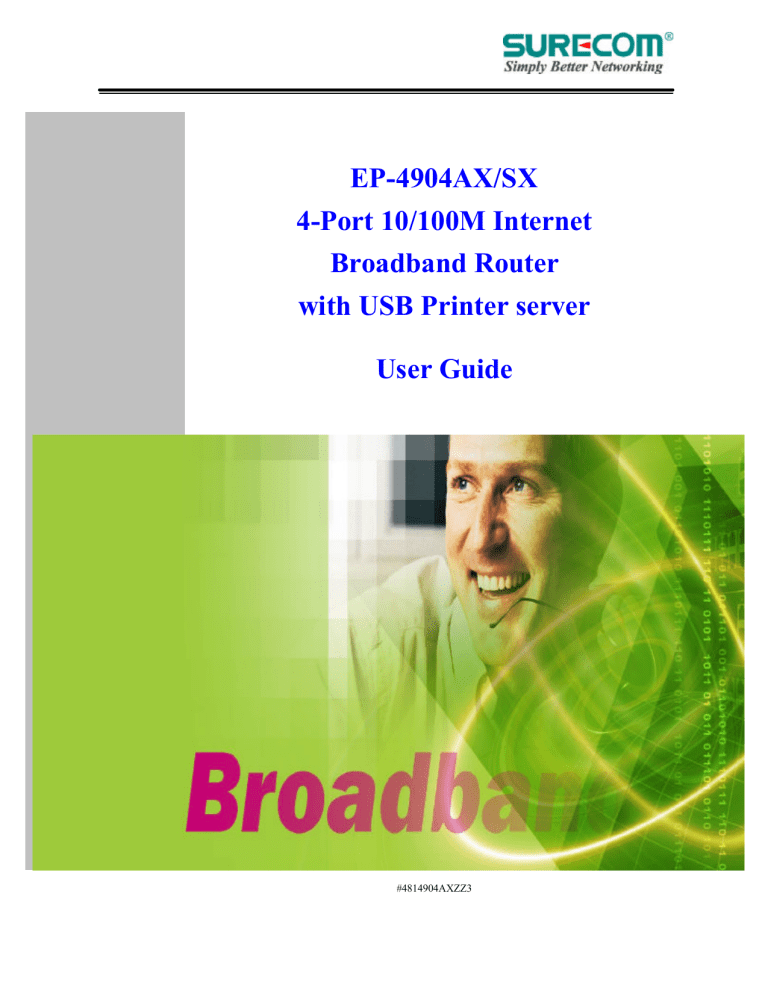

EP-4904AX/SX
4-Port 10/100M Internet
Broadband Router
with USB Printer server
User Guide
#4814904AXZZ3
FCC Statement
This device complies with FCC Rules Part 15. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with manufacturer's instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
1. Re-orient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio/TV technician for help.
WARNING! Any changes or modifications to this product not expressly approved by the
manufacturer could void any assurances of safety or performance and could result in violation of
Part 15 of the FCC Rules.
CE Declaration of conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022 class
B for ITE and EN 50082-1. This meets the essential protection requirements of the European Council
Directive 89/336/EEC on the approximation of the laws of the Member States relating to electromagnetic
compatibility.
Trademarks
All company, brand, and product names are trademarks or registered trademarks of their respective
companies.
2
Contents
1:Introduction ……………………………………… 4
1.1 Features & Benefits ………………………
4
1.2 Technical Specification
…………………… 5
1.3 Package Contents
………………………… 6
1.4 Glossary …………………………………… 6
2: Hardware Installation
………………………… 9
2.1 Product Description
…………………… 9
2.1.1 Front Panel …………………………… 9
2.1.2 LEDs …………………………………
2.1.3 Rear Panel ………………………………
2.2 Getting Started ………………………………
2.2.1 System Requirement
…………………
9
10
10
3.10 Static Routing ………………………………
3.11 Dynamic DNS ……………………………
3.12 Special Application ………………………
3.13 Statistics …………………………………
41
42
43
10
2.2.2 Before Installation ……………………… 10
2.2.3 Setting Hardware Connection ………… 11
2.2.4 Configure your computer ……………… 12
3: Using Configuration Menu
…………………… 26
3.1 Basic Setup ………………………………… 27
3.2 DHCP Setting ……………………………… 32
3.3 URL Access ………………………………
33
3.4 IP Access …………………………………… 34
3.5 Virtual Server ……………………………… 35
3.6 DMZ Host ………………………………… 36
3.7 Device Administration
…………………… 37
3.8 Status Monitor ……………………………… 39
3.9 RIP ………………………………………… 39
3.14 Security Setting ……………………………
3.15 Connection Log ……………………………
44
45
46
3.16 Time Setting ……………………………… 47
3.17 UPnP ……………………………………… 47
4: Install Printer Server …………………………… 48
5: Trouble-Shooting ……………………………… 50
6: TCP/IP Port List for Internet Service ………… 51
3
1. Introduction
This Broadband Router includes 4 10/100Mbps switch ports and a USB printer port. It
provides a complete solution for Internet surfing and office resources sharing. This 4 Port Internet
Broadband Router provides a simple, efficient, and cost-effective solution for LAN/Internet, especially
for SOHO (Small Office/Home Office) users to share the Internet resources simultaneously using one
ISP (Internet Service Provider) account. It also supports a wide range of LAN-WAN connectivity media.
There are the DSL modem, cable modem, and Ethernet 10/100M connections. Another feature is that the
4 Port Internet Broadband Router makes it easier and more economical to expand and segment your LAN.
As a result, you would never have a nightmare with IP address depletion problem.
In addition, this broadband router built-in USB Printer Server, allowing users can share networked
printer anytime. Besides, with firewall function, the 4 Port Internet Broadband Router can always protect
your LAN from outsider's break-ins and yet expose your local servers such as Web Server, E-mail
Server, FTP server, for remote access by Virtual Server Mapping or DMZ setting.
1.1 Features & Benefits
• Conforms to IEEE 802.3, IEEE 802.3u and IEEE 802.3x standards
• Provides 1 10/100M WAN interface (RJ-45) to connect with DSL or cable modem
• Provides 4 10/100M switch LAN interfaces to connect your local area network
• Provides 1 USB 1.1 Printer Server Port to connect USB Printer
• Embedded with DHCP Server & Printer Server
• Supports DDNS (Dynamic DNS) & Virtual Server
• Supports PPPoE, PPTP Client
• Built-in Network Address Translation Accelerator (NATA) provides hardware NAT acceleration
• Firewall function, like DoS Attack prevented to protect your PCs from
outside intruders
• Configurable through any networked PC’s web browser and Remote Management
• Simultaneously acts as either a DHCP server on the LAN and a DHCP client on the WAN
• By using virtual server, outside users will be able to access the internal IP servers via Internet.
• Administrators can block specific interior users’ Internet access
• URL Blocking: Prevent specific web sites form interior user’s access
• Supports RIP I & II, Static Routing
• Supports PPTP, IPSec pass through
4
1.2 Technical Specification
Standards
IEEE 802.3 10BASE-T / IEEE 802.3u 100BASE-TX
USB 1.1
Protocol
CSMA/CD, TCP/IP, PPPoE, PPP, PPTP Client, DHCP Client,
DHCP Server, RIP I/RIP II
Topology
Media
Star
No. of Port
WAN: 1x 10/100M RJ-45 port
10BASE-T: UTP/STP Cat. 3, 4 or 5
100BASE-TX: UTP/STP Cat. 5
LAN: 4 x 10/100M RJ-45 ports
Printer Port: 1 x USB 1.1 port
Reset: 1 x Reset Button
NAT Accelerator Engine
Flash/SDRAM
MAC Address
Auto MDI/MDIX
LAN Switching Method
PPPoE/PPTP
Client/Fixed IP
DHCP Client
Port Triggering
DMZ Host
Routing
Firewall
Yes, 64 Entries
VPN
Management
LED Indicator
Environmental
Temperature
Humidity
Dimension
Power Consumption
Power Supply
Conformance
PPTP, IP Sec pass through
1MB/4MB
1K
Yes
Store and forward
Yes
Yes
Yes
2 way access for LAN PC
RIP I & II, Static routing
DoS Attack prevented
Hide Public IP Address Function
URL Blocking
IP Port Filtering
Local Web-based configuration, Remote Management
Power, Link/Act, 10/100M, Diag
Operation
Storage
Temperature
0 °C~50°C
-20°C ~70°C
165 ×87 ×30mm
7.5W Max.
DC 7.5V, 1A
FCC class B, CE mark class B
5
Humidity
10%~90%
10%~90%
1.3 Package Content
• One 4 Port Internet Broadband Router
• One Power adapter
• One CD-ROM
• One set of Bracket
• Quick Install Guide
1.4 Glossary
• LAN – Local Area Network
Local Area Networking (LAN) is the term used when connecting several computers together over a
small area such as a building or group of buildings. LAN's can be connected over large areas. A collection
of LAN's connected over a large area is called a Wide Area Network (WAN).
A LAN consists of multiple computers connected to each other. There are many types of media
that can connect computers together. The most common media is CAT5 cable (UTP or STP
twisted pair wire.) On the other hand, wireless networks do not use wires; instead they
communicate over radio waves. Each computer must have a Network Interface Card (NIC),
which communicates the data between computers. A NIC is usually a 10Mbps network card, or
10/100Mbps network card, or a wireless network card.
Most networks use hardware devices such as hubs or switches that each cable can be connected
to in order to continue the connection between computers. A hub simply takes any data arriving
through each port and forwards the data to all other ports. A switch is more sophisticated, in that a
switch can determine the destination port for a specific piece of data. A switch minimizes
network traffic overhead and speeds up the communication over a network.
• What is Router?
A router is a device that forwards data packets from a source to a destination. Routers forward
data packets using IP addresses and not a MAC address. A router will forward data from the
Internet to a particular computer on your LAN. A router also determines the best route that data
packets should follow to ensure that the data packets are delivered properly.
• Firewall
A firewall is a device that sits between your computer and the Internet that prevents unauthorized
access to or from your network. A firewall can be a computer using firewall software or a special
piece of hardware built specifically to act as a firewall. In most circumstances, a firewall is used
to prevent unauthorized Internet users from accessing private networks or corporate LAN's and
Internet.
6
A firewall watches all of the information moving to and from your network and analyzes each
piece of data. Each piece of data is checked against a set of criteria that the administrator
configures. If any data does not meet the criteria, that data is blocked and discarded. If the data
meets the criteria, the data is passed through. This method is called packet filtering.
A firewall can also run specific security functions based on the type of application or type of port
that is being used. For example, a firewall can be configured to work with an FTP or Telnet
server. Or a firewall can be configured to work with specific UDP or TCP ports to allow certain
applications or games to work properly over the Internet.
• VPN
– Virtual Private Network
Virtual Private Networking (VPN) uses a publicly wired network (the Internet) to securely
connect two different networks as if they were the same network. For example, an employee can
access the corporate network from home using VPN, allowing the employee to access files and
printers. Here are several different implementations of VPN that can be used.
• PPTP –
Point-to-Point Tunneling Protocol
PPTP uses proprietary means of connecting two private networks over the Internet. PPTP is a
way of securing the information that is communicated between networks. PPTP secures
information by encrypting the data inside of a packet.
• IPSec
– IP Security
IPSec provides a more secure network-to-network connection across the Internet or a Wide Area
Network (WAN). IPSec encrypts all communication between the client and server whereas PPTP only
encrypts the data packets. Both of these VPN implementations are used because there is not a standard for
VPN server software. Because of this, each ISP or business can implement its own VPN network making
interoperability a challenge.
• DHCP –
Dynamic Host Configuration Protocol
DHCP is a protocol for dynamically assigning IP addresses to networked computers. With DHCP, a
computer can automatically be given a unique IP address each time it connects to a network-making IP address management an easier task for network administrators. When a computer logs on to
the network, the DHCP server selects an IP address from a master list and assigns it to the system.
• NAT –
Network Address Translation200.
For a computer to communicate with other computers on the Internet, it must have an IP address. An
IP (Internet Protocol) address is a unique 32-bit number that identifies the location of your
computer on a network. However, with the explosion of the Internet, the number of available IP
addresses are simply not enough.
7
This is where NAT comes to the rescue. Network Address Translation allows a single device,
such as a router, to act as an agent between the Internet (or "public network") and a local (or
"private") network. This means that only a single, unique IP address is required to represent an
entire group of computers.
• Printer
Server
Printer Server allow networked PC sharing the same printer on the network, only the networked
PC has printer driver without physical connection directly with printer.
• DDNS
– Dynamic Domain Name System Server
Domain Name System Server is a server that matches URLs (such as www.router-net.com) to
numeric IP addresses. DDNS
• TCP/IP
Transmission Control Protocol (TCP) with Internet Protocol (IP). The main internetworking
protocol used in the Internet.
• PPPoE
– PPP (Point-to-Point Protocol) over Ethernet
PPP is the standard Internet protocol for dial-up connections. PPPoE is for connecting remote
hosts to the Internet over an always-on connection by simulating a dial-up connection.
• UDP –
User Datagram Protocol
UDP provides a procedure for application programs to send messages to other programs with a
minimum of protocol mechanism. The protocol is transaction oriented, and delivery and duplicate
protection is not guaranteed. Applications requiring ordered reliable delivery of streams of data
should use the TCP.
• DMZ
Host– De-Militarized Zone Host
DMZ is the portion of a private network that is visible through the network's firewalls. DMZ
Host allows a local computer exposed to the Internet. Therefore, an incoming packet will be
checked by Firewall and NAT algorithms in the router, then pass to the DMZ host when packet is
not sent by hacker and is not limited by Virtual Server list. Besides, there are some IP protocols
that does not have port number information. There is no way to use Virtual Server setting to
forward incoming packet. Thus, DMZ host is the way to forward such kind of packets. If you try
to enable DMZ host and setup Virtual Server, the precedence is Virtual Server and then DMZ.
For example, the incoming packet will be checked with Firewall rules, Virtual Server rules and
then DMZ host.
8
2. Hardware Installation
2.1 Product Description
This Router with two type of housing, plastic and metal, is easy to install. With its Diagnostic
LEDs, you could easily do trouble-shooting and get status information.
2.1.1 Front Panel
4904SX – Plastic Housing
4904AX – Metal Housing
2.1.2 LEDs
The LEDs are explained in the following tables.
LED
LED Activity
Power
Lights to indicate the router has power.
1. Lights to indicate loading fail.
2. Blinks to indicate that safe mode is on.
1. Lights to indicate a functional network link through the corresponding port
(1 through 4 and WAN) with an attached device.
2. Blinks to indicate that the router is actively sending or receiving data over
that port.
1. Lights for any port to indicate that the port is operating at 100 Mbps.
2. Off to indicate that the port is operating at 10 Mbps while the network is
still operating.
1. Lights to indicate a functional USB Printer Port link through the
correspond
2. Blinks to indicate that the printer is actively sending or receiving data over
that port.
Diag.
Link/Act. for
1~4 LAN Port
and WAN Port
100
Link/Act. for
USB Printer
Port
9
2.1.3 Rear Panel
The following graphic shows the rear panel.
DC In
USB
WAN
1
2
3
4
Reset
• DC
In: To connect the adapter to receive power.
• USB: This is USB Printer Port to connect your USB printer via USB cable. Please note that “DO
NOT” connect any other USB devices except USB printer or the “Self-Power USB Hub” to the
USB port.
• WAN: To connect the Cabel/DSL modem via Cat.5 RJ-45 cable.
• LAN 1~4: To connect networked PC or uplink to Switch or Hub.
• Reset: Pressing the Reset button for more than 3 seconds, the router will restore to factory default
setting. Please note that this should be done only when you had tried all the troubleshooting
options. Pressing the Reset button during operation may bring you into the risk of creating IP
address conflict between your PC and the router. In such a case, you may be compelled to reboot
your entire system.
2.2 Getting Started
Please refer to the following sections of this manual for additional information about setting up
a network.
2.2.1 System Requirement
Before you getting started, make sure that you meet the following requirements.
1. An Internet connection through a cable or DSL modem
2. A computer with an Ethernet network card installed
3. Your Windows CD, if your computer is running Windows 95, 98, or ME
4. UTP network cable with RJ-45 connector
5. Either Microsoft Internet Explorer 4.0 (or above version) or Netscape Navigator 4.0 (or above
version)
2.2.2 Before Installation
Before you start to connect your router to any network device, make sure you get the following values
from your ISP. You will need those values to setup the Router and configure you networked PCs to
accept the IP address the Router chooses to assign them.
• PPPoE
User Name and Password or Fixed Internet IP Address assigned by your local ISP
• Your Subnet Mask
• Your
Default Gateway
10
• Your
Primary DNS IP address
You are supposed to have all those information mentioned above from your ISP. If not, contact your
ISP and they will be able to supply all the information you need.
2.2.3 Setting Hardware Connection
Follow the steps listed below to install your Router when you have all the information mentioned
above on hand.
Step 1. Power all devices down.
This should include your PCs, Cable or DSL modem and the Router.
Step 2. Connect the Router to your PCs.
Connecting Computers: Connect computers directly to the Router on ports 1~4 on the
rear panel. If you have more than 4 computers need to be connected, connect a hub or a switch (using its
uplink port) and connect additional computers to that device.
Step 3. Connecting a Cable Modem or DSL Modem: Connect your Cable or DSL modem to the
WAN port on the rear panel.
Step 4. Connecting a Printer: If you have a printer that you want to share between computers,
connect it to the Printer port using a standard USB Cable.
Step. 5 Power: Plug the power cord into the power jack. And power on computers.
Switch/Hub
Cable/DSL
Modem
Notebook
Internet
PC
4904SX/AX
USB Printer
PC
11
2.2.4 Configure your computer
• Windows 95/98/ME
Step 1. TCP/IP Configuration
After you have completed the hardware setup by connecting your devices, you need to
configure your computer to connect to your Router.
1. From the Windows desktop, click the “Start” button and choose “Settings”, then click “Control
Panel.”
2. From “Control Panel”, double-click the “Network” icon.
3. In the “Network” window, under the “Configuration” tab, double-click the “TCP/IP” entry that is
listed with your network card.
.
12
4. On the “Internet Protocol (TCP/IP) Properties” dialog box, make sure “Obtain an IP address
automatically” and “Obtain DNS server address automatically” are selected. If not, select them and
click “OK” and close window.
13
5. Locate your IP address and Subnet Mask. Type them in the spaces provided below.
6. Click the “Gateway” tab and record the numbers listed under
14
7. Click the “DNS Configuration” tab. Locate the DNS servers listed under “DNS Server Search
Order”. And Click “OK”
8. System may need your Windows 95/98/ME CD to copy some files. After it finishes copying, please
restart your system.
15
Step. 2 Disable HTTP Proxy
• Internet Explorer
1. Open Internet Explorer and click the stop button. Click “Tools” then “Internet Options”
2. In the “Internet Options” window click the “Connections” tab. Then click the “LAN Settings”
button.
16
3. Clear all the checkboxes.
4. Click “OK,” and then click “OK” again to close the “Internet Options” window.
• Netscape
1. Open Netscape and click the stop button. Click “Edit,” then click “Preferences…”
2. In the “Preferences” window, under “Category” double-click “Advanced,” then click
“Proxies.” Select “Direct connection to the Internet.” Click “OK.”
17
Step. 3 Obtain IP Settings from Your Router
1. Click “Start,” then “Run…” Type “winipcfg” to open the IP Configuration utility.
2
3
2. Click the “Release All” button.
3. Click the “Renew All” button
4. Verify that your IP address is now 192.168.1.xxx, your Subnet Mask is 255.255.255.0 and your Default
Gateway is 192.168. 1.1. Click “OK” to close the “IP Configuration” window.
• Windows NT/2000/XP
Step 1. TCP/IP Configuration
After you have completed the hardware setup by connecting your devices, you need to
configure your computer to connect to your Router.
1. From the Windows desktop, click the “Start” button. Choose “Settings”, then click “Control Panel.”
2. From “Control Panel”, double-click the “Network & Dial-Up Connections” icon.
3. Double-click the icon that corresponds to the connection to your router.
4. Click “Properties” and double-click “Internet Protocol (TCP/IP).”
5. On the “Internet Protocol (TCP/IP) Properties” dialog box, make sure “Obtain an IP
address automatically” and “Obtain DNS server address automatically” are selected.
If not, select them and click “OK” and close window.
18
Step. 2 Disable HTTP Proxy
• Internet Explorer
1. Open Internet Explorer and click the stop button. Click “Tools” then “Internet Options”
2. In the “Internet Options” window click the “Connections” tab. Then click the “LAN
Settings” button.
3. Clear all the check boxes.
19
4. Click “OK,” and then click “OK” again to close the “Internet Options” window.
• Netscape
1. Open Netscape and click the stop button. Click “Edit,” then click “Preferences…”
2. In the “Preferences” window, under “Category” double-click “Advanced,” then click
“Proxies.” Select “Direct connection to the Internet.” Click “OK.”
Step. 3 Obtain IP Settings from Your Router
1. From the Windows desktop, click the “Start” button, then “Programs“, then “Accessories” and then
click“Command Prompt.”
2. Type “IPCONFIG /RELEASE” and press “Enter”.
20
3. Type “IPCONFIG /RENEW” and press “Enter”.
4. Verify that your IP address is now 192.168.1.xxx, your Subnet Mask is 255.255.255.0
and your Default Gateway is 192.168. 1.1. Click “OK” to close the “IP Configuration”
window.
5. Type “Exit” and close window.
21
• MAC OS 7.X or above
Step 1. TCP/IP Configuration
1. Pull down the Apple Menu. Click “Control Panels” and select TCP/IP.
22
2. In the TCP/IP dialog box, make sure that “Ethernet” is selected in the “Connect Via:”field. Make
sure “Using DHCP Server” is already selected in the “Configure”field and close
window.
3. Another box will appear asking whether you want to save your TCP/IP settings. Click
Save.
Step. 2 Disable HTTP Proxy
• Internet Explorer
1. Open Internet Explorer and click the stop button. Click “Edit” then “Preferences”
23
2. Select “Proxies” and uncheck all checkboxes and click “OK”.
• Netscape
1. Open Netscape and click the stop button. Click “Edit,” then click “Preferences…”
2. In the “Preferences” window, under “Category” double-click “Advanced,” then click “Proxies.”
Select “Direct connection to the Internet.” Click “OK.”
24
Step. 3 Obtain IP Settings from Your Router
1. Pull down the Apple Menu. Click “Control Panels” and select TCP/IP.
2. In the TCP/IP window, your new settings will be shown. Verify that your IP address is now
192.168.1.xxx, Subnet Mask is 255.255.255.0 and Default Gateway is 192.168.1.1. Close Window.
25
3. Using Configuration Menu
After configuration of your network, you can access the Router via Web browser and type the IP
Address of Router. The default IP address of this Router is shown as following.
Please note that if you have changed the default IP Address assigned to the Router, make sure to
enter the correct IP Address.
Then the “Password” dialogue will be shown up. The default “User Name” is null. The
default “Password” is “admin”. Please refer to “Device Admin” page to check how to change
your password.
26
3.1 Basic Setup
After enter user name and password, the configuration utility will show up. The first page is
“Basic Setup”. You can set up your connection type to your ISP. When finishing setting, click
“Apply” button to save. If you skip pressing “Apply” button, the system will reset automatically.
Note: After applying these settings, sometimes connection information is stored on the modem
and needs to be updated. You may need to shut down and restart your modem.
1. Host Name & Domain Name
Some ISPs required these names as identification. You may check with your ISP to see if
your Broadband Internet Service has been configured with a host and domain name (like
CX-1234-56789). In most cases, leaving fields blank will work.
2. Private IP Address
IP Address of this router used by the internal LAN. The default value is 192.168.1.1 for IP
Address and 255.255.255.0 for Subnet Mask. In most applications, you should not change
the “IP address” from the default (192.168.1.1). However, if you are implementing your
router into an existing network, you may need to change it to match your current addressing
scheme.
27
3. Public IP Address
The Public IP Address and Subnet Mask of this router are used by external users of the
Internet (including your ISP). Choose one of connection type, “DHCP” or “PPPoE” or
“Static IP Address” or “PPTP”.
Select “DHCP” or “PPPoE” if these values are to be automatically assigned to the router by your ISP.
If a fixed Public IP Address is to be used, select “Static IP Address” and enter the IP Address and
Public Subnet Mask provided by your ISP.“PPTP” mostly used in Europe. Choose this type of
connection, if you connect to your ISP by PPTP.
After choosing connection type, the corresponding option will show up for more detail
setting.
• DHCP
If your IP Address is provided by your ISP dynamically, choose this option.
Pre-request IP: Enter the IP address if your ISP need it.
MTU: Enter the MTU value you want to set. We recommend to keep the default value.
28
• PPPoE
User Name: Your User Name provided by your ISP.
Password: Your password provided by your ISP.
ISP Name: Your ISP name.
Connect on Demand: When you enable this function, then the router will connect to your ISP under
your command.
Disconnect when network idle: You can set the network idle time to disconnect. If you set the time “0”,
this function will be disabled.
29
• Static IP Address
Static IP Address: Enter the IP Address provided by your ISP.
Public Subnet Mask: Enter the Subnet Mask provided by your ISP.
Default Gateway IP Address: Enter the Gateway IP Address provided by your ISP.
Domain Name Server 1: Enter the Domain Name server Address provided by your ISP.
30
• PPTP
IP Address: Enter the IP Address provided by your ISP.
Subnet Mask: Enter the Subnet Mask provided by your ISP.
Default Gateway: Enter the Gateway IP Address provided by your ISP.
User ID: Enter the User ID provided by your ISP.
Password: Enter the Password provided by your ISP.
PPTP Server: Enter the PPTP Server Address provided by your ISP.
MTU: If you need to change the MTU value, enter the value you want to set and click “change”. We
recommend to use default value unless your ISP require you to change.
Idle Time Out: Enter a maximum idle time during which Internet connection is maintained during
inactivity. To disable this feature, enter “0”.
31
3.2 DHCP
Unless you already have a DHCP server on your internal network, choose “Enable” from the
DHCP. A DHCP Server can automatically assign IP Address to each computer in your network.
It is highly recommended that you set your broadband router to act as a DHCP server. Be sure to set
your computers to be DHCP clients by setting their TCP/IP settings to “Obtain an IP Address
Automatically.” When you turn your computers on, they will automatically load the proper
TCP/IP settings provided by the router. The DHCP Server will automatically allocate an
unused IP address from the IP address pool to the requesting computer. You must specify the
starting and ending address of the IP address pool.
• DHCP Server: Select “Enable” to use the DHCP server option of the broadband router.
If you already have a DHCP server in your network, set the router’s DHCP option to “Disable”.
• Start IP Address/ End IP Address: Enter the starting/ Ending IP address for the DHCP server’s IP
assignment. Make sure the first three octets match the router’s IP address, i.e., 192.168.1.xxx. The value
must be located from 2 to 254.
• Static DHCP: If you need to specify your LAN clients to static IP addresses, you can enable this
function. And enter the LAN client’s IP address corresponding to its MAC address.
32
3.2.1 DHCP Client Table
This table will show you how many networked computers have been found on your DHCP server and
the IP Address and MAC Address of networked computers connected to the Router. Click “Reload” to
get updated information.
3.3 URL Access Setting
Use URL Access filters to allow or deny computers access to specific Internet domains whether
it is through www, ftp, snmp, etc.
33
URL Access Limit: Choose Enable/Disable to use URL Access filters or not.
• Website Access: Select “Block” to deny users to access the specified Internet websites listed
below. Users will be allowed access to all other Internet websites. On the contrary, select “Allow” to
allow users to access the specified Internet websites listed below. Users will be denied to access to all
other Internet websites.
• URL Address: Enter the URL Addresses you want to use, i.e., shopping.com. Remember
clicking “ADD” when finishing typing the URL Address. Wait for a few second, router will save the URL
Address to URL List and click “Back”.
• Current URL List: This table show you the URL Addresses you use.
• Remember clicking “Apply” after making any changes.
3.4 IP Access
This function allows network administrators to restrict up to five groups of specified network
users/computers from accessing the certain applications.
Before using this function, the network PCs that you want to control the access limitation
should be assigned one fixed IP Address individually.
34
• LAN IP Range: Enter the range of IP addresses which you want them to be a controlled group
to have the same access limitation.
• Protocol: Select the protocol type as “TCP” or “UDP” from the pull down menu. If you are
not sure which one to choose, select “Both”.
• Blocked Port: Enter the range of port numbers which are used by the applications you wish to be
blocked,i.e. Enter the range of 3~7 in the LAN IP Range column and 1~999 in the Blocked Port column
and select the protocol type as TCP, then click “Apply” button. As the result, the user’s computers, which
have IP Address in the range of 192.168.1.3 to 192.168.1.7, will not to be able to use the applications that
use port numbers from 1 to 999 and selected TCP protocol, such as web browsing. Please check the 6th
section to see more TCP/IP Port list for Internet Service.
3.5 Virtual Server
The router can be configured as a virtual server so that remote users accessing Web or FTP
services via the public IP address can be automatically redirected to local servers in the LAN.
The router firewall feature filters out unrecognized packets to protect your LAN network so all
networked computers connected to the router are invisible to the outside world. If you wish, you can
make some of the networked computers accessible from the Internet by enabling Virtual Server.
Depending on the requested service, the router will redirect the external service request to the
appropriate server within the LAN network.
35
• Select: Use the pull-down menu to select from a list of well-known Virtual Server services.
such as Web, DNS, FTP, POP3 etc. The related Port Range will be automatically
specified. For example, if you select the “FTP”, the port range will automatically be set to 21~21. If you
want to setting by yourself, you can select the “Manual Setting”.
Please check the 6th section to see more TCP/IP Port list for Internet Service.
Note: If the browser is Netscape Navigator 4.7,the “Protocol” column will be not automatically
selected. When you select a specify application, you have to select the protocol by yourself.
• Redirect IP Address: The IP address of the networked computer connected to the router that
will be using the virtual Server service.
• Port Range: Enter the desired service port numbers.
• Protocol: Specify the protocol type as “TCP” or “UDP” from the pull-down menu. If you are
not sure which one to select, choose “Both”.
3.6 DMZ Host
If you have a computer that cannot run Internet applications properly from behind the router,
then you can allow that computer to have unrestricted Internet access. Please note that adding a
client to the DMZ may expose that computer to a variety of security risks, so only use this
36
option as a last resort. Enter “0” in LAN IP Address field will disable DMZ Host.
3.6.1 PPPoE/DHCP/PPTP Mode
If your router is configured as PPPoE/DHCP/PPTP connection type to your ISP, enter the
networked computer’s IP Address to enable DMZ function.
3.6.2 Static IP (Fixed IP) Mode
If your router is configured as static IP connection type to your ISP.
• MultiDMZ: Select “Enable” to activate this function or not.
• WAN IP? LAN IP: Enter the WAN IP address and corresponding LAN IP Address.
3.7 Device Admin
You can update router’s firmware, change password of this router and set up some management
function of this router on this page.
37
• Version: Here will show you the installed firmware version on this router. Make sure that
the firmware you want to use is saved on the local hard drive of your computer. Click “Firmware
Upgrade” button to update router’s firmware. Then direct the file path and click “Upload”.
Upgrading the firmware will not change any of your system settings but it is recommended that you
save your system settings before doing a firmware upgrade.
Note: Do not power off the router when it is being upgraded. When the upgrade is complete, restart the
router via re-plug the power cord.
?? Old Password: Enter the password of this router.
?? New Password: Enter the new password of this router you want to change. Please keep the
password safely. If you forgot your password, you have to reset your router by clicking the reset button in
the rear panel of this router.
?? Confirm Password: Re-type the new password.
?? WAN MAC Change: If you want ot change the default MAC Address is set to the WAN’s
physical interface MAC address on the Router, enter the MAC Address you want to reset.
?? External Admin: This router allow outside user configure this router. This function also been
called as Remote Management. It allows the device to be configured through the WAN (Wide Area
Network) port from the Internet using a web browser. A username and password is still required to access
the browser-based management interface. Enter the IP Address of outside user to allow access into this
38
router to configure this router. To access the setting page from external side, enter “http://<WAN IP
Address>:8080” into the web browser address column.
Note: For Security consideration, it is recommended not to enable this function if not necessary. When
Remote management is enabled, please change your Webserver Port 80.
3.8 Status Monitor
This page displays the information of this router. Click “Reload” to re-fresh the current information
3.9 RIP
RIP stands for Routing Information Protocol. RIP sends routing-update messages at regular
intervals and when the network topology changes. It uses a single routing metric (hop count) to
measure the distance between the source and a destination network. RIP maintain only the best
route (the route with the lowest metric value) to a destination. After updating its routing table,
the router immediately begins routing updates.
This router provides two kinds of routing mode to choose, Dynamic Routing and Static Routing.
Dynamic Routing means that it can be used to cache routes learned by RIP, thus allowing the
automation of static routing maintenance. Static Routing only receives routing tables from other
routers and does not send its own routing table to others. You can refer to the Static Routing page
39
to set up static routing function.
• TX: From the pull-down menu, select the routing type, “RIP-1”, “RIP-1 Compatible”, or
“RIP-2”, to enable the “TX(transmit)” function. “RIP-1” is the protocol used by order routers and
newer routers should use “RIP-2”. “RIP-1Compatible” serves to broadcast RIP-1 and multicast RIP-2.
• RX: Form the drop-down list, select one of the routing information types, “RIP-1” or “RIP-2”, to
enable the “RX(receive)” function.
• Routing Table: Click “Show Routing Table” to see update routing information.
40
3.10 Static Routing
• Static Routing: Select the route entry number from 1 to 20 that you want to configure.
• Destination LAN IP: You can create a static route by entering the IP address of the remote host
or network. If you wish to build a route to the entire network, be sure to set the network portion of the IP
address to zero (0).
• Subnet Mask: The Subnet Mask determines which portion of an IP address is the network
portion, and which portion is the host portion.
• Default Gateway: Enter the address of the gateway device that allows for a contact between the
Router and the remote network or host.
• Hop Count: Enter the number of hops required between the LANs to be connected. The Hop
Count represents the “cost” of the routing transmission. The default value is 1.
• Routing Table: Click “Show Routing Table” to see update routing information.
41
3.11 Dynamic DNS
DDNS keeps dynamic IP addresses (i.e., IP addresses assigned by a DHCP capable router or
server) linked to a domain name. Users who have a Dynamic DNS account may use this feature.
• Dynamic DNS: When an IP address is automatically assigned by a DHCP server, DDNS
automatically updates the DNS server. Select Disable or Enable.
• Service Provider: Before activate this function, please refer to www.dyndns.org to register your
DNS service.
• User Name: Enter your user name from your service provider.
• password: Enter your password from your service provider.
• Hostname: Enter the host name.
• MX: Enter your Mail Server’s domain name to enable. Or leave blank to disable.
• Wildcard: Select “Enable” or “Disable” to use or not use the wildcard function. Wildcard function
allows your domain name contains universal characters, i.e. *, ?.
42
3.12 Special Application
Some applications require multiple connections, such as Internet gaming, video conferencing,
Internet telephony and others. These applications have difficulties working through NAT. Special
Applications makes some of these applications work with the router.
You can use the default setting or manual setting on the drop down menu.
43
3.13 Statistics
This page displays activities occurring on the router.
Note: On Window XP or IE 6.0, you may need to install Java Virtual Machine program to see
the windows. Please refer to the CD-ROM and select “Installing Java Virtual”.
44
3.14 Security Setting
By setting up this security setting, keep your LAN away from hacker attack.
DoS stands for Denial of Service. It’s a method the hackers use to prevent or deny legitimate users
access to a computer. DoS attacks are typically executed using DoS tools that send many requests packets
to a targeted Internet server (usually Web, FTP, or Mail server), which floods the
server's resources, making the system unusable. Any system that is connected to the Internet and
is equipped with TCP-based network services is subject to attack. To prevent DoS Attack, set up
the below option.
• DoS Attack Defense: Enter the time you want to make the DoS Attack Defense enabled. Enter
“0” to disable. By enable this function, router will cut off the connection which sends a great quantity of
packet on irregular continuous condition over the time you set.
• Hide Public IP Address: Select “Yes” to activate this function or not. When enabling this
function, outside users will not know your WAN IP Address.
45
3.15 Connection Log
This table displays the connection history of PPPoE and DHCP. You can click “Reload” to get the latest
status.
46
3.16 Time Settings
Select your local time zone by selecting in the drop down menu. If you want to configure this router’s
time an date munally, enter the time and date in the column and enable this feature. If you disable this
feature, the router will use the Internet time settings.
3.17 UPnP
UPnP stands for Universal Plug and Play. UPnP service allows computers to discover and use
network-based devices. Windows ME and XP include native UPnP services; Windows 98 and
98SE do not include a native UPnP service, but you can install via the Internet Connection
Sharing client shipped with Windows XP.
Select Enable/Disable to enable this function or disable. Then click “Apply” and the router will
reboot automatically. After a few second, complete window will show up.
47
4. Install Printer Server
• Insert the CD-ROM into the CD-ROM drive
The following window is shown automatically. If not, please find setup.exe on the CD-ROM\
Printer Server. And click “Installing Printer Software”. The Printer Server Driver only supports
Window 98/ME/2000/XP.
• System will auto run setup program
The setup wizard will lead you to complete the installation. Click “Next” to proceed.
48
• Finish the installation
Click “Finish” to complete the installation. Select the checkbox to open readme file or not.
Note: Please refer to Printer Server’s User Guide to see more details.
49
5. Trouble Shooting
No lights are lit on the router
The router has no power.
• Make sure the power cord is properly connected to the router.
• Make sure the power adapter is properly connected to a functioning power outlet. If it’s in a
power strip, make sure the power strip is turned on.
• Make sure you are using the correct power adapter (DC 7.5V, 1Amp).
There is no numbered light lit for a connected device
There’s a hardware connection problem.
• Make sure the cable connectors are securely plugged in at the router and the device.
• Make sure the connected device is turned on.
• Be sure the correct cable is used. For computers, use a Category 5 Ethernet patch cable. For
other devices, you may need a cross-over cable or may need to use the uplink port.
Why my browser can not open the router’s on-line configuration program
You may need to download and install the Java Plug-in for your Operating System. Please
refer to CD-ROM to install. Or upgrade your browser to Internet Explorer 5.5 and higher (with SP1),
Netscape 6.0 and higher, Mozilla 5.0 and higher, Opera 6.0 and higher
After setting up my router, I can not play on-line game
The Broadband Router uses Network Address Translation to issue several private (virtual) IPs
using one public IP address Internet games communicate with each other based on IP addresses and UDP
port numbers. Unfortunately, some games will be affected when NAT is applied. Gamers would not
communicate with each other due to the side effect created by NAT. Such games and applications are
called NAT unfriendly applications. You can setup “Special Application” on this router. Consult your
game vender for correct port setting.
If you want to host the Internet game for your parties to join it is better for you to set one
computer host that you are playing on to be a DMZ host. You will need to tell your parties to
join your game on the IP address of the WAN interface of the router device. Do not tell your
parties of the virtually local IP address assigned from the DHCP function of the router device
or you see in the game or the computer host.
If your Internet connection service is an ADSL PPPoE or cable modem connection, please check
the IP address of the WAN interface at every new Internet connections.
50
6. TCP/IP Port List for Internet Service
The list of TCP/IP Port for Internet service is as following table. Please note that the list is just
for your reference. You may check the service provider’s manual to see more details.
Service Name
AOL
AOL ICQ
AOL Instant Messenger
TCP
UDP
5190-5193
5190-5193
5190, dyn >=1024
Notes
American OnLine
Message
5190
5190
American OnLine
Citrix ICA
1494, dyn >=1023
1604, dyn >=1023 Remote application access
DirectX Gaming
47624, 2300-2400
47624, 2300-2400 many network games
Distributed.Net RC5/DES
2064
Distributed computation
DNS
Doom
666
FTP
21
Glimpseserver
Gopher
53
Domain name Service
666
Network game
File Transfer Protocol
2001
Search engine
70
H.323 Host Call
1720
HTTPs
443
ichat client, server
4020
1720
H.323 host call
Secure HTTP (SSL)
4020
Chat rooms
ICU II
2000-2003
Videoconferencing
iSpQ
2000-2003
Videoconference
LDAP
389
389
Lightweight Directory Access Protocol
dyn >=1024
4000
Locator, chat
1731
1731
Audio call control (Microsoft)
dyn >=1024,
dyn >=1024
Video conference
1755
1755
Streaming video
28800-29000
28800-29000
Network Game
Mirabilis ICQ
MS ICCP
MS Netmeeting
MS NetShow
MSN Gaming Zone
MSN Messenger
Netscape Conference
NNTPs
1863
Instant messenging
6498, 6502
2327
563
Audio conference
Secure NNTP news (SSL)
Palm Computing Network Hotsync
14237
14238
Data synchronization
pcAnywhere
5631
5632
Remote control
POP3
110
QuickTime 4
Real Audio & Video
Post Office Protocol Version 3
RTSP
RTP
RTSP, 7070
6970-7170
Streaming audio, video
Streaming audio and video
Remotely Possible (ControlIT)
799
Remote control software by CA
RTSP
554
Real Time Streaming Protocol
51
SMTP
25
SOCKS
1080
Squid
3128
SSH
22
Telnet
23
Simple Mail Transfer Protocol
Internet proxy
3130
Web proxy cache
Secure Shell
1417-1420
407
Remote control
ULP
522
522
User Location Protocol
Virtual Places
1533
Timbuktu
VocalTec Internet Phone
Win MX
Conferencing
1490, 6670, 25793
22555
Video conference
6399
6399
Peer to Peer file exchange
1558
Streaming video
Xing StreamWorks
Yahoo Messenger – messages
5050
Message
Yahoo Messenger – Webcam
5100
Video
Yahoo Messenger –Voice Chat
5000~5001
5000~5001
Voice chat
* Above TCP/IP Port List is from the following web page: http://www.akerman.ca/port-table.html
(The copyright is belong to the writer of the web)
52
7. Warranty
3-Year Limited Warranty for this router.
Subject to the terms and conditions set forth herein, SURECOM provides this Limited warranty
for its product only to the person or entity that originally purchased the product from SURECOM
or its authorized reseller or distributor.
SURECOM warrants that the hardware portion of the SURECOM products described below will
be free from material defects in workmanship and materials from the date of original retail
purchase of the product, for the period set forth below applicable to the product type (“Warranty
Period”), except as otherwise stated herein.
3-Year Limited Warranty for the Product(s) is defined as follows:
• Hardware (excluding power supplies and fans) Three (3) Year
• Power supplies, fans, and cables are covered by a standard one-year warranty from date of
purchase.
• Spare parts and spare kits Ninety (90) days
• Software portion of the product (“Software”) Ninety (90) days
Technical Support
You can find the most recent software and user documentation on the SURECOM website.
http://www.surecom.com.tw
You also can contact SURECOM technical support through Web site, E-Mail, or by phone.
SURECOM Tech Support over the phone
886-2-8692-6200
AM 09:00~PM 18:00, Monday~Friday
SURECOM Tech Support over Web site
http://www.surecom-net.com/00-support.htm
When contacting technical support, you will need the information below.
• Serial number of the unit
• Model number or product name
• Software type and version number
53
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
