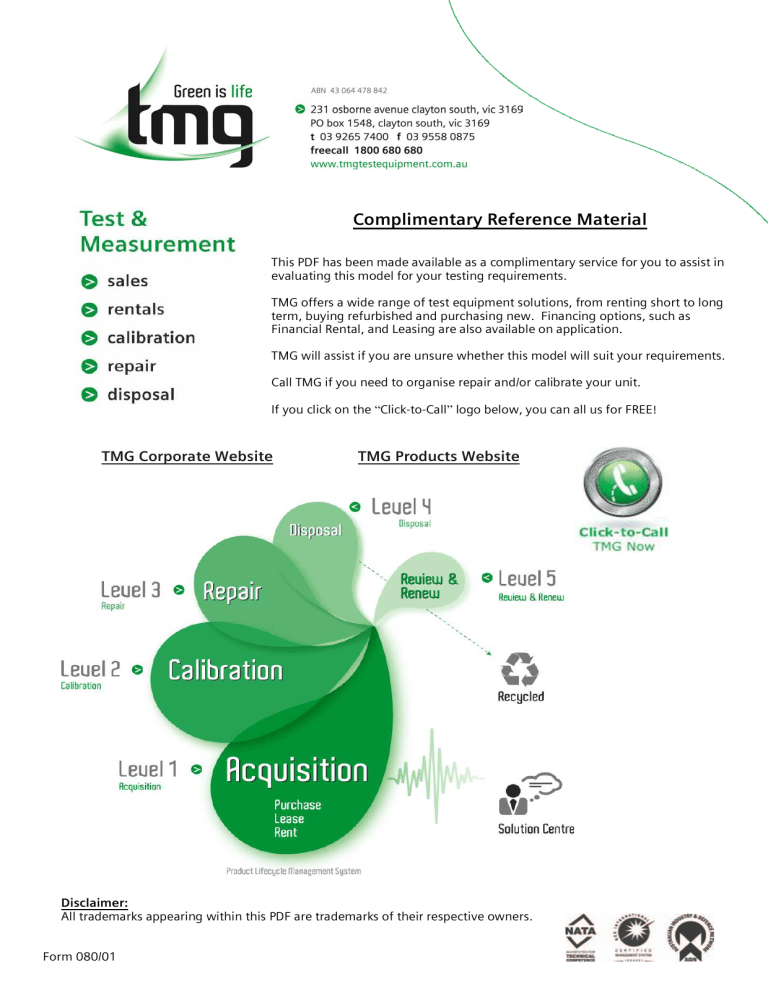

Complimentary Reference Material

Complimentary Reference Material
Complimentary Reference Material
This PDF has been made available as a complimentary service for you to assist in
evaluating this model for your testing requirements.
TMG offers a wide range of test equipment solutions, from renting short to long
term, buying refurbished and purchasing new. Financing options, such as
Financial Rental, and Leasing are also available on application.
TMG will assist if you are unsure whether this model will suit your requirements.
Call TMG if you need to organise repair and/or calibrate your unit.
If you click on the “Click-to-Call” logo below, you can all us for FREE!
TMG Corporate Website
TMG Products Website
All trademarks appearing within this PDF are trademarks of their respective owners.
Form 080/01
1 G H z S p e c t r u m A n a ly z e r
Unmodulated RF signal
Frequency range from 150 kHz to 1 GHz
Amplitude measurement range from -100 dBm to +10 dBm
Phase Synchronous, Direct Digital frequency Synthesis (DDS)
RF signal
Resolution bandwidths (RBW): 20 kHz and 500 kHz
Keypad for frequency and amplitude setting
Analog signal processing and display
Test signal output
1 GHz Spectrum Analyzer HM5510
Valid at 23 °C after a 30 minute warm-up period
Frequency Characteristics
Frequency Range:
0.15 MHz to 1.050 GHz
±5 ppm
±1 ppm/year
Frequency Resolution:
1 kHz (61⁄2-digit in readout)
Center Frequency Range:
0 to 1.050 GHz
LO Frequency Generation:
TCXO with DDS (Digital Frequency Synthesis)
Span Setting Range:
Zero-Span and 1 MHz – 1000 MHz
(1-2-5 Sequence)
Frequency Resolution:
1 kHz, 61⁄2-digit,
Amplitude Resolution:
0.5 dB, 31⁄2-digit
Resolution Bandwidths
(RBW) @ 3dB:
500 kHz and 20 kHz
Video filter (VBW):
4 kHz
Sweep Time:
20 ms
General information
Acceleration Voltage:
Trace Rotation:
Ambient Temperature:
Power Supply:
Power Consumption:
Safety class:
Dimensions (W x H x D):
D14-363GY, 8 x 10 cm with internal graticule
approx. 2 kV
adjustable on front panel
+10 °C to +40 °C
105 – 253 V, 50/60 Hz ± 10 %, CAT II
approx. 31 W at 230 V/50 Hz
Safety class I (EN61010-1)
285 x 125 x 380 mm,
with adjustable, lockable tilt handle
approx. 5.6 kg
Accessories supplied: Line Cord, Operators Manual, HZ21 Adapter Plug
(N-plug with BNC socket)
Optional accessories:
HZ520 Antenna
HZ530 Near Field Probe Set for EMI Diagnosis
Amplitude Characteristics (Marker Related) 150 kHz – 1 GHz
Measurement Range:
-100 dBm to +10 dBm
10 dB/div.
Display Range:
80 dB (10dB/div.)
Amplitude Frequency Response (at 10 dB Attn., Zero Span and RBW
500 kHz, Signal – 20 dBm): ± 3 dB
Display (CRT):
8 x 10 division
Amplitude Scale:
Display Units:
Parameter Display (LCD):
2 Lines x 20 Characters, Center Frequency,
Span, Marker Frequency, Reference Level,
Marker Level
Input Attenuator Range:
0 – 40 dB (10 dB increments)
Tolerance of input attenuator: ± 2 dB relative to 10 dB position
Max. Input Level (continuous)
10 - 40 dB attenuation:
+ 20 dBm (0.1 W)
0 dB attenuation:
+ 10 dBm
Max. DC Voltage:
± 25 V
Max. Reference Level:
-50 dBm to + 10 dBm
Reference Level Accuracy rel. to 500 MHz, 10 dB Attn., Zero Span and
RBW 500 kHz:
± 2 dB
Min. Average Noise Level:
approx. -100 dBm (RBW 20 kHz)
Intermodulation Ratio
typical › 75 dBc (2 Signals: 200 MHz,
(3rd Order):
203 MHz, -3 dB below Reference Level)
Harmonic Distortion Ratio
(2nd harm.):
typical › 75 dBc (200 MHz, Reference Level)
Bandwidth Dependent Amplitude Error rel. to RBW 500 kHz and Zero
± 1 dB
Inputs / Outputs
Measurement Input:
Input Impedance:
VSWR: (Attn. ≥ 10 dB)
Supply Voltage
for Probes (HZ530):
Audio output (phone):
Test Signal output:
Keyboard Input:
Rotary Encoder Input:
50 Ω
typ. 1.5 : 1
6 V DC
3.5 mm Ø jack
N-socket, output Impedance 50 Ω
10 MHz
0 dBm (± 3 dB)
Center Frequency, Reference
Center Frequency, Reference Level,
Testsignal output Level, Marker,
Intensity (CRT), Contrast (LCD)
w w w. h a m e g . co m
HM5510E/150408/ce · Subject to alterations · © HAMEG Instruments GmbH · ® Registered Trademark · DQS-certified in accordance with DIN EN ISO 9001:2000, Reg.-No.: DE-071040 QM
HAMEG Instruments GmbH · Industriestr. 6 · D-63533 Mainhausen · Tel +49 (0) 6182 800 0 · Fax +49 (0) 6182 800 100 · · [email protected]
