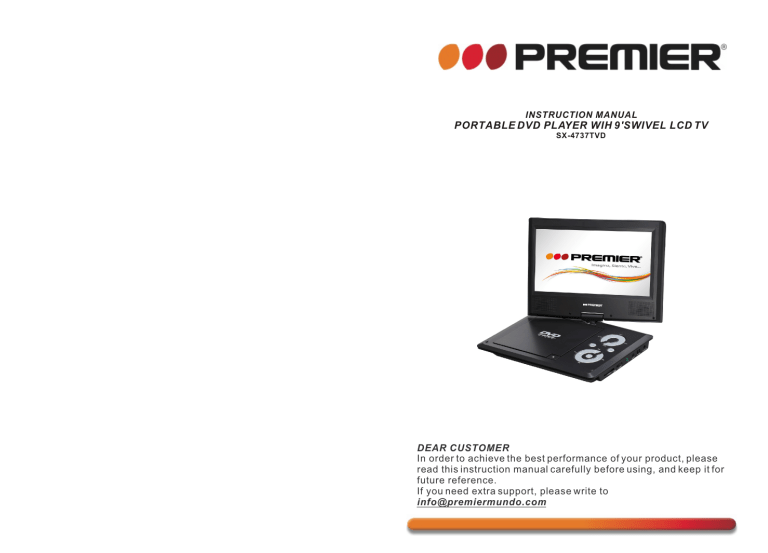

INSTRUCTION MANUAL

PORTABLE DVD PLAYER WIH 9'SWIVEL LCD TV

SX-4737TVD

DEAR CUSTOMER

In order to achieve the best performance of your product, please read this instruction manual carefully before using, and keep it for future reference.

If you need extra support, please write to

[email protected]

Table Of Contents

Safety Precaution

Safety Precaution 1

Package 2

Main Features 2

Thank you for choosing our portable DVD player.The unit applies the latest state of art electronics and is designed for use at home,in hotels and in offices etc for relaxation.

The compact size makes carrying easier as well as installation.Please read the manual carefully prior to use and keep it well for future reference.

Main Unit Controls 3

System Connection 4

The Remote Control 7

Basic operation 9

System Setup 14

Specification 18

Troubleshooting 19

RISK OF ELECTRIC SHOCK,

DO NOT OPEN

Caution: To reduce the risk of electric shock do not open this device, there are not serviceable parts for customers. Please refer any maintenance or repair to qualified personnel.

This sign means the existence of dangerous voltage at the inside of the unit, which states a risk of electric shock.

This sign means that there are important instructions of operation and handling in the manual that comes with this device.

PREMIER CUSTOMER SERVICE

Venezuela:

Panama:

Website

E-mail:

0800 ELECTRIC (353-2874)

300-5185 www.premiermundo.com

[email protected]

NOTE

This unit may be submitted to changes in specifications, characteristics and/or operation without prior notice to the user, in order to continue improving and developing its technology.

1

Table Of Contents

Safety Precaution

Safety Precaution 1

Package 2

Main Features 2

Thank you for choosing our portable DVD player.The unit applies the latest state of art electronics and is designed for use at home,in hotels and in offices etc for relaxation.

The compact size makes carrying easier as well as installation.Please read the manual carefully prior to use and keep it well for future reference.

Main Unit Controls 3

System Connection 4

The Remote Control 7

Basic operation 9

System Setup 14

Specification 18

Troubleshooting 19

RISK OF ELECTRIC SHOCK,

DO NOT OPEN

Caution: To reduce the risk of electric shock do not open this device, there are not serviceable parts for customers. Please refer any maintenance or repair to qualified personnel.

This sign means the existence of dangerous voltage at the inside of the unit, which states a risk of electric shock.

This sign means that there are important instructions of operation and handling in the manual that comes with this device.

PREMIER CUSTOMER SERVICE

Venezuela:

Panama:

Website

E-mail:

0800 ELECTRIC (353-2874)

300-5185 www.premiermundo.com

[email protected]

NOTE

This unit may be submitted to changes in specifications, characteristics and/or operation without prior notice to the user, in order to continue improving and developing its technology.

1

Package

DVD Player

Remote Control with battery

Audio/Video Cable

AC/DC Power Adapter

Cigarette Lighter Adapter

User Manual

Earphone

Antenna

Carry pouch

DIN F Type pluy

1

1

1

1

1

1

1

1

1

1

Main Features

High brightness color 9” LCD screen

Compatible with disc of DVD,VCD,MP3,MPEG4,CD,JPEG,etc

Support TV/AV IN

Built-in stereo speaker

Built-in rechargeable Lithium polymer battery

Support PAL or NTSC system

Support Multi-language OSD,speed forward/backward, repeat function

Zoom in/out function

Swivelling LCD screen

You can swivel the LCD screen of this player clockwise a maximum of 180 ° for use.

Main Unit Controls

2

10

SETUP

MODE

USB/CARD

MENU

1

2

3

4

5

7

8

6

9

11

12

13

14

15

16

17

20

19 18

1.SETUP BUTTON

2.MENU BUTTON

3.MODE BUTTON

4.USB/CARD BUTTON

5.PLAY/PAUSE BUTTON

6.STOP BUTTON

7. BUTTON

8. OK BUTTON

9. BUTTON

10. OPEN knob

11. DC IN 9-12V

12. POWER ON/OFF SWITCH

13. AV OUT

14 .AV IN

15. Earphone jack

16. SD/MMC Card slot

17. USB port

18. ANT

19. GAME

20.Rating label position

21.Charging/IR

3

Charging /IR

21

Package

DVD Player

Remote Control with battery

Audio/Video Cable

AC/DC Power Adapter

Cigarette Lighter Adapter

User Manual

Earphone

Antenna

Carry pouch

DIN F Type pluy

1

1

1

1

1

1

1

1

1

1

Main Features

High brightness color 9” LCD screen

Compatible with disc of DVD,VCD,MP3,MPEG4,CD,JPEG,etc

Support TV/AV IN

Built-in stereo speaker

Built-in rechargeable Lithium polymer battery

Support PAL or NTSC system

Support Multi-language OSD,speed forward/backward, repeat function

Zoom in/out function

Swivelling LCD screen

You can swivel the LCD screen of this player clockwise a maximum of 180 ° for use.

Main Unit Controls

2

10

SETUP

MODE

USB/CARD

MENU

1

2

3

4

5

7

8

6

9

11

12

13

14

15

16

17

20

19 18

1.SETUP BUTTON

2.MENU BUTTON

3.MODE BUTTON

4.USB/CARD BUTTON

5.PLAY/PAUSE BUTTON

6.STOP BUTTON

7. BUTTON

8. OK BUTTON

9. BUTTON

10. OPEN knob

11. DC IN 9-12V

12. POWER ON/OFF SWITCH

13. AV OUT

14 .AV IN

15. Earphone jack

16. SD/MMC Card slot

17. USB port

18. ANT

19. GAME

20.Rating label position

21.Charging/IR

3

Charging /IR

21

System Connection

Powering and installation

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the main unit, then plug the other end into the AC power receptacle.Please refer to the following illustration.

AV IN AV OUT OFF/ON

DC IN 9-12V

If using car cigarette lighter adaptor to connect to the power:

Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket.See illustration below.

AV IN AV OUT

OFF/ON

DC IN 9-12V

Connecting to TV

You can also connect the unit to a TV to enjoy high quality picture and stereo sound.

Please refer to the following illustration:

AV IN AV OUT OFF/ON

DC IN 9-12V

AV CABLE

(Not Supplied)

AUDIO IN VIDEO IN

TV

Please use AV cable to connect the machine and the TV.Make sure it is connected

correctly.

Note:

1.Car cigarette lighter adaptor is not recommended to recharge the battery.

2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.

3.The mains plug is used as the disconnect device, the disconnect device should remain

readily operable.

4 5

System Connection

Powering and installation

Plug one end of the AC/DC power adaptor into the DC IN 9-12V jack on the right of the main unit, then plug the other end into the AC power receptacle.Please refer to the following illustration.

AV IN AV OUT OFF/ON

DC IN 9-12V

If using car cigarette lighter adaptor to connect to the power:

Plug one end of the cigarette lighter adaptor into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket.See illustration below.

AV IN AV OUT

OFF/ON

DC IN 9-12V

Connecting to TV

You can also connect the unit to a TV to enjoy high quality picture and stereo sound.

Please refer to the following illustration:

AV IN AV OUT OFF/ON

DC IN 9-12V

AV CABLE

(Not Supplied)

AUDIO IN VIDEO IN

TV

Please use AV cable to connect the machine and the TV.Make sure it is connected

correctly.

Note:

1.Car cigarette lighter adaptor is not recommended to recharge the battery.

2.Car cigarette light adaptor can only be used when the car power supply is 9-12V.

3.The mains plug is used as the disconnect device, the disconnect device should remain

readily operable.

4 5

Connecting with external Speaker

The unit can be connected with external speaker. Please see the following illustration.

AV IN AV OUT OFF/ON

DC IN 9-12V

AV CABLE

Not supplied

VIDEO IN AUDIO IN

AMPLIFIER

TV

Left front speaker

Center speaker

Right front speaker

SUBWOOFER

Left rear speaker Right rear speaker

Notice:There is no 5.1 channel in the unit,however,after connecting to APM it is available

to output audio in 5.1 channel.

6

The Remote Control

6

7

8

4

5

9

10

11

1

2

3

LCD

SETUP

AUDIO

ENTER

OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

ZOOM VOL+

SUBTITLE

VOL-

MODE SEARCH STOP CAP

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

1. LCD(Ture on/off LCD panel back light)

2. USB/CARD(Switch between DVD/USB/

CARD)

3. Number button

4. SETUP(To go to or exit setup menu)

5. UP/DOWN button

6. LEFT/RIGHT button

7. Enter(To confirm)

8. AUDIO(To select audio language)

9. Fast forward/backward button (To scan

forward/backward at 2, 4, 8,16, or 32 times)

10. MODE(Switch between DVD/AVIN/TV

MODE)

11. SEARCH(To start auto search TV program

when in TV mode:Not available in DVD mode)

12. MUTE(To turn to mute)

13. OSD(To display disc information during playing such as elapsed and remaining time)

14. Repeat(To repeat playing title,chapter or track)

15. A-B (Rep eat a s peci fic p orti on fr om po int A to B, press it again to cancel repeat playing)

16. Angle(To change viewing angle when playing disc with multi-angle)

17. Menu(To enter or exit menu root:When play disc with PBC,press this button to

enter PBC menu,press again to exit)

18. TITLE(To display title information)

19. VOL +(To adjust the volume)

20. ZOOM(To zoom in/out the image during the playback)

21. VOL-(To adjust the volume)

22. Play/pause

23. Subtitle(To select subtitle language when playing DVD disc)

24. Previous/Next button(To go to previous/next chapter or scene during playing)

25. CAP(To capture a image when in playing video or pictrue,and then you can set this

image as your opening logo in setup menu)

26. Stop(press once to stop playback, then press to resume playback from the

point where you stopped;press stop button twice to stop playback completely)

7

Connecting with external Speaker

The unit can be connected with external speaker. Please see the following illustration.

AV IN AV OUT OFF/ON

DC IN 9-12V

AV CABLE

Not supplied

VIDEO IN AUDIO IN

AMPLIFIER

TV

Left front speaker

Center speaker

Right front speaker

SUBWOOFER

Left rear speaker Right rear speaker

Notice:There is no 5.1 channel in the unit,however,after connecting to APM it is available

to output audio in 5.1 channel.

6

The Remote Control

6

7

8

4

5

9

10

11

1

2

3

LCD

SETUP

AUDIO

ENTER

OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

ZOOM VOL+

SUBTITLE

VOL-

MODE SEARCH STOP CAP

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

1. LCD(Ture on/off LCD panel back light)

2. USB/CARD(Switch between DVD/USB/

CARD)

3. Number button

4. SETUP(To go to or exit setup menu)

5. UP/DOWN button

6. LEFT/RIGHT button

7. Enter(To confirm)

8. AUDIO(To select audio language)

9. Fast forward/backward button (To scan

forward/backward at 2, 4, 8,16, or 32 times)

10. MODE(Switch between DVD/AVIN/TV

MODE)

11. SEARCH(To start auto search TV program

when in TV mode:Not available in DVD mode)

12. MUTE(To turn to mute)

13. OSD(To display disc information during playing such as elapsed and remaining time)

14. Repeat(To repeat playing title,chapter or track)

15. A-B (Rep eat a s peci fic p orti on fr om po int A to B, press it again to cancel repeat playing)

16. Angle(To change viewing angle when playing disc with multi-angle)

17. Menu(To enter or exit menu root:When play disc with PBC,press this button to

enter PBC menu,press again to exit)

18. TITLE(To display title information)

19. VOL +(To adjust the volume)

20. ZOOM(To zoom in/out the image during the playback)

21. VOL-(To adjust the volume)

22. Play/pause

23. Subtitle(To select subtitle language when playing DVD disc)

24. Previous/Next button(To go to previous/next chapter or scene during playing)

25. CAP(To capture a image when in playing video or pictrue,and then you can set this

image as your opening logo in setup menu)

26. Stop(press once to stop playback, then press to resume playback from the

point where you stopped;press stop button twice to stop playback completely)

7

The Use of Remote Control

Please put the battery into the remote control as per below illustration.

1

2

CR2025 CR2025

When using remote control,make sure the infrared window is pointed to infrared receiving window of the machine.The distance between machine and remote control must be within

3 metres.Please refer to the following illustration.

SETUP

MODE

USB/CARD

MENU

30

0

30

0

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Notice

1. To avoid falling off or place near damp environment.

2. To avoid infrared receiving window of the unit being under direct sunlight.

3. Please use a new battery to replace old one if the remote control doesn't work.

8

Basic Operation

Playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,

DVD MPEG4

SVCD

VCD CD MP3

1.Connect the unit to the power.

2.Open the unit and adjust the monitor to the best position for viewing.

3.Turn on the unit by sliding the ON/OFF switch to ON.

4.Open the disc door by pressing OPEN button and insert a disc into the door with the

label side facing up.

5.Close the disc door. The unit will load the disc and start playing.

6.Press

“STOP” once to stop playback; then press “ ” to resume playback from the point

where you stopped; press “STOP” twice to stop playback completely.

7.when the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.

Note:Please do not disconnect USB devices or plug out SD/MMC cards while they are

working with the unit.Functional failure may occur in case of wrong operations.

Pause during playback

DVD

MPEG4 SVCD

VCD CD MP3

During playback,press “ ” to resume playback.

to pause;press it again

Note

When at PAUSE,STOP,or no disc,in about 3 minutes the unit will be protected; press any button to exit.

Play DVD disc with title or chapter menu

For some DVD disc with Title or chapter menu, press MENU button to enter menu page,and use direction button to select,Press ENTER to confirm.

Cursor button

ENTER

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Play/pause

LCD OSD MUTE

REPEAT

A-B

SETUP

ENTER

ANGLE

TITLE

MENU

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Title

Menu

9

The Use of Remote Control

Please put the battery into the remote control as per below illustration.

1

2

CR2025 CR2025

When using remote control,make sure the infrared window is pointed to infrared receiving window of the machine.The distance between machine and remote control must be within

3 metres.Please refer to the following illustration.

SETUP

MODE

USB/CARD

MENU

30

0

30

0

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Notice

1. To avoid falling off or place near damp environment.

2. To avoid infrared receiving window of the unit being under direct sunlight.

3. Please use a new battery to replace old one if the remote control doesn't work.

8

Basic Operation

Playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,

DVD MPEG4

SVCD

VCD CD MP3

1.Connect the unit to the power.

2.Open the unit and adjust the monitor to the best position for viewing.

3.Turn on the unit by sliding the ON/OFF switch to ON.

4.Open the disc door by pressing OPEN button and insert a disc into the door with the

label side facing up.

5.Close the disc door. The unit will load the disc and start playing.

6.Press

“STOP” once to stop playback; then press “ ” to resume playback from the point

where you stopped; press “STOP” twice to stop playback completely.

7.when the playing is finished, please turn off the power by sliding ON/OFF switch to OFF.

Note:Please do not disconnect USB devices or plug out SD/MMC cards while they are

working with the unit.Functional failure may occur in case of wrong operations.

Pause during playback

DVD

MPEG4 SVCD

VCD CD MP3

During playback,press “ ” to resume playback.

to pause;press it again

Note

When at PAUSE,STOP,or no disc,in about 3 minutes the unit will be protected; press any button to exit.

Play DVD disc with title or chapter menu

For some DVD disc with Title or chapter menu, press MENU button to enter menu page,and use direction button to select,Press ENTER to confirm.

Cursor button

ENTER

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Play/pause

LCD OSD MUTE

REPEAT

A-B

SETUP

ENTER

ANGLE

TITLE

MENU

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Title

Menu

9

Fast forward and fast backward

DVD MPEG4 SVCD VCD CD

When playing disc of DVD, MPEG4,SVCD, VCD, CD, the unit can search forward or backward.

1. Press“ ”,the unit will search forward.Press it repeatedly,the unit will play at 2,4,

8,16,32 times of speed.

2X 4X

32X 16X 8X

2. Press“ ”,the unit will search backward.

Press it repeatedly,the unit will play at

2,4,8,16,32 times of speed.

2X 4X

LCD OSD MUTE

REPEAT

A-B

SETUP

ENTER

ANGLE

TITLE MENU

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Search forward

Search backward

32X 16X

Repeat playing

DVD

MPEG4 SVCD VCD CD

MP3

8X

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one chapter,title or all the whole disc.

” playing Title;press it third time to repeat playing the whole disc ;Press it again to cancel repeat function.

Chapter Title All

Repeat off

Track

” button repeatedly to repeat the track and the whole disc.

All

Repeat off

”button to repeat playing current file;press it again to repeat playing the folder;press it third time to cancel repeat function.

Repeat off Repeat one

Repeat folder

10

Repeat playing of favorite scene

DVD MPEG4 SVCD VCD CD MP3

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a specific section.

A press this button again in point B,the unit will automatically repeat playing the part between A-B.

AB

Press it the third time,the unit will return to normal playback.

Number

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

A-B

Angle

Select angle

DVD

During playing DVD disc with multi-angle,press

“Angle”button,the followings will be displayed on screen.

Press number buttons to select the angle you desire

To return to normal playing,please press “Angle” the unit will play the disc in the default angle.

1 /4

2 /4

3 /4

Note

The function is available only for discs with multi-angle.

4 /4

11

Fast forward and fast backward

DVD MPEG4 SVCD VCD CD

When playing disc of DVD, MPEG4,SVCD, VCD, CD, the unit can search forward or backward.

1. Press“ ”,the unit will search forward.Press it repeatedly,the unit will play at 2,4,

8,16,32 times of speed.

2X 4X

32X 16X 8X

2. Press“ ”,the unit will search backward.

Press it repeatedly,the unit will play at

2,4,8,16,32 times of speed.

2X 4X

LCD OSD MUTE

REPEAT

A-B

SETUP

ENTER

ANGLE

TITLE MENU

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

Search forward

Search backward

32X 16X

Repeat playing

DVD

MPEG4 SVCD VCD CD

MP3

8X

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeat playing one chapter,title or all the whole disc.

” playing Title;press it third time to repeat playing the whole disc ;Press it again to cancel repeat function.

Chapter Title All

Repeat off

Track

” button repeatedly to repeat the track and the whole disc.

All

Repeat off

”button to repeat playing current file;press it again to repeat playing the folder;press it third time to cancel repeat function.

Repeat off Repeat one

Repeat folder

10

Repeat playing of favorite scene

DVD MPEG4 SVCD VCD CD MP3

When playing disc of DVD,MPEG4,SVCD,VCD,CD,MP3,user can repeatedly play a specific section.

A press this button again in point B,the unit will automatically repeat playing the part between A-B.

AB

Press it the third time,the unit will return to normal playback.

Number

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

MODE SEARCH STOP CAP

A-B

Angle

Select angle

DVD

During playing DVD disc with multi-angle,press

“Angle”button,the followings will be displayed on screen.

Press number buttons to select the angle you desire

To return to normal playing,please press “Angle” the unit will play the disc in the default angle.

1 /4

2 /4

3 /4

Note

The function is available only for discs with multi-angle.

4 /4

11

Zoom in/ out

DVD MPEG4 SVCD VCD

When playing disc of DVD,MPEG4,SVCD,VCD,user can zoom in or zoom out the image .

During playback,press“Zoom”button,the image will be enlarged;press it again the image will be enlarged again; press it fourth time,the image will zoom out,press it repeatedly and the image will return to normal status.

2X

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

Zoom in/out

3X

4X

1 /2X

MODE SEARCH STOP CAP

When the image is enlarged,user can press“ ”to move the image.

1 /3X

1 /4X

Playing JPEG file in data disc

1. Place a JPEG disc into the tray, the unit will start reading and play.

2. “STOP” ,pictures will be displayed in thumbnail mode,

press “ ” or OK button to select one picture to view.

3. Press “ ” ”

4. To rotate the picture counter-clockwise,press “ ” ;Press “ ” to rotate the picture

clockwise.

5. Press “ ” to reverse the picture horizontally and press “ ” to reverse the picture

vertically.

Playing MP3 files in data disc

Place MP3 disc into the disc door.Press

“ ” or “OK”button to choose a MP3 file;

Press“ ”or“OK”button to play the file selected.

00 36 03 43

Dir 001

\Ctyy\

Mp3

......

TRACK01

Mp3 TRACK02

Mp3 TRACK03

Mp3

Mp3

TRACK04

TRACK05

12

CD RIPPING

During playing the CD/HDCD disc,you can enter CD Ripping function.By pressing subtitle button,DVD player will be able to change the CD format into MP3 format, and then store it in the USB or SD card.

Options

Speed Normal

Bitrate 128kbps

Create Id3 Yes

Device USB 1

SUMMARY

Selected Track 0

Selected Time 00:00

Start Exit

CD RIP

Track

Track 01 03:36

Track 02 03:36

Track 03 03:36

Track 04 03:36

Track 05 03:36

Track 06 03:36

Track 07 03:36

All None

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices,128Kbps,192Kbps,256Kbps,

320Kbps,96Kbps and 112Kbps.

Create ID3:In this item, you can create ID3 when playing CD text.

Device: This item indicates whether USB or SD CARD is connected with DVD player.

Exit: Exit to the previous menu.

All: Select all the files in the disc for convertion and storage.

None: Cancel the selection .

Start: Move the cursor to the item and press “ENTER” button, the convertion begins.

During the converting,you can select “CANCEL” to stop it.

CD RIP

Ripping

Track Progress

Total Progress

Cancel

SUMMARY

Now ripping

Track 01/01

Selected track

Track 01 9%

13

Zoom in/ out

DVD MPEG4 SVCD VCD

When playing disc of DVD,MPEG4,SVCD,VCD,user can zoom in or zoom out the image .

During playback,press“Zoom”button,the image will be enlarged;press it again the image will be enlarged again; press it fourth time,the image will zoom out,press it repeatedly and the image will return to normal status.

2X

LCD OSD MUTE

REPEAT

A-B

ANGLE

TITLE MENU

SETUP

ENTER

ZOOM VOL+

VOL-

AUDIO SUBTITLE

Zoom in/out

3X

4X

1 /2X

MODE SEARCH STOP CAP

When the image is enlarged,user can press“ ”to move the image.

1 /3X

1 /4X

Playing JPEG file in data disc

1. Place a JPEG disc into the tray, the unit will start reading and play.

2. “STOP” ,pictures will be displayed in thumbnail mode,

press “ ” or OK button to select one picture to view.

3. Press “ ” ”

4. To rotate the picture counter-clockwise,press “ ” ;Press “ ” to rotate the picture

clockwise.

5. Press “ ” to reverse the picture horizontally and press “ ” to reverse the picture

vertically.

Playing MP3 files in data disc

Place MP3 disc into the disc door.Press

“ ” or “OK”button to choose a MP3 file;

Press“ ”or“OK”button to play the file selected.

00 36 03 43

Dir 001

\Ctyy\

Mp3

......

TRACK01

Mp3 TRACK02

Mp3 TRACK03

Mp3

Mp3

TRACK04

TRACK05

12

CD RIPPING

During playing the CD/HDCD disc,you can enter CD Ripping function.By pressing subtitle button,DVD player will be able to change the CD format into MP3 format, and then store it in the USB or SD card.

Options

Speed Normal

Bitrate 128kbps

Create Id3 Yes

Device USB 1

SUMMARY

Selected Track 0

Selected Time 00:00

Start Exit

CD RIP

Track

Track 01 03:36

Track 02 03:36

Track 03 03:36

Track 04 03:36

Track 05 03:36

Track 06 03:36

Track 07 03:36

All None

Speed: In this item, you can set the rip speed: Normal or Fast.

Bitrate: In this item, you can set the bitrate. It has 6 choices,128Kbps,192Kbps,256Kbps,

320Kbps,96Kbps and 112Kbps.

Create ID3:In this item, you can create ID3 when playing CD text.

Device: This item indicates whether USB or SD CARD is connected with DVD player.

Exit: Exit to the previous menu.

All: Select all the files in the disc for convertion and storage.

None: Cancel the selection .

Start: Move the cursor to the item and press “ENTER” button, the convertion begins.

During the converting,you can select “CANCEL” to stop it.

CD RIP

Ripping

Track Progress

Total Progress

Cancel

SUMMARY

Now ripping

Track 01/01

Selected track

Track 01 9%

13

System Setup

General

Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Go to General Setup Page

General setup page

Prefer

Press”Setup”button,the main menu will be displayed on the screen

In the General Setup Page, Press button to highlight this item.

Press OK button to access.

Press button to select the setting.

Press OK button to confirm your selection.

Press button to exit.

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Normal/PS

Normal/LB

Wide

Prefer

Set TV Display Mode

TV display:

Enter this option,user can set screen display format

(Nomal/PS,Nomal/LB,Wide)

The default is “Wide”

Note

The function depends on the display ratio with which the

DVD disc is recorded.

Please choose “Wide(16:9)”when using a16:9 wide screen

TV set16:9.

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Prefer

English

Spanish

Porturguese

Set OSD Language

OSD Language:

In the option user can set OSD menu language(English,

French,German,Italian).

The default:English

14

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

On

Off

Set Screen Saver

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

On

Off

Set Last Memory State

Prefer

Prefer

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Default

Captured

Prefer

Set Logo Type

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On On

Off

Set Mp3 Lyric Mode

Prefer

Screen Saver

Select On to activate the screen saver function, when you activate this function,a moving DVD symbol appears on the screen when the unit is stopped or when it shows a still picture for several minutes.This features saves the screen from the being damaged by a static image remaining on the LCD screen for long periods of time.

Select Off to cancel this function.

Last Memory

On:Turn on last memory function

Off:Turn off last memory function

Logo Type:

Default:Set that default logo as opening logo

Captured:If you have captured a image by press CAP key, select this item to set that image as your opening logo.

MP3 Lyric

On Show mp3 lyric(you must add the mp3 lyric file to the mp3 file directory)

Off:Don't show mp3 lyric

Audio Setup Page

General Audio

- - Audio Setup Page - -

Downmix STR

Video Prefer

Downmix:Set audio CH output as LT/RT or stereo.

Go to Speaker setup Page

15

System Setup

General

Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Go to General Setup Page

General setup page

Prefer

Press”Setup”button,the main menu will be displayed on the screen

In the General Setup Page, Press button to highlight this item.

Press OK button to access.

Press button to select the setting.

Press OK button to confirm your selection.

Press button to exit.

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Normal/PS

Normal/LB

Wide

Prefer

Set TV Display Mode

TV display:

Enter this option,user can set screen display format

(Nomal/PS,Nomal/LB,Wide)

The default is “Wide”

Note

The function depends on the display ratio with which the

DVD disc is recorded.

Please choose “Wide(16:9)”when using a16:9 wide screen

TV set16:9.

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Prefer

English

Spanish

Porturguese

Set OSD Language

OSD Language:

In the option user can set OSD menu language(English,

French,German,Italian).

The default:English

14

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

On

Off

Set Screen Saver

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

On

Off

Set Last Memory State

Prefer

Prefer

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On

Default

Captured

Prefer

Set Logo Type

General Audio

- - General Setup Page - -

Video

TV Display

OSD Lang

Screen Saver

Last Memory

Logo Type

Mp3 Lyric

WIDE

ENG

On

Off

DEF

On On

Off

Set Mp3 Lyric Mode

Prefer

Screen Saver

Select On to activate the screen saver function, when you activate this function,a moving DVD symbol appears on the screen when the unit is stopped or when it shows a still picture for several minutes.This features saves the screen from the being damaged by a static image remaining on the LCD screen for long periods of time.

Select Off to cancel this function.

Last Memory

On:Turn on last memory function

Off:Turn off last memory function

Logo Type:

Default:Set that default logo as opening logo

Captured:If you have captured a image by press CAP key, select this item to set that image as your opening logo.

MP3 Lyric

On Show mp3 lyric(you must add the mp3 lyric file to the mp3 file directory)

Off:Don't show mp3 lyric

Audio Setup Page

General Audio

- - Audio Setup Page - -

Downmix STR

Video Prefer

Downmix:Set audio CH output as LT/RT or stereo.

Go to Speaker setup Page

15

Video setup page

General Audio

- - Video Setup Page - -

Panel Quality

TV

Video Prefer

Enter this option,user can adjust picture quality of unit

screen.There are items available to be adjusted:

Brightness,contrast,Hue and Saturation.

For all these items the default is 00.

TV:

When in TV mode,enter this option to set the TV sound

system and start auto search TV program.

Go to Video Setup Page

Preference page

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

PAL

NTSC

Prefer

Set TV Standard

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

English

French

Spanish

Chinese

Japanese

Korean

Russian

Thai

Prefer

Preferred Audio La nguage

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Preferred Subtitle Language

Video

Spanish

Chinese

Japanese

Korean

Russian

Thai

Off

Others

Prefer

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

ENG

Parental

Password

Default

Video

English

French

Spanish

Chinese

Japanese

Korean

Russian

Thai

Prefer

Preferred Menu Language

TV Type:

Enter this option to select TV type(PAL,NTSC)

The default is PAL.

Audio:

Enter this option,user can select your preferred audio language for DVDs,The default is Spanish.

Note

The audio language depend on the material on each disc.

User can also change the audio language during playback

by pressing the Audio button.

Subtitle

Select your preferred language to show the subtitles on the screen.The subtitle languages depend on the

information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button.

Disc Menu

This function allows you to choose the menu language stored on the disc.

16

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video Prefer

1 KID SAF

2 G

3 PG

4 PG 13

5 PGR

6 R

7 NC17

8 ADULT

Set Parental Control

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

ENG

Parental

Password

Default

Video

Change

Prefer

Change Password

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

Reset

Prefer

Load Factory Setting

Parental:

DVD discs equipped with the child lock function are rated according to their content. The content authorized by a parental lock level and the way a disc can be controlled may vary from disc to disc. If the disc allows, you can edit out violent scenes and replace them or lock out playback of the disc altogether.

press the number button on the remote control to enter the password and press the OK button to return to the previous menu.

The default is ADULT.

Enter this option, you can set a password(four numbers).

All parental Control features are password protected.

This function allow you to change the password.

The default password is 0000.

Default:

Select this item and press OK button to reset all settings to the original factory settings.

ATV Function

Press the MODE button to switch to ATV mode,ensure to connect antenna properly. If there is no database(search result)in the portable device, please press SEARCH key to auto scan.Operation as follow will help you receive and watch the TV programs.

SEARCH:

255.25

VHF 0

SEARCH: Automatic Channel Scan,pressing the button,the player will automatically start channel scan to find out available broadcasting channels in the area.It will cost several minutes to finish the search process.

/ : use / key to select the channel that you want to watch.

17

Video setup page

General Audio

- - Video Setup Page - -

Panel Quality

TV

Video Prefer

Enter this option,user can adjust picture quality of unit

screen.There are items available to be adjusted:

Brightness,contrast,Hue and Saturation.

For all these items the default is 00.

TV:

When in TV mode,enter this option to set the TV sound

system and start auto search TV program.

Go to Video Setup Page

Preference page

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

PAL

NTSC

Prefer

Set TV Standard

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

English

French

Spanish

Chinese

Japanese

Korean

Russian

Thai

Prefer

Preferred Audio La nguage

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Preferred Subtitle Language

Video

Spanish

Chinese

Japanese

Korean

Russian

Thai

Off

Others

Prefer

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

ENG

Parental

Password

Default

Video

English

French

Spanish

Chinese

Japanese

Korean

Russian

Thai

Prefer

Preferred Menu Language

TV Type:

Enter this option to select TV type(PAL,NTSC)

The default is PAL.

Audio:

Enter this option,user can select your preferred audio language for DVDs,The default is Spanish.

Note

The audio language depend on the material on each disc.

User can also change the audio language during playback

by pressing the Audio button.

Subtitle

Select your preferred language to show the subtitles on the screen.The subtitle languages depend on the

information available on each disc,You can also change the subtitle language during playback by press the SUBTITLE button.

Disc Menu

This function allows you to choose the menu language stored on the disc.

16

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video Prefer

1 KID SAF

2 G

3 PG

4 PG 13

5 PGR

6 R

7 NC17

8 ADULT

Set Parental Control

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

ENG

Parental

Password

Default

Video

Change

Prefer

Change Password

General Audio

- - Preference Page - -

TV Type PAL

Subtitle

Parental

Password

Default

Video

Reset

Prefer

Load Factory Setting

Parental:

DVD discs equipped with the child lock function are rated according to their content. The content authorized by a parental lock level and the way a disc can be controlled may vary from disc to disc. If the disc allows, you can edit out violent scenes and replace them or lock out playback of the disc altogether.

press the number button on the remote control to enter the password and press the OK button to return to the previous menu.

The default is ADULT.

Enter this option, you can set a password(four numbers).

All parental Control features are password protected.

This function allow you to change the password.

The default password is 0000.

Default:

Select this item and press OK button to reset all settings to the original factory settings.

ATV Function

Press the MODE button to switch to ATV mode,ensure to connect antenna properly. If there is no database(search result)in the portable device, please press SEARCH key to auto scan.Operation as follow will help you receive and watch the TV programs.

SEARCH:

255.25

VHF 0

SEARCH: Automatic Channel Scan,pressing the button,the player will automatically start channel scan to find out available broadcasting channels in the area.It will cost several minutes to finish the search process.

/ : use / key to select the channel that you want to watch.

17

Specification

Compatatible Disc: DVD, DVD-R ,DVD+R, DVD-RW, DVD+RW, VCD2.0, SVCD, CD,

CD-R, CD+RW

File format to support: AVI/MPG/MP3/JPG

Signal system:PAL/NTSC

Panel size:9 inch

Frequency response:20 Hz to 20 kHz

Video output:1 Vp-p/ 75 Ohm, unbalanced

Audio output:1.4Vrms/10kOhm

Audio S/N:Better than 80 dB

Dynamic range:Better than 85 dB

The Max memory size of USB/SD/MMC card can be supported: 8 G

Laser:Semiconductor Laser, Wave Length: 650 nm /795 nm

Power source: AC 100-240V 60/50 HZ, DC 9-12V

RMS output power: < 9 W

Operating temperature:0~40°C

Weight:0.89kg

Dimensions (W x D x H):242 x 172 x42mm

Battery Type:Li Polymer

Note:

1.The quality and speed for reading JPEG photos depend on the resolution and

compression ratio of the photos.Some JPEG photo may not be played due to the disc

quality and the formats.

2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to the quality on

burning conditions.

Rechargeable battery use

The unit utilizes long-life Li polymer battery for portable power supply.The battery has no Memory Effect and thus can be recharged safely regardless of whether the battery is fully or partially discharged.It is enough to recharge no longer than 3H each time.fully recharged battery can last about 2 hours.

Precautions related to Battery Recharge

The battery can be only recharged when turning power to OFF state,and keep continuous power supply,the red light will be on,and the light will turn yellow when it is fully charged.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is: 0 °C ~40 °C ;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing,it's normal,while avoid long time playing and unattended;

4. Avoid having the unit collide with any objects, and place away from all possible heat

sources or damp areas.

Caution:Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type.

18

Troubleshooting

PROBLEM SOLUTION

No sound or distorted sound

Make sure the machine is connected properly.

Make sure all cables are securely inserted into the appropriate jacks.

Can't advance through a movie

The icon appears on screen

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1.The disc's software restricts it.

2.The disc's software doesn't support the

feature (e.g., angles)

3.The feature is not available at the moment.

4.You've requested a title or chapter number

that is out of range.

Picture is distorted

The disc might be damaged.Try another disc; it is normal for some distortion to appear during forward or reverse scan.

No forward or reverse scan

Some discs have sections that prohibit rapid scanning or chapter skip;If you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

Owing to continuous improvement,no prior notice will be given regarding changes on above feature and spec.

19

Specification

Compatatible Disc: DVD, DVD-R ,DVD+R, DVD-RW, DVD+RW, VCD2.0, SVCD, CD,

CD-R, CD+RW

File format to support: AVI/MPG/MP3/JPG

Signal system:PAL/NTSC

Panel size:9 inch

Frequency response:20 Hz to 20 kHz

Video output:1 Vp-p/ 75 Ohm, unbalanced

Audio output:1.4Vrms/10kOhm

Audio S/N:Better than 80 dB

Dynamic range:Better than 85 dB

The Max memory size of USB/SD/MMC card can be supported: 8 G

Laser:Semiconductor Laser, Wave Length: 650 nm /795 nm

Power source: AC 100-240V 60/50 HZ, DC 9-12V

RMS output power: < 9 W

Operating temperature:0~40°C

Weight:0.89kg

Dimensions (W x D x H):242 x 172 x42mm

Battery Type:Li Polymer

Note:

1.The quality and speed for reading JPEG photos depend on the resolution and

compression ratio of the photos.Some JPEG photo may not be played due to the disc

quality and the formats.

2.Some DVD+R/RW,DVD-R/RW,CD-R/RW disc may not be played due to the quality on

burning conditions.

Rechargeable battery use

The unit utilizes long-life Li polymer battery for portable power supply.The battery has no Memory Effect and thus can be recharged safely regardless of whether the battery is fully or partially discharged.It is enough to recharge no longer than 3H each time.fully recharged battery can last about 2 hours.

Precautions related to Battery Recharge

The battery can be only recharged when turning power to OFF state,and keep continuous power supply,the red light will be on,and the light will turn yellow when it is fully charged.

Using and Maintaining Rechargeable Battery

1. The normal working temperature is: 0 °C ~40 °C ;

2. Always unplug AC/DC power supply for the unit when not in use;

3. Heat will create during playing,it's normal,while avoid long time playing and unattended;

4. Avoid having the unit collide with any objects, and place away from all possible heat

sources or damp areas.

Caution:Danger of explosion if battery is incorrectly replaced. Replace only with the

same or equivalent type.

18

Troubleshooting

PROBLEM SOLUTION

No sound or distorted sound

Make sure the machine is connected properly.

Make sure all cables are securely inserted into the appropriate jacks.

Can't advance through a movie

The icon appears on screen

You can't advance through the opening credits and warning information that appears at the beginning of movies because the disc is programmed to prohibit that action.

The feature or action cannot be completed at this time because:

1.The disc's software restricts it.

2.The disc's software doesn't support the

feature (e.g., angles)

3.The feature is not available at the moment.

4.You've requested a title or chapter number

that is out of range.

Picture is distorted

The disc might be damaged.Try another disc; it is normal for some distortion to appear during forward or reverse scan.

No forward or reverse scan

Some discs have sections that prohibit rapid scanning or chapter skip;If you try to skip through the warning information and credits at the beginning of a movie,you won't be able to.This part of the movie is often programmed to prohibit skipping through it.

Owing to continuous improvement,no prior notice will be given regarding changes on above feature and spec.

19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
