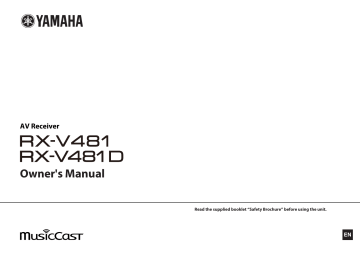

Owner&#39
AV Receiver
Owner's Manual
Read the supplied booklet “Safety Brochure” before using the unit.
EN
CONTENTS
BEFORE USING THE UNIT
5
4
Accessories................................................................................................ 5
DAB/FM antenna (RX-V481D)............................................................................................................................................ 25
5
How to use this manual............................................................................ 5
Preparing a wireless antenna............................................................................................................................................ 26
Insert the batteries................................................................................................................................................................... 5
Operating range of the remote control........................................................................................................................... 5
6
6
Connecting the power cable............................................................ 27
7
Selecting an on-screen menu language.......................................... 28
8
What you can do with the unit................................................................. 6
Warning messages................................................................................................................................................................ 32
9
Front panel................................................................................................................................................................................. 9
Rear panel................................................................................................................................................................................. 11
Connecting the unit to a wireless network.................................................................................................................. 34
Remote control....................................................................................................................................................................... 12
Connecting a mobile device to the unit directly (Wireless Direct)...................................................................... 39
PREPARATIONS
10 Setting the MusicCast....................................................................... 41
13
MusicCast CONTROLLER..................................................................................................................................................... 41
Adding the unit to the MusicCast network.................................................................................................................. 41
Placing speakers............................................................................... 14
PLAYBACK
Typical speaker layouts....................................................................................................................................................... 15
Other speaker layouts.......................................................................................................................................................... 16
42
Setting the speaker impedance....................................................................................................................................... 17
Basic playback procedure...................................................................... 42
Connecting speakers........................................................................ 18
Enjoying playback................................................................................................................................................................. 42
Switching information on the front display................................................................................................................. 43
Connecting speaker cables................................................................................................................................................ 19
Connecting front speakers that support bi-amp connections............................................................................. 19
Selecting the input source and favorite settings with one touch
(SCENE).................................................................................................... 44
Connecting Zone B speakers............................................................................................................................................. 19
Selecting a registered scene.............................................................................................................................................. 44
Connecting a TV/playback devices.................................................. 20
Registering a scene............................................................................................................................................................... 44
Connecting the subwoofer (with built-in amplifier)................................................................................................. 19
3
Connecting to a network wirelessly................................................ 33
Selecting the connection method................................................................................................................................... 33
Front display (indicators).................................................................................................................................................... 10
2
Optimizing the speaker settings automatically (YPAO)................ 29
Error messages....................................................................................................................................................................... 31
Part names and functions......................................................................... 9
1
Preparing for connecting to a network........................................... 26
Connecting a network cable............................................................................................................................................. 26
Remote control.......................................................................................... 5
FEATURES
Connecting the radio antennas....................................................... 25
FM/AM antennas (RX-V481)............................................................................................................................................... 25
Input/output jacks and cables.......................................................................................................................................... 20
Connecting a TV..................................................................................................................................................................... 21
Connecting video devices (such as BD/DVD players).............................................................................................. 22
Connecting audio devices (such as CD players)......................................................................................................... 24
Connecting to the jack on the front panel................................................................................................................... 24
2
En
Selecting the sound mode..................................................................... 45
Enjoying stereoscopic sound fields (CINEMA DSP 3D)............................................................................................ 46
Playing back more high-quality sounds with bi-amp connections
.................................................................................................................. 77
Enjoying unprocessed playback...................................................................................................................................... 48
Connecting front speakers that support bi-amp connections............................................................................. 77
Enjoying pure high fidelity sound (direct playback)................................................................................................. 49
Playing back music in multiple rooms.................................................. 78
Enhancing the bass (Extra Bass)....................................................................................................................................... 49
Connecting Zone B speakers............................................................................................................................................. 78
Playing back digitally compressed formats (such as MP3, etc.) with enriched sound (Compressed
Music Enhancer)..................................................................................................................................................................... 49
Operating the Zone B........................................................................................................................................................... 79
Useful functions...................................................................................... 81
Listening to FM/AM radio (RX-V481)..................................................... 50
Registering favorite items (shortcut).............................................................................................................................. 81
Setting the frequency steps............................................................................................................................................... 50
Registering favorite radio stations (presets)................................................................................................................ 51
Configuring playback settings for different playback sources
(Option menu)......................................................................................... 83
Radio Data System tuning.................................................................................................................................................. 54
Option menu items............................................................................................................................................................... 83
Selecting a frequency for reception............................................................................................................................... 50
Listening to DAB radio (RX-V481D)....................................................... 55
CONFIGURATIONS
Preparing the DAB tuning.................................................................................................................................................. 55
Selecting a DAB radio station for reception................................................................................................................. 56
87
Registering favorite DAB radio stations (presets)...................................................................................................... 57
Configuring various functions (Setup Menu)....................................... 87
Displaying the DAB information...................................................................................................................................... 58
Setup menu items................................................................................................................................................................. 88
Checking reception strength of each DAB channel label....................................................................................... 59
Speaker...................................................................................................................................................................................... 90
Listening to FM radio (RX-V481D)......................................................... 60
HDMI........................................................................................................................................................................................... 93
Sound......................................................................................................................................................................................... 95
Selecting a frequency for reception............................................................................................................................... 60
ECO............................................................................................................................................................................................. 98
Registering favorite FM radio stations (presets)......................................................................................................... 60
Function.................................................................................................................................................................................... 99
Radio Data System tuning.................................................................................................................................................. 63
Network.................................................................................................................................................................................. 102
Playing back music stored on a Bluetooth® device.............................. 64
Bluetooth............................................................................................................................................................................... 104
Playback Bluetooth® device music on the unit........................................................................................................... 64
Language............................................................................................................................................................................... 105
Enjoying audio using Bluetooth® speakers/headphones....................................................................................... 65
Configuring the system settings (ADVANCED SETUP menu)............ 106
Playing back music with AirPlay............................................................ 66
ADVANCED SETUP menu items..................................................................................................................................... 106
Playback of iTunes/iPod music contents...................................................................................................................... 66
Changing the speaker impedance setting (SP IMP.).............................................................................................. 106
Playing back music stored on a USB storage device............................ 68
Selecting the remote control ID (REMOTE ID).......................................................................................................... 107
Connecting a USB storage device................................................................................................................................... 68
Changing the FM/AM tuning frequency setting (TU)............................................................................................ 107
Playback of USB storage device contents..................................................................................................................... 68
Switching the video signal type (TV FORMAT)......................................................................................................... 107
Playing back music stored on media servers (PCs/NAS)...................... 71
Selecting the HDMI 4K signal format (4K MODE).................................................................................................... 107
Restoring the default settings (INIT)............................................................................................................................. 108
Media sharing setup............................................................................................................................................................. 71
Updating the firmware (UPDATE)................................................................................................................................. 108
Playback of PC music contents......................................................................................................................................... 72
Checking the firmware version (VERSION)................................................................................................................. 108
Listening to Internet radio..................................................................... 74
Updating the unit’s firmware via the network................................... 109
Playback of Internet radio.................................................................................................................................................. 74
Registering favorite Internet radio stations (bookmarks)....................................................................................... 76
3
En
APPENDIX
110
Frequently asked questions................................................................ 110
Troubleshooting................................................................................... 112
First, check the following:................................................................................................................................................ 112
Power, system and remote control............................................................................................................................... 112
Audio....................................................................................................................................................................................... 113
Video........................................................................................................................................................................................ 115
FM/AM radio (AM radio feature is available only on RX-V481)........................................................................... 116
DAB radio (RX-V481D)....................................................................................................................................................... 116
USB and network................................................................................................................................................................. 117
Bluetooth®............................................................................................................................................................................. 118
Error indications on the front display................................................. 119
Glossary................................................................................................. 120
Audio information.............................................................................................................................................................. 120
HDMI and video information.......................................................................................................................................... 121
Network information......................................................................................................................................................... 121
Yamaha technologies........................................................................................................................................................ 121
Supported devices and file formats.................................................... 122
Supported devices.............................................................................................................................................................. 122
File formats............................................................................................................................................................................ 123
Video signal flow.................................................................................. 123
Information on HDMI........................................................................... 124
HDMI Control........................................................................................................................................................................ 124
Audio Return Channel (ARC)........................................................................................................................................... 126
HDMI signal compatibility............................................................................................................................................... 126
Trademarks........................................................................................... 127
Specifications........................................................................................ 128
4
En
BEFORE USING THE UNIT
Accessories
Remote control
Check that the following accessories are supplied with the product.
The supplied remote control is used as follows.
£ AM antenna (RX-V481)
Insert the batteries
£ FM antenna (RX-V481)
Insert the batteries the right way round.
* One of the above is supplied depending on
the region of purchase.
£ DAB/FM antenna (RX-V481D)
£ YPAO microphone
Operating range of the remote control
Point the remote control at the remote control sensor on the unit and remain within the
operating range shown below.
£ Remote control
£ CD-ROM (Owner's Manual)
£ Batteries (AAA, R03, UM-4) (x2)
£ Easy Setup Guide
£ Safety Brochure
Within 6 m (20 ft)
£ MusicCast Setup Guide
30°
How to use this manual
• The illustrations of the main unit used in this manual are of the RX-V481 (U.S.A.
model), unless otherwise specified.
• Some features are not available in certain regions.
• Due to product improvements, specifications and appearance are subject to
change without notice.
• This manual explains operations using the supplied remote control.
Notice:
Indicates precautions for use to avoid the possibility of malfunction/damage to the unit.
Note:
Indicates instructions and supplementary explanations for optimum use.
5
En
30°
FEATURES
What you can do with the unit
The unit is equipped with full of useful functions.
Supports 2- to 5.1-channel
speaker system
You can enjoy your favorite acoustic spaces in various
styles.
YPAO automatically optimizes the speaker
settings to suit your room.
• “Optimizing the speaker settings automatically
(YPAO)” (p.29)
CINEMA DSP allows you to create stereo or
multichannel sounds with the sound fields
like actual movie theaters and concert halls in
your own room.
• “Enjoying stereoscopic sound fields (CINEMA DSP
3D)” (p.46)
You can enjoy compressed music with
enhanced sound (Compressed Music
Enhancer).
Change the input source and
favorite settings with one touch
(SCENE)
The SCENE function allows you to select the input
source and settings registered to the corresponding
scene, such as sound program and Compressed
Music Enhancer on/off, with just one touch.
• “Selecting the input source and favorite settings with
one touch (SCENE)” (p.44)
4K Ultra HD signal and HDCP 2.2
supported
You can enjoy the high definition video quality of 4K
with HDCP 2.2 that complies with the latest copyright
protection.
• “Selecting the HDMI 4K signal format (4K
MODE)” (p.107)
Wide variety of supported
content via network
When the unit is connected to a network by
establishing a wired or wireless connection, you can
enjoy various contents via network on the unit.
You can select a wired or wireless connection
to a network.
• “Preparing for connecting to a network” (p.26)
• “Connecting to a network wirelessly” (p.33)
You can play back music files stored on your
PC or DLNA-compatible NAS on the unit.
• “Playing back music stored on media servers (PCs/
NAS)” (p.71)
You can listen to Internet radio stations from
all over the world.
• “Listening to Internet radio” (p.74)
The AirPlay function allows you to play back
iTunes or iPhone/iPad/iPod touch music on
the unit via network.
• “Playing back digitally compressed formats (such as
MP3, etc.) with enriched sound (Compressed Music
Enhancer)” (p.49)
• “Playing back music with AirPlay” (p.66)
The Zone A/B function allows you to playback
an input source in the room where the unit is
installed (Zone A) and in another room (Zone
B).
• “Playing back music in multiple rooms” (p.78)
6
En
The ECO mode (power saving
function) allows you to create an
eco-friendly home theater system
Connecting various devices
Surround playback with 5
speakers placed in front
When the ECO mode is enabled, you can reduce the
unit's power consumption.
A number of HDMI jacks and various input/output jacks
on the unit allow you to connect video devices (such as
BD/DVD players), audio devices (such as CD players),
game consoles, portable audio player, and other
devices.
• “ECO Mode” (p.98)
• “Connecting a TV/playback devices” (p.20)
Sequential operation of a TV, AV
receiver, and BD/DVD player
(HDMI Control)
Playing back TV audio in
surround sound with a single
HDMI cable connection (Audio
Return Channel: ARC)
When the direct playback mode is enabled, the unit
plays back the selected source with the least circuitry,
which lets you to enjoy Hi-Fi sound quality.
When using an ARC -compatible TV, you only need one
HDMI cable to enable video output to the TV, audio
input from the TV, and the transmission of HDMI Control
signals.
Enhanced bass reproduction
When the unit is connected to an HDMI Controlcompatible TV and BD/DVD player with each HDMI
cable, you can control the unit (such as power and
volume) and BD/DVD player with TV remote control
operations.
• “HDMI Control” (p.124)
Supports Bluetooth® devices
You can play back music stored on a Bluetooth device.
• “Playing back music stored on a Bluetooth®
device” (p.64)
Supports USB storage devices
You can play back music stored on a USB storage
device.
• “Connecting a TV” (p.21)
Creating 3-dimensional sound
fields
The Virtual Presence Speaker (VPS) function allows you
to create a 3-dimensional sound field that spreads up
and deep in your own room (CINEMA DSP 3D).
• “Enjoying stereoscopic sound fields (CINEMA DSP
3D)” (p.46)
• “Playing back music stored on a USB storage
device” (p.68)
7
En
You can enjoy the surround sound even when the
surround speakers are placed in front.
• “Enjoying surround sound with 5 speakers placed in
front (Virtual CINEMA FRONT)” (p.47)
Enjoying pure high fidelity sound
• “Enjoying pure high fidelity sound (direct
playback)” (p.49)
Extra Bass allows you to enjoy enhanced bass
reproduction that does not depend on the speakers
used.
• “Enhancing the bass (Extra Bass)” (p.49)
Listening to FM/AM radio (RXV481)
The unit is equipped with a built-in FM/AM tuner. You
can register up to 40 favorite radio stations as presets.
• “Listening to FM/AM radio (RX-V481)” (p.50)
Listening to DAB/FM radio (RXV481D)
The unit is equipped with a built-in DAB/FM tuner. DAB
(Digital Audio Broadcasting) uses digital signals for
clearer sound and more stable reception compared to
analog signals. You can register up to 40 favorite radio
stations as presets.
Useful applications
The useful application for connections and operations
of the unit is as follows.
AV SETUP GUIDE is an application that assists
you with cable connections between AV Receiver
and source devices as well as AV Receiver setup.
This app guides you through the various settings
such as speaker connections, TV and source
device connections and assigning the power
amp.
Easy operation with a TV screen
Functions:
• Power on/off
• Volume up/down
• Mute
• Music Play
Functions:
• Input Selection
1) Connection support guide
– Speaker connection
– TV/source devices connection
• DSP Mode Selection
The unit automatically creates input source names
according to the HDMI-compatible devices connected,
and displays the respective input source names on the
front display.
2) Setup support guide
– Automatic network setup of HDMI, power amp
assign, etc.
– Various setup assistance with illustrations.
– YPAO setting guidance
• “Input Rename” (p.99)
3) View Owner's Manual
Home Audio Network with
MusicCast
* This application is for tablets only.
The unit supports the MusicCast feature that allows you
to link a MusicCast compatible device to another
device in a different room and play them back
simultaneously, or control all MusicCast compatible
devices with the dedicated application “MusicCast
CONTROLLER”.
AV CONTROLLER is an application that assists
you with various operations of AV Receiver
without the remote control. This app allows you
not only to control the unit’s power and volume
but also to select the input source and start/stop
playback, as shown below.
GUIDE”
• “Listening to FM radio (RX-V481D)” (p.60)
Auto Rename function
tablets “AV CONTROLLER”
n Application for tablets “AV SETUP
• “Listening to DAB radio (RX-V481D)” (p.55)
You can operate the USB storage device, view
information, or easily configure the settings using the
on-screen menu.
n Application for smartphone /
For details, search for “AV SETUP GUIDE” on the App
Store or Google Play™.
• “Setting the MusicCast” (p.41)
8
En
• SCENE selection
• Blu-ray player fundamental control
• Seamless control between the Yamaha AV Receiver
and Blu-ray player
• Demo mode - Explains how to use this app
For details, search for “AV CONTROLLER” on the App
Store or Google Play.
Part names and functions
The part names and functions of the unit and the supplied remote control are as follows.
Front panel
1
3
2
4 5 6
7
8
9
0
A
DIRECT
YPAO MIC
INFO (WPS)
MEMORY
PRESET
FM
AM
TUNING
VOLUME
SCENE
BD
DVD
PHONES
INPUT
TONE CONTROL
NET
TV
RADIO
STRAIGHT
PROGRAM
SILENT CINEMA
B
AUX
USB
AUDIO
5V
(CONNECT)
C
D E F
G
H
1A
I
J
(RX-V481 U.S.A. model)
1 z (power) key
Turns on/off (standby) the unit.
2 Standby indicator
Lights up when the unit is in standby mode under any of
the following conditions.
• HDMI Control is enabled (p.93)
• Standby Through is enabled (p.93)
• Network Standby is enabled (p.103)
3 YPAO MIC jack
For connecting the supplied YPAO microphone (p.29).
4 Remote control sensor
Receives remote control signals (p.5).
5 INFO (WPS) key
7 PRESET keys
Select a preset radio station (p.53).
8 FM and AM keys (RX-V481) or FM and DAB keys (RXV481D)
Switch between FM and AM (p.50) or FM and DAB
(p.55).
9 TUNING keys
Select the radio frequency (p.50).
Enables/disables the direct playback mode (p.49).
B PHONES jack
Registers radio stations as preset stations (p.51).
Enables/disables the straight decode mode (p.48).
For connecting devices, such as portable audio players
(p.24).
I USB jack
For connecting headphones.
D TONE CONTROL key
Select a sound program or a surround decoder (p.45).
H AUX jack
A DIRECT key
Enters the wireless LAN connection setup (WPS button
configuration) by holding down for 3 seconds (p.35).
F PROGRAM keys
Enters the MusicCast network addition and the wireless
LAN setup by holding down for 5 seconds (p.41).
Displays information (p.10).
C INPUT keys
Select the registered input source and sound program with
one touch. Also, turns on the unit when it is in standby
mode (p.44).
G STRAIGHT (CONNECT) key
: Front display
Selects the information displayed on the front display
(p.43).
6 MEMORY key
E SCENE keys
For connecting a USB storage device (p.68).
J VOLUME knob
Select an input source.
Adjusts the volume.
Adjusts the level of high-frequency range (Treble) and lowfrequency range (Bass) individually (p.84).
9
En
Front display (indicators)
1
2
3
4
ENHANCER STEREO TUNED
CHARGE
6
5
OUT 1 2
ECO
7
8
PARTY SLEEP MUTE
ZONE ZONE
2 A 3 B VOL.
ADAPTIVE DRC VIRTUAL
9
0
1 HDMI
Lights up when HDMI signals are being input or output.
OUT
Lights up when HDMI signals are being output.
2 ENHANCER
Lights up when Compressed Music Enhancer (p.49) is
working.
3 CINEMA DSP
Lights up when CINEMA DSP (p.46) or CINEMA DSP 3D
(p.46) is working.
4 STEREO
Lights up when the unit is receiving a stereo FM radio
signal.
: Cursor indicators
Indicate the remote control cursor keys currently
operational.
A Information display
Displays the current status (such as input name and sound
mode name). You can switch the information by pressing
INFO (p.43).
B Signal strength indicator
Indicates the strength of the wireless signal (p.33).
C ZONE indicators
Indicate the zone to which the sound is output (p.80).
D Speaker indicators
Indicate speaker terminals from which signals are output.
TUNED
A Front speaker (L)
Lights up when the unit is receiving an FM/AM radio station
(RX-V481) or FM radio station (RX-V481D) signal.
S Front speaker (R)
5 Bluetooth indicator
Light up while the unit is connecting to a Bluetooth device.
6 SLEEP
Lights up when the sleep timer is on.
7 MUTE
Blinks when audio is temporarily muted.
B
A
D Center speaker
F Surround speaker (L)
G Surround speaker (R)
L Subwoofer
E ADAPTIVE DRC
Lights up when Adaptive DRC (p.84) is working.
8 Volume indicator
Indicates the current volume.
9 ECO
Lights up when the eco mode (p.98) is enabled.
10
En
C
0
D
E
Rear panel
3
2
1
4
6
5
LESS
HDMI OUT
NETWORK
HDMI (HDCP2.2)
HDCP2.2
(NET)
ARC
1(BD/DVD)
2
3
4
ANTENNA
FM
(RADIO)
AM
75 Ω
SPEAKERS
CENTER
FRONT
VIDEO
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
SURROUND/BI-AMP
/ZONE B
MONITOR
OUT
AV 2
AV 3
7
SUBWOOFER
PRE OUT
AV 4
8
9
0
A
(RX-V481 U.S.A. model)
▪ The area around the video/audio output jacks is marked in white
on the actual product to prevent improper connections.
1 HDMI OUT jack
For connecting to an HDMI-compatible TV and outputting
video/audio signals (p.20). When using ARC, TV audio
signal can also be input through the HDMI OUT jack.
2 HDMI 1–4 jacks
For connecting to HDMI-compatible playback devices and
inputting video/audio signals (p.21).
3 ANTENNA jacks
For connecting to the radio antennas (p.25).
4 NETWORK jack
For a wired connection to a network (p.26).
5 Wireless antenna
7 AV jacks
AUDIO jacks
For connecting to video/audio playback devices and
inputting video/audio signals (p.22).
8 MONITOR OUT jack
For connecting to a TV and outputting video signals
(p.20).
9 SUBWOOFER PRE OUT jack
For connecting to a subwoofer (with built-in amplifier)
(p.18).
: SPEAKERS terminals
For connecting to speakers (p.18).
A VOLTAGE SELECTOR
(Taiwan, Brazil and General models only)
Selects the switch position according to your local voltage
(p.27).
For a wireless (Wi-Fi) connection to a network (p.26).
6 Power cable
For connecting to an AC wall outlet (p.27).
11
En
Remote control
1
1 Remote control signal transmitter
Transmits infrared signals.
2
3
2 SLEEP key
ZONE A
ZONE B
A
SLEEP
SCENE
4
BD
DVD
TV
STRAIGHT
DIRECT
5
NET
RADIO
Pressing this key repeatedly will specify the time (120 min,
90 min, 60 min, 30 min, off), in which the unit switches to
the standby mode.
3 ZONE switch
ENHANCER
BASS
Enable/disable the audio output to Zone A or Zone B
(p.79).
PROGRAM
USB
6
INPUT
VOLUME
NET
B
MUTE
7
SETUP
OPTION
ENTER
8
RETURN
TOP MENU
DISPLAY
HOME
Select the registered input source and sound program with
one touch. Also, turn on the unit when it is in standby mode
(p.44).
5 Sound mode keys
Select a sound mode (p.45).
BLUETOOTH
POP-UP/MENU
C
D
6 Input selection keys
GREEN
YELLOW
BLUE
0
TUNING
TUNING
PRESET
▪ The playback devices must support HDMI Control. Some
HDMI Control-compatible devices cannot be used.
▪ You can assign the unit's functions to the RED/GREEN/
YELLOW/BLUE keys (p.101).
Operate the FM/AM/DAB radio when “TUNER” is selected
as the input source (p.50).
MEMORY
Registers radio stations as presets.
PRESET
Select a preset station.
TUNING
Select the radio frequency.
Turns on/off (standby) the unit.
You can select directly each input source by pressing the
following keys.
B VOLUME keys
FM/AM or
FM/DAB
FM/AM radio (RX-V481) or FM/DAB radio
(RX-V481D)
C MUTE key
USB
USB jack (on the front panel)
NET
SERVER, NET RADIO, MusicCast Link,
AirPlay and network sources (press
repeatedly to select a desired source)
BLUETOOTH
Bluetooth device
7 SETUP key
MEMORY
Note
A z (receiver power) key
Select an input source for playback.
9
RED
Let you perform playback operations when “USB” or “NET”
is selected as the input source, or control playback of the
HDMI Control-compatible playback device.
: Radio keys
4 SCENE keys
FM/AM
89: External device operation keys
Displays the setup menu (p.87).
8 Menu operation keys
Cursor keys
Select a menu or the parameter.
ENTER
Confirms a selected item.
RETURN
Returns to the previous screen.
( RX-V481 )
12
En
Adjust the volume.
Mutes the audio output.
D OPTION key
Displays the option menu (p.83).
PREPARATIONS
General setup procedure
1 Placing speakers................................................................................................................................ (p.14)
2 Connecting speakers........................................................................................................................ (p.18)
3 Connecting a TV/playback devices.................................................................................................. (p.20)
4 Connecting the radio antennas....................................................................................................... (p.25)
5 Preparing for connecting to a network........................................................................................... (p.26)
6 Connecting the power cable............................................................................................................ (p.27)
7 Selecting an on-screen menu language.......................................................................................... (p.28)
8 Optimizing the speaker settings automatically (YPAO)................................................................ (p.29)
9 Connecting to a network wirelessly................................................................................................ (p.33)
10 Setting the MusicCast....................................................................................................................... (p.41)
This completes all the preparations. Enjoy playing movies, music, radio and other content with the unit!
13
En
1 Placing speakers
Select the speaker layout for the number of speakers that you are using and place the speakers and subwoofer in your room. This section describes the representative speaker
layout examples.
Notice
▪ (U.S.A. and Canada models only)
Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the unit’s speaker impedance to “6 Ω MIN”. For details, see “Setting the speaker impedance” (p.17).
▪ (Except for U.S.A. and Canada models)
Use speakers with an impedance of at least 6 W.
▪ Use a subwoofer with built-in amplifier.
▪ Be sure to connect the front left and right speakers.
14
En
Typical speaker layouts
n 5.1-channel system
n 5.1-channel system (Virtual CINEMA FRONT)
We recommend this speaker layout which can maximize the performance of the unit.
We recommend this speaker layout when the speakers can't be placed in back of the
room.
1
1
2
2
4
9
9
3
4
5
10° to 30°
Speaker type
Front (L/R)
Center
Surround (L/R)
Subwoofer
5
3
Abbr.
1/2
3
4/5
9
10° to 30°
Speaker type
Function
Produce front left/right channel sounds (stereo sounds).
Front (L/R)
Produces center channel sounds (such as movie dialogue
and vocals).
Center
Produce surround left/right channel sounds.
Surround (L/R)
Produces LFE (low-frequency effect) channel sounds and
reinforces the bass parts of other channels.
Subwoofer
This channel is counted as “0.1”.
Abbr.
1/2
3
4/5
9
Function
Produce front left/right channel sounds (stereo sounds).
Produces center channel sounds (such as movie dialogue
and vocals).
Produce surround left/right channel sounds. By this
system, place the surround speakers in front.
Produces LFE (low-frequency effect) channel sounds and
reinforces the bass parts of other channels.
This channel is counted as “0.1”.
Note
Note
▪ You can enjoy surround sound even without the center speaker (front 4.1-channel system).
▪ To utilize this configuration, set “Virtual CINEMA FRONT” (p.91) in the “Setup” menu to “On”.
▪ You can place the subwoofer either in the left or right side.
▪ You can enjoy surround sound even without the center speaker (front 4.1-channel system).
▪ You can place the subwoofer either in the left or right side.
15
En
Other speaker layouts
The following speaker layouts are also available.
n 2.1-channel system
n 3.1-channel system
1
9
2
1
3
2
9
Note
Note
In addition to this speaker layout, you can use bi-amp connections or the Zone B function that allows you to
play back an input source in another room (Zone B). For details, see “Playing back more high-quality sounds
with bi-amp connections” (p.77) or “Playing back music in multiple rooms” (p.78).
In addition to this speaker layout, you can use bi-amp connections or the Zone B function that allows you to
play back an input source in another room (Zone B). For details, see “Playing back more high-quality sounds
with bi-amp connections” (p.77) or “Playing back music in multiple rooms” (p.78).
16
En
Setting the speaker impedance
(U.S.A. and Canada models only)
Under its default settings, the unit is configured for 8-ohm speakers. When connecting 6-ohm speakers, set the speaker impedance to “6 Ω MIN”.
1
2
Before connecting speakers, connect the power cable to an AC wall outlet.
While holding down STRAIGHT on the front panel, press z (power).
z (power)
STRAIGHT
3
Check that “SP IMP.” is displayed on the front display.
CHARGE
OUT 1 2
ECO
ENHANCER STEREO TUNED
PARTY SLEEP MUTE
ZONE ZONE
2 A 3 B VOL.
SP IMP.••8¬MIN
4
5
ADAPTIVE DRC VIRTUAL
Press STRAIGHT to select “6 Ω MIN”.
Press z (power) to set the unit to standby mode and remove the power cable from the AC wall outlet.
You are now ready to connect the speakers.
17
En
2 Connecting speakers
Connect the speakers placed in your room to the unit. The following diagrams provide connections for a 5.1-channel system as an example. For other systems, connect speakers
while referring to the connection diagram for the 5.1-channel system.
Notice
▪ Remove the unit’s power cable from an AC wall outlet and turn off the subwoofer before connecting the speakers.
▪ The speaker has the polarity (+/-). Connect the speaker cable correctly between the positive (+) terminal of the unit and the speaker, and also between the negative (-) terminal of them.
Cables required for connection (commercially available)
Speaker cables (x the number of speakers)
+
–
Audio pin cable (x1: for connecting a subwoofer)
+
–
The unit (rear)
Precaution for connecting of the speaker cables
LESS
S
HDMI OUT
HDMI
HDCP2.2
1(BD/DVD)
2
Improper connecting of the speaker cables may cause short circuit and
also damage the unit or the speakers.
NETWORK
(HDCP2.2)
(NET)
1
ARC
3
4
ANTENNA
(RADIO)
FM
10 mm (3/8”)
2
▪ Twist the bare wires of the speaker cables
firmly together.
AM
75 Ω
SPEAKERS
FRONT
VIDEO
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
CENTER
SURROUND/BI-AMP
/ZONE B
3
MONITOR
OUT
AV 2
AV 3
AV 4
4
▪ Do not let the core wires of the speaker cable
touch one another.
SUBWOOFER
PRE OUT
▪ Do not let the core wires of the speaker cable
come into contact with the unit’s metal parts
(rear panel and screws).
Audio pin cable
Use a subwoofer with built-in
amplifier.
9
Subwoofer
2
Front (R)
1
Front (L)
3
5
4
Center
Surround (R)
Surround (L)
18
En
If “Check SP Wires” appear on the front display when the unit is turned
on, turn off the unit, and then check the speaker cables short circuit.
Connecting speaker cables
Connecting the subwoofer (with built-in amplifier)
Speaker cables have two wires. One is for connecting the negative (-) terminal of the
unit and the speaker, and the other is for the positive (+) terminal. If the wires are
colored to prevent confusion, connect the black wire to the negative and the other wire
to the positive terminal.
Use an audio pin cable to connect the subwoofer.
1
2
3
4
AV 4
Remove approximately 10 mm (3/8”) of insulation from the ends of
the speaker cable, and twist the bare wires of the cable firmly
together.
Connecting front speakers that support bi-amp
connections
Loosen the speaker terminal.
Insert the bare wires of the cable into the gap on the side (upper
right or bottom left) of the terminal.
When using front speakers that support bi-amp connections, connect them to the
FRONT terminals and SURROUND/BI-AMP/ZONE B terminals. For details, see “Playing
back more high-quality sounds with bi-amp connections” (p.77).
Tighten the terminal.
Note
Surround speakers or Zone B speakers cannot be used during bi-amp connections.
c
+ (red)
b
FR
ON
T
d
Connecting Zone B speakers
a
The Zone A/B function allows you to playback an input source in the room where the
unit is installed (Zone A) and in another room (Zone B). To connect the Zone B
speakers, see “Playing back music in multiple rooms” (p.78).
- (black)
Using a banana plug
Note
(U.S.A., Canada, China, Australia, Taiwan, Brazil and General models only)
1
2
Audio pin cable
Surround speakers or bi-amp speakers cannot be used during Zone B connections.
Tighten the speaker terminal.
Insert a banana plug into the end of the terminal.
a
FR
ON
T
Banana plug
b
19
En
3 Connecting a TV/playback devices
The unit is equipped with a variety of input jacks
including HDMI input jacks to allow you to connect
different types of playback devices. For information on
how to connect a Bluetooth device or a USB storage
device, see the following pages.
• Connecting a Bluetooth device (p.64)
• Connecting a USB storage device (p.68)
n Video jacks
HDMI jacks
Transmit digital video and digital sound through a
single jack. Use an HDMI cable.
HDMI cable
Transmit analog video signals. Use a video pin
cable.
▪ The unit’s HDMI jacks support the HDMI Control, Audio
Return Channel (ARC), and 3D and 4K Ultra HD video
transmission (through output) features.
▪ Use high speed HDMI cables to enjoy 3D or 4K Ultra HD
videos.
Transmit analog stereo audio signals. Use a stereo
pin cable (RCA cable).
Stereo pin cable
Video pin cable
n Audio jacks
(Stereo mini jack)
Transmits analog stereo audio signals. Use a
stereo mini-plug cable.
OPTICAL jacks
Transmit digital audio signals. Use a digital optical
cable. Remove the tip protector (if available) before
using the cable.
Digital optical cable
Note
▪ Use a 19-pin HDMI cable with the HDMI logo. We
recommend using a cable less than 5.0 m (16.4 ft) long to
prevent signal quality degradation.
(Stereo L/R jacks)
VIDEO jacks
Input/output jacks and cables
n Video/audio jacks
AUDIO jacks
OPTICAL
COAXIAL jacks
Transmit digital audio signals. Use a digital coaxial
cable.
Digital coaxial cable
20
En
Stereo mini-plug cable
Connecting a TV
n Composite video connection
Connect a TV to the unit so that video input to the unit can be output to the TV. You
can also enjoy playback of TV audio on the unit.
When connecting any video device with a video pin cable, connect the TV to the
MONITOR OUT (VIDEO) jack.
To maximize the performance of the unit, we recommend connecting a TV with an
HDMI cable.
Note
n HDMI connection
▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI.
▪ If you connect your TV to the unit with a cable other than HDMI, video input to the unit via HDMI cannot be
output to the TV.
▪ If you will receive TV broadcasts only from the set-top box, you do not need to make an audio cable
connection between the TV and the unit.
Connect the TV to the unit with an HDMI cable and a digital optical cable.
The unit (rear)
HDMI OUT jack
NETWORK
HDMI (HDCP2.2)
HDCP2.2
Connect the TV to the unit with a video pin cable and a digital optical cable.
HDMI
LESS
HDMI OUT
VIDEO (composite video) connection
HDMI input
(NET)
HDMI
HDMI
ARC
1(BD/DVD)
2
3
Video input
(composite video)
4
ANTENNA
FM
(RADIO)
AM
MONITOR OUT (VIDEO) jack
The unit (rear)
75 Ω
SPEAKERS
CENTER
FRONT
SURROUND/BI-AMP
/ZONE B
VIDEO
LESS
VIDEO
OPTICAL
MONITOR
OUT
HDMI OUT
NETWORK
HDMI (HDCP2.2)
HDCP2.2
O
(NET)
O
V
OPTICAL
(TV)
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
AUDIO 1
AV 2
AV 3
AV 4
AUDIO 1 (OPTICAL) jack
1(BD/DVD)
TV
SUBWOOFER
PRE OUT
V
MONITOR
OUT
ARC
2
3
4
ANTENNA
FM
Audio output
(digital optical)
(RADIO)
AM
75 Ω
SPEAKERS
FRONT
VIDEO
SURROUND/BI-AMP
/ZONE B
OPTICAL
O
Note
CENTER
MONITOR
OUT
O
OPTICAL
OPTICAL
(TV)
AUDIO 1
▪ You do not make a digital optical cable connection between the TV and the unit in the following cases:
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
AV 3
AV 4
SUBWOOFER
PRE OUT
(TV)
AUDIO 1
AUDIO 1 (OPTICAL) jack
– If your TV supports Audio Return Channel (ARC)
– If you will receive TV broadcasts only from the set-top box
▪ If you connect a TV that supports HDMI Control to the unit with an HDMI cable, you can control the unit’s
power and volume with the TV’s remote control.
To use HDMI Control and ARC, you need to configure the HDMI settings on the unit.
For details on the settings, see “Information on HDMI” (p.124).
About Audio Return Channel (ARC)
▪ ARC allows audio signals to travel both ways. If you connect a TV that supports ARC to the unit with a
single HDMI cable, you can output video/audio to the TV or input TV audio to the unit.
▪ When using ARC, connect a TV with an HDMI cable that supports ARC.
21
En
TV
Audio output
(digital optical)
Connecting video devices (such as BD/DVD players)
n Composite video connection
Connect video devices such as BD/DVD players, set-top boxes (STBs) and game
consoles to the unit. Depending on the video/audio output jacks available on your
video device, choose one of the following connections. We recommend using an
HDMI connection if the video device has an HDMI output jack.
Connect a video device to the unit with a video pin cable and an audio cable (digital
coaxial or stereo pin cable). Choose a set of input jacks (on the unit) depending on the
audio output jacks available on your video device.
Output jacks on video device
Video
Note
If the combination of video/audio input jacks available on the unit does not match your video device, change
its combination according to the output jacks of your device (p.23).
Input jacks on the unit
Audio
Digital coaxial
Composite video
n HDMI connection
AV 1 (VIDEO + COAXIAL)
Analog stereo
AV 2–4 (VIDEO + AUDIO)
Digital optical
You need to change the combination
of video/audio input jacks (p.23).
Connect a video device to the unit with an HDMI cable.
Video output
(composite video)
AV 1–4 (VIDEO) jacks
HDMI 1–4 jacks
VIDEO
The unit (rear)
V
V
LESS
VIDEO
The unit (rear)
HDMI OUT
NETWORK
HDMI (HDCP2.2)
HDCP2.2
(NET)
ARC
LESS
1(BD/DVD)
HDMI OUT
2
3
FM
(NET)
(RADIO)
AM
HDMI OUT jack
HDMI
ARC
4
ANTENNA
NETWORK
HDMI (HDCP2.2)
HDCP2.2
Video device
75 Ω
1(BD/DVD)
2
3
SPEAKERS
4
ANTENNA
FM
(RADIO)
FRONT
HDMI
AM
C
VIDEO
HDMI
SPEAKERS
VIDEO
CENTER
SURROUND/BI-AMP
/ZONE B
C
MONITOR
OUT
75 Ω
FRONT
CENTER
COAXIAL
SURROUND/BI-AMP
/ZONE B
COAXIAL
L
MONITOR
OUT
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
AV 3
L
SUBWOOFER
PRE OUT
AV 4
L
L
R
R
R
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
AV 3
AV 4
SUBWOOFER
PRE OUT
R
Video device
AV 1 (COAXIAL) jack or AV 2–4
(AUDIO) jacks
Note
To watch videos input to the HDMI 1–4 jacks, you need to connect your TV to the HDMI OUT jack of the unit
(p.21).
Audio output
(digital coaxial or analog
stereo)
Note
If you connect a video device to the unit via composite video connection, you need to connect your TV to the
MONITOR OUT (VIDEO) jack of the unit (p.21).
22
En
n Changing the combination of video/audio input jacks
3
If the combination of video/audio input jacks available on the unit does not match your
video device, change its combination according to the output jacks of your device.
You can connect a video device that has the following video/audio output jacks.
Output jacks on video device
Press OPTION.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
MUTE
OPTION
PROGRAM
FM/AM
Input jacks on the unit
SETUPP
USB
INPUT
VOLUME
OPTION
NET
Video
HDMI
Audio
Video
Audio
Digital optical
HDMI 1–4
AUDIO 1 (OPTICAL)
Digital coaxial
HDMI 1–4
AUDIO 2 (COAXIAL)
AV 1 (COAXIAL)
Analog stereo
HDMI 1–4
AV 2–4 (AUDIO)
Digital optical
AV 1–4 (VIDEO)
AUDIO 1 (OPTICAL)
BLUETOOTH
MUTE
SETUP
Cursor keys
ENTER
OPTION
ENTER
ENTER
RETURN
DISPLAY
TOP MENU
HOME
POP-UP/MENU
RETURN
RED
GREEN
YELLOW
DISPLA
DISPLAY
BLUE
MEMORY
Composite video
TUNING
TUNING
TOP MENU
Necessary setting
4
For example, if you have connected a video device to AV 2 (VIDEO) and AUDIO 1
(OPTICAL) jack of the unit, change the combination setting as follows.
CHARGE
ENHANCER STEREO TUNED
SLEEP MUTE
V
HDMI (HDCP2.2)
HDCP2.2
5
V
NETWORK
(NET)
ARC
1(BD/DVD)
2
3
Use the cursor keys (e/r) to select “AUDIO 1” (audio input
jack to be used).
4
ANTENNA
FM
ADAPTIVE DRC VIRTUAL
Audio In
VIDEO
LESS
HDMI OUT
VOL.
ECO
Video output
(composite video)
AV 2 (VIDEO) jack
(RADIO)
CHARGE
AM
ENHANCER STEREO TUNED
SLEEP MUTE
OUT
SPEAKERS
FRONT
VIDEO
CENTER
Audio••AUDIO 1
SURROUND/BI-AMP
/ZONE B
Video device
MONITOR
OUT
6
OPTICAL
O
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
AV 3
OPTICAL
AV 4
O
SUBWOOFER
PRE OUT
AUDIO 1
AUDIO 1 (OPTICAL) jack
2
ADAPTIVE DRC VIRTUAL
Press OPTION.
This completes the necessary settings.
(TV)
1
VOL.
ECO
75 Ω
OPTICAL
(TV)
AUDIO 1
POP-UP/MENU
Use the cursor keys (q/w) to select “Audio In” and press
ENTER.
OUT
The unit (rear)
HOME
PRESET
If you select “AV 2” as the input source by pressing INPUT, the video/audio
played back on the video device will be output from the unit.
Audio output
(digital optical)
After connecting external devices (such as a TV and playback
devices) and power cable of the unit, turn on the unit.
Press INPUT to select “AV 2” (video input jack to be used) as
the input source.
23
En
Connecting audio devices (such as CD players)
Connecting to the jack on the front panel
Connect audio devices such as CD players and MD players to the unit. Depending on
the audio output jacks available on your audio device, choose one of the following
connections.
Use the AUX jack on the front panel to temporarily connect devices such as portable
audio players to the unit.
Audio output jacks on audio device
Before making a connection, stop playback on the device and turn down the volume
on the unit.
Audio input jacks on the unit
Digital optical
AUDIO 1 (OPTICAL)
Digital coaxial
AUDIO 2 (COAXIAL)
AV 1 (COAXIAL)
Analog stereo
BD
DVD
INPUT
NET
TV
TONE CONTROL
AV 2–4 (AUDIO)
PROGRAM
RADIO
STRAIGHT
AUX
USB
AUDIO
5V
(CONNECT)
1A
The unit (rear)
The unit (front)
LESS
HDMI OUT
NETWORK
HDMI (HDCP2.2)
HDCP2.2
(NET)
O
O
ARC
OPTICAL
1(BD/DVD)
2
3
OPTICAL
4
ANTENNA
FM
(RADIO)
AM
C
C
75 Ω
SPEAKERS
COAXIAL
FRONT
CENTER
SURROUND/BI-AMP
/ZONE B
L
VIDEO
L
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
AV 3
AV 4
Audio device
Portable audio player
L
R
OPTICAL
(TV)
AUDIO 1
COAXIAL
L
MONITOR
OUT
If you select “AUX” as the input source by pressing INPUT, the audio played back on
the device will be output from the unit.
R
SUBWOOFER
PRE OUT
AV 1–4 jacks
AUDIO 1–2 jacks
R
R
Note
Audio output
(either digital optical, digital coaxial,
or analog stereo)
▪ You need to prepare the audio cable that matches the output jacks on your device.
▪ For details on how to connect a USB storage device, see “Connecting a USB storage device” (p.68).
24
En
4 Connecting the radio antennas
FM/AM antennas (RX-V481)
DAB/FM antenna (RX-V481D)
Connect the supplied FM/AM antennas to the unit.
Connect the supplied DAB/FM antenna to the unit and fix the antenna ends to a wall.
Fix the end of the FM antenna to a wall, and place the AM antenna on a flat surface.
DAB/FM antenna
FM antenna
The unit (rear)
AM antenna
LESS
HDMI OUT
HDMI
HDCP2.2
NETWORK
(HDCP2.2)
(NET)
ARC
1(BD/DVD)
2
3
LESS
HDMI OUT
HDCP2.2
4
DAB/FM
75 Ω
ANTENNA
NETWORK
HDMI (HDCP2.2)
(RADIO)
(NET)
ARC
SPEAKERS
1(BD/DVD)
2
3
4
FRONT
CENTER
SURROUND BI-AMP
/ZONE B
ANTENNA
FM
(RADIO)
AM
VIDEO
75 Ω
SPEAKERS
FRONT
VIDEO
CENTER
SURROUND/BI-AMP
/ZONE B
MONITOR
OUT
OPTICAL
(TV)
AUDIO 1
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
MONITOR
OUT
AV 2
AV 3
AV 4
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
AV 3
AV 4
SUBWOOFER
PRE OUT
SUBWOOFER
PRE OUT
The unit (rear)
Note
▪ The antenna should be stretched out horizontally.
Assembling and connecting the AM antenna
Hold down
Insert
▪ If you cannot obtain good reception on the radio, adjust the height, direction or placement of the DAB/FM
antenna.
Release
Note
▪ Unwind only the length of cable needed from the AM antenna unit.
▪ The wires of the AM antenna have no polarity.
25
En
5 Preparing for connecting to a network
Connect the unit to a router (access point) with a network cable, or prepare the
wireless antenna for establishing a wireless network connection.
Note
You can enjoy Internet radio or music files stored on media servers, such as PCs and
Network Attached Storage (NAS), on the unit.
▪ If you are using a router that supports DHCP, you do not need to configure any network settings for the
unit, as the network parameters (such as the IP address) will be assigned automatically to it. You only
need to configure the network settings if your router does not support DHCP or if you want to configure the
network parameters manually (p.102).
Connecting a network cable
▪ You can check whether the network parameters (such as IP address) are properly assigned to the unit in
“Information” (p.102) in the “Setup” menu.
Connect the unit to your router with a commercially-available STP network cable
(CAT-5 or higher straight cable).
▪ Some security software installed on your PC or the firewall settings of network devices (such as a router)
may block the access of the unit to the network devices or the Internet. In these cases, configure the
security software or firewall settings appropriately.
▪ Each server must be connected to the same subnet as the unit.
Network Attached Storage
(NAS)
Internet
▪ To use the service via the Internet, broadband connection is strongly recommended.
Preparing a wireless antenna
WAN
PC
LAN
If you connect the unit wirelessly, erect the wireless antenna.
Modem
For information on how to connect the unit to a wireless network, see “Connecting to a
network wirelessly” (p.33).
Wireless
router
Erect the wireless antenna.
Network cable
LESS
HDMI OUT
S
WIRELES
NETWORK
HDMI (HDCP2.2)
HDCP2.2
(NET)
ARC
1(BD/DVD)
2
3
4
ANTENNA
FM
(RADIO)
AM
75 Ω
SPEAKERS
The unit (rear)
VIDEO
FRONT
CENTER
SURROUND/BI-AMP
/ZONE B
MONITOR
OUT
Note
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
AV 3
AV 4
Do not apply excessive force on the wireless antenna. Doing so may damage the antenna.
SUBWOOFER
PRE OUT
26
En
6 Connecting the power cable
Warning
(Taiwan, Brazil and General models only)
Make sure you set VOLTAGE SELECTOR of the unit BEFORE plugging the power cable into an AC wall
outlet. Improper setting of VOLTAGE SELECTOR may cause damage to the unit and create a potential
fire hazard.
Before connecting the power cable
Set the switch position of VOLTAGE SELECTOR according to your local voltage. Voltages are AC 110–
120/220–240 V, 50/60 Hz.
The unit (rear)
LESS
NETWORK
(NET)
4
VOLTAGE SELECTOR
M
SPEAKERS
CENTER
FRONT
SURROUND/BI-AMP
/ZONE B
VOLTAGE SELECTOR
110V
120V
ONITOR
OUT
220V
240V
SUBWOOFER
PRE OUT
After all the connections are complete, plug in the power cable.
The unit (rear)
LESS
NETWORK
(NET)
To an AC wall outlet
SPEAKERS
FRONT
CENTER
SURROUND/BI-AMP
/ZONE B
R
SUBWOOFER
PRE OUT
27
En
7 Selecting an on-screen menu language
Select the desired on-screen menu language.
1
2
6
Press z (receiver power) to turn on the unit.
Note
The information on the front display is provided in English only.
Turn on the TV and switch the TV input to display video from the
unit (HDMI OUT jack).
Note
▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI. If
not, carry out operations while viewing the front display.
▪ If you turn on the unit for the first time, the message regarding the network setup appears. To
continue the language setup, press RETURN.
3
4
Press SETUP.
Use the cursor keys to select “Language” and press ENTER.
Setup
Speaker
HDMI
Sound
ECO
Function
Network
Bluetooth
Language
RETURN
5
To exit from the menu, press SETUP.
Back
Use the cursor keys to select the desired language.
Language
English
日本語
Français
Deutsch
Español
Русский
Italiano
中文
28
En
8 Optimizing the speaker settings automatically (YPAO)
The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker
connections, measures the distances from them to your listening position(s), and then
automatically optimizes the speaker settings, such as volume balance and acoustic
parameters, to suit your room.
4
Place the YPAO microphone at your listening position and
connect it to the YPAO MIC jack on the front panel.
Note
Note
▪ When you use the front 5.1-channel speaker (Virtual CINEMA FRONT) configuration (p.15), set “Virtual
CINEMA FRONT” (p.91) in the “Setup” menu to “On” beforehand.
Place the YPAO microphone at your listening position (same height as your ears). We recommend
the use of a tripod as a microphone stand. You can use the tripod screws to stabilize the
microphone.
▪ Please note the following when using YPAO.
The unit (front)
– Use YPAO after connecting a TV and speakers to the unit.
– During the measuring process, test tones are output at high volume. Ensure that the test tones do not
frighten small children.
– During the measuring process, you cannot adjust the volume.
– During the measuring process, keep the room as quiet as possible.
– Do not connect headphones.
1
– Do not stand between the speakers and the YPAO microphone during the measurement process (about
3 minutes).
1
2
3
9
Press z (receiver power) to turn on the unit.
Turn on the TV and switch the TV input to display video from the
unit (HDMI OUT jack).
2
4
5
Note
Operations with TV screen are available only when your TV is connected to the unit via HDMI. If
not, carry out operations while viewing the front display.
3
Ear height
Turn on the subwoofer and set the volume to half. If the crossover
frequency is adjustable, set it to maximum.
VOLUME
CROSSOVER/
HIGH CUT
The following screen appears on the TV.
Auto Setup
9
Start
Exit
Power Amp Assign
MIN
MAX
MIN
Zone B
MAX
1
Note
If you are using bi-amp connections or Zone B speakers, set “Power Amp Assign” (p.90) in the
“Setup” menu to the appropriate setting before starting YPAO.
1
29
En
“Power Amp Assign” setting (p.90)
5
7
To start the measurement, use the cursor keys to select “Start”
and press ENTER.
Use the cursor keys (e/r) to select “SAVE” and press ENTER.
Auto Setup
The measurement will start in 10 seconds. Press ENTER to start the
measurement immediately.
Start
Exit
< SAVE >
Note
To stop the measurement temporarily, press RETURN and follow the procedure in “Error
messages” (p.31).
The following screen appears on the TV when the measurement finishes.
The adjusted speaker settings are applied.
Auto Setup
Measurement Finished
Result
3 / 2 / 0.1 ch
3.0 / 10.5 m
-3.0 / +10.0 dB
OK : ENTER
1
2
3
4
Note
To finish the measurement without saving the result, select “CANCEL”.
8
Disconnect the YPAO microphone from the unit.
This completes optimization of the speaker settings.
1
The number of speakers (front side/rear side/subwoofer)
2
Speaker distance (nearest/farthest)
3
Adjustment range of speaker output level
4
Warning message (if available)
Notice
▪ The YPAO microphone is sensitive to heat, so should not be placed anywhere where it could be
exposed to direct sunlight or high temperatures (such as on top of AV equipment).
Note
▪ If any error message (such as E-1) or warning message (such as W-1) appears, see “Error
messages” (p.31) or “Warning messages” (p.32).
▪ A speaker with a problem is indicated by blinking of the speaker indicators in the front display.
▪ If multiple warnings are given (when operating with the front display), use the cursor keys (q/w)
to check the other warning messages.
6
Confirm the results displayed on the screen and press ENTER.
30
En
Error messages
If any error message is displayed during the measurement, resolve the problem and
perform YPAO again.
Error message
Cause
E-1:No Front SP
Front speakers are not
detected.
(E-1:NO FRNT SP)
Auto Setup
ERROR
E-9 : User Cancel
E-2:No Sur. SP
Error message
(E-2:NO SUR SP)
< RETRY >
One of the surround
speakers cannot be
detected.
(E-5:NOISY)
E-7:No MIC
TV screen
(E-7:NO MIC)
ENHANCER STEREO TUNED
CHARGE
OUT
Keep the room quiet and retry YPAO. If
you select “PROCEED”, YPAO takes the
measurement again and ignores any
noise detected.
The YPAO microphone has
been removed.
Connect the YPAO microphone to the
YPAO MIC jack firmly and retry YPAO.
The YPAO microphone
cannot detect test tones.
Connect the YPAO microphone to the
YPAO MIC jack firmly and retry YPAO. If
this error occurs repeatedly, contact the
nearest authorized Yamaha dealer or
service center.
SLEEP MUTE
VOL.
ECO
E-5:NOISY
ADAPTIVE DRC VIRTUAL
E-8:No Signal
Front display
(E-8:NO SIGNAL)
n Procedure to handle errors
1
2
E-9:User Cancel
(E-9:CANCEL)
Check the content of error message and press ENTER.
E-10:Internal Err.
(E-10:INTERNAL)
Use the cursor keys (e/r) to select the desired operation.
To exit the YPAO measurement:
1
2
3
Use the cursor keys (q/w) to select “Exit” and press ENTER.
Disconnect the YPAO microphone from the unit.
Select “RETRY” and press ENTER.
To proceed with the current YPAO measurement (for E-5 and E-9
only):
1
An internal error has
occurred.
Texts in parentheses denote indicators on the front display.
To retry the YPAO measurement from beginning:
1
The measurement has been
Retry or exit YPAO as necessary.
canceled.
Note
Select “EXIT” and press ENTER.
Select “PROCEED” and press ENTER.
31
En
Exit YPAO, turn off the unit, and then
check the speaker connections.
The noise is too loud.
2%
E-5:Noisy
Remedy
Exit YPAO, and turn off and on the unit. If
this error occurs repeatedly, contact the
nearest authorized Yamaha dealer or
service center.
Warning messages
If a warning message is displayed after the measurement, you can still save the
measurement results by following on-screen instructions.
Warning message
Cause
Check the cable connections (+/-) of the
problem speaker.
However, we recommend you perform YPAO again in order to use the unit with the
optimal speaker settings.
If the speaker is connected incorrectly:
Auto Setup
Measurement Finished
Result
W-1:Out of Phase
3 / 2 / 0.1 ch
3.0 / 10.5 m
(W-1:PHASE)
-3.0 / +10.0 dB
OK : ENTER
A speaker cable may be
connected with the reverse
polarity (+/-).
Warning message
W-1 : Out of Phase
Problem speaker (blinks)
ENHANCER STEREO TUNED
CHARGE
OUT
W-2:Over Distance
(W-2:DISTANCE)
SLEEP MUTE
VOL.
ECO
W-1:PHASE
ADAPTIVE DRC VIRTUAL
Front display
n Procedure to handle warnings
W-3:Level Error
(W-3:LEVEL)
Check the content of warning message and press ENTER.
Note
Texts in parentheses denote indicators on the front display.
1
If the speaker is connected correctly:
Select “SAVE” and press ENTER.
Select “CANCEL” and press ENTER.
Disconnect the YPAO microphone from the unit.
32
En
Exit YPAO, turn off the unit, and place the
problem speaker within 24 m (80 ft) of the
listening position.
Check the usage environment and cable
connections (+/-) of each speaker, and
the volume of the subwoofer. If there is
There are significant volume any problem, exit YPAO, turn off the unit,
differences between the
and then reconnect speaker cable or
speakers.
correct the speaker positions. We
recommend using the same speakers or
speakers with specifications that are as
similar as possible.
To save the measurement results:
To discard the measurement result:
3
A speaker is placed more
than 24 m (80 ft) from the
listening position.
Use the cursor keys (e/r) to select the desired operation.
1
Turn off the unit, reconnect the speaker
cable.
Depending on the type of speakers or
room environment, this message may
appear even if the speakers are
connected correctly. In this case, you
can ignore the message.
TV screen
1
2
Remedy
9 Connecting to a network wirelessly
Connect the unit to a wireless router (access point) or a mobile device by establishing
a wireless connection.
n Connecting without a wireless router (access point)
Connect a mobile device to the unit directly.
Note
You can use the application for smartphone / tablet “AV CONTROLLER” (p.8) to
control the unit from mobiles devices or enjoy music files stored on mobiles devices on
the unit.
When you connect the unit to a router with a network cable, you need not do this procedure.
Selecting the connection method
Select a connection method according to your network environment.
n Connecting with a wireless router (access point)
Connect the unit to a wireless router (access point).
You can enjoy Internet radio, AirPlay, or music files stored on media servers (PC/NAS)
on the unit.
Mobile device
(such as iPhone)
You can also use the application for smartphone / tablet “AV CONTROLLER” (p.8) to
control the unit from mobiles devices or enjoy music files stored on mobiles devices on
the unit.
For details on connection, see “Connecting a mobile device to the unit directly
(Wireless Direct)” (p.39).
Note
▪ You cannot use Wireless Direct simultaneously with the wired LAN connection (p.26) or the wireless LAN
connection (p.34).
Internet
Wireless router
▪ When Wireless Direct is enabled, the unit cannot connect to the Internet. Therefore, you cannot use any
kind of Internet service such as Internet radio.
▪ Also the mobile device cannot connect to the Internet, so we recommend you disconnect the mobile
device from the unit.
Modem
Mobile device
(such as iPhone)
The unit
The unit
For details on connection, see “Connecting the unit to a wireless network” (p.34).
Note
▪ You cannot use the wireless LAN connection simultaneously with the wired LAN connection (p.26) or
Wireless Direct (p.39).
▪ If the unit and the wireless router (access point) are too far apart, the unit may not connect to a wireless
router (access point). In such case, place them close to each other.
33
En
Connecting the unit to a wireless network
6
There are several methods to connect the unit to a wireless network.
Select a connection method according to your environment.
Use the cursor keys (e/r) to select “Wireless(Wi-Fi)” and press
ENTER.
Network Connection
Connection
• The connection setting to MusicCast network.
– “Setting the MusicCast” (p.41)
<Wireless(Wi-Fi)>
Connect to router
over wired connection.
• The connection settings on iOS devices
– “Sharing the iOS device setting” (p.34)
• The WPS button configuration method
– “Using the WPS button configuration” (p.35)
RETURN
• Other connection methods
– “Using other connection methods” (p.36)
7
n Sharing the iOS device setting
Wireless(Wi-Fi)
WPS Button
WAC(iOS)
Access Point Scan
Manual Setting
Before proceeding, confirm that your iOS device is connected to a wireless router.
PIN Code
Note
Perform wireless setup
by sharing iOS device's
The sharing process will restore the default settings for the following.
network settings
with this device.
▪ Network settings
RETURN
▪ NET presets
8
▪ Bluetooth settings
▪ Music streaming service accounts
Back
Read the on-screen description and press ENTER.
Note
When you use wired network connection, a warning message is displayed on the screen.
Disconnect the network cable from the unit, and then press ENTER.
Press z (receiver power) to turn on the unit.
9
Turn on the TV and switch the TV input to display video from the
unit (HDMI OUT jack).
Note
On the iOS device, select the unit as the AirPlay speaker in the WiFi screen.
iOS 9 (example of English version)
Operations with TV screen are available only when your TV is connected to the unit via HDMI.
3
4
5
Use the cursor keys (q/w) to select “WAC(iOS)” and press
ENTER.
Select a setup method.
You can easily setup a wireless connection by applying the connection settings on iOS
devices (iPhone/iPad/iPod touch).
1
2
Back
Press SETUP.
Use the cursor keys (q/w) to select “Network” and press ENTER.
Use the cursor keys (q/w) to select “Network Connection” and
press ENTER.
The name of the unit
34
En
10
n Using the WPS button configuration
Select the network (access point) of which you want to share the
settings with the unit.
You can easily set up a wireless connection with one push of the WPS button.
1
2
Tap here to start setup
The network currently selected
Hold down INFO (WPS) on the front panel for 3 seconds.
“Press WPS button on Access Point” appears on the front display.
3
Push the WPS button on the wireless router (access point).
When the connection process finishes, “Completed” appears on the front
display.
When the sharing process finishes, the unit is automatically connected to
the selected network (access point) and “Completed” appears on the
front display.
If “Not connected” appears, repeat from step 1 or try another connection
method.
If “Not shared” or “Not connected” appears, press ENTER to repeat from
step 5 or try another connection method.
11
Press z (receiver power) to turn on the unit.
Note
▪ Depending on the model of the wireless router (access point), the unit may not connect to it. In this case,
try connection with “Access Point Scan” or “Manual Setting” (p.36).
To exit from the menu, press SETUP.
▪ You can use “WPS Button” (p.36) in the “Setup” menu to set up a wireless connection with the WPS
button.
About WPS
▪ WPS (Wi-Fi Protected Setup) is a standard established by the Wi-Fi Alliance, which allows easy
establishment of a wireless home network.
35
En
n Using other connection methods
7
If your wireless router (access point) does not support WPS button configuration
method, follow the procedure below to configure the wireless network settings.
Use the cursor keys (q/w) to select the desired connection
method and press ENTER.
Wireless(Wi-Fi)
1
2
Select a setup method.
Press z (receiver power) to turn on the unit.
WPS Button
WAC(iOS)
Access Point Scan
Manual Setting
Turn on the TV and switch the TV input to display video from the
unit (HDMI OUT jack).
PIN Code
Perform wireless setup
by sharing iOS device's
network settings
Note
with this device.
Operations with TV screen are available only when your TV is connected to the unit via HDMI.
3
4
5
6
RETURN
Back
The following connection methods are available.
Press SETUP.
WPS Button
You can set up a wireless connection with the WPS button while
viewing the TV screen. Follow the instructions displayed on the TV
screen.
WAC(iOS)
See “Sharing the iOS device setting” (p.34).
Use the cursor keys (q/w) to select “Network Connection” and
press ENTER.
Access Point Scan
You can set up a wireless connection by searching for an access
point. For details on settings, see “Searching for an access
point” (p.37).
Use the cursor keys (e/r) to select “Wireless(Wi-Fi)” and press
ENTER.
Manual Setting
You can setup a wireless connection by entering the required
information (such as SSID) manually. For details on settings, see
“Setting up the wireless connection manually” (p.38).
PIN Code
You can set up a wireless connection by entering the unit’s PIN
code into the wireless router (access point). The method is available
if the wireless router (access point) supports the WPS PIN code
method. For details on settings, see “Using the WPS PIN
code” (p.39).
Use the cursor keys (q/w) to select “Network” and press ENTER.
Network Connection
Connection
<Wireless(Wi-Fi)>
Connect to router
over wired connection.
RETURN
Back
Note
The unit may connect automatically to the access point to which it has connected previously. In this
case, the message indicating the successful connection will appear. You can ignore this message
and proceed to the next step.
36
En
4
Searching for an access point
If you select “Access Point Scan” as the connection method, the unit starts
searching for access points. After a while, the list of available access points
appears on the TV screen.
1
When the connection process finishes, “Completed” appears on the
TV screen.
If “Not connected” appears, repeat from step 1 or try another
connection method.
Use the cursor keys (q/w) to select the desired access point
and press ENTER.
5
The wireless connection setting screen appears on the TV.
Access Point Scan
SSID :
Access Point X
Security :
WPA2-PSK (AES)
Security Key :
Connect
Edit : ENTER
RETURN
2
3
Back
Press ENTER.
Use the cursor keys and ENTER to enter the security key.
_
( ) [ ] { } < > * ! ? # %&
. , : ; _ | / ¥ $ ~ ^ ‘ “ `
0 1 2 3 4 5 6 7 8 9 @+ - =
> ← Aa BKSP Space
DEL
→
a bc de f ghi j k l m
n o p q r s t u v wx y z
OK
CANCEL
CLEAR
Button functions
[¬]/[→]:
Moves the cursor left and right.
[Aa]:
Switches the letter cases (upper/lower).
[BKSP]:
Deletes the character to the left of the selected one.
[Space]:
Enters a space.
[DEL]:
Deletes the selected character.
Use the cursor keys (q/w) to select “Connect” and press
ENTER to start the connection process.
When finished entering the key, select “OK” to return to the previous
screen.
37
En
To exit from the menu, press SETUP.
4
Setting up the wireless connection manually
If you select “Manual Setting” as the connection method, the wireless connection
setting screen appears on the TV.
Note
You need to setup the SSID (network name), encryption method and security key
for your network.
If you select “None” in step 3, this item is not available.
5
Manual Setting
Use the cursor keys and ENTER to enter the security key.
If you select “WEP” in step 3, enter either 5 or 13 character string, or
10 or 26 hexadecimal digits.
SSID :
Security :
Use the cursor keys (q/w) to select “Security Key” and press
ENTER.
None
If you select the method other than “WEP” in step 3, enter either 8 to
63 character string, or 64 hexadecimal digits.
Security Key :
Connect
Edit : ENTER
RETURN
Back
_
1
2
( ) [ ] { } < > * ! ? # %&
Use the cursor keys (q/w) to select “SSID” and press ENTER.
. , : ; _ | / ¥ $ ~ ^ ‘ “ `
0 1 2 3 4 5 6 7 8 9 @+ - =
> ← Aa BKSP Space
DEL
→
a bc de f ghi j k l m
Use the cursor keys and ENTER to enter the SSID of the
access point.
n o p q r s t u v wx y z
OK
CANCEL
CLEAR
When finished entering the key, select “OK” to return to the previous
screen.
_
( ) [ ] { } < > * ! ? # %&
. , : ; _ | / ¥ $ ~ ^ ‘ “ `
6
0 1 2 3 4 5 6 7 8 9 @+ - =
> ← Aa BKSP Space
DEL
→
a bc de f ghi j k l m
n o p q r s t u v wx y z
OK
When the connection process finishes, “Completed” appears on the
TV screen.
CANCEL
CLEAR
When finished entering the key, select “OK” to return to the previous
screen.
3
Use the cursor keys (q/w) to select “Connect” and press
ENTER to start the connection process.
If “Not connected” appears, check that all the information is entered
correctly, and repeat from step 1.
7
Use the cursor keys (q/w) to select “Security” and the cursor
keys (e/r) to select the encryption method.
Choices
None, WEP, WPA-PSK(AES), Mixed Mode
Note
If you select “None”, the connection may be insecure since the communication is not
encrypted.
38
En
To exit from the menu, press SETUP.
Connecting a mobile device to the unit directly
(Wireless Direct)
Using the WPS PIN code
If you select “PIN Code” as the connection method, the list of available access
points appears on the TV screen.
1
Follow the procedure below to connect a mobile device to the unit directly.
Use the cursor keys (q/w) to select the desired access point
and press ENTER.
Note
Wireless Direct connection may be insecure since the communication is not strongly encrypted. The unit may
operate by playback operation on wireless devices connected to the unit without permission.
The PIN code of the unit appears on the TV screen.
1
2
PIN Code
PIN Code : 00000000
Enter the PIN code
into the access point.
Press ENTER to start
Press z (receiver power) to turn on the unit.
Turn on the TV and switch the TV input to display video from the
unit (HDMI OUT jack).
Note
the connection process.
Operations with TV screen are available only when your TV is connected to the unit via HDMI.
RETURN
2
Back
3
4
5
Enter the unit’s PIN code into the wireless router (access
point).
For details on settings, refer to the instruction manual of the wireless
router (access point).
3
Press ENTER to start the connection process.
6
When the connection process finishes, “Completed” appears on the
TV screen.
If “Not connected” appears, repeat from step 1 or try another
connection method.
4
Press SETUP.
Use the cursor keys (q/w) to select “Network” and press ENTER.
Use the cursor keys (q/w) to select “Network Connection” and
press ENTER.
Use the cursor keys (e/r) to select “Wireless Direct” and press
ENTER.
Network Connection
Connection
<Wireless Direct>
Establish wireless
To exit from the menu, press SETUP.
peer-to-peer connection
directly with device,
without going through
home network.
Cannot connect to internet.
RETURN
39
En
Back
7
10
Use the cursor keys (q/w) to select “Security” and the cursor
keys (e/r) to select the encryption method.
Choices
This completes the settings and “Completed” appears on the TV screen.
None, WPA2-PSK(AES)
Next, configure the Wi-Fi settings of a mobile device.
11
Note
If you select “None”, the connection may be insecure since the communication is not encrypted.
8
1
2
If you select “None” in step 7, this item is not available.
3
Use the cursor keys and ENTER to enter the security key.
Enter either 8 to 63 character string, or 64 hexadecimal digits.
12
_
( ) [ ] { } < > * ! ? # %&
. , : ; _ | / ¥ $ ~ ^ ‘ “ `
0 1 2 3 4 5 6 7 8 9 @+ - =
> ← Aa BKSP Space
DEL
Configure the Wi-Fi settings of a mobile device.
For details on settings of your mobile device, refer to the instruction
manual of the mobile device.
Use the cursor keys (q/w) to select “Security Key” and press
ENTER.
Note
9
Use the cursor keys (q/w) to select “Save” and press ENTER to
save the setting.
→
a bc de f ghi j k l m
n o p q r s t u v wx y z
OK
CANCEL
CLEAR
When finished entering the key, select “OK” to return to the previous
screen.
Note
Before proceeding to the next step, record the following information. These information will be
needed to configure the Wi-Fi setting of a mobile device.
▪ SSID displayed on the TV screen
▪ Security key you have just entered
40
En
Enable the Wi-Fi function on the mobile device.
Select the SSID displayed in step 9 from the list of available access
points.
When you are prompted for a password, enter the security key
displayed in step 9.
To exit from the menu, press SETUP.
10 Setting the MusicCast
MusicCast is a brand new wireless musical solution from Yamaha, allowing you to
share music among all of your rooms with a variety of devices. You can enjoy music
from your smartphone, PC, NAS drive and music streaming service anywhere in your
house with one easy-to-use application. For more details and a lineup of MusicCast
compatible products, visit the Yamaha website.
3
Operate the “MusicCast CONTROLLER” application following the
on screen instructions, then hold down CONNECT on the front
panel of the unit for 5 seconds.
• Seamlessly control all MusicCast compatible devices with the dedicated application
“MusicCast CONTROLLER”.
• Link a MusicCast compatible device to another device in a different room and play
them back simultaneously.
• Play back music from music streaming services. (The compatible music streaming
services may differ depending on your region and product).
CONNECT
4
MusicCast CONTROLLER
5
Operate the “MusicCast CONTROLLER” application following the
onscreen instructions to set up the network.
Operate the “MusicCast CONTROLLER” application to playback.
Note
▪ AirPlay and DSD audio cannot be delivered.
▪ When the direct playback mode is enabled, input sources other than the network sources and
USB cannot be delivered.
To use the network features on the MusicCast compatible device, you need the
dedicated application “MusicCast CONTROLLER” for the operation. Search for the
free application “MusicCast CONTROLLER” on the App Store or Google Play and
install it to your device.
Adding the unit to the MusicCast network
Follow the procedure below to add the unit to the MusicCast network. You can also
configure the unit’s wireless network settings at once.
Note
The SSID and security key for your network will be needed.
1
2
Press z (receiver power) to turn on the unit.
Tap the “MusicCast CONTROLLER” application icon on your
mobile device and tap “Setup”.
Note
If you have already connected other MusicCast compatible devices to the network, tap “Settings”
and then “Add New Device”.
41
En
PLAYBACK
Basic playback procedure
Enjoying playback
1
2
3
Start playback on the external device or select a radio station.
Refer to the instruction manual for the external device.
Turn on the external devices (such as a TV or BD/DVD player)
connected to the unit.
For details on the following operations, see the corresponding pages.
▪ “Listening to FM/AM radio (RX-V481)” (p.50)
▪ “Listening to DAB radio (RX-V481D)” (p.55)
Use the input selection keys to select an input source.
▪ “Listening to FM radio (RX-V481D)” (p.60)
ZONE A
ZONE B
▪ “Playing back music stored on a Bluetooth® device” (p.64)
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
PROGRAM
▪ “Playing back music stored on a USB storage device” (p.68)
PROGRAM
FM/AM
Input selection keys
USB
INPUT
▪ “Playing back music stored on media servers (PCs/NAS)” (p.71)
VOLUME
NET
FM/AM
BLUETOOTH
▪ “Listening to Internet radio” (p.74)
MUTE
SETUP
RETURN
TOP MENU
RED
USB
OPTION
INPUT
ENTER
DISPLAY
HOME
GREEN
YELLOW
VOLUME
VOLUME
▪ “Playing back music with AirPlay” (p.66)
NET
POP-UP/MENU
BLUE
4
BLUETOOTH
MEMORY
TUNING
TUNING
PRESET
MUTE
MUTE
Press VOLUME to adjust the volume.
Note
▪ To mute the audio output, press MUTE. Press MUTE again to unmute.
▪ To adjust the treble/bass settings, use the “Option” menu or TONE CONTROL on the front panel
(p.84).
42
En
Switching information on the front display
1
Currently input source
AV
Press INFO repeatedly to select between the various display
items.
ENHANCER STEREO TUNED
CHARGE
AUX
AUDIO
VOL.
ECO
USB
ADAPTIVE DRC VIRTUAL
Audio Decoder
SERVER
Item name
Song (song title), Artist (artist name), Album (album name), DSP
Program (sound mode name), Audio Decoder (decoder name*)
AirPlay
About 3 seconds after a display item is selected, its corresponding
information appears.
ENHANCER STEREO TUNED
CHARGE
Input (input source name), DSP Program (sound mode name), Audio
Decoder (decoder name*)
Bluetooth
SLEEP MUTE
OUT
Item
HDMI
OUT
SLEEP MUTE
NET RADIO
Song (song title), Album (album name), Station (station name), DSP
Program (sound mode name), Audio Decoder (decoder name*)
MusicCast Link
DSP Program (sound mode name), Audio Decoder (decoder name*)
VOL.
ECO
†‡Pro Logic
Frequency (frequency), DSP Program (sound mode name), Audio
Decoder (decoder name*)
ADAPTIVE DRC VIRTUAL
Information
TUNER (FM/AM)
(U.K. and Europe models only)
Radio Data System data is also available when the unit is tuned into a
Radio Data System broadcasting station (p.54).
TUNER (DAB)
See “Displaying the DAB information” (p.58) for details.
Note
Available items vary depending on the selected input source. The displayed item can also be
applied separately to each input group which is shown in the table below and divided by ruled lines.
* The name of the audio decoder currently activated is displayed. If no audio decoder
is activated, “Decoder Off” appears.
43
En
Selecting the input source and favorite settings with one touch (SCENE)
The SCENE function allows you to select the assigned input source, sound program,
Compressed Music Enhancer on/off, and target zones with just one touch.
Registering a scene
1
Selecting a registered scene
1
▪ Select an input source (p.42)
Press SCENE.
▪ Select a sound program (p.45) or straight decode (p.48)
The input source and settings registered to the corresponding scene are
selected. The unit turns on automatically when it is in standby mode.
ZONE A
Perform the following operations to prepare the settings you want
to assign to a scene.
▪ Enable/disable Compressed Music Enhancer (p.49)
▪ Enable/disable the audio output to Zone A/B (p.79)
ZONE B
SLEEP
2
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
PROGRAM
ZONE A
FM/AM
ZONE B
USB
INPUT
SLEEP
VOLUME
Hold down the desired SCENE key until “SET Complete” appears
on the front display.
NET
CHARGE
ENHANCER STEREO TUNED
SLEEP MUTE
BLUETOOTH
SCENE
MUTE
SETUP
OPTION
OUT
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
SET Complete
ENTER
RETURN
TOP MENU
RED
DISPLAY
HOME
GREEN
POP-UP/MENU
BLUE
YELLOW
PROGRAM
MEMORY
TUNING
VOL.
ECO
SCENE
TUNING
PRESET
By default, the following settings are registered for each scene.
SCENE
Input
HDMI1
AUDIO1
NET RADIO
TUNER
Sound program
Sci-Fi
STRAIGHT
5ch Stereo
5ch Stereo
Compressed Music
Enhancer
Off
On
On
On
SCENE link playback
On
On
Off
Off
Target zone
Zone A
Zone A
Zone A
Zone A
Note
The SCENE link playback function allows you to automatically turn on the TV or start playback of an external
device connected to the unit via HDMI, in conjunction with a scene selection. To enable SCENE link
playback, set “SCENE” (p.94) in the “Setup” menu to “On”.
44
En
ADAPTIVE DRC VIRTUAL
Selecting the sound mode
I want to enjoy enhanced bass sounds.
The unit is equipped with a variety of sound programs and surround decoders that
allow you to enjoy playback sources with your favorite sound mode (such as sound
field effect or stereo playback).
ZONE A
• Enable Extra Bass by pressing BASS (p.49).
I want to enjoy listening to compressed music.
ZONE B
SLEEP
• Enable Compressed Music Enhancer by pressing ENHANCER (p.49).
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
PROGRAM
ZONE A
FM/AM
This mode lets you enjoy compressed music stored on a Bluetooth device or USB
storage device with additional depth and breadth (p.49).
ZONE B
USB
INPUT
SLEEP
VOLUME
NET
BLUETOOTH
SCENE
MUTE
SETUP
OPTION
BD
DVD
TV
NET
Note
RADIO
ENTER
RETURN
TOP MENU
RED
DISPLAY
HOME
GREEN
YELLOW
BLUE
MEMORY
TUNING
STRAIGHT
DIRECT
ENHANCER
BASS
POP-UP/MENU
PROGRAM
TUNING
PRESET
▪ The sound mode can be applied separately to each input source.
STRAIGHT
DIRECT
ENHANCER
BASS
PROGRAM
▪ When you play back audio signals with a sampling rate of higher than 96 kHz, the straight decode mode
(p.48) is automatically selected.
▪ You can check which speakers are currently outputting sound by looking at the speaker indicators on the
unit’s front panel (p.10).
I want to enjoy viewing video sources such as movies, TV programs, or
games.
• Select a sound program suitable for each video source by pressing PROGRAM
repeatedly (p.46).
I want to enjoy listening to music sources or stereo playback.
• Select a sound program suitable for music or stereo playback by pressing
PROGRAM repeatedly (p.47).
I want to enjoy multichannel playback from 2-channel sources.
• Select a surround decoder in the “Option” menu (p.83).
I want to enjoy unprocessed sounds in original channels.
• Switch to the straight decode mode by pressing STRAIGHT (p.48).
I want to enjoy pure high fidelity sounds.
• Enable the direct playback mode by pressing DIRECT (p.49).
This mode reduces the electrical noise from other circuitry to allow you to enjoy Hi-Fi
sound quality.
45
En
Enjoying stereoscopic sound fields (CINEMA DSP 3D)
The unit is equipped with a variety of sound programs that utilize Yamaha's original
DSP technology (CINEMA DSP 3D). It allows you to easily create sound fields like
actual movie theaters or concert halls in your room and enjoy natural stereoscopic
sound fields.
Drama
This program features stable reverberations that match a wide range of
movie genres, from serious dramas to musicals and comedies. The
reverberations are modest, but suitably stereophonic. The sound effects
and background music are reproduced with a gentle echo that does not
impinge on the articulation of the dialogue. You’ll never get tired listening
for long periods.
Mono Movie
This program reproduces monaural video sources, such as classic
movies, in an atmosphere of a good old movie theater. The program
creates a pleasant space with depth, by adding breadth and the
appropriate reverberation to the original audio.
Sports
This program allows listeners to enjoy the rich vividness of sport
broadcasts and light entertainment programs. In sports broadcasts, the
commentators’ voices are positioned clearly at the center, while the
atmosphere inside the stadium is realistically conveyed by the peripheral
delivery of the sounds of the fans in a suitable space.
Action Game
This program is suitable for action games, such as car racing and
fighting games. The reality of, and emphasis on, various effects makes
the player feel like they are right in the middle of the action, allowing for
greater concentration. Use this program in combination with Compressed
Music Enhancer for a more dynamic and strong sound field.
Roleplaying Game
This program is suitable for role-playing and adventure games. This
program adds depth to the sound field for natural and realistic
reproduction of background music, special effects, and dialogue from a
wide variety of scenes. Use this program in combination with
Compressed Music Enhancer for a clearer and more spatial sound field.
Sound program category
“CINEMA DSP” lights up
CHARGE
ENHANCER STEREO TUNED
OUT
SLEEP MUTE
VOL.
ECO
Sci-Fi
ADAPTIVE DRC VIRTUAL
Sound program
Note
▪ You can adjust the sound field effect level in “DSP Level (DSP Level)” (p.84) in the “Option” menu.
▪ To use the conventional CINEMA DSP, set “CINEMA DSP 3D Mode” (p.95) in the “Setup” menu to “Off”.
n Sound programs suitable for movies (MOVIE)
The following sound programs are optimized for viewing video sources, such as
movies, TV programs, and games.
Standard
This program creates a sound field that emphasizes the surround feeling
without disturbing the original acoustic positioning of multichannel audio,
such as Dolby Digital and DTS. Its design is based on the concept of the
ideal movie theater, in which the audience is surrounded by beautiful
reverberations from the left, right, and rear.
Spectacle
This program delivers the scale and grandeur of spectacular movie
productions. It delivers an expansive sound space to match the
cinemascope wide-screen, and boasts a broad dynamic range,
providing everything from small delicate sounds to powerful loud booms.
Sci-Fi
This program clearly reproduces the finely elaborated sound design of
the latest Sci-Fi and SFX movies. You can enjoy a variety of
cinematographically created virtual spaces reproduced with clear
separation between dialogue, sound effects, and background music.
Adventure
This program is ideal for reproducing the sound design of action and
adventure movies precisely. The sound field restrains reverberations, but
puts emphasis on reproducing a sensation of expansiveness on both
sides, powerful space expanded widely to the left and right. The
restrained depth creates a clear and powerful space, while also
maintaining the articulation of the sounds and the separation of the
channels.
46
En
n Sound programs suitable for music (MUSIC)
n Sound programs suitable for stereo playback (STEREO)
The following sound programs are optimized for listening to music sources.
You can select stereo playback.
Hall in Munich
This program simulates a Munich concert hall with approximately 2,500
seats that uses stylish wood for the interior finishing. Fine, beautiful
reverberations spread richly, creating a calming atmosphere. The
listener’s virtual seat is at the center left of the arena.
Hall in Vienna
This program simulates a 1700-seat, middle-sized concert hall with a
shoebox shape that is traditional in Vienna. Pillars and ornate carvings
create extremely complex reverberations from all around the audience,
producing a very full, rich sound.
Chamber
This program creates a relatively wide space with a high ceiling, like an
audience hall in a palace. It offers pleasant reverberations that are
suitable for courtly music and chamber music.
Cellar Club
This program simulates an intimate concert venue with a low ceiling and
homey atmosphere. A realistic, live sound field delivers powerful sounds
that make you feel as if you are sitting in the front row in front of a small
stage.
The Roxy Theatre
This program creates the sound field of a 460-seat rock music concert
venue in Los Angeles. The listener’s virtual seat is at the center left of the
hall.
The Bottom Line
This program creates the sound field at stage front in The Bottom Line, a
famous New York jazz club once. The floor can seat 300 people to the
left and right in a sound field offering real and vibrant sound.
Music Video
This program allows you to enjoy videos of pop, rock, and jazz concerts,
as if you were there yourself. Immerse yourself in the hot concert
atmosphere thanks to the vividness of the singers and solos on stage, a
presence sound field that emphasizes the beat of rhythm instruments,
and a surround sound field that reproduces the space of a big live hall.
2ch Stereo
Use this program to mix down multichannel sources to 2 channels. When
multichannel signals are input, they are down mixed to 2 channels and
output from the front speakers (this program does not utilize CINEMA
DSP).
5ch Stereo
Use this program to output sound from all speakers. When you play back
multichannel sources, the unit mixes down the source to 2 channels, and
then outputs the sound from all speakers. This program creates a larger
sound field and is ideal for background music at parties.
Note
CINEMA DSP 3D (p.46) and Virtual CINEMA DSP (p.47) do not work when “2ch Stereo” or “5ch Stereo” is
selected.
n Enjoying sound field effects without surround speakers
(Virtual CINEMA DSP)
If you select one of the sound programs (except 2ch Stereo and 5ch Stereo) when no
surround speakers are connected, the unit automatically creates the surround sound
field using the front-side speakers.
n Enjoying surround sound with 5 speakers placed in
front (Virtual CINEMA FRONT)
You can enjoy the surround sound even when the surround speakers are placed in
front.
n Enjoying surround sound with headphones (SILENT
CINEMA)
You can enjoy surround or sound field effects, like a multichannel speaker system, with
stereo headphones by connecting the headphones to the PHONES jack and selecting
a sound program or a surround decoder.
47
En
n Playing back 2-channel sources in multichannel
Enjoying unprocessed playback
(surround decoder)
You can play back input sources without any sound field effect processing.
The surround decoder enables unprocessed multichannel playback from 2-channel
sources. When a multichannel source is input, it works the same way as the straight
decode mode.
n Playing back in original channels (straight decode)
When the straight decode mode is enabled, the unit produces stereo sound from the
front speakers for 2-channel sources such as CDs, and produces unprocessed
multichannel sounds for multichannel sources.
1
For details on each decoder see “Glossary” (p.120).
1
Press STRAIGHT.
The previously selected surround decoder is selected. You can change
the surround decoder in “Sur.Decode” (p.83) in the “Option” menu.
Each time you press the key, the straight decode mode is enabled or
disabled.
CHARGE
ENHANCER STEREO TUNED
OUT
Press PROGRAM repeatedly to select a surround decoder.
ZONE A
ZONE B
SLEEP
SCENE
SLEEP MUTE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
VOL.
ECO
STRAIGHT
PROGRAM
ADAPTIVE DRC VIRTUAL
ZONE A
FM/AM
ZONE B
USB
INPUT
SLEEP
VOLUME
NET
BLUETOOTH
SCENE
MUTE
SETUP
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
OPTION
ENTER
RETURN
DISPLAY
TOP MENU
RED
POP-UP/MENU
HOME
GREEN
YELLOW
BLUE
PROGRAM
MEMORY
TUNING
PROGRAM
TUNING
PRESET
“SUR. DECODE” appears
ENHANCER STEREO TUNED
CHARGE
OUT
SLEEP MUTE
VOL.
ECO
†‡Pro Logic
ADAPTIVE DRC VIRTUAL
bPro Logic
Uses the Dolby Pro Logic decoder suitable for all sources.
bPLII Movie
Uses the Dolby Pro Logic II decoder suitable for movies.
bPLII Music
Uses the Dolby Pro Logic II decoder suitable for music.
bPLII Game
Uses the Dolby Pro Logic II decoder suitable for games.
Neo:6 Cinema
Uses the DTS Neo: 6 decoder suitable for movies.
Neo:6 Music
Uses the DTS Neo: 6 decoder suitable for music.
Note
You can adjust the surround decoder parameters in “DSP Parameter” (p.95) in the “Setup” menu.
48
En
Enjoying pure high fidelity sound (direct playback)
Playing back digitally compressed formats (such as
MP3, etc.) with enriched sound (Compressed Music
Enhancer)
When the direct playback mode is enabled, the unit plays back the selected source
with the least circuitry in order to reduce the electrical noise from other circuitry (such
as the front display). It allows you to enjoy Hi-Fi sound quality.
1
Press DIRECT.
Compressed Music Enhancer adds depth and breadth to the sound, allowing you to
enjoy a dynamic sound close to the original sound before it was compressed. This
function can be used along with any other sound modes.
Each time you press the key, the direct playback mode is enabled or
disabled.
ENHANCER STEREO TUNED
CHARGE
OUT
SLEEP MUTE
1
VOL.
ECO
DIRECT
ADAPTIVE DRC VIRTUAL
Press ENHANCER.
Each time you press the key, Compressed Music Enhancer is enabled or
disabled.
Note
When the direct playback mode is enabled, the following functions are not available.
“ENHANCER” lights up
▪ Selecting sound programs
▪ Adjusting the tone control
CHARGE
SLEEP MUTE
VOL.
ECO
▪ Operating the on-screen and “Option” menus
Enhancer On
▪ Viewing information on the front display (when not in operation)
ADAPTIVE DRC VIRTUAL
Note
Enhancing the bass (Extra Bass)
▪ Compressed Music Enhancer does not work on the following audio sources.
– Signals whose sampling rate is over 48 kHz
Extra Bass allows you to enjoy enhanced bass sounds, regardless of the size of the
front speakers and the presence or absence of the subwoofer.
1
ENHANCER STEREO TUNED
OUT
– High-definition streaming audio
▪ You can also use “Enhancer (Enhancer)” (p.85) in the “Option” menu to enable/disable
Compressed Music Enhancer.
Press BASS.
Each time you press the key, Extra Bass is enabled or disabled.
Note
You can also use “Extra Bass” (p.91) in the “Setup” menu to enable/disable Extra Bass.
49
En
Listening to FM/AM radio (RX-V481)
You can tune into a radio station by specifying its frequency or selecting from
registered radio stations.
4
5
Note
▪ The radio frequencies differ depending on the country or region where the unit is being used. The
explanation of this section uses a display with frequencies used in U.K. and Europe models.
▪ If you cannot obtain good reception on the radio, adjust the direction of the FM/AM antennas.
Press STRAIGHT to select “FM100/AM10”.
Press z (power) to set the unit to standby mode and turn it on
again.
Selecting a frequency for reception
Setting the frequency steps
1
(Asia, Taiwan, Brazil and General models only)
At the factory, the frequency step setting is set to 50 kHz for FM and 9 kHz for AM.
Depending on your country or region, set the frequency steps to 100 kHz for FM and
10 kHz for AM.
Press FM/AM to select a band.
“TUNER” is selected as the input source and then the frequency currently
selected is displayed.
CHARGE
OUT
1
2
ECO
When holding down STRAIGHT on the front panel, press z
(power).
z (power)
3
STRAIGHT
Press PROGRAM repeatedly to select “TU”.
CHARGE
OUT
ECO
ENHANCER STEREO TUNED
SLEEP MUTE
VOL.
TU••••FM50/AM9
SLEEP MUTE
VOL.
FM 87.50MHz
Set the unit to standby mode.
PROGRAM
ENHANCER STEREO TUNED
ADAPTIVE DRC VIRTUAL
50
En
ADAPTIVE DRC VIRTUAL
2
Registering favorite radio stations (presets)
Press TUNING repeatedly to set a frequency.
You can register up to 40 radio stations as presets. Once you have registered stations,
you can easily tune into them by selecting their preset numbers.
Hold down the key for about a second to search stations automatically.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
n Registering radio stations automatically (Auto Preset)
PROGRAM
FM/AM
USB
INPUT
RED
VOLUME
GREEN
YELL
YELLOW
Automatically register FM radio stations with strong signals (up to 40 stations).
BLUE
NET
TUNING
BLUETOOTH
MEMORY
MUTE
SETUP
Note
OPTION
ENTER
RETURN
TUNING
▪ To register AM radio stations, follow “Registering a radio station manually” (p.52).
TUNING
DISPLAY
TOP MENU
HOME
▪ (U.K. and Europe models only)
Only Radio Data System broadcasting stations are registered automatically by the Auto Preset function.
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
PRESET
CHARGE
OUT
ECO
ENHANCER STEREO TUNED
1
2
3
SLEEP MUTE
VOL.
FM 98.50MHz
ADAPTIVE DRC VIRTUAL
“TUNED” lights up when a signal is received from a radio station.
“STEREO” also lights up when a stereo signal is received.
Press FM/AM to select “TUNER” as the input source.
Press OPTION.
Use the cursor keys to select “Preset” and press ENTER.
CHARGE
OUT
Preset
Note
▪ You can switch between “Stereo” (stereo) and “Mono” (monaural) for FM radio reception by
selecting “FM Mode” (p.83) in the “Option” menu. When the signal reception for an FM radio
station is unstable, switching to monaural may improve it.
▪ You can watch videos input from external devices while listening to radio by selecting the video
input jack in “Video Out (Video Out)” (p.86) in the “Option” menu.
51
En
ENHANCER STEREO TUNED
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
4
n Registering a radio station manually
To start the Auto Preset process, press ENTER.
Select a radio station manually and register it to a preset number.
“SEARCH” appears during Auto Preset
ENHANCER STEREO TUNED
CHARGE
OUT
1
SLEEP MUTE
VOL.
ECO
01:FM 87.50MHz
ADAPTIVE DRC VIRTUAL
2
Preset number from which to start the registration
Follow “Selecting a frequency for reception” (p.50) to tune into
the desired radio station.
Hold down MEMORY for a few seconds.
The first time that you do register a station, the selected radio station will
be registered to the preset number “01”. Thereafter, each radio station
you select will be registered to the next empty (unused) preset number
after the most recently registered number.
Note
▪ To specify the preset number from which to start the registration, press cursor keys (e/r) or
PRESET to select a preset number.
▪ To cancel the Auto Preset process, press RETURN.
When the Auto Preset process finishes, “FINISH” appears and the “Option” menu
closes automatically.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
PROGRAM
CHARGE
ENHANCER STEREO TUNED
SLEEP MUTE
FM/AM
OUT
VOL.
ECO
USB
INPUT
Auto Preset
RED
VOLUME
ADAPTIVE DRC VIRTUAL
GREEN
YELL
YELLOW
BLUE
NET
BLUETOOTH
MEMORY
MUTE
SETUP
MEMORY
OPTION
ENTER
RETURN
TUNING
TUNING
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
PRESET
ENHANCER STEREO TUNED
CHARGE
OUT
SLEEP MUTE
VOL.
ECO
01:FM 98.50MHz
ADAPTIVE DRC VIRTUAL
Preset number
Note
To select a preset number for registering, press MEMORY once after tuning into the desired radio
station, press PRESET to select a preset number, and then press MEMORY again.
CHARGE
ENHANCER STEREO TUNED
OUT
SLEEP MUTE
VOL.
ECO
02:Empty
ADAPTIVE DRC VIRTUAL
“Empty” (not in use) or the frequency currently registered
52
En
n Selecting a preset station
n Clearing preset stations
Tune into a registered radio station by selecting its preset number.
Clear radio stations registered to the preset numbers.
1
2
1
2
3
Press FM/AM to select “TUNER” as the input source.
Press PRESET repeatedly to select the desired radio station.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
Press FM/AM to select “TUNER” as the input source.
Press OPTION.
Use the cursor keys to select “Preset” and press ENTER.
PROGRAM
CHARGE
ENHANCER STEREO TUNED
OUT
FM/AM
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
BLUETOOTH
SETUP
MEMORY
TUNING
TUNING
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
4
5
OPTION
ENTER
RETURN
GREEN
YELLOW
BLUE
PRESET
MEMORY
TUNING
ADAPTIVE DRC VIRTUAL
Preset
NET
MUTE
TUNING
PRESET
Use the cursor keys (q/w) to select “CLEAR”.
Use the cursor keys (e/r) to select a preset station to be cleared
and press ENTER.
CHARGE
ENHANCER STEREO TUNED
OUT
OUT
ENHANCER STEREO TUNED
01:FM 98.50MHz
SLEEP MUTE
VOL.
ECO
01:FM 98.50MHz
SLEEP MUTE
VOL.
ECO
CHARGE
SLEEP MUTE
VOL.
ECO
USB
INPUT
ADAPTIVE DRC VIRTUAL
ADAPTIVE DRC VIRTUAL
Preset station to be cleared
If the preset station is cleared, “Cleared” appears and then the next in-use
preset number is displayed.
Note
“No Presets” appears when no radio stations are registered.
CHARGE
ENHANCER STEREO TUNED
OUT
01:Cleared
6
7
53
En
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Repeat step 5 until all desired preset stations are cleared.
To exit from the menu, press OPTION.
Radio Data System tuning
n Receiving traffic information automatically
(U.K. and Europe models only)
When “TUNER” is selected as the input source, the unit automatically receives traffic
information. To enable this function, follow the procedure below to set the traffic
information station.
Radio Data System is a data transmission system used by FM stations in many
countries. The unit can receive various types of Radio Data System data, such as
“Program Service”, “Program Type”, “Radio Text” and “Clock Time”, when it is tuned
into a Radio Data System broadcasting station.
1
2
n Displaying the Radio Data System information
1
Use the cursor keys to select “Traffic Program” (TrafficProgram)
and press ENTER.
The traffic information station search will start in 5 seconds. Press ENTER
again to start the search immediately.
Tune into the desired Radio Data System broadcasting station.
Note
Note
We recommend using “Auto Preset” to tune into the Radio Data System broadcasting stations
(p.51).
2
When “TUNER” is selected as the input source, press OPTION.
▪ To search upward/downward from the current frequency, press the cursor keys (q/w) while
“READY” is displayed.
▪ To cancel the search, press RETURN.
Press INFO.
▪ Texts in parentheses denote indicators on the front display.
Each time you press the key, the displayed item changes.
ENHANCER STEREO TUNED
CHARGE
The following screen appears for about 3 seconds when the search
finishes.
SLEEP MUTE
OUT
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Program Type
CHARGE
Note
“TP Not Found” appears for about 3 seconds when no traffic information stations are found.
VOL.
ECO
CLASSICS
ADAPTIVE DRC VIRTUAL
Information
Program service name
Program Type
Current program type
Radio Text
Information on the current program
Clock Time
Current time
DSP Program
Sound mode name
Audio Decoder
Decoder name
Frequency
Frequency
ADAPTIVE DRC VIRTUAL
Traffic information station (frequency)
SLEEP MUTE
OUT
Program Service
VOL.
TP FM101.30MHz
About 3 seconds later, the corresponding information for the displayed
item appears.
ENHANCER STEREO TUNED
SLEEP MUTE
ECO
Item name
CHARGE
ENHANCER STEREO TUNED
OUT
Note
“Program Service”, “Program Type”, “Radio Text”, and “Clock Time” are not displayed if the radio
station does not provide the Radio Data System service.
54
En
Listening to DAB radio (RX-V481D)
DAB (Digital Audio Broadcasting) uses digital signals for clearer sound and more
stable reception compared to analog signals. The unit can also receive DAB+ (an
upgraded version of DAB) that allows for more stations using MPEG-4 audio codec
(AAC+), which has a more efficient transmission method.
Preparing the DAB tuning
Before tuning into DAB radio stations, follow the procedure below to perform an initial
scan.
Note
1
▪ The unit supports Band III (174 to 240 MHz) only.
▪ Be sure to check the DAB coverage in your area in that not all areas are currently being covered. For a list
of nationwide DAB statuses and worldwide DAB frequencies, check WorldDMB online at
http://www.worlddab.org/.
Press FM/DAB to select the DAB band.
The following message appears on the front panel if you have not
performed an initial scan yet.
▪ For details on the antenna connection, see “Connecting the radio antennas” (p.25).
CHARGE
ENHANCER
SLEEP MUTE
OUT
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Press [ENTER]
2
Press ENTER to start an initial scan.
CHARGE
ENHANCER
OUT
SLEEP MUTE
VOL.
ECO
>>>------- 30%
ADAPTIVE DRC VIRTUAL
When the initial scan finishes, the unit automatically tunes into the first
DAB radio station as stored in station order.
CHARGE
ENHANCER
OUT
SLEEP MUTE
VOL.
ECO
BBC Radio 4
ADAPTIVE DRC VIRTUAL
Note
▪ If no DAB radio stations are found by an initial scan, the message in Step 1 appears again.
Press ENTER to start an initial scan again.
▪ You can check reception strength of each DAB channel label (p.59).
▪ To perform an initial scan again after some DAB radio stations are stored, select “Init Scan”
(p.83) in the “Option” menu. If you perform an initial scan again, the DAB radio stations
currently registered to the preset numbers will be cleared.
55
En
Selecting a DAB radio station for reception
Note
You can select a DAB radio station from the stations stored by the initial scan.
▪ When the unit is receiving a secondary station, “2” appears next to “DAB”.
1
▪ “Off Air” appears when the selected DAB radio station is currently not available.
Secondary station
Press FM/DAB to select the DAB band.
CHARGE
BBC National
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
PROGRAM
FM/DAB
USB
INPUT
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
NET
TUNING
BLUETOOTH
MEMORY
MUTE
SETUP
OPTION
ENTER
RETURN
TUNING
TUNING
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
PRESET
(RX-V481D)
CHARGE
ENHANCER
SLEEP MUTE
OUT
VOL.
ECO
Daily Service
ADAPTIVE DRC VIRTUAL
▪ You can watch videos input from external devices while listening to radio by selecting the video
input jack in “Video Out (Video Out)” (p.86) in the “Option” menu.
Press TUNING repeatedly to select a DAB radio station.
ZONE A
SLEEP MUTE
VOL.
ECO
“TUNER” is selected as the input source and then the DAB radio station
currently selected is displayed.
2
ENHANCER
OUT
ADAPTIVE DRC VIRTUAL
56
En
Registering favorite DAB radio stations (presets)
OUT
VOL.
ECO
01:BBC Radio 4
You can register up to 40 DAB radio stations as presets. Once you have registered
stations, you can easily tune into them by selecting their preset numbers.
Note
You can register up to 40 favorite radio stations each for DAB and FM bands.
To select a preset number for registering, press MEMORY once after tuning into the desired radio
station, press PRESET to select a preset number, and then press MEMORY again.
n Registering a DAB radio station as presets
OUT
VOL.
ECO
“Empty” (not in use) or “Overwrite?” (in use)
n Selecting a preset DAB radio station
Hold down MEMORY for a few seconds.
Tune into a registered DAB radio station by selecting its preset number.
The first time that you do register a station, the selected radio station will
be registered to the preset number “01”. Thereafter, each radio station
you select will be registered to the next empty (unused) preset number
after the most recently registered number.
1
2
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
ADAPTIVE DRC VIRTUAL
02:Empty
Follow “Selecting a DAB radio station for reception” (p.56) to tune
into the desired DAB radio station.
ZONE A
SLEEP MUTE
ENHANCER
CHARGE
Select a DAB radio station and register it to a preset number.
2
ADAPTIVE DRC VIRTUAL
Preset number
Note
1
SLEEP MUTE
ENHANCER
CHARGE
Press FM/DAB to select “TUNER” as the input source.
Press PRESET repeatedly to select the desired DAB radio station.
POP UP/MENU
ZONE A
ZONE B
SLEEP
PROGRAM
SCENE
FM/DAB
USB
INPUT
VOLUME
RED
GREEN
YELL
YELLOW
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
BLUE
TOP MENU
HOME
POP UP/MENU
PROGRAM
NET
BLUETOOTH
FM/DAB
MEMORY
MUTE
MEMORY
USB
INPUT
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
NET
SETUP
OPTION
BLUETOOTH
ENTER
RETURN
TOP MENU
TUNING
SETUP
DISPLAY
HOME
MEMORY
MUTE
TUNING
OPTION
POP-UP/MENU
ENTER
TUNING
PRESET
RED
GREEN
YELLOW
TUNING
BLUE
RETURN
DISPLAY
MEMORY
TOP MENU
HOME
POP-UP/MENU
PRESET
TUNING
TUNING
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
PRESET
(RX-V481D)
(RX-V481D)
CHARGE
ENHANCER
OUT
SLEEP MUTE
VOL.
ECO
PRESET:01
ADAPTIVE DRC VIRTUAL
Note
“No Presets” appears when no DAB radio stations are registered.
57
En
PRESET
n Clearing preset DAB radio stations
Displaying the DAB information
Clear DAB radio stations registered to the preset numbers.
The unit can receive various types of DAB information when it is tuned into a DAB
radio station.
1
2
3
Press FM/DAB to select “TUNER” as the input source.
1
2
Press OPTION.
Use the cursor keys to select “Preset” and press ENTER.
Tune into the desired DAB radio station.
Press INFO repeatedly to select between the various display
items.
ENHANCER
CHARGE
CHARGE
ENHANCER STEREO TUNED
SLEEP MUTE
SLEEP MUTE
OUT
OUT
VOL.
ECO
Preset
4
5
Item name
About 3 seconds after a display item is selected, its corresponding
information appears.
Use the cursor keys (e/r) to select a preset station to be cleared
and press ENTER.
ENHANCER STEREO TUNED
OUT
SLEEP MUTE
OUT
VOL.
ECO
Classic Music
ADAPTIVE DRC VIRTUAL
01:Clear?
ENHANCER
CHARGE
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Program Type
Use the cursor keys (q/w) to select “CLEAR”.
CHARGE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
ADAPTIVE DRC VIRTUAL
Information
Preset station to be cleared
If the preset station is cleared, “Cleared” appears and then the next in-use
preset number is displayed.
CHARGE
ENHANCER STEREO TUNED
OUT
01:Cleared
6
7
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Repeat step 5 until all desired preset stations are cleared.
To exit from the menu, press OPTION.
Service Label
Station name
DLS (Dynamic Label
Segment)
Information on the current station
Ensemble Label
Ensemble name
Program Type
Station genre
Date And Time
Current date and time
Audio Mode
Audio mode (monaural/stereo) and bit rate
CH Label/Freq.
Channel label and frequency
Signal Quality
Signal reception quality (0 [none] to 100 [best])
DSP Program
Sound mode name
Audio Decoder
Decoder name
Note
Some information may not be available depending on the selected DAB radio station.
58
En
Checking reception strength of
each DAB channel label
You can check reception strength of each DAB channel
label (0 [none] to 100 [best]).
1
2
3
4
Press FM/DAB to select “TUNER” as the
input source.
Press OPTION.
Use the cursor keys to select “Tune
Aid” and press ENTER.
Use the cursor keys (e/r) to select the
desired DAB channel label.
ENHANCER
CHARGE
OUT
5A
Level: 80
DAB channel label
5
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Reception strength
To exit from the menu, press OPTION.
n DAB frequency information
The unit supports Band III (174 to 240 MHz) only.
Frequency
Channel label
232.496 MHz
13B
234.208 MHz
13C
Frequency
Channel label
235.776 MHz
13D
174.928 MHz
5A
237.488 MHz
13E
176.640 MHz
5B
239.200 MHz
13F
178.352 MHz
5C
180.064 MHz
5D
181.936 MHz
6A
183.648 MHz
6B
185.360 MHz
6C
187.072 MHz
6D
188.928 MHz
7A
190.640 MHz
7B
192.352 MHz
7C
194.064 MHz
7D
195.936 MHz
8A
197.648 MHz
8B
199.360 MHz
8C
201.072 MHz
8D
202.928 MHz
9A
204.640 MHz
9B
206.352 MHz
9C
208.064 MHz
9D
209.936 MHz
10A
211.648 MHz
10B
213.360 MHz
10C
215.072 MHz
10D
216.928 MHz
11A
218.640 MHz
11B
220.352 MHz
11C
222.064 MHz
11D
223.936 MHz
12A
225.648 MHz
12B
227.360 MHz
12C
229.072 MHz
12D
230.784 MHz
13A
59
En
Listening to FM radio (RX-V481D)
You can tune into an FM radio station by specifying its frequency or selecting from
registered radio stations.
Note
▪ You can switch between “Stereo” (stereo) and “Mono” (monaural) for FM radio reception from
“FM Mode” (p.83) in the “Option” menu. When the signal reception for an FM radio station is
unstable, switching to monaural may improve it.
Selecting a frequency for reception
1
▪ You can watch videos input from external devices while listening to radio by selecting the video
input jack in “Video Out (Video Out)” (p.86) in the “Option” menu.
Press FM/DAB to select the FM band.
Registering favorite FM radio stations (presets)
“TUNER” is selected as the input source and then the frequency currently
selected is displayed.
OUT
VOL.
ECO
FM 87.50MHz
2
You can register up to 40 FM radio stations as presets. Once you have registered
stations, you can easily tune into them by selecting their preset numbers.
SLEEP MUTE
ENHANCER STEREO TUNED
CHARGE
ADAPTIVE DRC VIRTUAL
Note
You can register up to 40 favorite radio stations each for DAB and FM bands.
Press TUNING repeatedly to set a frequency.
n Registering FM radio stations automatically (Auto
Hold down the key for about a second to search stations automatically.
ZONE A
Preset)
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
Automatically register FM radio stations with strong signals (up to 40 stations).
POP UP/MENU
PROGRAM
Note
FM/DAB
USB
INPUT
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
(U.K. and Europe models only)
Only Radio Data System broadcasting stations are stored automatically by the Auto Preset function.
NET
TUNING
BLUETOOTH
MEMORY
MUTE
SETUP
OPTION
ENTER
RETURN
TUNING
TUNING
1
2
3
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
PRESET
(RX-V481D)
CHARGE
ENHANCER STEREO TUNED
SLEEP MUTE
Press FM/DAB to select “TUNER” as the input source.
Press OPTION.
Use the cursor keys to select “Preset” and press ENTER.
CHARGE
OUT
ECO
ENHANCER STEREO TUNED
SLEEP MUTE
VOL.
OUT
FM 98.50MHz
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Preset
“TUNED” lights up when a signal is received from an FM radio station.
“STEREO” also lights up when a stereo signal is received.
60
En
ADAPTIVE DRC VIRTUAL
4
n Registering an FM radio station manually
To start the Auto Preset process, press ENTER.
Select an FM radio station manually and register it to a preset number.
“SEARCH” appears during Auto Preset
ENHANCER STEREO TUNED
CHARGE
OUT
1
SLEEP MUTE
VOL.
ECO
01:FM 87.50MHz
ADAPTIVE DRC VIRTUAL
2
Preset number from which to start the registration
Follow “Selecting a frequency for reception” (p.50) to tune into
the desired FM radio station.
Hold down MEMORY for a few seconds.
The first time that you do register an FM radio station, the selected radio
station will be registered to the preset number “01”. Thereafter, each radio
station you select will be registered to the next empty (unused) preset
number after the most recently registered number.
Note
▪ To specify the preset number from which to start the registration, press cursor keys (e/r) or
PRESET to select a preset number.
▪ To cancel the Auto Preset process, press RETURN.
When the Auto Preset process finishes, “FINISH” appears and the “Option” menu
closes automatically.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
PROGRAM
CHARGE
ENHANCER STEREO TUNED
SLEEP MUTE
FM/DAB
OUT
VOL.
ECO
USB
INPUT
Auto Preset
RED
VOLUME
ADAPTIVE DRC VIRTUAL
GREEN
YELL
YELLOW
BLUE
NET
BLUETOOTH
MEMORY
MUTE
SETUP
MEMORY
OPTION
ENTER
RETURN
TUNING
TUNING
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
PRESET
(RX-V481D)
ENHANCER STEREO TUNED
CHARGE
OUT
SLEEP MUTE
VOL.
ECO
01:FM 98.50MHz
ADAPTIVE DRC VIRTUAL
Preset number
Note
To select a preset number for registering, press MEMORY once after tuning into the desired radio
station, press PRESET to select a preset number, and then press MEMORY again.
CHARGE
ENHANCER STEREO TUNED
OUT
SLEEP MUTE
VOL.
ECO
02:Empty
ADAPTIVE DRC VIRTUAL
“Empty” (not in use) or the frequency currently registered
61
En
n Selecting a preset FM radio station
n Clearing preset FM radio stations
Tune into a registered FM radio station by selecting its preset number.
Clear FM radio stations registered to the preset numbers.
1
2
1
2
3
Press FM/DAB to select “TUNER” as the input source.
Press PRESET repeatedly to select the desired FM radio station.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
Press FM/DAB to select “TUNER” as the input source.
Press OPTION.
Use the cursor keys to select “Preset” and press ENTER.
PROGRAM
CHARGE
ENHANCER STEREO TUNED
OUT
FM/DAB
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
BLUETOOTH
SETUP
MEMORY
TUNING
TUNING
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
4
5
OPTION
ENTER
RETURN
GREEN
YELLOW
BLUE
PRESET
MEMORY
TUNING
ADAPTIVE DRC VIRTUAL
Preset
NET
MUTE
TUNING
PRESET
Use the cursor keys (q/w) to select “CLEAR”.
Use the cursor keys (e/r) to select a preset station to be cleared
and press ENTER.
CHARGE
ENHANCER STEREO TUNED
OUT
(RX-V481D)
CHARGE
OUT
01:FM 98.50MHz
SLEEP MUTE
VOL.
ECO
01:FM 98.50MHz
SLEEP MUTE
VOL.
ECO
ENHANCER STEREO TUNED
SLEEP MUTE
VOL.
ECO
USB
INPUT
ADAPTIVE DRC VIRTUAL
Preset station to be cleared
ADAPTIVE DRC VIRTUAL
If the preset station is cleared, “Cleared” appears and then the next in-use
preset number is displayed.
Note
“No Presets” appears when no FM radio stations are registered.
CHARGE
ENHANCER STEREO TUNED
OUT
01:Cleared
6
7
62
En
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Repeat step 5 until all desired preset stations are cleared.
To exit from the menu, press OPTION.
Radio Data System tuning
(U.K. and Europe models only)
Radio Data System is a data transmission system used by FM stations in many
countries. The unit can receive various types of Radio Data System data, such as
“Program Service”, “Program Type”, “Radio Text” and “Clock Time”, when it is tuned
into a Radio Data System broadcasting station.
n Displaying the Radio Data System information
1
Tune into the desired Radio Data System broadcasting station.
Note
We recommend using “Auto Preset” to tune into the Radio Data System broadcasting stations
(p.51).
2
Press INFO.
Each time you press the key, the displayed item changes.
ENHANCER STEREO TUNED
CHARGE
SLEEP MUTE
OUT
VOL.
ECO
ADAPTIVE DRC VIRTUAL
Program Type
Item name
About 3 seconds later, the corresponding information for the displayed
item appears.
ENHANCER STEREO TUNED
CHARGE
SLEEP MUTE
OUT
VOL.
ECO
CLASSICS
ADAPTIVE DRC VIRTUAL
Information
Program Service
Program service name
Program Type
Current program type
Radio Text
Information on the current program
Clock Time
Current time
DSP Program
Sound mode name
Audio Decoder
Decoder name
Frequency
Frequency
Note
“Program Service”, “Program Type”, “Radio Text”, and “Clock Time” are not displayed if the radio
station does not provide the Radio Data System service.
63
En
Playing back music stored on a Bluetooth® device
You can play back music files stored on a Bluetooth device (such as smartphones) on
the unit. Also, you can enjoy audio played back on the unit using Bluetooth speakers/
headphones.
Playback Bluetooth® device music on the unit
Follow the procedure below to establish a Bluetooth connection between a Bluetooth
device (such as smartphones) and the unit, and play back music stored the Bluetooth
device on the unit.
Note
The unit
The unit does not support video playback via Bluetooth.
Bluetooth device
(such as smartphones)
1
2
The unit
Press BLUETOOTH to select “Bluetooth” as the input source.
On the Bluetooth device, select the unit (network name of the unit)
from the available device list.
A connection between the Bluetooth device and the unit will be made.
If the pass key is required, enter the number “0000”.
Bluetooth speakers/headphones
3
Note
▪ To use the BLUETOOTH function, set “Bluetooth” (p.104) in the “Setup” menu to “On”.
On the Bluetooth device, select a song and start playback.
The playback screen (artist name, album name and song title) is
displayed on the TV.
▪ You cannot make Bluetooth connections to a Bluetooth device (such as smartphones) and Bluetooth
speakers/headphones at the same time.
Note
▪ For details on supported Bluetooth devices, see “Supported devices and file formats” (p.122).
▪ If the unit detects the Bluetooth device previously connected, the unit automatically connects to
the Bluetooth device after Step 1. To establish another Bluetooth connection, first terminate the
current Bluetooth connection.
▪ To terminate the Bluetooth connection, perform one of the following operations.
– Perform the disconnect operation on the Bluetooth device.
– Select an input source other than “Bluetooth” on the unit.
– Select “Disconnect” in “Audio Receive” (p.88) in the “Setup” menu.
▪ You can use the external device operation keys (a, s, d, f, g) on the remote control
to control playback.
64
En
Enjoying audio using Bluetooth® speakers/
headphones
Follow the procedure below to establish a Bluetooth connection between Bluetooth
speakers/headphones and the unit.
1
Use the input selection keys on the remote control to select an
input source.
Select an input source other than Bluetooth.
2
3
4
5
Press SETUP.
Use the cursor keys to select “Bluetooth” and press ENTER.
Use the cursor keys to set “Bluetooth” to “On”, and then set
“Transmitter” to “On” in the same way.
Use the cursor keys to select “Device Search” to search the
Bluetooth devices.
The list of available Bluetooth devices is displayed.
6
Select the Bluetooth speakers/headphones to be connected with
the unit and press ENTER.
When the connection process finishes, audio played back on the unit will
be reproduced from the Bluetooth speakers/headphones.
Note
▪ If the desired Bluetooth device is not displayed on the list, set the Bluetooth device to the pairing
mode and then select “Device Search”.
▪ To terminate the Bluetooth connection, perform the disconnect operation on the Bluetooth
speakers/headphones.
65
En
Playing back music with AirPlay
The AirPlay function allows you to play back iTunes or iPhone/iPad/iPod touch music
on the unit via network.
Playback of iTunes/iPod music contents
Follow the procedure below to play back iTunes/iPod music contents on the unit.
iTunes
1
PC
Router
Turn on the unit, and start iTunes on the PC or display the
playback screen on the iPod.
If the iTunes/iPod recognizes the unit, the AirPlay icon (
The unit
iTunes (example)
) appears.
iOS 9 (example)
(Wired network or wireless network)
iPhone/iPad/iPod touch
Note
Note
If the icon does not appear, check whether the unit and PC/iPod are connected to the router
properly.
▪ To use this function, the unit and your PC or iPod must be connected to the same router (p.26). You can
check whether the network parameters (such as the IP address) are properly assigned to the unit in
“Information” (p.102) in the “Setup” menu.
2
▪ If the iPod does not recognize the unit, check your network environment (p.26).
▪ This section describes “iPod touch”, “iPhone” and “iPad” as the “iPod”. “iPod” refers to “iPod touch”,
“iPhone” and “iPad”, unless otherwise specified.
3
▪ For details on supported iPod devices, see “Supported devices and file formats” (p.122).
On the iTunes/iPod, click (tap) the AirPlay icon and select the unit
(network name of the unit) as the audio output device.
Select a song and start playback.
The unit automatically selects “AirPlay” as the input source and starts
playback.
The playback screen is displayed on the TV.
66
En
Note
n Playback screen
▪ The playback screen is available only when your TV is connected to the unit via HDMI.
▪ You can turn on the unit automatically when starting playback on iTunes or iPod by setting “Network
Standby” (p.103) in the “Setup” menu to “On”.
1
AirPlay
▪ You can edit the network name (the unit’s name on the network) displayed on iTunes/iPod in “Network
Name” (p.104) in the “Setup” menu.
Artist
Album
▪ You can adjust the unit’s volume from the iTunes/iPod during playback. To disable volume controls from
iTunes/iPod, set “Volume Interlock (Vol.Interlock)” (p.86) in the “Option” menu to “Off”.
2
Song
2 : 30
Notice
▪ When you use iTunes/iPod controls to adjust volume, the volume may be unexpectedly loud. This
could result in damage to the unit or speakers. If the volume suddenly increases during playback, stop
playback on the iTunes/iPod immediately.
1
2
Playback indicator
Playback information
Displays the artist name, album name, song title, and elapsed time/song length.
Use the following remote control keys to control playback.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
PROGRAM
FM/AM
USB
INPUT
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
NET
BLUETOOTH
MEMORY
MUTE
SETUP
RETURN
TOP MENU
External device operation
keys
OPTION
ENTER
TUNING
TUNING
DISPLAY
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
PRESET
External device
operation keys
a
Resumes playback from pause.
s
Stops playback.
d
Stops playback temporarily.
f
g
67
En
Function
Skips forward/backward.
Playing back music stored on a USB storage device
You can play back music files stored on a USB storage device on the unit.
Playback of USB storage device contents
Note
For details on playable USB devices, see “Supported devices and file formats” (p.122).
Follow the procedure below to operate the USB storage device contents and start
playback.
Connecting a USB storage device
You can control the USB memory device with the menu displayed on the TV screen.
1
Note
▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI.
Connect the USB storage device to the USB jack.
▪ “_” (underscore) will be displayed for characters not supported by the unit.
The unit (front)
1
RADIO
STRAIGHT
AUX
USB
AUDIO
5V
(CONNECT)
Press USB to select “USB” as the input source.
The browse screen (p.69) is displayed on the TV.
Note
1A
If playback is ongoing on your USB storage device, the playback screen is displayed.
2
Use the cursor keys to select an item and press ENTER.
If a song is selected, playback starts and the playback screen (p.69) is
displayed.
Note
USB storage device
▪ To return to the previous screen, press RETURN.
▪ To switch the screen mode browse/playback/off, press DISPLAY.
▪ Files not supported by the unit cannot be selected.
Note
▪ If the USB storage device contains many files, it may take time to load them. In this case, “Loading…”
appears in the front display.
▪ Stop playback of the USB storage device before disconnect it from the USB jack.
▪ Connect a USB storage device directly to the USB jack of the unit. Do not use extension cables.
68
En
n Playback screen
n Browse screen
4
1
2
Blues
Classical
Electronica
Jazz
Pop
Rock
Soundtrack
Speaking
1
USB
USB - Top
Artist
Album
5
2
Song
2 : 30
1/9999
3
1
List name
2
Contents list
1
Displays the list of USB storage device contents. Use the cursor keys to select an
item and press ENTER to confirm the selection.
3
4
2
Playback information
Displays the artist name, album name, song title, and elapsed time.
Item number/total
Status indicators
Use the following remote control keys to control playback.
Display the current repeat/shuffle settings (p.70) and playback status (such as
play/pause).
5
Status indicators
Display the current repeat/shuffle settings (p.70) and playback status (such as
play/pause).
ZONE A
ZONE B
SLEEP
SCENE
Operation menu
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
Press the cursor key (r) and then use the cursor keys (q/w) to select an item.
Press ENTER to confirm the selection.
POP UP/MENU
FM/AM
USB
INPUT
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
NET
BLUETOOTH
MEMORY
MUTE
Icon
HOME
PROGRAM
SETUP
Function
RETURN
Moves 10 pages backward.
TOP MENU
External device operation
keys
OPTION
ENTER
TUNING
TUNING
DISPLAY
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
Moves to the previous page of the list.
TUNING
TUNING
PRESET
Moves to the next page of the list.
Moves 10 pages forward.
External device
operation keys
Moves to the playback screen.
Note
A content selected by the cursor is displayed on the front display.
Function
a
Resumes playback from pause.
s
Stops playback.
d
Stops playback temporarily.
f
g
Skips forward/backward.
Note
A content name of a current playback is displayed on the front display. To switch the displayed item, press
INFO (p.43).
69
En
n Repeat/shuffle settings
You can configure the repeat/shuffle settings for playback of USB storage device
contents.
1
2
When “USB” is selected as the input source, press OPTION.
Use the cursor keys to select “Repeat” (Repeat) or “Shuffle”
(Shuffle) and press ENTER.
Note
▪ To return to the previous screen during menu operations, press RETURN.
▪ Texts in parentheses denote indicators on the front display.
3
Use the cursor keys (e/r) to select a setting.
Item
Repeat
Setting
Function
Off (Off)
Turns off the repeat function.
One (One)
Plays back the current song repeatedly. “c”
appears on the TV screen.
All (All)
Plays back all songs in the current album
(folder) repeatedly.
“v” appears on the TV screen.
Off (Off)
Turns off the shuffle function.
On (On)
Plays back songs in the current album (folder)
in random order.
“x” appears on the TV screen.
(Repeat)
Shuffle
(Shuffle)
4
To exit from the menu, press OPTION.
70
En
Playing back music stored on media servers (PCs/NAS)
You can play back music files stored on your PC or DLNA-compatible NAS on the unit.
For Windows Media Player 11
Note
1
2
3
▪ To use this function, the unit and your PC must be connected to the same router (p.26). You can check
whether the network parameters (such as the IP address) are properly assigned to the unit in
“Information” (p.102) in the “Setup” menu.
▪ The audio may be interrupted while using the wireless network connection. In this case, use the wired
network connection.
▪ For details on playable file formats, see “Supported devices and file formats” (p.122).
Media sharing setup
4
To play back music files stored on your PC or DLNA-compatible NAS, first you need to
configure the media sharing setting on each music server.
Check the “Share my media to” box, select the unit’s icon, and
click “Allow”.
Click “OK” to exit.
Note
n For a PC or a NAS with other DLNA server software
For Windows Media Player 12
5
Select “Library”, then “Media Sharing”.
For details on media sharing settings, refer to Windows Media Player help.
n For a PC with Windows Media Player installed
1
2
3
4
Start Windows Media Player 11 on your PC.
installed
Refer to the instruction manual for the device or software and configure the media
sharing settings.
Start Windows Media Player 12 on your PC.
Select “Stream”, then “Turn on media streaming”.
Click “Turn on media streaming”.
Select “Allowed” from the drop-down list next to the unit’s
model name.
Click “OK” to exit.
71
En
n Browse screen
Playback of PC music contents
You can control the PC/NAS with the menu displayed on the TV screen.
Note
2
▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI. If not, carry
out operations while viewing the front display.
▪ “_” (underscore) will be displayed for characters not supported by the unit.
1
SERVER - Top
Blues
Classical
Electronica
Jazz
Pop
Rock
Soundtrack
Speaking
5
1/9999
3
Press NET repeatedly to select “SERVER” as the input source.
1
The browse screen (p.72) is displayed on the TV.
2
List name
Contents list
Displays the list of PC content. Use the cursor keys to select an item and press
ENTER to confirm the selection.
Note
If playback of a music file selected from the unit is ongoing on your PC, the playback screen is
displayed.
3
4
2
3
4
1
Follow the procedure below to operate the PC music contents and start playback.
Item number/total
Status indicators
Display the current repeat/shuffle settings (p.73) and playback status (such as
play/pause).
Use the cursor keys to select a music server and press ENTER.
5
Use the cursor keys to select an item and press ENTER.
Operation menu
Press the cursor key (r) and then use the cursor keys (q/w) to select an item.
Press ENTER to confirm the selection.
If a song is selected, playback starts and the playback screen (p.73) is
displayed.
Icon
Function
Note
Moves 10 pages backward.
▪ To return to the previous screen, press RETURN.
Moves to the previous page of the list.
▪ To switch the screen mode browse/playback/off, press DISPLAY.
Moves to the next page of the list.
▪ Files not supported by the unit cannot be selected.
Moves 10 pages forward.
Moves to the playback screen.
72
En
n Repeat/shuffle settings
n Playback screen
You can configure the repeat/shuffle settings for the playback of PC music content.
1
SERVER
1
2
Artist
Album
2
Song
2 : 30
When “SERVER” is selected as the input source, press OPTION.
Use the cursor keys to select “Repeat” (Repeat) or “Shuffle”
(Shuffle) and press ENTER.
Note
1
▪ To return to the previous screen during menu operations, press RETURN.
Status indicators
▪ Text in parentheses denotes indicators on the front display.
Display the current repeat/shuffle settings (p.73) and playback status (such as
play/pause).
2
3
Playback information
Displays the artist name, album name, song title, and elapsed time.
Use the cursor keys (e/r) to select a setting.
Item
Use the following remote control keys to control playback.
ZONE A
Repeat
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
Function
Turns off the repeat function.
One (One)
Plays back the current song repeatedly. “c”
appears on the TV screen.
All (All)
Plays back all songs in the current album
(folder) repeatedly.
“v” appears on the TV screen.
Off (Off)
Turns off the shuffle function.
On (On)
Plays back songs in the current album (folder)
in random order.
“x” appears on the TV screen.
(Repeat)
PROGRAM
FM/AM
USB
INPUT
Setting
Off (Off)
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
NET
BLUETOOTH
MEMORY
MUTE
SETUP
External device operation
keys
OPTION
ENTER
RETURN
TUNING
Shuffle
TUNING
(Shuffle)
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
4
PRESET
External device
operation keys
Function
a
Resumes playback from pause.
s
Stops playback.
d
Stops playback temporarily.
f
g
Skips forward/backward.
Note
You can also use a DLNA-compatible Digital Media Controller (DMC) to control playback. For details, see
“DMC Control” (p.103).
73
En
To exit from the menu, press OPTION.
Listening to Internet radio
You can listen to Internet radio stations from all over the world.
n Browse screen
Note
4
1
▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI. If not, carry
out operations while viewing the front display.
▪ To use this function, the unit must be connected to the Internet (p.26). You can check whether the network
parameters (such as the IP address) are properly assigned to the unit in “Information” (p.102) in the
“Setup” menu.
2
▪ You may not be able to receive some Internet radio stations.
NET RADIO - Top
Bookmarks
Locations
Genres
New Stations
Popular Stations
Podcasts
Help
▪ The unit uses the vTuner Internet radio station database service.
1/7
3
▪ This service may be discontinued without notice.
1
Playback of Internet radio
2
You can control the Internet radio with the menu displayed on the TV screen.
Press NET repeatedly to select “NET RADIO” as the input source.
Contents list
3
Item number/total
4
Playback indicator
5
Operation menu
Press the cursor key (r) and then use the cursor keys (q/w) to select an item.
Press ENTER to confirm the selection.
The browse screen (p.74) is displayed on the TV.
2
List name
Displays the list of Internet radio content. Use the cursor keys to select an item and
press ENTER to confirm the selection.
Follow the procedure below to select an Internet radio station and start playback.
1
5
Use the cursor keys to select an item and press ENTER.
Icon
Function
Moves 10 pages backward.
If an Internet radio station is selected, playback starts and the playback
screen (p.75) is displayed.
Moves to the previous page of the list.
Note
Moves to the next page of the list.
▪ To return to the previous screen, press RETURN.
Moves 10 pages forward.
▪ To switch the screen mode browse/playback/off, press DISPLAY.
Moves to the playback screen.
74
En
n Playback screen
1
NET RADIO
Station
Album
Song
2
2 : 30
1
2
Playback indicator
Playback information
Displays the station name, album name, song title, and elapsed time.
Note
▪ Use the external device operation key (s) to stop playback.
▪ Some information may not be available depending on the station.
75
En
Registering favorite Internet radio stations (bookmarks)
You can register your favorite Internet radio stations to the “Bookmarks” folder.
3
n Registering the station with the Option menu
You can switch the language.
Follow the procedure below to register your favorite station to the “Bookmarks” folder.
1
2
Access the vTuner website (http://yradio.vtuner.com/) with the
web browser on your PC and enter the vTuner ID.
While listening to Internet radio, press OPTION.
Use the cursor keys to select “Bookmark On” and press ENTER.
Note
▪ On the playback screen, the current station is added to the “Bookmarks” folder. On the browse screen, the
station selected in the list is added to the “Bookmarks” folder.
▪ To remove stations from the “Bookmarks” folder, select the station in the “Bookmarks” folder and then
“Bookmark Off”.
Enter the vTuner ID in this area.
Note
n Registering the station on the vTuner website
To use this feature, you need to create your personal account. Create your account using your email address.
You can also register your favorite Internet radio stations on the vTuner website.
1
4
Select any of Internet radio stations on the unit.
Click the “Add” icon (¤+) next to the station name.
This operation is necessary to register the radio station for the first time.
2
Register your favorite radio stations.
Note
Check the vTuner ID of the unit.
To remove the station from the “My__Favorites” folder, select “My__Favorites” in the Home screen,
and then click the “Remove” icon (¤–) next to the station name.
You can find the vTuner ID in “Information” (p.102) in the “Setup” menu.
76
En
Playing back more high-quality sounds with bi-amp connections
HDMI OUT
LESS
NETWORK
HDMI (HDCP2.2)
HDCP2.2
(NET)
ARC
1(BD/DVD)
2
3
4
ANTENNA
Using the four internal amplifiers for front speakers allows you to have more highquality sounds.
FM
AM
The unit (rear)
75 Ω
SPEAKERS
For example, you can use 2-way bi-amplified speakers with a woofer and tweeter for
front speakers. It produces expansive sound in bi-amp system featuring a woofer and
tweeter. By directly driving each speaker individually, it produces powerful sound
while maintaining the feeling of high S/N ratio.
FRONT
VIDEO
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
CENTER
SURROUND/BI-AMP
/ZONE B
MONITOR
OUT
AV 3
SUBWOOFER
PRE OUT
AV 4
Note
When using the four internal amplifiers in bi-amp system, the unit supports only 2.1 or 3.1-channel speaker
system.
Connecting front speakers that support bi-amp
connections
1
2
3
9
When using front speakers that support bi-amp connections, connect them to the
FRONT terminals and SURROUND/BI-AMP/ZONE B terminals.
To enable the bi-amp function, set “Power Amp Assign” (p.90) in the “Setup” menu
to “BI-AMP” after connecting the power cable to an AC wall outlet.
Note
▪ Surround speakers or Zone B speakers cannot be used during bi-amp connections.
▪ The FRONT terminals and SURROUND/BI-AMP/ZONE B terminals output the same signals.
Notice
▪ Before making bi-amp connections, remove any brackets or cables that connect a woofer with a
tweeter. Refer to the instruction manual of the speakers for details. If you are not making bi-amp
connections, make sure that the brackets or cables are connected before connecting the speaker
cables.
77
En
Playing back music in multiple rooms
The Zone A/B function allows you to play back an input source in the room where the
unit is installed (Zone A) and in another room (Zone B).
Connecting Zone B speakers
For example, you can turn on Zone A (turn off Zone B) when you are in the living room,
and turn on Zone B (turn off Zone A) when you are in the study room. Also, you can
turn on both zones when you want to enjoy the same input source in those rooms
simultaneously.
Connect the device that will be used in Zone B to the unit.
Notice
▪ Remove the unit’s power cable from the AC wall outlet before connecting speakers.
▪ Ensure that the core wires of the speaker cable do not touch one another or come into contact with the
unit’s metal parts. Doing so may damage the unit or the speakers. If the speaker cables short circuit,
“Check SP Wires” will appear on the front display when the unit is turned on.
Connect the speakers placed in Zone B to the unit with speaker cables.
LESS
HDMI OUT
HDCP2.2
ARC
To utilize the SURROUND/BI-AMP/ZONE B terminals for Zone B speakers, set “Power
Amp Assign” (p.90) in the “Setup” menu to “Zone B” after connecting the power
cable to an AC wall outlet.
NETWORK
HDMI (HDCP2.2)
1(BD/DVD)
2
(NET)
3
4
ANTENNA
FM
Study room (Zone B)
(RADIO)
AM
The unit (rear)
75 Ω
SPEAKERS
FRONT
VIDEO
CENTER
SURROUND/BI-AMP
/ZONE B
MONITOR
OUT
Living room (Zone A)
Note
OPTICAL
(TV)
AUDIO 1
COAXIAL
COAXIAL
AUDI0 2
AV 1
AV 2
AV 3
SUBWOOFER
PRE OUT
AV 4
▪ When connecting the headphones to the PHONES jack, you cannot use Zone B speakers.
▪ Multichannel sources are mixed down to 2 channels and output to the Zone B.
▪ The same input source is applied to both Zone A and Zone B.
1
▪ By default, the volume for Zone B changes in conjunction with the volume for Zone A. If there is volume
difference between Zone A/B, you can correct it in “ZoneB Trim” in the “Option” menu (p.80). Also, you
can adjust the volume for Zone B separately (p.80).
1
9
2
2
3
▪ You can automatically enable/disable the audio output to Zone A/B in conjunction with a scene selection
(p.44)
Zone B
Zone A
Note
Surround speakers or bi-amp speakers cannot be used during Zone B connections.
78
En
Operating the Zone B
3
n Basic playback procedure
Use the input selection keys to select an input source.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
PROGRAM
PROGRAM
1
Slide the Zone switch to “ZONE B”.
FM/AM
USB
INPUT
VOLUME
NET
FM/AM
BLUETOOTH
MUTE
ZONE A
SETUP
ZONE B
USB
OPTION
SLEEP
SCENE
INPUT
ENTER
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
RETURN
DISPLAY
VOLUME
Inputselection
selectionkeys
keys
Input
NET
PROGRAM
TOP MENU
ZONE A
FM/AM
ZONE B
RED
TUNING
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
OPTION
ENTER
RETURN
DISPLAY
HOME
YELLOW
BLUE
4
5
PROGRAM
TUNING
PRESET
Press z (receiver power).
OUT 1 2
ECO
HDMI1
Start playback on the external device or select a radio station.
Slide the Zone switch to “ZONE A” and then press VOLUME to
adjust the volume.
To adjust the volume for Zone B separately, see “Adjusting the volume for Zone B
separately” (p.80).
“ZONE B” lights up
ENHANCER STEREO TUNED
MUTE
Note
Each time you press the key, the ZONE B audio output is on or off.
CHARGE
BLUETOOTH
ZONE A
ZONE B
POP-UP/MENU
MEMORY
TUNING
2
BLUE
TUNING
PRESET
SCENE
MUTE
SETUP
GREEN
YELLOW
SLEEP
VOLUME
NET
BLUETOOTH
RED
GREEN
POP-UP/MENU
MEMORY
USB
INPUT
TOP MENU
HOME
PARTY SLEEP MUTE
ZONE ZONE
2 A 3 B VOL.
ADAPTIVE DRC VIRTUAL
79
En
n Adjusting the volume for Zone B separately
n Correcting volume difference between Zone A and
Zone B
You can separately adjust the volume for Zone B using the remote control when
“ZoneB Volume” (p.97) in the “Setup” menu is set to “Async.”.
If you are bothered by volume difference between Zone A/B, follow the procedure
below to adjust the volume for Zone B.
1
1
2
Press OPTION.
Note
Slide the Zone switch to “ZONE A” in menu operations.
2
▪ To mute the audio output to Zone B, press MUTE.
▪ The volume of the Zone B is not displayed on the front display.
Use the cursor keys to select “Volume Trim” (Volume Trim) and
press ENTER.
▪ To return to the previous screen during menu operations, press RETURN.
▪ Text in parentheses denotes indicators on the front display.
Use the cursor keys (q/w) to select “ZoneB Trim” (ZB.Trim) and
the cursor keys (e/r) to adjust the setting.
Setting range
-10.0 dB to +10.0 dB (0.5 dB increments)
Default
0.0 dB
4
Press VOLUME to adjust the volume for Zone B.
Note
Note
3
Slide the Zone switch to “ZONE B”.
To exit from the menu, press OPTION.
Note
This setting is not effective when “ZoneB Volume” (p.97) in the “Setup” menu is set to “Async.”.
80
En
Useful functions
Registering favorite items (shortcut)
n Registering an item
You can register up to 40 favorite USB and network contents as shortcuts and access
them directly by selecting the shortcut numbers.
Select a desired item and register it to a shortcut number.
1
2
Note
▪ You can also use the “Bookmark” feature to register Internet radio stations (p.76).
▪ Only the input source will be registered for Bluetooth and AirPlay. Individual contents cannot be
registered.
Play back a song or a radio station to be registered.
Hold down MEMORY for 3 seconds.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
PROGRAM
FM/AM
USB
INPUT
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
NET
BLUETOOTH
MEMORY
MUTE
SETUP
MEMORY
OPTION
ENTER
RETURN
TUNING
TUNING
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
MEMORY
TUNING
TUNING
PRESET
CHARGE
ENHANCER
OUT
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
01:Empty
Shortcut number (flashes)
Note
To change a shortcut number to which the item will be registered, use PRESET to select the
shortcut number after step 2.
CHARGE
ENHANCER
OUT
SLEEP MUTE
VOL.
ECO
02:Empty
ADAPTIVE DRC VIRTUAL
“Empty” (not in use) or item currently registered
3
81
En
To confirm the registration, press MEMORY.
n Recalling a registered item
Note
Recall a registered item by selecting the shortcut number.
▪ The registered item cannot be recalled in the following cases.
1
▪ “No Presets” appears when no items are registered.
– A USB storage device which contains the registered item is not connected to this unit.
Press BLUETOOTH, NET or USB.
– A PC which contains the registered item is turned off or not connected to the network.
– The registered network content is temporarily unavailable or out of service.
ZONE A
– The registered item (file) has been deleted or moved to another location.
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
PROGRAM
– A Bluetooth connection cannot be established.
PROGRAM
▪ When you register music files stored on a USB storage device or a PC, this unit memorizes the
relative position of the music files in the folder. If you have added or deleted any music files to or
from the folder, this unit may not recall the music file correctly. In such cases, register the items
again.
FM/AM
USB
INPUT
VOLUME
NET
FM/AM
BLUETOOTH
MUTE
SETUP
USB
OPTION
INPUT
ENTER
RETURN
VOLUME
TOP MENU
HOME
RED
GREEN
USB
NET
BLUETOOTH
NET
DISPLAY
POP-UP/MENU
BLUETOOTH
BLUE
YELLOW
MEMORY
TUNING
TUNING
MUTE
PRESET
2
Press PRESET repeatedly to select a desired item.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
TOP MENU
HOME
POP UP/MENU
PROGRAM
FM/AM
USB
INPUT
RED
VOLUME
GREEN
YELL
YELLOW
BLUE
NET
BLUETOOTH
MEMORY
MUTE
SETUP
OPTION
ENTER
RETURN
TUNING
TUNING
DISPLAY
TOP MENU
HOME
POP-UP/MENU
PRESET
RED
GREEN
YELLOW
BLUE
PRESET
MEMORY
TUNING
TUNING
PRESET
CHARGE
OUT
ENHANCER
SLEEP MUTE
VOL.
ECO
01:USB
ADAPTIVE DRC VIRTUAL
82
En
Configuring playback settings for different playback sources (Option menu)
You can configure separate playback settings for different playback sources. This
menu is available on the front panel (or on the TV screen), allowing you to easily
configure settings during playback.
1
Option menu items
Note
▪ Available items vary depending on the selected input source.
Press OPTION.
▪ Text in parentheses denotes indicators on the front display.
ENHANCER STEREO TUNED
CHARGE
OUT
▪ Default settings are underlined.
SLEEP MUTE
VOL.
ECO
Input Select
▪ Depending on the region of purchase, some menu items for audio streaming services are also available.
For details, refer to each manual on the supplied CD-ROM.
ADAPTIVE DRC VIRTUAL
Front display
Option
Input Select
Tone Control
DSP/Surround
Volume Trim
Item
Function
Input Select (Input Select)
Switches the input source.
p.84
Tone Control (Tone Control)
Adjusts the level of high-frequency range and lowfrequency range individually.
p.84
Program (PRG)
Select the sound programs and stereo playback.
p.46
Sur.Decode
(SrDec)
Select which surround decoder is used when
Sur.Decode is selected as the program.
p.48
Adjusts the sound field effect level.
p.84
Sets whether the dynamic range (from maximum to
minimum) is automatically adjusted when the volume
is adjusted.
p.84
Enhancer
(Enhancer)
Enables/disables Compressed Music Enhancer.
p.85
Input Trim
(In.Trim)
Corrects volume differences between input sources.
p.85
Lipsync
Signal Info.
Audio In
RETURN
Back
DSP Level
DSP/Surround
(DSP Level)
(DSP/
Surround)
Adaptive DRC
(A.DRC)
TV screen
2
Use the cursor keys to select an item and press ENTER.
Note
To return to the previous screen during menu operations, press RETURN.
3
4
Use the cursor keys (e/r) to select a setting.
Volume Trim
Subwoofer Trim
Fine-adjusts the subwoofer volume.
(Volume Trim) (SW.Trim)
To exit from the menu, press OPTION.
ZoneB Trim
(ZB.Trim)
83
Page
p.85
Corrects volume differences between Zone A/B.
p.80
Lipsync (Lipsync)
Enables/disables the “Lipsync” setting in the “Setup”
menu.
p.85
Signal Info. (Signal Info.)
Displays information about the video/audio signal.
p.85
Audio In (Audio In)
Combines the video jack of the selected input source
with an audio jack of others.
p.86
Video Out (Video Out)
Selects a video to be output with radio sounds.
p.86
FM Mode (FM Mode)
Switches between “Stereo” and “Mono” for FM radio
reception.
p.50,
p.60
En
Item
Function
Auto Preset
p.51,
p.60
Clear radio stations registered to preset numbers.
p.53,
p.58,
p.62
Preset (Preset)
Clear Preset
Traffic Program
(TrafficProgram)
Automatically searches for a traffic information
station.
Shuffle (Shuffle)
Configures the shuffle setting for the USB storage
device (p.70) or media server (p.73).
—
Enables/disables volume controls from iTunes/iPod
Volume Interlock (Vol.Interlock)
via AirPlay.
Tune Aid (Tune Aid)
Treble (Treble), Bass (Bass)
Adds your favorite Internet radio station to the
“Bookmarks” folder, or removes it from the
“Bookmarks” folder.
(RX-V481D only)
Performs an initial scan for DAB radio reception.
(RX-V481D only)
Checks reception strength of each DAB channel.
Setting range
-6.0 dB to 0.0 dB to +6.0 dB (0.5 dB increments)
—
Init Scan (Init Scan)
Choices
p.54
Configures the repeat setting for the USB storage
device (p.70) or media server (p.73).
Bookmark Off (Bookmark Off)
Adjusts the level of high-frequency range (Treble) and low-frequency range (Bass)
individually.
(U.K. and Europe models only)
Repeat (Repeat)
Bookmark On (Bookmark On)
n Tone Control (Tone Control)
Page
Automatically registers FM radio stations with strong
signals as presets.
Note
▪ When both “Treble” and “Bass” are 0.0 dB, “Bypass” appears.
▪ You can also adjust the tone with the front panel controls. Press TONE CONTROL to select “Treble” or
“Bass”, then press PROGRAM to make an adjustment.
p.86
▪ If you set an extreme value, sounds may not match those from other channels.
n DSP/Surround (DSP/Surround)
p.76
Configures the sound field program and surround settings.
p.55
DSP Level (DSP Level)
p.59
Adjusts the sound field effect level.
Setting range
n Input Select (Input Select)
-6 dB to 0 dB to +3 dB (1 dB increments)
Switches the input source. Press ENTER to switch to the selected input source.
Adaptive DRC (A.DRC)
Choices
Sets whether the dynamic range (from maximum to minimum) is automatically
adjusted when the volume level is adjusted. When it is set to “On”, it is useful for
listening to playback at a low volume at night.
HDMI 1-4, AUDIO 1-2, AV 1-4, TUNER, USB, SERVER, NET RADIO, MusicCast Link,
AirPlay, (network sources), Bluetooth, AUX
Settings
On (On)
Automatically adjusts the dynamic range.
Off (Off)
The dynamic range is not automatically adjusted.
If “On” is selected, the dynamic range becomes narrow at a low volume and wide
at a high volume.
84
En
n Lipsync (Lipsync)
Enhancer (Enhancer)
Enables/disables Compressed Music Enhancer (p.49).
Enables/disables the adjustment configured in “Lipsync” (p.96) in the “Setup” menu.
Note
Note
This setting is applied separately to each input source.
▪ This setting is applied separately to each input source.
▪ You can also use ENHANCER on the remote control to enable/disable Compressed Music Enhancer
(p.49).
Settings
Off (Off)
Disables Compressed Music Enhancer.
On (On)
Enables Compressed Music Enhancer.
Settings
Off (Off)
Disables the “Lipsync” adjustment.
On (On)
Enables the “Lipsync” adjustment.
n Signal Info. (Signal Info.)
Default
TUNER, USB, SERVER, NET RADIO, AirPlay (network sources), Bluetooth: On (On)
Others: Off (Off)
Displays information about the video/audio signal.
Choices
Format (FORMAT)
n Volume Trim (Volume Trim)
Audio format of the input signal
The number of source channels in the input signal (front/surround/LFE)
Channel (CHANNEL)
Fine-adjusts volume difference between input sources or subwoofer volume.
For example, “3/2/0.1” means 3 front channels, 2 surround channels, and
LFE.
Sampling (SAMPLING) The number of samples per second of the input digital signal
Input Trim (In.Trim)
Corrects volume differences between input sources. If you are bothered by volume
differences when switching between input sources, use this function to correct it.
Note
Bitrate (BITRATE)
The amount of data per second of the input bitstream signal
Video In (VIDEO IN)
Type and resolution of the input digital signal
Video Out
(VIDEO OUT)
Type and resolution of the output digital signal
Note
This setting is applied separately to each input source.
To switch the information on the front display, press the cursor keys (q/w) repeatedly.
Setting range
-6.0 dB to 0.0 dB to +6.0 dB (0.5 dB increments)
Subwoofer Trim (SW.Trim)
Fine-adjusts the subwoofer volume.
Setting range
-6.0 dB to 0.0 dB to +6.0 dB (0.5 dB increments)
85
En
n Audio In (Audio In)
Combines the video jack of the selected input source with an audio jack of others. For
example, use this function in the following cases.
• Connecting a playback device that supports HDMI video output, but not HDMI
audio output
Input sources
HDMI 1-4, AV 1-4
Setup procedure
See “Changing the combination of video/audio input jacks” (p.23).
n Video Out (Video Out)
Selects a video to be output with the selected audio source. For example, you can
watch the video while listening to the radio.
Input sources
AUDIO, TUNER, USB, SERVER, NET RADIO, AirPlay, Bluetooth, AUX
Settings
Off (Off)
Does not output video.
HDMI 1-4, AV 1-4
Outputs video input through the corresponding video input jacks.
n Volume Interlock (Vol.Interlock)
Enables/disables volume controls from iTunes/iPod via AirPlay.
Settings
Off (Off)
Disables volume controls from iTunes/iPod.
Limited (Ltd)
Enables volume controls from iTunes/iPod within the limited range
(-80 dB to -20 dB and mute).
Full (Full)
Enables volume controls from iTunes/iPod in the full range
(-80 dB to +16.5 dB and mute).
86
En
CONFIGURATIONS
Configuring various functions (Setup Menu)
You can configure the unit’s various function with the menu displayed on the TV
screen.
5
Note
▪ Operations with TV screen are available only when your TV is connected to the unit via HDMI. If not, carry
out operations while viewing the front display.
▪ If new firmware is available, the envelope icon (p) appears in the screen.
1
2
Press SETUP.
Use the cursor keys to select a menu and press ENTER.
Setup
Speaker
HDMI
Sound
ECO
Function
Network
Bluetooth
Language
RETURN
3
Back
Use the cursor keys to select an item and press ENTER.
Speaker
Configuration
Distance
Level
Equalizer
Test Tone
Note
To return to the previous screen during menu operations, press RETURN.
4
Use the cursor keys (e/r) to select a setting and press ENTER.
87
En
To exit from the menu, press SETUP.
Setup menu items
Menu
Item
Configuration
Speaker
HDMI
Function
Page
Power Amp Assign
Selects a speaker system.
Subwoofer
Selects whether or not a subwoofer is connected.
p.90
p.90
Front
Selects the size of the front speakers.
p.90
Center
Selects whether or not a center speaker is connected and its size.
p.90
Surround
Selects whether or not surround speakers are connected and their size.
p.91
Crossover
Sets the lower limit of the low-frequency component that can be output from speakers whose size is set to “Small”.
p.91
Subwoofer Phase
Sets the phase of the subwoofer.
p.91
Extra Bass
Enables/disables Extra Bass.
p.91
Virtual CINEMA FRONT
Selects whether to use the front 5-channel speaker (Virtual CINEMA FRONT) configuration.
p.91
Distance
Sets the distance between each speaker and listening position.
p.91
Level
Adjusts the volume of each speaker.
p.92
Equalizer
Adjusts the tone with an equalizer.
p.92
Test Tone
Enables/disables the test tone output.
p.92
HDMI Control
Enables/disables HDMI Control.
p.93
Audio Output
Selects a device to output audio.
p.93
p.93
Standby Through
Selects whether to output videos/audio (input through HDMI jacks) to the TV when the unit is in standby mode.
TV Audio Input
Selects an audio input jack of the unit to be used for TV audio input.
p.93
Standby Sync
Selects whether to use HDMI control to link the standby behavior of the TV and the unit.
p.94
ARC
Enables/disables ARC.
p.94
SCENE
Enables/disables SCENE link playback.
p.94
88
En
Menu
Item
DSP Parameter
Sound
Lipsync
Dialogue
Volume
ECO
Function
Network
Bluetooth
Page
Enables/disables CINEMA DSP 3D.
p.95
Panorama
Enables/disables the broadening effect of the front sound field.
p.95
Center Width
Adjusts the broadening effect of the center sound field.
p.95
Dimension
Adjusts the difference in level between the front and surround sound fields.
p.95
Center Image
Adjusts the center orientation level (broadening effect) of the front sound field.
p.95
Select
Selects the method to adjust the delay between video and audio output.
p.96
Adjustment
Adjusts the delay between video and audio output manually.
p.96
Dialogue Level
Adjusts the volume of dialogue sounds.
p.96
Scale
Switches the scale of the volume display.
p.96
Dynamic Range
Selects the dynamic range adjustment method for bitstream audio (Dolby Digital and DTS signals) playback.
p.96
Max Volume
Sets the limit value of the volume.
p.97
Initial Volume
Sets the initial volume for when this receiver is turned on.
p.97
ZoneB Volume
Selects whether to adjust the volume for Zone B in conjunction with the volume for Zone A.
p.97
Auto Power Standby
Set the amount of time for the auto-standby function.
p.98
ECO Mode
Enables/disables the eco mode (power saving mode).
p.98
Input Rename
Changes the input source name displayed on the front display.
p.99
Input Skip
Set which input source is skipped when operating the INPUT key.
p.100
Dimmer
Adjusts the brightness of the front display.
p.100
Memory Guard
Prevents accidental changes to the settings.
p.100
Remote Color Key
Set the unit's functions for the RED/GREEN/YELLOW/BLUE key of the remote control.
p.101
Information
Displays the network information on the unit.
p.102
Network Connection
Selects the network connection method.
p.102
IP Address
Configures the network parameters (such as IP address).
p.102
MAC Address Filter
Sets the MAC address filter to limit access to the unit from other network devices.
p.103
DMC Control
Selects whether to allow a DLNA-compatible Digital Media Controller (DMC) to control playback.
p.103
Network Standby
Selects whether to enable/disable the function that turns on the unit from other network devices.
p.103
Network Name
Edits the network name (the unit’s name on the network) displayed on other network devices.
p.104
Network Update
Updates the firmware via the network.
p.104
Bluetooth
Enables/disables the Bluetooth functions.
p.104
Audio Receive
Audio Send
Language
Function
CINEMA DSP 3D Mode
Disconnect
Terminates the Bluetooth connection between the Bluetooth device (such as smartphones) and the unit.
p.64
Bluetooth Standby
Selects whether to enable/disable the function that turns on the unit from Bluetooth devices (Bluetooth standby).
p.104
Transmitter
Enables/disables the Bluetooth audio transmitter function.
p.105
Device Search
Searches available Bluetooth devices (speakers/headphones) when the unit is used as a Bluetooth audio transmitter.
p.65
Select an on-screen menu language.
p.105
89
En
Speaker
Configures the speaker settings manually.
Front
Note
Selects the size of the front speakers.
Default settings are underlined.
Settings
n Configuration
Select this option for small speakers.
Small
Configures the output characteristics of the speakers.
Note
Select this option for large speakers.
When you configure the speaker size, select “Large” if the woofer diameter of your speaker is 16 cm (6‑1/4”)
or larger or “Small” if it is smaller than 16 cm (6‑1/4”).
Large
“Front” is automatically set to “Large” when “Subwoofer” is set to “None”.
Selects a speaker system.
Center
In addition to the 5.1-channel speaker system, various speaker configurations are
possible using the Zone B speakers or bi-amp connections.
Selects whether or not a center speaker is connected and its size.
Settings
Select this option when you use a normal speaker system (not using
Zone B speakers or a bi-amp connections).
BI-AMP
Select this option when you connect front speakers that support biamp connections (p.77).
Zone B
Select this option when you use Zone B speakers (p.78) in addition to
the speaker system in the main zone (Zone A).
Settings
Select this option for small speakers.
Small
None
Selects whether or not a subwoofer is connected.
Settings
Select this option when a subwoofer is connected.
The subwoofer will produce LFE (low-frequency effect) channel audio
and low-frequency components from other channels.
Select this option when no subwoofer is connected.
None
The subwoofer or front speakers will produce center channel lowfrequency components (configurable in “Crossover”).
Select this option for large speakers.
Large
Subwoofer
Use
The front speakers will produce all of the front channel frequency
components.
Note
Power Amp Assign
Surround
The subwoofer will produce front channel low-frequency components
(configurable in “Crossover”).
The front speakers will produce LFE (low-frequency effect) channel
audio and low-frequency components from other channels.
90
En
The center speaker will produce all of the center channel frequency
components.
Select this option when no center speaker is connected.
The front speakers will produce center channel audio.
Surround
Extra Bass
Selects whether or not surround speakers are connected and their sizes.
Enables/disables Extra Bass. When Extra Bass is enabled, you can enjoy
enhanced bass sounds, regardless of the size of the front speakers and the
presence or absence of the subwoofer.
Settings
Select this option for small speakers.
Small
Large
Settings
The subwoofer or front speakers will produce surround channel lowfrequency components (configurable in “Crossover”).
Off
Disables Extra Bass.
Select this option for large speakers.
On
Enables Extra Bass.
The surround speakers will produce all of the surround channel
frequency components.
Note
You can also use BASS on the remote control to enable/disable Extra Bass (p.49).
Select this option when no surround speakers are connected.
None
The front speakers will produce surround channel audio. Virtual
CINEMA DSP works when you select a sound program.
Virtual CINEMA FRONT
Selects whether to use the front 5-channel speaker (Virtual CINEMA FRONT)
configuration.
Crossover
Settings
Sets the lower limit of the low-frequency components that can be output from a
speaker whose size is set to “Small”. A frequency sound lower than the specified
value will be produced from the subwoofer or front speakers.
Settings
Off
Disables the front 5-channel speaker configuration.
On
Enables the front 5-channel speaker configuration.
Note
40 Hz, 60 Hz, 80 Hz, 90 Hz, 100 Hz, 110 Hz, 120 Hz, 160 Hz, 200 Hz
▪ Select “On” only when utilizing the Virtual CINEMA FRONT configuration (p.15).
Note
▪ This setting is not available when “Surround” is set to “None”.
If the volume and crossover frequency are adjustable on your subwoofer, set the volume to half and
crossover frequency to maximum.
n Distance
Subwoofer Phase
Sets the distance between each speaker and listening position so that sounds from the
speakers reach the listening position at the same time. First, select the unit of distance
from “Meter” or “Feet”.
Sets the phase of the subwoofer. When the bass sound is lacking or unclear,
switch the subwoofer phase.
Choices
Settings
Front L, Front R, Center, Surround L, Surround R, Subwoofer
Normal
Does not reverse the subwoofer phase.
Reverse
Reverses the subwoofer phase.
Setting range
0.30 m to 24.00 m (1.0 ft to 80.0 ft), 0.05 m (0.2 ft) increments
Default
Front L, Front R, Subwoofer: 3.00 m (10.0 ft)
Center: 2.60 m (8.6 ft)
Others: 2.40 m (8.0 ft)
91
En
n Manual equalizer adjustment
n Level
1
2
Adjusts the volume of each speaker.
Choices
Front L, Front R, Center, Surround L, Surround R, Subwoofer
Setting range
-10.0 dB to +10.0 dB (0.5 dB increments)
3
Default
Front L, Front R, Subwoofer: 0.0 dB
4
Adjusts the tone with an equalizer.
To exit from the menu, press SETUP.
n Test Tone
EQ Select
Enables/disables the test tone output. Test tone output helps you to adjust the speaker
balance or equalizer while confirming its effect.
Selects the type of equalizer to be used.
Settings
Off
Use the cursor keys (q/w) to select the desired band
(frequency) and the cursor keys (e/r) to adjust the gain.
-6.0 dB to +6.0 dB
n Equalizer
GEQ
Use the cursor keys (q/w) to select “Channel” and the cursor
keys (e/r) to select the desired speaker channel.
Setting range
Others: -1.0 dB
PEQ
Set “EQ Select” to “GEQ”.
Settings
Applies the parametric equalizer values obtained by the YPAO
measurement (p.29).
Off
Does not output test tones.
Select this option when you want to adjust the equalizer manually.
On
Outputs test tones automatically when you adjust the speaker balance or
equalizer.
For details, see “Manual equalizer adjustment”.
Does not use the equalizer.
Note
“PEQ” is available only when the YPAO has been performed (p.29).
92
En
HDMI
Configures the HDMI settings.
HDMI OUT (TV)
Note
Enables/disables the audio output from a TV connected to the HDMI OUT jack.
Default settings are underlined.
Settings
n HDMI Control
Off
Disables the audio output from the TV.
Enables/disables HDMI Control (p.124).
On
Enables the audio output from the TV.
Settings
Off
n Standby Through
Disables HDMI Control.
Select whether to output videos/audio (input through HDMI jacks) to the TV when the
unit is in standby mode. If this function is set to “On” or “Auto”, you can use the input
selection keys (HDMI 1–4) to select an HDMI input even when the unit is in standby
mode (the standby indicator on the unit blinks).
Enables HDMI Control.
On
Configure the settings in “TV Audio Input”, “Standby Sync”, “ARC”, and
“SCENE”.
Note
Settings
To use HDMI control, you need to perform the HDMI Control link setup (p.124) after connecting HDMI
Control-compatible devices.
Off
n Audio Output
Selects a device to output audio.
Note
This setting is available only when “HDMI Control” is set to “Off”.
(When “HDMI Control” is set to “Off”)
Does not output videos/audio to the TV.
Auto
Automatically selects whether to output videos/audio depending on the
status of the connected device.
On
Outputs videos/audio to the TV.
(The unit consumes more power than when “Off” is selected.)
n TV Audio Input
Amp
Selects an audio input jack of the unit to be used for TV audio input when “HDMI
Control” is set to “On”. The unit’s input source automatically switches to TV audio when
the TV input is switched to its built-in tuner.
Enables/disables the audio output from the speakers connected to the unit.
Settings
Settings
Off
Disables the audio output from the speakers.
AUDIO 1–2, AV 1–4
On
Enables the audio output from the speakers.
Default
AV 2
Note
When using ARC to input TV audio to the unit, you cannot use the input jacks selected here for connecting an
external device because the input will be used for TV audio input.
93
En
n SCENE
n Standby Sync
Enables/disable SCENE link playback when “HDMI Control” is set to “On”.
Select whether to use HDMI control to link the standby behavior of the TV and the unit
when “HDMI Control” is set to “On”.
When SCENE link playback is enabled, HDMI Control-compatible devices connected
to the unit via HDMI automatically works as follows, with a scene selection.
Settings
Off
Does not set the unit to standby mode when the TV is turned off.
On
Sets the unit to standby mode when the TV is turned off.
Auto
• TV: turning on and displaying video from the playback device
• Playback device: starting playback
Choices (SCENE keys)
Sets the unit to standby mode when the TV is turned off only when the unit
is receiving TV audio or HDMI signals.
BD / DVD, TV, NET, RADIO
Settings
n ARC
Enables/disables ARC (p.21) when “HDMI Control” is set to “On”.
Settings
Off
Disables SCENE link playback for the selected SCENE key.
On
Enables SCENE link playback for the selected SCENE key.
Default
Off
Disables ARC.
BD / DVD, TV: On
On
Enables ARC.
NET, RADIO: Off
Note
You do not need to change this setting normally. In case noises are produced from the speakers connected
to the unit because TV audio signals input to the unit via ARC are not supported by the unit, set “ARC” to “Off”
and use the TV’s speakers.
94
Note
SCENE link playback may not work properly due to the compatibility between devices. We recommend using
TV and playback devices from the same manufacturer so that HDMI Control works more effectively.
En
Sound
Configures the audio output settings.
Dimension
Note
Adjusts the difference in level between the front and surround sound fields. Higher
to strengthen the front sound field and lower to strengthen the surround sound
field. This setting is effective when “bPLII Music” is selected.
Default settings are underlined.
n DSP Parameter
Setting range
Configures the surround decoder settings.
-3 to 0 to +3
CINEMA DSP 3D Mode
Center Image
Enables/disables CINEMA DSP 3D (p.46). If this function is set to “On”, CINEMA
DSP 3D functions with the selected sound programs (except 2ch Stereo and 5ch
Stereo).
Adjusts the center orientation level (broadening effect) of the front sound field.
Higher to strengthen the center orientation level (less broadening effect) and lower
to weaken (more broadening effect). This setting is effective when “Neo:6 Music”
is selected.
Settings
Off
Disables CINEMA DSP 3D.
On
Enables CINEMA DSP 3D.
Setting range
0.0 to 0.3 to 1.0
Panorama
Enables/disables the broadening effect of the front sound field. When this function
is enabled, you can wrap front left/right channel sounds around the field and
generate a spacious sound field in combination with the surround sound field. This
setting is effective when “bPLII Music” is selected.
Settings
Off
Disables the broadening effect of the front sound field.
On
Enables the broadening effect of the front sound field.
Center Width
Adjusts the broadening effect of the center sound field. Higher to enhance the
broadening effect, and lower to reduce it (closer to center). This setting is effective
when “bPLII Music” is selected.
Setting range
0 to 3 to 7
95
En
n Lipsync
n Dialogue
Adjusts the delay between video and audio output.
Adjusts the volume of dialogue sounds.
Note
Dialogue Level
You can enable/disable the Lipsync function by input sources in “Lipsync (Lipsync)” (p.85) in the “Option”
menu.
Adjusts the volume of the center orientation sounds such as dialogue.
Setting range
Select
0 to 3 (higher to strengthen)
Selects the method to adjust the delay between video and audio output.
n Volume
Setting range
Manual
Configures the volume settings.
Select this option when you want to adjust the delay between video
and audio output manually.
Scale
Adjust the audio output timing in “Adjustment”.
Auto
Adjusts the delay between video and audio output automatically when
a TV that supports an automatic lipsync function is connected to the
unit via HDMI.
Switches the scale of the volume display.
If necessary, you can fine-adjust the audio output timing in
“Adjustment”.
dB
Displays the volume in the “dB” unit.
0-97
Displays the volume in the numeric value (0.5 to 97.0).
Settings
Note
“Select” is automatically set to “Manual” depending on the TV connected to the unit.
Dynamic Range
Adjustment
Selects the dynamic range adjustment method for bitstream audio (Dolby Digital
and DTS signals) playback.
Adjusts the delay between video and audio output manually when “Select” is set to
“Manual”. You can fine-adjust the audio output timing when “Select” is set to
“Auto”.
Settings
Setting range
Maximum
Produces audio without adjusting the dynamic range.
Standard
Optimizes the dynamic range for regular home use.
0 ms to 500 ms (1 ms increments)
Min/Auto
96
En
Sets the dynamic range for clear sound even at night or at low
volumes.
When playing back Dolby TrueHD signals, the dynamic range is
automatically adjusted based on the input signal information.
Max Volume
Sets the limit value of the volume.
Setting range
-30.0 dB to +15.0 dB (5.0 dB increments), +16.5 dB [50.0 to 95.0 (5.0 increments),
97.0]
Initial Volume
Sets the initial volume when the receiver is turned on.
Settings
Off
Sets the level to the volume level of the unit when it last entered
standby mode.
Mute
Sets the unit to mute the audio output.
-80.0 dB to +16.5 dB
(0.5 dB increments)
Sets the level to the specified volume level.
[0.5 to 97.0
(0.5 increments)]
ZoneB Volume
Selects whether to adjust the volume for Zone B in conjunction with the volume for
Zone A.
Settings
Sync.
Adjusts the volume for Zone B in conjunction with the volume for Zone
A.
Async.
Does not adjust the volume for Zone B in conjunction with the volume
for Zone A. Adjust the volume for Zone B separately (p.80).
Note
If “ZoneB Volume” is set to “Async.”, the volume for Zone B is temporarily set to -40 dB. As necessary,
adjust the volume using the remote control (p.80).
97
En
ECO
Configures the power supply settings.
Note
Default settings are underlined.
n Auto Power Standby
Set the amount of time for the auto-standby function.
Settings
Off
Does not set the unit to standby mode automatically.
20 minutes
Sets the unit to standby mode when you have not operated the unit and
the unit has not detected any input signal for the specified time.
2 hours, 4 hours,
8 hours, 12 hours
Sets the unit to standby mode when you have not operated the unit for the
specified time.
Default
U.K. and Europe models: 20 minutes
Other models: Off
Note
Just before the unit enters standby mode, “AutoPowerStdby” appears and then countdown starts in the front
display.
n ECO Mode
You can reduce the unit’s power consumption by setting the eco mode to “On”. After
setting, be sure to press ENTER to restart the unit.
When the eco mode is enabled, you can reduce the unit’s power consumption.
Settings
Off
Disables the eco mode.
On
Enables the eco mode.
Note
▪ When “ECO Mode” is set to “On”, the front panel display may become dark.
▪ If you want to play audio at high volume, set “ECO Mode” to “Off”.
98
En
Function
Configures the functions that make the unit easier to use.
Procedure to rename manually
Note
Default settings are underlined.
1
n Input Rename
2
Changes the input source name displayed on the front display. You can also select a
name from the presets or a name created by the Auto Rename function.
Use the cursor keys (q/w) to select an input source to be
renamed.
Use the cursor keys (e/r) to select “Manual” and press
ENTER.
Input sources
Note
HDMI 1-4, AUDIO 1-2, AV 1-4, USB, Bluetooth, AUX
To select the preset name, use the cursor keys (e/r).
Default
3
HDMI 1-4: Auto
Others: Manual (For USB, Bluetooth, AUX only “Manual” can be selected.)
The edit screen is displayed.
4
Procedure to rename automatically
1
2
Use the cursor keys (q/w) to select an input source to be
renamed.
To cancel the entry, select “CANCEL”.
5
6
Use the cursor keys (e/r) to select “Auto”.
To check a created name, press ENTER.
Note
During selecting “Auto”, the created name is saved even after the device connection is
terminated. To reset to the default setting, switch the setting to “Manual” at once and then set
it again to “Auto”.
4
5
Use the cursor keys and ENTER key to edit the name, and then
select “OK” to confirm the new name.
Note
The unit creates a name automatically according to the connected
device.
3
Press ENTER.
To change another input source name, repeat steps 1 to 3.
To exit from the menu, press SETUP.
99
En
To change another input source name, repeat steps 1 to 4.
To exit from the menu, press SETUP.
n Input Skip
n Dimmer
Set which input source is skipped when operating the INPUT key.
Adjusts the brightness of the front display.
You can select the desired input source quickly by using this function.
Setting range
Input sources
-4 to 0 (higher to brighten)
HDMI 1-4, AUDIO 1-2, AV 1-4, TUNER, USB, NET, Bluetooth, AUX
Note
Settings
The front display may become dark when “ECO Mode” (p.98) is set to “On”.
Off
Does not skip the selected input source.
On
Skips the selected input source.
n Memory Guard
Prevents accidental changes to the settings.
Settings
Off
Does not protect the settings.
On
Protects the settings until “Off” is selected.
Note
When “Memory Guard” is set to “On”, the lock icon (o) is displayed on the menu screen.
100
En
n Remote Color Key
Set the unit's functions for the RED/GREEN/YELLOW/BLUE key of the remote control.
Settings
Default
Assigns the functions of playback devices connected to the unit with an
HDMI cable.
Assigns the unit's input sources to each key. The assigned input sources
can be set separately.
Input
Input sources
HDMI 1-4, AUDIO 1-2, AV 1-4, TUNER, USB, NET, Bluetooth, AUX
Default
RED: HDMI2, GREEN: HDMI4, YELLOW: AV 2, BLUE: AUX
Assigns the functions of sound mode to each key.
RED: MOVIE
GREEN: MUSIC
Program
YELLOW: STEREO
BLUE: SUR.DECODE
For example, if you press the RED key repeatedly, you can select your
favorite sound program from the sound programs (MOVIE) (p.46) suitable
for the video source.
101
En
Network
Configures the network settings.
n IP Address
Note
Configures the network parameters (such as IP address).
Default settings are underlined.
DHCP
n Information
Select whether to use a DHCP server.
Displays the network information on the unit.
Status
The connection status of the NETWORK jack
Connection
Connection method
SSID
The access point to which the unit is connected
Security
The encryption method for your network
MusicCast Network
Readiness or not for the MusicCast Network
MAC Address (Ethernet)
MAC Address (Wi-Fi)
Settings
IP address
Subnet Mask
Subnet mask
Default Gateway
The IP address of the default gateway
DNS Server (P)
The IP address of the primary DNS server
DNS Server (S)
The IP address of the secondary DNS server
vTuner ID
The ID of the Internet radio (vTuner)
Does not use a DHCP server. Configure the network parameters
manually. For details, see “Manual network settings”.
On
Uses a DHCP server to automatically obtain the unit’s network
parameters (such as IP address).
n Manual network settings
MAC address
IP Address
Off
1
2
n Network Connection
Selects the network connection method.
3
Choices
Wired
Select this option when you want to connect the unit to a network with
a commercially-available network cable.
Wireless(Wi-Fi)
Select this option when you want to connect the unit to a network via
the wireless router (access point). For details on settings, see
“Connecting the unit to a wireless network” (p.34).
Wireless Direct
Select this option when you want to connect a mobile device to the
unit directly. For details on settings, see “Connecting a mobile device
to the unit directly (Wireless Direct)” (p.39).
102
4
En
Set “DHCP” to “Off”.
Use the cursor keys (q/w) to select a parameter type.
IP Address
Specifies an IP address.
Subnet Mask
Specifies a subnet mask.
Default Gateway
Specifies the IP address of the default gateway.
DNS Server (P)
Specifies the IP address of the primary DNS server.
DNS Server (S)
Specifies the IP address of the secondary DNS server.
Use the cursor keys (e/r) to move the edit position and the
cursor keys (q/w) to select a value.
To exit from the menu, press SETUP.
n MAC Address Filter
n DMC Control
Sets the MAC address filter to limit access to the unit from other network devices.
Selects whether to allow DLNA-compatible Digital Media Controller (DMC) to control
playback.
Note
Settings
Operation of the AirPlay function (p.66) or the DMC is not limited by this setting.
Filter
Disable
Does not allow DMCs to control playback.
Enable
Allows DMCs to control playback.
Enables/disables the MAC address filter.
Note
Settings
Off
Disables the MAC address filter.
A Digital Media Controller (DMC) is a device that can control other network devices through the network.
When this function is enabled, you can control playback of the unit from DMCs (such as Windows Media
Player 12) on the same network.
On
Enables the MAC address filter. In “MAC Address 1–10”, specify the
MAC addresses of the network devices that will be permitted access
to the unit.
n Network Standby
Selects whether the unit can be turned on from other network devices (network
standby).
MAC Address 1–10
Specifies the MAC addresses (up to 10) of the network devices that will be
permitted access to the unit when “Filter” is set to “On”.
Settings
n Procedure
On
1
2
3
Off
Disables the network standby function.
Enables the network standby function.
(The unit consumes more power than when “Off” is selected.)
Enables the network standby function.
Use the cursor keys (q/w) to select an MAC address number
(1 to 10).
Auto
Use the cursor keys (e/r) to move the edit position and the
cursor keys (q/w) to select a value.
To exit from the menu, press SETUP.
103
En
(If “Network Connection” is set to “Wired”, the unit is set to the power
saving mode when the network cable is disconnected.)
n Network Name
Bluetooth
Edits the network name (the unit’s name on the network) displayed on other network
devices.
Configures the Bluetooth settings.
n Bluetooth
Procedure
1
2
3
Enables/disables the Bluetooth function (p.64).
Press ENTER to enter the name edit screen.
Settings
Use the cursor keys and ENTER key to edit the name, and then
select “OK” to confirm the new name.
Off
Disables the Bluetooth function.
On
Enables the Bluetooth function.
n Audio Receive
To exit from the menu, press SETUP.
Configures the Bluetooth settings when the unit is used as the Bluetooth audio
receiver.
n Network Update
Bluetooth Standby
Updates the firmware via the network.
Selects whether to enable/disable the function that turns on the unit from Bluetooth
devices (Bluetooth standby). If this function is set to “On”, the unit automatically
turns on when a connect operation is performed on the Bluetooth device.
Perform Update
Starts the process to update the unit’s firmware. For details, see “Updating the
unit’s firmware via the network” (p.109).
Settings
Firmware Version
Displays the version of the firmware installed on the unit.
Off
Disables the Bluetooth standby function.
On
Enables the Bluetooth standby function.
(The unit consumes more power than when “Off” is selected.)
Note
System ID
This setting is not available when “Network Standby” (p.103) is set to “Off”.
Displays the system ID number.
104
En
n Audio Send
Language
Configures the Bluetooth settings when the unit is used as the Bluetooth audio
transmitter.
Select an on-screen menu language.
Note
Transmitter
Default settings are underlined.
Enables/disables the Bluetooth audio transmitter function.
Settings
When this function is enabled, you can enjoy audio played back on the unit using
Bluetooth speakers/headphones (p.65).
English
English
日本語
Japanese
Settings
Français
French
Deutsch
German
Español
Spanish
Русский
Russian
Italiano
Italian
中文
Chinese
Off
Disables the Bluetooth audio transmitter function.
On
Enables the Bluetooth audio transmitter function.
Note
The information on the front display is provided in English only.
105
En
Configuring the system settings (ADVANCED SETUP menu)
Configure the system settings of the unit while viewing the front display.
1
2
ADVANCED SETUP menu items
Set the unit to standby mode.
Note
Default settings are underlined.
While holding down STRAIGHT on the front panel, press
z (power).
Item
SP IMP.
z (power)
REMOTE ID
3
4
5
STRAIGHT
Press PROGRAM to select an item.
Page
(U.S.A. and Canada models only)
Changes the speaker impedance setting.
Selects the unit’s remote control ID.
(Asia, Taiwan and General models only)
TU
PROGRAM
Function
Changes the FM/AM tuning frequency setting.
p.106
p.107
p.107
TV FORMAT
Switches the video signal type of HDMI output.
p.107
4K MODE
Selects the HDMI 4K signal format.
p.107
INIT
Restores the default settings.
p.108
UPDATE
Updates the firmware.
p.108
VERSION
Checks the version of firmware currently installed on the unit.
p.108
Press STRAIGHT to select a setting.
Changing the speaker impedance setting (SP IMP.)
Press z (power) to set the unit to standby mode and turn it on
again.
(U.S.A. and Canada models only)
The new settings take effect.
CHARGE
OUT
ENHANCER STEREO TUNED
SLEEP MUTE
VOL.
ECO
SP IMP.••8¬MIN
ADAPTIVE DRC VIRTUAL
Change the unit’s speaker impedance settings depending on the impedance of the
speakers connected.
Settings
106
6 Ω MIN
Select this option when you connect 6-ohm speakers to the unit.
8 Ω MIN
Select this option when you connect 8-ohm or higher speakers to the unit.
En
Selecting the remote control ID (REMOTE ID)
ENHANCER STEREO TUNED
CHARGE
OUT
Switching the video signal type (TV FORMAT)
SLEEP MUTE
CHARGE
OUT
VOL.
ECO
REMOTE ID••ID1
Change the unit’s remote control ID so that it matches the remote control’s ID (default:
ID1). When using multiple Yamaha AV receivers, you can set each remote control with
a unique remote control ID for its corresponding receiver.
ENHANCER STEREO TUNED
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
TV FORMAT•NTSC
ADAPTIVE DRC VIRTUAL
Switch the video signal type of HDMI output so that it matches to the format of your TV.
Settings
Since the unit automatically selects the video signal type so that it matches to the TV, it
is unnecessary to change the setting normally. Change the setting only when images
on the TV screen do not appear correctly.
ID1, ID2
Settings
NTSC, PAL
n Changing the remote control ID of the remote control
1
Default
U.S.A., Canada, Korea, Taiwan and General models: NTSC
To select ID1, while holding down the cursor key (e), hold down
SCENE (BD/DVD) for more than 3 seconds.
To select ID2, while holding down the cursor key (e), hold down
SCENE (TV) for more than 3 seconds.
Other models: PAL
Selecting the HDMI 4K signal format (4K MODE)
Changing the FM/AM tuning frequency setting (TU)
4K MODE•MODE 2
Selects the format of signals input/output at the unit when HDMI 4K (60 Hz/50 Hz)
compatible TV and playback device are connected to the unit.
(Asia, Taiwan and General models only)
CHARGE
OUT
ENHANCER STEREO TUNED
SLEEP MUTE
VOL.
ECO
TU••••FM50/AM9
Settings
ADAPTIVE DRC VIRTUAL
Change the FM/AM tuning frequency setting of the unit depending on your country or
region.
MODE 1
Inputs/outputs 4K (60 Hz/50 Hz) signals in 4:4:4, 4:2:2 or 4:2:0 format.
Depending on the connected device or HDMI cables, video may not be
displayed correctly. In this case, select “MODE 2”.
Settings
MODE 2
Inputs/outputs 4K (60 Hz/50 Hz) signals in 4:2:0 format.
FM100/AM10
Select this when you want to adjust the FM frequency by 100-kHz steps
and AM by 10-kHz steps.
FM50/AM9
Select this when you want to adjust the FM frequency by 50-kHz steps
and AM by 9-kHz steps.
Note
When “MODE 1” is selected, use a high-speed HDMI cable that supports 18 Gbps.
107
En
Checking the firmware version (VERSION)
Restoring the default settings (INIT)
ENHANCER STEREO TUNED
CHARGE
OUT
SLEEP MUTE
CHARGE
OUT
VOL.
ECO
INIT••••CANCEL
ENHANCER STEREO TUNED
SLEEP MUTE
VOL.
ECO
ADAPTIVE DRC VIRTUAL
VERSION••xx.xx
ADAPTIVE DRC VIRTUAL
Restores the default settings for the unit.
Check the version of firmware currently installed on the unit.
Choices
Note
ALL
Restores the default settings for the unit.
CANCEL
Does not perform an initialization.
▪ You can also check the firmware version in “Network Update” (p.104) in the “Setup” menu.
▪ It may take a while until the firmware version is displayed.
Updating the firmware (UPDATE)
ENHANCER STEREO TUNED
CHARGE
OUT
SLEEP MUTE
VOL.
ECO
UPDATE•••••USB
ADAPTIVE DRC VIRTUAL
New firmware that provides additional features or product improvements will be
released as needed. Updates can be downloaded from our website. If the unit is
connected to the Internet, you can download the firmware via the network. For details,
refer to the information supplied with updates.
n Firmware update procedure
Do not perform this procedure unless firmware update is necessary. Also, make sure
you read the information supplied with updates before updating the firmware.
1
Press STRAIGHT repeatedly to select “USB” or “NETWORK” and
press INFO to start firmware update.
Choices
USB
Update the firmware using a USB memory device.
NETWORK
Update the firmware via the network.
108
En
Updating the unit’s firmware via the network
New firmware that provides additional features or product improvements will be
released as needed. If the unit is connected to the Internet, you can download the
firmware via the network and update it.
A firmware update is available if the following message is displayed after SETUP is
pressed.
Network Setup
Notice
New firmware available.
▪ Do not operate the unit or disconnect the power cable or network cable during firmware update.
Firmware update takes about 20 minutes or more (depending on your Internet connection speed).
Press ENTER to update now.
(You can also start the update
▪ If the Internet connection speed is slow, or the unit is connected to the wireless network, network
update may not be possible depending on the condition of the wireless connection. In this case, update
the firmware using the USB memory device (p.108).
from the "Setup-Network"
screen.)
RETURN
▪ To perform the following procedure, your TV must be connected to the unit via HDMI. If not, perform the
update from the “ADVANCED SETUP” menu (p.108).
Language
CANCEL
<English>
You can switch the language.
▪ For details on update, visit the Yamaha website.
Note
1
2
You can also update the firmware using the USB memory device from the “ADVANCED SETUP” menu
(p.108).
Read the on-screen description and press ENTER.
To start the firmware update, press ENTER.
The on-screen display turns off.
3
If “UPDATE SUCCESS PLEASE POWER OFF!” appears on the
front display, press z (power) on the front panel.
The firmware update is complete.
109
En
APPENDIX
Frequently asked questions
I want to change the input source name...
The frequently asked questions from customers and the answers are shown below.
The new speaker system does not provide an ideal sound balance...
If you have changed speakers or have a new speaker system, use YPAO to optimize
the speaker settings again (p.29). If you want to adjust the speaker settings manually,
use “Speaker” in the “Setup” menu (p.90).
We want to set limitations on the volume control...
By default, input source names (such as “HDMI1” and “AV 1”) are displayed on the
front display when an input source is selected. If you want to rename them as you like,
use “Input Rename” (p.99) in the “Setup” menu. You can also select a name from the
presets (such as “Blu-ray” and “DVD”).
I want to prevent accidental changes to the settings...
You can protect the settings configured on the unit (such as speaker settings) by
utilizing “Memory Guard” in the “Setup” menu (p.100).
If someone accidentally operates the controls on the main unit or remote control, the
volume may suddenly increase. This may also cause injury or damage the unit or
speakers. We recommend using “Max Volume” in the “Setup” menu to set the
maximum volume level for the unit in advance (p.97).
The unit’s remote control is simultaneously controlling another Yamaha
product as well as the unit...
When using multiple Yamaha products, the remote control may work on another
Yamaha product or another remote control may work on the unit. If this happens,
register different remote control IDs for the devices that you want to control with each
remote control (p.107).
I want to fix the volume when turning on the unit...
By default, the volume level when the unit last entered standby mode is automatically
applied. If you want to fix the volume, use “Initial Volume” in the “Setup” menu to set
the volume to be applied when the receiver is turned on (p.97).
I want to enjoy videos/audio played back on the video device even when
the unit is in standby mode…
The volume varies depending on the input sources...
You can correct volume differences between input sources by utilizing “Input Trim” in
the “Option” menu (p.85).
If you have connected a video device to the unit with HDMI, you can output videos/
audio played back on the video device to the TV even when the unit is in standby
mode. To use this function, set “Standby Through” (p.93) in the “Setup” menu to “On”
or “Auto”. You can also switch the input source using the remote control of the unit
when this function is enabled.
HDMI Control does not work at all...
To use HDMI Control, you need to perform the HDMI Control link setup (p.124). After
connecting HDMI Control-compatible devices (such as BD/DVD players) to the unit,
enable HDMI Control on each device and perform the HDMI Control link setup. This
setup is required every time you add a new HDMI Control-compatible device to your
system. For information on how HDMI Control works between your TV and playback
devices, refer to the instruction manuals for each device.
The combination of video/audio input jacks does not match an external
device...
Use “Audio In” in the “Option” menu to change the combination of video/audio input
jacks so that it matches the output jack(s) of your external device (p.23).
Video and audio are not synchronized...
Use “Lipsync” in the “Setup” menu to adjust the delay between video and audio output
(p.96).
110
En
I want to hear audio from the TV speakers...
Use “Audio Output” in the “Setup” menu to select the output destination of signals
input into the unit (p.93). Your TV speakers may be selected as an output destination.
I want to change the on-screen menu language...
Use “Language” in the “Setup” menu to select a language from English, Japanese,
French, German, Spanish, Russian, Italian and Chinese (p.28).
I want to update the firmware...
Use “UPDATE” in the “ADVANCED SETUP” menu to update the unit’s firmware
(p.108).
111
En
Troubleshooting
Refer to the table below when the unit does not function properly.
If the problem you are experiencing is not listed below or if the instructions below do not help, turn off the unit, disconnect the power cable, and contact the nearest authorized
Yamaha dealer or service center.
First, check the following:
1
2
3
The power cables of the unit, TV and playback devices (such as BD/DVD players) are connected to AC wall outlets securely.
The unit, subwoofer, TV and playback devices (such as BD/DVD players) are turned on.
The connectors of each cable are securely inserted in to jacks on each device.
Power, system and remote control
Problem
Cause
Remedy
The power does not turn on.
The protection circuitry has been activated three times
consecutively. If the unit is in this condition, the standby indicator
on the unit blinks when you try to turn on the power.
As a safety precaution, capability to turn on the power is disabled. Contact your
nearest Yamaha dealer or service center to request repair.
The power does not turn off.
The internal microcomputer has frozen, due to an external electric Hold down z (power) on the front panel for more than 15 seconds to reboot the
shock (such as lightning or excessive static electricity) or to a drop unit. (If the problem persists, disconnect the power cable from the AC wall outlet
in the power supply voltage.
and plug it again.)
The power turns off (standby mode) immediately. The unit was turned on while a speaker cable was shorted.
The sleep timer worked.
The unit enters standby mode automatically.
The unit is not reacting.
Twist the bare wires of each speaker cable firmly and reconnect to the unit and
speakers (p.19).
Turn on the unit and start playback again.
The auto-standby function activated because the unit was not used To disable the auto-standby function, set “Auto Power Standby” in the “Setup”
for the specified time.
menu to “Off” (p.98).
The speaker impedance setting is incorrect.
Set the speaker impedance to match your speakers (p.106).
The protection circuitry has been activated because of a short
circuit.
Twist the bare wires of each speaker cable firmly and reconnect to the unit and
speakers (p.19).
Hold down z (power) on the front panel for more than 15 seconds to reboot the
The internal microcomputer is frozen, due to an external electric
shock (such as lightning or excessive static electricity) or to a drop unit. (If the problem persists, disconnect the power cable from the AC wall outlet
in the power supply voltage.
and plug it again.)
112
En
Problem
The unit cannot be controlled using the remote
control.
Cannot select the desired input source even if
“INPUT” is pressed.
The RED/GREEN/YELLOW/BLUE keys of the
remote control do not operate.
Cause
Remedy
The unit is out of the operating range.
Use the remote control within the operating range (p.5).
The batteries are weak.
Replace with new batteries.
The unit’s remote control sensor is exposed to direct sunlight or
strong lighting.
Adjust the lighting angle, or reposition the unit.
The remote control IDs of the unit and the remote control are not
identical.
Change the remote control ID of the unit or the remote control (p.107).
The remote control is set to the Zone B operation mode.
Set the remote control to the Zone A operation mode (p.80).
The function which skips some input sources is set.
Set “Input Skip” of the desired input source in the “Setup” menu to “Off” (p.100).
The device which is connected to the unit via HDMI does not
support the operation of the RED/GREEN/YELLOW/BLUE keys.
Use a device which supports the operation of the RED/GREEN/YELLOW/BLUE
keys.
The settings of the RED/GREEN/YELLOW/BLUE keys of the unit's
remote control have been changed.
Set the “Remote Color Key” settings in the “Setup” menu to “Default” (p.101).
Audio
Problem
Cause
Remedy
Another input source is selected.
Select an appropriate input source with the input selection keys.
Signals that the unit cannot reproduce are being input.
Some digital audio formats cannot be played back on the unit. To check the
audio format of the input signal, use “Signal Info.” in the “Option” menu (p.85).
Audio output to Zone A (or Zone B) is disabled.
Slide the Zone switch to “ZONE A” (or “ZONE B”), and then enable audio output
to Zone A (or Zone B).
The cable connecting the unit and playback device is defective.
If there is no problem with the connection, replace with another cable.
The maximum volume is set.
Use “Max Volume” in the “Setup” menu to adjust the maximum volume (p.97).
No sound.
The volume cannot be increased.
No sound is coming from a specific speaker.
A device connected to the output jacks of the unit is not turned on.
Turn on all devices connected to the output jacks of the unit.
(This may happen due to the nature of AV receivers.)
The playback source does not contain a signal for the channel.
To check it, use “Signal Info.” in the “Option” menu (p.85).
The currently selected sound program/decoder does not use the
speaker.
To check it, use “Test Tone” in the “Setup” menu (p.92).
Audio output of the speaker is disabled.
Perform YPAO (p.29) or use “Configuration” in the “Setup” menu to change the
speaker settings (p.90).
The volume of the speaker is set too low.
Perform YPAO (p.29) or use “Level” in the “Setup” menu to adjust the speaker
volume (p.92).
Audio output to Zone A (or Zone B) is disabled.
Slide the Zone switch to “ZONE A” (or “ZONE B”), and then enable audio output
to Zone A (or Zone B).
The speaker cable connecting the unit and the speaker is
defective.
If there is no problem with the connection, replace with another speaker cable.
The speaker is malfunctioning.
To check it, replace with another speaker. If the problem persists, the unit may be
malfunctioning.
113
En
Problem
Cause
Remedy
The playback source does not contain Low Frequency Effect (LFE) To check it, set “Extra Bass” in the “Setup” menu to “On”, in order to output the
or low-frequency signals.
front channel low-frequency components from the subwoofer (p.91).
No sound is coming from the subwoofer.
Subwoofer output is disabled.
Perform YPAO (p.29) or set “Subwoofer” in the “Setup” menu to “Use” (p.90).
The volume of the subwoofer is too low.
Adjust the volume on the subwoofer.
The subwoofer has been turned off by its auto-standby function.
Disable the auto-standby function of the subwoofer or adjust its sensitivity level.
The TV does not support HDCP (High-bandwidth Digital Content
Protection).
Refer to the instruction manuals for the TV and check the TV’s specifications.
No sound from the playback device (connected to The unit is set not to output audio input through HDMI jacks from
the unit with HDMI).
the SPEAKERS terminals.
No sound from the TV (when HDMI Control is
used).
In “Audio Output” in the “Setup” menu, set “Amp” to “On” (p.93).
The number of devices connected to the HDMI OUT jack exceeds
the limit.
Disconnect some of the HDMI devices.
The TV is set to output audio from the TV speakers.
Change the audio output setting on your TV so that the TV audio is output from
the speakers connected to the unit.
A TV that does not support ARC is connected to the unit only with
an HDMI cable.
Use a digital optical cable to make an audio connection (p.21).
(If the TV is connected to the unit with an audio cable)
The TV audio input setting does not match the actual connection.
(If you are trying to use ARC)
Use “TV Audio Input” in the “Setup” menu to select the correct audio input jack
(p.93).
Set “ARC” in the “Setup” menu to “On” (p.94). Also, enable ARC on the TV.
ARC is disabled on the unit or TV.
When playing back DSD audio, the unit disables
the audio output from a TV.
The unit does not support DSD audio output from a TV.
Change the audio output setting on the playback device to PCM.
Only the front speakers work on multichannel
audio.
The playback device is set to output 2-channel audio (such as
PCM) only.
To check it, use “Signal Info.” in the “Option” menu (p.85). If necessary, change
the digital audio output setting on the playback device.
Noise/hum is heard.
The sound is distorted.
The unit is too close to another digital or radio frequency device.
Move the unit further away from the device.
The cable connecting the unit and playback device is defective.
If there is no problem with the connection, replace with another cable.
The volume of the unit is too high.
Turn down the volume. If “ECO Mode” in the “Setup” menu is set to “On”, set it to
“Off” (p.98).
A device connected to the unit’s output jacks is not turned on.
Turn on all devices connected to the unit’s output jacks.
114
En
Video
Problem
No video.
No video from the playback device (connected to
the unit with HDMI).
No image (contents required the HDCP 2.2 compatible HDMI device) from the playback
device connected to the unit with HDMI.
The menu of the unit is not displayed on the TV.
Cause
Remedy
Another input source is selected on the unit.
Select an appropriate input source with the input selection keys.
Another input source is selected on the TV.
Switch the TV input to display the video from the unit.
The video signal output from the unit is not supported by the TV.
Check the video output setting of the playback device. For information about
video signals supported by the TV, refer to the instruction manuals for the TV.
The cable connecting the unit and TV (or playback device) is
defective.
If there is no problem with the connection, replace with another cable.
The input video signal (resolution) is not supported by the unit.
To check the information about the current video signal (resolution), use “Signal
Info.” in the “Option” menu (p.85). For information about video signals supported
by the unit, see “HDMI signal compatibility” (p.126).
The TV does not support HDCP (High-bandwidth Digital Content
Protection).
Refer to the instruction manuals for the TV and check the TV’s specifications.
The number of devices connected to the HDMI OUT jack is over
the limit.
Disconnect some of the HDMI devices.
The TV (HDMI input jack) does not support HDCP 2.2. (The
Warning message can be displayed on the TV screen.)
Connect the unit to the TV (HDMI input jack) that supports HDCP 2.2.
The TV is not connected to the unit via HDMI.
You can display the menu of the unit on the TV only when they are connected
with an HDMI cable. If necessary, use an HDMI cable to connect them (p.21 to
p.22).
Another input source is selected on the TV.
Switch the TV input to display the video from the unit (HDMI OUT jack).
115
En
FM/AM radio (AM radio feature is available only on RX-V481)
Problem
FM radio reception is weak or noisy.
Cause
Remedy
There is multi-path interference.
Adjust the FM antenna height or orientation, or place it in a different location.
Your area is too far from the FM station transmitter.
To select monaural FM radio reception “FM Mode” in the “Option” menu to
“Mono” (p.50).
The noises may be caused by fluorescent lamps, motors,
thermostats, or other electrical equipment.
It is difficult to completely eliminate noise. It may be reduced by using an outdoor
AM antenna.
Your area is too far from the FM station transmitter.
Use an outdoor antenna. We recommend using a sensitive multi-element
antenna.
Use an outdoor FM antenna.
AM radio reception is weak or noisy.
Select the station manually (p.50).
Radio stations cannot be selected automatically.
Adjust the AM antenna orientation.
The AM radio signal is weak.
Select the station manually (p.50).
Use an outdoor AM antenna.
AM radio stations cannot be registered as
presets.
Auto Preset is for registering FM radio stations only. Register AM radio stations
manually (p.52).
Auto Preset has been used.
DAB radio (RX-V481D)
Problem
Cause
Remedy
No DAB radio reception.
An initial scan has not been performed.
Perform an initial scan to receive DAB radio (p.55).
Reception strength of DAB radio is poor.
Check reception strength in “Tune Aid” in the “Option” menu (p.59), and adjust
the antenna height or orientation, or place it in a different location.
There is no DAB coverage in your area.
Check with your dealer or WorldDMB online at “http://www.worlddab.org” for a
listing of the DAB coverage in your area.
There is multi-path interference.
Check reception strength in “Tune Aid” in the “Option” menu (p.59), and adjust
the antenna height or orientation, or place it in a different location.
Your area is too far from the DAB station transmitter.
Use an outdoor antenna. We recommend using a sensitive multi-element
antenna.
DAB information is not available or is inaccurate.
The selected DAB radio station may be temporarily out of service
or may not provide information.
Contact the DAB broadcaster.
No DAB radio sound.
The selected DAB radio station may be temporarily out of service.
Try the station later or select another station.
No DAB radio reception even after performing an
initial scan.
DAB radio reception is weak or noisy.
116
En
USB and network
Problem
The unit does not detect the USB device.
Cause
Remedy
The USB device is not connected to the USB jack securely.
Turn off the unit, reconnect your USB device, and turn the unit on again.
The file system of the USB device is not FAT16 or FAT32.
Use a USB device with FAT16 or FAT32 format.
Folders and files in the USB device cannot be
viewed.
The data in the USB device is protected by the encryption.
Use a USB device without an encryption function.
The network feature does not function.
The network parameters (IP address) have not been obtained
properly.
Enable the DHCP server function on your router and set “DHCP” in the “Setup”
menu to “On” on the unit (p.102). If you want to configure the network parameters
manually, check that you are using an IP address which is not used by other
network devices in your network (p.102).
The media sharing setting is not correct.
Configure the sharing setting and select the unit as a device to which music
contents are shared (p.71).
The unit does not detect the PC.
Some security software installed on your PC is blocking the access
Check the settings of security software installed on your PC.
of the unit to your PC.
The unit and PC are not in the same network.
Check the network connections and your router settings, and then connect the
unit and the PC to the same network.
The MAC address filter is enabled on the unit.
In “MAC Address Filter” in the “Setup” menu, disable the MAC address filter or
specify the MAC address of your PC to allow it to access to the unit (p.103).
The files are not supported by the unit or the media server.
Use the file format supported by both the unit and the media server. For
information about the file formats supported by the unit, see “Playing back music
stored on media servers (PCs/NAS)” (p.71).
The selected Internet radio station is currently not available.
There may be a network problem at the radio station, or the service may have
been stopped. Try the station later or select another station.
The selected Internet radio station is currently broadcasting
silence.
Some Internet radio stations broadcast silence at certain of times of the day. Try
the station later or select another station.
Access to the network is restricted by the firewall settings of your
network devices (such as the router).
Check the firewall settings of your network devices. The Internet radio can be
played only when it passes through the port designated by each radio station.
The port number varies depending on the radio station.
The MAC address filter is enabled on the unit.
In “MAC Address Filter” in the “Setup” menu, disable the MAC address filter or
specify the MAC address of your smartphone/tablet to allow it to access to the
unit (p.103).
The unit and smartphone/tablet are not in the same network.
Check the network connections and your router settings, and then connect the
unit and smartphone/tablet to the same network.
Firmware update via the network is failed.
It may not be possible depending on the condition of the network.
Update the firmware via the network again or use a USB memory device (p.108).
The mobile device does not recognize the unit
when using AirPlay or AV CONTROLLER.
The unit and the mobile device are connected to different SSID
when using a multiple SSID router.
Connect them to the Primary SSID (at the top of the list).
The files in the PC cannot be viewed or played
back.
The Internet radio cannot be played.
The application for smartphone/tablet “AV
CONTROLLER” does not detect the unit.
117
En
Problem
The unit cannot connect to the Internet via a
wireless router (access point).
Wireless network is not found.
Cause
Remedy
The wireless router (access point) is turned off.
Turn on the wireless router.
The unit and the wireless router (access point) are too far apart.
Place the unit and the wireless router (access point) closer to each other.
There is an obstacle between the unit and the wireless router
(access point).
Move the unit and the wireless router (access point) in a location where there are
no obstacles between them.
Microwave ovens or other wireless devices in your neighborhood
might disturb the wireless communication.
Turn off these devices.
Access to the network is restricted by the firewall settings of the
wireless router (access point).
Check the firewall setting of the wireless router (access point).
Bluetooth®
Problem
A Bluetooth connection cannot be established.
No sound is produced, or the sound is
interrupted during playback.
Cause
Remedy
The Bluetooth function of the unit is disabled.
Enable the Bluetooth function (p.104).
Another Bluetooth device is already connected to the unit.
Terminate the current Bluetooth connection and then establish a new connection
(p.64).
The unit and the Bluetooth device are too far apart.
Move the Bluetooth device closer to the unit.
There is a device (such as microwave oven and wireless LAN) that
Move the unit away from those devices.
outputs signals in the 2.4 GHz frequency band nearby.
The Bluetooth device does not support A2DP.
Use a Bluetooth device that supports A2DP.
The connection information registered on the Bluetooth device is
not working for some reason.
Delete the connection information on the Bluetooth device, and then establish a
connection between the Bluetooth device and the unit again (p.64).
The volume of the Bluetooth device is set too low.
Turn up the volume of the Bluetooth device.
The Bluetooth device is not set to send audio signals to the unit.
Switch the audio output of the Bluetooth device to the unit.
The Bluetooth connection has been terminated.
Establish a Bluetooth connection between the Bluetooth device and the unit again
(p.64).
The unit and the Bluetooth device are too far apart.
Move the Bluetooth device closer to the unit.
There is a device (such as microwave oven and wireless LAN) that
Move the unit away from those devices.
outputs signals in the 2.4 GHz frequency band nearby.
118
En
Error indications on the front display
Refer to the table below when the error message is indicated on the front display.
Message
Cause
Remedy
Access denied
Access to the PC is denied.
Configure the sharing settings and select the unit as a device to which music contents are shared
(p.71).
The unit cannot access the USB device.
Turn off the unit and reconnect your USB device. If the problem persists, try another USB device.
Access error
There is a problem with the signal path from the network to the unit.
Make sure your router and modem are turned on.
Check the connection between the unit and your router (or hub) (p.26).
Check SP Wires
The speaker cables short circuit.
Twist the bare wires of the cables firmly and connect to the unit and speakers properly.
Internal Error
An internal error has occurred.
Contact the nearest authorized Yamaha dealer or service center.
No content
There are no playable files in the selected folder.
Select a folder that contains files supported by the unit.
No device
The unit cannot detect the USB device.
Turn off the unit and reconnect your USB device. If the problem persists, try another USB device.
The network cable is not connected.
Connect the network cable properly.
The wireless router (access point) is not found.
Make sure the wireless router (access point) is turned on.
Please wait
The unit is preparing for connecting to the network.
Wait until the message disappears. If the message stays more than 3 minutes, turn off the unit and turn
it on again.
RemID Mismatch
The remote control IDs of the unit and the remote control are not
identical.
Change the remote control ID of the unit or the remote control (p.107).
The unit cannot play back the songs stored on the iPod for some
reason.
Check the song data. If it cannot be played on the iPod itself, the song data or storage area may be
defective.
The unit cannot play back the songs stored on the PC for some
reason.
Check if the format of files you are trying to play is supported by the unit. For information about the
formats supported by the unit, see “Playing back music stored on media servers (PCs/NAS)” (p.71). If
the unit supports the file format, but still cannot play back any files, the network may be overloaded with
heavy traffic.
USB Overloaded
An overcurrent is flowing through the USB device.
Turn off the unit and reconnect your USB device. If the problem persists, try another USB device.
Version error
Firmware update is failed.
Update the firmware again.
Not connected
Unable to play
119
En
Glossary
This is a glossary of the technical terms used in this manual.
DTS-HD Master Audio
Audio information
DTS-HD Master Audio is an advanced lossless audio format developed to offer a high-definition
home theater experience with the quality of the studio master by DTS, Inc. DTS-HD Master Audio
can carry up to eight channels of 96 kHz/24-bit audio (up to six channels of 192 kHz/24-bit audio)
simultaneously. This technology is used for audio on BD (Blu-ray Disc).
n Audio decoding format
DTS Neo: 6
DTS Neo: 6 enables 6-channel playback from 2-channel sources. There are two modes available:
“Music mode” for music sources and “Cinema mode” for movie sources. This technology provides
discrete full-bandwidth matrix channels of surround sound.
Dolby Digital
Dolby Digital is a compressed digital audio format developed by Dolby Laboratories, Inc. that
supports 5.1-channel audio. This technology is used for audio on most DVD disc.
DSD (Direct Stream Digital)
Dolby Digital Plus
Dolby Digital Plus is a compressed digital audio format developed by Dolby Laboratories, Inc. that
supports 7.1-channel audio. Dolby Digital Plus remains fully compatible with the existing
multichannel audio systems that support Dolby Digital. This technology is used for audio on BD
(Blu-ray Disc).
Dolby Pro Logic II
DSD (Direct Stream Digital) technology stores audio signals on digital storage media, such as
SACD (Super Audio CDs). The signals are stored at a high-frequency sampling rate of 2.8224
MHz. The highest frequency response is equal to or higher than 100 kHz, with a dynamic range of
120 dB. This technology offers better audio quality than that used for CDs.
FLAC
FLAC is a file format for lossless audio data compression. FLAC is inferior to lossy compressed
audio formats in compression rate but provides higher audio quality.
Dolby Pro Logic II enables 5-channel playback from 2-channel sources. There are three modes
available: “Music mode” for music sources, “Movie mode” for movie sources, and “Game mode”
for game sources.
MP3
Dolby TrueHD
Dolby TrueHD is an advanced lossless audio format developed by Dolby Laboratories, Inc. to
offer a high-definition home theater experience with the quality of the studio master. Dolby TrueHD
can carry up to eight channels of 96 kHz/24-bit audio (up to six channels of 192 kHz/24-bit audio)
simultaneously. This technology is used for audio on BD (Blu-ray Disc).
DTS 96/24
DTS 96/24 is a compressed digital audio format that supports 5.1-channel and 96 kHz/24-bit
audio. This format remains fully compatible with the existing multichannel audio systems that
support DTS Digital Surround. This technology is used for music DVDs, etc.
One of the compressed digital audio format used by MPEG. With psychoacoustic technologies,
this compression method achieves a high compression rate. Reportedly, it is capable of
compressing data quantity by about 1/10 maintaining a certain level of audio quality.
MPEG-4 AAC
An MPEG-4 audio standard. It is used for mobile telephones, portable audio players, and audio
streaming services on Internet because it allows a high compression rate of data while
maintaining better audio quality than MP3.
PCM (Pulse Code Modulation)
PCM is a signal format under which an analog audio signal is digitized, recorded, and transmitted.
This technology is the basis of all other audio format. This technology is used as a lossless audio
format called Linear PCM for audio on a variety of media, including CDs and BD (Blu-ray Disc).
DTS Digital Surround
DTS Digital Surround is a compressed digital audio format developed by DTS, Inc. that supports
5.1-channel audio. This technology is used for audio on most DVD discs.
Sampling frequency/Quantization bit
DTS Express
DTS Express is a compressed digital audio format that supports 5.1-channel audio and allows a
higher compression rate than the DTS Digital Surround format developed by DTS, Inc. This
technology is developed for audio streaming services on the Internet and secondary audio on BD
(Blu-ray Disc).
DTS-HD High Resolution Audio
Sampling frequency and quantization bits indicate the quantity of information when an analog
audio signal is digitized. These values are noted as in the following example: “48 kHz/24-bit”.
• Sampling frequency
Sampling frequency (the number of times the signal is sampled per second) is called the
sampling rate. When the sampling frequency is higher, the range of frequencies that can be
played back are wider.
• Quantization bit
The number of quantization bits indicate the degree of accuracy when converting the sound
level into a numeric value. When the number of quantized bits is higher, the expression of the
sound level is more accurate.
DTS-HD High Resolution Audio is a compressed digital audio format developed by DTS, Inc. that
supports 7.1-channel and 96 kHz/24-bit audio. DTS-HD High Resolution Audio remains fully
compatible with the existing multichannel audio systems that support DTS Digital Surround. This
technology is used for audio on most BD (Blu-ray Disc).
120
En
WAV
x.v.Color
Windows standard audio file format, which defines the method of recording the digital data
obtained by converting audio signals. By default, the PCM method (no compression) is used, but
you can also use other compression methods.
“x.v.Color” is a technology that the HDMI specification supports. It is a more extensive color
space than sRGB and allows the expression of colors that were not hitherto possible. While
remaining compatible with the color gamut of sRGB standards, “x.v.Color” expands the color
space, and thus can produce more vivid, natural images.
WMA (Windows Media Audio)
One of the compressed digital audio formats developed by Microsoft Corporation. With
psychoacoustic technologies, this compression method achieves a high compression rate.
Reportedly, it is capable of compressing data quantity by about 1/20 maintaining a certain level of
audio quality.
Network information
SSID
n Others
SSID (Service Set Identifier) is a name that identifies a particular wireless LAN access point.
Bi-amplification connection (Bi-amp)
Wi-Fi (Wireless Fidelity) is a technology that allows an electronic device to exchange data or
connect to the Internet wirelessly using radio waves. Wi-Fi offers the advantage of eliminating the
complexity of making connections with LAN cables by using wireless connection. Only products
that complete Wi-Fi Alliance interoperability tests can carry the “Wi-Fi Certified” trademark.
Wi-Fi
A bi-amplification connection uses two amplifiers for a speaker. When you use the bi-amplification
connection, the unit drives the tweeter and woofer in a speaker with the discrete amplifiers. As a
consequence, the tweeter and woofer provide clear audio signal without the interference.
LFE (Low Frequency Effects) 0.1 channel
WPS
This channel reproduces low-frequency bass signals and has a frequency range from 20 Hz to
120 Hz. This channel is added to the channels for all bands with Dolby Digital or DTS to enhance
low frequency audio effects. This channel is labeled 0.1 because it is limited to only low frequency
audio.
WPS (Wi-Fi Protected Setup) is a standard established by the Wi-Fi Alliance, which allows easy
establishment of a wireless home network.
Lip sync
Video output sometimes lags behind audio output due to the complexity of signal processing
caused by an increase in video signal capacity. Lip sync is a technique for automatically
correcting the timing lag between audio and video output.
Yamaha technologies
CINEMA DSP (Digital Sound Field Processor)
Since the Dolby Surround and DTS systems were originally designed for use in movie theaters,
their effect is best experienced in a theater that has many speakers designed for acoustic effects.
Since home conditions (such as room size, wall material, and number of speakers) can differ so
widely, it is inevitable that there are differences in the sound that you hear. Based on a wealth of
actually measured data, CINEMA DSP, Yamaha’s original DSP technology provides the
audiovisual experience of a movie theater in your own home.
HDMI and video information
Composite video signal
CINEMA DSP 3D
With the composite video signal system, color, brightness, and synchronization data signals are
combined and transmitted with a single cable.
Deep Color
Deep Color is a technology that HDMI specification supports. Deep Color increases the number of
available colors within the boundaries defined by the RGB or YCbCr color space. Conventional
color systems process the color using 8 bits. Deep Color processes the color with 10, 12, or 16
bits. This technology allows HDTVs and other displays to increase from millions of colors to
billions of colors and eliminate on-screen color banding for smooth tonal transitions and subtle
gradations between colors.
HDMI
HDMI (High-Definition Multimedia Interface) is the world-wide standard interface for digital audio/
video signal transmission. This interface transmits both digital audio and digital video signals
using a single cable without any loss. HDMI complies with HDCP (High-bandwidth Digital Content
Protection) and provides a secure audio/video interface. For further information on HDMI, visit the
HDMI website at “http://www.hdmi.org/”.
121
The actually measured sound field data contain the information of the height of the sound images.
CINEMA DSP 3D mode achieves the reproduction of the accurate height of the sound images so
that it creates the accurate and intensive 3D sound fields in a listening room.
Compressed Music Enhancer
The Compressed Music Enhancer feature compensates for missing harmonics in compression
music formats (such as MP3). As a result, this technology provides improved performance for the
overall sound system.
SILENT CINEMA
Yamaha has developed a natural, realistic sound effect DSP algorithm for headphones.
Parameters for headphones have been set for each sound program, so that accurate
representations of all the sound programs can be enjoyed on headphones.
Virtual CINEMA DSP
Virtual CINEMA DSP allows the system to virtually reproduce the sound field of the surround
speakers with front left and right speakers. Even if the surround speakers are not connected, the
unit creates the realistic sound field in a listening room.
En
Virtual Presence Speaker (VPS)
Virtual Presence Speaker allows the system to virtually reproduce the height of the 3D sound field
without front presence speakers. Even if the front presence speakers are not connected, the unit
creates the 3D sound field in your room.
YPAO (Yamaha Parametric room Acoustic Optimizer)
Supported devices and file formats
The following devices and file formats can be used by the unit.
Supported devices
The Yamaha Parametric room Acoustic Optimizer (YPAO) function detects speaker connections,
measures the distances from them to your listening position(s), and then automatically optimizes
the speaker settings, such as volume balance and acoustic parameters, to suit your room.
n Bluetooth® devices
• Bluetooth devices that support A2DP can be used.
• Yamaha does not assure the connections of all Bluetooth devices.
n USB devices
• This unit supports USB mass storage class devices (e.g., flash memories or
portable audio players) using FAT16 or FAT32 format.
• Do not connect devices other than USB mass storage class devices (such as USB
chargers or USB hubs), PCs, card readers, an external HDD, etc.
• USB devices with encryption cannot be used.
• Some features may not be compatible, depending on the model or manufacturer of
the USB storage device.
n AirPlay
AirPlay works with iPhone, iPad, and iPod touch with iOS 4.3.3 or later, Mac with OS X
Mountain Lion or later and Mac and PC with iTunes 10.2.2 or later.
Made for.
iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPhone 4s
iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad (3rd and 4th generation),
iPad 2
iPod touch (5th generation)
(as of April 2016)
122
En
File formats
Video signal flow
Video signals input from a video device to the unit are output to a TV as shown below.
n USB, PC/NAS
File
Sampling
frequency
(kHz)
WAV *
32/44.1/48/
88.2/96/
176.4/192
Video device
quantization
bit (bit)
16/24
Bitrate (kbps)
-
Number of
channels
2
The unit
TV
Support for
gapless
playback
4
MP3
32/44.1/48
-
8 to 320
2
-
WMA
32/44.1/48
-
8 to 320
2
-
MPEG-4 AAC
32/44.1/48
-
8 to 320
2
-
FLAC
32/44.1/48/
88.2/96/
176.4/192
16/24
-
2
4
ALAC
32/44.1/48/
88.2/96
16/24
-
2
4
AIFF
32/44.1/48/
88.2/96/
176.4/192
16/24
-
2
4
DSD
2.8 MHz/
5.6 MHz
1
-
2
-
HDMI connection
HDMI in
HDMI
HDMI out
HDMI
HDMI
HDMI
Composite video connection
VIDEO in
VIDEO
* Linear PCM format only
• To play back FLAC files stored on your PC/NAS, you need to install server software
that supports sharing of FLAC files via DLNA on your PC or use a NAS that supports
FLAC files.
• Digital Rights Management (DRM) contents cannot be played back.
123
En
VIDEO
VIDEO out
VIDEO
VIDEO
Information on HDMI
(Example)
The additional information on HDMI is as follows.
HDMI Control
HDMI Control
HDMI Control allows you to operate external devices via HDMI. If you connect a TV
that supports HDMI Control to the unit with an HDMI cable, you can control the unit
(such as power and volume) with TV remote control operations. You can also control
playback devices (such as HDMI Control-compatible BD/DVD players) connected to
the unit with an HDMI cable.
Playback starts
Press SCENE (BD/DVD)
Turns on and displays
video from the playback
device
To use HDMI Control, you need to perform the following HDMI Control link setup after
connecting the TV and playback devices.
n Operations available from the TV’s remote control
For details on settings and operating your TV, refer to the instruction manual for the TV.
• Standby synchronization
Note
• Volume control including mute
This setup is required every time you add a new HDMI Control-compatible device to your system.
• Switching to input audio from the TV when the TV input is switched to its built-in
tuner
1
2
• Switching to input video/audio from the selected playback device
• Switching between audio output devices (the unit or TV speaker)
(Example)
HDMI Control
HDMI Control
HDMI Control
Turn on the unit, TV, and playback devices.
Configure the settings of the unit.
1
2
Switch the TV input to display video from the unit.
Press SETUP.
ZONE A
ZONE B
SLEEP
SCENE
BD
DVD
TV
NET
RADIO
STRAIGHT
DIRECT
ENHANCER
BASS
MUTE
SETUP
PROGRAM
Playback device
also turns off
The unit turns off
(standby)
FM/AM
USB
INPUT
VOLUME
SETUP
OPTION
NET
BLUETOOTH
Turn off the TV
MUTE
SETUP
Cursor keys
ENTER
OPTION
ENTER
ENTER
n Operations available from the unit’s remote control
RETURN
TOP MENU
DISPLAY
HOME
POP-UP/MENU
RETURN
RED
GREEN
YELLOW
DISPLA
DISPLAY
BLUE
MEMORY
• Starting playback on the playback device and turning on the TV with a scene
selection (p.44)
TUNING
TUNING
PRESET
• Switching the TV input to display the “Setup” menu (when SETUP is pressed)
• Controlling the playback device (playback and menu operations)
124
En
TOP MENU
HOME
POP-UP/MENU
3
8
Use the cursor keys to select “HDMI” and press ENTER.
Setup
Speaker
HDMI
Sound
ECO
Note
Function
Language
RETURN
4
▪ If HDMI Control does not work properly, try unplugging the TV in Step 2 and plugging in the TV again in
Step 3. It may solve the problem. Also, HDMI Control may not work if the number of connected devices
exceeds the limit. In this case, disable HDMI Control on the devices not in use.
Back
▪ If the unit is not synchronized to the TV’s power operations, check the priority of the audio output setting
on the TV.
Use the cursor keys (q/w) to select “HDMI Control” and the cursor keys
(e/r) to select “On” as shown below.
HDMI
HDMI Control
▪ If you reconnect the HDMI cable, perform the procedure 5-8 again.
▪ We recommend using TV and playback devices from the same manufacturer so that HDMI Control works
more effectively.
On
Audio Output
TV Audio Input
Standby Sync
ARC
AV2
Auto
On
SCENE
RETURN
5
6
3
4
5
6
7
Check that the unit is properly synchronized with the TV by
turning off the TV or adjusting the TV volume with the TV remote
control.
Back
If you made a digital optical cable connection between the TV and the
unit, use the cursor keys (q/w) to select “TV Audio Input” and the
cursor keys (e/r) to select “AUDIO1”.
Press SETUP.
Enable HDMI Control on the TV and playback devices (such as
HDMI Control-compatible BD/DVD players).
Turn off the main power of the TV and then turn off the unit and
playback devices.
Turn on the unit and playback devices and then turn on the TV.
Switch the TV input to display the video from the unit.
Check the followings.
On the unit: The input to which the playback device is connected is
selected. If not, select the input source manually.
On the TV: The video from the playback device is displayed.
125
En
Audio Return Channel (ARC)
HDMI signal compatibility
ARC allows you to input TV audio to the unit with the HDMI cable which transmits video
signal to the TV.
n Audio signals
Check the following after the HDMI Control settings.
1
2
Select a TV program with the TV remote control.
Check that the input source of the unit will be automatically
switched to “AV 2” and the TV audio will be played back on the
unit.
If you cannot hear the TV audio, check the following:
▪ “ARC” (p.94) in the “Setup” menu is set to “On”.
▪ The HDMI cable is connected to the ARC-compatible HDMI jack (HDMI
jack marked “ARC”) on the TV.
Audio signal type
Audio signal format
2ch Linear PCM
2ch, 32 to 192 kHz, 16/20/24 bit
Compatible media (example)
CD, DVD-Video, DVD-Audio
Multichannel Linear PCM
8ch, 32 to 192 kHz, 16/20/24 bit
DVD-Audio, BD (Blu-ray disc),
HD DVD
DSD
2 to 5.1ch, 2.8224 MHz, 1 bit
SACD
Bitstream
Dolby Digital, DTS
DVD-Video
Bitstream
(High definition audio)
Dolby TrueHD, Dolby Digital Plus,
DTS-HD Master Audio, DTS-HD
BD (Blu-ray disc), HD DVD
High Resolution Audio, DTS
Express
n Video signals
Some HDMI jack on the TV is not compatible with ARC. For details, refer
to the instruction manual for the TV.
The unit is compatible with the video signals of the following resolutions:
Note
• VGA
• 720p/60 Hz, 50 Hz
▪ If the audio is interrupted while using ARC, set “ARC” (p.94) in the “Setup” menu to “Off” and use a digital
optical cable to input TV audio to the unit (p.21).
• 480i/60 Hz
• 1080i/60 Hz, 50 Hz
• 576i/50 Hz
• 1080p/60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz
▪ When using ARC, connect a TV with an HDMI cable that supports ARC.
• 480p/60 Hz
• 4K/60Hz, 50Hz, 30 Hz, 25 Hz, 24 Hz
▪ “AV 2” is set as TV audio input at the factory. If you have connected any external device to the AV 2 jacks,
use “TV Audio Input” (p.93) in the “Setup” menu to change the TV audio input assignment. To use the
SCENE function (p.44), you also need to change the input assignment for SCENE (TV).
• 576p/50 Hz
Note
▪ When CPPM copy-protected DVD-Audio is played back, video/audio signals may not be output,
depending on the type of the DVD player.
▪ The unit is not compatible with HDCP-incompatible HDMI or DVI devices. For details, refer to the
instruction manual for each device.
▪ To decode audio bitstream signals on the unit, set the input source device appropriately so that the device
outputs the bitstream audio signals directly (does not decode the bitstream signals on the playback
device). For details, refer to the instruction manual for the playback device.
126
En
Trademarks
The trademarks used in this manual are as follows.
Manufactured under license from Dolby Laboratories. Dolby, Pro
Logic, and the double-D symbol are trademarks of Dolby
Laboratories.
DLNA™ and DLNA CERTIFIED™ are trademarks or registered
trademarks of Digital Living Network Alliance. All rights reserved.
Unauthorized use is strictly prohibited.
Windows™
Windows is a registered trademark of Microsoft Corporation in the
United States and other countries.
For DTS patents, see http://patents.dts.com.
Manufactured under license from DTS Licensing Limited. DTS,
DTS-HD, the Symbol, & DTS and the Symbol together are
registered trademarks of DTS, Inc. © DTS, Inc. All Rights Reserved.
Internet Explorer, Windows Media Audio and Windows Media
Player are either registered trademarks or trademarks of Microsoft
Corporation in the United States and/or other countries.
Android™
Google Play™
Android and Google Play are trademarks of Google Inc.
Supports iOS 7 or later for setup using Wireless Accessory
Configuration.
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that
an electronic accessory has been designed to connect specifically
to iPod, iPhone, or iPad, respectively, and has been certified by the
developer to meet Apple performance standards.
The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi
Alliance®.
The Wi-Fi Protected Setup™ Identifier Mark is a certification mark of
Wi-Fi Alliance®.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone, or
iPad may affect wireless performance.
iPad Air and iPad mini are trademarks of Apple Inc.
The Bluetooth® word mark and logos are registered trademarks
owned by Bluetooth SIG, Inc. and any use of such marks by
Yamaha Corporation is under license.
App Store is a service mark of Apple Inc.
Bluetooth protocol stack (Blue SDK)
iTunes, AirPlay, iPad, iPhone, iPod, and iPod touch are trademarks
of Apple Inc., registered in the U.S. and other countries.
Copyright 1999-2014 OpenSynergy GmbH
All rights reserved. All unpublished rights reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC in the
United States and other countries.
x.v.Color™
“x.v.Color” is a trademark of Sony Corporation.
(For RX-V481D)
The unit supports DAB/DAB+ tuning.
127
En
“SILENT CINEMA” is a trademark of Yamaha Corporation.
MusicCast is a trademark or registered trademark of Yamaha
Corporation.
Explanations regarding GPL
This product utilizes GPL/LGPL open-source software in some
sections. You have the right to obtain, duplicate, modify, and
redistribute this open-source code only. For information on GPL/
LGPL open source software, how to obtain it, and the GPL/LGPL
license, refer to the Yamaha Corporation website
(http://download.yamaha.com/sourcecodes/musiccast/).
Specifications
The specifications of this unit are as follows.
HDMI
Input jacks
HDMI Features:
• 4K UltraHD Video (include 4K/60, 50Hz 10/12bit), 3D Video, ARC (Audio Return Channel), HDMI
Control (CEC), Auto Lip Sync, Deep Color, “x.v.Color”, HD audio playback, 21:9 Aspect Ratio,
BT.2020 Colorimetry, HDR Compatible
Analog Audio
• Audio x 4
Video Format (Repeater Mode)
• VGA
• 480i/60 Hz
• 576i/50 Hz
• 480p/60 Hz
• 576p/50 Hz
• 720p/60 Hz, 50 Hz
• 1080i/60 Hz, 50 Hz
• 1080p/60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz
• 4K/60Hz, 50Hz, 30 Hz, 25 Hz, 24 Hz
Digital Audio (Supported frequencies: 32 kHz to 96 kHz)
• Optical x 1
• Coaxial x 2
Video
• Composite x 4
HDMI Input
• HDMI x 4
Other jacks
• USB x 1 (USB2.0)
• NETWORK (Wired) x 1 (100Base-TX/10Base-T)
• NETWORK (Wireless) x 1 (IEEE802.11b/g/n)
Audio Format
• Dolby TrueHD
• Dolby Digital Plus
• Dolby Digital
• DTS-HD Master Audio
• DTS-HD High Resolution Audio
• DTS Express
• DTS
• DSD 2-ch to 6-ch
• PCM 2-ch to 8-ch (Max. 192 kHz/24-bit)
Output jacks
Analog Audio
• Speaker Out x 5 (FRONT L/R, CENTER, SURROUND L/R*)
* Note: assignment is possible. [SURROUND, BI-AMP (FRONT L/R), ZONE B]
• Subwoofer Out x 1
• Headphone x 1
Content Protection: HDCP 2.2 compatible
Video
• Composite x 1
Link Function: CEC supported
HDMI Output
• HDMI OUT x 1
Other jacks
YPAO MIC x 1
128
En
TUNER
Network
Analog Tuner
• [RX-V481 U.K. and Europe models]
FM/AM with Radio Data System x 1 (TUNER)
• [RX-V481 Other models]
FM/AM x 1 (TUNER)
• [RX-V481D U.K. and Europe models]
DAB/FM with Radio Data System x 1 (TUNER)
• [RX-V481D Other models]
DAB/FM x 1 (TUNER)
PC Client Function
Compatible with DLNA ver. 1.5
AirPlay supported
Internet Radio
Wi-Fi function
• Capable of WPS by PIN Method and Push-Button-Method
• Capable of sharing with iOS devices by wireless connection
• Capable of Direct Connection with Mobile Device
• Available Security Method: WEP, WPA2-PSK (AES), Mixed Mode
• Radio Frequency Band: 2.4GHz
• Wireless Network Standard: IEEE 802.11 b/g/n
USB
Capable of Mass Storage Class USB Memory
Current Supply Capacity: 1.0 A
Compatible Decoding Formats
Bluetooth
Decoding Format
• Dolby TrueHD, Dolby Digital Plus
• Dolby Digital
• DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS Express
• DTS, DTS 96/24, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1
Sink Function
• Source Device to AVR (ex. Smartphone/Tablet)
• Supported profile
– A2DP, AVRCP
• Supported codec
– SBC, AAC
Post Decoding Format
• Dolby Pro Logic
• Dolby Pro Logic II Music, Dolby Pro Logic II Movie, Dolby Pro Logic II Game
• DTS Neo: 6 Music, DTS Neo: 6 Cinema
Source Function
• AVR to Sink Device (ex. Bluetooth Headphone)
• Supported profile
– A2DP
• Supported codec
– SBC
Capable of Play/Stop Operation from Sink Device
Bluetooth version
• Ver. 2.1+EDR
Wireless output
• Bluetooth Class 2
Maximum communication distance
• 10 m (33 ft) without interference
129
En
Audio Section
Output Level / Output Impedance
• SUBWOOFER
Rated Output Power (2-channel driven)
• [U.S.A. and Canada models] (20 Hz to 20 kHz, 0.09% THD, 8 Ω)
• [Other models] (20 Hz to 20 kHz, 0.09% THD, 6 Ω)
– Front L/R
Headphone Jack Rated Output / Impedance
80 W+80 W
• [U.S.A. and Canada models] (1 kHz, 0.9% THD, 8 Ω)
– Front L/R
– Center
– Surround L/R
1 V/1.2 kΩ
• AV 2 etc. (1 kHz, 50 mV, 8 Ω)
100 mV/470 Ω
Frequency Response
95 W+95 W
• AV 2 etc. to Front (10 Hz to 100 kHz)
+0/-3 dB
95 W
95 W+95 W
Signal to Noise Ratio (IHF-A Network)
• AV 2 etc. (DIRECT) (Input 1 kΩ Shorted, Speaker Out)
110 dB or more
Rated Output Power (1-channel driven)
Residual Noise (IHF-A Network)
• [U.S.A. and Canada models] (1 kHz, 0.9% THD, 8 Ω)
• [Other models] (1 kHz, 0.9% THD, 6 Ω)
• Front L/R (Speaker Out)
– Front L/R
115 W/ch
– Center
115 W/ch
Channel Separation
– Surround L/R
115 W/ch
• AV 2 etc. (Input 1 kΩ Shorted, 1 kHz/10 kHz)
Maximum Effective Output Power (1-channel driven)
Volume Control
• [U.S.A. and Canada models]
• Range
(1 kHz, 10% THD, 8 Ω)
– Front L/R, Center, Surround L/R
140 W/ch
(1 kHz, 10% THD, 6 Ω)
– Front L/R, Center, Surround L/R
145 W/ch
135 W/ch
70 dB/50 dB or more
MUTE, -80 dB to +16.5 dB
0.5 dB
Tone Control Characteristics
• Bass Boost/Cut
• Bass Turnover
• [Other models] (1 kHz, 10% THD, 6 Ω)
– Front L/R, Center, Surround L/R
• Step
150 μV or less
• Treble Boost/Cut
• Treble Turnover
±6 dB/0.5 dB Step at 50 Hz
350 Hz
±6 dB/0.5 dB Step at 20 kHz
3.5 kHz
Dynamic Power (IHF)
Filter Characteristics
• [U.S.A. and Canada models]
– Front L/R (8/6/4/2 Ω)
110/130/160/180 W
• [Other models]
– Front L/R (6/4/2 Ω)
110/130/160 W
(fc=40/60/80/90/100/110/120/160/200 Hz)
• H.P.F. (Front, Center, Surround)
12 dB/oct.
• L.P.F. (Subwoofer)
24 dB/oct.
Damping Factor
• Front L/R, 20 Hz to 20 kHz, 8 Ω
100 or more
Input Sensitivity / Input Impedance
• AV 2 etc. (1 kHz, 100 W/6 Ω)
200 mV/47 kΩ
Maximum Input Signal
• AV 2 etc. (1 kHz, 0.5% THD, Effect On)
2.3 V
130
En
Video Section
DAB Section (RX-V481D)
Video Signal Type
Tuning Range
• [U.S.A., Canada, Korea, Taiwan, Brazil and General models]
• [Other models]
NTSC
174 MHz to 240 MHz (Band III)
PAL
Support Audio Format
Video Signal Level
• Composite
MPEG 1 Layer II/MPEG 4 HE AAC v2 (AAC+)
1 Vp-p/75 Ω
Antenna
Video Maximum Input Level
75 Ω unbalanced
1.5 Vp-p or more
Video Signal to Noise Ratio
50 dB or more
Tuning Range
• [Asia, Taiwan, Brazil and General models]
• [Other models]
87.5 MHz to 107.9 MHz
87.5/87.50 MHz to 108.0/108.00 MHz
87.50 MHz to 108.00 MHz
50 dB Quiet Sensitivity (IHF, 1 kHz, 100% MOD.)
• Mono
Power Supply
• [U.S.A. and Canada models]
• [Taiwan, Brazil and General model]
FM Section
• [U.S.A. and Canada models]
General
AC 120 V, 60 Hz
AC110 to 120/220 to 240 V, 50/60 Hz
• [China model]
AC 220 V, 50 Hz
• [Korea model]
AC 220 V, 60 Hz
• [Australia model]
AC 240 V, 50 Hz
• [U.K. and Europe models]
• [Asia model]
AC 230 V, 50 Hz
AC 220 to 240 V, 50/60 Hz
Power Consumption
3 μV (20.8 dBf)
Signal to Noise Ratio (IHF)
260 W
Standby Power Consumption
• Mono
65 dB
• HDMI Control Off, Standby Through Off, Network Standby Off
0.1 W
• Stereo
64 dB
• HDMI Control On, Standby Through On (No Signals), Network Standby Off
0.9 W
• HDMI Control Off, Standby Through Off, Network Standby On, Bluetooth
Standby Off
Harmonic Distortion (IHF, 1 kHz)
• Mono
0.5%
– Wired
1.8 W
• Stereo
0.6%
– Wireless (Wi-Fi)
1.9 W
– Wireless Direct
2.0 W
Antenna Input
75 Ω unbalanced
AM section (RX-V481)
Tuning Range
• [U.S.A. and Canada models]
• [Asia, Taiwan, Brazil and General models]
• [Other models]
530 kHz to 1710 kHz
530/531 kHz to 1710/1611 kHz
• HDMI Control Off, Standby Through Off, Network Standby On (Wired),
Bluetooth Standby On
1.8 W
• HDMI Control On, Standby Through On (No Signals), Network Standby On
(Wireless Direct), Bluetooth Standby On
2.4 W
Maximum Power Consumption
• [Asia, Taiwan, Brazil and General models]
531 kHz to 1611 kHz
131
En
600 W
Dimensions (W x H x D)
435 x 161 x 327 mm (17-1/8” x 6-3/8” x 12-7/8”)
Reference Dimensions (with wireless antenna upright)
* Including legs and protrusions
435 x 225.5 x 327 mm (17-1/8” x 8-7/8” x 12-7/8”)
Weight
8.1 kg (17.9 lbs)
* The contents of this manual apply to the latest specifications as of the publishing date. To obtain
the latest manual, access the Yamaha website then download the manual file.
132
En
Yamaha Global Site
http://www.yamaha.com/
Yamaha Downloads
http://download.yamaha.com/
Manual Development Department
© 2016 Yamaha Corporation
Published 02/2016 NV-B0
YH632A0/EN1
1111
@YAMAHA
AV Receiver/Ampli-tuner audio-video
Easy Setup Guide/Manuel de configuration rapide
RX-V581/RX-V481/RX-V481D/HTA-50691
HTA·40691TSA·5810
Manual Developmen! Department
C 2016YamahaCOfpora\IOO
[!!0
Pu~iShed02/2016
KS·AO
PT;·;;;~~al
1"
I
0
- -
.a
Frontspeaker (R)
Enoo<nte avant(O)
·rm:e:
Read the supplied booklet "Safety Brochure" before using the unit
This document explains basic speaker system setup and surround
sound playback from a 80/DVO player via the unit. In this document.
the RX-V58t is used !Of illustration purposes Some parts Of
components, such as jacks 01' remote control keys. may vary by
spec1f1c model. Such differences are indicated as requ1red
FOI' more information about this product. refer to the Owner's Manual
included on the supplied CO-ROM
The latest Owner's Manual can be downloaded from the following
website
http:l/download. yamaha.com/
[For U.S. customers only]
Visit the following webs1te !Of additional information, FAQ's, downloads
such as "Owner's Manual" and product updates
http:/lusa. yamaha.corn/supporV
AV SETUP GUIDE
OYAMAHA
0
Center speaker
Enceontacentrale
lml
Surroondspeaker(R)
Enceinted'ambiance(D)
-
Surroundspeaker (L)
Enceonted'ambiance{G)
1
Will
Frontpruser.cespeaker(A)
IUD
Fronlpreser.cespeaker(L)
:_ :~~~~ ~-~~~~':.:v:n~ ~~ :~~~ ~-~rl!-~~ ~=n~~G~
ForRX-V5811HTA-5069/TSA-5810onty
Pour le RX.V581/HTR-5069fTSA-5810 uniquement
..
-----:Will i
.a l ~ Ji
'---i-1 ~ I ,____
i ~ :-
Front speaker(L)
Enceinteavant(G)
0
'
'
AV SETUP GUIDE is an app that guides you
through the process of connect ing a TV or
playback device, such as a BD/DVD Of CD
player, and speakers to the AV receiver. Search
"AV SETUP GUIDE" on the App Store or
Google Play for details
Accessories used with this document
). Remoteconlrol
2 Batter1es (AAA, R03, UM-4) (x2)
3 YPAO microphone
The followmg cables (not supplied) are required to build the system
described in this document
• Speaker cables (depending on the number of speakers)
• Audiopincable(xt)
• HDMI cables (~3)
• NetWOfk cable (xi) (when connecting to a router via a network
cable)
Branchement surune
pnsesecteur
VOLTAGE SELECTOR
(Taiwan, Bralil and General models only)
{t.4<:KUitespourTaiwan,leBn!sdet~le
standarduniquement)
:-----------!
e
0
Placing speakers
Set up the speakers in the room using the diagram as a reference
Front speaker (L)
Front speaker (R)
. . Center speaker
. . Surround speaker (L)
~ Surround speaker (R)
lia Front presence speaker (Lr
tiD Front presence speaker (R)"
mw
m.
~ Subwooler
Connecting speakers/subwoofer
Before connecting the speakers, remove the unit's power cable from
1he AC wall outlet and turn off the subwooler
• When connecting 6-ohm speakers
(U.S.A. and Canada models only)
Set the unit's speaker impedance to "6 0 MIN". FOf details, see
"Set11ng the speaker impedance" in the Owner's Manual
• Precaution for connecting of the speaker cables
Improper connecting of the speaker cables may cause short c ircUit
and also damage the uflll or the speakers
- Twist the bare w tres of the speaker cables firmly
together
- Oo not let the core w1res of the speaker cable
touch one another
- Oo not let the COI'e w1 res of the speaker cable
e
Establishing a network connection
Establish wired network connection [!]. Of a wireless network
connection [§), i1 accordance With your netWOfk enwonment
[!] Wired network connection
[§]Wireless network connection
"For RX-V581/HTR-5069{TSR-5810only
e
Connecting external devices
~
come into contact with the unit's metal parts (rear
panel and screws)
If "Check SP Wires" appears on the front display when the unit 1s
turned on. turn off the unit and then check the speaker cables
short circu it
Ralsethewirelessantennasothatitisstandingupstraight
(Procedures for connect ing the uflllto a w1retess router are described
instep Q J
Nollce
Do not apply excesSive force on the antenna. Domg so may damage 11
0
Pour de plus amptes informations sur ce produ1t, reportez-vous au
Mode d"emploi mclus sur le CD-ROM fourn1
Vous pouvez telecharger le Mode d'emptoi le plus recent depuis te
SlteWebsuivant
http:/fdowntoad.yamaha.comJ
AV SETUP GUIDE
OYAMAHA
Connecting the power cable to an AC
wall outlet, and turning on the unit
Before connecting the power cable
(Taiwan, Brazil and General models only)
Set the switch p:::>sition of VOLTAGE SELECTOR according to your
locaiYOitage
Voltages are AC 110----120/220---240 V. 50160 Hz
1
2
Lisez le livret fourni • Brochure sur Ia securite • avant d'utiliser l"unite
Ce document dOCntla conflgurat1on de base du systeme d'enceinte
etta lecture en soo surround depUis un fecteur BD/DVD via !'unite
Dans ce document, le RX-V581 est utilise a titre d'illustration_ Certains
composants ou pieces. comme les prises ou les touches de Ia
tetecommande. peuvent var ier selon te modele spec1fique De telles
dillererx:essontindiqueesaubesoin
Press ~ (receiver power) to turn on the
unit.
Turn on the TV and switch the TV input to display
video from the unit (HDMI OUT jack).
0
AV SETUP GUIDE est une app qui YOUS guide a
travers le processus de connexion d'un tetev1seur
ou d"un appareil de lecture. comme un lecteur
BD/DVD ou CO, et des enceintes a l'ampli-tuner
aud1o-vidOO. Recherchez ~ AV SETUP GUIDE •
sur I'App Store ou Google Play pour en savoir
plus
Accessoires utilises avec ce document
,'L Tetecommande
.? Piles (AAA, R03, UM-4) (x2)
@ MICrophone YPAO
Les cables suivants (non fournis) sont necessa1res pour rea liser te
systeme dOCnt dans ce document
• Cflbles d'enceinte (en fonction du nombre d'enceintes)
• Cflble de broche audio<~ 1)
• Cables HDMI (x3)
• Cflble reseau (x t ) (pour Ia conne~ion a un routeur via un cflble
reseau)
e
Positionnement des enceintes
Configurez tes enceintes dans Ia piece en vous servant du schema
commereference
.aw Enceinteavant(G)
m . Enceinteavant(D)
. . Enceinte centrale
_ . Encelnted·ambiance(G)
~ Enceinted'ambiance(D)
lia Enceinte de presence avant <Gr
tiD Enceinte de presence avant <Dr
·Pour le RX-V5811HTR-5069!TSR-5810 uniquement
Debranchez le cflble d'alimentatiOn de !'unite de Ia pnse secteur et
eteigneztecaissondegravesavantderaccordertesenceintes
• L.orsduraccordementd 'encelntes6ohms
(modl!les pour tes Etats-Unfs et le Canada uniquement)
RE!g lez l'impE!dance des enceintes de !'unite sur • 6 0 MIN •. Pour
en savo1r plus. voir • Regtage de !'impedance des enceintes •
dans le Mode d'emptoi
• Precautions relatl~~es au raccordement des cAbles d 'enceinte
Un raccordement incOI'rect des cflb les d'enceinte peut provoquer
un court-circuit et egatement endommager !'unite ou les enceintes
- Torsadez solidement .tes fits denudes des cflbles ~
d'ence1nte ensemble
t4ll\
\1) \..IJ
e
Etablissement d' une connexion reseau
[§] Connexion reseau sans fil
Retevezl'antennesansf ildesortequ'ellesoitdroite
(Lamarche a suivre pour connecter l'untte a un routeur sans fit est
decritearetape O J
Avis
N·exercezpasunelorceexcessovesurrantenne.souspeonedel'endom:nager
0
Raccordement du c3ble d'alimentation
a une prise secteur et mise sous
tension de l'unite
Avant de raccorder le cAble d 'alimentatlon
(Modetes pourTa"lwan, te Bresil et modele standard uniquement)
Setectionnez Ia position de permutation du commutateur VOLTAGE
SELECTOR (Wtecteur de tension) en fonction de fa tension kx:ale
Les tensions sont CA110--1201220--240V. 50160 Hz
1
2
- Ne laissez pas les fils conducteurs du cflbfe
d'enceinte entrer en contact avec tes parties
metalliques de !'unite (lace arriere et vis)
Raccordement des appareils externes
[!] Connexion reseau c3blee
Raccordement des enceintes ou du
caisson de graves
- Ne laissez pas les fils conducteurs du cflble
d'enceintesetoucher
0
~tablissez une conne~1on reseau cflbtee [!] ou une connexion reseau
sansfit [§] enfonctiOndevotreenvironnementreseau
e. Caisson de graves
e
Si • Check SP Wires • apparait sur l'afhcheur de Ia lace avant II
Ia mose sous tension de l'u011e. ete1gnez-la. pu1s venflez que les
cflbles d'enceinte ne soot pascourt-circuites
Appuyez sur ~ (alimentation de l'ampll·tuner) pour
mettre \'unite sous tension.
Mettez le t8h!viseur sous tension et changez Ia source
d 'entree afin d 'afficher l'image partir de l'unite (prise
a
HDMI OUT).
r-----------,
F-1-====~~'==~
The unit
t..:unit8
VOlUME
(~Pressthecursorkey().
Appuyezsurla!Ovdleducmseur()
..!
ENTER---+-----,
D-1
Cursorkey (
Touchedu
)
'"~'"' ( ~--
The network name olthe o.mit IS
displayedwtlere"•• • ••"is indica.led.
Lenomder6seaudel"unit8s"affichelll
oilestindiqlHI• •• • • ••
D-1
RETURN
0
Connecting the unit to a wireless
network
0
• Skip this step and proceed to step
when the unit is
connected to a router via a network cable ([!] 1n step C))
• In addiHon to the wireless connection methods described below.
the un1t can easily be connected to a wrreless network us1ng the
MusicCast CONTROLLER app For more information. see the
separate booklet "MusicCast Setup Guide" supplied with the
unit
The Wireless Accessory Conliguratton (WAC) screen shown in
illustratton [£] is displayed on the TV when the unit is turned on for the
first time after purchase It may take se>Jeraltens of seconds !Of the
screen to be displayed
Note
lllh&WI'I:;scrllllntsnotdiSPiay&d,conftgur&wrr&lessMtworl<s&Utngslromttr&
setup menu See "Conne<:trng to a network device w"elessty" in the Owner"s
Manual
a
a
The fol~ing connection methods are described in this sect1on
when using an iOS device to connect to a
• Follow procedure
wireless network
when connecting to a wireless router (access
• Follow procedure
point) that supports WPS
• Press ENTER if a wrretess connection method other than
Of
below will be used. and follow the on-screen instructions
0
Note the following regarding YPAO measurement
• Test tones are output at h1gh volume and may surprise Of frighten
small children
• Test tone volume cannot be adjusted
• Keep the room as qutet as possible
• Stay in a corner of the room behind the listening pos ition so
that you do not become an obstacle between speakers and the
YPAO microphone
• Do not connect headphones
Press the cursor key (
2
Note
ll an ermr message (soch as E·t) or warn1ng message (soch as
W-21 appears. see "Error messages· or ·warn1ng messages· unde<"
"Opt1mzrng the speaker settings automatically (YPAO)" in the Owner"s
Manual
4
ENTER.
5
Press RETURN to cancel WAC when the screen shown
Use the cursor keys
( <lit> ) to select " SAVE" (Save)
and press ENTER.
DUsing WPS push-button configuration
1
Confirm the results displayed on the screen and press
6
Disconnect the YPAO microphone from the unit.
This completes optimizatton of the speaker settrngs
In illustration [£] Is displayed on the TV.
2
Press and hold the INFO (WPS) key on the unit's front
panel tor more than 3 seconds.
"Press WPS button on Access Poinr will be displayed in the
front display
3
Push the WPS button on the wireless router.
When setup is complete and a connectkln has been
established. ·completed" will be displayed in the front display.
Note
II"Notconnected"rsdrsptayed.repeatlhepo-ocesstromsreplortryanother
connectronmethod
0
Playing back a BD/DVD
Now let"s play back a BD/DVD
We recommend playing back multichannel audio (5.1-channef Of
ffiO!"e)tofeelsurroundsoundproducedbytheunlt
1
Turn on the BD/DVD player.
2
Press INPUT(L:. / V ) to show " HDMI1 " in the front
display.
"HDMI 1" is selected as the input source
3
Start playback on the BD/DVD player.
4
tnpursouree
Soureed"entr9e
MK:rophoneYPAO
Connexion de !'unite
Iii
a un reseau sans
0
• Sautez cette etape et passez a l'etape
si l"untte est
connectee a un routeur vta un cable reseau ([!] a retape C)l
• Outre les methodes de connexion sans fit decrites ci-dessous.
!"unite peut tacilement ~tre connectee un reseau sans Iii au
moyen de rappficalion MusicCast CONTROLLER. Pour de plus
ampfes informatklns. voir le livret separe • Guide d"installation
MusicCast • accompagnantf"unile
Note
St l"kran WM; 1\11 ~ afftC~ pa~. contrgur11.z 111~ r~l:.1g11~ du r(l~;~~:.~u ~an~ Iii
depuos 1e menu de conliguratron Voor • Raccordement <1 un pet1pMroque de
r~au sans Iii ·dans te Mode d"emploi
Les methodes de
section
conne~ion
0
a
a
Veuiffez noter tes points suivants concernant Ia mesure YPAO
• Les signaux tests etant emis a un volume eleve, ils peuvent
surprendreoueffrayerlesjeunesenfants
• Le volume du stgnaltest ne peut pas lltre regte
• Faites en sorte que fa piece soil fe plus calme posstble
• Restez dans un coin de Ia piece demere Ia position d"6coute afin
denepaslaireobstacleentrelesenceintesettemiCrophofle
YPAO
• Ne raccordez pas d"6couteurs
2
keys can be selected with the touch of a button
(SCENE function). By default, the input source and
sound program settings assigned to each SCENE
key are as follows.
Input
Sound program
@
HDMI1
Sci·Fi
G
AUDIO t
STRAIGHT
6
NET RADIO
7ch Stereo
3
TUNER
7ch Stereo
a ;~:g~;!!sa~~u!~~:u~=~:c:~~:~t~:;~~;:
Selectionnez le nom de l ' unite dans " SET UP
4
peripherique iOS et touchez " Next "·
you
D Utilisation de Ia configuration a I'aide du boutonpoussoirWPS
to enjoy playback sources In your favorite sound
mode.
II est possible de configurer Ia connexion sans Iii en appuyant sur fe
bouton WPS situe sur fe routeur sans Iii (poin1 d"acces)
STRAIGHT Input sources will be played without any sound
field effects
1
DIRECT. Input sources will be p layed using only those
functions absolutely vital to playback to minimize noise
generated by electronic circuitry Functions such as the front
panel display will be temporarily disabled to achieve Hi-Fi
sound quality.
ENHANCER: Compressed music stored on a Bluetooth device
or use storage device will be played with additional depth
and breadth
BASS: Extra bass allows you to enjoy enhanced bass sounds
PROGRAM ( <.l/ 1> ): Sound programs suttable tor movies.
music and stereo playback can be selected
Appuyez sur RETURN pour annuler WAC lorsque
1'0cran illustre en[£] s 'affiche sur le t010viseur.
2
Maintenez enfoncee Ia touche INFO (WPS) sur le
panneau avant de l ' uniti! pendant plus de 3 secondes.
" Press WPS button on Access Point • s"affichera sur le
panneauavan\
3
Appuyez sur le bouton WPS du routeur sans til.
Une lois que Ia configuratton est terminee et qu·une connexion
est etabhe. • Completed - s'affiche sur le panneau avant
Placez le microphone YPAO sur Ia position d 'ecoute
Appuyez sur ENTER.
Note
So un message d"erreur (CQifYTIO E·t) ou un message d"aW!ftossement
(ccrnmeW-2)appalait.vorr-Messagesd"erreur·ou·Messages
d"ave11ossement • sous • Oplimrsatron automalique des r~lages
d"enceontes (YPAO) • dans le Mode d"empb
1'0cran comme illustre en @].
Sutvez les instructions affichees sur recran du periphenque iOS
pour configurer res regtages
Allumez le c a isson de graves et r6glez le volume
a meith~. Si Ia trequence de coupure est r6g1able ,
La mesure commence dans res 10 secondes
Lamesuredureenviron3minutes
L"ecranifluS1reen iiJ apparaitsurfeteteviseurlorsquelamesure
estterminee
Appuyez sur Ia touche du curseur (v ) lorsque
NEW AIRPLAY SPEAKER " sur l 'i!cran WI-Fi du
Confirmez les resultats affiches sur 1'0cran et appuyez
sur ENTER.
5
Utilisez les touches du curseur ( <J / t> ) pour
selectionner " SAVE " (Save) et appuyez sur ENTER.
6
Debranchez le microphone YPAO de l 'unite.
L'opt1misation des regtages d"enceintes est maintenantterminee
0
Lecture d' un disque BD/DVD
A present, lisons un disque BD/DVD
Nous vous recommandons de lire le son multivoie (5.1 voies ou plus)
pour sentir fe son d"ambiance emis par !'unite.
1
Allumez le lecteur de disques BD/DVD.
2
Appuyez sur INPUT ( L:. / 'V) pour afficher « HDMI1 "
sur l 'afficheur de ra face avant.
3
a
La source d 'entree et les r6glages attrlbues aux
touches SCENE peuvent etre selectionnes en
touchant un bouton (fonctlon SCENE). Par dl!faut, Ia
source d 'entree et les regrages du programme sonore
attrlbues chaque touche SCENE sent les suivants.
a
Touche SCENE
Input
@
HDMI 1
Sci-Fi
G
AUOIO 1
STRAIGHT
6
NET RADIO
7chStereo
TUNER
7chStereo
e
Programme sonore
a ~~~!'!:~~~~~=uc:: ~~~~i~~~:~ou~~:~es
permettent de profiter de sources de lecture dans
votre mode sonore favorl.
STRAIGHT Les sources d"entree serontlues sans aucun effet
de champ sonora
• HDMI 1 • est selectionne comme source d"entree
Note
S1 • Not connected • s"afloche. recommencez depurs l"lnape t ou essayez une
autrerrtelhodedeconnex>on
Sovoosn"entendezpaslesond"amboanceousiaucunsonn·estllmrsd"une
ence1nte spOCdique. VQor • Gu1de de dllpannage • dans le Mode d"empb
L"€!craniflustreen[!]apparai1surfeteteviseur
et contirmez le nom de reseau de l ' unlte affiche sur
2
Appuyez sur VOLUME pour n!gler le volume .
Note
PtacezlemocrophoneYPAOavotrepOSIIiond"OCOute(ahauteur
d"oreolles).Nousconseollonsl"utolosatrond"untrepredccrnmesupporlde
mocrophone.Lorsquevoosulolisezo..<ltrllpred.utolosezlesVIsdecedermer
pOUrSiab<l oserle mocrephone
l 'ecran WAC illustre en [£] s 'affiche sur le tel0viseur
SCENE key
e
1
5
avant.
B Partage des reglages du peripherique iOS
a
a plusieurs reprises sur STRAIGHT pour
et branchez- le sur Ia prise YPAO MIC sur le panneau
a
Les regtages de connexion sans fit sur res peripheriques iOS (iPhone/
1Pod touch)" peuvent ~tre factlement appliques a !'unite
• Un peripMrique iOS ex6cu1ant iOS 7 ou ufterieur est necessaire
Confirmez que le p{lripherique iOS est connecte au routeur sans fit
avant de poursuivre fa configuration
Appuyez
selectlonner « STRAIGHT "·
Note
Lorsque • STRAIGHT •{dllcodagedorect)estactM!!.chaqueenceonte
produrt dorectementle sognal audro de sa propre vore (sans traotement du
champsonore)
r6glez· la sur Ia valeur maximale.
recran
The input source and settings assigned to SCENE
4
Devocename
Nomdel'appareil
Ceci !ermine Ia procedure de configuration de base
• Suivez Ia procedure
si vous vous connectez a un routeur sans
Iii (potnt d"acces) compat1ble WPS
. ~~:Q~Q:~::~~es r;::::e~ee~:~ve;~~:ss~:~r~~~::
Optimisation automatique des
reglages d'enceintes (YPAO)
La fonction Yamaha Parametric room Acoustic Optimizer (YPAO)
permet de d€!tecter res racCOfdemen\s des enceintes et de mesurer
Ia distance entre ces dernieres et fa position d"6coute. Effe opt imise
ensuite automatiquement les r{lglages des enceintes tels que les
parametres d'{lquifibre du volume et les parametres acoustiques qui
conviennenta lapiece.
1
sUtvantes sont decntes dans cette
si vous utifisez un peripherique iOS pour
• Suivez Ia procedure
vousconnectera unreseau sans Iii
Press ENTER.
III
Usteningposition
Pos<bond"8coute
YPAOm~
L"e<:ran Wireless Accessory Configuration (WAC) iflustre en [£]
s"affichesurleteleviseurlorsdelapremieremisesoustensionde
f'untte apres rachat. L"affichage de recran peut prendre pfusieurs
dizainesdesecondes
Place the YPAO microphone at your listening position
The measurement will start in 10 seconds
It takes about 3 mtnutes to measure
The screen shown in illustratkln
appears on the TV when the
measurement finishes.
~
speaker. see "Troubleshootrng" rn the 0wne(s Manual
The screen shown in illustration [!] appears on the TV
shown In illustration @).
Wireless connection can be configured with one push of the WPS
button on the wtrefess router (access point)
Note
When surround sound os no1 heard. or no sour.d 1S output trom a specrtoc
Note
Pl.ace !he YPAO mocrophone at your hstenong posrtron (same he1ght as
your ears) Werocorrmendtheuseolatropodasamrcrophonestand
Youcanusethetnpodscrewstostabolozethemicrophone
3
0
[I]
Earheigttt
a
This completes the basic setup procedure
panel.
Select the unit's name from " SET UP NEW AIRPLAY
Follow the instructions displayed on the iOS device screen to
configure the settings
Press VOLUME to adjust the volume .
a nd connect it to the YPAO MIC jack on the front
in illustration [£] is displayed on the TV, and confirm
tap " Next':
5
maximum.
) when the WAC screen shown
SPEAKER" In the WI-Fi screen on the lOS device, and
Press STRAIGHT repeatedly to select " STRAIGHT':
Note
When "STRAIGHT" {strarght decode) IS enabled. each speaker produces
eachchannelaud oOslgnaldrrectly(wllhoutsour.dheldprocesslng)
If the crossover frequency is adjustable, set it to
the unit's network name displayed in the screen as
2
4
Turn on the subwoofer and set the volume to half.
a a
Wireless connection settrngs on iOS devtces (iPhone/iPod touch) " can
easifybeappliedtotheunit
• Ant0Sdevtcerunntngi0S7orlaterisrequrred
Con!irm that the iOS device is connected to the wireless router
before proceedrng w1th con!igura\lon
Optimizing the speaker settings
automatically (YPAO)
The Yamaha Parametric room Acoustic Optimizer (YPAO) function
detects speaker connections. measures the distances from them
to your listening position(s), and then automatically optimizes the
speaker selttngs. such as volume balance and acoustic parameters.
tosuityourroom
B Sharing iOS device settings
1
Cursor keys
Touches de
~~
Lancez Ia lecture sur le lecteur de dlsques 80/DVD.
DIRECT Les sources d"entree seront lues au moyen des seules
fonctions absolument indtspensabfes a Ia lecture pour minimiser
le bruit genera par fe circutt electronique. Les foochons comme
rafficheurdelafaceavantserontprovisoirementdesactivees
pour obtentr une qualrte de son Ht-Fi
ENHANCER • La musique compressee stockOO sur un
dispositif Bfuetooth ou un dispositif de stockage USB est fue
avec une profondeur et une largeur supplementaires
BASS L"optron
sons graves
E~tra
graves vous permet d'ecouter plus de
PROGRAM ( <.l /1> ) . Des programmes SOnO(es convenant
au~ films, a Ia musique et a fa lecture stereo peuvent etre
setectionnes.
OYAMAHA
MusicCast Setup Guide
•
Home Audio Network with MusicCast
MusicCast is a brand new wireless musical solution from Yamaha, allowing you to share music
among all of your rooms with a variety of devices. You can enjoy music from your smartphone, PC,
NAS drive and music streaming service anywhere in your house with one easy-to-use app. For more
details and a lineup of MusicCast compatible products, visit our website.
musTccasr
Key features
Seamlessly control all MusicCast compatible devices with the dedicated "MusicCast
CONTROLLER" app.
Link a MusicCast compatible device to another device in a different room and play them back
simultaneously.
Play back music from music streaming services. (The compatible music streaming services may
differ depending on your region and product. Refer to the product information on our website
for details.)
En
1
Setting Up
• Preparation of the devices
Mobile device (smartphone, etc.)
To use the network features on the MusicCast compatible device, you need the
dedicated app "MusicCast CONTROLLER" for the operation. Search for the free app
"MusicCast CONTROLLER" on App Store (for iOS devices) or Google Play (for Android
devices) and install it to your device.
For details, refer to the instructions for this app in each store.
Connect the mobile device in which MusicCast CONTROLLER has been installed to the wireless
router in your home.
If your router supports multiple SSID's (network names), connect the mobile device to the first
access point ("SSID 1",etc.)
• Setting of the devices and playback
Create the following network (MusicCast Network) using the MusicCast CONTROLLER app.
2
En
1
Turn on the MusicCast compatible device.
2
Tap the MusicCast CONTROLLER app icon on your mobile device and tap "Setup."
Tip
If you have already connected a MusicCast compatible device to the network, tap "Settings" and then "Add New Device."
3
Operate the MusicCast CONTROLLER app following the onscreen instructions, then
press and hold the CONNECT button of the MusicCast compatible device (or the
remote control) for three seconds.
Refer to the Owner's Manual of each MusicCast compatible device for the CONNECT
button.
4
Set up the network
Operate the MusicCast CONTROLLER app following the onscreen instructions to set up
the network.
5
Operate the MusicCast CONTROLLER app to playback.
Tip
If you want to install a MusicCast compatible device to a location that is out of range of the wireless router, connect
another MusicCast support device to the router with a network cable to extend the range (Extend mode).
Standard Mode
Extend Mode
• Depending on where it is placed, the MusicCast compatible device may not be able to play back a high-resolution audio
source. In this case, connect the device directly to the router with a network cable.
En
3
Troubleshooting
Refer also to the troubleshooting section in the relevant Owner's Manual for the MusicCast
compatible device.
Turn on the device.
The device is turned off.
Enable network standby on the device.
The device is not connected to the MusicCast
Connect the device with the MusicCast CONTROLLER
network.
app.
Connect the mobile device to the wireless router and
The mobile device is not connected to the wireless
start the MusicCast CONTROLLER app.
router at your home.
Disable the cellular data transmission.
Turn on the MusicCast compatible device.
The MusicCast compatible device is turned off.
Enable network standby on the device.
The network parameters (IP address) have not been
obtained properly.
The setting of the wireless router has been changed.
The mobile device is not connected to the wireless
router at your home.
Enable the DHCP server function on your router.
Connect all MusicCast compatible devices to the
network with the MusicCast CONTROLLER app.
Connect the mobile device to the wireless router,
and set the MusicCast compatible device with the
MusicCast CONTROLLER app again.
Turn on the device.
The MusicCast compatible device is turned off.
Enable network standby on the device.
For further information, please visit our website:
http://www.yamaha.com/musiccast/
MusicCast is a trademark or registered trademark of Yamaha Corporation.
Android and Google Play are trademarks of Google Inc.
iPhone, iPad and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries.
4
En
MusicCast M»tm~tj\ MusicCast
.:1t 'Y I' IJ-? ~<:
fi~~ttZ"C \1J:C \o
MusicCast CONTROLLER ~{fC \, fi~ LT
<tC.~C
\o
-t 1 \.-{ Jvil#fi*~ Jv-9-~<=fi~ Ltc1~, MusicCast
-tJ\.-{Jvil#fi*b'c'~J@(J)Jv-9-~<=ti~~tlTC \
CONTROLLER C'~:tfLT< tC.~C\o
1d:l \
-tl \-1Jvil#fi*(f)-tJ \-1Jv=f'-9Jli11~~M~iJ~<= L T< tC.
0
<b-3-m, MusicCast CONTROLLER c9r<T(J)
MusicCast x-t»tm~~m~ L T <tC.~c \0
-tJ\.-{Jvil#fi*b'c'~J@(J)Jv-9-~<=ti~~nTC\
-tJ \-1 Jvil#fi*~ Jv- 9-~cm~ Ltc1~, MusicCast
CONTROLLER C'~tfLT< tC.~C\o fi~(J) SSID ~t~
--:JJv-9-~<=fi~9~~-g-~a=,
MusicCast X1»tm~e:
IPJC: SSID (J).:1t'Y I'!J-?~<=fi~LT< tC.~C \o
~~c::~L~ ,~~w~c::-:J~ 'L"~j:, J..~""fO)-if~ I'~<::'J[< tc.~~
'o
http://www.yamaha.com/musiccast/
MusicCast ~i--\7~ 1 \**rt~:f±O)!{fH~c9 o
Android, GooglePiay ~i Google Inc. O)ifiH~c9 o
iPhone, iPad, AirPlay ~i, *~SJ::tf-t-O)-@O)~f.:<c~~~tll"l'~ Apple Inc. O)R:lH~c9o iPhone ifM~~i, 7-1*/**rt~
:f±0)-5-{ 1z/A,L¥-:5~ffffl~tlll\*9o
YAMAHA CORPORATION
4
© 2015 Yamaha Corporation
Ja
ZS47140-1
~
musiCCOSI
a new world of wireless freedom
Welcome to MusicCast!
Bienvenue dans l'univers MusicCast!
You 've just opened a product that supports
MusicCast, an easy way to bring music to every
room in your home wirelessly.
Vous venez de decouvrir votre nouveau produit
compatible MusicCast, une technologie exclusive
Yamaha qui vous permet de profiter de Ia musique
dans toutes les pieces de votre maison, sans fil.
Whether you 're starting with a single speaker or
the ultimate home theater, MusicCast expands to
fit your needs, providing wireless multiroom audio
playback controlled by a simple app.
Que vous commenciez par une enceinte multiroom
seule ou par un amplificateur Home Cinema,
MusicCast s'adapte aVOS besoins et VOUS propose
un controle facile partir d'une seule application.
MusicCast can be found in a wide range of
Yamaha AV receivers, sound bars, speakers and
other Hi-Fi products, giving you more options
and versatility than ever before.
MusicCast est disponible dans de nombreux produits
Yamaha tels que nos amplificateurs Home Cinema,
barres de son, enceintes et elements separes Hi-Fi,
pour toujours plus de posslbilite et versatilite...
''"~"-'''OIQ r.J t>
a
vr4
~ Coogle play
il
.
.
ZT40400
Supplement for Pandora®
Using the Pandora service
The Pandora service is available in the U.S.A., Australia and New
Zealand only.
Le service Pandora est disponible aux États-Unis, en Australie et
en Nouvelle-Zélande uniquement.
Pandora is a free, personalized Internet radio service
playing only music you love. Enter your favorite artists or
tracks and Pandora will bring an effortless personal
soundtrack into your living room. Rate tracks as they
play, because Pandora caters to your tastes and adapts
stations to your feedback on the spot.
Since all Pandora accounts are portable, you can
always access your own personalized Pandora stations
from any computer or device in the United States,
Australia and New Zealand that supports Pandora.
Pandora is currently only available within these
countries due to licensing restrictions.
Account setup for Pandora
If you have not set up your Pandora account yet, the
account setup screen appears when you select
“Pandora”. To start using the Pandora service on the
unit, follow the procedure below to set up your Pandora
account.
• You can register up to eight Pandora accounts on the unit. For
details, see “Editing the Pandora accounts” (p.4).
1
the cursor keys to select “NO” and press
ENTER.
3
Perform the following procedure.
If you select “YES” in Step 2
a Press ENTER to enter the email address entry
screen.
b Use the cursor keys and ENTER to enter your
Pandora account email address and select “OK”.
To clear the entry, select “CLEAR”
Press NET repeatedly to select “Pandora”
as the input source.
The following screen is displayed on the TV if
you have not set up your Pandora account on
the unit yet.
c Press ENTER to enter the password entry screen.
d Use the cursor keys and ENTER to enter your
Pandora password and select “OK”.
The following screen appears if you have
successfully logged into your account.
Pandora is always free, with the option to upgrade to
Pandora One which is completely free of all advertising
and comes with additional features.
For more information, http://www.pandora.com
• To use this function, the unit must be connected to the Internet. For
detail on connections and network settings, refer to “Owner’s
Manual”.
• The actual display may be partly different from display images used
on this document depending on the model.
2
If you have a Pandora account, use the
cursor keys to select “YES” and press
ENTER.
• If the error screen appears, login has failed. In this case, read
the on-screen message and start all over again.
e Press ENTER.
If you do not have a Pandora account, use
1
En
If you select “NO” in Step 2
a Write down the URL and active code shown in the
TV.
2
Use the cursor keys to select “
press ENTER.
” and
5
Perform the following procedure.
If both artists and tracks are found
a Use the cursor keys to select “ARTISTS” or
“TRACKS” and press ENTER.
b Use the cursor keys to select a desired item and
press ENTER.
b Use a web browser on your PC to access the URL
and follow the on-screen instruction to register for a
Pandora account.
c After activation, press ENTER to log in with your
new Pandora account.
Creating Pandora stations
Pandora lets you create up to 100 custom radio stations
that play only music you love. Just type in your favorite
track or artist and Pandora will create a station that
plays similar music.
3
4
The selected item is added to your Pandora
stations. The playback starts automatically and the
playback screen is displayed.
Use the cursor keys to select “Create
Station” and press ENTER.
Use the cursor keys and ENTER to enter
the name of an artist or a track (all or part
of the name) and select “Search”.
The auto-complete list will appear on the right
side of the screen during the name entry. If you
select an artist or a track from the list, it will be
added to your Pandora stations. The playback of
the selected station starts automatically and the
playback screen is displayed.
To close the “Create Station” screen and return
to the browse screen, press RETURN.
• If there are no Pandora stations in your account, the “Create
Station” screen appears automatically. In this case, proceed to
Step 4 and create Pandora stations.
1
If either artists or tracks are found
Use the cursor keys to select a desired item and press
ENTER.
The selected item is added to your Pandora stations.
The playback starts automatically and the playback
screen is displayed.
If only one item is found
In this case, the item found is automatically added to
your Pandora stations. The playback starts
automatically and the playback screen is displayed.
If no items are found
Press ENTER and repeat Step 4 to try another
keyword.
• To return to the browse screen, press RETURN.
Press NET repeatedly to select “Pandora”
as the input source.
The browse screen is displayed on the TV.
• If playback of any Pandora station is ongoing, the playback
screen is displayed. Press RETURN to display the browse
screen.
2
En
Playback of Pandora stations
■ Browse screen
■ Playback screen
2
If you have created Pandora stations, follow the
procedure below to select a Pandora station to be
played.
1
Press NET repeatedly to select “Pandora”
as the input source.
The browse screen (My Station list) is displayed
on the TV.
• If playback of any Pandora station is ongoing, the playback
screen is displayed.
• If you have not signed in, the account list screen is displayed.
Use the cursor keys to select your Pandora account and press
ENTER.
2
Use the cursor keys to select a Pandora
station and press ENTER.
Playback of the selected station starts and the
playback screen is displayed.
1
2
4
1 My Station list
Displays the list of Pandora stations. Use the cursor keys
(q/w) to select a Pandora station and press ENTER to start
playback.
A speaker icon indicates the station currently played back.
2 Playback indicators (play/pause)
3
1 Playback indicators (play/pause)
2 Playback information
Displays the station name, album name, track title and
elapsed/total time.
3 Feedback indicator
Displays your feedback (thumb up/down) for the current track.
3 Operation menu
Press the cursor key (r) and then use the cursor keys (q/w)
to select an item. Press ENTER to confirm the selection.
To close the submenu, press RETURN.
Menu
4
3
1
Submenu Function
Create
Station
Creates a new Pandora station. For
details, see “Creating Pandora stations”
(p.2)
Delete
Station
Delete the Pandora station selected in
the list.
Sort by
Date
Sort the Pandora stations by date.
Sort by
ABC
4 Operation menu
Press the cursor key (r) and then use the cursor keys (q/w)
to select an item. Press ENTER to confirm the selection.
To close the submenu, press RETURN.
Menu
Submenu
Function
Gives positive feedback (thumb up)
for the current track.
Gives negative feedback (thumb
down) for the current track and skip to
the next track.
Sort the Pandora stations by name.
Bookmark
this track
Adds the current track to your
bookmarks on your Pandora profile
page at “http://www.pandora.com”.
Moves to the previous/next page of the
list.
Tired of
this track
Requests not to play back the current
track for a month and skip to the next
track.
Moves to 10 pages forward/backward.
Why this
track?
Display the information why this track
is selected.
Moves to the playback screen.
• You can also use the external device operation keys (a, s, d,
g) on the remote control to control playback.
• Submenus available in “
” vary depending on the selected item.
4 Item number/total
3
En
• All functions are not available during advertisement broadcast.
■ Switching information on the front
display
1
Press INFO.
Each time you press the key, the displayed item
changes.
Display items
Track (track title), Station (station name), Album (album
name), DSP Program (sound mode name), Audio
Decoder (decoder name)
Editing the Pandora accounts
You can register up to 8 Pandora accounts on the unit.
Follow the procedure below to add or remove Pandora
accounts, or switch to another Pandora account.
1
2
3
Press OPTION.
Use the cursor keys (q/w) to select
“Account Settings” and press ENTER.
Perform the following procedure.
To add a new Pandora account
a Use the cursor keys (q/w) to select “Add Account”
and press ENTER.
b Follow from Step 3 of “Account setup for Pandora”
(p.1).
To remove a Pandora account
a Use the cursor keys (q/w) to select “Remove
Account” and press ENTER.
b Use the cursor keys to select a Pandora account to
be removed and press ENTER.
c Use the cursor keys to select “OK” and press
ENTER.
To switch to another Pandora account
a Use the cursor keys (q/w) to select “Switch User”
and press ENTER.
b Use the cursor keys to select a Pandora account to
be used and press ENTER.
The browse screen (My Station list) for the selected
Pandora account is displayed.
Pandora, the Pandora logo, and the Pandora trade dress are
trademarks or registered trademarks of Pandora Media, Inc. Used
with permission.
© 2016 Yamaha Corporation
YH632A0/NS3EN
Supplement for Spotify
Using the Spotify service
English
Spotify gives you instant access to millions of songs on your mobile devices. Just hit play to stream anything you like.
The Spotify Connect feature lets you choose music on your Spotify app and listen on your Yamaha home entertainment system.
See Spotify.com for service area information.
1. Connect your device to your home
Wi-Fi network.
2. Get Spotify app and premium free
trial.
3. Playback of Spotify contents
Connect the unit and your mobile or tablet to your home
Wi-Fi network as shown in the illustration below. All
devices need to be on the same network.
Download the Spotify app for your mobile or tablet from
your app store, and take the Premium free trial.
Start Spotify app on your mobile or tablet device, log in
to Spotify and start playing a track.
The Spotify app and Premium account are required.
Visit spotify.com for details.
c Tap on the Now Playing bar to reveal extra controls
and tap the Speaker icon.
d Select the unit (network name of the unit) as the audio
output device.
Network connection(example)
www.spotify.com/connect
Internet
Spotify app (example)
Wireless router
Modem
The unit
Mobile or tablet device
• The playback screen is displayed on the TV connected to the unit.
• To use this function, this unit and your mobile or tablet must be
connected to the Internet. For detail on connections and network
settings, refer to “Owner’s Manual”.
Spotify and Spotify logo are registered trademarks
of the Spotify Group.
The Spotify Software is subject to third party
licenses found here:
https://developer.spotify.com/esdk-third-party-licenses/
© 2016 Yamaha Corporation
YH632A0/NS6EN
RX-V481
RX-V481D
OYAMAHA
For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.
Pour plus de details sur les produits, contactez votre representant Yamaha le plus proche de chez vous ou le distributeur agree indique ci-dessous.
NORTH AMERICA
CANADA
CENTRAL & SOUTH AMERICA
MEXICO
EUROPE
EUROPEAN COUNTRIES
Yamaha Canada Music Ltd.
Yamaha de Mexico S.A. de C.V.
Yamaha Music Europe GmbH
135 Milner Avenue, Tronto ON M1 S 3R1, Canada
Avenida lnsurgentes numero 1647,
Col. San Jose lnsurgentes, C.P. 03900,
Deleg. Benito Juarez, Mexico, D. F.
Siemensstrasse 22-34, 25462 Rellingen, Germany
U.S.A.
Yamaha Corporation of America
6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
RUSSIA
Yamaha Music (Russia)
BRAZIL
Room 37, bid. 7, Kievskaya street, Moscow,
121059, Russia
Yamaha Musical do Brasil Ltda.
Rua Fidencio Ramos, 302 - Cj 52 e 54 - Torre B Vila Olfmpia - CEP 04551-010 -Sao Paulo/SP
BRAZIL .
AFRICA
Yamaha Music GuH FZE
ARGENTINA
JAFZA-16, Office 512, P.O.Box 17328, Jabel Ali FZE,
Dubai, U.A.E
Yamaha Music Latin America, S.A.
Sucursal de Argentina
Olga Cossettini 1553, Piso 4 Norte
Madero Este-C1107CEK
Buenos Aires, Argentina
PANAMA AND OTHER LATIN
AMERICAN COUNTRIES I
CARIBBEAN COUNTRIES
Yamaha Music Latin America, S.A.
Torre Banco General, Piso 7, Urbanizaci6n Marbella,
Calle 47 y Aquilino de Ia Guardia,
Ciudad de Panama, Panama
As of January 2015
AVR01501A
IZF73310-2I
Yamaha Corporation, Audio Products Sales and Marketing Division
Nakazawa-cho 10-1, Naka-ku, Hamamatsu, Japan 430-8650
"\"~ J \4$it~tt
=r 430-8650
Dfliti!JR)HfJ.ntitfll2~):p)RIBJ
10- 1
MIDDLE EAST
ASIA
TURKEY I CYPRUS
THE PEOPLE'S REPUBLIC OF CHINA
Yamaha Music Europe GmbH
Siemensstrasse 22-34, 25462 Rellingen, Germany
Yamaha Music & Electronics {China) Co.,Ltd.
2F, Yunhedasha, 1818 Xinzha-lu, Jingan-qu,
Shanghai, China
OTHER COUNTRIES
Yamaha Music Gulf FZE
JAFZA-16, Office 512, P.O.Box 17328, Jabal Ali FZE,
Dubal, U.A.E
INDIA
.
Yamaha Music India Pvt. Ltd.
Spazedge building, Ground Floor, Tower A, Sector
47, Gurgaon- Sohna Road, Gurgaon, Haryana, India
INDONESIA
PT. Yamaha Muslk Indonesia {Distributor)
PT. Nusantlk
Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
REPUBLIC OF KOREA
Yamaha Music Korea Ltd~
8F, 9F, Dongsung Bldg. 158-9 Samsung-Dong,
Kangnam-Gu, Seoul, Korea
MALAYSIA
Yamaha Music (Malaysia) Sdn., Bhd.
Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
SINGAPORE
Yamaha Music (Asia) PRIVATE LIMITED
Blk 202 Hougang Street 21, #02-00,
Singapore 530202, Singapore
TAIWAN
Yamaha Music and Electronics Taiwan Co., Ltd.
2F., No.1, Yuandong Rd. Banqiao Dist.
New Taipei City 22063 Taiwan
THAILAND
Slam Music Yamaha Co., Ltd.
3, 4, 15, 16th Fl., Siam Motors Bldg.,
891/1 Rama 1 Road, Wangmai, Pathumwan,
Bangkok 10330, Thailand
VIETNAM
Yamaha Music VIetnam Company, Limited
15th Floor, Nam A Bank Tower
201-203 Cach Mang Thang Tam St., Ward 4, Dist.3,
Ho Chi Minh City, Vietnam
OTHER COUNTRIES
Yamaha Corporation, Business Planning Dlv.
Area Business Development Department
Nakazawa-cho 10-1, Naka,ku, Hamamatsu,
Japan 430-8650
OCEANIA
AUSTRALIA I NEW ZEALAND
Yamaha Music Australia Pty. Ltd.
Level 1, 99 Queensbridge Street, Southbank,
Victoria 3006, Australia
OYAMAHA
Register Your New Yamaha Product
Thank you for purchasing a new product from Yamaha Electronics. We would like to continue
providing you with high quality products and better service. Please take a few minutes to visit our
website and complete the product registration process at www.yamaha.com/VEC/registrat ion/
Yamaha is committed to doing it's part in protecting the environment and reducing the impact
on our natural resources. As a result, this product is supplied with an electronic copy of the
manual on the enclosed disc for use on your computer.
We appreciate your business and look forward to hearing from you soon .
Product registration applies to USA customers only.
Failure to complete the registration fo rm does not diminish your warranty rights in a ny way.
ZC64070
AV Receiver
Ampli-tuner audio-video
Safety Brochure
Brochure sur Ia Securite
~ (Power key)
~ (Touche d'allmentatlon)
Turns on the power of this unit or sets it to the standby mode.
Mettez l'appareil sous tension ou regJez-le en mode de mise en veille.
For more detailed information, refer to the Owner's Manual on the CD-ROM. To view the
Owner's Manual, click on "English" in the screen displayed automatically when you insert the
CD-ROM into your PC, or click on the model name if the screen to select models is displayed, and
then click on "English" in the next screen. Then, follow the onscreen instructions.
If the screen is not displayed automatically, open the "index.html" in the CD-ROM.
Caution: Do not attempt to play this CD-ROM in an audio player.
The Owner's Manual contained in the CD-ROM can be downloaded from the following website.
http://download.yamaha.com/
Pour de plus amples infonnations, reportez-vous au Mode d'emploi qui se trouve sur le CD-ROM.
Pour afficher le Mode d'emploi, cliquez sur« Fran~ais »sur l'ecran qui s'affiche automatiquement
Jorsque vous ins~rez le CD-ROM dans votre PC ou cliquez sur le nom du modele si 1'6cran pour
selectionner les modCies s'affiche, ensuite, cliquez sur« Fran~ais >>sur J' ecran suivant. Ensuite,
suivez les instructions a l'ecran.
Si l' &ran ne s'affiche pas automatiquement, ouvrez le fichier « index.html >)sur le CD-ROM.
Attention: N'essayez pas de lire ce CD-ROM dans un lecteur audio.
Vous pouvez teiecharger le Mode d'emploi indus sur le CD-ROM sur le site Web suivant:
http://download.yamaha.com/
YAMAHA CORPORATION
© 2015 Yamaha Corporation
·-·
IMPORTANT SAFETY INSTRUCTIONS
&
~~f---::-:-::::-:CAUT=Iotl
:-::---11
RISK OF ELECmiC
SHOCK DO NOT OPEN
1
&.
CAUTION: TO REDUCE THE RISK OF
ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE
PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
•
Explanation of Graphical Symbols
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert you to the presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended to alert you to the
presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
4
5
6
9
I0
11
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
12
13
J4
Printed in Malaysia ZP78610
®
Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods
of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus has
been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
We Want You Listening For A Lifetime
(i
Yamaha and the Electronic Industries Association's Consumer Electronics Group
want you to get the most out of your equipment by playing it at a safe level. One that
lets the sound come through loud and clear without annoying blaring or distortion __
and, most importantly, without affecting your sensitive hearing. Since hearing
~ damage from loud sounds is often undetectable until it is too late, Yamaha and the
Electronic Industries Association 's Consumer Electronics Group recommend you to avoid
prolonged exposure from excessive volume levels.
FC.C INFORMATtON (for US customers)
COMPLIANC!'_INFORMATION STAtEMENT ([IE!<LARATION OF CONFORMITY PROCE!>URE)
ReSponsible Party::· . ·v·an;ah~ c6t1x;ratio~ of Americ~ m·;D1ViSi~D
IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!
This product, when installed as indicated in the instructions contained in this manual, meets
FCC requirements. Modifications not expressly approved by Yamaha may void your authority,
granted by the FCC, to use the product.
IMPORTANT: When connecting this product to accessories and/or another product use only high
quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation
instructions. Failure to follow instructions could void your FCC authorization to use this product in
the USA.
NOTE: This product has been tested and found to comply with the requirements listed in FCC
Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a
reasonable level of assurance that your use of this product in a residential environment will not result
in harmful interference with other electronic devices.
This equipment generates/uses radio frequencies and, if not installed and Used according to the
instructions found in the users manual, may cause interference hannful to the operation of other
electronic devices.
Compliance with FCC regulations does not guarantee that interference will not occur in all installations.
If this product is found to be the source of interference, which can be determined by turning the unit
"OFF' and "ON", please try to eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power oudets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm
ribbon lead, change the lead-in to coaxiaJ type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer
authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact
Yamaha Corporation of America A!V Division , 6600 Orangethorpe Avenue, Buena Park, CA 90620,
USA.
The above statements apply ONLY to those products distributed by Yamaha Corporation of America or
its subsidiaries.
FOR CANADIAN CUSTOMERS
To prevent electric shock, match wide blade of plug to wide slot and fully insert.
CAN ICES-3(B)/NMB-3(B).
IMPORTANT
Please record the serial number of this unit in the space below.
MODEL:
Serial No.:
Address:
Telephone:
6600 Orangethorpe Avetme"; Buena·Park, CA 90620 ·.' ..
714-522-9011
Type of Equipment:
AV Receiver
Model Name:
RX-V579, RX-V479, HTR-4068, TSR-5790, RX-A550
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s).
Operation is subje~ to the following two conditions:
( 1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of
this device.
FCC CAUTION
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.
NOTICE
This equipment has been tested and found to comply with the limits for a Class B digitaJ device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against hannful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio!fV technician for help.
This equipment complies with FCCIIC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65
and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and
operated keeping the radiator at least 20cm or more away from person's body (excluding extremities:
hands, wrists, feet and ankles).
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
The serial number is located on the rear of the unit. Retain this Owner's Manual in a safe place for
future reference .
Do not use this unit within 22 em (9 inches) of persons with a heart pacemaker implant or defibrillator
implant.
CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.
To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
Install this sound system in a well ventilated, cool. dry, clean place - away from direct sunlight, heat
sources, vibration, dust, moisture, and/or cold. For proper ventilation, allow the following minimum
clearances.
This unit is not disconnected from the AC power source as long as it is connected to the wall
Top: 30 em, Rear: 20 em, Sides: 20 em
4
10
II
12
13
14
15
16
23 Excessive sound pressure from earphones and headphones can cause hearing loss.
24 When replacing the batteries, be sure to use batteries of the same type. Danger of explosion may
happen if batteries are incorrectly replaced.
Locate this unit away from other electrical appliances, motors, or transformers to avoid humming sounds.
Do not expose this unit to sudden temperature changes from cold to hot, and do not locate this unit in
an environment with high humidity (i.e. a room with a humidifier) to prevent condensation inside this
unit, which may cause an electrical shock, fire, damage to this unit, and/or personal injury.
Avoid installing this unit where foreign object may fall onto this unit and/or this unit may be exposed to
liquid dripping or splashing. On the top of this unit, do not place:
..
- Other components, as they may cause damage and/or discoloration on the swface of this unit.
- Burning objects (i.e. candles), as they may cause fire , damage to this unit, and/or personal injury.
- Containers with liquid in them, as they may fall and liquid may cause electrical shock to the user
and/or damage to this unit.
Do not cover this unit with a newspaper, tablecloth, curtain, etc. in order not to obstruct heat radiation .
If the temperature inside this unit rises, it may cause fire, damage to this unit, and/or personal injury.
Do not plug in this unit to a waJl outlet until all connections are complete.
Do not operate this unit upside-down. It may overheat, possibly causing damage.
Do not use force on switches, knobs and/or cords.
When disconnecting the power cable from the wall outlet, grasp the plug; do not pull the cable.
Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.
Only voltage specified on this unit must be used. Using this unit with a higher voltage than specified is
dangerous and may cause fire , damage to this unit, and/or personal injury. Yamaha will not be held
responsible for any damage resulting from use of this unit with a voltage other than specified.
To prevent damage by lightning, keep the power cable and outdoor antennas disconnected from a wall
outlet or this unit during a lightning storm.
Do not attempt to modify or fix this unit. Contact qualified Yamaha service personnel when any service
is needed. The cabinet should never be opened for any reasons.
When not planning to use this unit for long periods of time (i.e. vacation), disconnect the AC power
plug from the wall outlet.
Be sure to refer to the ''Troubleshooting" section of the Owner's Manual on the CD-ROM for common
operating errors before concluding that this unit is faulty.
17 Before moving this unit. press (!) to set it to standby mode and disconnect the AC power plug from the wall outlet.
18 VOLTAGE SELECTOR (General model)
The VOLTAGE SELECTOR on the rear panel of this unit must be set for your local main voltage
BEFORE plugging into the AC wall outlet. Voltages are:
................... AC 110-120/220-240V, 50/60Hz
19 Condensation will form when the surrounding temperature changes suddenly. Disconnect the power
cable from the outlet, then leave this unit alone.
20 When using this unit for a long time, this unit may become warm. Tum the power off, then leave this
unit alone for cooling.
21 Install this unit near the AC outlet and where the AC power plug can be reached easily.
22 The batteries shaJI not be exposed to excessive heat such as sunshine, fire or the like. When you dispose
of batteries, follow your regional regulations.
outlet, even if this unit itself is turned off by (!). This state is called the standby mode. In this
state, this unit is designed to consume a very small quantity of power.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE.
• Notes on remote controls and batteries
Do not spill water or other liquids on the remote control.
Do not drop the remote control.
Do not leave or store the remote control in the following conditions:
- places of high humidity, such as near a bath
- places of high temperatures, such as near a heater or stove
- places of extremely low temperatures
- dusty places
Insert the battery according to the polarity markings (+and-).
Change all batteries if you notice the following conditions:
- the operation range of the remote control narrows
- the transmit indicator does not fla sh or is dim
If the batteries run out, immediately remove them from the remote control to prevent an explosion or acid
leak.
If you find leaking batteries, discard the batteries immediately, taking care not to touch the leaked
material. If the leaked material comes into contact with your skin or gets into your eyes or mouth. rinse it
away immediately and consult a doctor. Clean the battery compartment thoroughly before instalJing new
batteries.
Do not usc old batteries together with new ones. This may shorten the life of the new batteries or cause
old batteries to leak.
Do not use different types of batteries (such as alkaline and manganese batteries) together. Specification
of batteries may be different even though they look the same.
Before inserting new batteries, wipe the compartment clean.
If the remote control is without batteries for more than 2 minutes, or if exhausted batteries remain in the
remote control, the contents of the memory may be cleared. In such a case, install new batteries and set
the remote control code.
Dispose of batteries according to your regiona1 regulations.
Keep batteries away from children. If a battery is accidentally swaJlowed, contact your doctor
immediately.
When not planning to use the remote control for long periods of time, remove the batteries from the
remote control.
Do not charge or disassemble the supplied batteries.
OYAMAHA
LIMITED WARRANTY ON
HOME AUDIO PRODUCTS
Thank you for selecting a YAMAHA product. YAMAHA products are designed and manufactured to provide a high level of defect-free performance. Yamaha
Corporation of America ("YAMAHA") is proud of the experience and craftsmanship that goes into each and every YAMAHA product. YAMAHA sells its
products through a network of reputable, specially authorized dealers and is pleased to offer you, the Original Owner, the following Limited Warranty, which
applies only to products that have been (1) directly purchased from YAMAHA's authorized dealers in the USA, including Puerto Rico (the "Warranted Area")
and (2) used exclusively in the Warranted Area. YAMAHA suggests that you read the Limited Warranty thoroughly, and invites you to contact your authorized
YAMAHA dealer or YAMAHA Customer Service if you have any questions.
THIS WARRANTY COVERS THE LISTED PRODUCTS AGAINST DEFECTS IN MATERIALS OR
WORKMANSHIP FOR THE NUMBER OFVEARS IDENTIFIED BELOW.
Warranty Term
Duration of Warranty from Date of
Purchase by or for the Original Owner
Type of Product
AIV and Stereo Receivers, Processor and Integrated Amplifiers,
Separate Amplifiers and Preamplifiers, Tuners, CD Players and
Changers, HDD Players and Recorders, Network Players, Powered
Loudspeakers, Media Controllers and Speaker Systems purchased
individually, as a pair, or as part of an Integrated or Packaged System.
........................ 2 years
Cassette Decks, 81u-ray Disc Players, DVD Players and Changers,
Integrated Systems (Receiver or Amplifier combined or on same
chassis with CD, DVD or 81u-ray Disc Player), Desktop Audio Systems
(I.e. TSX and PDX Series), Multimedia Speakers, Headphones,
Earphones and Accessories.
........................ 1 year
Coverage: YAMAHA will, at its option, repair or replace the product covered by this warranty if it becomes defective, malfunctions or otherwise fails to
conform with this warranty under normal use and service during the term of this warranty, without charge for labor or materials. Repairs may be
performed using new or refurbished parts that meet or exceed YAMAHA specifications for new parts. If YAMAHA elects to replace the product, the
replacement may be a reconditioned unit. You will be responsible for any installation or removal charges and for any initial shipping charges if the
product(s) must be shipped for warranty service. However, YAMAHA will pay the return shipping charges to any destination within the USA if the repairs
are covered by the warranty. This warranty does not cover (a) damage, deterioration or malfunction resulting from accident, negligence, misuse, abuse,
improper installation or operation or failure to follow instructions according to the Owner's Manual for this product; any shipment of the product (claims
must be presented to the carrier) ; repair or attempted repair by anyone other than YAMAHA or an authorized YAMAHA Service Center; (b) any unit which
has been altered or on which the serial number has been defaced, modified or removed; (c) normal wear, battery or battery replacement and any periodic
maintenance; (d) deterioration due to perspiration, corrosive atmosphere or other external causes such as extremes in temperature or humidity; (e)
damages attributable to power line surge or related electrical abnormalities, lightning damage or acts of God; (f) RFIIEMI (Interference/noise) caused by
improper grounding or the improper use of either certified or uncertified equipment, if applicable; or (g) interference arising from the use of wireless
communication devices (e.g. 2.4 gHz cordless telephones), or other radio frequency emitting products such as microwave ovens, whether such
interference impairs the operation of the product or vice-versa. Consult the Owner's Manual for guidance on set-up procedures for minimizing the risks of
interference. Any evidence of alteration, erasing or forgery of proof-of-purchase documents will cause this warranty to be void. This warranty covers only
the Original Owner and is not transferable.
In Order to Obtain Warranty Service: Warranty service will only be provided for defective products within the Warranted Area. Contact your
local authorized YAMAHA dealer who will advise you of the procedures to be followed. If this is not successful, contact YAMAHA at the address,
telephone number or website shown below. YAMAHA may request that you send the defective product to a local authorized YAMAHA Servicer or
authorize return of the defective product to YAMAHA for repair. For products requiring in-home service, contact your local authorized Yamaha dealer to
arrange for service. If you are uncertain as to whether a dealer has been authorized by YAMAHA, please contact YAMAHA's Service Department at the
number shown below, or check Yamaha's website at http://usa.yamaha.com. Product(s) shipped for service should be packed securely and must be
accompanied by a detailed explanation of the problem(s) requiring service, together with the original or a machine reproduction of the bill of sale or other
dated, proof-of-purchase document describing the product, as evidence of warranty coverage. Should any product submitted for warranty service be
found ineligible therefore, an estimate of repair cost will be furnished and the repair will be accomplished only if requested by you and upon receipt of
payment or acceptable arrangement for payment.
Limitation Of Implied Warranties and Exclusion Of Damages: ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE SHALL BE LIMITED IN DURATION TO THE APPLICABLE PERIOD OF TIME SET
FORTH ABOVE. YAMAHA SHALL NOT BE RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES OR FOR DAMAGES BASED UPON
INCONVENIENCE, LOSS OF USE, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE OR INTERRUPTION OF
PERFORMANCES OR ANY CONSEQUENCES. YAMAHA'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO REPAIR OR REPLACEMENT
OF THE PRODUCT, AT YAMAHA'S OPTION. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS OR
THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. This is the only express
warranty applicable to the product specified herein; Yamaha neither assumes nor authorizes anyone to assume for it any other express warranty.
If you have any questions about service received or if you need assistance in locating an authorized YAMAHA Servicer, please contact:
OYAMAHA
CUSTOMER SERVICE
Yamaha Corporation of America
6600 Orangethorpe Avenue, Buena ParJ<, California 90620-1373
Telephone: 800-292-2982
http://usa.yamaha.com
Do not return any product to the above address without a written Return Authorization Issued by YAMAHA.
©201 2 Yamaha Corporation of America
04/2012 ZE38290
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
