Product Specification
i
i

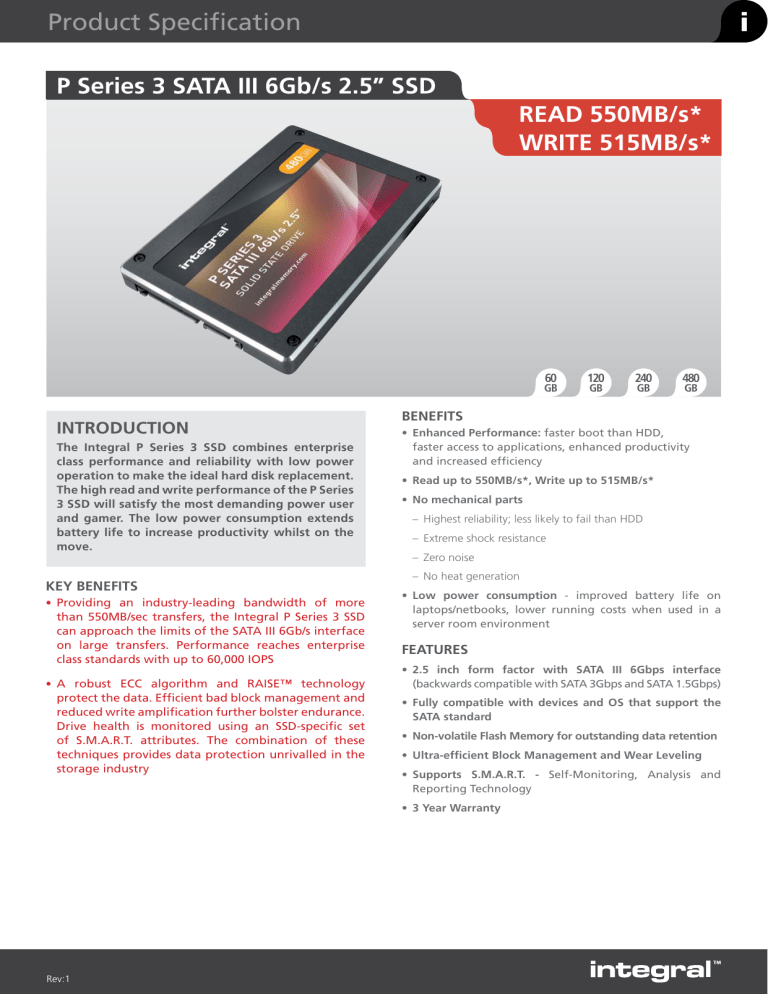

P Series 3 SATA III 6Gb/s 2.5” SSD
READ 550MB/s*
WRITE 515MB/s*
60
GB
INTRODUCTION
The Integral P Series 3 SSD combines enterprise
class performance and reliability with low power
operation to make the ideal hard disk replacement.
The high read and write performance of the P Series
3 SSD will satisfy the most demanding power user
and gamer. The low power consumption extends
battery life to increase productivity whilst on the
move.
KEY BENEFITS
• Providing an industry-leading bandwidth of more
than 550MB/sec transfers, the Integral P Series 3 SSD
can approach the limits of the SATA III 6Gb/s interface
on large transfers. Performance reaches enterprise
class standards with up to 60,000 IOPS
• A robust ECC algorithm and RAISE™ technology
protect the data. Efficient bad block management and
reduced write amplification further bolster endurance.
Drive health is monitored using an SSD-specific set
of S.M.A.R.T. attributes. The combination of these
techniques provides data protection unrivalled in the
storage industry
GB
240
GB
480
GB
BENEFITS
• Enhanced Performance: faster boot than HDD, faster access to applications, enhanced productivity and increased efficiency
• Read up to 550MB/s*, Write up to 515MB/s*
• No mechanical parts
–– Highest reliability; less likely to fail than HDD
–– Extreme shock resistance
–– Zero noise
–– No heat generation
• Low power consumption - improved battery life on
laptops/netbooks, lower running costs when used in a
server room environment
FEATURES
• 2.5 inch form factor with SATA III 6Gbps interface
(backwards compatible with SATA 3Gbps and SATA 1.5Gbps)
• Fully compatible with devices and OS that support the
SATA standard
• Non-volatile Flash Memory for outstanding data retention
• Ultra-efficient Block Management and Wear Leveling
• Supports S.M.A.R.T. - Self-Monitoring, Analysis and
Reporting Technology
• 3 Year Warranty
Rev:1
120
Product Specification
i
Technical Features
i
CAPACITY
• MLC-NAND Flash Technology
• Controller Technology - SandForce-2000
• SATA III 2.5”
• TRIM (OS support required)
PART CODE
BARCODE (EAN)
60GB
INSSD60GS625MXP3
5055288419032
120GB
INSSD120GS625MXP3
5055288417922
240GB
INSSD240GS625MXP3
5055288417939
480GB
INSSD480GS625MXP3
5055288419049
1GB = 1,000,000,000 bytes. Formatted capacity is less.
This device should not be used as your sole backup.
• S.M.A.R.T. option
Product design and specification subject to change or modification without notice. E&OE.
• CE and FCC certified and RoHs compliant
All trademarks acknowledged.
For warranty information please visit www.integralmemory.com/warranty
• Compatible with Windows XP, Vista and 7
Performance & Interface
Read
550MB/s (max)*
Write
515MB/s (max)*
Interface
SATA III 6Gbps
Also Compatible with SATA II
3Gbps
Also compatible with SATA III
3Gbps
*Based on internal testing
RELIABILITY
MTTF
2,000,000 hours
ECC algorithm
24 9-bit Symbols Correction per
512 9-bit Symbol
POWER CONSUMPTION
Power requirement
5V
Typical
<5W
Sleep
<200Mw
ENVIRONMENTAL
Operating Temp
0° - +70°C
Non - Operating Temp
-40° - +85°C
Physical
Length
100mm
Width
69.9mm
Height
9.5mm
Weight
>80g
Length (Packed)
116mm
Width (Packed)
116mm
Height (Packed)
42mm
Weight (Packed)
114.4g
Warranty
3 years
RAISE™, DuraWRITE™, and DuraCLASS™ are trademarks of SandForce Inc.
Rev:1
