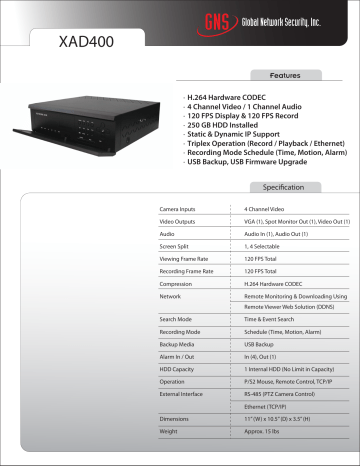

XAD400
XAD400
·
·
·
·
·
·
·
·
H.264 Hardware CODEC
4 Channel Video / 1 Channel Audio
120 FPS Display & 120 FPS Record
250 GB HDD Installed
Static & Dynamic IP Support
Triplex Operation (Record / Playback / Ethernet)
Recording Mode Schedule (Time, Motion, Alarm)
USB Backup, USB Firmware Upgrade
Specification
Camera Inputs
4 Channel Video
Video Outputs
VGA (1), Spot Monitor Out (1), Video Out (1)
Audio
Audio In (1), Audio Out (1)
Screen Split
1, 4 Selectable
Viewing Frame Rate
120 FPS Total
Recording Frame Rate
120 FPS Total
Compression
H.264 Hardware CODEC
Network
Remote Monitoring & Downloading Using
Remote Viewer Web Solution (DDNS)
Search Mode
Time & Event Search
Recording Mode
Schedule (Time, Motion, Alarm)
Backup Media
USB Backup
Alarm In / Out
In (4), Out (1)
HDD Capacity
1 Internal HDD (No Limit in Capacity)
Operation
P/S2 Mouse, Remote Control, TCP/IP
External Interface
RS-485 (PTZ Camera Control)
Ethernet (TCP/IP)
Dimensions
11” (W) x 10.5” (D) x 3.5” (H)
Weight
Approx. 15 lbs
