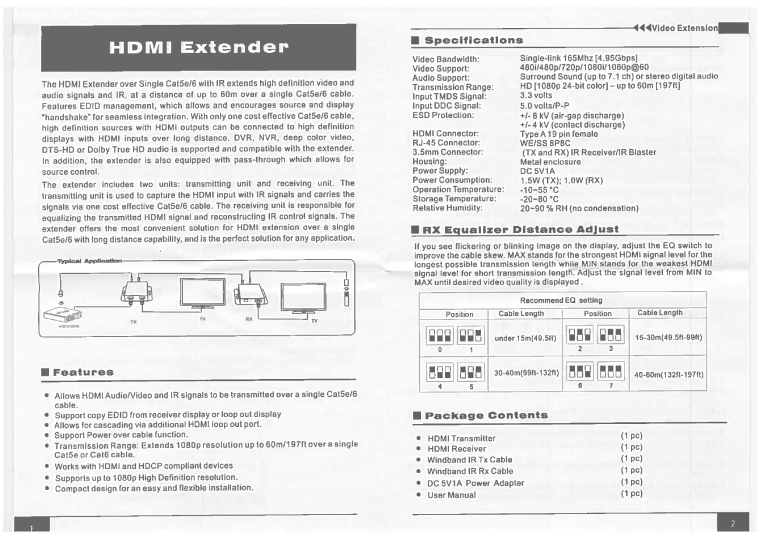

H D M i Exten cl ег E Specifications
Video Bandwidth: Single-link 165Mhz [4.95Gbps]
Audio Support. Surround Sound (up to 7.1 ch) or stereo digital audio
. в | cet Audio Su ; Surround Sound (u : ereo digita
The HDMI Extender over Single Cat5e/6 with IR extends high definition video and ei Rae HD [1080p 24-bit ion _ up to 60m [1 о
audio signals and IR, at a distance of up to 60m over а single Cat5e/6 cable. Input TMDS Signal: 3.3 volts
Features EDID management, which allows and encourages source and display Input DDC Signal: 5.0 volts/P-P
“handshake” for seamless integration. With only one cost effective Cat5e/6 cable, ESD Protection: +/- 8 kV (air-gap discharge)
high definition sources with HDMI outputs can be connected to high definition +/- 4 kV (contact discharge)
displays with HDMI inputs over long distance. DVR, NVR, deep color video, Ar CE ta pin female
DTS-HD or Dolby True HD audio is supported and compatible with the extender. 3 5mm Connector: RO A Receiver/IR Blaster
In addition, the extender is also equipped with pass-through which allows for Housing: Ата olsdues
source control. Power Supply: DC 5V1A
The extender includes two units: transmitting unit and receiving unit. The Power Consumption: 1.8W (TX); 1.0W (RX)
transmitting unit is used to capture the HDMI input with IR signals and carries the nana Tm tura en o
signals via one cost effective Cat5e/6 cable. The receiving unit is responsible for Relative Humidity: 20-90 % RH (no condensation)
equalizing the transmitted HDMI signal and reconstructing IR contro! signals. The
extender offers the most convenient solution for HDMI extension over a single E RX Equalizer Distance Adjust
Cat5e/6 with long distance capability, and is the perfect solution for any application.
| If you see flickering or blinking image on the display, adjust the EQ switch to
Typloai Application improve the cable skew. MAX stands for the strongest HDMI signal level for the
| longest possible transmission length while MIN stands for the weakest HDMI
signal level for short transmission length. Adjust the signal fevel from MIN to
MAX until desired video quality is displayed .
= Recommend EQ setting
<= Pasition Cable Length Position Cable Length
` "e mu under 15m(49.5it) 5: all 15-30m(49.5ft-99t)
0 1 2 3
H Features M UE) 30-4omçson-1321) BE HEE | 40-com(1321-197%)
4 5 8 7
e Allows HDMI Audio/Video and IR signals to be transmitted over a single Cat5e/6 :
cable.
* Support copy EDID from receiver display or loop out display E Package Contents
® Allows for cascading via additional HDMI loop out port.
e Support Power over cable function. . (1 pc)
e Transmission Range: Extends 1080p resolution up to 60m/197ft over single Her Mee (e
ble.
Co | | e Windband IR Tx Cable (1 pc)
e Works with HDMI and HDCP compliant devices Te ACA (1 pc)
e Supports up to 1080p High Definition resolution. ME a 4 Р
e Compact design for an easy and flexible installation. : De SVIA a Adapter + я
¢ User Manua pc
HE Video Extension bb}
N Panel Descriptions
Transmitter unit
PAY
1. HDMI in: This slot is where you connect the HDMI output port of your source equipment
such as DVD/Blu-ray players or Set-Top-Box with an HDMI cable.
2. EDID: The switcher can switch copy EDID function, switch to right position, the
extender will copy hdmi loop out display EDID information to source. Switch to
left position ,the extender will copy Receiver display EDID to source.
3. HDMI out: This slot is to connect the HDMI in put of your display such as an HDTV.
4. IR out: Connect the IR Blaster cable included in the package for IR signal transmission.
Pace the IR blaster in direct line-of-sight of the equipment to be controiled.
5. Power LED: This LED will illuminate when the device is connected with power supply.
6. CAT: Connect the CAT output of the transmitter with the CAT input of the receiver
with CATSE/6 cable.
7. Link LED: This LED will illuminate when the device is connected to HDMI source.
8. DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor to
an AC outlet.
Receiver unit
29 9 9 ¢
oO“ O
EQ HDMI Out IA In CAT DC5Y
1. EQ switcher: HDMI Receiver equalizer switcher.
2. НОМ! out: This slot is to connect the HDMI input port of your display such as an
HDTV.
3. IR in: Connect to the IR Receiver for IR signal reception. Ensure that remote being
used is within the direct line-of-sight of the IR receiver.
4. Power LED: This LED will illuminate when the device is connected with power supply.
5. CAT: Connect the CAT input of the receiver with the CAT output of the transmitter
with CATSE/6 cable.
6. Lock LED: This LED will illuminate when the HDMI signal from the transmitter is
stable.
7. DC 5V: Connect from 5V DC power supply into the unit and connect the adaptor to
an AC outlet.(For POC function, the receiver does not need power supply)
44< Video Extension И
E Connect and Operation
1. Connect a source such as a Blue-Ray Player, game console, A/V Recetver, Cable
or Satellite Receiver, etc. to the HDMI input on the Transmitting unit.
2. Connect a display such as an HDTV or HD Projector to the HDMI output on the
Receiving unit.
3. Connect a single Category 5e/6 up to 197ft/60m to the output of the Transmitting
unit, and the other end to the input of the Receiving unit.
4. For power, plug both the Transmitting unit and Receiving unit with the included
power supplies.
5. Power on each device in the same sequence (receiver and transmitter will already
be powered when either unit is plugged in.)
At this point the display connected should display the source signal connected to
the extender set. If no signal is being displayed, check the receiver EQ swithcer. If
a display is having difficulty receiving a signal, see EDID section and perform EDID
learning or access the display's menu and adjust the resolution (lowest to highest
until signal is displayed). A 24 Hz vertical refresh rate may work better than 60 Hz or
higher. Use the source remote at the receiver emitter to test IR functionality. If the
IR remote function is not responding, check the emitters to ensure they are placed
correctly and are plugged into the correct IR jacks on the Extender set receiving and
transmitting units.
Wideband IR(30KHz---60KHz) introduction
—
dl
IR RECEIVER IR BLASTER
IR BLASTER (TX)
To control the source: Plug IR Blaster into IR TX port of transmitter unit; place
blaster in front of the IR eye of the source.
IR RECEIVER (RX)
To control the source: Plug IR Receiver into IR RX port of receiver unit; place
receiver at or near display.
IR Blaster IR Blaster Signal
Power
NE
IR Receiver
IR Signal
A
Power
Grounding
