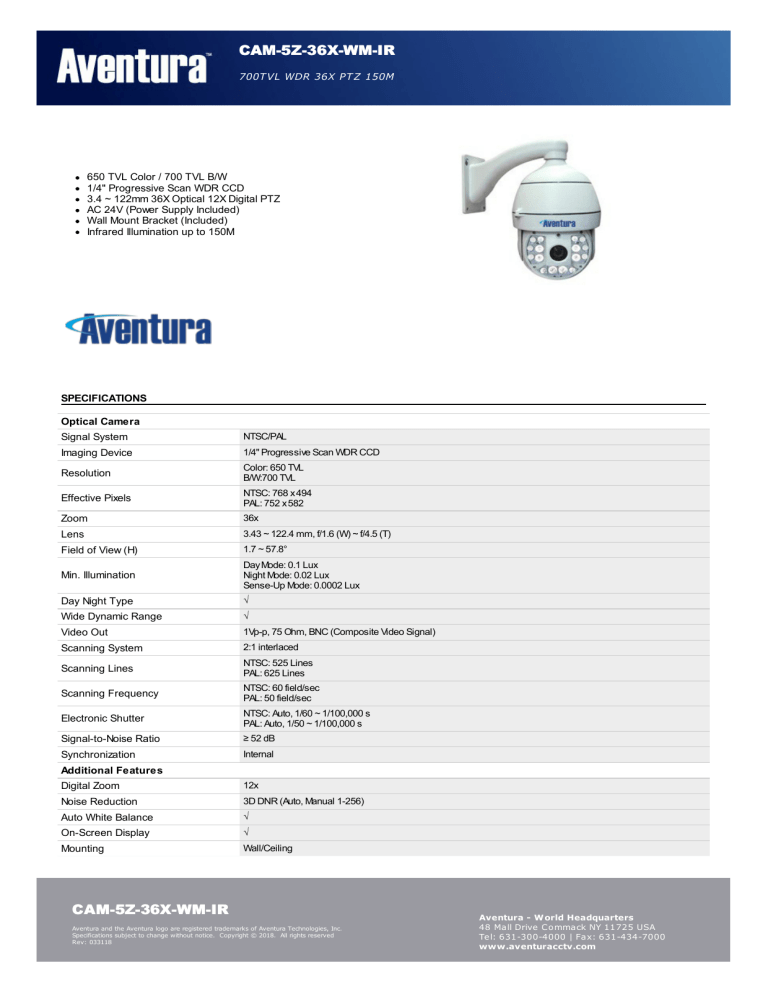

User manual | CAM-5Z-36X-WM-IR CAM-5Z-36X-WM-IR

CAM-5Z-36X-WM-IR
700T VL WDR 36X PT Z 150M
650 TVL Color / 700 TVL B/W
1/4" Progressive Scan WDR CCD
3.4 ~ 122mm 36X Optical 12X Digital PTZ
AC 24V (Power Supply Included)
Wall Mount Bracket (Included)
Infrared Illumination up to 150M
SPECIFICATIONS
Optical Camera
Signal System
Imaging Device
Resolution
Effective Pixels
Zoom
Lens
Field of View (H)
Min. Illumination
Day Night Type
Wide Dynamic Range
Video Out
Scanning System
Scanning Lines
Scanning Frequency
Electronic Shutter
Signal-to-Noise Ratio
Synchronization
Additional Features
Digital Zoom
Noise Reduction
Auto White Balance
On-Screen Display
Mounting
NTSC/PAL
1/4" Progressive Scan WDR CCD
Color: 650 TVL
B/W:700 TVL
NTSC: 768 x 494
PAL: 752 x 582
36x
3.43 ~ 122.4 mm, f/1.6 (W) ~ f/4.5 (T)
1.7 ~ 57.8°
Day Mode: 0.1 Lux
Night Mode: 0.02 Lux
Sense-Up Mode: 0.0002 Lux
√
√
1Vp-p, 75 Ohm, BNC (Composite Video Signal)
2:1 interlaced
NTSC: 525 Lines
PAL: 625 Lines
NTSC: 60 field/sec
PAL: 50 field/sec
NTSC: Auto, 1/60 ~ 1/100,000 s
PAL: Auto, 1/50 ~ 1/100,000 s
≥ 52 dB
Internal
12x
3D DNR (Auto, Manual 1-256)
√
√
Wall/Ceiling
CAM-5Z-36X-WM-IR
Aventura and the Aventura logo are registered trademarks of Aventura Technologies, Inc.
Specifications subject to change without notice. Copyright © 2018. All rights reserved
Rev: 033118
Aventura - World Headquarters
48 Mall Drive Commack NY 11725 USA
Tel: 631-300-4000 | Fax: 631-434-7000
www.aventuracctv.com
CAM-5Z-36X-WM-IR
700T VL WDR 36X PT Z 150M
Pan/Tilt
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Presets
Protocol
Serial Communication
Environment
Operating Environment
Ingress Protection
Vandal Proof
Heater
Storage Temperature
Operating Temperature
Operating Humidity
Electrical
Input Voltage
Current Draw
Power Consumption
General
Material
Finish
Weight
Dimensions
Regulatory Type
Warranty
360° Continuous
Manual: 0.05°/s~150°/s; Preset: 1°/s~200°/s
0 ~ 92° (Auto Flip)
Manual: 0.05°/s~150°/s; Preset: 1°/s~200°/s
220
Pelco-D (Pelco-P available)
RS-485
Indoor/Outdoor
IP66
IEC60068-2-75Eh, 50J; EN50102, IK10
√
-4 ~ 140° F (-20 ~ 60° C)
14 ~ 131° F (-10 ~ 55° C)
≤ 95% RH non-condensing
AC 24V
500 mA ˜ 3 A
70 W (IR on)
Aluminum housing
Beige
9.25 lb (4195 g)
13.58" H x 9.65" D (345mm H x 245mm D)
CE, FCC, UL
5 Years
AVAILABLE MODELS
Part number
Description
CAM-5Z-36X-WM-IR
CAM-5Z-36X-WM-IRP
[NTSC] 600/650 TVL 36x PTZ Camera, 3.4-122 mm with 150m IR Illuminator
[PAL] 600/650 TVL 36x PTZ Camera, 3.4-122 mm with 150m IR Illuminator
