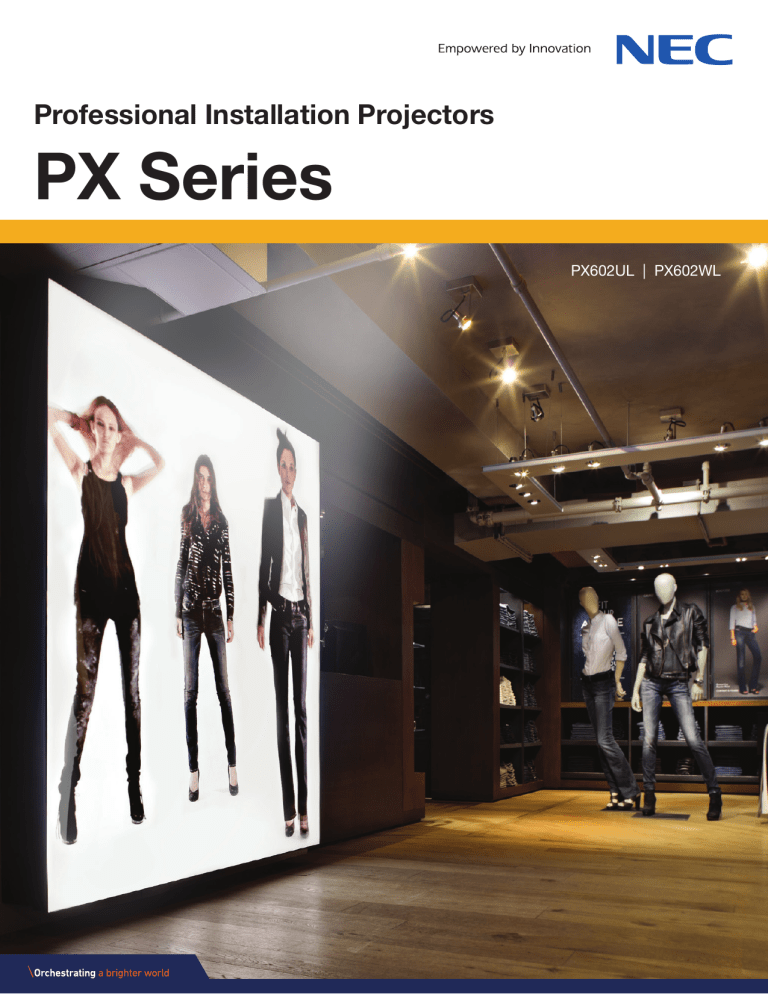

PX Series
Professional Installation Projectors
PX Series
PX602UL | PX602WL
Powerful installation projectors with
laser-phosphor light source supports
new, demanding projection applications.
Laser Light Module
•• 20,000-plus hours of virtually maintenance-free
operation
•• High-brightness, lower power consumption
enhances applications such as retail, digital
signage and theme parks
•• Ability to control brightness creating a stable
Integrated and Powerful
•• Project uncompressed FHD video with integrated HDBaseT
•• High performance video processing/scaling creates life-like images
•• Integrated software applications such as DisplayNote®, Crestron Roomview,
AMX Beacon and PJ Link allow for complete interactivity and control
•• Tile Matrix enables 4Kx2K resolution
image over longer time periods
Flexible
•• Enjoy greater installation flexibility with a complete line of optional bayonet style lenses (4) for quick and easy exchange. Lens throw distances
range from 3.3 to 65.5 ft
•• Tilt-free installation capabilities make these projector ideal for almost any install environment, including portrait orientation
•• +/- 60% vertical lens shift and +/- 15% horizontal lens shift capabilities make alignment easy
Screen Splitter
NEC is committed to bringing the latest and
greatest innovation to projectors. Multi-display
capabilities and TileMatrix technologies are
integrated into the new PX series projectors.
This processing is all done internally and
therefore eliminates the additional hardware
typically required to produce a beautiful 4K
resolution image.
Stacking correction
Edge blending
The industry’s first built-in stacking correction
capabilities (up to four projectors) allows the
projectors to boost an image’s brightness up to
24,000 lumens, which is ideal for larger-sized
screens and environments with heavy ambient
light. This feature also prevents the complete
loss of an image, which can happen when using
only one projector.
This function seamlessly blends multiple projected images to display a single
high-resolution image.
Built-In HDBaseT Support
Simplify your installations with HDBaseT. Optimized for video applications and supporting uncompressed full HD digital video, audio, ethernet, power
and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier,
and there is no cable clutter to manage. With uncompressed HD video support, images have never been more stunning. What’s more, control signals
are contained in the same cable.
GET CONNECTED WITH A WIDE SELECTION OF INPUTS
• Dual computer inputs ensure quick switching between presentations
• Four audio inputs (two mini stereo [Comp1 & Comp2] and HDMI™) make it easy to add sound to enhance your presentations
Remote control
DisplayPort
Wall color correction presets
Input panel cover
Wired and wireless backlit
remote allows you to adjust
for complete control of the
projectors menu structure in
a well lit or dark environment.
Direct controls such as lamp
mode, aspect ratio, volume
and input selection eliminates
multiple button pushes.
This input provides PX
Series models with
expanded connectivity
with advanced
technology.
These provide for adaptive color tone
correction to display properly on non-white
surfaces.
This optional accessory
creates a clean look for
your installation, while
hiding signal cables and the
power cord.
On a
green wall...
BEFORE
auto wall correction
AFTER
auto wall correction
ADVANCED SOFTWARE FEATURES
Cornerstone
3D
Geometric Correction
Enhanced keystone correction allows for
horizontal, vertical and diagonal image
correction for aligned images even when the
projector is set up at an angle to the screen.
When combined with active shutter
glasses and 3D emitter, the
PX Series Projectors create 3D
images from a computer or Blu-ray
player. The PX602UL/PX602WL
utilize the 3D sync line output from
the projector to connect to the 3D
emitter. Optional 3D glasses and
emitters from XPAND are available
from NEC.
Projecting an image isn’t
confined to a standard
flat screen or wall with the
NEC PX Series. Geometric
correction allows these
models to project an image
on spheres, cylinders,
corner angles and many
more non-standard
surfaces.
Tilt-free
Portrait mode
The projector can be rotated freely
(360°) to orient the image depending
on the installation requirements
Allows the projector to be rotated (and screen if
necessary) to a vertical alignment so that portrait
content can be viewed without black bars on the
side when landscape mode is used.
Specifications for PX602WL/PX602UL
UNIQUE FEATURES
OPTICAL
Display Technology
3D Reform™ allows you to square the image by adjusting
horizontally, vertically or diagonally when the projector cannot
be placed parallel or perpendicular to the screen
Advanced AccuBlend™ ensures detailed images when nonnative resolution sources are connected to the projector
AutoSense™ automatically syncs with any computer signal
and features one-touch image optimization
64-step image magnification with location control
Discreet source keys for source selection
Remote diagnostics enable the user to monitor and make
adjustments to the projector remotely
Built-in HTTP page for control and monitoring over a LAN
network. Email notification of error messages or lamp end-oflife can be sent to remote locations.
WARRANTY
Registered owners receive a 3-year parts (excluding
consumables) and labor warranty including the first year of
InstaCare. InstaCare provides the original owner one year of
either limited 3 business day repair/return or next business day
exchange.
IN THE BOX
Remote control, batteries, power cord, user’s manual on CDROM, quick start guide, product registration card.
ORDERING MODEL NUMBERS
NP-PX602UL-WH
NP-PX602UL-BK
NP-PX602WL-WH
NP-PX602WL-BK
Light Output (lumens)
Resolution
Native
Maximum
Contrast Ratio (up to)
Laser Life (up to)
Screen Size (diagonal)
Throw Ratio
NP33ZL
NP34ZL
NP35ZL
NP36ZL
NP37ZL
NP38ZL
Projection Distance
Projection Angle
Lens*
Zoom
Zoom Ratio
Focus
F-number, f-number
NP33ZL
NP34ZL
NP35ZL
NP36ZL
NP37ZL
NP38ZL
Shift
Keystone Correction
PX602WL: 0.65” DMD
PX602UL: 0.67 DMD
6000 normal / Eco = variable
PX602WL: WXGA 1280 x 800
PX602UL: WUXGA 1920 x 1200
4K 4096 x 2160
10,000:1 with auto iris
20,000 hours
50 to 300 in. / 1.27 to 7.62m
0.75-0.95:1
0.95 - 1.2:1
1.23 - 1.52:1
1.28 - 1.6:1
1.52 - 2.92:1
2.9-5.5:1
3.3 to 65.5 ft. / 1.01 to 19.96m
5.8 to 14.4° tele / 10.9 to 18.4° wide
Variable
Powered
Powered
TBD
F= 2.3 to 2.57, f= 14.03 to 17.95mm
F= 2.0 to 2.32, f= 18.07 to 22.59mm
F= 2.0 to 2.32, f= 18.07 to 22.59mm
F= 2.3 to 3.39, f= 22.56 to 42.87mm
TBD
PX602UL: Powered +/- 0.6 vertical, +/-0.15 horizontal
PX602WL: Powered +/- 0.3 vertical, +/-0.15 horizontal
+/- 40° horizontal, +/- 40° vertical
SIGNAL COMPATIBILITY/
CONNECTIVITY
Scan Rate
Horizontal
Vertical
Supported Video Standards
SD/HD Video Signal Compatibility
PC Signal Compatibility
Macintosh Compatibility
Input/Output Terminals
RGB1 (analog)
RGB2 (analog)
RGB3 (digital)
RGB4 (digital)
RGB5 (digital)
Monitor Out
External Control
Sync Compatibility
ELECTRICAL
Power Requirements
Input Current
Power Consumption (ECO off/ECO Mode/Standby/
Standyby-Power Saving)
MECHANICAL
Optional Lenses
Installation Orientation
Dimensions (WxDxH)
Net Weight
Fan Noise
Regulations
ENVIRONMENTAL
Operating Temperature
Humidity
Storage
15 – 108 kHz
48 – 120 Hz
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA
Yes
VGA 15-pin D-sub
5-BNC
HDMI w/ HDCP
DisplayPort w/ HDCP
HDBaseT
HDMI
RS-232, IR, HDBaseT, DDC/CI, USB
Separate Sync / Composite Sync / Sync on G
100 – 240V AC, 50/60Hz
6.6 - 2.5A
590W / 460W / 6W / 0.5W
NP33ZL, NP34ZL, NP35ZL, NP36ZL, NP37ZL, NP38ZL
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
19.1 x 22.6 x 8.5 in. / 484 x 575 x 217mm
40.8 lbs. / 18.5 kg
39 dB normal / 34 dB eco
USA: UL 1950 FCC Class B, Canada: CSA950 (C-UL), NOM
41° – 104°F / 5° – 40°C
20-80% non-condensing
-14° – 122°F / -10° – 50°C
ACCESSORIES
SCP200
Suspended ceiling plate
PX750CM
Ceiling mount
NP33ZL
0.75-0.95:1 zoom lens
NP34ZL
0.95 - 1.2:1 zoom lens
NP35ZL
PX-602UL 1.23 - 1.52:1 zoom lens
NP36ZL
PX-602WL 1.28 - 1.6:1 zoom lens
NP37ZL
1.52 - 2.92:1 zoom lens
NP38ZL
2.9-5.5:1 zoom lens
RMT-PJ35
Replacement remote control
NP01PW1
Power cable
RGBCBL-PJPX
RGB cable
NP07CV
Safety Cover for Portrait Installation
SB-04HC
3G/HD/SD-SDI input Card
SB-06WC
WiDi / Miracast Media-Player
X105-RF-X2 XPAND 3D RF Glasses
AD025-RF-X11
XPAND 3D RF Transmitter
N8000-8830
NEC OPS PC with Intel Core i5, 320GB Hard Drive, Windows Embedded Standard 7
N8000-8822
NEC OPS PC with Intel Celeron, 320GB Hard Drive, Windows Embedded Standard 7
NECEW2-I
Extends term of parts and labor warranty to 4 years
ADVEXON1-I
Extends term of InstaCare service program to 2 years
ADVEXON2-I
Extends term of InstaCare service program to 3 years
* Lens does not ship with the projector.
Additional accessories are available, including screens, carts, mount accessories and
replacement cables. Visit www.necdisplay.com for details.
3D Reform, Advanced AccuBlend, AutoSense and ECO Mode are trademarks of NEC
Display Solutions. HDMI, the HDMI Logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC. All other brand or product
names are trademarks or registered trademarks of their respective holders. Product
specifications subject to change.
©2015 NEC Display Solutions of America, Inc. All rights reserved.
|
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
rev 07.08.15
www.necdisplay.com
