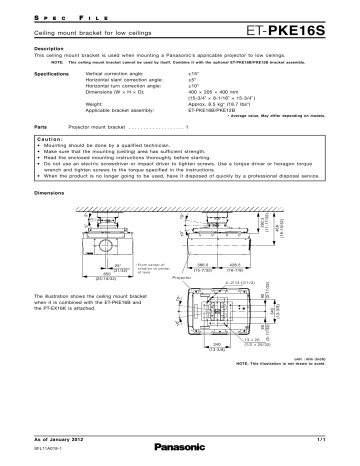

ET-PKE16S Spec File
S
P
E
F
C
I
L
E
ET-PKE16S
Ceiling mount bracket for low ceilings
­D escription
This ceiling mount bracket is used when mounting a Panasonic’s applicable projector to low ceilings.
NOTE:
This ceiling mount bracket cannot be used by itself. Combine it with the optional ET-PKE16B/PKE12B bracket assembly.
Specifications
Vertical correction angle:
Horizontal slant correction angle:
Horizontal turn correction angle:
Dimensions (W × H × D):
±15°
±5°
±10°
400 × 205 × 400 mm
(15-3/4˝ × 8-1/16˝ × 15-3/4˝ )
Approx. 8.5 kg* (18.7 lbs*)
ET-PKE16B/PKE12B
Weight:
Applicable bracket assembly:
* Average­ value.­ May­ differ­ depending­ on­ models.
Parts
Projector mount bracket . . . . . . . . . . . . . . . . . . . 1
Caution:
• Mounting should be done by a qualified technician.
• Make sure that the mounting (ceiling) area has sufficient strength.
• Read the enclosed mounting instructions thoroughly before starting.
• Do not use an electric screwdriver or impact driver to tighten screws. Use a torque driver or hexagon torque
wrench and tighten screws to the torque specified in the instructions.
• When the product is no longer going to be used, have it disposed of quickly by a professional disposal service.
650
(25-19/32)
* From c e nte r of
rot ation to ce nte r
of le ns
386.5
(15-7/32)
428.5
(16-7/8)
Projector
340
(13-3/8)
90
(3-17/32)
10°
The illustration shows the ceiling mount bracket
when it is combined with the ET-PKE16B and
the PT-EX16K is attached.
10°
4 – ∅ 13 ( ∅ 1/ 2 )
90
(3-17/32)
25*
(31/32)*
469
(18-15/32)
292.5
(11-17/32)
10°
5°
10°
5°
Dimensions
340
(13-3/8)
13 × 20
(1/2 × 25/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
As­ of­ January­ 2012
SFL11A019-1
1/1
S
P
E
C
F
I
L
E
ET-PKE16S
Ceiling mount bracket for low ceilings
469
(18-15/32)
10°
5°
5°
10°
257
(11-17/32)
Dimensions
330
(13 )
10°
4 – ∅ 13 ( ∅ 1/ 2 )
10°
340
(13-3/8)
The illustration shows the ceiling mount bracket
when it is combined with the ET-PKE12B and
the PT-EX12K is attached.
90
(3-17/32)
Projector
427
(16-13/16 )
90
( 3-17/32)
340
(13-3/8 )
90
( 3-17/32)
90
(3-17/32)
530
( 20-7/8 )
13 × 20
(1/2 × 25/32)
unit­ : mm­ (inch)
NOTE:­ This­ illustration­ is­ not­ drawn­ to­ scale.
Weights­ and­ dimensions­ shown­ are­ approximate.­ Specifications­ subject­ to­ change­ without­ notice.
As­ of­ January­ 2012
SFL11A019-1
2/1
