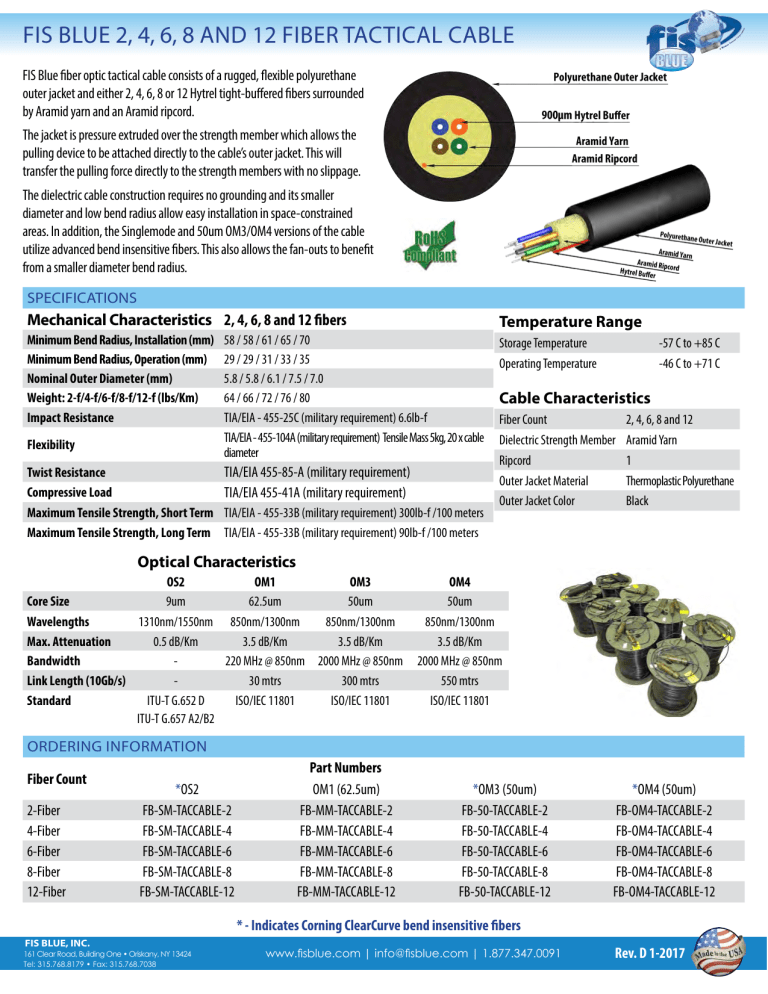

FIS BLUE 2, 4, 6, 8 AND 12 FIBER TACTICAL CABLE
FIS Blue fiber optic tactical cable consists of a rugged, flexible polyurethane
outer jacket and either 2, 4, 6, 8 or 12 Hytrel tight-buffered fibers surrounded
by Aramid yarn and an Aramid ripcord.
The jacket is pressure extruded over the strength member which allows the
pulling device to be attached directly to the cable’s outer jacket. This will
transfer the pulling force directly to the strength members with no slippage.
The dielectric cable construction requires no grounding and its smaller
diameter and low bend radius allow easy installation in space-constrained
areas. In addition, the Singlemode and 50um OM3/OM4 versions of the cable
utilize advanced bend insensitive fibers. This also allows the fan-outs to benefit
from a smaller diameter bend radius.
SPECIFICATIONS
Mechanical Characteristics 2, 4, 6, 8 and 12 fibers
Minimum Bend Radius, Installation (mm)
Minimum Bend Radius, Operation (mm)
Nominal Outer Diameter (mm)
Weight: 2-f/4-f/6-f/8-f/12-f (lbs/Km)
Impact Resistance
Flexibility
Twist Resistance
Compressive Load
Maximum Tensile Strength, Short Term
Maximum Tensile Strength, Long Term
Temperature Range
58 / 58 / 61 / 65 / 70
29 / 29 / 31 / 33 / 35
5.8 / 5.8 / 6.1 / 7.5 / 7.0
64 / 66 / 72 / 76 / 80
TIA/EIA - 455-25C (military requirement) 6.6lb-f
TIA/EIA - 455-104A (military requirement) Tensile Mass 5kg, 20 x cable
diameter
TIA/EIA 455-85-A (military requirement)
TIA/EIA 455-41A (military requirement)
TIA/EIA - 455-33B (military requirement) 300lb-f /100 meters
TIA/EIA - 455-33B (military requirement) 90lb-f /100 meters
Storage Temperature
Operating Temperature
-57 C to +85 C
-46 C to +71 C
Cable Characteristics
Fiber Count
Dielectric Strength Member
Ripcord
Outer Jacket Material
Outer Jacket Color
2, 4, 6, 8 and 12
Aramid Yarn
1
Thermoplastic Polyurethane
Black
Optical Characteristics
OS2
OM1
OM3
Core Size
9um
62.5um
50um
Wavelengths
1310nm/1550nm 850nm/1300nm
850nm/1300nm
Max. Attenuation
0.5 dB/Km
3.5 dB/Km
3.5 dB/Km
Bandwidth
220 MHz @ 850nm 2000 MHz @ 850nm
Link Length (10Gb/s)
30 mtrs
300 mtrs
Standard
ITU-T G.652 D
ISO/IEC 11801
ISO/IEC 11801
ITU-T G.657 A2/B2
OM4
50um
850nm/1300nm
3.5 dB/Km
2000 MHz @ 850nm
550 mtrs
ISO/IEC 11801
ORDERING INFORMATION
Fiber Count
2-Fiber
4-Fiber
6-Fiber
8-Fiber
12-Fiber
*OS2
FB-SM-TACCABLE-2
FB-SM-TACCABLE-4
FB-SM-TACCABLE-6
FB-SM-TACCABLE-8
FB-SM-TACCABLE-12
Part Numbers
OM1 (62.5um)
FB-MM-TACCABLE-2
FB-MM-TACCABLE-4
FB-MM-TACCABLE-6
FB-MM-TACCABLE-8
FB-MM-TACCABLE-12
*OM3 (50um)
FB-50-TACCABLE-2
FB-50-TACCABLE-4
FB-50-TACCABLE-6
FB-50-TACCABLE-8
FB-50-TACCABLE-12
*OM4 (50um)
FB-OM4-TACCABLE-2
FB-OM4-TACCABLE-4
FB-OM4-TACCABLE-6
FB-OM4-TACCABLE-8
FB-OM4-TACCABLE-12
* - Indicates Corning ClearCurve bend insensitive fibers
FIS BLUE, INC.
161 Clear Road, Building One • Oriskany, NY 13424
Tel: 315.768.8179 • Fax: 315.768.7038
www.fisblue.com | [email protected] | 1.877.347.0091
Rev. D 1-2017
