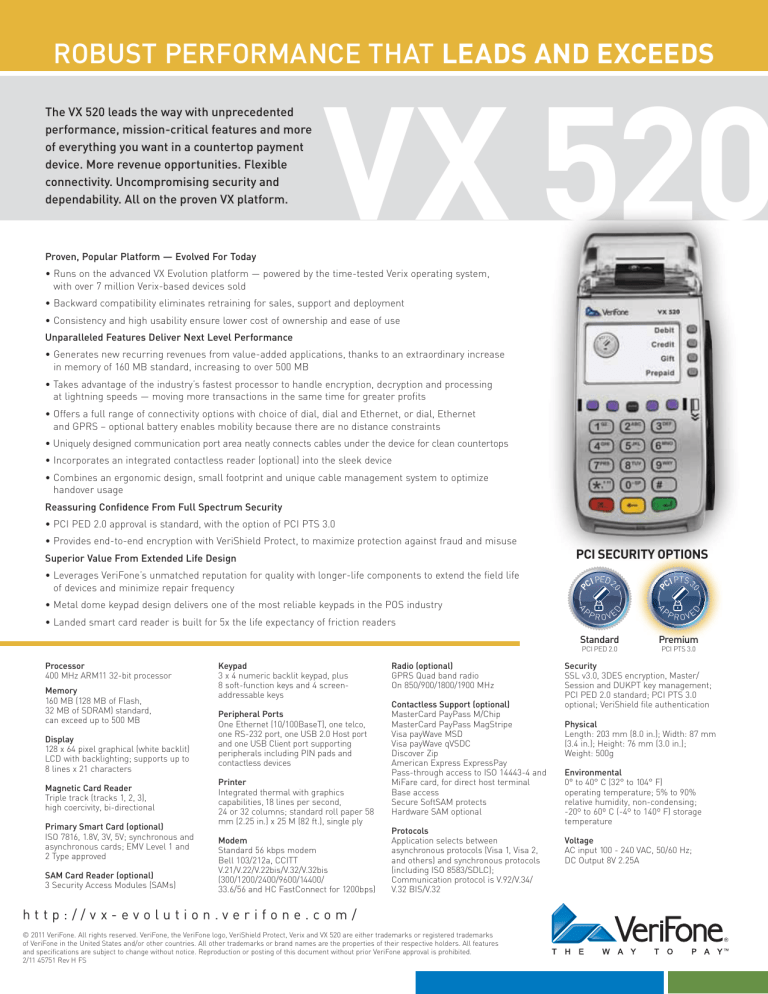

robust performance that leads and exceeds

robust performance that leads and exceeds
The VX 520 leads the way with unprecedented
performance, mission-critical features and more
of everything you want in a countertop payment
device. More revenue opportunities. Flexible
connectivity. Uncompromising security and
dependability. All on the proven VX platform.
Proven, Popular Platform — Evolved For Today
VX 520
• Runs on the advanced VX Evolution platform — powered by the time-tested Verix operating system,
with over 7 million Verix-based devices sold
• Backward compatibility eliminates retraining for sales, support and deployment
• Consistency and high usability ensure lower cost of ownership and ease of use
Unparalleled Features Deliver Next Level Performance
• Generates new recurring revenues from value-added applications, thanks to an extraordinary increase
in memory of 160 MB standard, increasing to over 500 MB
• Takes advantage of the industry’s fastest processor to handle encryption, decryption and processing
at lightning speeds — moving more transactions in the same time for greater profits
• Offers a full range of connectivity options with choice of dial, dial and Ethernet, or dial, Ethernet
and GPRS – optional battery enables mobility because there are no distance constraints
• Uniquely designed communication port area neatly connects cables under the device for clean countertops
• Incorporates an integrated contactless reader (optional) into the sleek device
• Combines an ergonomic design, small footprint and unique cable management system to optimize
handover usage
Reassuring Confidence From Full Spectrum Security
• PCI PED 2.0 approval is standard, with the option of PCI PTS 3.0
• Provides end-to-end encryption with VeriShield Protect, to maximize protection against fraud and misuse
Superior Value From Extended Life Design
pci security options
• Leverages VeriFone’s unmatched reputation for quality with longer-life components to extend the field life
of devices and minimize repair frequency
• Metal dome keypad design delivers one of the most reliable keypads in the POS industry
• Landed smart card reader is built for 5x the life expectancy of friction readers
400 MHz ARM11 32-bit processor
160 MB (128 MB of Flash,
32 MB of SDRAM) standard,
can exceed up to 500 MB
128 x 64 pixel graphical (white backlit)
LCD with backlighting; supports up to
8 lines x 21 characters
Magnetic Card Reader
Triple track (tracks 1, 2, 3),
high coercivity, bi-directional
Primary Smart Card (optional)
ISO 7816, 1.8V, 3V, 5V; synchronous and
asynchronous cards; EMV Level 1 and
2 Type approved
SAM Card Reader (optional)
3 Security Access Modules (SAMs)
3 x 4 numeric backlit keypad, plus 8 soft-function keys and 4 screenaddressable keys
Peripheral Ports
One Ethernet (10/100BaseT), one telco,
one RS-232 port, one USB 2.0 Host port
and one USB Client port supporting
peripherals including PIN pads and
contactless devices
Integrated thermal with graphics
capabilities, 18 lines per second,
24 or 32 columns; standard roll paper 58
mm (2.25 in.) x 25 M (82 ft.), single ply
Standard 56 kbps modem
Bell 103/212a, CCITT
33.6/56 and HC FastConnect for 1200bps)
Radio (optional)
GPRS Quad band radio
On 850/900/1800/1900 MHz
Contactless Support (optional)
MasterCard PayPass M/Chip
MasterCard PayPass MagStripe
Visa payWave MSD
Visa payWave qVSDC
Discover Zip
American Express ExpressPay
Pass-through access to ISO 14443-4 and
MiFare card, for direct host terminal
Base access
Secure SoftSAM protects
Hardware SAM optional
Application selects between
asynchronous protocols (Visa 1, Visa 2,
and others) and synchronous protocols
(including ISO 8583/SDLC);
Communication protocol is V.92/V.34/
V.32 BIS/V.32
© 2011 VeriFone. All rights reserved. VeriFone, the VeriFone logo, VeriShield Protect, Verix and VX 520 are either trademarks or registered trademarks
of VeriFone in the United States and/or other countries. All other trademarks or brand names are the properties of their respective holders. All features
and specifications are subject to change without notice. Reproduction or posting of this document without prior VeriFone approval is prohibited.
2/11 45751 Rev H FS
SSL v3.0, 3DES encryption, Master/
Session and DUKPT key management;
PCI PED 2.0 standard; PCI PTS 3.0
optional; VeriShield file authentication
Length: 203 mm (8.0 in.); Width: 87 mm
(3.4 in.); Height: 76 mm (3.0 in.);
Weight: 500g
0° to 40° C (32° to 104° F)
operating temperature; 5% to 90%
relative humidity, non-condensing;
-20º to 60º C (-4º to 140º F) storage
AC input 100 - 240 VAC, 50/60 Hz;
DC Output 8V 2.25A
