HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC

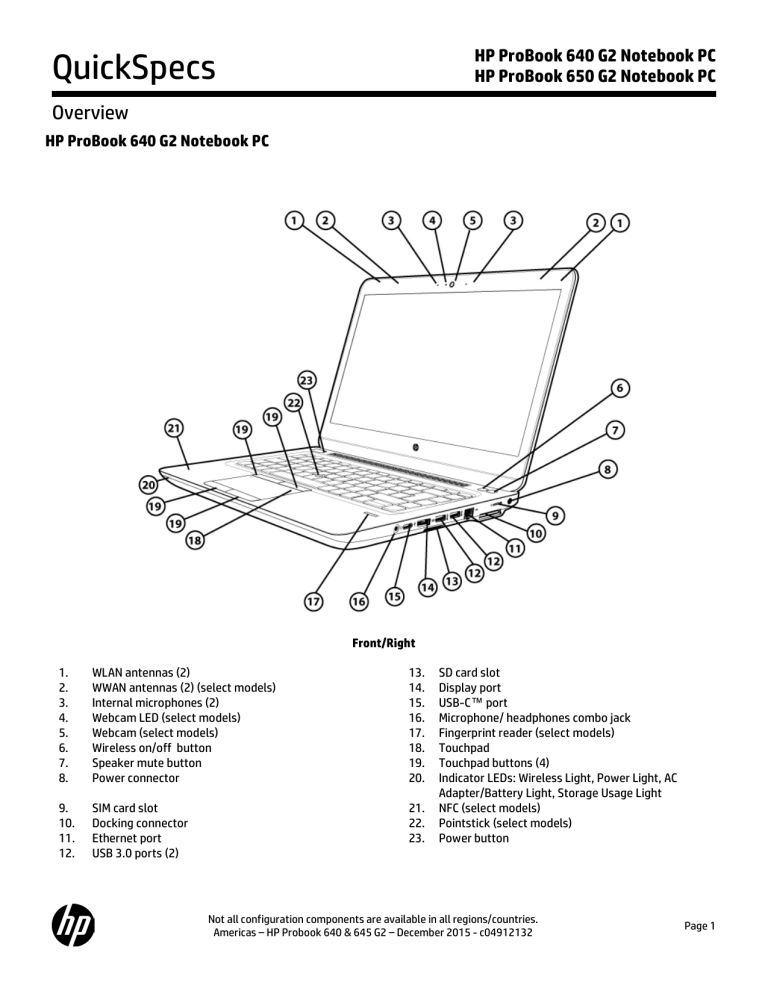

QuickSpecs
Overview
HP ProBook 640 G2 Notebook PC
Front/Right
1.
2.
3.
4.
5.
6.
7.
8.
WLAN antennas (2)
WWAN antennas (2) (select models)
Internal microphones (2)
Webcam LED (select models)
Webcam (select models)
Wireless on/off button
Speaker mute button
Power connector
13.
14.
15.
16.
17.
18.
19.
20.
9.
10.
11.
12.
SIM card slot
Docking connector
Ethernet port
USB 3.0 ports (2)
21.
22.
23.
SD card slot
Display port
USB-C™ port
Microphone/ headphones combo jack
Fingerprint reader (select models)
Touchpad
Touchpad buttons (4)
Indicator LEDs: Wireless Light, Power Light, AC
Adapter/Battery Light, Storage Usage Light
NFC (select models)
Pointstick (select models)
Power button
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 1
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Overview
1.
2.
Security lock slot
Optical drive
1.
VGA port
Left
3. Smart Card Reader
Back
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 2
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Overview
HP ProBook 650 G2 Notebook PC
Front/Right
1.
2.
3.
4.
5.
6.
7.
8.
WLAN antennas (2)
WWAN antennas (2) (select models)
Internal microphones (2)
Webcam LED (select models)
Webcam (select models)
Wireless on/off button
Speaker mute button
Power connector
13.
14.
15.
16.
17.
18.
19.
20.
9.
10.
11.
12.
SIM card slot
Docking connector
Ethernet port
USB 3.0 ports (2)
21.
22.
23.
SD card slot
Display Port
USB-C™ port
Microphone/ headphones combo jack
Fingerprint reader (select models)
Touchpad
Touchpad buttons (4)
Indicator LEDs: Wireless Light, Power Light, AC
Adapter/Battery Light, Storage Usage Light
NFC (select models)
Pointstick (select models)
Power button
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 3
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Overview
1.
2.
Security lock slot
Optical drive
1.
VGA port
Left
3. Smart card reader
Back
2. Serial port optional (650 only)
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 4
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Overview
AT A GLANCE
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Windows 10 versions, Windows 8.1 versions, Windows 7 versions, FreeDOS 2.0
Choice of 6th Generation Intel® Core™ processors
Thin and light design– PC-ABS (Polycarbonate–Acrylnitrile/Butadiene/Styrene) durable material is nearly 20% thinner;
soft-touch, more durable 4-step paint process; larger buttons (power), revamped keyboard (arrow keys); latch/hook
removal for clean palmrest design; top mounted speakers for optimized audio experience (compared to previous
generation)
The HP Premium keyboard is spill-resistant and offered with optional backlit design
Large Touchpad with gestures support, on/off button with LED indicator
Enhanced security features including HP Fingerprint Reader and TPM 1.2 Embedded Security Chip
LED-backlit display
HP ProBook 640: 14.0” diagonal HD and FHD or Touch FHD with camera and with WWAN
HP ProBook 650: 15.6” diagonal HD and FHD or Touch FHD with camera and with WWAN
Optional HD webcam with dual-microphone array for video conferencing
DisplayPort 1.2 now native with integrated graphics
Three USB 3.0 ports for fast data transfer from devices (2 charging) and one USB-C™ charging port
HD Audio with DTS Sound+™ optimized for high fidelity audio
Wireless and speaker mute button to conveniently manage the connectivity and speaker.
Flexible wireless connectivity options:
- Broadband Wireless (WWAN)
- Wireless LAN (WLAN)
- Personal area network (WPAN Bluetooth®)
- Near Field Communication (NFC)
Choice of hard drives up to 1 TB or solid state drives up to 512 GB
NOTE: See important legal disclosures for all listed specs in their respective features sections.
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 5
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
PRODUCT NAMES
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
OPERATING SYSTEM
Preinstalled
Windows 10 Pro 641
Windows 10 Home 641
Windows 10 Home Single Language 641
Windows 10 Home64 (National Academic only)1
Windows 10 Pro 64 (National Academic only)1
Windows 8.1 Pro 643
Windows 8.1 Pro 64 (National Academic only)3
Windows 8.1 643
Windows 7 Professional 64 (Available through downgrade rights from Windows 10 Pro 64)2
Windows 7 Professional 32 (Available through downgrade rights from Windows 10 Pro 64)2
Windows 7 Professional 32 (Available through downgrade rights from Windows 10 Pro 64)
(National Academic only)2
Windows 7 Professional 64 (Available through downgrade rights from Windows 10 Pro 64)
(National Academic only)2
Windows 7 Professional 643
Windows 7 Professional 323
Windows 7 Professional 32 (National Academic only)3
Windows 7 Professional 64 (National Academic only)3
FreeDOS 2.0
Web-only Support
Windows 10 Enterprise 641
Windows 8.1 Enterprise 641
Windows 7 Enterprise 641
Windows 7 Enterprise 321
1.
2.
3.
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time
for updates. See http://www.microsoft.com.
This system is preinstalled with Windows 7 Professional software and also comes with a license and media for Windows
10 Pro software. You may only use one version of the Windows software at a time. Switching between versions will
require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before
uninstalling and installing operating systems to avoid loss of your data
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. See
http://www.microsoft.com.
PROCESSORS
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 6
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
ProBook 640 G2
Intel® Core™ i7-6600U with Intel® HD Graphics 520
(2.6 GHz, up to 3.4 GHz with Intel® Turbo Boost Technology, 4 MB cache, 2 cores)1,2
Intel® Core™ i5-6300U with Intel® HD Graphics 520
(2.4 GHz, up to 3 GHz with Intel® Turbo Boost Technology, 3 MB cache, 2 cores) 1,2
Intel® Core™ i5-6200U with Intel® HD Graphics 520
(2.3 GHz, up to 2.8 GHz with Intel® Turbo Boost Technology, 3 MB cache, 2 cores) 1,2
Intel® Core™ i3-6100U with Intel® HD Graphics 520
(2.3 GHz, 3 MB cache, 2 cores) 1,2
ProBook 650 G2
Intel® Core™ i7-6820HQ with Intel® HD Graphics 530
(2.7 GHz, up to 3.6 GHz with Intel® Turbo Boost Technology, 8 MB cache, 4 cores) 1,2,3
Intel® Core™ i5-6440HQ with Intel® HD Graphics 530
(2.6 GHz, up to 3.5 GHz with Intel® Turbo Boost Technology, 6 MB cache, 4 cores) 1,2,3
Intel® Core™ i7-6600U with Intel® HD Graphics 520
(2.6 GHz, up to 3.4 GHz with Intel® Turbo Boost Technology, 4 MB cache, 2 cores) 1,2
Intel® Core™ i5-6300U with Intel® HD Graphics 520
(2.4 GHz, up to 3 GHz with Intel® Turbo Boost Technology, 3 MB cache, 2 cores) 1,2
Intel® Core™ i5-6200U with Intel® HD Graphics 520
(2.3 GHz, up to 2.8 GHz with Intel® Turbo Boost Technology, 3 MB cache, 2 cores) 1,2
Intel® Core™ i3-6100U with Intel® HD Graphics 520
(2.3 GHz, 3 MB cache, 2 cores) 1,2
1. Multicore is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload
and your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
2. Some vPro™ functionality, such as Intel® Active management technology and Intel Virtualization technology, requires
additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is
dependent on 3rd party software providers. Microsoft Windows required.
3. Planned to be available February 2016.
NOTE: Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization
mode.
CHIPSET
Integrated with processor
GRAPHICS
HP ProBook 640
Integrated:
Intel® HD1 Graphics 520
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 7
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
Discrete:
AMD Radeon™ R7 M365X (2 GB GDDR5 dedicated)2
* Available in February 2016
HP ProBook 650
Integrated:
Intel® HD1 Graphics 520
Intel® HD1 Graphics 530
Discrete:
AMD Litho Pro AMD Litho PRO (128-bit) w/2 GB GDDR5 (128Mb x 32, 1.35V, 5Gbps, Qty 4)2
1. HD content required to view HD images.
2. AMD Dynamic Switchable Graphics technology requires an Intel processor, plus an AMD Radeon™ discrete graphics
configuration and is not available on FreeDOS and Linux OS. With AMD Dynamic Switchable Graphics technology, full
enablement of all discrete graphics video and display features may not be supported on all systems (e.g. OpenGL applications
will run on the integrated GPU or the APU as the case may be). Planned to be available in February 2016.
DISPLAY
HP ProBook 640
Internal
Non-Touch
14.0" diagonal LED backlight HD1 Anti-glare (1366x768)
14.0" diagonal LED backlight HD1 Anti-glare (1366x768) with camera
14.0" diagonal LED backlight HD1 Anti-glare (1366x768) with WWAN
14.0" diagonal LED backlight HD1 Anti-glare (1366x768) with camera and with WWAN
14.0" diagonal LED backlight FHD Anti-glare (1920x1080)
14.0" diagonal LED backlight FHD Anti-glare (1920x1080) with camera
14.0" diagonal LED backlight FHD Anti-glare (1920x1080) with WWAN
14.0" diagonal LED backlight FHD Anti-glare (1920x1080) with camera & WWAN
Touch
14.0" diagonal LED backlight FHD (1920x1080) with camera and with WWAN
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 1920 x 1200 external resolution @60 Hz
DisplayPort 1.2
Supports resolutions up to 2560 x 1600, 30-bit color depth at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth
at 120 Hz
Number of Displays Supported
Number of Displays with Optional2 HP Advanced Docking Station
ProBook 640
UMA
Discrete
3
5
HP ProBook 650
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 8
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
Internal
Non-Touch
15.6" diagonal LED backlight HD1 Anti-glare (1366 x 768)
15.6" diagonal LED backlight HD1 Anti-glare (1366 x 768) with camera
15.6" diagonal LED backlight HD1 Anti-glare (1366 x 768) with WWAN
15.6" diagonal LED backlight HD1 Anti-glare (1366 x 768) with camera and with WWAN
15.6" diagonal LED backlight FHD Anti-glare (1920 x 1080)
15.6" diagonal LED backlight FHD Anti-glare (1920 x 1080) with camera
15.6" diagonal LED backlight FHD Anti-glare 1920 x 1080) with WWAN
15.6" diagonal LED backlight FHD Anti-glare (1920 x 1080) with camera & WWAN
Touch
15.6" diagonal LED backlight FHD (1920 x 1080) with camera with WWAN
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 1920 x 1200 external resolution @60 Hz
DisplayPort 1.2
Supports resolutions up to 2560 x 1600, 30-bit color depth at 60 Hz, and full HD (1920 x 1080) monitors, 24-bit color depth
at 120 Hz
Number of Displays Supported
Number of Displays with Optional2 HP Advanced Docking Station
ProBook 650
1.
2.
UMA
3
Discrete
5
HD content required to view HD images.
Sold separately or as an optional feature.
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
STORAGE AND DRIVES
Primary Storage Bay
Hard Drives1
Supports SATA3, 7 mm
2.5" Hard Drives1
500 GB 7200 rpm
500 GB 7200 rpm Self-Encrypting Drive (Opal 2)
500 GB 7200 rpm Self Encrypting Drive (Opal 2) (FIPS)
1 TB 5400 rpm
500 GB Hybrid
2.5” Solid State Drive1
128 GB SATA TLC (Brazil only)
256 GB SATA TLC (Brazil only)
M.2 (NGFF) Solid State Drive1
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 9
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
128 GB SATA-3 TLC
180 GB SATA-3 MLC
180 GB SATA-3 MLC ( Opal 2 )
240 GB SATA-3 MLC
256 GB PCIe-3x4 DS NVMe
256 GB SATA-3 MLC ( Opal 2 )
256 GB SATA-3 TLC
512 GB SATA-3 TLC
For hard drives and solid state drives, GB = 1 billion bytes. Actual formatted capacity is less.
Up to 16 GB (for Windows 7) and up to 30 GB (for Windows 8 and 10) of system disk is reserved for the system recovery
software.
OPTICAL DRIVES
Fixed 9.5 mm SATA
DVD-ROM Drive
DVD+/-RW SuperMulti DL1
Blu-ray ROM DVD+/-RW SuperMulti DL1
Weight saver2
1. For Blu-ray drives, certain disc, digital connection, compatibility and/or performance issues may arise, and do not
constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to
play, they may require an HDMI digital connection and your display may require HDCP support. HD-DVD disks cannot be
played on this drive. Note that DVD-RAM cannot read or write to 2.6 GB Single Sided/5.2 GB Double Sided – Version 1.0
media. Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer discs can store more data than
single layer discs; discs burned with this drive may not be compatible with many existing single-layer DVD drives and
players.
2. Not available on with Touch panel.
MEMORY
Standard
DDR4-2133 SDRAM (Transfer rates up to 2133 MT/s)
Two SODIMM slots supporting dual-channel memory
4096 MB Total System Memory (4096 MB x 1)
8192 MB Total System Memory (4096 MB x 2)
8192 MB Total System Memory (8192 MB x 1)
16384 MB Total System Memory (8192 MB x 2)
Maximum
Up to 16384 MB with optional 8192 MB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 10
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory
to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
NETWORKING/COMMUNICATIONS
Intel® Pro Wireless Display (WiDi Pro)1
1. Integrated Intel Wi-Di software is available on select models only and requires separately purchased projector, tv or
computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the projector, tv or
computer monitor via a standard VGA, HDMI cable, also sold separately
Broadband Wireless (WWAN) 2,3
HP lt4120 Qualcomm® Snapdragon™ X5 LTE Mobile Broadband Module
HP hs3110 HSPA+ Mobile Broadband Module
Wireless LAN (WLAN)1,2
Options via Minicard
Intel® 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.1 Combo
Broadcom 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo
Realtek 802.11b/g/n (1x1) Wi-Fi
Personal area network (WPAN Bluetooth) 1,2
Bluetooth® 4.0 supported via all combo cards (except for Intel® 802.11 ac Non-vPro)
Bluetooth® 4.1 supported via (Intel® 802.11 ac Non-vPro only)
Near Field Communication (NFC) Optional2
HP Module with NXP NFC Controller NPC100
Support for Miracast (Windows 8.1 and Windows 10)
1. Wireless access point and Internet service is required and is not included. Availability of public wireless access points
limited.
2. Sold separately or as an optional feature.
3. WWAN module is optional and requires separately purchased service contract. Check with service provider for coverage
and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other
factors. 4G LTE not available on all products, in all regions.
Communications1
Intel® I219LM 10/100/1000 Ethernet
Intel® I219V 10/100/1000 Ethernet
1. The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit
Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit
Ethernet server and network infrastructure is required.
AUDIO/MULTIMEDIA
Audio
HD Audio with DTS Sound+™
(2) Integrated stereo speakers
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 11
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
Integrated digital microphone (Dual-microphone array when equipped with optional webcam)
Function keys for microphone mute, volume up, volume down
Stereo headphone/line out
Stereo microphone in
Webcam
Optional 720p HD webcam 1,2
•
•
•
•
•
•
•
•
HD format (widescreen)
Supports videoconferencing (non-HD) and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
Skype-ready (subscription required and sold separately)
1.
2.
Sold separately or as an optional feature.
HD content required to view HD images.
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
HP Premium Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard. The 101/102-key compatible
keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and
alt keys, and function keys. DuraKeys only available with Backlit option.
Three Keyboard options:
Touchpad, Spill-resistant with drain
Touchpad, Spill-resistant with drain, DuraKeys & Backlit
Dual Point, Spill-resistant with drain, DuraKeys & Backlit
Touchpad
On/Off button
Enabled by default
2F Scrolling – On
2F Zoom ( Pinch ) – On
OSD ( enable / disable ) – On
Win 8 2F tap = right click – On
Win 8 Edge Swipes – On
Buttons and Function Keys
F1 – Sleep
F2 – Blank
F3 – Backlit
F4 - Display Switch
F5 - Brightness down
F6 - Brightness up
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 12
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
F7 – Blank
F8 - Volume down
F9 - Volume up
F10 - Mic Mute
F11 – Bank
F12 - Num lock
SOFTWARE AND SECURITY
Preinstalled Software with Windows Operating System
BIOS
HP BIOSphere1
HP DriveLock | HP Automatic DriveLock
HP BIOS Protection2
BIOS Update via Network
Master Boot Record Security
Power On Authentication
Pre-Boot Security
Secure Erase3
Hybrid Boot
Measure Boot
Secure Boot
Absolute Persistence Module4
Pre-boot Authentication
Multi Media
Cyberlink Power DVD, BD
Cyberlink Power2Go (Secure Burn)
Cyberlink YouCam BE (Windows 7 only)
Communication
HP GPS and Location (Windows 7 only)5
HP Connection Manager with support for HP Mobile Connect (Windows 7 only)6
HP Mobile Connect Pro (Windows 8.1 and Windows 10 only)6
Intel® Wireless Display (WiDi) Software for Windows7
Native Miracast Support8
HP Value Add Software
HP 3D DriveGuard (requires Windows)
HP ePrint Driver9
HP Hotkey
HP Recovery Manager
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 13
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
HP Recovery Disc Creator
HP Registration App (Windows 8.1 only)
HP Support Assistant
HP Noise Reduction Software
3rd Party
Foxit PhantomPDF Express for HP
Microsoft Products
Buy Office
Bing Search
Skype10
Manageability
HP Driver Packs11
HP SoftPaq Download Manager (SDM)
HP System Software Manager (SSM)11
HP BIOS Config Utility (BCU)11
HP Client Catalog11
HP CIK for Microsoft SCCM11
LANDESK Management12
For more information on HP Client Management Solutions refer to: http://www.hp.com/go/clientmanagement.
Client Security Software
HP Client Security
• HP Security Manager (including Credential Manager and Password Manager)
• HP Drive Lock
• HP Fingerprint Sensor
• HP Password Manager
• Absolute Persistence Module
• Power On Authentication
Microsoft Security Essentials13
Microsoft Defender
Security
TPM 1.2/2.014
HP Fingerprint reader
Security lock slot
Integrated Smart Card Reader
For more information on HP Client Security Software Suite, refer to http://www.hp.com/go/clientsecurity.
1. Available only on business PCs with HP BIOS.
2. May require a manual recovery step if all copies of BIOS are compromised or deleted
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 14
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
3. For the methods outlined in the National Institute of Standards and Technology Special Publication
800-88.
4. Absolute agent is shipped turned off, and will be activated when customers activate a purchased
subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check
with Absolute for availability outside the U.S. The Absolute Recovery Guarantee is a limited warranty.
Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/
computrace-agreement. Data Delete is an optional service provided by Absolute Software. If utilized, the
Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a
Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens from
Absolute Software.
5. GPS access requires an unobstructed path to multiple satellites. Performance may be affected if/when
used inside of buildings, bridges or heavily congested metropolitan areas. Requires separately purchased
GPS navigation software available from multiple GPS applications.
6. HP Mobile Connect Pro is only available on preconfigured devices with WWAN. For geographic
availability refer to www.hp.com/go/mobileconnect
7. Integrated Intel Wi-Di feature is available on select configurations only and requires separately purchased
projector, TV or computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to
the projector, TV or computer monitor via a standard HDMI cable, also sold separately.
8. Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming media
players that also support Miracast. You can use Miracast to share what you’re doing on your PC and present a slide
show. For more information: http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast
9. Requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list
of eligible printers, supported documents and image types and other HP ePrint details, see
www.hp.com/go/eprintcenter). Requires optional broadband module. Broadband use requires separately
purchased service contract. Check with service provider for coverage and availability in your area.
Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.
10. Skype is not offered in China.
11. Not preinstalled, however available for download at http://www.hp.com/go/clientmanagement
12. Subscription required.
13. Opt in and internet connection required for updates.
14. This product ships with TPM 1.2 with option to upgrade to TPM 2.0. Upgrade utility is expected to be
available by the end of 2015 via HP Customer Support
POWER
Power Supply
HP 45W Smart AC Adapter (UMA only)
HP 65W Smart AC Adapter
Power cord included is 1.8 m (+/- 0.1 m) or 1.0 m (+/- 0.1 m).
Primary Battery
HP 3-cell Long Life Prismatic (48 WHr)
Battery Life
TBD
System Standby Time
TBD
WEIGHTS & DIMENSIONS
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 15
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
HP ProBook 640 Notebook PC
Weight
Starting at 4.30 lbs (1.95 kg)1
(3-cell battery, ODD weight saver, UMA, no FPR, 1 SODIMM, WLAN only, SSD, touchpad only, no camera, no WWAN)
Dimensions (w x d x h)
13.39 x 9.33 x 1.06 in (Front and rear)2
34.0 x 23.7 x 27.0 cm (Front and rear) 2
HP ProBook 650 Notebook PC
Weight
Starting at 5.10 lbs ( 2.31 kg)1
(3-cell battery, ODD weight saver, UMA, no FPR, 1 SODIMM, WLAN only, SSD, touchpad only, no camera, no WWAN)
Dimensions (w x d x h)
14.88 x 10.11 x 27.40 in ) (Front and rear)2
37.8 x 25.70 x 2.74 cm ) (Front and rear)2
1. Weight varies by configuration and components.
2. Height varies depending upon where on the notebook the measurement is made.
PORTS/SLOTS
Ports
USB Type-C™ - One
USB 3.0 port – One
USB 3.0 Port Charging – One
RJ-45 / Ethernet - One
Docking connector – One
Headphone / Microphone (Combo jack ) – One
AC port ( 4.5mm ) – One
DisplayPort 1.2 -One
VGA port – One
Serial port optional – One (only available on HPProBook 650) 1
1. Sold separately or as an optional feature.
SD Media Reader Slot
Supports SD, SDHC, SDXC
SERVICE AND SUPPORT
Limited 3-year, 1-year or 90-day limited warranty options available, depending on country. Batteries have a default one year
limited warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the
platform.Optional1 HP Care Pack Services2 are extended service contracts which go beyond your standard limited warranties.
To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at
http://www.hp.com/gp/cpc.
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 16
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
1. Sold separately or as an optional feature.
2. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on
date of hardware purchase. Restrictions and limitations apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
SYSTEM UNIT
TBD
NETWORKING/COMMUNICATIONS
Technology/Operating bands
Wireless protocol standards
GPS
GPS bands
Maximum data rates
Maximum output power
HP lt4120 Qualcomm® Snapdragon™ X5 LTE Mobile Broadband Module*
LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3),
1700/2100 (Band 4), 850 (Band 5), 2600 (Band 7), 900 (Band 8),
700 (Band 12 lower), 700 (Band 13 upper), 700 (Band 17 lower),
800 (Band 20), 700 (Band 28).
HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4),
850 (Band 5), 900 (Band 8) MHz
EV-DO: 850 (BC0), 1900 (BC1) MHz (Only work with Verizon network)
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8)
MHz
3GPP Release 10 LTE Specification CAT.4, 20MHz BW
WCDMA R99, 3GPP Release 5, 6, 7 and 8 UMTS Specification
1xEVDO Release 0, A and B.
E-GPRS: Class B, Multi-slot class 12, coding schemes CS1 - CS4
and MSC1 - MSC9
Standalone, A-GPS (MS-A, MS-B and XTRA)
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz
LTE: 150 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21Mbps (Download), 5.76 Mbps (Upload)
CDMA 1xRTT: 153.6 kbps (Download), 153.6 kbps (Upload)
EVDO Rel.A: 3.1 Mbps (Download), 1.8 Mbps (Upload)
EVDO Rel.B: 14.7 Mbps (Download), 5.4Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
LTE: 23 dBm
HSPA+: 23.5 dBm
1xRTT/EVDO: 24dBm
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 17
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
E-GPRS 1900/1800: 26 dBm
E-GPRS 900/850: 27 dBm
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm
Maximum power consumption LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
1xRTT/EVDO: 1,000 mA (peak); 700 mA (average)
E-GPRS: 2,800 mA (peak); 500 mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
6.2 g
Dimensions
42 x 30 x 2.3 mm
(Length x Width x Thickness)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available in a
provider to determine the coverage area and availability. Connection speeds will vary due to location, environment, network conditions, a
not available on all products or in all countries.
HP hs3110 HSPA+ Intel® Mobile Broadband Module*
HSPA+: 2100 (Band1), 1900 (Band 2), 1700 (Band 4), 850 (Band 5), 900 (Band 8) MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 MHz (Band 5), 900 (Band 8) MHz
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 - MSC9
Standalone, A-GPS
1575.42 MHz ± 1.023 MHz
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
Technology/Operating bands
Wireless protocol standards
GPS
GPS bands
Maximum data rates
Maximum output power
Maximum power consumption
E-GPRS: 296 kbps (Download), 236.8 kbps (Upload)
GPRS: 107 kbps (Download), 85.6 kbps (Upload)
HSPA+: 24 dBm
E-GPRS 1800/1900: 26 dBm
E-GPRS 850/900: 27 dBm
GPRS 1800/1900: 30 dBm
GPRS 850/900: 33 dBm
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,800 mA (peak); 700 mA (average)
M.2, 3042-S3 Key B
6g
1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)
Form Factor
Weight
Dimensions
(Length x Width x Thickness)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract, network support, and is not available
in all areas. Contact service provider to determine the coverage area and availability. Connection speeds will vary due to location,
environment, network conditions, and other factors.
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 18
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Intel® 802.11a/b/g/n/ac (2x2) and Bluetooth® 4.1 Combo
Wireless LAN Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
•
2.402 – 2.482 GHz
Note:
The FCC has declared as of January 1, 2015 products that utilize
passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or
otherwise disable those channels.
802.11a/n
•
•
•
•
•
Data Rates
Modulation
Security1
•
•
•
•
•
4.9 – 4.95 GHz (Japan)
5.15 – 5.25 GHz
5.25 – 5.35 GHz
5.47 – 5.725 GHz
5.825 – 5.850 GHz
Note: Indonesia no support this band)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz,
and 80MHz)
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
•
•
•
•
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 19
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
•
•
•
Network Architecture
Models
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
• WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
Power Consumption
•
•
•
•
•
•
•
802.11b : +16dBm minimum
802.11g : +14dBm minimum
802.11a : +14dBm minimum
802.11n HT20(2.4GHz) : +14dBm minimum
802.11n HT40(2.4GHz) : +12dBm minimum
802.11n HT20(5GHz) : +14dBm minimum
802.11n HT40(5GHz) : +12dBm minimum
Transmit:
Receive:
2.0 W (max)
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode:
50 mW (WLAN unassociated)
Connect Standby: 10 mW (WLAN+BT)
Radio disabled: 5 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11a, 6Mbps : -88dBm maximum
802.11a, 54Mbps : -74dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 20
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
802.11ac, 1SS, MCS-0 : -86dBm maximum
802.11ac, 1SS, MCS-9 : -61dBm maximum
802.11ac, 2SS, MCS-0 : -83dBm maximum
802.11ac, 2SS, MCS-9 : -58dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card
to support WLAN MIMO communications and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
1.
2.
3.
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth Specification
4.0/4.1/4.2 Compliant
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 21
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)
Data Rates and Throughput
Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps
BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of + 4 dBm for BR and EDR.
Receiver Sensitivity
Modulation
0.01% BER
0.001% BER
Legacy
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Legacy Up to 33 ft (10 m)
BLE Up to 99 ft (30 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 22
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Power Management
Microsoft Windows ACPI, and USB Bus Support
Certifications
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Certifications
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio Video Remote Control Profile (AVRCP)
Bluetooth V4.1/V4.2 support
feature
V4.1: ESR5/6/7 compliant
V4.2: ESR8 compliant, LE Secure Connection – Basic.
Intel® 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 23
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Wireless LAN
Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
Note:
The FCC has declared as of January 1, 2015 products that utilize
passive scanning on channel 12/13 and are capable of transmitting
must fully comply with requirements of 15.247 or otherwise disable
those channels.
802.11a
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Note:
Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
Security1
•
•
•
•
•
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 24
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
•
•
Sub-channels
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
• WAPI
Multinational support with frequency bands and channels compliant to
local regulations.
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Output Power2
• 802.11b : +16dBm minimum
• 802.11g : +14dBm minimum
• 802.11a : +14dBm minimum
• 802.11n HT20(2.4GHz) : +13dBm minimum
• 802.11n HT40(2.4GHz) : +13dBm minimum
• 802.11n HT20(5GHz) : +12dBm minimum
• 802.11n HT40(5GHz) : +12dBm minimum
Transmit:
2.0 W (max)
Power Consumption
Receive:
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode:
60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11a, 6Mbps : -86dBm maximum
802.11a, 54Mbps : -72dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Antenna type
Two embedded dual band 2.4/5 GHz antennas are provided to the card
to support WLAN MIMO and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 25
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (noncondensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber - Radio OFF; LED White - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
79 (1 MHz) available channels
Data Rates and Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 26
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Transmit Power
Receiver Sensitivity
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of +4 dBm for BR and EDR.
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Power Management
Microsoft Windows ACPI, and USB Bus Support
Power Management
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
Certifications
UL, CSA, and CE Mark
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 27
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Bluetooth V4.1/V4.2 support
feature
V4.1: ESR5/6/7 compliant
V4.2: ESR8 compliant, LE Secure Connection – Basic.
Broadcom 802.11a/b/g/n (2x2) and Bluetooth® 4.0 Combo
Wireless LAN
Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
• 2.402 – 2.482 GHz
Note:
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 28
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
The FCC has declared as of January 1, 2015 products that utilize
passive scanning on channel 12/13 and are capable of transmitting
must fully comply with requirements of 15.247 or otherwise disable
those channels.
802.11a
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Note:
Indonesia only supports 5.725 - 5.825 GHz (CH149 - CH161)
Antenna Structure
2 transmit; 2 receive (2x2)
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
Security1
Sub-channels
•
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
• WAPI
Multinational support with frequency bands and channels compliant to
local regulations.
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between band Access Points
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 29
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Output Power2
Power Consumption
• 802.11b : +16dBm minimum
• 802.11g : +14dBm minimum
• 802.11a : +14dBm minimum
• 802.11n HT20(2.4GHz) : +13dBm minimum
• 802.11n HT40(2.4GHz) : +13dBm minimum
• 802.11n HT20(5GHz) : +12dBm minimum
• 802.11n HT40(5GHz) : +12dBm minimum
Transmit:
2.0 W (max)
Receive:
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode:
60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11a, 6Mbps : -86dBm maximum
802.11a, 54Mbps : -72dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Antenna type
Two embedded dual band 2.4/5 GHz antennas are provided to the card
to support WLAN MIMO and Bluetooth communications
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 30
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (noncondensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
LED Amber - Radio OFF; LED White - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
79 (1 MHz) available channels
Data Rates and Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
Receiver Sensitivity
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of +4 dBm for BR and EDR.
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 31
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Power Management
Microsoft Windows ACPI, and USB Bus Support
Power Management
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Certifications
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 32
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Broadcom 802.11b/g/n (1x1) WiFi and Bluetooth® 4.0 Combo
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
•
Data Rates
Modulation
Security1
2.402 – 2.482 GHz
Note:
The FCC has declared as of September 1, 2014 products that utilize
passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or
otherwise disable those channels.
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 07, (20MHz)
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM,
•
Network Architecture
Models
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
•
•
•
•
802.11b : +16dBm minimum
802.11g : +14dBm minimum
802.11n HT20(2.4GHz) : +13dBm minimum
802.11n HT40(2.4GHz) : +13dBm minimum
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 33
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
•
•
Power Consumption
802.11n HT20(5GHz) : +12dBm minimum
802.11n HT40(5GHz) : +12dBm minimum
Transmit:
2.0 W (max)
Receive:
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode: 60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded antennas for 2.4GHz are provided to the card to support
WLAN and Bluetooth communications.
(Support Dual antenna or Single antenna, depend on platform
requirement)
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Operating Voltage
3.3v +/- 9%
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 34
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Temperature
Operating
Non-operating
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
4.
5.
6.
LED Amber – Radio OFF; LED White – Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
79 (1 MHz) available channels
Data Rates and Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
Receiver Sensitivity
Power Consumption
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of +4 dBm for BR and EDR.
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 35
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Power Management
Microsoft Windows ACPI, and USB Bus Support
Power Management
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Certifications
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 36
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Realtek 802.11b/g/n (1x1) Wi-Fi
Wireless LAN Standards
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Wi-Fi certified
Frequency Band
802.11b/g/n
•
Data Rates
Modulation
Security1
2.402 – 2.482 GHz
Note:
The FCC has declared as of September 1, 2014 products that utilize
passive scanning on channel 12/13 and are capable of
transmitting must fully comply with requirements of 15.247 or
otherwise disable those channels.
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 07, (20MHz)
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM,
•
Network Architecture
Models
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power2
•
•
•
•
•
•
802.11b : +16dBm minimum
802.11g : +14dBm minimum
802.11n HT20(2.4GHz) : +13dBm minimum
802.11n HT40(2.4GHz) : +13dBm minimum
802.11n HT20(5GHz) : +12dBm minimum
802.11n HT40(5GHz) : +12dBm minimum
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 37
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Power Consumption
Transmit:
2.0 W (max)
Receive:
1.6 W (max)
Idle mode (PSP): 180 mW (WLAN Associated)
Idle mode: 60 mW (WLAN unassociated)
Radio disabled: 30 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity3
802.11b, 1Mbps : -94dBm maximum
802.11b, 11Mbps : -86dBm maximum
802.11g, 6Mbps : -88dBm maximum
802.11g, 54Mbps : -74dBm maximum
802.11n, MCS07 : -69dBm maximum
802.11n, MCS15 : -66dBm maximum
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded antennas for 2.4GHz are provided to the card to support
WLAN and Bluetooth communications.
(Support Dual antenna or Single antenna, depend on platform
requirement)
Form Factor
PCI-Express M.2 MiniCard
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Or
Type 1630 : 2g
Operating Voltage
3.3v +/- 9%
Temperature
Operating
Non-operating
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
14° to 158° F (–10° to 70° C)
–40° to 176° F (–40° to 80° C)
Page 38
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Humidity
Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude
Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity
7.
8.
9.
LED Amber – Radio OFF; LED White – Radio ON
Check latest software/driver release for updates on supported security features.
Maximum output power may vary by country according to local regulations.
Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation)
and a packet error rate of 10% for 802.11a/g (OFDM modulation).
HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology
Bluetooth Specification
4.0+EDR Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
79 (1 MHz) available channels
Data Rates and Throughput
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
Transmit Power
Receiver Sensitivity
The Bluetooth component shall operate as a Class II Bluetooth device
with a maximum transmit power of +4 dBm for BR and EDR.
Modulation
0.01% BER
0.001% BER
GFSK
-80 dBm
-70 dBm
π/4-DQPSK
-80 dBm
-70 dBm
8DPSK
-80 dBm
-70 dBm
Power Consumption
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW
Range
Up to 33 ft (10 m)
Electrical Interface
USB 2.0 compliant
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 39
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Bluetooth Software Supported
Microsoft Windows Bluetooth Software
Link Topology
Electrical Interface
Point to Point, Multipoint Pico Nets up to 7 slaves
Bluetooth Software Supported
Full support of Bluetooth Security Provisions
Security
Power Management
Microsoft Windows ACPI, and USB Bus Support
Power Management
Self-configurable to optimize power conservation in all operating
modes, including Standby, Hold, Park, and Sniff
Certifications
Security
All necessary regulatory approvals for supported countries, including:
Certifications
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Bluetooth Profiles Supported
Power Management
ETS 300 328, ETS 300 826
Certifications
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Certifications
Bluetooth Profiles Supported
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
ENVIRONMENTAL
TBD
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 40
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
COUNTRY OF ORIGIN
China
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 41
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
QuickSpecs
Technical Specifications
Options and Accessories (Sold separately and availability may vary by country.)
Type
Description
Part Number
Docking
HP 3001pr USB 3.0 Port Replicator
F3S42AA
HP 3005pr USB 3.0 Port Replicator
H1L08AA#xxx
HP Display and Notebook Stand II
E8G00AA#xxx
Universal Port Replicator
E6D70AA#xxx
HP UltraSlim Docking Station
D9Y32AA#xxx
HP USB Travel Mouse
G1K28AA#xxx
HP Ultrathin Wireless Mouse SE
L9V77AA
HP Ultrathin Wireless Mouse
L9V78AA
HP Stereo USB Headset
T1A67AA
DisplayPort to HDMI Adapter
F3W43AA
DisplayPort to DVI Adapter
F7W96AA
HP 45W Smart AC Adapter (4.5mm)
H6Y88AA#xxx
HP 65W Smart AC Adapter
H6Y89AA#xxx
Storage - External Storage
HP USB External DVDRW Drive
F2B56AA
Security
HP UltraSlim Keyed Cable Lock
H4D73AA
HP USB Smart Card Reader
F6V67AA
HP Docking Station Cable Lock
AU656AA#XXX
HP ProDisplay P232
K7X31AA
HP ProDisplay P222va
K7X30AA
HP ProDisplay P222c
L4J08AA
Input/Output/Audio
Power
Display
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 42
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2 Notebook PC
Technical Specifications
Copyright © 2015 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty
statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be
liable for technical or editorial errors or omissions contained herein. Intel, Core, and Celeron are registered trademarks or trademarks
of Intel Corporation in the U.S. and/or other countries. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard
Company under license. Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the U.S.
and other countries. Adobe is a trademark of Adobe Systems Incorporated. ENERGY STAR is a registered mark owned by the U.S.
Environmental Protection Agency. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Sound+ is a trademark of DTS, Inc. ©
DTS, Inc. All Rights Reserved.
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 43
QuickSpecs
HP ProBook 640 G2 Notebook PC
HP ProBook 650 G2Notebook PC
Summary of Changes
Date of change:
Version History:
Description of change:
Not all configuration components are available in all regions/countries.
Americas – HP Probook 640 & 645 G2 – December 2015 - c04912132
Page 44
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
