HP 3PAR StoreServ 7000 Storage

HP 3PAR StoreServ 7000 Storage

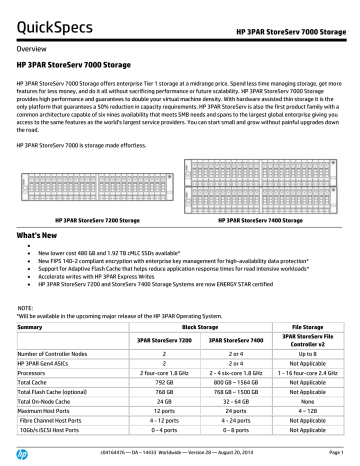

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Overview

HP 3PAR StoreServ 7000 Storage

HP 3PAR StoreServ 7000 Storage offers enterprise Tier 1 storage at a midrange price. Spend less time managing storage, get more features for less money, and do it all without sacrificing performance or future scalability. HP 3PAR StoreServ 7000 Storage provides high performance and guarantees to double your virtual machine density. With hardware assisted thin storage it is the only platform that guarantees a 50% reduction in capacity requirements. HP 3PAR StoreServ is also the first product family with a common architecture capable of six nines availability that meets SMB needs and spans to the largest global enterprise giving you access to the same features as the world's largest service providers. You can start small and grow without painful upgrades down the road.

HP 3PAR StoreServ 7000 is storage made effortless.

HP 3PAR StoreServ 7200 Storage HP 3PAR StoreServ 7400 Storage

What's New

 New lower cost 480 GB and 1.92 TB cMLC SSDs available*

 New FIPS 140-2 compliant encryption with enterprise key management for high-availability data protection*

 Support for Adaptive Flash Cache that helps reduce application response times for read intensive workloads*

 Accelerate writes with HP 3PAR Express Writes

 HP 3PAR StoreServ 7200 and StoreServ 7400 Storage Systems are now ENERGY STAR certified

NOTE:

*Will be available in the upcoming major release of the HP 3PAR Operating System.

Summary Block Storage

Number of Controller Nodes

HP 3PAR Gen4 ASICs

Processors

Total Cache

Total Flash Cache (optional)

Total On-Node Cache

Maximum Host Ports

Fibre Channel Host Ports

10Gb/s iSCSI Host Ports

3PAR StoreServ 7200

2

2

2 four-core 1.8 GHz

792 GB

768 GB

24 GB

12 ports

4 - 12 ports

0 - 4 ports

3PAR StoreServ 7400

2 or 4

2 or 4

2 - 4 six-core 1.8 GHz

800 GB – 1564 GB

768 GB – 1500 GB

32 - 64 GB

24 ports

4 - 24 ports

0 - 8 ports

File Storage

3PAR StoreServ File

Controller v2

Up to 8

Not Applicable

1 - 16 four-core 2.4 GHz

Not Applicable

Not Applicable

None

4 – 128

Not Applicable

Not Applicable c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 1

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Overview

1GbE/10GbE Network Ports

Maximum Initiators Supported

2U Controller Enclosure SAS Drive Capacity

Number of Disk Drives

Number of Solid State Drives

Raw Capacity (approx.) 2

Not Applicable

8 1

1024

24

81 - 240 drives

- 120

1.2 - 400 TB 3

Not Applicable

1024 or 2048

24

81 - 480 drives

8 1 - 240

1.2 - 1200 TB 3

4 – 128

Not Applicable

Not Applicable

2 (per node)

None

2x300GB for O/S mirror per node

Capacity Details 3PAR StoreServ 7200 3PAR StoreServ 7400

RAID Levels

RAID 5 Data to Parity Ratios

RAID 6 Data to Parity Ratios

Drive Capacities (approximate GB 3 )

(RAID levels, parity ratios, and drive capacities all mixable within the same

Storage System)

Number of Add-on Drive Enclosures

(Each Drive Enclosure holds up to 24 drives in 2U for small form factor drives and 4U for large form factor drives)

RAID 0, 1, 5, 6

2:1 - 8:1

4:2, 6:2, 8:2, 10:2, 14:2

100 SSD 4 , 200 SSD 4 , 400

SSD 4 , 480 SSD 4 , 920 SSD 4

300 15K SAS, 450 10K SAS,

600 10K SAS, 900 10K SAS,

1200 10K SAS, 1000 7.2K

NL, 2000 7.2K NL

7.2K NL 5

5 , 3000

, 4000 7.2K NL 5

0 - 9 enclosures

RAID 0, 1, 5, 6

2:1 - 8:1

4:2, 6:2, 8:2, 10:2, 14:2

100 SSD 4 , 200 SSD 4 , 400

SSD 4 , 480 SSD 4 , 920 SSD 4

300 15K SAS, 450 10K SAS,

600 10K SAS, 900 10K SAS,

1200 10K SAS, 1000 7.2K

NL, 2000 7.2K NL 5 , 3000

7.2K NL 5 , 4000 7.2K NL 5

0 - 18 enclosures

3PAR StoreServ File

Controller v2

RAID 0, 1, 5, 6

2:1 - 8:1 7

7

Not Applicable

Not Applicable

4:2, 6:2, 8:2, 10:2, 14:2

1 The minimum drive quantity is permitted as long as the total raw capacity is at least 1.2 TB.

2 Maximum raw capacity currently supported with any and all drive types.

3 For storage capacity, 1 GB = 1,000,000,000 bytes and 1 TB = 1,000 GB.

4 SSDs are Solid State Drives.

5 NL drives are 7200 RPM Enterprise SAS drives.

7 Applies to the array storage assigned to 3PAR StoreServ File Controller for file services

8 For details, please refer to the 3PAR StoreServ File Controller v2 section in this document. NOTE: Specifications are subject to change without notice.

7

Host OS Support

Citrix® XenServer® | HP-UX® | IBM® AIX®

Microsoft® Windows® Server, including Microsoft® Hyper-V™

Open VMS | Oracle® Linux® (UEK and RHEL compatible kernels) | Oracle® Solaris

Red Hat® Enterprise Linux® | Red Hat® Enterprise Virtualization

SUSE® Linux Enterprise | Ubuntu | VMware vSphere™

For the latest information on supported operating systems refer to Single Point of Connectivity Knowledge for HP Storage

Products (SPOCK): http://www.hp.com/storage/spock

Page 2 c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Standard Features

Efficient

Get thin and stay thin - Thin technologies unique to the HP 3PAR StoreServ family can reduce capacity requirements by 50%. Purchase only what you need, as you need it so you can focus resources on growing your business, not maintaining your storage. Additionally, the HP 3PAR ASIC with Thin Built In features an efficient, silicon-based zero-detection mechanism. This unique hardware capability gives

HP 3PAR StoreServ Storage the power to remove allocated but unused space without impacting performance.

Autonomic

Resilient

Data center virtualization - Increase virtualization return on investment. Double virtual machine density on your physical servers, spend up to 90 percent less time managing your storage, and support your virtualization deployment with 50 percent less storage capacity. HP 3PAR StoreServ is built from the ground up to deliver performance that exceeds the demands of virtualized data centers along with transformative levels of simplicity, agility, and efficiency.

Service levels - With policy-based autonomic sub-LUN tiering, you can balance the cost of capacity and the cost of performance and put the right data on the right storage tier at the right time.

Do more with less - With HP 3PAR StoreServ Storage you can purchase up to 75 percent less capacitymeaning less equipment to house, fewer disks to power and cool, less hardware to retire after it has reached its end of life, and a reduced carbon footprint.

HP 3PAR Express Writes - HP 3PAR Express Writes is a write acceleration feature built in to HP 3PAR OS version 3.2.1 and later to optimize CPU utilization and, depending on workload, deliver greater throughput, up to 30 percent more IOPS, and 20 percent reduced latency 1 . All currently supported HP

3PAR StoreServ Storage HBAs and hosts also support the HP 3PAR Express Writes feature, and its benefits extend to both spinning drives and flash-based media.

1 Based on a random, 100 percent write workload with an 8K block size.

The HP 3PAR StoreServ 7200 and StoreServ 7400 (2-node and 4-node) storage systems are US

Environmental Protection Agency (EPA) ENERGY STAR certified. Details about the specific configurations that are certified are available at the US EPA web site at: https://data.energystar.gov/Active-Specifications/ENERGY-STAR-Certified-Data-Center-

Storage/gqtf-hp7x ?

It's like breathing-you don't even have to think about it. Simplify, automate, and expedite storage management by handling storage provisioning, tiering, and change management autonomicallyintelligently, at a sub-system level, and without administrator intervention.

SmartStart Software - software designed to get you off to a quick start with your new HP 3PAR

StoreServ 7000 system.

Common architecture - Access the same features as the world's largest service providers with a common architecture that meets SMB needs and spans to the largest global enterprise.

Secure multi-tenancy - Consolidate with confidence. Achieve higher service levels for more users and c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 3

QuickSpecs

Standard Features

HP 3PAR StoreServ 7000 Storage

applications with less infrastructure. HP 3PAR StoreServ Storage is designed to support massive consolidation by supporting mixed workloads and secure administrative segregation of users, hosts, and application data. Deliver higher performance levels, six-nines availability, and next-generation functionality to multiple user groups and applications from a single storage system.

Scalable - HP 3PAR StoreServ 7000 provides affordable entry pricing and unique, non-disruptive scalability to four nodes.

High Availability - With the Get 6-Nines Guarantee, HP ensures 99.999% data availability with all HP

3PAR StoreServ 7400 systems with four nodes giving you the peace of mind to expand deployment of mission critical applications to midrange storage. Intelligent data striping across all available enclosures provides HA Cage, the ability to maintain availability even when a whole drive enclosure fails. HP 3PAR Persistent Cache in four node configurations eliminates performance impacts that result from unplanned component failures, making it a must-have for maintaining service levels in the virtual data center-a feature that you can't get from any other midrange storage platform.

Storage federation - Meet the needs of today's data center with the ability to move data and workloads between arrays without impact to applications, users, or services. Simply and nondisruptively shift data between any model HP 3PAR StoreServ system without additional management layers or appliances. Storage federation on HP 3PAR StoreServ Storage can also help you improve availability in clustered VMware environments.

Mixed workload - Mixed workload support serves transactional and throughput-intensive workloads from a single device. The purpose-built HP 3PAR ASIC delivers mixed workload support to alleviate performance concerns and cut traditional array costs. Transaction- and throughput-intensive workloads run on the same storage resources without contention, thereby cutting array purchases in half.

Data at Rest Encryption - enables the encryption for all the data that is stored on the internal drives of the 3PAR StoreServ Storage. The 3PAR StoreServ Data Encryption solution encrypts and decrypts all data written to and read from the media automatically. The 3PAR StoreServ Data Encryption solution encrypts the data so that data cannot be read off a drive that is removed from the 3PAR Storage. In the event of a failure of the drive or the theft of a drive, the proper authentication key is required to be entered to gain access to the data stored within the drive. This method of encryption allows the user the comfort knowing all data contained on the drive is protected against internal and external risks. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 4

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information

Warranty 3 Year, On-site Warranty Service for hardware components. 7x24 4-hour remote response with next business day on-site response

The warranty on the following HP 3PAR StoreServ 7000 SSD product numbers is 5 years, parts only:

HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) MLC Solid State Drive E7W54B

HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) MLC Solid State Drive E7W55B

HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC Solid State Drive E7W24B

HP 3PAR StoreServ M6720 920GB 6G SAS LFF(3.5in) MLC Solid State Drive E7W25B

Service and Support

HP 3PAR StoreServ M6710 920GB 6G SAS SFF (2.5in) MLC FIPS Encrypt Solid State Drive E7Y52A

HP 3PAR StoreServ M6710 480GB 6G SAS SFF (2.5in) cMLC Solid State Drive E7Y55A

HP 3PAR StoreServ M6720 480GB 6G SAS SFF (3.5in( cMLC Solid State Drive E7Y56A

HP 3PAR StoreServ M6710 1.92TB 6G SAS SFF (2.5in) cMLC Solid State Drive E7Y57A

HP 3PAR StoreServ M6720 1.92TB 6G SAS LFF (3.5IN( cMLC Solid State Drive E7Y58A

HP 3PAR StoreServ 7000 drive ( SAS performance and Nearline and SSDs excluding the ones listed above) warranty is 3 years, parts only.HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery.

For more information about HP's Global Limited Warranty and Technical Support, visit: http://www.hp.com/products/storageworks/warranty

Technology Services for increased uptime, productivity and ROI

Trust HP storage technology experts for every level of service and support. Our integrated portfolio of services for storage help customers reduce costs, optimize data, streamline storage management, and improve backup and recovery. Capitalizing on HP Storage Systems' capabilities requires a service partner who understands your increasingly complex environment. Team with the people who know HP infrastructure hardware and software best-the experienced professionals at HP Services.

Protect your business beyond warranty

Warranty protects against manufacturer defects, however warranty uplifts, such as HP Care Pack

Services protect the business-by reducing downtime risks and providing operational consistency for mission-critical and standard business computing.

NOTE: SSDs have a limited number of writes that can occur before reaching the SSD's write endurance limit. This limit is generally high enough so wear out will not occur during the expected service life of an HP 3PAR StoreServ under the great majority of configurations, IO patterns, and workloads. HP 3PAR

StoreServ tracks all writes to SSDs and can report the percent of the total write endurance limit that has been used. This allows any SSD approaching the write endurance limit to be proactively replaced c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 5

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information before they are automatically spared out. An SSD has reached the maximum usage limit once it exceeds its write endurance limit. Following the product warranty period, SSDs that have exceeded the maximum usage limit will not be repaired or replaced under HP support contracts.

What HP Storage Technology Services can do for you

HP Storage Technology Services can help you design, deploy, test, integrate, support, and manage IT and infrastructure solutions. HP storage lifecycle support services offers a full spectrum of customer care-from technology support to complex migrations to complete managed services.

Choose the right level of support, deployment and integration services

HP support recommendations are designed to help you enhance technology operations and lower riskand make it easier for you to seek the right balance between affordability and service-level commitments. Depending on your individual support needs, choose from three levels of care that cover the entire lifecycle to better address your needs-Optimized Care, Standard Care, and Basic Care.

If none of our support recommendations meet your needs, we can tailor a service solution for your unique support requirements. Only HP brings together deep expertise, proactive and business critical support and a strong partner network-together with, a full set of infrastructure services designed to power a Converged Infrastructure

Optimized Care - delivers best performance and stability through deployment and proactive management practices

HP Critical Service - This service delivers 24x7 monitoring of your environment, making it the right choice when uninterrupted uptime is essential. We implement improvement projects to mitigate risks and reduce incidents to maximize uptime. If outages do occur, they will be addressed immediately through access to our dedicated critical support escalation resources, with a six-hour call-to-repair commitment from our mission-critical call center.

Additional Option:

10 Proactive Select credits per year per array - HP Proactive Select is a flexible way to purchase services to fit your particular environment or situation. Working with an HP Account Support Manager, you select a package of services in the form of services credits that include proactive services spanning many technologies and processes, such as on-site firmware upgrades, health checks, assessments, and education. You tailor the service delivery to improve time to production, optimize performance, or build in continuous improvements.

Standard Care - maintains high level of uptime, along with expert help to cut the cost and complexity of implementation and support

HP Proactive Care 24x7 - for a higher return on your storage investment, Proactive Care delivers hardware and software support services designed specifically for your technology; rapid access to

Advanced Solution Center Specialists plus, Firmware/Software management and best practice advice.

Customers can optimize the return on their IT investment and realize the advantage of running their business critical applications on virtualized infrastructure. Plus, HP Proactive Select 20 credits per year, select from an extensive menu of consultancy and technical services, such as onsite firmware upgrades, health checks, assessments, and education.

Additional Option:

HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for an increased personalization of the Proactive Care support experience through the assignment of an Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects. The ASM will develop an annual support plan, provide four days of operational and technical advice, and conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the customer's priorities. This option is only available for Proactive Care customers and may be purchased once per environment. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 6

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information

Basic Care - Minimum recommended support

Implementation

Related Services

HP Personalized Support Additional Day - Customers who require more time than is provided by the

Personalized Support option can elect to purchase additional days through the Personalized Support

Additional Day option. The time may be used to provide extra support reviews and/or more operational & technical advice.

HP Proactive Care 24x7 - for a higher return on your storage investment, Proactive Care delivers hardware and software support services designed specifically for your technology; rapid access to

Advanced Solution Center Specialists plus, Firmware/Software management and best practice advice.

Customers can optimize the return on their IT investment and realize the advantage of running their business critical applications on virtualized infrastructure. Plus, 10 credits per year, select from an extensive menu of consultancy and technical services, such as onsite firmware upgrades, health checks, assessments, and education.

Additional Option:

HP Proactive Care Personalized Support - The HP Proactive Care Personalized Support option allows for an increased personalization of the Proactive Care support experience through the assignment of an Account Service Manager (ASM) who provides IT best practice advice to help address IT issues and projects. The ASM will develop an annual support plan, provide four days of operational and technical advice, and conduct semi-annual support reviews to ensure the Proactive Care service deliverables address the customer's IT priorities. This option is only available for Proactive Care customers and may be purchased once per environment.

HP Personalized Support Additional Day - Customers who require more time than is provided by the

Personalized Support option can elect to purchase additional days through the Personalized Support

Additional Day option. The time may be used to provide extra support reviews and/or more operational & technical advice.

Installation:

Whichever level of care you select, consider our Installation and Startup Services for a smooth implementation.

HP 3PAR StoreServ 7000 Storage Installation and Startup Service - For smooth startup, this service provides you with deployment of your HP 3PAR StoreServ 7000 Storage, ensuring proper installation into your storage environment and helping you realize the maximum benefit from your storage investment. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2568ENW.pdf

HP Storage Data Migration Service - HP expertise and tools help you migrate data across your data center or around the globe. Take the burden of migration off your shoulders and put it in the capable hands of expert HP storage migration consultants. Our proven approach helps orchestrate the complete data migration and consolidation process while maintaining consistent data availability during the transfer process. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-0774ENW.pdf

HP Enhanced Implementation Service for SANs - HP delivers complete design and implementation services for Fibre Channel, FCoE, FCIP, SAS, and iSCSI storage area network (SAN) connectivity components. This service includes three levels of support based on the type of environment, ranging from simple to more complex. A trained service specialist guides the implementation of the storage switches in the SAN environment according to HP quality standards. http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-8527EN.pdf

c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 7

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information

HP Data Replication Solution Service for 3PAR Virtual Copy - HP Data Replication Solution Service for

HP 3PAR Virtual Copy Software helps create, manage and configure local replication data mirroring and snapshot capabilities of 3PAR storage systems. This service enables snapshots and mirroring to facilitate data restores, minimize downtime for backups, perform application testing, support data mining use with decision-support tools. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0217ENW.pdf

HP Data Replication Solution Service for 3PAR Remote Copy - HP Data Replication Solution Service for 3PAR Remote Copy Software configures real-time data mirroring between local and remote 3PAR storage systems to safeguard critical business information. Provides scalable deployment of HP

Remote Copy Software real-time data mirroring between a local and a remote 3PAR storage system. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA3-8627ENW.pdf

http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-9431ENW.pdf

HP 3PAR 7000 Replication Software Suite Installation and Startup Service - Provides implementation of the HP 3PAR 7000 Replication Software Suite product. Replication Suite includes

3PAR Remote Copy, 3PAR Virtual Copy, and 3PAR Peer Persistence. The service is designed to help get

HP 3PAR 7000 Replication Software Suite up and running quickly and to provide a demonstration of the product's key features using sample or test data only. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2570ENW.pdf

HP 3PAR Peer Persistence Software Installation and Startup Service - Provides implementation of the HP 3PAR Peer Persistence Software product. The service is designed to help get HP 3PAR Peer

Persistence up and running quickly and to provide a demonstration of the product's key features using sample or test data only. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2772ENW.pdf

HP 3PAR Adaptive Optimization Policy Implementation Service - HP 3PAR Adaptive Optimization

Policy Implementation Service provides analysis, recommendations, and implementation of HP 3PAR

Adaptive Optimization policies to enable storage tiering using data collected from the HP 3PAR

Storage system over time. With the assistance of a designated IT storage administrator, a service specialist works with the customer to implement Adaptive Optimization policies on the HP 3PAR

Storage system to help deliver service level optimization for virtual and cloud data centers while reducing cost, increasing agility and minimizing risk. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

HP Storage Virtual Volume Design and Implementation Service - When redeploying an HP

StorageWorks Disk Array, the HP Virtual Volume Design and Implementation Service provides the necessary activities required to design and implement a new virtual volume configuration. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3764ENN.pdf

HP Thin Volume Conversion Service - Provides evaluation and execution of conversion from standard to thin provisioned virtual volumes for HP 3PAR Storage. A service specialist advises the customer on

HP thin provisioning best practices, provides evaluation of potential disk capacity savings if target virtual volumes are converted, and plans and implements thin conversion processing. The service leverages 3PAR thin provisioning capabilities to help optimize storage capacity, reduce cost, increase agility and maintain performance. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA2-3842ENW.pdf

c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 8

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information

HP Performance Analysis Service for HP Disk Arrays - The service provides data collection, detailed

I/O analysis and enhancement recommendations for HP 3PAR StoreServ Storage disk arrays, HP EVA

P6000 Storage disk arrays and HP XP P9000 Storage disk arrays. HP Performance Analysis Service for

HP Storage Disk Arrays provides a single engagement concerning the performance of a single HP 3PAR

StoreServ Storage disk array, HP EVA P6000 Storage disk array and HP XP P9000 Storage disk array http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6668EN.pdf

HP 3PAR Health Check Service - The HP 3PAR Health Check service is delivered as a single engagement, providing data collection, analysis, report creation, and a briefing session concerning the performance of a single HP 3PAR StoreServ Storage System. This health check service is best for HP

3PAR StoreServ Storage Systems that have been installed and are in normal production mode. It can also be used to establish a baseline for future reference to improve the effective use of your storage system. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-3225ENW.pdf

HP 3PAR Storage Assessment Service - The HP 3PAR Assessment Service is delivered remotely for a single HP 3PAR StoreServ Storage System and does not include performance analysis, testing, or modeling. The service requires that remote monitoring be enabled on the HP 3PAR StoreServ Storage

System being assessed. The assessment findings are compared to HP best practices and a summary report is provided that includes recommendations intended to improve availability and ongoing management of your HP 3PAR StoreServ Storage System. http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-2346ENW.pdf

HP 3PAR Storage Rebalance Service - The HP 3PAR Rebalance Service helps balance data across your

HP 3PAR StoreServ Storage to take advantage of the capabilities of the array architecture. The service provides analysis, planning, and implementation of data movement and/or physical movement of drive magazines within the array. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-0280ENW.pdf

HP EVA to 3PAR Acceleration Service - The HP EVA to 3PAR Acceleration Service can help guide you or even execute data migration activities on your behalf that can not only optimize, but provide OPEX and

CAPEX savings as a result of your journey from EVA to 3PAR. This service provides customers with an alternative DIY ("do-it-yourself") data migration option with guidance from TS Storage migration specialists. With the help of migration experts, this service allows customers to execute an EVA to

3PAR data migration at their own pace and lowered cost. http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-4234ENW.pdf

HP 3PAR Adaptive Optimization I&S - For Adaptive Optimization, design, creation, and implementation of Adaptive Optimization policies; policy design, creation, and implementation can be accommodated using the HP 3PAR Adaptive Optimization Policy Implementation Service, which is available via HP Proactive Select.

The Service has further been described in the HP 3PAR 7000 Software Installation and Startup Service

Datasheet: http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf

HP 3PAR Dynamic Optimization I&S - For Dynamic Optimization, implementation by HP of tasks required to balance the HP 3PAR storage system; the service provides the Customer with a product overview, advice, and suggested strategies for use of Dynamic Optimization, and extended/ongoing analysis and/or implementation of Dynamic Optimization strategies can be accommodated at additional cost c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 9

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information

For more information

The Service has further been described in the HP 3PAR 7000 Software Installation and Startup Service

Datasheet: http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA4-2569ENW.pdf

www.hp.com/services/storage

To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized

Channel Partner

HP Care Pack Services are sold by HP and HP Authorized Service Partners:

 Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.

 Customers purchasing from a commercial reseller can find HP Care Pack Services at: www.hp.com/go/lookuptool c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 10

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

Step 1 - Choose a Base configuration

HP 3PAR StoreServ 7000 configurations start with the selection of the Base. The Base includes controller nodes, bays for small form factor drives, and PCIe slots for host adapter cards. SAN Kits are also considered base configurations. The SAN Kits simplify ordering for SAN configurations with the array and extend the switch warranty to 3-years by including switches with an HP 3PAR

StoreServ 7000 Storage Base.

HP 3PAR StoreServ 7000 Base Configurations

HP 3PAR StoreServ 7200 2-node Storage Base

HP 3PAR StoreServ 7400 2-node Storage Base

HP 3PAR StoreServ 7400 4-node Storage Base

HP 3PAR StoreServ 7200 2-node Storage Base for Storage Centric Rack

HP 3PAR StoreServ 7400 2-node Storage Base for Storage Centric Rack

HP 3PAR StoreServ 7400 4-node Storage Base for Storage Centric Rack

HP 3PAR StoreServ 7200 8Gb H-series Base System SAN Kit

HP 3PAR StoreServ 7200 16Gb Virtualization Base System SAN Kit

HP 3PAR StoreServ 7400 16Gb Virtualization Base System SAN Kit

 A minimum of one (1) configuration base must be ordered.

 The HP 3PAR StoreServ 7200 base configuration includes (2) controller nodes, 24 GB of cache, (24) small form factor drive bays, (4) built-in 8

Gb/sec FC ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per node, (4) 2m SAS cables, (1) mounting rail kit, and power cords.

 The HP 3PAR StoreServ 7400 2-node base configuration includes (2) controller nodes, 32 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per node, (4) 2m SAS cables, (2) 1U rack filler panels to reserve 2U of rack space above the 2-node Storage Base for a future upgrade to a 4-node configuration, (1) mounting rail kit, and power cords.

The HP 3PAR StoreServ 7400 4-node base configuration includes (4) controller nodes, 64 GB of cache, (48) small form factor drive bays, (8)

 built-in 8 Gb/sec FC ports, (8) 8Gb shortwave FC SFP, (4) PCIe adapter slots for host adapter cards - one slot per node, (8) 2m SAS cables, (4) node link cables, (2) mounting rail kits, and power cords.

The HP 3PAR StoreServ 7200 8Gb H-Series Base System SAN Kit includes the QR482A HP 3PAR StoreServ 7200 2-node Storage Base, (2) BK780B HP

SN6000 Stackable 8 Gb/s 8 Active Port Single Power Supply FC Switches and (4) TA821A 4-port FC Switch Upgrade LTUs. Each switch comes with serial cable, mounting rail kits, power cords, and SAN Connection Manager software entitlement. Also included is a 3 year warranty for the switches.

NOTE: Requires optical transceivers and switch cabling which must be supplied separately.

The HP 3PAR StoreServ 7200 16Gb Virtualization Base System SAN Kit includes the HP 3PAR StoreServ 7200 2-node Storage Base and (2) QK753B

QR482A

QR483A

QR485A

E7W49A

E7W50A

E7W51A

QR488A

QR489A

QR510A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 11

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP SN6000B 16 Gb/s 48-port/24-port Active FC Switches - dual power.

Each switch comes with rack mount kit (including rails, mounting hardware, and plenum), RJ-45 serial cable with adaptor for RJ-45 to DB9, power cords, and SAN Network Advisor DVD. Also included is a 3 year warranty for the switches.

NOTE: Requires optical transceivers and switch cabling which must be supplied separately.

 The HP 3PAR StoreServ 7400 16Gb Virtualization Base System SAN Kit includes the HP 3PAR StoreServ 7400 2-node Storage Base and (2) QK753B

HP SN6000B 16 Gb/s 48-port/24-port Active FC Switches -dual power. Each switch comes with rack mount kit (including rails, mounting hardware, and plenum), RJ-45 serial cable with adaptor for RJ-45 to DB9, power cords, and SAN Network Advisor DVD. Also included is a 3 year warranty for the switches.

NOTE: Requires optical transceivers and switch cabling which must be supplied separately.

 All base configurations include built-in Gigabit Ethernet ports for management and Remote Copy over IP.

*Storage Centric Configuration

 The Storage Centric rack versions of HP 3PAR StoreServ 7200 and 7400 are for CTO (factory Configure-To-Order) only. With a Storage Centric configuration, the storage system gets placed in the center of the rack so that future expansion of that storage system becomes easier.

 In Storage Centric configurations, non-3PAR components, with the exception of certain StoreFabric Storage Networking switches, if added to the same order, get placed in a separate rack.

The following diagrams show a HP 3PAR StoreServ 7400 4-node Storage System in Storage Centric and non-Storage Centric configurations c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 12

QuickSpecs

Configuration Information

HP 3PAR StoreServ 7000 Storage

StoreServ 7400 4node Storage system in a storage centric configuration in a HP Intelligent Series Rack

StoreServ 7400 4node Storage system in a non-storage centric configuration in a HP Intelligent Series Rack

HP 3PAR StoreServ 7400 Upgrade Controller Node Pair

Use the HP 3PAR StoreServ 7400 Upgrade Node Pair to convert an existing previously installed HP 3PAR StoreServ 7400 2-node

Storage Base into a 4-node configuration.

HP 3PAR StoreServ 7400 Upgrade Node Pair QR484A

 Used to upgrade the QR483A HP 3PAR StoreServ 7400 2-node Storage

Base to a 4-node configuration.

 One (1) pair of controller nodes beyond the base configuration is supported c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 13

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

 on the 3PAR StoreServ 7400.

The 3PAR StoreServ 7400 Upgrade Node Pair includes (2) controller nodes,

32 GB of cache, (24) small form factor drive bays, (4) built-in 8 Gb/sec FC ports, (4) 8Gb shortwave FC SFP, (2) PCIe adapter slots for host adapter cards - one slot per node, (4) 2m SAS cables, (4) node link cables, (1) mounting rail kit, and power cords

The upgrade node pair includes built-in Gigabit Ethernet ports for management and Remote Copy over IP.

Step 2 - Choose Host Adapter

Host adapters can be ordered separately to be installed in the field or they can be factory configured into controller nodes. Host adapter cards provide the array with additional FC ports or with 10Gb/sec iSCSI/FCoE ports. The additional FC ports can be used for connection to hosts or used to connect to other HP 3PAR StoreServ Storage systems in a Remote Copy relationship. The iSCSI/FCoE ports permit host connection in iSCSI and FCoE environments.

HP 3PAR StoreServ 7000 Host Adapters

HP 3PAR StoreServ 7000 4-port 8Gb/sec Fibre Channel Adapter

HP 3PAR StoreServ 7000 2-port 10Gb/sec iSCSI/FCoE Adapter

 Used in the Storage Base products (QR482A, QR483A, and QR485A) and the

Upgrade Node Pair (QR484A).

 Because the Storage Base products and the Upgrade Node Pair include builtin FC ports, the host adapter cards are optional.

 QR486A and QR487A include one adapter card each. Adapters must be purchased in pairs.

 The QR486A includes (4) 8 Gb/s shortwave FC SFPs and the QR487A includes

(2) 10 Gb/s SFPs.

Each node in a node pair (a node pair is composed of the two controller nodes in a single 2U enclosure) must have the same number and type of adapters. FC and iSCSI/FCoE adapters may not be intermixed in a node pair.

 The 4 ports of the FC adapter can be individually configured to connect to a host or to a remote array in an RC configuration.

 The two ports of the iSCSI/FCoE adapter can be individually configured by the user as iSCSI or FCoE.

QR486A

QR487A

Product Nodes A*

QR482A

Node 0

Node 1

QR483A

Node 0

Node 1

Empty

Empty

Empty

Empty

QR484A

QR485A

Node 2

Node 3

Node 0

Node 1

Empty

Empty

Empty

Empty

FC

FC

FC

FC

B*

FC

FC

FC

FC

C* iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE

Permitted Adapter Configurations

D E F * iSCSI/FCoE iSCSI/FCoE

Empty

Empty

Empty

Empty

FC

FC

G iSCSI/FCoE iSCSI/FCoE

FC

FC

H * I * iSCSI/FCoE iSCSI/FCoE c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 14

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

Node 2

Node 3

Empty

Empty

Empty

Empty

Empty

Empty

FC

FC

* Factory default configurations for given quantities of adapters. iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE iSCSI/FCoE

FC

FC

FC

FC iSCSI/FCoE iSCSI/FCoE

NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are purchased as the built in ports will not offer sufficient connectivity.

Step 3 - Choose Drive Enclosures

Add drive enclosures to expand the configuration and to add large form factor drives to the configuration. Drive enclosures can be ordered separately for installation in the field, or they can be factory configured in a rack. Drive enclosures are optional. Because the Storage Base products and the Upgrade Node Pair include small form factor drive bays, the minimum configuration does not require any additional drive enclosures. For larger configurations, attach drive enclosures. Each drive enclosure includes 24 drive bays. The HP 3PAR StoreServ 7200 supports up to nine (9) added drive enclosures. The HP 3PAR StoreServ 7400 supports up to eighteen (18) added drive enclosures. The two drive enclosure types can be intermixed in a single array.

HP M6710 2.5 inch 2U SAS Drive Enclosure

Drive Enclosures

HP M6720 3.5 inch 4U SAS Drive Enclosure

HP M6710 2.5 inch 2U SAS Drive Enclosure

HP M6720 3.5 inch 4U SAS Drive Enclosure

 Each drive enclosure includes 24 drive bays, (2) IO modules, (2) 1m SAS cables, (1) mounting rail kit, and power cables.

 The M6710 2U drive enclosure provides 24 SFF drive bays arranged in a single row.

 The M6720 4U drive enclosure provides 24 LFF drive bays, arranged in four

(4) columns of six (6) slots each.

 Minimum of zero (0) drive enclosures, maximum of five (5) attached to

QR482A.

Minimum of zero (0) drive enclosures, maximum of nine (9) attached to

QR483A.

 Minimum of zero (0) drive enclosures, maximum of (18) attached to

QR485A.

 Drive enclosures are connected in daisy chains from the SAS ports of the controller nodes.

 The best practice is to balance the drive enclosures across the SAS ports,

 remembering that the controller node enclosures include (24) drives attached to the SAS port labeled DP-1.

The best practice when including LFF and SFF drive enclosures in the same array is to arrange them in the rack so that all of the 2U enclosures that belong to one node pair are together and all of the 4U enclosures for that node pair are together. When connecting the backend SAS cables, intermix the M6710 and M6720 enclosures on each SAS port.

QR490A

QR491A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 15

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

 With a four node configuration, the best practice is to attach the same number of drive enclosures to each node pair.

 To achieve highest availability in multi-enclosure configurations, configure a minimum of two (2) enclosures per node pair for RAID 1, a minimum of four (4) enclosures per node pair if RAID 5 is included, and a minimum of three (3) enclosures per node pair if RAID 6 is included. Include enclosures containing node pairs in the count with the M6710 enclosures.

 Drive bays that are not filled with a drive must be covered with a drive

 blank to preserve proper air flow.

If future capacity upgrades are expected, include enough Drive Enclosures so that there are some empty bays in each enclosure after all drives are added.

Step 4 - Choose Drives

Drives are orderable at the time the array is purchased, or can be added in the future when additional capacity is required. Unlike other HP 3PAR StoreServ Storage systems where drives are sold in magazines of four, HP 3PAR StoreServ 7000 drives are sold as single drives. Note that these drives are only compatible with the M6710 and M6720 drive enclosures.

HP 3PAR StoreServ 7000 SAS Drives

HP 3PAR SSDs

HP 3PAR SAS HDDs

(Performance HDDs)

HP M6710 100GB 6G SAS SFF (2.5-inch) SLC Solid State Drive

HP M6710 200GB 6G SAS SFF (2.5-inch) SLC Solid State Drive

HP M6720 100GB 6G SAS LFF (3.5-inch) SLC Solid State Drive

HP M6720 200GB 6G SAS LFF (3.5-inch) SLC Solid State Drive

HP 3PAR StoreServ M6710 400GB 6Gb SAS SFF(2.5-inch) MLC Solid State Drive

HP 3PAR StoreServ M6720 400GB 6Gb SAS LFF(3.5-inch) MLC Solid State Drive

HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive

HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive

HP 3PAR StoreServ M6710 480GB 6G SAS SFF(2.5in) cMLC Solid State Drive

HP 3PAR StoreServ M6720 480GB 6G SAS LFF(3.5in) cMLC Solid State Drive

HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) MLC 5yr Wty Solid State Drive

HP 3PAR StoreServ M6720 920GB 6G SAS LFF(3.5in) MLC 5yr Wty Solid State Drive

HP 3PAR StoreServ 10000 4x480GB 6G SAS MLC SSD Upgrade Magazine

HP 3PAR StoreServ M6710 1.92TB 6G SAS LFF(3.5in) cMLC 5yr Wty Solid State Drive

HP M6710 300GB 6G SAS 15K rpm SFF (2.5-inch) Hard Drive

HP M6710 450GB 6G SAS 10K rpm SFF (2.5-inch) Hard Drive

HP M6710 900GB 6G SAS 10K rpm SFF (2.5-inch) Hard Drive

HP 3PAR StoreServ M6710 600GB 6Gb SAS 10K SFF(2.5-inch) HDD

HP 3PAR StoreServ M6710 1.2TB 6G SAS 10K SFF(2.5in) HDD

QR502A

QR503A

QR506A

QR507A

QR504A

QR508A

E7W54B

E7W55B

E7Y55A

E7Y56A

E7W24B

E7W25B

E7W57A

E7W58A

QR492A

QR494A

QR496A

C8R72A

E7X49A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 16

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP 3PAR NL SAS HDDs

HP M6720 2TB 6G SAS 7.2K LFF (3.5-inch) Nearline Hard Drive

HP M6720 3TB 6G SAS 7.2K LFF (3.5-inch) Nearline Hard Drive

HP 3PAR StoreServ M6720 4TB 6G 7.2K LFF(3.5-in) SAS Nearline Hard Drive

HP 3PAR StoreServ M6710 1TB 6Gb SAS 7.2K SFF(2.5-inch) Nearline HDD

 For each drive type installed in the array, the minimum recommended initial quantity is o SSD and SAS performance HDDs - eight (8) drives* per node pair o Nearline HDDs - twelve (12) drives per node pair

 Minimum upgrade quantity is 4 drives per node pair or 2 drives per enclosure, whichever is larger. Best practice is to run Autonomic Rebalance

(also known as tunesys) after adding the drives.

 RAID 6 is strongly recommended for Nearline drives.

 All node enclosures must contain either zero (0) or an even number of drives. All drive enclosures must contain an even number of drives, with a minimum of two.

 Minimum raw capacity is 1.2TB per node pair.

 A best practice is to add equal numbers of drives to all enclosures

 compatible with the drive type being added.

 With a four node configuration, the best practice is to attach the same number and type of drives to each node pair.

Small Form Factor (SFF)-specific configuration practices o SFF drives may be loaded into the Storage Base enclosures, the

Upgrade Node Pair enclosure and the M6710 drive enclosure. o SFF drives must be loaded in pairs of identical drives, beginning with the leftmost slot, slot 0, and filling to the right, leaving no empty slots between drives.

 Large Form Factor (LFF)-specific configuration practices o LFF drives may be loaded into the M6720 drive enclosure. o LFF drives must be loaded in pairs of identical drives starting at the bottom of a column, leaving no empty slots between drives in the column. Columns of drives in the M6720 enclosure must be of the same type (SSD or NL) and, for HDDs, the same rotational speed. Drives of different types may not be mixed in a single column. It is permitted to have empty columns between columns containing drives. Different columns do not have to contain the same number of drives. o An all LFF drive configuration is permitted, leaving the Storage

Base Enclosure empty.

 SSD specific configuration practices o SSD-only configurations are permitted.

 o Maximum of 120 SSDs per node pair. o The SFF and LFF SSDs allow the user to create SSD volumes that stripe across SFF and LFF enclosures.

* 8 drives support RAID 1 and RAID 5. For RAID 6 choose 12 drives.

QR499A

QR500A

H6Z87A

QR498A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 17

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP 3PAR Encryption

SSD/HDD/LTU

HP 3PAR StoreServ M6710 400GB 6Gb SAS SFF(2.5-in) MLC Encrypt Solid State Drive

HP 3PAR StoreServ M6710 920GB 6G SAS SFF(2.5in) FIPS Encrypted MLC Solid State

Drive

HP 3PAR StoreServ M6710 450GB 6Gb SAS 10K SFF(2.5-inch) Encryption HDD

HP 3PAR StoreServ M6710 450GB 6G SAS 10K SFF(2.5in) FIPS Encryption Hard Drive

HP 3PAR StoreServ M6710 900GB 6Gb SAS 10K SFF(2.5-inch) Encryption HDD

HP 3PAR StoreServ M6710 900GB 6G SAS 10K SFF(2.5in) FIPS Encryption Hard Drive

HP 3PAR StoreServ M6710 1TB 6Gb SAS 7.2K SFF(2.5-inch) Nearline Encryption HDD

HP 3PAR StoreServ M6720 2TB 6G SAS 7.2K LFF(3.5in) Nearline FIPS Encryption HDD

HP 3PAR StoreServ M6720 4TB 6G SAS 7.2K LFF(3.5in) Nearline FIPS Encryption HDD

HP 3PAR StoreServ 7200 Data at Rest Encryption LTU

HP 3PAR StoreServ 7200 Data at Rest Encryption E-LTU

HP 3PAR StoreServ 7400 Data at Rest Encryption LTU

HP 3PAR StoreServ 7400 Data at Rest Encryption E-LTU

Notes:

C8R57A

E7Y52A

C8R59A

C8R59B

C8R60A

C8R60B

C8R58A

H6Z84A

H6Z86A

BC983A

BC983AAE

BC984A

BC984AAE

 All drives within a 3PAR StoreServ encrypted array must be self-encrypted devices. There cannot be a mixture of encrypted drives and non-encrypted drives within the same encrypted array.

 Encrypted and non-encrypted drives can be mixed in a non-encrypted array

 Customers have option to turn on encryption, non-disruptively, at any time;

even after data has been written to the system.

 * FIPS 140-2 Validated Self-Encrypting Drives (SEDs) have been certified by the U.S. National Institute of Standards and Technology (NIST) and

Canadian Communications Security Establishment (CSE) as meeting the

Level 2 security requirements for cryptographic modules as defined in the

Federal Information Processing Standards (FIPS) 140-2 Publication *

 Strengthen the DAR solution with an optional FIPS 140-2 Level-2 validated external key manager. Supports KMIP 1.1 for key management communications

 Supports HP Enterprise Secure Key Manager 4.0 and SafeNet KeySecure k460 and k150 centralized key management

 A data encryption license (LTU) is required to enable encryption on the array. One encryption license is required for each encrypted array.

 Once encryption is enabled on the HP 3PAR StoreServ Storage, it cannot be disabled.

 The local key manager is included in the HP 3PAR OS. There is not a separately orderable part number for the local key manager.

Step 5 - Choose Service Processor Implementation

The HP 3PAR Service Processor remotely monitors the HP 3PAR StoreServ 7000 and enables remote servicing of the array. The key capabilities of the Service Processor are to:

 Enable rapid, proactive responses to issues c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 18

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

 Provide a secure communication channel between the customer's data center and HP 3PAR Central for: o Remote Online Software Upgrade --Upgrade software with no application disruption o o Remote Diagnostics --Maintain key diagnostic information centrally on a historical basis o Remote Serviceability--Provide fast predictive response and remediation

Each HP 3PAR StoreServ 7000 requires its own Service Processor. The Service Processor functions as the communication interface between a customer's IP network and HP 3PAR Central by managing all service-related communications. The Service Processor leverages the industry-standard HTTP over Secure Sockets Layer (HTTPS) protocol to secure and encrypt data communication.

The Service Processor can be deployed either as a virtual Service Processor (VSP) or a physical Service Processor. A virtual Service

Processor is included free with the base HP 3PAR Operating System. The virtual Service Processor can be installed on a customerprovided VMware or Microsoft Hyper-V system that meets the following specifications:

 Virtualization operating system o VMware vSphere ESXi 4.1, 5.0, 5.1, 5.5

 o Microsoft Hyper-V Server 2008 R2, 2012 or 2012 R2

Server features o 2 GB RAM (minimum for the VSP Virtual Machine) o 256 GB free disk space (minimum for the VSP Virtual Machine)

NOTE: VSP storage must not reside on the array it is managing.

o DVD ROM or DVD RW o 1 Gb Ethernet port o For VSP on VMware, the server must be listed in the VMware Compatibility Guide o For VSP on Hyper-V, the server must be listed on the Windows Server Catalog

If a physical Service Processor is desired, order the following product.

Physical Service Processor

HP 3PAR 7000 Service Processor QR516B

The physical Service Processor is a dedicated storage appliance located within the storage rack providing close proximity to the

HP 3PAR StoreServ 7000 Storage. The physical Service Processor is fully supported and maintained by HP Services. The physical

Service Processor has serial port connectivity that provides maintenance access for trouble shooting capabilities. If a VMware server is not available to run the virtual Service Processor, the physical Service Processor is the alternative choice for remote monitoring and remote service.

HP 3PAR Policy Server

HP 3PAR Policy Server works to implement customer-configurable remote service access policies. Installed on a customerprovided host, Policy Server provides the customer with ultimate flexibility and control to allow or deny outbound communication or remote service connections to and from an HP 3PAR StoreServ Storage system. Policy Server also serves as the centralized point for collecting and storing audit logs of all diagnostic data transfers and authorized remote service connections to and from all configured HP 3PAR Storage systems. HP 3PAR Policy Server provides the

 The customer has complete control over policy administration.

 A centralized policy administration for all HP 3PAR Storage systems is provided.

 A centralized audit log to facilitate security audits is provided.

Up to 100 3PAR systems can be managed with a single 3PAR Policy Server license

 Policy Server 6.1.5 can be run on a Virtual Machine. For the latest information on supported hypervisors, refer to Single c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 19

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

Point of Connectivity Knowledge for HP Storage Products (SPOCK): http://www.hp.com/storage/spock

HP 3PAR Policy Manager Software LTU TE400B

Step 6 - Choose Cables for host connection and remote copy connection

The optical cables listed below support 8 Gb/s FC and 10 Gb/s iSCSI/FCoE for host connect (FC and iSCSI/FCoE) and for Remote

Copy connections (FC only). The copper1GbE cables are used for Remote Copy over IP and for connection to the Management Port.

Cables

FC and 10GbE

1GbE

Direct Attach Copper

Cables

*

HP 3PAR 4m 50/125 (LC-LC) Fiber Cable

HP 3PAR 6m 50/125 (LC-LC) Fiber Cable

HP 3PAR 10m 50/125 (LC-LC) Fiber Cable

HP 3PAR 25m 50/125 (LC-LC) Fiber Cable

HP 3PAR 50m 50/125 (LC-LC) Fiber Cable

HP 3PAR 100m 50/125 (LC-LC) Fiber Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

HP 4.3m/14ft CAT5 RJ45 M/M Ethernet Cable

HP 7.6m/25ft CAT5 RJ45 M/M Ethernet Cable

HP 15.2m/50ft CAT5 RJ45 M/M Ethernet Cable

HP 3COM

HP X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper Cable

HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper Cable

HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

HP X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable

HP ProCurve

HP X242 10G SFP+ to SFP+ 1m Direct Attach Copper Cable

HP X242 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

HP X242 10G SFP+ to SFP+ 7m Direct Attach Copper Cable

HP X242 10G SFP+ to SFP+ 10m Direct Attach Copper Cable

HP X242 10G SFP+ to SFP+ 15m Direct Attach Copper Cable

Brocade

HP B-series SFP+ to SFP+ Active Copper 1.0m Direct Attach Cable

HP B-series SFP+ to SFP+ Active Copper 3.0m Direct Attach Cable

HP B-series SFP+ to SFP+ Active Copper 5.0m Direct Attach Cable

Cisco

JD095C

JD096C

JD097C

JG081C

JC784C

J9281B

J9283B

J9285B

J9286B

J9287B

AP818A

AP819A

AP820A

QL281B

QR631A

QL266B

QR593A

QL267B

QL268B

QK732A

QK733A

QK734A

QK735A

QK736A

QK737A

C7536A

C7537A

C7542A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 20

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP C-series SFP+ to SFP+ Active Copper 7.0m Direct Attach Cable

The Direct Attach Support is available only for iSCSI protocol and is available only with HP 3PAR OS version 3.1.3 and later

QK701A

Step 7 - Choose Racking Options

The HP 3PAR StoreServ 7000 is compatible with most industry standard 4-post EIA 19 inch racks with square mounting holes, including the HP Intelligent Series Rack and the HP 10000 G2 Series Rack. The HP 3PAR StoreServ 7000 can be factory configured and shipped in a rack or shipped without a rack for field integration into an existing rack. The rack used for factory integration is the HP Intelligent Series Rack.

HP Rack and Rack Options

Factory Integration Select a rack to house your HP 3PAR StoreServ 7000.

NOTE: The HP Intelligent Series Rack is the only series supported for factory configuration.

Primary

Configuration

Rules

HP Intelligent

Series Racks

The HP 3PAR StoreServ 7000 will be configured into an HP Intelligent Series Rack with the appropriate power distribution units (PDUs). If other products such as servers or back-up products are included in the cab, a different PDU will be added (if required) or can be chosen from a list of appropriate offerings shown in the configuration tool. The HP Intelligent Series

Rack must be purchased for factory configuration. Additional 3PAR StoreServ 7000 controller node enclosures and drive enclosures may be ordered for multiple subsystem integration at the factory.

The 3PAR StoreServ 7000 is also supported in HP 10000 G2 Series racks for field installation.

When calculating available U-space, assume that no space will be placed between the mounted components. For redundancy, order PDUs in quantities of two. Refer to the

Configuration and User Guide in the Information Library at the Rack Solutions webpage.

NOTE: The number of components that will fit in a rack varies and is determined by the interior U-space of the rack.

HP 647 1075mm Shock Intelligent Series Rack

HP 47U 1075mm Side Panel Kit

HP 642 1075mm Shock Intelligent Series Rack

HP PDU Pivot Kit

HP 42U 1075mm Side Panel Kit

HP 636 1075mm Shock Intelligent Series Rack

HP 36U 1075mm Side Panel Kit

For more information on the HP rack offerings, please see the following URL: http://h18004.www1.hp.com/products/servers/platforms/rackandpower.html

.

For more information on rack options, see: http://www.hp.com/products/rackoptions .

For more information on PDUs, see: http://h18004.www1.hp.com/products/servers/proliantstorage/power-protection/pdu.html

.

HP EVA PDU Pivot Kit

Used to reclaim 2U of space in an HP Intelligent Series Rack with HP 3PAR StoreServ 7000 configurations. This kit allows the PDUs to be placed in the back of the rack without requiring any rack U space.

NOTE: The use of the PDU Pivot Kit is strongly recommended and is the default option when orders are configured, as it will save 2U of valuable rack space.

NOTE: 0D1 will appear after this part number to indicate factory integration where

BW912A

BW915A

BW904A

BW906A

BW896A

BW898A

AG730A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 21

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information appropriate.

Performance

Optimized Data

Centers

HP 3PAR StoreServ 7000 Storage is qualified for use in HP Performance Optimized Data

Centers. Go to www.hp.com/go/POD for more information.

Non-HP rack and power requirements

The Storage Bases, the Upgrade Node Pair, and the Drive Enclosures include mounting rails that are compatible with industry standard 4-post EIA 19 inch racks with square mounting holes. For detailed information on determining compatibility of a non-HP rack, please review the information included in the HP 3PAR StoreServ 7000 StoreServ 7000 Site Planning Guide

Expansion Options

HP provides a variety of SAS cable kits to allow expansion of the HP3PAR StoreServ 7000. Note that the Storage Base products, the Upgrade Node Pair and the Drive Enclosures all include SAS cables. Most configurations will not require a SAS expansion cable kit.

SAS expansion cable kit

HP 6 Meter Expansion Cable Kit

If an HP 3PAR StoreServ 7000 needs to be expanded into an adjacent rack, one 6 meter SAS expansion cable kit is required for every node pair that must access drive enclosures in the expansion rack. Each 6 meter SAS expansion cable kit contains four 6 meter SAS cables.

AP879A

HP 2 Meter Expansion Cable Kit

If an HP 3PAR StoreServ 7000 needs to be expanded within the same rack, but the new drive enclosure must be located some distance from the nearest existing drive enclosure within the same rack, one or two 2 meter SAS expansion cable kits is needed, depending on configuration. Each 2 meter SAS expansion cable kit contains two 2 meter SAS cables.

HP 1 Meter SAS Expansion Cable Kit

AW566A

QR514A

The 1 meter SAS expansion cable kit is provided for cases where a shorter SAS cable is required. Each 1 meter SAS expansion cable kit contains two 1 meter SAS cables.

NOTE: The 2-node Storage Bases and Upgrade Node Pair come with four 2 meter SAS cables each and the 4-node Storage Base comes with eight 2 meter SAS cables. The Drive Enclosures come with two 1 meter SAS cables each.

Step 8 - Choose Software

HP provides an extensive selection of features for HP 3PAR StoreServ Storage. All of the features available on the HP 3PAR

StoreServ 10000 Storage system are also available on the HP 3PAR StoreServ 7000 Storage system, the result of a common architecture that spans from small and medium businesses to the largest global enterprise. For convenient ordering, the 3PAR

StoreServ 7000 provides the features in Suites.

Two types of software licensing methods are employed with the HP 3PAR StoreServ 7000. Some software titles are licensed per system; other titles are licensed by drive. With system-based licensing one license covers the whole array, independent of configuration or capacity. Drive-based licensing, in contrast, is licensed per installed drive. A software title with drive-based licensing includes two Licenses to Use (LTU), a Base LTU that enables the software feature for the system and a Drive LTU that licenses the use of one drive. For each software title, purchase one Base LTU per title per array, and one Drive LTU, up to a cap, for every drive, that is installed in the array, independent of drive type. For the HP 3PAR StoreServ 7200 the Drive LTUs cap at 48. For the HP 3PAR StoreServ 7400 the Drive LTUs cap at 168. After reaching the cap, you do not need to purchase any more Drive LTUs for that title.

For more information regarding HP 3PAR software see http://h18006.www1.hp.com/storage/solutions/3par/software.html

. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 22

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP 3PAR 7000 Operating System Software Suite (Required)

HP 3PAR OS SW

Suite - 3PAR

Operating System,

System Setup, and

Management

Software

HP 3PAR 7000 Operating System Software Suite is the foundation software of HP 3PAR

StoreServ 7000 Storage, combining advanced virtualization capabilities with simple storage management, high efficiency, and world class performance. The included comprehensive thin provisioning capabilities allow your storage to start thin, get thin and stay thin. System Tuner and Autonomic Rebalance help maintain high performance over time. Migrating your existing data from HP EVA, EMC CX4 or EMC VNX Storage and 3PAR systems to HP 3PAR StoreServ

7000 is easy with the included 180 day Online Import license. HP 3PAR SmartStart Software, included in the suite, guides you through the configuration of the service processor, HP 3PAR

StoreServ Storage and the application hosts - making storage setup quick and easy. HP 3PAR

7000 Operating System Software Suite is a required purchase. It uses drive-based licensing.

For more information see http://h18006.www1.hp.com/storage/software/3par7000/oss/index.html

.

HP 3PAR 7200 Operating System Software Suite Base LTU

HP 3PAR 7200 Operating System Software Suite Base E-LTU

HP 3PAR 7200 Operating System Software Suite Drive LTU

HP 3PAR 7200 Operating System Software Suite Drive E-LTU

HP 3PAR 7400 Operating System Software Suite Base LTU

HP 3PAR 7400 Operating System Software Suite Base E-LTU

HP 3PAR 7400 Operating System Software Suite Drive LTU

HP 3PAR 7400 Operating System Software Suite Drive E-LTU

HP 3PAR 7000 Replication Software Suite

HP 3PAR 7000

Replication

Software Suite -

Local Replication,

Remote Replication and Transparent

Failover

The HP 3PAR Replication Software Suite offers automatic replication, transparent failover and Point-in-Time (PIT) copies enabling seamless disaster recovery for critical data. These features provide an agile, efficient and simple solution to protect against the unpredictable.

This suite is ideal for virtualized data centers demanding data availability and business continuity 24x7. HP 3PAR 7000 Replication Software Suite consists of HP 3PAR Remote Copy

Software, HP 3PAR Peer Persistence Software and HP 3PAR Virtual Copy Software, which are also available separately. Replication Software Suite uses drive-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/drs/index.html

.

BC745B

BC745BAE

BC746A

BC746AAE

BC773B

BC773BAE

BC774A

BC774AAE

NOTE: The Peer Persistence feature provides transparent failover in VMware cluster environments and requires the Remote Copy feature as a prerequisite.

HP 3PAR 7200 Replication Software Suite Base LTU

HP 3PAR 7200 Replication Software Suite Base E-LTU

HP 3PAR 7200 Replication Software Suite Drive LTU

HP 3PAR 7200 Replication Software Suite Drive E-LTU

HP 3PAR 7400 Replication Software Suite Base LTU

BC747A

BC747AAE

BC748A

BC748AAE

BC775A

HP 3PAR 7400 Replication Software Suite Base E-LTU

HP 3PAR 7400 Replication Software Suite Drive LTU

BC775AAE

BC776A

HP 3PAR 7400 Replication Software Suite Drive E-LTU BC776AAE

NOTE: If the configuration includes Remote Copy over Fibre Channel it is recommended that optional Fiber Channel HBAs are c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 23

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information purchased as the built in ports will not offer sufficient connectivity

HP 3PAR 7000 Security Software Suite

HP 3PAR 7000

Security Software

Suite

HP 3PAR 7000 Security Software Suite provides secure administrative segregation of users and hosts, allowing individual user groups and applications to confidently share a 3PAR

StoreServ 7000 system. It also allows you to secure volumes and copies so they cannot be deleted, even by a 3PAR StoreServ 7000 user with the highest level privileges. When coupled with reservation less, non-duplicative, read-only virtual copies (snapshots), the Virtual Lock feature enables you to retain frozen, point-in-time copies of your data to assist internal data retention and simplify compliance with internal governance procedures. HP 3PAR 7000

Security Software Suite consists of HP 3PAR Virtual Domains Software and HP 3PAR Virtual

Lock Software, which are also available separately. Security Software Suite uses drive-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/ss/index.html

.

HP 3PAR 7200 Security Software Suite Base LTU

HP 3PAR 7200 Security Software Suite Base E-LTU

HP 3PAR 7200 Security Software Suite Drive LTU

HP 3PAR 7200 Security Software Suite Drive E-LTU

HP 3PAR 7400 Security Software Suite Base LTU

HP 3PAR 7400 Security Software Suite Base E-LTU

HP 3PAR 7400 Security Software Suite Drive LTU

HP 3PAR 7400 Security Software Suite Drive E-LTU

HP 3PAR 7000 Data Optimization Software Suite

HP 3PAR 7000 Data

Optimization

Software Suite -

Rebalance,

Redistribute, and

Refresh

The HP 3PAR 7000 Data Optimization Software Suite makes sure that data is on the right storage asset at the right time. This suite rebalances, redistributes and refreshes storage non-disruptively with features that provide autonomic storage tiering and dynamic data mobility, reducing cost and increasing agility. HP 3PAR 7000 Data Optimization Software

Suite consists of HP 3PAR Dynamic Optimization Software, HP 3PAR Adaptive Optimization

Software and HP 3PAR Peer Motion Software (providing federation capability for data mobility), which are also available separately. Data Optimization Software Suite uses drivebased licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/dos/index.html

.

BC751A

BC751AAE

BC752A

BC752AAE

BC779A

BC779AAE

BC780A

BC780AAE

NOTE: The Adaptive Optimization feature requires HP 3PAR Reporting Software Suite as a prerequisite.

HP 3PAR 7200 Data Optimization Software Suite Base LTU

HP 3PAR 7200 Data Optimization Software Suite Base E-LTU

HP 3PAR 7200 Data Optimization Software Suite Drive LTU

HP 3PAR 7200 Data Optimization Software Suite Drive E-LTU

HP 3PAR 7400 Data Optimization Software Suite Base LTU

HP 3PAR 7400 Data Optimization Software Suite Base E-LTU

HP 3PAR 7400 Data Optimization Software Suite Drive LTU

HP 3PAR 7400 Data Optimization Software Suite Drive E-LTU

HP 3PAR 7000 Data Optimization Software Suite v2

BC749A

BC749AAE

BC750A

BC750AAE

BC777A

BC777AAE

BC778A

BC778AAE c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 24

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

Ensure Quality of

Service with dynamic data mobility

The HP 3PAR Data Optimization Software Suite v2 combines capabilities that provide autonomic storage tiering and dynamic data mobility with assured quality of service .

Adaptive Optimization provides highly reliable, non-disruptive, cost-optimized storage tiering at the sub-volume level to deliver the right QoS to the right data at the right time on a large scale and Dynamic Optimization delivers it at the volume level. Peer Motion software enables seamless technology refresh and cost-optimized asset lifecycle management, and lowers technology refresh capital expenditure. Priority Optimization software allows customers to ensure quality of service on HP 3PAR StoreServ Storage Systems. With Priority

Optimization, customers can guarantee service levels in multi-tenant environments

The Data Optimization Suite v2 bundles the following products:

Models

 HP 3PAR Adaptive Optimization

 HP 3PAR Dynamic Optimization

 HP 3PAR Peer Motion

 HP 3PAR Priority Optimization

For more information see http://h18006.www1.hp.com/storage/software/3par7000/dos/index.html

HP 3PAR 7200 Data Optimization Software Suite V2 Base LTU BD268A

HP 3PAR 7200 Data Optimization Software Suite V2 Base E-LTU

HP 3PAR 7200 Data Optimization Software Suite V2 Drive LTU

HP 3PAR 7200 Data Optimization Software Suite V2 Drive E-LTU

HP 3PAR 7400 Data Optimization Software Suite V2 Base LTU

HP 3PAR 7400 Data Optimization Software Suite V2 Base E-LTU

HP 3PAR 7400 Data Optimization Software Suite V2 Drive LTU

HP 3PAR 7400 Data Optimization Software Suite V2 Drive E-LTU

HP 3PAR 7450 Data Optimization Software Suite V2 Base LTU

HP 3PAR 7450 Data Optimization Software Suite V2 Base E-LTU

HP 3PAR 7450 Data Optimization Software Suite V2 Drive LTU

HP 3PAR 7450 Data Optimization Software Suite V2 Drive E-LTU

HP 3PAR Reporting Software Suite

HP 3PAR Reporting

Software Suite -

Historical

Performance and

Capacity

Management Tool

The HP 3PAR Reporting Software Suite includes System Reporter, a historical performance and capacity management tool for storage reporting, monitoring, and troubleshooting. Also included is 3PARInfo, a command line tool that allows you to view HP 3PAR StoreServ Storage configuration information. Reporting Software Suite uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/rs/index.html

.

HP 3PAR 7200 Reporting Suite LTU

HP 3PAR 7200 Reporting Suite E-LTU

HP 3PAR 7400 Reporting Suite LTU

HP 3PAR 7400 Reporting Suite E-LTU

HP 3PAR Application Software Suite for Oracle

HP 3PAR

Application

The HP 3PAR Application Software Suite for Oracle provides everything you need for protecting Oracle databases, including Recovery Manager for Oracle and Oracle Space c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014

BD268AAE

BD269A

BD269AAE

BD270A

BD270AAE

BD271A

BD271AAE

BD272A

BD272AAE

BD273A

BD273AAE

BC767B

BC767BAE

BC795B

BC795BAE

Page 25

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

Software Suite for

Oracle - Application

that intelligently creates, manages, and presents time-consistent snapshot images of

Protection

Reclamation capabilities. Recovery Manager for Oracle is an extension to 3PAR Virtual Copy

Oracle® databases for rapid application recovery, near-continuous data protection, data sharing, and non-disruptive backup. Application Software Suite for Oracle uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/as-oracle/index.html

.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP

3PAR Replication Software Suite.

HP 3PAR 7200 Application Suite for Oracle LTU

HP 3PAR 7200 Application Suite for Oracle E-LTU

HP 3PAR 7400 Application Suite for Oracle LTU

HP 3PAR 7400 Application Suite for Oracle E-LTU

HP 3PAR Application Software Suite for SQL

HP 3PAR

Application

Software Suite for

SQL - Application

Protection

The HP 3PAR Application Software Suite for SQL protects Microsoft® SQL databases with

Recovery Manager for Microsoft® SQL and the 3PAR VSS Provider software. 3PAR Recovery

Manager for Microsoft® SQL Server is an extension to 3PAR Virtual Copy that eases costs and administration by providing rapid, affordable online recovery of Microsoft® SQL Server databases from multiple, highly granular point-in-time snapshots. Quickly recover a database to a known point in time, speeding up a variety of operations including rapid recovery of the production SQL server. Application Software Suite for SQL uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/as-sql/index.html

.

HP 3PAR

Application

Software Suite for

Exchange -

Application

Protection

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP

3PAR Replication Software Suite.

HP 3PAR 7200 Application Suite for Microsoft SQL LTU

HP 3PAR 7200 Application Suite for Microsoft SQL E-LTU

HP 3PAR 7400 Application Suite for Microsoft SQL LTU

HP 3PAR 7400 Application Suite for Microsoft SQL E-LTU

HP 3PAR Application Software Suite for Exchange

The HP 3PAR Application Software Suite for Exchange provides you the essentials for protecting your Microsoft Exchange data, including Recovery Manager for Exchange and the

VSS Provider software. Recovery Manager for Exchange is an extension to 3PAR Virtual Copy that intelligently creates and manages snapshots that can be used to quickly restore

Exchange instances or databases (or non-disruptively back them up to tape) for nearcontinuous data protection. Application Software Suite for Exchange uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/as-exchange/index.html

.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP

3PAR Replication Software Suite.

HP 3PAR 7200 Application Suite for Microsoft Exchange LTU

HP 3PAR 7200 Application Suite for Microsoft Exchange E-LTU

HP 3PAR 7400 Application Suite for Microsoft Exchange LTU c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014

BC771B

BC771BAE

BC799B

BC799BAE

BC770B

BC770BAE

BC798B

BC798BAE

BC769B

BC769BAE

BC797B

Page 26

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP 3PAR 7400 Application Suite for Microsoft Exchange E-LTU

HP 3PAR Application Software Suite for Microsoft Hyper-V

HP 3PAR

Application

Software Suite for

Hyper-V -

Application

Protection

The HP 3PAR Application Software Suite for Hyper-V provides you the essentials for protecting your Microsoft Hyper-V environment, including Recovery Manager for Hyper-V and the VSS Provider software. Recovery Manager for Hyper-V is an extension to 3PAR Virtual

Copy that intelligently creates and manages snapshots that can be used to quickly restore

Hyper-V VMs for near-continuous data protection. Application Software Suite for Hyper-V uses system-based licensing.

BC797BAE

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP

3PAR Replication Software Suite.

HP 3PAR 7200 Application Suite for Microsoft Hyper-V LTU

HP 3PAR 7400 Application Suite for Microsoft Hyper-V LTU

HP 3PAR 7200 Application Suite for Microsoft Hyper-V E-LTU

HP 3PAR 7400 Application Suite for Microsoft Hyper-V E-LTU

HP 3PAR Application Software Suite for VMware

HP 3PAR

Application

Software Suite for

VMware -

Application

Protection

The HP 3PAR Application Software Suite for VMware provides everything you need to make your VMware environment more agile and efficient-including Recovery Manager for VMware,

Host Explorer for VMware, VASA support, and three essential plug-ins: the VMware Site

Replication Manager (SRM) Adapter, the 3PAR VAAI plug-in, and the 3PAR management plugin for VMware View. Application Software Suite for VMware uses system-based licensing. For more information see http://h18006.www1.hp.com/storage/software/3par7000/asvmware/index.html

.

NOTE: HP 3PAR Virtual Copy Software is a prerequisite, purchased independently or in the HP

3PAR Replication Software Suite.

HP 3PAR 7200 Application Suite for VMware LTU

HP 3PAR 7200 Application Suite for VMware E-LTU

HP 3PAR 7400 Application Suite for VMware LTU

HP 3PAR 7400 Application Suite for VMware E-LTU

HP Cluster Extension Software

HP Cluster

Extension

Software- High

Availability

HP Cluster Extension Software (CLX) offers protection against application downtime from fault, failure, or site disaster by extending a local cluster between data centers over metropolitan distance. CLX reinstates critical applications at a remote site within minutes or seconds after an adverse event. CLX integrates with the OS clustering software (such as MS

Cluster Service in Windows) and the remote mirroring software on storage (such as HP

Continuous Access software on P6000 EVA/P9000 and HP 3PAR Remote Copy Software on HP

3PAR systems) to automate failover and failback between sites. This dual integration enables the cluster service to verify the status of the storage as well as the server cluster; thus allowing the correct failover and failback decisions to be made which minimize downtime, and accelerates recovery without human intervention. Thus the Cluster Extension Software can help customers achieve 'zero' RPO and RTO in minutes or seconds. For more information, including how Cluster Extension Software is licensed, see http://h18006.www1.hp.com/storage/software/ces/index.html

.

BD178B

BD179B

BD178BAE

BD179BAE

BC768B

BC768BAE

BC796B

BC796BAE c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 27

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

Step 9 - Choose Options for Storage Networking

HP's comprehensive portfolio of Storage Area Network infrastructure products and solutions are designed to meet a range of storage networking needs from small and midsized businesses to the largest corporate enterprises. HP StoreFabric storage networking SAN Solutions deliver scalability, performance, and broad interoperability required for critical data and applications.

For additional details on SAN infrastructure components and options and storage compatibility information, please visit: http://hp.com/go/san or select from the part numbers below.

Fibre Channel

Host Bus Adapters

Brocade Fibre Channel HBAs

HP 81B 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

Emulex Fibre Channel HBAs

Fibre Channel Switches

HP 81E 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

QLogic Fibre Channel HBAs

HP 81Q 8Gb 1-port PCIe Fibre Channel Host Bus Adapter

HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP B-series

8 Gb Fibre Channel Switches

HP 8/8 Base (0) e-port SAN Switch

HP 8/8 (8) Full Fabric Ports Enabled SAN Switch

AP769B

AP770B

AJ762B

AJ763B

AK344A

AJ764A

HP 8/24 Base (16) Full Fabric Ports Enabled SAN Switch

HP 8/80 Base (48) Full Fabric Ports Enabled SAN Switch

HP 8/80 Power Pack+ (48) Full Fabric Ports Enabled SAN Switch

16 Gb Fibre Channel Switches

HP SN3000B 16Gb 24-port/12-port Active Fibre Channel Switch

HP SN3000B 16Gb 24-port/24-port Active Fibre Channel Switch

HP SN6000B 16Gb 48-port/24-port Active Fibre Channel Switch

HP SN6000B 16Gb 48-port/48-port Active Fibre Channel Switch

AM866B

AM867B

AM868B

AM871B

AM872B

HP SN6000B 16Gb 48-port/24-port Active Power Pack+ Fibre Channel Switch

HP SN6000B 16Gb 48-port/48-port Active Power Pack+ Fibre Channel Switch

HP StoreFabric SN6500B 16Gb 96/96 Power Pack+ FC Switch

HP StoreFabric SN6500B 16Gb 96/96 FC Switch

HP StoreFabric SN6500B 16Gb 96/48 Power Pack+ FC Switch

HP StoreFabric SN6500B 16Gb 96/48 FC Switch

8 Gb and 16 Gb Director Switches

HP SN8000B 8-Slot Power Pack+ SAN Backbone Director Switch

QW937A

QW938A

QK753B

QR480B

QK754B

QR481B

C8R42A

C8R43A

HP SN8000B 4-Slot Power Pack+ SAN Director Switch

HP SN8000B 4-Slot SAN Director Switch

HP DC SAN Backbone Director Switch

HP DC04 SAN Director Switch

HP DC04 Power Pack+ SAN Director Switch

C8R44A

C8R45A

QK710B

QK711B

QK712B

AK857C

AR478B

AR479B c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 28

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

FCoE, Extension and Embedded Switches

HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Full Switch

HP 1606 FCIP 4-pt Enabled 8Gb FC 2-pt Enabled 1GbE Base Switch

HP 1606 FCIP 16-pt Enabled 8Gb FC 6-pt Enabled 1GbE Power Pack+ Switch

Brocade 16Gb/16 SAN Switch for BladeSystem c-Class

Brocade 16Gb/28 SAN Switch for BladeSystem c-Class

Brocade 16Gb/28 SAN Switch Power Pack+ for BladeSystem c-Class

Brocade 8/12c SAN Switch for BladeSystem c-Class

Brocade 8/24c SAN Switch for BladeSystem c-Class

Brocade 8/24c Power Pack+ SAN Switch for BladeSystem c-Class

HP H-series

HP 8/20q Fibre Channel 8-ports Active Switch

NOTE: 8 device ports active, upgradeable to 20 device ports active

HP 8Gb Simple SAN Connection Kit

NOTE: 8 device ports active, upgradeable to 20 device ports active

HP 8/20q Fibre Channel Switch

NOTE: 16 switch ports active, upgradeable to 20 device ports active

HP SN6000 Stackable 8Gb 24-port Single Power Fibre Channel Switch

NOTE: 20 device ports active/4 stacking (ISL) ports active

HP SN6000 Stackable 8Gb 24-port Dual Power Fibre Channel Switch

NOTE: 20 device ports active/4 stacking (ISL) ports active

HP SN6000 Stackable 12-port Single Power FC Switch

NOTE: 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device ports active

HP C-series

HP SN8000C 13-Slot Supervisor 2A Fabric 3 Director Switch

HP SN8000C 6-Slot Supervisor 2A Director Switch

HP SN8000C 9-Slot Supervisor 2A Director Switch

HP SN6000C 8Gb 16-port Fibre Channel Switch

HP SN6000C 8Gb 32-port Fibre Channel Switch

Cisco MDS 8/12c Fabric Switch for HP BladeSystem c-Class

Cisco MDS 8/24c Fabric Switch for HP BladeSystem c-Class

Cisco MDS 9124 8-ports Active Fabric Switch

Cisco MDS 9124 16-ports Active Fabric Switch

Cisco MDS 9222i Multiservice with 0 SFP Transceiver Modular Fabric Switch

HP Intelligent Infrastructure

Analyzer Software (IIAS)

HP Intelligent Infrastructure Analyzer Software v2 LTU

HP Intelligent Infrastructure Analyzer Software v2 E-LTU

An online monitoring and diagnostic solution intended to manage the physical layer of a Storage Area Network (SAN) consisting of HP B-series and/or H-series

Fibre Channel switches and directors. It uses industry-standard protocols (such as SNMP, SMI-S, Telnet) to monitor the physical layer across the SAN and to diagnose changes/events in Small Form-factor Pluggable (SFP) transceiver

AP863B

AP862B

AP864B

C8S45A

C8S46A

C8S47A

AJ820B

AJ821B

AJ822B

AQ233B

AK241B

AK242B

AW575B

AW576B

BK780B

QW927A

AE388C

AE389C

AW585A

AW586A

AW563A

AW564A

AG646A

AG647A

AG851B

TC472A

TC472AAE c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 29

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP Virtual Connect

PremierFlexOM4 cable options

states/characteristics. It also presents the SAN topology, inventory and diagnostic information to the user in real-time.

HP 3PAR StoreServ 7000 Storage supports direct attach with HP Virtual Connect

FlexFabric. Please refer to SPOCK for HP Virtual Connect information. http://h20272.www2.hp.com/index.aspx

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

OM3 FC LC-LC cables options HP LC to LC Multi-mode OM3 2-Fiber 0.5m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 1.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 2.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 5.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 15.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 30.0m 1-Pack Fiber Optic Cable

HP LC to LC Multi-mode OM3 2-Fiber 50.0m 1-Pack Fiber Optic Cable

QK732A

QK733A

QK734A

QK735A

QK736A

QK737A

AJ833A

AJ834A

AJ835A

AJ836A

AJ837A

AJ838A

AJ839A

Step 10 - Federation / Data Migration

HP provides several ways to migrate your data from older arrays. Peer Motion provides federation with other 3PAR arrays, which includes the ability to migrate data to HP 3PAR StoreServ 7000 Storage (Peer Motion is part of the HP 3PAR 7000 Data

Optimization Software Suite). Peer Motion Software is also available as a standalone license.

HP 3PAR Peer Motion

Software

HP 3PAR 7200 Peer Motion Software Base LTU

HP 3PAR 7200 Peer Motion Software Drive LTU

BC761A

BC762A

*

*

HP 3PAR 7400 Peer Motion Software Base LTU BC789A *

HP 3PAR 7400 Peer Motion Software Drive LTU BC790A *

* Insert AE at the end of a part number for an electronic LTU (eg. XXXXBAE). E-Delivery should be ordered with any Standalone or

Upgrade software order.

Online Import allows you to easily migrate data from HP EVA, EMC CX4 or EMC VNX Storage arrays to the HP 3PAR StoreServ 7000, a 180-day Online Import license is built into the HP 3PAR 7000 Operating System Software Suite. Additional licenses are available to order.

HP 3PAR Online Import

Software

HP 3PAR 7200 Online Import Software 180 day LTU

HP 3PAR 7400 Online Import 180 day Software LTU

BD191A

BD192A

*

*

* Insert AE at the end of a part number for an electronic LTU (eg. XXXXBAE). E-Delivery should be ordered with any Standalone or

Upgrade software order.

In addition HP supports the MPX200.

HP MPX200 Multi-protocol and Heterogeneous Data Migration c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 30

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

The HP MPX200 Multiprotocol Router provides support for HP 3PAR StoreServ 7000 and 10000 as well as 3PAR F/T, including

1GbE iSCSI and 10GbE iSCSI and FCoE target support. MPX200 iSCSI provides an alternative option for HP 3PAR storage systems if you don't want to dedicate native iSCSI ports on your array. The MPX200 also facilitates the sharing of iSCSI/FCoE connectivity simultaneously for HP 3PAR storage systems from the same MPX200. For Data Migration the MPX200 provides high performance migration from P6000/EVA to HP 3PAR storage systems and simplifies Data Migration from third party storage such as IBM and

EMC to HP 3PAR.The MPX200 is an ideal solution enabler for HP 3PAR customers. http://www.hp.com/go/mpx200

MPX200 Multifunction

Router

HP MPX200 1GbE Base Multifunction Router

HP MPX200 Multifunction Router 1GbE Upgrade Blade

HP MPX200 10-1GbE Base Multifunction Router

AP771B

AP772B

AP773B

FCIP Software

HP MPX200 Multifunction Router 10-1GbE Upgrade Blade

HP MPX200 Half Chassis FCIP License

AP774B

TA766A

Data Migration Software

HP MPX200 Full Chassis FCIP License

HP MPX200 1TB Full Chassis Data Migration License

HP MPX200 5TB Full Chassis Data Migration License

HP MPX200 Full Chassis 1 Array Data Migration License

TA767A

TA762A

TA763A

TA764A

Step 11- File Controller (For detailed specifications, please refer to File Controller v1 or v2 section)

These models come with factory-installed drives and the Microsoft Windows Storage Server 2012 Standard Edition or Windows

Storage Server 2012 R2 Standard Edition operating system pre-installed

Choose a Pre-configured Model

Part

Number

E7X02A

HP 3PAR StoreServ File Controller

Specifications Operating System

Processor

Memory

Storage Controller

Internal Storage

Expansion Slots

Network Ports

Form Factor

HP 3PAR StoreServ File Controller

Specifications

Operating System

Processor

Microsoft Windows Storage Server 2012 R2, Standard

Intel® Xeon® E5-2609v2 (2.50GHz/4-core/10MB/80W)

Processor

16 GB (4 x 4GB)

Smart Array P420i with 1 GB FBWC Controller with internal SAS port for O/S drives)

2 x 300GB 6G SAS 10K 2.5" ENT hot-plug SFF HDDs

(O/S mirror)

3 x PCIe (6 with option PCIe Riser)

4 x 1GbE

2U Rack

Microsoft Windows Storage Server 2012, Standard

Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W)

Processor

Part

Number

C8S69A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 31

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

Memory

Storage Controller

Internal Storage

Expansion Slots

Network Ports

Form Factor

16 GB (4 x 4GB)

Smart Array P420i with 1 GB FBWC Controller with internal SAS port for O/S drives)

2 x 450GB 6G SAS 10K 2.5" ENT hot-plug SFF HDDs

(O/S mirror)

3 x PCIe (6 with option PCIe Riser)

4 x 1GbE

2U Rack

Add a second processor

Intel® Xeon® E5-2609v2 (2.5GHz/4-core/10MB/80W) Processor Kit

NOTE: For E7X02A only

Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor Kit

NOTE: For C8S69A only

715222-B21

662252-B21

Add More Memory

NOTE: HP recommends that you add the same type memory to the product that is shipped standard with the product.

NOTE: HP memory from previous generation servers are not fully compatible with Smart Memory features in Gen8 Servers.

Registered DIMMs (RDIMMs)

HP 4GB (1x4GB) Single Rank x4 PC3L-12800R (DDR3-1600) Registered CAS-11 Low Voltage

Memory Kit

NOTE: For E7X02A only

713981-B21

HP 4GB (1x4GB) Single Rank x4 PC3L-10600R (DDR3-1333) Registered CAS-9 Low Voltage

Memory Kit

NOTE: For C8S69A only

NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool: www.hp.com/go/ddr3memory-configurator .

NOTE: PC3L is a low voltage memory.

See the HP ProLiant Gen 8 QuickSpecs for information on memory configurations. http://h18004.www1.hp.com/products/quickspecs/14212_div/14212_div.html

647893-B21

Add 3PAR StoreServ File Controller v2 Performance Kit

HP 3PAR StoreServ File Controller 1Gb Performance Kit

NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a 1GbE 4 port NC365T Adapter to the 3PAR File Controller v2

HP 3PAR StoreServ File Controller 10Gb Performance Kit

NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a 10GbE 2 port 560SFP+ Adapter to the 3PAR File Controller v2

E7X04A

E7X05A

Add additional options

NOTE: Multifunction Server Adapters support the installed Microsoft Windows Server Scalable Networking Pack, which enables TCP

Chimney offload, Receive-side Scaling (RSS), and Network Direct Memory Access (NetDMA) features.

HP Networking

Gigabit Ethernet adapters c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 32

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP NC112T PCI Express Gigabit Server Adapter

HP NC365T 4-port Ethernet Server Adapter

HP Ethernet 1Gb 4-port 331T Adapter

HP Ethernet 1Gb 2-port 361T Adapter

HP Ethernet 1Gb 2-port 332T Adapter

10 Gigabit Ethernet Adapters

NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately.

HP NC523SFP 10Gb 2-port Server Adapter

HP Ethernet 10Gb 2-port 530SFP Adapter

503746-B21

593722-B21

647594-B21

652497-B21

615732-B21

HP Infiniband

HP Ethernet 10Gb 2-port 530T Adapter

HP Ethernet 10Gb 2-port 560SFP+ Adapter

HP NC552SFP 10Gb 2-port Ethernet Server Adapter

QLogic InfiniBand 4X QDR PCI-E G2 Dual Port HCA

HP InfiniBand 4X QDR ConnectX-2 PCIe G2 Dual Port HCA

NOTE: For the following two InfiniBand Adapters, only 1 FlexibleLOM can be added to the server, which is selected in Step 2 for the "Configuration Information - Factory Integrated Models" section. These two options are for upgrade or change from original configuration.

NOTE: FLR Indicates new HP FlexibleLOM Adapter series.

HP Infiniband FDR/Ethernet 10Gb/40Gb 2-port 544FLR-QSFP Adapter

593717-B21

652503-B21

656596-B21

665249-B21

614203-B21

583211-B21

592520-B21

649282-B21

HP Infiniband QDR/Ethernet 10Gb 2-port 544FLR-QSFP Adapter

HP InfiniBand FDR 2-port 545QSFP Adapter

649283-B21

702211-B21

NOTE: 10Gb Ethernet requires the use of the QSFP to SFP+ adapter P/N 655874-B21.

NOTE: Please see the QuickSpecs for additional information: http://h18000.www1.hp.com/products/quickspecs/13078_div/13078_div.html

HP Optical Drives HP 12.7mm Slim SATA DVD-ROM JackBlack Optical Drive

HP I/O Expansion

Options

HP Security

HP 12.7mm Slim SATA DVD-RW JackBlack Optical Drive

HP DL380p/385p/560 Gen8 3 Slot PCI-E Riser Kit

NOTE: When populating the second optional riser slot, the second processor must be installed.

652232-B21

652235-B21

653206-B21

HP Trusted Platform Module Option

NOTE: The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to authenticate the server platform. These artifacts can include passwords, certificates and encryption keys. Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module (TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server running Windows Server 2008 has not been tampered with while the system was offline. For more information about TPM, including a white paper, go to: www.hp.com/go/TPM.

NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing the key could result in data loss.

488069-B21

HP 3PAR StoreServ File Controller is designed and optimized for connection to 3PAR StoreServ Storage and uses HBAs, rather than additional Storage Controllers.

NOTE: HBAs are not included standard. HBA selection is left as your choice based on existing SAN infrastructure. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 33

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Configuration Information

HP Fibre Channel Storage Fibre Channel HBA

NOTE: For the complete listing of Fibre Channel Host Bus Adapters for Windows 2000, Windows

Server 2003 and Linux, please see: http://h18006.www1.hp.com/storage/saninfrastructure/hba.html

Brocade Fibre Channel HBAs

HP 82B 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

Emulex Fibre Channel HBAs

HP 82E 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP SN1000E 16Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP StoreFabric SN1100E 16Gb Dual Port Fibre Channel Host Bus Adapter

QLogic Fibre Channel HBAs

HP 82Q 8Gb 2-port PCIe Fibre Channel Host Bus Adapter

HP StoreFabric SN1000Q 16GB 2-port PCIe Fibre Channel Host Bus Adapter

Converged Network Adapter

HP CN1100E Dual Port Converged Network Adapter

HP CN1000Q Dual Port Converged Network Adapter

HP StoreFabric CN1100R Dual Port Converged Network Adapter

WSS2012 R2 Upgrade WSS2012 R2 Standard Edition Upgrade Kit

HP 3PAR StoreServ File Controller products with the Microsoft Windows Storage

Server 2012, Standard Edition Operating System are eligible for a Software-Only Pay for-Upgrade to the Microsoft Windows Storage Server 2012 R2.

* A minimum of two OS drives that are the same type and capacity (146GB minimum) must be present in the system before installation.

NOTE: Some expansion cards, including HBAs and NICs, may not be supported by

Windows Storage Server 2012 R2. Check Windows Server 2012 R2 driver availability before purchase and installation. All original components that were standard on the

3PAR StoreServ File Controller are supported.

NOTE: Check for HP and 3rd-party software qualification with the Windows Storage

Server 2012 R2 operating system before purchase and installation.

HP StoreEasy WSS2012 R2 Standard Edition Upgrade Kit D4T73A

Add a Power Cord

The HP 3Par StoreServ File Controller comes standard with at least one rack (IEC-IEC) PDU power cord. If you wish to use wall outlet power instead, you can choose a country- or region-specific power cord.

3Par StoreServ

File Controller

HP C13 - Nema 5-15P US/CA 110V 10Amp 1.83m Power Cord

HP C13 - GB-1002 CN 250V 10Amp 1.83m Power Cord

AF556A

AF557A

HP C13 - IRAM -2073 AR 250V 10A 2.5m Power Cord

HP C13 - Nema 5-15P TH/PH 250V 10Amp 1.83m Power Cord

AF558A

AF559A

AP770B

AJ763B

QR559A

C8R39A

AJ764A

QW972A

BK835A

BS668A

QW990A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 34

QuickSpecs

Configuration Information

HP C13 - KSC- 8305 KR 250V 10Amp 1.83m Power Cord

HP C13 - CNS-690 TW 110V 13Amp 1.83m Power Cord

HP C13 - IS-1293 IN 240V 6Amp LV 2.0m Power Cord

HP C13 - AS3112-3 AU 250V 10Amp 2.5m Power Cord

HP C13 - SEV 1011 CH 250V 10Amp 1.83m Power Cord

HP C13 - DK-2.5A DK 250V 10Amp 1.83m Power Cord

HP C13 - CEE-VII EU 250V 10Amp 1.83m Power Cord

HP C13 - SI-32 IL 250V 10Amp 1.83m Power Cord

HP C13 - CEI-23-50 IT/CL 250V 10Amp 1.83m Power Cord

HP C13 - JIS C8303 JP 100V 12Amp 2.0m Power Cord

HP C13 - BS-1363A UK/HK/SG 250V 10Amp 1.83m Power Cord

HP C13 - SABS-164 ZA 250V 10Amp 2.5m Power Cord

HP C13 - NBR-14136 BR 250V 10Amp 1.83m Power Cord

HP 3PAR StoreServ 7000 Storage

AF560A

AF561A

AF562A

AF569A

AF565A

AF566A

AF568A

AF564A

AF571A

AF572A

AF570A

AF567A

AF591A c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 35

QuickSpecs

Technical Specifications

HP 3PAR StoreServ 7000 Product Dimensions, and Weight

Physical Dimensions Height in/mm/U Width in/mm

79.0/2006.6 23.5/597.8 42U Intelligent Series

Rack

HP 3PAR StoreServ 7200

2-node Storage Base (no host adapters, no drives)

HP 3PAR StoreServ 7200

2-node Storage Base

(with two host adapters, no drives)

HP 3PAR StoreServ 7400

2-node Storage Base (no host adapters, no drives)

HP 3PAR StoreServ 7400

2-node Storage Base

(with two host adapters, no drives)

HP 3PAR StoreServ 7400

4-node Storage Base (no host adapters, no drives)

HP 3PAR StoreServ 7400

4-node Storage Base

(with four host adapters, no drives)

HP M6710 2.5 inch 2U

SAS Drive Enclosures

(without drives)

HP M6720 3.5 inch 4U

SAS Drive Enclosures

(without drives)

SFF SAS drive with carrier

3.46/87.95/2

3.46/87.95/2

3.46/87.95/2

3.46/87.95/2

6.925/175.9/4

6.925/175.9/4

3.46/87.95/2

6.89/175/4

3.42/86.85

**

19/483

19/483

19/483

19/483

19/483

19/483

19/483

19/483

0.78/19.9

**

LFF SAS drive with carrier 1.18/30.0

**

* includes length of ejector handles

** includes RFI clips

Power Requirements

Input Voltage (VAC)

Frequency (Hz)

Component

4.36/110.84

Idle

(watts / BTU/hr)

**

HP 3PAR StoreServ 7000 Storage

Depth in/mm

42.7/1125.2

26.6/676.1

*

26.6/676.1

*

26.6/676.1*

26.6/676.1

*

26.6/676.1

*

26.6/676.1

*

24.8/630.7

24.9/631.4

896/227.7

8.67/220.26

100 - 240 VAC

50 - 60

Transactional

(watts / BTU/hr) c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014

Max Weight lb/kg

243/110 (empty)

47.7/21.6

48.7/22.1

47.7/21.6

48.7/22.1

97.8/44.4

99.8/45.3

33.5/15.2

42.9/19.5

0.7/0.32

(varies by type)

1.9/0.86

(varies by type)

Page 36

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Technical Specifications

Node Pair (7200 or 7400), no drives, no add-on host adapters

4-port 8Gb/sec Fibre Channel Adapter

2-port 10Gb/sec iSCSI/FCoE Adapter

236 / 803

24 / 81.7

34 / 115.8

HP M6710 2.5 inch 2U SAS Drive Enclosure, no drives

150 / 512 (average)

HP M6720 3.5 inch 4U SAS Drive Enclosure, no drives

164 / 559 (average)

300GB 15K Small Form Factor HDD 6.2 / 21.1

450GB 10K Small Form Factor HDD

600 GB 10K Small Form Factor HDD

900GB 10K Small Form Factor HDD

1.2TB 10K Small Form Factor HDD

1 TB 7.2k Small Form Factor HDD

2TB 7.2K Large Form Factor NL HDD

3TB 7.2K Large Form Factor NL NDD

100GB SLC SSD

200GB SLC SSD

3.7 / 12.6

4.1/14

4.8 / 16.4

3.6/12.3

2.95/10.1

7.5 / 25.6

8.5 / 28.9

1.4 / 4.8

1.4 / 4.8

400GB MLC SSD

480GB MLC SSD

920GB MLC SSD

480GB cMLC SSD

1920GB cMLC SSD

2.2 / 7.5

2.2/ 7.5

2.2/7.5

3.2/11

3.5/11.9

Environmental Specifications

Operating Temperature

Shipping Temperature

Altitude (ft/m) max.

Shipping Altitude (ft/m) max.

Humidity

Shipping Humidity

Operating Vibration

Non-operating Vibration

Operating Shock

Non-operating Shock

Maximum Air Flow

Electromagnetic Compatibility

398 / 1357

32.6 / 111

40 / 136.4

150 / 512 (average)

164 / 559 (average)

8.0 / 27.3

6.3 / 21.5

6.3/21.5

6.2 / 21.1

7.8/26.6

3.84/13.1

10.6 / 36.1

11.8 / 40.2

3.9 / 13.3

3.9 / 13.3

3.7 / 12.6

5.5/18.7

5.5/18.7

7.1/24.4

8.9/30.5

41° to 104° F (5° to 40° C) - Reduce rating by 1° F for each 1000 ft altitude (1.8° C/1,000 m)

32° to 140° F (0° to 60° C)

10,000 ft / 3,048 m

40,000ft/ 12,192 m

10% to 90% non condensing

10% to 90% non condensing

0.25 G, Sine, 5-500 Hz, 0.1 Grms, Random 10-100Hz

0.5 G, 5 - 500 Hz, Sine

2 G, 11ms, half-sine

10 G, 11ms, half-sine

Storage Base and Upgrade Node Pair - 109 CFM per enclosure

M6710 Drive Enclosure - 105 CFM

M6720 Drive Enclosure - 109 CFM

CISPR 22:2008/ EN55022:2010 Class A

CISPR 24:2010/ EN 55024:2010

IEC 61000-3-2:2005/ EN 61000-3-2:2006 +A1:2009 +A2:2009 c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 37

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Technical Specifications

Acoustics

Sound pressure level measured per ISO 7779 specifications during normal operating fan conditions, from a minimum of 3,000 RPM to a maximum of 10,000

RPM

IEC/ EN 61000-3-3:2008

AS/NZS CIPSR 22: 2009 Class A

CNS 13438:2006 Class A

47 CFR Part 15 Subpart b Class A

ICES-003 Issue 4 Class A

V-3/2012.04 Class A

RRA Notice No. 2011-24 (2011.12.23) Class A

RRA Notice No. 2011-25 (2011.12.23)

Fan Speed

(RPM)

Minimum

Maximum

7200/7400 2 node Storage

Base

63.8

93.4

7400

4 node

Storage Base

67.2

96.5

M6710 2.5"

2U SAS Drive

Enclosure

62.6

85.4

Safety

Certifications / Markings

IEC 60950-1:2005 (2nd Edition)

EN 60950-1:2006 +A11:2009

EN 62479:2010

CNS 14336-1 2nd Edition

UL 60950-1 2nd Ed.

CAN/CSA C22.2 No. 60950-1 cTUVus Mark

TUV T-mark (EN 60950)

CE Mark

FCC Class A

IC Class A

VCCI Class A

BSMI Class A

KCC

GOST-R

C-Tick

WEEE

China RoHS

EU RoHS

NOTE: Specifications are subject to change without notice.

M6720 3.5"

4U SAS Drive

Enclosure

61.3

88 c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 38

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Overview - StoreServ File Controller

HP 3PAR StoreServ File Controller v2

HP 3PAR StoreServ File Controller v2 is a new converged storage capability on the HP 3PAR StoreServ Storage platform. It adds support for file services to the 3PAR StoreServ. The HP 3PAR StoreServ File Controllerv2 is designed to deliver efficient, secure, and highly available file capability that supports hundreds to thousands of concurrent users.

What's New

 New 3PAR StoreServe File Controller v2

HP 3Par StoreServ File Controller v2

The HP 3PAR StoreServ File Controller v2 sets the standard for performance and expandability for file services for the 3PAR

StoreServ platform. It leverages the 3PAR StoreServ Storage data services and extends the benefits to file workloads. Please refer to the respective sections for details on the data services.

Models

HP 3PAR StoreServ File Controller v2 Storage

HP 3PAR StoreServ File Controller 1Gb Performance Kit

NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a 1GbE 4 port NC365T Adapter to the 3PAR File Controller v2

HP 3PAR StoreServ File Controller 10Gb Performance Kit

NOTE: This kit adds the second Intel® Xeon® E5-2609v2 Processor, an additional 16GB (4 x 4GB) of Memory, and a 10GbE 2 port 560SFP+ Adapter to the 3PAR File Controller v2

HP 3PAR StoreServ File Controller

E7X02A

E7X04A

E7X05A

C8S69A

Front View:

1. Quick removal access panel

2. Second Intel Processor

3. First Intel Processor

4. 24 DIMM slots: DDR3 Registered (RDIMM), Load Reduced

(LRDIMM), or Unbuffered (UDIMM) memory

5. Air Baffle

Rear View:

PCIe 3.0 Slots 1, 2, 3-PCIe 2.0 top to bottom

2. N/A

3. Power supply 1

4. Power supply 1 Power LED

5. Power supply 1 Power connection (with Intelligent PDU communication) c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 39

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Overview - StoreServ File Controller

6. Hot-plug fans, full N+1 redundancy

7. Health LED

8. Power On /Standby button and system power LED button

9. USB connector

10. Unit ID LED

11. Systems Insight Display

12. Asset Tag

13. USB connector

14. Drive Bays

6. Power supply 2 Power connection (with Intelligent PDU communication)

7. Power supply 2 Power LED

8. Power supply 2

9. Unit ID LED/Button

10. USB connectors (4)

11. Video connector

12. iLO connector

13. Serial connector

14. FlexibleLOM ports (Shown: 4 ports 1Gb each /Optional: 2 ports 10Gb each)

15. Optional Slim Optical Bay (SATA DVD-RW /ROM Optical Drive)

16. Video connector c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 40

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Features and Benefits - StoreServ File Controller

Efficient: Save money and time

The HP 3PAR StoreServ File Controller v2 supports thousands users concurrently accessing their files.

Non-intrusive variable chunk de-duplication delivers an average 50-60% space savings, and included evaluation tool facilitates capacity planning.

Consolidate multiple diverse file protocols (NFS: v2, v3, v4.1 | SMB: 2.0, 2.1, 3.0 | WebDAV | FTP/FTPS |

HTTP/HTTPS) as well as IT services (e.g. print, DNS, DHCP) in a single platform.

Hosted BranchCache reduces your branch office WAN usage by automatically caching frequently accessed headquarter datacenter files.

Straightforward and consistent management experience that provides storage management for both file and block based workloads.

Bulletproof: Protect your data and organization always

Built in file system encryption and optional BitLocker Drive Encryption secures data at rest while SMB

Encryption protects data in flight.

File Classification Infrastructure facilitates sophisticated access controls and support for Active

Directory Rights Management Services protects files no matter where they go.

Online snapshots enable users to directly recover files and prior file versions.

Broad support for onboard endpoint protection (antivirus) software eliminates the need to purchase additional external infrastructure.

Broad support for agent-based data protection enhances the ability to meet backup and recovery

SLAs.

Effortless: Simple to

Manage and Monitor

Turnkey clustered controller configurations with transparent failover for SMB and NFS provide continuous availability.

Cluster aware updates enable online maintenance.

File system online self-healing, online verification, and precise and rapid repair massively reduce downtime from file corruption.

HP Active Health System, mirrored OS disks, RAID for data disks, redundant fans and power, and advanced memory protection maximize uptime.

Three year onsite parts and labor warranty for the system, and one year of software telephone support. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 41

QuickSpecs

Standard Features - StoreServ File Controller

Operating System

Microsoft Windows Storage Server 2012 R2, Standard Edition

HP 3PAR StoreServ 7000 Storage

 Windows Storage Server 2012 R2 (WSS2012 R2) includes a robust range of file serving and storage capabilities. It addresses heterogeneous file workload environments and enables more efficient storage utilization. It allows for a flexible mix of configurations and includes advanced data management tools. WSS2012 leverages your Windows Server management skill sets and tools including Active Directory, PowerShell and System Center.

 SMB 3.0: Leverage high performance continually available file shares to deliver feature-rich storage for continuously available file services, business-critical applications and virtual servers using advanced new functionality.

 New VHDX Standard: Deploy larger capacity virtual storage that can grow to 16 terabytes, is more resilient against corruption, and provides more efficient usage of new 4 KB sector hard disks with the new VHDX virtual storage standard.

 Live Storage Migration: Maintain maximized service-level availability even while moving virtual machine storage between host servers independent of the actual virtual machine.

 SMB Multi-channel: Enable aggregation of network bandwidth and network fault tolerance when multiple paths are available between SMB clients and file servers.

 NFS v4.1: For Windows Storage Server 2012 R2, Server for NFS has been updated to support continuous availability. These improvements make it possible to reliably store and run

VMware ESX on a virtual machine that is running Windows Server 2012 by using the NFS protocol to share files. Additional improvements in failover clustering take advantage of better resilience to hardware and software outages that may afflict individual cluster nodes.

At the same time, failover clustering isolates VMware ESX hypervisor hosts from intermittent glitches during failovers.

 Data Deduplication: Data deduplication enables Windows Storage Server 2012 R2 to store more data in less physical space and achieve storage efficiency that is significantly higher than was possible in previous releases of Windows Storage Server that used Single Instance

Storage (SIS) or NTFS file system compression. Data deduplication uses variable size chunking and compression, which deliver optimization ratios of 2:1 for general file servers and up to

20:1 for virtualization data. Evaluate your savings with the Deduplication Evaluation Tool.

Volume Shadow Copy Service: Creates point-in-time copies (snapshots) of files and folders at predetermined time intervals that can then be accessed from client computers.

 VSS for Remote SMB File Shares: Leverage proven Volume Shadow Copy Service (VSS) to offload snapshot and backup operations to remote storage from VSS hardware providers within Hyper-V virtual machines.

 Hosted Branch Cache: Using client/server architecture, Windows 7 and above client computers can cache content on the local network via the Hosted Cache running on the 3PAR StoreServ

File Controller. Other clients who need the same content retrieve it directly from the Hosted

Cache.

 DFS Namespaces: Enables you to group shared folders that are located on different servers into one or more logically structured namespaces. Each namespace appears to users as a single shared folder with a series of subfolders. However, the underlying structure of the namespace can consist of numerous file shares that are located on different servers and in multiple sites.

 Distributed File System Replication (DFS-R): Enables you to efficiently replicate folders

(including those referred to by a DFS namespace path) across multiple servers and sites. DFS

Replication uses a compression algorithm known as remote differential compression (RDC).

RDC detects changes to the data in a file, and it enables DFS Replication to replicate only the c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 42

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Standard Features - StoreServ File Controller changed file blocks instead of the entire file.

Work Folders: With Work Folders users can store and access work files on personal computers and devices, often referred to as bring-your-own device (BYOD), in addition to corporate PCs.

Users gain a convenient location to store work files, and they can access them from anywhere. Organizations maintain control over corporate data by storing the files on centrally managed file servers, and optionally specifying user device policies such as encryption and lock-screen passwords. Work Folders can be deployed with existing deployments of Folder

Redirection, Offline Files, and home folders. Work Folders stores user files in a folder on the server called a sync share. You can specify a folder that already contains user data, which enables you to adopt Work Folders without migrating servers and data or immediately phasing out your existing solution.

 File Server Resource Manager (FSRM): File Server Resource Manager is a set of features that allow you to manage and classify data that is stored on file servers. File Server Resource

Manager includes the following features: o Storage reports: Storage reports are used to help you identify trends in disk usage and how your data is classified. You can also monitor a selected group of users for attempts to save unauthorized files. o File Classification Infrastructure: File Classification Infrastructure provides insight into your data by automating classification processes so that you can manage your data more effectively. You can classify files and apply policies based on this classification. Example policies include dynamic access control for restricting access to files, file encryption, and file expiration. Files can be classified automatically by using file classification rules or manually by modifying the properties of a selected file or folder. o File Management Tasks: File Management Tasks enables you to apply a conditional policy or action to files based on their classification. The conditions of a file management task include the file location, the classification properties, the date the file was created, the last modified date of the file, or the last time the file was accessed. The actions that a file management task can take include the ability to expire files, encrypt files, or run a custom command. o Quota management: Quotas allow you to limit the space that is allowed for a volume or folder, and they can be automatically applied to new folders that are created on a volume. You can also define quota templates that can be applied to new volumes or folders. o File screening management: File screens help you control the types of files that user can store on a file server. You can limit the extension that can be stored on your shared files. For example, you can create a file screen that does not allow files with

 an MP3 extension to be stored in personal shared folders on a file server.

Initial Configuration Tasks Wizard: Simplifies and accelerates new device deployment by presenting basic system settings on your first boot.

 Server Manager

 " Print Management Console: Manage multiple printers (license for unlimited printer support) from a single console, whether locally or over the WAN

 Unlimited Client Access Licenses (CALs) included

NOTE: Windows Storage Server 2012 R2 and Windows Server 2012 R2 are built on the same code base.

Applications certified for Windows Server are expected to have the same application compatibility profile on Windows Storage Server. Windows Storage Server 2012 R2 and Windows Server 2012 R2 have the same application frameworks, services and plumbing to support running the full breadth of c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 43

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Standard Features - StoreServ File Controller

Processor / Cache

Memory

Window-compatible applications. Applications that rely upon certain roles that are removed from

Windows Storage Server 2012 R2, such as fax server, active directory domain controller or terminal services will not be able to leverage those roles. Independent Software Vendors (ISVs) ultimately decide what versions and editions of Windows are supported by their products and users should review ISV compatibility and support information before purchasing. HP StoreEasy customers should review the End User License Agreement (EULA) to see the types of applications that are permitted for installation. All versions of Windows Storage Server can join Active Directory domains, but cannot be a domain controller.

More information on Windows Storage Server 2012 R2, Standard Edition can be found here: http://www.microsoft.com/en-us/server-cloud/windows-storage-server/default.aspx

http://technet.microsoft.com/en-us/library/jj643303

Intel® Xeon® E5-2609v2 (2.50GHz/4-core/10MB/80W) Processor (3PAR StoreServ File Controller v2)

Intel® Xeon® E5-2609 (2.40GHz/4-core/10MB/80W) Processor (3PAR StoreServ File Controller)

Memory

Network Controller

Type

Standard

DIMM Sockets

NIC Ports

Controller

DDR3 Registered (RDIMM) standard

16GB (4 x 4GB)

24

4

HP Ethernet 1Gb 4-port 331FLR Adapter

HP 3PAR StoreServ File Controller v2

Expansion Slots

Primary Riser

(Standard)

Expansion

Slots #

Technology

Bus

Width

**

Connector

Width

Bus Number

* Form Factor Notes

1

2

PCIe 3.0

PCIe 3.0

X16

X8

X16

X8

7

10

Full Length,

Full Height

Slot

Half Length,

Full Height

Slot

Proc 1

Proc 1

3 PCIe 2.0 X4 X8 13 Half Length,

Full Height

Slot

Chipset

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number

** Indicates the number of physical electrical lanes running to the connector.

NOTE: When populating the second optional riser slot, the second processor must be installed.

NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (PN 669777-B21). See Option

Section below for offering.

PCIe Riser

(Optional 3slot)

Expansion

Slots #

4

Technology

PCIe 3.0

Bus

Width

**

X16

Connector

Width

X16

Bus Number

* Form Factor

16 Full Length,

Full Height

Slot

Notes

Proc 2 c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 44

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Standard Features - StoreServ File Controller

5

6

PCIe 3.0

PCIe 3.0

X8

X4

X8

X8

20

23

Half Length,

Full Height

Slot

Half Length,

Full Height

Slot

Proc 2

Proc 2

* Default bus assignment (in decimal). Inserting cards with PCI bridges may alter the actual bus assignment number

** Indicates the number of physical electrical lanes running to the connector.

NOTE: When populating the second optional riser slot, the second processor must be installed.

NOTE: All slots support up to 150w PCIe cards, but an additional Power Cord Option is required (669777-B21). See Option Section below for offering

Storage Controller

Storage

NOTE: HP 3PAR StoreServ File Controller includes a storage controller designed for internal drives housing the O/S mirror only; an HBA is required to address connectivity to the 3PAR StoreServ Storage array.

Controller(s) HP Smart Array P420i/1GB with FBWC

RAID Needed for internal drive mirror only

Hard Drives

Internal Eight 2.5" (Small Form Factor) hot-plug bays

2 x 300GB 6G SAS 10K SFF HDDs for OS mirror (3PAR File Controller v2)

 2 x 450GB 6G SAS 10K SFF HDDs for OS mirror (3PAR File Controller)

External 3PAR StoreServ Storage using Fibre Channel

Power Supply

Power Cords

2 x 460 Watts Platinum

NOTE: The HP 3PAR StoreServ File Controller is primarily connected to PDU's in data center racks so they now ship standard with only a PDU 6-foot C-14 to C13 power cord (142258-001). If a user wishes to power a system using a110V receptacle see Power Cord option section for more options.

System Fans

Form Factor

(4) (N+1 redundancy standard)

2U Rack form factor

Host Bus Adapter (HBA)

Support

HP 3PAR StoreServ File Controller is designed to be connected to a HP 3PAR StoreServ Storage array by adding a recommended Fibre Channel HBA.

Page 45 c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information - StoreServ File Controller

Warranty

3 Year, On-site Warranty Service. 7x24 4-hour remote response with next business day on-site response.

HP warrants only that the Software media will be free of physical defects for a period of ninety (90) days from delivery.

Services Included with

the Product

One year of HP Software Support, standard 9x5 business hours (software advisory and remedial software telephone support, new version license rights, and media and documentation distribution service).

For increased uptime, productivity and ROI-HP Care Pack packaged services for Storage

These days, you need to get the most out of your storage investment-you can't afford not to. When you buy HP storage products and solutions, it's also a good time to think about what levels of service and support you may need. To help take the worry out of deploying, designing, maintaining, and managing your environment, we've designed a portfolio of service options that are as: flexible, reliable and scalable as your storage. Unlike storage-only vendors, we take a holistic approach to your entire environment, bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged services for

Storage.

Protect your business beyond the warranty

When it comes to robustness and reliability, standard warranties on today's computing equipment have matured just as the technologies have matured. Good news on some fronts-but also a source of potential problems and subsequent consequences that come from depending on standard warranties alone. Standard warranty protects against product defects and some causes of downtime- but not the business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can reduce downtime risks and be more certain of operational consistency for both mission-critical and standard business computing. Simply put, HP Care Pack Services normalize the warranty of combined products - helping you proactively guard against unplanned downtime.

Extending warranties with HP Care Pack Services

For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of standard reactive hardware and software support services that are sold separately, or combined as with our Foundation Care 24x7 services. The portfolio also provides a combination of proactive and reactive services, such as Proactive 24 Service and Critical Service. In addition, with HP Proactive Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the specific proactive services you need today, then add services as your needs evolve. HP Proactive Select offers a broad set of technical or per-event type service options - including server, storage, and network, SAN device, and software, environment, installation and education services. Services that you can mix and match depending on your specific requirements, from preliminary planning and equipment delivery to installation, configuration, integration, and testing, through every level of ongoing support. Our HP Care Pack packaged services for Storage assures help when you need it most. And for many products, post-warranty HP Care Pack Services are available when your original warranty has expired.

HP Storage Services: Offering reliability, flexibility and value-just like your storage

HP Storage Services offers a full spectrum of customer care, from technology support to complex migrations to complete completely managed services. HP Factory Express provides customization, integration and deployment services for turnkey solutions. HP Education offers flexible, comprehensive training on storage networking, disk storage systems, and storage software to help your IT staff get the most out of your investments. And HP Financial solutions extend innovative financing and asset management programs to cost-effective buy, manage and eventually retire your older equipment.

HP Storage Services, the trusted business technology experts who manage your technology in action, because when technology works, business works. http://www.hp.com/hps/storage

Page 46 c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information - StoreServ File Controller

NOTE: Care Pack Services availability may vary by product and country.

HP Care Pack Services are sold by HP and HP Authorized Service Partners

 Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.

 Customers purchasing from a commercial reseller can find HP Care Pack Services at http://www.hp.com/go/lookuptool

Recommended HP Care Pack Services for optimal satisfaction with your HP product.

Recommended Services HP Foundation Care 24x7 connects you to HP 24 hours a day, seven days a week for assistance on resolving issues - hardware onsite response within four hours and software call back within two hours after opening your case. Three years' coverage recommended with HP Care Pack Service.

HP Installation and Startup Service for 3PAR StoreServ File Controller

For smooth startup, HP Installation and Startup Service provides for deployment of your HP 3PAR

StoreServ File Controller while helping you establish readily available access to and management of your critical data and applications. Leverage the full strength of HP Technology Services - customers can trust the services professionals at HP to work collaboratively with them, putting our strategic and technical know-how to work across their entire infrastructure.

 System installation and setup by a HP technical specialist

 Reduced implementation time and cost

 Verification prior to installation that all service prerequisites are met

 Availability of an HP service specialist to answer basic questions related to this service during the orientation session

 Potential expansion of the number of shares and hosts http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-6112ENL.pdf

HP Proactive Select Service

HP Proactive Select Service improves your IT performance and manageability through the use of cost effective flexible services. HP provides technical expertise and best practices to accelerate ROI of your technology investment. Selectable proactive services span a wide range of technology and process services - a flexible way to purchase proactive services that fit your particular environment and situation.

HP Proactive Select Service is technology agnostic and purchased in addition to your choice of underlying reactive support.

 Access to a list of flexible and customizable proactive service activities

 Enhance customers' in-house IT team with complementary assistance from HP

 Improved time to solution

 Reduce business risk and project costs by accessing HP specialists

 Simplify IT operational procedures by leveraging HP best practices http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-3842ENN.pdf

Optional HP Care Pack Services that will enhance your HP product experience. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 47

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information - StoreServ File Controller

Optional Services HP Data Migration Service for Windows

For customers who need to safely migrate Windows data within their TCP/IP networks with minimal impact to their operations:

eSupport

Customer Technical

Training

HP Services Awards

Additional Services

Information

You have a need to migrate data between Windows servers within your TCP/IP network. Or you have a need to migrate storage for your Windows servers. Or both. And you need to accomplish these migrations efficiently while minimizing risk at the same time.

HP Data Migration Service for Windows offers you a cost competitive and convenient way to accommodate data migration triggered by a need to refresh or consolidate storage, or to create different storage tiers. This service offers a migration cost in line with the costs of storage products in small and medium-sized storage environments. The service is delivered via a skilled HP service specialist with special consideration for data availability, integrity, and ongoing operational performance during the transfer process. http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA2-4734ENW.pdf

HP eSupport is a portfolio of technology-based services that assist you with managing your business environment - from the desktop to the data center.

Support Portal

The HP support portal provides one-stop access to the information, tools and services you need to manage the daily operations of your IT environment.

Features include:

Access to self-solve tools (including search technical knowledge base)

 Efficient logging and tracking of support cases

 Collaboration with other business and IT professionals

 Download of patches and drivers

 Access to diagnostic tools

Proactive notification of relevant information

Access to certain features of the support portal requires an HP service agreement. To access the support portal, visit: http://www.hp.com/support

Consider education as an integral part of your strategy to get the best return on investment for your

HP storage solution. HP offers a variety of training courses on storage software, networking, archiving and disk storage systems. Our classes are available in many delivery modalities from traditional instructor-led courses at one of our 80 training centers worldwide to on-site training customized to your needs or online. www.hp.com/learn/storage

HP Services continues to be recognized for service and support excellence by customers, partners, industry organizations and publications around the world. Recent honors and award reflect our services team's dedications, technical expertise, professionalism and uncompromising commitment to customer satisfaction. For a list of all our awards, please visit: http://h20219.www2.hp.com/services/cache/433028-0-0-225-121.html

For more information about HP Care Pack Services for Storage, please visit: http://www.hp.com/hps/storageIf you have specific questions, contact your local HP representative. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 48

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Service and Support, HP Care Pack, and Warranty Information - StoreServ File Controller

Contact information for a representative in your area can be found at "Contact HP" http://www.hp.com

c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 49

QuickSpecs

Storage - StoreServ File Controller

HP 3PAR StoreServ 7000 Storage

1-8 Eight 3.5" (LFF) hot plug hard drive bays

(File Controller ships with only two SAS drives for OS) c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 50

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Technical Specifications - StoreServ File Controller

3PAR StoreServ File Controller

System Unit Dimensions (H x W

SFF Drives: 3.44 x 17.54 x 27.50 in (8.73 x 44.55 x 69.85 cm) x D)

(with bezel)

Weight

(approximate)

Maximum

(all hard drives, power supply, and processor installed)

61.00 lb (27.66 kg)

Minimum

(one hard drive, power supply, and processor installed)

41.0 lb (18.59 kg)

Input

Requirements

Rated Line Voltage

(per power supply)

Rated Input Current

Rated Input Frequency

Rated Input Power

100 to 120 VAC

200 to 240 VAC

For 1200 W Power Supply:

10 A (at 100 VAC),

4.9 A (at 200 VAC)

For 750 W Power Supply:

8.9 A (at 100 VAC),

4.3 A (at 200 VAC)

For 460 W Power Supply:

5.5 A (at 100 VAC),

2.6 A (at 200 VAC)

50 to 60 Hz

For 1200 W Power Supply:

930 W (at 100 VAC),

1348 W (at 200 VAC)

For 750 W Power Supply:

857 W (at 100 VAC),

824 W (at 200 VAC)

For 460 W Power Supply:

526 W (at 100 VAC),

505 W (at 200 VAC)

BTU Rating

Power Supply

Output

(per power supply)

Maximum

Rated Steady-State Power

For 1200 W Power Supply:

3530 BTU/hr (at 100 VAC),

4600 BTU/hr (at 200 VAC)

For 750 W Power Supply:

2925 BTU/hr (at 100 VAC),

2812 BTU/hr (at 200 VAC)

For 460 W Power Supply:

1794 BTU/hr (at 100 VAC),

1725 BTU/hr (at 200 VAC)

For 1200 W Power Supply:

800 W (at 100 VAC),

900 W (at 120 VAC),

1200 W (at 200 to 240 VAC)

For 750 W Power Supply: c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 51

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Technical Specifications - StoreServ File Controller

System Inlet

Temperature

Maximum Peak Power

Operating

750 W (at 100 to 120 VAC),

750 W (at 200 to 240 VAC)

For 460 W Power Supply:

460 W (at 100 to 120 VAC),

460 W (at 200 to 240 VAC)

For 1200 W Power Supply:

800 W (at 100 VAC),

900 W (at 120 VAC),

1200 W (at 200 to 240 VAC)

For 750 W Power Supply:

750 W (at 100 to 120 VAC),

750 W (at 200 to 240 VAC)

For 460 W Power Supply:

460 W (at 100 to 120 VAC),

460 W (at 200 to 240 VAC)

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 304.8 m (1.8°F per every 1000 ft) above sea level to a maximum of 3048 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is

10°C/hr (18°F/hr). The upper limit may be limited by the type and number of options installed.

System performance may be reduced if operating with a fan fault or above 30°C (86°F).

Non-operating

Relative Humidity

(non-condensing)

Operating

-30° to 60°C (-22° to 140°F). Maximum rate of change is

20°C/hr (36°F/hr).

10% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

Non-operating 5% to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

Non-operating

3048 m (10,000 ft). This value may be limited by the type and number of options installed. Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

9144 m (30,000 ft). Maximum allowable altitude change rate is 457 m/min (1500 ft/min).

Acoustic Noise Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74) and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

Idle

LWAd 4.1 B

LpAm 25 dBA c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 52

QuickSpecs

Technical Specifications - StoreServ File Controller

Operating

LWAd

Emissions

Classification

(EMC)

HP 3PAR StoreServ 7000 Storage

4.3 B

FCC Rating

LpAm 27 dBA

Class A

Normative Standards CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003;

CNS13438; GB9254; K22;K24; EN 61000-3-2; EN 61000-3-

3; EN 60950-1; IEC 60950-1

NOTE: Product conformance to cited product specifications is based on sample (type) testing, evaluation, or assessment. This product or family of products is eligible to bear the appropriate compliance logos and statements.

NOTE: The Listed sound levels apply to standard shipping configurations. Additional options may result in increased sound levels.

HP iLO 4 On System

Management

Architecture

Processor

Upgradeability

Video Support

Interfaces

PCI Express based health and remote management ASIC

Embedded ARM processor core operating at 400MHz

Firmware upgradeable via Flash ROM

1920 x 1200 (16 bpp) DVR max resolution

P iLO Dedicated* Network connection (10/100/1000 Mb/s) on rack, tower and SL systems

*Optional Module on some servers

HP iLO Shared Network connection (10/100/1000 Mb/s) on rack, tower and

SL systems

HP iLO network connection to blades (100 Mb/s) to Onboard Administrator

(with 10/100/1000 Mb/s uplink) on blade systems

Memory

Operating System

Support

16 MB Flash

256 MB DDR 3 with ECC (112 MB after ECC and video)

For information on HP's Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server including how to purchase from HP, please visit our OS

Support Site at: http://www.hp.com/go/ossupport

Client System Support

For information on Client System Support, please visit the HP iLO Feature

Comparison Site at: www.hp.com/go/compareilo

Client Browser Support

Microsoft Internet Explorer 9

NOTE: For customers using Protected Mode, please use the Java based version of Integrated Remote Console.

Microsoft Internet Explorer 8

NOTE: For customers using Protected Mode, please use the Java based version of Integrated Remote Console.

Microsoft Internet Explorer 7

Firefox Extended Support Release (ESR) 10 (on supported Windows and

Linux systems

Firefox 3.6 (on supported Windows and Linux systems)

Command Line Support

Secure Shell and serial port access c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 53

QuickSpecs

HP 3PAR StoreServ 7000 Storage

Technical Specifications - StoreServ File Controller

Security

Secure Socket Layer

Secure Shell version 2

Advanced Encryption Standard (AES) and Triple Data Encryption Standard

(3DES) on browser, CLP and XML scripting interface

AES encryption of video

RC4 encryption of video

Active Directory v1.0 (Windows 2003)

Directory Support

Services

Driver Support

Management protocols supported

HP ProLiant iLO 4 Management Controller Driver Package

SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management

Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP

RIBCL XML

HP Smart Array P420i

Controller

Dimensions

Disk Drive and Enclosure

Interface - Transfer rate

SAS Connectors

Cache Memory Speed

Embedded

6Gb/s SAS (Serial Attached SCSI)

3Gb/s SATA (Serial ATA)

2 internal 4X connectors

512MB FBWC - DDR3-1333MHz with 40-bit wide bus, 1GB or 2GB FBWC

DDR3-1333MHz with 72-bit wide bus x8 PCIe 3.0 provides 8GB/s maximum bandwidth

Server Interface

SAS Speed

Cache Memory

(8) 6Gb/s SAS links provide 4.8GB/s maximum bandwidth

Zero Memory RAID has no cache memory

40-bit 256MB ECC protected cache (battery upgrade available)

72-bit 512MB BBWC or 72-bit 512MB and 1G FBWC

Logical Drives Supported Zero Memory, Up to 2 logical volumes (8SFF or 4LFF physical drives)

Up to 64 logical drives with cache

Host Memory Addressing 64-bit, supporting greater than 4GB server memory space

HP Ethernet 1Gb 4-port

331FLR Adapter

HP Flexible Network

Technology

Network Interface

Compatibility

HP Flexible Network Technology consists of replaceable network solutions to meet the customers require now or in the future.

10Base-T/100Base-TX/1000Base-TX

IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3ad 1000Base-TX

IEEE 802.1p 100Base-TX

Data Transfer Method

IEEE 802.1q 100Base-TX

PCI Express, four lanes (x4)

Controller

BCM5719

Network Transfer Rate

10Base-T (Half-Duplex) 10 Mb/s

10Base-T (Full-Duplex) 20 Mb/s

100Base-TX (Half-Duplex) 100 Mb/s

100Base-TX (Full-Duplex) 200 Mb/s c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 54

QuickSpecs

Technical Specifications - StoreServ File Controller

Connector

Cable Support

1000Base-TX (Half and

Full-Duplex)

Two RJ-45

10Base-T

HP 3PAR StoreServ 7000 Storage

2000 Mb/s

10/100/1000Base-TX

Categories 3, 4 or 5 UTP; up to 328 ft (100 m)

Category 5 or higher UTP; up to 328 ft (100 m)

Environment-friendly

Products and Approach

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling programs in many geographic areas. For trade-in information, please go to: http://www.hp.com/go/green . To recycle your product, please go to: http://www.hp.com/go/green or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/green . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 55

QuickSpecs

Summary of Changes

Date

20-Aug-2014

18-Aug-2014

18-Jul-2014

10-jun-2014

05-Jun-2014

01-Jun-2014

11-apr-2014

04-apr-2014

31-mar-2014

24-mar-2014

17-Jan-2014

10-dec-2013

09-dec-2013

30-sep-2013

19-aug-2013

19-jul-2013

17-jul-2013

Version History

From Version 13 to 14

Action

From Version 27 to 28 Changed

From Version 26 to 27

From Version 25 to 26

From Version 24 to 25

Changed

Changed

Changed

From Version 23 to 24 Changed

From Version 22 to 23 Changed

From Version 21 to 22 Changed

From Version 20 to 21 Changed

From Version 19 to 20 Changed

From Version 18 to 19 Changed

From Version 17 to 18 Changed

From Version 16 to 17 Added

From Version 15 to 16 Changed

From Version 14 to 15 Added

Changed

HP 3PAR StoreServ 7000 Storage

Description of Change:

Changes made to the Overview section. Update some SKU descriptions.

Changes were made throughout the QuickSpec.

Configuration section – WSS2012 R2 Upgrade section added (D4T73A); Standard Features – Power Supply changed from 2x 460 W to 2 x 750 W;.

Overview table info, standard features resilient part; carepack information

Change made in Overview

Change made in step 5

Overview chart, Step 11 in Configuration, Models, and

Technical Specifications chart were revised.

Corrected the images in the Configuration section.

Changes were made throughout.

Image correction.

Maximum Initiators Supported was revised in the overview chart.

Added the missing image to Step 1.

Overview and Configuration were revised.

Proactive Select credits available for an additional price note was added to Service and Support, HP Care Pack and

Warranty Information

HP 3PAR StoreServ M6710 Midline 1TB 6Gb SAS 7.2K SFF

Nearline HDD was added to Step 4 in Configuration

Information

Fibre Channel Switches and HP Intelligent Infrastructure

Analyzer Software (IIAS) were revised in Configuration

Information

HP M6710 and 6720 400GB 6G SAS MLC Solid State

Devices were added to HP 3PAR SSDs in Configuration

Information

HP M6710 400GB 6G SAS SFF MLC Encrypted Solid State

Device was added to HP 3PAR Encryption SSD/HDD/LTU in

Configuration Information

From Version 12 to 13 Changed

From Version 10 to 12 Changed/Rem oved

HP 622 1075mm Pallet Intelligent Series Rack (22U) was removed from HP Intelligent Series Racks in Configuration

Information

Superscript was added to the Overview chart.

Superscripts were added to the Overview chart. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 56

QuickSpecs

Summary of Changes

02-jul-2013

14-jun-2013

10-jun-2013

13-may-2013

21-dec-2012

17-dec-2012

14-dec-2012

05-dec-2012

HP 3PAR StoreServ 7000 Storage

From Version 9 to 10 Changed

From Version 8 to 9

From Version 7 to 8

From Version 6 to 7

From Version 4 to 5

From Version 3 to 4

From Version 2 to 3

From Version 1 to 2

Changed

Changed

Changed

Changed

Changed

Changed

Added

Removed "600GB SAS 10K RPM Hard Disk Drive Encrypted

(2.5 in)" from the What's New section.

Internal Storage for HP 3PAR StoreServ File Controller specifications was revised

HP 622 1075mm Pallett Intelligent Series Rack (22U) was removed from HP Intelligent Series Racks

Changes were made to the Service and Support Section-

Note updated

Changes were made throughout the entire QuickSpec.

Added the entire new HP 3PAR StoreServ File Controller section.

Changes were made in the following sections:

Configuration Information: Step 5

Changes were made in the following sections:

Configuration: in Step 7 updated part description in

Expansion Options.

Changes were made in the following sections:

Service and Support, HP Care Pack and Warranty

Information: change made in Related Services section

Configuration: change made in Step 8 section.

Changes were made in the following sections:

Overview: in Summary changed text and changed "2013" to "a later release".

Service and Support: added hyperlink and ordering information, in Related services added a new service item.

Configuration: in Step 1 corrected title, in Step 5 & 7 changed 2013 to a later release, in Step 8 added new software items, in Step 9 deleted the row HP Rack and

Rack Options and added HP Virtual Contact information.

Added Step 10.

Added the EMEA version.

Page 57 c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014

QuickSpecs

Summary of Changes

HP 3PAR StoreServ 7000 Storage

© Copyright 2014 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

For drives, 1 TB = 1 trillion bytes. Actual formatted capacity is less. c04164476 — DA – 14433 Worldwide — Version 28 — August 20, 2014 Page 58

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
