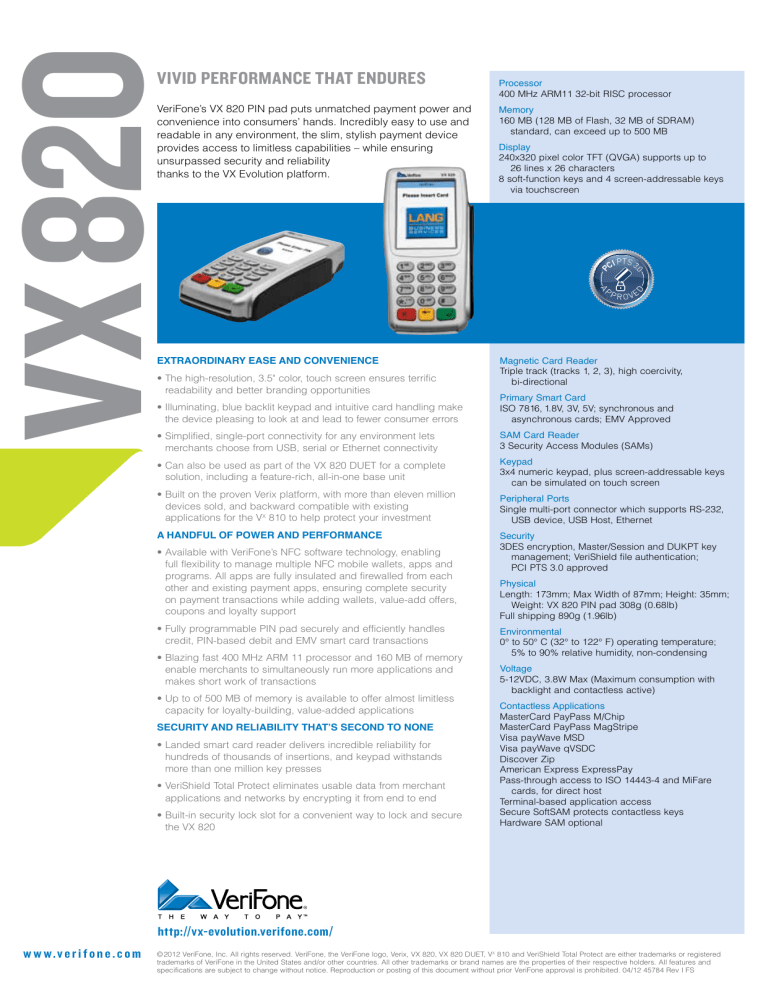

VX 820
400 MHz ARM11 32-bit RISC processor
VeriFone’s VX 820 PIN pad puts unmatched payment power and
convenience into consumers’ hands. Incredibly easy to use and
readable in any environment, the slim, stylish payment device
provides access to limitless capabilities – while ensuring
unsurpassed security and reliability
thanks to the VX Evolution platform.
160 MB (128 MB of Flash, 32 MB of SDRAM)
standard, can exceed up to 500 MB
Extraordinary Ease and Convenience
Magnetic Card Reader
Triple track (tracks 1, 2, 3), high coercivity,
• The high-resolution, 3.5" color, touch screen ensures terrific
readability and better branding opportunities
240x320 pixel color TFT (QVGA) supports up to
26 lines x 26 characters
8 soft-function keys and 4 screen-addressable keys
via touchscreen
• Illuminating, blue backlit keypad and intuitive card handling make
the device pleasing to look at and lead to fewer consumer errors
Primary Smart Card
ISO 7816, 1.8V, 3V, 5V; synchronous and
asynchronous cards; EMV Approved
• Simplified, single-port connectivity for any environment lets
merchants choose from USB, serial or Ethernet connectivity
SAM Card Reader
3 Security Access Modules (SAMs)
• Can also be used as part of the VX 820 DUET for a complete
solution, including a feature-rich, all-in-one base unit
3x4 numeric keypad, plus screen-addressable keys
can be simulated on touch screen
• Built on the proven Verix platform, with more than eleven million
devices sold, and backward compatible with existing
applications for the VX 810 to help protect your investment
A Handful of Power and Performance
• Available with VeriFone’s NFC software technology, enabling
full flexibility to manage multiple NFC mobile wallets, apps and
programs. All apps are fully insulated and firewalled from each
other and existing payment apps, ensuring complete security
on payment transactions while adding wallets, value-add offers,
coupons and loyalty support
• Fully programmable PIN pad securely and efficiently handles
credit, PIN-based debit and EMV smart card transactions
• Blazing fast 400 MHz ARM 11 processor and 160 MB of memory
enable merchants to simultaneously run more applications and
makes short work of transactions
• Up to of 500 MB of memory is available to offer almost limitless
capacity for loyalty-building, value-added applications
Security and Reliability that’s Second to None
• Landed smart card reader delivers incredible reliability for
hundreds of thousands of insertions, and keypad withstands
more than one million key presses
• VeriShield Total Protect eliminates usable data from merchant
applications and networks by encrypting it from end to end
• Built-in security lock slot for a convenient way to lock and secure
the VX 820
Peripheral Ports
Single multi-port connector which supports RS-232,
USB device, USB Host, Ethernet
3DES encryption, Master/Session and DUKPT key
management; VeriShield file authentication;
PCI PTS 3.0 approved
Length: 173mm; Max Width of 87mm; Height: 35mm;
Weight: VX 820 PIN pad 308g (0.68lb)
Full shipping 890g (1.96lb)
0° to 50° C (32° to 122° F) operating temperature;
5% to 90% relative humidity, non-condensing
5-12VDC, 3.8W Max (Maximum consumption with
backlight and contactless active)
Contactless Applications
MasterCard PayPass M/Chip
MasterCard PayPass MagStripe
Visa payWave MSD
Visa payWave qVSDC
Discover Zip
American Express ExpressPay
Pass-through access to ISO 14443-4 and MiFare
cards, for direct host
Terminal-based application access
Secure SoftSAM protects contactless keys
Hardware SAM optional
w w w.v e r i f o n e . c o m
© 2012 VeriFone, Inc. All rights reserved. VeriFone, the VeriFone logo, Verix, VX 820, VX 820 DUET, VX 810 and VeriShield Total Protect are either trademarks or registered
trademarks of VeriFone in the United States and/or other countries. All other trademarks or brand names are the properties of their respective holders. All features and
specifications are subject to change without notice. Reproduction or posting of this document without prior VeriFone approval is prohibited. 04/12 45784 Rev I FS
