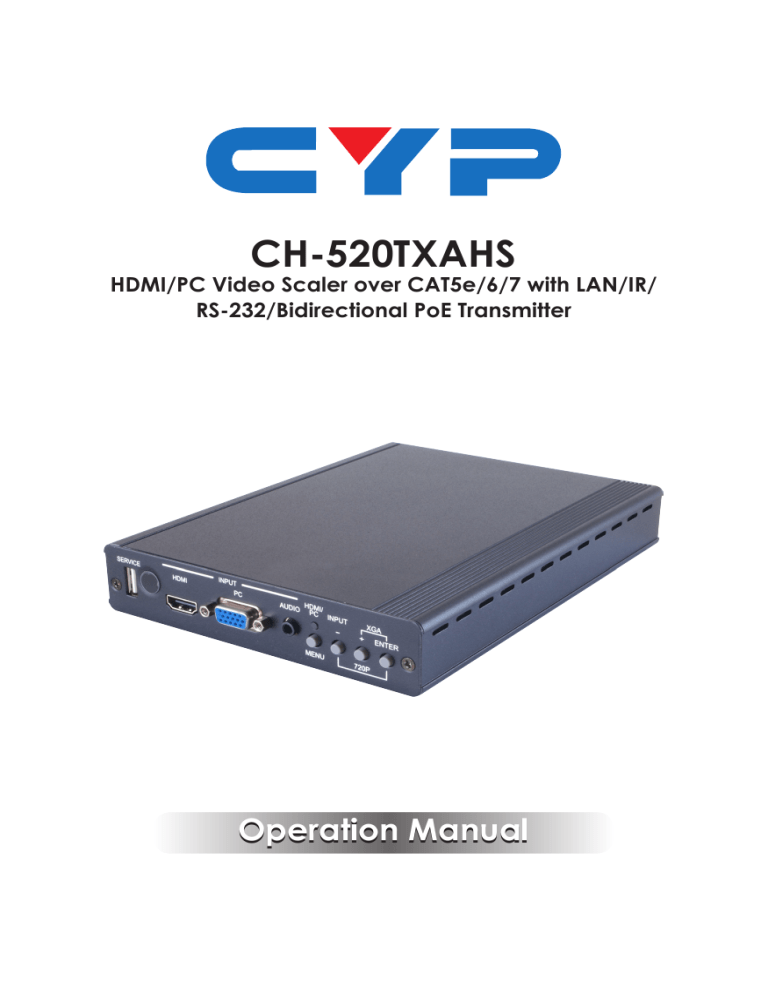

CH-520TXAHS
HDMI/PC Video Scaler over CAT5e/6/7 with LAN/IR/
RS-232/Bidirectional PoE Transmitter
DISCLAIMERS
The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
Cypress Technology reserves the right to make improvements to this document and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or any of its part translated into any language or computer file, in any form or by any means— electronic, mechanical, magnetic, optical, chemical, manual, or otherwise—without express written permission and consent from
Cypress Technology.
© Copyright 2014 by Cypress Technology. All Rights Reserved.
Version 1.0 January 2014
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be trademarks of the companies with which they are associated.
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this equipment:
• Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any openings or empty slots in the unit, as you may damage parts inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO.
DATE DD/MM/YY SUMMARY OF CHANGE
VR0 20/03/15 Preliminary release
VR1
VR2
30/05/16
15/12/16
Add RS-232 Command
Add WUXGA's Input Timing
CONTENTS
1. Introduction ............................................ 1
2. Applications ........................................... 1
3. Package Contents ................................ 1
4. System Requirements ............................ 1
5. Features .................................................. 2
6. Operation Controls and Functions ....... 3
6.1 Front Panel ........................................3
6.2 Rear Panel .........................................4
6.3 Remote Control ................................5
6.4 IR Cable Pin Assignment..................6
6.5 RS-232 Pin Definitions ........................7
6.6 RS-232 Commands ...........................8
6.7 OSD Menu .......................................10
6.8 Input Resolution Support ...............13
7. Connection Diagram .......................... 14
8. Specifications ...................................... 15
9. Acronyms ............................................. 16
1. INTRODUCTION
The HDMI/PC video scaler with LAN/IR/RS-232/Bidirectional PoE over
Single CAT5e/6/7 transmitter can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100 m with Bidirectional
PoE feature. The system supports various ways of control that can be done through on-panel buttons, IR remote, RS-232, and OSD. The device provides full range of output resolutions through CAT5e/6/7 up to 1080p for HDTV timing and WUXGA(RB) for PC timing.
2. APPLICATIONS
• Scale low resolution video onto High-Definition display
• HDMI/PC signals extension
• Lecture room/Showroom/Meeting room/Classroom display and control
3. PACKAGE CONTENTS
• HDMI/PC to CAT5e/6/7 with LAN/IR/RS-232/Bidirectional PoE
Transmitter
• IR Extender x 1
• IR Blaster x 1
• 24 V/2.7 A DC Power Adaptor
• Power Cable
• Remote control with battery(CR-128)
• Operation Manual
4. SYSTEM REQUIREMENTS
Input HDMI/PC source equipment such as DVD/Video player or PC/
Laptop and output to HDBaseT compatible Receiver.
1
5. FEATURES
• Supports HDMI/PC input scaler to full range of HDTV and PC output resolutions through CAT5e/6/7
• Transmission of uncompressed data over a single 100 m/328 ft
CAT5e/6/7 cable
• 5Play™ convergence: Video, Audio, LAN, Bidirectional PoE &
Control (IR & RS-232 bypass)
• Supports IR, Remote control, RS-232 (bypass) and on-panel controls
• Supports OSD (On Screen Display) selection and display system information
• Provides 24V DC power to or received from compatible PoE
Receiver through CAT5e/6/7
• Supports Ethernet transmission rate up to 100Mbps
Note:
1. This system was tested with CAT6/23AWG cables, results may vary
with cables of a different specification.
2. The PoE function is designed for powering compatible Receiver
units only—non-PoE Receivers will need their own power supply.
Receivers of another brand may not be compatible.
2
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
7
SERVICE
HDMI
INPUT
PC AUDIO
MENU
INPUT
-
+
XGA
ENTER
720P
1 2 3 4 5 6 8 9
1
SERVICE: This port is reserved for firmware update only.
2
IR: IR Receiver window (accepts the remote control signal of this device only).
3
HDMI: Connect to source equipment such as DVD/Video player for video signal sending.
4
PC: Connect with PC/Laptop source equipment for signal input with D-Sub 15 pin cable.
5
AUDIO: Connect to audio source equipment for L/R stereo audio input with 3.5mm phone jack.
6
MENU: Press this button to enter into the OSD menu.
7
– INPUT & HDMI/PC LED: Press to select HDMI or PC source input.
When in HDMI mode the LED will illuminate in Red, when in PC mode the LED will illuminated in Green.
8
-/+: Press these buttons to scroll down and up in the OSD selection.
9
ENTER: Press this button to confirm the selection. Press this button together with [–] key to switch output timing to [email protected] instantly.
Press this button together with [+] key to switch output timing to
XGA (1024x768) instantly.
3
6.2 Rear Panel
DC 24V
POWER
RS-232 IN LAN
CAT5e/6/7 OUT
MODE LINK
1 2 3 4 5 6 7 8 9
1
Power LED: This LED will illuminate when the device is connected with power supply.
2
DC 24V: Plug the 24 V DC power supply into the unit and connect the adaptor to an AC outlet. Only one side of power is needed to activate both Transmitter and Receiver when both obtain the PoE function.
3
RS-232 IN: Connect to a PC or Laptop with D-Sub 9-pin male cable to bypass RS-232 commands to Receiver end.
4
LAN: Connect to an active network for LAN sharing of a total transmission rate up to 100Mbps. Or when a compatible LAN equipped Receiver is connected to an active network, this allows the network access (including internet access if available) to be shared between the Transmitter and Receiver. Connect any
Ethernet equipped device e.g. a Smart TV or games console to the LAN port for that device to share the network internet access.
DO NOT connect this slot with any of the CAT5e/6/7 port.
Doing so may trigger power shoot down and ruin the device.
5
IR Blaster: Connect to the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled.
6
IR Extender: Connect to the supplied IR Receiver cables for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR Extender.
7
MODE LED: This LED will illuminated when the power is connected.
8
Link LED: This LED will illuminate when the slot has been connected to the Receiver and the Receiver has connected with display that shows image on screen.
9
CAT5e/6/7 Out: Connect to the Receiver unit with a single
CAT5e/6/7 cable for transmission of all data signals.
4
6.3 Remote Control
1
INPUT: Press this button to switch
HDMI/PC input source instantly.
2
EXIT: Press this button to exit the menu or escape the current selection under OSD.
3
MENU: Press this button to enter into the OSD menu.
4
RESET: Press this button to set the device back into the factory default setting.
5
AUTO ADJUST: Press this button to optimize the positioning of the picture (picture centering) on the screen.
6
ENTER & ▲▼◄►: Press Enter to confirm the selection or press the arrow buttons to scroll in the OSD selections.
1
2
4
6
INPUT
EXIT MENU
OK
RESET AUTO
ADJUST
3
5
CR-128
5
6.4 IR Cable Pin Assignment
IR Blaster
1
2
3
Power
IR Blaster Signal
NC
IR Extender
1
2
3
IR Signal
Power
Grounding
6
6.5 RS-232 Pin Definitions
6
7
4
5
8
9
2
3
PIN
1
DEFINE TX/RX
N/C
TxD/RxD
RxD/TxD
N/C
GND
N/C
N/C
N/C
N/C
Baud Rate: 9600bps
Data bit: 8 bits
Parity: None
Flow Control: None
Stop Bit: 1
7
6.6 RS-232 Commands
COMMAND
S SOURCE 1~2
R SOURCE
S OUTPUT 0~25
R OUTPUT
S SIZE 0~6
R SIZE
S SYNCSHIFT 0/1
R SYNCSHIFT
S CONTRAST 0~60
R CONTRAST
S BRIGHTNESS 0~60
R BRIGHTNESS
DESCRIPTION
1=PC
2=HDMI
Reports the numerical equivalent for
SOURCE setting (as above)
0=Native
1=640×480
2=800×600
3=1024×768
12=1600×1200
13=1920×1080
16=1920×1200
17=480p
5=1360×768
6=1280×720
7=1280×800
8=1280×1024
9=1440×900
10=1400×1050
11=1680×1050
22=576p
Reports the numerical equivalent for OUTPUT setting (as above)
0=OVERSCAN
1=FULL
2=BEST FIT
4=LETTER BOX
5=UNDER 2
6=UNDER 1
3=PAN SCAN
Reports the numerical equivalent for SIZE setting (as above)
0=OFF 1=ON
Reports the numerical equivalent for Syncshift setting
Setups the numerical equivalent for
CONTRAST setting (as left)
Reports the numerical equivalent for
CONTRAST setting
Setups the numerical equivalent for
BRIGHTNESS setting (as left)
Reports the numerical equivalent for
BRIGHTNESS setting
8
S HUE 0~60
R HUE
S SATURATION 0~60
R SATURATION
S SHARPNESS 0~30
R SHARPNESS
S NR 0~3
R NR
S AUDIO DELAY 0~3
R AUDIO DELAY
S AUDIO MUTE 0/1
R AUDIO MUTE
S KEY LOCK 0/1
R KEY LOCK
Setups the numerical equivalent for HUE setting (as left)
Reports the numerical equivalent for HUE setting
Setups the numerical equivalent for
SATURATION setting (as left)
Reports the numerical equivalent for
SATURATION setting
Setups the numerical equivalent for
SHARPNESS setting (as left)
Reports the numerical equivalent for
SHARPNESS setting
0=OFF 2=MIDDLE
1=LOW 3=HIGH
Reports the numerical equivalent for the
NOISE REDUCTION setting (as above)
0=OFF 2=110ms
1=40ms 3=150ms
Reports the numeric equivalent for AUDIO
DELAY setting (as above)
0=ON 1=MUTE
Reports the numeric equivalent for AUDIO
MUTE setting (as above)
0=ENABLE 1=DISABLE
Reports the numeric equivalent for KEY
LOCK setting (as above)
S AUTOSCAN 0/1
R AUTOSCAN
0=DISABLE 1=ENABLE
Reports the numeric equivalent for AUTO SCAN setting (as above)
Checks the FIRMWARE version
FW
S RESET 1
S PCAUTO 1
Setups the numerical equivalent for RESET setting (as left)
Setups the numerical equivalent for PC AUTO setting (as left)
Note:
1. All the RS-232 command will be not executed unless followed with
9
carriage return and LF (Line Feed).
2. Commands are case-insensitive.
3. Resolution 1~16 are RGB encoded and 17~25 are YUV encoded.
6.7 OSD Menu
1 st
Layer
DISPLAY
2 nd
layer
OUTPUT
SIZE
3 rd
Layer
Native
640X480 60
800x600 60
1024x768 60
1360x768 60
1280x720 60
1280x800 60
1280x1024 60
1440x900 60
1400x1050 60
1680x1050 60
1600x1200 60
1920x1080 60
1920x1200 60
720X480P 60
1280X720P 60
1920X1080I 60
1920X1080P 60
720X576P 50
1280X720P 50
1920X1080I 50
1920X1080P 50
OVER SCAN
10
COLOR
11
MODE INFO
FULL
ASPECT RATIO
PAN SCAN
LETTER BOX
UNDER 2
UNDER 1
INFO
ON
OFF
PC(PC mode only)
AUTO SETUP
H_POSITION
V_POSITION
PHASE
CLOCK
WXGA/XGA
TIMING SHIFT
COLOR
CONTRAST
BRIGHTNESS
RESET
OFF
ON
R
G
B
R OFFSET
G OFFSET
B OFFSET
0~60
0~60
No
YES
0~60 (30)
0~60 (30)
XGA
WXGA
NO
YES
AUDIO
HUE
SATURATION
SHARPNESS
NR.
VOLUME
DELAY
0~60
0~60
0~30
OFF
LOW
MIDDLE
HIGH
0~100
OFF
40mS
110mS
SETUP
SOUND
FACTORY RESET
KEY LOCK
150mS
ON
MUTE
NO
YES
OFF
AUTO SCAN
ON
OFF
ON
INFORMATION INPUT
OUTPUT
REVISION
Note: Bold Italian fonts are the Factory default setting. ( ) are default settings.
12
6.8 Input Resolution Support
INPUT RESOLUTION
NTSC/PAL
[email protected]/72/75 Hz
[email protected]/60/72/75 Hz
[email protected]/70/75 Hz
[email protected]/75 Hz
1280×[email protected] Hz
1680×[email protected] Hz
1920×[email protected] Hz
1920×[email protected] Hz
480i/576i
480p/576p
[email protected]/60 Hz
[email protected]/60 Hz
[email protected]/60 Hz
HDMI
-
PC
-
-
-
-
-
-
13
7. CONNECTION DIAGRAM
PC/NB
Video/DVD Player
SERVICE
POWER
DC 24V
HDMI
RS-232 IN
INPUT
PC AUDIO
HDMI/
PC INPUT
-
+
XGA
ENTER
MENU 720P
LAN
IR
Blaster
IR
Extender
CAT5e/6/7 OUT
MODE LINK
HDMI
Compatible
Receiver unit with
PoE function
Power
IR2 Blaster
IR1 Extender
Link
CAT5e/6 In
Router with
Internet
Connection
PC/NB
14
8. SPECIFICATIONS
Output Video
Bandwidth
Ethernet Speed
Input Ports
Output Ports
CAT5e/6/7 Output
Cable Distance
Supports Resolution
300MHz / 10.2Gbps
100 Mbps
1 x HDMI, 1 x PC, 1 x 3.5mm Phone Jack (L/R) ,
1 x RS-232, 1×LAN, 1 x IR Extender
1×CAT5e/6, 1×IR Blaster
Up to 100 Meters
HD: 480i~1080p
PC: VGA ~ WUXGA(RB)
CAT5e/6/7 Output
Resolution
IR Frequency
Power Suppiy
HD: Up to [email protected]
PC: Up to WUXGA(RB)
30~50kHz
24V/2.7A DC (US/EU standards, CE/FCC/UL certified)
ESD Protection
Dimensions (mm)
Human body model:
±8kV (air-gap discharge)
±4kV (contact discharge)
145 (W) x 192 (D) x 30(H)/Jacks Excluded
145 (W) x 202 (D) x 30(H)/Jacks Included
Weight (g)
Chassis Material
608
Aluminum
Silkscreen Color
Black
Operating Temperature 0˚C~40˚C / 32˚F~104˚F
Storage Temperature
Relative Humidity
Power Consumption
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F
20 ~ 90% RH (non-condensing)
17W
15
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e
Category 5 Cable
CAT6
CAT7
CV
DVI
HDMI
Category 6 Cable
Category 7 Cable
Composite Video
Digital Visual Interface
High-Definition Multimedia Interface
IR
Infrared
WUXGA (RB)
Widescreen Ultra Extended Graphics Array (Reduce blanking)
16
CYPRESS TECHNOLOGY CO., LTD
Home page: http://www.cypress.com.tw
MPM-CH520TXAHS
* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
