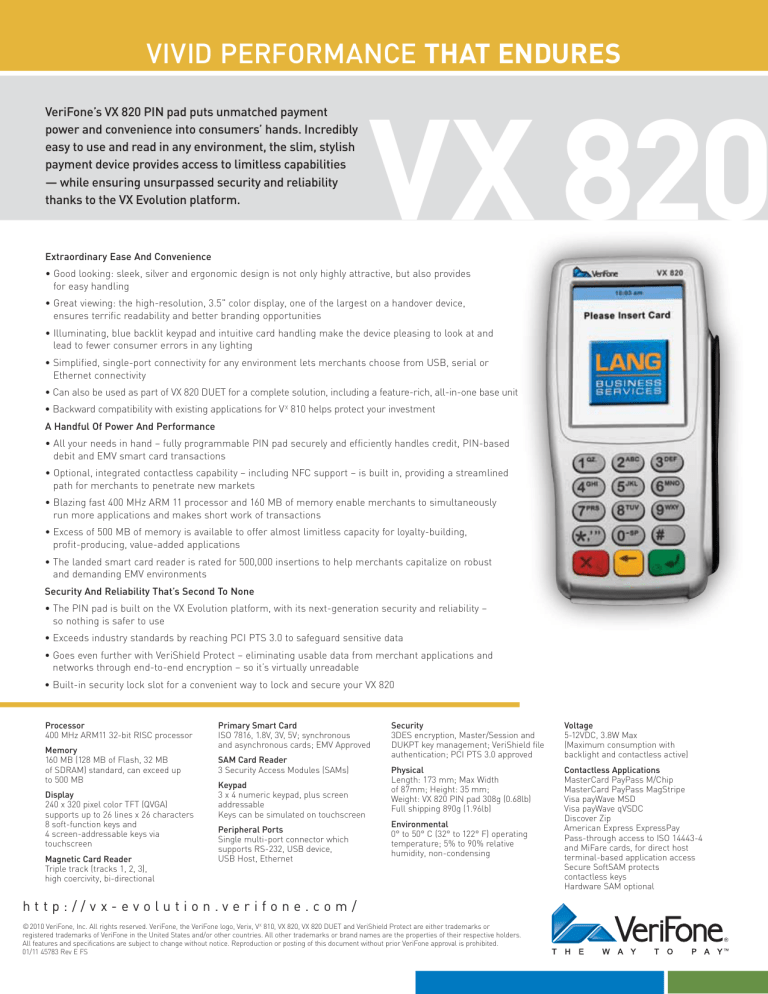

VeriFone’s VX 820 PIN pad puts unmatched payment
power and convenience into consumers’ hands. Incredibly
easy to use and read in any environment, the slim, stylish
payment device provides access to limitless capabilities
— while ensuring unsurpassed security and reliability
thanks to the VX Evolution platform.
VX 820
Extraordinary Ease And Convenience
• Good looking: sleek, silver and ergonomic design is not only highly attractive, but also provides
for easy handling
• Great viewing: the high-resolution, 3.5" color display, one of the largest on a handover device,
ensures terrific readability and better branding opportunities
• Illuminating, blue backlit keypad and intuitive card handling make the device pleasing to look at and
lead to fewer consumer errors in any lighting
• Simplified, single-port connectivity for any environment lets merchants choose from USB, serial or
Ethernet connectivity
• Can also be used as part of VX 820 DUET for a complete solution, including a feature-rich, all-in-one base unit
• Backward compatibility with existing applications for V X 810 helps protect your investment
A Handful Of Power And Performance
• All your needs in hand – fully programmable PIN pad securely and efficiently handles credit, PIN-based
debit and EMV smart card transactions
• Optional, integrated contactless capability – including NFC support – is built in, providing a streamlined
path for merchants to penetrate new markets
• Blazing fast 400 MHz ARM 11 processor and 160 MB of memory enable merchants to simultaneously
run more applications and makes short work of transactions
• Excess of 500 MB of memory is available to offer almost limitless capacity for loyalty-building,
profit-producing, value-added applications
• The landed smart card reader is rated for 500,000 insertions to help merchants capitalize on robust
and demanding EMV environments
Security And Reliability That’s Second To None
• The PIN pad is built on the VX Evolution platform, with its next-generation security and reliability –
so nothing is safer to use
• Exceeds industry standards by reaching PCI PTS 3.0 to safeguard sensitive data
• Goes even further with VeriShield Protect – eliminating usable data from merchant applications and
networks through end-to-end encryption – so it’s virtually unreadable
• Built-in security lock slot for a convenient way to lock and secure your VX 820
400 MHz ARM11 32-bit RISC processor
160 MB (128 MB of Flash, 32 MB
of SDRAM) standard, can exceed up
to 500 MB
240 x 320 pixel color TFT (QVGA)
supports up to 26 lines x 26 characters
8 soft-function keys and
4 screen-addressable keys via
Magnetic Card Reader
Triple track (tracks 1, 2, 3),
high coercivity, bi-directional
Primary Smart Card
ISO 7816, 1.8V, 3V, 5V; synchronous
and asynchronous cards; EMV Approved
SAM Card Reader
3 Security Access Modules (SAMs)
3 x 4 numeric keypad, plus screen
Keys can be simulated on touchscreen
Peripheral Ports
Single multi-port connector which
supports RS-232, USB device,
USB Host, Ethernet
3DES encryption, Master/Session and
DUKPT key management; VeriShield file
authentication; PCI PTS 3.0 approved
5-12VDC, 3.8W Max
(Maximum consumption with
backlight and contactless active)
Length: 173 mm; Max Width
of 87mm; Height: 35 mm;
Weight: VX 820 PIN pad 308g (0.68lb)
Full shipping 890g (1.96lb)
Contactless Applications
MasterCard PayPass M/Chip
MasterCard PayPass MagStripe
Visa payWave MSD
Visa payWave qVSDC
Discover Zip
American Express ExpressPay
Pass-through access to ISO 14443-4
and MiFare cards, for direct host
terminal-based application access
Secure SoftSAM protects
contactless keys
Hardware SAM optional
0° to 50° C (32° to 122° F) operating
temperature; 5% to 90% relative
humidity, non-condensing
© 2010 VeriFone, Inc. All rights reserved. VeriFone, the VeriFone logo, Verix, V X 810, VX 820, VX 820 DUET and VeriShield Protect are either trademarks or
registered trademarks of VeriFone in the United States and/or other countries. All other trademarks or brand names are the properties of their respective holders.
All features and specifications are subject to change without notice. Reproduction or posting of this document without prior VeriFone approval is prohibited.
01/11 45783 Rev E FS
