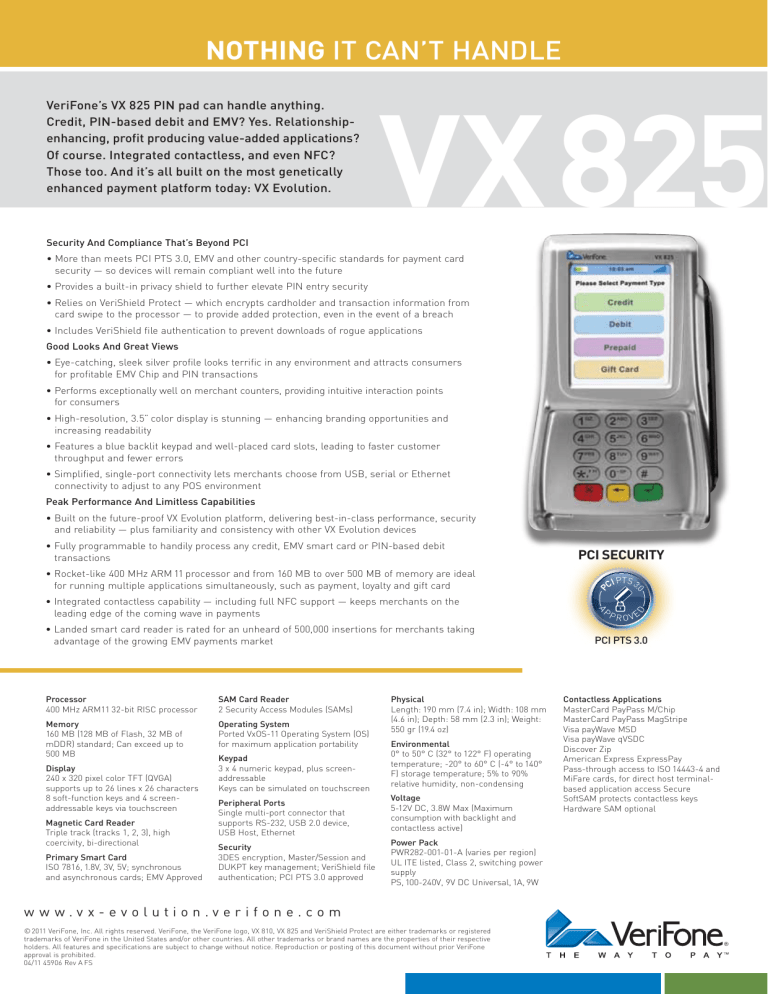

VeriFone’s VX 825 PIN pad can handle anything.
Credit, PIN-based debit and EMV? Yes. Relationshipenhancing, profit producing value-added applications?
Of course. Integrated contactless, and even NFC?
Those too. And it’s all built on the most genetically
enhanced payment platform today: VX Evolution.
VX 825
Security And Compliance That’s Beyond PCI
• More than meets PCI PTS 3.0, EMV and other country-specific standards for payment card
security — so devices will remain compliant well into the future
• Provides a built-in privacy shield to further elevate PIN entry security
• Relies on VeriShield Protect — which encrypts cardholder and transaction information from
card swipe to the processor — to provide added protection, even in the event of a breach
• Includes VeriShield file authentication to prevent downloads of rogue applications
Good Looks And Great Views
• Eye-catching, sleek silver profile looks terrific in any environment and attracts consumers
for profitable EMV Chip and PIN transactions
• Performs exceptionally well on merchant counters, providing intuitive interaction points for consumers
• High-resolution, 3.5” color display is stunning — enhancing branding opportunities and
increasing readability
• Features a blue backlit keypad and well-placed card slots, leading to faster customer
throughput and fewer errors
• Simplified, single-port connectivity lets merchants choose from USB, serial or Ethernet
connectivity to adjust to any POS environment
Peak Performance And Limitless Capabilities
• Built on the future-proof VX Evolution platform, delivering best-in-class performance, security
and reliability — plus familiarity and consistency with other VX Evolution devices
• Fully programmable to handily process any credit, EMV smart card or PIN-based debit
pci security
• Rocket-like 400 MHz ARM 11 processor and from 160 MB to over 500 MB of memory are ideal
for running multiple applications simultaneously, such as payment, loyalty and gift card
• Integrated contactless capability — including full NFC support — keeps merchants on the
leading edge of the coming wave in payments
• Landed smart card reader is rated for an unheard of 500,000 insertions for merchants taking
advantage of the growing EMV payments market
400 MHz ARM11 32-bit RISC processor
SAM Card Reader
2 Security Access Modules (SAMs)
160 MB (128 MB of Flash, 32 MB of
mDDR) standard; Can exceed up to 500 MB
Operating System
Ported VxOS-11 Operating System (OS)
for maximum application portability
240 x 320 pixel color TFT (QVGA) supports up to 26 lines x 26 characters 8 soft-function keys and 4 screenaddressable keys via touchscreen
Magnetic Card Reader
Triple track (tracks 1, 2, 3), high coercivity, bi-directional
Primary Smart Card
ISO 7816, 1.8V, 3V, 5V; synchronous and asynchronous cards; EMV Approved
3 x 4 numeric keypad, plus screenaddressable Keys can be simulated on touchscreen
Peripheral Ports
Single multi-port connector that
supports RS-232, USB 2.0 device,
USB Host, Ethernet
3DES encryption, Master/Session and
DUKPT key management; VeriShield file
authentication; PCI PTS 3.0 approved
Length: 190 mm (7.4 in); Width: 108 mm
(4.6 in); Depth: 58 mm (2.3 in); Weight:
550 gr (19.4 oz)
0° to 50° C (32° to 122° F) operating
temperature; -20° to 60° C (-4° to 140°
F) storage temperature; 5% to 90%
relative humidity, non-condensing
5-12V DC, 3.8W Max (Maximum consumption with backlight and contactless active)
Power Pack
PWR282-001-01-A (varies per region) UL ITE listed, Class 2, switching power
supply PS, 100-240V, 9V DC Universal, 1A, 9W
w w
© 2011 VeriFone, Inc. All rights reserved. VeriFone, the VeriFone logo, VX 810, VX 825 and VeriShield Protect are either trademarks or registered
trademarks of VeriFone in the United States and/or other countries. All other trademarks or brand names are the properties of their respective
holders. All features and specifications are subject to change without notice. Reproduction or posting of this document without prior VeriFone
approval is prohibited. 04/11 45906 Rev A FS
Contactless Applications
MasterCard PayPass M/Chip MasterCard PayPass MagStripe Visa payWave MSD Visa payWave qVSDC Discover Zip American Express ExpressPay Pass-through access to ISO 14443-4 and
MiFare cards, for direct host terminalbased application access Secure
SoftSAM protects contactless keys Hardware SAM optional
