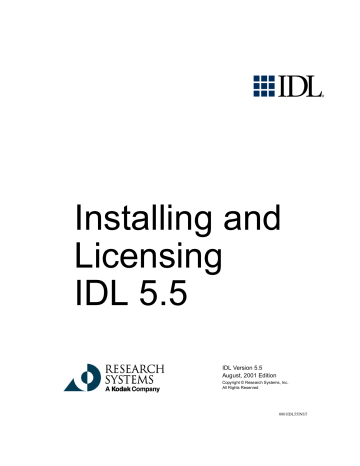

Installing and

Licensing

IDL 5.5

IDL Version 5.5

August, 2001 Edition

Copyright © Research Systems, Inc.

All Rights Reserved

0801IDL55INST

Restricted Rights Notice

The IDL

® software program and the accompanying procedures, functions, and documentation described herein are sold under license agreement. Their use, duplication, and disclosure are subject to the restrictions stated in the license agreement. Research Systems, Inc., reserves the right to make changes to this document at any time and without notice.

Limitation of Warranty

Research Systems, Inc. makes no warranties, either express or implied, as to any matter not expressly set forth in the license agreement, including without limitation the condition of the software, merchantability, or fitness for any particular purpose.

Research Systems, Inc. shall not be liable for any direct, consequential, or other damages suffered by the Licensee or any others resulting from use of the IDL software package or its documentation.

Permission to Reproduce this Manual

If you are a licensed user of this product, Research Systems, Inc. grants you a limited, nontransferable license to reproduce this particular document provided such copies are for your use only and are not sold or distributed to third parties. All such copies must contain the title page and this notice page in their entirety.

Acknowledgments

IDL

® is a registered trademark of Research Systems Inc., registered in the United States Patent and Trademark Office, for the computer program described herein. Software

Vision

™ is a trademark of Research Systems, Inc.

Numerical Recipes™ is a trademark of Numerical Recipes Software. Numerical Recipes routines are used by permission.

GRG2™ is a trademark of Windward Technologies, Inc. The GRG2 software for nonlinear optimization is used by permission.

NCSA Hierarchical Data Format (HDF) Software Library and Utilities

Copyright © 1988-1998 The Board of Trustees of the University of Illinois

All rights reserved.

CDF Library

Copyright

©

1999

National Space Science Data Center

NASA/Goddard Space Flight Center

NetCDF Library

Copyright © 1993-1996 University Corporation for Atmospheric Research/Unidata

HDF EOS Library

Copyright © 1996 Hughes and Applied Research Corporation

This software is based in part on the work of the Independent JPEG Group.

This product contains StoneTable

, by StoneTablet Publishing. All rights to StoneTable

™ and its documentation are retained by StoneTablet Publishing, PO Box 12665, Portland OR 97212-0665. Copyright © 1992-1997 StoneTablet Publishing

WASTE text engine © 1993-1996 Marco Piovanelli

Portions of this software are copyrighted by INTERSOLV, Inc., 1991-1998.

Use of this software for providing LZW capability for any purpose is not authorized unless user first enters into a license agreement with Unisys under U.S. Patent No. 4,558,302 and foreign counterparts. For information concerning licensing, please contact: Unisys

Corporation, Welch Licensing Department - C1SW19, Township Line & Union Meeting Roads, P.O. Box 500, Blue Bell, PA 19424.

Portions of this computer program are copyright © 1995-1999 LizardTech, Inc. All rights reserved. MrSID is protected by U.S. Patent

No. 5,710,835. Foreign Patents Pending.

Other trademarks and registered trademarks are the property of the respective trademark holders.

Contents

Chapter 1:

Introduction

............................................................................................. 7

About Adobe

®

Acrobat

®

Reader

................................................................................ 8

Contacting Research Systems

..................................................................................... 8

Supported Platforms

.......................................................................................................... 9

Supported Platforms

................................................................................................... 9

Running IDL in Demonstration Mode

............................................................................ 10

Running from the CD-ROM

..................................................................................... 10

Installing and Running

.............................................................................................. 10

Running the IDL Demo Applications

............................................................................. 12

From the IDL CD-ROM

........................................................................................... 12

From your IDL Installation

....................................................................................... 12

Installing and LIcensing IDL 5.5

3

4

Contents

Chapter 2:

Installing and Licensing IDL 5.5 for Windows

................................... 15

Introduction

...................................................................................................................... 16

Before You Begin

...................................................................................................... 16

Recommended Steps for Installing and Licensing IDL for Windows

...................... 16

Licensing Methods

.................................................................................................... 18

Installing IDL for Windows

............................................................................................. 21

System Requirements

................................................................................................ 21

Run the IDL Installation Procedure

........................................................................... 21

Requesting a License

....................................................................................................... 24

Preparing a License Request

..................................................................................... 24

Manually Sending a License Request

....................................................................... 26

Licensing IDL with an Evaluation License

..................................................................... 27

Troubleshooting Evaluation Licensing

..................................................................... 27

Licensing IDL with a Node-Locked License

................................................................... 28

Save the License File

................................................................................................. 28

Enter the License Key

............................................................................................... 28

Saving the License File in an Alternative Location

.................................................. 29

Troubleshooting a Node-Locked License

................................................................. 30

Licensing IDL with a Floating License

........................................................................... 35

Set Up the License Server

......................................................................................... 35

Configure Clients to Access the License Server

....................................................... 41

Customize Your Floating Licenses

........................................................................... 43

Working with the License Server

.............................................................................. 47

Multiple Applications Using the Same License Server

............................................. 50

Troubleshooting a Floating License

.......................................................................... 53

Troubleshooting the License Server Startup

............................................................. 55

Licensing IDL with a HASP License

............................................................................... 58

Enter the License Key

............................................................................................... 58

Troubleshooting HASP Licensing

............................................................................. 58

Chapter 3:

Installing and Licensing IDL 5.5 for UNIX

........................................... 63

Introduction

...................................................................................................................... 64

Before You Begin

...................................................................................................... 64

Licensing Methods

.................................................................................................... 64

Installing and LIcensing IDL 5.5

5

Installing IDL for UNIX

.................................................................................................. 67

System Requirements

............................................................................................... 67

Mount the IDL CD-ROM on Your System

.............................................................. 67

Run the IDL Installation Procedure

.......................................................................... 68

Unmount the IDL CD-ROM from Your System

...................................................... 70

Installing the License Server

..................................................................................... 71

Requesting a License

....................................................................................................... 72

Preparing a License Request

..................................................................................... 73

Manually Sending a License Request

....................................................................... 75

Licensing IDL with an Evaluation License

..................................................................... 76

Troubleshooting Evaluation Licensing

..................................................................... 77

Licensing IDL with a Node-locked or Floating License

................................................. 78

1.Save the License File

............................................................................................. 78

2.Enter the License Key

............................................................................................ 78

3.Start the License Server

......................................................................................... 81

4.Set Up the IDL Environment

................................................................................. 82

Licensing for Alpha Linux

.............................................................................................. 85

Running IDL

.................................................................................................................... 87

Working with the License Server

.................................................................................... 88

Automatically Starting the License Manager at Boot Time

..................................... 88

Creating a License Manager Log File

....................................................................... 89

Shutting Down The License Manager

...................................................................... 90

Reclaiming an Unused License

................................................................................. 90

Checking the License Manager Status

...................................................................... 92

Obtaining a Host ID

.................................................................................................. 93

If You Encounter Errors

........................................................................................... 93

Customizing Your Floating Licenses

.............................................................................. 94

Creating an Options File

........................................................................................... 94

Options File Keywords

............................................................................................. 95

Sample Options Files

................................................................................................ 97

Modifying the License File

............................................................................................. 98

Sample License Files

................................................................................................ 98

Viewing or Modifying the License File

.................................................................... 99

Multiple Applications That Use The Same License Manager

...................................... 100

Running Older Versions of IDL Concurrently with IDL 5.5

........................................ 102

Start the Latest Version of the License Manager

.................................................... 102

Installing and LIcensing IDL 5.5

Contents

6

Using IDL Version 5.x with the IDL Version 5.5 License Manager

...................... 102

Troubleshooting

............................................................................................................. 103

License Manager Startup Troubleshooting

............................................................. 108

Chapter 4:

Installing and Licensing IDL 5.5 for Macintosh

............................... 113

Introduction

.................................................................................................................... 114

Recommended Steps for Installing and Licensing IDL for Macintosh

................... 114

Licensing Methods

.................................................................................................. 114

Installing IDL for Macintosh

......................................................................................... 116

System Requirements

.............................................................................................. 116

Run the IDL Installation Procedure

......................................................................... 116

Installing an Evaluation License

.................................................................................... 118

Licensing with a USB HASP

......................................................................................... 119

Important Information about Your USB HASP

...................................................... 119

Licensing with an ADB HASP

...................................................................................... 121

Important Information about Your ADB HASP

..................................................... 121

Modifying an Existing License

...................................................................................... 123

Troubleshooting HASP Licensing

................................................................................. 124

Hardware Troubleshooting

...................................................................................... 124

Software Troubleshooting

....................................................................................... 125

Contents Installing and LIcensing IDL 5.5

Chapter 1:

Introduction

This guide describes how to install and license version 5.5 of the following products:

IDL — This is the standard version of IDL offering full access to all of the software’s features including the ability to run and compile programs.

IDL Academic Edition — This version of IDL provides full access to all of the software’s features for qualified academic customers.

IDL Runtime — IDL Runtime lets users run IDL applications and other

IDL-based programs that have been packaged as IDL

.sav

files. The IDL development environment and the command line are not accessible when using a Runtime license.

Installing and Licensing IDL 5.5

7

8 Chapter 1: Introduction

About Adobe

®

Acrobat

®

Reader

IDL online manuals (which are installed with IDL) require Adobe Acrobat Reader with Search 3.0 or greater. Acrobat Reader 4.0 with Search has been included on your

IDL CD-ROM in the adobe directory (Windows), the

/rdr_srch directory

(UNIX), and the

Extras folder (Macintosh). UNIX installation instructions are included in the instguid.txt

file located in each operating system subdirectory.

Visit the Adobe Systems Web site at www.adobe.com

for the latest Acrobat Reader information and downloads.

Contacting Research Systems

If you have problems with installing or licensing this software product, contact

Research Systems technical support for assistance:

• E-mail: [email protected]

• Phone: (303) 413-3920

• Fax: (303) 786-9909

• Web page: http://www.ResearchSystems.com

— Visit the Tech Tips section on our Web page for Frequently Asked Questions.

International customers should contact their local Research Systems office or distributor for technical support.

Installing and Licensing IDL 5.5

Chapter 1: Introduction

Supported Platforms

Supported Platforms

IDL 5.5 supports the following platforms and operating systems:

Platform Vendor Hardware

Operating

System

Supported

Versions

Windows Microsoft Intel x86

UNIX† Compaq

Compaq

HP

Alpha

Alpha

PA-RISC

IBM

Intel

SGI

SUN

SUN

Macintosh

SUN

Apple

Windows

Tru64 UNIX 5.1

Linux

HP-UX

Red Hat 6.2††

11.0

RS/6000

Intel x86

Mips

AIX

Linux

IRIX

SPARC

SPARC

(64-bit Ultra)

Solaris

Solaris

Intel x86 Solaris

PowerMAC††† MacOS

98, NT 4.0, 2000

4.3

Red Hat 6.0, 7.1††

6.5.1

8

8

8

8.6, 9.x

Table 1-1: Platforms Supported in IDL 5.5

† For UNIX, RSI software was either built on (the lowest version listed) or tested on that version. It may be possible to install and run RSI software on versions other than those listed if your version is binary compatible.

†† IDL 5.5 was built on the Linux 2.2 kernel with glibc

2.1 using Red Hat Linux. If your version of Linux is compatible with these, it is possible that you can install and run IDL on your version.

††† Includes G3, G4 and iMac

9

Installing and Licensing IDL 5.5

Supported Platforms

10 Chapter 1: Introduction

Running IDL in Demonstration Mode

If you want to run IDL for demonstration purposes, you can do so either from the

CD-ROM or after installation.

Running from the CD-ROM

To run IDL in demonstration mode from your IDL CD-ROM, complete the following steps:

Windows

1.

Insert the IDL CD-ROM in your CD-ROM drive. After a short delay, the

IDL autorun program starts. If the autorun program does not start automatically, select Start

Run. In the Run dialog, type

X

:\DEMO

, where

X

is the name of your CD-ROM drive, and click OK.

2.

Start IDL. Select Start IDL from the IDL autorun program. The Demo Mode dialog appears.

3.

Click OK. This starts IDL in seven-minute demonstration mode.

UNIX

The UNIX CD-ROM does not support this capability.

Macintosh

1.

Insert the IDL CD-ROM in your CD-ROM drive. The IDL 5.5 folder appears. If the window doesn’t appear, click the IDL 5.5 CD-ROM icon.

2.

Start IDL. Double-click the IDL icon.

3.

Click OK. This starts IDL in seven-minute demonstration mode.

Installing and Running

To install and run in demonstration mode, complete the following steps:

Windows

1.

Install IDL. See

“Installing IDL for Windows” on page 21. If you wish to run

IDL only in unlicensed demonstration mode, select No when the Product

Licensing dialog appears.

2.

Start IDL. Click the Windows Start button, and select Programs

Research Systems IDL 5.5

IDL. The Demo Mode dialog appears.

Running IDL in Demonstration Mode Installing and Licensing IDL 5.5

Chapter 1: Introduction 11

3.

Click OK. This starts IDL in seven minute demonstration mode. IDL will automatically start in demonstration mode until licensed.

UNIX

1.

Install IDL. See,

“Installing IDL for UNIX” on page 67

.

2.

Set up and run IDL. See,

“Set Up the IDL Environment” on page 82. IDL

will start in demonstration mode which allows you to run a 7-minute session.

Macintosh

1.

Install IDL. See

“Installing IDL for Macintosh” on page 116.

2.

Start IDL. Double-click the IDL 5.5 icon located in the

install_dir:RSI:IDL 5.5

folder. Until licensed, IDL displays the licensing dialog.

3.

Click 7-Minute Trial. This starts IDL in seven-minute demonstration mode.

Tip

Try running the IDL Demo Applications that illustrate some of the many ways IDL can help visualize data. See

“Running the IDL Demo Applications” on page 12 for

more information.

Installing and Licensing IDL 5.5

Running IDL in Demonstration Mode

12 Chapter 1: Introduction

Running the IDL Demo Applications

The IDL Demo Applications are a series of IDL programs that illustrate some of the many ways IDL can help you visualize data.

Note

If you have already started IDL, you can just type in DEMO at the IDL command prompt.

IDL> DEMO

From the IDL CD-ROM

To run the IDL Demo Applications from your IDL CD-ROM, complete the following steps:

Windows

1.

Insert the IDL CD-ROM in your CD-ROM drive. After a short delay, the

IDL autorun program starts. If the autorun program does not start automatically, select Start

Run. In the Run dialog, type

X

:\DEMO

, where

X

is the name of your CD-ROM drive, and click OK.

2.

Select IDL Demo from the IDL autorun program.

Macintosh

1.

Insert the IDL CD-ROM in your CD-ROM drive. The IDL 5.5 folder appears. If the window doesn’t appear, click the IDL 5.5 CD-ROM icon.

2.

Double-click the IDL Demo icon located in the IDL 5.5 volume window.

From your IDL Installation

To run the IDL Demo Applications from an installed version of IDL, complete the following steps:

Windows

Click the Windows Start button, and select Programs

Research Systems

IDL 5.5

IDL Demo.

Running the IDL Demo Applications Installing and Licensing IDL 5.5

Chapter 1: Introduction 13

UNIX

• From the UNIX prompt enter idldemo or

• From the UNIX prompt, start IDL by typing idlde and then type demo at the

IDL prompt.

Note

If idldemo or idlde do not work, you need to set IDL environment aliases. See

“Set Up the IDL Environment” on page 82.

Macintosh

Drag the IDL Demo icon located in the

install_dir:RSI:IDL 5.5

folder onto the IDL 5.5 icon.

Installing and Licensing IDL 5.5

Running the IDL Demo Applications

14 Chapter 1: Introduction

Running the IDL Demo Applications Installing and Licensing IDL 5.5

Chapter 2:

Installing and Licensing

IDL 5.5 for Windows

This chapter covers the following topics:

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 16

Installing IDL for Windows . . . . . . . . . . . . . 21

Requesting a License . . . . . . . . . . . . . . . . . . 24

Licensing IDL with an Evaluation License . 27

Licensing IDL with a Node-Locked License 28

Licensing IDL with a Floating License . . . . 35

Licensing IDL with a HASP License . . . . . 58

Installing and Licensing IDL 5.5

15

16

Introduction

Chapter 2: Installing and Licensing IDL 5.5 for Windows

Before You Begin

If you’re installing on Windows NT or Windows 2000 you must have Administrator privileges to install. Additionally, a user with Administrator privileges must be the first one to start a session of IDL in order for the configuration to be complete.

If you do not have such privileges, the installation process cannot modify the system configuration of the machine and it will fail. After you have installed IDL, you do not need Administrator privileges to run IDL on Windows NT or Windows 2000.

Recommended Steps for Installing and Licensing IDL for

Windows

The steps required to install and license IDL depend upon the type of license you will be using. Research Systems recommends you use the following steps when installing and licensing IDL.

Evaluation Licenses

The following steps are recommended when installing and licensing IDL using an evaluation license:

1.

Install IDL — See

“Run the IDL Installation Procedure” on page 21.

2.

Request a License — You may have already received an evaluation license key by e-mail or fax. If you haven’t received it, contact your RSI sales representative to request an evaluation license.

3.

Enter Your License Key — See

“Licensing IDL with an Evaluation License”

on page 27.

Node-Locked Licenses

The following steps are recommended when installing and licensing IDL using a node-locked license:

1.

Install IDL — See

“Run the IDL Installation Procedure” on page 21.

2.

Request a License — You may have already received your RSI product license information by e-mail or fax. It provides your product installation number and additional information about licensing your product. If you haven’t received it, see

“Requesting a License” on page 24 to create a license

request.

Introduction Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 17

3.

Enter Your License Key — See

“Licensing IDL with a Node-Locked

License” on page 28.

Floating Licenses

The following steps are recommended when installing and licensing IDL using a floating license:

1.

Install IDL on the License Server — Install the network license server on the machine you have designated to run the license manager. You can accomplish this by running the IDL installer on your server machine and deselecting every option except the IDL Program Files and Network License Server features.

Note

Carefully consider the machine you have chosen as your server machine before saving your license file and starting the license manager. Since

“client” machines will be sending requests for licenses to the “server” machine, the ability of client machines to access the license manager software depends on the reliability of the server machine. Therefore, the machine chosen as the server must be one that has a history of reliable operation and one that is running most of the time.

2.

Request a License — You may have already received your RSI product license information by e-mail or fax. It provides your product installation number and additional information about licensing your product. If you haven’t received it, see

“Requesting a License” on page 24 to create a license

request.

3.

Enter Your License Key — See

“Licensing IDL with a Floating License” on

page 35.

4.

Start the License Manager — See

“Start the License Server” on page 37.

5.

Install IDL on Your Client Machines — See

“Run the IDL Installation

Procedure” on page 21

6.

Configure the Client Machines — Configure the client machines so that they can access the license manager, see

“Configure Clients to Access the License

Server” on page 41.

HASP Licenses

1.

Install IDL — See

“Run the IDL Installation Procedure” on page 21.

2.

Locate Your Hardware Dongle and RSI Product License Information

You should have received your hardware dongle with your IDL product and

Installing and Licensing IDL 5.5

Introduction

18 Chapter 2: Installing and Licensing IDL 5.5 for Windows your RSI product license information by electronic mail or fax. The RSI product license information provides your product installation number and additional information about licensing IDL. If you haven’t received these items, see

“Contacting Research Systems” on page 8.

3.

Enter Your License Key — See

“Licensing IDL with a HASP License” on

page 58.

Licensing Methods

Access to IDL and other products from Research Systems is controlled by a software application that ensures a proper license has been entered on the user’s system.

Licensing options include demonstration, evaluation, node-locked, floating, and

HASP, each discussed in the following sections.

Demonstration License

Demonstration licenses are the default license provided with Research Systems software products. These licenses allow you to run limited versions of the software products in seven minute demonstration mode. You do not need to request or enter a license file. For more information, see

“Running IDL in Demonstration Mode” on

page 10.

Evaluation LIcense

Evaluation licenses are temporary trial licenses allowing access to all IDL features for a specified number of days. Once the evaluation license expires, you will be alerted by a dialog box stating that the application is available only in seven-minute demonstration mode. Contact Research Systems or your local distributor to purchase a permanent license or to extend your evaluation license.

The following is a sample Evaluation license key that you will receive either by e-mail or fax:

Product:

Expiration:

Key:

IDL X.X

23-Aug-20XX

ABC123DEF456GHI7-123

IDL Major Version: X.X

Package Name: eval_idl

Node-Locked License

Node-locked licenses are personal licenses tying a single software application to a single machine. This method of licensing requires a machine’s unique host ID to be incorporated into a license request file. After a license request is sent to Research

Introduction Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 19

Systems or your local distributor, a license file is returned. Entering and saving the license file enables full functionality of the Research Systems product on the machine for which you have sent the host ID.

The following is a sample node-locked license key that you will see on your product registration form which you will receive either by e-mail or fax:

# Installation Number(s): 000011-70-1

INCREMENT idl idl_lmgrd X.XXX 1-jan-0000 uncounted \

ABC123DEF456GHI789JK VENDOR_STRING="000011-70-1Floating \

Windows License" HOSTID=00aabb11ccdd ck=28

INCREMENT wavelet idl_lmgrd X.XXX 1-jan-0000 uncounted \

ABC123DEF456GHI789JK VENDOR_STRING="000011-70-1Floating \

Windows License" HOSTID=00aabb11ccdd ck=28

Floating License

Floating licenses (also known as client/server licenses) allow multiple users to concurrently access IDL. After installing and licensing IDL on the server machine, the license manager, installed along with your IDL software, handles requests for licenses from remote client machines. As the server administrator, you can choose how users access the licenses. You can select to reserve licenses for individuals or groups, or select to allow all users to share access to the licenses. If you have a team of 20 people, and you have purchased IDL with 10 floating licenses, you can select to reserve licenses for certain individuals in the group, or allow all team members to share access to the ten licenses throughout the day.

While both node-locked and floating licenses use a license file or key containing information based on a unique host ID from the machine being licensed, floating licenses additionally require the installation of a license manager.

IDL (with floating licenses) uses the Globetrotter Software FLEXlm license manager.

The license manager runs continuously on your system, waiting for a request from a

Research Systems product. When a request arrives, the license manager determines whether the proper license for a requested product is available. If the proper license is present and not already in use, the license manager allows access to the software.

The following is a sample floating license key that you will receive either by e-mail or fax:

# Installation Number(s): 000011-70-1

SERVER myserver 00aabb11ccdd 1700

DAEMON idl_lmgrd C:\RSI\IDLXX\BIN\BIN.x86\IDL_LMGRD.exe

INCREMENT idl idl_lmgrd X.XXX 1-jan-0000 6 ABC123DEF456GHI789JK \

VENDOR_STRING="000011-70-1Floating Windows License" ck=205

FEATURESET idl_lmgrd ABC123DEF456GHI7

Installing and Licensing IDL 5.5

Introduction

20 Chapter 2: Installing and Licensing IDL 5.5 for Windows

The main difference between a node-locked and floating license is that a floating license contain SERVER and DAEMON lines. The license server should be installed and run on the server indicated in the SERVER line of the license key.

HASP License

Hardware-Based Node-Locked Licenses (HASP) use a combination of a physical hardware dongle (a small plastic and metal device labeled “HASP” that plugs into your computer’s parallel port) and a software key code that allows IDL to run in licensed mode. The dongle must be installed on the same machine as the software. Both the

DB-25 Hardware Dongle dongle and the license key are required in order to run the software in licensed mode. The device will not interfere with the normal functioning of your system or other software packages. If you have a hardware dongle from a previous version, you may not have received a new dongle with your upgrade. Your current dongle will continue to function.

The following is a sample HASP license key that you will receive either by e-mail or fax:

PART ID:

VERSION:

HASP:

10WINDKLIC

X.X

WIN

INSTALL ID: 123456

SITE NOTICE: Desktop License

INSTALL KEY: 60-ABC123DE

If you have received a dongle and a license key that looks similar to this sample, see

“Licensing IDL with a HASP License” on page 58.

Introduction Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows

Installing IDL for Windows

21

This sections describes system requirements, recommended steps for installing and licensing IDL, and installation instructions for IDL 5.5 on Windows platforms.

System Requirements

The following are the system requirements for IDL 5.5 for Windows:

Requirement Description

Disk space 120 MB (default installation).

Note -

Operating System Windows 98, Windows NT 4.0 or Windows 2000.

Network Interface Card A network interface card (NIC or Ethernet) is required for software-based-node-locked and floating licensing.

Table 2-1: IDL 5.5 Windows System Requirements

Run the IDL Installation Procedure

To install IDL 5.5, complete the following steps:

Note

If you haven’t used this type of installer before, you may be required to restart your computer during the installation process. To avoid losing unsaved information, save all open files and close any open applications before installing IDL.

If you are prompted to reboot after installation, you will need to run the licensing wizard to license IDL by selecting Start

Programs

Research Systems IDL

5.5

License.

1.

Insert the IDL CD-ROM in your CD-ROM drive. After a short delay, the

IDL autorun program starts. If the autorun program does not start automatically, select Start

Run. In the Run dialog, type

X

:\DEMO

, where

X

is the name of your CD-ROM drive, and click OK.

2.

Start the IDL installation process. Click Install IDL from the IDL autorun program. Then click the Install and Next buttons on the following introduction and welcome dialogs to start the installation and licensing wizards.

Installing and Licensing IDL 5.5

Installing IDL for Windows

22 Chapter 2: Installing and Licensing IDL 5.5 for Windows

3.

Accept the license agreement. After reading the license agreement, select

Accept to continue the installation.

4.

View the IDL Release Notes. The release notes contain important information about this release of IDL. Click Next after viewing the IDL Release Notes file.

5.

Complete the Customer Information form. Enter the following:

• Your User Name (the name with which you log on to your system).

• Your Organization (the name of your company, department., etc.).

For Windows NT and 2000 only, select one of the following for Install this

application for:

• Install the application for all users on this computer (Anyone who uses

this computer), allowing any user to log on and access IDL.

• Install the application as Only for me (User Name) which displays an IDL

Start menu shortcut only when you log on.

Click Next to continue.

6.

Choose the destination folder. In the Destination Folder dialog, select the directory in which to install IDL. The default installation directory, which is the disk on your computer with the greatest amount of free space, is displayed.

To install IDL in a different location, click Change. In the Change Current

Destination Folder dialog, select an alternate location, and click OK.

The installation directory will be referred to as the

RSI-DIR

for the remainder of the installation and licensing instructions.

Click Next to accept the directory that is displayed.

7.

Select the features to install. In the Custom Setup dialog, the typical installation features are pre-selected and indicated by the hard drive symbol.

Clicking on a feature displays information about that option. To add the feature to your installation, click the red “X” and select to install the feature on your hard drive. To remove a feature from your installation, click the hard drive symbol and select the red “X”.

Note

If you are installing this version of IDL on the machine you have designated as the license server for floating licenses, you must select the Network

License Server feature. You can deselect any features except the IDL

Program Files feature. Only a Windows NT or 2000 machine can be used as a license server for floating (client/server) licensing.

Installing IDL for Windows Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 23

Click Next to continue.

8.

Begin the installation. Select Install from the Ready to Install the Program dialog.

9.

Select to License IDL. To license IDL now, click Yes. See the following for more information:

“Licensing IDL with an Evaluation License” on page 27

“Licensing IDL with a Node-Locked License” on page 28

“Licensing IDL with a Floating License” on page 35

“Licensing IDL with a HASP License” on page 58

To license IDL at a later time, or to run IDL only in seven minute demonstration mode, click No.

10. Select to Install Adobe Acrobat Reader. The Install Adobe Acrobat dialog appears after you exit the licensing wizard.

IDL online manuals require Acrobat Reader with Search 3.0 or greater. Select

Yes to install Adobe Acrobat Reader 4.0 if you have not previously installed version 3.0 or greater.

11. Click Finish. Your installation is now complete.

Note

On Windows NT and 2000 the first user to start a session of IDL must have

Administrator privileges.

Tip

To Modify or Repair your installation, insert the IDL CD-ROM and click Install

IDL from the IDL autorun program. From the Program Maintenance dialog, you can Modify the installed components, or Repair your installation.

Installing and Licensing IDL 5.5

Installing IDL for Windows

24 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Requesting a License

If you are licensing with either a node-locked license or a floating license, you need a permanent license file from Research Systems or your distributor. The license file is created using information from the machine on which you have installed IDL. A built-in licensing program has been created to simplify the request and installation of your license file.

Note

You do not need to request a license if you are using an evaluation or HASP license.

The required information will be automatically sent to you.

Note

The electronic request program will not be able to retrieve the correct information if you do not have a configured network interface card and do not meet one or more of the following network protocols:

Windows NT/2000 — Requires that either the NETBEUI Transport Protocol, the

NW Link (IPX/SPX) Transport Protocol or the SNMP service be installed on your system.

Windows 98 — Requires that either the NETBEUI Transport Protocol, or the NW

Link (IPX/SPX) Transport Protocol be installed on your system.

Preparing a License Request

The licensing wizard allows you to easily generate and send a license request. The request contains information necessary for Research Systems to generate your license key. If you have exited the installation program, access the licensing wizard by selecting Start

Programs

Research Systems IDL 5.5

License.

Note

If you have purchased a floating license, the licensing wizard must be run from the designated license server machine on which you have installed IDL. This ensures proper generation of the server LMHostid and Hostname for your license file.

1.

Begin the license request process. Click Permanent from the Product

Licensing dialog.

2.

Prepare a Request file. Click Request to prepare a license request file to submit to Research Systems. The licensing wizard guides you through the

Requesting a License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 25 creation of a license request file that will contain all the information necessary for Research Systems to create a valid license file for your software installation.

3.

Enter your information. Fill in the following text fields in the Permanent

Licensing dialog:

Contact Person — Enter the name of the person to whom the license file should be sent.

Email Address — Enter the e-mail address of the contact person.

Installation Number — Enter the installation number found on the

Research Systems Product Registration Form. You should have already received this form by e-mail or fax. If you have not received the form, contact Research Systems technical support. See

“Contacting Research

Systems” on page 8 for more information.

Site Notice — Enter the name that you want to appear when you launch the software. The name you select will replace <your site notice> in the following statement: “licensed for use by <your site notice>.” This is typically your company’s name, department, or project.

4.

Select the license type. Select either Node Locked or Floating. The license wizard automatically generates the correct Hostname and LMHostid. Do not modify these values.

5.

Enter comments. Enter any comments you may have.

6.

Click Next to continue.

7.

Review your license request. If the information is correct, click Next to save the license request file and proceed. If the information is incorrect, edit it in the text window or click Back to make any corrections.

8.

Send the license request file. Click Next to send the license request file to

Research Systems. If you did not purchase your software directly from

Research Systems, modify the e-mail address and send the file to your local distributor.

Note

If you can’t send e-mail from your machine or if you receive a message stating that an attempt to send the e-mail was unsuccessful, see

“Manually Sending a License

Request” on page 26. A license file will be generated and sent to you at the e-mail

address or fax number you supply.

Installing and Licensing IDL 5.5

Requesting a License

26 Chapter 2: Installing and Licensing IDL 5.5 for Windows

9.

Exit the license wizard. Click Finish to exit the license request program.

If you do not receive a license file or any confirmation that the request was received, see the section below to manually re-send the request. To contact Research Systems, see

“Contacting Research Systems” on page 8.

Manually Sending a License Request

To manually send a license request, select the appropriate step below and e-mail your request to [email protected]

or fax the request file text to

Research Systems at (303) 786-9909. If you did not purchase IDL directly from

Research Systems, send the file to your local distributor.

From the license wizard — Select Back to display the request file. Copy all of the request information into an e-mail message or fax this text to Research

Systems.

Outside of the license wizard — Copy the request file, located in

RSI-DIR\license\rsi_request.txt, where

RSI-DIR

is the directory where you have installed IDL, and send it by fax or e-mail.

Requesting a License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows

Licensing IDL with an Evaluation License

27

After installing IDL, use the licensing wizard to install the license key for your evaluation license. If you do not have a license key, contact your RSI sales representative to request an evaluation license.

1.

Start the licensing wizard. If you have exited the installation program, access the licensing wizard by selecting Start

Programs

Research Systems

IDL 5.5

License.

2.

Access the Evaluation Licensing dialog. Select the Evaluation button on the

Product Licensing dialog.

3.

Enter your license information.

• Select the Product — select the product you wish to license from the dropdown list. Only installed products are displayed.

• Enter the Expiration date — for example, 12-Oct-2000.

• Enter the license Key — enter the key exactly as it appears and click Next.

4.

Exit the Licensing wizard. Click Finish.

IDL is now licensed. After your trial period expires, a message appears stating this fact when you start IDL and until re-licensed, IDL will operate only in seven-minute demonstration mode.

Troubleshooting Evaluation Licensing

If you receive an error message, locate it below for suggestions on resolving the problem.

1.

The license information does not pass the checksum test. Carefully check to make sure you have entered your license information exactly as it appears in your RSI product license information. Exactly duplicate capitalization, spacing and the date format as shown on your form.

2.

The file already exists. If you have an existing evaluation license for this product, you will be asked if you want to replace it. Select Yes to overwrite the old license with the new, extended evaluation license.

3.

The file cannot be written. You may not have write permissions for the directory or the file to which you are attempting to write. Check the permissions to make sure neither the directory nor any files you are attempting to overwrite are designated as “read-only.”

Installing and Licensing IDL 5.5

Licensing IDL with an Evaluation License

28 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Licensing IDL with a Node-Locked License

After installing IDL, use the licensing wizard to install the license key for your nodelocked license. Your license key will be sent to you via e-mail or fax. If you have not received your license key, see

“Requesting a License” on page 24.

Save the License File

If your license key arrived via e-mail, you can save the e-mail message out to a file so that the licensing wizard can import it. Complete the following steps:

1.

From your e-mail application, save the license file e-mail anywhere on your system as a file named license.dat

.

2.

With any text editor, remove any lines that appear before the beginning of the actual license information keeping the comment lines that begin with the “#” character. For an example of a license key, see

“Node-Locked License” on

page 18.

Enter the License Key

To enter your license key, complete the following steps:

1.

Start the IDL Licensing Wizard. If you have already exited the installation program and licensing wizard, click the Windows Start button, and select

Programs

Research Systems IDL 5.5

License.

2.

Display the Permanent Licensing dialog. Click Permanent and then

License from the licensing wizard.

3.

Enter your license file. Paste the text of the license file into the dialog, or select Browse to select the license file which you have named license.dat

.

If you paste in your license file, remove any header lines that are included in the file but keep the comment lines that begin with the “#” character. If you have received your license file via fax or other hardcopy method, type the information directly into the text window.

Note

The license key consists of non-indented lines, indented lines, and blank lines. Besides the comment lines (lines beginning with the number sign (#)), non-indented lines should begin with either a FEATURE or INCREMENT keyword. Because of e-mail/fax limitations, extra long lines of the license key may have been inadvertently wrapped to a new line. If a non-indented line begins with a character other than a number sign (#) or a FEATURE or

Licensing IDL with a Node-Locked License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 29

INCREMENT keyword, then it is likely that an extra long line has been incorrectly wrapped and that the segment belongs at the end of the previous line. Make sure that you review your license key for these possible errors. If the key does contain an error, the software will not be licensed.

4.

Save the license file. Click Next to save the license file in the directory where you have installed the software. The licensing wizard recognizes where you have installed the software and generates an appropriate path, for example,

RSI-DIR\license\license.dat

.

Note

Research Systems strongly recommends saving your license file with the default path and filename

RSI-DIR

\license\license.dat

, for example, where

RSI-DIR

is

RSI

. If you put your license file in this directory, you do not have to redefine any environment variables.

If you have saved the license file in a directory other than the default

RSI-DIR\license\license.dat

, you must set an environment variable pointing to the license.dat

file before starting the software or the license manager. See the following section

“Saving the License File in an

Alternative Location”

for instructions.

Note

If you receive a message that there is an existing license file, save the existing file under a different name before proceeding. While the new license usually contains information for all currently licensed products, save the old file as a safeguard against destroying license information. Run the license wizard again to save the new license file in the default location.

5.

Exit the licensing wizard. Click Finish to save the license file.

Saving the License File in an Alternative Location

If you choose a location other than

RSI-DIR

\license\license.dat

for the license file, it must be accessible to Research Systems software products that you have installed on your machine.

Therefore, you must define the environment variable LM_LICENSE_FILE to point to the actual path of the license file prior to using your software. For example, if you save your license file as

C:\RSI\mylicensefiles\license.dat

, Research

Systems products will not run properly until you define the LM_LICENSE_FILE variable.

Installing and Licensing IDL 5.5

Licensing IDL with a Node-Locked License

30 Chapter 2: Installing and Licensing IDL 5.5 for Windows

For Windows NT Systems

1.

Click Start

Settings

Control Panel and double-click on the System icon.

2.

Click on the Environment tab. (For Windows 2000, click the Advanced tab, and then click Environment). Scroll down the System Variables scroll box and click in the white area. No variables should be highlighted.

3.

Type, in uppercase letters,

LM_LICENSE_FILE in the Variable field.

4.

Type the path to the license file in the Value field, in this example,

C:\RSI\mylicensefiles\license.dat

. Replace this value with the actual path to your license file.

Note

If the directory name in the path to your license file contains any spaces, put double quotation marks around the entire path. For example, if you save your license file in the Program Files directory, the path would be:

"C:\Program Files\license.dat"

5.

Click Set, Apply, and OK.

For Windows 98 Systems

Using the previous example, add the setting for the environment variable to the

autoexec.bat

file as follows:

SET LM_LICENSE_FILE = C:\RSI\mylicensefiles\license.dat

The system must be restarted in order for this setting to take effect.

Troubleshooting a Node-Locked License

1. Check the License Format

After installing the permanent license information via the licensing wizard program, one of the following error messages appears when attempting to start IDL:

% LICENSE MANAGER: Future license file format or misspelling in license file

The file was issued for a later version of FLEXlm than this program understands.

Feature: idl

License path: C:\RSI\license\license.dat;C:\RSI\license\*.lic

FLEXlm error: -90,313.

System Error: 2 ""

% LICENSE MANAGER: Invalid license file syntax

Licensing IDL with a Node-Locked License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 31

Feature: idl

License path: C:\RSI\license\license.dat;C:\RSI\license\*.lic

FLEXlm error: -2,134.

System Error: 2 ""

These errors may indicate that the license information has been corrupted.

Some email programs can corrupt license text, replacing original characters with invalid characters. For example, the string:

VENDOR_STRING="000011Research Systems, Inc." HOSTID=00b012345678 ck=99 could be inadvertently changed to:

VENDOR_STRING?"000011Research Systems, Inc." HOSTID?00b012345678 ck?99

Another cause of license corruption is inadvertent line wrapping introduced by the email program. For example, a line in the license might be changed from (2 lines).

Correct format:

INCREMENT idl idl_lmgrd 5.500 1-jan-0000 0 EC3B7DA4CA19E85C0A71 \

VENDOR_STRING="000011Research Systems, Inc."

HOSTID=00b012345678 ck=123

Incorrect format:

INCRMENT idl idl_lmgrd 5.500 1-jan-0000 0 EC3B7DA4CA19E85C0A71

\

VENDOR_STRING="000011Research Systems, Inc."

HOSTID=00b012345678 ck=123

If the license file appears to have been corrupted, try to restore the problem characters or line wrapping to its original state. Or if a separate file attachment of the license information was provided please use the license information in the file attachment to replace the corrupted license information. The licensing wizard may be used to edit the license file information that has already been installed.

2. The hostid of this system does not match the hostid

After installing the permanent license information via the licensing wizard, a form of the following error message appears when starting IDL:

% LICENSE MANAGER: Invalid host

The hostid of this system does not match the hostid specified in the license file

Feature:

Hostid: idl

00b0d0911470

License path: C:\RSI\license\license.dat;C:\RSI\license\*.lic

FLEXlm error: -9,57.

System Error: 2 ""

Installing and Licensing IDL 5.5

Licensing IDL with a Node-Locked License

32 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Confirm that the node-locked hostid in the license matches the actual hostid of the machine that is running IDL:

1.

Start the licensing wizard by clicking Start

Programs

Research Systems

IDL 5.5

License.

2.

Click Permanent and then Request.

3.

Compare the Node LMHostid value with the HOSTID value in your IDL license file.

For example the following IDL license feature line:

INCREMENT idl idl_lmgrd 5.500 1-jan-0000 0 EC3B7DA4CA19E85C0A71 \

VENDOR_STRING=000011RSI HOSTID=00b012345678 ck=123 is built for the node hostid “00b012345678”.

If the hostid information obtained from the licensing wizard is different from the information listed in the license file, then the license will not work with your machine. The license HOSTID value cannot be altered by a user without invalidating the license. If the host on which you are installing is different than the one you are installing on, you must request another license. See

“Requesting a License” on

page 24 for information on how to request a license.

3. License file does not support this version

After installing the permanent license information via the licensing wizard program, a form of the following error message appears when attempting to start IDL:

% LICENSE MANAGER: License file does not support this version

Feature: idl

Application version > License version: 5.5 > 5.400

License path: C:\RSI\\license\license.dat;C:\RSI\\license\*.lic

FLEXlm error: -21,126.

System Error: 2 ""

Confirm that the license being referenced contains the correct version. Check the license(s) listed in the "license path" of the error message to verify the contents of the referenced license. Below is an example of an IDL 5.5 license feature (2 lines):

INCREMENT idl idl_lmgrd 5.500 1-jan-0000 0 EC3B7DA4CA19E85C0A71 \

VENDOR_STRING=000011RSI HOSTID=00b012345678 ck=123

Notice that the product “idl” is listed after “INCREMENT” and the IDL version

“5.500” is located after “idl_lmgrd”. An IDL 5.5 FLEXlm license can also support previous versions of IDL.

If the listed IDL version is less than the version you are trying to license, then an old version of the license is being referenced. Make sure you that the correct version of

Licensing IDL with a Node-Locked License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 33 the license.dat

file is being referenced. See

“Saving the License File in an

Alternative Location” on page 29 for more information.

If the you do not have a license with the correct version, you must request another license. See

“Requesting a License” on page 24 for information on how to request a

license.

4. IDL cannot find license

After installing the license information via the licensing wizard, an error message appears that indicates that the license.dat

file cannot be found.

% LICENSE MANAGER: Cannot find license file

The license files (or server network addresses) attempted are listed below.

Use LM_LICENSE_FILE to use a different license file, or contact your software provider for a license file.

Feature: idl

Filename: C:\RSI\IDL55\license.dat

License path: C:\RSI\IDL55\license.dat

FLEXlm error: -1,359.

System Error: 2 "No such file or directory"

Make sure that you have either installed the license.dat in the default location

(

RSI-DIR/license/license.dat

) or that you have defined your

LM_LICENSE_FILE environment variable to the path where the license.dat

file exists. See

“Saving the License File in an Alternative Location” on page 29 for more

information.

If this information is correct, try the following (if using Windows NT or 2000 you should be logged on as a user with administrative privileges before proceeding):

1.

Quit out of any IDL session.

2.

Open a Windows Explorer and browse to the bin\bin.x86 subdirectory the IDL installation (for example: C:\RSI\IDL55\bin\bin.x86).

3.

Find the file “idl.000”. If you can't find the idl.000 file in the bin.x86 directory select the View menu for Windows NT, or the Tools menu for Windows 2000, of the Windows Explorer, then select Folder Options. Then, under the View tab:

• Select the option for Show hidden files and folders.

• Uncheck the box for the option: Hide file extensions for known file

types.

• Apply and save the changes.

4.) After locating the “idl.000” file in the bin.x86, rename it to “idl.ini”

5.) Start a session of IDL.

Installing and Licensing IDL 5.5

Licensing IDL with a Node-Locked License

34 Chapter 2: Installing and Licensing IDL 5.5 for Windows

6.) When prompted to import preferences, select Yes.

If the licensing information is correct IDL should find the license and start in licensed mode.

5. Search the RSI Technical Support Library

Go to www.ResearchSystems.com/services/search.cfm

and select the following for more information on troubleshooting node-locked licensing:

Product:

Platform:

IDL

WINDOWS

Category:

LICENSING

Functional Area: LICENSING - FLEXlm

6. Contact RSI Technical Support

If you are still having problems licensing, see

“Contacting Research Systems” on

page 8 for information on how to contact Technical Support.

Licensing IDL with a Node-Locked License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows

Licensing IDL with a Floating License

35

After installing IDL, use the following instructions to:

Set Up the License Server

Configure Clients to Access the License Server

Your license key will be sent to you via e-mail or fax. If you have not received your license key, see

“Requesting a License” on page 24.

Set Up the License Server

1. Save the License File

If your license key arrived via e-mail, you can save the e-mail message to a file so that the licensing wizard can import it. If your information was faxed to you or you prefer to directly enter the text into the licensing wizard, continue with the next section.

To save the license key to a file, complete the following steps:

1.

From your e-mail application, save the license file e-mail anywhere on your system as a file named license.dat

.

2.

With any text editor, remove any lines that appear before the beginning of the actual license information keeping the comment lines that begin with the “#” character. For an example of a license key, see

“Floating License” on page 19.

3.

Copy the license.dat

file anywhere on your designated license server machine.

2. Enter the License Key

To enter your license key, complete the following steps:

1.

Start the IDL Licensing Wizard. On your designated license server machine, click the Windows Start button, and select Programs

Research Systems

IDL 5.5

License.

2.

Display the Permanent Licensing dialog. Select Permanent and then

License from the licensing wizard dialogs

3.

Enter your license file. Paste the text of the license file into the dialog, or select Browse to select the license file which you have named license.dat

.

If you paste in your license file, remove any header lines that are included in the file but keep the comment lines that begin with the “#” character. If you

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

36 Chapter 2: Installing and Licensing IDL 5.5 for Windows have received your license file via fax or other hardcopy method, type the information directly into the text window.

Note

The license key consists of non-indented lines, indented lines, and blank lines. Besides the comment lines (lines beginning with the number sign (#)), non-indented lines should begin with either a SERVER, DAEMON,

FEATURE, or INCREMENT keyword. Because of e-mail/fax limitations, extra long lines of the license key may have been inadvertently wrapped to a new line. If a non-indented line begins with a character other than a number sign (#) or a SERVER, DAEMON, FEATURE, or INCREMENT keyword, then it is likely that an extra long line has been incorrectly wrapped and that the segment belongs at the end of the previous line. Make sure that you review your license key for these possible errors. If such an error is not corrected, the software will not be licensed.

4.

Save the license file. Click Next to save the license file in the directory where you have installed the software. The licensing wizard recognizes where you have installed the software and generates an appropriate path, for example,

RSI-DIR\license\license.dat

.

Note

Research Systems strongly recommends saving your license file with the default path and filename

RSI-DIR

\license\license.dat

, for example, where

RSI-DIR

is

RSI

. If you put your license file in this directory, you do not have to redefine environment variables.

If you have saved the license file in a directory other than the default

RSI-DIR\license\license.dat

, you must set an environment variable pointing to the license.dat

file before starting the license manager. See the following section

“Saving the License File in an Alternative Location”

for instructions.

Note

If you receive a message that there is an existing license file, save the existing file under a different name before proceeding. While the new license usually contains information for all currently licensed products, save the old file as a safeguard against destroying license information.

5.

Exit the licensing wizard. Click Finish to save the license file.

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 37

Note

If you have other software that is using the Globetrotter Software FLEXlm license manager, you may want to combine the Research Systems license file with the existing ones. See

“Multiple Applications Using the Same License Server” on

page 50 for options and instructions.

Saving the License File in an Alternative Location

If you choose a location other than

RSI-DIR

\license\license.dat

for the license file, it must be accessible to the licensing server that you have installed on your machine.

Therefore, you must define the environment variable LM_LICENSE_FILE to point to the actual path of the license file prior to starting the license server. For example, if you save your license file as

C:\RSI\mylicensefiles\license.dat

, the license server will not find the license file until you define the LM_LICENSE_FILE variable.

1.

Click Start

Settings

Control Panel and double-click on the System icon.

2.

Click on the Environment tab. (For Windows 2000, click the Advanced tab, and then click Environment). Scroll down the System Variables scroll box and click in the white area. No variables should be highlighted.

3.

Type, in uppercase letters,

LM_LICENSE_FILE in the Variable field.

4.

Type the path to the license file in the Value field, in this example,

C:\RSI\mylicensefiles\license.dat

. Replace this value with the actual path to your license file.

Note

If the directory name in the path to your license file contains any spaces, put double quotation marks around the entire path. For example, if you save your license file in the Program Files directory, the path would be:

"C:\Program Files\license.dat"

5.

Click Set, Apply, and OK.

3. Start the License Server

With a floating license, you will need to start the license server before Research

Systems products can access a network license and run in licensed mode. You may also set up your system so that the license manager is automatically started when your system is booted.

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

38 Chapter 2: Installing and Licensing IDL 5.5 for Windows

The license manager needs to be started only on the designated license server machine, not on client machines accessing the IDL product from the network.

However, client machines do need to be set up to access the Research Systems software and the license file. After installing the license manager, see

“Configure

Clients to Access the License Server” on page 41 for instructions.

The Network License Server

The license server is a custom install option in the software product installation for

Windows. You must install the license server on the Windows NT/2000 machine that will be the license server.

Access to the license manager utilities requires installation of the Network License

Server option during your software installation. This option installs the following files in the

RSI-DIR\idl55\bin\bin.x86

directory:

• install_lm_server.exe

• lmgrd.exe

• idl_lmgrd.exe

• lmutil.exe

• lmtools.exe

Configuring the License Server

After entering and saving the license file, you must start the license server on your server machine. Included with your installation is a graphical interface for configuring the license manager, the FLEXlm License Manager Control Panel. With this utility, you can set environment paths, start, stop, and monitor the license manager.

1.

Open the license manager control panel. Open the FLEXlm License

Manager Control Panel by selecting Start

Settings

Control Panel and double-clicking on the FLEXlm License Manager icon.

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 39

Figure 2-1: FLEXlm License Manager Control Panel

2.

Check for existing license managers. Click the Setup tab. In the Service

Name list, click the arrow to display installed license managers. If there is more than one service listed, the potential for conflict exists between the license manager services. See

“Multiple Applications Using the Same License

Server” on page 50 for options and instructions.

3.

Setup the License paths. Click the Setup tab and enter paths for:

The license manager Browse to select lmgrd.exe

, located in the

RSI-DIR\IDL55\bin\bin.x86

directory.

RSI-DIR

is the directory in which you have installed your RSI software.

The license file Browse to select license.dat

, located in the

RSI-DIR\license directory.

The debug log file — Choose a location to save the license manager log reports. A typical choice is creating a lmgrd_log.txt

file in the

RSI-

DIR\license directory.

4.

Start the license manager at boot time. Check the boxes Use NT Services and Start Server at Power-Up to automatically start the license manager when the server is started.

5.

Accept the changes. Click Apply to save your license manager configurations. Then, click Yes to save these settings.

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

40 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Note

After selecting Start Server at Power-Up, note that the license manager will not be started automatically until the next time the machine is rebooted. Once you have started the service manually and it is operating as desired, you may want to restart your machine to verify that the automatic startup is operating correctly.

Start the License Manager

From the FLEXlm Control Panel, you can start the license manager.

Figure 2-2: FLEXlm Control Panel - Control tab

1.

Open the license manager control panel. Open the FLEXlm License

Manager Control Panel by selecting Start

Settings

Control Panel and double-clicking on the FLEXlm License Manager icon.

2.

Start the license manager. Select the Control tab and click Start to start the license manager.

Note

If you receive the “Server Start Failed” error message, the service may already be running. Click Status to see if the service is already running.

3.

Click OK to exit the control panel.

For more information on license manager utilities, see

“Working with the License

Server” on page 47.

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 41

Configure Clients to Access the License Server

To allow network access to a license manager installed on a server, the client machines must have access to the license file used by the license manager. Research

Systems recommends having a local installation of your RSI product on each client machine and referencing the license.dat

file stored on the server machine. Set the each client machine’s System Environment variables to point to the license.dat

file stored on the server to easily keep each installation updated with a current license. See the instructions for your platform, either the following section covering

Windows NT/2000 or

“Windows 98 Systems” on page 42.

Windows NT / 2000

Complete the following steps for each client machine:

1.

Access the System Control Panel. Click Start

Settings

Control Panel.

Double-click on the System icon.

2.

Select the Environment tab. (For Windows 2000, select the Advanced tab and then select Environment.) In the upper System Variables list, scroll down to the bottom and click in the white area. None of the currently listed variables should be highlighted.

3.

Enter a new System variable.

A. In the Variable field, enter LM_LICENSE_FILE.

B. In the Value field, enter your server’s

[email protected]

value, for example

[email protected] hal

. This information is in your license file. The port number is the last number on the SERVER line. The host name immediately follows

SERVER.

Note

If LM_LICENSE_FILE has already been defined for another software product, the definition of this license file may be appended using a semicolon (;) as the delimiter. For example:

C:\license\mylicense.dat;[email protected]

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

42 Chapter 2: Installing and Licensing IDL 5.5 for Windows

4.

Save the Settings. Click Set, Apply and OK. Your Environment dialog box should be similar to the following picture when completed.

Figure 2-3: Setting Client Environment Variables

Windows 98 Systems

Using the previous example, add the setting for the environment variable to the

autoexec.bat

file as follows:

SET LM_LICENSE_FILE =

[email protected]

The system must be restarted in order for this setting to take effect.

Note

If LM_LICENSE_FILE has already been defined for another software product, the definition of this license file may be appended using a semicolon (;) as the delimiter. For example:

SET LM_LICENSE_FILE = C:\license\mylicense.dat;[email protected]

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 43

Customize Your Floating Licenses

You can customize IDL license management by creating a license manager options file. This file allows you to:

• Reserve licenses for specified users or groups of users.

• Allows or disallows the use of IDL by certain users.

• Control what events are recorded in the log file.

To customize the license manager, create an options file in a text editor as described below. See

“Sample Options Files” on page 46 for examples.

Creating an Options File

Use a text editor to create a options file. For Research Systems products, the options file must be named idl_lmgrd.opt

and saved in the same directory as license.dat

. The default location in which to save the options file is the

RSI-DIR\license directory.

Note

Any time the options file is modified, you must stop and restart the license manager before the changes will take effect.

Use the following conventions when creating an options file:

• Specify each option on a separate line.

• Each line must begin with one of the keywords specified in the following table.

See the following section

“Options File Keywords”

for a list of available keywords.

• Limit the length of each line to less than 2048 characters. You can use the backslash (\) as a line continuation character if you need more than 2048 characters.

• All elements of the options file are case sensitive so users and groups must be correctly and consistently identified.

• Lines beginning with the pound sign (#) are ignored and can be used as comments.

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

44 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Options File Keywords

The following table describes the available keywords to use when creating an options file:

Keyword

EXCLUDE

EXCLUDEALL EXCLUDEALL type type_name

GROUP

HOST_GROUP

INCLUDE

Example

EXCLUDE feature type type_name

EXCLUDE idl USER bob

Excludes user “bob” from using IDL.

EXCLUDEALL GROUP misfit

Excludes the group misfit from using any IDL feature.

GROUP group user_list

GROUP visitor sam kate

Defines users “sam” and “kate” as comprising the group “visitor”.

HOST_GROUP group host_list

HOST_GROUP main hal sam

Defines hosts “hal” and “sam” as the group “main”.

INCLUDE feature type type_name

INCLUDE idl GROUP visitor

Allows only users in the group

“visitor” to use IDL.

Description

Can exclude user, group, host, or host_group from using

IDL. EXCLUDE takes precedence over

INCLUDE statements.

Implicitly allows all except “misfits” to access all features of

IDL.

Defines a list of users as a group to be used with other keywords such as INCLUDE or

EXCLUDE.

Defines a list of hosts as a group to be used with other keywords such as INCLUDE or

EXCLUDE.

Includes only specifically identified users or groups. All others are implicitly outside of this group, and denied access.

Table 2-2: Options File Keywords

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 45

Keyword Example Description

INCLUDEALL INCLUDEALL type type_name

INCLUDEALL GROUP research

Allows all users listed in the group research to use all features of IDL.

LINGER

MAX

NOLOG

REPORTLOG

RESERVE

LINGER feature seconds

LINGER idl 20

The license manager holds on to a license for an additional 20 seconds after it is checked in.

MAX #lic feature type type_name

MAX 6 compile GROUP research

Allows only a single user in the research group to use the compile feature at one time.

NOLOG event_type

NOLOG DENIED

NOLOG QUEUED

REPORTLOG report_log _path

REPORTLOG +RSI\license

Specifies the reportlog file path.

Specifies users or groups allowed use of all IDL features.

Causes licenses to be held by the license manager for a specific amount of time after a user exits IDL. Rarely used.

Limits usage of a feature among users or groups.

A separate NOLOG line is needed to turn off logging of events including IN, OUT,

DENIED, and

QUEUED.

The “+” indicates that the file is to be appended instead of being over-written each time the manager is started.

RESERVE #lic feature type type_name

RESERVE 6 idl USER sam

Reserves a single IDL license for the user “sam”.

Ensures that an IDL license will always be available to a specified user or group.

Table 2-2: Options File Keywords (Continued)

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

46 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Sample Options Files

To Reserve Licenses for a Group

The following example shows how to define and reserve a number of licenses for a group of users, and tells the license manager not to log denied requests. Each copy of

IDL requires 6 license units. Comment lines begin with #.

# reserve 5 IDL licenses for the research group

RESERVE 30 idl GROUP research

# define the users in the research group

GROUP research josh hal bob kate beth

# exclude anyone on a computer with the name main

EXCLUDE idl HOST main

# do not log license denials

NOLOG DENIED

Note

When using INCLUDE or EXCLUDE, anyone not specifically mentioned on a list is implicitly excluded or included. For example, in the above file, everyone who is

not working on a computer named “main” would be allowed to access IDL. An

EXCLUDE statement takes precedence over an INCLUDE statement. If the user

“josh” was working on a computer named “main,” he would not be able to access

IDL even though there is a license reserved for him.

To Reserve Licenses for Individuals

The following options file reserves licenses for individuals in the group defined above. If you have a group of 10 people, you can specify that a license or licenses will always be available to certain users by using the RESERVE keyword in an options file. The NOLOG line pertains to the IDL QUEUED command which allows a user to wait for an IDL license instead of entering seven-minute demonstration mode when a counted license is unavailable. It tells the log file not to record any queue events.

# reserve one license for "kate"

RESERVE 6 idl USER kate

# reserve one license for "josh"

RESERVE 6 idl USER josh

# reserve 3 licenses for "hal"

RESERVE 18 idl USER hal

# do not log queue events

NOLOG QUEUED

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 47

Working with the License Server

A license server support utility is provided to control the operation of the license server. To access the FLEXlm License Manager Control Panel, select Start

Settings

Control Panel and double-click on the FLEXlm License Manager icon.

For information on setting up the license manager, see

“Configuring the License

Server” on page 38.

Starting and Stopping the License Manager

In the FLEXlm Control Panel, you can easily start, stop and see the status of the license manager. Open the FLEXlm Control Panel utility by selecting Start

Settings

Control Panel and double-clicking on the FLEXlm License Manager icon. Select the Control tab.

Figure 2-4: FLEXlm Control Panel - Control tab

Starting the license manager — Click Start to start the license manager.

Monitoring the license manager — Click Status to see the current operational status of the license manager.

Stopping the license manager — Click Stop to disable the license manager.

Your software will run only in seven-minute demonstration mode without an available license.

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

48 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Removing the License Manager Service

To remove the license manager service, open the FLEXlm Control Panel utility by selecting Start

Settings

Control Panel and double-clicking on the FLEXlm

License Manager icon. Select the Setup tab and click Remove.

Note

This command removes the license manager service, and should not be used to simply stop the service. To stop the service, see

“Starting and Stopping the License

Manager” on page 47.

License Manager Diagnostics

Open the FLEXlm Control Panel utility by selecting Start

Settings

Control

Panel and double-clicking on the FLEXlm License Manager icon. Select the

Diagnostics tab. In this dialog, you can view the following:

Hostid’s — displays the identifying information of the machine running the license manager.

Version — displays version of the license manager application

Environment — displays the setting of LM_LICENSE_FILE. If you did not save your license file in the default location, see

“Saving the License File in an

Alternative Location” on page 37 for information on setting this environment

variable.

Connection — displays the status of your connection to the server.

Reclaiming an Unused License

If a licensed user is running IDL when the machine crashes, that user’s license may fail to return to the server. In this case, the license is not available to other users. The

lmremove

program allows the system administrator to remove a single user’s license for a specified feature and return the license to the pool of available licenses.

To free the license, complete the following steps:

1.

Start the license manager utility. Open a DOS based Command Prompt window from the server machine and change the directory to access the license manager utility by typing the following at the prompt: cd RSI-Dir\IDL55\bin\bin.x86

Enter lmutil at the prompt to access the utility program. A list of possible commands is displayed.

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 49

2.

Gather the information necessary to remove the license. Review the license manager status by entering the following at the command prompt: lmutil lmstat -a

.

This command displays available licenses and which users have licenses checked out. An example output of lmstat -a follows: robin hal7 josh (v5.4) (hal7/1700/395), start Mon 10/12 4:34,

# licenses

The format of this line is:

user host display (version) (host/port/license handle),

start_date, available_licenses

Note the user, host, and display values.

3.

Remove the unused license. Use the following to remove a license: lmutil lmremove feature user host display

For example: lmutil lmremove idl robin hal7 josh where idl is the feature, robin is the user, hal7 is the host, and josh is the

display. Other feature values for Research System products appear in the table below.

RSI Software Product

IDL

IDL Runtime

IDL Academic Edition

IDL with the Wavelet Toolkit

IDL DataMiner

IDL MPEG

Right to Distribute

ENVI

ION Script

Feature Value

idl idl_rt idl_student idl_wavelet idl_dm idl_mpeg devkit envi ion_script

Table 2-3: Feature Values for lmremove

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

50 Chapter 2: Installing and Licensing IDL 5.5 for Windows

RSI Software Product

ION Java

RiverTools

Noesys

VIP

Feature Value

ion_java idl_rivertools noesys vip

Table 2-3: Feature Values for lmremove (Continued)

4.

Verify the license has been removed. You can check to make sure the license was freed by typing the following at the DOS command prompt: lmutil lmstat -a

The license you just removed should no longer appear in the list of licenses checked out.

If the license manager gives an error message when starting, see

“Troubleshooting the License Server Startup” on page 55.

Multiple Applications Using the Same License Server

IDL’s network license server facility is provided by the FLEXible License Manager

(FLEXlm), a product of Globetrotter Software. Since this license manager is not unique to IDL, the possibility exists that you will need to run software from two or more software vendors that all use FLEXlm. In this case, the potential for license server conflict exists. You have the following options if all products using FLEXlm are installed on the same license server.

All Products Using FLEXlm are Installed on the Same Server

If a Research Systems product and other vendor product(s) using FLEXlm license management software are all installed on the same server machine, there are two options:

• Combine all license files into a single license file.

• Create unique license manager services for each product.

Combining License Files

If separate vendor applications using FLEXlm software are installed on the same server machine, and each vendor’s license file contains a SERVER line with an identical LMhostid, the solution is simple. After shutting down the license servers,

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 51 use a text editor to create a single license file. In this single license file, combine all license files by taking the SERVER lines from any one license file, and adding all the

DAEMON, FEATURE, FEATURESET, and INCREMENT lines from all of the license files.

Multiple copies of this combined license file can be placed in the locations required by the various software vendors. Alternatively, a single copy of the license file can be located in any convenient location, in which case each client machine must set the

LM_LICENSE_FILE environment variable to point to it.

When you have finished editing the license file, and saved it in the appropriate locations, restart the license manager with the most recent version of lmgrd that you have installed. From Windows Explorer, right click on each instance of lmgrd.exe

and select the Version tab in the Properties menu. If an older version of lmgrd is used, the license manager from the product with a more recent

lmgrd

will not operate correctly.

Configuring Unique FLEXlm License Manager Services on the Same

Server

As an alternative to combining the license information from multiple vendors licenses and running a single instance of the FLEXlm license manager service, a separate instance of the FLEXlm license manager service (with a unique name) can be installed and started for each separate vendor's license file.

Using separate instances of the FLEXlm license manager service with separate vendor licenses requires administering multiple services and license files. However, multiple license manager services and separate vendor license files allow the system administrator to stop and start FLEXlm services freely for particular vendors without regard for other vendors’ FLEXlm services running on that same system.

Warning

Be certain that only one instance of the FLEXlm license manager will start on the server machine with respect to any RSI product license file. If an instance of

FLEXlm license manager service is already running for an RSI product on this same license server machine, then installing a second instance of the FLEXlm service for an RSI product under a different name can cause a conflict when

Windows NT is loaded. (To resolve such a conflict, quickly stop all but one of the conflicting FLEXlm services immediately after logging on to that Windows NT license server machine.)

After verifying that there is not already an RSI product-configured license manager service running on your server machine, you can configure an uniquely named

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

52 Chapter 2: Installing and Licensing IDL 5.5 for Windows instance of the license manager service for RSI products to avoid conflict with other vendors’ license managers. To install a unique instance of the FLEXlm license manager for an RSI product license file, complete the following steps:

1.

Confirm that your updated RSI product license is already properly installed on the license server machine.

2.

Open the FLEXlm License Manager control panel from your machine's control panel interface.

3.

Select the Setup tab and enter a new (unique) FLEXlm service name in the

Service Name field. By default, the FLEXlm license manager service is called

“FLEXlm License Manager”. If the name “FLEXlm License Manager” is configured and already being used for another vendor's product license file, we recommend using the name “RSI FLEXlm License Manager” instead.

4.

Enter the paths to the RSI product’s lmgrd.exe

and license.dat

files. if not already created, the Debug Log File, typically saved in the license directory, will be created when the license manager is started. The Browse buttons can help to insure that the file path entered is valid.

5.

Select the Use NT Services and the Start Server at Power-Up check boxes.

6.

Click Apply and then click OK when you are prompted to save changes to the new FLEXlm service that you are adding.

Figure 2-5: Uniquely Naming a FLEXlm License Manager

7.

Go to the Licenses tab and click Show License file. If necessary, modify the

DAEMON line such that the idl_lmgrd.exe

path points to the most recent

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 53 version of the idl_lmgrd.exe

file on the license server machine.

Additionally, if another vendor's license file references the same communication port number as that in the SERVER line of the RSI license file, change this to an unused port number. The default port number for RSI product licenses is

1700

. Save changes to the RSI product license file and close the license file editor window.

8.

Start the newly named license manager. Select the Control tab and start the updated service by clicking the Start button.

9.

Verify that the license manager service has been started by clicking the Status button.

Troubleshooting a Floating License

If your Research Systems product runs in seven minute demonstration mode after you have attempted to license the product, follow the appropriate suggestions below and try starting IDL again. If you see errors from the license manager itself, turn to

“Troubleshooting the License Server Startup” on page 55.

Note

Useful messages may be logged in the license manager output log file that is designated at the time the FLEXlm service is installed.

1. Check that the server daemon is running.

Open the FLEXlm License Manager Control Panel by select Start

Settings

Control Panel and selecting the FLEXlm License Manager icon. Click the Status button on the Control tab. If you receive a message that states the license manager cannot connect to the license server, proceed to step 5.

2. Stop and restart the license manager.

Exit IDL. Stop and then restart the license manager.

3. Is the LM_LICENSE_FILE environment variable set to the license file of another application?

See

“Saving the License File in an Alternative Location” on page 37 to check the

setting of the LM_LICENSE_FILE environment variable. If LM_LICENSE_FILE points to a license file other than the RSI product’s license file, stored in the

RSI-DIR\license directory, you will need to correct this prior to starting IDL.

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

54 Chapter 2: Installing and Licensing IDL 5.5 for Windows

4. Is the license server reachable from your machine?

If IDL displays the following error message at startup:

LICENSE MANAGER: cannot connect to license server.

make sure that you can use the network utility “ping” to contact the server machine.

Open your system’s MS-DOS command prompt, enter: ping server_name

If you can ping the server machine, ensure that the license manager is running on that machine.

5. Has your license file been copied correctly?

If IDL displays the following error message at startup:

% LICENSE MANAGER: encryption code in license file is inconsistent.

some of the encrypted information in the license file is not correct. This can involve the server hostid, the daemon name, and any character on the FEATURE lines.

Examine your license file and correct the INCREMENT or FEATURE line so that it exactly matches the one sent to you by Research Systems. Check for proper capitalization and spacing. Shut down the license manager service, make any corrections necessary, and restart the service with the corrected license file.

6. Is the license manager using the correct license file?

If IDL displays the following error message at startup:

LICENSE MANAGER: no such feature exists.

LICENSE MANAGER: license file does not support this feature.

the license manager may be using the wrong license file. See the section,

“Configuring the License Server” on page 38 for details.

7. Does the license file contain the correct hostname?

If IDL displays the following error message at startup:

% LICENSE MANAGER: cannot find SERVER hostname in network database.

the hostname in the license file does not agree with the actual hostname for the server, or cannot be accessed from the client node. Edit the license file and correct the hostname.

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 55

8. Search the RSI Technical Support Library

Go to www.ResearchSystems.com/services/search.cfm

and select the following for more information on troubleshooting floating licensing:

Product:

Platform:

Category:

IDL

WINDOWS

LICENSING

Functional Area: LICENSING - FLEXlm

9. Check the Globetrotter Web Site.

The Globetrotter Web site contains on-line documentation and an excellent FLEXlm

FAQ. This information can be helpful when trying to combine licenses from different vendors. See the following Web pages:

Globetrotter home page: http://www.globetrotter.com

FLEXlm FAQ: http://www.globetrotter.com/flmfaq.htm

10. Contact RSI Technical Support

If you are still having problems licensing, see

“Contacting Research Systems” on

page 8 for information on how to contact Technical Support.

Troubleshooting the License Server Startup

If the license server gives an error message when starting, find the error message below and follow the instructions to eliminate the error.

1. Invalid Server Hostname

date time (lmgrd) "Hostname1": Not a valid server hostname, exiting.

date time (lmgrd) Valid server hosts are: "Hostname2"

In spite of the error message, Hostname1 is the hostname of the server that probably

should be in the license file, while Hostname2 is the incorrect hostname currently in the license file. Edit your license file to contain the correct hostname.

2. Inconsistent Encryption Code

date time (idl_lmgrd) Inconsistent encryption code for idl

There is a problem with the information on the FEATURE or INCREMENT line of the license file. Verify that the license key was entered correctly. Check capitalization and spacing, making sure it is exactly the same as in the license file sent to you.

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

56 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Finally, check to make sure that long lines in the license file have not been inadvertently wrapped to a new line.

3. No Features to Serve

date time (idl_lmgrd) No features to serve!

There are no valid FEATURE or INCREMENT lines. This is most commonly due to the “inconsistent encryption code” error described above.

4. Retrying Socket Bind

date time (lmgrd) Retrying socket bind (address in use: port 1700)

An attempt has been made to start the license manager when it was already running.

This often happens when the license file contains a mistake, the mistake is corrected, and the license manager is started again before the first attempt has been shut down or killed. There may also be some other software product using the default port number, 1700. Stop the service using the Services dialog in the Control Panel and restart the service.

5. No Such File or Directory

license daemon: execl failed: .../idl -T host 2.40 3 -c license daemon: system error code: No such file or directory

The path on the DAEMON line of the license file is incorrect. It should point to the

IDL directory. Edit the license file and correct the DAEMON line.

6. Cannot Find License File

license manager: can't initialize: cannot find license file

(No such file or directory)

date time (lmgrd) Using license file "filename"

The license manager cannot find the

license.dat

file. Either the

license.dat

file is not in the default location or the file specified in the environment variable

LM_LICENSE_FILE is incorrect. Also, make sure that the filename

license.dat

is spelled correctly and that you have read permission for the

license.dat

file.

7. Cannot Read License File

license manager: can't initialize: cannot read license file

(Permission denied) ’

The permissions are set incorrectly on the

license.dat

file. Set the file to allow read permission for all users.

Licensing IDL with a Floating License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows

8. Wrong Hostid for Server

Wrong hostid on Server line for license file:

C:\RSI\LICENSE\LICENSE.DAT

.

SERVER line says 000c0123454, hostid is 000c0abcde

Invalid host on SERVER line.

The hostid in the license file does not match the hostid of the machine. Verify that you are using the correct machine. You may need to request a corrected license file.

Make sure that the license file has been correctly copied from the original information sent to you by Research Systems.

For additional assistance, see

“Contacting Research Systems” on page 8.

57

Installing and Licensing IDL 5.5

Licensing IDL with a Floating License

58 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Licensing IDL with a HASP License

After installing IDL, use the licensing wizard to install the license key for your HASP license. Your license key will be sent to you via e-mail or fax. You should have received your hardware dongle with your IDL product. If you haven’t received these items, see

“Contacting Research Systems” on page 8.

Enter the License Key

To enter your license key and install your hardware dongle, complete the following steps:

1.

Shut down your computer. Always shut down your computer before installing or removing a HASP.

2.

Insert the HASP into any parallel port. Parallel ports are 25 pin ports also known as printer ports. The arrows on the HASP should point toward the back of the computer.

3.

Restart your computer.

4.

Start the IDL Licensing Wizard. Click the Windows Start button, and select

Programs

Research Systems IDL 5.5

License.

5.

Display the License Information dialog. Click the HASP button. Click Yes to confirm the installation of the HASP device driver. This will start the installation of the required drivers for HASP licensing. This may take a few minutes. After the installation is complete, the License Information dialog displays.

6.

Enter your license information. Enter the Installation Number, the Site

Notice, any Optional Features and the Installation Key exactly as they appear in the RSI product license information that was sent to you. Click OK.

Important Note About Your Hardware Key

If the hardware key is removed during an RSI software session or if you start your software without the hardware key attached, the software enters demonstration mode and you will not be able to save your work.

Troubleshooting HASP Licensing

1. Verify the license key is correct.

To verify your license key is correct, complete the following steps:

Licensing IDL with a HASP License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows 59

1.

Open your Windows Explorer and browse to the

RSI-DIR\IDL55\bin\bin.x86

directory.

2.

Double-click on the program file, hwrl.exe

to open the License Information dialog.

3.

Verify that the license key information that you have entered is exactly as it appears in the RSI product license information you have received.

Note

The license key is case-sensitive.

4.

Click OK.

2. Make sure there are no earlier versions of HASP drivers on your system.

This is only required if you have run other versions of RSI software products with earlier versions of the HASP drivers.

1.

Open a DOS command prompt and

CD to the directory of your previous RSI product installation which holds the hinstall.exe

file (for example,

C:\RSI\IDL52

,

C:\RSI\ENVI32\IDL52 or

C:\RSI\IDL54\bin\bin.x86

).

2.

Enter the following command to disable the now obsolete HASP device driver program: hinstall -r

3. Install the latest HASP driver.

Open a DOS command prompt and CD to the

RSI-DIR\IDL55\bin\bin.x86

directory (for example,

C:\RSI\IDL55\bin\bin.x86

)

Enter the following command to install the HASP device driver program: hinstall -i

This command launches the installation utility, which automatically installs the required drivers on your system (this may take a few minutes to complete). Click OK when the dialog appears stating that the installation has been completed.

4. Verify the hardware dongle has been installed correctly.

Make sure that your hardware dongle has been installed properly on your computer.

Installing and Licensing IDL 5.5

Licensing IDL with a HASP License

60 Chapter 2: Installing and Licensing IDL 5.5 for Windows

1.

Shut down your computer. Always shut down your computer before installing or removing a HASP.

2.

Re-Insert the HASP into any parallel port. Parallel ports are 25 pin connectors that are also known as “Printer” or “LPT” port. Check the back of the computer and make sure the hardware dongle is attached to a parallel port.

The arrows on the HASP should point toward the back of the computer.

3.

Restart your computer.

5. Is the correct dongle installed on your computer?

Make sure that you have the correct hardware dongle installed on your computer.

Look at the writing on the dongle and make sure the appropriate hardware dongle is listed:

Product

IDL

IDL Runtime

HASP Label

IDL

IDL/RT

Table 2-4: Product Label on HASP

For example, the appropriate hardware dongle label should look like one of the following:

HASP-3

XKAXZ UI

R3a

IDL

HASP-3

XEQIK US

R3d

IDL/RT

Figure 2-6: HASP Labels — IDL (right) and IDL Runtime (left)

If you have an “IDL Runtime” license key and an “IDL” hardware dongle, you will not be able to license IDL. If you have the wrong hardware dongle, see

“Contacting

Research Systems” on page 8 for information on how to contact Research Systems

for a new hardware dongle.

6. Search the RSI Technical Support Library

Go to www.ResearchSystems.com/services/search.cfm

and select the following for more information on troubleshooting HASP licensing:

Licensing IDL with a HASP License Installing and Licensing IDL 5.5

Chapter 2: Installing and Licensing IDL 5.5 for Windows

Product:

Platform:

Category:

IDL

WINDOWS

LICENSING

Functional Area: LICENSING - HASP

7. Contact RSI Technical Support

If you are still having problems licensing, see

“Contacting Research Systems” on

page 8 for information on how to contact Technical Support.

61

Installing and Licensing IDL 5.5

Licensing IDL with a HASP License

62 Chapter 2: Installing and Licensing IDL 5.5 for Windows

Licensing IDL with a HASP License Installing and Licensing IDL 5.5

Chapter 3:

Installing and Licensing

IDL 5.5 for UNIX

This chapter covers the following topics:

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . 64

Installing IDL for UNIX . . . . . . . . . . . . . . . 67

Requesting a License . . . . . . . . . . . . . . . . . . 72

Licensing IDL with an Evaluation License . 76

Licensing IDL with a Node-locked or Floating

License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Licensing for Alpha Linux . . . . . . . . . . . . . 85

Running IDL . . . . . . . . . . . . . . . . . . . . . . . . 87

Working with the License Server . . . . . . . . 88

Customizing Your Floating Licenses . . . . . 94

Modifying the License File . . . . . . . . . . . . 98

Multiple Applications That Use The Same

License Manager . . . . . . . . . . . . . . . . . . . 100

Running Older Versions of IDL Concurrently with IDL 5.5

. . . . . . . . . . . . . . . . . . . . . . . 102

Troubleshooting . . . . . . . . . . . . . . . . . . . . 103

Installing and LIcensing IDL 5.5

63

64

Introduction

Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Before You Begin

Check Your OS Version — Make sure that you are running on one of the supported UNIX versions listed in

“Supported Platforms” on page 9, or a

UNIX version that is binary-compatible with one of these versions.

You Must be Running X Windows — The IDL installation program has a

Motif graphical user interface and requires you to be running X Windows. If you cannot install from a machine running X Windows, see the instructions in the

/install/no_gui directory on your IDL CD-ROM.

Licensing Methods

Access to IDL and other products from Research Systems is controlled by a software application that ensures a proper license has been entered on the user’s system.

Licensing options include demonstration, evaluation, node-locked, and floating, each discussed in the following sections.

Demonstration License

Demonstration licenses are the default licenses provided with Research Systems software products. These licenses allow you to run limited versions of the software products in seven minute demonstration mode. You do not need to request or enter a license file. For more information, see

“Running IDL in Demonstration Mode” on

page 10.

Evaluation LIcense

Evaluation licenses are temporary trial licenses allowing access to all IDL features for a specified number of days. Once the evaluation license expires, you will be alerted by a dialog box stating that the application is available only in 7 minute demonstration mode. Contact Research Systems or your local distributor to purchase a permanent license or to extend your evaluation license.

The following is a sample Evaluation license key that you will receive either by e-mail or fax:

Product:

Expiration:

Key:

IDL X.X

23-Aug-20XX

ABC123DEF456GHI7-123

IDL Major Version: X.X

Package Name: eval_idl

Introduction Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 65

Node-Locked License

Node-locked licenses are personal licenses tying a single software application to a single machine. This method of licensing requires a machine’s unique host ID to be incorporated into a license request file. After a license request is sent to Research

Systems or your local distributor, a license file is returned. Entering and saving the license file enables full functionality of the Research Systems product on the machine for which you have sent the host ID.

The following is a sample node-locked license key that you will see on your product registration form which you will receive either by e-mail or fax:

SERVER myserver 12345678 1700

DAEMON idl_lmgrd /usr/local/rsi/idl_X.X/bin

INCREMENT idl idl_lmgrd X.X00 1-jan-0000 10 ABC123DEF456GHI789JK \

VENDOR_STRING="000011Research Systems, Inc." \

HOSTID=12345678 ck=2

FEATURESET idl_lmgrd ABC123DEF456GHI789JK

Floating License

Floating licenses (also known as client/server licenses) allow multiple users to concurrently access IDL. After installing and licensing IDL on the server machine, the license manager, installed along with your IDL software, handles requests for licenses from remote client machines. As the server administrator, you can choose how users access the licenses. You can select to reserve licenses for individuals or groups, or select to allow all users to share access to the licenses. If you have a team of 20 people, and you have purchased IDL with 10 floating licenses, you can select to reserve licenses for certain individuals in the group, or allow all team members to share access to the ten licenses throughout the day.

While both node-locked and floating licenses use a license file or key containing information based on a unique host ID from the machine being licensed, floating licenses additionally require the installation of a license manager.

IDL (with floating licenses) uses the Globetrotter Software FLEXlm license manager.

The license manager runs continuously on your system, waiting for a request from a

Research Systems product. When a request arrives, the license manager determines whether the proper license for a requested product is available. If the proper license is present and not already in use, the license manager allows access to the software.

Installing and LIcensing IDL 5.5

Introduction

66 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

The following is a sample floating license key that you will receive either by e-mail or fax:

# License Number(s): 000011

SERVER PSGUBAJ 12345678 1700

DAEMON idl_lmgrd /usr/local/rsi/idl_X.X/bin

INCREMENT idl idl_lmgrd X.X00 1-jan-0000 10 ABC123DEF456GHI789JK \

VENDOR_STRING="000011Research Systems, Inc." ck=34

FEATURESET idl_lmgrd ABC123DEF456GHI789JK

Introduction Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Installing IDL for UNIX

67

This section describes how to install and license IDL 5.5 for UNIX.

System Requirements

The following are the system requirements for installing IDL 5.5 for UNIX.

Requirement Description

Disk space

Operating System

200 MB (typical installation).

See

“Supported Platforms” on page 9 for a complete

listing of supported UNIX platforms.

Network Interface Card Product licensing procedures require a system equipped with TCP/IP addressable network communication card

(for example an ethernet card) and TCP/IP service.

Table 3-1: IDL 5.5 UNIX System Requirements

Mount the IDL CD-ROM on Your System

Some platforms automatically mount the CD-ROM when you insert it into your CD-

ROM drive. In most cases, the CD-ROM will be mounted as:

/cdrom/idl_55

The following instructions work in most cases for the platform listed. Consult your operating system documentation for instructions on mounting a CD-ROM on your system.

Note

Replace

CDROM-Dev

with the actual name of the CD-ROM drive on your system.

Type mounting commands as a single line. On most systems, you must have root permissions to mount the CD-ROM.

Installing and LIcensing IDL 5.5

Installing IDL for UNIX

68 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Platform

Compaq Tru64

UNIX

HP-UX

IBM AIX

Linux

SGI IRIX

SUN Solaris

CD Mounting Command

Typical

CDROM-Device

Name

/dev/rz4c /usr/sbin/mount -t cdfs -r -o rrip CDROM-Dev /cdrom mount -r -F cdfs -o cdcase

CDROM-Dev /cdrom mount -r -v cdrfs CDROM-Dev

/cdrom mount -o ro -t iso9660 CDROM-Dev

/mnt/cdrom

(automatically mounted as /CDROM)

/dev/dsk/c1t2d0

/dev/cd0

/dev/cdrom

(automatically mounted by volume manager as

/cdrom/idl_55)

Table 3-2: CD-ROM Mounting Commands

Remember how your CD-ROM has been mounted, and use this path in place of

CDROM-PATH

in the installation instructions.

Run the IDL Installation Procedure

To install IDL 5.5, complete the following steps:

Note

If you are installing IDL in a public directory, make sure you have root or similar permissions before running the installation script.

1.

Execute the installation script. Enter the following command at your UNIX prompt:

/bin/sh /CDROM-PATH/xinstall.sh

where

CDROM-PATH

is the path to your CD-ROM drive.

The Product Installation dialog appears.

2.

Read and accept the license agreement. To continue the installation, you must accept the terms of the Research Systems license agreement. Click Yes to continue.

Installing IDL for UNIX Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 69

3.

Choose the installation directory. The directory listed next to the Set

Directory button is the directory under which the idl_5.5

directory will be created. The default installation directory is

/usr/local/rsi

. To change the default, click Set Directory. If you do not have write permissions for the selected directory, it will appear as gray text. The selected directory will be created for you if it does not already exist.

4.

Select the options to install. Move the mouse pointer over each option to display information about that option. Select the check box next to each option you want to install.

5.

Select the platforms to install. This defaults to the platform on which you are running the installation script. Select or deselect platforms by clicking on the check box next to the option. Select the appropriate platforms for any machines that will run IDL on your network. When installing on a 64-bit machine, both the 32 and 64-bit check boxes will be checked by default.

6.

Verify your Selections. When you have selected the installation directory, options, and platforms for your IDL installation and have made sure you have enough disk space, click OK.

7.

Begin the Installation. The IDL Installation Summary dialog displays the options you have selected. If the options shown in the dialog are correct, click

Install to begin the installation process. If the options are not correct, click

Cancel to return to the IDL Installation dialog.

8.

Set up symbolic links. Once the installation script has finished copying files to the installation directory, the Product Environment dialog appears prompting you whether or not to create symbolic links.

Symbolic links are shortcuts to the IDL executables that you can create in your home directory or in any directory you specify that users can execute to start

IDL. If you want to create symbolic links, click Create Links. The Product

Links dialog appears.

If you choose not to create symbolic links at this time, you can create them after installing IDL by doing one of the following:

• Use the

RSI-DIR/idl_5.5/bin/install executable to create the symbolic links for you.

RSI-DIR

denotes the directory where you have installed IDL. You must execute this script from the

RSI-DIR

. Enter the following to create the symbolic links: cd RSI-DIR idl_5.5/bin/install

Installing and LIcensing IDL 5.5

Installing IDL for UNIX

70 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

• Make note of the commands you will need to execute to manually create symbolic links. These commands are displayed at the end of the installation process.

9.

Choose the directory in which to create the symbolic links. This can be your home directory or any other directory from which you want to start IDL.

The default directory is

/usr/local/bin

. This is a directory which is commonly in a user’s paths already. To change the default, click the Set

Directory button. If you do not have write permissions for the selected directory, it will appear as gray text. The selected directory will be created for you if it does not already exist.

10. Select to License IDL. To license IDL now, click Yes. For licensing instructions, see

“Licensing IDL with a Node-locked or Floating License” on

page 78. You can license IDL at a later time by typing rsilicense at the

UNIX prompt. To license IDL at a later time, or to run IDL only in seven minute demonstration mode, click No.

Note

To license IDL on Alpha Linux, select No in the License IDL dialog and see

“Licensing for Alpha Linux” on page 85 for instructions.

11. Your installation is now complete. The Installation Complete dialog reports any errors that may have been encountered during installation.

Note

IDL online manuals require Acrobat Reader with Search 3.0 or greater. A copy of

Adobe Acrobat Reader with Search 4.0 has been included on your product CD-

ROM. For more information, see

“About Adobe® Acrobat® Reader” on page 8.

Unmount the IDL CD-ROM from Your System

You can now unmount the CD-ROM using one of the following commands where

CDROM-Device

is the name of your CD-ROM drive.

umount /CDROM-Device or eject /CDROM-Device

Installing IDL for UNIX Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Installing the License Server

If you are intending the license server to run on a different machine than IDL, you need to install it on that platform. The license server binaries are included on your

CD-ROM in the

/flexlm directory.

Note

If you are intending to run the license server on the same machine as IDL, the required binaries have been installed with IDL. You do not need to install the license server binaries using the following instructions.

71

To install the license server binaries, complete the following steps:

1.

Mount the IDL CD-ROM on the license server system. Use the mounting instructions located in

“Mount the IDL CD-ROM on Your System” on page 67

2.

Create the RSI directory. On the server machine, the default location for all of the files is

/usr/local/rsi

. You need to create this directory using the following command: mkdir /usr/local/rsi

This path will be referenced as

RSI-DIR

in the remaining instructions in this guide.

3.

Change directory to RSI-DIR. Change to the directory you created in the previous step: cd /usr/local/rsi

4.

Unpack the license server binaries. There are a set of platform-independent binaries (the flexlm.tar

file) and a set of platform dependent binaries (the f_platform.tar

file). To unpack the binaries, use the following commands: tar -xvf

/CDROM-PATH

/flexlm/flexlm.tar

and tar -xvf

/CDROM-PATH

/flexlm/f_platform.tar

where

CDROM-PATH

is the path to your CD-ROM drive and

platform

represents the OS of the platform on which you are installing the binaries.

5.

Unmount the IDL CD-ROM. Use the unmounting instructions located in

“Unmount the IDL CD-ROM from Your System” on page 70

Installing and LIcensing IDL 5.5

Installing IDL for UNIX

72

Requesting a License

Chapter 3: Installing and Licensing IDL 5.5 for UNIX

If you are licensing with either a node-locked license or a floating license, you need a license key from Research Systems or your distributor. The license key is created using information from the machine on which you will be running the license server.

A built-in licensing program has been created to simplify the request and installation of your license file.

Note

You do not need to request a license if you are using an evaluation license. The required information will be automatically sent to you.

Note

Alpha Linux customers do not need to use the licensing wizard to request or enter a license file. See

“Licensing for Alpha Linux” on page 85 for instructions.

Note

The electronic registration program can’t retrieve the correct information unless you have a TCP/IP addressable network communication card (for example, an ethernet card) and a TCP/IP service set up on your system.

Note also that you must run the licensing wizard from the license server machine or the node-locked machine, on which you have installed your Research Systems software. This ensures proper generation of the server LMHostid and Nodename for your license file.

Note

You need write permissions for the

RSI-DIR/license

directory in order to save the license request file, rsi_request.txt

, created by the license wizard.

Requesting a License Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 73

Preparing a License Request

To prepare a license request, complete the following:

1.

Set up your environment. Before running the licensing wizard, you must set up your environment. You can use predefined setup files included with IDL.

If you are using the license server installed on the same platform with IDL, use one of the following:

For C shell: source RSI-DIR/idl_5.5/bin/idl_setup

For Korn shell:

. RSI-DIR/idl_5.5/bin/idl_setup.ksh

where

RSI-DIR

is the main installation directory for IDL.

If you are using a license server that you have installed on a different machine

(as described in

“Installing the License Server” on page 71), use one of the

following:

For C shell: source RSI-DIR/idl_5.5/bin/license_setup

For Korn shell:

. RSI-DIR/idl_5.5/bin/license_setup.ksh

where

RSI-DIR

is the main installation directory for the IDL license server.

2.

Start the license wizard. To start the license wizard, enter the following at the

UNIX prompt: rsilicense

3.

Begin the license request process. Select Permanent from the Permanent

Licensing dialog.

4.

Prepare a Request file. Click Request to prepare a license request file to submit to Research Systems. The licensing wizard guides you through the creation of a license request file that will contain all the information necessary for Research Systems to create a valid license file for your software installation.

Installing and LIcensing IDL 5.5

Requesting a License

74 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

5.

Enter your information. Fill in the following text fields in the Permanent

Licensing dialog:

Contact Person — Enter the name of the person to whom the license file should be sent.

E-mail Address — Enter the e-mail address of the contact person.

Installation Number — Enter the installation number found on your product installation form. You should have already received this form from

Research Systems by electronic mail or fax. If you have not received it, contact Research Systems technical support. See

“Contacting Research

Systems” on page 8 for more information.

Site Notice — Enter the name that you want to appear when you launch the software. The name you select will replace <your site notice> in the following statement: “licensed for use by <your site notice>.” This is typically your company’s name, department, or project.

6.

Select the license type. Select either Node Locked or Floating. The license wizard automatically generates the correct Hostname and LMHostid. Do not modify these values.

7.

Click Next to continue.

8.

Review your license request. If the information is correct, click Next to save the license request file and proceed. If the information is incorrect, edit it in the text window or click Back to make any corrections.

9.

Send the license request file. Click Next to send the license request file to

Research Systems. If you did not purchase your software directly from

Research Systems, alter the e-mail address and send the file to your local distributor.

Note

If you can’t send e-mail from your machine or if you receive a message stating that an attempt to send the e-mail was unsuccessful, see

“Manually Sending a License

Request” on page 75. A license file will be sent to you at the e-mail address or fax

number you supply.

10. Exit the License Wizard. Click Finish to exit the license request program.

If you do not receive a license file or any confirmation that the request was received, see

“Manually Sending a License Request” on page 75 to re-send the request.

Requesting a License Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 75

Manually Sending a License Request

To manually send a license request, select the appropriate step below and e-mail your request to [email protected]

or fax the text of the request file to

Research Systems at 303-786-9909.

From the license wizard — Select Back to display the request file. Copy all of the request information into an e-mail message or fax this text to Research

Systems.

Outside of the license wizard — Copy the request file, located in

RSI-DIR/license/rsi_request.txt

, and send it by fax or e-mail.

Note

If you did not purchase your software directly from Research Systems, send the file to your local office or distributor.

Installing and LIcensing IDL 5.5

Requesting a License

76 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Licensing IDL with an Evaluation License

After installing IDL, use the licensing wizard to install your evaluation license. If you do not have a license key, contact your RSI sales representative to request an evaluation license.

If you have exited the installation program, type rsilicense at the UNIX command prompt. If you have problems with this command, you may need to set environment aliases. See

“Set Up the IDL Environment” on page 82.

1.

Set up your environment. Before running the licensing wizard, you must set up your environment. You can use predefined setup files included with IDL.

If you are using the license server installed on the same platform with IDL, use one of the following:

For C shell: source RSI-DIR/idl_5.5/bin/idl_setup

For Korn shell:

. RSI-DIR/idl_5.5/bin/idl_setup.ksh

where

RSI-DIR

is the main installation directory for IDL.

If you are using a license server that you have installed on a different machine

(as described in

“Installing the License Server” on page 71), use one of the

following:

For C shell: source RSI-DIR/idl_5.5/bin/license_setup

For Korn shell:

. RSI-DIR/idl_5.5/bin/license_setup.ksh

where

RSI-DIR

is the main installation directory for the IDL license server.

2.

Start the license wizard. To start the license wizard, enter the following at the

UNIX prompt: rsilicense

3.

Access the Evaluation License dialog. Select the Evaluation button on the

Product Licensing dialog.

Licensing IDL with an Evaluation License Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 77

4.

Enter your license information.

• Select the Product — Select the product you wish to license from the dropdown list. Only installed products are displayed.

• Enter the Expiration date — For example, 12-oct-2000.

• Enter the Key code — Enter the key exactly as it appears on your

Registration form and click Next.

5.

Exit the licensing wizard. Click Finish. IDL is now licensed.

If you have saved your license file in a directory other than

/usr/local/rsi/license

, see

“Set Up the IDL Environment” on page 82 for

instructions on setting the LM_LICENSE_FILE path environment variable. When your trial period expires, an error message appears stating this fact when you start

IDL. Until re-licensed, IDL will operate only in seven-minute demonstration mode.

Troubleshooting Evaluation Licensing

If you receive an error message, locate it below for suggestions on resolving the problem.

1.

The license information does not pass the checksum test. Carefully check to make sure you have entered your license information exactly as it appears in your RSI product license information. Exactly duplicate capitalization, spacing and the date format as shown on your form.

2.

The file already exists. If you have an existing evaluation license for this product, you will be asked if you want to replace it. Select Yes to overwrite the old license with the new, extended evaluation license.

3.

The file cannot be written. You may not have write permissions for the directory or the file to which you are attempting to write. Check the permissions to make sure neither the directory nor any files you are attempting to overwrite are designated as “read-only.”

Installing and LIcensing IDL 5.5

Licensing IDL with an Evaluation License

78 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Licensing IDL with a Node-locked or Floating

License

To license your RSI product using a software-based node-locked license or a floating license, you need to enter your license key. After completing and sending your license request file, described in

“Requesting a License” on page 72, your license file

will be sent to you via electronic mail or fax. If your file is sent via e-mail, you can save the e-mail message as a file named

license.dat

, removing any header lines before the beginning of the actual license information. If you receive your license file via fax, you will have to enter the information into the text window of the license wizard as described below.

1. Save the License File

If your license key arrived via e-mail, you can save the e-mail message to a file so that the licensing wizard can import it. Complete the following steps:

1.

From your e-mail application, save the license file e-mail anywhere on your system as a file named license.dat

.

2.

With any text editor, remove any header lines that appear before the beginning of the actual license information keeping the comment lines that begin with the

“#” character. For an example of a license key, see

“Node-Locked License” on

page 65.

3.

Copy the license.dat

file to anywhere on the system you are running IDL if this is a node-locked license or anywhere on the license server if this is a floating license.

2. Enter the License Key

1.

Set up your environment. Before running the licensing wizard, you must set up your environment. You can use predefined setup files included with IDL.

If you are using the license server installed on the same platform with IDL, use one of the following:

For C shell: source RSI-DIR/idl_5.5/bin/idl_setup

For Korn shell:

. RSI-DIR/idl_5.5/bin/idl_setup.ksh

Licensing IDL with a Node-locked or Floating License Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 79 where

RSI-DIR

is the main installation directory for IDL.

If you are using a license server that you have installed on a different machine

(as described in

“Installing the License Server” on page 71), use one of the

following:

For C shell: source RSI-DIR/idl_5.5/bin/license_setup

For Korn shell:

. RSI-DIR/idl_5.5/bin/license_setup.ksh

where

RSI-DIR

is the main installation directory for the IDL license server.

2.

Start the IDL Licensing Wizard. Type rsilicense at the UNIX command prompt.

3.

Display the Enter License Text dialog. Select Permanent and then License from the licensing wizard dialogs.

4.

Enter your license file. Paste the text of the license file into the dialog’s text window, or select Browse to select the license file which you have named license.dat

. If you paste in your license file, remove any header lines that are included in the file but keep the comment lines that begin with the “#” character. If you have received your license file via fax or other hardcopy method, enter the information directly into the text window.

Note

The license key consists of non-indented lines, indented lines, and blank lines. Besides the comment lines (lines beginning with the number sign (#)), non-indented lines should begin with either a SERVER, DAEMON,

FEATURE, or INCREMENT keyword. Because of e-mail/fax limitations, extra long lines of the license key may have been inadvertently wrapped to a new line. If a non-indented line begins with a character other than a number sign (#) or a SERVER, DAEMON, FEATURE, or INCREMENT keyword, then it is likely that an extra long line has been incorrectly wrapped and that the segment belongs at the end of the previous line. Make sure that you review your license key for these possible errors. If such an error is not corrected, the software will not be licensed.

Note

Be sure that the DAEMON line of the license file points to the idl_lmgrd program in the

RSI-DIR/IDL_5.5/bin directory where

RSI-DIR

is the

Installing and LIcensing IDL 5.5

Licensing IDL with a Node-locked or Floating License

80 Chapter 3: Installing and Licensing IDL 5.5 for UNIX directory where you have installed your RSI software. If this is not the case, be sure to correct the license file path before proceeding.

5.

Save the license file. Click Next to save the license.dat

file in the

RSI-DIR/license directory. If you have installed your software in a directory other than the default,

/usr/local/rsi

, you must set the environment variables pointing to the license.dat

file before starting your

Research Systems software or the license manager. See instructions for setting the LM_LICENSE_FILE environment variable in

“Set Up the IDL

Environment” on page 82.

Note

If you receive a message that there is an existing license file, save the existing file under a different name before proceeding. While the new license usually contains information for all currently licensed products, save the old file as a safeguard against destroying license information. Run the license wizard again to save the new license file in the default location.

6.

Exit the licensing wizard. Click Finish.

Note

If you have other software that uses Globetrotter Software’s FLEXlm license manager you may want to combine the Research Systems license file with the existing ones. See

“Multiple Applications That Use The Same License

Manager” on page 100 for instructions and options.

Note

Research Systems strongly recommends saving your license file with the default path and filename

RSI-DIR

/license/license.dat

, for example, where

RSI-DIR

is usr/local/rsi

. If you put your license file in this directory, you do not have to redefine environment variables.

If you have saved the license file in a directory other than the default

RSI-DIR/license/license.dat

, you must set an environment variable pointing to the license.dat

file before starting the license manager. See the section

“Set Up the IDL Environment” on page 82 for instructions.

Licensing IDL with a Node-locked or Floating License Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 81

3. Start the License Server

This section describes how to start the license server. If you are using a node-locked or floating licenses, you must start the license server.

Note

If you are running only type MU (unlimited usage) licenses, as indicated on your license file’s INCREMENT line (indicated with 0 (zer0) or “uncounted”), you do not need to start the license manager.

Once you entered the license key, start the license manager by completing the following steps:

1.

Set the IDL_DIR environment variable. To set the IDL_DIR environment variable, enter the following:

For C shell: setenv IDL_DIR

/ RSI-DIR

/idl_5.5

For Korn shell: export IDL_DIR='/

RSI-DIR

/idl_5.5' where

RSI-DIR

is the main installation directory for your software.

2.

Start the license server. To start the license server, enter the following:

RSI-DIR/idl_5.5/bin/lmgrd [-c license_path] where

RSI-DIR

is the directory where you have installed your RSI software, and license_path is the full pathname to the license file, including the license filename. The default license path is

RSI-DIR/license/license.dat

. If you have used this default location or have defined the LM_LICENSE_FILE environment variable (as described in

“Define the Path to the License File or

License Server” on page 83), it is not necessary to specify the

c license_path option.

For information on other license manager functions, see

“Working with the License

Server” on page 88. If you receive an error message while trying to start the license

manager, consult

“License Manager Startup Troubleshooting” on page 108 for

possible solutions to your problem.

Note

If you have more than a single FLEXlm license manager running on a server, conflicts may exist among the license managers. Before starting the license

Installing and LIcensing IDL 5.5

Licensing IDL with a Node-locked or Floating License

82 Chapter 3: Installing and Licensing IDL 5.5 for UNIX manager, see

“Multiple Applications That Use The Same License Manager” on

page 100 for more detailed information on customizing your license file.

Note

Starting the license manager requires no special privileges. Note the potential security ramifications of running the license manager from the root account, as it can be started by any user. However, special privileges are required to shut down the license manager. See

“Shutting Down The License Manager” on page 90 for

more information.

4. Set Up the IDL Environment

Before you can run IDL, you must set up each user’s environment on the machine that will be running IDL. This consists of two tasks that each user of IDL will complete:

• Defining the required IDL environment variables and aliases.

• Defining the path to the license file or license server.

Define IDL Environment Variables and Aliases

A setup script has been provided which will set all required environment variables and aliases for IDL. Research Systems suggests that you modify either the

.cshrc

or

.profile

file for each user who will be accessing IDL so that these settings are automatically executed whenever a user logs in.

To modify your

.cshrc

or

.profile

file, complete the following steps:

1.

Modify each user’s

.cshrc

or

.profile

file using any plain text editor.

For C shell, have each user add the following line to their

.cshrc

file: source RSI-DIR/idl_5.5/bin/idl_setup

For Korn shell, have each user add the following line to their

.profile

file:

. RSI-DIR/idl_5.5/bin/idl_setup.ksh

where

RSI-DIR

is the main installation directory for IDL.

2.

Execute your

.cshrc

or

.profile

file. Log out and log back in to execute the

.cshrc

or

.profile

file or execute the file from the home directory using one of the following commands:

Licensing IDL with a Node-locked or Floating License Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 83

For C shell: source .cshrc

For Korn shell:

. .profile

Define the Path to the License File or License Server

To allow access to Research Systems software for both node-locked and floating licenses, the machines on which you are running IDL must have access to both the license file or the license manager.

Node-locked License

If you are installing a node-locked license and you saved the license file in a place other than the default (

/usr/local/rsi/license/license.dat

), you must define the path to the license file. Research Systems suggests that you modify either the

.cshrc

or

.profile

file for each user who will be accessing IDL so that these settings are automatically executed whenever a user logs in.

1.

Modify each user’s

.cshrc

or

.profile

file using any plain text editor.

You must define the UNIX environment variable for LM_LICENSE_FILE to point to the path to the license file. For example, if you save your license file as:

/myhome/license.dat

in the .

cshrc or .

profile file, define the LM_LICENSE_FILE variable as follows:

For C shell: setenv LM_LICENSE_FILE /myhome/license.dat

For Korn shell: export LM_LICENSE_FILE='/myhome/license.dat'

2.

Execute your

.cshrc

or

.profile

file. Log out and log back in to execute the

.cshrc

or

.profile

file or execute the file from the home directory using one of the following commands:

For C shell: source .cshrc

For Korn shell:

. .profile

Installing and LIcensing IDL 5.5

Licensing IDL with a Node-locked or Floating License

84 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Floating Licenses

You must define the path to the license server in each user’s environment that will be running IDL. To do this, you must define the

LM_LICENSE_FILE environment variable. Research Systems suggests that you modify either the

.cshrc

or

.profile

file for each user who will be accessing IDL so that these settings are automatically executed whenever a user logs in.

1.

Modify each user’s

.cshrc

or

.profile

file using any plain text editor.

You must define the UNIX environment variable for LM_LICENSE_FILE to point to the server and port of the machine running the license server. The syntax for the defining the environment variable is:

port@host

For example, if you are running the license server on a machine named “hal” with a port of 1700, then you would enter:

For C shell: setenv LM_LICENSE_FILE [email protected]

For Korn shell: export LM_LICENSE_FILE='[email protected]'

2.

Execute your

.cshrc

or

.profile

file. Log out and log back in to execute the

.cshrc

or

.profile

file or execute the file from the home directory using one of the following commands:

For C shell: source .cshrc

For Korn shell:

. .profile

You can change the port number by modifying the license file. For more information, see

“Modifying the License File” on page 98

Licensing IDL with a Node-locked or Floating License Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Licensing for Alpha Linux

85

Licensing for Alpha Linux requires Research Systems or your regional distributor to interactively create a license file for your RSI software installation. You will need to contact Research Systems Technical Support during business hours to license IDL.

Note

To reach Research Systems Technical Support, dial (303) 413-3920 from 8 a.m. to 5 p.m. mountain time or e-mail [email protected]

.

After installing IDL, complete the following steps:

1.

Log in as root.

2.

Change to your

RSI-DIR/idl_5.5/bin directory where

RSI-DIR

is the directory where you have installed IDL.

3.

Configure the environment for IDL:

• For C Shell, type: source idl_setup

• For Korn shell, type:

. ./idl_setup.ksh

4.

Type

./genver at the UNIX prompt. The genver program outputs a value for “Your number for today is:” that RSI requires to generate your license file.

Note

Keep the genver program running. To create a valid license, you must enter information received from RSI or your distributor before closing the genver program.

5.

Keep the genver program running and call or e-mail Research Systems

Technical Support or your distributor with "Your number for the day" value reported by the genver program.

If you are using e-mail, please include your name, company and installation number along with the value reported by genver.

6.

You will receive values for both the trial length period and for the RSI supplied installation key.

7.

Enter the licensing information received from RSI or your distributor. Your software is now licensed.

Installing and LIcensing IDL 5.5

Licensing for Alpha Linux

86 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Note

When your 180-day period expires, you will need to repeat this process to maintain your RSI software in licensed mode.

Licensing for Alpha Linux Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Running IDL

87

You can now start IDL or any of the following executables by entering one of the following commands:

• For IDL without its Motif GUI environment, enter idl at the system command prompt. IDL command line access is available at the UNIX prompt.

• For IDL with a GUI environment, enter idlde at the system command prompt. This starts the IDL Development Environment.

All available commands are:

Command

idl idlde rsilicense idldemo idlman idlhelp

Description

Start IDL Development Environment.

Start IDL in command line access mode.

Starts the licensing wizard.

Starts the IDL Demo Applications. You can also type demo at the IDL prompt after you have started IDL.

Start the IDL online manuals. This requires Adobe Acrobat

Reader to be installed on your system.

Displays the IDL Online Help. You can also enter

?

at the IDL prompt after you have started IDL.

Table 3-3: IDL Startup Commands

Note

If the previous commands do not produce the expected results, you need to set IDL environment aliases. See

“Set Up the IDL Environment” on page 82.

Installing and LIcensing IDL 5.5

Running IDL

88 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Working with the License Server

Several license manager support utilities are supplied for controlling the operation of the license server. These commands are all found in the bin subdirectory of the IDL distribution as shell scripts.

Note

You must have your IDL environment set up before running any of these utilities.

For more information, see

“Set Up the IDL Environment” on page 82

Note

To view a complete list of license manager utility commands, change to the

RSI-DIR/ idl_5.5

/bin directory and type lmutil at the UNIX prompt.

Automatically Starting the License Manager at Boot Time

To have the license server automatically start every time your server is booted, you should add the following license manager startup command to the system startup script:

RSI-DIR/idl_5.5/bin/lmgrd [-c license_path] for example

/usr/local/rsi/idl_5.5/bin/lmgrd $

-c /usr/local/rsi/ license/license.dat

(On some systems, you may need to enter a controlling script rather than changing the system startup script.)

Although the general idea is the same for all UNIX systems, the exact details differ between platforms. In all cases, you should consult the documentation for your system. The guidelines below are intended to serve as a starting point.

Note

These systems all require modification of system files and/or directories to start the license manager. Such changes may be lost when you update the operating system.

Therefore, you should keep notes on the changes made, so that you can properly customize new operating system releases.The following instructions may differ for your platform. For additional information, refer to your host operating system documentation or the man pages for init, rc0, rc2, and rc3.

Working with the License Server Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 89

IBM AIX

Using any text editor, add the startup command for the license manager to the end of the

/etc/rc file.

Linux

Using any text editor, add the startup command for the license manager to the end of the

/etc/rc.d/rc.local

file.

Sun Solaris, SGI IRIX, HP-UX, and Compaq Tru64 UNIX

You must place a controlling script in a directory (usually

/etc/init.d

or

/sbin/init.d

) and create links to that script that are run at system startup and shutdown.

A template for the controlling script can be found in the file

RSI-DIR/idl_5.5/bin/sys5_idl_lmgrd

. Read this file for instructions that apply to your system. After customizing this script for your site, copy the file to the appropriate directory and create the links that are described in the file. For additional information, see the system administrator’s manual for your system or the man pages for init, rc0, rc2, and rc3.

Note

These instructions cover most situations. For information about license manager error messages or for permissions needed to run and shut down the license manager, see the

“License Manager Startup Troubleshooting” on page 108 or

“Working with the License Server” on page 88.

Creating a License Manager Log File

The license manager writes a log of its activities to its standard output. If you don’t want to keep a log, you can redirect the standard output to the null device

(

/dev/null

) by starting the license manager with the command:

RSI-DIR/idl_5.5/bin/lmgrd > /dev/null

It is also possible to direct the log to the system console with the command:

RSI-DIR/idl_5.5/bin/lmgrd > /dev/console

If you wish to keep a permanent log file, you should choose a location on your system where a growing log won’t cause disk space problems. On Sun systems, the

/var/adm directory is a reasonable choice.

Installing and LIcensing IDL 5.5

Working with the License Server

90 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Shutting Down The License Manager

The lmdown program initiates a shutdown of all license managers by sending a message to every license manager asking it to shut down. The license managers write out their last messages to the log file, close the file, and exit. All licenses which have been given out by those managers are rescinded, so that the next time an RSI software process goes to verify its license, it will not be valid.

To run lmdown

, change to your

RSI-DIR/idl_5.5/bin directory and type lmdown at the UNIX prompt following the syntax below: lmdown [-c license_file] [-q]

Option arguments include

-c which defines the path to your license.dat

file and

-q which runs lmdown in “quiet mode”. If the

-q switch is not specified, lmdown asks for confirmation before asking the license managers to shut down. If this switch is specified, lmdown does not ask for confirmation.

Security note: Unauthorized use of the lmdown command can be disruptive because when the license manager shuts down, all current RSI software product sessions are terminated. You should ensure that the file access modes on your system are sufficiently restrictive. We recommend setting the permissions for lmdown with the following UNIX command: chmod 500 RSI-DIR/idl_5.5/bin/lmdown

Reclaiming an Unused License

If a licensed user is running IDL when the machine crashes, the license that was in use may fail to be returned to the server. In this case, the license is not available to other users. The lmremove program allows the system administrator to remove a single user’s license for a specified feature and allows the license to return to the pool of available licenses.

Warning

Do not use lmremove to return a license that is being used by an active IDL session.

Use only to reclaim licenses from IDL sessions that are no longer active.

To free a license, you need to first gather information using the status, lmstat

, command.

To run lmstat

, change to your

RSI-DIR/idl_5.5/bin directory and type: lmstat -A | more

Working with the License Server Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 91

This shows the status of license managers as well as checked-out licenses. For example the following line shows user ‘robin’ has a license for IDL 5.5 checked out from the server ‘hal7’ which is being displayed on the host ‘josh’: robin hal7 josh (v5.5) (hal7/1700/395), start Mon 10/12

4:34, # licenses

The format of this line is:

user host display

(

version

) (

host

/

port

/

license_handle

),

start_date

,

#_of_available_licenses

If the license held by user ‘robin’ needs to be freed, make note of the user, host, and display values, and then remove the license with the following lmremove syntax:.

lmremove idl robin hal7 josh where idl is the feature, robin is the user, hal7 is the host, and josh is the

display. Other feature values for Research Systems products appear in the table below. You can check to make sure the license was freed by typing the following at the UNIX command prompt: lmstat -A | more

The license you just removed should no longer appear in the list of licenses checked out. See the following table for a list of lmremove feature values.

RSI Software Product

IDL

IDL Runtime

IDL Academic Edition

IDL with the Wavelet Toolkit

IDL DataMiner

IDL MPEG

Right to Distribute

ENVI

ION Script

ION Java

Feature Value

idl idl_rt idl_student idl_wavelet idl_dm idl_mpeg devkit envi ion_script ion_java

Table 3-4: Feature Values for lmremove

Installing and LIcensing IDL 5.5

Working with the License Server

92 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

RSI Software Product

RiverTools

Noesys

VIP

Feature Value

idl_rivertools noesys vip

Table 3-4: Feature Values for lmremove (Continued)

Checking the License Manager Status

The lmstat program provides information about the status of the server nodes, license managers, and currently checked out licenses. To run lmstat

, change to your

RSI-DIR/idl_5.5/bin directory, and enter: lmstat [-a] [-A] [-c license_file] [-l [regular_expr]]

[-s [server]]

Optional flags for lmstat are shown in the following table.

-a

-A

-c license_file

-l [regular_expression]

-s [server]

Optional Flags for lmstat

This option displays all available information about the license manager status. If this argument is not present, only a brief summary of the manager’s state is given.

This option displays a list of all active licenses.

This option defines the license file path. If this switch is not specified, lmstat looks for the LM_LICENSE

_FILE environment variable. If that environment variable is not set, lmstat looks for the file RSI-

DIR

/license/license.dat

.

This option lists all users of the features matching the given regular expression.

This option displays the status of the specified server node(s).

Table 3-5: Optional Flags for lmstat

Working with the License Server Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Obtaining a Host ID

The lmhostid program calls the license manager version of gethostid and displays the results. To run lmhostid, change to the directory,

RSI-DIR/idl_5.5/bin

, and type lmhostid at the UNIX prompt. The output of lmhostid looks like this: lmhostid - Copyright (C) 1989-1999 Globetrotter Software, Inc.

The FLEXlm host ID of this machine is "8002add0"

If You Encounter Errors

If the license manager gives an error message when starting, see

“License Manager

Startup Troubleshooting” on page 108.

93

Installing and LIcensing IDL 5.5

Working with the License Server

94 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Customizing Your Floating Licenses

You can customize IDL license management by creating a license manager options file. This file allows you to:

• Reserve licenses for specified users or groups of users.

• Allows or disallows the use of IDL by certain users.

• Control what events are recorded in the log file.

To customize the license manager, create an options file in a text editor as described below. See

“Sample Options Files” on page 97 for examples.

Creating an Options File

Use a text editor to create an options file. For Research Systems products, the options file must be named idl_lmgrd.opt

and saved in the same directory as license.dat

. The default location in which to save the options file is the

RSI-DIR/license directory.

Note

Any time the options file is modified, the license manager must be stopped and restarted before the changes will take effect.

Use the following conventions when creating and options file:

• Specify each option on a separate line.

• Each line must begin with one of the keywords specified in the following table.

See the following section

“Options File Keywords”

for a list of available keywords.

• Limit the length of each line to less than 2048 characters. You can use the backslash (\) as a line continuation character if you need more than 2048 characters.

• All elements of the options file are case sensitive so users and groups must be correctly and consistently identified.

• Lines beginning with the pound sign (#) are ignored and can be used as comments.

Customizing Your Floating Licenses Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 95

Options File Keywords

The following table describes the available keywords to use when creating an options file:

Keyword

EXCLUDE

Example

EXCLUDE feature type type_name

EXCLUDE idl USER bob

Excludes user “bob” from using IDL.

EXCLUDEALL EXCLUDEALL type type_name

GROUP

INCLUDE

EXCLUDEALL GROUP misfit

Excludes the group misfit from using any IDL feature.

GROUP group user_list

GROUP visitor sam kate

Defines users “sam” and “kate” as comprising the group “visitor”.

HOST_GROUP HOST_GROUP group host_list

HOST_GROUP main hal sam

Defines hosts “hal” and “sam” as the group “main”.

INCLUDE feature type type_name

INCLUDE idl GROUP visitor

Allows only users in the group

“visitor” to use IDL.

Description

Can exclude user, group, host, or host_group from using

IDL. EXCLUDE takes precedence over

INCLUDE statements.

Implicitly allows all except “misfits” to access all features of

IDL.

Defines a list of users as a group to be used with other keywords such as INCLUDE or

EXCLUDE.

Defines a list of hosts as a group to be used with other keywords such as INCLUDE or

EXCLUDE.

Includes only specifically identified users or groups. All others are implicitly outside of this group, and denied access.

Table 3-6: Options File Keywords

Installing and LIcensing IDL 5.5

Customizing Your Floating Licenses

96 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Keyword Example Description

INCLUDEALL INCLUDEALL type type_name

INLCUDEALL GROUP research

Allows all users listed in the group research to use all features of IDL.

LINGER

MAX

NOLOG

REPORTLOG

LINGER feature seconds

LINGER idl 20

The license manager holds on to a license for an additional 20 seconds after it is checked in.

MAX #lic feature type type_name

MAX 10 compile GROUP research

Allows only a single user in the research group to use the compile feature at one time.

NOLOG event_type

NOLOG DENIED

NOLOG QUEUED

REPORTLOG report_log _path

REPORTLOG +RSI\license

Specifies the reportlog file path.

Specifies users or groups allowed use of all IDL features.

Causes licenses to be held by the license manager for a specific amount of time after a user exits IDL. Rarely used.

Limits usage of a feature among users or groups.

A separate NOLOG line is needed to turn off logging of events including IN, OUT,

DENIED, and

QUEUED.

The “+” indicates that the file is to be appended instead of being over-written each time the manager is started.

RESERVE RESERVE #lic feature type type_name

RESERVE 10 idl USER sam

Reserves a single IDL license for the user “sam”.

Ensures that an IDL license will always be available to a specified user or group.

Table 3-6: Options File Keywords (Continued)

Customizing Your Floating Licenses Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 97

Sample Options Files

To Reserve Licenses for a Group

The following example shows how to define and reserve a number of licenses for a group of users, and tells the license manager not to log denied requests. Each copy of

IDL requires 10 license units on a Workstation-class machine. Comment lines begin with #.

# reserve 5 IDL licenses for the research group

RESERVE 50 idl GROUP research

# define the users in the research group

GROUP research josh hal bob kate beth

# exclude anyone on a computer with the name main

EXCLUDE idl HOST main

# do not log license denials

NOLOG DENIED

Note

When using INCLUDE or EXCLUDE, anyone not specifically mentioned on a list is implicitly excluded or included. For example, in the above file, everyone who is

not working on a computer named “main” would be allowed to access IDL. An

EXCLUDE statement takes precedence over an INCLUDE statement. If the user

“josh” was working on a computer named “main,” he would not be able to access

IDL even though there is a license reserved for him.

To Reserve Licenses for Individuals

The following options file reserves licenses for individuals in the group defined above. If you have a group of 10 people, you can specify that a license or licenses will always be available to certain users by using the RESERVE keyword in an options file. The NOLOG line pertains to the IDL QUEUE command which allows a user to wait for an IDL license instead of entering demonstration mode when a counted license is unavailable. It tells the log file not to record any queue events.

# reserve one license for "kate"

RESERVE 10 idl USER kate

# reserve one license for "josh"

RESERVE 10 idl USER josh

# reserve 3 licenses for "hal"

RESERVE 30 idl USER hal

# do not log queue events

NOLOG QUEUED

Installing and LIcensing IDL 5.5

Customizing Your Floating Licenses

98 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Modifying the License File

The license file controls:

• Which products can run

• Which machines they can run on

• How many copies can run concurrently

The FEATURE lines of the license file determine which products are available. The

SERVER lines define which machines the products run on. The number of copies of the product that can run concurrently is controlled by the number of license units available, as specified by either the FEATURE or INCREMENT lines.

Sample License Files

The following is an example of what a license file look like.

An IDL License File

The following example license file is built for the license server “hal”, which has the

LMHostid “0000c09a23f0,” and the designated port number “1700”. This license has

5 floating licenses for UNIX machines.

The last line in the license file is the FEATURESET line, which ties all the

FEATURE and INCREMENT lines together:

SERVER hal 0000c09a23f0 1700

DAEMON idl_lmgrd usr/local/rsi/idl_5.4/bin/idl_lmgrd

FEATURE idl idl_lmgrd 5.400 1-jan-0000 50 5BC6A081FA3009FA5673 \

VENDOR_STRING="1234-1Acme Datawack Corp" ck=16

FEATURESET idl_lmgrd 96C31B1FB71BCAE9

Note

The FEATURE line for the IDL floating license shows 50 license units. This is not an error. Each counted IDL license requires 10 license units on the FEATURE or

INCREMENT line. If this field is set to zero, the line indicates an unlimited number of node-locked licenses.The number of license units is a platform-dependent scale factor times the number of licenses you own. For example, if you have 3 UNIX floating licenses, this field is set to 30.

Modifying the License File Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 99

Viewing or Modifying the License File

To access the text of your license file through the license wizard, complete the following steps:

Locating the License File

1.

After installing RSI software, open the licensing wizard by changing to your

RSI-DIR/idl_5.5/bin directory and typing rsilicense at the UNIX prompt.

2.

Select Permanent and License to display the license text file window. If you have a file saved in the default location,

RSI-DIR/license/license.dat

, it will appear in the text window. If you have saved the file in another location, click Browse to find it.

Altering the License File

Only four data items in the license file can be modified by the user:

• hostnames (but not host IDs) on SERVER lines

• port numbers on SERVER lines

• pathnames on DAEMON lines

• options file pathnames on DAEMON lines (Note that it is not necessary to specify option file path names with FLEXlm v6 or later. IDL 5.5 for UNIX uses FLEXlm v6.1).

Warning

Changing license file lines other than those discussed below will invalidate your license file, causing your IDL installation to run only in Demonstration mode.

Individually altering any FEATURE or INCREMENT lines with DAEMON name idl_lmgrd destroys the file.

If you have multiple vendors using FLEXlm license management software, see

“Multiple Applications That Use The Same License Manager” on page 100 for more

detailed information on customizing your license file.

Installing and LIcensing IDL 5.5

Modifying the License File

100 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Multiple Applications That Use The Same

License Manager

IDL’s network license management facility is provided by Globetrotter’s FLEXible

License Manager (FLEXlm). Since this license manager is not unique to IDL, the possibility exists that you will need to run software from two or more software vendors that use FLEXlm. In this case, the potential for license server conflict exists.

There are two cases to be considered:

• All products and product license managers are installed on the same server.

• The products and product license managers use different servers.

All Products Use the Same Set of Server Nodes

If a Research Systems product and other vendor product(s) using FLEXlm license management software are all installed on the same server machine, the solution is simple. Combine the license files as described below.

Note

Note that you must shut down the license server before editing the license file.

Combining License Files

After shutting down the license server, use a text editor to alter a single license file. In this single license file, combine all license files by taking the SERVER lines from any

one license file, and adding all the DAEMON, FEATURE, FEATURESET, and

INCREMENT lines from all of the license files.

Place copies of this combined license file in the locations required by the various software vendors. Alternatively, a single copy of the license file can be located in any convenient location, in which case each client machine must set the

LM_LICENSE_FILE environment variable to point to it.

After saving the license files in the appropriate locations, restart the license manager with the most recent version of

lmgrd

that you have installed. (IDL 5.5 uses FLEXlm v6.1). If an older version of

lmgrd

is used, the license manager from the product with a more recent

lmgrd

will not operate correctly.

Multiple Applications That Use The Same License Manager Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 101

The Products Use Different Servers

If the products use different servers, a local or shared network installation of the product license file is required on each client machine. This copy of the license file directs the request for a license to the proper server. You will also need to set the existing

LM_LICENSE_FILE variable to include the new product’s license file path.

For example, if you have an existing product named “ otherapp

” residing in the

“ home

” directory, the

LM_LICENSE_FILE environment variable would be as follows:

For C Shell: setenv LM_LICENSE_FILE /home/otherapp/license.dat

To add a Research Systems software product license file, add it to the existing

LM_LICENSE_FILE variable by separating the new application’s license path from the existing one with a colon as follows:

For C shell: setenv LM_LICENSE_FILE

/home/otherapp/license.dat:RSI-DIR/license/license.dat

RSI-DIR

is the installation directory of your software product.

Tip

Restart the license manager with the most recent version of lmgrd that you have installed. The version number of lmgrd is displayed when it is started. If an older version of lmgrd is used, the license manager daemon from the product with a more recent lmgrd will not operate correctly.

Installing and LIcensing IDL 5.5

Multiple Applications That Use The Same License Manager

102 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Running Older Versions of IDL Concurrently with IDL 5.5

In many cases, it is possible to run older versions of IDL concurrently with the most recent version. If a FEATURE line has the version number 5.500, for example, it will allow IDL 5.5 and all earlier versions of IDL to run. In some cases, new license manager capabilities such as the INCREMENT line may prevent an older versions of

IDL from working with the latest version of the license manager.

Start the Latest Version of the License Manager

In general, it is important to start the license manager from the latest IDL distribution and use the same license file for the older IDL distribution. The license manager should only be started once, from the new distribution. It should not be started from an old IDL distribution.

Using IDL Version 5.

x

with the IDL Version 5.5 License

Manager

The license manager from IDL version 5.5 will support IDL 4.0, 5.0, 5.1, 5.2, 5.3, and 5.4 clients. No modifications to the IDL 5.5 license file are necessary to run IDL

4.0 and IDL 5.x concurrently with IDL 5.5.

Running Older Versions of IDL Concurrently with IDL 5.5

Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Troubleshooting

103

If a Research Systems software product runs in seven-minute demonstration mode after you have attempted to license the product, follow the appropriate suggestions below and try running the software again. If you see errors from the license manager itself, turn to

“License Manager Startup Troubleshooting” on page 108.

1. Is the proper executable file (idl) in your command search path?

The UNIX command: which idl will tell you if it is in your command search path and where it is. You can verify that the search path is the problem by executing IDL directly. If the command:

RSI-DIR/idl_5.5/bin/idl runs IDL, you know that the search path is to blame.

2. Are the file permissions correct?

If you receive the error message “Permission denied” when you try to run IDL, check the permissions set on all the executables. They should have execute permission set for all categories. Set execute permissions for IDL by entering: chmod ugo+x RSI-DIR/idl_5.5/bin*/*

3. Does IDL know the location of the main IDL directory?

The environment variable IDL_DIR must be defined to the path of the IDL directory.

Enter the following UNIX command: echo $IDL_DIR

IDL_DIR should be set to

RSI-DIR/idl_5.5

. If not, you probably have not run the idl_setup or idl_setup.ksh

file. To set the variable for IDL_DIR, enter the following:

For C shell: setenv IDL_DIR RSI-DIR/idl_5.5

For Korn shell: export IDL_DIR='/RSI-DIR/idl_5.5'

Installing and LIcensing IDL 5.5

Troubleshooting

104 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

4. Is the license manager running?

The lmstat license manager utility provides information on the status of the license manager. Enter:

RSI-DIR/idl_5.5/bin/lmstat

If you receive the following message:

License server status: name: cannot connect to license server (Connection refused)

Vendor daemon status (on name): idl_lmgrd : cannot connect to license server (Connection refused) the server is not running correctly.

5. Stop and restart the license manager.

Exit IDL and stop the license manager, then restart it, directing the output of the license manager to a file. Enter:

RSI-DIR/idl_5.5/bin/lmdown

Check to make sure that all the license manager processes have shut down with a command like: ps -ef | grep lm or ps -aux | grep lm

If there are any license manager processes still running, use the kill command to stop them (do not use the -9 option for kill). Restart the license manager with the following command:

RSI-DIR/idl_5.5/bin/lmgrd > logfile

Examine the resulting file logfile for error messages and refer to

“License Manager

Startup Troubleshooting” on page 108.

6. Is the LM_LICENSE_FILE environment variable set to the license file of another application?

Enter the command: echo $LM_LICENSE_FILE

Troubleshooting Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 105 to see the current definition of the environment variable. If this environment variable points to some other license file, you will need to unset it prior to starting IDL by entering: unsetenv LM_LICENSE_FILE

For Korn shell: unset LM_LICENSE_FILE

If you have used a different path than the default location, make sure that

LM_LICENSE_FILE points to that location.

7. Is the license manager available from your machine?

If IDL displays the following error message at startup:

LICENSE MANAGER: cannot connect to license server.

make sure that you can telnet to the server machine. If you can remotely log in to the server machine, make sure that the license manager is running on that machine.

8. Has your license file been copied correctly?

If IDL displays the following error message at startup:

% LICENSE MANAGER: encryption code in license file is inconsistent.

some of the encrypted information in the license file is not correct. This can involve the SERVER hostid, the DAEMON name, and any character on the FEATURE line.

Examine your license file and correct the FEATURE line so that it exactly matches the one sent to you by Research Systems. Check for capitalization and spaces. Shut down the license manager by entering:

RSI-DIR/idl_5.5/bin/lmdown and restart by entering:

RSI-DIR/idl_5.5/bin/lmgrd

Installing and LIcensing IDL 5.5

Troubleshooting

106 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

9. Is the license manager using the correct license file?

If IDL displays the following error message at startup:

LICENSE MANAGER: no such feature exists.

LICENSE MANAGER: license file does not support this feature.

the license manager may be using the wrong license file. Reset the

LM_LICENSE_FILE environment variable to point to IDL’s license file using the command: setenv LM_LICENSE_FILE RSI-DIR/license/license.dat

See Defining the LM_LICENSE_FILE environment variable in

“Set Up the IDL

Environment” on page 82 for more information.

10. Does the license file contain the correct hostname?

If IDL displays the following error message at startup:

% LICENSE MANAGER: cannot find SERVER hostname in network database.

the hostname in the license file does not agree with the actual hostname for the server, or cannot be accessed from the client node. Edit the license file and correct the hostname. The hostname can be found in the

/etc/hosts file located on the network server.

11. Are network permissions set properly?

If IDL displays the following message at startup, except when run from the root

account:

% LICENSE MANAGER: invalid host.

make sure that the ethernet device (usually

/dev/lan0

) has rw permission for owner, group and other. It probably just has rw permission for owner ( root

). Also, make sure that the

/var/tmp directory has rw permissions.

This error occurs most often on HP-UX systems. You can use

/etc/lanscan to check for the name of the ethernet device. It’s the item under the heading

“NameUnit”.

Troubleshooting Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 107

12. Is the license file in the correct location and are its permissions set correctly?

If you receive one of the following three error messages, IDL is unable to access the license.dat

file:

% Trial version expired.

% Machine not licensed for IDL. Entering 7 minute Demo mode. This

Demo mode is for short-term product evaluation purposes only.

% Machine not licensed for IDL. Entering 7 minute Demo mode. This

Demo mode is for short-term product evaluation purposes only.

% Unexpected validation error.

% Machine not licensed for IDL. Entering 7 minute Demo mode. This

Demo mode is for short-term product evaluation purposes only.

Check the permissions on the license.dat

file. All users need read permission.

Also make sure the license.dat

filename is spelled correctly. If you are using the environment variable LM_LICENSE_FILE, make sure that the full path and filename of the license.dat

file are set correctly. See

“Set Up the IDL

Environment” on page 82 for more information.

13. Search the RSI Technical Support Library

Go to www.ResearchSystems.com/services/search.cfm

and select the following for more information on troubleshooting node-locked and floating licensing:

Product:

Platform:

IDL

UNIX

Category:

LICENSING

Functional Area: LICENSING - FLEXlm

14. Contact RSI Technical Support

If you are still having problems licensing, see

“Contacting Research Systems” on

page 8 for information on how to contact Technical Support.

Installing and LIcensing IDL 5.5

Troubleshooting

108 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

License Manager Startup Troubleshooting

If the license manager gives an error message when starting, find the error message below and follow the instructions to eliminate the error.

1. Invalid Server Hostname

date time (lmgrd) "Hostname1": Not a valid server hostname, exiting.

date time (lmgrd) Valid server hosts are: "Hostname2"

In spite of the error message, Hostname1 is the hostname of the server that probably

should be in the license file, while Hostname2 is the incorrect hostname currently in the license file. Edit your license file to contain the correct hostname.

2. Inconsistent Encryption Code

date time (idl_lmgrd) Inconsistent encryption code for idl

There is a problem with the information on the FEATURE or INCREMENT line of the license file. It has not been copied correctly from the fax or e-mail message. Make sure that the usage of capitalization and spaces is exactly as in the message. Finally, check to make sure that long lines in the license file have not been inadvertently wrapped to a new line. (Refer to

“Modifying the License File” on page 98 for

examples of the correct license file format.)

3. No Features to Serve

date time (idl_lmgrd) No features to serve!

There are no valid FEATURE or INCREMENT lines. This is most commonly due to the “inconsistent encryption code” error described above.

4. Retrying Socket Bind and Cannot Establish Lock

date time (lmgrd) Retrying socket bind (address in use: port 1700)

An attempt has been made to start the license manager when it was already running.

This often happens when the license file contains a mistake, the mistake is corrected, and the license manager is started again before the first attempt has been shut down or killed. Only one instance of the license manager can be running on a machine with reference to any RSI product license file at any one time. There may also be some other software product using the default port number, 1700.

Troubleshooting Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 109

If this is the case, the problem may be resolved by issuing the lmdown command multiple times and then restarting the license manager again. To shut down the license manager, you can issue the following commands (from a C shell):

RSI-DIR/idl_5.5/bin/lmdown -c RSI-DIR/license/license.dat

The lmdown command should be repeated until the utility indicates that the license manger is not running.Then restart the license manager. See

“Start the License

Server” on page 81.

5. No Such File or Directory

license daemon: execl failed: .../idl -T host 2.40 3 -c license daemon: system error code: No such file or directory

The path on the DAEMON line of the license file is incorrect. It should point to the bin subdirectory of the IDL distribution. Edit the license file and correct the

DAEMON line.

6. No “License” Server Found

date time (lmgrd) No "license" service found.

This error means that no TCP/IP service port number is specified or no TCP/IP service is available.

Check for the existence of the

/etc/services file. Make sure that the file contains the following line: tcpmux 1/tcp

7. Cannot Find License File

license manager: can't initialize: cannot find license file

(No such file or directory)

date time (lmgrd) Using license file "filename"

The license manager cannot find the license.dat

file. Either the license.dat

file is not in the default location or the file specified in the environment variable

LM_LICENSE_FILE is incorrect. See

“Set Up the IDL Environment” on page 82.

Also, make sure that the filename license.dat

is spelled correctly and that you have read permission for the license.dat

file.

Installing and LIcensing IDL 5.5

Troubleshooting

110 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

8. Cannot Read License File

license manager: can't initialize: cannot read license file

(Permission denied) ’

The permissions are set incorrectly on the license.dat

file. Set the file to read permission for all users. For example, use the command: chmod 444 license.dat

9. Wrong Hostid

date time (idl_lmgrd) Wrong hostid, exiting (expected xxxx, got

xxxx) date time (lmgrd) Please correct problem and restart daemons

The permissions are set incorrectly on the ethernet device. This is a common problem on HP-UX systems. Set read-write permission on the ethernet device (

/dev/lan0

) with the command: chmod 666 /dev/lan0

Shutdown the license manager if it is still running and then restart it.

10. Path Not Found

lmgrd: PATH/bin.platform/lmgrd: not found.

This error indicates that the IDL directory is not in a standard location and that the environment variable IDL_DIR is not set to the actual IDL directory. There are several solutions to the problem:

• Change directories to the IDL directory and issue the following command: bin/lmgrd

• Set the environment variable IDL_DIR to point to the main IDL directory and then execute the lmgrd startup command.

Change directories to

RSI-DIR/idl_5.5/bin

. Make a copy of the lmgrd script: cp lmgrd lmgrd.bak

Open the lmgrd script with an editor. Verify that the INSTALL_DIR environment variable is defined as

RSI-DIR

. For example, if you have installed in the default path, this should be defined as

/usr/local/rsi

.

Troubleshooting Installing and LIcensing IDL 5.5

Chapter 3: Installing and Licensing IDL 5.5 for UNIX 111

11. Check the Globetrotter Web Site.

The Globetrotter Web site contains on-line documentation and an excellent FLEXlm

FAQ. This information can be helpful when trying to combine licenses from different vendors. See the following Web pages:

Globetrotter home page: http://www.globetrotter.com

FLEXlm FAQ: http://www.globetrotter.com/flmfaq.htm

If you continue to have problems, see

“Contacting Research Systems” on page 8 for

technical support.

Installing and LIcensing IDL 5.5

Troubleshooting

112 Chapter 3: Installing and Licensing IDL 5.5 for UNIX

Troubleshooting Installing and LIcensing IDL 5.5

mac.fm Page 113 Thursday, August 9, 2001 4:06 PM

Chapter 4:

Installing and Licensing

IDL 5.5 for Macintosh

This chapter covers the following topics:

Introduction . . . . . . . . . . . . . . . . . . . . . . . . 114

Installing IDL for Macintosh . . . . . . . . . . . 116

Installing an Evaluation License . . . . . . . . 118

Licensing with a USB HASP . . . . . . . . . . 119

Licensing with an ADB HASP . . . . . . . . . 121

Modifying an Existing License . . . . . . . . 123

Troubleshooting HASP Licensing . . . . . . 124

Installing and Licensing IDL 5.5

113

114

Introduction

Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

Recommended Steps for Installing and Licensing IDL for

Macintosh

1.

Install IDL — See

“Installing IDL for Macintosh” on page 116.

2.

Locate Your Hardware Dongle and RSI Product License Information

You should have received your hardware dongle with your IDL product and your RSI product license information by e-mail or fax. The RSI product license information provides your product installation number and additional information about licensing IDL. If you haven’t received these items, see

“Contacting Research Systems” on page 8.

3.

Enter Your License Key — See

“Licensing with a USB HASP” on page 119

or

“Licensing with an ADB HASP” on page 121.

Licensing Methods

Evaluation License

Evaluation licenses are temporary trial licenses allowing access to all IDL features for a specified number of days. Once the evaluation license expires, you will be alerted by a dialog box stating that the application is available only in seven-minute demonstration mode. Contact Research Systems or your local distributor to purchase a permanent license or to extend your evaluation license.

The following is a sample Evaluation license key that you will receive either by e-mail or fax:

Installation Number: abc123de

Site Notice: Evaluation Purposes Only

Optional Features: idl_wavelet,X.X;

Installation Key: 123-ABC123DE

Product:

Platform:

IDL X.X

Macintosh non-Hasp

IDL Major Version: X.X

Optional Features (bits):

HASP License

Research Systems software uses a hardware dongle, or HASP, as a copy-protection device. You must attach the hardware dongle before you can license your software.

The hardware dongle will not interfere with any of the other devices (e.g., printer,

Introduction Installing and Licensing IDL 5.5

Chapter 4: Installing and Licensing IDL 5.5 for Macintosh 115 modem, mouse, etc.) or any other software on your computer. There are two types of hardware dongles:

• Universal Serial Bus (USB) HASP is a short length of blue plastic labeled “MacHASP USB” with a USB connector at one end. It can be used with an iMac or

USB HASP

Power Macintosh with a USB port. See

“Licensing with a USB HASP” on

page 119 for instructions.

• Apple Desktop Bus (ADB) HASP is a short length of white plastic, labeled “MacHASP” with Macintosh

ADB connectors at each end. It can be used with any

Power Macintosh with an ADB port. See

“Licensing with an ADB HASP” on page 121 for instructions.

ADB HASP

Note

If you have a HASP from another version of this software, you may receive a new one with your upgrade. If you have not received a new HASP, the old one will continue to function. If you have received the incorrect type of HASP, contact

Research Systems Technical Support. See

“Contacting Research Systems” on

page 8.

Note

Only one Research Systems software HASP can be installed on your machine at one time. If you have multiple RSI HASPS and product installations on one machine, only the HASP associated with the product you are licensing or using should be installed at any one time.

The following is a sample HASP license key that you will receive either by e-mail or fax:

ITEM ID:

PRODUCT:

VERSION:

HASP:

10MACDKLIC

IDL

5.5

MAC-ADB

INSTALL ID: ABCDEF-01

SITE NOTICE: Research Systems, Inc.

INSTALL KEY: 12-ABC123DE

Installing and Licensing IDL 5.5

Introduction

116 Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

Installing IDL for Macintosh

System Requirements

The following are the system requirements for IDL 5.5 for Macintosh:

Requirement

Disk space

Operating System

Description

145 MB (default installation).

MacOS 8.6 or 9.x running on a PowerMAC G3 or G4, or iMac.

Table 4-1: IDL 5.5 Macintosh System Requirements

Run the IDL Installation Procedure

To install IDL 5.5, complete the following steps:

1.

Insert the IDL CD-ROM in your CD-ROM drive. The IDL 5.5 volume window appears. If the window doesn’t appear, click the IDL 5.5 CD-ROM icon.

2.

Start the IDL installation. Double-click on the Install_IDL icon, and then click Continue to begin the installation process.

3.

Accept the license agreement. In order to continue the installation, you must accept the terms of the Research Systems license agreement. Click Accept.

4.

View the IDL Release Notes. The release notes contain important information about this release of IDL. Click Continue to proceed.

5.

Select the options to install. The default, pre-selected options will install the minimum files needed to run IDL. Check any of the boxes to the left of the features listed to include them in your installation. Click on the small “i” icon at the right-hand side of the list for information about each feature.

Note

To license IDL with a USB HASP, you must either install the USB HASP

Device Driver now by selecting it from the feature list or install it later by double-clicking the Install USB Mac Hasp DD icon located in the

Extras folder on your IDL CD-ROM. For more information on licensing IDL using a USB HASP, see

“Licensing with a USB HASP” on page 119.

Installing IDL for Macintosh Installing and Licensing IDL 5.5

Chapter 4: Installing and Licensing IDL 5.5 for Macintosh 117

6.

Select the installation directory. IDL will be installed in a folder named RSI.

To change the location of the RSI folder, open the drop-down list in the Install

Location section of the Install IDL dialog and click Select Folder. You can choose an existing folder, switch disks, or create a new folder. Select the installation directory and click Install. The directory you choose will be referred to as RSI-DIR in the remainder of this manual.

7.

Exit the installation program. When the message appears stating that your installation was successful, click Quit if you are satisfied with your installation choices.

8.

Your installation is now complete.

Note

IDL online manuals require Acrobat Reader with Search 3.0 or greater. A copy of

Adobe Acrobat Reader with Search 4.0 has been included on your product CD-

ROM. For more information, see

“About Adobe® Acrobat® Reader” on page 8.

Installing and Licensing IDL 5.5

Installing IDL for Macintosh

118 Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

Installing an Evaluation License

To license IDL, you will need your RSI product license information. If you have not received it, see

“Contacting Research Systems” on page 8 for assistance. To install an

evaluation license for trial purposes, complete the following steps:

1.

Install IDL. See

“Installing IDL for Macintosh” on page 116 for instructions.

2.

Double-click the IDL icon located in the install_dir:RSI:IDL 5.5 folder. Until licensed, IDL displays the licensing dialog. Click License.

3.

Enter your installation number, the site notice, any optional features and the installation key exactly as they appear in your RSI product license information.

Click OK.

IDL licensing is now complete.

Note

The expiration date of your license is embedded into the installation key code shown on your Registration form. When your evaluation license expires, you will be presented with the licensing dialog when starting IDL. Until re-licensed, IDL will run only in timed demonstration mode.

Installing an Evaluation License Installing and Licensing IDL 5.5

Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

Licensing with a USB HASP

119

After installing IDL, use the following instructions to install the license key for your

HASP license. Your license key will be sent to you via e-mail or fax. You should have received your hardware dongle with your IDL product. If you haven’t received these items, see

“Contacting Research Systems” on page 8.

Note

To license your software with a USB HASP, you must have either installed the USB

HASP Device Driver during the IDL installation or installed it by double-clicking the Install USB Mac Hasp DD icon located in the

Extras folder on your RSI software CD-ROM. An ADB HASP will not function if the USB HASP driver is installed.

1.

Insert the USB HASP into any unused USB port. USB ports are typically located on your keyboard, on the side (iMac), or on the back (G3) of your

Macintosh. Unlike the ADB HASP, you do not need to shut down your

Macintosh before attaching a USB HASP.

Note

If you are replacing an evaluation license with a permanent license, you need to enter your license information using the IDL License Utility instead of completing the following steps. See

“Modifying an Existing License” on

page 123 for instructions.

2.

Start your software product. Double-click the IDL 5.5 icon located in the

RSI-DIR:

IDL 5.5 folder. Until licensed, the licensing dialog appears. Click

License.

3.

Enter your licensing information. Enter the Installation Number, the Site

Notice, any Optional Features and the Installation Key exactly as they appear in your RSI product license information. Click License.

Your Research Systems software is now licensed.

Important Information about Your USB HASP

The following information is important to know about your USB HASP:

• If the USB HASP is removed during an RSI software product session, the software enters seven-minute demonstration mode and you will not be able to save your work.

Installing and Licensing IDL 5.5

Licensing with a USB HASP

120 Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

• If a new session is started without the USB HASP installed, the software program may prompt you to license your installation or default to demonstration mode. You will not be able to run your Research Systems software in licensed mode without the USB HASP attached.

Licensing with a USB HASP Installing and Licensing IDL 5.5

Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

Licensing with an ADB HASP

121

After installing IDL, use the following instructions to install the license key for your

HASP license. Your license key will be sent to you via e-mail or fax. You should have received your hardware dongle with your IDL product. If you haven’t received these items, see

“Contacting Research Systems” on page 8.

1.

Shut down your Macintosh. Always shut down your Macintosh before installing or removing an ADB HASP.

2.

Insert the ADB HASP anywhere in your ADB chain. You can insert it between the keyboard and the ADB bus cord or into an unused ADB port.

3.

Restart your Macintosh.

Note

If you are replacing an evaluation license with a permanent license, you need to enter your license information using the IDL License Utility instead of completing the following steps. See

“Modifying an Existing License” on

page 123 for instructions.

4.

Start IDL. Double-click the IDL 5.5 icon located in the

RSI-DIR:

IDL 5.5

folder. Until licensed the licensing dialog appears. Click License.

5.

Enter your licensing information. Enter the Installation Number, the Site

Notice, any Optional Features and the Installation Key exactly as they appear in your RSI product license information. Click License.

Your Research Systems software is now licensed.

Important Information about Your ADB HASP

The following information is important to know about your ADB HASP:

Never remove the ADB HASP while your Macintosh is running, as serious damage to the computer may result from disconnecting the ADB chain.

Always shut down your Macintosh before removing the ADB HASP.

• If the ADB HASP is removed during an RSI software product session, the software enters seven-minute demonstration mode and you will not be able to save your work.

• If a new session is started without the ADB HASP installed, the software program may prompt you to license your installation or default to

Installing and Licensing IDL 5.5

Licensing with an ADB HASP

122 Chapter 4: Installing and Licensing IDL 5.5 for Macintosh demonstration mode. You will not be able to run your Research Systems software in licensed mode without the ADB HASP attached.

Licensing with an ADB HASP Installing and Licensing IDL 5.5

Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

Modifying an Existing License

123

To modify an existing license, use the IDL License Utility. For example, use this utility if you are replacing an evaluation license with a permanent license.

To modify an existing license, complete the following steps:

1.

Open your RSI software product folder.

2.

Drag a copy of the IDL 5.5 application onto the IDL License Utility application. The IDL License Utility exists in the

IDLx.x:bin directory, where

x.x

indicates the version of IDL, for example 5.5.

3.

In the IDL License Utility dialog, fill in the following fields with the information provided in your RSI product licensing information:

A. Enter the Installation Number — enter the installation number exactly as it appears.

B. Enter the Site Notice — enter your site notice exactly as it appears.

C. Enter any Optional Features — enter any optional features shown.

D. Enter the Installation Key — enter the key exactly as it appears

4.

Click OK.

Your software is now licensed.

Installing and Licensing IDL 5.5

Modifying an Existing License

124 Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

Troubleshooting HASP Licensing

Note

When entering your Installation Number, Site Notice, Optional Features and

Installation Key into the HASP licensing wizard dialog, make sure they appear exactly as shown in your RSI product license information. Accurately reproduce all capitalization and spacing.

If your Research Systems software installation continues to run in seven-minute demonstration mode after attempting HASP licensing, you can try troubleshooting the hardware and software.

Hardware Troubleshooting

1.

Make sure that there is no other RSI product hasp attached to your ADB chain

(such as an ENVI HASP or an IDL Runtime (rt) hasp). Only one RSI product hasp can be used on a Macintosh at any one time.

2.

Shut off the machine and examine the HASP. Examine the HASP to make sure none of the connectors are bent. Re-attach the HASP firmly to a different location in the ADB chain, preferably directly to the ADB port directly on your machine. Restart the machine and attempt to license your Research Systems software using the HASP licensing wizard described in

“Licensing with an

ADB HASP” on page 121.

3.

Shut down the machine and remove any external SCSI devices. Restart and attempt to license the Research Systems software. If this seems to correct the problem, there may be a conflict between the HASP software and the device driver. To resolve the conflict, you can update the device driver software.

4.

If there are any unusual ADB devices, try removing them temporarily or replacing them with a standard drive. For example, replace a trackball mouse with a standard mouse. Restart the machine and try licensing the RSI software.

5.

If there is another Macintosh machine with the RSI software properly running in licensed mode, place the HASP on that machine. If the software does not run in licensed mode on that machine, contact Research Systems technical support. See

“Contacting Research Systems” on page 8.

Troubleshooting HASP Licensing Installing and Licensing IDL 5.5

Chapter 4: Installing and Licensing IDL 5.5 for Macintosh 125

Software Troubleshooting

From the RSI software CD-ROM, go to the

RSI:

IDL 5.5:bin folder and copy the IDL

5.5 executable file, to the

RSI:

IDL 5.5 folder onto your hard drive. This will overwrite the existing IDL 5.5 executable in that location. Try licensing the software again.

Installing and Licensing IDL 5.5

Troubleshooting HASP Licensing

126 Chapter 4: Installing and Licensing IDL 5.5 for Macintosh

Troubleshooting HASP Licensing Installing and Licensing IDL 5.5

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
