In this case you can trust!
Product
M/B support
Color

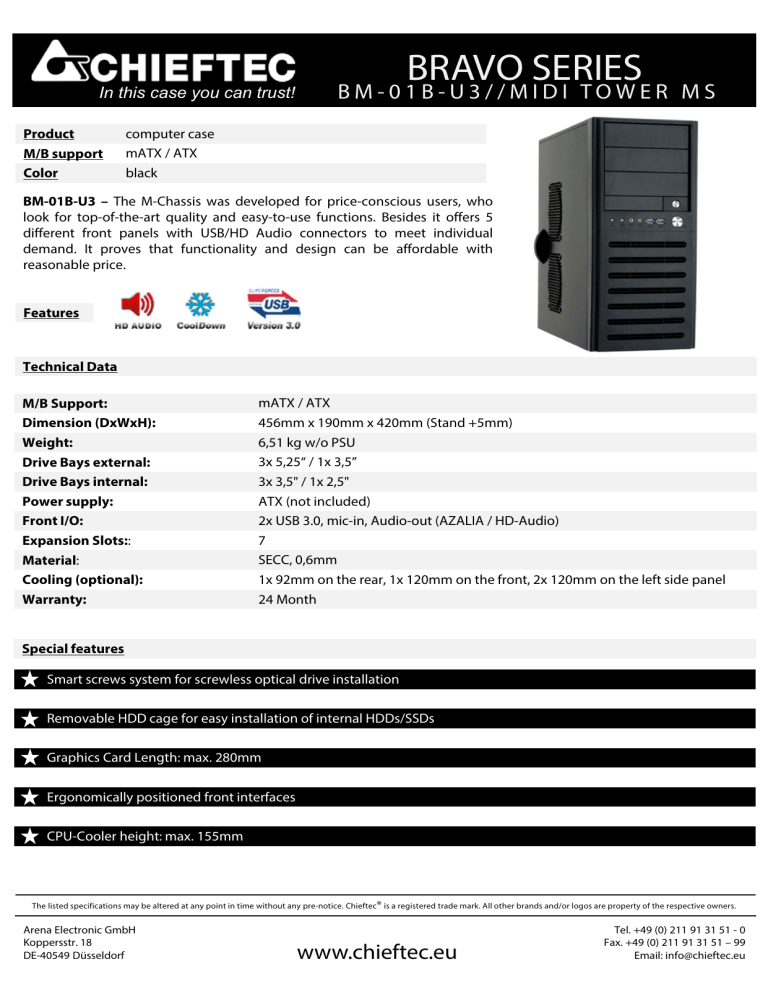

BRAVO SERIES
BM-01B-U3//MIDI TOWER MS
computer case
mATX / ATX
black
BM-01B-U3 – The M-Chassis was developed for price-conscious users, who
look for top-of-the-art quality and easy-to-use functions. Besides it offers 5
different front panels with USB/HD Audio connectors to meet individual
demand. It proves that functionality and design can be affordable with
reasonable price.
Features
Technical Data
M/B Support:
Dimension (DxWxH):
Weight:
Drive Bays external:
Drive Bays internal:
Power supply:
Front I/O:
Expansion Slots::
Material:
Cooling (optional):
Warranty:
mATX / ATX
456mm x 190mm x 420mm (Stand +5mm)
6,51 kg w/o PSU
3x 5,25“ / 1x 3,5”
3x 3,5" / 1x 2,5"
ATX (not included)
2x USB 3.0, mic-in, Audio-out (AZALIA / HD-Audio)
7
SECC, 0,6mm
1x 92mm on the rear, 1x 120mm on the front, 2x 120mm on the left side panel
24 Month
Special features
Smart screws system for screwless optical drive installation
Removable HDD cage for easy installation of internal HDDs/SSDs
Graphics Card Length: max. 280mm
Ergonomically positioned front interfaces
CPU-Cooler height: max. 155mm
The listed specifications may be altered at any point in time without any pre-notice. Chieftec® is a registered trade mark. All other brands and/or logos are property of the respective owners.
