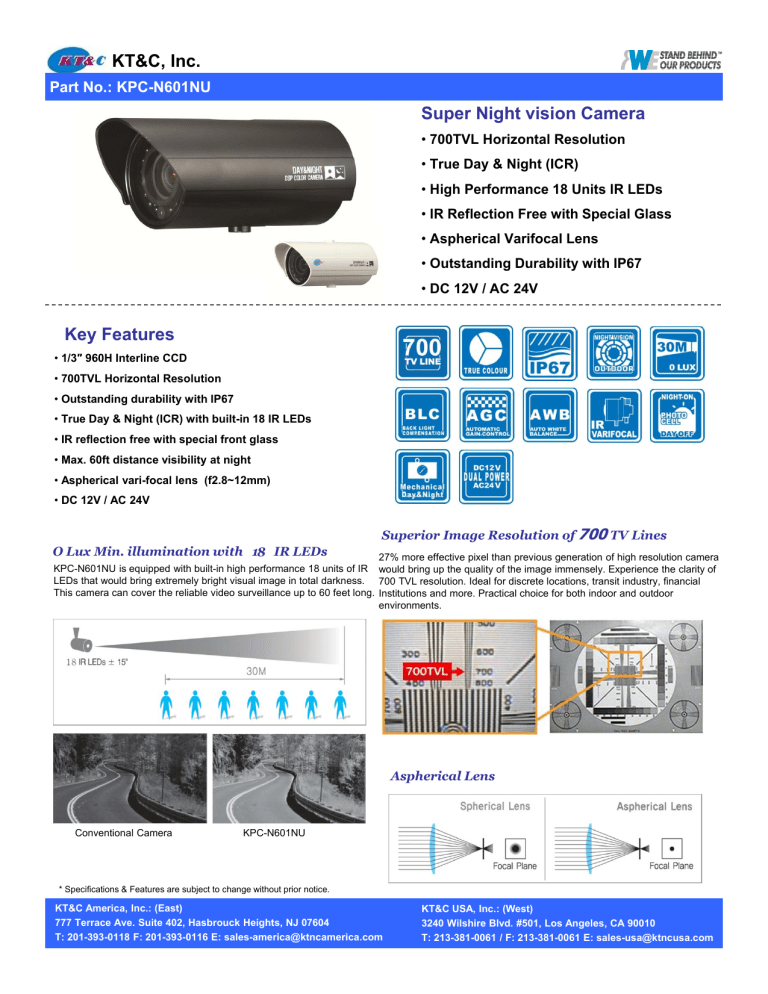

KT&C, Inc.
Part No.: KPC-N601NU
Super Night vision Camera
• 700TVL Horizontal Resolution
• True Day & Night (ICR)
• High Performance 18 Units IR LEDs
• IR Reflection Free with Special Glass
• Aspherical Varifocal Lens
• Outstanding Durability with IP67
• DC 12V / AC 24V
Key Features
• 1/3″ 960H Interline CCD
• 700TVL Horizontal Resolution
• Outstanding durability with IP67
• True Day & Night (ICR) with built-in 18 IR LEDs
• IR reflection free with special front glass
• Max. 60ft distance visibility at night
• Aspherical vari-focal lens (f2.8~12mm)
• DC 12V / AC 24V
Superior Image Resolution of 700 TV Lines
O Lux Min. illumination with 18 IR LEDs
27% more effective pixel than previous generation of high resolution camera
KPC-N601NU is equipped with built-in high performance 18 units of IR would bring up the quality of the image immensely. Experience the clarity of
LEDs that would bring extremely bright visual image in total darkness. 700 TVL resolution. Ideal for discrete locations, transit industry, financial
This camera can cover the reliable video surveillance up to 60 feet long. Institutions and more. Practical choice for both indoor and outdoor
environments.
Aspherical Lens
Conventional Camera
KPC-N601NU
* Specifications & Features are subject to change without prior notice.
KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [email protected]
KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [email protected]
KT&C, Inc.
Part No.: KPC-N601NU
True Day & Night with ICR Mechanism
With built-in Dual Filter System, KPC-N601NU provides clear color
image during day time and real B/W Image at night time.
Removable IR Cut Filter is on for color image operation and off to
increase light sensitivity for monochrome mode.
Day Time
Outstanding Durability with IP67
With Dust and Rain Resistant design
which meets IP67 rating, this camera
can be installed outdoor under building
eaves or the places that are exposed
to the dust and rain.
Night Time
General Feature Diagram
3-Ø4.5
(Unit: mm)
36
1/4”-20 Mount
41.5
145
LED-18ea
PHOTOCELL
97(Max)
115
Ø60
65.4
1/4”-20 Mount
Ø60
Mounting Position
KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [email protected]
1/4”-20 Mount
KT&C USA, Inc.: (West)
3240 Wilshire Blvd. #501, Los Angeles, CA 90010
T: 213-381-0061 / F: 213-381-0061 E: [email protected]
KT&C, Inc.
Part No.: KPC-N601NU
Technical Specification
Model
KPC-N601NU
KPC-N601PU
NTSC
PAL
Signal System
Image Sensor
1/3″ 960H SONY EXview HAD CCD ll
Scanning System
2:1 Interlace
Horizontal Resolution
700TV Lines
Scanning Frequency (H)
15.734 KHz
15.625 KHz
Scanning Frequency (V)
59.94 Hz
50 Hz
Total Pixels
1020(H) x 508(V)
1020(H) x 596(V)
Effective Pixels
976(H) x 494(V)
976(H) x 582(V)
Synchronization
Internal
Aspherical Varifocal Lens f2.8~ 12.0mm
Lens Size
S/N
More than 50dB (AGC Off)
Min. Illumination
0 Lux (IR LED On)
18 IR LEDs, 850nm IR Wavelength
±15˚ Combination, Up to 60ft
IR LED
IR LED Operation
Shutter Speed
On (1 Lux) / Off (3 Lux)
1/60 ~ 1/100,000 sec
Video Output Level
2DNR
Day & Night
IP Rating
Gamma
1/50 ~ 1/100,000 sec
1Vp-p Composite (75Ω), Unbalanced
Auto
True Day & Night (ICR)
IP67 (Waterproof)
 = 0.45
Operating Temperature
-10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature
-20°C ~ 60°C (-4°F ~ 140°F)
Humidity
Power Supply
Dimensions
Weight
* Specifications & Features are subject to change without prior notice.
KT&C America, Inc.: (East)
777 Terrace Ave. Suite 402, Hasbrouck Heights, NJ 07604
T: 201-393-0118 F: 201-393-0116 E: [email protected]
Less than 80%RH
DC12(±10%),Max 450mA (IR LED On)
AC24(±10%),Max 5.6W (IR LED On)
60Φ x 115mm : 2.36”(Φ) x 4.53”
497g : 1.10lbs
Last updated: 4/17/12
