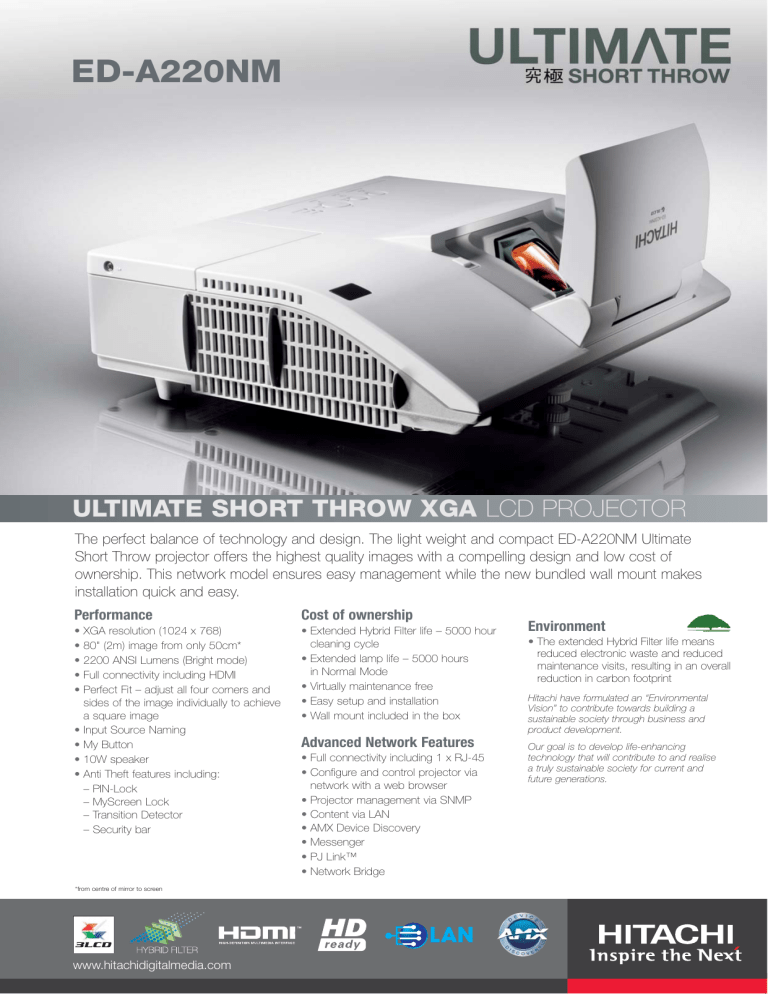

ED-A220NM
ED-A220NM
ULTIMATE SHORT THROW XGA LCD PROJECTOR
The perfect balance of technology and design. The light weight and compact ED-A220NM Ultimate
Short Throw projector offers the highest quality images with a compelling design and low cost of
ownership. This network model ensures easy management while the new bundled wall mount makes
installation quick and easy.
Performance
Cost of ownership
• XGA resolution (1024 x 768)
• 80" (2m) image from only 50cm*
• 2200 ANSI Lumens (Bright mode)
• Full connectivity including HDMI
• Perfect Fit – adjust all four corners and
sides of the image individually to achieve
a square image
• Input Source Naming
• My Button
• 10W speaker
• Anti Theft features including:
– PIN-Lock
– MyScreen Lock
– Transition Detector
– Security bar
• Extended Hybrid Filter life – 5000 hour
cleaning cycle
• Extended lamp life – 5000 hours
in Normal Mode
• Virtually maintenance free
• Easy setup and installation
• Wall mount included in the box
*from centre of mirror to screen
www.hitachidigitalmedia.com
Advanced Network Features
• Full connectivity including 1 x RJ-45
• Configure and control projector via
network with a web browser
• Projector management via SNMP
• Content via LAN
• AMX Device Discovery
• Messenger
• PJ Link™
• Network Bridge
Environment
• The extended Hybrid Filter life means
reduced electronic waste and reduced
maintenance visits, resulting in an overall
reduction in carbon footprint
Hitachi have formulated an “Environmental
Vision” to contribute towards building a
sustainable society through business and
product development.
Our goal is to develop life-enhancing
technology that will contribute to and realise
a truly sustainable society for current and
future generations.
ED-A220NM Technical specifications
OPTICAL
LCD Panel
Resolution
Brightness
Bright Mode
Normal Mode
Colour light output
Contrast Ratio
Lens
Lamp Wattage
Lamp Life
Distance to Width Ratio (:1)
Diagonal Display Size
Number of Colour
Keystone
0.63" (1.6cm) P-Si TFT x3
XGA (1024 x 768)
2200 ANSI Lumens
1500 ANSI Lumens
2200 ANSI Lumens
2000:1
Free shaped lens and motorised free shaped mirror
210 W
3000 Hours (Bright Mode)/5000 Hours (Normal Mode)*
0.3:1 (fixed)
60~100" (152~254cm)
8 Bit/colour, 16.7M colours
Fixed, 6.1:-1 Upward shift
COMPATIBILITY
Computer Compatibility
Video Compatibility
Plug & Play
IBM Compatible VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+,
UXGA, MAC 16"
NTSC/PAL/SECAM/PAL-M/PAL-N/NTSC4.43
SDTV: 525i(480i), 525p(480p), 625i(576i)
HDTV: 750p ([email protected]), 1125i([email protected]/60Hz),
1125p([email protected]/60Hz)
DDC2B
FEATURES
Speakers
Basic functions
Picture adjustments
Digital keystone
Advanced features
USB Type B
Outward
Power on & off
Security systems
HDMI
USB Type A
Computer In 2
Network
Computer In 1
LAN (RJ-45)
OSD Languages
10W Mono
Freeze, Magnifying, Blank, Auto adjustment, Search
Equalizing Gamma Correction, 2-3 pull down, Progressive Scan,
Noise Reduction, Perfect Fit
Manual Vertical Keystone correction,
Manual Horizontal Keystone correction
My Screen, My Memory, My Button, blackboard/whiteboard mode,
Daytime mode, input source naming (English), resolution setting,
Template, Saving mode, AudioPass through, My Text
Easy Lamp replace from Top, Rear intake air filter
Quick ON, Direct ON, Direct Off
PIN Lock, Myscreen PIN lock, Keypad Lock, Kensington slot,
Transition Detector, Security bar
Configure and control projector via web browser, receive alerts via
e-mail, projector management via SNMP, Scheduling, My Image,
displaying text data transferred via the network, Command Control
via network, AMX Device Discovery, Messenger, PJ Link™,
Network Bridge, content via LAN
English, French, German, Spanish, Italian, Norwegian, Dutch,
Japanese, Portuguese, Simplified Chinese, Traditional Chinese,
Korean, Swedish, Russian, Finnish, Polish, Turkish, Arabian, Persian,
Czech, Danish, Hungarian, Romanian, Slovenian, Croatian, Greek,
Lithuanian, Estonian, Latvian, Thai, Portuguese (Brazil)
CONNECTIONS
S-Video
Control (RS-232C)
Security Bar
Composite Video
Audio Out
Kensington slot
Computer Out
Microphone
Digital Input
Computer Input
Computer Output
Video Input
Audio Input
Audio In 3
Audio In 1/2
Audio Output
Control
USB
a2
Wired network
a1
1 x HDMI
2 x 15-pin Mini D-sub
1 x 15-pin Mini D-sub
1 x RCA Jack (for composite)
1 x S-Video Jack
2 x Component D-sub (shared with analogue RGB)
2 x Stereo Mini Jack
1 x pair RCA (L/R)
1 x Microphone Jack
1 x pair RCA (L/R)
1 x 9-pin D-sub for RS232 control
1 x USB type A for PC-less presentation
1 x USB type B for mouse control
1 x RJ-45
POWER
V
4x3
Power Supply
Power Consumption
Power Consumption in Standby
b1
H
AC100-120V/220-240V, auto switching
300W
<0.3W
PHYSICAL
Dimensions (W x H x D)
Weight
Noise Level
Air Filter
b2
b2
345 x 85 x 303mm (excluding feet and extrusions when mirror is closed)
3.8Kg
35dB (Bright)/29dB (Normal)
Hybrid
MISCELLANEOUS
Lamp indicator light, Power light, Ceiling mount image, Rear projection image, Serial number label on side
b1
CERTIFICATION
'UL60950-1/C-UL, FCC Part 15 Class A, 'CE, AS/NZS CISPR22 Class A
a1
ACCESSORIES SUPPLIED
a2
Remote control with batteries, RGB cable, power cord, cable cover, security label, user manual (detail &
concise), Wall mount (HAS-K250)
Throw distance (from the top of the lens)
Screen size
(diagonal)
60" (1.5m)
70" (1.8m)
80" (2.0m)
90" (2.3m)
100" (2.5m)
HxV
(m)
1.2
1.4
1.6
1.8
2.0
(m)
0.9
1.1
1.2
1.4
1.5
a1
(m)
0.096
0.161
0.225
0.289
0.353
a2
(m)
0.373
0.437
0.501
0.566
0.630
b1
(m)
0.281
0.317
0.352
0.387
0.423
b2
(m)
1.196
1.384
1.571
1.759
1.947
OPTIONAL ACCESSORIES
Replacement lamp
Laser pointer remote control
DT01181
RC-R008
WARRANTY
Projector warranty
Lamp warranty
3 Years
3 Years**
HITACHI DIGITAL MEDIA, Hitachi Europe Ltd, Whitebrook Park, Lower Cookham Road, Maidenhead, Berkshire SL6 8YA UNITED KINGDOM
Tel: +44 (0)1628 585 000 Fax: +44 (0)1628 585 500 www.hitachidigitalmedia.com
*The stated lamp life refers to the average life expected in ideal operating conditions with usage in accordance with the manual. The majority of, but not all lamps should achieve this figure. **A free replacement lamp will be issued if
the original lamp fails within 3 years from the date of purchase. The "HD ready" Logo is a trademark of EICTA. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC. The specification above and photography is for reference only and may be subject to change.
11/10
