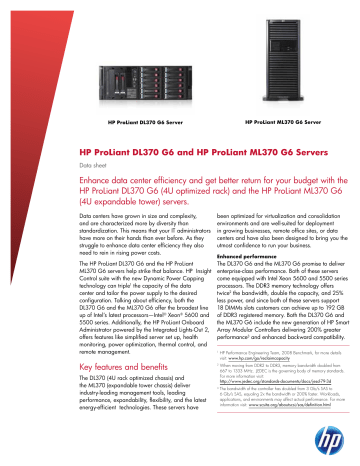

HP ProLiant DL370 G6 and HP ProLiant ML370 G6 Servers

HP ProLiant DL370 G6 and HP ProLiant ML370 G6 Servers
HP ProLiant ML370 G6 Server
HP ProLiant DL370 G6 Server
HP ProLiant DL370 G6 and HP ProLiant ML370 G6 Servers
Data sheet
Enhance data center efficiency and get better return for your budget with the
HP ProLiant DL370 G6 (4U optimized rack) and the HP ProLiant ML370 G6
(4U expandable tower) servers.
Data centers have grown in size and complexity,
and are characterized more by diversity than
standardization. This means that your IT administrators
have more on their hands than ever before. As they
struggle to enhance data center efficiency they also
need to rein in rising power costs.
been optimized for virtualization and consolidation
environments and are well-suited for deployment
in growing businesses, remote office sites, or data
centers and have also been designed to bring you the
utmost confidence to run your business.
The HP ProLiant DL370 G6 and the HP ProLiant
ML370 G6 servers help strike that balance. HP Insight
Control suite with the new Dynamic Power Capping
technology can triple1 the capacity of the data
center and tailor the power supply to the desired
configuration. Talking about efficiency, both the
DL370 G6 and the ML370 G6 offer the broadest line
up of Intel’s latest processors—Intel® Xeon® 5600 and
5500 series. Additionally, the HP ProLiant Onboard
Administrator powered by the Integrated Lights-Out 2,
offers features like simplified server set up, health
monitoring, power optimization, thermal control, and
remote management.
The DL370 G6 and the ML370 G6 promise to deliver
enterprise-class performance. Both of these servers
come equipped with Intel Xeon 5600 and 5500 series
processors. The DDR3 memory technology offers
twice2 the bandwidth, double the capacity, and 25%
less power, and since both of these servers support
18 DIMMs slots customers can achieve up to 192 GB
of DDR3 registered memory. Both the DL370 G6 and
the ML370 G6 include the new generation of HP Smart
Array Modular Controllers delivering 200% greater
performance3 and enhanced backward compatibility.
Key features and benefits
The DL370 (4U rack optimized chassis) and
the ML370 (expandable tower chassis) deliver
industry‑leading management tools, leading
performance, expandability, flexibility, and the latest
energy-efficient technologies. These servers have
Enhanced performance
1
P Performance Engineering Team, 2008 Benchmark, for more details
H
visit: www.hp.com/go/reclaimcapacity
2
hen moving from DDR2 to DDR3, memory bandwidth doubled from
W
667 to 1333 MHz. JEDEC is the governing body of memory standards.
For more information visit:
http://www.jedec.org/standards-documents/docs/jesd-79-3d
3
T he bandwidth of the controller has doubled from 3 Gb/s SAS to
6 Gb/s SAS, equaling 2x the bandwidth or 200% faster. Workloads,
applications, and environments may affect actual performance. For more
information visit: www.scsita.org/aboutscsi/sas/definition.html
Configure an optimized server—with the confidence
to know it’s right. Use ProLiant Solution Blocks and
HP configuration tools co-designed and validated with
leading software vendors, and their energy-efficiency
leadership.
Improved power management
Struggling to get your soaring power bills under
control? Not only does the right-sized ProLiant Power
Supplies help reclaim lost data center power, but the
Intelligent Power and Cooling Savers can tell when
power is being wasted. Correspondingly, you get
to improve your IT architecture’s capacity up to 3x
with Dynamic Power Capping, which is available as
part of Insight Control suite. In addition, the Intel 45
nanometer technology and dynamic resource scaling
further enable more efficient power management.
Supporting the high-efficiency power supplies, both
the DL370 G6 and the ML370 G6 put a check on
your undesirable power consumption. Improved power
efficiency enabled by HP ProLiant Common Slot
Power supplies (460W and 750W)4 and HP ProLiant
Common Slot Power supplies (1200W)5 has earned
the servers various energy saving certifications.
Deploy easily, manage seamlessly
The ProLiant portfolio of deployment tools, such as
SmartStart, Pre-Boot Execution Environment (PXE),
Array Configuration Utility (ACU), and ROM‑Based
Setup Utility (RBSU) enables a hassle-free set up.
The HP ProLiant Onboard Administrator and
HP Systems Insight Manager gives you the flexibility
to manage and monitor all your DL370 G6 and
ML370 G6 servers seamlessly, and make it an ideal fit
for remote deployments.
Enterprise-class redundancy features
Business continuity is a must for businesses, both
big and small. Intolerant to downtime as your
business is, you can count on the DL370 G6 and the
ML370 G6 to deliver 24x7 accessibility and proven
data integrity. There are three hot plug fans which
are standard offering with every system, for full
redundancy features you can purchase the DL370 G6
and ML370 G6 redundant fan kit. Combined with this
is the availability of two processors and support for
redundant power supplies delivering high-availability
and high-performance system processing.
Increase flexibility
As mentioned earlier, both of these servers support
PCI‑Express Gen2 slots (nine available) coupled with
the 8-bay drive cage provide room for expansion.
2
Another outstanding feature is the flexibility of the
tower models to convert to rack configurations,
hence lending your infrastructure an additional
deployment flexibility.
Optimize system performance and ease of
serviceability
With its inherent features that enhance business
outcomes and facilitate ease of serviceability, the
DL370 G6 and the ML370 G6 have achieved
numerous #1 benchmarks—VMmark, TPC-C,
SPECweb2005, and SPECweb2009. Feature
enhancements like nine available PCI-Express Gen2
slots, 18 DIMM memory slots supporting Advanced
ECC, mirroring mode, and lock-step mode give these
two servers a visible competitive advantage. For
tool‑free internal serviceability, snap on quick-deploy
slide rails included with rack models and tower-to-rack
conversion kits. They enable rapid installation and
save valuable time.
Ideal environments
A variety of environments from corporate work
groups to critical remote sites
With its large internal storage capacity—
accommodating everything from web applications
to databases—24x7 accessibility and ease of
serviceability, the DL370 G6 and the ML370 G6 are
the ideal choices for virtualization and consolidation
environments spanning across corporate work groups
to critical remote sites.
Growing businesses with expandability
requirements
Designed to meet the requirements of growing
businesses, the DL370 G6 and the ML370 G6 have
nine available I/O slots that support PCI-Express
Gen2. And what about storage capacity, you may
ask. Put your fears to rest as the 8-bay standard drive
cage provides up to 4.8 TB of storage (8 x 600 GB).
Critical remote sites
You need not worry about connectivity or performance
when you are working in a remote location. The
new HP ProLiant Onboard Administrator and
HP Systems Insight Manager (SIM), makes sure that
you get enterprise-class management features,
therefore proven availability and uptime for
critical applications.
4
eet Climate Savers Computing Initiative GOLD, ECOS Consulting
M
80PLUS GOLD and the standard specifications for Energy Star for Servers
Power Supply requirements
5
eet Climate Savers Computing Initiative Bronze, ECOS Consulting
M
80PLUS Bronze Power Supply requirements
Technical specifications
HP ProLiant DL370 G6 and
HP ProLiant ML370 G6 Servers
Processor and memory
Processor type
Available processors
Intel Xeon 5600 and 5500 series
Intel Naming
Speed (GHz)
L3 Cache (MB)
Wattage (W)
Turbo
DDR3 Memory (MHz)
Six-Core Processors
X5680
3.33
12
130W
1/1/1/1/2/2
1333
X5670
X5660
X5650
2.93
2.80
2.66
12
12
12
95W
95W
95W
2/2/2/2/3/3
2/2/2/2/3/3
2/2/2/2/3/3
1333
1333
1333
3.46
3.06
2.66
2.53
2.40
3.20
2.93
2.80
2.66
2.53
2.40
2.26
2.13
2.00
12
12
12
12
12
8
8
8
8
8
8
8
4
4
130W
95W
80W
80W
80W
130W
95W
95W
95W
80W
80W
80W
80W
80W
1/1/2/2
2/2/3/3
1/1/2/2
1/1/2/2
1/1/2/2
1/1/1/2
2/2/3/3
2/2/3/3
2/2/3/3
1/1/2/2
1/1/2/2
1/1/2/2
N/A
N/A
1333
1333
1066
1066
1066
1333
1333
1333
1333
1066
1066
1066
800
800
2.13
2.26
12
8
40W
60W
1/1/2/2
1/1/2/2
1066
1066
1.86
4
80W
N/A
800
Quad-Core Processors
X5677
X5667
E5640
E5630
E5620
W5580
X5570
X5560
X5550
E5540
E5530
E5520
E5506
E5504
Quad–Core Processors (Low Voltage)
L5630
L5520
Dual-Core Processors
E5502
Processor core
6, 4, and 2-Core Processors
Processor cache
12, 8, and 4 MB Level 3 cache depending on processor (see table above)
Maximum Processor speed
3.46 GHz
Multi-processor
Up to 2
Memory type
PC3-10600R Registered (DDR3) Memory or
PC3-10600E Unbuffered (DDR3) Memory
Standard memory
Standard (Performance Models)—12 GB (6 x 2 GB) RDIMM
Standard (Base Models)—6 GB (3 x 2 GB) RDIMM
Standard (Entry Model)—4 GB (2 x 2 GB) RDIMM
Note: Depending on the memory configuration and processor model, the memory speed may run at 1333 MHz, 1066 MHz, or 800 MHz.
Please see the Online Memory Configuration Tool
Maximum memory
192 GB RDIMM
48 GB UDIMM
Memory slots
18 DIMMs
Advanced memory protection
Advanced ECC, Mirrored Memory, Lock-step mode
Storage type
Hot plug 2.5-inch SAS/SATA
Hot plug 3.5-inch SAS/SATA
Maximum number of hard drives
24
Maximum number of hard drives
noted
Supports (24) 2.5” Small Form Factor or (14) 3.5” Large Form Factor Hard Drives
Expansion slots
(9) available PCI-Express Gen2 expansion slots to provide you with the latest I/O performance
Storage controller
HP Smart Array P410i Controller with 256 MB, 512 MB battery-backed write cache (BBWC), 512 MB flash-backed write cache (FBWC),
and 1 GB FBWC options
Deployment
Form factor
Rack or Tower
Rack height
4U
Networking
HP NC375i Quad Port Multifunction Gigabit Server Adapter
Infrastructure management
HP ProLiant Onboard Administrator powered by the HP Integrated Lights-Out 2
HP Insight Control suite with new Dynamic Power Capping technology
Redundant power supply
Optional
Redundant fans
Optional
Warranty
3-year parts/3-year labor/3-year onsite
3
Rendering and visualization requirements
The HP ProLiant DL370 G6 and the HP ProLiant
ML370 G6 support (3) x16 PCI-Express slots allowing
support for up to (3) 300W Graphic Cards making
these servers the ideal solutions for rendering and
visualization requirements.
Options include
•Easy tower-to-rack conversion in the case of
the ML370 G6, which includes a tower‑to‑rack
conversion kit
•USB 2.0 Support—five total USBs; two front, two
rear, and for security purposes one internal
HP Financial Services
HP Financial Services provides innovative financing
and financial asset management programs to help
you cost-effectively acquire, manage, and ultimately
retire your HP solutions. For more information on these
services, contact your local HP representative, or visit:
www.hp.com/go/hpfinancialservices
HP Services
•Hot plug fans and power with optional redundancy
When Technology Works, Business Works
The challenge of virtually every IT organization is similar: To develop
and maintain an agile, efficient server infrastructure that delivers the
service levels your business needs. HP Technology Services offers a
comprehensive portfolio of HP Care Pack Services to help design,
deploy, manage, and support your IT environment.
•Graphic Card Adapter Kit enabling support for up
to (3) 300W Graphic Cards
Minimum Recommended HP Care Pack offerings
•Three-year, same business day, 4-hour response onsite; 24x7
coverage, hardware support
•High-performance models with a 2nd processor,
SAS controller, extra memory, redundant fans, and
power supplies
•Integrated hardware plus operating system installation and startup
•Up to 24 Small Form Factor drives and up to
14 Large Form Factor drives
•HP Insight Control suite helps you deploy servers
rapidly, proactively monitor system health and
performance, improve power consumption, and take
total remote control of your infrastructure
Enhanced service level Care Pack offerings
•Three-year Support Plus 24: Integrated 24x7 hardware and
software operating support
•Proactive Select: Access to HP best-in-class technical consultants.
Purchase service credits and obtain expertise when needed
Benefit from HP Care Pack Services helping you:
•Reduce deployment time and manage ProLiant server solutions
smoothly and efficiently
•Increase uptime and performance of server availability to your
business
•Detect, diagnose, and repair problems quickly to save time,
money, and resources
For more information, visit
www.hp.com/services/proliantservices or
www.hp.com/go/proliant/carepack
For more information about the HP ProLiant DL370 G6 and the HP ProLiant ML370 G6 servers,
visit: www.hp.com/servers/dl370-g6 or www.hp.com/servers/ml370-g6
Share with colleagues
Get connected
www.hp.com/go/getconnected
Current HP driver, support, and security alerts
delivered directly to your desktop
© Copyright 2009–2010 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only
warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Intel and Xeon are trademarks of Intel Corporation in the United States and other countries.
4AA2-5106ENW, Created March 2009; Updated September 2010, Rev. 3
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
