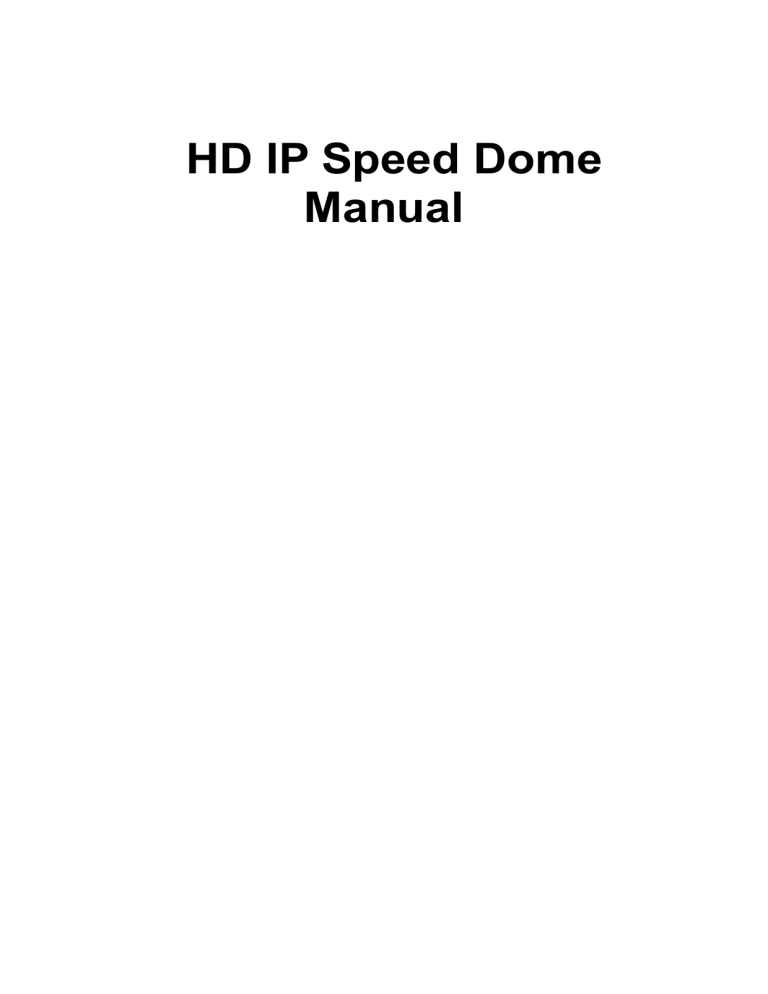

HD IP Speed Dome

Manual

Statement

Thank you for purchasing our products! If you have any questions or need, please contact the customer department at any time.

There may be technical inaccuracies and typographical errors in the manual. Products, updated in real time, the contents of the manual will be updated from time to time without prior notice. The updated content will be added in new version. If it is inconsistent with the products, please be on the products basis.

If in doubt or dispute manual, please refer to the final interpretation of the company.

CONTENTS

1.PRECAUTION ................................................................................................. 1

1.1

L

AWS AND REGULATIONS

........................................................................................ 1

1.2

E

LECTRICAL SAFETY

................................................................................................ 1

1.3

T

RANSPORTATION

................................................................................................. 1

1.4

I

NSTALLATION WITH CARE

....................................................................................... 1

1.5

R

EQUIREMENTS TO SERVICE PERSONNEL

.................................................................... 1

1.6

E

NVIRONMENTAL REQUIREMENTS

............................................................................ 1

1.7

U

SING

................................................................................................................ 1

2INSTALLATION INSTRUCTION .................................................................. 2

2.1

D

IMENSION OF PRODUCT

........................................................................................ 2

2.2

I

NSTALLATION

....................................................................................................... 2

3PERFORMANCE .......................................................................................... 3

3.1

T

ECHNOLOGY PARAMETER

...................................................................................... 3

3.2

C

AMERA PARAMETER

............................................................................................. 3

3.3

P

ERFORMANCE AND FEATURE

.................................................................................. 3

3.3.1 Built-in digital camera .................................................................................................... 3

3.3.2 Integrated and multi-protocol decoder ........................................................................ 3

3.3.3 Built-in pan/tilt ................................................................................................................. 3

3.3.4 OSD menu ...................................................................................................................... 3

3.3.5 Internal temperature test .............................................................................................. 3

3.3.6 Infrared function ............................................................................................................. 4

3.3.7 Network specification .................................................................................................... 4

4FUNCTION INSTRUCTION.......................................................................... 5

4.1

A

UTO

-

RUN MOTION

.............................................................................................. 5

4.1.1 Focus/speed proportion pan ........................................................................................ 5

4.1.2 Auto flip............................................................................................................................ 5

4.1.3 Park action ...................................................................................................................... 5

4.1.4 Power up action ............................................................................................................. 5

4.2

C

AMERA CONTROL

................................................................................................ 5

4.2.1 Magnification control ..................................................................................................... 5

4.2.2 Focus control .................................................................................................................. 5

4.2.3 Iris control ....................................................................................................................... 5

4.2.4 Auto back light compensation ...................................................................................... 6

4.2.5 Auto white balance ........................................................................................................ 6

4.3

M

ONITOR FUNCTION

............................................................................................. 6

4.3.1 Set and call preset ......................................................................................................... 6

4.3.2 Tour .................................................................................................................................. 6

4.3.3 Scan ................................................................................................................................. 6

4.3.4 Pattern ............................................................................................................................. 6

4.3.5 Lens position display ..................................................................................................... 6

4.4

C

ONSTANT TEMPERATURE FUNCTION

........................................................................ 6

4.5

I

NFRARED FUNCTION

............................................................................................. 6

4.6

N

ETWORK FUNCTION

............................................................................................. 6

5. SYSTEM SETTING ........................................................................................ 8

5.1

B

ASIC OPERATION

................................................................................................. 8

5.1.1 Power up and self-testing ............................................................................................. 8

5.1.2 Call the main menu ....................................................................................................... 8

5.1.3 Menu and PTZ control interface operation ................................................................ 8

5.2

E

DIT DOME TITLE

.................................................................................................. 8

5.3

D

OME INITIAL INFORMATION

................................................................................... 9

5.4

P

ASSWORD SETUP

................................................................................................. 9

5.5

S

YSTEM PARAMETER

............................................................................................ 10

5.5.1 Power up action ........................................................................................................... 10

5.5.2 PAN/TILT setting .......................................................................................................... 10

5.5.3 Time action setup......................................................................................................... 11

5.5.4 Park action setup ......................................................................................................... 11

5.6

D

EFAULTS

.......................................................................................................... 11

6. CAMERA SETTING ...................................................................................... 13

6.1

L

ENS PARAMETERS

.............................................................................................. 13

6.1.1 Zoom speed .................................................................................................................. 13

6.1.2 Digital zoom control ..................................................................................................... 13

6.1.3 Back light compensation ............................................................................................. 13

6.1.4 Slow shutter control ..................................................................................................... 14

6.1.5 WDR control ................................................................................................................. 15

6.1.6 Day/night setting .......................................................................................................... 15

6.2

AE

MODE

.......................................................................................................... 16

6.3

W

HITE BALANCE MODE

........................................................................................ 17

6.4

A

DVANCE PARAMETERS

........................................................................................ 18

6.5

P

RIVACY ZONE MASKING

....................................................................................... 18

7. FUNCTION SETTING ................................................................................... 20

7.1

P

RESET

............................................................................................................. 20

7.2

S

CAN

................................................................................................................ 21

7.3

P

ATTERN

........................................................................................................... 22

7.4

T

OUR

............................................................................................................... 22

7.5

Z

ONES

.............................................................................................................. 23

8. DISPLAY SETUP ........................................................................................... 25

9. INFRARED SETTING ................................................................................... 26

10. WEB CMS .................................................................................................... 27

10.1

O

PERATING REQUIREMENTS

................................................................................ 27

10.1.1 Display requirements ................................................................................................ 27

10.1.2 Operating system font ............................................................................................... 27

10.2

W

EB USING INSTRUCTIONS

................................................................................. 27

10.2.1 Login ............................................................................................................................ 27

10.3

O

PERATING

...................................................................................................... 29

11. CMS USER-UC ............................................................................................ 31

11.1

O

PERATING ENVIRMENTS REQUIREMENTS

.............................................................. 31

11.1.1 Hardware environment .............................................................................................. 31

11.1.2 Software environment ............................................................................................... 31

11.2

UC

INSTALL AND UNINSTALL

................................................................................ 31

11.2.1 Installation steps ........................................................................................................ 31

11.2.2 Uninstall steps ............................................................................................................ 34

12. UC CMS ....................................................................................................... 36

12.1

L

OGIN

............................................................................................................. 36

12.2

M

AIN

I

NTERFACE DESCRIPTION

............................................................................ 36

12.2.1 Interface description .................................................................................................. 36

12.2.2 Interface function production ................................................................................... 37

12.3

D

EVICE CONFIG

................................................................................................ 38

12.3.1 Device config .............................................................................................................. 39

12.3.2 Device config .............................................................................................................. 39

12.4

U

SER CONFIG

................................................................................................... 41

12.4.1 Role config .................................................................................................................. 41

12.4.2 User group config ...................................................................................................... 42

12.4.3 User management ..................................................................................................... 42

12.4.4 Rolling subtitles management ................................................................................. 43

12.5

R

ECORD CONFIG

............................................................................................... 43

12.5.1 Record strategy ......................................................................................................... 43

12.5.2 Strategy config ........................................................................................................... 43

12.6

R

EMOTE CONFIG

............................................................................................... 45

12.6.1Select device ............................................................................................................... 45

12.6.2 Remote config ............................................................................................................ 45

12.7

M

AINTENANCE

................................................................................................. 46

12.7.1 Device information list ............................................................................................... 46

12.7.2 Upgrade ...................................................................................................................... 46

12.7.3 Config file upload and download ............................................................................. 47

12.7.4Reboot and cefault config.......................................................................................... 47

12.7.5 The management of front-end storage device ...................................................... 47

13. VIDEO VIEW ................................................................................................ 48

13.1

V

IDEO VIEW OPERATING

..................................................................................... 48

13.1.1 Real-time monitor ...................................................................................................... 48

13.1.2 Real-time monitor method ........................................................................................ 49

13.1.3 Electronic zoom ......................................................................................................... 49

13.1.4 Dual-stream switching .............................................................................................. 50

13.1.5 Capture ....................................................................................................................... 50

13.1.6 Voice talk..................................................................................................................... 50

13.1.7 Audio switch ............................................................................................................... 51

13.1.8 Broadcast audio ......................................................................................................... 51

12.1.9 Start to select the fragment of device record ......................................................... 51

13.1.10 Patrol ......................................................................................................................... 52

13.1.11 Alarm linkage ............................................................................................................ 52

13.1.12 Full and norm ........................................................................................................... 53

13.1.13 Screen lock and unlock .......................................................................................... 53

13.1.14 Stop video ................................................................................................................. 53

13.1.15 Start all record .......................................................................................................... 53

13.1.16Full-screen control .................................................................................................... 54

13.1.17Device list .................................................................................................................. 54

13.1.18PTZ control ................................................................................................................ 55

13.1.19 Alarm message ........................................................................................................ 58

14. VIDEO QUERY ............................................................................................ 59

14.1R

ECORD QUERY

................................................................................................. 60

14.1.1 File playback .............................................................................................................. 60

14.1.2 Time playback ............................................................................................................ 60

14.2

P

LAYBACK

........................................................................................................ 60

14.2.1Local record playback ................................................................................................ 60

14.2.2 Front-end record playback ....................................................................................... 61

14.3

D

OWNLOAD RECORD

......................................................................................... 61

15. ALARM MESSAGE ..................................................................................... 62

16. TV WALL ..................................................................................................... 63

16.1

TV

WALL LAYOUT

.............................................................................................. 63

16.2

M

ONITOR LAYOUT

............................................................................................. 63

16.3

T

HE BINDING OF DECODER AND MONITOR

.............................................................. 64

16.4

TV

WALL PATROL SETTING

................................................................................... 65

17. ELECTRONIC MAP .................................................................................... 69

17.1E

LECTRONIC MAP LAYOUT

.................................................................................... 69

17.1.1Add map ....................................................................................................................... 69

17.1.2Add sub map ............................................................................................................... 70

17.1.3Add devices ................................................................................................................. 70

17.2P

LAY DEVICES VIDEO

........................................................................................... 71

17.2.1Real-time monitor ....................................................................................................... 71

17.2.2Full screen/exit full play ............................................................................................. 71

17.2.3Devices video change ................................................................................................ 71

17.2.4Stop video .................................................................................................................... 72

17.3T

HE DELETE OF MAP AND DEVICE

.......................................................................... 72

17.3.1The delete of map ....................................................................................................... 72

17.3.2The delete of device ................................................................................................... 72

17.4.1Map property ............................................................................................................... 72

17.4.2Devices Property ........................................................................................................ 72

17.5J

UMP AMONG MAPS

.......................................................................................... 73

18. FORWARDING SERVICE SETTING .......................................................... 74

18.1F

ORWARDING SERVICE SETTING

............................................................................ 74

18.2R

EMOTE CLIENT RECEIVING AND DELIVERING CONFIGURATION

..................................... 75

18.3F

ORWARD DEVICE VIDEO QUERY

,

PLAYBACK

, D

OWNLOAD FUNCTION

............................ 76

19. MULTI-SCREEN DISPLAY ......................................................................... 77

19.1M

ULTI

-

SCREEN DISPLAY

....................................................................................... 77

20SETTING .................................................................................................... 78

20.1

A

UTOMATIC LOGIN

............................................................................................ 78

20.2

B

OOT AUTOMATICALLY

....................................................................................... 78

20.3

S

TORAGE SETTING

............................................................................................. 78

20.4

P

ATROL SETTING

............................................................................................... 79

20.5

S

WITCH STREAM

............................................................................................... 80

20.6

B

ROADCAST SET

................................................................................................ 81

20.7

T

IME

/A

LARM SET

............................................................................................. 82

20.8

A

BOUT

........................................................................................................... 83

20.9

H

ELP

.............................................................................................................. 83

1.Precaution

Notice:

Read this manual before the installation

1.1 Laws and regulations

The using area must abide by the laws and regulations of your country.

1.2 Electrical safety

Conform to country and local electrical safety standard when using or installing the product.

Using local special power adapter. This dome uses DC12V/1500mA power supply.

1.3 Transportation

The dome should be protected against extremes of pressure, vibration and humidity during storage and transportation. It should be shipped in parts disassembled as the original packing did. Damage caused by improper transportation is not within the warranty.

1.4 Installation with care

Do not install it in any other orientation. Do not squeezed structure parts, which may cause mechanical damage. Down cover is a precise optical product. Do not touch it directly to avoid scratches which can affect image quality.

1.5 Requirements to service personnel

All the service work should be done by qualified technicians.。

1.6 Environmental requirements

Operation environment temperature:-10℃~+50℃

Humidity:< 90%

Air pressure:86-106Kpa

Power supply:DC24V/2700MA

1.7 Using

Don't place the camera to be shoot by strong light objects. Don't point the dome to the sun or other bright objects when in use or not. It may affect image quality.

1

2Installation Instruction

2.1 Dimension of product

Outdoor

Ceiling Side View Top view

2-1

2.2 Installation

1. Connect the power line, RJ45 cable.

2. Install the wall braket with four STP4*20 screws

Picture 2-3

2

3Performance

3.1 Technology parameter

3.2 Camera parameter

3.3 Performance and feature

This product is high-technology surveillance product with high definition and color camera, variable-speed pan/tilt and multifunction decoder. It can reduce the connection and install- lation process between systematic parts at a max limit, and also can improve the stability and reliability of the system. Meanwhile it is easy to install and repair, and it has the following advantages: beautiful shape, rotate lightly and neatly, little noise, simple operation and so on.

3.3.1 Built-in digital camera

a. High sensitivity, high resolution, and integrated digital processing b. Auto-focus c. Auto brightness control d. Auto slow shutter e. Auto-Iris f. Auto white balance g. Auto back light compensation

3.3.2 Integrated and multi-protocol decoder

a. Figure design, all the data are stored in the inner of camera pan/tilt, when power off, the storage data can't be lose. b. Built-in decoder, integrated multi-protocol,including PELCO-D, PELCO-P, FACTORY, etc. c. 128 presets can be stored, preset 1-80 support auto tour, and each tour can store up to

32 presets. d. 1 pattern, 1 scan, 1 tour e. Built-in direction indicator f. Built-in direction temperature indicator

3.3.3 Built-in pan/tilt

a. Iron and carbon alloy structure, high intensity, and good heat dissipation. b. Precise stepping motor, rotate smoothly, react sensitivity and orientate accurately. c. Exquisite mechanical drive, support pan 360°continuously and tilt 0-90°, and may rotate180° d. Rotate slowly at pan 0.2°/s, and the image doesn't jitter.

3.3.4 OSD menu

a. All the menu option are displayed in English. b. Video OSD menu. It is direct and simple to revise the dome information and parameter by keyboard and menu display. c. May set park action, and set power up action or carry out appointed action.

3.3.5 Internal temperature test

a. Real-time temperature display can be set b. When the temperature exceeds the upper limit, the screen will display alarm information.

3

c. According to the real-time temperature, the fan will measure if it starts or not, and prolong the life of fan.

3.3.6 Infrared function

a. IR up to 150m b. IR angle change according to focal length

3.3.7 Network specification

Specs

Items

1.3Mega Pixel 2.0Mega Pixel

Total pixel

Frame Rate

1280(H)*960(V)

50Hz: 25 fps (1280×960) 25 fps (1280×720)

60Hz: 30 fps (1280×960) 30 fps (1280×720)

1920(H)*1080(V)

50Hz:25fps(1920×1080)

25fps(1280×960) 25fps(1280×

720)

60Hz:30fps(1920×1080)

30fps(1280×960) 30fps(1280×

720)

Video

Compression

Audio

Compression

H.264/MJPEG

G711A/G711U/G726/ADPCM/AAC

Network

Protocol

IPv4,HTTP,HTTPS,802.1x,

FTP,SMTP,UPnP,SNMPDNS,DDNS,NTP,RTSP,RTP,TCP/IP,DH

CP,PPPoE

Dual-Stream/Tri-Stream

Code Stream

User Right

Safe Mode

Supprt 8 user control at the same time,4 Class:

Administer,Browse,Browse+Control,Browse+Control+Set

Authorized Admin and Pass Word,Encrypted HTTPS;Network

Access Controled IEEE 802.1x,FiltrateIP Address

Network Interface

10M/100M

TF Card Interface

Support

Onvif

Onvif 2.4 Ver.

Picture 3-3

4

4Function Instruction

This passage mainly describes the main function and general principle of mini speed dome.

4.1 Auto-run motion

4.1.1 Focus/speed proportion pan

When manually adjusting, for far focus situation, the dome responds at a high-speed so that touching rocker slightly may make picture move rapidly, thus cause the picture to lose. To base on humanized design, the dome automatically adjust pan and tilt rotation according to zoom near and far, which make it is convenient to operate manually to make tracks for the object. In the menu, you may change system parameter setting proportion pan as ON, thus you may run this function.

4.1.2 Auto flip

If user holds the joystick in the down position, the camera rotates pan 180 degrees, then the camera rotates tilts up to 90 degrees, you may directly watch the rear view to realize surveillance all processes in portrait 180 degrees . In the menu, you may set the system parameter setting AUTO FLIP as ON, thus you may run this function.

4.1.3 Park action

By the menu“park time”and“park action”, user may set auto-call preset or run tour, pattern, and scan, etc after pointing a few minutes if the dome doesn't run any motions.

4.1.4 Power up action

By the menu“power up action”, after the dome powers up or restarts, user may set auto- resume motions before power up and auto- call preset or run tour, pattern, and scan etc.

4.2 Camera control

4.2.1 Magnification control

The user can control to adjust zoom far and near of the image by PTZ control interface to obtain panoramic image or close view that you need. The speed dome support digital zoom and optical zoom.

4.2.2 Focus control

System defaults Auto focus. When the lens changes, camera will auto-adjust focus according to the centre of the image to get legible image; user also can manually focus to get desire image by PTZ control interface resumes to auto focus.

.When operating keyboard joystick, camera

The camera cannot auto focus in the following status: a. Target is not the centre of the image b. Observation the target near and far at the same time,can not be clearat the same time c. Target is a strong light object, such as spotlight etc d. Target moves too fast e. Target is subfusc, such as wall f. Target is too dark or vague g. Target image is too small

4.2.3 Iris control

System defaults Auto Iris. Camera canrapidly adjust size of Iris, through the automatically induct the changing of environment ray, and thus make the brightness of deferent image stable.

User may adjust iris byPTZ control interface to get required brightness that you need. User also can resume auto Iris by joystick operation. When controlling the Iris manually, the dome locks current position you manually controlled; when operating joystick, the dome

5

resume auto Iris.

4.2.4 Auto back light compensation

Camera sub-area cancarry out auto back light compensation. Under a strong lightbackground, camera will auto compensate light for the darker object and adjust daylight to the bright background. In order to avoid makingthe image lack fidelity by the back line is too bright, and the object is unable to recognize because of darkness, thus gain legible image.

4.2.5 Auto white balance

Camera can automatically adjust white balance in accordance with the alteration of background light-ness to reach a true colour.

4.3 Monitor function

4.3.1 Set and call preset

Preset function is that dome stores current pan/tilt angle, zoom and other position parameters into the memory. When necessary dome recalls these parameters and adjust camera to that position. User can store and recall presets easily and promptly by using keyboard controlling. The dome can store up to 128 presets.

4.3.2 Tour

Tour is the built-in function in the speed dome. It can appoint setting in advance, and make pre-sets arranged in needful order in tour dwell. By inserting presets in tour dwell, to make the camera tour between these presets.Tour order can be programmed, each time you run tour, you can set park time. A tour can store 32 preset.

4.3.3 Scan

User can easily preset right limit and left limit by controlling menu and menu, in order to make the camera scanned between right limit and left limit at a setting speed.

4.3.4 Pattern

Pattern is built-in function in the speed dome; the dome can record the tracks that are no less than 180s, when running pattern, the dome moves repeatedly according to the recorded tracks. Each dome can set up to 1 pattern.

4.3.5 Lens position display

The position that the speed dome has finished to self-testing as 0 point of pan rotation and tilt rotation. The pan range is 0-360°,and tilt range is 0-90°. According to the displayed information to set the position of camera lens, and the position can display on the screen.

4.4 Constant temperature function

Inner temperature sensor surveille temperature inside of the dome. When the dome work in the high temperature, the dome will automatically to start-up the fan to reduce the heat, to make sure the dome work in the reliable temperature environment, increase its stability and prolong the life time of the dome.

4.5 Infrared function

a.Mini illumination 0Lux b.Use efficient infrared array,low comsuption,IR up to 150m c.The brightness of IR LEDS is in proportion to the optical zoom d.Built-in heat process and defog syste e. Constant current control, lower consumption making sure IR LEDS have more than

30,000hs working life.

4.6 Network function

a. Support ethernet b. View monitoring and control the PTZ through browser and Customer Managment

System

6

c. Support Micro SD card d. Support NAS record,and support offline transmission e. 4 class user authorized management, authorized admin and password, Encrypted

HTTPS;Network Access Controled IEEE 802.1x, Filtrate IP Address f. Dual-Stream/Tri-Stream, H.264/MJPEG video compression. Video output: 1080p、960p and 720p g. Multi-protocos: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS,

DDNS, NTP, RTSP, RTP, TCP/IP, DHCP, PPPoE

7

5. System Setting

5.1 Basic operation

5.1.1 Power up and self-testing

The dome conducts self-testing after current-carring, and it rotates slowly until displaying pan origin that is default setting, then moving to tilt origin.

The information will not disappear until you stop to operate the system. If youset“power up action”, the dome will automatically activate motions after self-testing. How to operate the function? We will explain detail introduction in following passages.

5.1.2 Call the main menu

The system enters into the main menu by 95preset or twice transfer 9 preset in 3 seconds .

All the menu setting must enter into the main menu at first.

If the PTZ set password, must input the correct password. Input super password(super password: 584609) when forget the setted password, then the password will be the original password(original password: 000000), need to reset the password. We will explain how to reset password in chapter 5.7

5.1.3 Menu and PTZ control interface operation

Ø PTZ Control Interface when choosing menu, it means to enter the next menu or enter into setting, or save after finish to set. when choosing menu,it means to close to cancel, or exit to the former menu.

Focus to the distance。

Focus to the vicinity。

Amplify multiple。

Diminish multiple

: means to choose the former one

: means to choose the next one

: when choosing picture, it means camera tilt left,it is equal with 。

: when choosing picture, it means camera tilt right,it is equal with

Ø Menu operation:

“BACK”: Back to the former menu.

“EXIT”:Exit to menu

“ON”:Open some setting

“OFF”:Close some setting

5.2 Edit dome title

When using a lot of systems of the dome , in order to identify to each dome, the systems support title setting. The setting ways as follows:

1.Use 95 preset or transfer 9 preset twice in three seconds to enter the main menu.

2.Moving mouse cursors up and down to move the cursor to【SYSTEM SETTING】,click to enter the next menu.

3.Moving mouse cursor【EDIT DOME TITLE】,click to enter the title setting menu。

4.Moving mouse cursor【TITLE】,click to edit current title。

5.When the mouse cursor is twinkling in the first character of the title, to move mouse cursor to choose character, after editing, click to save.

6. Moving mouse curso【BACK】, click to back to the former menu.

8

Notice:

The label may set 16 characters, and doesn't need editing characters. Pressing continuously to jump over and using spacebar to replace the deleted characters. When you finish to edit character, press to enter intothe next editing character.

When you editing the last character, pressing to save. Press to exit. Character of label is suitable for choosing as follows: 0-9、A-Z、:<>-., Space.

Other labels’ input ways are t he same as above

5.3 Dome initial information

1. Use 95 preset or transfer 9 preset twice in three seconds to enter the main menu.

2. Operate the mouse cursor to【SYSTEM SETTING】,click to enter submenu.

3.Operate the mouse cursor to【INITIAL INFO】,click to display initial information as the left picture shows.

4、Initial information includes S/N of the dome, soft edition, protocol, dome ID, communication parameter. System setting may change the numerical value of initial information.

5.4 Password setup

The original password is 000000。

1.Call 95 preset or call 9 preset twice within 3 seconds and then input the password to enter the main menu.

2.Operate the mouse cursor to【SYSTEM SETTING】,click to call the submenu.

3.Operate the mouse cursor to【PASSWORD SETUP】,move mouse cursor to right or click

to call the submenu. Please refer to the left picture.

4. Operate the mouse cursor to【OLD PASSWORD】,clik choose【OLD PASSWORD】, input the password.

●【NEW PASSWORD】:input new passoword

●【CONF PASSWORD】:comfirm password

●【ENABLE PASSWORD】:enable password

The password function is effective only "ENABLE PASSWORD" is set as "ON".

Notice:

When user forgot the password and can not enter into the mainmenu, he can use the super password to enter, which is "584609", at this time, the password of dome will change to initial one, which is "000000", and thenuser may set the password by himself again.

9

5.5 System parameter

Systematic motion controlling may control a series of canonical movement of the dome, and plays an important role in controlling the image of the dome.

1. The system enters into the main menu by calling 95 preset or by

2. Operate the mouse cursor to【SYSTEM SETTING】,click to enter submenu。

3. Operate the mouse cursor to【SYSTEM PARAMETER】,click to enter the system parameter menu,as left picture .

● 【EIS ENABLED】: electronic anti-quake function, related to the camera module

● 【PRESET FREEZE】: preset freeze function, the screen can change when the PTZ move to the next preset.

5.5.1 Power up action

The dome startup to run actions after self-testing, if nobody intervenes with it, the dome will repeatedly run this action continuously , if default sets as【NONE】. Operate cursor, move the cursor to【POWER UP ACTION】: press to jump to the following choice, tilt up/down cursor to choose "power up action", press to save.。

● 【NONE】:none action

● 【AUTO】:the dome resumes the primary action and direction before power up.

● 【PAT1】:run pattern

● 【TOUR】:run tour

● 【SCAN】:run scan

● 【PRESET】:use preset

5.5.2 PAN/TILT setting

Move the mouse cursor to【PAN/TILT SETTING】, operate PTZ control interface setting

1、 AUTO FLIP】:auto flip function setting, choose “ON”,open “auto flip”,choose “OFF”, then close auto flip function。click to save setting。

OPERATION KNACKS:

When manually adjusting, for far focus situation, the dome responds at a high-speed so that touching rocker slightly may makepicture move rapidly, thus cause the picture to lose. To base on humanized design, the dome automatically adjust pan and tilt rotation according to zoom nearand far, which make it and tilt rotation according to zoom nearand far, which make it

2、【PROPORTION PAN】:proportion pan setting,choose “ON”,open “proportion pan”, choose “OFF”, then close “proportion pan”。click to save the setting。

10

5.5.3 Time action setup

This setting allows the dome to run an appointed action in the set time in one day

Move mouse cursor to【TIME ACTION SETUP】,click to enter the set。

● 【DAY】: set day of the action

● 【TIME CHANNEL】: set the time channel, 4 time channel can be set in one day

● 【START TIME】: start time of the action

● 【END TIME】: end time of the action

● 【ACTION】: perform the action in this time,NONE---no action/ PRESET---call preset/

SCAN---perform scan/ PAT--- perfrom pattern/ TOUR—perform tour

5.5.4 Park action setup

This setting allows the dome to run an appointed action after it enters vacancy for a few time (1-240minutes). If default sets as 0, it means not to run this action.

1.Operate cursor to【PARK ACTION SETUP】,click

, to set park time the range is 0-240

(minute), press【OPEN】to save. Click to save the set。【PARK ACTION】is running action at park time, when【PARK TIME】sets as 0, this item can't be set.

2.Operate cursor to【PARK ACTION】,click

, there will be a sign “ ”in the front of

PARK ACTION】,the cursor jump to right, after tilting up/down,cursor to choose "park action", there are options for choosing as follows, press to save.:

● 【NONE】:(default) no action

● 【PAT1】:run pattern

● 【TOUR】:run tour

● 【SCAN】:run scan

● 【PRESET】:use preset

5.6 Defaults

1.The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2.Operate cursor to【SYSTEM SETTING】,click to enter submenu.

3.Operate cursor to【DEFAULTS】,click to enter submenu, as left picture shows.

● 【CLEAR ALL ZONES】: clear all zones

● 【CLEAR ALL PRESETS】: clear all presets

● 【CLEAR ALL PATTERNS】: clear all patterns

11

of using.

● 【CLEAR ALL TOURS】: clear all tours

● 【CLEAR ALL WINDOWS】: clear all windows

● 【FACTORY DEFAULTS】: resume the factory default. Run this function, the camera parameter and system parameter will resume before production, clear all windows and alarm setting. Please be cautious to use this function

● 【RESTART】: restart the dome

4. Set clear zone as an example to explain the process. Tilt up/down。joystick to【CLEAR

ALL ZONES】, press【OPEN】to clear all zones.

NOTICE:

Once clear all commands in the controlling menu,they don't resume, so please be careful

12

6. Camera Setting

6.1 Lens parameters

6.1.1 Zoom speed

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2.Operate cursor to【CAMERA SETTING】,click to enter 【LENS PARAMETERS】。

3.Operate cursor to【ZOOM SPEED】,click

, then choose【HIGH】 or【LOW】 to set speed。

4、click to save set,click【CLOSE】/ to not save set。

6.1.2 Digital zoom control

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate cursor to【CAMERA SETTING】,click then enter【LENS PARAMETERS】。

3. Operate cursor to【DIGITAL ZOOM】,click

, to enter digital zoom setting,operate mouse,to choose ON means open digital zoom control which is digital zoom is pulled near, if pulling the digital zoom near again, the dome enters into "digital zoom increase", to choose

OFF means to close digital zoom control.

4. Click to save the set.

OPERATION KNACKS:

When open the “DIGITAL ZOOM”, maximum zoom of the PTZ is the optical zoom multiply by digital zoom. When close the “DIGITAL ZOOM”, maximum zoon is only the optical zoom.

NOTICE:

When the optional item display N/A, it means the PTZ do not have that function.

6.1.3 Back light compensation

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2.Operate cursor to【CAMERA SETTING】,click to enter【LENS PARAMETERS】。

3.Operate cursor to【BLC MODE】,click

, there will be a sign " " in the front of 【BLC

MODE】, the cursor jump to right, tilt joystick to open or close back light compensation function.

If choose ON means to open back light compensation mode. If choose OFFmeans to close back light compensation mode.

NOTICE:

When the optional item display N/A, it means the PTZ do not have that function.

13

Non-use back light

Use back light compensation, the compensation, in strong sunshine, the back light side is subject to dark. image is in gear.

OPERATION KNACKS:

Strong background ray can makebacklighting objects engender shadow, (back light compensation), the speed dome can auto-adjust iris to match with the changes of various ray, and auto-revise the main lightness to make the pictures more legible.

NOTICE:

This function relates to models and parameters of the built-in camera in the dome, when open black compensation, it has two functions which are auto-adjust (when you choose ON) or manual adjust (0-255) according to the different of the camera.

4、Click

, to save the set.

6.1.4 Slow shutter control

1.The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate cursor to【CAMERA SETTING】,click to enter【LENS PARAMETERS】。

3. Operate cursor to【SLOW SHUTTER】,click

, there will be a sign“”in the front of

SLOW SHUTTER】,the cursor moves to right, tilt up/down joystick to "slow shutter" choice, if choosing ON means to open slow shutter function, if choosing OFF means close "slow shutter" function.

4、Click , to save the set。

14

OPERATION KNACKS:

When the dome monitors at night or dark environment, because the ray is not enough, the image on the screen is too dark, setting slow shutter can lengthenthe time of lighting so that make the picture that is shoot in dark more legible.

NOTICE:

This function depends on the models and parameters of built-in camera module in dome, if it does not have this function, then this function will be invalid.

6.1.5 WDR control

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate cursor to【CAMERA SETTING】,click to enter【LENS PARAMETERS】。

3. Operate cursor to【WDR MODE】,click

, to set WDR. Choose ON means open WDR, choose OFF means close WDR, press to save.

4. 【MIRROR】: image mirroring function.

5. 【FILP】: 180° inversion imaging function of image.

NOTICE:

This function is relative with the model and parameter of the camera module which insert inthe dome. The option is useless(N/A)when the camera module has no such function.

6.1.6 Day/night setting

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate cursor to【CAMERA SETTING】,click to enter【LENS PARAMETERS】。

3. Operate cursor to【DAY/NIGHT SETTING】, the cursor jumps to right, there are three choices of "DAY/NIGHT", which is as follows:

● 【AUTO】:IR cut filter mode, it means the dome automatically transfers according to sensitivity.

15

● 【TIME】: set the time of opening IR cut filter

● 【COLOR】:set as color mode

● 【BLACK】:set as black and white mode

4.【THRESHOLD】:sensitive of IR cut filter, the range from 0 to 28dB.

5. click to save.

OPERATION KNACKS:

IR cut filter function uses color in day; use black and white at night. This function notonly guarantees the quality of image, but also saves the room of storage.

NOTICE:

This function depends on the models and parameters of built-in camera in dome, if the camera haven't this function, then this function is invalid.(N/A).

6.2 AE mode

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate cursor to【CAMERA SETTING】 to enter submenu

3. Operate cursor to【AE MODE SETTING】,click , tilt up/down mouse to choose AE mode, modes for choosing as follows:

● 【AUTO 】: default setting, auto Iris mode

● 【SHUTTER】 : shutter priority mode

● 【IRIS】: iris priority mode

● 【BRIGHT】: brightness priority mode

4. Choose iris priority mode【IRIS】,click to save the set.

5. Move mouse cursor to the sub-choices of AE mode【IRIS F1.4】,click

, to choose adequate Iris, click to save set.

● 【 SHUTTER 1/50】it means shutter speed, when AE mode is shutter priority, this function can be set.

● 【 IRIS F1.4】it means the size of iris, when AE mode is iris priority, this function can be set.

● 【BRIGHT F2.0/ODB】it means brightness, when AE mode is brightness priority, this function can be set.

16

OPERATION KNACKS:

Quality of photo relates to exposure amount, that is to say how much light can make CCD receives legible image. Exposure amount is relative to the time of lighten (be up to shutter speed) and the area of lighten (be up to the size of iris).

The camera can automatically calculate suitable exposure amount according to brightness of scenery and CCD sensitivity, in the situation that the exposure amount is certain:

【 SHUTTER】(shutter priority) is to fix shutter speed, the camera will auto decide to use how much iris; 【IRIS】(iris priority) is to fix the size of iris, and auto-decide to use shutter speed.

BRIGHT】(brightness priority)is point that the camera TTL check the light directly and control the brightness of image.

Notice:

This function depends on the models and parameters of built-in camera in dome,different camera models, the menu maybe different.

6.3 White balance mode

System supports【AUTO】, indoor mode【INDOOR】, outdoor mode【OUTDOOR】, auto track mode【ATW】, single mode【OPW】, 【OPT】 mode, manual mode【MANUAL】 and kinds of white balance modes, etc. Detailed setting as follows:

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2.Operate cursor to【CAMERA SETTING】,to enter submenu.

3. Operate cursor to【ABW MODE】,to choose AWB mode,click to save set.

AUTO】 is the default mode of speed dome, which is auto-revert real color after the white balance sensor check the environment by camera. When choosing manual mode【MANU- AL】, adjust the numerical value of【R GAIN】and【B GAIN】.

● 【R GAIN】the range is 1-225, the numerical value is bigger, it means that adding red is more, the tone changes to be warm.

● 【B GAIN】the range is 1-225, the numerical value is bigger, it means that adding green is more, the tone changes to be cold.

Indoor mode【INDOOR】,and the tone leans to cold.

Outdoor mode 【OUTDOOR】, and the tone leans to warm.

ALC】Chosing range:000~255

PLC】Chosing range 000~127

NOTICE:

It ispossible that some cameras do not have the setting of【INDOOR】,【OUTDOOR】,

HI-RESOLUTION】, which means the current camera does not have such function when the setting option shows N/A.

17

6.4 Advance parameters

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate cursor to【CAMERA SETTING】,click【OPEN】to enter【ADVANCE

PARAMETERS】。

3. 【SHARPNESS】: change the sharpness of the image. The value is bigger, the image will be clearer.

4. 【HI-RESOLUTION】:high resolution is built-in function of camera. This function is relative with the model of camera.

5. 【MAX GAIN】: it is the max gain of auto gain, and can be set between 8-28dB. When the light is very dark, the value is smaller, the noise of image will be less. The value is larger, the noise of image will be more.

6. 【EXPOS COMP】:exposal compensation function.

6.5 Privacy zone masking

Privacy function can show someone piece of regional shielding while protecting. For example, protect the window of bedroom or ATM of bank. Each dome can set up to 24 privacy windows. (Masking setting function is relative with the model of camera module. The masking numbers will be different according to the different cameras.)

1.The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate cursor to【CAMERA SETTING】,click to enter【PRIVACY MASK】 click enter the PRIVACY MASK MENU

● 【PRIVACY NUMBER】choose window number as current privacy window, other choices in the menu just aim at current privacy window.

● 【EDIT PRIVACY】program current window.

● 【ENABLE PRIVACY】permit/prohibit current privacy window, there are two choices:

ON---permit current privacy window/ OFF---prohibit current privacy window.

● 【CLEAR PRIVACY】clear current privacy window, after clearing it, the window will auto- change as OFF.

3. Program current privacy window: Firstly choose window number, then do the following operations: a. Operate cursor to【EDIT PRIVACY 】,click to move the image that need privacy window to display b.click

, there will be a square displaying in the centre of the screen, operate joystick, and move the square to the central place that need to conceal. c.click

, operate mouse cursor to adjust the size of privacy zone: cursor to up, the height

18

is increased; cursor to down, the height is reduced; joystick to right, the width is increased; cursor to left, the width is reduced. d. Click to save the current privacy zone setting, and the window will auto-change as

ON at the same time.

NOTICE:

This function is decide by the parameter of built-incamera, if the camera does not have this function, this option isinvalid.

19

7. Function Setting

7.1 Preset

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds. Click each command to enter "preset menu" according to the order of the left picture. As follows:

● 【PRESET NUMBER 】

● 【SET PRESET】

● 【SHOW PRESET】

● 【CLEAR CURRENT PRESET】

● 【EDIT PRESET TITLE】

Define preset and call preset function can be set by keyboard operation, input preset number at first, then click the key "save /call preset" to carry out.

2. Define current preset number: move the cursor to【PRESET NUMBER】,click to choose preset number, the range is 01-128 as the left picture shows, here chooses number 5 as current preset, the following operations aim at the current preset.

3. Define current preset: move the cursor to【SET PRESET】,click

, by operating mouse cursor to adjust magnification, to choose good objective image, click to save. If the image is very near, the image is belong in digital zoom; when setting preset, the image will jump to maximal optical zoom.

OPERATION KNACKS:

Preset function is that dome stores current pan/tilt angle, zoom and other position parameters into the memory. When necessary dome recalls these parameters and adjust camera to that position.

4. Display current preset: move the cursor to【SHOW PRESET】,click

, the screen will display the current preset.

5. Clear current preset: move the cursor to【CLEAR PRESET】,click

, the current preset is cleared.

6. Edit current preset label: move the cursor to【EDIT PRESET TITLE】,click to enter into editing preset submenu,,system auto set title as PRESET-XX, click to revise title.

20

NOTICE:

1. When running to program, display, clear preset and edit label, should choose preset number at first.

2. The label may set up to 16 characters, and doesn't need editing characters. Press

OPEN】 continuouslyto jump over and use editspacebaracharacter,to replacepressthe【deletedOPEN】characters.to enter intoWhentheyounextfinishediting to character; when youfinish to edit the last character, pressing【OPEN】to save. Press

CLOSE】 to exit. Characterof label is suitable for choosing as follow: 0-9、A-Z、:<>-. , space.

3. As the submenu【STATE】 in【AUTO TRACKING】is set asOFF, it is valid to Call preset to set auto-tracking ON/OFF. (Pls reference the Paragraph 6.7)

7.2 Scan

1.Scan is that pre-set two points , then the camera repeatedly scan between the two points at a stable speed, the same magnification and pan. Each dome has four scan.

2. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds. Click menu to enter "scan" menu, as the left picture shows.

● 【SCAN NUMBER】

● 【SCAN SPEED 】

● 【SET LEFT LIMIT】

● 【SET RIGHT LIMIT】

● 【RUN SCAN】

● 【CLEAR SCAN】

● 【EDIT SCAN LABEL】

3.Define current scan number: operate mouse, move the cursor to【SCAN SPEED】, click

, operate mouse cursor to control scan speed,click to save

4. Left limit setting: operate mouse cursor to【SET LEFT LIMIT】,click

, operate mouse to choose objective image, press,click to save; Right limit setting is the same as left limit setting.

5.Edit scan label: operate mouse, move the cursor to【EDIT SCANTITLE】,click to enter submenu "edit title", move the, move cursor to【TITLE】,system auto-set AUTOSCAN,click to revise.

NOTICE:

The label can set up to 16 characters, and doesn't need editing characters.

Click continuously to jumpover and using spacebar to replace the deleted characters.

When you finish to edit a character, click to enter into the next editing character when you finish to editthe last character, click to save. Click to exit.Character of label is suitable for choosing as follow: 0-9, A-Z, :<>-. , Space. The editing ways of other labels are the same as above.

6、Run scan: operate mouse to【RUN SCAN】,click to exit the menu, and it starts to run scan.

21

NOTICE: a. Left limit and right limit of scan can't be set the same point. b. Under scan process, speed, magnification and tilt direction won't change, if the speed, magnification and tilt direction of the two limits are inconsistent, run scan is base on left limit.

7.3 Pattern

Pattern is built-in function in camera; the speed dome can record tracks that are no less than 180s. ( A series of pan/tilt controlling and lens controlling command). Each dome may set up to 4 patterns.

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate the mouse to【FUNCTION SETTING】,click to enter submenu

3. Operate the mouse to【PATTERNS】, click to enter menu "Pattern".。

● 【PATTERN NUMBER】

● 【RECORD PATTERN】

● 【RUN PATTERN】

● 【CLEAR PATTERN】

● 【EDIT PATTERN TITLE】

4. Choose pattern: move cursor to【PATTERN NUMBER】,click

, the pattern you choose as current one, the following operations aim at the current pattern.

5. Define current pattern tour: move the cursor to【RECORD PATTERN】,click , to set pattern track, move the image random, and draw the focus. Each dome has a tour that is no less than 180s, a series of park time, magnification, focus will be recorded, click to save.

6.Run pattern: operate mouse to【RUN PATTERN】,click to run, the dome will continuously and repeatedly record the specific track.

NOTICE:

When carry out program, run,clear pattern and edit title, should choose pattern number at first.

7.4 Tour

Tour is the built-in function in the speed dome, it will arrange the presets into the queue of

22

auto-tour, and can set how long it will park at preset. Operate auto-tour is a process of incessantly transfer each preset. One tour can store 32 presets at most.

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate mouse to【FUNCTION SETTING】,click enter submenu.

3. Operate mouse to【TOUR】,click to enter menu "tour".

●【TOUR NUNBER】

●【EDIT TOUR】

●【RUN TOUR】

●【CLEAR TOUR】

4. Set tour: move the cursor to【TOUR NUMBER】,click , to set tour interface.

5. Run tour: Operate joystick, move the cursor to【EDIT TOUR】,click to exit the menu, it starts to run tour.

【 PO-S-TM】set preset, speed and time, click , the first dwell is activated , tilt up/down mouse to choose preset number, the preset numerical value should be within 1-80 preset, a tour can set up to 24 presets. click the cursor jump to the next dwell, tilt up/down joystick to choose current arrival preset speed , total 8 level of speed , increasingly from level1 to level 8.

Click the cursor jumps to the next dwell, tilt up/down joystick to set current preset maintaining time, 60 seconds maximum. If set the presets of the second line , move the cursor to the second line, click to edit. Click to save after setting, click to exit.

6. Run tour: Operate mouse, move the cursor to【RUN TOUR】,click to exit the menu, it starts to run tour.

7.5 Zones

Each dome may be set up to 8 zones, and the regional scene can't be overlapped. User will set label for each zone. When setting【ZONE TITLE】as ON, the dome will display zone title as it runs some zone. It is convenient to know the zone that the camera shoots by setting zone title.

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate mouse, move the cursor to【FUNCTION SETTING】,click to enter submenu.

3. Operate mouse, move the cursor to【ZONES】,click to enter submenu, as the left picture shows.

● 【ZONES NUMBER】: choose zone number as current zone, there choices in the menu aim at current zone.

● 【SET LEFT LIMIT】: set current zone's left limit

23

● 【SET RIGHT LIMIT】: set current zone's right limit

● 【CLEAR ZONE】: clear current zone setting

● 【EDIT ZONE TITLE】: edit current zone title, if zone number is 1, zone title will auto change to ZONE-1

Regard the left/right limit as the demarcation line, and set the middle part as a zone.

Various operational ways are the same as other settings in the menu. Therefore we won't explain it again.

24

8. Display Setup

1. The system enters into the main menu by calling 95 preset or by calling 9 preset twice within 3 seconds.

2. Operate the mouse up and down and move the cursor to【DISPLAY SETUP】,click to enter menu, to set the content of the display setup as follows:

● 【DOME TITLE】

● 【PRESET TITLE】

● 【ZOOM POSITION】

● 【ZONES NAME】

● 【DIRECTION LABEL】

● 【TEMPERATURE LABEL】

● 【TIME LABEL】

● 【DATE LABEL】

3. Taking display dome title as an example to explain the operation【process. Operate up/down joystick to move cursor to【DOME TITLE OFF】,click

, there is a sign " " besides

【 DOME TITLE】, the cursor is twinkling besides【OFF】, as left picture shows.

4、Mouse tilts up/down, setting number changes between ON/OFF, when setting【ON】, it means to display "dome title". When setting【OFF】, it means not to display "dome title". When click , the cursor jump back in front of【DOME TITLE】, which means title setting is finished, when moving the cursor to【EXIT】, it means exiting the menu setting.

The displaying information on the screen will change with the dome rotation. Through the information on the screen, user can see current dome inside temperature, magnification, display zone etc. When all the titles are displayed, the dome works as the following picture shows: (In the picture "305" means pan angle, "45" means tilt angle. )

25

9. Infrared Setting

IR SENSITIVITY: infrared automatic open sensitivity settings, LOW MID HIGH Three grades, the user can according to the environmental illumination status modulates infrared automatic open.

MANUAL DELAY:infrared light manual opening, closing time, if time is 0,Do not automatically close infrared lamp

IR ON/OFF:IR control mode, can be divided into a, AUTO, MANUAL, TIME three models,In TIME model, according to the user set time to switch IR; in MANUALmode,Call the

62 preset command to open the infrared light, open the63 preset closed lamp

IR LUMINANCE:infrared brightness control method in infrared light, open effect after,

AUTO Mode: AUTO, GROUP, MANUAL, three states AUTO mode, infrared automatic brightness matching lens distance, according to the camera lens changes,Infrared high beam and dipped beam headlights will automatically lens changes,Infrared high beam and dipped beam headlights will automatically matching,And can improve the infrared lamp life.

GROUP GROUP mode, packet mode,in a packet mode,infrared high beam and dipped beam headlights will match According to the lens distance packet opened at the same time.

MANUAL MANUAL mode, the manual control mode, infrared brightness from the lens parameters influence,The user can set the high beam and dipped beam brightness, range

0~100

26

10. WEB CMS

This Web CMS is recommend to be used in operating systems Windows XP or Win7

10.1 Operating requirements

10.1.1 Display requirements

Resolution: 1024×768(or above)

Color: enhanced color 32 bit

10.1.2 Operating system font

Make sure the PC have the font that the Web CMS can recognize.

10.2 Web using instructions

Suggest use IE, Google and Firefox browser, do not suggest use other browser(exclude IE,

Google and firefox) and any IE shell program such as Maxthon and so on. WE do not promise the system can be use normally under IE shell program.

Make sure the pc and the surveillance camera have the same network segment when you operate the surveillance camera through IE browser. For example, the surveillance camera IP address is: 92.168.1.2,and the IP address of the PC should be: 192.168.1.X(X can not the same as surveillance camera :2)

10.2.1 Login

Open IE browser, input camera IP address in the address bar, click , to enter login interface. “ActiveX” need to be downloaded and installed when first time login.

If use IE8, suggest modify permission setting,set “Upload the file to a server with local directory path” as enabled

Picture 10-1 Modify permission setting

1. Open IE browser, login server, there is a reminder interface of install plug-in, click ok.

27

1. Operate “IPCConfig.exe”。

Picture 10-2 Install plug-in

Picture 10-3/4 Download IPCConfig.exe

2. Install IPCConfig.exe as install wizard

Picture 10- 5/6 Install IPCConfig.exe

3. After finishing the installation of “PCConfig.exe”, there is the login interface on the screen

(if the login interface do not appear, close browser and open browser again). Input usename and password. Default usename:admin, and default password:123456.

28

Picture 10- 7 Loging interface

10.3 Operating

1、After login, choose stream, enter to view can choose main stream, sub stream and other stream. If can video can not show normally, install Activex first.

Picture 10-8 Main screen

2.Operate mouse and click ,enter the setting interface;click ,to exit, return to thelogin interface

3.Operate mouse and click ,view the interface;click ,stop vieing the inferface; click ,capture the current picture;click ,start to record video;click ,open walkie-talkie function(can be used on only the camera have this function).

29

4.click the red-mark button ,change the save path,name thefolder by the current day to save pictures , videos and so on files.

5. Operate mouse and click PTZ control interface,enter to operate camera.

Picture 10-9 Control Interface

30

11. CMS User-UC

11.1 Operating envirments requirements

11.1.1 Hardware environment

1. Central Processing Unit (CPU): Intel Pentium Dual Core 2.0G or above.。

2. Main Memory: DDRIII 2G or above.

3. NIC: 100/1000M adaptive.

4. HDD: 250G or above.

5. Graphics: GeForce4256MB or above.

6. Display: 17 inch (or above) color LCD or CRT monitor,1024 by 768 pixels (or above).

NOTICE:

If more real-time video and records, and to achieve better results, CPU, memory, graphics must be configured higher.

11.1.2 Software environment

Install UC2 video surveillance client (called UC for short), which support Windows

2000/XP/2003/7 operating systems, it is recommended not to use the following operating systems Windows 98. Suggest Internet Explorer 6.0~9.0.

11.2 UC install and uninstall

11.2.1 Installation steps

Double click "UC2_*.*_YYMMDD_***_setup.exe", if your operating system language is

English, then it will come out an interface as Figure3-1. According to different need, the software has four versions: English, Simplified Chinese, Traditional Chinese and Russian.

Which version you can install determined by your operation system language. In English system, you can only install English version. The detailed step as follows:

Picture 11-1

Step 1: Select the language "English", the Welcome wizard interface, as shown in

Picture (11-2) below;

31

Picture 11-2

Step 2: Click "Next", select the installation directory, as shown in Picture (11-3) below;

Picture 11-3

Step3: Click "Install", the installation is complete appears in Picture (11-4) below;

32

Picture 11-4

Step4: Click "Finish" then the installation will finished. The function of "Run UC2" is that the

UC2 searches all devices that your computer can connect to; If the device is not in the same network of your computer then its IP will be modified; Add all searched devices automatically;

After finished the auto-configure, when you login UC2 in the first time, UC2 will play front nine devices automatically. When finished the installation of UC2, this function is not enabled by default.

Picture 11-5

33

Picture 11-6

Picture 11-7

Picture 11-8

11.2.2 Uninstall steps

Enter start menu "Programs"to"UC"to"Uninstall", operation as follows:

Step 1: Click the "Uninstall" appears to lift interface, as shown in Figure (11-9) below;

Picture 11-9

Step 2: Click the "Uninstall" Uninstall completed, as shown in Figure (3-10) below;

34

Step 3: Click "OK" Uninstall completed.

Picture 11-10

35

12. UC CMS

12.1 Login

On the desktop, double click UC , to start UC login interface. As follow:

Picture 12-1 Login interface

UC2 Video Surveillance Client login points sign platform and not login two types of landing.

1. When you don’t sign platform, the default username is admin, password is

123456.You can add user after login,the detail operation will describe later. Check

"Automatic login", UC will save password and is will login automatically.Check "Save

Password" the UC will save the password if you login successfully this time, then you won't need to enter its password next if you login with this username. In order to ensure the security of the software, if the user checked the "save the password", then in UC exit after login, password a column shows the 32-bit key. UC autosave recently login five user's letter.

2. When you sign platform, username and password is registered on platform, IP is platform address. Sign platform can only grant access to the user of all the devices automatically, implement preview video playback, and other functions, can't remote config management P2P devices and add the local device.

12.2 Main Interface description

12.2.1 Interface description

1. Function menu:

Video View, Record Query, Alarm Message, Config Management, TV Wall, Map, Forward

Service Setting, Multi-screen display and Set main functional areas, detailed in Chapter 12

Config Management >>; Chapter 13 Video View >>; Chapter 14 Record Query >>; Chapter 15

Alarm Message >>;Chapter 16 TV Wall >>; Chapter 17 Map >>; Chapter 18 Forward Service

Setting >>; Chapter 19 Multi-screen display >>; Chapter 20 Setting;

2. Video Window:

36

According to the operation of the toolbar in the above, details in "Real-Time monitor" section.

3. PTZ Control:

PTZ control operation details in "PTZ Control" section

4. Device list:

The region display device information, device list details in "Device list" section. 5. Tool Bar:

The video window can do electronic zoom, Dual-stream switch, Capture, Voice talk, Audio,

Broadcast, Manual Record, Patrol, Alarm action, Full/Norm, lock screen, Stop, Stop all, start all record, full screen, single screen, 4 screens, 6 screens, 8 screens, 9 screens, 10 screens , 13 screens ,16 screens, 25 screens, 36 screens, 49 screens and 64 screens.

4. Setting:

You can set the software automatic login, boot automatically, system configuration, detailed in Chapter 20

12.2.2 Interface function production

A comprehensive introduction to the various functions as follow (minimum resolution 1024 by 76)

Picture 12-2 Platform main interface

37

Picture 12-3 Main interface

12.3 Device config

Click the "Config Management" to enter the configuration management interface. There are five main functions: Device config, User config, Record config, Remote config and

Maintenance.

Sign platform device config, user config, remote config,maintenance are unavailable

38

Picture 12-4 Config management interface

12.3.1 Device config

There is only one group by default. There you can add, remove and modify groups

Picture 12-5 Device group config

1. Add device group:

Input the group name, and then click "Add" button. The same device group name is not allowed. The new device group name will be displayed in the device list.

2. Remove device group:

First select the device group name to be removed, and then click "Remove"; the cameras of the group will be moved to default group when the group is removed. The default group can't be removed.

3. Modify device group:

First select the device group name to be modified, and then input the new name then click "Modify" button; the same group name is not allowed.

12.3.2 Device config

1. Add local device manually:

39

Picture 12-6 Local device config

First select group name as figure4-4 and device type, input device name, protocol type<accessing Internet recommended TCP>,device type<IPC, DVS, Decoder, Video Switch

Server/VSS,NVR/DVR>, stream, access method (The default access method of adding devices is RTSP, you can change the device's access mode<RTSP or TPS>, The standard method is RTSP; the TPS method is only for the device can't login IPSAN platform),device address <it can be IP address or domain name>, video port, PTZ port (IP address, PTZ port and video port must be the same with IPC itself).Login name and password must be the management of the device username and password, PTZ address code and control PTZ address must be the same, otherwise the device will not work properly. After set the parameters click "Add".

After setting those parameters click the button of "Add", then you have finished manual-adding new device. Modify and remove device are the same with add device, not repeat.

When Device Type "Video Switch Server/VSS", Device IP for distal open forwarding service host address, and at the same time, also can be the main domain address, "Video Port" for the open service set up the video port. Click on the "add" button, the server device will be added to the left device list.

Note:1.Add distal device, if it is used to IP address form add will automatic filter out with the same device, if it is used to do main name form will not add to the same device filter.

2.Access UC2 client must use the NVR advice of the company.

1. Add P2P device Manually:

Picture 12-7 Add P2P device

Domain is P2P device ID to add domain suffixes such as X.seetong.com, login name and

40

password for user account and password of the device.

2. Search local devices automatically:

UC can search local devices automatically.

Picture 12-8 Search camera

Click "Search Camera".UC will search all devices in the same LAN and will display all devices; public network can't use search function.

Note:1. If you click the top field in this table, such as IP Address, Subnet Mask and so on, then you can order those searched devices as this field.

2. If you change to other place, the searching will stop.

Picture 12-9 Search camera

The searching results as Figure 4-6. After your searching, you can double click the "Serial

NO." to copy the device's serial number.

3. Add device automatically:

Check the device that need to be added to the device list and click "Batch Add", all the device will be added to the device list.

Check the device and click it, you can modify the IP address, subnet mask, gateway and

DNS.Aslo you can click "Auto gain" to get free IP address.

Picture 12-10 Modify network parameters

12.4 User config

12.4.1 Role config

Role management interface as follow:

41

Picture 12-11 User group management

There are five kinds of operation permission: PTZ and Play, Record, Alarm, Log, Config management and advanced operation.

Add role: Input the role name and check permissions then click "Add role". Modify role first select role to be modified then the similar with add a role. Select the role in the role list then click "Remove role" to remove it.

Note: All the user groups and users of the role will be removed when remove the role.

12.4.2 User group config

User group management interface as follow:

Picture 12-12 User group management

Add user group: Input user group name and select the group role then click "Add group".

The same group of the same user role.

Modify user group first select the user group to be modified then similar with add user group. Select the user group in the user list and click "Remove group" to remove the user group.

Note: The user of the user group will be removed when remove the user group.

12.4.3 User management

User management interface as follow:

Picture 12-13 User management

Add user: Input username, new password, confirm password and select user group then click "Add user". Does not allow the same username.

Modify user: Select a user in the user list then similar with add a user. Select the user in the

42

user list and click "Remove user" to remove the user.

12.4.4 Rolling subtitles management

Rolling subtitles management as follow:

Picture 12-14 Rolling subtitles management

Enter the subtitle you want to roll in the text-box of "Title Information", then click "Save", words you entered will rolling show in the top of UC. For example, in the "Title Information" write "UC Video Surveillance Client", rendering as follow. If you need to cancel the rolling subtitles, enter a space in the text-box of "Title Information" and click "Save".

Picture 12-15 The rendering of rolling subtitles management

Note: Because the resolution of 1024 by 768 is lower, it will make the space of whole interface not enough, the set rolling subtitles will affect the button area under. So suggest you choose the resolution of 1280 by 960.

12.5 Record config

12.5.1 Record strategy

Record management interface as follow:

Picture 12-16 Record config

In the【 Device Config 】 interface to add the device, UC2 will put device into "Default

Strategy". Later add device also will be added to the "Default Strategy". "Default Strategy" configuration is the Strategy of the device for 24 hours timing video. In the【 Record Config 】 interface click "Start Record", will start the Record strategy. Start Record button into a "Stop

Record", and click the button, then stop the Record strategy. If you have multiple record strategy, click【 Video View】interface in the toolbar "Start All Record" button.

Click "Detail" button you can view the detail information of default strategy.

12.5.2 Strategy config

Click "Detail" then enter the interface of record strategy detail configuration.As Picture

12-17:

43

Picture 12-17 Record parameter configure interface

The configuration of record strategy includes two sides: Basic Config and Record Config.

Next we will have a detailed explain for every parameter.

1. Strategy name: There is a system default named Default Strategy, which can not modify.

When you need add other strategy, you can named by yourself but Default Strategy.

Storage Strategy: You have two choices, Stop record when full or Overwrite latest files when full.

2. Trigger method: Schedule Record refers to record all the time during the time you have set; Motion detect Record refers to when has motion alarm then record, the premise is that the device has already opened motion alarm; IO alarm record refers to when has IO alarm then record, the premise is that the device has already opened IO alarm.

3. Strategy path: The system will auto gain three disks as strategy, except your system disk.

When user need modify the strategy path can click the button of "Browse" to select path free.

When user need delete the strategy path, click "Browse", then click "Cancel" on the pop-up dialog box.

4. Original devices: All devices that you have added.

5. Strategy Devices: Devices in current record strategy. Modify record device you can by those buttons between "Original devices" and "Strategy devices" .

6. Config enable: When user choose yes and save, then open current record. Strategy record can also opened by clicking the button of "start record". When user choose no and save,

44

then close current record.

7. Record time per file: Record time for a schedule record.

8. Prerecord time: The time before start record.

9. Record video: User can choose sub stream or main stream.

10.Detect record time: Record time for a motion detect record.

11.Record audio: If hope the record file with audio you need choose it. Only when device encode audio and checked it then the record file will be video and audio file.

12. Time slot set: It refers to set the record time, you can set seven time slots total. When there be some conflict during different time slot, the system will automatically take there intersection. After starting record, there will be video file only in the time slot.

13. Add strategy: When different device needs record in different trigger method, or when devices are many, suggest you to configure more than one record strategy. Choose devices, configure the store path and other parameters, click the button of "Add Strategy" then create a new strategy.

14. There are four record strategies in figure 4-15. If the record strategy is not default strategy, you can only enable it by the button of "Config Enable", choose yes means start record, choose no means finish record.

Picture 12-18 Added four record strategies

Delete strategy: Click the record strategy name on the left device list, related configuration information for this strategy will detail show on the right. Click the button of "Del strategy" will delete this record strategy.

Modify strategy: If you have modified some parameters for strategy, you need to click the button of "Modify strategy" to ensure it.

12.6 Remote config

12.6.1Select device

Click the device that must be online in the device list.

12.6.2 Remote config

45

1. The interface device is not selected as follow:

5. After select a device:

Picture 12-19 Remote config interface

Picture 12-20 Remote config

You can refer to IPC instructions to modify network setup, media setup, alarm setup and so on.

Note:Remote config is not allow for DVS ,Forwarding UC2 client device.

12.7 Maintenance

12.7.1 Device information list

Device information list is to check devices do below operating. Before device upgrading, configure file uploading or downloading, rebooting, restoring, you must check devices first then you can do those operating to them. The device information list only include online devices, during operating (such as reboot) the device must offline for a moment, then you will see the device out of the list and come out in the top of the list some minutes later.

12.7.2 Upgrade

Checked need to upgrade device, click on the "browse" button, the local computer to find upgrade file the folder, select the corresponding device types of firmware program, and click

"update", namely start remote upgrade. If the upgrade failed, please try again.

Picture 12-21 Upgrade

46

12.7.3 Config file upload and download

Upload config file: first click "Browse" to select the correct config file and check the devices to be uploaded, then click "Upload".

Download config file: first click "Browse" to select directory for saving cinfig file and check device that download config file from, then click "Download".

Picture 12-22 Config file upload and download

12.7.4Reboot and cefault config

Check devices and click "Reboot" to reboot the devices.

Check devices and click "Default Config" to restored the devices.

Check devices and click "Sync system time" to modify devices time.

Picture 12-23 reboot, default config and sync system time

12.7.5 The management of front-end storage device

After choosing the device, click "Format", then the TF card or USB device will be formatted.

After choosing the device, click "Uninstall", then the TF card or USB device will be uninstalled.

Picture 12-24 The management of front-end storage device

47

13. Video View

13.1 Video view operating

After finishing add comfig, click Video View menu, then enter to the video view interface.

13.1.1 Real-time monitor

Picture 13-1 Surveillance interface

Note:

1. Two or more play window is when view playing, Select a window and click continued one second, until a red camera sign come out, then drag to another window, those two windows will exchange their video.

2. Video window supports the function of right-click mouse, The function of it is the same as the function of buttons in the video surveillance tool bar, detail operation will be described follow.

48

Picture 13-2 right-click the mouse function

13.1.2 Real-time monitor method

a. Select and drag a device to the focus video window that will display real-time video of the device. b. Select and double click a device, if the focus window is empty, it will display real-time video of the device; if the focus is playing, system will search empty window from focus window to display real-time video of the device. c. Select and right-click a device group name, then you can choose "auto play this group's devices".

13.1.3 Electronic zoom

This is electronic zoom function. There are four buttons in electronic zoom function area.

They are Pointer, Moving, Zoom Out and Zoom In.

1、

Picture 13-3 Electronic zoom function button

Zoom In: After clicking this button, there are three methods to enlarge video screen.

1. a. Drag mouse to the window that you need to enlarge, the mouse turns to

This time click the video screen, system will enlarge the video screen with current point as the center.

49

2. Drag mouse to the window that you need to enlarge, up roll the mouse wheel, current video screen will enlarge show.

3. Drag mouse to the window that you need to enlarge, click somewhere then drag mouse without releasing it. Then come out a red box, release the mouse as you need, video screen enlarge show.

Zoom Out: After the video screen enlarged, click this button and drag mouse to enlarged window, then mouse turns to

You can down roll the mouse wheel to narrow the video screen too.

Moving: After the video screen enlarged, click this button and drag mouse to enlarged window, then mouse turns to

This time drag mouse you can drag the enlarged video screen Pointer: After the video screen enlarged, click this button, the video screen will regain normal size to show. If there are many devices enlarged, click it will regain all.

13.1.4 Dual-stream switching

Due to network bandwidth limitations and the requirements of high-definition video, IPC and other front-end device using dual-stream technology which can encode two completely different bit stream (including a different resolution, frame rate, quality) at the same time. Main

Stream used for local real-time storage, Sub stream used for remote network transmission.

Thus take into account the image of high quality local storage requirements and long-range low-bandwidth network transmission of images fluency requirements, to break through network bottlenecks and maintain Endowment effect of the local HD storage.

In the video surveillance tool bar, click on "V1/V2" button on the focus of the video window to switch the video stream. If need to screen amplification not automatic switching main-stream, then see Chapter20.5 Switch Stream Setting .

Picture 13-4 Dual-stream switch

13.1.5 Capture

In the video surveillance tool bar, click on "Capture" button on the focus of the video capture video window. The default storage path of local record is in the "Picture" directory that under the file of the installation program, if you want to change the storage path please turn to

Chapter20.3 Storage setting.

Picture 13-5 capture

13.1.6 Voice talk

50

In the video surveillance tool bar, click on the "Voice talk" button in the video window with the focus on real-time front-end device features two-way voice talk. When the voice talking is turned on, the user switch the focus window will make no difference with it. And the status bar under the video window will show current voice talk status

Picture 13-6 Audio switch

13.1.7 Audio switch

In the video surveillance tool bar, click on the "Voice" button, you can open or close the focus of the audio video stream monitoring. When the sound is turned on, the user can switch the focus to follow the audio window to switch the focus of the window. And the status bar under the video window will show current voice status.

Picture 13-7 Audio switch

13.1.8 Broadcast audio

Broadcast Audio realization must first configuration broadcast audio encoding format and need to broadcast device, the specific configuration method and process see Chapter20.6

Boradcast Set.

For device set up after the broadcast, in the video toolbar and click button, the button into , device into the broadcast state. If you want to stop broadcast again, click on the "Broadcast Audio" button.

Picture 13-8 patrol

Because NVR only support audio coding format for G711 broadcast, so UC2 and NVR broadcasting, in 【 Setting 】-【 Broadcast Set 】 select any channel NVR in G711 coding format can be add to the list of radio device in【 Video View 】interface to the NVR broadcasting operations.

12.1.9 Start to select the fragment of device record

In the video surveillance tool bar, click the "Start to select the fragment of device record" button, the focus of the video window will start record.The same time the button changes from to 。 Button always represent that the device is recording, and if you want to stop record please click the button Once manual record the longest time is 30 minutes,

30 minutes later the system will cut down current record and start a new record.The default storage path of manual record is in the "Video" directory that under the file of the installation

51

program, if you want to change the storage path please turn to Chapter20.3 Storage setting.

Picture 13-9 Start to select the fragment of device record

13.1.10 Patrol

Start patrol you must configure patrol for video window first, the detailed configure method and process will be explained in Chapter12.4 Patrol Setting.

After configured patrol for window, Click the button in the video surveillance tool bar, then button turns to

, the window is patrolling. During patrolling the button of "dual-stream switch";"local record"; "voice talk"; "voice" can't use. If want to stop patrolling re-click the

"patrol" button, then this window will play the real-time video streaming of the stop-time device.

This moment that four buttons can't use still.

Picture 13-10 Patrol

13.1.11 Alarm linkage

Alarm linkage: enable it. When VC receives alarm, it will response to the alarm in different ways. Three methods of alarm linkage: No1. Tree node flash (as figure 5-13).No2.Play alarm sounds. Different sounds of master device and camera.No3.pop video window and play video.

If there are many devices alarming, it will play video of the first alarm. In the alarm list (as figure 5-14).Red alarm information means the alarm not processed, black alarm information means the alarm already processed. Click the "Begin speak" button, voice talk is opened.

Picture 13-11 Alarm linkage

Picture 13-12 Tree node flash

52

Picture 13-13 Alarm linkage window

13.1.12 Full and norm

In the video surveillance tool bar, click on "Full/Norm", the real-time video will full-screen display. The default screen is standard screen; twice click the button to return. It will save and recover playing mode automatically after exit and re-login.

Picture 13-14 Full and Norm

13.1.13 Screen lock and unlock

In the video surveillance tool bar, click the "lock screen" button, then all UC operating screen will be locked. This moment, you can do nothing but watch the video streaming. And the button appears to , if you want to exit this status, click it. Then an input-box pops and you must input your username and password to success unlock

Picture 13-15 Lock screen

13.1.14 Stop video

In the video surveillance tool bar, click "Stop" button to stop the current the real-time stream of the focus window. Click "Stop all" button to stop all real-time video.

Picture 13-16 Stop video

13.1.15 Start all record

53

Enter the interface of [Config Management] - [Record Config], right configured the record strategy you need. Then return to the interface of [Video View], click the button of "Start all records", all records strategy will be opened. This button is a shortcut button for strategy record.

Picture 13-17 Start all records

13.1.16Full-screen control

In the video surveillance tool bar, click on the corresponding split-screen button to switch to a different monitor screen, 1 screen, 4 screens, 6 screens, 8 screens, 9 screens, 16 screens,

25 screens, 36 screens, 49 screens, 64 screens. Click on "Full screen" button will present a single screen or multi-screen to full screen. Click "Esc" button to exit full-screen.

Picture 13-18 Full screen

13.1.17Device list

1. There are two ways the device list display: "Original" group(Figure 5-20 left) and

"Properties" group (Figure 5-20 right): a. "Original group" is the device group name +device belongs to the device group as the node to display b. "Properties group" off-line devices and on-line devices are shown separately.

Picture 13-19 Device list tree

2.There are several leaf node icon, "blue" present the device is online, "gray" present the device is offline, "red" present the device is play video; Two small red points present the device

54

is recording.

Picture 13-20 Device status

13.1.18PTZ control

1.PTZ control method

There are two PTZ control methods: Interface control, joystick control. a.PTZ control interface: In PTZ control, you can operate PTZ such an up, down, left, right, adjust the iris, adjust the focus, adjust the zoom, add/query/delete preset as well as advanced features such as call; up, down, left, right, iris, focus, zoom control in the corresponding function key on the left began to hold, release the left mouse button to stop. Directional control can adjust horizontal velocity and vertical velocity control; preset point and advanced features of the control rules refer to the "PTZ advanced function".

Picture 13-21 PTZ control b.Joystick Control: PTZ control keyboard access to the specified PC keyboard for use in accordance with the corresponding parameters. client-side under the keyboard also need to

55

set the parameters corresponding to the configuration, the user clicks on the main interface of buttons popup menu select "System Configuration" - "Joystick", In the " Joystick" interface configuration corresponding parameters can be preserved. Configuration is completed the user can use the keyboard to the corresponding PTZ control.

Picture 13-22 PTZ joystick control c. PTZ Protocol Control: Control of if PTZ device support custom PTZ control protocol control, the user clicks on the main interface of buttons popup menu select "System

Configuration" – "PTZ", in the "PTZ" interface select PTZ protocol , after the completion of the user configuration can be used in the preview interface PTZ control panel for the corresponding PTZ control.

56

Picture 13-23 PTZ Protocol

2. PTZ advanced function

1) Timing homing: a. Add parameter in the input box of "add preset" to set it. Such as

1#01:00-01:59, means from 1 o'clock to 2 o'clock, if you had set timing scan during this time, then the device will back to the preset every five minutes and stay for one minute. "1#" means first one, you can set eight in total. b. Every day you can only set eight timing homing. c. Show the time period, and it will show in "remove preset".

2) Timing orbit:

a. Add parameter in the input box of "set preset" to set it. Such as s1#01:00-01:59, means from 1 o'clock to 2 o'clock orbit all the time.

b. Every day you can only set eight timing orbits. c. Show the time period, and it will show in "remove preset".

3) Timing scan:

a. Add parameter in the input box of "add preset" to set it. Such as o1#01:00-01:59, means from 1 o'clock to 2 o'clock scan all the time. b. Every day you can only set eight timing scans. c. Show the time period, and it will show in "remove preset".

57

Notice: a.The time can not cross between "timing scan" and "timing orbit". b.The time can cross between "timing homing" and "timing scan" or "timing homing" and

"timing orbit". c.If "timing homing" and "timing scan" have time cross then "timing homing" first. the same as "timing orbit". d.Nobody control the PTZ for six minutes later then begin "timing scan", "timing orbit",

"timing homing". e."Timing homing" stay for one minute. f.The value you set accurate to the minute. g.Set time as o1#00:00-23:59, can not set as o1#23:59-00:00

13.1.19 Alarm message

When the client receives the alarm information in real time the main interface of the "Alarm

Message" will be flashing, the user clicks the "Alarm Message" button to view real-time alarm information screen. The interface for the alarm information to show the 16 records dynamically updated. Alarms for query previous see instructions of "Alarm Query ".

Picture 13-24 Real-time alarm

58

14. Video Query

Click the "Record Query" menu and go to the record query interface. Record query pages include file playback and time playback. File playback include local record query, record playback and front-end record query, record playback, record download, Time playback support local record four-screen sync playback, as follow:

Picture 14-1 File playback

59

Picture 14-2 Time playback

14.1Record query

14.1.1 File playback

Select a device that queried in the device list and set the conditions, then click "Query" button. Record source include "Local record" and "Front-end record". Select a different record sources are not the same type of the corresponding record resolution. 20 records per page, you can click the "Pre page" or "Next page" to view more.

14.1.2 Time playback

User in the time frame to select the desired inquires the video time, click on the device to the list of device name, can show inquire the record. Every time it can display seven device query results, click again on the query results will eliminate the earliest.

14.2 Playback

14.2.1Local record playback

Entering [Config Management]-[Record Config], configuring the record strategy and starting record, in this way you can get local record. Local record files saved in local computer.

In file playback interface double click one of the searched video then it will play in playback window. You can playback four records at the same time; In time playback interface double click the query result can replay a equipment a video of the time, you can playback four-screen

60

records at the same time. In the playback window, your can operate the tool bar below to pause/play, frame forward, stop, fast forward, previous section, next section, slow forward, taking picture, sound and so on. The default storage path of taking picture is in the "Picture" directory that under the file of the installation program, if you want to change the storage path please turn to Chanpter20.3 Storage setting.

Note: 1. If device is not video strategy, file playback can't search local video file, time playback retrieval local video file for grey.

2. Fragment of device record files can't be retrieval.

3. During replaying video, you can use electronic zoom function too. The use method of every button is the same as Video View, now we will not repeat again.

4. Device type for the NVR local video can only be in the "File playback" according to the document query and playback.

5. NVR native video can only be in the "Time playback" according to time query and playback.

14.2.2 Front-end record playback

Front-end device with storage device, configured record strategy and started record, in this way you can get front-end record. Double click one of the searched video then it will play in playback window. One device can only play one video file in the same time. In the playback window, your can operate the tool bar below to pause/play, frame forward, stop, fast forward, previous section, next section, slow forward, taking picture, sound and so on. The default storage path of taking picture is in the "Picture" directory that under the file of the installation program, if you want to change the storage path please turn to Chapter20.3 Storage setting.

14.3 Download record

Local record saved in your computer so you need not download it. The record download is front-end record download. If you want to download the records, simply "Check" the record and then click the "Download" button. Record of the default storage path is the default storage strategy path "Remotion". Users who want to stop downloading click the "Cancel" button.

Note: Download the video can not be other operations of the menu items.

61

15. Alarm Message

Click the "Alarm Message" then enter the alarm query interface.

Picture 15-1 Alarm message

First select the device in the device list, then set the queried conditions and click the

"Query" button to check out the device in this period of time alarm type of alarm occurs.

Note:It will keep the alarm message of a week.

62

16. TV Wall

16.1 TV wall layout

Click "TV Wall" then skip to TV wall interface. Only the "admin" user has access authority, to others UC will prompt that "without TV Wall management permission".

Picture 16-1 TV Wall main interface

In the TV Wall interface, left is a device list, the function of this list is almost the same that mentioned in chapter 5, the difference is that this device list includes decoder device. Right is monitor layout area, in this area you can overall layout for your monitor.

16.2 Monitor layout

There is a button in the top of monitor layout area, named TV Wall layout, clicking it then come out the TV Wall layout setting window. In this window you can set the number of

Horizontal lines and Vertical lines, the setting range from 1 to 20. After setting, clicking the

"save" button then the monitor layout area will layout as your setting. If you don't set it will layout in default setting that means horizontal line is ten and vertical line is ten too. When the decoder device is many, suggest you to set a bigger number.。

63

Picture 16-2 TV Wall layout setting

After the TV Wall layout, you can press the left mouse button and drag to down or right or right-down in any area of monitor layout area grid. This way you can draw out the window of monitor. According to different number of decoders you can draw different number of windows.

Clicking the right mouse button in a drawn window area you can delete this window.

Picture 16-3 Monitor layout window

16.3 The binding of decoder and monitor

After layout the TV Wall and monitor, first, connect the video-out line of decoder and the video-in line of monitor or TV; then drag a decoder to the good layout monitor window. The window will become black, this moment the software has connected decoder and the decoder window shows the connected decoder device IP. Then drag an IPC or NVS or other device to this window, the window becomes yellow, the decoder begins decoding the connected device video and decoder window shows the connected encoder device IP . This moment the monitor

64

begins to play the real-time video of IPC or NVS and so on. During decoding you can change the device by dragging other devices to decoder window.

Picture 16-4 Decoder binding

16.4 TV wall patrol setting

Decoder support device's patrol. Click the button which is in the upper right corner of main interface. Click "Patrol Setting" then come out the dialog of "Patrol setting ", click "TV

Patrol".

65

Picture 16-5 TV wall in turns setting

In "TV Patrol", left is decoder list, UC will display all decoder devices in this list by searching from device list automatically. Right is the show area of patrol setting. There are four buttons in the bottom of "Patrol setting", "Add"; "Delete"; "Modify"; "Save".

Clicking "Add", come out "Add Patrol" dialog. Decoder can choose "Display one video" or

"Display four video"; Multidecoder can choose " Display one video ", " Display four video ", "

Display nine video " or " Display sixteen video "; the "Stay Time" can't less than 10s; click a device that in the left device list, then it will show in the right column named "Video*”, At the same time can choose to the resolution of the decoding device. After that, click "Add" then you have added a device for patrol successfully. By this way, you can add other devices. A decoder patrol you can add ten devices at most (a multi-screen display is looks as one device). After you added you must click the "Save" button then your setting is effective.

66

Picture 16-6 Decoder to add patrol

Picture 16-7 Multidecoder to add patrol

67

Clicking "Delete", you can delete the device of patrol. First choose the decoder that you want to delete its device, second choose the device that you want to delete, third click "Delete" button. After you deleted you must click the "Save" button then your setting is effective.

Clicking "Modify", you can modify the device of patrol. Choose the decoder, then choose the device, click "Modify" button, come out "Modify Patrol" dialog. You can modify the screen display; stay time or device. After that, click "Modify" then you exit modify dialog, but this time your modification has no effect, only when you click the "Save" button then your setting is effective.

After you configuring device's patrol, exit the "TV Patrol" dialog, draw a window in monitor layout area, drag a decoder device to the window, click the "Patrol" button, the monitor will begin to play patrol video. You can also start patrol when the monitor is playing real-time video.

Click again the "Patrol" button, you can end the patrol. After the patrol is ending, the decoder end decoding, the monitor display nothing.

Note:Under the TV Wall, when there is one device the decoder decode main stream.

68

17. Electronic Map

Click on the "map" menu, jump to electronic map interface. The electronic map is a specialized custom function, convenient user to layout and locate device. After added the map, according the actual location of devices, drag devices to the position on map, then you can monitor devices.

Picture 17-1 Map interface

17.1Electronic map layout

In electronic map function module, left is device list, the function of this list is almost the same that mentioned in 5.1.11, the difference is that there is a list called map-list. The map-list is to show the name of added map. Right is map show area, here you can add map, sub map and devices.

17.1.1Add map

In the map shows area click the right button of mouse, choose "add map" in the drop-down menu, then come out a window to enter some information, as figure 9-2. "Map name" means the name of the map you need to add. "Map file" means you need browser your computer to choose the map that you need to add in. After you set, click the button of "Add" then the map you added will show in the area of map-show-area, at the same time the map name will show in the map list.

69

Picture 17-2 Add map

Picture 17-3 Map List

17.1.2Add sub map

Sub map is the detail show for some area of map. When the map you added is very big and some area are not detail, you can add a sub map in this area. The way to add sub map is similar to the way to add map, the difference is that before you add sub map you need select the place to add it. Where you select where will be a sub map. After you added success, there is an icon in the map, click it then you can enter sub map.

Picture 17-4 Map List

Note: If you add no map, the option of "add sub map" is not available. A map can add more than one sub map. The format of the map must be .jpg.

17.1.3Add devices

You can add device into map and sub map. Select the map, click "Original" or "Properties" in the left device list, then select the device you need, drag it to the target position on map, after that release the mouse, then you add device success. After added devices success, you will see an icon and the device's IP on map.

70

Picture 17-5 Devices add success

Note: A device can not add for many times, but a map can add more devices.

17.2Play devices video

17.2.1Real-time monitor

When you need monitor a device, click the device icon on the map, then will come out a video play window. Now you can by the right-mouse-function do some operation such as video play, stream switch, voice talk, capture, manual record and so on.

Picture 17-6 Video window

Note:Video window supports the function of right-click-mouse. The function of it is the same as the function of buttons in the video surveillance tool bar, we will not description again.

17.2.2Full screen/exit full play

Double-click the video window, video will full display, double-click again, then exit full display. When in full display, the function of right-mouse can also be used.

17.2.3Devices video change

71

On the map, click the device icon you can open its video, this time click another device icon the video will change, in this way you can choose to play your device video. Change map the video window will not be closed.

17.2.4Stop video

You can stop the video by three methods:

1: Click the button in the side of right-up for the video window, then video will stop and window will be closed.

2: Click video window and click the right button of the mouse, choose "stop" in the pop-up box, then video stop, but the window will not close.

3: Change the main interface from "Map" to other interface, video stop and window closed.

17.3The delete of map and device

17.3.1The delete of map

When the map has some changes or the map is too old, you need delete it. First, select the map you need to delete. Second, click the right button of the mouse, come out a pop-up box.

Third, click the option of "delete map". There will be two situations. If there is no device on the map, then delete the map directly, and the device's icon disappears; otherwise, there come out a notice window "The map has device, are you sure to delete it?" click "OK" then delete all information for this map include its device information and jump to its father map.

Note: if the deleted map has sub map, then when you delete it the sub map be deleted also.

Think of that there may be devices on the map, so we do not support the function of update map. When the map has changes, you must delete it first and add the new version.

17.3.2The delete of device

Find the device you need to delete, put the mouse on its icon, click right button, then choose the option of "delete device", by this way you can delete it and its all information.

17.4 The property of map and device

17.4.1Map property

Choose the map, click right button of the mouse on it any where, then choose the option of

"Property", after that come out a map property window, as figure 17-7.

Picture 17-7 Map property

17.4.2Devices Property

Choose the device, click right button of the mouse, choose the option of "Property", after

72

that come out a device property window, as figure 17-8.

Picture 17-8 Devices property

17.5Jump among maps

There three methods jump among maps:

1. Switch back and forth: click the map name in "map list" which is on the left, then jump to the corresponding map.

2. Enter sub map: if there is an icon like , click it, then jump to sub map.

3. Back to the top: click right button of mouse on any where of sub map, choose the option of "back", the map jump to its father map.

73

18. Forwarding Service Setting

18.1Forwarding service setting

Forwarding service to the current UC data server forwarding to distal UC client. In the main interface click on the top right corner button, popup menu select "System Configuration" -

"Forward Service Setting". In "Forward Service Setting" interface UC will automatically search to the machine's IP address displayed in the local address bar, set “Local Port”, “Number of” and “User Count”, checked after , click the "ok" button forwarding service can take effect. If you want to cancel the forwarding service is put out check, in click "ok" can stop forwarding service. If the "Number of" or

"User Count" modified, simply click on "modify" button effect.

Picture 18-1 Forward service setting

Note:

1. If you need to public network remote forward, it must be in the router to forward the local mapping server IP address and port, public network remote client UC with public network

IP address and mapping port receiving and delivering data.

2. Sign platform have no Forward Service Setting function.

74

18.2Remote client receiving and delivering configuration

UC remote client to receiving and delivering server data, must be in remote client "Config

Management" - "Device Config" page configuration add forwarding servers, as below:

Picture 18-2 Add forward server

In the device type drop-down box select "Video Switch Server/VSS", input device name, select protocol type, configuration device IP for forwarding the server address (if public network forwarding, must complete and public network address), the video port forwarding servers for the local port (if public network forwarding, must complete and mapping port), login name and password for remote UC client user name and password, click "Add" can add connection already open forwarding service device to the left device list. As below:

Picture 18-3 Forward server device list

75

Add forward server, other functions and operation with local client similar, one no longer give uncecessary details.

18.3Forward device video query, playback, Download function

1) On the server side to add video device and device configuration strategy, open video recording device;

2) On the client to add the remote equipment, 【Record Query】 video query into the interface;

3) Select configuration has video devices, click on the "query”;

4) Double-click the query results in the remote video file playback video device;

5) Check the video file, click on "start download" remote device video file can be downloaded to the local (video stored in the Record \ VSS );

Note:Is playback of the video file connot be downloaded.

76

19. Multi-screen Display

19.1Multi-screen display

Multi-display control is to point to in multiple display extended play streaming video, record query and playback, alarm message, config management, TV wall, map function. These displays united by a host control, maximum four screen display (such as digital matrix). The realization of screen display need according to different needs in the host connection of multiple video card, each video card at the same time the most connecting two table display.

After connected monitor, login UC, the software will automatically recognize the number of monitor.

Picture 19-1 Multi-screen display interface

In addition to the main screen video preview interface outside, you can move any function into extend monitor. In the main function on the menu than the current function menu select need to move extended interface, click right button, then come out a pop-up box, as following figure, choose the number of the extend monitor, then this interface move into the extend monitor. If the interface has moved to extend monitor, click it in main monitor will have no function. The moved interface you can operate it just the same as it in main monitor. When you need it come back to main monitor, just click it on main monitor and right click mouse, click the selected extend monitor, then it come back main interface. When your host just with a monitor, right click mouse will not come out the following window.

Picture 19-2 Extend monitor

Picture 19-3 Extend monitor effect

Note: When in multi-screen environment, if you need to use PTZ function, the device video must be played in main screen.

77

20Setting

20.1 Automatic login

Automatic login premise is to save the user password, if want to open the UC automatic login, in the login interface "automatic login" check box to choose and will automatically checked save password, or in the main interface.

automatic login again in the main interface

click "automatic login". Cancel the

click "√automatic login"

20.2 Boot automatically

If you want to run startup autorun login UC, in the main interface click "boot automatically" can. Cancel the startup autorun is again in the main interface click "√boot automatically", but automatic login not cancelled, if want to cancel must click again on the tick

"√automatic login".

20.3 Storage setting

Player Patrol means that configure many devices to round of play for different window.

Click the button in the upper right corner of the main interface, popup menu select

"System Configuration" - "Storage", in the "Storage" interface click on the "browser" button, the user can choose according to their own needs the local path, choose good after click "save" setting is effective.

Picture 20-1 Storage setting

78

Before you setting the storage path, the video files are saved in the “Video” directory that under the file of the installation program; the pictures are saved in the “Picture” directory that under the file of the installation program. After setting the path, all video files and pictures are saved in set path. In the UC software, there are many places will product videos and pictures, but a user just need to set the storage path one time, then all videos and pictures will be saved in this path.

20.4 Patrol setting

Patrol Setting including two side: Player Patrol and TV Patrol. The TV Patrol has described in “TV Wall”, we won’t repeat it.

Player Patrol means that configure many devices to round of play for different window.

Click the button, popup menu select "System Configuration" - "Patrol", in the "Patrol" interface choose "play Patrol".

Picture 20-2 Patrol setting

The patrol is based on play window, so you can set different patrols for different windows.

First, choose the window you need to patrol; second, click the “Add” button; then come out the

“Add Patrol” dialog. In this dialog, you can choose the device you need to enter patrol and set the stay time, click “Add” then you have added a device successfully. Every window can only add 10 devices to patrol at most. The following figure is “Add Patrol” dialog.

79

Picture 20-3 Add patrol

After setting the patrol for window, if you think the device you added is too many, you can choose a device, then click “Delete” button, that you will delete a device; if you need to modify the device or their stay time, the “Modify” button will help you.

After setting the patrol, return to 【Video View】 interface, selected window, click video tool in the article tour can wheel.。

20.5 Switch stream

Switch stream can make UC in video view interface video window by split-screen conversion for single picture subcode flow whether conversion is given priority to code flow,

Display the last frame when video loss, Grab save format,Start the extended screen functionality, Need enter password when exiting. In the main interface top right click button, popup menu select "System Configuration" - "Switch Stream ", in "Switch Stream " checked Settings dialog box can be effective.

80

Picture 20-4 Switch stream

20.6 Broadcast set

Add broadcast device, audio encoding format have two kinds of forms: G711 and AAC.

Broadcast set means for different configuration broadcast function. In the main interface top right click on the button, the popup menu select "System Configuration " - "Broadcast

Set", in the "Broadcast Set" interface configuration requires the broadcasting device. Add broadcast device, should first check the device audio encoding format, then in the original device list checked device added to the left of broadcast device list, after completion of the click "ok".

After setting the broadcast, return to 【Video View】 interface, selected window, click video tool in the article tour can wheel.

81

Picture 20-5 Broadcast set

20.7 Time/Alarm set

Time/Alarm Set include alarm sound, device offline alarm and time setting.

Alarm Set can make UC in device alarm when they make alarm sound and open alarm linkage

" is sent from the alarm switch between voices. In the main interface top right click on the " button, the popup menu select “System Configuration” - "Alarm Set", in the "Alarm Set" checked Settings dialog box can be effective.

Time setting can synchronize the system time.

82

Picture 20-6 Time/Alarm set

20.8 About

In the main interface, you can click and "About" to view the UC version.

Picture 20-7 About version

20.9 Help

In the main interface click , popup menu select" help" as well as in the start menu program UC directory can open" UC help"

83

Was this manual useful for you? yes no
Thank you for your participation!
