electric front load dryers

electric front load dryers

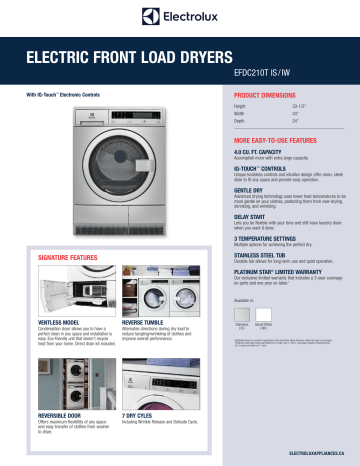

ELECTRIC FRONT LOAD DRYERS
EFDC210T IS / IW
PRODUCT DIMENSIONS
With IQ-Touch™ Electronic Controls
Height33-1/2"
Width24"
Depth24"
MORE EASY-TO-USE FEATURES
4.0 CU. FT. CAPACITY
Accomplish more with extra large capacity.
IQ-TOUCH™ CONTROLS
Unique knobless controls and intuitive design offer clean, sleek
style to fit any space and provide easy operation.
GENTLE DRY
Advanced drying technology uses lower heat temperatures to be
more gentle on your clothes, protecting them from over-drying,
shrinking, and wrinkling.
DELAY START
Lets you be flexible with your time and still have laundry done
when you want it done.
3 TEMPERATURE SETTINGS
Multiple options for achieving the perfect dry.
STAINLESS STEEL TUB
SIGNATURE FEATURES
Durable tub allows for long-term use and quiet operation.
PLATINUM STAR® LIMITED WARRANTY
Our exclusive limited warranty that includes a 3-year coverage
on parts and one year on labor.1
Available in:
VENTLESS MODEL
Condensation dryer allows you to have a
perfect clean in any space and installation is
easy. Eco-friendly unit that doesn’t recycle
heat from your home. Direct drain kit included.
REVERSIBLE DOOR
Offers maximum flexibility of any space
and easy transfer of clothes from washer
to dryer.
REVERSE TUMBLE
Alternates directions during dry load to
reduce tangling/wrinkling of clothes and
improve overall performance.
Stainless
( IS )
1
Island White
( IW )
E ligibility based on product registration with Electrolux North America within 60 days of purchase.
Products must have been purchased on or after July 1, 2013. Coverage includes material parts
for 3 years and labor for 1 year.
7 DRY CYLES
Including Wrinkle Release and Delicate Cycle.
ELECTROLUXAPPLIANCES.CA
ELECTRIC FRONT LOAD DRYERS
EFDC210T IS / IW
24" ELECTRIC FRONT LOAD DRYER
Capacity
4.0 Cu. Ft.
FEATURES
Pull-to-Open Door
IQ-Touch™ Electronic Controls
Dry System
LED Lighting
Tumble System
Moisture Sensor
Dryer Drum
Reversible Door
Adjustable Leveling Legs
Yes
Yes
Condensing
Yes
Reversing
Yes
Stainless Steel
Yes
Yes
CYCLES
Normal, Heavy Duty, Delicates, Casual, Mixed Load,
Touch Up, Towels;
Jeans, Fast Dry, Wool, Timed Dry
7 Dry;
4 Specialty
OPTIONS
Temperature Selections
Electronic Auto Dry System
Manual Timed Dry Selections
Delay Start
End-of-Cycle Chime On / Off
Wrinkle Release
Dryness Levels
3
Yes
11
Yes
Yes
Yes
4
INSTALLATION OPTIONS
Freestanding, Under Counter , Stacked (Above Washer),
Pedestal, Recessed Alcove
Yes
ACCESSORIES
Pedestal –
Stainless Steel – PN # EPWD210TIS
White – PN # EPWD210TIW
Dryer Stacking Kit –
Stainless Steel with Drawer– PN # STACKIT24S
White with Drawer– PN # STACKIT24W
No Drawer– PN # STACKIT24C
Direct Drain Kit
Drying Rack – (PN # 902979409)
SPECIFICATIONS
Optional
Optional
IQ-Touch Urban Front Load Washer
EIFLS20Q (steam)
Optional
Optional
Optional
Included
Optional
IQ-Touch Urban Front Load Washer
EIFLS20Q (steam) Front
Colour –
Stainless Steel
White
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating) @ 208 / 240 Volts
Amps @ 208 / 240 Volts
Heating Element @ 208 / 240 Volts (Watts)
Shipping Weight (Approx.)
IS
IW
Right Top Rear
208 / 240 VAC
2800 W
16
1,200
125 Lbs.
24"
25"
Height (without 12" Pedestal)
(with 12" Pedestal)
Width
Depth (to Centre of33
Arc1/Not
Including Hose)
2" min.
42"
(with Door 90° Open)
1
24"
25"
33 1/2" min.
(68 1/2" min.
for stacked
units)
(68 /2" min.
for stacked
units)
24"
120V Power cord H/C Water inlets
Drain
hose
For built-in installations, NO minimum clearance required
around sides, backs and tops of units. Location of plumbing
and utility hookups MUST be considered in built-in
installations. For additional installation details, refer to
Product Installation Guides on web.
21 1/2"
12"
90° Countertop
For built-in installations, NO minimum
clearance required
12 1of
/2"units. Location of plumbing
Overallsides,
depth backs
of
around
and tops
pedestal
drawer
and
utilitywith
hookups
MUST bemin.
considered in built-in
fully extended
38"
installations.
For– additional
installation details, refer to
Product Installation Guides on web.
48" min.
12" Pedestal
Drawer90°Installation
21 1/2"
12 1/2"
min.
Countertop
Elevates dryer height
to 46". For detailed pedestal
installation, refer to
instructions included with
pedestal or on web.
48" min.
Electrolux Major Appliances, N.A.
12" Pedestal
CANADA • 5855 Terry Fox Way • Mississauga,
ON Installation
L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca
Drawer
to 46". For detailed pedestal
installation, refer to
Rear
Built-In Installations
Built-In Installations
Elevates dryer height
EFDC210T 06/17
33-1/2"
46"
24"
24"
43"
24"
12"
Overall depth of
pedestal with drawer
fully extended – 38"
120V Power cord
Drain
hose
Left
Front
Elevates dryer height to 46".
For detailed pedestal installation,
refer to instructions included
with pedestal or on web.
Re
42"
PRODUCT DIMENSIONS
NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.ca.
Specifications subject to change.
12" Pedestal Drawer
Installation
Left
90°
90°
90°
68 1/2" min.
1
2"
33 /(includes
min.
stacking kit)
90°
Dryer
discontinue models without notice.
25"
Side-by-Side Units in Under-Counter Installation
68 1/
(inc
stack
D
Wa
26"
2
Stacked Units in
Recessed Alcove
For detailed stacke
to instructions incl
High standards of quality at Electrolux Home Products, Inc.
Kit or on web. Not
26"
mean we are constantly
working to improve our products.
1" to overall depth
We reserve the right
change specifications or
24"tomin.
25"
Washer
Dryer Washer
33 1/2"
min. Side-by-Side Units in Under-Counter Installation
Dryer
© 2017 Electrolux Major Washer
Appliances, N.A.
90°
Stacked Units in
Printed in Canada
Recessed Alcove Installation
For detailed stacked installation, refer
