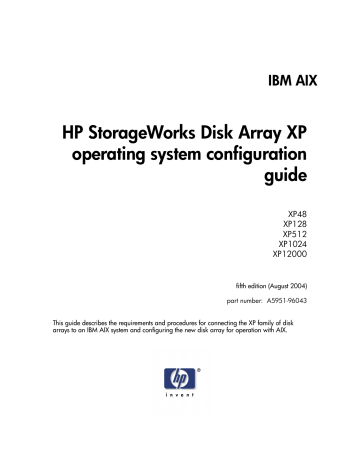

IBM AIX

HP StorageWorks Disk Array XP operating system configuration guide

XP48

XP128

XP512

XP1024

XP12000

fifth edition (August 2004) part number: A5951-96043

This guide describes the requirements and procedures for connecting the XP family of disk arrays to an IBM AIX system and configuring the new disk array for operation with AIX.

Copyright © 2003-2004, Hewlett-Packard Development Company, L.P. All rights reserved.

Hewlett-Packard Company makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

This document contains proprietary information, which is protected by copyright. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Hewlett-Packard.

The information contained in this document is subject to change without notice.

All product names mentioned herein may be trademarks of their respective companies.

Hewlett-Packard Company shall not be liable for technical or editorial errors or omissions contained herein. The information is provided “as is” without warranty of any kind and is subject to change without notice. The warranties for Hewlett-Packard Company products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.

Printed in the U.S.A.

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX fifth edition (August 2004) part number: A5951-96043

2

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Contents

Contents

About this guide 5

Intended audience 5

Disk arrays 5

Related documentation 5

Conventions 6

HP technical support 6

HP storage website 7

HP authorized reseller 8

Revision history 8

Warranty statement 9

1 Installation 11

Features and requirements 12

Fibre Channel interface 13

Device emulation types 13

Failover 14

SNMP configuration 14

RAID Manager command devices 14

Installation procedures 15

Install and configure the disk array 16

Setting the System Option Modes 16

Configuring the Fibre Channel ports 17

Setting the Host Mode for the disk array ports 19

Install and configure the host 20

Loading the OS and software 20

Installing and configuring the HBAs 20

Clustering and Fabric zoning 23

Fabric zoning and LUN security for multiple operating systems 24

3

Connect the disk array 25

Defining the paths 26

Verifying disk array device recognition 27

Configure disk array devices 28

Changing the device parameters 28

Assigning the new devices to volume groups 32

Creating the Journaled File Systems 35

Mounting and verifying the file systems 38

2 Troubleshooting 41

Error conditions 42

Calling the HP support center 44

A Worksheets 45

Path worksheet 46

Device data worksheet 47

B Disk array device emulations 49

Supported emulations 50

Device type specifications 51

Disk parameters by emulation type 54

Byte information table 64

Physical partition size table 65

Glossary 67

Index 71

4

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

About this guide

This manual describes the requirements and procedures for connecting the

XP family of disk arrays to an IBM server and configuring the new disk array for operation with the AIX operating system.

Intended audience

This guide is intended for system administrators who have knowledge of the following topics:

• Data processing concepts

• Direct access storage device subsystems and their basic functions

• Disk arrays and RAID technology

• Operating system commands and utilities

Disk arrays

Unless otherwise noted, the term disk array refers to these disk arrays:

HP Surestore Disk Array XP512

HP Surestore Disk Array XP48

HP StorageWorks Disk Array XP128

HP StorageWorks Disk Array XP1024

HP StorageWorks XP12000 Disk Array

Related documentation

HP provides the following related documentation:

• HP StorageWorks Disk Array XP128: Owner’s Guide

• HP StorageWorks Disk Array XP1024: Owner’s Guide

• HP StorageWorks XP12000 Disk Array: Owner’s Guide

For information about operating system commands and third-party products, refer to the manufacturer’s documentation.

About this guide

5

Conventions

|

This guide uses the following text conventions.

Figure 1

Blue text represents a cross-reference. For the online version of this guide, the reference is linked to the target.

www.hp.com

literal

Underlined, blue text represents a website on the

Internet. For the online version of this guide, the reference is linked to the target.

Bold text represents literal values that you type exactly as shown, as well as key and field names, menu items, buttons, file names, application names, and dialog box titles.

variable input/output

Italic type indicates that you must supply a value. Italic type is also used for manual titles.

Monospace font denotes user input and system responses, such as output and messages.

Example

[ ]

Denotes an example of input or output. The display shown in this guide may not match your configuration exactly.

Indicates an optional parameter.

{ } Indicates that you must specify at least one of the listed options.

Separates alternatives in a list of options.

HP technical support

In North America, call technical support at 1-800-652-6672, available 24 hours a day, 7 days a week.

6

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Outside North America, call technical support at the nearest location.

Telephone numbers for worldwide technical support are listed on the HP website under support: http://h18006.www1.hp.com/storage/arraysystems.html

Be sure to have the following information available before calling:

• Technical support registration number (if applicable)

• Product serial numbers

• Product model names and numbers

• Applicable error messages

• Operating system type and revision level

• Detailed, specific questions

For continuous quality improvement, calls may be recorded or monitored.

HP storage website

For the most current information about HP StorageWorks XP products, visit the support website. Select the appropriate product or solution from this website: http://h18006.www1.hp.com/storage/arraysystems.html

For information about product availability, configuration, and connectivity, consult your HP account representative.

About this guide

7

HP authorized reseller

For the name of your nearest HP authorized reseller, you can obtain information by telephone:

United States

Canada

Or contact:

1-800-345-1518

1-800-263-5868 www.hp.com

Revision history

May, 1999 First release.

September, 1999 Open-8 emulation added.

January, 2000 Content revised and reorganized.

April, 2000

June, 2000

Revised and expanded.

Added support for XP512.

Reorganized and revised.

March, 2001 Added OPEN-E emulation mode.

Added appendixes C, D, E, F, and glossary.

November, 2003 Changed brand name to StorageWorks. Added support for OPEN-L and OPEN-V. Changed CVS to VSC.

Minor updates throughout.

August 2004 Updated to support XP12000. Reorganized and completely updated all text.

8

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Warranty statement

HP warrants that for a period of ninety calendar days from the date of purchase, as evidenced by a copy of the invoice , the media on which the

Software is furnished (if any) will be free of defects in materials and workmanship under normal use.

DISCLAIMER. EXCEPT FOR THE FOREGOING AND TO THE

EXTENT ALLOWED BY LOCAL LAW, THIS SOFTWARE IS

PROVIDED TO YOU “AS IS” WITHOUT WARRANTIES OF ANY

KIND, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED.

HP SPECIFICALLY DISCLAIMS ANY IMPLIED WARRANTIES

OR CONDITIONS OF MERCHANTABILITY, SATISFACTORY

QUALITY, NON-INFRINGEMENT, TITLE, ACCURACY OF

INFORMATIONAL CONTENT, AND FITNESS FOR A

PARTICULAR PURPOSE. Some jurisdictions do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you to the extent prohibited by such local laws. You may have other rights that vary from country to country, state to state, or province to province.

WARNING! YOU EXPRESSLY ACKNOWLEDGE AND AGREE

THAT USE OF THE SOFTWARE IS AT YOUR SOLE RISK. HP

DOES NOT WARRANT THAT THE FUNCTIONS CONTAINED IN

THE SOFTWARE WILL MEET YOUR REQUIREMENTS, OR THAT

THE OPERATION OF THE SOFTWARE WILL BE UNINTERRUPTED,

VIRUS-FREE OR ERROR-FREE, OR THAT DEFECTS IN THE

SOFTWARE WILL BE CORRECTED. THE ENTIRE RISK AS TO THE

RESULTS AND PERFORMANCE OF THE SOFTWARE IS ASSUMED

BY YOU. HP DOES NOT WARRANT OR MAKE ANY

REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF

THE USE OF THE SOFTWARE OR RELATED DOCUMENTATION IN

TERMS OF THEIR CORRECTNESS, ACCURACY, RELIABILITY,

CURRENTNESS, OR OTHERWISE. NO ORAL OR WRITTEN

INFORMATION OR ADVICE GIVEN BY HP OR HP’S AUTHORIZED

REPRESENTATIVES SHALL CREATE A WARRANTY.

About this guide

9

LIMITATION OF LIABILITY. EXCEPT TO THE EXTENT

PROHIBITED BY LOCAL LAW, IN NO EVENT INCLUDING

NEGLIGENCE WILL HP OR ITS SUBSIDIARIES, AFFILIATES,

DIRECTORS, OFFICERS, EMPLOYEES, AGENTS OR

SUPPLIERS BE LIABLE FOR DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR OTHER

DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR

DOWNTIME COSTS), ARISING OUT OF THE USE, INABILITY

TO USE, OR THE RESULTS OF USE OF THE SOFTWARE,

WHETHER BASED IN WARRANTY, CONTRACT, TORT OR

OTHER LEGAL THEORY, AND WHETHER OR NOT ADVISED

OF THE POSSIBILITY OF SUCH DAMAGES. Your use of the

Software is entirely at your own risk. Should the Software prove defective, you assume the entire cost of all service, repair or correction. Some jurisdictions do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you to the extent prohibited by such local laws.

NOTE. EXCEPT TO THE EXTENT ALLOWED BY LOCAL LAW,

THESE WARRANTY TERMS DO NOT EXCLUDE, RESTRICT OR

MODIFY, AND ARE IN ADDITION TO, THE MANDATORY

STATUTORY RIGHTS APPLICABLE TO THE LICENSE OF THE

SOFTWARE TO YOU; PROVIDED, HOWEVER, THAT THE

CONVENTION ON CONTRACTS FOR THE INTERNATIONAL

SALE OF GOODS IS SPECIFICALLY DISCLAIMED AND SHALL

NOT GOVERN OR APPLY TO THE SOFTWARE PROVIDED IN

CONNECTION WITH THIS WARRANTY STATEMENT.

10

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Installation

1

Installation

Installation of the HP StorageWorks Disk Array XP is performed by your

HP service representative and you. The HP service representative installs the disk array and formats the disk devices. You configure the host server for the new devices with assistance from the HP service representative.

11

Features and requirements

The disk array and host have the following features and requirements.

• HP StorageWorks disk arrays:

XP48: Up to 48 drives from 72 GB to 8.7 TB, 24 FC ports

XP128: From 8 to 128 drives for up to 18 TB, 48 FC ports

XP512: Up to 512 drives from 72 GB to 93 TB, 48 FC ports

XP1024: From 8 to 1024 drives for up to 149 TB, 64 FC ports

XP12000: Up to 1152 drives for up to 165 TB, 128 FC ports

• IBM RS/6000 series, POWERstation, POWERserver, or SP series

• IBM AIX operating system with current OS patches

• superuser (root) login access to the system

• Host Bus Adapters (HBAs): Install adapters and all utilities and drivers. Refer to the adapter documentation for installation details.

(Recommended) HP StorageWorks Command View XP with LUN management feature or Remote Control with the LUN Configuration

Manager XP option for configuring disk array ports and paths.

(Recommended) HP StorageWorks Secure Manager XP: Allows the host to access only array devices for which it is authorized.

• Other available XP Software (some may not apply to your system):

HP StorageWorks Business Copy XP

HP StorageWorks Continuous Access XP

HP StorageWorks Continuous Access Extension XP

HP StorageWorks Auto LUN XP

HP StorageWorks Data Exchange XP

HP StorageWorks Resource Manager XP

HP StorageWorks RAID Manager XP

HP StorageWorks Cache LUN XP

HP StorageWorks Auto Path XP

HP StorageWorks Cluster Extension XP

HP StorageWorks Performance Advisor XP software

12

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Fibre Channel interface

The XP48, XP128, XP512, XP1024, and XP12000 disk arrays support these 1 Gbps and 2 Gbps Fibre Channel interfaces:

• Short-wave non-OFC (open fiber control) optical interface

• Multimode optical cables with SC or LC connectors

• Public or private arbitrated loop (FC-AL) or fabric direct attach

• Fibre Channel switches

Even though the interface is Fibre Channel, this guide uses the term “SCSI disk” because disk array devices are defined to the host as SCSI disks.

Device emulation types

The disk arrays support the following device emulation types:

OPEN-x devices: OPEN-x logical units represent disk devices.

Except for OPEN-V, these devices are based on fixed sizes. OPEN-V is a user-defined size. Supported emulations include OPEN-3,

OPEN-8, OPEN-9, OPEN-E, OPEN-L, and OPEN-V devices.

LUSE devices (OPEN-x*n): Logical Unit Size Expansion (LUSE) allows you to combine 2 to 36 OPEN-x devices to create expanded

LDEVs larger than standard OPEN-x disk devices. For example, an

OPEN-x LUSE volume created from ten OPEN-x CVS volumes is designated as OPEN-x*10.

CVS devices (OPEN-x CVS): Volume Size Configuration (VSC) defines custom volumes (CVS) that are smaller than normal fixed-sized logical disk devices (volumes). (OPEN-V is a CVS-based custom disk size that you determine. OPEN-L does not support CVS.)

• LUSE (expanded) CVS devices (OPEN-x*n CVS): LUSE CVS combines CVS devices to create an expanded device. This is done by first creating CVS custom-sized devices and then using LUSE to combine from 2 to 36 CVS devices. For example, if three OPEN-9

CVS volumes are combined to create an expanded device, this device is designated as OPEN-9*3-CVS.

Installation

13

Failover

The disk arrays support many standard software products that provide host, application, or I/O path failover and logical volume (storage) management.

SNMP configuration

The disk arrays support standard Simple Network Management Protocol

(SNMP) for remotely managing the disk array from the host. The SNMP agent on the remote console PC or Command View can provide status and

Remote Service Information Message (R-SIM) reporting to the SNMP manager on the host for up to eight disk arrays. To configure the SNMP manager on the host, refer to the operating system documentation.

RAID Manager command devices

RAID Manager manages Business Copy (BC) and/or Continuous

Access (CA) operations from a server host. To use RAID Manager with BC or CA, you must use Command View or LUN Configuration

Manager to designate at least one LDEV as a command device. Refer to the Command View or LUN Configuration Manager user guide for information about how to designate a command device.

14

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Installation procedures

The HP representative and you perform the following procedures:

1.

“Install and configure the disk array” on page 16

• “Setting the System Option Modes”

• “Configuring the Fibre Channel ports”

• “Setting the Host Mode for the disk array ports”

2. “Install and configure the host” on page 20

• “Loading the OS and software”

• “Installing and configuring the HBAs”

• “Clustering and Fabric zoning”

• “Fabric zoning and LUN security for multiple operating systems”

3. “Connect the disk array” on page 25

• “Defining the paths”

• “Verifying disk array device recognition”

4. “Configure disk array devices” on page 28

• “Changing the device parameters”

• “Assigning the new devices to volume groups”

• “Creating the Journaled File Systems”

• “Mounting and verifying the file systems”

Installation

15

Install and configure the disk array

The HP service representative performs the following tasks:

• Assembling hardware and installing software

• Loading the microcode updates

• Installing the channel adapters (CHAs) and cabling

• Installing and formatting devices

You perform the additional tasks below. If you do not have Command View or LUN Configuration Manager, your HP service representative can perform these tasks for you.

Setting the System Option Modes

The HP representative sets the System Option Mode(s) based on the operating system and software configuration of the host.

16

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Configuring the Fibre Channel ports

Configure the disk array Fibre Channel ports by using Command View

(shown) or the Fibre Parameter window in LUN Configuration Manager.

Select the settings for each port based on your storage area network topology. Use switch zoning if you connect different types of hosts to the array through the same switch.

Installation

Fibre Address

In fabric environments, the port addresses are assigned automatically. In arbitrated loop environments, you set the port addresses by selecting a unique arbitrated loop physical address (AL-PA) or loop ID for each port.

17

Fabric and Connection parameter settings

You can set each array port to FABRIC ON or OFF with connections of

POINT-TO-POINT or FC-AL as shown in the following table and figures.

For detailed topology information, refer to the HP StorageWorks SAN

Design Reference Guide on the hp.com

website.

18

Fabric

Parameter

Connection

Parameter

ON

ON

OFF

OFF

FC-AL

Point-to-Point

FC-AL

Point-to-Point

Provides

FL-port (public arbitrated loop)

F-port (fabric port)

NL-port (private arbitrated loop)

Not supported

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Setting the Host Mode for the disk array ports

The disk array ports have Host Modes that you must set depending on the host you use. After the disk array is installed, use Command View (shown) or LUN Configuration Manager to set the Host Mode for each port.

The host mode for AIX is OF.

Installation

19

Install and configure the host

Install and configure the host and host bus adapters (HBAs) that connect the host to the disk array.

Loading the OS and software

Follow the manufacturer’s instructions to load the operating system and software onto the host. Load all OS patches and configuration utilities supported by HP and the HBA manufacturer.

Installing and configuring the HBAs

Install and configure the host bus adapters using the HBA manufacturer’s instructions.

Supported HBAs

Supported HBAs include the IBM FC6227, IBM FC6228, and IBM

FC6239.

To check whether the drivers are installed:

Example (FC 6227)

1. Use the lslpp command to display the drivers currently installed on the system.

# lslpp -l | grep df1000f7

2. Check the list for the required two drivers:

For the IBM FC 6227 HBA, the following drivers are required:

devices.pci.df1000f7

devices.fcp.disk

If the drivers are displayed, you do not need to install the drivers.

If the drivers are not displayed, install the drivers by using the installp command or SMIT.

20

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Example (FC 6228)

1. Use the lslpp command to display the drivers currently installed on the system.

# lslpp -l | grep df1000f9

2. Check the list for the required two drivers:

For the IBM FC 6227 HBA, the following drivers are required:

devices.pci.df1000f9

devices.fcp.disk

If the drivers are displayed, you do not need to install the drivers.

If the drivers are not displayed, install the drivers by using the installp command or SMIT.

To check the firmware level:

The HBA should have the proper version of firmware installed.

Example

1. Use the lsdev command to display the device object.

# lsdev -Cc adapter

2. Use the lscfg command to display the firmware level.

# lscgfg -vl fcsX fcsX is the fiber devids object (typically fcs0). The field “Devices

Specific.(Z9)” shows the installed firmware revision of the HBA.

To install the drivers using the AIX command line:

1. Insert the IBM drivers CD.

2. Use the installp command to install the drivers.

Example

# installp -a -dlpfc.installp all

3. Use the lslpp command to verify that the drivers are installed on the system.

4. Configure the new devices by rebooting the system with the

shutdown –r command or using the cfgmgr command to run

Configuration Manager.

Installation

21

To install the drivers using SMIT:

1. Insert the IBM drivers CD.

2. Start SMIT.

Example

Example

# smit

The System Management screen appears.

3. Select Install Additional Software.

4. Select Input Device / Directory For Software and press F4 to select device.

5. Select Software To Install and press F4 to display a list of software.

6. Select the drivers needed using F7.

You can use the slash (“/”) to search for the components in the list.

HBA FC 6227 requires these drivers:

devices.pci.df1000f7

devices.fcp.disk

7. Press Enter.

Wait for status to change from RUNNING to OK.

8. Check installation summary result (SUCCESS).

9. Press F10.

10. Use the smit devinst command to configure the devices.

22

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Clustering and Fabric zoning

If you plan to use clustering, install and configure the clustering software on the servers. Clustering is the organization of multiple servers into groups. Within a cluster, each server is a node. Multiple clusters compose a multi-cluster environment. The following example shows a multi-cluster environment with three clusters, each containing two nodes. The nodes share access to the disk array.

Installation

Within the Storage Area Network (SAN), the clusters may be homogeneous

(all the same operating system) or they may be heterogeneous (mixed operating systems). How you configure LUN Security and fabric zoning depends on the operating system mix and the SAN configuration.

23

Fabric zoning and LUN security for multiple operating systems

Environment

Standalone SAN

(non-clustered)

Clustered SAN

Multi-Cluster

SAN

By using appropriate zoning and LUN security, you can connect multiple clusters of various operating systems to the same switch and fabric:

• Host zones must contain only homogeneous operating systems.

• Storage port zones may overlap if more than one operating system needs to share an array port.

• Heterogeneous operating systems may share an XP array port if you use Secure Manager and set the appropriate host group and mode; all others must connect to a dedicated XP array port.

• Use Secure Manager for LUN isolation when multiple hosts connect through a shared array port. Secure Manager provides LUN security by allowing you to restrict which LUNs each host can access.

OS Mix

homogeneous (a single OS type present in the SAN) heterogeneous (more than one

OS type present in the SAN) homogeneous (a single OS type present in the SAN) heterogeneous (more than one

OS type present in the SAN) homogeneous (a single OS type present in the SAN) heterogeneous (more than one

OS type present in the SAN)

Fabric Zoning LUN Security

Not required Must be used when multiple

Required hosts connect through a shared port

Not required Must be used when multiple

Required cluster nodes connect through a shared port

Not required Must be used when multiple

Required cluster nodes connect through a shared port

24

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Connect the disk array

Connect the disk array to the host as follows:

1. The HP service representative verifies operational status of the disk array channel adapters, LDEVs, and paths.

2. The HP representative connects the Fibre Channel cables between the disk array and the fabric or host.

3. Verify the ready status of the disk array and peripherals.

Installation

25

Defining the paths

Use Command View (shown) or LUN Configuration Manager to create paths (LUNs) between hosts and volumes in the disk array, also called LUN mapping. LUN mapping includes these tasks:

• Configuring ports

• Setting LUN security

• Creating host groups by operating system and setting their host modes

• Assigning host bus adapter WWNs to host groups.

• Mapping volumes to host groups (by assigning LUNs).

For details, see the Command View or LUN Configuration Manager guide.

HP recommends that you note LUNS and their ports, WWNs, nicknames, and LDEVs for later use in verifying host and device configuration.

26

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Verifying disk array device recognition

Verify that the host recognizes the disk array devices:

1. Log into the host as an administrator (root).

2. If the disk array LUNs are defined after the IBM system is powered on, issue a cfgmgr command to recognize the new devices.

3. Use the lsdev command to display system device data and verify that the system recognizes the newly installed devices.

# lsdev -Cc disk

The devices are listed by device file name. All new devices should be listed as “Available.” If they are listed as “Define,” you must do more configuration before they can be used.

Example

(Fibre Channel)

Example

#lsdev -Cc disk hdisk0 Available 10-60-00-5, 0 16 Bit SCSI Disk Drive hdisk1 Available 10-60-00-6, 0 16 Bit SCSI Disk Drive

The example shows that Device hdisk0 is installed on bus 60 and has

TID=5 and LUN=0.

4. Record the device file names for the new devices. You will use this information in changing the device parameters.

5. Use the lscfg command to find out the AIX disk device’s corresponding array LDEV designation.

# lscfg –vl hdisk3

In this example, the emulation type, LDEV number, CU number and array port designation should all be displayed for disk device hdisk3.

Installation

27

Configure disk array devices

Configure the disk array devices in much the same way you would configure any new disk on the host. Creating scripts to configure all devices at once may save you considerable time.

Changing the device parameters

When the device files are created, the system sets the device parameters to the system default values. You may need to change a few of those values for each new OPEN-x device:

• read/write (R/W) timeout value

• queue depth

• queue type

The recommended queue depth settings may not provide the best I/O performance for your system. You can adjust the queue depth setting to optimize the I/O performance of the disk array

.

Type

SCSI

Parameter Name Default Value Required Value for Disk Array

Read/write time-out

Queue depth

30

1

60

Queue type None

2 (For LUSE devices use 2 for each LUN. For example, if one LUSE device contains 8 LUNs, use 2

×

8 = 16 for the queue depth.)

Simple

28

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Type

Fibre

Channel

Parameter Name Default Value Required Value for Disk Array

Read/write timeout 30

Queue depth Before

52-38-xx

60

Use 2 if exclusively OPEN-x volumes are mapped to the SCSI/FC port.

Queue type

52-40-xx to

52-44-xx

52-45-xx or later

None

Use 8 if exclusively LUSE volumes are mapped to the SCSI/FC port.

Use 2 if an intermix of LUSE and

OPEN-x volumes is mapped to the

SCSI/FC port.

Use 8 if an intermix of LUSE and

OPEN-x volumes is mapped for dummy LU

(I-7135-Emu).

Number of volumes

× queue-depth

≤ queue-depth

Number of volumes

×

queue-depth

≤ and queue-depth

Simple

To show the device parameters using the AIX command line:

At the command line prompt, enter lsattr -E -l hdiskx, where hdiskx is the device file name.

Example

# lsattr –E -l hdisk2

To change the device parameters using the AIX command line:

1. Change the parameters as follows:

To change the R/W timeout parameter, enter:

chdev –1 hdiskx –a rw_timeout='60'

To change the queue depth parameter, enter:

chdev –l hdiskx –a queue_depth='x'

Installation

29

30

Example

where x is a value from the above table.

To change the queue type parameter, enter:

chdev –l hdiskx –a q_type='simple'

This example changes the queue depth for device hdisk3:

Example

# lsattr –E –l hdisk3

3. Repeat these steps for each OPEN-x device on the disk array.

Tip

The lsattr command also shows other useful information, such as LUN ID of the mapped LDEV, worldwide name of the disk array FC port, and

N-Port ID.

Another useful command for determining the slot position and port worldwide name of the HBA is the lscfg –v –l hdiskx command.

To change the device parameters using SMIT:

1. Start SMIT. (Optional) For an ASCII session, use the smit –C command.

Example

# chdev –l hdisk3 –a queue_depth='2'

2. Verify that the parameters for all devices were successfully changed.

# smit

The System Management screen appears.

2. Select Devices.

Example

System Management

Move cursor to desired item and press Enter.

Software Installation and Maintenance

Software License Management

Devices

System Storage Management (Physical & Logical Storage)

Security & Users

Communications Applications and Services

Print Spooling

Problem Determination

Performance & Resource Scheduling

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Installation

Example

System Environments

Processes & Subsystems

Applications

Using SMIT (information only)

The Devices screen appears.

3. Select Fixed Disk.

The Fixed Disk screen appears.

4. Select Change/Show Characteristics of a Disk.

The Disk screen appears.

5. Select the desired device from the Disk menu.

The Change/Show Characteristics of a Disk screen for that device is displayed.

Change/Show Characteristics of a Disk

Type or select values in entry fields.

Press Enter AFTER making all desired changes.

[MORE...4]

Status

Location

Parent adapter

Connection address

Physical volume IDENTIFIER

ASSIGN physical volume identifier no

Queue DEPTH [2]

Queuing TYPE [simple]

Use QERR Bit [yes]

Device CLEARS its Queue on Error [no]

READ/WRITE time out value [60]

START unit time out value [60]

REASSIGN time out value [120]

APPLY change to DATABASE only no

6. Enter the correct values for the read/write timeout value, queue depth, and queue type parameters. Press Enter to complete the parameter changes.

7. Repeat these steps for each OPEN-x device on the disk array.

31

Assigning the new devices to volume groups

Assign the new devices to volume groups, using the AIX system’s Logical

Volume Manager (accessed from within SMIT). This operation is not required when the volumes are used as raw devices.

To assign a device to a volume group:

1. Start SMIT. (Optional) For an ASCII session, use the smit –C command.

Example

# smit

The System Management screen appears.

2. Select System Storage Management (Physical & Logical Storage).

Example

System Management

Move cursor to desired item and press Enter.

Software Installation and Maintenance

Software License Management

Devices

System Storage Management (Physical & Logical Storage)

Security & Users

Communications Applications and Services

Print Spooling

Problem Determination

Performance & Resource Scheduling

System Environments

Processes & Subsystems

Applications

Using SMIT (information only)

3. Select Logical Volume Manager.

Example

System Storage Management (Physical & Logical Storage)

Move cursor to desired item and press Enter.

Logical Volume Manager

File Systems

Files & Directories

Removable Disk Management *1

System Backup Manager

4. Select Volume Groups.

32

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Installation

Example

Example

Logical Volume Manager

Move cursor to desired item and press Enter.

Volume Groups

Logical Volumes

Physical Volumes

Paging Space

5. Select Add a Volume Group.

Volume Groups

Move cursor to desired item and press Enter.

List All Volume Groups

Add a Volume Group

Set Characteristics of a Volume Group

List Contents of a Volume Group

Remove a Volume Group

Activate a Volume Group

Deactivate a Volume Group

Import a Volume Group

Export a Volume Group

Mirror a Volume Group *1

Unmirror a Volume Group *1

Synchronize LVM Mirrors *1

Back Up a Volume Group

Remake a Volume Group

List Files in a Volume Group Backup

Restore Files in a Volume Group Backup

6. Enter or select values for the following fields:

Volume Group name (the volume group can contain multiple hdisk devices)

Physical partition size in megabytes, see “Physical partition size table”

(page 65)

.

Physical Volume names

To enter values, place the cursor in the field and type the value.

To select values, place the cursor in the field and press F4.

33

34

Example

Type or select values in entry fields.

Press Enter AFTER making all desired changes.

[Entry Fields]

VOLUME GROUP name [vg01]

Physical partition SIZE in megabytes 4

PHYSICAL VOLUME names [hdisk1]

Activate volume group AUTOMATICALLY yes

at system restart?

Volume Group MAJOR NUMBER []

7. Enter yes or no in the “Activate volume group AUTOMATICALLY at system restart?” field.

If you are not using HACMP (High Availability Cluster

Multi-Processing) or HAGEO (High Availability Geographic), enter

yes.

If you are using HACMP and/or HAGEO, enter no.

8. Press Enter when you have entered the values. The confirmation screen appears.

Example

ARE YOU SURE?

Continuing may delete information you may want to keep. This is your last chance to stop before continuing.

Press Enter to continue.

Press Cancel to return to the applications.

9. Press Enter again.

The Command Status screen will appear. To ensure the devices have been assigned to a volume group, wait for OK to appear on the

Command Status line.

Example

COMMAND STATUS

Command : OK stdout : yes stderr : no

Before command completion, additional instructions may appear below.

0516-796 mkvg : Making hdisk1 a physical volume. Please wait.

Repeat these steps for each volume group needed.

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Creating the Journaled File Systems

Create the Journaled File Systems using the System Manager Information

Tool (SMIT). This operation is not required when the volumes are used as raw devices. The largest file system permitted in AIX is 64 GB.

To create the Journaled File Systems:

1. Start SMIT.

Example

# smit -C

The System Management screen appears.

Example

System Management

Move cursor to desired item and press Enter.

Software Installation and Maintenance

Software License Management

Devices

System Storage Management (Physical & Logical Storage)

Security & Users

Communications Applications and Services

Print Spooling

Problem Determination

Performance & Resource Scheduling

System Environments

Processes & Subsystems

Applications

Using SMIT (information only)

2. Select System Storage Management (Physical & Logical Storage).

Example

System Storage Management (Physical & Logical Storage)

Move cursor to desired item and press Enter.

Logical Volume Manager

File Systems

Files & Directories

Removable Disk Management *1

System Backup Manager

3. Select File Systems.

Example

File Systems

Move cursor to desired item and press Enter.

List All File Systems

List All Mounted File Systems

Add / Change / Show / Delete File Systems

Installation

35

36

Example

Example

Example

Example

Mount a File System

Mount a Group of File Systems

Unmount a File System

Unmount a Group of File Systems

Verify a File System

Backup a File System

Restore a File System

4. Select Add/Change/Show/Delete File Systems.

Add / Change / Show / Delete File Systems

Move cursor to desired item and press Enter.

Journaled File Systems

CDROM File Systems

Network File System (NFS)

Cache Fs *1

5. Select Journaled File Systems.

Journaled File System

Move cursor to desired item and press Enter.

Add a Journaled File System

Add a Journaled File System on a Previously Defined

Logical Volume

Change / Show Characteristics of a Journaled File System

Remove a Journaled File System

Defragment a Journaled File System

6. Select Add a Journaled File System.

Add a Journaled File System

Move cursor to desired item and press Enter.

Add a Standard Journaled File System

Add a Compressed Journaled File System

Add a Large File Enabled Journaled File System

7. Select Add a Standard Journaled File System.

Volume Group Name

Move cursor to desired item and press Enter.

rootvg

vg01

The Add a Journaled File System screen appears.

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Installation

Example

8. Select a volume group, and press Enter.

Add a Journaled File System

Type or select values in entry fields.

Press Enter AFTER making all desired changes.

[Entry Fields]

Volume group name vg01

SIZE of file system (in 512-byte blocks) [4792320]

MOUNT POINT [VG01]

Mount AUTOMATICALLY at system restart? no

PERMISSIONS read/write

Mount OPTIONS []

Start Disk Accounting? no

Fragment Size (bytes) 4096

Number of bytes per inode 4096

Compression algorithm no

Allocation Group Size (Mbytes) *1

9. Enter values for the following four fields:

SIZE of file system (in 512-byte blocks): Enter the lsvg command to display the number of free physical partitions and physical partition size. Calculate the maximum size of the file system as follows:

(FREE PPs - 1) x (PP SIZE) x 2048

Mount Point: Enter mount point name. (Make a list of the mount point names for reference.)

Mount AUTOMATICALLY at system restart?: Enter yes.

Caution

In high availability systems (HACMP and/or HAGEO), enter no.

Number of bytes per inode: Enter the number of bytes appropriate for the application, or use the default value.

10. Press Enter to create the Journaled File System.

The Command Status screen appears.

11. To ensure that the Journaled File System has been created, wait for OK to appear on the Command Status line.

12. To continue creating Journaled File Systems, press the F3 key until you

return to the Add a Journaled File System screen. Repeat steps 2

through 11 for each Journaled File System to be created.

13. To exit SMIT, press the F10 key.

37

Mounting and verifying the file systems

Mount the file systems and verify that the file systems were created correctly and are functioning properly.

To mount and verify the file systems:

1. Mount the file system. Enter:

mount mount_point_name

Example

# mount /vg01

2. Repeat step 1 for each new file system.

3. Use the df command to verify the size of the file systems. The capacity is listed in 512-byte blocks. To list capacity in 1024-byte blocks, use the

df –k command.

Example

# df

File system 512-blocks free %Used Iused %Iused Mounted on

/dev/hd4 8192 3176 61% 652 31% /

/dev/hd2 1024000 551448 46% 6997 5% /usr

/dev/hd9var 8192 5512 32% 66 6% /var

/dev/hd3 24576 11608 52% 38 0% /tmp

/dev/hd1 8192 7840 4% 17 1% /home

/dev/lv00 4792320 4602128 4% 16 1% /VG00 (OPEN-3)

/dev/lv01 4792320 4602128 4% 16 1% /VG01 (OPEN-3)

/dev/lv02 14401536 13949392 4% 16 1% /VG02 (OPEN-9)

4. Verify that the file system is usable by performing some basic operations

(for example, file creation, copying, and deletion) on each logical device.

Example

# cd /hp00

# cp /smit.log /hp00/smit.log.back1

# ls -l hp00

–rw-rw-rw- 1 root system 375982 Nov 30 17:25 smit.log.back1

# cp smit.log.back1 smit.log.back2

# ls -l

-rw-rw-rw- 1 root system 375982 Nov 30 17:25 smit.log.back1

-rw-rw-rw- 1 root system 375982 Nov 30 17:28 smit.log.back2

# rm smit.log.back1

# rm smit.log.back2

38

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Installation

5. Use the df command to verify that the file systems have successfully automounted after a reboot. Any file systems that were not automounted can be set to automount using the SMIT Change a Journaled File

System screen.

If you are using HACMP or HAGEO, do not set the file systems to automount.

Example

# df

File system 512-blocks free %Used Iused %Iused Mounted on

/dev/hd4 8192 3176 61% 652 31% /

/dev/hd2 1024000 551448 46% 6997 5% /usr

/dev/hd9var 8192 5512 32% 66 6% /var

/dev/hd3 24576 11608 52% 38 0% /tmp

/dev/hd1 8192 7840 4% 17 1% /home

/dev/lv00 4792320 4602128 4% 16 1% /hp00

/dev/lv01 4792320 4602128 4% 16 1% /hp01

/dev/lv02 14401536 13949392 4% 16 1% /hp02

HACMP and HAGEO do not provide a complete disaster recovery or backup solution, and are not a replacement for standard disaster recovery planning and backup/recovery methodology.

39

40

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Troubleshooting

2

Troubleshooting

If you encounter an error condition, see

“Error conditions” on page 42

for recommended actions.

If you are unable to resolve an error condition, ask your HP support representative for assistance. See

“Calling the HP support center” on page 44 .

41

Error conditions

Error Condition

The logical devices are not recognized by the host.

Recommended Action

Verify that the READY indicator lights on the disk array are ON.

Verify that fiber cables are correctly installed and firmly connected.

Verify that the target IDs are properly configured. The LUNs for each

TID must start at 0 and continue sequentially without skipping any numbers.

Verify that the TIDs/WWNs on each bus are unique. Do not install two devices with the same ID on the same bus.

Recheck the buses for new devices.

Verify that LUSE devices are not intermixed with normal LUNs on the same port.

Verify that the maximum number of LUSE devices per port has not been exceeded.

Verify that the disk array Host Mode is set correctly.

The host does not reboot properly after hard shutdown.

If you power off the host without executing the shutdown process, wait three minutes to allow the disk array’s internal timeout process to purge queued commands. If the host restarts while the disk array is processing queued commands, the host may not reboot successfully.

Verify that the disk array logical devices are correctly formatted.

Physical volumes cannot be created.

Logical volumes cannot be created.

Verify that the volume capacity for OPEN-x volumes is not greater than the maximum capacity allowed. See the Device Emulations

Appendix.

Verify that the capacity of the volume group is not less than the total capacity of the partitioned logical volume.

42

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Error Condition Recommended Action

A file system is not mounted after rebooting.

Verify that the host was restarted correctly.

Verify that the file system attributes are correct.

The disk array performs a self reboot because the disk array was busy or it logged a panic message.

Reboot the host.

The disk array responds “Not

Ready” or the disk array has displayed “Not Ready” and timed out.

Contact HP.

The host detects a parity error.

Check the HBA and make sure it was installed properly.

Reboot the host.

The host hangs or devices are declared and the host hangs.

Make sure there are no duplicate disk array TIDs and that disk array

TIDs do not conflict with any host TIDs.

Troubleshooting

43

Calling the HP support center

If you need to call HP customer support, provide as much information about the problem as possible, including the circumstances of the error or failure and the exact content of any error messages.

Depending on your system configuration, you may be able to view error messages as follows:

• View SIMs in Command View (Device Health tab).

• View R-SIMs in Remote Control XP, including reference codes and severity levels of recent R-SIMs.

• View SIMs that generate SNMP traps on the host.

44

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

A

Worksheets

Worksheets

45

0:05

0:06

0:07

0:08

0:01

0:02

0:03

0:04

0:09

0:10

0:11

0:12

0:13

Path worksheet

LDEV (CU:LDEV)

(CU = control unit)

Device

Type

0:00

SCSI Bus

Number Path 1 Alternate Paths

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

46

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Device data worksheet

Device File Name hdisk1

Bus

Number LUN hdisk2 hdisk3 hdisk4 hdisk5 hdisk6 hdisk7 hdisk8 hdisk9 hdisk10 hdisk11 hdisk12 hdisk13 hdisk14

TID

Device

Type Alternate Paths

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

TID:

LUN:

Worksheets

47

48

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Disk array device emulations

B

Disk array device emulations

This appendix provides information about disk array supported emulations and device type specifications. Some parameters may not be relevant to your array. Consult your HP representative for information about supported configurations for your system.

49

Supported emulations

XP Type Emulation OPEN-x LUSE

XP48

XP512

XP128

XP1024

XP12000

OPEN-3

OPEN-8

OPEN-9

OPEN-E

OPEN-K

OPEN-L

OPEN-M

OPEN-V

OPEN-3

OPEN-8

OPEN-9

OPEN-E

OPEN-K

OPEN-L

OPEN-M

OPEN-V

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

CVS

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

LUSE & CVS

Yes

Yes

Yes

Yes

Yes

50

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

OPEN-3

OPEN-8

OPEN-9

OPEN-E

OPEN-L

OPEN-V

LUSE

OPEN-3*n

OPEN-8*n

OPEN-9*n

OPEN-E*n

OPEN-L*n

OPEN-V*n

Device type specifications

Device Type

(Note 1)

Category

(Note 2)

Blocks

(512 bytes )

SCSI disk

SCSI disk

SCSI disk

SCSI disk

4806720

14351040

14423040

28452960

SCSI disk 71192160

SCSI disk max=125827200

Sector

Size

(bytes)

512

512

512

512

512

512

# of

Cylinders

3338

9966

10016

19759

49439

Note 5

Heads Sectors per

Track

Capacity MB*

(Note 3)

15

15

15

15

15

15

96

96

96

96

96

128

2347

7007

7042

13893

34761

Note 6

SCSI disk

SCSI disk

SCSI disk

4806720*n

14351040*n

14423040*n

SCSI disk

SCSI disk

28452960*n

71192160*n

SCSI disk max=125827200

Note 4

512

512

512

512

512

512

3338*n

9966*n

10016*n

19759*n

49439*n

Note 5

15

15

15

15

15

15

96

96

128

96

96

96

2347*n

7007*n

7042*n

13893*n

34761*n

Note 6

CVS

OPEN-3 CVS

OPEN-8 CVS

OPEN-9 CVS

OPEN-E CVS

CVS LUSE

OPEN-3*n CVS

OPEN-8*n CVS

OPEN-9*n CVS

OPEN-E*n CVS

OPEN-V*n

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

SCSI disk

Note 4

Note 4

Note 4

Note 4

Note 4

Note 4

Note 4

Note 4

Note 4

512

512

512

512

512

512

512

512

512

Note 5

Note 5

Note 5

Note 5

15

15

15

15

96

96

96

96

Note 6

Note 6

Note 6

Note 6

Note 5

Note 5

Note 5

Note 5

Note 5

15

15

15

15

15

96

96

96

96

128

Note 6

Note 6

Note 6

Note 6

Note 6

*Capacity = (512 x number of blocks) ÷ 1024

2

Disk array device emulations

51

52

Note 1:

The availability of a disk type depends on the disk array.

Note 2:

The devices are defined to the host as SCSI disk devices, even though the interface is Fibre Channel.

Note 3

The device capacity can sometimes be changed by the BIOS or host adapter board. This may make actual capacity different from that listed in the table.

Note 4:

The number of blocks for a CVS volume is calculated as follows:

# of blocks = (# of cylinders)

×

(# of heads)

×

(# of sectors per track)

Example 1:

For an OPEN-3 CVS volume with capacity = 37 MB:

# of blocks = (53 cylinders–see Note 5)

×

(15 heads)

×

(96 sectors per track) = 76320

Example 2:

For an OPEN-V CVS volume with capacity = 49 MB:

# of blocks = (53 cylinders–see Note 5)

×

(15 heads)

×

(128 sectors per track) = 101760

Note 5:

The number of cylinders for a CVS volume is calculated as follows (

↑ means that the value should be rounded up to the next integer):

OPEN-3/8/9/E: The number of cylinders for a CVS volume =

# of cylinders =

(capacity (MB) specified by user)

×

1024/720

Example:

For an OPEN-3 CVS volume with capacity = 37 MB:

# of cylinders =

37

×

1024/720

=

52.62

(rounded up to next integer) =

53 cylinders

OPEN-V: The number of cylinders for a CVS volume =

# of cylinders =

(capacity (MB) specified by user)

×

16/15

Example:

For an OPEN-V CVS volume with capacity = 49 MB:

# of cylinders =

49

×

16/15

=

52.26

(rounded up to next integer) = 53 cylinders

OPEN-3/8/9/E: The number of cylinders for a CVS LUSE volume =

# of cylinders =

(capacity (MB) specified by user)

×

1024/720

↑ ×

n

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Example:

For a CVS LUSE volume with capacity = 37 MB and n = 4

# of cylinders =

37

×

1024/720

↑ ×

4 =

52.62

↑ ×

4 = 53

×

4 = 212

OPEN-V: The number of cylinders for a CVS LUSE volume =

# of cylinders =

(capacity (MB) specified by user)

×

16/15

↑ ×

n

Example:

For an OPEN-V CVS LUSE volume with capacity = 49 MB and n = 4

# of cylinders =

49

×

16/15

↑ ×

4 =

52.26

↑ ×

4 = 53

×

4 = 212

Note 6:

The capacity of an OPEN-3/8/9/E CVS volume is specified in MB, not number of cylinders. The capacity of an OPEN-V CVS volume can be specified in MB or number of cylinders. You set the volume size using the

LUN Configuration Manager or Command View software.

Disk array device emulations

53

Disk parameters by emulation type

OPEN-3 parameters

Parameter

ty Disk category dt Control type ns Sectors/tracks nt Tracks/cylinder nc Number of all cylinders

OPEN-3

Winchester

SCSI

96

15

3,338

6,300

Set optionally

Emulation Type

OPEN-3*n

(n=2 to 36)

Winchester

SCSI

96

15

3,338*n

6,300

Set optionally

OPEN-3 CVS OPEN-3 CVS*n

(n=2 to 36)

Winchester

SCSI

96

15

Depends on configuration of

CV

1

6,300

Set optionally

Winchester

SCSI

96

15

Depends on configuration of

CV

3

6,300

Set optionally rm Number of rotations of the disk oa a partition offset

(Starting block in a partition) ob b partition offset

(Starting block in b partition) oc c partition offset

(Starting block in c partition) od d partition offset

(Starting block in d partition) oe e partition offset

(Starting block in e partition) of f partition offset

(Starting block in f partition) og g partition offset

(Starting block in g partition) oh h partition offset

(Starting block in h partition) pa a partition size pb b partition size

Set optionally

0

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

Set optionally

0

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

Set optionally

0

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

Set optionally

0

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

54

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Parameter

pc c partition size pd d partition size pe e partition size pf f partition size pg g partition size ph h partition size ba a partition block size bb b partition block size bc c partition block size bd d partition block size be e partition block size bf f partition block size bg g partition block size bh h partition block size fa a partition fragment size

OPEN-3

4,806,720 fb b partition fragment size fc c partition fragment size fd d partition fragment size fe e partition fragment size

1,024

1,024

1,024

1,024 ff f partition fragment size fg g partition fragment size fh h partition fragment size

See “Notes for disk parameters” (page 62) .

1,024

1,024

1,024

8,192

8,192

8,192

8,192

8,192

8,192

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

1,024

1,024

1,024

1,024

1,024

1,024

1,024

8,192

8,192

8,192

8,192

8,192

8,192

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

Emulation Type

OPEN-3*n

(n=2 to 36)

4,806,720*n

OPEN-3 CVS OPEN-3 CVS*n

(n=2 to 36)

Depends on configuration of

CV

1

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

8,192

8,192

8,192

8,192

1,024

Depends on configuration of

CV

3

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

Set optionally

8,192

8,192

8,192

8,192

8,192

8,192

1,024

(continued)

1,024

1,024

1,024

1,024

1,024

1,024

1,024

1,024

1,024

1,024

Set optionally

1,024

1,024

1,024

Disk array device emulations

55

OPEN-8 parameters

ty dt ns nt nc

Parameter

Disk category

Control type

Sectors/tracks

Tracks/cylinder

Number of all cylinders rm Number of rotations of the disk oa a partition offset

(Starting block in a partition) ob b partition offset

(Starting block in b partition) oc c partition offset

(Starting block in c partition) od d partition offset

(Starting block in d partition) oe e partition offset

(Starting block in e partition) of f partition offset

(Starting block in f partition) og g partition offset

(Starting block in g partition) oh h partition offset

(Starting block in h partition) pa a partition size pb b partition size

OPEN-8

Winchester

SCSI

96

15

9,966

6,300

Set optionally

Set optionally

0

Set optionally

Set optionally

Emulation Type

OPEN-8*n

(n=2 to 36)

OPEN-8 CVS OPEN-8

CVS*n (n=2 to

36)

Winchester

SCSI

96

15

9,966*n

6,300

Set optionally

Winchester

SCSI

96

15

Depends on configuration of

CV

1

6,300

Set optionally

Winchester

SCSI

116

Set optionally

Depends on configuration of

CV

1

6,300

Set optionally

Set optionally Set optionally Set optionally

0

Set optionally

Set optionally

0

Set optionally

Set optionally

0

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

Set optionally

2

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

56

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

pc

Parameter

c partition size

OPEN-8

14,351,040 pd d partition size pe e partition size pf f partition size pg g partition size ph h partition size ba a partition block size bb b partition block size bc c partition block size bd d partition block size be e partition block size bf f partition block size bg g partition block size bh h partition block size fa a partition fragment size fb b partition fragment size fc c partition fragment size fd d partition fragment size fe e partition fragment size

1,024

1,024

1,024 ff f partition fragment size fg g partition fragment size fh h partition fragment size

See “Notes for disk parameters” (page 62) .

1,024

1,024

1,024

8,192

8,192

8,192

8,192

1,024

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

1,024

1,024

1,024

1,024

1,024

1,024

8,192

8,192

8,192

8,192

1,024

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

Emulation Type

OPEN-8*n

(n=2 to 36)

14,351,040*n

OPEN-8 CVS

1,024

1,024

1,024

1,024

1,024

1,024

8,192

8,192

8,192

8,192

1,024

1,024

Depends on configuration of

CV

1

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

OPEN-8

CVS*n (n=2 to

36)

1,024

1,024

1,024

1,024

1,024

1,024

8,192

Set optionally

Set optionally

8,192

1,024

1,024

Depends on configuration of

CV

1

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

Disk array device emulations

57

OPEN-9 parameters

ty dt ns nt nc

Parameter

Disk category

Control type

Sectors/tracks

Tracks/cylinder

Number of all cylinders rm Number of rotations of the disk oa a partition offset

(Starting block in a partition) ob b partition offset

(Starting block in b partition) oc c partition offset

(Starting block in c partition) od d partition offset

(Starting block in d partition) oe e partition offset

(Starting block in e partition) of f partition offset

(Starting block in f partition) og g partition offset

(Starting block in g partition) oh h partition offset

(Starting block in h partition) pa a partition size pb b partition size

OPEN-9

Winchester

SCSI

96

15

10,016

6,300

Set optionally

Set optionally

0

Set optionally

Set optionally

Emulation Type

OPEN-9*n

(n=2 to 36)

OPEN-9 CVS OPEN-9

CVS*n (n=2 to

36)

Winchester

SCSI

96

15

10,016*n

6,300

Set optionally

Winchester

SCSI

96

15

Depends on configuration of

CV

1

6,300

Set optionally

Winchester

SCSI

96

15

Depends on configuration of

CV

3

6,300

Set optionally

Set optionally Set optionally Set optionally

0

Set optionally

Set optionally

0

Set optionally

Set optionally

0

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

Set optionally

2

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

2

Set optionally

58

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

pc

Parameter

c partition size

OPEN-9

14,423,040 pd d partition size pe e partition size pf f partition size pg g partition size ph h partition size ba a partition block size bb b partition block size bc c partition block size bd d partition block size be e partition block size bf f partition block size bg g partition block size bh h partition block size fa a partition fragment size fb b partition fragment size fc c partition fragment size fd d partition fragment size fe e partition fragment size

1,024

1,024

1,024 ff f partition fragment size fg g partition fragment size fh h partition fragment size

See “Notes for disk parameters” (page 62) .

1,024

1,024

1,024

8,192

8,192

8,192

8,192

1,024

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

1,024

1,024

1,024

1,024

1,024

1,024

8,192

8,192

8,192

8,192

1,024

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

Emulation Type

OPEN-9*n

(n=2 to 36)

14,423,040*n

OPEN-9 CVS

1,024

1,024

1,024

1,024

1,024

1,024

8,192

8,192

8,192

8,192

1,024

1,024

Depends on configuration of

CV

1

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

OPEN-9

CVS*n (n=2 to

36)

1,024

1,024

1,024

1,024

1,024

1,024

8,192

8,192

8,192

8,192

1,024

1,024

Depends on configuration of

CV

3

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

Disk array device emulations

59

OPEN-E parameters

Parameter

ty Disk category dt Control type ns Sectors/tracks nt Tracks/cylinder nc Number of all cylinders rm Number of rotations of the disk oa a partition offset

(Starting block in a partition) ob b partition offset

(Starting block in b partition) oc c partition offset

(Starting block in c partition) od d partition offset

(Starting block in d partition) oe e partition offset

(Starting block in e partition) of f partition offset

(Starting block in f partition) og g partition offset

(Starting block in g partition) oh h partition offset

(Starting block in h partition) pa a partition size pb b partition size pc c partition size

6,300

Set optionally

Set optionally

0

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

OPEN-E

Winchester

SCSI

96

15

19,759

Set optionally

2

Set optionally

28,452,960

Emulation Type

OPEN-E*n

(n=2 to 36)

Winchester

SCSI

96

15

19,759*n

6,300

Set optionally

OPEN-E CVS OPEN-E CVS*n

(n=2 to 36)

Winchester

SCSI

96

15

Depends on configuration of

CV

1

6,300

Set optionally

Winchester

SCSI

116

15

Depends on configuration of

CV

3

6,300

Set optionally

Set optionally

0

Set optionally

0

Set optionally

0

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

28,452,960*n

2

Set optionally

2

Set optionally

Depends on configuration of

CV

1

Set optionally

2

Set optionally

Depends on configuration of

CV

3

60

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Parameter OPEN-E

pd d partition size pe e partition size pf f partition size pg g partition size ph h partition size ba a partition block size bb b partition block size bc c partition block size bd d partition block size be e partition block size bf f partition block size bg g partition block size bh h partition block size fa a partition fragment size fb b partition fragment size fc c partition fragment size fd d partition fragment size fe e partition fragment size ff f partition fragment size fg g partition fragment size

1,024

1,024

1,024

1,024 fh h partition fragment size

See “Notes for disk parameters” (page 62) .

1,024

8,192

8,192

8,192

8,192

8,192

1,024

1,024

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

Emulation Type

OPEN-E*n

(n=2 to 36)

8,192

8,192

8,192

8,192

8,192

1,024

1,024

1,024

1,024

1,024

1,024

1,024

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

OPEN-E CVS OPEN-E CVS*n

(n=2 to 36)

8,192

8,192

8,192

8,192

8,192

1,024

1,024

1,024

1,024

1,024

1,024

1,024

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

8,192

8,192

8,192

8,192

8,192

1,024

1,024

1,024

1,024

1024

1,024

1,024

1,024

Set optionally

Set optionally

Set optionally

Set optionally

Set optionally

8,192

8,192

8,192

Disk array device emulations

61

Notes for disk parameters

1. The value of pc is calculated as follows: pc = nc

nt

ns

The nc of OPEN-x CVS corresponds to the capacity specified by SVP or remote console.

The CVS size of OPEN-x is specified by capacity (megabyte), not by number of cylinders.

The number of cylinders of an OPEN-x CVS volume can be obtained by the following calculation (

↑ ↑ means round up to integer).

The number of cylinders =

(specified capacity in megabytes from

SVP or remote console)

×

1,024 / 720

↑ .

Example

When 37 MB is specified for an OPEN-3 CVS volume from SVP, the number of cylinders of the OPEN-3 CVS can be calculated as follows:

37

×

1,024 / 720 = 52.62

52.62

= 53

The OPEN-3 CVS volume has 53 cylinders.

2. The value of pa must be equal to or more than 131,072.

3. The number of cylinders of a Logical Unit Size Expansion (LUSE) composed of OPEN-x CVS volumes corresponds to the capacity specified by the SVP or the remote console. CVS size of

OPEN-x is specified by the capacity (megabytes), not by the number of cylinders. The number of cylinders of the OPEN-x CVS volume can be obtained by the following calculation (

↑ ↑

means round up to integer):

The number of cylinders =

(specified capacity in megabytes from

SVP or remote console)

×

1,024 / 720

↑ ×

n where n is the number of concatenated volumes for LUSE.

62

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Example

When 37 MB is specified for the OPEN-3 CVS volume and the four volumes are concatenated, the number of cylinders of the OPEN-3

CVS can be calculated as follows:

37

×

1,024 / 720

↑ ×

4 =

52.62

↑ ×

4 = 53

×

4 = 212

The LUSE for the OPEN-3 CVS volume has 212 cylinders.

Disk array device emulations

63

Byte information table

Values in this table assume that large files are stored in large volumes, and the maximum number of files stored in each device type is approximately the same for each device type.

Category

OPEN-3

OPEN-8

OPEN-9

OPEN-3/8/9 CVS

OPEN-3/8/9*n CVS

OPEN-E

OPEN-L

OPEN-x CVS

LU Product Name

OPEN-3

OPEN-3*2 to OPEN-3*28

OPEN-3*29 to OPEN-3*36

OPEN-8

OPEN-8*2 to OPEN-8*9

OPEN-8*10 to OPEN-8*18

OPEN-8*19 to OPEN-8*36

OPEN-9

OPEN-9*2 to OPEN-9*9

OPEN-9*10 to OPEN-9*18

OPEN-9*19 to OPEN-9*36

OPEN-3 CVS

OPEN-8 CVS

OPEN-9 CVS

OPEN-E CVS

OPEN-K CVS

35 to 64800

64801 to 126000

126001 and higher

OPEN-E

OPEN-E*2-OPEN-E*4

OPEN-E*5 to OPEN-E*9

OPEN-E*10 to OPEN-E*18

OPEN-L

OPEN-L*2 to OPEN-L*3

OPEN-L*4 to OPEN-L*7

OPEN-3 CVS, OPEN-9 CVS,

OPEN-E CVS, OPEN-V CVS

4096

8192

16384

4096

8192

16384

4096

8192

16384

4096

Number of Bytes per Inode

4096

8192

4096

8192

16384

4096

8192

16384

4096

64

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Physical partition size table

Category LU Product Name

OPEN-3

OPEN-8

OPEN-9

OPEN-E

OPEN-3

OPEN-3*2 to OPEN-3*3

OPEN-3*4 to OPEN-3*6

OPEN-3*7 to OPEN-3*13

OPEN-3*14 to OPEN-3*27

OPEN-3*28 to OPEN-3*36

OPEN-8

OPEN-8*2

OPEN-8*3 to OPEN-8*4

OPEN-8*5 to OPEN-8*9

OPEN-8*10 to OPEN-8*18

OPEN-8*19 to OPEN-8*36

OPEN-9

OPEN-9*2

OPEN-9*3 to OPEN-9*4

OPEN-9*5 to OPEN-9*9

OPEN-9*10 to OPEN-9*18

OPEN-9*19 to OPEN-9*36

OPEN-E

OPEN-E*2

OPEN-E*3 to OPEN-E*4

OPEN-E*5 to OPEN-E*9

OPEN-E*10 to OPEN-E*18

Physical Partition

Size in

Megabytes

8

16

32

64

32

64

128

256

64

128

8

16

4

8

16

32

128

256

16

32

64

128

256

Disk array device emulations

65

Category

OPEN-L

OPEN-x*n CVS

LU Product Name

OPEN-L

OPEN-L*2 to OPEN-L*3

OPEN-L*4 to OPEN-L*7

35 to1800

1801 to 2300

2301 to 7000

7001 to 16200

13201 to 32400

32401 to 64800

64801 to 126000

126001 to 259200

259201 - 518400

518401 and higher

Physical Partition

Size in

Megabytes

4

8

16

32

64

128

256

2

64

128

256

512

1024

66

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Glossary

AL

AL-PA

BC

CA

Command View command device

CVS

Arbitrated loop.

Arbitrated loop physical address.

HP StorageWorks Business Copy XP. BC lets you maintain up to nine local copies of logical volumes on the disk array.

HP StorageWorks Continuous Access XP. CA lets you create and maintain duplicate copies of local logical volumes on a remote disk array.

HP StorageWorks Command View XP, a software product for managing XP arrays. Command View runs on a Windows-based management workstation.

An LDEV that transfers RAID commands to BC or CA logical volumes.

CVS devices (OPEN-x CVS) are custom volumes that are smaller than normal fixed-sized logical disk devices (volumes).

The array cabinet that houses the channel adapters and service processor

(SVP).

The array cabinets that house the disk array physical disks.

DKC

(disk controller unit)

DKU

(disk cabinet unit) emulation modes

FC

FC-AL

FCP

Emulation modes can be assigned to LDEVs to make them operate like standard OPEN system disk drives. The emulation mode of an LDEV determines its capacity. Refer to the appendices for device capacities.

Fibre Channel.

Fibre Channel arbitrated loop.

Fibre Channel Protocol.

Glossary

67

HBA

HP

LDEV

LUN

LUSE

OFC

OPEN-x

OS

PA path port

Host bus adapter.

Hewlett-Packard Company.

Logical device. An LDEV is created when a RAID group is divided into sections using a selected host emulation mode (for example, OPEN-9 or

OPEN-M). The number of resulting LDEVs depends on the emulation mode.

“LDEV” and “volume” are synonyms.

Logical unit number. A LUN results from mapping a SCSI logical unit number, port ID, and LDEV ID to a RAID group. The size of the LUN is determined by the emulation mode of the LDEV and the number of LDEVs associated with the LUN. For example, a LUN associated with two OPEN-

3 LDEVs has a size of 4,693 MB.

Logical Unit Size Expansion, a feature which logically combines LDEVs so they appear as a larger LDEV. This allows a LUN to be associated with 2 to 36 LDEVs. LUSE allows applications to access data requiring large amounts of disk space.

Open Fibre Control.

A general term describing any one of the supported OPEN emulation modes (for example, OPEN-L).

Operating system.

Physical address.

“Path” and “LUN” are synonymous. Paths are created by associating a port, a target, and a LUN ID with one or more LDEVs.

A connector on a channel adapter card in the disk array. A port passes data between the disk array and external devices, such as a host server. Ports are named using a port group and port letter, for example, CL1-A.

RAID remote console PC

Redundant array of independent disks.

The PC running HP StorageWorks Remote Control XP.

Remote Control (RC)

HP StorageWorks Remote Control XP. A software product used for managing XP arrays.

R-SIM

Remote service information message.

68

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

SCSI

SIM

SNMP

SVP

TID

VSC

WWN

Small computer system interface.

Service information message.

Simple Network Management Protocol.

Service processor. A notebook computer built into the disk array. The SVP provides a direct interface to the disk array and is used only by the HP service representative.

Target ID.

Volume Size Configuration is a feature that defines custom volumes (CVS volumes) that are smaller than normal fixed-sized logical disk devices

(volumes).

World Wide Name. A unique identifier assigned to a Fibre Channel device.

Glossary

69

70

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

A adapters

host bus 20

arbitrated-loop physical address 17

audience

intended 5

authorized reseller, HP 8

C

clustering 23

,

24

command devices, RAID Manager 14

Command View XP 12

configure devices 28

configuring ports 17

connecting

disk array 25

connection problems

troubleshooting 44

conventions

documentation 6

cylinders

calculating for disk volume 62

D

device specifications 51

device types

supported 13

Index

devices

configuring 28

data worksheet 47

verification 27

disk array

connecting 25

installation 16

disk arrays

supported 5

disk volume

calculating number of cylinders 62

documentation

conventions 6

related 5

E

emulations 50

F

fabric zoning 23

,

24

Failover 14 failover 14

features and requirements 12

fiber parameter settings 18

Fibre Channel adapters

configuring 20

Fibre Channel interface 13

Index

71

Fibre Channel ports 17

files systems

mount and verify 38

G glossary

definitions 67

H

HBAs

configuring 20

help

obtaining 6

host mode 19

HP

authorized reseller 8

technical support 6

I installation

disk array 16

interface

Fibre Channel 13

J

Journaled File Systems

create 35

L

LUN Configuration Manager

define LUN mapping 26

LUN Configuration Manager XP 12

LUN management 12

LUN security 23

,

24

O

optional software 12

72

P parameter tables

R

V

byte information 64

physical partition size 65

paths

defining 26

worksheet 46

ports

configuring 17

Fibre Channel 17

RAID Manager command devices 14

related documentation

list of 5

Remote Control 12 requirements and features 12

S

security, LUN 23

,

24

SNMP configuration 14

software options 12

system administrator

required knowledge 5

system option mode 16

T technical support

HP 6

troubleshooting

error conditions 42

HP Support Center 44

volume groups

assign new device to 32

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

W

warranty 9

worksheet

device data 47

paths 46

X

XP1024

support for 5

XP128

support for 5

XP48

support for 5

XP512

support for 5

Z

zoning, fabric 23

,

24

Index

73

74

HP StorageWorks Disk Array XP Operating System Configuration Guide: IBM AIX

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
