HP ZBook 17 Mobile Workstation

HP ZBook 17 Mobile Workstation

QuickSpecs

Overview

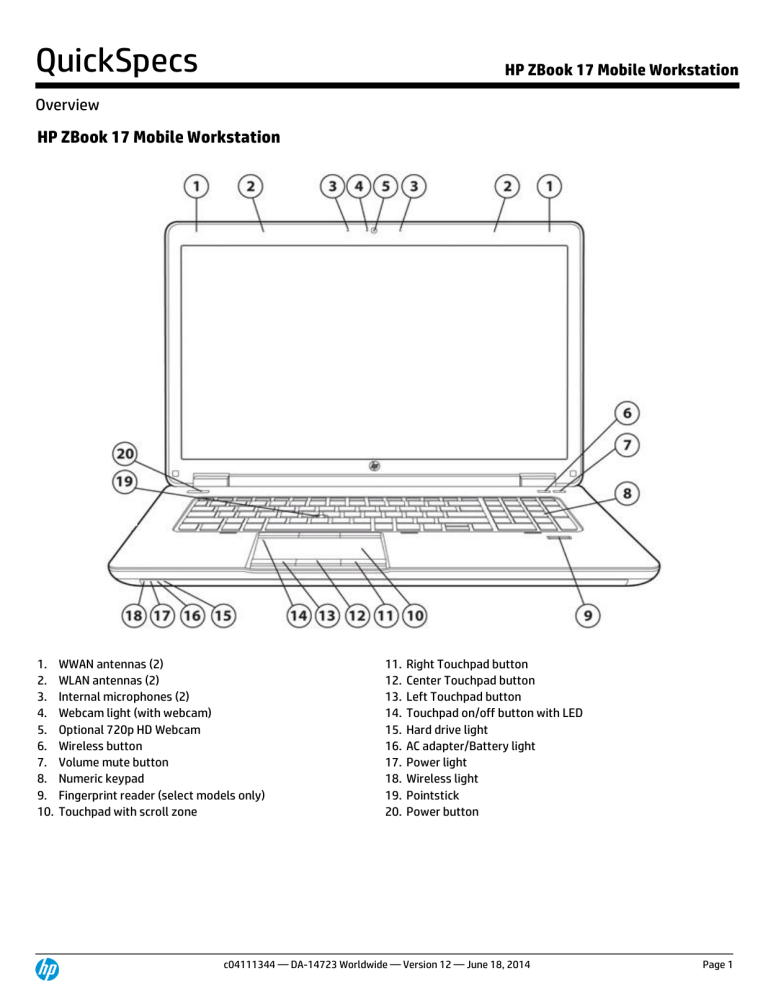

HP ZBook 17 Mobile Workstation

HP ZBook 17 Mobile Workstation

1. WWAN antennas (2)

2. WLAN antennas (2)

3. Internal microphones (2)

4. Webcam light (with webcam)

5. Optional 720p HD Webcam

6. Wireless button

7. Volume mute button

8. Numeric keypad

9. Fingerprint reader (select models only)

10. Touchpad with scroll zone

11. Right Touchpad button

12. Center Touchpad button

13. Left Touchpad button

14. Touchpad on/off button with LED

15. Hard drive light

16. AC adapter/Battery light

17. Power light

18. Wireless light

19. Pointstick

20. Power button c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 1

QuickSpecs

Overview

HP ZBook 17 Mobile Workstation

1. Security cable slot

2. USB 2.0 port

3. DisplayPort

4. Thunderbolt port*

5. USB 3.0 charging port

6. Smart card reader

7. ExpressCard port

8. Memory card reader

9. Audio-out (headphone) jack/Audio in (microphone) jack

10. USB 3.0 ports (2)

11. Optical drive (select models only)

12. VGA port

13. RJ-45 (network) jack

14. AC Adapter/Battery light c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 2

QuickSpecs

Overview

HP ZBook 17 Mobile Workstation

1. Battery bay

2. Battery release latch

3. SIM slot for WWAN (select models)*

4. Docking connector

5. Accessory battery connector

* SIM slot is accessed through battery bay

6. Service door release lock

7. Service door release latch

8 Vents

9. Service Door

At A Glance

Windows 8 versions, Windows 7 versions, SuSE Linux, or FreeDOS

All new, thinner and lighter form factor and industrial design for 2013. Durable HP Duracase with magnesium-reinforced chassis, HP DuraFinish with brushed aluminum on top cover and smooth aluminum around top, right, and left sides chassis with hematite /graphite color, HP DisplaySafe frame, latch-less design with precision aluminum-alloy hinges, backlight keyboard in full aluminum deck, chemically strengthened glass touchpad, and updated system functions indicators

 MIL-STD-810G testing was not intended to demonstrate fitness for U.S. Department of Defense contracts or for military use. Test results are not a guarantee of future performance under these test conditions.* c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 3

QuickSpecs

HP ZBook 17 Mobile Workstation

Overview

Workstation-caliber NVIDIA® Quadro® discrete graphics: NVIDIA Quadro K610M (1GB GDDR5), NVIDIA Quadro K3100M (4GB

GDDR5), NVIDIA Quadro K4100M (4GB GDDR5), NVIDIA Quadro 5100M ( 8GB GDDR5); NVIDIA Optimus technology enabled for improved battery life.

ISV certified to provide fast and reliable performance with workstation applications, including manipulation of 3D textures

Choice of 4th generation Intel® Core™ i7 and i5 processors. Supports Extreme processor.

Intel Core i7 with vPro and Core i5 with vPro technology (optional)

Intel Smart Response Technology support for higher system performance with a hard drive

HP Performance Advisor for optimal configuration, compatibility and performance

Up to four SODIMMs on configurations with quad-core processor, for system memory up to 32 GB

Supports multi-display, including up to four without a docking station (both with and without hybrid graphics enabled), up to four with HP Advanced Docking Station (sold separately)without hybrid graphics enabled and up to five with HP

Advanced Docking Station (sold separately) and hybrid graphics enabled

New Thunderbolt port** for high speed data/video/audio transfer support

Thunderbolt port can be connected to monitors supporting DisplayPort 1.2 to achieve HBR2 and MST functionality.

DTS Studio Sound HD audio optimized for high fidelity audio with immersive surround sound with deep, rich bass and crystal clear dialog without distortion at high volume

Choice of battery solutions: 8-cell (83 WHr) or 8-cell (75 WHr) HP Long Life Battery, combined with optional external batteries for extended life.

2 discrete buttons with LED indicator for convenient one touch access - Wireless On/Off, Volume Mute

Widescreen 17.3-inch diagonal anti-glare LED-backlit display:

HD+ (1600x900) with standard viewing angle, FHD (1920x1080) wide viewing angle, or FHD (1920x1080) ultrawide viewing angle with HP DreamColor Technology

Upgrade Bay for optional second hard drive or weight saver

Flexible wireless connectivity options: o Integrated Intel Centrino® 802.11 ac 2x2 + Bluetooth 4.0 LE, Intel Centrino 802.11 a/b/g/n 2x2 + Bluetooth 4.0

LE, or Intel Centrino a/b/g/n 2x2 wireless LAN module o Optional integrated wireless 3G or 4G (LTE) mobile broadband module support

Two dedicated drive slots. Choice of tool free capable, user-removable hard drive up to 1 TB with HP 3D DriveGuard protection, or SATA 6 Gb/s 128/180/240/256/512 GB*** Solid State Drive or 256 GB SED Solid State Drive

Security features including HP Client Security Manager, with central management

Low halogen****, ENERGY STAR qualified and EPEAT Gold registered in the U.S. EPEAT status varies by country- please see epeat.net.

HP BIOS self-healing technology including HP Sure Start to prevent, detect, and remedy known and unknown BIOS attacks.

* MIL-STD-810G testing was not intended to demonstrate fitness for U.S. Department of Defense contracts or for military use.

Test results are not a guarantee of future performance under these test conditions.

** Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to the

Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products .

*** Available in October, 2013.

**** External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.

Page 4 c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014

QuickSpecs

HP ZBook 17 Mobile Workstation

Features

OPERATING SYSTEM

Preinstalled

Windows 8 Pro 64*

Windows 8 64*

Windows 7 Professional 32 (available through downgrade rights from Windows 8 Pro)**

Windows 7 Professional 64***

SuSE Linux Enterprise (SLED 11) SP2 64bit

FreeDOS

* Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows 8 functionality. See http://www.microsoft.com

for details.

** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

*** Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased hardware to take full advantage of Windows 7 functionality. See http://www.microsoft.com/windows/windows-7/ for details.

PROCESSOR*

4 th Generation Intel® Core™ i7-4930MX (3.0 GHz, 1600 MHz, 8 MB L3 Cache, 4 cores)

Up to 3.90 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i7-4900MQ (2.8 GHz, 1600MHz, 8 MB L3 cache, 4 cores, 47W)*

Up to 3.80 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i7-4800MQ (2.7 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W)*

Up to 3.70 GHz with Intel Turbo Boost Technology

4 th Generation Intel® Core™ i7-4700MQ (2.4 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W) (no vPro support)*

Up to 3.40 GHz with Intel Turbo Boost Technology

4 th Generation Intel® Core™ i7-4600M (2.90 GHz, 1600 MHz, 4 MB L3 Cache, 2 cores, 37W)

Up to 3.60 GHz with Intel Turbo Boost Technology

4 th

Generation Intel® Core™ i5-4330M (2.80 GHz, 1600 MHz, 3 MB L3 Cache, 2 cores, 37W)

Up to 3.50 GHz with Intel Turbo Boost Technology

Intel Dual-Core i5-4300M (2.60 GHz, 1600 MHz, 3 MB L3 Cache, 4 threads, 37W)

Up to 3.30 GHz with Intel Turbo Boost Technology

* Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. 64-bit computing on Intel® architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers, and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel® 64 architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. Intel's numbering is not a measurement of higher performance.

CHIPSET

Mobile Intel® QM87

INTEL CORE I5 WITH VPRO/CORE I7 WITH VPRO TECHNOLOGY CAPABLE

Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured with select processors, a qualified Intel Centrino® WLAN module and a preinstalled Windows operating system. It provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel Active

Management Technology 9.0 (iAMT) offers built-in manageability and proactive security for networked mobile workstations, even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach the network, isolate infected systems, and update regardless of their power state. c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 5

QuickSpecs

HP ZBook 17 Mobile Workstation

Features

*Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non-

VPN) corporate network connection which is either cable or wireless LAN.

NOTE: Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel Active Management technology and Intel Virtualization technology, requires additional third- party software in order to run. Availability of future

"virtual appliances" applications for Intel Core i5 with vPro/Core i7 with vPro technology is dependent on third- party software providers. Compatibility with future "virtual appliances" is yet to be determined.

GRAPHICS

NVIDIA Quadro K610M with 1 GB dedicated GDDR5 video memory

Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable

NVIDIA Quadro K3100M with 4 GB dedicated GDDR5 video memory

Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable

NVIDIA Quadro K4100M with 4 GB dedicated GDDR5 video memory

Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable

NVIDIA Quadro K5100M with 8 GB dedicated GDDR5 video memory

Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable

NVIDIA Optimus Technology supported

NOTE: NVIDIA Quadro mobile professional graphics support up to five independent displays when using an HP Advanced

Docking station (sold separately).

DISPLAY

Internal

17.3" diagonal LED-backlit HD+SVA anti-glare (1600 x 900)

17.3" diagonal LED-backlit FHD WVA anti-glare (1920 x 1080)

17.3" diagonal LED-backlit FHD DreamColor UWVA IPS anti-glare (1920 x 1080)

External

Up to 30-bit (2^30) per pixel "Deep Color"

(total of 1,073,741,824 color variations)

Thunderbolt*

Supported as part of the daisy chain connected with Intel approved thunderbolt cables. For additional information, please visit https://thunderbolttechnology.net/ .

Thunderbolt Features

Legacy : DP 1.1a, DVI-A/D, HDMI and VGA displays attached to the end of the thunderbolt daisy chain via Intel certified dongles

DP 1.2 redrive: DisplayPort monitors capable of supporting DP 1.2 may be directly attached to the Thunderbolt port to achieve HBR2 and MST functionality.

DP display with miniDP connector may be attached directly to TB (Thunderbolt) port.

DP display with standard DP connector and other legacy displays (HDMI, DVI, VGA) may be attached to TB with the use of a dongle.

DP1.2 MST feature ("daisy-chain" feature) is supported through TB port. c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 6

QuickSpecs

HP ZBook 17 Mobile Workstation

Features

* Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to the

Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products .

DisplayPort w/MST (Multi-stream Transport)

Supports resolutions up to Supports resolutions up to QFHD 3840 x 2160, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x

1200) monitors, 24/30-bit color depth at 120 Hz.

DisplayPort Feature

 Multi-stream Transport (MST): Multi-stream Transport is a DP 1.2 feature that allows daisy chaining of DP 1.2 monitors (requires built in support of DP 1.2 MST in monitor), or the use of DP 1.2 hubs with MST to achieve 4 active displays without a docking station.

Optimal configurations for enabling the maximum number of displays (up to five independent displays when using an HP Advanced Docking station (sold separately) with hybrid graphics enabled): o With Port Replicator:

 Dock DP + Dock DVI + Internal Display + Thunderbolt DP port (enabling VGA will drop one digital display) o With Advanced Port Replicator:

 Dock DP1 + Dock DP2 + Internal Display + Thunderbolt DP port (enabling VGA will drop one digital display)

VGA

Port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz

DVI-D (single link)

Video signal available through DVI port in optional HP Docking Station (sold separately) as well as through DP to DVI adapters to use without the optional HP Docking Station supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking

NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.

FLASH CACHE MODULE

Optional mSATA Flash cache module support for Intel Smart Response Technology. (Available only with standard non-SED hard drive. Cannot be combined with any Solid State Drive)

STORAGE AND DRIVES

mSATA Storage Bay

128GB mini-card Solid State Drive (coming soon)

(NOTE: cannot be combined with the mSATA Flash Cache Module)

Primary Storage Bay

Hard Drives

320/500/750 GB 7200 rpm SMART SATA II

1 TB 5400 rpm SMART SATA II

500 GB 7200 rpm SMART SATA II Self Encrypting Drive

500 GB 5400 rpm SMART SATA II Self Encrypting Drive FIPS 140-2 compliant

HP 3D DriveGuard (Windows only)

The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses threec04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 7

QuickSpecs

HP ZBook 17 Mobile Workstation

Features axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is detected.

Solid State Drive

128/180/240/256/512 GB SATA 6 Gb/sec

256 GB SATA 6 Gb/sec Self Encrypting Drive

NOTE: For hard drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery software.

OPTICAL DRIVES

Fixed 9.5 mm SATA optical drive

Blu-ray R/RE DVD+/-RW SuperMulti DL Drive

Blu-ray ROM DVD+/-RW SuperMulti DL Drive

DVD+/-RW SuperMulti DL Drive

DVD-ROM Drive

Second hard drive

750 GB 7200 rpm SMART SATA II Hard Drive

256 GB SATA 6 Gb/sec Self Encrypting Drive

512 GB SATA 6 Gb/sec Solid State Drive

RAID 0, 1, and 5 supported

Weight saver

MEMORY

Standard

DDR3L 1.35V SDRAM (1600 MHz)

Two SODIMM slots (Dual-core processor) or four SODIMM slots (Quad-core processor) supporting dual-channel memory

2 GB, 4 GB, and 8 GB SODIMMs

Maximum

Upgradeable to 16384 MB with optional 8192 MB SODIMMs in both slots (Dual-core processor)

Upgradeable to 32768 MB with optional 8192 MB SODIMMs in all 4 slots (Quad-core processor)

Dual-channel

Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.

NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. With Windows

Starter 32-bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may not be available due to system resource requirements.

NETWORKING/COMMUNICATIONS

Wireless

Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the latest industry standards. Broadband Wireless (WWAN) requires a Windows operating system and is available in select countries as a standard, factory configurable feature only. Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options. c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 8

QuickSpecs

HP ZBook 17 Mobile Workstation

Features

Mobile Broadband options

HP hs3110 HSPA+ Mobile Broadband Module*

HP lt4111 LTE/EV-DO/HSPA+ Gobi4G Module*

HP lt4112 LTE/HSPA+Gobi4G Module (EMEA,APJ)*

All 802.11 integrated wireless LAN options

Intel Dual Band Wireless-AC 7260 802.11 ac (2x2) + Bluetooth 4.0 LE Combo

Intel Dual Band Wireless-N 7260AN 802.11 a/b/g/n (2x2) WiFi + Bluetooth 4.0 combo***

Intel Centrino® Advanced-N 6235 802.11 a/b/g/n (2x2) + Bluetooth 4.0 LE Combo

Intel Centrino® Advanced-N 6205 802.11 a/b/g/n (2x2)

Intel WiDi

Intel WiDi Software***

Communications

Integrated Integrated Intel I217-LM Gigabit** Network Connection (vPro configurations)

* Wireless use requires separately purchased service contract. Check with your local vendor for coverage area and availability in your area. Connection and speeds will vary due to location, environment, network conditions, and other factors. 4G compatibility with HSPA+ and LTE.

** The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network infrastructure is required.

*** Integrated Intel Wi-Di feature is available on select configurations only and requires separately purchased projector, tv or computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the projector, tv or computer monitor via a standard HDMI cable, also sold separately.

NOTE: WWAN not available with DreamColor displays.

AUDIO/MULTIMEDIA

Audio

DTS Studio Sound HD audio (Windows OS only)

Integrated stereo speakers

Integrated microphone (dual-microphone array when equipped with optional webcam)

Button for volume mute; function keys for volume up and down

Combo mic-in / stereo headphone-out jack

Webcam

Optional 720p HD webcam

HD format (widescreen)

Supports videoconferencing and still image capture

High quality fixed focus lens

Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps

M-JPEG compression supports higher frame rates for video capture and videoconferencing

Improved low light sensitivity

Improved dynamic range

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

Keyboard

Optional backlit keyboard with Function key control to toggle backlit brightness setting - off/full/half brightness

The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 9

QuickSpecs

HP ZBook 17 Mobile Workstation

Features underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left and right control and alt keys, function keys, and 19.05 x 19.05 mm key pitch (center-to-center spacing). U.S. and International key layouts are available. Other features include hot keys for instant access to power conservation and brightness.

Pointing Devices

Touchpad with On/Off button, two-way scroll, gestures, three pick buttons

Pointstick with three additional pointstick buttons

Image sensor touchpad for enhanced performance and improved precision on scroll and gesture

Buttons and Function Keys

Separate launch buttons provide easy access to the following features: wireless on/off, volume mute. Function keys provide control of the following features: standby mode, external display, volume down, volume up, HP Power Assistant (Windows 7 only), and display brightness.

SOFTWARE AND SECURITY

Preinstalled Software with Windows Operating System

Windows 8

Security

Absolute Data Protect

Computrace * (removed from UI on activation)

Device Access Manager with Just In Time Authentication

DigitalPersona Fingerprint Driver

Drive Encryption (FIPS 140-2)

HP File Sanitizer (Activated via Wizard)

HP Client Security (incl. Cred Mgr and Password Mgr)

HP SpareKey

HP Trust Circles Standard

Microsoft Defender

Privacy Manager (Web only)

Validity Fingerprint Driver

BIOS Features

Absolute Persistence Module (for all Absolute products)

HP Sure Start

HP Automatic Drive Lock

HP BIOS Protection (Follow NIST 800-147, 155 Guidelines)

HP Disk Sanitizer (Not for SSD)

HP DriveLock

HP SpareKey

Hybrid Boot

Master Record Security (backup/restore)

Measured Boot

Power On Authentication

Pre-Boot Security

Secure Boot

Secure Erase (SSD & HDD)

Update via Network

MultiMedia

Windows 7

Security

Computrace * (removed from UI on activation)

Device Access Manager with Just In Time Authentication

Drive Encryption (FIPS 140-2)

HP File Sanitizer (Activated via Wizard)

HP Client Security (incl. Cred Mgr and Password Mgr)

HP SpareKey

HP Trust Circles Standard

Microsoft Security Essentials

Privacy Manager (Web only)

Validity Fingerprint Driver

BIOS Features

Absolute Persistence Module (for all Absolute products)

HP Sure Start

HP Automatic Drive Lock

HP BIOS Protection (Follow NIST 800-147, 155 Guidelines)

HP Disk Sanitizer (Not for SSD)

HP DriveLock

HP SpareKey

Hybrid Boot

Master Record Security (backup/restore)

Measured Boot

Power On Authentication

Pre-Boot Security

Secure Boot

Secure Erase (SSD & HDD)

Update via Network

MultiMedia

c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 10

QuickSpecs

HP ZBook 17 Mobile Workstation

Features

Cyberlink Power2Go

Cyberlink PowerDVD

HP Value Add

Digital Energy Star Logo W8

Getting Started with Windows 8

HP 3D DriveGuard

HP ePrint Driver

HP Firmware & Driver Installer

HP Hotkey Support

HP Manageability

HP PageLift App

HP Performance Advisor

HP Quick Start

HP Registration App

HP Remote Graphics

HP Setup

HP Software Setup

HP Support Assistant

HP WallPaper

Internet Explorer 9

Internet Explorer 10

IE Home

System Default Settings for Win8

UEFI System Diagnostics W8

Wireless Button Driver

Amazon Kindle App

PDF Complete, Corporate Edition

Box.Net (UK only)

Box 50GB CMIT Cloud Offer

BTB Host and ISP Stub

BTB Host End Block

Bing Search for IE10

Netflix App

Skype App

Skype RTC Insertion (Windows 8.1)

Microsoft Products

Buy Office

Lync Optimized

Additional Software Available from the Web

HP SoftPaq Download Manager

HP Software System Manager

HP Peak Power Manager

Workstation ISV Certifications

Cyberlink Power2Go

Cyberlink PowerDVD

Cyberlink YouCam BE

HP Value Add

HP Ceement

HP 3D DriveGuard

HP ePrint Driver

HP Hotkey Support

HP Manageability

HP PageLift Desktop App

HP Performance Advisor

HP Recovery Manager

HP Remote Graphics

HP Setup

HP Software Setup

HP Support Assistant

HP Recovery Disc Creator (HPRDC)

HP WallPaper

Internet Explorer 9

Internet Explorer 10

IE Home

Wireless Button Driver

Adobe Flash Player (Commercial)

PDF Complete, Corporate Edition

Box.Net (UK only)

Box 50GB CMIT Cloud Offer

BTB Host and ISP Stub

BTB Host End Block

Bing Search for IE9

Bing Search for IE10

Skype Desktop App

Microsoft Products

Buy Office

Lync Optimized

See the latest list of certifications at: http://www.hp.com/united-tates/campaigns/workstations/partnerships.html

HP Remote Graphics Software c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 11

QuickSpecs

HP ZBook 17 Mobile Workstation

Features

The remote desktop solution for serious workstation users and their most demanding applications.

Download at: www.hp.com/go/RGS

HP Performance Advisor

HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best performance.

HP Performance Advisor will guide your system setup allowing a "custom" configuration that best matches the workstation to user requirements.

Download at: www.hp.com/go/performanceadvisor

HP Recovery Manager

Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to 36 GB (for

Windows 7) of system and up to 36 GB (for Windows 8) disk is reserved for system recovery software.

Security

See Software section above.

Other Standard Security Features

Integrated Smart Card Reader

HP Spare Key (requires initial user setup)

One-Step Logon

Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2 Embedded Security Chip

Security lock slot

Support for Intel AT

Optional Security Features

HP Fingerprint Sensor (optional)

Computrace * with GPS Tracking - Subscription based security solution providing the ability to track, initiate physical recovery, conduct asset management, and perform remote data delete by utilizing GPS technology. GPS functionality requires HP

Mobile Broadband Module.

* The Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription.

Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside the U.S.

HP CENTRAL MANAGEMENT

HP offers a variety of scalable hardware, software, and BIOS-based security features to help you defend your organization against viruses and other threats. These integrated security features safeguard what matters to you the most - your data, device and identity. Now, be confident your fleet of devices is protected in multiple layers of HP Client Security protection.

HP BIOS Protection keeps you up and running with enhanced protection against virus attacks and other threats. And if the

BIOS is accidently compromised, the auto recovery feature automatically restores it to its fully functional state.

HP Sure Start detects and negates a BIOS attack with automatic recovery of the BIOS even when the installation is accidentally compromised (i.e. power outage). When HP Sure Start heals the BIOS an event log is generated that an IT administrator can retrieve so the business is aware of a BIOS attack. Golden copy of BIOS is stored in protected nonvolatile memory providing redundant, hardware-based protection against a new generation of attacks. This helps to future-proof your technology and business. c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 12

QuickSpecs

HP ZBook 17 Mobile Workstation

Features

An optional fingerprint reader and integrated Smart Card Reader help keep your identity secure. The security cable slot helps keep your notebook physically secure.

HP Drive Encryption+ with TPM enhanced security protects your data on your hard drive from unauthorized access.

Authentication is required before Windows will even start.

Or you can even permanently destroy data on your hard drive in preparation for your system disposal or redeployment with

Secure Erase.

This hardware-based solution encrypts and decrypts data as it is written or read from the hard drive and is supported by HP

Drive Encryption+. You get faster encryption performance than that of software- based encryption solutions.

+ Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of Drive

Encryption and prevents data access.

HP provides a separate management solution, targeted at the enterprise and the SMB:

Digital Persona Pro Workgroup: Designed for the small business customer. Provides features similar to the Active

Directory version, but for workgroups. Workgroup activation is built into HP ProtectTools, and activation of up to 5 seats is completely free.

For more information on Central Management for HP ProtectTools, refer to: http://www.hp.com/products/security

POWER

Power Supply

External HP 200W Slim Smart AC adapter

(172 x 96 x 25.4mm)

External HP 230W Slim Smart AC adapter

(200 x 100 x 25.4 mm)

Power cord included is 6-foot (1.8 meter).

Total length including external AC adapter is 12 feet (3.66 meter).

HP Fast Charge*

Primary Battery

HP 8-cell Lithium-Ion Battery (83 WHr)

HP Long Life 8-cell Lithium-Ion Battery (75 WHr) **

Secondary Battery

HP BB09 Ultra Extended Life Notebook Battery (9-cell/100 WHr)

HP ST09 Extended Life Notebook Battery (9-cell/73 WHr)

Battery Life

Battery life up to 12 hours***

System Standby Time

Up to TBD weeks

* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does not apply to the HP ST09 Extended Life Notebook Battery or HP BB09 Ultra Extended Life Notebook Battery.

** Available with 3-year warranty only

***Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 13

QuickSpecs

HP ZBook 17 Mobile Workstation

Features functionality and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See MobileMark07 battery benchmark http://www.bapco.com/products/mobilemark2007 for additional details.

Power Conservation

NVIDIA Optimus technology

Hibernation

Standby

ACPI compliance

ENVIRONMENTAL

US Energy Star ®

IT ECO declaration

EPEAT Gold where HP registers commercial desktop products. See http://www.epeat.net

for registration status in your country US Federal Energy Management Program (FEMP)

NOTE: This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks.

WEIGHTS & DIMENSIONS

Weight

Starting at 7.62 lb (3.46 kg) with SSD and weight saver (no optical drive)

Dimensions (h x w x d)

1.33 in (at front) x 16.37 in x 10.7 in

34 mm (at front) x 416 mm x 272 mm

Height with DreamColor display: 1.34 in / 34.0 mm at front; 1.57in / 40.0 mm at rear

NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and components. Weight includes Dual Core CPU, HD+, NVIDIA Kepler, DVD R/W, 2GBx1 SODIMM, 320GB HDD, wLAN, FPR, 8-cell battery, no wWAN, no BlueTooth.

PORTS/SLOTS

Ports

VGA – One

DisplayPort v1.2– One

Thunderbolt – One

Stereo microphone in / headphone-out combo jack – One

Power Connector – One

Secondary Battery Connector – One

Docking Connector – One

RJ-45 (Ethernet) – One

USB 3.0 – Two

USB 3.0 Charging Port – One

USB 2.0 Port – One

Security lock slot – One

Digital Media Slots

ExpressCard/54 slot – One (Supports ExpressCard/54)

SD UHS-II Flash Media slot – One (Supports next generation SD (Secure Digital), backward compatible to SDHC, SDXC,

Integrated Smart Card Reader (Compatible with ISO 7816 compliant Smart Cards PC/SC interface support) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 14

QuickSpecs

HP ZBook 17 Mobile Workstation

Features

SERVICE AND SUPPORT

HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country.

On-site service and warranty upgrades are also available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool . Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack .

NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details. http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp

c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 15

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

SYSTEM UNIT

Stand-Alone Power

Requirements (AC Power)

Temperature

Relative Humidity

Nominal Operating

Voltage

Max Operating Power

Operating

19.5 V

Average Operating Power

DreamColor

Windows 7 (32-bit)

35 W

Without DreamColor 25 W

< 200 W or

< 230 W

32° to 95° F (0° to 35° C) (not writing optical)

41° to 95° F (5° to 35° C) (writing optical)

Non-operating

Operating

Non-operating

Operating

-4° to 140° F (-20° to 60° C)

10% to 90%, non-condensing

Windows 7 (64-bit)

35 W

25 W

5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature

40 G, 2 ms, half-sine

Shock

Random Vibration

Non-operating

Operating

Planned Industry

Standard

Certifications

Non-operating

Altitude (unpressurized) Operating

Non-operating

UL

CSA

FCC Compliance

ENERGY STAR®

200 G, 2 ms, half-sine

0.75 grms

1.50 grms

-50 to 10,000 ft (-15.24 to 3,048 m)

-50 to 40,000 ft (-15.24 to 12,192 m)

Yes

Yes

Yes

Select models*

EPEAT

ICES

Australia /

NZ A-Tick Compliance

Gold **

Yes

Yes

CCC

Yes

Japan VCCI Compliance

Yes

KC

BSMI

Yes

Yes

CE Marking Compliance

Yes

* Configurations of the HP ZBook 17 that are ENERGY STAR qualified are identified as HP ZBook 17 ENERGY STAR on HP websites and on www.energystar.gov

.

** EPEAT registration varies by country. See www.epeat.net

for registration status by country.

EPEAT status listed above applies to U.S.

For accessibility information on HP products, please visit: http://www.hp.com/accessibility .

DISPLAY

17.3-inch HD+ SVA LED anti-glare

Dimensions (W x H)

Diagonal Size

15.0 x 8.5 in (38.2 x 21.5 cm)

17.3 in (43.9 cm) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 16

QuickSpecs

Technical Specifications

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

17.3-inch FHD WVA LED anti-glare

Dimensions (W x H)

Diagonal Size

Surface Treatment

Contrast Ratio

Refresh Rate

Brightness

Pixel Resolution

Backlight

PPI

Viewing Angle

HP ZBook 17 Mobile Workstation

Anti-glare

300:1 (min)

60 Hz

200 nits (typ)

Pitch

Format

Configuration

LED

106

0.3287 x 0.3287 mm

1600x900

RGB Stripe

±30° Horizontal, ±10° Vertical (minimum)

30/30/10/20 (Left/Right/Down/Up) (minimum)

15.0 x 8.5 in (38.2 x 21.5 cm)

17.3 in (43.9 cm)

Anti-glare

500:1 (min)

60 Hz

300 nits (typ)

Pitch

Format

Configuration

LED

127

0.1989 x 0.1989 mm

1920x1080

RGB Stripe

±60° Horizontal, ±50° Vertical (minimum)

60/60/50/50 (Left/Right/Down/Up) (minimum)

17.3-inch FHD UWVA

LED anti-glare

Dreamcolor

Dimensions (W x H)

Diagonal Size

Surface Treatment

Contrast Ratio

15.0 x 8.5 in (38.2 x 21.5 cm)

17.3 in (43.9 cm)

Anti-glare

600:1 (min)

Refresh Rate

Brightness

Pixel Resolution

60 Hz

300 nit typical

Pitch

Format

0.1989 x 0.1989 mm

1920x1080

RGB Stripe

Backlight

PPI

Viewing Angle

Configuration

LED

127

80° Horizontal, ±80° Vertical (minimum)

80/80/80/80 (Left/Right/Down/Up) (min)

Technology Type

Color Depth

30-bit In-Plane Switching (IPS)

10-bits/color

Display Colors

Over 1 billion colors (native mode)

Color Gamut Coverage CIE1931 (x,y) CIE 1976 (u',v')

NTSC

AdobeRGB

109%

114%

129%

127% c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 17

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

STORAGE AND DRIVES

sRGB 154% 148%

Internal Storage

1 TB 5400 rpm SATA Hard

Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

0.25 lbs (115g)

1 TB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATAATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous (maximum) 300 MB/s (Drive Capability)

Seek Time

(typical reads, including settling)

Single Track

Average

4 ms

14 ms

24 ms

Cache

Rotational Speed

Features

Maximum

16 MB

5400 rpm

Logical Blocks

1,953,525,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

ATA Security

750 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

0.25 lbs (115g)

750 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

Interface

Transfer Rate

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous (maximum) 300 MB/s (Drive Capability)

Seek Time

(typical reads, including settling)

Single Track

Average

Maximum

1.5 ms

11 ms

22 ms

Cache

16 MB

Rotational Speed

7200 rpm

Logical Blocks

1,465,149,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

500 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

0.25 lbs (115g)

500 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous (maximum) 300 MB/s (Drive Capability)

Single Track

Average

Maximum

1.5 ms

11 ms

22 ms c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 18

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Cache

16 GB

Rotational Speed

Logical Blocks

7200 rpm

976,773,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

500 GB 5400 rpm SATA

FIPS* Hard Drive

(Planned to be available in Oct. 2013)

Drive Weight

Capacity

Height

Width

Interface

0.25 lbs (115g)

500 GB

0.28 in (7 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Transfer Rate

Seek Time

(typical reads, including settling)

Synchronous (maximum) 300 MB/s (Drive Capability)

Single Track

1.5 ms

Average

11 ms

Maximum

22 ms

16 MB

Cache

Rotational Speed

Logical Blocks

5400 rpm

976,773,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security, TCG Opal SSC 2.0 and FIPS 140-2-level2

* FIPS-certified, hardware-based AES-256 encryption image.

500 GB 7200 rpm SMART

SATA II Self Encrypting

Drive (Planned to be available in Oct. 2013)

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

Seek Time

(typical reads, including settling)

0.25 lbs (115g)

500 GB

0.37 in (9.5 mm)

2.50 in (63.5 mm)

ATA-8, SATA 2.6, 3.0 Gb/s

Synchronous (maximum) 300 MB/s (Drive Capability)

Single Track

1 ms

Average

Maximum

12 ms

20 ms

Cache

16 MB

Rotational Speed

Logical Blocks

7200 rpm

976,773,168

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

320 GB 7200 rpm SATA

Hard Drive

Drive Weight

Capacity

Height

Width

Interface

Transfer Rate

0.25 lbs (115 g)

320 GB

0.37 in (9.5 mm)

2.75 in (70 mm)

ATA-8, SATA 2.6, 3.0 Gb/s, NCQ

Synchronous (maximum) 300 MB/s (Drive Capability)

Single Track

1.5 ms c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 19

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Seek Time

(typical reads, including settling)

Cache

Average

Maximum

11 ms

22 ms

Rotational Speed

Logical Blocks

16 MB

7200 rpm

625,142,448

Operating Temperature 32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security

SATA 6 Gb/s 512 GB, 2.5inch Solid State Drive

Drive Weight

Capacity

73 Grams

512 GB

Height

Width

0.276 in (7 mm)

2.76 in (70 mm)

Interface

Performance

Features

SATA Gen 3 (6 Gb/s)

Maximum Sequential

Read

Maximum Sequential Write

460 MB/s 260 MB/s

Logical Blocks

1,000,215,216

Operating Temperature 32° to 158°F (0° to 70°C) [case temp]

ATA Security; ATA-8; SATA 3.0 DIPM; TRIM

SATA 6 Gb/s 256 GB, 2.5inch SATA SED Solid

State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

73 Grams

256 GB

0.276 in (7 mm)

2.76 in (70 mm)

SATA 3 (6 Gb/s)

Maximum Sequential

Read

Maximum Sequential Write

Logical Blocks

Up to 460 MB/s

500,118,192

Up to 260 MB/s

Operating Temperature 32° to 158°F (0° to 70°C) [case temp]

Features

ATA Security; ATA-8 compliant; SATA 3.0; DIPM; TRIM

SATA 6 Gb/s 256 GB,

2.5-inch Solid State

Drive

Capacity

Height

Interface

Synchronous Transfer

Rate (Maximum)

256GB

0.28 in; 0.7 cm

SATA 6Gb/s

Up to 500MB/s (Sequential Read)

Operating Temperature

32° to 158° F (0° to 70° C)

SATA 6 Gb/s 240 GB,

2.5-inch Solid State

Drive

Capacity

Width

Interface

240GB

Physical Size

6Gb/s SATA

2.5 in; 6.36 cm c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 20

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Synchronous Transfer

600 Mb/s

Rate (Maximum)

Operating Temperature 32° to 158° F (0° to 70° C)

SATA 6 Gb/s 180 GB, 2.5inch Solid State Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

78 Grams

180 GB

0.276 in (7 mm)

2.76 in (70 mm)

SATA Gen 3 (6 Gb/s)

Maximum Sequential

Read

Maximum Sequential Write

Logical Blocks

550 MB/s

351,651,888

520 MB/s

Operating Temperature 32° to 158°F (0° to 70°C) [case temp]

Features

ATA Security; ATA-8, SATA 3.0; DIPM; TRIM

SATA 6 Gb/s 128 GB,

2.5-inch Solid State

Drive

Drive Weight

Capacity

Height

Width

Interface

Performance

73 Grams

128 GB

0.276 in (7 mm)

2.76 in (70 mm)

SATA 3 (6 Gb/s)

Maximum Sequential Read Maximum Sequential Write

415 MB/s 175 MB/s

Logical Blocks

Operating Temperature

Features

250,069,680

32° to 158°F (0° to 70°C) [case temp]

ATA Security; ATA-8; SATA 3.0 DIPM; TRIM

* For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB (for

Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery

Optical Drives

DVD-ROM Drive Access Times

Random < 140 ms CD (typical)

< 160 ms DVD (typical)

Max Data Transfer Rate 24X CD-ROM

8X-DVD

Transfer Mode

Interface

UDMA Mode 5

Gen 1 SATA

Supported Media (read) CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge

(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-

R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-

R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Supported Media (write) None

Max Media Capacity

(read)

8.5GB c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 21

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Tray Loading

DVD+/-RW SuperMulti DL

Drive

Access Times

Random <140ms CD (typical)

< 160 ms DVD (typical)

Max Data Transfer Rate 24X CD-ROM

8X DVD

24X CD-R

24X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD-RW

6X - DVD+R Dual Layer

6X - DVD-R Dual Layer

Transfer Mode

Interface

5X DVD-RAM

UDMA Mode 5

Gen 1 SATA

Supported Media (read) CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge

(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-

R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-

R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Supported Media (write) CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, DVD+R DL,

DVD-R DL

Max Media Capacity

(read)

8.5 GB

Max Media Capacity

(write)

8.5 GB

Transport Tray Loading

Blu-ray ROM DVD+/-RW

SuperMulti DL Drive

Transport

Access Times

Random <190 ms CD-ROM (typical)

< 180ms DVD-ROM (typical)

<230 ms BD-ROM (typical)

Max Data Transfer Rate 24X CD-ROM

8X DVD-ROM

24X CD-R

16X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD-RW

Transfer Mode

4X - DVD+R Dual Layer

4X - DVD-R Dual Layer

5X DVD-RAM

6X BD-ROM

UDMA Mode 5 c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 22

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Interface Gen 1 SATA

Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge

(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-

R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-

R, DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE

Supported Media (write) CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW,

DVD-RAM

Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

50.0 GB

8.5GB

Tray Loading

Blu-ray R/RE DVD+/-RW

SuperMulti DL Drive

Access Times

Random <165 ms CD-ROM (typical)

<185 ms DVD-ROM (typical)

<205 ms BD-ROM (typical)

Max Data Transfer Rate 24X CD-ROM

8X DVD-ROM

24X CD-R

16X CD-RW

8X DVD+R

8X DVD+RW

8X DVD-R

6X DVD+R Dual Layer

6X DVD-R Dual Layer

5X DVD-RAM

6X BD-ROM

6X BD-R

2X BD-RE

Transfer Mode

UDMA Mode 5

Interface

Gen 1 SATA

Supported Media (read)

CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge

(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-

R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-

R, DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE

Supported Media (write) CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW,

DVD-RAM, BD-R, BD-RE

50.0 GB Max Media Capacity

(read)

Max Media Capacity

(write)

Transport

50.0 GB

Tray Loading

SECURITY

HP Fingerprint Sensor Mobile Voltage Operation 3.0V-3.6V Single Supply c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 23

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Operating Temperature 14° - 167°F (-10° - 75°C)

Current consumption image

36mA

Low latency wait for finger

950 uA

Capture rate

ESD Resistance

Detection Matrix

3000 lines/sec

IEC 6100-4-2 4B (+/-15KV)

200*1 (plus another secondary line); 508 dpi, sensor area 12*3 mm

NETWORKING/COMMUNICATIONS

Intel® I217-LM Gigabit

Network Connection

Ethernet Features

Power

Management

Performance

Features

10 Mbit/s operation (10BASE-T; IEEE 802.3; IEEE 802.3 clauses 13-14)

100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)

1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023. Clauses 40)

IEEE 802.3u Auto-Negotiation (Automatic Speed Selection)

Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100

Mbit/s

IEEE 802.1p QoS (Quality of Service) Support

IEEE 802.1q VLAN support

IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)

IEEE 802.3az EEE(Energy Efficient Ethernet)

IEEE 802.1as/1588 conformance

Jumbo Frame 9K

Auto MDI/MDIX Crossover cable detection

ACPI compliant - multiple power modes

Energy Detect Low Power Mode(Green Ethernet)

TCP/IP/UDP Checksum Offload (configurable)

Protocol Offload( ARP & NS)

Large send offload and Giant send offload

Receiving Side Scaling

MACSec Offload (802.3ae)

Intel vPro iSCSI Boot

Manageability

Interface

Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft

Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)

PXE 2.1 Remote Boot

Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30))

Comprehensive diagnostic and configuration software suite

Virtual Cable Doctor for Ethernet cable status

PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.

NOTE: Intel® I217-LM Gigabit interface is not PCIe compliant. It operates at half of PCIe specification V1.1 (2.5GT/S) speed.

NIC Device Driver Name

Intel Ethernet Network Connection I217-LM

HP hs3110 HSPA+ Mobile

Broadband Module

Technology/Operating

Bands

Wireless Protocol

Standards

Modes: WCDMA/HSDPA/HSUPA/HSPA+/AWS/GSM/EDGE/GPRS

Penta-band WCDMA/HSDPA/HSUPA/HSPA+/AWS:

850/900/1900/2100/AWS MHz

GSM/GPRS/EDGE: 850/900/1800/1900 MHz

GSM/GPRS/EDGE: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and MSC1 - MSC9. c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 24

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Wireless Parametric

Standards

Maximum Data Rates

GPS

GPS Bands

UMTS/WCDMA: Release 99 and Release 7

Advanced Receiver Type 3i

Complies with 3GPP specifications

GPRS/EDGE: Multi-slot Class 33, Class B

WCDMA PS: UL (384 kbps) / DL (384 kbps)

UL/DL HSPA: UL (5.76 Mbps)/ DL (7.2 Mbps)

UL/DL HSPA+: UL (5.76 Mbps)/ DL (21Mbps)

GPS Standalone, A-GPS: L1 (Internet- and Network assisted

1575.42 MHz (± 1.023 MHz)

Maximum Output Power WCDMA/HSPA/HSPA+ 2100/1900/900/850/AWS MHz:

+24dBm (Power Class 3)

GPRS 1900/1800 MHz: +30dBm (Power Class 1)

GPRS 900/850 MHz: +33dBm (Power Class 4)

EDGE 1900/1800 MHz: +26dBm (Power Class E2)

EDGE 900/850 MHz: +27dBm (Power Class E2)

2500mA (peak); 600mA (average)2700mA (peak)

Maximum Power

Consumption

Power Consumption,

Sleep Mode

Power Management

3.6 mA

Antenna Type

USB selective suspend, Connected Standby

Integrated notebook wireless button

Dual high efficiency 5 band antennae with spatial diversity, mounted in the display enclosure

Form Factor

Weight

M.2 Socket 2, USB 2.0 interface high speed

< 6g

HP lt4111 LTE/EV-

DO/HSPA+ Mobile

Broadband Module*

Technology/Operating

Bands

Wireless Protocol

Standards

LTE FDD all bands with diversity: 1900 MHz (Band II) , 1700/2100MHz

(Band IV (AWS), 850 MHz (Band V), 700MHz (Band XIII), 700MHZ (Band XVII),

1900MHz G Block (Band XXV)

WCDMA/HSDPA/HSUPA/HSPA+: all bands with diversity: 2100 MHz (Band I),

1900 MHz (Band II) , AWS 1700/2100MHz (Band IV), 850 MHz (Band V), 800

MHz (Band VIII)

GSM/GPRS/EDGE: 1900 MHz, 1800 MHz , 850 MHz , 900 MHz

CDMA: Cellular 800MHz (BC0), PCS 1900MHz (BC1)

3GPP Release 8 LTE Specification

WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

EVDO Release 0 and Release A

Complies with 3GPP specifications Release 8 for LTE

Wireless Parametric

Standards

Maximum Data Rates

LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload)

DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)

HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)

GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

GPS

GPS Bands

Standalone GPS, A-GPS, GPS XTRA

1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz

Maximum Output Power LTE: +23 dBm (+/- 1 dBm)

WCDMA: +23 dBm (+/- 1 dBm)

GSM850/900, GMSK: +32dBm (+/- 1dBm)

GSM850/900, 8PSK: +27dBm (+/- 1dBm) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 25

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

HP lt4112 LTE/HSPA+

Gobi 4G Module

Maximum Power

Consumption

DCS1800 / PCS 1900, GMSK: +29dBm (+/- 1dBm)

DCS1800 / PCS 1900, 8PSK: +26dBm (+/- 1dBm)

CDMA: +24dBm (+/- 1dBm)

LTE: 1,200 mA (peak); <900 mA (average)

WCDMA: 1,100 mA (peak); <800 mA (average)

EGPRS: 2,500 mA (peak); <700 mA (average)

2 mA

Power Consumption,

Sleep Mode

Power Management

Antenna Type

Form Factor

Weight

USB selective suspend, Integrated notebook wireless button

Dual high efficiency multi-band antennae with spatial diversity

M.2, 3042-S3 Key B

6 g

Dimensions

(Length x Width x

Thickness)

42 mm × 30 mm × 2.3 mm

Voltage, Operating

3.135 V to 4.4 V (3.3 V +1.1V/-0.165V)

Temperature, operating

(from TIA/EIA/IS-98-D)

-13° to 140° F (-25° to 60° C)

Temperature, nonoperating, 96 hours (from

MIL-STD 202 Method 108)

-40° to 185° F (-40° to 85° C)

Humidity, non-operating 95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)

LED activity

LED Off - Radio Off; Solid LED On - Radio On

* Not available with Dreamcolor

Technology/Operating bands

Wireless protocol standards

Wireless parametric standards

LTE FDD all bands with diversity: 2100 MHz (Band I), 1900 MHz (Band II),

1800 MHz (Band III), 850 MHz (Band V), 2600 MHz (Band VII), 900 MHz

(Band VIII), 700 MHz (Band XX, DD800)

WCDMA/HSDPA/HSUPA/HSPA+ all bands with diversity: 2100 MHz (Band I),

1900 MHz (Band II), 800 MHz (Band V), 900 MHz (Band VIII)

GSM/GPRS/EDGE: 1900 MHz (Band II), 1800 MHz (Band III), 850 MHz (Band

V), 900 MHz (Band VIII)

3GPP Release 8 LTE Specification

WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification

Complies with 3GPP specifications Release 8 for LTE

Maximum data rates

LTE (Category 3): 100 Mbps (Download), 50Mbps (Upload)

DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)

HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)

EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)

GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)

Standalone

GPS

GPS bands

1575.42 MHz (± 1.023 MHz), GLONASS 1596-1607MHz

Maximum output power LTE: +23 dBm (+/- 2 dBm)

WCDMA: +23.5 dBm (+/- 1 dBm)

GPRS Band II, III: +29.5 dBm (+/- 1 dBm)

GPRS Band V, VIII: +32.5 dBm (+/- 1 dBm)

EGPRS Band II, III: +26.5 dBM (+/-1.5 dBm)

EGPRS Band V, VIII: +27.5 dBM (+/-1.5 dBm) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 26

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Maximum power consumption

Power consumption, sleep mode

Power management

Antenna type

Form Factor

Weight

Dimensions

(Length x Width x

Thickness)

Voltage, Operating

LTE: 1,200 mA (peak); <900 mA (average)

WCDMA: 1,100 mA (peak); <800 mA (average)

EGPRS: 2,800 mA (peak); <700 mA (average)

3 mA

USB selective suspend, Integrated notebook wireless button

Dual high efficiency multi-band antennae with spatial diversity

M.2, USB 2.0 interface

6 g

42 mm × 30 mm × 2.3 mm

3.135 V to 4.4 V (3.3 V +1.1V/-0.165V)

Temperature, operating

(from TIA/EIA/IS-98-D)

Temperature, non-

operating, 96 hours (from

MIL-STD 202 Method 108)

14° to 131° F (–10° to 55° C)

–40° to 185° F (–40° to 85° C)

Humidity, non-operating 95% relative humidity for 48 hours @ 185° F (85° C) (non-condensing)

LED activity

LED Off - Radio Off; Solid LED On - Radio On

Intel Dual Band Wireless-

AC 7260 802.11 ac (2x2)

WiFi + BT 4.0 combo

Adapter*

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

IEEE 802.11ac

Interoperability

Frequency Band

Wi-Fi certified

802.11b/g/n

2.402 - 2.482 GHz

802.11a/n

4.9 - 4.95 GHz (Japan)

5.15 - 5.25 GHz

5.25 - 5.35 GHz

5.47 - 5.725 GHz

5.825 - 5.850 GHz

2.402 - 2.482 GHz

Data Rates

Modulation

Security 1

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)

Direct Sequence Spread Spectrum

BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 27

QuickSpecs

Technical Specifications

HP ZBook 17 Mobile Workstation

AES-CCMP: 128 bit in hardware

802.1x authentication

WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX Lite

WAPI

Network Architecture

Models

Roaming

Output Power

2

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between access points

2.4G: +13.5dBm minimum

5G: +12dBm minimum

Maximum output power must be able to achieve modular regulatory certification with notebooks that have antennas

>20cm from the user and peak gain of +3dBi at 2.4GHz and +4dBi at 5GHz

Power Consumption

Power Management

Receiver Sensitivity

3

Transmit: 2.0 W (max)

Receive: 1.6 W (max)

Idle mode (PSP): 250 mW (WLAN Associated)

Idle mode: 100 mW (WLAN unassociated)

Radio disabled: 75 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm (11 Mbps)

802.11a/g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm (18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48

Mbps), -74 dBm (54 Mbps)

Antenna type

802.11n:-69 dBm (72.2 Mbps), -66 dBm (300 Mbps)

High efficiency antenna with spatial diversity, mounted in the display enclosure

Two embedded dual band 2.4/5 GHz antennas are provided to the card to support WLAN MIMO communications and Bluetooth communications

Form Factor

Dimensions

Weight

Operating Voltage

Temperature

PCI-Express Half-MiniCard

0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)

3.1g

3.3v +/- 9%

Humidity

Operating

Non-operating

Operating

Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Altitude

LED Activity

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Off - Radio OFF; Solid LED On - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations. c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 28

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

Bluetooth Specification

Bluetooth Specification V4.0 High Speed, V2.1+EDR, backwards compatible with V1.1, 1.2 and 2.0

79 (1 MHz) available channels

Number of Available

Channels

Data Rates and

Throughput

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Transmit Power

Receiver Sensitivity

Power Consumption

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

-6 dBm to 4 dBm (Bluetooth Class II)

Better than -80 dBM at 0.1 % raw bit error rate

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Sleep <17 mW

Antenna

Range

Electrical Interface

Internally integrated within module

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

Bluetooth Software

Supported

Link Topology

Security

Power Management

Certifications

Bluetooth Profiles

Supported

Broadcom Bluetooth for Windows

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Generic Access Profile (GAP)

Service Discovery Application Profile (SDAP)

Serial Port Profile (SPP)

Dial_Up Networking Profile (DUN)

Generic Object Exchange Profile (GOEP)

Object Push Profile (OPP)

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

Personal Area Networking Profile (PAN)

Human Interface Device Profile (HID)

Generic Audio/Video Distribution Profile (GAVDP)

Advanced Audio/Video Distribution Profile (A2DP)

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

Hands Free Profile (HFP)

Basic Printing Profile (BPP) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 29

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

VDP (Video Distribution Profile)

AVRCP (Audio Video Remote Control Profile)

* Wireless access point and internet service required. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices

Intel Dual Band Wireless-

N 7260AN 802.11 a/b/g/n

(2x2) WiFi + Bluetooth

4.0 Combo Adaptor

*

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Interoperability

Frequency Band

Wi-Fi certified

Cisco Compatible Extensions Program compliant with Microsoft Windows 7,

Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN )

802.11b/g/n 2.402 - 2.482 GHz

Antenna Structure

Data Rates

Modulation

Security

1

802.11a/n 4.9 - 4.95 GHz (Japan)

5.15 - 5.25 GHz

5.25 - 5.35 GHz

5.47 - 5.725 GHz

5.825 - 5.850 GHz

2 transmit; 2 receive (2x2)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: card will support rates for NSS=1 and NSS=2 for RX and TX for 20 and 40 MHz channels. Short and long guard interval shall be supported.

Direct Sequence Spread Spectrum

CCK, BPSK, QPSK, 16-QAM, 64-QAM

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

AES-CCMP: 128 bit in hardware

802.1x authentication

WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX Lite

WAPI

Sub-channels

Network Architecture

Models

Roaming

Output Power

2

Multinational support with frequency bands and channels compliant to local regulations.

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between band Access Points

2.4G: +13.5dBm minimum

5G: +12dBm minimum

Power Consumption

Transmit: 2.0 Watts

Receive: 1.6 Watts

Idle mode

3

: 250 mW (WLAN Associated) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 30

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Idle mode: 100 mW (WLAN unassociated)

Radio off: 75 mW

Power Management

Receiver Sensitivity

4

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm

(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74 dBm (54 Mbps)

802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm (11 Mbps)

802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm

(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74 dBm (54 Mbps)

802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)

Antenna Connections

Form Factor

Dimensions

Weight

Operating Voltage

Temperature

Humidity

2 U.FL type connectors (output impedance of 50 ± 2 ohms)

PCI-Express Half-MiniCard

0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)

3.1g

3.3v +/- 9%

Operating

Non-operating

Operating

Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (non-condensing)

5% to 95% (non-condensing)

Altitude

LED Activity

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Off - Radio OFF; Solid LED On - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. In Power Save Polling mode and on battery power.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification 4.0+EDR Compliant

Dimensions

Frequency Band

1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)

2402 to 2480 MHz

Number of Available

Channels

Data Rates and

Throughput

79 (1 MHz) available channels

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

Transmit Power

Receiver Sensitivity

-1.5 dBm to 4 dBm (Bluetooth Class II)

Better than -20 dBM at 0.1 % raw bit error rate c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 31

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Power Consumption

Antenna

Range

Electrical Interface

Bluetooth Software

Supported

Peak (Tx) 264 mW

Peak (Rx) 231 mW

Sleep <1 mW

Internally integrated within module

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Plug and Play compliant

Broadcom Bluetooth for Windows

Microsoft Windows Bluetooth Software

Link Topology

Security

Power Management

Certifications

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Bluetooth Profiles

Supported

Serial Port Profile (SPP)

1

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN) 1,2

Generic Object Exchange Profile (GOEP)

1,2

Object Push Profile (OPP)

File Transfer Profile (FTP)

1,2

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP) 1,2

Personal Area Networking Profile (PAN)

1,2

Human Interface Device Profile (HID)

FAX Profile (FAX)

Basic Imaging Profile (BIP)

2

1,2

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

1. indicates the profile is supported by Microsoft Windows XP SP2

2. indicates the profile is part of Windows Vista

* Wireless access point and internet service required. Availability of public wireless access points limited.

Intel Centrino Advanced-

N 6205 (2x2)

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n*

* In countries where 802.11n is not allowed, this capability is not enabled.

Interoperability

Wi-Fi certified

Cisco Compatible Extensions Program compliant with Microsoft Windows 7,

Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN )

Frequency Band

Antenna Structure

2.4 GHz and 5GHz

2 transmit; 2 receive (2x2) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 32

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: 66 possible data rates, ranging from 6 Mbps to 300 Mbps, depending on the combination of Bandwidth, Modulation Coding Scheme, and Guard Interval used, as defined in IEEE 802.11n specification

Modulation

Security

1

Authentication: WPA and WPA2, 802.1x (EAP_TLS, TTLS, PEAP, LEAP, EAP-

FAST)

Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2

Encryption: 64 and 128-bit WEP, AES-CCMP, CKIP, TKIP

Support for Cisco Security Features (proven compatibility with Cisco Aironet infrastructure products through the Cisco Compatible Extensions Program

Version 4) with Microsoft Windows Vista and XP only.

Sub-channels

Multinational support with frequency bands and channels compliant to local regulations.

Media Access Protocol

CSMA/CA (Collision Avoidance) with ACK

Network Architecture

Models

Roaming

Direct Sequence Spread Spectrum

DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between 2.4GHz band Access Points

Output Power (for CCK and OFDM)

2

17 dBm max

Power Consumption

Power Management

Transmit: 2.3 Watts (max, with two spatial streams)

Receive: 1 Watt (max with two spatial streams)

Idle mode 3 : 35 mW (average)

Radio off: 20 mW (max)

ACPI compliant power management

802.11 compliant power saving mode

Receiver Sensitivity

4

Antenna Connections

Form Factor

Weight

Dimensions

54 Mbps: -76 dBm, 6 Mbps: -92 dBm

2 U.FL type connectors, 50 ohm nominal impedance

PCI-Express Half-MiniCard

0.0075 lb (3.4 g)

Operating Voltage

Temperature

Humidity

0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)

3.3V +/- 9%

Operating

Non-operating

Operating

Non-operating

32° to 176° F (0° to 80° C)

-40° to 176° F (-40° to 80° C)

10% to 90% (non-condensing)

5% to 90% (non-condensing)

Altitude

Operating

Non-operating

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Activity

LED Off - Radio OFF; Solid LED On - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. In Power Save Polling mode and on battery power.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 33

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.

Intel Centrino®

Advanced-N 6235 802.11 a/b/g/n (2x2) +

Bluetooth 4.0 LE Combo

Wireless LAN Standards IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

IEEE 802.11n

Interoperability

Wi-Fi certified

Cisco Compatible Extensions Program compliant with Microsoft Windows 7,

Windows Vista and XP (details at: http://www.hp.com/go/notebooks/WLAN )

Frequency Band

802.11b/g/n

802.11a/n

2.402 - 2.482 GHz

4.9 - 4.95 GHz (Japan)

5.15 - 5.25 GHz

5.25 - 5.35 GHz

5.47 - 5.725 GHz

5.825 - 5.850 GHz

Antenna Structure

Data Rates

Modulation

2 transmit; 2 receive (2x2)

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)

Direct Sequence Spread Spectrum

CCK, BPSK, QPSK, 16-QAM, 64-QAM

Security

1

IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g mode only

AES-CCMP: 128 bit in hardware

802.1x authentication

WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

WPA2 certification

IEEE 802.11i

Cisco Certified Extensions, all versions through CCX4 and CCX Lite

WAPI

Sub-channels

Network Architecture

Models

Roaming

Output Power

2

Multinational support with frequency bands and channels compliant to local regulations.

Ad-hoc (Peer to Peer)

Infrastructure (Access Point Required)

IEEE 802.11 compliant roaming between band Access Points

2.4G: +13.5dBm minimum

5G: +12dBm minimum

Power Consumption

Power Management

Transmit: 2.0 Watts

Receive: 1.6 Watts

Idle mode 3 : 250 mW (WLAN Associated)

Idle mode: 100 mW (WLAN unassociated)

Radio off: 75 mW

ACPI and PCI Express compliant power management

802.11 compliant power saving mode c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 34

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Receiver Sensitivity

4 802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm

(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74 dBm (54 Mbps)

802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88 dBm (11 Mbps)

802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85 dBm

(18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48 Mbps), -74 dBm (54 Mbps)

802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)

Antenna Connections

Form Factor

2 U.FL type connectors (output impedance of 50 ± 2 ohms)

PCI-Express Half-MiniCard

Weight

Dimensions

3.1g

0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)

Operating Voltage

Temperature

3.3V +/- 9%

Operating

Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

Humidity

Altitude

Operating

Non-operating

Operating

Non-operating

10% to 90% (non-condensing)

5% to 95% (non-condensing)

0 to 10,000 ft (3,048 m)

0 to 50,000 ft (15,240 m)

LED Amber - Radio OFF; LED White - Radio ON LED Activity

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. In Power Save Polling mode and on battery power.

4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).

5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft

Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows Vista.

HP Integrated Module with Bluetooth 4.0+EDR Wireless Technology

Bluetooth Specification 4.0+EDR Compliant

Dimensions

Frequency Band

1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)

2402 to 2480 MHz

79 (1 MHz) available channels

Number of Available

Channels

Data Rates and

Throughput

3 Mbps data rate; throughput up to 2.17 Mbps

Synchronous Connection Oriented links up to 3, 64 kbps, voice channels

Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric or 1306.9 kbps symmetric

Transmit Power

Receiver Sensitivity

Power Consumption

-1.5 dBm to 4 dBm (Bluetooth Class II)

Better than -20 dBM at 0.1 % raw bit error rate

Peak (Tx) 330 mW

Peak (Rx) 230 mW

Sleep <17 mW

Antenna

Range

Electrical Interface

Internally integrated within module

Up to 33 ft (10 m)

USB 2.0 compliant

Microsoft Windows Plug and Play compliant c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 35

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Bluetooth Software

Supported

Link Topology

Security

Power Management

Certifications

Bluetooth Profiles

Supported

Broadcom Bluetooth for Windows

Microsoft Windows Bluetooth Software

Point to Point, Multipoint Pico Nets up to 7 slaves

Full support of Bluetooth Security Provisions

Microsoft Windows ACPI, and USB Bus Support

Self configurable to optimize power conservation in all operating modes, including Standby, Hold, Park, and Sniff

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Serial Port Profile (SPP)

Service Discovery Application Profile (SDAP)

Dial-Up Networking (DUN)

Generic Object Exchange Profile (GOEP)

Object Push Profile (OPP)

File Transfer Profile (FTP)

Synchronization Profile (SYNC)

Hard Copy Cable Replacement (HCRP)

Personal Area Networking Profile (PAN)

Human Interface Device Profile (HID)

FAX Profile (FAX)

Basic Imaging Profile (BIP)

Headset Profile (HSP)

Hands Free Profile (HFP)

Advanced Audio Distribution Profile (A2DP)

AUDIO/MULTIMEDIA

AUDIO/MULTIMEDIA - DTS SOUND+

Hardware Implementation

Function Key

Volume Controls

Full Duplex

IDT 92HD91

Volume up, volume down, and mute

Yes

Microphone In

Stereo

Headphone/Line Out

Stereo

Integrated Microphone

Yes, dual digital microphone array when equipped with optional webcam

Audio Output Quality Frequency Response

Signal to Noise Ratio

Total Harmonic

Distortion

Noise Floor

Play/Record Sampling

Rate(s)

DAC

20 Hz - 20 kHz

>85 dB

0.01%

-110 dB

8 kHz - 48kHz

16, 20 or 24-bit c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 36

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

ADC

16 or 20-bit

Internal Stereo Speaker Power Rating

Impedance

POWER

HP 230W Slim Smart AC

Adapter

2 Watts

4 ohms

Dimensions

Weight

Input

EMI and Safety

Certifications

7.87 x 3.94 x 1.0 in (200 x 100mm x 25.4mm)

1.85 lb (840 g)

100 to 240 VAC

Input Efficiency

Input frequency range

Input AC current

87% min at 115 VAC

47 to 63 Hz

3.5 A at 90 VAC, 1.75 A at 180 VAC

Output

Output power

DC output

Hold-up time

Output current limit

230W

19.5V

5 msec at 115 VAC input

<18A, Over voltage protection- 29V max automatic shutdown

Connector

Environmental Design

3 pin/grounded, mates with interchangeable cords

Operating temperature

Non-operating (storage) temperature

32° to 104° F (0° to 40° C)

-4° to 149° F (-20° to 65° C)

Altitude

Humidity

Storage Humidity

0 to 10,000 ft (0 to 3,048 m)

20% to 80%

10% to 90%

CE Mark- full compliance with LVD and EMC directives; Worldwide safety standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency approvals- C-

UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,

CCIB, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.

HP 200W Slim Smart AC

Adapter

Dimensions

Weight

6.77 x 3.80 x 1.0 in (172 x 96 x 25.4 mm)

1.65 lb (748 g)

Input

Output

100 to 240 VAC

Input Efficiency

Input frequency range

Input AC current

Output power

DC output

87% min at 115 VAC

47 to 63 Hz

2.9 A at 90 VAC, 1.45 A at 180 VAC

200W

19.5V

Hold-up time

Output current limit

5 msec at 115 VAC input

<16A, Over voltage protection- 29V max automatic shutdown

Connector

3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating temperature

32° to 104° F (0° to 40° C) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 37

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

EMI and Safety

Certifications

Non-operating (storage) temperature

Altitude

Humidity

-4° to 149° F (-20° to 65° C)

0 to 10,000 ft (0 to 3,048 m)

20% to 80%

Storage Humidity 10% to 90%

CE Mark- full compliance with LVD and EMC directives; Worldwide safety standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency approvals- C-

UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,

CCIB, NOM-1 NYCE; MTBF- over 200,000 hours at 25°C ambient condition.

HP 8-cell Lithium-Ion

Battery (83 WHr)

Dimensions (H x W x L) 0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)

Weight (max)

Cells/Type

0.99lb (0.442 kg)

Lithium-Ion

Energy

Voltage 14.8V

Amp-hour capacity

Watt-hour capacity

5.6Ah

83Wh

Temperature

Operating (Charging) 32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 122° F(-10° to 50° C)

Non-operating

Battery Re-Charge Time System in OFF or Standby

Mode

-4° to 122° F (-20° to 50° C)

2.5 hours

Fuel Gauge LED

Warranty

System ON

No

1 year

Compatible with optional

Travel Battery

Yes

3 to 5 hours

HP Long Life 8-cell

Lithium-Ion Battery (75

WHr)

Dimensions (H x W x L) 0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)

Weight (max) 0.99lb (0.442 kg)

Cells/Type

Energy

Temperature

8-cell; Lithium-Ion

Voltage

Amp-hour capacity

Watt-hour capacity

Operating (Charging)

14.4V

5.1Ah

75Wh

32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 140° F (-10° to 60° C)

Non-operating -4° to 140° F (-20° to 60° C)

2.5 hours Battery Re-Charge Time System in OFF or Standby

Mode

System ON

Fuel Gauge LED

Warranty*

No

3 year

3 to 5 hours

Compatible with optional

Travel Battery

Yes

* 3-year platform warranty is required for a 3-year Long Life Battery warranty.

Dimensions (H x W x L)

1.2 x 5.9 x 11.4 in (3x15x29cm) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 38

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Optional HP BB09 Ultra

Extended Life Notebook

Battery (secondary battery)

Weight (max)

Cells/Type

Energy

Temperature

1.5lb, (.682kg)

Lithium-Ion

Voltage

Amp-hour capacity

Watt-hour capacity

11.25V

8.85Ah

100Wh

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 122° F(-10° to 50° C)

Fuel Gauge LED

Warranty

Compatible with optional

Travel Battery

Non-operating

System ON

Yes

1 year

No

-4° to 122° F (-20° to 50° C)

Battery Re-Charge Time System in OFF or Standby

Mode

3.5 to 5 hours

4 to 7 hours

Optional HP ST09

Extended Life Notebook

Battery ("Travel

Battery") (secondary battery)

Dimensions (H x W x L) 1.2 x 6.1 x 12 in (3x15.5x30.5cm)

Weight (max) 1.2lb, (.550kg)

Cells/Type

Energy

Temperature

Lithium-Ion Polymer

Voltage

11.1V

Amp-hour capacity

Watt-hour capacity

6.6Ah

73Wh

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging) 14° to 122° F(-10° to 50° C)

Non-operating

System ON

-4° to 122° F (-20° to 50° C)

Battery Re-Charge Time System in OFF or Standby

Mode

3.5 to 5 hours

4 to 7 hours

Fuel Gauge LED

Warranty

Yes

1 year

Compatible with optional

Travel Battery

Yes

ENVIRONMENTAL DATA

Environmental

Data

Eco-Label Certifications & declarations

System Configuration

This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:

IT ECO declaration

US ENERGY STAR®

EPEAT Gold where HP registers Commercial Notebook products. See http://www.epeat.net for registration status in your country.

The configuration used for the Energy Consumption and Declared Noise Emissions data for the Notebook model is based on a “Typically Configured Notebook”.

Energy Consumption

(in accordance with US 115VAC, 60Hz 230VAC, 50Hz 100VAC, 60Hz

c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 39

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

ENERGY STAR® test

method)

Normal Operation (Short idle)

Normal Operation (Long idle)

Sleep

Off

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO 9296)

Typically Configured – Idle

9.50 W

6.35 W

9.58 W

6.20 W

9.57 W

6.16 W

1.18 W

0.39 W

1.51 W

0.61 W

1.46 W

0.37 W

Note:

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY

STAR® specifications for computers. If a model family does not offer ENERGY

STAR® compliant configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system.

115VAC, 60Hz

32 BTU/hr

230VAC, 50Hz

33 BTU/hr

100VAC, 60Hz

33 BTU/hr

Heat Dissipation*

Normal Operation (Short idle)

Normal Operation (Long idle)

Sleep

Off

22 BTU/hr 21 BTU/hr 21 BTU/hr

4 BTU/hr

1 BTU/hr

5 BTU/hr

2 BTU/hr

5 BTU/hr

1 BTU/hr

*NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.

Sound Power

(L

WAd

, bels)

2.9

Sound Pressure

(L pAm

, decibels)

23

Fixed Disk – Random writes

This battery(s) in this product comply with EU Directive 2006/66/EC

2.9 23

Longevity and Upgrading This product can be upgraded, possibly extending its useful life by several years.

Upgradeable features and/or components contained in the product may include:

• 3 USB ports

• 1 PC card slot (type I/II)

• 1 ExpressCard/54 slot

• 1 IEEE 1394 Port

• 2 SODIMM memory slots

• Optional expansion base docking station

• 1 multi-bay II storage port

• Interchangeable HDD??

Spare parts are available throughout the warranty period and or for up to 5 years after the end of production.

Batteries

c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 40

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Additional Information

Packaging Materials

Material Usage

Batteries used in the product do not contain:

Mercury greater the1ppm by weight

Cadmium greater than 20ppm by weight

Battery size: CR2025 (coin cell)

Battery type: Lithium

Battery size: 6-cell high capacity Lithium-Ion battery (optional 8 cell available)

Battery type:

This product is in compliance with the Restrictions of Hazardous

Substances (RoHS) directive - 2011/65/EC.

This HP product is designed to comply with the Waste Electrical and

Electronic Equipment (WEEE) Directive – 2002/96/EC.

This product is in compliance with California Proposition 65 (State of

California; Safe Drinking Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the

Gold level, see www.epeat.net

Plastics parts weighing over 25 grams used in the product are marked per

ISO11469 and ISO1043.

This product contains 3.6 % post-consumer recycled plastic (by wt.)

This product is 95.60 % recycle-able when properly disposed of at end of life.

External:

PAPER/Corrugated 493 g

Internal:

PLASTIC/EPE (Expanded Polyethylene) 55 g

PLASTIC/Polyethylene low density 26.6 g

The PAPER/Corrugated packaging materials contains at least 85% recycled content.

The PLASTIC/EPE (Expanded Polyethylene) foam packaging material is made from 0 % recycled content.

The PLASTIC/Polyethylene low density foam packaging material is made from

0 % recycled content.

This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf

):

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

Cadmium

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

 Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel – finishes must not be used on the external surface designed to be frequently handled or carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs) c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 41

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Packaging Usage

End-of-life Management and Recycling

Hewlett-Packard

Corporate Environmental

Information

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in packaging materials.

 Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and DIN

6120 standards.

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office.

Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information

(product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

For more information about HP’s commitment to the environment:

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_

Product_Design_ISO_14K_Certificate.pdf

and http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 42

QuickSpecs

Technical Specifications

Declared Noise Emissions

(in accordance with

ISO 7779 and ISO 9296)

System Fan Off

Typically Configured -

Idle

Fixed Disk -

Random writes

Batteries

HP ZBook 17 Mobile Workstation

Sound Power

(LWAd, bels)

2.9

2.9

This battery(s) in this product comply with EU Directive 2006/66/EC

Sound Pressure

(LpAm, decibels)

23

23

Additional information

Batteries used in the product do not contain:

Mercury greater the 5ppm by weight

Cadmium greater than 10ppm by weight

Battery size: CR2025 (coin cell)

Battery type: Lithium

Battery size: 6-cell high capacity Lithium-Ion battery (optional 8 cell available)

This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive -

2011/65/EC.

This HP product is designed to comply with the Waste Electrical and Electronic Equipment

(WEEE) Directive - 2002/96/EC.

This product is in compliance with California Proposition 65 (State of California; Safe Drinking

Water and Toxic Enforcement Act of 1986).

This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see www.epeat.net

Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and

ISO1043.

This product contains 3.6 % post-consumer recycled plastic (by wt.)

This product is 95.60 % recycle-able when properly disposed of at end of life.

Packaging Materials

External:

 o PAPER/Corrugated - 493

Internal: o PLASTIC/EPE (Expanded Polyethylene) - 55 g o PLASTIC/Polyethylene low density - 26.6 g

 The PAPER/Corrugated packaging materials contains at least 85% recycled content.

The PLASTIC/EPE (Expanded Polyethylene) foam packaging material is made from 0 % recycled content.

The PLASTIC/Polyethylene low density foam packaging material is made from 0 % recycled content.

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (for reference of these limits please refer to the HP General Specification of the

Environment( http://www.hp.com/hpinfo/globalcitizenship/ environment/supplychain/gen_specifications.html

):

Asbestos

Certain Azo Colorants

Certain Brominated Flame Retardants - may not be used as flame retardants in plastics

Cadmium c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 43

QuickSpecs

HP ZBook 17 Mobile Workstation

Technical Specifications

Chlorinated Hydrocarbons

Chlorinated Paraffins

Formaldehyde

Halogenated Diphenyl Methanes

Lead carbonates and sulfates

Lead and Lead compounds

Mercuric Oxide Batteries

Nickel - finishes must not be used on the external surface designed to be frequently handled or carried by the user.

Ozone Depleting Substances

Polybrominated Biphenyls (PBBs)

Polybrominated Biphenyl Ethers (PBBEs)

Polybrominated Biphenyl Oxides (PBBOs)

Polychlorinated Biphenyl (PCB)

Polychlorinated Terphenyls (PCT)

Polyvinyl Chloride (PVC) - except for wires and cables, and certain retail packaging has been voluntarily removed from most applications.

Radioactive Substances

Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.

Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

Design packaging materials for ease of disassembly.

Maximize the use of post-consumer recycled content materials in packaging materials.

Use readily recyclable packaging materials such as paper and corrugated materials.

Reduce size and weight of packages to improve transportation fuel efficiency.

Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and Recycling

Hewlett-Packard offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers . These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.

Hewlett-Packard

Corporate Environmental

Information

For more information about HP's commitment to the environment:

Global Citizenship Report http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates: http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/

PC_GBU_Product_Design_ISO_14K_Certificate.pdf

and http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 44

QuickSpecs

Technical Specifications

COUNTRY OF ORIGIN

China

HP ZBook 17 Mobile Workstation

c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 45

QuickSpecs

HP ZBook 17 Mobile Workstation

Options and Accessories (sold separately and availability may vary by country)

Type

Memory

Cases

Docking

Input/Output - Mice

Adapters

Storage - External

Storage

Batteries

Health and Education

Security

Wireless

Description

HP 4 GB DDR3L-1600 1.35V SODIMM

HP 8 GB DDR3L-1600 1.35V SODIMM

HP Business Backpack (fits up to 17.3")

HP Professional Slim Top Load Case (fits up to 17.3"

HP Essential Messenger Case (up to 17.3")

HP Business 4 Wheel Roller Case (fits up to 17.3")

HP Adjustable Dual Monitor Stand

HP Adjustable Display Stand

HP 230W Docking Station

HP 230W Advanced Docking Station

HP Wireless Mobile Mouse

HP Stylish USB KB/Mouse

HP 230W Slim Adapter

HP 150W Smart AC Adapter (slim)

HP 90W Slim Combo Adapter w/USB Adapter

HP External USB Optical Drive (expected availability 10/1/13)

HP ST09 Extended Life Notebook Battery

HP BB09 Ultra Extended Life Notebook Battery

HP AR08XL Notebook Battery

HP 20-Notebook Managed Charging Cart

HP 20-Notebook Charging Cart

HP 30-Notebook Managed Charging Cart

HP 30-Notebook Charging Cart

HP Docking Station Cable Lock

HP UltraSlim Keyed Cable Lock

HP hs3110 HSPA+ Mobile Module

HP lt4112 LTE/HSPA+ 4G Mobile Module (EMEA, APJ only)

Copyright © 2013 Hewlett-Packard Development Company, L.P.

H4B80AA#xxx

H1D36AA

AL192AA#xxx

H6Y84AA#xxx

F2B56AA#xxx

QK639AA

QK640AA

E7U26AA

QL489AA#xxx

QL488AA#xxx

QL490AA#xxx

H4F31AA#xxx

Part #

H6Y75AA#xxx

H6Y77AA#xxx

H5M90AA

H4J91AA

H1D25AA

H5M93AA

AW664AA#xxx

AW663AA#xxx

A7E34AA#xxx

A7E38AA#xxx

H2L63AA

AU656AA#xxx

H4D73AA

E5M76AA

E5M74AA

All rights reserved. All trademarks are the property of their respective owners. Intel, Core, and Celeron are registered trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG, Inc., in c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 46

QuickSpecs

HP ZBook 17 Mobile Workstation

Options and Accessories (sold separately and availability may vary by country) the U.S. and other countries. Adobe is a trademark of Adobe Systems Incorporated. All other product names mentioned herein may be trademarks of their respective companies.

The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 47

QuickSpecs

HP ZBook 17 Mobile Workstation

Options and Accessories (sold separately and availability may vary by country)

Date of change:

June 18,

2014

Version

History:

From v11, v12

Description of change:

Changed Dimensions revision, At a Glance

Added

Removed

Secondary IDPubnumber

c04111344 — DA-14723 Worldwide — Version 12 — June 18, 2014 Page 48

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
