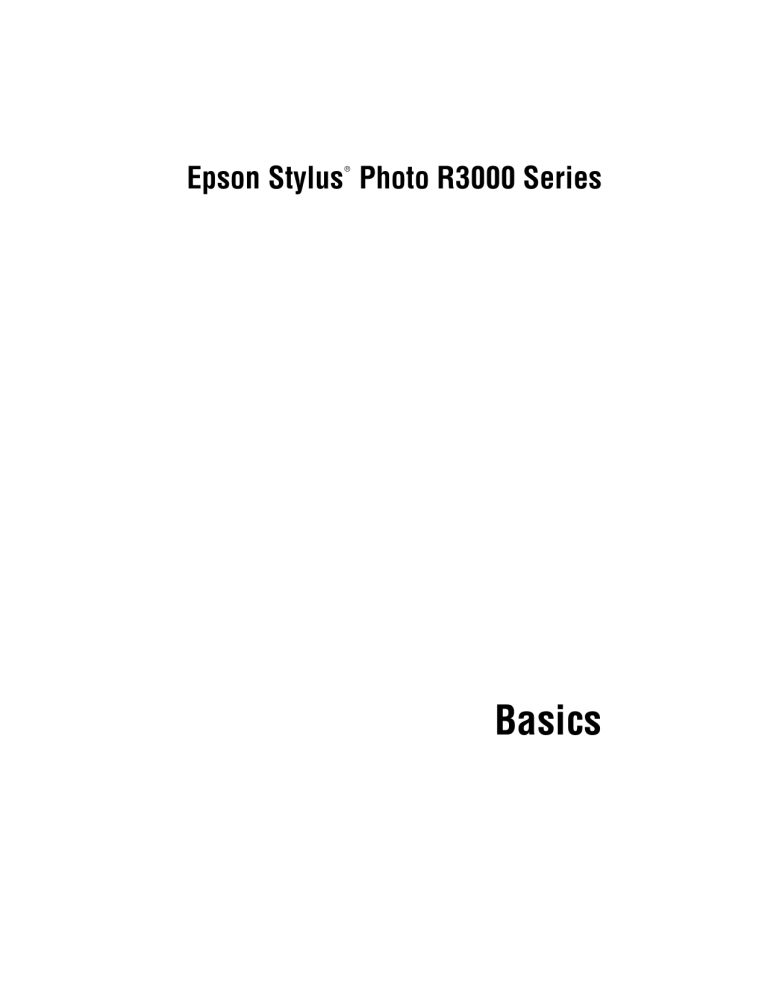

Epson Stylus Photo R3000 Series
®
Basics
Copyright Notice
All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system, or transmitted in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of Seiko
Epson Corporation. The information contained herein is designed only for use with this
Epson product. Epson is not responsible for any use of this information as applied to other
equipment.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this
product or third parties for damages, losses, costs, or expenses incurred by purchaser or
third parties as a result of: accident, misuse, or abuse of this product or unauthorized
modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to
strictly comply with Seiko Epson Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable for any damages or problems arising from the
use of any options or any consumable products other than those designated as Original
Epson Products or Epson Approved Products by Seiko Epson Corporation.
Responsible Use of Copyrighted Materials
Epson encourages each user to be responsible and respectful of the copyright laws when
using any Epson product. While some countries’ laws permit limited copying or reuse of
copyrighted material in certain circumstances, those circumstances may not be as broad as
some people assume. Contact your legal advisor for any questions regarding copyright law.
Trademarks
Epson, Epson Stylus, Epson UltraChrome K3, and Supplies Central are registered
trademarks and Epson Exceed Your Vision is a registered logomark of Seiko Epson
Corporation.
UltraSmooth is a registered trademark, PhotoEnhance is a trademark, and Epson
Connection is a service mark of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and
may be trademarks of their respective owners. Epson disclaims any and all rights in those
marks.
This information is subject to change without notice.
© 2011 Epson America, Inc. 7/11
2
CPD-28174R2
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Loading Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Loading Paper in the Sheet Feeder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Loading Fine Art Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Loading Roll Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Loading Thick Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Available Epson Papers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Printing From Start to Finish . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Printing in Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Printing With Mac OS X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Selecting the Correct Paper Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Printing on CDs and DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Loading a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Printing on a CD or DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Removing Your Printed CD/DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Maintaining Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Checking and Cleaning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and Aligning the Print Head . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the Ink Cartridge Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing Ink Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Black Ink Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning the Rollers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
37
37
39
43
45
Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Wireless Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Wired (Ethernet) Network Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Contents 3
Solving Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Checking for Software Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Where to Get Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Notices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
4 Contents
Introduction
Your Epson Stylus® Photo R3000 Series printer gives you exhibition quality prints
on a wide variety of glossy and matte papers in many sizes.
Your outstanding printouts result from these advanced features:
■
Epson UltraChrome K3® with Vivid Magenta ink cartridges for
unprecedented gray balance, outstanding tonal range, and astounding color
■
Enhanced media handling of fine art paper, thick media up to 1.3 mm, and
rolls for virtually any kind of print up to 13 × 44 inches, with or without
borders
■
Resolutions up to 5760 × 1440 optimized dpi (dots per inch) with droplets as
small as 2 picoliters for the finest details
■
Direct printing onto ink jet-printable CDs and DVDs for a professional look
■
Hi-Speed USB 2.0, 100Mbps Ethernet®, and Wi-Fi CERTIFIED™ 802.11n
for fast, wireless connectivity to multiple computers
■
Downloadable Premium ICC Profiles for precise color management
Please follow these guidelines as you read your documentation:
Warning:
Warnings must be followed carefully to avoid bodily injury.
Caution:
Cautions must be observed to avoid damage to your equipment.
Note:
Notes contain important information about your R3000 Series.
Tip:
Tips contain hints for better printing.
Introduction 5
Loading Paper
You can print on a variety of paper types in the sheet feeder, or use the manual feed
tray for fine art papers (see page 8) and thick media such as poster board (see
page 14). To print multiple photos, panoramics, and banners, load roll paper
using the roll paper holders (see page 11).
Loading Paper in the Sheet Feeder
You can load the following paper types and quantities in the sheet feeder. Load
other paper types in the manual feed tray (see page 8) or roll paper holders (see
page 11).
Paper type
Maximum sheets by size
Plain paper
Approximately 120
Epson Presentation Paper Matte
100 (Letter)
50 (B or Super B)
Epson Bright White Paper
80
Epson Photo Paper Glossy
30
Epson Premium Photo Paper Glossy
Epson Ultra Premium Photo Paper Glossy
30 (4 × 6 inch, 8 × 10 inch, Letter,
11 × 14 inch)
20 (5 × 7 inch)
10 (B, A3, Super B)
Epson Ultra Premium Photo Paper Luster
Epson Ultra Premium Presentation Paper Matte
30 (Letter)
10 (A3 or Super B)
Epson Premium Photo Paper Semi-gloss
30 (4 × 6 inch or Letter)
10 (B)
Epson Premium Presentation Paper Matte
30 (8 × 10 inch or Letter)
10 (11 × 14 inch, A3, or Super B)
Epson Premium Presentation Paper Matte
Double-sided
Epson Photo Quality Self-adhesive Sheets
1 sheet
6 Loading Paper
1. Open the paper support and pull up the extensions.
2. Open the front cover, then extend the output tray.
3. Insert paper, glossy or printable side up, short edge first, against the right side
and beneath the tab. Then press the button on the edge guide and slide it
against the paper (but not too tightly).
Loading Paper 7
Always load paper short edge first, even for landscape printing.
Load letterhead or pre-printed paper top edge first.
Note:
The edge guide moves slightly during paper feeding and printing.
Do not adjust it while printing is in progress.
Loading Fine Art Paper
You can print professional quality photos on these paper types using the manual
feed tray (see page 16 for available sizes):
■
Epson Velvet Fine Art Paper
■
Epson Hot Press Bright
■
Epson Watercolor Paper Radiant White
■
Epson Hot Press Natural
■
Epson UltraSmooth® Fine Art Paper
■
Epson Cold Press Bright
■
PremierArt™ Matte Scrapbook Photo
Paper for Epson
■
Epson Cold Press Natural
■
Epson Exhibition Fiber Paper
1. Turn on the printer.
2. Remove any paper from the sheet feeder and close the paper support. Remove
roll paper if it’s currently being used.
3. Open the rear support and extend it fully.
8 Loading Paper
4. Open the front cover, then push the center of the manual feed tray to extend
it.
5. Insert a single sheet of fine art paper. Insert it short edge first with the
printable side face-up.
Note:
Load paper short edge first, no matter which way your photo faces. Check the
paper package for any additional loading instructions.
6. Feed the paper up to the line on the tray. Make sure the paper is flush against
the right.
Loading Paper 9
7. Press the OK button. The paper loads inside the printer.
8. When you see a message on the screen, close the manual feed tray. Push it in
until it latches.
9. Extend the output tray.
Note:
To eject paper, make sure the control panel shows Ready and press the + button.
10 Loading Paper
Loading Roll Paper
You can load roll paper for printing large images, panoramic images, or multiple
photos, with or without borders.
You can load 13-inch wide roll paper.
(See page 16 for a list of roll paper types and sizes.)
Tip:
It’s a good idea to check the ink status and replace cartridges, if necessary, before
printing a large print job (see page 37). If you need to replace a cartridge while printing,
you can continue to print but you might notice a color difference depending on drying
conditions.
1. Turn on the printer.
2. Remove any paper loaded in the sheet feeder.
3. Open the front cover, then extend the output tray.
4. Remove any tape and protective paper from the
end of the roll. Make sure the paper is cut straight
across to avoid paper feeding problems.
Note:
Avoid touching the surface of your paper.
With canvas media that you have previously loaded,
it’s a good idea to cut the edge straight each time you reload it.
Loading Paper 11
5. Place the roll paper holders on each end of the paper roll as shown. The
holders are labeled L and R (for left and right), as viewed from the front of the
printer.
6. Open the rear support but don’t extend it.
7. Attach the roll paper holders as shown. Hook the holders onto the attachment
points indicated with orange labels.
8. Feed the paper into the printer until it meets resistance. In a few seconds, the
paper loads automatically.
Note:
When loading canvas media, leave 2 to 3 inches of slack in the roll as it feeds and
prints for the best results. If you have trouble feeding canvas media, check that the
edge is straight and reload it, making sure to keep the roll slack.
12 Loading Paper
Removing Roll Paper Prints and Roll Paper
1. When printing is finished, you see this screen:
Select Yes to print a cut line and feed the paper.
(If you select No, you return to the Ready screen. Select this option to
continue printing on the same roll.)
2. Use scissors to cut the paper along the cut line.
3. Follow the instructions on the screen to unload the paper. Turn the knobs on
the roll paper holders backward as the paper unloads, then remove the paper
and holders from the printer.
Store unused roll paper in its original package away from high temperatures,
humidity, and direct sunlight.
Note:
You can also unload roll paper whenever the control panel shows Ready by pressing the
+ button.
Loading Paper 13
Loading Thick Media
Use the manual feed tray to load 13 × 19-inch media that is 0.7 to 1.3 mm thick.
Note:
Be sure to leave at least 13 inches (32 cm) of space behind the printer for the media to
feed through.
1. Turn on the printer.
2. Remove any roll paper or paper loaded in the sheet feeder. Close the rear
support if it’s open.
3. Open the front cover, then push the center of the manual feed tray to extend
it.
14 Loading Paper
4. Insert a single sheet of thick media. Insert it short edge first with the printable
side face-up.
Note:
Never try to load media from the rear, or you could damage the printer.
5. Feed the paper up to the line on the tray. Make sure the paper is flush against
the right.
6. Select Poster Board on the printer’s control panel. The paper loads inside the
printer.
7. When you see a message on the screen, close the manual feed tray. Push it in
until it latches.
Loading Paper 15
8. Extend the output tray.
Note:
To eject paper, make sure the control panel shows Ready and press the + button. Do
not extend the manual feed tray while printing, or you may damage the printer.
Available Epson Papers
Epson offers a wide array of high quality papers, making it easy to maximize the
impact of your photos, presentations, and creative projects.
You can purchase genuine Epson ink and paper at Epson Supplies CentralSM at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can
also purchase supplies from an Epson authorized reseller. To find the nearest one,
call 800-GO-EPSON (800-463-7766).
Part
number
Sheet
count
4 × 6 inches
S041934
S042181
S042174
50
60
100
5 × 7 inches
S041945
20
8 × 10 inches
S041946
20
Letter (8.5 × 11 inches)
S041935
S042182
S042175
20
25
50
Paper name
Size
Epson Ultra Premium Photo Paper
Glossy
16 Loading Paper
Part
number
Sheet
count
4 × 6 inches
S041808
S041727
S042119
40
100
250
5 × 7 inches
S041464
S042120
20
250
8 × 10 inches
S041465
S042121
20
250
Letter (8.5 × 11 inches)
S041286
S041283
S041667
20
25
50
11 × 14 inches
S041466
20
B (11 × 17 inches)
S041290
20
A3 (11.7 × 16.5 inches)
S041288
20
Super B (13 × 19 inches)
S041289
20
13 inches × 32 feet
S041378
Roll
4 × 6 inches
S041809
S042038
50
100
Letter (8.5 × 11 inches)
S041141
S041649
S041271
20
50
100
B (11 × 17 inches)
S041156
20
Super B (13 × 19 inches)
S041143
20
4 × 6 inches
S041982
S042122
40
250
Letter (8.5 × 11 inches)
S041331
20
Super B (13 × 19 inches)
S041327
20
Paper name
Size
Epson Premium Photo Paper
Glossy
Epson Photo Paper Glossy
Epson Premium Photo Paper
Semi-gloss
Loading Paper 17
Part
number
Sheet
count
Letter (8.5 × 11 inches)
S041405
S041913
50
250
A4 (8.3 × 11.7 inches)
S041602
250
A3 (11.7 × 16.5 inches)
S041406
50
Super B (13 × 19 inches)
S041407
S041604
50
100
13 inches × 32.8 feet
S041409
Roll
Letter (8.5 × 11 inches)
S045033
25
Super B (13 × 19 inches)
S045037
25
Letter (8.5 × 11 inches)
S041341
S041914
50
250
A4 (8.3 × 11.7 inches)
S041603
250
A3 (11.7 × 16.5 inches)
S041343
50
Super B (13 × 19 inches)
S041339
S041605
50
100
8 × 10 inches
S041467
50
Letter (8.5 × 11 inches)
S041257
S042180
50
100
11 × 14 inches
S041468
50
A3 (11.7 × 16.5 inches)
S041260
50
Super B (13 × 19 inches)
S041263
50
Epson Premium Presentation
Paper Matte Double-sided
Letter (8.5 × 11 inches)
S041568
50
Epson Presentation Paper Matte
Letter (8.5 × 11 inches)
S041062
100
Legal (8.5 × 14 inches)
S041067
100
B (11 × 17 inches)
S041070
100
Super B (13 × 19 inches)
S041069
100
Letter (8.5 × 11 inches)
S041636
20
Super B (13 × 19 inches)
S041637
20
Paper name
Size
Epson Ultra Premium Photo Paper
Luster
Epson Exhibition Fiber Paper
Epson Ultra Premium Presentation
Paper Matte
Epson Premium Presentation
Paper Matte
Epson Velvet Fine Art Paper
18 Loading Paper
Paper name
Size
Part
number
Sheet
count
Epson Watercolor Paper Radiant
White
Super B (13 × 19 inches)
S041351
20
Epson UltraSmooth Fine Art Paper
325 gsm
Super B (13 × 19 inches)
S041896
25
PremierArt Matte Scrapbook Photo
Paper for Epson
Letter (8.5 × 11 inches)
SCR1002
20
12 × 12 inches
SCR1003
10
Epson Exhibition Canvas Satin
13 inches × 20 feet
S045248
Roll
Epson Exhibition Canvas Matte
13 inches × 20 feet
S045255
Roll
Epson Bright White Paper
Letter (8.5 × 11 inches)
S041586
500
Epson Photo Quality Self-adhesive
Sheets
A4 (8.3 × 11.7 inches)
S041106
10
Epson Hot Press Bright
Letter (8.5 × 11 inches)
S042327
25
Super B (13 × 19 inches)
S042330
25
Letter (8.5 × 11 inches)
S042317
25
Super B (13 × 19 inches)
S042320
25
Letter (8.5 × 11 inches)
S042307
25
Super B (13 × 19 inches)
S042310
25
Letter (8.5 × 11 inches)
S042297
25
Super B (13 × 19 inches)
S042300
25
Epson Hot Press Natural
Epson Cold Press Bright
Epson Cold Press Natural
Loading Paper 19
Printing From Start to Finish
This section describes basic printing from your Windows® or Macintosh®
computer. For detailed instructions, see the online User’s Guide.
You can also print label designs directly onto ink jet-printable CDs or DVDs. See
page 30 and the online User’s Guide for details.
To print photos directly from a PictBridge®-compatible digital camera connected
to the R3000 Series, see the online User’s Guide.
Tip:
It’s a good idea to check for updates to your Epson Stylus Photo R3000 Series software.
See “Checking for Software Updates” on page 57 for instructions.
Printing in Windows
1. Open a photo or document in a printing program, and select the print option.
Select your Epson
product
Click here to open
your printer software
2. Select your product, then click the Preferences or Properties button.
Note:
If you see a Setup, Printer, or Options button, click it. Then click Preferences or
Properties on the next screen.
20 Printing From Start to Finish
3. On the Main tab, select the Media Type setting that matches the paper you
loaded (see page 28).
Note:
The available media types vary depending on the type of black ink currently
selected as the Ink setting. To avoid changing black ink more often than necessary,
switch the printer to the type of black ink you usually use (see page 43).
4. For the Color setting, select Color for any type of photographic printing. To
print black-and-white photos using Advanced B&W Photo mode, see your
online User’s Guide for instructions.
Printing From Start to Finish 21
5. For the Print Quality setting, select Speed, Quality, or Max Quality
(available with certain media types only), or select Quality Options to display
a window like this:
Use the Speed/Quality slider to set from the following quality levels:
■
LEVEL 1 for fast printing with draft quality.
■
LEVEL 2 for everyday text and image printing.
■
LEVEL 3 for photos and graphics with good print quality and speed.
■
LEVEL 4 for photos and graphics with high print quality and slower
speed.
■
LEVEL 5 for the best print quality and slowest print speed (best to use
for canvas media).
Then select from the following additional options, and click OK:
■
High Speed for fast, bidirectional printing at lower quality.
■
Edge Smoothing to improve the quality of low-resolution images.
■
Finest Detail for sharper edges on vector-based data including text,
graphics, and line art. (This setting does not affect photographs.)
6. Select one of the following as the Mode setting:
■
Epson Standard (sRGB) increases the contrast in images.
■
Adobe RGB matches images colors to the Adobe RGB color standard.
Use this setting if your source file was captured in Adobe RGB.
22 Printing From Start to Finish
Note:
For color management instructions, see http://www.epson.com/SPR3000Profiles.
For more information about print settings, click Help or see your online User’s
Guide.
7. Choose the paper Source in which you loaded your paper:
■
Sheet: for sheets of paper loaded in the sheet feeder.
■
Roll Paper: for photos or panoramics up to 27 inches (68.6 cm) long. If
desired, click Print page frame to print a cutting guideline around each
photo.
■
Roll Paper (Banner): for photos or banners over 27 inches (68.6 cm)
long. If desired, click Save Roll Paper to feed small amounts of roll
paper between each banner.
■
Front - Fine Art: for a sheet of compatible paper loaded in the manual
feed tray (see page 8 for loading instructions).
■
Front - Poster Board: for thick media loaded in the manual feed tray
(see page 14).
■
CD/DVD: for a disc loaded in the CD/DVD tray (see page 30 for printing
instructions).
8. Select the paper Size setting for the paper you loaded.
If you loaded roll paper, create a custom paper size. Select User Defined in
the Size menu, then click the User Defined button. Type a name for your
custom size. For the Paper Width, enter 12.95 for Super B-size rolls. For the
Paper Height enter the desired length up to 44 inches. Click Save, click OK,
then select your custom paper size in the Size menu.
Note:
For roll paper, make sure the maximum width of your photo is 13 inches to fit in the
width of your roll paper (set the margins to 0 in your application software).
9. If you’re printing borderless photos, select Borderless, if available. To adjust
the borderless expansion setting click Expansion.
10. To reduce or enlarge your printout or print double-sided, click the Page
Layout tab and select settings as necessary. (Click Help or see your online
User’s Guide for details.)
11. Click OK to save your settings.
12. Click OK or Print to start printing.
Printing From Start to Finish 23
This window appears and shows the progress of your print job.
Check ink
cartridge status
Cancel
printing
Note:
If you’re printing on roll paper, see page 13 for instructions on removing your printed
photos and paper.
Printing With Mac OS X
Follow the steps below to print from Mac OS® X 10.5 to 10.6.
1. Open a photo or document in a printing program, open the File menu, and
select Print.
2. Select your product as the Printer setting.
3. Click the arrow to expand the Print window, if necessary.
Select your Epson product
Click to expand
24 Printing From Start to Finish
4. Select the Paper Size setting for the paper size and source you are using:
■
To print a borderless photo, select a paper size with a Borderless option.
■
To print on roll paper, create a custom paper size. Select Manage
Custom Sizes as the Paper Size option. Click the + (plus sign), doubleclick Untitled and give your paper size a name. For the Width, enter
12.95 for Super B-size rolls. For the Height, enter the desired length up to
44 inches. Set the margins to 0 and click OK. Then select your custom
paper size in the size menu.
Note:
For roll paper, make sure the maximum width of your photo is set to 13 inches
to fit in the width of your roll paper (set the margins to 0 in your application
software).
■
To print on paper loaded in the manual feed tray, select a paper size with a
Front - FineArt (or Fr.-FineArt) option.
5. Choose portrait or landscape as the Orientation setting for your document or
photo.
6. Select Printer Settings from the pop-up menu.
Printing From Start to Finish 25
Note:
In certain programs, you may need to select Advanced before you can select
Printer Settings. For more information about print settings, click the ? button.
7. Select the Media Type setting that matches the paper you loaded (see
page 28).
Note:
The ink type will change depending on the size and type of paper you select. To
avoid changing black ink more often than necessary, switch the printer to the type
of black ink you usually use (see page 43).
8. For the Print Mode setting, select AccuPhoto HD2 for any type of
photographic printing. To print black-and-white photos using Advanced
B&W Photo mode, see your online User’s Guide for instructions.
9. Select one of the following as the Color Mode setting:
■
Epson Standard (sRGB) increases the contrast in images.
■
Adobe RGB matches images colors to the Adobe RGB color standard.
Use this setting if your source file was captured in Adobe RGB.
Note:
For color management instructions, see http://www.epson.com/SPR3000Profiles.
For more information about print settings, click Help or see your online User’s
Guide.
10. Select an Output Resolution setting (available settings depend on selected
media type):
■
Draft: for fast printing with draft quality
■
Fine - 720dpi: for everyday text and image printing
■
SuperFine - 1440dpi: for photos and graphics with good print quality
and speed
■
Photo - 1440dpi: for photos and graphics with high print quality and
slower speed
■
SuperPhoto - 5760dpi: for the best print quality and slowest print speed
(best to use for canvas media)
11. Click Print.
26 Printing From Start to Finish
12. To monitor your print job, click the
printer icon in the dock.
Cancel
printing
Pause or
resume
printing
Select the
print job
Note:
If you’re printing on roll paper, see page 13 for instructions on removing your printed
photos and paper, if necessary.
Printing From Start to Finish 27
Selecting the Correct Paper Type
Select the correct Media Type setting in your printer software (see page 21 for
Windows or page 26 for Mac OS). This adjusts ink coverage for your media.
Media usable with Photo Black ink (see page 43):
For this paper/media
Select this setting
Plain paper
Epson Bright White Paper
Plain Paper/Bright White Paper*
Epson Photo Paper Glossy
Photo Paper Glossy
Epson Premium Photo Paper Glossy
Epson Ultra Premium Photo Paper Glossy
Premium Photo Paper Glossy
Epson Premium Photo Paper Semi-gloss
Premium Photo Paper Semi-Gloss
Epson Ultra Premium Photo Paper Luster
Ultra Premium Photo Paper Luster
Epson Exhibition Fiber Paper**
Exhibition Fiber Paper
Epson Exhibition Canvas Satin
Exhibition Canvas Satin
Ink jet-printable CD or DVD
CD/DVD*
CD/DVD Premium Surface*
* Mac OS: When printing with Photo Black ink, select the PK (Photo Black) option.
** For the best results on this paper, print using a premium ICC profile, downloadable
from Epson at http://www.epson.com/SPR3000Profiles.
Media usable with Matte Black ink (see page 43):
For this paper/media
Select this setting
Plain paper
Epson Bright White Paper
Plain Paper/Bright White Paper*
Epson Presentation Paper Matte
Presentation Paper Matte
Epson Ultra Premium Presentation Paper
Matte
Ultra Premium Presentation Matte
Epson Premium Presentation Paper Matte
Epson Photo Quality Self-adhesive Sheets
Premium Presentation Paper Matte
Epson Premium Presentation Paper Matte
Double-sided
Double-Sided Matte Paper
28 Printing From Start to Finish
Media usable with Matte Black ink (see page 43):
For this paper/media
Select this setting
Epson Velvet Fine Art Paper
Velvet Fine Art Paper
Epson Watercolor Paper Radiant White
Watercolor Paper - Radiant White
Epson UltraSmooth Fine Art Paper 325 gsm
PremierArt Matte Scrapbook Photo Paper for
Epson
UltraSmooth Fine Art Paper
Epson Exhibition Canvas Matte
Exhibition Canvas Matte
Epson Hot Press Bright
Hot Press Bright
Epson Hot Press Natural
Hot Press Natural
Epson Cold Press Bright
Cold Press Bright
Epson Cold Press Natural
Cold Press Natural
Ink jet-printable CD or DVD
CD/DVD*
CD/DVD Premium Surface*
*
Mac OS: When printing with Matte Black ink, select the MK (Matte Black) option.
Printing From Start to Finish 29
Printing on CDs and DVDs
You can use your R3000 Series and the Epson Print CD software that came with it
to print label designs directly onto ink jet-printable CDs or DVDs. To prevent
errors, you should burn files, music, or video onto your CD or DVD before
printing.
Follow the steps in these sections:
■
“Loading a CD or DVD” on page 30
■
“Printing on a CD or DVD” on page 32
■
“Removing Your Printed CD/DVD” on page 34
Loading a CD or DVD
1. Turn on the printer.
2. Remove any roll paper or paper loaded in the sheet feeder. Close the rear
support if it’s open.
30 Printing on CDs and DVDs
3. Open the front cover, then push the center of the manual feed tray to extend
it.
4. Place your disc on the included CD/DVD tray with the label side up.
Note:
For small 8-cm discs, place the adapter on the tray and then place the disc in the
adapter.
12-cm discs
8-cm discs
5. Place the CD/DVD tray on the manual feed tray.
Printing on CDs and DVDs 31
6. Line up the arrows on the CD/DVD tray with the line on the manual feed
tray. Make sure the CD/DVD tray is flush against the right.
7. Press the OK button. The CD/DVD tray loads inside the printer.
Printing on a CD or DVD
When you installed the software for the R3000 Series, you installed the Epson
Print CD program for printing label designs directly onto CDs or DVDs. Follow
these steps to open the program and print on the disc you loaded in the printer:
1. Do one of the following to start Epson Print CD:
Windows: Double-click the Print CD icon on your desktop.
Mac OS X: Open the Applications folder, open the Epson Software folder,
open the Print CD folder, and double-click Print CD.
32 Printing on CDs and DVDs
2. Follow the instructions in the online User’s Guide to design your disc label.
You can use the tools on the screen to add text and provided background
designs, or add your own designs or photos.
Note:
If you’re using discs whose printable area extends to within 0.16 inch (4 mm) of the
edge of the center hole, you may need to adjust the Inner/Outer Diameter setting
in the File menu of the Epson Print CD software. See the program’s Help utility for
instructions.
3. When you’re ready to print on the disc, open the File menu and select Print.
You see one of these windows:
Windows
Mac OS X
4. Select your Epson printer, if necessary.
5. Click Print.
Printing on CDs and DVDs 33
Removing Your Printed CD/DVD
After your CD or DVD is printed, the tray ejects partially from the R3000 Series.
Pull out the tray and remove the disc.
After printing, handle the printed CD or DVD carefully. You may need to wait up
to 24 hours for the ink to dry fully before inserting it in a drive. Keep printed discs
away from moisture and direct sunlight.
If you need to adjust the print position or print quality, see your online User’s
Guide for instructions.
If you notice lines or streaks on your CD or DVD, you may need to clean the
rollers inside the printer. See “Cleaning the Rollers” on page 45.
34 Printing on CDs and DVDs
Maintaining Your Printer
Follow the steps in these sections to keep the R3000 Series working at its best:
■
“Checking and Cleaning the Print Head” below
■
“Checking and Aligning the Print Head” on page 37
■
“Checking the Ink Cartridge Status” on page 37
■
“Replacing Ink Cartridges” on page 39
■
“Switching Black Ink Types” on page 43
■
“Cleaning the Rollers” on page 45
Checking and Cleaning the Print Head
If your printouts are faint or have gaps in them, some of the nozzles in the print
head may be clogged or ink may be running low in one or more of the ink
cartridges. Follow the steps below to check the print head nozzles.
1. Load a few sheets of plain paper.
2. Press OK to open the menu screen.
3. Select Setup, select Maintenance, then select Nozzle Check.
4. Press OK to print a nozzle check pattern.
5. Check the nozzle check pattern that prints to see if there are gaps in the lines.
Nozzles are clean
Nozzles need cleaning
6. If there are no gaps, the print head is clean. Select Finish Nozzle Check to
continue printing.
If there are gaps or the pattern is faint, select Head Cleaning (see page 36).
Maintaining Your Printer 35
Cleaning the Print Head
If print quality has declined and the nozzle check indicates clogged nozzles, you
can clean the print head. Print head cleaning uses ink, so clean it only if necessary.
Note:
You cannot clean the print head if an ink cartridge is expended, and may not be able to
clean it when a cartridge is low. You must replace the cartridge first (see page 39).
1. Load a few sheets of plain paper.
2. Press OK to open the menu screen.
3. Select Setup, select Maintenance, then select Head Cleaning.
4. Press OK.
Cleaning lasts around 2 minutes. When it’s finished, you see a message on the
LCD screen.
Caution:
Never turn off the product during head cleaning or you may damage it.
5. Select Nozzle Check to confirm that the print head is clean.
Note:
If you don’t see any improvement after cleaning the print head four times, leave the
product on and wait at least six hours to let any dried ink soften. Then try cleaning the
print head again. If quality does not improve, one of the ink cartridges may need to be
replaced. If that doesn’t help, contact Epson as described on page 61.
If you do not use your product often, it is a good idea to print a few pages at least once
a month to maintain good print quality.
36 Maintaining Your Printer
Checking and Aligning the Print Head
If your printouts become grainy or blurry, or you see dark or light bands across
them, you may need to align the print head.
Note:
Banding may also occur if your print head nozzles need cleaning (see page 35).
1. Load a few sheets of Epson Presentation Paper Matte (or the photo paper you
have on hand) in the sheet feeder (see page 6). It’s best to use matte or photo
paper for the most accurate alignment.
2. Do one of the following:
Windows: Right-click the icon in the bottom right corner of your screen
(the taskbar) and select Print Head Alignment.
Mac OS X: Open the Applications folder, open the Epson Software folder,
and open EPSON Printer Utility 4. Select your printer, if necessary, then
select Print Head Alignment.
3. Follow the online instructions to print the alignment check patterns and align
the print head as necessary.
Checking the Ink Cartridge Status
Your R3000 Series will let you know when an ink cartridge is low or expended in
the following ways:
■
The H ink light flashes when ink is low in one or more cartridges.
■
The H ink light stays on when an ink cartridge is expended. You cannot print
when an ink cartridge is expended even if the other cartridges are not
expended. Replace any expended cartridges before printing.
■
Your computer screen displays a message when you try to print. This window
can optionally display ink offers and other updates retrieved from an Epson
website.
Tip:
It’s a good idea to check the ink status and replace cartridges, if necessary, before
printing a large print job. If you need to replace a cartridge while printing, you can
continue to print but you might notice a color difference depending on drying
conditions.
Maintaining Your Printer 37
Note:
On a Windows computer that is connected to the Internet, you may see a screen
asking if you want to receive Epson offers the first time you try to print when ink is low.
Click Accept or Decline. To disable checking for ink offers or updates from Epson, see
the instructions in your online User’s Guide.
To check the ink cartridge status at any time, do
one of the following:
Windows:
Double-click the icon in the bottom right
corner of your screen (the taskbar).
You see the screen to the right.
Mac OS X:
1. Open the Applications folder, then open
the Epson Software folder.
2. Open EPSON Printer Utility 4.
3. Select your printer, if necessary, then select
EPSON Status Monitor.
You see the screen to the right.
38 Maintaining Your Printer
Replacing Ink Cartridges
You can purchase genuine Epson ink and paper at Epson Supplies Central at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can
also purchase supplies from an Epson authorized reseller. To find the nearest one,
call 800-GO-EPSON (800-463-7766).
Use the following list when you order or purchase new ink cartridges:
Ink color
Part number
Part number on
software screens
Light Light Black
157
T1579
Vivid Light Magenta
157
T1576
Light Cyan
157
T1575
Light Black
157
T1577
Photo Black
157
T1571
Matte Black
157
T1578
Cyan
157
T1572
Vivid Magenta
157
T1573
Yellow
157
T1574
Note:
We recommend that you use genuine Epson cartridges and do not refill them. The use
of other products may affect your print quality and could result in printer damage.
Yields vary considerably based on images printed, print settings, paper type, frequency
of use, and temperature. For print quality, a small amount of ink remains in the cartridge
after the “replace cartridge” indicator comes on. The printer ships with full cartridges
and part of the ink from the first cartridges is used for priming the printer.
For best printing results, use up a cartridge within six months of opening the package.
Caution:
Do not open ink cartridge packages until you are ready to install the ink. Cartridges are
vacuum packed to maintain reliability.
Leave your old cartridges in the R3000 Series until you are ready to replace them to
prevent the print head nozzles from drying out.
Maintaining Your Printer 39
Make sure you have a new ink cartridge before you begin. You must install new
cartridges immediately after removing the old ones.
1. Open the printer cover, then open the ink cartridge cover.
2. Squeeze the tab on the cartridge and lift the cartridge straight up to remove it.
Dispose of it carefully. Do not take the used cartridge apart or try to refill it.
Warning:
If ink gets on your hands, wash them thoroughly with soap and water. If ink gets
into your eyes, flush them immediately with water. Keep ink cartridges out of the
reach of children.
40 Maintaining Your Printer
3. Before opening the cartridge package, shake the package four or five times.
Note:
Cartridges make a clicking sound when you shake them.
Caution:
Do not shake the cartridges after opening the packages or ink will leak.
4. Remove the cartridge from the package, but be careful not to touch the green
chip on the cartridge.
5. Remove the yellow tape from the bottom of the cartridge.
Caution:
Do not remove any other labels or seals, or ink will leak.
Maintaining Your Printer 41
6. Insert the new cartridge into the holder and push it down until it clicks into
place.
7. Close the cartridge cover, then close the printer cover.
Wait for the printer to check the ink cartridges and charge the ink delivery
system, if necessary.
Caution:
Never turn off the R3000 Series while ink is charging or you’ll waste ink.
If you remove a low or expended ink cartridge, you cannot reinstall and use the
cartridge.
42 Maintaining Your Printer
Switching Black Ink Types
Your printer comes with Matte Black and Photo Black ink cartridges. Although
both must be installed for the printer to work, the printer can use only one type of
ink at a time. The printer will switch ink automatically, depending on the type of
media you load. This consumes a certain amount of ink, so you should avoid
switching ink more often than necessary.
To conserve ink, you can select the type of ink that is available by default (see
page 44). First decide which type of media you usually print on. Then, if
necessary, switch to the type of ink that works with that media.
The following media use Matte Black ink:
■
Presentation Paper Matte
■
Premium Presentation Paper Matte
■
Epson Premium Presentation Paper Matte Double-sided
■
Ultra Premium Presentation Paper Matte
■
Velvet Fine Art Paper
■
Watercolor Paper Radiant White
■
UltraSmooth Fine Art Paper 325 gsm
■
Exhibition Canvas Matte
■
Photo Quality Self-adhesive Sheets
■
PremierArt Matte Scrapbook Photo Paper for Epson
■
Epson Hot Press Bright
■
Epson Hot Press Natural
■
Epson Cold Press Bright
■
Epson Cold Press Natural
Maintaining Your Printer 43
The following media use Photo Black ink:
■
Photo Paper Glossy
■
Premium Photo Paper Glossy
■
Ultra Premium Photo Paper Glossy
■
Premium Photo Paper Semi-gloss
■
Ultra Premium Photo Paper Luster
■
Exhibition Canvas Satin
■
Exhibition Fiber Paper
Select the Black Ink Type
Switching black ink takes several minutes. Because it consumes some of the new
type of ink, you should not switch ink more often than necessary.
1. Press OK to open the menu screen.
2. Press OK to select Change Black Ink. You see this screen:
Currently selected ink is
indicated with a green
bar
3. Press d to select the type of ink the printer will switch to, then press OK.
44 Maintaining Your Printer
Cleaning the Rollers
If you notice lines or streaks on your printouts, you may need to clean the rollers
inside the printer by feeding several sheets of plain paper through it.
Note:
If paper dust builds up on the rollers, they may lose traction and become unable to feed
paper properly. See your online User’s Guide for cleaning instructions.
1. Turn on the printer.
2. Open the paper support and output tray.
3. Load several sheets of plain paper in the sheet feeder (see page 6).
4. Press OK to open the menu screen.
5. Select Setup, select Maintenance, then select Cleaning Sheet.
6. Press OK to feed a sheet of paper through the printer.
7. Feed several sheets of paper to completely clean the rollers. Select Yes to feed
another sheet, or select No when you’re finished and the paper comes out
clean.
Maintaining Your Printer 45
Network Setup
Make sure you follow the instructions on the Start Here sheet to set up your
product, choose your connection, and install the software. The online instructions
during the installation process help you set up your network connection. Follow
the instructions in this chapter only if you need additional help:
■
For wireless network setup, see below.
■
For wired network (Ethernet) setup, see page 54.
Wireless Network Setup
The steps in this section provide detailed instructions for setting up your product
on a wireless network.
You will need to install the software on every computer that will print to your
product. Temporary use of a USB cable (not included) is recommended for the
first installation only. After the product is connected to the network, you will be
prompted to remove the USB cable.
If you are using Mac OS X 10.6 or don’t have a USB cable, you can use the
buttons on the product to select wireless settings instead.
Note:
If you have trouble setting up your product, see “Solving Problems” on page 57. You
can also watch a video tutorial at: www.epson.com/support/wireless.
■
If this is the first time that you’re installing the product, see “Installing for the
First Time” on page 47.
■
If your product is already on your wireless network and you need to set up
additional computers to print to the product, see “Setting Up Additional
Computers” on page 52.
46 Network Setup
Installing for the First Time
Before you begin, make sure that you have the following information ready and
write it in the space provided below:
■
Network name (SSID): _________________________________________
■
Network password: ____________________________________________
Note:
If your network password contains uppercase (ABC) or lowercase (abc) letters, be sure
to note them correctly. If you don’t know your network name (SSID) or network
password, contact the person who set up your wireless network.
1. Make sure your product is turned on.
2. Insert the product software CD.
3. Windows 7 and Windows Vista®: If you see the AutoPlay window, click Run
Setup.exe. When you see the User Account Control screen, click Yes or
Continue.
Windows XP: When you see the Software Installation screen, continue with
step 4.
Mac OS X: Double-click the
Epson icon.
4. When you see this screen, click Install.
Network Setup 47
5. When you see this screen, select Wireless connection and click Next.
6. When you see this screen, select Set up printer for the first time, then click
Next.
7. Mac OS X 10.6: At the next screen, click Next. Then skip to “Setting Up
With the Printer Buttons” on page 50 to set up the product without using a
temporary USB connection.
48 Network Setup
8. When you see this screen, select a wireless network setup method, then click
Next.
Tip:
If you need help selecting a wireless network setup method, click Which option
should I choose for more information on setup methods.
Do not connect the USB cable yet.
9. At the next screen, click Next.
10. Do one of the following:
■
If you selected Using temporary USB cable connection, continue
following the instructions on the screen.
■
If you selected Using printer buttons, continue with “Setting Up With
the Printer Buttons” on page 50.
Note:
If you see a firewall alert message, click Unblock or Allow to let EpsonNet Setup
continue, then click Next if necessary. Do not select Ask Me Later, Keep
Blocking, or Block.
Network Setup 49
Setting Up With the Printer Buttons
If you are using Mac OS X 10.6, or you don’t have a USB cable to set up the
product on your wireless network, follow these steps to set it up using the printer
buttons:
1. Follow the instructions on the screen to start the product’s wireless Setup
Wizard.
2. When you see this screen, use the printer buttons to select the name of your
wireless network, then press OK. When you’re finished, click Next.
If your network name isn’t listed, try the following:
■
Make sure that your wireless router or access point is turned on and
working correctly. Press y to return to the previous screen, press OK to
select Setup Wizard, then repeat step 2.
■
If you still can’t find the network name in the list, your router or access
point is not broadcasting its network name. Press u or d to select Other
SSIDs, then press OK. Continue with the steps in “Entering Your SSID
Manually” on page 52.
50 Network Setup
3. When you see this screen, do one of the following:
■
If your wireless network has security enabled, use the printer buttons to
enter your network password. If your password has uppercase (ABC) or
lowercase (abc) letters, be sure to enter them correctly. Then go to step 4.
■
If your wireless network doesn’t have security enabled, continue with
step 4.
Note:
If you’re having trouble entering your network password, click Watch video
overview to watch a short video tutorial on how to enter your network password.
4. Follow the online instructions to finish selecting network settings.
Note:
If you see a firewall alert message, click Unblock or Allow to let EpsonNet Setup
continue and click Next if necessary. Do not select Ask Me Later, Keep Blocking,
or Block.
If you see a network setup failed message, the network password may have
been entered incorrectly. If your password has uppercase (ABC) or lowercase
(abc) letters, or numbers (123), be sure to enter them correctly.
Note:
If the product still doesn’t connect to your wireless network, see “Network setup
failed” on page 60.
5. Wait while the software is installed, then follow the online instructions.
6. When installation is complete, remove the CD and restart your computer.
Network Setup 51
Entering Your SSID Manually
If your network doesn’t broadcast its name (SSID), follow these steps to enter it:
1. From the Select SSID screen on the product control panel, press u or d to
select Other SSIDs, then press OK.
2. Use the arrow buttons on the control panel to enter your network name. Press
u, d, l, or r to highlight a letter or function button on the screen (shown
below), then press OK to select it.
Use the function buttons to select uppercase (AB12), lowercase (ab12),
symbols (!#%@), or spaces ( ), and to delete characters ( ).
Important:
Network names are case-sensitive. Be sure to enter uppercase letters (ABC) or
lowercase letters (abc) correctly.
Function buttons
3. When you’re done entering your network name, highlight Done and press
OK.
4. Continue with step 3 on page 51 to enter your network password.
Setting Up Additional Computers
1. Make sure your product is turned on.
2. Insert the product software CD.
3. Windows 7 and Windows Vista: If you see the AutoPlay window, click
Run Setup.exe. When you see the User Account Control screen, click Yes
or Continue.
Windows XP: When you see the Software Installation screen, continue with
step 4.
52 Network Setup
Mac OS X: Double-click the
Epson icon.
4. When you see this screen, click Install.
5. When you see this screen, select Wireless connection and click Next.
Network Setup 53
6. When you see this screen, select The printer is already on my wireless
network, then click Next.
7. Wait while the software is installed.
8. Follow the instructions on the screen to install the rest of your software.
9. When installation is complete, remove the CD and restart your computer.
Wired (Ethernet) Network Setup
The steps in this section provide detailed instructions for setting up your product
on a wired (Ethernet) network.
Note:
If you’re having trouble setting up your product, see “Network Problems” on page 60.
1. Make sure your product is turned on.
Note:
If you previously set up the product on a wireless network, you must disable the
wireless connection before you can connect to a wired network. Press OK, then
select Setup, Network Settings, Wireless LAN Setup, Disable Wireless LAN.
Select Yes, then press OK.
2. Insert the product software CD.
3. Windows 7 and Windows Vista: If you see the AutoPlay window, click Run
Setup.exe. When you see the User Account Control screen, click Yes or
Continue.
Mac OS X: Double-click the
54 Network Setup
Epson icon.
4. When you see the Software Installation screen, click Install.
5. When you see this screen, select Wired network connection and click Next.
6. When you see the Network Setup screen, do one of the following:
■
For a first-time installation, select Set up printer for the first time, then
click Next.
■
If the printer has already been set up for network printing and you want
to be able to print from an additional computer, choose The printer is
already on my Ethernet network, then click Next.
7. For first-time installation only: Connect the product to your router, access
point, or hub with an Ethernet network cable, then click Next.
8. Mac OS X 10.6: Skip to step 15.
9. Wait while the software is installed, then click Next to start network
installation.
Network Setup 55
10. When you see the Firewall Warning screen, click Next.
Note:
If you see a firewall alert message, click Unblock or Allow to let EpsonNet Setup
continue and click Next if necessary. Do not select Ask Me Later, Keep Blocking,
or Block.
11. If you see a screen asking you to select a printer, select the product you would
like to set up, then click Next.
12. Wait while EpsonNet Setup configures your product for the network.
13. If you see an Installation Complete screen that includes a Print Test Page
button, click it to print a test page.
14. Click Finish.
15. Follow the instructions on the screen to install the rest of your software.
16. When installation is complete, remove the CD and restart your computer.
56 Network Setup
Solving Problems
If you have a problem with your Epson product, check the messages on the LCD
screen to diagnose the cause. You can also check the basic troubleshooting
suggestions below or in your online User’s Guide. The User’s Guide provides
detailed help and easy access to Epson’s support website, FAQs, and paper and ink
purchasing.
Checking for Software Updates
Periodically, it’s a good idea to check Epson’s support website
for free updates to your Epson Stylus Photo R3000 Series
software. Open your online User’s Guide and select Download
the Latest Software or visit Epson’s support website at
epson.com/support (U.S.) or epson.ca/support (Canada).
With Windows, you can select Driver Update on the Utility tab in the printer
settings window. You can also click Start or , select Programs or All
Programs, select EPSON, and click Epson Stylus Photo R3000 Driver
Update.
Problems and Solutions
Check the solutions below if you’re having trouble using your printer.
Printing Problems
■
Make sure your paper is loaded printable side up, short edge first, and all the
way to the right (see page 6 and page 8).
■
When using the sheet feeder, don’t load paper above the arrow mark on the
left edge guide.
Solving Problems 57
■
When using the manual feed tray, load only one sheet of compatible paper
(see page 8).
■
Make sure the paper size settings in the printer software are correct for the
paper you loaded.
Paper Feeding Problems
■
If paper doesn’t feed into the sheet feeder, remove the paper and fan the stack
of paper to separate the sheets. Reload paper against the right side and slide
the edge guide against it. Do not load too many sheets in the sheet feeder at
once (see page 6).
■
If paper dust builds up on the rollers, they may lose traction and become
unable to feed paper properly. See your online User’s Guide for cleaning
instructions.
■
If you can’t insert paper easily into the manual feed tray, make sure the paper is
perfectly flat and not curled.
■
Make sure the manual feed tray is not extended if you’re printing on roll paper
or with the sheet feeder. Extend it only to load fine art paper or poster board.
Once the media is fed into the printer and you see a message on the screen,
close the manual feed tray.
■
If roll paper doesn’t feed, cut the end of it straight across and uncurl the end
by rolling it backward, if necessary. Then reload the paper (see page 11).
■
If thick media doesn’t feed, make sure you’re loading it straight into the
printer and not at an incline (see page 14).
■
If paper is jammed, try the following, depending on how you’re printing:
Sheet feeder: Open the printer cover and remove any paper jammed inside.
Press OK to clear the error.
Roll paper slot: Cut off any printed roll paper and then cut the paper close to
the roll. Gently pull out the paper from the front or back (whichever is easier)
and press OK to clear the error.
Manual feed tray: Gently pull out the paper from the front or back
(whichever is easier) and press OK to clear the error.
If you still see an error message, turn off the printer and then turn it back on.
58 Solving Problems
CD/DVD Printing Problems
■
If the CD/DVD tray won’t load or jams in the printer, gently pull out the
CD/DVD tray and press OK. Reload the CD/DVD tray, making sure to
insert the tray correctly in the tray guide and align the arrows (see page 32).
■
If your image is not positioned correctly on the disc or does not cover the
printable area correctly, you may need to adjust the printing position using the
Epson Print CD software. See the online User’s Guide for instructions.
■
If ink smears on your disc, make sure you’re printing on ink jet-printable CDs
or DVDs and that the surface of the disc is dry. Handle printed discs carefully
and let them dry for 24 hours before inserting them in a drive. If necessary,
you can adjust the print quality using Epson Print CD software. See the
on-screen User’s Guide for instructions.
Print Quality Problems
■
For the best print quality, use Epson papers (see page 16) and genuine Epson
ink cartridges (see page 39).
■
Load the paper printable side up (usually the whiter, brighter, or glossy side).
■
Make sure your paper isn’t damp or curled.
■
Some papers can only be loaded one sheet at a time (see page 6).
■
Make sure the type of paper you loaded matches the paper size and paper type
settings in your printer software (see page 28).
■
Remove sheets from the output tray as they eject. Let your prints dry
separately for at least 12 hours before framing or placing in a protective sheet.
If you need to stack them, place a sheet of plain paper between each print.
■
If you notice light or dark bands across your printouts or they are too faint,
you may need to clean the print head. Run a nozzle check and clean the print
head if necessary (see page 35).
■
If you notice jagged vertical lines, run the print head alignment utility to
check and align the print head (see page 37).
■
The ink cartridges may be low on ink. Check cartridge status (see page 37)
and replace cartridges if necessary (see page 39).
Solving Problems 59
Network Problems
If you have a poor wireless connection, try moving the product to a different
location. Avoid placing it next to a microwave oven, 2.4 GHz cordless phone, or
large metal object such as a filing cabinet.
Note:
For optimal print speed, your wireless router and/or laptop must conform to the 802.11n
standard. Earlier standards (802.11a/b/g) are not supported.
Network setup failed
■
Try moving the product to a different location.
■
Make sure there aren’t any access restrictions (such as MAC address filtering)
set on the wireless router. If access restrictions are set, register the product’s
MAC address on the router. Print a Network Status Sheet (see below) to
obtain the MAC address. Then see your router’s manual for instructions.
■
If your wireless router doesn’t broadcast its network name (SSID), see page 52
for instructions on manually entering your wireless network name.
■
If your wireless router has security enabled, make sure you entered the WEP
key or WPA passphrase correctly.
■
Remove and reinsert the CD to reinstall your product software. (See page 46
if you need detailed instructions.)
The WiFi icon appears on the LCD screen but you cannot print
■
Make sure your firewall or security software is not set to block port 3690
(TCP/UDP). Contact your firewall manufacturer for assistance.
■
Your router might not be assigning IP addresses automatically using DHCP.
If it isn’t, you will need to set the product’s IP address manually. Make sure it
is set correctly for your network.
Print a Network Status Sheet
1. Press OK to open the menu screen, then press l or r and select Setup.
2. Press u or d and select Network Settings.
3. Press u or d and select Confirm Network Settings.
4. Press OK to print the status sheet.
60 Solving Problems
Where to Get Help
Epson Technical Support
Internet Support
Visit Epson’s support website at epson.com/support (U.S.) or epson.ca/support
(Canada) and select your product for solutions to common problems. You can
download drivers and documentation, get FAQs and troubleshooting advice, or
e-mail Epson with your questions.
Speak to a Support Representative
Before you call Epson for support, please have the following information ready:
■
Product name (Epson Stylus Photo R3000 Series)
■
Product serial number (located on the label in back)
■
Proof of purchase (such as a store receipt) and date of purchase
■
Computer configuration
■
Description of the problem
Then call:
■
U.S.: (562) 276-7272, 6 AM to 8 PM, Pacific Time, Monday through Friday,
and 7 AM to 4 PM, Saturday
■
Canada: (905) 709-2567, 6 AM to 8 PM, Pacific Time, Monday through
Friday
Days and hours of support are subject to change without notice. Toll or long
distance charges may apply.
Purchase Supplies and Accessories
You can purchase genuine Epson ink and paper at Epson Supplies Central at
www.epson.com/ink3 (U.S. sales) or www.epson.ca (Canadian sales). You can
also purchase supplies from an Epson authorized reseller. To find the nearest one,
call 800-GO-EPSON (800-463-7766).
Solving Problems 61
Notices
Important Safety Instructions
Before using your R3000 Series, read and follow these safety instructions:
■
Be sure to follow all warnings and instructions marked on the R3000 Series.
■
Use only the type of power source indicated on the R3000 Series label.
■
Place the R3000 Series near a wall outlet where the plug can be easily unplugged.
■
If you won’t be using the R3000 Series for a long period, unplug the power cord from
the electrical outlet.
■
Always turn off the R3000 Series using the P power button, and wait until the
P power light stops flashing before unplugging the printer or cutting off power to the
electrical outlet.
■
Avoid plugging the R3000 Series into an outlet on the same circuit as a photocopier
or air control system that regularly switches on and off, or on an outlet controlled by a
wall switch or timer.
■
Do not let the power cord become damaged or frayed.
■
If you use an extension cord with the R3000 Series, make sure the total ampere rating
of the devices plugged into the extension cord does not exceed the cord’s ampere
rating. Also, make sure the total ampere rating of all devices plugged into the wall
outlet does not exceed the wall outlet’s ampere rating.
■
Avoid locations that are subject to rapid changes in heat or humidity, shocks or
vibrations, or dust.
■
Leave enough room around the R3000 Series for sufficient ventilation. Do not block
or cover openings in the R3000 Series case or insert objects through the slots.
■
Do not place the R3000 Series near a radiator or heating vent or in direct sunlight.
■
Do not use aerosol products that contain flammable gases inside or around the R3000
Series. Doing so may cause fire.
■
Place the R3000 Series on a flat, stable surface that extends beyond its base in all
directions. It will not operate properly if it is tilted or at an angle.
■
Make sure the R3000 Series is at least 4 inches (10 cm) away from the wall.
■
Do not touch the flat white cable inside the R3000 Series.
■
Be careful not to spill liquid on the R3000 Series.
62 Notices
■
Except as specifically explained in your documentation, do not attempt to service the
R3000 Series yourself.
■
Unplug the R3000 Series and refer servicing to qualified service personnel under the
following conditions: if the power cord or plug is damaged; if liquid has entered the
product; if the product has been dropped or the case damaged; if the product does not
operate normally or exhibits a distinct change in performance. Adjust only those
controls that are covered by the operating instructions.
■
When storing or transporting the R3000 Series, do not tilt it, stand it on its side, or
turn it upside down; otherwise ink may leak from the cartridges.
Ink Cartridge Safety
■
Keep ink cartridges out of the reach of children and do not drink the ink.
■
Be careful when you handle used ink cartridges; there may be ink remaining around
the ink supply port. If ink gets on your skin, wash it off with soap and water. If it gets
in your eyes, flush them immediately with water.
■
Do not put your hand inside the R3000 Series or touch any cartridges during
printing.
■
Install a new ink cartridge immediately after removing an expended one. Leaving
cartridges uninstalled can dry out the print head and may prevent the R3000 Series
from printing.
■
If you remove an ink cartridge for later use, protect the ink supply area from dirt and
dust and store it in the same environment as the R3000 Series. Note that there is a
valve in the ink supply port, making covers or plugs unnecessary, but care is needed to
prevent the ink from staining items that the cartridge touches. Do not touch the ink
cartridge ink supply port or surrounding area. Do not store the cartridge upside
down.
LCD Screen Safety
■
Use only a dry, soft cloth to clean the LCD screen. Do not use liquid or chemical
cleansers.
■
If the LCD screen is damaged, contact Epson. If the liquid crystal solution gets on
your hands, wash them thoroughly with soap and water. If the liquid crystal solution
gets into your eyes, flush them immediately with water. If discomfort or vision
problems remain after a thorough flushing, see a doctor immediately.
Notices 63
Wireless Network Safety
■
Do not use this product inside medical facilities or near medical equipment. Radio
waves from the product may adversely affect the operation of medical equipment.
■
Keep this product at least 9 inches (22 cm) away from cardiac pacemakers. Radio
waves from this product may adversely affect their operation.
■
Do not use this product near automatically controlled devices such as automatic doors
or fire alarms. Radio waves from this product may adversely affect these devices.
Epson America, Inc., Limited Warranty
What Is Covered: Epson America, Inc. (“Epson”) warrants to the original retail purchaser
that the Epson printer covered by this limited warranty statement, if purchased and
operated only in the United States, Canada, or Puerto Rico, will be free from defects in
workmanship and materials for a period of one (1) year from the date of original purchase.
For warranty service, you must provide proof of the date of original purchase.
What Epson Will Do To Correct Problems: Should your Epson printer prove defective
during the warranty period, please call the Epson Connection at (562) 276-7272 (U.S.) or
(905) 709-2567 (Canada) for warranty repair instructions and return authorization. An
Epson service technician will provide telephone diagnostic service to determine whether
the printer requires service. If service is needed, Epson will, at its option, exchange or
repair the printer without charge for parts or labor. If Epson authorizes an exchange for the
defective unit, Epson will ship a replacement printer to you, freight prepaid, so long as you
use an address in the United States, Canada, or Puerto Rico. Shipments to other locations
will be made freight collect. You are responsible for securely packaging the defective unit
and returning it to Epson within five (5) working days of receipt of the replacement.
Epson requires a debit or a credit card number to secure the cost of the replacement
printer in the event that you fail to return the defective one. If Epson authorizes repair
instead of exchange, Epson will direct you to send your printer to Epson or its authorized
service center, where the printer will be repaired and sent back to you. You are responsible
for packing the printer and for all costs to and from the Epson authorized service center.
When warranty service involves the exchange of the printer or a part, the item replaced
becomes Epson property. The replacement printer or part may be new or refurbished to
the Epson standard of quality, and, at Epson's option, may be another model of like kind
and quality. Exchange products and parts assume the remaining warranty period of your
original product covered by this limited warranty.
What This Warranty Does Not Cover: This warranty covers only normal use in the
United States, Canada, or Puerto Rico. Using this product for continuous production or
similar high duty purposes is not considered normal use; damage, maintenance or service
from such use will not be covered under this warranty. This warranty is not transferable.
64 Notices
This warranty does not cover any color change or fading of prints or reimbursement of
materials or services required for reprinting. This warranty does not cover damage to the
Epson product caused by parts or supplies not manufactured, distributed or certified by
Epson. This warranty does not cover ribbons, ink cartridges or third party parts,
components, or peripheral devices added to the Epson product after its shipment from
Epson, e.g., dealer or user-added boards or components. Epson is not responsible for
warranty service should the Epson label or logo or the rating label or serial number be
removed or should the product fail to be properly maintained or fail to function properly
as a result of misuse, abuse, improper installation, neglect, improper shipping, damage
caused by disasters such as fire, flood, and lightning, improper electrical current, software
problems, interaction with non-Epson products, or service other than by an Epson
Authorized Servicer. If a claimed defect cannot be identified or reproduced, you will be
held responsible for the costs incurred.
THE WARRANTY AND REMEDY PROVIDED ABOVE ARE EXCLUSIVE AND IN
LIEU OF ALL OTHER EXPRESS OR IMPLIED WARRANTIES INCLUDING, BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY,
NON-INFRINGEMENT OR FITNESS FOR A PARTICULAR PURPOSE. SOME
LAWS DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES. IF
THESE LAWS APPLY, THEN ALL EXPRESS AND IMPLIED WARRANTIES ARE
LIMITED TO THE WARRANTY PERIOD IDENTIFIED ABOVE. UNLESS
STATED HEREIN, ANY STATEMENTS OR REPRESENTATIONS MADE BY ANY
OTHER PERSON OR FIRM ARE VOID. IN NO EVENT SHALL EPSON OR ITS
AFFILIATES BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OR INABILITY
TO USE THE EPSON PRODUCT, WHETHER RESULTING FROM BREACH OF
WARRANTY OR ANY OTHER LEGAL THEORY. IN NO EVENT SHALL EPSON
OR ITS AFFILIATES BE LIABLE FOR DAMAGES OF ANY KIND IN EXCESS OF
THE ORIGINAL RETAIL PURCHASE PRICE OF THE PRODUCT.
In Canada, warranties include both warranties and conditions.
Some jurisdictions do not allow limitations on how long an implied warranty lasts, and
some jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations and exclusions may not apply to you. This warranty
gives you specific legal rights and you may have other rights which vary from jurisdiction
to jurisdiction.
To find the Epson Authorized Reseller nearest you, visit our website at:
http://www.epson.com
To find the Epson Customer Care Center nearest you, visit
http://www.epson.com/support
You can also write to:
Epson America, Inc., P.O. Box 93012, Long Beach, CA 90809-3012
Notices 65
Declaration of Conformity
According to 47CFR, Part 2 and 15 for: Class B Personal Computers and Peripherals;
and/or CPU Boards and Power Supplies used with Class B Personal Computers:
We:
Located at:
Epson America, Inc.
MS 3-13
3840 Kilroy Airport Way
Long Beach, CA 90806
Telephone: (562) 290-5254
Declare under sole responsibility that the product identified herein, complies with 47CFR
Part 2 and 15 of the FCC rules as a Class B digital device. Each product marketed is
identical to the representative unit tested and found to be compliant with the standards.
Records maintained continue to reflect the equipment being produced can be expected to
be within the variation accepted, due to quantity production and testing on a statistical
basis as required by 47CFR §2.909. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Trade Name:
Epson
Type of Product: Ink jet printer
Model:
B471A
66 Notices
FCC Compliance Statement
For United States Users
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio or
television reception. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio and television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
■
Reorient or relocate the receiving antenna.
■
Increase the separation between the equipment and receiver.
■
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
■
Consult the dealer or an experienced radio/TV technician for help.
WARNING
The connection of a non-shielded equipment interface cable to this equipment will
invalidate the FCC Certification of this device and may cause interference levels which
exceed the limits established by the FCC for this equipment. It is the responsibility of the
user to obtain and use a shielded equipment interface cable with this device. If this
equipment has more than one interface connector, do not leave cables connected to
unused interfaces. Changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
For Canadian Users
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Notices 67
68 Notices
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
