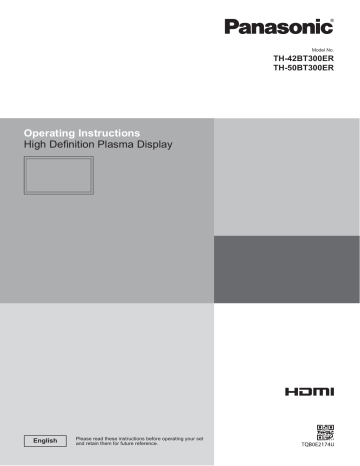

Operating Instructions High Definition Plasma Display

Operating Instructions High Definition Plasma Display
Model No.
TH-42BT300ER
TH-50BT300ER
Operating Instructions
High Denition Plasma Display
English
Please read these instructions before operating your set
and retain them for future reference.
Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many years of
enjoyment from your new Plasma Display.
To obtain maximum benefit from your set, please read these Instructions before making
any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the model number and serial number of
your set in the space provided on the rear cover of these instructions.
Visit our Panasonic Web Site
http://panasonic.net
Table of Contents
Important Safety Notice ........................................... 3
Safety Precautions ................................................... 4
3D Safety Precautions ............................................. 7
Accessories .............................................................. 9
Accessories Supply ................................................. 9
Remote Control Batteries ........................................ 9
Connections ............................................................ 10
Speaker connection ............................................... 10
AC cord connection and xing, cable xing ........... 10
Video equipment connection ..................................11
VIDEO and COMPONENT / RGB IN connection ...11
HDMI connection ................................................... 12
DVI-D IN connection .............................................. 12
PC Input Terminals connection .............................. 13
SERIAL Terminals connection ............................... 14
Power On / Off......................................................... 15
Selecting the input signal ...................................... 18
Basic Controls ........................................................ 19
ASPECT Controls ................................................... 21
Digital Zoom ............................................................ 22
Viewing 3D images ................................................. 23
To view the 3D images .......................................... 23
Troubleshooting for 3D Eyewear .......................... 24
Table of images that can be seen for each 3D
Picture Format and the source image format ........ 24
On-Screen Menu Displays ..................................... 25
Adjusting Pos. /Size ............................................... 26
Picture Adjustments ............................................... 29
Advanced settings ................................................. 31
Colour space adjustment (Colour gamut) .............. 33
Picture Proles ....................................................... 35
Saving proles ....................................................... 36
Loading proles ..................................................... 37
Editing proles ....................................................... 38
Sound Adjustment .................................................. 39
SDI Sound Output ................................................. 39
Setup menu ............................................................. 40
Component / RGB-in select ................................... 40
YUV / RGB-in select .............................................. 40
External scaler mode ............................................. 41
Power save ............................................................ 42
2
Standby save ......................................................... 42
PC Power management ........................................ 42
DVI-D Power management ................................... 42
No signal power off ................................................ 42
No activity power off .............................................. 42
OSD design ........................................................... 43
OSD position ......................................................... 43
OSD Language ...................................................... 43
3D Settings ............................................................ 44
Signal menu .......................................................... 45
Waveform Monitor ................................................. 47
Marker settings ...................................................... 48
RGB/MONO settings ............................................. 50
Screensaver .......................................................... 51
Extended life settings ............................................ 53
Customizing the Input labels ................................. 56
Function Button Settings ....................................... 56
Day/Time Setup / On/Off Timer Setup ................... 57
Network Setup ....................................................... 58
Options Adjustments ............................................. 59
3D Safety Precautions (To hide 3D Safety
Precautions) ......................................................... 61
Audio input select .................................................. 62
Using FUNCTION button ........................................ 63
Using Network Function ........................................ 65
Example of Network Connection ........................... 65
Command Control ................................................. 65
PJLink™ Protocol .................................................. 66
Using Web Browser Control .................................. 67
Before Using Web Browser Control....................... 67
Access from Web Browser .................................... 67
Display Control (BASIC CONTROL/OPTION
CONTROL Screen) ............................................... 68
NETWORK SETTING (Network Setup Screen) .... 69
Password Setting (Password Setup Screen) ........ 69
Troubleshooting ..................................................... 70
List of Aspect Modes ............................................. 71
Applicable Input Signals ........................................ 72
ID Remote Control Function .................................. 73
Shipping condition ................................................. 74
Specications ......................................................... 75
Important Safety Notice
WARNING
1) To prevent damage which may result in re or shock hazard, do not expose this appliance to dripping
or splashing.
Do not place containers with water (ower vase, cups, cosmetics, etc.) above the set. (including on
shelves above, etc.)
No naked ame sources, such as lighted candles, should be placed on / above the set.
2) To prevent electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualied
service personnel.
3) Do not remove the earthing pin on the power plug. This apparatus is equipped with a three pin earthing-type
power plug. This plug will only t an earthing-type power outlet. This is a safety feature. If you are unable to
insert the plug into the outlet, contact an electrician.
Do not defeat the purpose of the earthing plug.
4) To prevent electric shock, ensure the earthing pin on the AC cord power plug is securely connected.
CAUTION
This appliance is intended for use in environments which are relatively free of electromagnetic elds.
Using this appliance near sources of strong electromagnetic elds or where electrical noise may overlap with the
input signals could cause the picture and sound to wobble or cause interference such as noise to appear.
To avoid the possibility of harm to this appliance, keep it away from sources of strong electromagnetic elds.
IMPORTANT: THE MOULDED PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This display is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is
tted in this plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10
amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
ASA
or the BSI mark
on the body of the fuse.
If the plug contains a removable fuse cover, you must ensure that it is retted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement cover is obtained.
A replacement fuse cover can be purchased from your local Panasonic dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this display.
The supplied mains lead and moulded plug are designed to be used with this display to avoid
interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualied electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING : — THIS DISPLAY MUST BE EARTHED.
How to replace the fuse. Open the fuse compartment with a screwdriver and replace the fuse.
Trademark Credits
• VGA is a trademark of International Business Machines Corporation.
• Macintosh is a registered trademark of Apple Inc., USA.
• SVGA, XGA, SXGA and UXGA are registered trademarks of the Video Electronics Standard Association.
Even if no special notation has been made of company or product trademarks, these trademarks have been fully respected.
• HDMI, the HDMI Logo, and High-Denition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
Note:
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention
to remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
3
Safety Precautions
WARNING
Setup
This Plasma Display is for use only with the following optional accessories. Use with any other type of optional
accessories may cause instability which could result in the possibility of injury.
(All of the following accessories are manufactured by Panasonic Corporation.)
• Speakers ........................................................................ TY-SP42P8W-K (for TH-42BT300ER),
TY-SP50P8W-K (for TH-50BT300ER)
• Pedestal ......................................................................... TY-ST20-K
• Mobile stand ................................................................... TY-ST58PF20
• Wall-hanging bracket (vertical) ....................................... TY-WK42PV20
• Wall-hanging bracket (angled) ....................................... TY-WK42PR20
• Ceiling-hanging bracket ................................................. TY-CE42PS20
• BNC Dual Video Terminal Board .................................... TY-FB9BD
• HD-SDI Terminal Board .................................................. TY-FB9HD
• HD-SDI Terminal Board with audio ................................ TY-FB10HD
• Dual Link HD-SDI Terminal Board .................................. TY-FB11DHD
• Dual HD-SDI Terminal Board for 3D .............................. TY-FB30DHD3D
• Dual HDMI Terminal Board ............................................ TY-FB10HMD
• DVI-D Terminal Board .................................................... TY-FB11DD
• Dual DVI-D Terminal Board for 3D ................................. TY-FB30DD3D
• AV Terminal Box ............................................................. TY-TB10AV
• 3D IR TRANSMITTER ................................................... TY-3D30TRW
Always be sure to ask a qualied technician to carry out set-up.
Small parts can present choking hazard if accidentally swallowed. Keep small parts away from young children. Discard
unneeded small parts and other objects, including packaging materials and plastic bags/sheets to prevent them from
being played with by young children, creating the potential risk of suffocation.
Do not place the Plasma Display on sloped or unstable surfaces, and ensure that the Plasma Display does
not hang over the edge of the base.
• The Plasma Display may fall off or tip over.
Do not place any objects on top of the Plasma Display.
• If water is spills onto the Plasma Display or foreign objects get inside it, a short-circuit may occur which could result
in re or electric shock. If any foreign objects get inside the Plasma Display, please consult your local Panasonic
dealer.
Transport only in upright position!
• Transporting the unit with its display panel facing upright or downward may cause damage to the internal
circuitry.
Ventilation should not be impeded by covering the ventilation openings with items such as newspapers, table
cloths and curtains.
For sufcient ventilation;
If using the pedestal (optional accessory), leave a space of 10 cm or more at the top, left and right, and 7 cm
or more at the rear, and also keep the space between the bottom of the display and the oor surface.
If using some other setting-up method, follow the manual of it. (If there is no specic indication of installation
dimension in the installation manual, leave a space of 10 cm or more at the top, bottom, left and right, and 7 cm
or more at the rear.)
4
Safety Precautions
When using the Plasma Display
The Plasma Display is designed to operate on 220 - 240 V AC, 50/60 Hz.
Do not cover the ventilation holes.
• Doing so may cause the Plasma Display to overheat, which can cause re or damage to the Plasma Display.
Do not stick any foreign objects into the Plasma Display.
• Do not insert any metal or ammable objects into the ventilations holes or drop them onto the Plasma Display, as
doing so can cause re or electric shock.
Do not remove the cover or modify it in any way.
• High voltages which can cause severe electric shocks are present inside the Plasma Display. For any inspection,
adjustment and repair work, please contact your local Panasonic dealer.
Ensure that the mains plug is easily accessible.
An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
Do not use any power supply cord other than that provided with this unit.
• Doing so may cause re or electric shocks.
Securely insert the power supply plug as far as it will go.
• If the plug is not fully inserted, heat may be generated which could cause re. If the plug is damaged or the wall
socket is loose, they shall not be used.
Do not handle the power supply plug with wet hands.
• Doing so may cause electric shocks.
Do not do anything that may damage the power cable. When disconnecting the power cable, pull on the plug body, not the cable.
• Do not damage the cable, make any modications to it, place heavy objects on top of it, heat it, place it near any
hot objects, twist it, bend it excessively or pull it. To do so may cause re and electric shock. If the power cable is
damaged, have it repaired at your local Panasonic dealer.
If the Plasma Display is not going to be used for any prolonged length of time, unplug the power supply plug
from the wall outlet.
To prevent the spread of re, keep candles or other open ames away from this product at all times.
If problems occur during use
If a problem occurs (such as no picture or no sound), or if smoke or an abnormal odour starts to come out
from the Plasma Display, immediately unplug the power supply plug from the wall outlet.
• If you continue to use the Plasma Display in this condition, re or electric shock could result. After checking that
the smoke has stopped, contact your local Panasonic dealer so that the necessary repairs can be made. Repairing
the Plasma Display yourself is extremely dangerous, and shall never be done.
If water or foreign objects get inside the Plasma Display, if the Plasma Display is dropped, or if the cabinet
becomes damages, disconnect the power supply plug immediately.
• A short circuit may occur, which could cause re. Contact your local Panasonic dealer for any repairs that need to be made.
5
Safety Precautions
CAUTION
When using the Plasma Display
Do not bring your hands, face or objects close to the ventilation holes of the Plasma Display.
• Heated air comes out from the ventilation holes at the top of Plasma Display will be hot. Do not bring your hands
or face, or objects which cannot withstand heat, close to this port, otherwise burns or deformation could result.
Be sure to disconnect all cables before moving the Plasma Display.
• If the Plasma Display is moved while some of the cables are still connected, the cables may become damaged,
and re or electric shock could result.
Disconnect the power supply plug from the wall socket as a safety precaution before carrying out any
cleaning.
• Electric shocks can result if this is not done.
Clean the power cable regularly to prevent it becoming dusty.
• If dust built up on the power cord plug, the resultant humidity can damage the insulation, which could result in re.
Pull the power cord plug out from the wall outlet and wipe the mains lead with a dry cloth.
Do not burn or breakup batteries.
• Batteries must not be exposed to excessive heat such as sunshine, re or the like.
This Plasma Display radiates infrared rays, therefore it may affect other infrared communication equipment.
Install your infrared sensor in a place away from direct or reected light from your Plasma Display.
Cleaning and maintenance
The front of the display panel has been specially treated. Wipe the panel surface gently using only a cleaning
cloth or a soft, lint-free cloth.
• If the surface is particularly dirty, wipe with a soft, lint-free cloth which has been soaked in pure water or water in
which neutral detergent has been diluted 100 times, and then wipe it evenly with a dry cloth of the same type until
the surface is dry.
• Do not scratch or hit the surface of the panel with ngernails or other hard objects, otherwise the surface may
become damaged. Furthermore, avoid contact with volatile substances such as insect sprays, solvents and thinner,
otherwise the quality of the surface may be adversely affected.
If the cabinet becomes dirty, wipe it with a soft, dry cloth.
• If the cabinet is particularly dirty, soak the cloth in water to which a small amount of neutral detergent has been
added and then wring the cloth dry. Use this cloth to wipe the cabinet, and then wipe it dry with a dry cloth.
• Do not allow any detergent to come into direct contact with the surface of the Plasma Display. If water droplets get
inside the unit, operating problems may result.
• Avoid contact with volatile substances such as insect sprays, solvents and thinner, otherwise the quality of the
cabinet surface may be adversely affected or the coating may peel off. Furthermore, do not leave it for long periods
in contact with articles made from rubber or PVC.
6
Safety Precautions
3D Safety Precautions
WARNING
Small Parts
3D Eyewear contains small parts (battery and specialised band, etc.) and must be kept out of reach of small
children to avoid accidental ingestion.
Disassembly
Do not disassemble or modify the 3D Eyewear.
Lithium Battery
Batteries must not be exposed to excessive heat such as sunshine, re or the like.
CAUTION
To enjoy 3D images safely and comfortably, please read these instructions fully.
Use for commercial applications and public viewing
Someone in authority should responsibly convey the precautions for use of the 3D Eyewear to the user.
3D Eyewear
Do not drop, exert pressure on, or step on the 3D Eyewear.
Always store the 3D Eyewear in the case provided when not in use.
Be careful of the tips of the frame when putting on the 3D Eyewear.
Be careful not to trap a nger in the hinge section of the 3D Eyewear.
Pay special attention when children are using the 3D Eyewear.
3D Eyewear should not be used by children younger than 5 - 6 years old, as a guideline.
All children must be fully supervised by parents or guardians who must ensure their safety and health
throughout the using 3D Eyewear.
7
Safety Precautions
Viewing 3D Content
Content for 3D viewing includes commercially available Blu-ray discs, 3D broadcasts, etc.
When preparing your own 3D content, ensure that it is properly produced.
Do not use the 3D Eyewear if you have a history of over-sensitivity to light, heart problems, or have any other
existing medical conditions.
Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or experience any other
uncomfortable sensation.
Take an appropriate break after viewing a 3D movie.
Take a break of between 30 - 60 minutes after viewing 3D content on interactive devices such as 3D games
or computers.
Be careful not to strike the screen or other people unintentionally. When using the 3D Eyewear the distance
between the user and screen can be misjudged.
The 3D Eyewear must only be worn when viewing 3D content.
If you do not look toward the screen for a while when viewing 3D images, the 3D Eyewear may be turned off
automatically.
If you suffer from any eyesight problems (short / far-sighted, astigmatism, eyesight differences in left and
right), please ensure to correct your vision before using the 3D Eyewear.
Stop using the 3D Eyewear if you can clearly see double images when viewing 3D content.
Do not use the 3D Eyewear at a distance less than the recommended distance.
View from at least the recommended distance (3 times the effective height of the screen).
Recommended distance
TH-42BT300ER: 1.6 m
TH-50BT300ER: 1.9 m
When the top and bottom area of the screen is blackened, such as movies, view the screen at a distance
3 times further than the height of the actual image. (That makes the distance closer than above recommended
gure.)
3D Eyewear Use
Before using the 3D Eyewear, ensure no breakable objects surrounding the user to avoid any accidental
damage or injury.
Remove the 3D Eyewear before moving around to avoid falling or accidental injury.
Always put the 3D Eyewear in the case (supplied) after use.
Use the 3D Eyewear only for the intended purpose and nothing else.
Do not use 3D Eyewear in the condition of high temperature.
Do not use if the 3D Eyewear is physically damaged.
Do not use any devices that emit the infrared signals near the 3D Eyewear, as this may cause the 3D Eyewear
false operations.
Do not use devices (such as mobile phones or personal transceivers) that emit strong electromagnetic waves
near the 3D Eyewear as this may cause the 3D Eyewear to malfunction.
Stop using the 3D Eyewear immediately if a malfunction or fault occurs.
Stop using the 3D Eyewear immediately if you experience any redness, pain, or skin irritation around the nose
or temples.
In rare cases, the materials used in the 3D Eyewear may cause an allergic reaction.
Lithium Battery
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
8
Accessories
Accessories Supply
Check that you have the accessories and items shown
Operating Instruction book
CD-ROM
(Operating
instructions)
Power supply cord
Remote Control
Transmitter
N2QAYB000689
Clamper × 1
TMME289
Batteries for the Remote
Control Transmitter
(R6 (UM3) Size × 2)
Ferrite core × 2
J0KG00000014
Use the Ferrite cores to comply
with the EMC standard.
(see page 65)
Remote Control Batteries
Requires two R6 batteries.
1. Pull and hold the hook, then open
the battery cover.
2. Insert batteries - note correct
polarity ( + and -).
Close
Open
Hook
“R6 (UM3)” size
Helpful Hint:
For frequent remote control users, replace old batteries with Alkaline
batteries for longer life.
Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Disposal of batteries should be in an environment-friendly manner.
Observe the following precaution:
1. Batteries shall always be replaced as a pair. Always use new batteries when replacing the old set.
2. Do not combine a used battery with a new one.
3. Do not mix battery types (example: “Zinc Carbon” with “Alkaline”).
4. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
5. Battery replacement is necessary when remote control acts sporadically or stops operating the Plasma Display set.
6. Do not burn or breakup batteries.
Batteries must not be exposed to excessive heat such as sunshine, re or the like.
9
Connections
Speaker connection
When connecting the speakers, be sure to use only the optional accessory speakers.
Refer to the speaker’s Installation Manual for details on speaker installation.
1
Speakers (Optional accessories)
Red
Black
While pressing the lever,
insert the core wire.
2
Red
Speaker
terminal (L)
Speaker terminal (R)
Black
Return the lever.
AC cord connection (see page 15)
AC cord connection and xing, cable xing
AC cord xing
Unplug the AC cord
Unplug the AC cord pressing the
two knobs.
Note:
When disconnecting the AC cord, be
absolutely sure to disconnect the AC
cord plug at the socket outlet rst.
When using the Wall-hanging bracket (vertical)
Note:
When using the Wall-hanging bracket (vertical)(TY-WK42PV20), use the holes
and
to secure the cables. If the clamper is used on the hole
, the cables may
be caught by the wall-hanging bracket.
Plug the AC cord into the display unit.
Plug the AC cord until it clicks.
Note:
Make sure that the AC cord is locked on
both the left and right sides.
Using the clamper
Secure any excess cables with clamper as required.
Note:
One clamper is supplied with this unit. In case of securing cables at three positions, please purchase it separately.
1 Attach the clamper
To remove from the unit:
2 Bundle the cables
To loosen:
hole
snaps
Insert the clamper
in a hole.
10
Keep pushing
both side
snaps
hooks
Set the
tip in the
hooks
knob
Keep
pushing
the knob
Connections
Video equipment connection
3D IR TRANSMITTER:
Connect the 3D IR
TRANSMITTER
(optional accessory).
SERIAL: Control the
Plasma Display
by connecting
to PC (see
page 14)
SLOT: Terminal board (optional
accessories) insert slot (see
page 4)
Note:
The right side slot is for factory
use only. The terminal board with
1-slot width does not function
when installed in the right side
slot.
LAN: Connect to a network to control the unit. (see
Terminals are on the
bottom side of the
Plasma Display.
page 64)
AV IN (VIDEO): Composite Video Input Terminal (see below)
COMPONENT/RGB IN: Component/RGB Video Input Terminal
(see below)
AV IN (HDMI): HDMI Input Terminal (see page 12)
Connect to video equipment such as VCR or DVD player.
DVI-D IN: DVI-D Input Terminal
(see page 12)
PC IN: PC Input Terminal
Connect to video terminal of PC
or equipment with Y, PB(CB) and
PR(CR) output (see page 13).
VIDEO and COMPONENT / RGB IN connection
Note:
Additional equipment, cables and adapter plugs
shown are not supplied with this set.
L
R
AUDIO
OUT
VCR
VIDEO
OUT
RCA-BNC
Adapter plug
Notes:
RCA-BNC
Adapter plug
• Change the “Component/RGB-in select” setting in the “Setup”
menu to “Component” (when Component signal connection) or
“RGB” (when RGB signal connection). (see page 40)
• Signals input to COMPONENT/RGB IN terminals correspond to
Sync on G or Sync on Y.
Y
PB
PR
DVD Player
Y, PB, PR,
OUT
Computer
RGB Camcorder
L
R
AUDIO
OUT
11
Connections
HDMI connection
[Pin assignments and signal names]
Signal name
Pin No.
1
2
3
4
5
6
7
8
9
10
Pin No.
11
T.M.D.S Data2+
T.M.D.S Data2
Shield
T.M.D.S Data2T.M.D.S Data1+
T.M.D.S Data1
Shield
T.M.D.S Data1T.M.D.S Data0+
T.M.D.S Data0
Shield
T.M.D.S Data0T.M.D.S Clock+
Signal name
T.M.D.S Clock
Shield
12
T.M.D.S Clock-
13
CEC
14
Reserved
(N.C. on device)
15
16
17
18
19
SCL
SDA
DDC/CEC
Ground
+5V Power
Hot Plug Detect
19
18
3 1
HDMI cable
4 2
HDMI
AV OUT
DVD player
Note:
Additional equipment and HDMI cable shown are not supplied with this set.
DVI-D IN connection
Shared with PC IN.
PC with DVI-D
video out
DVI-video cable (Within 5 m)
Stereo mini plug (M3)
DVI-D Input Connector
Pin Layouts
1
Pin No.
8
9
16
17
24
Connection port view
1
2
3
4
5
6
7
8
9
10
11
12
Signal Name
T.M.D.S. data 2T.M.D.S. data 2+
T.M.D.S. data 2 shield
DDC clock
DDC data
T.M.D.S. data 1T.M.D.S. data 1+
T.M.D.S. data 1 shield
Pin No.
13
14
15
16
17
18
19
20
21
22
23
24
Signal Name
+5 V DC
Ground
Hot plug detect
T.M.D.S. data 0T.M.D.S. data 0+
T.M.D.S. data 0 shield
T.M.D.S. clock shield
T.M.D.S. clock+
T.M.D.S. clock-
Notes:
• Additional equipment and cables shown are not supplied with this set.
• Use the DVI-D cable complying with the DVI standard. Image deterioration may occur depending on the length or
the quality of the cable.
12
Connections
PC Input Terminals connection
(Female)
Shared with DVI-D IN.
COMPUTER
Audio
Stereo mini plug (M3)
Connect a cable which matches
the audio output terminal on the computer.
Conversion adapter
(if necessary)
Mini D-sub 15p
RGB
PC cable
(Male)
Notes:
• With regard to the typical PC input signals that are described in the applicable input signals list (see page 72), adjustment
values such as for the standard picture positions and sizes have already been stored in this unit. You can add up to eight
PC input signal types that are not included in the list.
• Computer signals which can be input are those with a horizontal scanning frequency of 15 to 110 kHz and vertical scanning
frequency of 48 to 120 Hz. (However, the image will not be displayed properly if the signals exceed 1,200 lines.)
• The display resolution is a maximum of 1,440 × 1,080 dots when the aspect mode is set to “4:3”, and 1,920 × 1,080
dots when the aspect mode is set to “16:9”. If the display resolution exceeds these maximums, it may not be possible
to show ne detail with sufcient clarity.
• The PC input terminals are DDC2B-compatible. If the computer being connected is not DDC2B-compatible, you will
need to make setting changes to the computer at the time of connection.
• Some PC models cannot be connected to the set.
• There is no need to use an adapter for computers with DOS/V compatible Mini D-sub 15P terminal.
• The computer shown in the illustration is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
• Do not set the horizontal and vertical scanning frequencies for PC signals which are above or below the specied
frequency range.
• Component Input is possible with the pin 1, 2, 3 of the Mini D-sub 15P Connector.
• To use sync input VBS signals, use the connector which incorporates a 75-ohm termination resistance and which is
available on the market, for the connection of the HD connector where the VBS signals are to be input.
• Change the “Component/RGB-in select” setting in the “Setup” menu to “Component”
(when Component signal connection) or “RGB” (when RGB signal connection). (see page 40)
Signal Names for Mini D-sub 15P Connector
5
4
10 9
3
2
8
1
7
6
15 14 13 12 11
Pin No.
Signal Name
Pin No.
Signal Name
Pin No.
Signal Name
1
R (PR/CR)
6
GND (Ground)
11
NC (not connected)
2
G (Y)
7
GND (Ground)
12
SDA
3
B (PB/CB)
8
GND (Ground)
13
HD/SYNC
4
NC (not connected)
9
+5 V DC
14
VD
5
GND (Ground)
10
GND (Ground)
15
SCL
Pin Layout for PC Input
Terminal
13
Connections
SERIAL Terminals connection
The SERIAL terminal is used when the Plasma Display is controlled by a computer.
Note: To use serial control for this unit, make sure to set the “Control I/F Select” in the “Network Setup” menu to
“RS-232C”. (see page 58)
(Male)
COMPUTER
9
5
RS-232C Straight cable
8
4
7
3
6
2
1
Pin layout for SERIAL Terminal
(Female)
D-sub 9p
Notes:
• Use the RS-232C straight cable to connect the computer to the Plasma Display.
• The computer shown is for example purposes only.
• Additional equipment and cables shown are not supplied with this set.
The SERIAL terminal conforms to the RS-232C interface
specication, so that the Plasma Display can be controlled
by a computer which is connected to this terminal.
The computer will require software which allows the
sending and receiving of control data which satisfies
the conditions given below. Use a computer application
such as programming language software. Refer to the
documentation for the computer application for details.
Communication parameters
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
Flow control
C1 C2 C3
Start
(02h)
:
P1 P2 P3 P4 P5
Details
RXD
TXD
GND
Non use
(Shorted in this set)
NC
Command
Command
PON
POF
AVL
AMT
IMS
ETX
Colon
Parameter(s)
(1 - 5 bytes)
3-character
command (3 bytes)
End
(03h)
Notes:
• If multiple commands are transmitted, be sure to wait for
the response for the rst command to come from this unit
before sending the next command.
• If an incorrect command is sent by mistake, this unit will
send an “ER401” command back to the computer.
• S1A and S1B of Command IMS are available only when
a dual input terminal board is attached.
• Consult your local Panasonic dealer for detail instructions
on command usage.
14
Pin No.
2
3
5
4 • 6
7
8
1 • 9
These signal names are those of computer specications.
RS-232C compliant
Asynchronous
9600 bps
None
8 bits
1 bit
-
Basic format for control data
The transmission of control data from the computer
starts with a STX signal, followed by the command, the
parameters, and lastly an ETX signal in that order. If there
are no parameters, then the parameter signal does not
need to be sent.
STX
Signal names for D-sub 9P connector
DAM
Parameter
None
None
**
0
1
None
SL1
S1A
S1B
VD1
YP1
HM1
DV1
PC1
None
ZOOM
FULL
JUST
NORM
ZOM2
ZOM3
SJST
SNOM
SFUL
14:9
Control details
Power ON
Power OFF
Volume 00 - 63
Audio MUTE OFF
Audio MUTE ON
Input select (toggle)
SLOT input (SLOT INPUT)
SLOT input (SLOT INPUT A)
SLOT input (SLOT INPUT B)
VIDEO input (VIDEO)
COMPONENT/RGB IN input
(COMPONENT)
HDMI input (HDMI)
DVI-D IN input (DVI)
PC IN input (PC)
Screen mode select (toggle)
Zoom, Zoom1
16:9
Just, Just1 (For Video/SD/HD signal)
4:3, 4:3 (1)
Zoom2 (For Video/SD/HD signal)
Zoom3 (For Video/SD/HD signal)
Just2 (For HD signal)
4:3 (2) (For HD signal)
4:3 Full (For HD signal)
14:9 (For Video/SD/HD signal)
With the power off, this display responds to PON command
only.
Power On / Off
Connecting the AC cord plug to the Plasma Display.
Connecting the plug to the Wall Outlet
Notes:
• Main plug types vary between countries. The power
plug shown at right may, therefore, not be the type
tted to your set.
• When disconnecting the AC cord, be absolutely
sure to disconnect the AC cord plug at the socket
outlet rst.
INPUT
MENU
-/
VOL
+/
ENTER/
Power Indicator
Press the Power switch on the Plasma Display to
turn the set on: Power-On.
Remote Control Sensor
Power Indicator: Green
Press the
button on the remote control to turn the Plasma Display off.
Power Indicator: Red (standby)
Press the
button on the remote control to turn the Plasma Display on.
Power Indicator: Green
Turn the power to the Plasma Display off by pressing the
unit, when the Plasma Display is on or in standby mode.
switch on the
Note:
During operation of the power management function, the power indicator turns
orange in the power off state.
15
Power On / Off
When rst switching on the unit
Following screen will be displayed when the unit is turned on for the rst time.
Select the items with the remote control. Unit buttons are invalid.
OSD Language
1
OSD Language
Select the language.
English (UK)
2
Set.
Deutsch
Français
Italiano
Español
ENGLISH (US)
Day/Time Setup
1
Select “Day” or “Time”.
Day/Time Setup
2
Setup “Day” or “Time”.
Set
Time MON 99:99
Day
Time
1
Select “Set”.
Day/Time Setup
Set.
Set
Day
PRESENT TIME OF DAY
Time
PRESENT
TIME OF DAY
MON
99:99
Time MON 99:99
2
Notes:
• Once the items are set, the screens won't be displayed when switching on the unit next time.
• After the setting, the items can be changed in the following menus.
OSD Language (see page 43)
Day/Time Setup (see page 57)
16
MON
99:99
99:99
Power On / Off
Power ON warning message
The following message may be displayed when turning the unit power ON:
3D Safety Precautions
When 3D images will be viewed by unspecied number of
people or used for commercial applications, someone in
authority should convey the following precautions.
These precautions should be followed in the home as well.
3D Viewing/ 3D Content/ Viewing distance/ 3D Eyewear
recommendations
- To enjoy 3D images safely and comfortably, please
read the Operating Instructions fully.
Activate 3D Safety Precautions if you deliver 3D images to unspecied audiences for business or other purposes.
If “3D Function” in “3D Settings” is set to “On”, a warning message is displayed every time the power is
turned ON. (see page 44)
No activity power off Precautions
’No activity power off’ is enabled.
If “No activity power off” in Setup menu is set to “Enable”, a warning message is displayed every time
the power is turned ON. (see page 42)
These message displays can be set with the following menu: Options menu
3D Safety Precautions (see page 61)
Power On Message (see page 61)
17
Selecting the input signal
Press to select the input signal to be played back from the equipment
which has been connected to the Plasma Display.
INPUT
VIDEO
COMPONENT
HDMI
DVI
PC
Video input terminal in AV IN (VIDEO).
Component or RGB input terminal in COMPONENT/RGB IN.*
HDMI input terminal in AV IN (HDMI).
DVI input terminal in DVI-D IN.
PC input terminal in PC IN.
* “COMPONENT” may be displayed as “RGB” depending on the
setting of “Component/RGB-in select”. (see page 40)
When an optional Terminal Board is installed:
INPUT
SLOT INPUT
VIDEO
COMPONENT
Input terminal in Terminal Board
When a dual input Terminal Board is installed, “SLOT INPUT A” and “SLOT INPUT B”
are displayed.
HDMI
DVI
PC
Using dedicated buttons for input selection
Press to select HDMI signal terminals in HDMI.
Press to select DVI signal terminal in DVI-D IN.
Press to select component or RGB signal terminal in COMPONENT/RGB IN.
Press to select PC signal terminal in PC IN.
Press to select Input terminal in Terminal Board.
For a dual input terminal board, pressing it allows selection between “SLOT INPUT A”
and “SLOT INPUT B”.
Notes:
• Selecting is also possible by pressing the INPUT button on the unit.
• Select to match the signals from the source connected to the component/
RGB input terminals. (see page 40)
• Image retention (image lag) may occur on the plasma display panel
when a still picture is kept on the panel for an extended period. The
function that darkens the screen slightly is activated to prevent image
retention (see page 70), but this function is not the perfect solution to
image retention.
18
INPUT
MENU
-/
VOL
+/
INPUT
ENTER/
MENU
-/
VOL
+/
ENTER/
Basic Controls
Main Unit
Remote control sensor
Volume Adjustment
Volume Up “+” Down “–”
When the menu screen is
displayed:
“+” : press to move the cursor up
“–” : press to move the cursor down
(see page 25)
INPUT
MENU
-/
Main Power On / Off Switch
Power Indicator
The Power Indicator will light.
• Power-OFF .... Indicator not illuminated (The unit will
still consume some power as long as
the power cord is still inserted into the
wall outlet.)
• Standby ........ Red
Orange (When “Slot power” is set to
“On”. See page 60)
Orange (Depending on the type of
the function board installed, when the
power is supplied to the slot)
Orange (When “Control I/F Select” is
set to “LAN”. See page 58)
• Power-ON ...... Green
• PC Power management (DPMS)
.......................Orange (With PC input signal.
See page 42)
• DVI-D Power management
.......................Orange (With DVI input signal.
See page 42)
VOL
+/
ENTER/
Enter / Aspect button
(see page 21, 25)
MENU Screen ON / OFF
Each time the MENU button is pressed, the menu
screen will switch. (see page 25)
Normal Viewing
Sound
Pos./Size
Setup
INPUT button
(INPUT signal selection)
(see page 18)
19
Basic Controls
Remote Control Transmitter
Standby (ON / OFF) button
The Plasma Display must rst be plugged
into the wall outlet and turned on at the power
switch (see page 15).
Press this button to turn the Plasma Display
On, from Standby mode. Press it again to turn
the Plasma Display Off to Standby mode.
LIGHT button
The remote control’s buttons illuminate.
AUTO SETUP button
Automatically adjusts the position/ size
of the screen. (see page 27)
HDMI button
Press to select HDMI input.
(see page 18)
DVI button
Press to select DVI-D input. (see page 18)
PICTURE button
(see page 29)
RECALL button
Press the “RECALL” button to display
the current system status.
1 Input label
2 Aspect mode (see page 21)
During 3D images (see page 44)
Audio input (see page 62)
Prole name (see page 37)
NANODRIFT Saver operating
(see page 54)
Mode of RGB/MONO settings
(see page 50)
Mode of HV Delay (see page 28)
3D Colour Compensation: Off
(see page 44)
3 Off timer
The off timer indicator is displayed
only when the off timer has been set.
PC
1
4:3
3D
COMPONENT
2
Memory name: Memory2
NANODRIFT
R Off
H Delay
3D Colour Compensation Off
Off timer
90min
3
INPUT button
Press to select input signal sequentially.
(see page 18)
MEM. LOAD button
(see page 37)
20
PC button
Press to select PC input. (see page 18)
ASPECT button
Press to adjust the aspect. (see page 21)
SLOT buttons
Press to select SLOT Terminal
Board. (see page 18)
COMPO. button
Press to select Component or RGB
input. (see page 18)
MENU button
Displays menu screen. (see page 25)
POS. /SIZE button
(see page 26)
OK button
Press to make selections.
Cursor buttons
RETURN button (see page 25)
Press the RETURN button to return
to previous menu screen.
FUNCTION buttons
(see page 63)
VIDEO MENU button
Press to select Picture Mode.
(see page 30)
Normal
Dynamic
Monitor
Cinema
FUNCTION buttons
(see page 63)
Numeric buttons
(see page 37)
ASPECT Controls
The Plasma Display will allow you to enjoy viewing the picture at its maximum size, including wide screen cinema
format picture.
Note:
Be aware that if you put the display in a public place for commercial purposes or a public showing
and then use the aspect mode select function to shrink or expand the picture, you may be violating
the copyright under copyright law. It is prohibited to show or alter the copyrighted materials of other
people for commercial purposes without the prior permission of the copyright holder.
Press repeatedly to move through the aspect options:
For details about the aspect mode, please see “List of Aspect Modes” (page 71).
For VIDEO (S VIDEO) signal input:
4:3
Zoom1
Zoom2
Zoom3
16:9
14:9
Just
[from the unit]
The aspect mode changes each time the ENTER button is pressed.
INPUT
MENU
-/
VOL
+/
For PC signal input:
4:3
Zoom
ENTER/
16:9
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3
Zoom1
Zoom2
Zoom3
16:9
14:9
Just
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i,
750 (720) / 60p • 50p]:
Notes:
• The aspect mode is memorized separately for
4:3
Zoom2
4:3 Full
Zoom1
each input terminal.
16:9
Zoom3
Just
14:9
• Do not allow the picture to be displayed in 4:3
[For 3D images]
mode for an extended period, as this can cause
a permanent image retention to remain on the
The aspect is xed as “16:9” and you cannot switch.
Plasma Display Panel.
All Aspect mode
Set “All Aspect” to “On” in Options menu to enable the extended aspect mode (page 60). When All Aspect mode, the aspect
mode of pictures is switched as follows. For details about the aspect mode, please see “List of Aspect Modes”. (page 71)
For VIDEO (S VIDEO) signal input:
4:3
Zoom1
For PC signal input:
4:3
Zoom
Zoom2
16:9
Zoom3
16:9
14:9
Just
For SD signal input (525 (480) / 60i • 60p, 625 (575) / 50i • 50p):
4:3
Zoom1
Zoom2
Zoom3
16:9
14:9
Just
For HD signal input [1125 (1080) / 60i • 50i • 60p • 50p • 24p • 25p • 30p • 24sF, 1250 (1080) / 50i, 750 (720) / 60p • 50p]:
4:3 Full
Zoom1
Zoom2
Zoom3
16:9
14:9
Just1
Just2
4:3 (1)
4:3 (2)
21
Digital Zoom
This displays an enlargement of the designated part of the displayed image.
To use this function, go to “Function Button Settings” in the Setup menu and
set this function to the FUNCTION button (see page 56).
1
1
Display the operation guide.
Exit
Press to access Digital Zoom.
The operation guide will be displayed.
During Digital Zoom, only the following buttons can be operated.
[Unit]
INPUT
MENU
-/
VOL
+/
ENTER/
VOL button
2
Select the area of the image to be enlarged.
Press on the enlargement location to select.
The cursor will move.
2
Exit
3
Select the magnication required for the enlarged display.
Each time this is pressed, the magnication factor changes.
This is shown in the image being displayed.
s1
4
s2
Return to normal display (quit Digital Zoom).
or
Press to exit from the Digital Zoom.
Notes:
• When power goes OFF (including “Off Timer” operation), Digital Zoom terminates.
• The Digital Zoom function cannot be selected while in the following operation state:
When Screensaver is running (see page 51).
• While Digital Zoom is in operation, “Adjusting Pos./Size” cannot be used.
22
s3
s4
Viewing 3D images
You can enjoy viewing 3D images with contents or programmes compatible with 3D effect by using the 3D eyewear
(optional).
Note:
You need the 3D IR TRANSMITTER (optional) and the 3D eyewear (optional) to view the 3D images on this display.
For further information, see the instruction manuals of the 3D IR TRANSMITTER and the 3D eyewear.
This display supports “Frame Sequential*1”, “Side by Side*2”, “Top and Bottom*3” and “Simultaneous*4” 3D formats.
*1: The 3D format that the images for the left and right eyes are recorded with the high denition quality and alternately played back
*2, *3: See “Table of images that can be seen for each 3D Picture Format and the source image format” on page 24.
*4: To view “Simultaneous” 3D images, one of the following terminal boards should be installed:
Dual HD-SDI Terminal Board for 3D (TY-FB30DHD3D), Dual DVI-D Terminal Board for 3D (TY-FB30DD3D)
To view the 3D images
To view the contents of the Frame Sequential format (ex. 3D-compatible Blu-ray Disc, etc.) with 3D effect
Connect the 3D-compatible player via an HDMI cable (see page 12) and playback the contents.
• Use fully wired HDMI compliant cable.
• For the settings of the player, read the manual of the player.
• If you use the non 3D-compatible player, the images will be displayed without 3D effect.
To view the contents of 3D formats other than Frame Sequential with 3D effect.
Match the picture format in “3D Picture Format” (see page 44) before viewing.
• You can view “Side by Side” and “Top and Bottom” with 3D effect even if you use the non 3D-compatible player.
• Please consult the suppliers of contents or programmes for availability of this service.
Turn the 3D Eyewear on
• See the instruction manual of 3D eyewear for handling.
Put on the 3D Eyewear
Watch the 3D images
Notes:
• If the room is lit by uorescent lights and light appears to icker when using the 3D Eyewear, switch off the
uorescent light. Alternatively, please set “3D Refresh Rate” to “100Hz” or “120Hz” whichever reduces icker.
(see page 46)
• 3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.
• Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as
computer screens, digital clocks or calculators, etc.) may be difcult to see while wearing the 3D Eyewear.
• Do not use the 3D Eyewear as sunglasses.
• 3D effects may be perceived differently depending on the person.
23
Viewing 3D images
Troubleshooting for 3D Eyewear
Symptoms
Checks
Cannot see 3D images
3D Eyewear is turned off automatically
There is something wrong with the 3D
images
• Has the 3D Eyewear been switched On?
• Ensure that “3D Function” in “3D Settings” is set to “On”. (see page 44)
• Some 3D image signals may not be automatically recognized as 3D
images. Set “3D Picture Format” in “3D Settings” to match the picture
format. (see page 44)
• Check if 3D IR TRANSMITTER is turned on and corrected properly.
• Check that there are no obstacles between the 3D IR TRANSMITTER
and the 3D Eyewear. If the 3D Eyewear stops receiving the infrared
signal for about 5 minutes, the 3D Eyewear will be turned off
automatically.
• Check the available area to use the 3D Eyewear.
• Depending on the person, the 3D images may be difcult to see,
or cannot be seen, especially in users that have a different level of
eyesight between the left and right eyes.
Take the necessary steps (wearing glasses etc.) to correct your
eyesight before use.
• Check that there are no obstacles between the 3D IR TRANSMITTER
and the 3D Eyewear or that the 3D Eyewear is placed inside the
coverage area. If the 3D Eyewear stops receiving the infrared signal
for about 5 minutes, the 3D Eyewear will be turned off automatically.
• Switch “Reverse” and “Normal” under “3D Picture Sequence” in “3D
Settings” (see page 44).
Indicator lamp will not light when the 3D • The battery may be running low or at. Change the battery or charge
glasses are turned ON.
the 3D glasses.
Table of images that can be seen for each 3D Picture
Format and the source image format
If the picture appears to be abnormal, refer to the table below to choose the correct 3D picture format setting.
3D Picture Format
Source image
format
Auto
Side by Side
*1
Normal*2
Top and Bottom
Native
Side by side
Top and bottom
*1
Normal*2
Normal format
(2D)
Normal
*1
Normal
When the source image is not recognized correctly
When “3D Function” is set to “On”, the images will be displayed with 3D effect. When set to “Off”, displayed
without 3D effect.
• Depending on the player or contents, the image may be different from the above illustrations.
*2
24
On-Screen Menu Displays
Remote Control
1 Display the menu screen.
MENU
2
Access
1
Select
Normalise
Setup
Picture Mode
Pos./Size
Contrast
Sound
Brightness
0
Sharpness
0
Each time the MENU button is pressed,
the menu screen will switch.
Normal Viewing
Setup
Sound
Pos. /Size
Monitor
White balance
Options
Press several times.
Press
2 Select the menu.
Unit
Warm
Advanced settings
Memory save
Memory load
The menu can be displayed directly by pressing
these buttons. (see page 26, 29)
Memory edit
3 Select the item.
Select.
Normalise
Monitor
Picture Mode
Contrast
25
Brightness
0
Sharpness
5
White balance
Press.
Select
Warm
Advanced settings
(Example: Picture menu)
4 Set.
Adjust.
Adjust
5 Exit the menu.
Press.
Press several times.
Press
MENU
Press
to return to the previous menu.
Menu display list
Note: Menu that cannot be adjusted is grayout. Adjustable menu changes depending on signal, input and menu setting.
Setup menu
Picture menu
Normalise
Picture Mode
Cinema
Pos. /Size menu
3D Settings
Normalise
Signal
Auto Setup
Normalise
Contrast
20
Waveform Monitor
H-Pos
0
Brightness
0
0
0
V-Pos
0
Hue
0
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
H-Size
Colour
V-Size
0
Sharpness
5
Extended life settings
White balance
Advanced settings
Normal
Input label
Function Button Settings
Memory save
Memory load
0
Clock Phase
0
0
Sound Mode
Bass
Mid
Treble
Balance
Surround
Volume
1:1 Pixel Mode
Off
HV Delay
Off
Normal
0
0
0
0
Off
1
see page 39
Network Setup
Component/RGB-in select
RGB
Memory edit
see page 29-38
Dot Clock
Clamp Position
On/Off Timer Setup
Day/Time Setup
Sound menu
External scaler mode
Off
Power save
Standby save
Off
On
PC Power management
Off
DVI-D Power management
Off
No signal power off
Disable
No activity power off
Disable
Type1
OSD design
OSD position
OSD Language
see page 26-28
Upper left
English (UK)
see page 40-58
25
Adjusting Pos. /Size
1 Display the menu screen.
2 Select “Pos. /Size”.
2
access
1
select
2
adjust
1
select
Setup
Pos. /Size
Sound
3 Select the item and set.
Normalise
Auto Setup
H-Pos
0
H-Size
0
V-Pos
0
V-Size
0
Dot Clock
0
Clock Phase
0
0
Clamp Position
1:1 Pixel Mode
Off
HV Delay
Off
Note:
Unadjustable items are grayed out.
Adjustable items differ depending on the input signal and the display mode.
4 Exit the menu.
or
To display a menu for adjustment of the Pos. /Size
menu on the bottom of the screen
H-Pos
0
To hide the menu
2
adjust or select
1
select the menu
or
Notes:
• Adjustment details are memorized separately for different input signal formats (Adjustments for component signals are
memorized for 525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 1125 (1080) / 60i · 50i · 60p · 50p · 24p · 25p · 30p · 24sF,
1250 (1080) / 50i, 750 (720) / 60p · 50p each, and RGB/PC/Digital signals are memorized for each frequency.)
• If a “Cue” or “Rew” signal from a VCR or DVD player is received, the picture position will shift up or down. This picture
position movement cannot be controlled by the Picture Pos./Size function.
Helpful Hint ( Normalise Normalisation)
While the Pos. /Size display is active, if the OK button is pressed during “Normalise”, then all adjustment values
are returned to the factory settings.
26
Adjusting Pos. /Size
Auto Setup
When inputting a PC signal as an example, “H-Pos/V-Pos”, “H-Size/V-Size”, “Dot Clock” and
“Clock Phase” are automatically corrected.
This setting is enabled under the following conditions:
• This setting is not activated during Digital Zoom.
• When inputting an analog signal (Component/PC):
This setting is enabled if “Component/RGB-in select” (see page 40) in Setup menu is “RGB”.
• When inputting a digital signal (HDMI/DVI):
A PC format signal enables this setting.
When the signal is not PC format, this setting is enabled only if “Over Scan” (see page 28) is
“Off” or “1:1 Pixel Mode” (see page 28) is “On”. “H-Size/V-Size” is not automatically adjusted.
This setting will be invalid and will not work under the following conditions:
• When VIDEO signal input
• Aspect is set to “Just”
• “Display size” in the Options menu (see page 60) is set to “On”
Using Remote Control
When
on the remote control is pressed, “Auto Setup” will be executed.
When Auto Setup does not work, “Invalid” is displayed.
Auto mode
When the “Auto Setup“ is set to “Auto” in the Options menu (see page 61), automatic position
adjustment starts:
• When the display power is turned ON.
• When the input signal is switched.
Notes:
• If the dot clock frequency of an analog signal is 162 MHz or higher, “Dot Clock” and “Clock
Phase” cannot be automatically corrected.
• When digital signal input, Dot Clock and Clock Phase cannot be made.
• Auto Setup may not work when a cropped or dark image is input. In such case, switch to
a bright image with borders and other objects are clearly shown, and then try auto setup
again.
• Depending on the signal, out of alignment may occur after Auto Setup. Carry out ne tuning
for the position/size as required.
• If Auto Setup cannot set properly for vertical frequency 60Hz XGA signal (1024×[email protected],
1280×[email protected], and 1366×[email protected]), pre-selecting the individual signal in “XGA Mode”
(see page 45) may results in correct Auto Setup.
• Auto Setup does not work well when a signal such as additional information is superimposed
out of valid image period or intervals between synchronizing and image signals are short, or
for image signal with tri-level synchronizing signal added.
• If Auto Setup cannot adjust correctly, select “Normalise” once and press OK button, then
adjust Pos. /Size manually.
H-Pos
Adjust the horizontal position.
V-Pos
Adjust the vertical position.
H-Size
Adjust the horizontal size.
V-Size
Adjust the vertical size.
Dot Clock
(During Component/PC input signal)
Periodic striped pattern interference (noise) may occur when a striped pattern is displayed. If this
happens, adjust so that any such noise is minimized.
Clock Phase (During Component/PC input signal)
Eliminate the ickering and distortion.
27
Adjusting Pos. /Size
Over scan
Turn image over scan On/Off.
Congurable signals are as follows:
525i, 525p, 625i, 625p, 750/60p, 750/50p (Component Video, RGB, DVI, SDI, HDMI)
On
Off
Notes:
• When “Off” is set, “H-Size” and “V-Size” cannot be adjusted.
• When the “Display size” is set to “On” in the Options menu, this setting will be invalid.
Clamp Position (During Component/PC input signal)
Adjusts the clamp position when black parts of the image have no detail due to underexposure
or are tinged with green.
Optimum value for Clamp Position adjustment
When black parts have no detail due to underexposure (blackout)
Value that causes least blackout is the optimum.
When black parts are tinged with green
Value that cancels the greenishness without causing blackout is the optimum.
1:1 Pixel Mode Adjusts the display size when 1125i, 1125p or 1250i signal is input.
Notes:
• Select On when you would like to replay 1920 × 1080 input signal.
• Applicable input signal;
1125 (1080) / 50i · 60i · 24sF · 24p · 25p · 30p · 50p · 60p, 1250 (1080) / 50i
• Select Off when ickering is shown around the image.
• H-Size and V-Size cannot be adjusted when On is selected.
Off
On
1:1 Pixel Mode (2k1k) When the input signal is a 2k1k signal (2048 × 1080 / 24p, 2048 × 1080 / 24sF), the
display size is adjusted as follows.
(For 2k1k signals)
Off
On (Left)
On (Centre)
On (Right)
Note:
2k1k signals can only be received when the Dual Link HD-SDI Terminal Board (TY-FB11DHD) or the Dual
HD-SDI Terminal Board for 3D (TY-FB30DHD3D) is installed.
(During Component [video format] / SDI input signal)
Video blanking period is displayed.
HV Delay
Off
H Delay
V Delay
HV Delay
Notes:
• This function is enabled when “Studio mode” in Options menu is set to “On” during 2D viewing.
• This function can also be used with the FUNCTION button on the remote control (see page 63).
28
Picture Adjustments
1 Display the menu screen.
2 Select “Picture”.
2
access
1
select
2
adjust
1
select
Setup
Pos./Size
Sound
3 Select the item and set.
Normalise
Picture Mode
Cinema
Contrast
20
Brightness
0
Colour
0
Hue
0
Sharpness
5
Note:
Menu that cannot be adjusted is grayout. Adjustable menu changes
depending on signal, input and menu setting.
Normal
White balance
Advanced settings
4 Exit the menu.
or
To display a menu for adjustment of the Picture menu on
the bottom of the screen,
Contrast
20
2
adjust or select
1
select
To display a menu for Advanced settings adjustment, press PICTURE button again.
Black extension
To hide the menu
0
or
Helpful Hint ( Normalise Normalisation)
While the “Picture” menu is displayed, if the OK button is pressed during “Normalise”, then all adjustment values
are returned to the factory settings.
29
Picture Adjustments
Picture Mode
You can switch to the optimal picture mode for the video
source and viewing environment.
Normal
Monitor
Dynamic
Cinema
Normal:
Cinema:
For viewing in standard (evening lighting) environments.
For use in viewing tone-focused pictures with brightness
This menu selects the normal levels of Brightness and
reduced.
Contrast.
Monitor:
Dynamic:
For use when creating broadcast or movie content.
For viewing in brighter environments.
With this picture, even if the overall average picture
This menu selects higher than normal levels of
level (APL) changes, the brightness of areas with the
Brightness and Contrast.
same signal level does not change.
Notes:
• When “Monitor” is selected in Picture Mode, the following menu items cannot be set.
Picture menu: Contrast
Extended life settings: Peak limit (see page 54)
Setup menu: Power save (see page 42)
• If you would like to change the picture and colour of the selected Picture menu to something else, adjust using
the items in the Picture menu. (see below)
Contrast
Brightness
Colour
Hue
Sharpness
Adjusts the proper picture contrast.
Adjusts for easier viewing of dark pictures
such as night scenes and black hair.
Less
More
Darker
Brighter
Less
More
Reddish
Greenish
Less
More
Adjusts colour saturation.
Adjusts for nice skin colour.
Adjusts picture sharpness.
White balance Switches to various screen color tones.
Normal: Intermediate color temperature (9300K).
Warm: Colors with a reddish tinge (6500K).
Warm2: Colors with a reddish tinge (6100K).
Warm3: Colors with a reddish tinge (5600K).
Studio: Optimal color temperature for studio viewing (3200K).
Cool: Colors with a bluish tinge (11500K).
Normal
Cool
Warm
Studio*
Warm2
Warm3
* “Studio” can be modified when
“Studio mode” in the Options menu
is “On”. (see page 59)
Notes:
• You can change the level of each function (Contrast, Brightness, Colour, Hue, Sharpness) for each Picture
Mode.
• The setting details for Normal, Dynamic, Cinema and Monitor respectively are memorized separately for each
input terminal.
• In Contrast, there is not a noticeable change even when contrast is increased with a bright picture or reduced
with a dark picture.
30
Picture Adjustments
Advanced settings
Enables ne picture adjustment at a professional level.
Notes:
• The adjustment values are memorized separately for each input terminal.
• The adjustment range values should be used as an adjustment reference.
Select the item and set.
Advanced settings
Normalise
Picture Mode
Contrast
20
Brightness
0
Colour
0
Hue
0
Sharpness
5
White balance
Normalise
Cinema
2
1
access
select
Normal
Advanced settings
Black extension
0
Input level
0
Gamma
W/B High R
0
W/B High G
0
W/B High B
0
W/B Low R
0
W/B Low G
0
W/B Low B
0
2.2
Adjusts the dark shades of the image in gradation.
Input level
Adjustment of parts which are extremely bright and hard to see.
2.35
2.4
select
Off
Black
extension
2.2
1
Off
Noise reduction
Colour gamut
1.0*
change
Off
Cinema reality
Studio Gain
Gamma
2
2.6
Less
More
Less
More
Down
Up
Less
More
* When 2k1k signals are received with the Dual Link HD-SDI
Terminal Board (TY-FB11DHD) or Dual HD-SDI Terminal Board
for 3D (TY-FB30DHD3D), Gamma “1.0” cannot be selected.
“W/B” adjustment
W/B High R
0
W/B High G
0
W/B High B
0
W/B Low R
0
W/B Low G
0
W/B Low B
0
Adjusts the white balance for light red, light
green or light blue areas.
Adjusts the white balance for dark red, dark
green or dark blue areas.
Carry out “W/B” adjustment as follows.
1. Adjust the white balance of the bright sections using the “W/B High R” , “W/B High G” and “W/B High B” settings.
2. Adjust the white balance of the dark sections using the “W/B Low R” , “W/B Low G” and “W/B Low B”
settings.
3. Repeat steps 1 and 2 to adjust.
Steps 1 and 2 affect each other’s settings, so repeat each step in turn to make the adjustment.
31
Picture Adjustments
Cinema reality When “on”, the display attempts to reproduce a more natural
interpretation of sources such as movie pictures, which
are recorded at 24 frames per second. If the picture is not
stable, turn the setting to “off”.
On
Off
Note:
When “On”, this setting only affects the following signal input:
• NTSC / PAL signal input during Video (S Video) input signal.
• 525i (480i), 625i (575i), 1125 (1080) / 60i signal input during “Component” input signal.
Studio Gain
Sharpens the contrast for a better view when a part of the
image is too light to see.
Off
On
Off: Disables “Studio Gain”.
On: Enables “Studio Gain”.
Notes:
• “Studio Gain” can be modified when “Studio mode” in the Options menu is “On”. When “Studio mode” is “Off”,
this setting is “Off” and cannot be changed. (see page 59)
• This setting is valid only when the input signals are as follows:
Component Video, RGB (analog), SDI, HDMI
Noise reduction
Sets the following three NR (Noise Reduction) functions together.
P-NR, Block NR, Mosquito NR
Off
Advanced
Min
Max
Mid
[Advanced NR]
Sets the three NR functions separately.
1
2
Select “Advanced”.
Noise reduction
Advanced
P-NR
Off
Block NR
Off
Mosquito NR
Off
select
Select the item and set.
Noise reduction
Advanced
P-NR
Off
Block NR
Off
Mosquito NR
Off
2
set
1
select
Off
Max
Min
Mid
P-NR:
Automatically reduces unwanted picture noise.
Block NR:
Reduces block noise when playing MPEG videos.
Mosquito NR: Reduces mosquito noise around subtitles on MPEG videos.
Note:
“Noise reduction” cannot be adjusted while a PC signal is being applied.
Helpful Hint ( Normalise Normalisation)
On the remote control unit, while the “Advanced settings” menu is displayed, if the OK button is pressed during
“Normalise”, then all adjustment values are returned to the factory settings.
32
Picture Adjustments
Colour space adjustment (Colour gamut)
Changes the colour space to BT.709 signal standard chromaticity point and ne-tunes it.
Advanced settings
Normalise
Black extension
0
Input level
0
Gamma
W/B High R
0
W/B High G
0
W/B High B
0
W/B Low R
0
W/B Low G
0
W/B Low B
0
Cinema reality
Studio Gain
Noise reduction
Colour gamut
2
access
2.2
Select the item and set.
Colour gamut
BT.709
Colour gamut
1
select
2
change
1
select
Off
Off
Off
Colour gamut
DIGITAL CINEMA COLOUR: Sets color gamut to reproduce the original color of movies.
Custom: Enables the colour space adjustment, the colour space adjustment set in the “EDIT” is reected.
Native: Disables the colour space adjustment, images are displayed in the original colour gamut of the panel.
BT.709: Changes the colour space to BT.709 signal standard chromaticity point.
EBU: Changes the colour space to EBU signal standard chromaticity point.
SMPTE-C: Changes the colour space to SMPTE-C signal standard chromaticity point.
Notes:
• This setting is memorized separately for each input terminal and “Picture Mode”.
• For 3D images, this setting becomes “Native” and no setting is available.
Edit
Colour space is ne-tuned.
Notes:
• This setting is valid when “Colour gamut” is “Custom”.
• This setting is memorized separately for each input terminal and “Picture Mode”.
1
2
2
access
1
select
Select “Edit”.
Select an adjustment
item.
select
3
Change the numerical value.
[To adjust with the button]
Press the
button.
Change the numerical value
with the button.
Press the
button.
4
Press the
button.
Adjustment is ended.
Colour gamut
Custom
Colour gamut
Edit
R Ratio
G Ratio
B Ratio
R
65535
2110
0
G
2900
65535
1760
B
0
0
65535
Reset
65535
[To input the numerical value directly]
Input the numerical value from
Pressing the
Press the
y
to
will cancel the value change.
button.
x
Chromaticity diagram displays in
gray the dot and line to be adjusted.
33
Picture Adjustments
Reset
Resets the adjustment value of colour space.
Note:
This setting is reected only for the selected input terminal and the “Picture Mode”.
1
Select “Reset”.
Colour gamut
Custom
Colour gamut
2
access
1
select
1
select
2
set
Edit
R Ratio
G Ratio
B Ratio
R
G
B
65535
2110
0
2900
65535
1760
0
0
65535
Reset
2
Select “Ok”.
Colour gamut
Reset
Ok
Cancel
Chromaticity diagram
The RGB triangle representing current colour space is shown.
Colour gamut: Custom
— Native
— Custom
y
x
White line: Colour gamut with “Native” setting (original colour gamut.)
Yellow line: Colour gamut with “Custom” setting (current colour gamut.)
34
Picture Proles
Up to 16 combinations of picture adjustment values (in the Picture menu and Advanced settings) can be stored in
the display memory as proles and applied as needed, for a convenient way to enjoy your preferred picture settings.
Note:
If setting items (Picture menu and Advanced settings) are set differently between Memory save and Memory load,
they may not reect for Memory load.
Normalise
Picture Mode
Contrast
Dynamic
25
Brightness
0
Colour
6
Hue
0
Sharpness
5
White balance
Normal
Advanced settings
Save proles(page 36)
Load proles(page 37)
Edit proles(page 38)
Memory save
Memory load
Memory edit
Normalise
Picture Mode
Cinema
Contrast
25
Brightness
0
Colour
6
Hue
0
Sharpness
5
White balance
Normal
Advanced settings
Save proles
Edit the prole
Delete or rename
the prole
Save the picture
adjustment values in the
MEMORY1 prole
MY PICTURE
MEMORY2
MEMORY3
MEMORY4
MEMORY1
MEMORY2
MEMORY3
MEMORY4
MEMORY16
MEMORY16
Load the prole
Original picture
Apply the MEMORY1
prole
Custom picture
Normalise
Normalise
Normal
Picture Mode
Picture Mode
Cinema
Contrast
0
Contrast
25
Brightness
0
Brightness
0
Colour
0
Colour
6
Hue
0
Hue
0
Sharpness
0
Sharpness
5
White balance
Advanced settings
Normal
White balance
Normal
Advanced settings
35
Picture Proles
Saving proles
Follow these steps to save picture adjustment values as proles.
Note:
When the settings are locked in “Extended life settings”, proles cannot be saved.
1
Specify the picture quality in the Picture menu and
Advanced settings. (see page 29-34)
2
In the Picture menu, select “Memory save”.
2 access
Memory save
5
Memory load
Memory edit
3
1
select
Select a prole name for saving the picture adjustment
values.
2 set
Enter a name for the prole.
[Entering prole names]
Prole names can be up to 40 characters.
To enter text, select characters in the on-screen
keyboard.
Edit the default prole name in the text box as
desired.
1 select
Memory name input
A
N
a
n
0
!
_
Memory save
4
1. [
2. [
]
MEMORY1
]
MEMORY2
3. [
4. [
]
]
MEMORY3
13. [
14. [
]
MEMORY13
]
MEMORY14
15. [
16. [
]
MEMORY15
]
MEMORY16
1
select
B
O
b
o
1
”
`
C
P
c
p
2
#
|
MEMORY1
D E F
Q R S
d e f
q r s
3 4 5
$ % &
~ < >
Ok
G
T
g
t
6
’
(
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
@
.
\
;
2
set
ˆ
:
MEMORY4
Example: Specifying “MY PICTURE”
Select “All delete”.
1
MEMORY1
“” appears for a profile in which the picture
adjustments have already been saved.
All text is deleted.
To delete individual characters, select “Delete”.
Select “Ok”.
2
Select “M”.
M
Memory save
1
select
Repeat this process to enter the next character.
2
set
3
Save the adjusted value in ”MEMORY1”
Ok
Cancel
Select “Y”.
MY
Select “Space”.
4
MY
6
When you nished entering the prole name, select
“Ok”.
To cancel saving the prole, select “Cancel”.
1 select
Memory name input
A
N
a
n
0
!
_
36
B
O
b
o
1
”
`
C
P
c
p
2
#
|
MY PICTURE
D E F
Q R S
d e f
q r s
3 4 5
$ % &
~ < >
Ok
G
T
g
t
6
’
(
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
@
.
\
;
2
ˆ
:
set
Picture Proles
Loading proles
Load proles and apply the picture adjustment values to the display as follows.
Notes:
• Loaded proles are stored in memory according to the selected input terminal (see page 18).
• When the settings are locked in “Extended life settings”, proles cannot be loaded.
<Loading proles directly from the remote control>
<Loading proles from the Picture menu>
1
In the Picture menu, select “Memory load”.
2 access
Memory save
Memory load
Memory edit
2
select
1
2
Select the prole to load.
1. [
]
2. [
12. [
]
MEMORY2
]
MEMORY12
Press
2
set
1
select
MEMORY1
<Loading proles from
1
2
1
To load proles 1–9
on the remote control>
]
MEMORY2
12. [
]
MEMORY12
Memory load
1
1
select
Cancel
2
set
To load proles 10–16
Example: To load prole 16
1
2
MEMORY1
.
Load from ”MEMORY2”
Select the prole to load.
]
–
Select “Ok”.
Ok
to list the proles.
1. [
2. [
Press a button in the range
Press
.
The prole number is displayed in the upper-right
corner of the screen.
set
16
select
2
Select “Ok”.
Memory load
1
select
2
set
Load from ”MEMORY16”
PC
When prole is being
loaded, prole name is
displayed.
Ok
Cancel
16:9
Memory name: MEMORY2
NANODRIFT
37
Picture Proles
Editing proles
Delete or rename proles as follows.
<Renaming proles>
<Deleting proles>
1
In the Picture menu, select “Memory edit”.
2
Memory save
access
1
In the Picture menu, select “Memory edit”.
Memory save
Memory edit
2
1
2
Memory name change
1
]
MEMORY1
]
MEMORY2
1
All delete
2
access
1
select
2
set
1
select
2
set
1
select
Select “Memory name change”.
Memory delete
Memory name change
select
3
2
4
set
Select the prole to delete.
To delete all proles, select “All delete”.
1. [
2. [
Memory edit
select
Select “Memory delete”.
Memory delete
3
2
Memory load
Memory load
set
select
4
Select “Ok”.
Select the prole to rename.
1. [
2. [
]
]
MEMORY2
12. [
]
MEMORY12
MEMORY1
Enter a name for the prole.
page 36
Entering prole names
Memory delete
1
select
Memory name input
Delete the ”MEMORY1” data.
Ok
Cancel
2
A
N
a
n
0
!
_
set
5
B
O
b
o
1
”
`
C
P
c
p
2
#
|
MEMORY1
D E F
Q R S
d e f
q r s
3 4 5
$ % &
~ < >
Ok
G
T
g
t
6
’
(
H
U
h
u
7
)
I
V
i
v
8
+
[
J
W
j
w
9
–
]
K
X
k
x
L M
Y Z
l m
y z
Space
/ = ?
{
}
,
Cancel
All delete
Delete
@
.
\
;
select
2
set
ˆ
:
When you nished entering the prole name, select
“Ok”.
To cancel renaming the prole, select “Cancel”.
Ok
Cancel
1 select
2
38
1
set
Sound Adjustment
1 Display the menu screen.
2 Select “Sound”.
2
access
1
select
2
adjust
1
select
Setup
Pos. /Size
Sound
3 Select the item and set.
Normalise
Sound Mode
Bass
Mid
Treble
Balance
Surround
Volume
Normal
0
0
0
0
Off
1
4 Exit the menu.
or
Item
Sound Mode
Bass
Mid
Treble
Balance
Surround
Volume
Details
Normal: Emits the original sound.
Dynamic: Accentuates sharp sound.
Clear: Attenuates human voice.
Adjusts low pitch sounds.
Adjusts normal sounds.
Adjusts high pitch sounds.
Adjusts left and right volumes.
Select On or Off.
Adjusts the sound volume level.
Note: Bass, Mid, Treble and Surround settings are memorized separately for each Sound Mode.
Helpful Hint ( Normalise Normalisation)
While the “Sound” menu is displayed, if the OK button is pressed during “Normalise”, then all adjustment values
are returned to the factory settings.
SDI Sound Output
This menu is available only when selecting a slot that any of the following terminal boards is installed:
HD-SDI Terminal Board with audio (TY-FB10HD), Dual Link HD-SDI Terminal Board (TY-FB11DHD), or Dual HD-SDI
Terminal Board for 3D (TY-FB30DHD3D)
Item
Details
SDI Sound Output
2/2
Left Channel
Channel 1
Right Channel
Channel 2
Sound Out
On
Level Meter
Off
Left Channel
Right Channel
Channel 1 to Channel 16
Selects left audio channel.
Channel 1 to Channel 16
Selects right audio channel.
Sound Out
On
Off
On: Enables audio output.
Off: Disables audio output.
Level Meter
Off
1-8ch
9-16ch
Sets audio channels to show in the audio level meter.
8 channels are displayed in the audio level meter;
4 channels each on both right and left sides of the display.
Off: Hides the audio level meter.
1-8ch: Displays the audio level meter (1-8ch)
9-16ch: Displays the audio level meter (9-16ch)
39
Setup menu
1 Display the menu screen.
2 Select “Setup”.
2
access
1
select
Setup
Pos. /Size
Sound
3 Select the item and set.
3D Settings
Signal
Waveform Monitor
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
2
adjust
1
select
Extended life settings
Input label
Function Button Settings
On/Off Timer Setup
Day/Time Setup
Network Setup
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Standby save
Off
On
PC Power management
Off
DVI-D Power management
Off
No signal power off
Disable
No activity power off
Disable
Type1
OSD design
OSD position
OSD Language
Upper left
English (UK)
4 Exit the menu.
or
Component / RGB-in select
Component
RGB
Select to match the signals from the source connected to the Component / RGB or PC input terminals.
“Component”
Y, PB, PR signals
“RGB”
RGB signals
Note:
Make setting of the selected input terminal (COMPONENT RGB IN or PC IN).
YUV / RGB-in select
YUV
RGB
Select to match the signals from the source connected to the DVI input terminals.
“YUV”
YUV signals
RGB signals
“RGB”
Notes:
• Selection may not be possible, depending on which optional board is installed.
• Make setting of the selected input terminal (SLOT or DVI-D IN).
40
Setup menu
External scaler mode
Off
On
This menu can be used to specify whether the built-in scaler or an external scaler is used for scaler functions such
as resizing and picture quality adjustment.
The setting is valid with the following input signals.
1125 (1080) / 24p•25p•30p•50p•60p
Off: Use the built-in scaler.
On: Use an external scaler.
Note:
If “On” is set when other than corresponding signal is input, “Input signal must be 1125p(1080p)”message is
displayed.
Using Remote Control
“External scaler mode” can also be set with the FUNCTION button on the
remote control (see page 63).
External scaler mode
On
Note:
Selecting “On” in this setting deactivates the following settings and disables these operations.
Pos. /Size menu:
H-Size, V-Size, 1:1 Pixel Mode, (see page 27, 28)
Picture menu:
Brightness, Colour, Hue, Sharpness, Memory save, Memory load (see page 30, 36, 37)
Advanced settings: Cinema reality, Noise reduction (see page 32)
Signal menu:
XGA Mode (see page 45)
Options menu:
Display size, All Aspect (see page 60)
ASPECT Controls (see page 21)
“EXT. SCALER” is displayed in the menu screen to indicate that an external scaler is in use.
EXT.SCALER
Normalise
Picture Mode
Contrast
Normal
25
Brightness
Colour
Hue
41
Setup menu
Power save
Off
On
When this function is turned On, luminous level of the Plasma Display is suppressed, so power consumption is
reduced.
Standby save
When this function is turned On, power consumption of the microcomputer is reduced during power supply standby
(see page 15, 19, 20), so standby power of the set is reduced.
PC Power management
Off
On
When this function is set to On, it operates under the following conditions to turn the power on or off automatically.
When no pictures (HD/VD sync signals) are detected for 30 or so seconds during PC signal input:
Power is turned off (standby); the power indicator lights up orange.
When pictures (HD/VD sync signals) are subsequently detected:
Power is turned on; the power indicator lights up green.
Notes:
• This function operates only during PC signal input.
• This function is effective when “Sync” is set to “Auto”, “Component / RGB-in select” is set to “RGB”.
DVI-D Power management
When this function is set to On, it operates under the following conditions to turn the power on or off automatically.
When no pictures (sync signal) are detected for 30 or so seconds during DVI signal input:
Power is turned off (standby); the power indicator lights up orange.
When pictures (sync signal) are subsequently detected:
Power is turned on; the power indicator lights up green.
Notes:
• This function operates only during DVI signal input.
• This function is invalid during input from DVI-D Terminal Board (TY-FB11DD) and Dual DVI-D Terminal Board for
3D (TY-FB30DD3D).
• Depending on the type of terminal board equipped, this function may be invalid.
No signal power off
Enable
Disable
Equipment power supply is turned Off when there is no signal.
When this is set to “Enable”, the power supply of the unit goes Off 10 minutes after the input signals stop.
No activity power off
Disable
Enable
When this function is set to “Enable”, the power is turned off (standby) automatically when there is no operation of
the Plasma Display for 4 hours.
Starting from 3 minutes before the turn off, the remaining time will be displayed.
When the power is turned off due to this function, a message “Last turn off due to ’No activity
power off’.” is displayed next time the power is turned on.
Note:
During the screensaver is running, this function is disabled.
Press any key to abort.
No activity power off 3min
42
Setup menu
OSD design
Choose the background color (transparency).
Type1
Type2
Type3
OSD position
Choose the display position.
Each time you press
Display example
or
, the on-screen menu display position changes.
Upper left
Centre
OSD Language
Select your preferred language.
Selectable languages
English(UK)
Deutsch
Français
Italiano
Español
ENGLISH(US)
.......(Chinese)
.......(Japanese)
.......(Russian)
43
Setup menu
3D Settings
To view the 3D images, please adjust and setup the 3D settings.
Note:
Set these settings for each input terminals.
Select the item and set.
3D Settings
Signal
Waveform Monitor
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
2
access
1
select
3D Settings
3D Function
Extended life settings
3D Viewing Mode
3D Picture Sequence
Input label
Function Button Settings
On
Auto
2
change
3D
Normal
1
select
3D Picture Format
3D Colour Compensation
On/Off Timer Setup
Day/Time Setup
On
Safety Precautions
Network Setup
Component/RGB-in select
RGB
• 3D Function
On
Off
On: To view the 3D images, please set it to “On”. You can see 3D images for 3D image signal and 2D images for
2D image signal.
Off: You can see 2D images instead of 3D images.
When set to “On”, “3D” is displayed during 3D images.
PC
3D
16:9
NANODRIFT
• 3D Picture Format
3D images method is set.
Auto: 3D images are automatically displayed according to the signal.
Simultaneous: Set this format when selecting a slot that one of the following terminal boards is installed:
Dual HD-SDI Terminal Board for 3D (TY-FB30DHD3D), Dual DVI-D Terminal Board for
3D (TY-FB30DD3D)
Side by Side/Top and Bottom: One of the formats of the 3D standard. Select these formats as necessary.
Native: Displays the input signal as it is. Use to identify the format type of the input signal.
• 3D Viewing Mode
The 3D images are separated and displayed as right and left images.
3D: Normal 3D images display (initial setting)
Comparison: Left image (L) and right image (R) are placed side by side. If the 3D system is “Top and Bottom”, the
images are displayed, being set one above the other.
Left: Only the left image (L) is displayed.
Right: Only the right image (R) is displayed.
3D
Comparison
Left
Notes:
• This function is disabled during 2D images.
• The factory default setting is “3D”. To view the 3D images, please use “3D”.
Right
• 3D Picture Sequence
Reverse
Normal
This function calibrates the timing to switch the right and left images as well as the timing to switch the shutter of
right and left 3D Eyewear.
Select “Reverse” if you feel that the sense of depth is unusual.
• 3D Colour Compensation
On
Off
The color adjustment during the 3D images is set.
On: The color when using the 3D Eyewear is adjusted. (initial setting)
Off: The color when using the 3D Eyewear is not adjusted. The 2D image setting is used.
Note: The factory default setting is “On”. To view the 3D images, please set it to “On”.
• Safety Precautions
Displays the precautions for viewing 3D images.
44
Setup menu
Signal menu
Note:
“Signal” setup menu displays a different setting condition for each input signal.
3D Settings
Select the item and set.
Signal
Waveform Monitor
2
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
access
1
select
Input label
Function Button Settings
change
1
select
For RGB
For Video (S VIDEO)
Extended life settings
2
[ AV ]
Signal
FRAME CREATION
Mid
Colour system
Auto
[ RGB ]
Signal
FRAME CREATION
Mid
Sync
Auto
1024 ×768
XGA Mode
On/Off Timer Setup
Day/Time Setup
For Component
Network Setup
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
[ Component ]
Signal
FRAME CREATION
Auto
H-Freq.
33.7 kHz
V-Freq.
60.0 Hz
Signal Format
Displays the frequency and the type of
the current input signal.
This display is valid only for
Component / RGB / PC and Digital input signal.
Display range:
Horizontal 15 - 110 kHz
Vertical 48 - 120 Hz
The dot clock frequency is displayed during DVI signal input.
33.7 kHz
V-Freq.
60.0 Hz
Signal Format
1125(1080)/60i
Mid
XGA Mode
Input signal display
H-Freq.
1125(1080)/60i
For Digital
(Example: DVI input)
[ Digital ]
Signal
FRAME CREATION
H-Freq.
V-Freq.
Dot Clock Freq.
Signal Format
Mid
33.7 kHz
60.0 Hz
108.0 MHz
1125(1080)/60i
• 3D Y/C Filter (NTSC)
This menu is displayed when BNC Dual Video Terminal Board (TY-FB9BD) is installed to the unit.
Set this menu when the moving image looks unnatural during Video (S Video) input signal.
Off
On
Note:
When On, this setting only affects NTSC input signals.
• Colour system
Auto
PAL
SECAM
M.NTSC
NTSC
Set the colour system to match the input signal. When “Auto” is set, Colour system will be automatically selected
from NTSC/PAL/SECAM /M.NTSC.
To display PAL60 signal, select “Auto” or “PAL”.
If the picture image becomes unstable:
With the system set on Auto, under conditions of low level or noisy input signals the image may in rare cases
become unstable. Should this occur, set the system to match the format of the input signal.
• XGA Mode
This menu is displayed when the input signal is analog (Component/PC). This unit supports three types of XGA
signals with 60Hz vertical frequency having different aspect ratios and sampling rates (1,024 × 768 @ 60Hz,
1,280 × 768 @ 60Hz and 1,366 × 768 @ 60Hz).
1024×768
1280×768
1366×768
Auto
Auto: Automatically selected from 1024×768/1280×768/1366×768.
Switch the setting to suit the input signal for better display depends on the angle of view or display resolution condition.
Note:
After making this setting, be sure to make each adjustment (such as “Auto Setup”) on the “Pos. /Size” menu as
necessary. (see page 26)
45
Setup menu
• Sync
This function operates only during input from PC IN terminal.
Setting RGB sync signal
Conrm that the input is set to RGB input (this setting is valid only for RGB input signal).
Auto: The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
on G: Uses a synchronized signal on the Video G signal, which is input from the G connector.
VBS: Uses a synchronized signal of Composite Sync input, which is input from the HD connector.
Setting Component sync signal
Conrm that the input is set to Component input (this setting is valid only for Component input signal).
Auto: The H and V sync or synchronized signal is automatically selected. If both input, it is selected the H and V sync.
on Y: Uses a synchronized signal on the Video Y signal, which is input from the Y connector.
Note:
Signals input to COMPONENT/RGB IN terminals correspond to Sync on G or Sync on Y.
• SDI Through
Set the active through function of the Dual Link HD-SDI Terminal Board (TY-FB11DHD).
On
Off
On: Enables active through.
Off: Disables active through.
Note:
Settings can only be performed for this menu when a slot mounted with a Dual Link HD-SDI Terminal Board
(TY-FB11DHD) is selected.
• FRAME CREATION
Automatically compensates the picture frame rate and removes juddering movements to make the images
smooth.
Mid
Max
Off
Note:
Depending on the contents, images may be noisy. To prevent the noise, change the setting.
• 3D Refresh Rate
Reduces juddering or icker of image due to lighting interference during 3D viewing.
120Hz
100Hz
Note:
This setting is disabled when “FRAME CREATION” is set to “Off”.
• HDMI Range
Switches the dynamic range according to the input signal from HDMI terminal.
Full(0-255)
Auto
Video(16-235)
Video(16-235): If the input signal is the video range, Example: HDMI terminal output for DVD player
Full(0-255): If the input signal is full range, Example: HDMI terminal output for personal computer
Auto: Switches the dynamic range automatically between “Video(16-235)” and “Full(0-255)” according to the input signal.
Note:
This function can be set only for HDMI signal input.
• SDI Signal Format
This menu is available only when selecting a slot that the Dual HD-SDI Terminal Board for 3D (TY-FB30DHD3D) is
installed and set the input signal format for the board.
YCbCr(4:2:2) 10bit
YCbCr(4:2:2) 10bit 60p/50p
YCbCr(4:4:4) 10bit
RGB(4:4:4) 10bit
Auto
YCbCr(4:2:2) 12bit
YCbCr(4:4:4) 12bit
RGB(4:4:4) 12bit
XYZ(4:4:4) 12bit
Auto: Automatically selects the signal format according to the input signal.
46
Setup menu
Waveform Monitor
The input signal from video equipment is displayed as waveforms so that the signal level can be checked.
Notes:
• This function is enabled when “Studio mode” in Options menu is set to “On”.
• This function is disabled during 3D images.
• Applicable input signal; HDMI, DVI, SDI
3D Settings
Select the item and set.
Signal
Waveform Monitor
2
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
Waveform Monitor
access
Waveform Monitor
Off
On
Time out (5 min)
1
select
Extended life settings
Input label
Function Button Settings
2
change
1
select
• Waveform Monitor
On: The waveform monitor is displayed.
Off: The waveform monitor is not displayed.
On/Off Timer Setup
Day/Time Setup
Network Setup
• Time out (5 min)
Component/RGB-in select
The waveform monitor display time-out is set.
On: The display of the waveform monitor disappears in
5 minutes.
Off: The waveform monitor display time-out does not occur.
RGB
External scaler mode
Off
Power save
Off
Display of the waveform monitor
1
Set “Waveform Monitor” to “On”.
The waveform monitor can also be displayed using the FUNCTION button on the remote control (see page
63).
2
3
Exit the menu.
Press
to switch the display mode.
Notes:
• The display mode and display position of the waveform
monitor are stored.
• The aspect is xed as “16:9” during the waveform
monitor display.
Full scan (Y)
Single line scan (B)
Full scan (R)
Single line scan (G)
Full scan (G)
Single line scan (R)
Full scan (B)
Single line scan (Y)
Full scan mode
The display position of the waveform monitor can be changed with the cursor button.
Operation guide
Mode Change
Monitor Position
Exit
Single line scan mode
Scan line can be changed with the cursor button.
100%
Y
50%
Scan line
Operation guide
0%
100%
Y
Mode Change
50%
0%
4
Press
Scan Line Position
Exit
to exit the waveform monitor.
The waveform monitor ends after 5 minute time-out or by setting “Waveform Monitor” to “Off”.
47
Setup menu
Marker settings
Various markers for editing image are displayed.
Notes:
• This function is available when “Studio mode” in Options menu is set to “On”
• This function is disabled during 3D images.
• An aspect of “4:3” or “16:9” is valid for this function. Only an aspect of “16:9” is valid at the input of HD signal.
Select the item and set.
3D Settings
Signal
Waveform Monitor
Marker settings
2
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
access
Marker
Time out (5 min)
1
Extended life settings
select
16:9
Preset1
Off
2
change
90%
1
select
Marker Size (%)
Input label
Function Button Settings
Colour
Brightness
On/Off Timer Setup
Day/Time Setup
Red
3
80%
4:3
Marker Size (%)
Network Setup
Colour
Brightness
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
Green
3
Centre
Off
Colour
Blue
Brightness
3
Cross Hatch
Off
Colour
Brightness
Marker display settings
• Marker
Set show/hide of the marker.
Off: The marker is not displayed.
Preset1 / Preset2: The marker is displayed by Preset1 or 2 setting. You can congure the display setting of
Preset1/2.
• You can also display the marker with the FUNCTION button on the remote control (see page 63).
• Time out (5 min)
Set the marker display time-out.
On: The marker display disappears in 5 minutes (time out).
Off: The marker display time-out does not occur.
Marker advanced settings
• 16 : 9
Select 16:9 marker display and the marker type.
4:3(1.33)
13:9(1.44)
14:9(1.55)
CNSCO(2.39)
Off
90%
88%
80%
User
• This setting is valid only if an aspect of “16:9” is used.
Aspect marker:
4:3, 13:9, 14:9, CNSCO, VISTA
4:3 marker
CNSCO marker (2.39:1)
Safe area marker:
95%, 93%, 90%, 88%, 80%, User
VISTA(1.85)
VISTA marker (1.85:1)
• Selecting User allows the marker area set in 1% increments
in “Marker Size (%)” to be reected in the conguration of
safe area marker.
90% Area marker
48
95%
93%
Setup menu
•4:3
Select 4:3 marker display and the safe area marker type.
95%
93%
90%
88%
80%
Off
User
• Selecting User allows the marker area set in 1% increments
in “Marker Size (%)” to be reected in the conguration of
safe area marker.
90% Area marker
• Centre
The centre marker is displayed.
On
Off
• Cross Hatch
The markers at regular vertical and horizontal intervals are displayed.
Off
On
• Marker Size (%)
User setting for the marker area can be congured.
80% - 100%
This setting is valid for the selection of “User” in “16:9” or “4:3”.
• Brightness
Brightness is set for each marker.
1–5
• Colour
Colour is set for each marker.
Green
Blue
Red
Yellow
Cyan
Magenta
Gray
Note:
Several markers can be displayed at once.
(Example)
16:9 marker: 95% safe area marker
4:3marker: 80% safe area marker
49
Setup menu
RGB/MONO settings
Turn off R, G, B signals to adjust the image.
3D Settings
Signal
Waveform Monitor
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
2
access
1
select
Extended life settings
Input label
Function Button Settings
1
RGB/MONO settings
On/Off Timer Setup
Day/Time Setup
Mode Select
R On/Off
RGB
On
G On/Off
On
Network Setup
B On/Off
On
Select mode by “Mode Select”.
RGB/MONO settings
Mode Select
R On/Off
RGB
On
G On/Off
On
B On/Off
On
2
change
1
select
RGB: Displays with one of red, green and blue signals cut.
Blue only: Displays in solid blue.
MONO: Only Y signal is used for black and white displays.
2
Congure each mode setting.
For RGB mode
RGB/MONO settings
Mode Select
R On/Off
RGB
On
G On/Off
On
B On/Off
On
2
change
1
select
• R On/Off, G On/Off, B On/Off
On
Off
On: The red (for “R On/Off”), green (for “G On/Off”) or blue (for “B On/Off”) signal is on.
Off: The red (for “R On/Off”), green (for “G On/Off”) or blue (for “B On/Off”) signal is cut.
For MONO mode
For Blue only mode
RGB/MONO settings
RGB/MONO settings
Mode Select
Blue only
On
Blue only
• Blue only
On
Off
On: The Blue only mode is enabled.
Off: The Blue only mode is disabled
Mode Select
MONO
MONO
On
• MONO
On
Off
On: The MONO mode is enabled.
Off: The MONO mode is disabled
The RGB/MONO settings function is also enabled/disabled with the FUNCTION button on the remote control (see
page 63).
PC
16:9
NANODRIFT
R Off
When the function is enabled, selected mode is displayed.
Note:
With MONO set, the colour adjustment in the Picture menu is not available.
When the setting of each item is enabled, the item being currently set to ‘Enable’ becomes disabled.
50
Setup menu
Screensaver
Do not display a still picture, especially in 4:3 mode, for any length of time.
If the display must remain on, a Screensaver should be used.
3D Settings
Signal
Waveform Monitor
Marker settings
RGB/MONO settings
Screensaver
2
access
1
select
Extended life settings
Screensaver
Input label
Function Button Settings
Time 15:00
Start
On/Off Timer Setup
Day/Time Setup
Function
Mode
Network Setup
Negative image
Off
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
1 Function selection
Screensaver
Time 15:00
2
change
1
select
Start
Function
Mode
Negative image
Off
Negative image : Negative image will be displayed on the screen.
Scrolling bar only : A white bar will scroll from left to right. The image won't
be displayed.
Overlay scrolling bar : The brightness of the image will be decreased and a
white bar will scroll on it.
White screen : The whole screen will be white.
2 Mode selection
Screensaver
Time 15:00
2
change
1
select
Start
Function
Mode
Negative image
On
Off
Interval: Operates when Periodic Time and Operating Time are setup and
those times arrive.
Time Designation: Operates when Start Time and Finish Time are setup
and those times arrive.
Standby after SCR Saver: Operates while Screensaver duration, and
display enters standby mode.
On: Operates when Start is selected and the OK button is pressed.
51
Setup menu
3 Setup of Screensaver Time
After selecting Time Designation, Interval or Standby after SCR Saver, the relevant Time Setup will become
available for selection and the Operating Time may be set. (Time cannot be set when “Mode” is “On” or “Off”.)
Screensaver
Time 15:00
Start
Function
Mode
Start Time
Finish Time
Negative image
Time Designation
6:15
12:30
Screensaver
Time 15:00
Start
Function
Mode
Periodic Time
Operating Time
Negative image
Interval
12:00
3:00
2
change
1
select
Notes:
• Pressing “ ” or “ ” button once changes the Time 1 minute.
[However, switching occurs every 15 minutes when Periodic Time is selected.]
• Pressing “ ” or “ ” button continuously changes the Time by 15 minutes.
• “Screensaver duration” of the “Standby after SCR Saver” can be set from
0:00 to 23:59. When this is set to “0:00”, “ Standby after SCR Saver” will
not be activated.
Note: Timer function will not work unless “Day/Time Setup” is set.
Screensaver
Time 15:00
Start
Function
Mode
Screensaver duration
Negative image
Standby after SCR Saver
6:15
setting
4 Start
Select “Start”.
2
set
1
select
Screensaver
Time 15:00
Start
Function
Mode
Negative image
On
The menu screen will disappear and the Screensaver will be activated. To
stop the Screensaver under On, press the R button or any buttons on
the main unit.
Note: When the display is turned off, the Scrensaver will be deactivated.
52
Setup menu
Extended life settings
The following settings are setup to reduce image retention:
Extended life settings
3D Settings
Signal
Express settings
Waveform Monitor
Custom settings
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
2
access
1
select
Extended life settings
Set to the recommended value
Set individually
Reset to the factory settings
Reset
Extended life settings
Recommended settings
Input label
Function Button Settings
Picture Mode
Contrast
On/Off Timer Setup
Day/Time Setup
Network Setup
Side panel
High
NANODRIFT Saver
Mid
Peak limit
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
Dynamic
30
Lock settings
Off
Image Retention Reduction
Menu
Unlock
Apply to current input
Apply to all inputs
Image Retention Reduction Menu
“Extended life settings” enables you to set the following 5 menus (Image Retention Reduction Menu) as recommended
values or set them individually.
Picture Mode
Contrast
“Picture Mode” and “Contrast” are same as “Picture” menu items (see page 30). The settings of this menu will be
reected to the “Picture” menu.
Side panel
Do not display a picture in 4:3 mode for an extended period,
as this can cause an image retention to remain on the side
panels on either side of the display eld.
To reduce the risk of such an image retention, illuminate
the side panels.
This function may be applicable to the non-picture area.
Off:
Low:
Mid:
High:
side panel
4:3 Screen
Display
retention
Darken both ends.
Make it dark gray.
Make it gray.
Make it light gray.
Notes:
• To reduce the occurrence of image retention, set the Side panel to High.
• The side panel may ash (alternate black/white) depending on the picture being shown on the screen. Using Cinema
mode will reduce such ashing.
53
Setup menu
NANODRIFT Saver
Moves the display position of the screen slightly to reduce image retention on the display panel.
Low–High: NANODRIFT Saver operates. The display position of the screen moves at set time intervals. You can set
the screen movement range. Some of the screen may appear to be missing as a result of this operation.
If you change the value, a mask is displayed in the range where the picture is missing as a result of
position movement.
When “NANODRIFT” Image Retention Reduction is
operating, “NANODRIFT” is displayed.
PC
16:9
NANODRIFT
Peak limit
On: Suppresses image contrast (peak brightness).
Note: When a still picture is viewed for an extended time, the screen may become slightly darker. (see page 70)
Express settings
Set the “Image Retention Reduction” menu to the recommended settings.
All menus will be locked.
Picture Mode: Cinema
Contrast: Recommended setting for each model
Side panel: High
NANODRIFT Saver: Mid
Peak limit: On
1 Select “Express settings”.
Extended life settings
Express settings
2 access
Custom settings
1 select
Reset
2 Select the input to apply the settings.
Extended life settings
Apply to current input
2 set
Apply to all inputs
1 select
3 Select “Yes”.
Extended life settings
Apply to current input
Yes
54
No
1
select
2
set
Setup menu
Custom settings
Set the individual “Image Retention Reduction” menu.
1 Select “Custom settings”.
Extended life settings
2
access
1
select
Express settings
Custom settings
Reset
set each menu to the recommended setting:
2 To
Select “Recommended settings”.
2
Extended life settings
set
Picture Mode
Dynamic
30
Side panel
High
NANODRIFT Saver
Mid
Peak limit
Off
Lock settings
Dynamic
Contrast
1
select
30
0
0
Brightness
Colour
Hue
0
5
Sharpness
White balance
Unlock
Normal
Advanced settings
Apply to current input
Apply to all inputs
Memory save
Memory load
Each menu will be set
as same as the “Express
settings”.
Memory edit
Extended life settings
5 Select the input to apply the settings.
3 Set each menu.
Extended life settings
Extended life settings
adjust
1 select
2
Recommended settings
MENU
Mode
Dynamic
Contrast
Normalise
Picture Mode
Recommended settings
Contrast
When a menu is locked, it is grayed out and
cannot be set.
“Picture Mode” and “Contrast” will no longer be
able to set in the “Picture” menu, and they are
labeled with icon to indicate their locked status.
Also, “Normalise”, “Memory save” and “Memory
load” are not available.
30
Side panel
High
NANODRIFT Saver
Mid
Peak limit
Off
Lock settings
Recommended settings
Picture Mode
Contrast
Dynamic
30
Side panel
High
NANODRIFT Saver
Mid
Peak limit
set
1
select
1
select
2
set
1
select
2
set
Off
Lock settings
Unlock
2
Unlock
Apply to current input
Apply to current input
Apply to all inputs
Apply to all inputs
6 Select “Yes”.
lock each menu setting:
4 To
Set the “Lock settings” to “Lock”.
Extended life settings
Apply to current input
Extended life settings
Dynamic
Contrast
adjust
1 select
2
Recommended settings
Picture Mode
30
Side panel
High
NANODRIFT Saver
Mid
Peak limit
Yes
No
Off
Lock settings
Unlock
Apply to current input
Apply to all inputs
Reset
Reset the “Image Retention Reduction” menu to the factory settings. Each menu will be unlocked.
1 Select “Reset”.
Extended life settings
2
access
1
select
2
set
1
select
Express settings
Custom settings
Reset
2 Select the input to reset the settings.
Extended life settings
Reset current input
3 Select “Yes”.
Extended life settings
Reset current input
Yes
No
Reset all inputs
55
Setup menu
Customizing the Input labels
This function can change the label of the Input signal to be displayed. (see page 18)
Select an input terminal and set.
3D Settings
Signal
2
Waveform Monitor
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
access
select
1
Extended life settings
Input label
Function Button Settings
Input label
SLOT INPUT
SLOT INPUT
VIDEO
COMPONENT
HDMI
DVI
PC
VIDEO
COMPONENT
HDMI
DVI
PC
2
change
1
select
On/Off Timer Setup
Day/Time Setup
Network Setup
Note:
The setting items are the same as the input terminal list of
“Selecting the input signal” (page 18).
Component/RGB-in select
RGB
External scaler mode
Off
Power save
Off
The input label changes as follows each time the or button is pressed.
Original
DVD1
DVD2
(Skip)
STB
DVD3
VCR
DVD4
CATV
Blu-ray1
Blu-ray4
Blu-ray2
Blu-ray3
(Skip) : The INPUT button press will skip its input.
Function Button Settings
Set the function to operate when the FUNCTION button 1 to 8 on the remote control is pressed.
page 63
Using FUNCTION button
Select the item and set.
3D Settings
Signal
2
Waveform Monitor
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
1
access
select
Extended life settings
Input label
Function Button Settings
On/Off Timer Setup
Day/Time Setup
RGB
• Function Button 1 - Function Button 8
The following functions are set to the FUNCTION
button.
B On/Off
MONO
Test Patterns
Digital zoom
Off timer
External scaler mode
Volume +
Volume Mute
* “Waveform Monitor”, “Marker settings” and “HV Delay” can be
set when “Studio mode” in Options menu is “On”.
56
Waveform Monitor
Function Button 2
Function Button 3
Function Button 4
Function Button 5
Function Button 6
Function Button 7
Function Button 8
Function Button Guide
Marker settings
HV Delay
Blue only
3D Settings
Signal
Colour gamut
Scrolling bar
On
2
change
1
select
Note:
The button functions are congured in two ways depending
on the setting (On/Off) of “Studio mode” in the Options menu.
Network Setup
Component/RGB-in select
Waveform Monitor*
Marker settings*
HV Delay*
Blue only
3D Settings
Signal
Colour gamut
Scrolling bar
R On/Off
G On/Off
Function Button Settings
Function Button 1
• Function Button Guide
The function display setting for the FUNCTION button
is congured.
On: Press the FUNCTION button to display the
function list of the button.
Off: The function list is not displayed.
Setup menu
Day/Time Setup / On/Off Timer Setup
Network
Setup
Screensaver
Extended life settings
Input label
Function Button Settings
On/Off Timer Setup
Day/Time Setup
2
access
1
select
Network Setup
Component/RGB-in select
RGB
Day/Time Setup
1
2
Press to select Day or Time.
Day/Time Setup
Press to set up Day or Time.
Set
button: Forward
Day
button: Back
Time
Notes:
• Pressing “ ” or “ ” button once changes Time 1 minute.
• Pressing “ ” or “ ” button continuously changes Time by 15 minutes.
Time MON 15:00
MON
15:00
Press to select Set.
Press to store Day/Time Setup.
Notes:
• Set cannot be selected unless Time is set.
• Unless setting the present time other than “99:99”, “Day” and “Time” cannot be set.
• The settings of “Day” and “Time” are reset when leaving the display turned off for about
7 days for the following reasons:
switch of the unit to turn off the display.
Pressing
Disconnecting the AC cord.
Interruption of power supply.
On/Off Timer Setup
1
Press to select POWER ON Time / POWER OFF
Time.
Press to setup
POWER ON Time / POWER OFF Time.
button: Forward
button: Back
On/Off Timer Setup
Time 15:00
POWER ON Function
Off
POWER ON Time
12:00
POWER OFF Function
Off
16:00
POWER OFF Time
Notes:
• Pressing “ ” or “ ” button once changes POWER ON Time / POWER OFF Time 1 minute.
• Pressing “ ” or “ ” button continuously changes POWER ON Time / POWER OFF Time
by 15 minutes.
2
Press to select POWER ON Function/POWER OFF Function.
Press to select On.
Note: Timer function will not work unless “Time” is set.
57
Setup menu
Network Setup
Make the various settings to use the network function.
3D Settings
DHCP, IP address, Subnet mask and Gateway settings
Signal
Waveform Monitor
1 Set DHCP.
Marker settings
RGB/MONO settings
Network
Setup
Screensaver
When “Off” is selected, IP address and other settings can be set manually.
2 Select the item and press
3 Enter an address.
Extended life settings
Input label
Function Button Settings
IP address
192.168.
I
0.
8
On/Off Timer Setup
Day/Time Setup
Network Setup
RGB
access
4 Select “Save” and press
1
select
Port setting
1 Select “Port” and press
2 Enter a port number.
Port
Save
Off
255.255.255. 0
Gateway
192.168. 0. 1
Port
1024
LAN Speed
Auto
Control I/F Select
MAC Address
01024
I
192.168. 0. 8
Subnet mask
Network ID
Pressing
2
Network Setup
IP address
Use
to select a digit.
Use
to change a number or input the
to
.
numerical value from
3 Press
.
1
2
Component/RGB-in select
DHCP
.
0
RS-232C
--:--:--:--:--:--
Save
Save the current network Setup. Each value set for
DHCP, IP address, Subnet mask, and Gateway will be
saved. If “NG” is displayed, check the same IP address
is not used within the same network.
DHCP (DHCP client function)
To obtain an IP address automatically using a DHCP
server, set this to “On”. If DHCP server is not used, set
this to “Off”.
IP address (IP address display and setting)
Enter an IP address if DHCP server is not used.
Subnet mask (Subnet mask display and setting)
Enter a subnet mask if DHCP server is not used.
Gateway (Gateway address display and setting)
Enter a gateway address if DHCP server is not used.
will cancel the address change.
.
.
Use
to select a digit.
2 Use
to change a number or input the
to
.
numerical value from
3 Press
.
1
Pressing
will cancel the port number change.
Port
Set the port number used for command control.
The available setting range is 1024 – 65535.
When the PJLink™ protocol is used, the port setting is
not necessary.
LAN Speed
Set the connection speed of the LAN environment.
Select the value from Auto, 10 Half, 10 Full, 100 Half or
100 Full.
Network ID
Set the ID to identify this unit.
The available setting range is 0 – 99.
Control I/F Select
Set whether to control with RS-232C (serial) or LAN.
When “LAN” is set, the slot power is turned on, and
power indicator is lit orange under the condition of
power “Off” with remote control (stand-by state),
regardless of the “Slot power” setting. (see page 60)
MAC Address
Display the MAC address of this unit. However, the MAC
address is not displayed when the “Control I/F Select” is
set to “RS-232C”.
Notes:
• To use a DHCP server, make sure the DHCP server is started.
• Contact your network administrator for details on settings.
58
Options Adjustments
1
2
3
Display the menu screen.
Select “Options”.
Press
for more than 3 seconds.
2
access (more
than 3 seconds)
1
select
2
set
1
select
Setup
Pos./Size
Sound
Options
4
Select the item and set.
Audio input select
Onscreen display
On
Studio mode
On
ID select
0
Remote ID
Serial ID
Off
Off
Display size
On
Slot power
Off
Power On Screen Delay
Off
All Aspect
Off
Auto Setup
Manual
Advanced Motion Resolution
On
Power On Message (No activity power off)
On
3D Safety Precautions
5
On
Exit the menu.
or
Item
Adjustments
Audio input select
Set up the sound when an image input is selected. (see page 62)
Onscreen display
On: Displays all the following on screen.
• Power on display
• Input signal switch display
• No signal display
• Remainig time of off-timer after
was pressed.
Off: Hides all the items above from view.
For switching functions in setting menus used for television studio applications.
Setting menu
White balance
Advanced Studio Gain
Studio mode
Setup
Studio mode: Off
“Studio” can be selected. “Studio” not available.
Unavailable (set to “Off”
Available
and cannot be changed).
Waveform Monitor
Available
Unavailable
Marker settings
Available
Unavailable
3D Colour Compensation
Available
Unavailable
Function Button Settings
Waveform Monitor
Marker settings
HV Delay
Pos./Size
Studio mode: On
HV Delay
The button functions are separately congured in
“On” and “Off”.
Congurable
Not congurable
Available
Unavailable
59
Options Adjustments
Item
ID select
Remote ID
Serial ID
Adjustments
Sets panel ID number when panel is used in “Remote ID” or “Serial ID”.
Set value range: 0 - 100
(Standard value: 0)
The setting of this menu is valid only when using ID remote control.
Off: Disables ID remote control functions. You can use normal remote control operations.
On: Enable ID remote control functions.
Note: To use the ID remote control function, it is necessary to set each ID number of remote
control and display unit.
About the setting method, please refer to “ID Remote Control Function” (see page 73) and
“ID select” (above-mentioned).
Sets the panel ID Control.
Off: Disables external control by the ID.
On: Enables the external control by the ID.
Adjusts the image display size on screen.
Off: Sets the normal image display size on screen.
On: Sets the image display size approximately 95 % of the normal image display.
Off
On
Display size
Slot power
Power On Screen Delay
Notes:
• This setting is valid only when the input signals are as follows;
NTSC, PAL, SECAM, M.NTSC, PAL60, PAL-M, PAL-N (Video)
525i, 525p, 625i, 625p, 750/60p, 750/50p, 1125/60i, 1125/50i, 1125/24sF, 1125/25p, 1125/24p,
1125/30p, 1125/60p, 1125/50p, 1250/50i (Component Video, RGB, DVI, SDI, HDMI)
• This setting is invalid when digital zoom is selected.
• When “Display size” is set to “On”, “H-Pos” and “V-Pos” in “Pos./Size” can be adjusted.
• Refer to each board’s operating instruction for DVI, SDI, HDMI’s corresponding signals.
Off
Off:
Auto:
On:
Note:
Auto
On
Power is not transmitted to the slot power.
Power is transmitted to the slot power only when main power is on.
Power is transmitted to the slot power when main power is on or in the standby state.
In some cases, power is transmitted to the slot power when main power is on or in the standby
state regardless of the slot power setting.
Off
1
2
3....
30
You can set the power-on delay time of the displays to reduce the power load, when you press
to turn on the multiple displays that are set together.
Set each display’s setting individually.
Off:
The display will be turned on at the same time as
is pressed.
1 to 30 (sec.): Set the power-on delay time (second).
After pressing
, the display will be powered on with time delay depending on this
setting.
Notes:
• During this function is working, the power indicator is blinking green.
• This function also works when the power recovers from failure or after plugging off and in again
the power cord.
After you unplug and plug the power cord in while the unit is in standby mode and also the power
is being supplied to a terminal board, the unit will start supplying the power to the board with time
delay according to the setting.
The power indicator lights up red rst and it turns orange when the power starts being supplied to the
board.
Sets All Aspect mode (advanced aspect setting) or default aspect mode.
With each press of
All Aspect
60
button, the aspect changes in the selected mode.
Off: Default aspect mode
On: All Aspect mode
Aspect mode of each setting is as follows:
(Example: HD signal)
Off 4:34:3 FullZoom1Zoom2Zoom316:914:9Just
On 4:3 (1)4:3 (2)4:3 FullZoom1Zoom2Zoom316:914:9Just1Just2
Options Adjustments
Item
Adjustments
Sets the operational mode of the automatic position adjustment in the Pos./Size menu.
Manual: Automatic position adjustment starts when
Auto Setup
Auto:
Advanced Motion
Resolution
Power On Message
(No activity power off)
3D Safety Precautions
is pressed on the remote control or
automatic position adjustment is executed from the Pos./Size menu.
Other than remote control or menu operation, automatic position adjustment starts:
When the display power is turned ON.
When the input signal is switched.
Displays motion picture images at higher resolution.
On
Off
Notes:
• Please set to “Off” if images look unnatural.
• This function is disabled during 3D images.
Whether to show/hide No activity power off Precautions at the time of power ON is set.
On: The warning precautions are shown at the time of power ON.
Off: The warning precautions are not shown at the time of power ON.
Note: This setting is enabled only if “No activity power off” is “Enable” (see page 42).
3D Safety Precautions show/hide is set during power ON.
On: 3D Safety Precaution is shown every time when the power is ON.
Off: 3D Safety Precaution is not shown when the power is ON.
When the setting changes from “On” to “Off”, the conrmation screen is displayed as below.
Pressing “YES” switches the setting.
3D Safety Precautions
If Off is selected, the 3D safety precautions
will not be displayed when power is turned on.
Change Setting?
YES
NO
61
Options Adjustments
Audio input select
Set up the sound when an image input is selected.
Audio input select
Onscreen display
On
Studio mode
On
ID select
0
Remote ID
Press
Off
button
Audio input select
SLOT INPUT
SLOT INPUT
VIDEO
VIDEO
COMPONENT
COMPONENT
HDMI
DVI
HDMI
DVI/PC
PC
DVI/PC
2
Select audio input.
1
Select image input.
Image input
[SLOT INPUT]*1
[VIDEO]
[COMPONENT]*2
[HDMI]
[DVI]
[PC]
Audio input
SLOT INPUT / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT / VIDEO / COMPONENT / HDMI / DVI/PC / NO AUDIO
SLOT INPUT / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT / VIDEO / COMPONENT / DVI/PC / NO AUDIO
DVI/PC: Sound input for both DVI and PC.
NO AUDIO: No audio input (Mute)
*1 “SLOT INPUT” is displayed when a Terminal Board is installed.
*2 “COMPONENT” may be displayed as “RGB” depending on the setting of “Component/RGB-in select”.
(see page 40)
When a Terminal Board with dual input terminals is installed
“SLOT INPUT” is displayed as “SLOT INPUT A” and “SLOT INPUT B” and independent settings are available.
To set other image inputs, you can select “SLOT INPUT A” and “SLOT INPUT B”.
Image input
Audio input
[SLOT INPUT A]
[SLOT INPUT B]
[VIDEO]
[COMPONENT]
[HDMI]
[DVI]
[PC]
SLOT INPUT A / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT B / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO / COMPONENT / HDMI / DVI/PC / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO / COMPONENT / DVI/PC / NO AUDIO
SLOT INPUT A / SLOT INPUT B / VIDEO / COMPONENT / DVI/PC / NO AUDIO
When Image input and Audio input differ from each other, the Audio input is displayed as below.
PC
16:9
COMPONENT
NANODRIFT
Notes:
• HDMI Audio is selectable only for HDMI Input.
• You cannot set audio of B for SLOT INPUT A, or audio of A for SLOT INPUT B.
62
Using FUNCTION button
Assigning functions to the FUNCTION button on the remote control enables a user to switch
between show/hide and modes with just a single touch of a button. The function settings are
congured by using “Function Button Settings” in the Setup menu (see page 56).
The button functions are congured in two ways depending on the setting (On/Off) of “Studio
mode” in the Options menu. Similarly, factory default settings vary as follows.
Factory default settings
Studio mode: On
FUNCTION Button 1
FUNCTION Button 2
FUNCTION Button 3
FUNCTION Button 4
FUNCTION Button 5
FUNCTION Button 6
FUNCTION Button 7
FUNCTION Button 8
Studio mode: Off
Off timer
External scaler mode
Test Patterns
Blue only
3D Settings
Signal
Colour gamut
Scrolling bar
Waveform Monitor
Marker settings
HV Delay
Blue only
3D Settings
Signal
Colour gamut
Scrolling bar
Display of the FUNCTION button guide
Pressing the FUNCTION button can display the FUNCTION button guide to refer for the function of each button.
The operation starts.
Function
1:Waveform Monitor
5:3D Settings
2:Marker settings
6:Signal
3:HV Delay
7:Colour gamut
4:Blue only
8:Scrolling bar
If the guide display is not needed, set “Function Button Guide” in “Function Button Settings” to “Off” (see page 56).
3D Settings / Signal / Colour gamut
The menu is displayed.
(Example: 3D Settings)
3D Settings
3D Function
On
Auto
3D Picture Format
3D
Normal
3D Viewing Mode
3D Picture Sequence
3D Colour Compensation
On
Safety Precautions
Pressing the FUNCTION button clears the menu.
Scrolling bar / Test Patterns
Conrmation screen (Example: Scrolling bar)
Press to select
“Yes”.
Function
Scrolling bar
Yes
No
• Scrolling bar
Activates the “Scrolling bar only” screensaver. After
15 minutes, the display enters standby mode.
The operation starts.
Press.
• Test Patterns
Each time you press
(seven in all).
, a different test pattern is displayed
Color Bars
To exit this mode, press any button.
Black
1% window
Red
Green
Frame
(2 lines × 2 dots)
Blue
To exit this mode, press any button other than
.
Note:
“PC Power management”, “DVI-D Power management” and “No signal power off” are deactivated during “Scrolling
bar” or “Test Patterns” operation. (see page 42)
63
Using FUNCTION button
Waveform Monitor
The waveform monitor displays (see page 47).
To exit this mode, press the FUNCTION button.
Marker settings
The marker displays (see page 48).
Each time the FUNCTION button is pressed, the screen is switched in the following order;
Preset 1 Preset 2 Off.
HV Delay
The video blanking period displays (see page 28).
Each time the FUNCTION button is pressed, the screen is switched in the following order;
H Delay V Delay HV Delay Off.
Blue only
The screen displays only blue color for image adjustment.
To exit this mode, press FUNCTION button.
MONO
The screen is displayed in black and white by the Y signal alone (see page 50).
To cancel, press the FUNCTION button.
R On/Off / G On/Off / B On/Off
R / G / B signals are turned off (see page 50).
Each time the FUNCTION button is pressed, each signal switches between On/Off.
Digital zoom
The digital zoom function starts up (see page 22).
To exit this mode, press the FUNCTION button.
Off timer
The Plasma Display can be preset to switch to stand-by after a xed period. The setting changes to 30 minutes,
60 minutes, 90 minutes and 0 minutes (off timer cancelled) each time the button is pressed.
30 min
60 min
90 min
0 min (Cancel)
When three minutes remain, “Off timer 3 min” will ash.
The off timer is cancelled if a power interruption occurs.
External scaler mode
The scaler function is set (see page 41).
Each time the FUNCTION button is pressed, it switches between On/Off.
Volume + / Volume –
The volume is adjusted.
Press the FUNCTION button to turn the volume UP/DOWN.
Mute
The sound is temporarily muted.
Press the FUNCTION button again to cancel.
64
Using Network Function
This unit has a network function to control the network connected display with your computer.
Note:
To use the network function, set each “Network Setup” setting and make sure to set the “Control I/F Select” to “LAN”.
(see page 58)
When “LAN” is set, the slot power is turned on, and power indicator is lit orange under the condition of power “Off”
with remote control (stand-by state), regardless of the “Slot power” setting. (see page 60)
Example of Network Connection
COMPUTER
Display (main unit, rear)
Less
than
10 cm
LAN cable
(not supplied)
Ferrite core
(supplied)
Installing the Ferrite core
Ferrite core
(supplied)
Less
than
10 cm
Open
Pull back the tabs
(in two places)
Wind the cable
twice
Press the cable
through and close
Hub or broadband router
Notes:
• Make sure the broadband router or hub supports 10BASE-T/100BASE-TX.
• To connect a device using 100BASE-TX, use “category 5” LAN cable.
• Touching the LAN terminal with a statically charged hand (body) may cause damage due to its discharge.
Do not touch the LAN terminal or a metal part of the LAN cable.
• For instructions on how to connect, consult your network administrator.
Command Control
Network function of the unit can control the unit in the same way as serial control from a network.
Supported commands
Commands used in the serial control are supported. (see page 14)
Note:
Consult your local Panasonic dealer for detail instructions on command usage.
65
Using Network Function
PJLink™ Protocol
The network function of the unit conforms with PJLink™ class 1 and you can operate the following actions from your
computer using PJLink™ protocol.
• Display setup
• Display status query
Supported commands
Commands to control the unit with PJLink™ protocol are shown in the table below.
Command
Control
POWR
Power control
POWR?
Power status query
INPT
INPT?
AVMT
Input switch
Input switch query
Shutter control
AVMT?
Shutter control query
ERST?
Error status query
LAMP?
INST?
Lamp status query
Input switch list query
NAME?
INF1?
INF2?
INFO?
CLSS?
Projector name query
Manufacturer name query
Model name query
Other information query
Class information query
Remark
Parameter
0 = Standby 1 = Power “On”
Parameter
0 = Standby 1 = Power “On”
Parameter
See the parameter for command INST?
Parameter
10 = Picture On (picture mute deactivated), 11 = Picture Off (picture on mute)
20 = Audio On (audio mute deactivated), 21 = Audio Off (audio on mute)
30 = Shutter mode Off (picture and audio mute deactivated)
31 = Shutter mode On (picture and audio on mute)
Parameter
11 = Picture Off (picture on mute)
21 = Audio Off (audio on mute)
30 = Shutter mode Off (picture and audio mute deactivated)
31 = Shutter mode On (picture and audio on mute)
Parameter
First byte: Means fan error. 0 or 2.
Second byte: 0
Third byte: 0
Fourth byte: 0
Fifth byte: 0
Sixth byte: Means other error. 0 or 2.
Meaning of the 0 – 2 settings:
0 = Error is not detected, 2 = Error
Not supported
Parameter
Numbers 11 to 13 are depending on the slot installation condition
11: PC IN input (PC)
When a single input terminal board When a dual input terminal board is
is attached
attached
11: SLOT input (SLOT INPUT)
11: SLOT input (SLOT INPUT A)
12: PC IN input (PC)
12: SLOT input (SLOT INPUT B)
13: PC IN input (PC)
21: VIDEO input (VIDEO)
22: COMPONENT/RGB IN input
31: HDMI input (HDMI)
(COMPONENT)
32: DVI-D IN input (DVI)
Returns empty character (no name information)
Returns “Panasonic”
Returns “TH-50BT300” (for 50-inch model)
Returns version number
Returns “1”
PJLink™ security authentication
Set “Panasonic” for the PJLink™ password.
• PJLink™ is a pending trademark in Japan, the United States, and other countries or areas.
66
Using Web Browser Control
You can use a Web browser to control the unit and set up a network and password.
Before Using Web Browser Control
To use the Web browser control, the unit and computer setups are required.
Unit Setup
Set each “Network Setup” setting and make sure to set the “Control I/F Select” to “LAN”. (see page 58)
Computer Setup
Disable the proxy server settings and enable JavaScript.
(Windows)
Disable proxy server settings
1 Display [Internet Properties] window.
Click [Start] – [Control Panel] – [Network and Internet
Connections] – [Internet Options].
2 Click the [Connections] tab and then [LAN Settings].
3 Deselect the [Use automatic conguration script] and
[Use a proxy server for your LAN] boxes.
4 Click [OK].
Enable JavaScript
1 Display [Internet Properties] window.
Click [Start] – [Control Panel] – [Network and Internet
Connections] – [Internet Options].
2 Set the security level on the [Security] tab to [Default
Level]. Alternatively enable [Active scripting] from the
[Custom Level] button.
(Macintosh)
Disable proxy server settings
1 From the [Safari] menu, click [Preferences].
General screen is displayed.
2 From the [Advanced] tab, click the [Change
Settings…] button next to [Proxies]. Click [Proxies]
and set up a proxy server.
3 Deselect the [Web Proxy] and [Automatic Proxy
Conguration] boxes.
4 Click [Apply Now].
Enable JavaScript
1 Display [Security] of Safari.
2 Select [Enable JavaScript] under [Web content].
Access from Web Browser
Access to the TOP screen of the Web browser control using a Web browser.
1 Start your Web browser.
2 Enter the IP address set with the “Network Setup” of the
unit. (see page 58)
3 Enter the user name and password when the
Authentication screen is displayed.
Authentication screen
Notes:
The password used here is the same password
used for command control and the PJLink™
security authentication.
Default user name and password are as follows:
User name: user1
Password: Panasonic
The password can be changed on the Password
Setup screen after logging in (see page 69). The
user name cannot be changed.
Under no circumstances, Panasonic Corporation
or it's associated companies will ask customers
their password directly.
Even if you are asked directly, please do not
reveal your password.
4 Click [OK].
After logged in, the TOP screen of the Web browser
control is displayed. (see page 68)
67
Using Web Browser Control
TOP screen structure of the Web browser control
After logging in, the TOP screen of the Web browser control is displayed.
Menu
Menu items are displayed. When a button is clicked,
setup screen of each item is displayed.
Item
BASIC
CONTROL
OPTION
CONTROL
NETWORK
SETTING
CHANGE
PASSWORD
Details
BASIC CONTROL screen is displayed.
(see below)
OPTION CONTROL screen is
displayed. (see below)
Network Setup screen is displayed.
(see page 69)
Password setup screen is displayed.
(see page 69)
According to the selected item from the main menu,
setup status or set items are displayed.
Network ID information
ID to identify the unit is displayed.
Display Control (BASIC CONTROL/OPTION CONTROL Screen)
Click BASIC CONTROL or OPTION CONTROL from the menu. Various controls of the unit can be set.
BASIC CONTROL screen
OPTION CONTROL screen
Click BASIC CONTROL from the menu. Unit status and
buttons to change settings are displayed.
Click OPTION CONTROL from the menu. Command input
eld for command control of the unit is displayed.
Item
COMMAND
RESPONSE
SEND
Item
POWER
Details
Switch ON/OFF of the unit power.
Switch the input signals. Displayed
buttons vary according to the
INPUT SELECT
connection status of the video
device.
AUDIO MUTE Switch ON/OFF of the sound mute.
ASPECT
Switch the screen modes
68
Details
Enter a command. Use the same
command used for the serial control.
(see page 14)
Response from the unit is displayed.
Command is sent and run.
Note:
After the settings are changed, it may take a while till
the display status is displayed.
Using Web Browser Control
NETWORK SETTING (Network Setup Screen)
Click NETWORK SETTING from the menu. Various settings of a network can be set. For the details of the setting
items, please check Network Setup under the Set up of the unit. (see page 58)
Item
Notes:
• To use a DHCP server, make sure the DHCP server
is started.
• During a DHCP server is used, IP ADDRESS,
SUBNET MASK, and GATEWAY values cannot be
entered.
• When the set values are changed properly,
“NETWORK SETTING CHANGED.” message and
the changed set items are displayed.
Details
Set to ON when a DHCP server is
DHCP
used, or OFF when it is not used.
IP ADDRESS
Enter an IP address.
SUBNET MASK Enter a subnet mask.
GATEWAY
Enter a gateway address.
Enter the port number used for
PORT
command control. The available
setting range is 1024 - 65535.
Set the connection speed of the LAN
LAN SPEED
environment.
Set the ID to identify this unit. The
NETWORK ID
available setting range is 0 - 99.
SAVE
Save the each set value.
Password Setting (Password Setup Screen)
Click CHANGE PASSWORD from the menu. Password to access the Web browser control can be set. When
the password is changed in this screen, the password used for command control and the PJLink™ security
authentication is also changed.
Item
OLD
PASSWORD
NEW
PASSWORD
Notes:
• The default password is “Panasonic”.
• Up to 32 alphanumeric characters can be used for a
password.
• When the password is changed properly, “Password
has changed.” message is displayed.
Details
Enter the old password.
Enter the new password.
NEW
PASSWORD
(RETYPE)
Enter the password entered in “NEW
PASSWORD” for conrmation.
SAVE
Save the new password. The
conrmation screen is displayed.
Click OK to change the password.
69
Troubleshooting
Before you call for service, determine the symptoms and make a few simple checks as shown below.
Symptoms
Sound
Interference
Noisy Sound
Normal Picture
No Sound
Checks
Electrical Appliances
Cars / Motorcycles
Fluorescent light
Volume
(Check whether the mute function has been activated on the remote control.)
Check if speakers are corrected properly.
No Picture
No Sound
No Picture
Normal Sound
Not plugged into AC outlet
Not switched on
Picture and Brightness/Volume setting
(Check by pressing the power switch or stand-by button on the remote control.)
If a signal with a non-applicable colour system format, or frequency is input, only
the input terminal indication is displayed.
No Colour
Normal Sound
Colour controls set at minimum level (see page 29-34)
Colour system (see page 45)
No remote control operations can be performed.
A cracking sound is sometimes heard from the unit.
The top or bottom of the picture on the screen is cut
off when I use the zoom function.
Areas at the top and bottom of the screen where
the image is missing appear when I use the zoom
function.
I can hear sounds coming from inside the unit.
Parts of the unit become hot.
Check whether the batteries have discharged completely and, if they have not,
whether they were inserted properly.
Check whether the remote control sensor is exposed to an outdoor light or a
strong uorescent light.
Check whether the remote control designed specically for use with the unit is
being used. (The unit cannot be operated by any other remote control.)
If there is nothing wrong with the picture or sound, this is the sound of the cabinet
undergoing very slight contractions in response to changes in the room temperature.
There are no adverse effects on the performance or other aspects.
Adjust the position of the picture on the screen.
When using a video software program (such as a cinema size program) with a
screen wider than one in the 16:9 mode, blank areas separate from the images
are formed at the top and bottom of the screen.
When the power is turned on, a sound of the display panel being driven may be
heard: This is normal and not indicative of malfunctioning.
Even when the temperature of parts of the front, top and rear panels has risen, these
temperature rises will not pose any problems in terms of performance or quality.
Power automatically turns off unexpectedly.
Check the settings of “PC Power management”, “DVI-D Power management”, “No
signal power off” and “No activity power off” in the Setup menu. Any of them may be
set to “On (Enable)”. (see page 42)
Power indicator is blinking in red.
There is possibility of malfunction. Please contact an Authorized Service Center.
This Plasma Display uses special image processing. Hence a slight time lag may occur between image and audio, depending on the
type of input signal. However, this is not a malfunction.
Plasma Display panel
Symptoms
The screen darkens slightly
when bright pictures with minimal
movements are shown.
It takes a while for the picture
to appear.
The edges of the images
icker.
The brightness on both sides of
images in the 4:3 mode changes.
Some parts of the screen do
not light up.
Image retention appears
Whirring sounds can be heard
from the display unit.
70
Check
The screen will darken slightly when photos, still images of a computer or other pictures with minimal
movements are shown for an extended period. This is done to reduce image retention on the screen
and the shortening of the screen’s service life: It is normal and not indicative of malfunctioning.
The unit digitally processes the various signals in order to reproduce esthetically pleasing images. As
such, it sometimes takes a few moments for the picture to appear when the power has been turned
on, when the input has been switched.
Due to the characteristics of the system used to drive the panel, the edges may appear to icker in
the fast-moving parts of the images: This is normal and not indicative of malfunctioning.
When viewing the side panels at the “High” or “Mid” setting, the brightness on both sides may change
depending on the kind of program shown: This is normal and not indicative of malfunctioning.
The plasma display panel is manufactured using an extremely high level of precision technology,
however, sometimes some parts of the screen may be missing picture elements or have luminous
spots. This is not a malfunction.
Do not allow a still picture to be displayed for an extended period, as this can cause a permanent image retention to
remain on the Plasma Display.
Examples of still pictures include logos, video games, computer images, teletext and images displayed in 4:3 mode.
Note:
The permanent image retention on the Plasma Display resulting from xed image use is not an
operating defect and as such is not covered by the Warranty.
This product is not designed to display xed images for extended periods of time.
The display unit is tted with a cooling fan to dissipate heat generated during normal use. The whirring
sound is caused by rotation of the fan and is not a malfunction.
List of Aspect Modes
Aspect mode
All Aspect: Factory setting
On
All Aspect: Off
16:9
14:9
16:9
Enlarged screen
Description
The display of the pictures lls the screen.
In the case of SD signals, pictures with a 4:3 aspect
ratio are enlarged horizontally, and displayed. This
mode is suited to displaying anamorphic pictures with
a 16:9 aspect ratio.
14:9
Letterbox pictures with a 14:9 aspect ratio are enlarged
vertically and horizontally so that their display lls the
screen vertically and is slightly smaller than the screen
horizontally. The top and bottom edges of the pictures
are cut off. Side panels are displayed at the left and right
edges of the screen.
Just
Pictures with a 4:3 aspect ratio are enlarged horizontally
so that the picture distortion is minimized. The display of
the areas around the left and right edges of the screen
is slightly elongated.
–
The pictures with a 4:3 aspect ratio among the 16:9 aspect
ratio signals are enlarged horizontally so that the picture
distortion is minimized. The left and right edges of the
pictures are cut off. The display of the areas around the
left and right edges of the screen is slightly elongated.
Just
Just1
Just2
4:3
4:3
Pictures with a 4:3 aspect ratio are displayed with their
original aspect ratio. Side panels are displayed at the
left and right edges of the screen.
4:3 (1)
4:3 (2)
4:3 Full
–
The pictures with a 4:3 aspect ratio among the 16:9
aspect ratio signals are displayed with their original
aspect ratio. The left and right edges of the pictures are
masked with side panels.
4:3 Full
The pictures with a 4:3 aspect ratio among the 16:9
aspect ratio signals are enlarged horizontally so that
their display lls the screen. The left and right edges of
the pictures are cut off.
Zoom1
Letterbox pictures with a 16:9 aspect ratio are enlarged
vertically and horizontally so that their display lls the
screen. The top and bottom edges of the pictures are
cut off.
Zoom2
The letterbox pictures with a 2.35:1 aspect ratio among
the 16:9 aspect ratio signals are enlarged vertically and
horizontally so that their display lls the screen. The top
and bottom edges as well as the left and right edges of
the pictures are cut off.
Zoom3
Letterbox pictures with a 2.35:1 aspect ratio are enlarged
vertically and horizontally so that their display lls the
screen vertically and is slightly larger than the screen
horizontally. The top and bottom edges as well as the
left and right edges of the pictures are cut off.
Zoom
Zoom1
Zoom2
Zoom3
71
Applicable Input Signals
*Mark: Applicable input signal
Signal name
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
525 (480) / 60i
525 (480) / 60p
625 (575) / 50i
625 (576) / 50i
625 (575) / 50p
625 (576) / 50p
750 (720) / 60p
750 (720) / 50p
1,125 (1,080) / 60p
1,125 (1,080) / 60i
1,125 (1,080) / 50p
1,125 (1,080) / 50i
1,125 (1,080) / 24sF
1,125 (1,080) / 30p
1,125 (1,080) / 25p
1,125 (1,080) / 24p
1,250 (1,080) / 50i
2,048 × 1,080 / 24sF 7
2,048 × 1,080 / 24p 7
640 × 400 @70 Hz
640 × 480 @60 Hz
640 × 480 @72 Hz
640 × 480 @75 Hz
640 × 480 @85 Hz
800 × 600 @56 Hz
800 × 600 @60 Hz
800 × 600 @72 Hz
800 × 600 @75 Hz
800 × 600 @85 Hz
852 × 480 @60 Hz
1,024 × 768 @50 Hz
1,024 × 768 @60 Hz
1,024 × 768 @70 Hz
1,024 × 768 @75 Hz
1,024 × 768 @85 Hz
1,066 × 600 @60 Hz
1,152 × 864 @60 Hz
1,152 × 864 @75 Hz
1,280 × 768 @60 Hz
1,280 × 960 @60 Hz
1,280 × 960 @85 Hz
1,280 × 1,024 @60 Hz
1,280 × 1,024 @75 Hz
1,280 × 1,024 @85 Hz
1,366 × 768 @50 Hz
1,366 × 768 @60 Hz
1,400 × 1,050 @60 Hz
1,600 × 1,200 @60 Hz
1,600 × 1,200 @65 Hz
1,920 × 1,080 @60 Hz
1,920 × 1,200 @60 Hz
Macintosh13” (640 × 480)
Macintosh16” (832 × 624)
Macintosh21” (1,152 × 870)
Horizontal frequency Vertical frequency
(kHz)
(Hz)
15.73
31.47
15.63
15.63
31.25
31.25
45.00
37.50
67.50
33.75
56.26
28.13
27.00
33.75
28.13
27.00
31.25
27.00
27.00
31.46
31.47
37.86
37.50
43.27
35.16
37.88
48.08
46.88
53.67
31.47
39.55
48.36
56.48
60.02
68.68
37.64
53.70
67.50
47.70
60.00
85.94
63.98
79.98
91.15
39.55
48.36
65.22
75.00
81.25
67.50
74.04
35.00
49.72
68.68
59.94
59.94
50.00
50.00
50.00
50.00
60.00
50.00
60.00
60.00
50.00
50.00
48.00
30.00
25.00
24.00
50.00
48.00
24.00
70.07
59.94
72.81
75.00
85.01
56.25
60.32
72.19
75.00
85.06
59.94
50.00
60.00
70.07
75.03
85.00
59.94
60.00
75.00
60.00
60.00
85.00
60.02
75.03
85.02
50.00
60.00
60.00
60.00
65.00
60.00
59.95
66.67
74.54
75.06
COMPONENT /
DVI-D IN
RGB IN / PC IN
(Dot clock (MHz))
(Dot clock (MHz))
* (13.5)
* (27.0)
* (27.0)
* (27.0) 5
* (13.5)
* (27.0)
* (27.0)
* (27.0)
* (74.25)
* (74.25)
* (74.25)
* (74.25)
* (148.5)
* (148.5) 1
* (74.25)
* (74.25) 1
* (148.5)
* (148.5) 1
* (74.25)
* (74.25) 1
* (74.25) 2
* (74.25)
* (74.25) 1
* (74.25)
* (74.25) 1
* (74.25) 1
* (74.25)
* (74.25) 3
*
*
*
*
*
*
*
*
*
*
*
(25.17)
(25.18)
(31.5)
(31.5)
(36.0)
(36.0)
(40.0)
(50.0)
(49.5)
(56.25)
(33.54)
*
*
*
*
*
(65.0)
(75.0)
(78.75)
(94.5)
(53.0)
*
*
*
*
*
*
*
(108.0)
(80.14)
(108.0)
(148.5)
(108.0)
(135.0)
(157.5)
6
6
* (86.71)
* (162.0)
* (175.5)
* (148.5)
4
HDMI
*
*
*
*
*
*
*
*
*
*
*
* (25.18)
*
* (40.0)
*
* (34.24)
* (51.89)
* (65.0)
*
*
*
* (53.0)
* (81.62)
*
*
* (108.0)
*
*
*
*
*
*
*
*
*
(69.92)
(87.44)
(122.61)
(162.0)
* (148.5)
* (154.0)
* (30.24)
* (57.28)
* (100.0)
*
*
1: Based on SMPTE 274M standard.
2: Based on SMPTE RP211 standard.
3: Based on SMPTE 295M standard.
4: The input signal is recognized as 1,125 (1,080) / 60p.
5: When selected the RGB format and 525p signal input to the PC IN terminal, it is recognized as VGA 60Hz signal.
6: When inputted VGA 60Hz format signal from the other than PC IN terminal, it is recognized as 525p signal.
7: Based on SMPTE 292M and 372M standards. These signals can be received when the Dual Link HD-SDI Terminal
Board (TY-FB11DHD) or Dual HD-SDI Terminal Board for 3D (TY-FB30DHD3D) is installed.
Note: Signals without above specication may not be displayed properly.
72
Applicable Input Signals
Video input (VIDEO)
Horizontal
frequency(kHz)
15.73
15.63
15.73
15.63
15.73
Signal name
1
2
3
4
5
NTSC
PAL
PAL60
SECAM
Modied NTSC
Vertical
frequency(Hz)
59.94
50.00
59.94
50.00
59.94
ID Remote Control Function
You can set the remote control ID when you want to use this remote control on one of several different displays.
Note:
To operate this function, please purchase ID remote controller sold separately.
Object model : EUR7636090R
1
Switch
to
2
Press the
button on the remote control.
3
Press one of
-
,
for the tens digit setting.
4
Press one of
-
,
for the units digit setting.
on the right side.
Notes:
• The numbers in 2, 3 and 4 should be set up quickly.
• Adjustable ID number range is 0 - 99.
• If a number button is pressed more than two times, the rst two numbers become the ID number for the remote
control.
ID remote control button operation
The operation is the same as normal remote control except for the
button.
ID Cancellation
Press
button on remote control. (This has the same effect as pressing the
,
,
buttons at the same time.)
Notes:
• Set the Remote ID “On” to operate the ID remote control.
If Remote ID is set to “On”, you can use the remote control without identical ID number during option menu display.
(see page 60)
• The ID remote control cannot be used when ID select is set to anything other than 0, and the remote control ID is
not the same as the ID select number (see page 60).
73
Shipping condition
This function allows you to reset the unit to the factory setting.
1
Display the menu screen.
2
Select “Setup”.
2
access
1
select
1
select
1
select
2
set
1
select
2
set
Setup
Pos. /Size
Sound
3
Select “OSD Language”.
External scaler mode
Off
Power save
Standby save
Off
On
PC Power management
Off
DVI-D Power management
Off
No signal power off
Disable
No activity power off
Disable
OSD design
Type1
OSD position
OSD Language
Upper left
English (UK)
4
Press
5
Select “YES”.
for more than 5 seconds.
Reset to factory default.
YES
6
NO
Select “YES” and wait for 10 sec.
All saved data will be erased
CONTINUE?
YES
NO
Note:
Press
to return to Setup menu when conrmation screen is displayed.
7
Press the power switch (
) on main unit to turn the power off.
[from the unit]
1 Press the MENU button till the Setup menu is displayed.
or
button to select “OSD Language”.
2 Press the
3 Press the ENTER button for more than 5 seconds.
or
button to select “YES”.
4 Press the
5 Press the ENTER button.
or
button to select “YES”.
6 Press the
7 Press the ENTER button and wait for 10 sec.
) on main unit to turn the power off.
8 Press the power switch (
Executing this function restores all settings and adjustment values in the following menus to the factoryset default values, as shipped.
On-screen menu: Picture, Advanced settings, Setup, Pos. /Size, Sound, Options
74
Specications
TH-42BT300ER
Power Source
Power Consumption
Power on
Stand-by condition
Power off condition
Plasma Display panel
Screen size
(No.of pixels)
Operating condition
Temperature
Humidity
Applicable signals
Colour System
Scanning format
PC signals
Connection terminals
LAN
AV IN
VIDEO
AUDIO L-R
HDMI
COMPONENT/RGB IN
Y/G
PB/CB/B
PR/CR/R
AUDIO L-R
DVI-D IN
AUDIO
PC IN
TH-50BT300ER
220 - 240 V AC, 50/60 Hz
305 W
390 W
Save off 0.8 W, Save on 0.5 W
Save off 0.8 W, Save on 0.5 W
0.3 W
0.3 W
Drive method : AC type
Drive method : AC type
42-inch, 16:9 aspect ratio
50-inch, 16:9 aspect ratio
921 mm (W) × 518 mm (H)
1,105 mm (W) × 622 mm (H)
× 1,057 mm (diagonal)
× 1,268 mm (diagonal)
2,073,600 (1,920 (W) ×1,080 (H))
[5,760 × 1,080 dots]
0 °C - 40 °C
20 % - 80 %
NTSC, PAL, PAL60, SECAM, Modied NTSC
525 (480) / 60i · 60p, 625 (575) / 50i · 50p, 750 (720) / 60p · 50p, 1125 (1080) / 60i · 60p · 50i ·
50p · 24p · 25p · 30p · 24sF, 1250 (1080) / 50i
VGA, SVGA, XGA, SXGA
UXGA ···· (compressed)
Horizontal scanning frequency 15 - 110 kHz
Vertical scanning frequency 48 - 120 Hz
BNC
RCA Pin jack × 2
RJ45 10BASE-T/100BASE-TX, compatible with PJLink™
1.0 Vp-p (75 )
0.5 Vrms
TYPE A Connector
BNC
BNC
BNC
RCA Pin jack × 2
DVI-D 24 Pin
Content Protection
Stereo mini jack (M3) × 1
High-Density Mini D-sub 15 Pin
VBS (use HD port)
AUDIO
SERIAL
3D IR TRANSMITTER
3D SHUTTER OUT
DC 8V OUT
EXT SP
Dimensions (W × H × D)
Mass (weight)
main unit only
with speakers
Stereo mini jack (M3) × 1
External Control Terminal
D-sub 9 Pin
for 3D IR TRANSMITTER
M3 jack × 1
Centre plus, for EIAJ 4mm plug
Speaker Terminal
1,020 mm × 610 mm × 89 mm
approx. 26.0 kg net
approx. 31.0 kg
with sync 1.0 Vp-p (75 )
0.7 Vp-p (75 )
0.7 Vp-p (75 )
0.5 Vrms
Compliance with DVI Revision 1.0
Compatible with HDCP 1.1
0.5 Vrms, Shared with PC IN
Y or G with sync 1.0 Vp-p (75 )
Y or G without sync 0.7 Vp-p (75 )
PB/CB/B: 0.7 Vp-p (75 )
PR/CR/R: 0.7 Vp-p (75 )
HD/VD: 1.0 - 5.0 Vp-p (high impedance)
with picture 1.0 Vp-p (high impedance)
without picture 0.3 Vp-p (high impedance)
0.5 Vrms, Shared with DVI-D IN
RS-232C compatible
6 , 16 W [8 W + 8 W] (10 % THD)
1,210 mm × 724 mm × 89 mm
approx. 34.0 kg net
approx. 39.0 kg
Notes:
• Design and specications are subject to change without notice. Mass and dimensions shown are approximate.
• This equipment complies with the EMC standards listed below.
EN55022, EN55024, EN61000-3-2, EN61000-3-3.
75
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national
legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
<Software Information for This Product>
This product has software installed partially licensed under the Free BSD LICENSE.
Free BSD LICENSE regulations under the above specifications are as follows:
(These regulations are set by the third party; therefore the original (English) regulations are stated.)
Copyright © 1980, 1986, 1993
The Regents of the University of California. All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that the
following conditions are met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following
disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following
disclaimer in the documentation and/or other materials provided with the distribution.
3. All advertising materials mentioning features or use of this software must display the following acknowledgement:
This product includes software developed by the University of California, Berkeley and its contributors.
4. Neither the name of the University nor the names of its contributors may be used to endorse or promote products
derived from this software without specific prior written permission.
THIS SOFTWARE IS PROVIDED BY THE REGENTS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS
OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE REGENTS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF
SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)
HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY,
OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Customer’s Record
The model number and serial number of this product can be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identication in the event of theft or loss, and for Warranty Service purposes.
Model Number
Web Site : http://panasonic.net
¤ Panasonic Corporation 2011
Serial Number
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
