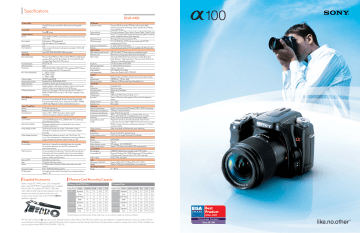

Specifications

Camera Type

Lens Used

Image Capture

Sensor

No. of pixels

Aspect ratio

Dust reduction

Sensitivity

Recording

Recording media

Format function

A/D conversion

File format

No. of recorded pixels

Colour modes

Image quality modes

Noise reduction

Delete functions

D-Range Optimizer

White Balance

Settings

Super SteadyShot

System

Display

Compensation

Display

LCD monitor

Information display

Image display modes

Other display functions

AF System

Focus modes

Main functions

Eye-start AF

Type

Sensor

Sensitivity range

AF illuminator

Digital SLR camera with built-in flash and interchangeable lenses

Sony lenses

23.6 x 15.8mm (APS-C size) interlace scan CCD with primary colour filter

Total: approx. 10.8 megapixels

Effective: approx. 10.2 megapixels

3:2

Static-resistant Anti-dust Coating (incorporated in CCD-shift mechanism)

Auto, 100, 200, 400, 800, 1600 equivalent

Memory Stick PRO Duo, Memory Stick PRO Duo High Speed

(includes Memory Stick Duo adaptor for CompactFlash slot),

CompactFlash (Type I & II), Microdrive

FAT 12, 16, 32

12 bit

JPEG, RAW, RAW+JPEG (DCF 2.0 compliant, DPOF 1.1 print functions supported, Exif 2.21 supported)

L: 3,872 x 2,592

M: 2,896 x 1,936

S: 1,920 x 1,280 sRGB, Adobe RGB

Standard, Fine, RAW, RAW+JPEG

Available at shutter speeds longer than 1 sec.

Single, multiple or all frames in a folder / memory card can be deleted. Folders can be deleted in the File Browser.

Advanced / Standard / Off (automatically off in M-Mode, in

RAW or RAW+JPEG format, or with center-weighted or spot metering)

Automatic, Preset (Daylight, Shade, Cloudy, Tungsten light,

Fluorescent light, Flash), colour temperature (2500 - 9900K with 19-step Magenta / Green compensation), custom

CCD-shift mechanism

Indicator inside viewfinder

Approx. 2EV - 3.5EV decrease in shutter speed

(varies according to conditions and lens used)

2.5-inch (100% field of view), 230,400-dot TFT, hybrid type

(Clear Photo LCD Plus)

Navigation display functions, enlarged text view, camera orientation adjustment

Single image (image only, image + information, image + information + histogram), index (4 / 9 / 16 images), tabbed browsing

Enlarged view (maximum zoom: L size - 12x, M size - 9x,

S size - 6x), overexposure / underexposure warning, slideshow, image orientation (automatic rotation mode on / off)

Auto-focus / manual focus selectable (auto-focus modes:

AF automatic selection, one-shot AF, continuous AF, direct manual focus)

Focus area selection (wide area / 9-point local frame selection / fixed center spot focus), predictive focus for moving subjects, auto-tracking focus point, focus lock (by half pressing shutter button or via the spot AF button)

Selectable via main menu

TTL phase-detection system

CCD line sensors (9 points, 8 lines with center cross-hair sensor)

EV0 - EV18, ISO 100 equivalent

Activated via built-in flash in low-light / low-contrast situations, range: 1 - 5m

DSLR-A100

AE System

Exposure modes

Scene selector

Metering type

Metering sensor

Metering range

Program AE (Auto mode / P-Mode, with program shift), aperture-priority AE (A-Mode), shutter-priority AE (S-Mode), manual (M-Mode)

Portrait, Landscape, Macro, Sports, Sunset, Night / Night Portrait

Direct TTL metering (40-segment honeycomb-pattern metering, center-weighted metering, spot metering)

40-segment honeycomb-pattern SPC

EV1 - EV20 (EV4 - EV20 with spot metering), ISO 100 equivalent with F1.4 lens

+/- 2EV (1/3 EV increments)

Automatically activated with AF lock, available with AE lock button

Exposure compensation

AE lock

Built-In Flash

Flash metering and control

Effective area

Flash modes

Guide no.

Flash compensation

Recycling time

External flash

(sold separately)

Shutter

Type

Speed range

Flash sync speed

Viewfinder

Type

Pentaprism

Focusing screen

Field of view

Magnification

Eye relief

ADI / Pre-flash TTL flash metering, manually activated

18mm lens coverage equivalent (same focal length)

Automatic, Fill flash, Red-eye reduction pre-flash, Rear Sync

Flash, Wireless*, High-speed sync*, Slow sync (with AE lock on)

*Requires compatible external flash

GN 12 (in meters at ISO 100)

+/- 2EV (1/3 EV increments)

Approx. 3 seconds

HVL-F56M, HVL-F36M,

Macro Twin Flash Kit HVL-MT24AM

Electronically-controlled, vertical-traverse, focal-plane shutter

1/4000 sec. - 30 sec., bulb

1/160 sec. (1/125 sec.with Super SteadyShot on)

Fixed eye-level

Roof mirror type

Spherical Acute Matte

95%

0.83x (with 50mm lens at infinity, -1 m -1 )

Approx. 20mm from the eyepiece, 16mm from the eyepiece frame

-2.5 - 1.0m

-1

Removable

Diopter control

Eyepiece cup

Shooting

Exposure bracketing

White balance bracketing

Continuous shooting rate

Continuous shooting limit

Self-timer

Digital effect control modes

Single or continuous shot (3 frames), 0.3EV / 0.7EV increments

3 frames, 2-step increments

Up to 3 frames per second

JPEG: unlimited, RAW: 6 frames, RAW+JPEG: 3 frames

10 sec., 2 sec. (with mirror up), LED and buzzer signals

Adjustment functions: 8 modes (Standard, Vivid, Portrait,

Landscape, Evening, Night / Night Portrait, Monochrome, Adobe

RGB), contrast, saturation and sharpness settings (+/- 2 steps) are also possible

After-view, depth-of-field preview, zone-matching Other functions

Others

Audio alerts

Printing output control

Power

Battery

Power display

External power source

Battery performance

Connectivity

PC interface

Compatible OS

Buzzer for self-timer and auto-focus

Exif Print, Print Image Matching III, PictBridge

NP-FM55H

5 levels

AC adaptor - AC-VQ900AM

Approx. 750 frames recorded (CIPA measurement)

USB2.0 Hi-Speed (mass storage mode / PTP mode)

Microsoft Windows Me / 2000 Professional / XP Home Edition /

XP Professional, Macintosh Mac OS X (v.10.1.3 and later)

NTSC / PAL selectable

Video output

Size

Dimensions (WxHxD)

Weight

Operating Temperature

Range

Approx. 133.1 x 94.7 x 71.3mm (5.2” x 3.7” x 2.8”)

Approx. 545g (not including battery or accessories)

0° - 40° C

Supplied Accessories

Battery charger BC-VM10, power cord, rechargeable battery pack NP-FM55H, CompactFlash slot-compatible

Memory Stick Duo adaptor AD-MSCF1, USB cable, video cable, shoulder strap (includes eyepiece cover and remote commander clip), body cap (for main unit), accessory shoe cap (for main unit), CD-ROM ( application software).

Memory Card Recording Capacity

Memory Stick PRO Duo CompactFlash

Image Size

L: 10M

Mode

Standard

Fine

RAW+JPEG

M: 5.6M

S: 2.5M

RAW

Standard

Fine

Standard

Fine

256MB

85

54

1 0

14

145

95

287

197

512MB

1 74

1 1 2

23

30

296

194

586

402

62

606

397

1 1 96

1GB

358

229

48

822

2GB

735

471

100

128

1245

815

2454

1687

Image Size

L: 10M

M: 5.6M

S: 2.5M

Mode

Standard

Fine

RAW+JPEG

RAW

Standard

Fine

Standard

Fine

256MB 512MB

93

59

12

15

159

104

315

216

188

120

25

32

319

208

630

433

The above figures are approximate. Actual results may vary according to usage and shooting conditions.

65

640

419

1262

1GB

377

242

51

867

2GB

755

485

103

1 32

1279

838

2523

1734

4GB

1508

968

207

265

2553

1 673

5034

3460

®™ Sony, like.no.other, the “ ” logo, Bionz, Super SteadyShot, Memory Stick, Memory Stick PRO Duo and their logos are trademarks or registered trademarks of Sony Corporation. All other names and logos are the trademarks or registered trademarks of their respective companies. Design, specifications and release dates are subject to change without notice. Product availability may vary according to market. PRINTED IN CANADA. A.E & O.E.

A D VA NC E D

Super SteadyShot™ Inside

Anti-dust system

INNOVATES

Providing Exclusive Technologies that Help to Expand Your Potential

A digital SLR camera should, first and foremost, bring beautiful photography within reach of everyone. Reach for and enjoy its advanced anti-shake technology that empowers even first-time users to take sharp, vivid photos without worrying about camera shake. Convenient anti-dust measures, meanwhile, protect against unwanted dust when changing lenses. With

in your hands, a new world of creativity is yours to explore.

02

Photo data: 1/500sec - F 5.6, ISO - 400, Auto white balance, Lens - 75-300mm F4.5-5.6 @ 180mm Photo captured at Spruce Meadows, Calgary, Alberta

03

Take Sharper Pictures with Any Lens

Night-time scenes

Super SteadyShot™ Inside

Because it’s built into the camera body itself, the

Super SteadyShot Inside system can work with every lens, compensating for subtle hand and body movements to give you sharper, steadier photos. Automatically reducing camera shake by 2 to 3.5 shutter steps, it ensures the photos you shoot at 1/20 of a second are as sharp as if they were shot at 1/250 of a second.

Thanks to Super SteadyShot Inside, you can now shoot with total confidence in low light or when using a zoom or a macro lens, even when you don’t have your tripod or flash handy.

Super SteadyShot allows you to take sharper low-light photos

Shooting with a telephoto lens

Super SteadyShot switch

Shooting with a macro lens

A D VA N C E D

Anti-shake Mechanism

To counteract the effects of camera shake, Super SteadyShot Inside employs a CCD-shift mechanism that balances out high-speed hand movements as well as low-speed body movements. Using highly sensitive speed and motion sensors, it instantly reacts to movement, shifting the CCD along horizontal and vertical axes by the precise amount to minimize blurring.

Camera Shake Indicator

Any time you shoot freehand, camera movement can become a factor.

Featuring a shake indicator, which is readily visible through the viewfinder, the provides real-time information so you can adjust your settings or shooting stance accordingly.

The CCD in the moves in reaction to hand and camera movements

Low movement

High movement

Two Super SteadyShot indicators are visible in the viewfinder

Camera shake warning

Super SteadyShot scale

Protect Your CCD from Dust

Anti-dust System

Dust on the CCD can reduce image quality by producing unwanted marks on your photos. The

incorporates two anti-dust measures to protect the CCD and help keep your images clean and beautiful. The low-pass filter located on the CCD has been treated with an Anti-dust

Coating that minimizes the attraction of dust particles and makes it harder for them to cling to the

CCD. Then, each time the camera is shut down, the Anti-dust Vibration function automatically vibrates the CCD rapidly to shake loose dust particles that may have accumulated.

04

Distant subjects show up clearly, without blur from camera shake

Even the finest details are sharp and clear

Anti-dust Coating

Low-pass filter

CCD

The low-pass filter is treated with a coating that reduces dust attraction

Anti-dust Vibration

When powering down, the

CCD is vibrated to shake dust loose

05

B E A U T I F U L

10.2-megapixel CCD

Bionz™ image processing engine

D-Range Optimizer

TRANSFORMS

Capture the Detail and Rich Colour of Life

Whether it’s a magic moment or a flash of spontaneity, the incorporates sophisticated Sony technology to convey the pure emotion of your photos. The 10.2-megapixel CCD works in harmony with the Bionz engine to capture each scene as an extraordinary display of fine detail and vibrant colour. Furthermore,

D-Range Optimizer helps to reproduce scenes exactly as you see them, even in challenging lighting conditions. Simplified by

Sony technology, the produces pictures that hold all the life, emotion and inspiration that you felt when you took them.

06

Photo data: 1/1000sec - F 4.5, ISO - 400, Auto white balance, Lens - 75-300mm F4.5-5.6 @ 85mm Photo captured at Spruce Meadows, Calgary, Alberta

07

Take Outstandingly Detailed, High-resolution Photos

See the level of detail that

10.2 megapixels provides

Individual hairs can be clearly discerned

Skin tones and textures are distinctly visible

08

Backgrounds are softly blurred for beautiful effect

Subtle gradations in shading stand out

10.2-megapixel CCD

The tops its class with a high-resolution 10.2-megapixel CCD, ideal for capturing minute detail, subtle gradations and delicate shifts of colour. With its large

23.6 x 15.8mm CCD, the promises a wider tonal range with less noise, and allows you to produce prints that are stunningly sharp and exceptionally clean even when enlarged to 12” x 16” (about 300 x 420mm) size. Covering the CCD is a threecrystal-layer low-pass filter featuring anti-IR and -UV coatings. The filter is optimized for the large-size, high-resolution image sensor to deliver faithful colour integrity while minimizing moiré.

10.2-megapixel APS-C size CCD

B E A U T I F U L

The High-speed Brain of

Bionz™ Engine

Capturing the emotion of a magic moment means nothing if you don’t have the power to reproduce it faithfully. Sony’s exclusive new

Bionz engine is designed to perfectly complement the ’s 10.2-megapixel CCD, ensuring that all of the rich colour and detail are as vivid as you remember. The sophisticated algorithm easily handles high-speed, highquality processing of the full dynamic range to reduce unwanted image noise without degrading resolution or colour integrity. The

Bionz engine also performs intelligent control of colour saturation, contrast and white balance for exceptionally natural image reproduction.

The Bionz engine maximizes the vivid beauty and rich colour of every photo

Lens Exposure

A/D conversion

Image processing

Data compression

Data output

Temp storage

(buffer memory)

Recording

(memory card)

Return Your Scenes to Their Natural Beauty

D-Range Optimizer setting (mode dial)

D-Range Optimizer

The D-Range Optimizer function* accurately adjusts exposure balance when shooting under high contrast lighting and colour conditions, such as with strong backlighting. In Standard Mode, D-Range Optimizer measures the brightness of the entire scene in real-time to determine the most appropriate exposure balance. In Advanced

Mode**, D-Range Optimizer analyzes the image section by section and adjusts the brightness of each area individually to ensure your photo is as beautiful and balanced as the scene that inspired you.

* Depending on shooting conditions this function may not be selectable, or the effect may be minimal.

** The D-Range Optimizer Advanced Mode uses technology provided by Apical, Ltd.

Normal shooting

In Standard Mode, the entire scene is evaluated in real-time to determine the ideal exposure setting

In Advanced Mode, the image is analyzed in sections, with the exposure of each area receiving the proper adjustment

09

I N T U I T I V E

Auto-focus

High-quality viewfinder

STAMINA battery

High-speed continuous shooting

2.5-inch Clear Photo LCD Plus

ANTICIPATES

Helping You Take the Pictures You Want

From shooting to playback, just like a well-trained assistant, the

anticipates your needs. Equipped with a precision autofocus function, a bright and clear viewfinder, a large STAMINA

battery, high-speed data writing capability and an intelligent

LCD, the offers you convenient support for all aspects of shooting.

10

Photo data: 1/800sec - F 5.6, ISO - 400, Auto white balance, Lens - 75-300mm F4.5-5.6 @ 300mm Photo captured at Spruce Meadows, Calgary, Alberta

11

12

Focus Immediately, Right Where You Want

Advanced Auto-focus Functions

The high-performance auto-focus system in the

offers exceptional speed, accuracy and convenience. Nine separate AF sensors for wide-area coverage give you greater freedom to compose your photos with confidence.

Once focus has been set, the appropriate sensor turns red for easy verification. The continuous AF mode, meanwhile, makes it easy to track fast moving subjects, such as at sporting events. It analyzes the subject’s speed and accurately predicts the correct focus point at the moment of shutter release, so you can concentrate on getting the shot.

It Starts Focusing Before You Do

Eye-start AF System

The Eye-start system incorporates an infrared sensor just below the eyepiece to detect when the viewfinder is being used. It automatically activates auto-focus so you are ready to shoot as soon as you look through the viewfinder.

Eyepiece sensor

Large, Bright and Easy to See

High-quality Viewfinder

The optical viewfinder provides a bright, clear view of your subject and an impressive 95% image coverage and 0.83 magnification for easy shooting. And because it employs a spherical acute matte focusing screen, the visual contrast in sharpness between subject and background makes it easier to identify focus in automatic and manual modes.

Spherical acute matte focusing screen

The Power to Keep on Shooting

750-shot Stamina Battery

Complemented by low energy consumption measures, Sony’s new lithium ion STAMINA ™ battery pack** lets you shoot an amazing 750 shots* from a single charge – top-class performance for a digital SLR camera with built-in flash. Thanks to its extended battery life, the satisfies the needs of even serious photographers, making it ideal for a long day of shooting, important events or trips away from home. To provide you with better energy management while shooting, a 5-stage meter displays remaining power on the LCD.

* Approximate. Measurement based on CIPA standard.

** Use only NP-FM55H battery packs.

Catch Every Bit of the Action

3-fps Continuous Shooting

With the continuous shooting function you can take 3 images per second* in any file format, including RAW. With the advanced power of the high-speed Bionz™ engine and DDR-SDRAM buffer, the can process and write to memory quickly enough that you can now capture non-stop action in high-resolution JPEG at 3 frames per second simply by holding down the shutter button. The larger your memory card, the longer you can continue shooting.

* Shooting speed depends on memory card writing speed and shooting conditions; total number of images depends on memory card and its capacity.

See All There Is to Enjoy

I N T U I T I V E

2.5-inch Clear Photo LCD Plus

The ’s 2.5-inch Clear Photo LCD Plus is an extra-bright 230,000-dot display that realistically plays back delicate gradations and rich, natural colours. Sony’s Clear Processing technology reduces diffused reflections and ensures faithful reproduction of colour hues, while the anti-reflection surface coating reduces glare for easy viewing even in strong sunlight. The wider field of view makes it convenient for sharing images as you take them.

The convenient zoom function gives you a closeup view of your photos for easy confirmation of focus and minute details

Simple and Useful Navigation Window

The convenient navigation window displays settings and camera status information in a clear, easy-to-read format so you can concentrate on getting the shot. The navigation window may be set to basic or to largetext mode for increased readability, and automatically orients itself horizontally or vertically to match how the camera is being held. For added convenience, the Eye-start sensor automatically detects when you look through the viewfinder and turns the navigation window off.

Basic view Enlarged view

When the camera is held vertically, the navigation window automatically re-orients itself for easier reading

Histogram view

The basic view provides a full display of current settings and camera status

The enlarged text view allows quick and easy reading of essential settings and functions

The histogram view lets you check that images are correctly exposed, with no blown-out highlights or blocked-in shadows

13

C R E AT I V E

40-segment metering system

Scene modes

Exposure modes

Digital effect control modes

Zone matching

White balance

INSPIRES

Express Your Unique Creative Power

The greatest pleasure in photography is when your results exactly match your intentions. Beyond capturing a beautiful scene, which the does with ease, you have at your disposal a score of advanced automatic mode settings for exposure and digital effects. Additional functions make it easy for beginners to shoot with skill, while manual settings offer all the creative freedom you could ask for.

14

Photo data: 11 - 18mm F4.5 - 5.6, 1/500 sec., F 1 1 , ISO100, White Balance: Daylight

15

16

Read the Scene Exactly as You See It

40-segment Metering System

A newly developed 40-segment honeycombpattern light sensor analyzes brightness across the scene, making it easier to take great photos in a wide range of lighting conditions. There are three light metering modes available to suit different situations. In multi-segment metering, each area is evaluated independently and the ideal exposure level is selected automatically. In center-weighted metering, overall lighting is taken into consideration, with emphasis on the center region, such as when shooting portraits.

In spot metering, only the center segment is used, letting you set the exposure based on a specific area.

Scene and Exposure Modes

Manual Mode

Shutter Priority Mode

Aperture Priority Mode

Program Mode

Auto Mode

Exposure Modes

Scene Modes

Night / Night Portrait Mode

Sunset Mode

Sports Mode

Macro Mode

Landscape Mode

Portrait Mode

Scene Modes

The Mode dial offers six pre-set scene modes that let you make a single adjustment to easily shoot in a variety of situations. The five exposure modes range from fully automatic to complete control over all aspects of exposure.

Portrait Mode

This mode softens the background focus to give your subject a greater sense of prominence.

Macro Mode

Landscape Mode

This mode optimizes depth of field for distant subjects, allowing you to take sharp, vivid photos.

Sports Mode

This mode is ideal for taking extremely detailed close-up photos, such as of flowers. Aperture is adjusted to create a soft background bokeh.

This mode combines continuous auto-focus with fast shutter speeds, making it ideal for taking photos of fast-moving action.

Exposure Modes

M

[Manual Mode]

In M Mode, you have complete control over shutter speed and aperture settings, allowing you to arrange your photo in any way you choose.

S

[Shutter Priority Mode]

In S Mode, you choose the shutter speed you want to shoot with, and the camera then automatically selects the appropriate aperture setting to create a balanced exposure.

A

[Aperture Priority Mode]

In A Mode, you choose the aperture setting you wish to use, and the shutter speed is then automatically configured accordingly.

P

[Program Mode]

In P Mode, shutter speed and aperture are selected automatically based on shooting conditions, but giving you the option to change them if you wish.

Sunset Mode

Night /

Night Portrait Mode

This mode helps you capture dramatic evening scenes with rich, warm colour tones such as deep reds and oranges.

Take great night scenes with the flash off, or turn the flash on to take portraits with properly exposed subject and background.

Auto Mode

Unlike the exposure modes that allow you to change settings for shutter speed and aperture, Auto Mode takes care of all settings automatically for maximum convenience in any situation.

C R E AT I V E

Digital Effect Control Modes

Fine-tune your images to perfection

Low saturation Normal saturation High saturation

In addition to giving you control over shooting settings like shutter speed and aperture, the

also gives you the ability to adjust white balance, colour saturation and other image qualities. Eight separate control modes

(Standard, Vivid, Portrait, Landscape, Evening,

Night / Night Portrait, Monochrome, Adobe

RGB) allow you to get creative to achieve the kinds of imagery you intend. In addition, contrast, hue and sharpness can all be finetuned with 5-stage setting controls.

Low contrast Normal contrast

Zone Matching

High Mode

High contrast

Low Mode

Getting exactly the right exposure can be tricky when shooting very light or very dark subjects against backgrounds with similar tonality or when shooting high-key or low-key subjects. For these situations, the Zone

Matching mode automatically compensates to prevent highlights from being blown out and shadow details from being lost.

White Balance

By adjusting the white balance temperature, you can select how much weight different colours are given and choose the balance that best suits your images

Every light source has its own temperature, which affects the colour and warmth that it gives your photos. A variety of white balance choices make it easy to shoot in any type of light. When shooting in a variety of light sources, white balance bracketing simultaneously takes sets of three photos at different colour temperatures so you can select the one that looks the most natural.

Function Dial

The Function dial provides intuitive access to white balance, auto-focus, light metering and other commonly used functions for greater control and flexibility as you shoot.

17

Organize and Enjoy All Your Photos

Main display

Picture Motion Browser

The bundled Picture Motion Browser software lets you easily transfer images from the and automatically organizes them for your convenience. The software can display your photos individually, as a slide show or arrange them by date in a calendar format. In addition, it facilitates image adjustment, printing and even forwarding via email, offering fun new ways to share memories with your family and friends.

Requirements:

Windows

OS

CPU

RAM

Software Required

HD Space

Display

Windows 2000 Professional / Millennium Edition /

XP Home Edition / XP Professional Edition

Pentium II 500MHz or faster (Pentium II 800MHz or faster recommended)

128MB or more (256MB or more recommended)

DirectX 9.0c or later recommended

Approx. 200MB required for installation

800 x 600 or more, High color (16-bit or higher)

Picture Motion Browser is not compatible with Macintosh.

Calendar display Print display

18

High-speed, Versatile Image Control

Main display

Image comparison Highlight, shadow, contrast, colour, etc. analysis

Image Data Converter SR 1.1

For even greater control over your images, the

comes with the Image Data Converter

SR software package. This application enables a wide variety of modifications on your PC using

RAW image data. Adjust brightness, contrast, color levels, color temperature, exposure and white balance. Fast and intuitively user-friendly, this software allows you to develop your skills and your photos to their fullest.

Requirements:

Windows

OS

CPU

RAM

Virtual Memory

Display

Windows 2000 Professional / Millennium Edition /

XP Home Edition / XP Professional Edition

Pentium III 1GHz or faster recommended

256MB (512MB or more recommended)

700MB or more

1024 x 768 or more, High color (16-bit or higher)

Macintosh

OS

Type

RAM

Virtual Memory

Display

Mac OS X v10.3 – 10.4

iMac, eMac, iBook, PowerBook, PowerMac G4 /

G5 series, Mac mini

256MB (512MB or more recommended)

1024 x 768 or more, more than 32,000 colors

Find Out How Easy It Is to Use

Body (front)

Control dial

Self-timer lamp

Lens connector

Mount

Depth-of-field preview button

Shutter button

Built-in flash

Function button

Function dial

Lens connection mark

Lens release button

Focus mode switch

DC-IN terminal

Body (rear)

Power switch

Menu button

Display button

Delete button

Playback button

Viewfinder

Eyepiece sensor

Diopter-adjustment dial

Mode dial

Exposure control button (shooting) /

Minimize button (playback)

Drive button

AE lock button (shooting) /

Enlarge button (playback)

Access lamp

Super SteadyShot switch

LCD monitor

Enter button / Spot AF button

4-direction controller

Remote commander terminal

Viewfinder

1

3

8

16

5 6 7 9 10 1 1 12

1. Wide focus frame

2. Spot AF frame

3. Spot metering area

4. Local focus frame

5. Flash compensation

6. Flash mode

7. High-speed synch

8. Wireless flash

9. AE lock

10. Focus indicator

1 1 . Shutter speed

13 14 15

12. Aperture

13. EV scale

14. Frames remaining counter

15. Camera shake warning

16. Super SteadyShot scale

2

4

Built-in flash Memory card slot

LCD Monitor

1

2

3

4

14

15

16

5

6

1 1

12

13

7

8

9

10

1. EV scale

2. Exposure / Flash compensation

3. Mode dial

4. Flash mode

5. Colour mode

6. D-Range Optimizer

7. Metering

8. AF area

9. AE lock

10. Battery remaining

1 1. White balance

12. Focus mode

13. Contrast / Saturation / Sharpness

14. Shutter speed

17

18

19

20

21

15. Aperture

16. ISO sensitivity

17. Image size

18. Image quality

19. Drive mode

20. Remaining no. of recordable images

2 1 . Release priority

19

I N F I N I T E

Lens Specifications

Product Name Model

DT 1 1 -18mm F4.5-5.6

Vario Sonnar T DT 16-80mm F3.5-4.5 ZA

DT 18-70mm F3.5-5.6

DT 18-200mm F3.5-6.3

24-105mm F3.5-4.5

70-200mm F2.8 G

75-300mm F4.5-5.6

SAL1118

SAL1680Z

SAL1870

SAL18200

SAL24105

SAL70200G

SAL75300

16mm F2.8 Fisheye

20mm F2.8

28mm F2.8

35mm F1.4 G

50mm F1.4

50mm F2.8 Macro

Planar T 85mm F1.4 ZA

100mm F2.8 Macro

SAL16F28

SAL20F28

SAL28F28

SAL35F14G

SAL50F14

SAL50M28

SAL85F14Z

SAL100M28

Sonnar T 135mm F1.8 ZA

135mm F2.8 [T4.5] STF

300mm F2.8 G

500mm F8 Reflex

1.4x Teleconverter

2x Teleconverter

SAL135F18Z

SAL135F28

SAL300F28G

SAL500F80

SAL14TC

SAL20TC

Focal Length

(35mm equiv.)

16.5-27

24-120

27-105

27-300

36-157.5

105-300

112.5-450

24

30

42

52.5

75

75

127.5

150

202.5

202.5

450

750

Lens Groups /

Elements

12-15

10-14

9-1 1

13-15

1 1 -12

16-19

10-13

8-1 1 (1 filter element included)

9-10

5-5

8-10

6-7

6-7

7-8

8-8

8-1 1

6-8 Internal APD filter

(2 elements, 1 group) included

12-13 (1 filter element included)

5-7 (1 filter element included)

4-5

5-6

32°

32°

19°

16°

110°

70°

54°

44°

Angle of View

(APS equiv.)

104°-76°

83°-20°

76°-23°

76°-8°

61°-15°

23°-8°

21°-5° 20'

12°

12°

5° 20'

3° 10'

47°

47°

29°

24°

1 80°

94°

75°

63°

Angle of View

(35mm equiv.)

84°-23°

34°-12°30'

32°-8° 10'

18°

18°

8°10'

22

32

22

32

22

22

22

22

Min.

Aperture

22-29

22-29

22-36

22-40

22-27

32

32-38

22

31 [T32]

32

8 (fixed)

7

7 (circular)

7

9 (circular)

7 (circular)

7 (circular)

9 (circular)

9 (circular)

Aperture

Blades

7 (circular)

7 (circular)

7 (circular)

7 (circular)

7 (circular)

9 (circular)

7 (circular)

9 (circular)

9 (auto aperture)

10 (analog aperture)

9 (circular)

0.45

0.2

0.85

0.35

0.2

0.25

0.3

0.3

Min. Focus

(m)

0.25

0.35

0.38

0.45

0.5

1.2

1.5

0.72

0.87

2

4

1.5

0.65

2.8

1.2

1

1

0.7

0.8

Min. Focus

(ft.)

0.8

1.2

1.2

1.5

1.6

4

4.9

2.4

2.85

6.6

13

0.25

0.25

0.1 8

0.1 3

0.1 5

1

0.1 3

1

0.1 5

0.1 3

0.1 3

0.2

Max.

Magnification

Filter Diameter

(mm)

0.125

77

Ext. Dimensions (max. diameter x length)

(mm) (in.)

83 x 80.5

3-3/8 x 3-1/4

0.24

0.25

62

55

72 x 83

66 x 77

2-7/8 x 3-3/8

2-5/8 x 3-1/8

0.27

0.1 8

0.21

0.25

62

62

77

55

73 x 85.5

71 x 69

87 x 196.5

71 x 122

2-7/8 x 3-3/8

2-13/16 x 2-1 1 /16

Approx. Weight

(g)

360

440

235

405

395

3-1/2 x 7-3/4

2-13/16 x 4-13/16

1,340 w/o tripod mount

460

(oz.)

12-3/4

15-1/2

8-5/16

14-5/16

13-15/16

47-1/4

16-1/4

4 types (internal)

72

49

55

55

55

72

55

75 x 66.5

78 x 53.5

65.5 x 42.5

69 x 76

65.5 x 43

71.5 x 60

81.5 x 72.5

75 x 98.5

2-15/16 x 2-5/8

3-1/16 x 2-1/8

2-9/16 x 1-1 1 /16

2-3/4 x 3

2-9/16 x 1-1 1 /16

2-13/16 x 2-3/8

3-1/4 x 2-7/8

3 x 4

400

285

185

510

220

295

560

505

14-1/8

10-1/16

6-1/2

18

7-3/4

10-3/8

19-3/4

18

77

72

42 (exclusive)

42 (exclusive)

88.5 x 1 1 5

80 x 99

122 x 242.5

89 x 1 1 8

64 x 20

64 x 43.5

3-1/2 x 4-5/8

3-1/8 x 3-7/8

2-1/2 x 13/16

2-1/2 x 1-1 1 /16

1050

730

5-1/16 x 9-3/8

3-5/8 x 4-3/4

2,310 w/o tripod mount

665

170

200

37

25-3/4

81-1/2

23-7/16

6

7-1/16

No

No

No

No

No

No

No

No

No

No

Yes

No

Teleconverter Compatibility

1.4x

2.0x

No No

No

No

No

No

No

No

Yes

No

No

No

No

No

No

No

No

No

No

Yes (manual focus only)

Yes

No

No

No

No

Yes (manual focus only)

Yes

No

No

No

Lens Performance

A wide range of exchangeable lenses are available

Extreme wide-angle lenses

1 1 mm

(16mm*)

Wide-angle lenses

28mm

(42mm*)

Vario Sonnar T DT 16-80mm F3.5-4.5 ZA

Standard lenses

50mm

(75mm*)

35mm F1.4 G

Mid-telephoto lenses

85mm

(128mm*)

Planar T

85mm F1.4 ZA

70-200mm

F2.8 G

Mid-telephoto lenses

1 00mm

(150mm*)

Telephoto lenses

200mm

(300mm*)

Sonnar T 135mm F1.8 ZA

Telephoto lenses

300mm

(450mm*)

Extreme telephoto lenses

500mm

(750mm*)

300mm F2.8 G

24-105mm F3.5-4.5

16mm F2.8 Fisheye

20mm F2.8

DT 1 1 -18mm F4.5-5.6

DT 18-70mm F3.5-5.6

28mm F2.8

50mm F1.4

50mm F2.8 Macro

75-300mm

F4.5-5.6

1 00mm

F2.8

Macro

135mm F2.8

[T4.5] STF

500mm F8

Reflex

2x Teleconverter 1.4x Teleconverter

Teleconverters

The 1.4x and 2.0x teleconverters extend lens focal length by 1.4 and 2.0 times, respectively.

Currently compatible with the 70-200mm

F2.8 G, 300mm F2.8 G and 135mm F2.8

[T4.5] STF lenses.

DT 18-200mm F3.5-6.3

28mm 50mm 85mm 1 00mm

20

1 1 mm

*APS-C size focal length equivalent

200mm 300mm 500mm

Product size, appearance and specifications subject to change without notice. Please consult your local dealer for details.

21

Macro Lens

100mm F2.8 Macro

This macro lens allows you to shoot at 100% life-size with a greater working distance to improve freedom and flexibility for framing. Employing a doublefloating construction, this lens promises enhanced descriptive fidelity of minute details. The large focus ring facilitates subtle adjustments in manual, while a focus hold button and focus range limiter guarantee excellent usability in AF mode.

Reflex Lens

500mm F8 Reflex

This remarkable lens is the result of a revolution in the complementary development of auto-focus sensors and mirror lens systems. Another advantage of the reflective optics construction is the elimination of the chromatic aberrations that can appear with refracting lenses. More importantly, the reflex system delivers excellent convenience and portability, since it makes the lens a mere 1 18mm (3-3/4 in.) long.

Carl Zeiss and Sony G Lenses for Optimum Imaging Quality

22

Experience the World of to the Fullest

Three new lenses by the world-famous Carl Zeiss and another three specially crafted for the Sony G series have been added to the lens lineup. Designed to the highest optical standards, they offer outstanding clarity, color fidelity and contrast, with lifelike background defocusing that adds depth and interest to your photos. Together, these additions to the lens lineup promise to bring a new dimension in emotion and expressiveness to your shooting experience.

Enhancing the Power of Expression

Flash/Macro Flash/Ring Light

High output, multi-function lighting unit compatible with external battery adaptors

• Guide No. 56* bright output

• Supplied accessory: Case, Mini-stand

Flash

HVL-F56AM

Easy-to-carry compact design

• Guide No. 36* bright output and compact size

• Supplied accessories: Case, Mini-stand, wide panel

Flash

HVL-F36AM

* In meters at 85mm and ISO 100

Convenient large LCD (HVL-F56AM) AF light compensation

Example: HVL-F56AM 90 degrees clockwise

180 degrees counter-clockwise

Flexible lighting to help capture perfect macro shots

• Guide No. 24* (two lights together), 17 (one light only)

* In meters at ISO 100

Macro Twin Flash Kit

HVL-MT24AM

0-90 degrees upward

10 degrees downward

Effective lighting for close-up shots

Ring Light

HVL-RLAM

DSLR-A100 Accessories

Battery & AC Adaptor/Charger

Extra batteries for extended shooting

• Power voltage/capacity: 7.2V/11.5Wh (1,600mAh)

Note: Battery Pack NP-FM50 and FM30 cannot be used with .

Rechargeable Battery Pack

NP-FM55H

Quick recharge for NP-FM55H

Actual recharge time of NP-FM55H with AC-VQ900AM is about 70 minutes.

*Input AC power 100-240V, 50/60Hz compatible. Can be used overseas. Plug adaptors may be necessary in some regions.

AC Adaptor / Charger

AC-VQ900AM

Accessory Kit

ACC-AMFM

Includes Soft Carrying Case LCS-AMSC30,

Rechargeable Battery Pack NP-FM55H, and lens cleaning cloth.

Memory Stick

Memory Stick PRO Duo

Record and share your images

• IC recording media with copyright protection

Memory Stick PRO Duo (High Speed)

High-speed recording

• IC recording media with copyright protection

Up to

2GB capacity

Up to

2GB capacity

• For use with , CompactFlash-compatible Memory Stick Duo Adaptor (included) is required.

System Chart

Accessories

Macro Flash and Light

Lenses

Finder Remote Commander Battery and Charger

HVL-MT24AM

Macro Twin Flash Kit

Flash

HVL-RLAM

Ring Light

RM-S1AM

Remote Commander

RM-L1AM

Remote Commander

FDA-A1AM

Angle Finder

FDA-M1AM

Magnifier

Eyepiece

Correctors

NP-FM55H

Rechargeable Battery Pack

AC-VQ900AM

AC Adaptor / Charger

HVL-F56AM

Flash

HVL-F36AM

Flash

FA-CS1AM

Off-camera Shoe for Flash

FA-EC1AM

Extension Cable for Flash

Case & Strap

FA-MC1AM

Multi Flash Cable

FA-CC1AM

Off-camera Cable for Flash

FA-TC1AM

Triple Connector for Flash

Removable Memory and Storage Devices

FA-EB1AM

External Battery Adaptor for Flash

*HVL-F56AM only

Digital Photo Printer

LCS-AMA

Soft Carrying Case

LCS-AMSC30

Soft Carrying Case

LCL-60AM

Lens Case

LCL-90AM

Lens Case

LCL-140AM

Lens Case

STP-SH1AM/STP-SS1AM

Shoulder Strap

MSX-M2GN, MSX-M2GN/X / MSX-M1GN, MSX-M1GN/X /

MSX-M512N, MSX-M512N/X / MSX-M256N, MSX-M256N/X

MSX-M2GS, MSX-M2GS/X / MSX-M1GST, MSX-M1GST/X /

MSX-M512S, MSX-M512S/X / MSX-M256S, MSX-M256S/X

Memory Stick PRO Duo

HDPS-M10

Hard Disk Photo Storage Unit

DPP-FP55

Digital Photo Printer

23

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
