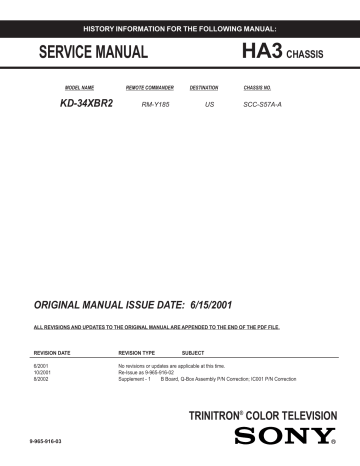

HISTORY INFORMATION FOR THE FOLLOWING MANUAL:
HA3 CHASSIS
SERVICE MANUAL
MODEL NAME
KD-34XBR2
REMOTE COMMANDER
DESTINATION
RM-Y185
US
CHASSIS NO.
SCC-S57A-A
ORIGINAL MANUAL ISSUE DATE: 6/15/2001
ALL REVISIONS AND UPDATES TO THE ORIGINAL MANUAL ARE APPENDED TO THE END OF THE PDF FILE.
REVISION DATE
REVISION TYPE
SUBJECT
6/2001
10/2001
8/2002
No revisions or updates are applicable at this time.
Re-Issue as 9-965-916-02
Supplement - 1
B Board, Q-Box Assembly P/N Correction; IC001 P/N Correction
TRINITRON® COLOR TELEVISION
9-965-916-03
Self Diagnosis
Supported model
HA3 CHASSIS
SERVICE MANUAL
MODEL NAME
REMOTE COMMANDER
DESTINATION
CHASSIS NO.
KD-34XBR2
RM-Y185
US
SCC-S57A-A
Trinitron
TruSurround
™
by
SRS
®
DOLBY
D I G I T A L
KD-34XBR2
RM-Y185
TRINITRON® COLOR TELEVISION
9-965-916-03
KD-34XBR2
TABLE OF CONTENTS
SECTION TITLE
PAGE
SpeciÞcations ................................................................................. 4
SECTION TITLE
PAGE
9. Safety Related Adjustments ........................................................... 33
Warnings and Cautions .................................................................. 5
Safety Check-out ............................................................................ 6
10. Circuit Adjustments
10-1. Setting the Service Adjustment Mode................................. 34
Self-Diagnostic Function................................................................. 7
10-2. Memory Write ConÞrmation Method ................................... 34
1. Disassembly
10-3. Remote Adjustment Buttons and Indicators ........................ 34
1-1. Rear Cover Removal.............................................................. 9
10-4. Service Data Lists ............................................................... 35
1-2. Chassis Assembly Removal................................................... 9
10-5. Feature ID Map ................................................................... 67
1-3. Picture Tube Removal .......................................................... 10
1-4. Service Position ................................................................... 11
11. Firmware Upgrade
11-1. Overview .............................................................................. 68
11-2. Transferring the New Firmware from
2. Mechanical Pre-Adjustments
the Memory Stick to the Q-box............................................. 68
2-1. Ring Magnet Adjustments .................................................... 12
2-2. Neck Assembly Positioning .................................................. 12
12. Diagrams
12-1. Circuit Boards Location ........................................................ 69
3. Beam Landing and Raster Center Adjustments
3-1. Beam Landing Adjustment ................................................... 13
12-2. Printed Wiring Board & Schematic Diagram Information ..... 69
3-2. Raster Center Adjustment.................................................... 14
12-3. Block Diagram & Schematics
Block Diagram ...................................................................... 70
A Board ................................................................................ 71
4. Picture Size and Geometry Adjustments
4-1. Full Mode Adjustment .......................................................... 15
B Board ................................................................................ 77
4-2. Normal Mode Geometry Adjustment.................................... 20
C Board ................................................................................ 81
4-3. Zoom Mode Geometry Adjustment ...................................... 20
D Board ................................................................................ 83
4-4. Wide Zoom Mode Geometry Adjustment............................. 21
F Board ................................................................................ 91
4-5. Twin Mode Geometry ConÞrmation...................................... 23
HA Board.............................................................................. 92
4-6. HD 1080i Mode Geometry Adjustment ................................ 23
HB Board.............................................................................. 93
QI Board............................................................................... 94
QM Board............................................................................. 98
5. Static Convergence Adjustments .................................................. 24
S Board .............................................................................. 109
U Board .............................................................................. 111
6. Dynamic Convergence Adjustments ............................................. 26
W Board ............................................................................. 113
12-4. Semiconductors ................................................................. 115
7. Picture Quality Adjustments
7-1. DTV Sub-Contrast Adjustment ............................................. 28
7-2. DTV Sub-Color and Sub-Hue Adjustment............................ 28
13. Exploded Views
13-1. Picture Tube ....................................................................... 117
7-3. Analog Video Sub-Contrast Adjustment............................... 29
13-2. Chassis.............................................................................. 118
7-4. Analog Sub-Color and Sub-Hue Adjustment........................ 29
13-3. Beznet ............................................................................... 119
7-5. RF Sub-Contrast Adjustment ............................................... 30
7-6. Analog Video Sub-Color and Sub Hue Adjustment.............. 30
14. Electrical Parts List ..................................................................... 120
8. White Balance, Sub-Brightness and G2 Adjustments
8-1. White Balance Adjustment ................................................... 31
8-2. Sub-Brightness Adjustment.................................................. 32
8-3. G2 Adjustment ..................................................................... 32
—3—
KD-34XBR2
SPECIFICATIONS
KD-34XBR2
Power Requirements
120V, 60Hz
Number of Inputs/Outputs
Video 1)
S Video 2)
Y, PB, PR 3)
Audio 4)
Audio Out 5)
Monitor Out
Control-S (in/out)
SELECT OUT 6)
Digitial Audio Optical
Output Dolby Digital/PCM 7)
i.LINK S200 8)
Speaker Output (W)
4
4
2
6
1
1
1
1 Audio/1 Video
1
2
7.5W x 4
Power Consumption (W)
In Use (Max)
In Standby
In iLINK Standby
Dimensions (W x H x D)
mm
in
330W
2.5W
34W
1)
1 Vp-p 75 ohms unbalanced, sync negative
2)
Y: 1 Vp-p 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
3)
Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative;
PB: 0.7 Vp-p, 75 ohms
PR: 0.7 Vp-p, 75 ohms
994 x 622 x 591.3 mm
39 3/16 x 24 1/2 x 23 5/16 in
4)
500 mVrms (100% modulation), Impedance: 47 kilohms
5)
More than 408 mVrms at the maximum volume setting (variable)
More than 408 mVrms (fix); Impedance (output): 2 kilohms
6) 1 Vp-p, 75 ohms unbalanced, sync negative.
Mass
More than 408 mVrms (100% modulation)
kg
lbs
93 kg
206 lbs.
Impedence (output): 2 kilohms
7) Optical rectangular (1)
Television system
NTSC, American TV standard, ATSC
Channel coverage
DTV: 1-99/ VHF: 2-13/ UHF: 14-69/ CATV: 1-125
TruSurround is a trademark of
SRS Labs, Inc. SRS and the SRS
symbol are registered trademarks
™
of SRS Labs, Inc. in the United
® States and in select foreign counby SRS
tries. SRS and TruSurround are
incorporated under license from SRS Labs, Inc. and are protected
under United States Patent Nos. 4,748,669 and 4,841,572 with
numerous additional issued and pending foreign patents. Purchase of this product does not convey the right to sell recordings
made with the TruSurround technology.
Picture tube
®
FD Trinitron tube
TruSurround
Visible screen size
34-inch picture measured diagonally
Actual screen size
36-inch measured diagonally
Antenna
75 ohm external terminal for VHF/UHF
Supplied Accessories
Remote Commander RM-Y185
Two Size AA (R6) Batteries
SRS (SOUND RETRIEVAL SYSTEM)
The
SRS (SOUND RETRIEVAL SYSTEM) is manufactured by
Sony Corporation under license from SRS Labs, Inc. It is covered
by U.S. Patent No. 4,748,669. Other U.S. and foreign patents
pending.
Optional Accessories
A/V Cable: VMC-810/820/830HG
Audio Cable: RKC-515HG
i.LINK Cable: VMC-IL4415 (4-pin to 4-pin, 1.5 meters)
VMC-IL4435 (4-pin to 4-pin, 3.5 meters)
Component Video Cable: VMC-10/30 HG
TV Stand: SU-34HD2
The word ‘SRS’ and the SRS symbol
are registered trademarks of SRS Labs, Inc. BBE and BBE symbol are trademarks of
BBE Sound, Inc. and are licensed by BBE Sound, Inc. under U.S.
Patent No. 4,638,258 and 4,482,866.
Design and specifications are subject to change without notice.
—4—
KD-34XBR2
WARNINGS AND CAUTIONS
CAUTION
Short circuit the anode of the picture tube and the anode cap to the metal chassis, CRT shield, or carbon painted on the CRT,
after removing the anode.
WARNING!!
An isolation transformer should be used during any service to avoid possible shock hazard, because of live chassis. The chassis of
this receiver is directly connected to the AC power line.
! SAFETY-RELATED COMPONENT WARNING!!
Components identified by shading and ! mark on the schematic diagrams, exploded views, and in the parts list are critical for
safe operation. Replace these components with Sony parts whose part numbers appear as shown in this manual or in supplements
published by Sony. Circuit adjustments that are critical for safe operation are identified in this manual. Follow these procedures
whenever critical components are replaced or improper operation is suspected.
ATTENTION!!
Apres avoir deconnecte le cap de l’anode, court-circuiter l’anode du tube cathodique et celui de l’anode du cap au chassis metallique
de l’appareil, ou la couche de carbone peinte sur le tube cathodique ou au blindage du tube cathodique.
Afin d’eviter tout risque d’electrocution provenant d’un chássis sous tension, un transformateur d’isolement doit etre utilisé lors de tout
dépannage. Le chássis de ce récepteur est directement raccordé à l’alimentation du secteur.
! ATTENTION AUX COMPOSANTS RELATIFS A LA SECURITE!!
Les composants identifies par une trame et par une marque ! sur les schemas de principe, les vues explosees et les listes de
pieces sont d’une importance critique pour la securite du fonctionnement. Ne les remplacer que par des composants Sony dont
le numero de piece est indique dans le present manuel ou dans des supplements publies par Sony. Les reglages de circuit dont
l’importance est critique pour la securite du fonctionnement sont identifies dans le present manuel. Suivre ces procedures lors de
chaque remplacement de composants critiques, ou lorsqu’un mauvais fonctionnement suspecte.
—5—
KD-34XBR2
SAFETY CHECK-OUT
Leakage Test
The AC leakage from any exposed metal part to earth ground and from
all exposed metal parts to any exposed metal part having a return to
chassis, must not exceed 0.5 mA (500 microamperes). Leakage current
can be measured by any one of three methods.
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer:
1. Check the area of your repair for unsoldered or poorly soldered
connections. Check the entire board surface for solder splashes and
bridges.
1. A commercial leakage tester, such as the Simpson 229 or
RCA WT-540A. Follow the manufacturers’ instructions to use these
instructions.
2. Check the interboard wiring to ensure that no wires are “pinched” or
touching high-wattage resistors.
2. A battery-operated AC milliampmeter. The Data Precision 245 digital
multimeter is suitable for this job.
3. Check that all control knobs, shields, covers, ground straps, and
mounting hardware have been replaced. Be absolutely certain that
you have replaced all the insulators.
3. Measuring the voltage drop across a resistor by means of a VOM
or battery-operated AC voltmeter. The “limit” indication is 0.75 V,
so analog meters must have an accurate low voltage scale. The
Simpson’s 250 and Sanwa SH-63TRD are examples of passive VOMs
that are suitable. Nearly all battery-operated digital multimeters that
have a 2 VAC range are suitable (see Figure A).
4. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
5. Look for parts which, though functioning, show obvious signs of
deterioration. Point them out to the customer and recommend their
replacement.
How to Find a Good Earth Ground
A cold-water pipe is a guaranteed earth ground; the cover-plate retaining
screw on most AC outlet boxes is also at earth ground. If the retaining
screw is to be used as your earth ground, verify that it is at ground
by measuring the resistance between it and a cold-water pipe with an
ohmmeter. The reading should be zero ohms.
6. Check the line cords for cracks and abrasion. Recommend the
replacement of any such line cord to the customer.
7. Check the B+ and HV to see if they are speciÞed values. Make sure
your instruments are accurate; be suspicious of your HV meter if sets
always have low HV.
8. Check the antenna terminals, metal trim, “metallized” knobs, screws,
and all other exposed metal parts for AC leakage. Check leakage
as described below.
If a cold-water pipe is not accessible, connect a 60- to 100-watt troublelight (not a neon lamp) between the hot side of the receptacle and the
retaining screw. Try both slots, if necessary, to locate the hot side on the
line; the lamp should light at normal brilliance if the screw is at ground
potential (see Figure B).
To Exposed Metal
Parts on Set
Trouble Light
AC Outlet Box
0.15 µF
1.5 k Ω
Ohmmeter
AC
Voltmeter
(0.75V)
Cold Water Pipe
Earth Ground
Figure A. Using an AC voltmeter to check AC leakage.
Figure B. Checking for earth ground.
—6—
KD-34XBR2
Self Diagnosis
SELF-DIAGNOSTIC FUNCTION
Supported model
The units in this manual contain a self-diagnostic function. If an error occurs, the STANDBY/i.LINK STANDBY LED will automatically begin to flash. The
number of times the LED flashes translates to a probable source of the problem. A definition of the STANDBY/i.LINK STANDBY LED flash indicators
is listed in the instruction manual for the user’s knowledge and reference. If an error symptom cannot be reproduced, the Remote Commander can be
used to review the failure occurrence data stored in memory to reveal past problems and how often these problems occur.
Diagnostic Test Indicators
When an error occurs, the STANDBY/i.LINK STANDBY LED will flash a set number of times to indicate the possible cause of the problem. If there is
more than one error, the LED will identify the first of the problem areas.
Results for all of the following diagnostic items are displayed on screen. No error has occurred if the screen displays a “0”.
No. of times STANDBY/
i.LINK STANDBY lamp flashes
Diagnostic Item
Power does not turn on
Does not light
+B overcurrent (OCP)
(see Note 1)
2 times
Low +B overvoltage (OVP)
Display Result
Probable Cause Location
Detected Symptoms
• Power cord is not plugged in.
• Fuse is burned out (F6701).
• Power does not come on.
• No power is supplied to the TV.
• AC power supply is faulty.
2:0 or 2:1
• H.OUT (Q5030) is shorted (D Board).
• +B PWM (Q5003) is shorted (D Board).
• IC9001, IC9002, IC9003 is shorted (C Board).
• Power does not come on.
• Load on power line is shorted.
3 times
3:0 or 3:1
• IC6505 is faulty (D Board). +B overvoltage.
• Has entered standby mode.
Vertical Deflection Stopped
4 times
4:0 or 4:1
• ± 15V is not supplied (D Board).
• IC5004 is faulty (D Board).
• Has entered standby state after
Horizontal raster.
• Vertical deflection pulse is stopped.
• Power line is shorted or power
supply is stopped.
White Balance Failure
(Not balanced)
5 times
5:0 or 5:1
• Video OUT (IC9001-IC9003) is faulty
(C Board).
• CRT drive (IC3101) is faulty (A Board).
• G2 is improperly adjusted (See Note 2).
• No raster is generated.
• CRT cathode current detection
reference pulse output is small.
LOW +B OCP/OVP
(overcurrent/overvoltage)
(See Note 3)
6 times
6:0 or 6:1
• +5 line is overloaded (A, B Boards).
• +5 line is shorted (A, B Boards).
• No picture.
Horizontal Deflection Stopped
7 times
7:0 or 7:1
• No picture.
Note 1: If a +B overcurrent is detected, stoppage of the Vertical deflection is detected simultaneously. The symptom that is diagnosed first by the microcontroller is displayed on screen.
Note 2: Refer to Screen (G2) Adjustment in Section 2-5. of this manual.
Note 3: If STANDBY/i.LINK STANDBY LED flashes six (6) times, unplug the unit and wait 10 seconds before performing the adjustment
Display of STANDBY/i.LINK Standby LED Flash Count
Diagnostic items
Flash count
+B overcurrent
2 times
+B/Low B overvoltage
3 times
Vert. deflection stopped
4 times
White balance failure
5 times
Low B OCP/OVP
6 times
Horiz. deflection stopped
7 times
Standby/i.LINK Standby LED
Lamp ON 0.3 sec.
Lamp OFF 0.3 sec.
Lamp OFF 3 sec.
* One flash count is not used for selfdiagnostic.
Stopping the STANDBY/i.LINK STANDBY LED Flash
Turn off the power switch on the TV main unit or unplug the power cord from the outlet to stop the STANDBY/i.LINK STANDBY LAMP from flashing.
Self-Diagnostic Screen Display
For errors with symptoms such as “power sometimes shuts off” or “screen sometimes goes out” that cannot be confirmed, it is possible to bring up
past occurrences of failure on the screen for confirmation.
—7—
KD-34XBR2
To Bring Up Screen Test
In standby mode, press buttons on the Remote Commander
sequentially, in rapid succession, as shown below:
DISPLAY
Sound volume -
Channel 5
Power ON.
SELF DIAGNOSIS
2: +B OCP
N/A
3: +B OVP
N/A
4: VSTOP
0
5: AKB
Handling of Self-Diagnostic Screen Display
6: LOWB
Since the diagnostic results displayed on the screen are not
7: H-STOP
automatically cleared, always check the self-diagnostic screen
during repairs. When you have completed the repairs, clear the
result display to “0”. Unless the result display is cleared to “0”, the
self-diagnostic function will not be able to detect subsequent faults after completion of the repairs.
Numeral “0” means that no fault
was detected.
1
Numeral “1” means a fault was
detected one time only.
0
0
Clearing the Result Display
To clear the result display to “0”, press buttons on the Remote Commander sequentially when the diagnostic screen is displayed, as shown below:
Channel 8
ENTER
Quitting the Self-Diagnostic Screen
To quit the entire self-diagnostic screen, turn off the power switch on the Remote Commander or the main unit.
Self-Diagnostic Circuit
+B overcurrent (OCP)
Occurs when an overcurrent (more
than 6A) on the +B (135V) line
is detected by R6598/R6591. It will
cause Q6520 to turn on and force the
AC relay to turn off through Q6532
and Q6530.
+B overvoltage (OVP)
Occurs when 1) overvoltage (more
than +140V) on the +B (135V) line
is detected by IC6505, or 2) an
overvoltage (more than 7.5 V) on the
unreg 7V line is detected by D6014.
The AC relay will turn off through
Q6532 and Q6530.
.
.
Vertical Deflection Stopped
Occurs when an absence of the
Vertical deflection pulse is detected by
IC201. Power supply will shut down
when waveform interval exceeds 2
seconds.
White Balance Failure
If the RGB levels* do not balance within 2 seconds after the power is turned on, this error will be detected by IC201. TV will stay on, but there
will be no picture.
*(Refers to the RGB levels of the AKB detection Ref pulse that detects 1K).
Low B OCP/OVP
Occurs when set 5V is out.
Horizontal Deflection Stopped
Occurs when either: 1) a +B overcurrent is detected (IC5007), or 2) overheating is detected (Thermistor TH5002).
—8—
KD-34XBR2
SECTION 1: DISASSEMBLY
1-1. REAR COVER REMOVAL
1
1
Remove screws (15) from locations as marked.
2
Gently slide the rear cover back and up to remove.
1
1
1
2
1-2. CHASSIS ASSEMBLY REMOVAL
1
CAUTION! - Heat sink on IC5004 is -15V.
Care must be taken not to allow heat sink to
touch any other components.
2
Lift lever up on the right and left sides of the
chassis bracket and gently pull the chassis
assembly away from the beznet.
2
1
—9—
KD-34XBR2
1-3. PICTURE TUBE REMOVAL
WARNING: BEFORE REMOVING THE ANODE CAP
High voltage remains in the CRT even after the power is disconnected. To avoid electric shock,
discharge CRT before attempting to remove the anode cap. Short between anode and CRT
coated earth ground strap.
2
1
10
Coated
Earth
Ground
Strap
6
5
7
3
12
8
CORRECT
11
13
INCORRECT
9
4
14
1
Discharge the anode of the CRT and remove the anode cap.
11 Remove the degaussing coil.
2
Unplug all interconnecting leads from the deflection yoke, neck
assembly, degaussing coils and CRT grounding strap.
12 Remove the CRT grounding strap and tension springs.
3
Remove the C Board from the CRT.
4
Remove the chassis assembly.
5
Loosen the neck assembly fixing screw and remove.
6
Loosen the deflection yoke fixing screw and remove.
7
Remove (2) screws from the degaussing coil holder assemblies to
release the CRT grounding strap.
8
Place the set with the CRT face down on a cushion and remove
the degaussing coil holders.
9
Remove the CRT supports (on both left and right sides) by lifting
up on the clip and gently sliding it up and out.
13 Unscrew the four CRT fixing screws [located on each CRT corner]
and remove the CRT [Take care not to handle the CRT by the
neck assembly.]
NOTE: The CRT screws used with the HA3 are specific to this unit. If
replacement is necessary, these exact screws must be used.
(p/n: 4-080-811-01; Desc: SCREW, TAPPING (7) + CROWN WASHER)
14 IMPORTANT: When replacing the CRT, care must be taken in
replacing the CRT spacers into the cabinet. The spacer must be
completely reset prior to re-inserting the CRT screws (see figure
above for proper setting of CRT spacer).
NOTE: When removing the screws from the CRT, damage occurs to the
CRT Spacer. It is necessary to replace these components after
removal. (p/n: 4-080-267-01; Desc: Spacer, CRT)
10 Remove (4) screws holding in the Spacer -36 at the top of the
cabinet and remove, making sure to remove the degaussing coil
holders with it.
— 10 —
KD-34XBR2
1-4. SERVICE POSITION
1
Leaving the boards intact in the Main
Bracket, pull up and rotate both the A and
D boards in order to service the unit.
1
ANODE CAP REMOVAL PROCEDURE
WARNING: High voltage remains in the CRT even after the power is disconnected. To avoid electric shock, discharge CRT before attempting to remove
the anode cap. Short between the anode and CRT coated earth ground strap.
NOTE: After removing the anode cap, short circuit to either the metal chassis, CRT shield, or carbon painted on the CRT.
REMOVAL PROCEDURES
c
b
a
Anode Button
Turn up one side of the rubber cap in the
direction indicated by arrow a .
Use your thumb to pull the rubber cap firmly
in the direction indicated by arrow b .
HOW TO HANDLE AN ANODE CAP
1. Do not use sharp objects which may cause damage to the surface of the anode
cap.
2. To avoid damaging the anode cap, do not squeeze the rubber covering too hard.
A material fitting called a shatter-hook terminalis built into the rubber.
3. Do not force turn the foot of the rubber cover. This may cause the shatter-hook
terminal to protrude and damage the rubber.
— 11 —
When one side of the rubber cap separates
from the anode button, the anode cap can
be removed by turning the rubber cap and
pulling it in the direction of arrow c .
KD-34XBR2
SECTION 2: MECHANICAL PRE-ADJUSTMENTS
IMPORTANT:
BMC
Magnet
Make sure that the following items are checked and adjusted
whenever the CRT or Deflection Yoke have been replaced.
50˚
1
2-1. RING MAGNET ADJUSTMENTS
90˚
Location of ring magnets for adjustment:
Purity Magnet
130˚
BMC Magnet
V. STAT Magnet
2-2. NECK ASSEMBLY POSITIONING
1. The left and right sides of the neck assembly must be straight up
and down.
PURITY MAGNETS
Adjust the purity magnets so that the adjusting tabs are straight up.
Purity
Magnets
2. Make sure that the rear edge of the plastic flange on the neck
assembly is positioned directly above the edge of the CRT pin
electrodes that are soldered to G1 within the neck of the CRT (see
1 below)
V-STAT MAGNETS
Adjust the V-Stat Magnets so that the adjustment tabs are approximately
± 45° from 0° (a total of 90° between each tab)
CRT/Neck
Assembly
Top View
G1
NOTE: The points ( 1 ) on the edges of each tab should be
evenly aligned (see the figure below).
0˚
- 45˚
+45˚
Neck Ass'y
Flange
1
Proper
Alignment
(Top View of
CRT Neck)
V-STAT
Magnet
BMC MAGNETS
Adjust the BMC Magnets so that the adjustment tabs are approximately
± 40° from 90°.
NOTE: The rounded points ( 1 ) on the edges of each tab should
be evenly aligned (see the figure next column).
— 12 —
Neck
Ass'y
Flange
CRT Neck
Electrodes
1
Improper
Alignment
Flange Too
Far Foreward
Flange Too
Far Rearward
KD-34XBR2
SECTION 3: BEAM LANDING AND RASTER CENTER ADJUSTMENTS
5. Move the deflection yoke forward until the entire screen becomes
green.
3-1. BEAM LANDING ADJUSTMENT
REQUIRED EQUIPMENT:
NTSC Video Pattern Generator (into VIDEO-1 input)
Landing Magnets (for correcting mislanding in the corners of the set)
SET-UP CONDITION:
DISPLAY MODE: FULL
VIDEO SOURCE: VIDEO-1
PICTURE MODE: STANDARD (select the STANDARD mode from
the menu, then press the RESET button on the remote control to set
the STANDARD settings to the factory settings.)
TILT CORRECTION: Set to 0 (Zero)
VERTICAL CORRECTION: Set to 0 (Zero)
6. Confirm the purity for both the red and blue rasters.
PICTURE TUBE POSITION: Face in an East or West Direction**
7. Tighten the deflection yoke mounting screw just enough to keep the
yoke from moving forward or backward, but not too tight as to keep
it from rotating.
**Note: Typically, adjustments will be made to this unit while it
is in its normal position in a customer’s home. Any
directional references made in this manual should only
be followed when the unit is being serviced elsewhere
(e.g. in a shop).
8. Input a crosshatch pattern from the generator. Rotate the yoke so
that the crosshatch’s top and bottom lines are as even with the
bezel as possible. Secure the deflection yoke by fully tightening the
mounting screw.
9. Use a DY Spacer (p/n: 4-053-005-01) between the deflection yoke
and the CRT in order to maintain the yoke position in each axis.
PROCEDURE:
1. Turn on power to the set and make sure that the degauss circuit is in
working order (a brief hum will sound from the degauss coils).
10. Add disk magnets (p/n: 1-452-032-00) to the back of the CRT as
necessary to correct mislanding in the corners of the screen.
2. Loosen the deflection yoke mounting screw, and set the purity
magnet adjustment tabs to the center as shown below:
Purity control
corrects this area
Purity Magnet Adjustment Tabs
Disk magnets
or rotatable disk
magnets correct
these areas (a-d)
Deflection yoke positioning
corrects these areas
b
3. Input a green raster from the pattern generator.
4. Move the deflection yoke backwards, and adjust the purity ring
magnets so that the center of the screen is green, and the red and
blue areas on either side of the screen are approximately the same
size as shown in the figure below:
a
d
c
Blue
Red
Green
This completes the beam landing adjustment.
— 13 —
KD-34XBR2
* Use the HCEN data from step 3, and then do the following:
3-2. RASTER CENTER ADJUSTMENT
1) Press the “MUTE” button (“WRITE” appears in green letters at the
top right corner of the screen).
Perform this adjustment when any of the following have been
replaced in the unit, CRT, Deflection Yoke or D Board.
2) Press the “ENTER” button (“WRITE” changes from green to red,
and “WRITE” will change to “SERVICE”).
EQUIPMENT:
NTSC generator with monoscope pattern or white raster into
Video-1 input.
Note: The raster horizontal centering adjustment data for the
FULL mode is automatically used for the other display
modes as well (NORMAL, ZOOM, WIDE ZOOM, and TWIN
mode). Do not change the raster horizontal centering
adjustment data in any of these display modes.
SET-UP CONDITION:
Display Mode: FULL (NTSC)
Picture Mode: STANDARD (select the STANDARD mode from the
menu, then press the RESET button on the remote control to set the
STANDARD settings to the factory settings.)
This completes the raster center adjustment.
Tilt Correction: Set to Zero (0)
Vertical Correction: Set to Zero (0)
PROCEDURE:
1. Enter the service mode.
2. Select the following adjustment items and set their data as follows.
NOTE: DO NOT WRITE THE DATA TO MEMORY! To be safe, write
down the existing data values before changing them.
Device Name
2150P-2
2150D-3
2150D-2
2150D-2
2150D-2
2150D-2
2150D-2
Adj. Item #
6
0
2
1
16
18
0
Name
AGNG
HBLK
HSIZ
HPOS
LANG
LBOW
HCEN
Data
2
0
20
48
31
31
33
3. Center the raster between the left and right sides of the bezel. The
sides of the shrunken raster might not be straight at this point, so
use the sides of the raster at the half-way point between the top and
bottom to judge when the raster is centered.
Device Name
2150D-2
Adj. Item #
0
Name
HCEN
Data
*
* Adjust so that the raster is centered
4. Make a note of the data that was set in step 3.
5. Return all of the items adjusted in step 2 to their previous settings,
as follows:
1) Press the “0” button (“READ” appears in green letters at the top
right corner of the screen).
2) Press the “ENTER” button (“READ” changes from green to red,
and “READ” will change to “SERVICE”).
6. Re-enter the horizontal centering data from step 3, then write it to
memory as follows.
Device Name
2150D-2
Adj. Item #
0
Name
HCEN
Data
*
— 14 —
KD-34XBR2
SECTION 4. PICTURE SIZE AND GEOMETRY ADJUSTMENTS
Perform these adjustments when any of the following are replaced: CRT, deflection yoke, D-board, and whenever touch-ups are required.
REQUIRED EQUIPMENT:
NTSC generator with monoscope pattern and cross-hatch pattern. (In lieu of the monoscope pattern, the cross-hatch pattern will suffice. However,
to correctly size the picture you must be able to calculate what percentage of the generator’s full pattern is being displayed due to the over-scanning
of the CRT.)
NOTE: Throughout these adjustment procedures you will be instructed to “Write the data to memory”. To do this, follow this procedure:
1. Press the “MUTE” button (“WRITE” appears in green letters at the top right corner of the screen).
2. Press the “ENTER” button (“WRITE” changes from green to red, then “WRITE” changes to “SERVICE”).
4-1. FULL MODE ADJUSTMENT
* Adjust to meet the following spec.:
Monoscope pattern: 11.6 boxes.
Cross-hatch pattern: 90% of the full pattern height.
SET-UP CONDITION:
Display Mode: FULL (NTSC)
Picture mode: STANDARD (select the STANDARD mode from the user
menu, then press the RESET button on the remote control to set the
STANDARD settings to the factory settings).
Monoscope Pattern
TILT CORRECTION: set to zero (from the user menu).
11.6 boxes
(monoscope
pattern only!)
VERTICAL CORRECTION: set to zero (from the user menu).
PROCEDURE:
1. Enter the service mode.
2. Display the monoscope or cross-hatch pattern.
6. Write the data to memory.
3. Set the data for VPOS to 27, then adjust SCRL so that the pattern is
centered vertically on the screen.
7. Adjust the pattern so that it is centered on the screen horizontally.
Do not change the HCEN data to center the pattern! Use HPOS
to center the pattern. HCEN centers the raster; HPOS centers the
picture on the raster.
Monoscope Pattern
A
Device Name
2150D-2
A=B
Adj. Item #
1
Name
HPOS
* Adjust as necessary to horizontally center the pattern. If the
monoscope pattern is not available, use the cross-hatch pattern’s center
dot as the reference point.
B
Monoscope Pattern
Device Name
2150D-1
2150D-1
Adj. Item #
0
12
Name
VPOS
SCRL
Data
27
*
* Adjust as necessary to vertically center the pattern. If the monoscope
pattern is not available, use the cross-hatch pattern’s center dot as the
reference point.
A
4. Write the data to memory.
5. Adjust the vertical size.
Adj. Item #
1
B
A=B
8. Write the data to memory.
Device Name
2150D-1
Name
VSIZ
Data
*
Data
*
— 15 —
KD-34XBR2
9. Adjust the horizontal size.
Device Name
2150D-2
Adj. Item #
2
14. Adjust the vertical pin cushion.
Name
HSIZ
Data
*
* Adjust to meet the following spec.:
Monoscope pattern: 15.6 boxes.
Cross-hatch pattern: 92% of the full pattern width.
Device Name
2150D-1
Adj. Item #
6
Name
VPIN
Data
*
* Adjust as necessary to make the horizontal lines as straight as possible.
Monoscope Pattern
15.6 boxes
(monoscope pattern only!)
10. Write the data to memory.
11. Display a cross-hatch pattern (do not use the monoscope pattern).
15. Write the data to memory.
12. Equalize the vertical bow at the top and bottom of the screen.
16. Adjust the picture keystone.
Device Name
2150D-1
Device Name
2150D-1
Adj. Item #
5
Name
VCEN
Data
*
* Adjust to make the bowing of the top and bottom lines equal.
13. Write the data to memory.
Adj. Item #
8
Name
HTPZ
Data
*
* Adjust as necessary to make the horizontal lines as parallel as possible.
17. Write the data to memory.
18. Display a cross-hatch pattern (do not use the monoscope pattern).
— 16 —
KD-34XBR2
19. Adjust the vertical linearity.
Device Name
2150D-1
Adj. Item #
3
25. Adjust the horizontal linearity.
Name
VLIN
Data
*
Device Name
2150D-2
* Adjust as necessary so that the boxes at the top of the screen are the
same height as the boxes at the bottom of the screen.
Adj. Item #
3
Name
SLIN
Data
*
* Adjust as necessary so that the boxes at the left and right sides of the
screen are the same width as the boxes in the middle of the screen.
A
B
A=B
A
21. Display a cross-hatch pattern (do not use the monoscope pattern).
Adj. Item #
4
C
26. Write the data to memory.
22. Adjust the vertical S-correction.
Device Name
2150D-1
B
A=B=C
20. Write the data to memory.
27. Display a cross-hatch pattern (do not use the monoscope pattern).
Name
VSCO
28. Adjust horizontal inner and outer pin cushion.
Data
*
Device Name
2150D-2
* Adjust as necessary so that the boxes at the top and bottom of the
screen are the same height as the boxes in the middle of the screen.
Adj. Item #
4
Name
MPIN
Data
*
* Adjust as necessary to straighten the vertical lines of the cross-hatch
pattern. The MPIN adjustment is effective in the outer and inner areas
of the screen.
A
C
B
A=B=C
23. Write the data to memory.
24. Display a cross-hatch pattern (do not use the monoscope pattern).
29. Write the data to memory.
30. Display a cross-hatch pattern (do not use the monoscope pattern).
— 17 —
KD-34XBR2
31. Adjust horizontal outer pin cushion.
Device Name
2150D-2
Adj. Item #
5
37. Adjust the vertical keystone.
Name
PIN
Data
*
Device Name
2150D-2
* Adjust as necessary to straighten the vertical lines of the cross-hatch
pattern. The PIN adjustment is more effective in the outer areas of the
screen.
Adj. Item #
14
Name
PPHA
Data
*
* Adjust as necessary to remove vertical keystone.
38. Write the data to memory.
39. Display a cross-hatch pattern (do not use the monoscope pattern).
40. Remove any slant from all of the vertical lines.
32. Write the data to memory.
33. Display a cross-hatch pattern (do not use the monoscope pattern).
Device Name
2150D-2
34. Adjust the pincushion in the top and bottom corners of the screen.
Device Name
2150D-2
2150D-2
Adj. Item #
7
8
Name
UCP
LCP
Adj. Item #
15
Name
VANG
Data
*
* Adjust as necessary to make all of the vertical lines straight up and
down. The VANG adjustment is effective across the entire screen.
Data
*
*
* Adjust as necessary to straighten the vertical lines of the cross-hatch
pattern in the top and bottom corners of the screen.
41. Write the data to memory.
35. Write the data to memory.
36. Display a cross-hatch pattern (do not use the monoscope pattern).
— 18 —
KD-34XBR2
42. Display a cross-hatch pattern (do not use the monoscope pattern).
48. Display a cross-hatch pattern (do not use the monoscope pattern).
43. Remove any slant from the outer vertical lines.
49. Remove any bow from the outer vertical lines.
Device Name
2150D-2
Adj. Item #
16
Name
LANG
Data
*
Device Name
2150D-2
* Adjust as necessary to make the outer vertical lines straight up and
down. The LANG adjustment is most effective in the outer areas of
the screen.
Adj. Item #
18
Name
LBOW
Data
*
* Adjust as necessary to make the outer vertical lines straight up and
down. The LBOW adjustment is most effective in the outer areas of
the screen.
50. Write the data to memory.
44. Write the data to memory.
45. Display a cross-hatch pattern (do not use the monoscope pattern).
46. Remove any bow from all of the vertical lines.
Device Name
2150D-2
Adj. Item #
17
Name
VBOW
Data
*
This completes the FULL mode Size and Geometry adjustments.
Note: Many of the adjustments in this section are shared with
the other display modes (NORMAL, ZOOM, WIDE ZOOM, and
TWIN). When adjusting these modes as described in the following
sections, be sure to adjust only those items specifically listed for
each mode.
* Adjust as necessary to make all of the vertical lines straight up and
down. The VBOW adjustment is effective across the entire screen.
47. Write the data to memory.
— 19 —
KD-34XBR2
4-2. NORMAL MODE GEOMETRY
ADJUSTMENT
4-3. ZOOM MODE GEOMETRY ADJUSTMENT
SET-UP CONDITION:
Display Mode: ZOOM
SET-UP CONDITION:
Display Mode: NORMAL (4:3 NTSC)
Picture mode: STANDARD (select the STANDARD mode from the user
menu, then press the RESET button on the remote control to set the
STANDARD settings to the factory settings).
TILT CORRECTION: set to zero (from the user menu).
TILT CORRECTION: set to zero (from the user menu).
VERTICAL CORRECTION: set to zero (from the user menu).
VERTICAL CORRECTION: set to zero (from the user menu).
NOTE: The NORMAL mode shares the adjustments made in the FULL mode. As a rule
you should not have to make any adjustments in NORMAL mode except the vertical pin
mode which is independent of the FULL mode.
PROCEDURE:
1. Enter the service mode.
Picture mode: STANDARD (select the STANDARD mode from the user
menu, then press the RESET button on the remote control to set the
STANDARD settings to the factory settings).
NOTE: The ZOOM mode shares the adjustments made in the FULL mode. As a rule you
should not have to make any adjustments in ZOOM mode except vertical size (ASPT)
and vertical position (SCRL) which are independent of the FULL mode.
PROCEDURE:
1. Enter the service mode.
2. Display the monoscope or cross-hatch pattern.
2. Display the cross-hatch pattern.
3. Adjust the pattern so that it is centered on the screen vertically.
3. Adjust the vertical pincushion.
Device Name
2150D-1
Adj. Item #
6
Name
VPIN
Data
*
* Adjust as necessary to make the horizontal lines as straight as
possible.
Device Name
2150D-1
Adj. Item #
12
Name
SCRL
Data
*
* Adjust as necessary to vertically center the pattern. If the monoscope
pattern is not available, use the cross-hatch pattern’s center dot as the
reference point.
Monoscope Pattern
A
A=B
B
4. Write the data to memory.
5. Display the monoscope or cross-hatch pattern.
6. Adjust the vertical size.
Device Name
2150D-1
4. Write the data to memory.
Adj. Item #
11
Name
ASPT
Data
*
* Adjust to meet the following spec.:
Monoscope pattern: 9 boxes.
Cross-hatch pattern: 70% of the full pattern height.
This completes the NORMAL mode geometry adjustment.
Monoscope Pattern
9 boxes
(monoscope
pattern only!)
4. Write the data to memory.
This completes the ZOOM mode geometry adjustment.
— 20 —
KD-34XBR2
* Adjust so that the top and bottom boxes are the same height. The data
must be between 9 and 11!
4-4. WIDE ZOOM MODE GEOMETRY
ADJUSTMENT
NOTE: The WIDE ZOOM mode deliberately compresses the picture areas near the top
and bottom of the screen, and stretches the picture areas at the sides of the screen.
Images in the center area of the screen are neither stretched nor compressed, so they
appear natural. The WIDE ZOOM mode allows the viewer to see natural images in the
center of the screen where the viewer’s attention is usually focused, while at the same
time allowing the images to fill the entire screen area.
A properly adjusted WIDE ZOOM mode will look similar to the drawing below.
A
No good.
No good.
B
OK. A = B
4. Distort the vertical linearity.
Center area aspect ratio is
preserved.
Device Name
2150D-1
Top and bottom
compressed.
Adj. Item #
3
Name
VLIN
Data
*
* Adjust so that the height of the top and bottom boxes are about 90% of
the height of the center boxes
SET-UP CONDITION:
Display Mode: WIDE ZOOM
0.9A
A
Picture mode: STANDARD (select the STANDARD mode from the user
menu, then press the RESET button on the remote control to set the
STANDARD settings to the factory settings).
Top and Bottom
Boxes
Center Boxes
TILT CORRECTION: set to zero (from the user menu).
5. Write the data to memory.
6. Adjust the horizontal size.
VERTICAL CORRECTION: set to zero (from the user menu).
NOTE: The WIDE ZOOM mode shares a few of the adjustments made in the FULL mode.
As a rule you should not have to make any of the shared adjustments in WIDE ZOOM
mode. Only the adjustments listed below are necessary.
PROCEDURE:
1. Enter the service mode.
Device Name
2150D-2
3. Adjust the vertical s-correction and the horizontal linearity so that the
boxes in the general center area of the screen have the same height
and width.
Adj. Item #
4
3
Name
VSCO
SLIN
Name
HSIZ
Data
*
* Adjust to meet the following spec.:
Monoscope pattern: 15.6 boxes.
Cross-hatch pattern: 92% of the full pattern width.
2. Display the monoscope or cross-hatch pattern.
Device Name
2150D-1
2150D-2
Adj. Item #
2
Monoscope Pattern
Data
9 -11 *
9 -11 *
15.6 boxes
(monoscope pattern only!)
7. Write the data to memory.
8. Adjust the pattern so that it is centered on the screen vertically.
— 21 —
KD-34XBR2
Device Name
2150D-1
Adj. Item #
12
Name
SCRL
Data
*
14. Write the data to memory.
15. Adjust the pincushion in the top and bottom corners of the screen.
* Adjust as necessary to vertically center the pattern. If the monoscope
pattern is not available, use the cross-hatch pattern’s center dot as the
reference point.
Monoscope Pattern
Device Name
2150D-2
2150D-2
Adj. Item #
7
8
Name
UCP
LCP
Data
*
*
* Adjust as necessary to straighten the vertical lines of the cross-hatch
pattern in the top and bottom corners of the screen
A
A=B
B
9. Write the data to memory.
10. Adjust the vertical size.
Device Name
2150D-1
Adj. Item #
11
Name
ASPT
Data
*
* Adjust to meet the following spec.:
Monoscope pattern: 10.8 boxes.
Cross-hatch pattern: 83% of the full pattern height.
Monoscope Pattern
16. Write the data to memory.
17. Adjust the vertical keystone.
10.8 boxes
(monoscope
pattern only!)
Device Name
2150D-2
Adj. Item #
14
Name
PPHA
Data
*
* Adjust as necessary to remove vertical keystone.
11. Write the data to memory.
12. Display a cross-hatch pattern (do not use the monoscope pattern.
13. Adjust horizontal outer pin cushion.
Device Name
2150D-2
Adj. Item #
5
Name
PIN
Data
*
* Adjust as necessary to straighten the vertical lines of the cross-hatch
pattern. The PIN adjustment is more effective in the outer areas of the
screen.
18. Write the data to memory.
This completes the WIDE ZOOM mode geometry adjustment.
— 22 —
KD-34XBR2
4-5. TWIN MODE GEOMETRY CONFIRMATION
The TWIN mode uses the FULL mode adjustments. You should check
the geometry in TWIN mode, but it will normally be OK. Minor flaws are
allowed. Anything beyond minor flaws indicates problems that will be
evident in the FULL mode also. You should correct the problems in the
FULL mode only, not the TWIN mode.
This completes the TWIN mode geometry confirmation.
4-6. HIGH DEFINITION 1080I MODE
GEOMETRY ADJUSTMENT
The high definition 1080i mode (“HD1080i”) shares many of the
FULL mode adjustments. As a rule you should not have to make
any adjustments in HD1080i mode except vertical size (ASPT),
vertical position (SCRL), and horizontal positioning (HPOS) which are
independent of the FULL mode.
5. Write the data to memory.
6. Adjust the vertical size.
SET-UP CONDITION:
Display Mode: HD1080i FULL (this mode is automatically selected when
a 1080i video signal is displayed).
Picture mode: STANDARD (select the STANDARD mode from the user
menu, then press the RESET button on the remote control to set the
STANDARD settings to the factory settings).
Device Name
2150D-1
Adj. Item #
11
Name
ASPT
Data
*
* Adjust as necessary so that the horizontal dots along the top and
bottom of the pattern are close to the bezel.
TILT CORRECTION: set to zero (from the user menu).
VERTICAL CORRECTION: set to zero (from the user menu).
PROCEDURE:
1. With the set turned off, turn it on and tune a DTV channel (either
standard definition or high definition is OK), then turn the set off
again.
2. Enter the service mode.
3. Display the 1080i cross-hatch pattern as follows:
a. Select adjustment category “DTV”.
b. Select adjustment item # 1 “PATN”.
c. Select the 1080i cross-hatch pattern by changing the PATN
data from “0” to “1”. The cross-hatch will appear after a
second or two.
4. Adjust the pattern so that it is centered on the screen horizontally
and vertically. Use the dots that surround the pattern to determine
when it is centered.
The HPOS adjustment affects the other display modes; adjust it to find
the best balance among all display mode.
7. Write the data to memory.
Device Name
2150D-1
2150D-2
This completes the HD1080i mode geometry adjustment.
Adj. Item #
12
1
Name
SCRL
HPOS
Data
*
*
* Adjust as necessary to horizontally and vertically center the pattern.
— 23 —
KD-34XBR2
SECTION 5. STATIC CONVERGENCE ADJUSTMENTS
Perform these adjustments when any of the following are replaced: CRT, deflection yoke, D-board, and whenever touch-ups are required.
REQUIRED EQUIPMENT: NTSC generator with dot pattern and cross-hatch pattern.
SET-UP CONDITION:
Display Mode: FULL (NTSC)
Picture mode: STANDARD (select the STANDARD mode from the user menu, then press the RESET button on the remote control to set the
STANDARD settings to the factory settings).
BRIGHTNESS: 50%
PICTURE: 50%
TILT CORRECTION: set to zero (from the user menu).
VERTICAL CORRECTION: set to zero (from the user menu).
PROCEDURE:
1. Make sure the TV power is off, then disable the dynamic convergence
circuit by unplugging CN5510 from the D-board.
2. Turn the set on and display the dot pattern.
B
B
R
R
4. Lock the H-STAT control with locking paint.
5. Adjust the V-STAT magnets on the deflection yoke to vertically
converge the red, green, and blue dots in the center of the screen.
CN5510
3. Adjust the H-STAT control on the C-board (RV9001) to horizontally
converge the red, green, and blue dots in the center of the screen.
C Board
R
R
B
B
H-STAT control
6. Adjust the BMC magnets and the V-STAT magnets for the best
possible alignment of the red, green, and blue dots.
— 24 —
KD-34XBR2
The magnets interact with each other, so you may have to alternately
switch between them several times.
9. Balance any remaining misconvergence along the horizontal axis by
adjusting the TLV control on the top of the yoke assembly.
Green and blue line up
perfectly.
R
B
R
B
Red hangs down a small
amount.
7. Secure the magnets by applying locking paint.
8. Adjust the convergence along the horizontal axis throughout the entire
screen by turning the XCV core located at the bottom of the yoke
assembly. A plastic tuning tool is required. Do not use a hex wrench
as its magnetic properties will throw off the adjustment.
10. Turn the set off, and then reconnect CN5510 on the D-board.
This completes the static convergence adjustment.
XCV Core
CAUTION! Do not turn the XVC core more than two full turns in
either direction.
— 25 —
KD-34XBR2
6. DYNAMIC CONVERGENCE ADJUSTMENTS
Perform these adjustments when any of the following are replaced: CRT, deflection yoke, D-board, and whenever touch-ups are required.
Required equipment:
NTSC generator with cross-hatch pattern.
NOTE: Throughout these adjustment procedures you will be instructed to “Write the data to memory”. To do this, follow this procedure:
1. Press the “MUTE” button (“WRITE” appears in green letters at the top right corner of the screen).
2. Press the “ENTER” button (“WRITE” changes from green to red, then “WRITE” changes to “SERVICE”).
SET-UP CONDITION:
Display Mode: FULL (NTSC)
The horizontal convergence should not shift. If it does shift, reconnect
CN5510 and make the following adjustment:
Picture mode: STANDARD (select the STANDARD mode from the user
menu, then press the RESET button on the remote control to set the
STANDARD settings to the factory settings).
Device Name
D-CONV
TILT CORRECTION: set to zero (from the user menu).
Adjust as necessary so that the horizontal convergence is the same
regardless if CN5510 is plugged in or not.
VERTICAL CORRECTION: set to zero (from the user menu).
Data
*
6. Make sure CN5510 is plugged in.
7. Remove the bow from the top and bottom of the vertical lines in the
cross-hatch pattern.
2. If the CRT or deflection yoke was replaced, set the data as shown
below:
Adj. Item #
0
1
2
3
4
5
6
7
8
Name
CADJ
5. Write the data to memory.
PROCEDURE
1. Enter the service mode.
Device Name
D-CONV
D-CONV
D-CONV
D-CONV
D-CONV
D-CONV
D-CONV
D-CONV
D-CONV
Adj. Item #
9
Name
SBHS
YBWU
YBWL
RSAP
RUBW
RLBW
LSAP
LUBW
LLBW
Device Name
D-CONV
D-CONV
Data
31
31
31
31
31
31
31
31
31
Adj. Item #
1
2
Name
YBWU
YBWL
Data
*
*
* Adjust as necessary to minimize the bow (separation).
3. Display the cross-hatch pattern.
4. While observing the horizontal convergence, unplug connector CN5510
on the D-board.
8. Write the data to memory.
CN5510
— 26 —
KD-34XBR2
9. Converge the vertical lines at the sides of the screen.
Device Name
D-CONV
D-CONV
Adj. Item #
3
6
Name
RSAP
LSAP
LUBW affects this
corner.
Data
*
*
LLBW affects this
corner.
LSAP affects the
left side.
RUBW affects
this corner.
RUBW affects
this corner.
RSAP affects the
right side.
12. Write the data to memory.
If the side horizontal convergence can't be
achieved, the neck assembly may be too far
forward or too far rearward. Refer to the
Mechanical Pre-adjustments section.
13. Check the convergence in the ZOOM, WIDE ZOOM, and HD1080i
modes. Only minor touchups are allowed, as they affect the other
modes. Make minor adjustments as necessary as described in the
sections 5.7 to 5.12.
10. Write the data to memory.
11. Remove the bow from the right and left side top and bottom of the
vertical lines in the cross-hatch pattern.
14. Copy the FULL mode convergence adjustments to the normal mode
as follows:
a) Select adjustment category “D-CONV”.
b) Select adjustment item # 10 “COPY 2”.
Device Name
D-CONV
D-CONV
D-CONV
D-CONV
Adj. Item #
4
5
7
8
Name
RUBW
RLBW
LUBW
LLBW
Data
*
*
*
*
* Adjust as necessary to minimize the bow (separation).
c) Change the data from “0” to “1”.
d) Press “MUTING” and then press “ENTER”.
15. Select the NORMAL mode.
16. Adjust the NORMAL mode convergence as described in items 7 to
12.
This completes the dynamic convergence adjustment.
— 27 —
KD-34XBR2
SECTION 7. PICTURE QUALITY ADJUSTMENTS
Perform these adjustments as necessary.
REQUIRED EQUIPMENT: NTSC generator with 100 IRE 100% color bar pattern or 75 IRE 75% color bar pattern (composite video and RF output).
NOTE: Throughout these adjustment procedures you will be instructed to “Write the data to memory”. To do this, follow this procedure:
1. Press the “MUTE” button (“WRITE” appears in green letters at the top right corner of the screen).
2. Press the “ENTER” button (“WRITE” changes from green to red, then “WRITE” changes to “SERVICE”).
7-1. DTV SUB-CONTRAST ADJUSTMENT
6. Select adjustment category “2150P-2”, item # 1 “RGBS”, and change
the data from 4 to 7 (this turns the blue and green on).
SET-UP CONDITION:
Picture mode: PRO
Color:
Minimum
Picture: Maximum
This completes the DTV sub-contrast adjustment.
7-2. DTV SUB-COLOR AND SUB-HUE
ADJUSTMENT
INITIAL DATA:
Cat. 2150P-1, item #4 “RDRV”, data = 45.
Cat. 2150P-1, item #7 “RCUT”, data = 41.
PROCEDURE:
1. With set turned off, connect an oscilloscope to pin # 1 (R) of CN9001
on the C-board.
2. Display the 1080i color bar pattern from the TV’s internal pattern
generator as follows:
SET-UP CONDITION:
Picture mode: PRO
Color: Factory default (press the RESET button while in PRO mode
adjustment menu).
Picture: Maximum
INITIAL DATA:
Cat. 2150P-1, item #4 “RDRV”, data = 45.
Cat. 2150P-1, item #7 “RCUT”, data = 41.
a) Turn the set on and select the VHF-UHF antenna.
b) Tune the TV to channel 2.1 (“two point one” not “twenty one”).
Use the decimal point button on the remote. It’s OK if there is
no signal on channel 2.1.
PROCEDURE:
1. With set turned off, connect an oscilloscope to pin # 5 (B) of CN9001
on the C-board.
c) Turn the TV off.
d) Enter the service mode.
2. Display the 1080i color bar pattern from the TV’s internal pattern
generator (refer to section 7-1. item 2).
e) Select adjustment category “DTV”
3. Select adjustment category “2150P-4”, item # 1 “SCOL”, and adjust
the data so that VB1 and VB4 in the waveform meets the spec. shown
below.
f) Select adjustment item # 1 “PATN”.
g) Change the data from “0” to “4”. The 1080i color bar pattern will
appear in a few seconds. The 1080i pattern automatically forces
the TV into the FULL mode.
3. Select adjustment category “2150P-2”, item # 1 “RGBS”, and change
the data from 7 to 4 (this turns off the blue and green).
4. Select adjustment category “2150P-4”, item # 2 “SHUE”, and adjust
the data so that VB2 and VB3 in the waveform meets the spec. shown
below.
4. Select adjustment category “2150P-4”, item # 0 “SCON”, and change
the data so that the voltage difference between the peak white level
and black level is 2.25 V +/- 0.05 V.
50mv/div.
5uS/div.
White
VB1 VB2 VB3 VB4
50mv/div.
5uS/div.
VR1
SCOL: VB1 ≤ VB4 (=VB1 + 0 ~ 90mV)
SHUE: VB2 ≤ VB3 (=VB2 + 0 ~ 90mV
Black
VR2
5. Write the data to memory.
VR1 – VR2 = ∆VR = 2.25 V ± 0.05 Vp-p
This completes the DTV sub-color and sub-hue adjustment.
5. Write the data to memory.
— 28 —
KD-34XBR2
7-3. ANALOG VIDEO SUB-CONTRAST
ADJUSTMENT
7-4. ANALOG VIDEO SUB-COLOR AND SUBHUE ADJUSTMENT
SET-UP CONDITION:
Picture mode: PRO
Color:
Minimum
Picture: Maximum
Display mode: FULL
SET-UP CONDITION:
Picture mode: PRO
Color: Factory default (press the RESET button while in PRO mode
adjustment menu).
Picture: Maximum
Display mode: FULL
INITIAL DATA:
Cat. 2150P-1, item #4 “RDRV”, data = 45.
Cat. 2150P-1, item #7 “RCUT”, data = 41.
INITIAL DATA:
Cat. 2150P-1, item #4 “RDRV”, data = 45.
Cat. 2150P-1, item #7 “RCUT”, data = 41.
PROCEDURE:
1. With set turned off, connect an oscilloscope to pin # 1 (R) of CN9001
on the C-board.
2. Enter the service mode.
3. Display a color bar pattern through the video-1 input.
4. Select adjustment category “2150P-2”, item # 1 “RGBS”, and change
the data from 7 to 4 (this turns off the blue and green).
5. Select adjustment category “2150P-4”, item # 0 “SCON”, and change
the data so that the voltage difference between the peak white level
and black level is 2.25 V +/- 0.05 V for 100 IRE color bars, or 1.7 V +/0.05 V for 75 IRE color bars.
White
PROCEDURE:
1. With set turned off, connect an oscilloscope to pin # 5 (B) of CN9001
on the C-board.
2. Enter the service mode.
3. Display a color bar pattern through the video-1 input.
4. Select adjustment category “2150P-4”, item # 1 “SCOL”, and adjust the
data so that VB1 and VB4 in the waveform meets the spec. shown
below.
5. Select adjustment category “2150P-4”, item # 2 “SHUE”, and adjust
the data so that VB2 and VB3 in the waveform meets the spec. shown
below.
50mv/div.
5uS/div.
VR1
50mv/div.
5uS/div.
Black
VR2
VB1 VB2 VB3 VB4
100 IRE color bars
VR1 – VR2 = ∆VR = 2.25 V ± 0.05 Vp-p
SCOL: VB1 ≤ VB4 (=VB1 + 0 ~ 90mV)
SHUE: VB2 ≤ VB3 (=VB2 + 0 ~ 90mV
75 IRE color bars
VR1 – VR2 = ∆VR = 1.7 V ± 0.05 Vp-p
6. Write the data to memory.
6. Write the data to memory.
7. Select adjustment category “2150P-2”, item # 1 “RGBS”, and change
the data from 4 to 7 (this turns the blue and green on).
This completes the analog video sub-color and sub-hue
adjustment.
This completes the analog video sub-contrast adjustment.
— 29 —
KD-34XBR2
7-6. ANALOG VIDEO SUB-COLOR AND SUBHUE ADJUSTMENT
7-5. RF SUB-CONTRAST ADJUSTMENT
SET-UP CONDITION:
Picture mode: PRO
Color:
Minimum
Picture: Maximum
Display mode: TWIN mode (P&P)
SET-UP CONDITION:
Picture mode: PRO
Color: Factory default (press the RESET button while in PRO mode
adjustment menu).
Picture: Maximum
Display mode: TWIN mode (P&P)
INITIAL DATA:
Cat. 2150P-1, item #4 “RDRV”, data = 45.
Cat. 2150P-1, item #7 “RCUT”, data = 41.
PROCEDURE:
1. With set turned off, connect an oscilloscope to pin # 1 (R) of CN9001
on the C-board.
2. Enter the service mode.
3. Display a color bar pattern through an RF (tuner) input.
4. Select adjustment category “2150P-2”, item # 1 “RGBS”, and change
the data from 7 to 4 (this turns off the blue and green).
5. Select adjustment category “2103-1”, item # 2 “SCON” (for the left side
picture) and “2103-2”, item # 2 “SCON” (for the right side picture), and
change the data so that the voltage difference between the peak white
level and black level is 2.25 V +/- 0.05 V for 100 IRE color bars, or 1.7
V +/- 0.05 V for 75 IRE color bars.
White
50mv/div.
5uS/div.
VR1
INITIAL DATA:
Cat. 2150P-1, item #4 “RDRV”, data = 45.
Cat. 2150P-1, item #7 “RCUT”, data = 41.
PROCEDURE:
1. With set turned off, connect an oscilloscope to pin # 5 (B) of CN9001
on the C-board.
2. Enter the service mode.
3. Display a color bar pattern through an RF (tuner) input.
4. Select adjustment category “2103-1”, item # 3 “SCOL” for the left side
picture, and “2103-2”, item # 3 “SCOL” for the right side picture, and
adjust the data so that VB1 and VB4 in the waveform meets the spec.
shown below.
5. Select adjustment category “2103-1”, item # 4 “SHUE” for the left side
picture, and “2103-2” item # 4 “SHUE” for the right side picture, and
adjust the data so that VB2 and VB3 in the waveform meets the spec.
shown below.
Black
50mv/div.
5uS/div.
VR2
100 IRE color bars
VR1 – VR2 = ∆VR = 2.25 V ± 0.05 Vp-p
VB1 VB2 VB3 VB4
75 IRE color bars
VR1 – VR2 = ∆VR = 1.7 V ± 0.05 Vp-p
SCOL: VB1 ≤ VB4 (=VB1 + 0 ~ 90mV)
SHUE: VB2 ≤ VB3 (=VB2 + 0 ~ 90mV
6. Write the data to memory.
7. Select adjustment category “2150P-2”, item # 1 “RGBS”, and change
the data from 4 to 7 (this turns the blue and green on).
6. Write the data to memory.
This completes the RF sub-color and sub-hue adjustment.
This completes the RF sub-contrast adjustment.
— 30 —
KD-34XBR2
SECTION 8. WHITE BALANCE, SUB-BRIGHTNESS AND G2 ADJUSTMENTS
Perform White Balance and Sub-brightness adjustments as necessary. Perform G2 adjustment whenever the CRT or D-board is replaced,
and whenever tinting or faint lines are seen in all-black areas of the screen.
Required equipment:
NTSC generator with white raster and gray-scale pattern (color bar pattern with chroma turned off is OK).
NOTE: Throughout these adjustment procedures you will be instructed to “Write the data to memory”. To do this, follow this procedure:
1. Press the “MUTE” button (“WRITE” appears in green letters at the top right corner of the screen).
2. Press the “ENTER” button (“WRITE” changes from green to red, then “WRITE” changes to “SERVICE”).
6. Alternately adjust category 2150P-1 items # 8 “GCUT” and 9 “BCUT”
to obtain the purest gray (no color tint). Use the center area of the
screen to make your judgment.
8-1. WHITE BALANCE ADJUSTMENT
SET-UP CONDITION:
Picture mode: PRO mode at factory default (press the RESET button
while in PRO mode adjustment menu), then set COLOR to 50%.
7. Write the data to memory.
8. Display a 480i (NTSC) white raster through the video-1 input.
9. Alternately adjust category 2150P-1 items # 5 “GDRV” and 6 “BDRV”
to obtain the purest white (no color tint). Use the center area of the
screen to make your judgment.
PROCEDURE:
1. Select the video-1 input.
2. Enter the service mode.
10. Write the data to memory.
3. Set the following initial data:
Device Name
2150P-1
2150P-1
2150P-1
2150P-1
2103-1
2103-1
2103-2
2103-2
Adj. Item #
4
7
1
2
20
21
20
21
11. Alternately repeat steps 6 through 9 until the dark gray and white
rasters do not show any evidence of color tinting.
Name
RDRV
RCUT
CBOF
CROF
CBOF
CROF
CBOF
CROF
Data
45
41
34
32
34
32
33
33
12. Write the data to memory.
13. Change the set from the video-1 mode to the DTV mode as follows:
a) Turn the set on and select the VHF-UHF antenna.
b) Tune the TV to channel 2.1 (“two point one” not “twenty one”). Use
the decimal point button on the remote. It’s OK if there is no signal
on channel 2.1.
c) Turn the TV off.
d) Enter the service mode.
4. Display a gray-scale pattern (or color bars with the chroma turned
off) and closely observe the 2 darkest gray bars (not including the
black bar).
14. Change white balance offset data for the DTV mode as follows:
5. Display a white raster again, and adjust the pattern generator’s output
level so that raster level is in the middle of the level of the 2 darkest
gray bars observed in the previous step.
Device Name
2150P-1
2150P-1
Adj. Item #
1
2
Name
CBOF
CROF
Data
26
26
15. Write the data to memory.
16. Change the set from DTV mode to TWIN (P&P) mode.
17. Change white balance offset data for the TWIN mode as follows:
Device Name
2150P-1
2150P-1
Adj. Item #
1
2
Name
CBOF
CROF
Data
36
36
18. Write the data to memory.
19. Change the set from TWIN mode to video-5 mode. An input signal
is not necessary.
— 31 —
KD-34XBR2
20. Change white balance offset data for the video-5 mode as follows:
8-3. G2 ADJUSTMENT
Device Name
2150P-1
2150P-1
2103-1
2103-1
Perform this adjustment whenever the CRT or D-board is replaced,
and whenever tinting or faint lines are seen in all-black areas of
the screen.
Adj. Item #
1
2
20
21
Name
CBOF
CROF
CBOF
CROF
Data
36
36
36
38
SET-UP CONDITION:
Display mode: FULL (NTSC)
21. Write the data to memory.
22. Change the set from video-5 mode to video-6 mode. An input signal
is not necessary.
Picture mode:STANDARD (enter the STANDARD mode adjustment menu
from the user menu, then press the RESET button on the remote
control to set the STANDARD settings to the factory settings).
23. Change white balance offset data for the video-6 mode as follows:
Device Name
2103-1
2103-1
Adj. Item #
20
21
Name
CBOF
CROF
Data
32
32
PROCEDURE:
1. Select an unused input so that the screen is black except for the
on-screen display.
2. Make the room as dark as possible.
24. Write the data to memory.
3. Turn G2 RV9002 on the C-board clockwise until a slight glow is seen in
the black areas of the screen.
This completes the white balance adjustment.
4. Turn G2 RV9002 on the C-board counter-clockwise until the glow
disappears and the black areas have no light output.
8-2. SUB-BRIGHTNESS ADJUSTMENT
SET-UP CONDITION:
Picture mode: PRO mode at factory default (press the RESET button
while in PRO mode adjustment menu), then set PICTURE to minimum.
RV9002
The room must be dark.
PROCEDURE:
1. Enter the service mode.
C BOARD
2. Select the video-1 input with no signal applied so that the screen is
black (except for the on-screen display).
3. Set the sub-bright offset data as follows:
Device Name
2150P-1
Adj. Item #
11
Name
SBOF
Data
7
This completes the G2 adjustment.
4. Adjust the sub-bright data so that there is no light output from the CRT
in the black areas of the screen.
Device Name
2150P-1
Adj. Item #
3
Name
SBRT
Data
*
* Adjust as necessary.
5. Write the data to memory.
This completes the sub-brightness adjustment.
— 32 —
KD-34XBR2
SECTION 9: SAFETY RELATED ADJUSTMENTS
X RV8001, RV8002 CONFIRMATION METHOD AND HV SERVICE ADJUSTMENTS
Note: If using a stabilized power supply, make sure that the
distortion factor is 3% or less.
B+ MAX CONFIRMATION
Standard ............................................................................ 135.3 ± 1 VDC
Check Condition:
Setting mode: ............................................................................ Full mode
AC input voltage: ........... 120 (± 2) VAC at Board Adjustment Process
Signal input:.................................................. Cross-hatch of NTSC at QC
................................................ 130 (± 2) VAC at QC
Initial setting:...........................................................Reset condition at QC
... 120 (± 2) VAC at Overall Adjustment (after aging)
Confirm point: .........................................Across C6544 for B+ of D Board
HV SERVICE FLOWCHART
Start
Is RHT
Changed?
Change any
or
marked parts
No
No
Yes
Yes
Replace RV8001 and RV8002 with the same value:
HV project adjust and inspection
1. Turn RV8001 fully counter-clockwise.
2. Turn set on with black video signal then adjust
RV8002 slowly to obtain
34.8 kV.
3. Adjust RV8001 clockwise slowly until hold down
protect just activates.
4. Adjust RV8002 clockwise, then turn the set on.
Change video to white field then slowly turn RV8002
counter-clockwise to get 34.8 ± 0.2kv. Confirm set
does NOT TURN OFF at this condition. If yes, then
repeat from step 1 again.
5. Finally, set back RV8002 to 31.50kv + 0.2kv at video
cut off (black video).
Is D-Board
Replaced?
Yes
If all adjustments are complete, then seal and secure
RV8001 and RV8002 with epoxy to prevent any possible
misadjustment by non-trained technical service.
Confirm +B, Vd and check hold-down on the D board
video with no signal (standard reset mode) as follows:
1. Confirm +B across C6544 to make sure that it is
135.3 ± 1 Vdc.
2. Confirm Vd at pin 2 CN6506 or at TP-Vd for 4.3V <
Vd < 4.65 Vdc.
3. Apply 5.5 + 0.5 Vdc at pin 2 of CN6506, then confirm
that set holds down.
Is +B, Vd and
hold down
confirmed?
Start from
the beginning.
Yes
Finish for
hold-down
check
— 33 —
No
KD-34XBR2
SECTION 10: CIRCUIT ADJUSTMENTS
ELECTRICAL ADJUSTMENTS BY REMOTE COMMANDER
Use the Remote Commander (RM-Y185) to perform the circuit adjustments in this section.
Test Equipment Required: 1. Pattern generator 2. Frequency counter 3. Digital multimeter 4. Audio oscillator
10-1. SETTING THE SERVICE ADJUSTMENT
MODE
1. Enter into Service Mode.
1. Standby mode (Power off).
2. Press 8 and then press ENTER on the remote.
2. Press the following buttons on the remote commander within one
second of each other:
DISPLAY
Channel 5
Sound Volume +
10-2. MEMORY WRITE CONFIRMATION
METHOD
Power
SERVICE ADJUSTMENT MODE VIEW
Device Item
RESETTING THE SYSTEM NVM DATA
1. After adjustment, pull out the plug from the AC outlet, then replace the
plug in the AC outlet again.
Data Item
2. Turn the power switch ON and set to Service Mode.
Register
Item
2150P-1
SBOT
0
+7
SERVICE
TV
3. Call the adjusted items again to confirm they were adjusted.
10-3. REMOTE ADJUSTMENT BUTTONS
AND INDICATORS
WSL: 0
F/A FLAG:
CBA FLAG:
READING THE MEMORY
1. Enter into Service Mode.
WRITE
INTO MEMORY
2. Press 0 on the remote commander.
DEVICE UP
3. Press ENTER to read memory.
ADJUSTING THE PICTURE
ITEM UP
1. Enter into Service Mode
DATA UP
ITEM DOWN
2. Press 2 or 5 on the remote to select the device item.
DATA DOWN
3. Press 1 or 4 on the remote to select an item.
DEVICE DOWN
4. Press 3 or 6 on the remote to change the data.
EXECUTE
5. Press MUTING then ENTER to write into memory.
RESETTING THE DATA
Note: Be careful when using the remote! It will clear and re-initialize
ALL NVM data including deflection adjustment data if not reset
properly as follows:
READ
MEMORY
TEST
RESET
RESETTING THE DEFLECTION NVM DATA
1. Enter into Service Mode.
2. Press 7 , then MENU , and then press ENTER on the remote.
RESETTING THE SYSTEM NVM DATA
1. Enter into Service Mode.
2. Press 7 , then 9 , and then press ENTER on the remote.
— 34 —
RM-Y185
KD-34XBR2
10-4. SERVICE DATA LISTS
HA3 Main Chroma Decoder (CXA2103) Service List (1)
No.
NAME / DESCRIPTION
ITEM
Initial Data Settings
0
1
YLEV
CLEV
The Following data depends on Signal Path
Y out-level gain[0:2.9dB, 63:9.0dB]
CbCr out-level gain[0:2.9dB, 63:9.0dB]
DRC
35
50
2
3
4
5
SCON
SCOL
SHUE
YDLY
The Following Data Depends on Signal Input
SUB contrast[0:-2dB, 15:+2dB]
SUB color[0:-2dB, 15:+2dB]
SUB hue[0:-8.8deg, 15:+8.8deg]
Y/C delay[0:Ref, 1:30ns Y-delay, 2:60ns, 3:100ns]
RF
9
2
11
0
CV/YC
9
2
5
0
6
7
8
SHAP
SHF0
PREO
The Following Data Depends on Signal Input
Sharpness[0:-3dB, 15:+3dB]
RF
6
0
3
CV
8
0
3
V5
4
3
3
9
10
11
12
BPF0
BPFQ
BPSW
TRAP
Chroma BPF Q[0:2.0, 1:1.5, 2:1.2, 3:1.0]
Chroma BPF On/Off[0:Off, 1:On]
Chroma trap on Y On/off[0:Off, 1:On]
RF
3
0
1
0
CV
0
3
0
0
YC
0
3
0
0
13
LPF
The Following Data Depends on Signal Input
Output LPF(YCbCr) [0:On, 1:Off(through)]
DRC
1
Sharpness F0[0:2.5MHz, 1:3.0MHz, 2:3.5MHz, 3:4.0MHz]
Pre.-Over ratio[0: 1.5:1, 1: 1:1, 2: 1:1.5, 3: 1:2]
The Following Data Depends on Signal Input
Chroma BPF F0[0:fsc, 1:fsc+400k, 2:fsc+800k, 3:fsc+1.2M]
— 35 —
VDO
35
42
VDO
0
YC
8
0
3
KD-34XBR2
SERVICE DATA LISTS
HA3 Main Chroma Decoder (CXA2103) Service List (2)
No.
ITEM
14
15
16
17
18
19
AFCG
CDMD
SSMD
HMSK
HALI
PPHA
20
21
CBOF
CROF
NAME / DESCRIPTION
Initial Data Settings
The Following Data Depends on Signal Input
PLL loop gain[0:fast, 1:slow]
Mask for MacroVision[0:Off, 1:On]
Auto H alignment[0:Off, 1:On(AFC free run)]
Picture/H Tim phase[0:-0.5us, 15:+0.5us]
RF
1
3
0
0
0
7
CV/YC
0
3
0
1
0
7
The Following Data Depends on Signal Input
Cb/Ext Cb offset[0:-16mV, 63:+16mV]
Cr/Ext Cr offset[0:-16mV, 63:+16mV]
RF
34
32
V5
36
38
V6
32
32
Single
0
0
BLK(0)
0
0
BLK(1)
1
1
BLK(2)
2
1
BLK(4)
2
3
BLK(5)
2
2
BLK(6)
3
2
BLK(7)
1
2
Count down mode[0/1/3:CountDown, 2:H look *Tc:0>1>3]
Slice level[0:auto, 1:HV 65%, 2:H25% V65%, 3:HV25%]
The Following Data Depends on CXA2150P-4 BLK
22
23
ATPD
DCTR
Auto pedestal point[0:Through, 1:20IRE, 2:30IRE, 3:40IRE]
22
23
ATPD
DCTR
Auto pedestal point[0:Through, 1:20IRE, 2:30IRE, 3:40IRE]
DC transfer ratio [0:100%, 1:95%, 2:90%, 3:85%]
Continued
DC transfer ratio [0:100%, 1:95%, 2:90%, 3:85%]
**Main and Sub CXA2103 share the same data for items 22 & 23
— 36 —
V5/V6
0
3
0
1
0
7
BLK(3)
3
1
KD-34XBR2
SERVICE DATA LISTS
HA3 Sub Chroma Decoder (CXA2103) Service List (1)
No.
ITEM
NAME / DESCRIPTION
Initial Data Settings
0
1
YLEV
CLEV
The Following data depends on Signal Path
Y out-level gain[0:2.9dB, 63:9.0dB]
CbCr out-level gain[0:2.9dB, 63:9.0dB]
DRC
35
50
2
3
4
5
SCON
SCOL
SHUE
YDLY
The Following Data Depends on Signal Input
SUB contrast[0:-2dB, 15:+2dB]
SUB color[0:-2dB, 15:+2dB]
SUB hue[0:-8.8deg, 15:+8.8deg]
Y/C delay[0:Ref, 1:30ns Y-delay, 2:60ns, 3:100ns]
RF
8
3
10
0
CV/YC
8
3
3
0
6
7
8
SHAP
SHF0
PREO
The Following Data Depends on Signal Input
Sharpness[0:-3dB, 15:+3dB]
RF
2
0
3
CV
2
0
3
V5
7
3
1
9
10
11
12
BPF0
BPFQ
BPSW
TRAP
Chroma BPF Q[0:2.0, 1:1.5, 2:1.2, 3:1.0]
Chroma BPF On/Off[0:Off, 1:On]
Chroma trap on Y On/off[0:Off, 1:On]
RF
0
3
1
0
CV
0
3
1
0
YC
0
3
1
0
13
LPF
The Following Data Depends on Signal Input
Output LPF(YCbCr) [0:On, 1:Off(through)]
DRC
1
Sharpness F0[0:2.5MHz, 1:3.0MHz, 2:3.5MHz, 3:4.0MHz]
Pre.-Over ratio[0: 1.5:1, 1: 1:1, 2: 1:1.5, 3: 1:2]
The Following Data Depends on Signal Input
Chroma BPF F0[0:fsc, 1:fsc+400k, 2:fsc+800k, 3:fsc+1.2M]
— 37 —
VDO
35
42
VDO
0
YC
2
0
3
KD-34XBR2
SERVICE DATA LISTS
HA3 Sub Chroma Decoder (CXA2103) Service List (2)
No.
ITEM
14
15
16
17
18
19
AFCG
CDMD
SSMD
HMSK
HALI
PPHA
20
21
CBOF
CROF
22
23
24
2SCO
2SCL
2SHU
NAME / DESCRIPTION
Initial Data Settings
The Following Data Depends on Signal Input
PLL loop gain[0:fast, 1:slow]
Mask for MacroVision[0:Off, 1:On]
Auto H alignment[0:Off, 1:On(AFC free run)]
Picture/H Tim phase[0:-0.5us, 15:+0.5us]
RF
1
3
0
0
0
7
CV/YC
0
3
0
1
0
7
V5/V6
0
3
0
1
0
7
The Following Data Depends on Signal Input
Cb/Ext Cb offset[0:-16mV, 63:+16mV]
Cr/Ext Cr offset[0:-16mV, 63:+16mV]
RF
33
33
V5
29
30
V6
25
25
Count down mode[0/1/3:CountDown, 2:H look *Tc:0>1>3]
Slice level[0:auto, 1:HV 65%, 2:H25% V65%, 3:HV25%]
SCON offset of CV for 2H Comb[0:-7step, 7:+-0step, 15:+8step]
SCOL offset of CV for 2H Comb[0:-7step, 7:+-0step, 15:+8step]
SHUE offset of CV for 2H Comb[0:-7step, 7:+-0step, 15:+8step]
— 38 —
7
7
7
KD-34XBR2
SERVICE DATA LISTS
HA3 3DComb Filter (uPD64082) Service List (1)
No.
0
1
ITEM
NRMD
YAPS
NAME / DESCRIPTION
Initial Data Settings
Noise reduction mode[0:YCS, 1:YCS+, 2:MNNR, 3:YCNR]
3
Y aperture/peaking[0:OFF, 1:A-ON, 2:D-ON, 3:A/D-ON]
NRMD(0)
1
The following data depends on NRMD data
2
CLKS
System CLK[0:Auto, 1:Forced-Burst, 2/3:Forced-H freq.]
3
4
5
NSDS
MSS
KILS
Signal [0:Auto, 1:F-ST, 2:F-nonST(H), 3:F-nonST(V)]
6
7
8
9
10
CDL
DYCO
DYGA
DCCO
DCGA
11
12
YNRL
CNRL
13
14
15
VTRH
VTRR
LDSR
NRMD(1) NRMD(2)
1
1
NRMD(3)
1
Processing [0:Auto, 1:F-Inter Frame, 2/3:F-Inter Line]
Color Killer[0:Auto, 1:PortCont. 2/3:F-Killer]
NRMD(0) NRMD(1)
3
3
2
2
10
10
5
5
5
5
The following data depends on NRMD data
Chroma delay time[0:-280ns, 4:0ns, 7:+210ns]
Y coring level[0:Coring 0, 15:Large amount of Coring]
Y coring gain[0:0 gain, 15:Maximum gain]
C coring level[0:Coring 0, 15:Large amount of Coring]
C coring gain[0:0 gain, 15:Maximum gain]
NRMD(2)
3
2
10
5
5
1
1
YNR limit[0:YNR off(0 LSB), 3:YNR 3LSB]
CNR limit[0:CNR off(0 LSB), 3:CNR 3LSB]
RF
1
1
2
The following data depends on the Video Input
H Hysteresis of nonST signal det.[0:Hys-off, 3:Hys-high]
H Sensitivity of nonST signal det.[0:High, 3:Off]
Frame sensitivity of nonST signal det.[0:High, 3:Off]
— 39 —
CV/YC
1
1
2
V5/V6
1
1
2
NRMD(3)
3
2
10
5
5
KD-34XBR2
SERVICE DATA LISTS
HA3 3DComb Filter (uPD64082) Service List (2)
No.
ITEM
NAME / DESCRIPTION
Initial Data Settings
Vivid
4
4
The following data depends on Picture Pallete
16
17
VAPG
VAPI
Vertical aperture gain[0:Off, 7:Maximum]
Vertical aperture conv.point[0:Off, 31:Max correction]
Vivid
CV/YC
3
5
Game
RF
CV/YC
3
3
7
5
YPFT
YPFG
Y peaking freq.[0:3.58MHz, 1:3.86, 2:4.08, 3:4.22]
18
19
YPFT
YPFG
Y peaking freq.[0:3.58MHz, 1:3.86, 2:4.08, 3:4.22]
20
21
22
23
24
YHCO
YHCG
HSSL
VSSL
ADCL
Y coring for y[0:Off, 1:Small, 2:Mid, 3:Large]
Y peaking gain[0:-1times, 8:0times, 15:+0.875times]
Continued
Y peaking gain[0:-1times, 8:0times, 15:+0.875times]
D2GA
Game
2
4
Movie
RF
CV/YC
3
3
5
6
TWIN
Any
3
6
1
0
12
8
3
Y coring gain for High frequency[0:Normal, 1:0.5gain]
Holizontal sync slice level[0:4LSB, 15:19LSB]
Vertical sync slice level[0:HSSL+0LSB, 15:HSSL+15LSB]
ADC clock delay[0:0ns, 1:3ns, 2:17.5ns, 3:20.5ns]
The following data depends on NRMD Data
25
Movie
2
4
Standard
RF
CV/YC
3
3
7
5
Pro
RF
CV/YC
3
3
5
5
RF
3
7
The following data depends on Picture Pallete and Video Input
18
19
Standard
2
4
Motion detect gain
— 40 —
NRMD(0)
NRMD(1)
4
4
NRMD(2)
4
NRMD(3)
4
Pro
0
0
KD-34XBR2
SERVICE DATA LISTS
HA3 3DComb Filter (uPD64082) Service List (3)
No.
ITEM
NAME / DESCRIPTION
Initial Data Settings
RF
1
0
The following data depends on the Video Input
26
27
SEDY
SEDC
Select DY detect [0:low sensitivity, 1:high sensitivity]
28
29
KILR
OP
Killer detector[0:off, 1:low sensitivity, 15:high sens.]
Select DC detect [0:low sensitivity, 1:high sensitivity]
The following data depends on the Video Input
NR1
Initial setting of NR On/Off[0:On, 1:Off]
30
NR1
Initial setting of NR On/Off[0:On, 1:Off]
31
32
33
34
35
NR2
HPLL
BPLL
FSCF
PLLF
continued
CC3N
RF
1
V1-CV
0
V2-CV
0
V3-CV
0
V1-YC
0
V2-YC
0
V3-YC
0
V4-YC
0
CV/YC
0
V5/V6
0
0
1
1
0
1
S/N adaptive processing [0:On, 1:Off]
H PLLl filter[0:Slow convergence, 1:Quick convergence]
Burst pll filter[0:Quick convergence, 1:Slow convergence]
Burst extraction gain[0:High gain, 1:Low gain]
PLL loop gain[0:Low gain, 1:High gain]
RF
0
The following data depends on the Video Input
36
V5/V6
1
0
3
1
NRMD for Y/C input[0:Recursive Type, 1:Comb Type]
30
CV/YC
1
0
C filter characteristic of comb filter[0:Narrow, 1:Wide]
— 41 —
V4-CV
0
KD-34XBR2
SERVICE DATA LISTS
HA3 3DComb Filter (uPD64082) Service List (4)
No.
ITEM
NAME / DESCRIPTION
Initial Data Settings
RF
0
The following data depends on the Video Input
36
CC3N
C filter characteristic of comb filter[0:Narrow, 1:Wide]
37
28
29
40
41
HDP
BGPS
BGPW
TEST
WSC
Horizontal phase[0:-1.12us, 4:0us, 7:+0.84us]
LIND
V5/V6
0
CV/YC
0
V5/V6
2
4
4
10
0
1
Burst gate start[0:HS center+2us, 15:HS center+5.75us]
Burst gate width[0:0.5us, 15:4.25us]
Test bit[0:Normal, 1:Test mode]
Noise det. Coring[0:0LSB, 1:1LSB, 2:2LSB, 3:3LSB]
RF
0
The following data depends on the Video Input
42
CV/YC
0
262P detect [xx1:non-st H, x1x:non-st V, 1xx:LD still]
— 42 —
KD-34XBR2
SERVICE DATA LISTS
HA3 Video Processor (CXA2150P-1) Service List
No.
0
1
2
ITEM
NAME/DESCRIPTION
The Following Data depends on the Signal Path & Source
Yoffset[0:-39mV,7:0mV,15:+45mV]
YOF
Cboffset[0:B-36mVG+16mV,31:B+0G+0,63:B+43G-20]
CBOF
Croffset[0:R-46mVG+10mV,31:R+0G+0,63:R+55G-12]
CROF
SUB brightness [0:-15 IRE, 31:+0 IRE, 63:+15 IRE]
Rdrive gain [0:-4dB, 41:+0dB, 63:+2dB]
Gdrive gain [0:-4dB,41:+0dB,63:+2dB]
Bdrive gain [0:-4dB,41:+0dB,63:+2dB]
Rcut-off [0:-9dB,31:+0dB,63:+4dB]
Gcut-off [0:-9dB,31:+0dB,63:+4dB]
Bcut-off[0:-9dB,31:+0dB,63:+4dB]
3
4
5
6
7
8
9
SBRT
RDRV
GDRV
BDRV
RCUT
GCUT
BCUT
10
11
12
13
14
15
16
17
18
The Following Data depends on Color Temperature
WBSW White balance offset [0:Normal, 1:R100% G90% B70%]
Sub brightness offset-Color Temp.[0:-7, 7:0, 15:+8]
SBOF
RDRV offset [0:-15, 15:0, 31:+16]
RDOF
GDRV offset [0:-15, 15:0, 31:+16]
GDOF
BDRV offset [0:-15, 15:0 ,31:+16]
BDOF
RCUT offset [0:-15, 15:0, 31:+16]
RCOF
GCUT offset [0:-15, 15:0, 31:+16]
GCOF
BCUT offset [0:-15, 15:0, 31:+16]
BCOF
Dynamic Color, Cool [0:Off, 1:High (2025), 2:Mid (2100), 3:Low]
DCOL
— 43 —
Initial Data Settings
Analog: 1080i
Analog: Other
7
31
31
7
36
36
31
45
35
34
41
35
18
WARM
1
7
15
18
28
15
18
26
3
Used when a 1080i
signal by-passes
the MID
DTV
7
26
26
TWIN
7
36
36
Used for Analog
signals passing
through the MID
COOL
0
7
15
15
18
15
15
18
-Title:Video Processor Service List
(CXA2150P-1)
KD-34XBR2
SERVICE DATA LISTS
HA3 Video Processor (CXA2150P-2) Service List
No.
0
1
2
3
4
5
6
7
8
9
10
11
ITEM
NAME/DESCRIPTION
Picture + Ref. Pulse on/off for G2 adj. [0:RGB off, 1:RGB on]
ALBK
[0: All off, 1:B, 2:G, 3:BG, 4:R, 5:BR, 6:GR, 7:BGR]
RGBS
Bottom
limiter level [Ref. Pulse DC voltage 0:-1.25, 3:-0.65]
BLKB
RGB limmiter level [0:115 IRE, 1:123, 2:131, 3:140]
LIML
Peak ABL [0:4.9VDC, 15:6.8VDC]
PABL
Signal ABL level [0:off, 3:maximum gain]
SABL
Black/White aging [0:Normal, 1:Black, 2:White, 3:Inhibit]
AGNG
AKB on/off [0:on, 1:off]
AKBO
The following data depends on the signal format
HSYNC delay [0:0%, 1:-3.125%]
SYPH
Clamp pulse phase [0:+5%, 1:+4%, 2:+1%, 3:+2%]
CLPH
Clamp
gate on/off [0:Not gated, 1:Gated with input HSYNC]
CLGA
Clamp pulse start shift [0:Noshift, 1:-3.125% shift from CLPH]
CLSH
Used when a 1080i
signal by-passes
the MID
Initial Data Settings
1
7
3
0
15
0
0
0
Analog 1080i
Others PT
0
3
0
0
0
3
0
0
Used for Analog
signals passing
through the MID
Title:VideoProcessorServiceList
(CXA2150P-2)
— 44 —
KD-34XBR2
SERVICE DATA LISTS
HA3VideoProcessor(CXA2150P-3)ServiceList(1)
No.
ITEM
Initial Data Settings
Vivid Mode
NAME/DESCRIPTION
Comp Comp Comp Comp
The Following data depends on signal format and Picture Pallet
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SYSM
VMLV
VMMO
VMCR
VMLM
VMF0
VMDL
SHOF
SHF0
PROV
F1LV
CDSP
LTLV
LTMD
CTLV
CTMD
UBOF
UCOF
UHOF
MIDE
Bandwidth [0:NTSC, 1:FF, 2:HD, 3:DTV]
RF
1
CV/YC
3
1
3
1
1
2
1
3
0
3
3
0
0
0
0
1
0
7
3
0
3
1
1
2
1
3
0
3
3
0
0
0
0
1
0
12
1
DTV
DTV
DTV
DTV
480i 480p 1080i 720p 480i 480p 1080i 720p Twin
1
1
3
3
1
1
3
3
2
Not Used in HA3
VM Mode (VM_LEV) [0:Off, 1:Low, 2:Mid, 3:High]
VM coring level [0:Off, 1:+-5%, 2:+-10%, 3:+-15%]
VM limitter level [0:Off, 1:+-83%, 2:+-67%, 3:+-50%]
VM f0 [0:Low, 1:Mid, 2:High, 3:Inhibit]
VM delay [0:short, 3:long]
Sharpness offset [0:+0step, 1:+4step, 2:+8step, 3:+12step]
Sharpness f0 [0:Low, 1:Mid, 2:High, 3:Inhibit]
Pre-Over Ratio [0:1:1.5, 1:1:1, 2:1.5:1, 3:2:1]
Sharpness f1 [0:0db, 1:+1db, 2:+2db, 3:+3db]
Sharpness at color high [0:0db, 1:+2db, 2:+4db, 3:+6db]
LTI level [0:Off, 1:Low, 2:Mid, 3:High]
LTI mode [0:for B&W, 1:for Black, 2:for White, 3:Inhibit]
CTI level [0:Off, 1:Low, 2:Mid, 3:High]
CTI mode [0:for B&W, 1:for Black, for White, 3:Inhibit]
User bright offset [0:BRIGHT+0,..,3:BRIGHT+6,..,7:BRIGHT+14]
User color offset [0:COLOR+0,...,3:COLOR+6,...,7:COLOR+14]
User hue offset [0:HUE+0,1:HUE+1,2:HUE+2,3:HUE+3]
MID Enhancement setting table [0:Soft~63:Sharp]
— 45 —
3
0
3
1
1
2
1
3
0
3
3
0
0
0
0
1
0
17
3
3
3
3
3
3
0
0
0
0
0
0
3
3
3
3
3
3
1
0
0
1
1
0
1
2
2
1
1
2
1
3
3
2
2
3
1
1
1
1
1
1
3
3
3
3
3
3
0
0
0
0
0
0
3
3
3
3
3
3
3
3
3
3
3
3
0
1
0
0
0
1
0
3
3
0
0
3
0
0
0
0
0
0
1
2
2
2
2
2
1
0
0
1
0
0
0
0
0
0
0
0
22
27
32
37
42
47
Title:VideoProcessorServiceList(1)
(CAX2150P-3)
3
0
3
0
2
3
1
3
0
3
3
0
3
0
2
0
0
52
3
3
3
0
2
0
1
2
0
3
3
0
0
0
5
3
0
57
KD-34XBR2
SERVICE DATA LISTS
HA3 Video Processor (CXA2150P-3) Service List (2)
No.
ITEM
Initial Data Settings
Standard Mode
NAME / DESCRIPTION
Comp Comp Comp Comp
The Following data depends on signal format and Picture Pallet
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SYSM
VMLV
VMMO
VMCR
VMLM
VMF0
VMDL
SHOF
SHF0
PROV
F1LV
CDSP
LTLV
LTMD
CTLV
CTMD
UBOF
UCOF
UHOF
MIDE
Band width[0:NTSC, 1:FF, 2:HD, 3:DTV]
RF
1
CV/YC
3
1
3
1
1
0
1
3
0
3
2
1
0
0
0
2
0
5
3
0
3
1
1
3
1
3
0
3
2
1
0
0
1
2
0
11
1
DTV
DTV
DTV
DTV
480i 480p 1080i 720p 480i 480p 1080i 720p Twin
1
1
3
3
1
1
3
3
2
Not Used in HA3
VM Mode (VM_LEV) [0:Off, 1:Low, 2:Mid, 3:High]
VM coring level[0:Off, 1:+-5%, 2:+-10%, 3:+-15%]
VM limitter level[0:Off, 1:+-83%, 2:+-67%, 3:+-50%]
VM f0[0:Low, 1:Mid, 2:High, 3:Inhibit]
VM delay[0:short, 3:long]
Sharpness offset[0:+0step, 1:+4step, 2:+8step, 3:+12step]
Sharpness f0[0:Low, 1:Mid, 2:High, 3:Inhibit]
Pre-Over Ratio[0: 1:1.5, 1: 1:1, 2: 1.5:1, 3: 2:1]
Sharpness f1[0:0db, 1:+1db, 2:+2db, 3:+3db]
Sharpness at color high[0:0db, 1:+2db, 2:+4db, 3:+6db]
LTI level[0:Off, 1:Low, 2:Mid, 3:High]
LTI mode[0:for B&W, 1:for Black, 2:for White, 3:Inhibit]
CTI level[0:Off, 1:Low, 2:Mid, 3:High]
CTI mode[0:for B&W, 1:for Black, for White, 3:Inhibit]
User bright offset[0:BRIGHT+0,..,3:BRIGHT+6,..,7:BRIGHT+14]
User color offset[0:COLOR+0,...,3:COLOR+6,...,7:COLOR+14]
User hue offset[0:HUE+0, 1:HUE+1 ,2:HUE+2, 3:HUE+3]
MID Enhancement setting table [0:Soft ~ 63:Sharp]
— 46 —
3
3
3
3
3
3
3
0
0
0
0
0
0
0
3
3
3
3
3
3
3
1
1
0
0
1
1
0
1
1
2
2
1
1
2
3
1
3
3
3
3
3
1
1
1
1
1
1
1
3
3
3
3
3
3
3
0
0
0
0
0
0
0
3
3
3
3
3
3
3
2
3
3
3
2
3
3
1
0
1
1
1
0
1
0
0
3
3
0
0
3
0
0
0
0
0
0
0
2
4
4
4
4
4
4
2
2
2
2
0
0
0
0
0
0
0
0
0
0
16
21
26
31
36
41
46
Title: Video Processor Service List (2)
(CXA2150P-3)
3
0
3
0
2
3
1
3
0
3
3
1
3
0
4
0
0
51
3
3
3
0
2
0
1
2
0
3
3
1
0
0
2
0
0
56
KD-34XBR2
SERVICE DATA LISTS
HA3 Video Processor (CXA2150P-3) Service List (3)
No.
ITEM
Initial Data Settings
Movie Mode
NAME / DESCRIPTION
Comp Comp Comp Comp
The Following data depends on signal format and Picture Pallet
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SYSM
VMLV
VMMO
VMCR
VMLM
VMF0
VMDL
SHOF
SHF0
PROV
F1LV
CDSP
LTLV
LTMD
CTLV
CTMD
UBOF
UCOF
UHOF
MIDE
Band width[0:NTSC, 1:FF, 2:HD, 3:DTV]
RF
1
CV/YC
3
1
3
1
1
1
1
3
0
2
1
1
0
0
0
0
0
3
3
0
3
1
1
1
1
3
0
3
1
1
0
0
0
0
0
10
1
DTV
DTV
DTV
DTV
480i 480p 1080i 720p 480i 480p 1080i 720p Twin
1
1
3
3
1
1
3
3
2
Not Used in HA3
VM Mode (VM_LEV) [0:Off, 1:Low, 2:Mid, 3:High]
VM coring level[0:Off, 1:+-5%, 2:+-10%, 3:+-15%]
VM limitter level[0:Off, 1:+-83%, 2:+-67%, 3:+-50%]
VM f0[0:Low, 1:Mid, 2:High, 3:Inhibit]
VM delay[0:short, 3:long]
Sharpness offset[0:+0step, 1:+4step, 2:+8step, 3:+12step]
Sharpness f0[0:Low, 1:Mid, 2:High, 3:Inhibit]
Pre-Over Ratio[0: 1:1.5, 1: 1:1, 2: 1.5:1, 3: 2:1]
Sharpness f1[0:0db, 1:+1db, 2:+2db, 3:+3db]
Sharpness at color high[0:0db, 1:+2db, 2:+4db, 3:+6db]
LTI level[0:Off, 1:Low, 2:Mid, 3:High]
LTI mode[0:for B&W, 1:for Black, 2:for White, 3:Inhibit]
CTI level[0:Off, 1:Low, 2:Mid, 3:High]
CTI mode[0:for B&W, 1:for Black, for White, 3:Inhibit]
User bright offset[0:BRIGHT+0,..,3:BRIGHT+6,..,7:BRIGHT+14]
User color offset[0:COLOR+0,...,3:COLOR+6,...,7:COLOR+14]
User hue offset[0:HUE+0, 1:HUE+1 ,2:HUE+2, 3:HUE+3]
MID Enhancement setting table [0:Soft ~ 63:Sharp]
— 47 —
3
3
3
3
3
3
3
0
0
0
0
0
0
0
3
3
3
3
3
3
3
1
1
0
0
1
1
0
1
1
2
2
1
1
2
0
1
1
1
1
1
1
1
1
1
1
1
1
1
3
3
3
3
3
3
3
0
0
0
0
0
0
0
3
3
2
2
1
2
2
1
2
2
2
1
2
2
1
1
1
1
1
1
1
0
0
2
2
0
0
2
0
0
0
0
0
0
0
0
0
1
1
2
2
2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
15
20
25
30
35
40
45
Title: Video Processor Service List (3)
(CXA2150P-3)
3
0
3
0
2
1
1
3
0
2
2
1
2
0
2
0
0
50
3
3
3
0
2
0
1
2
0
2
1
1
0
0
0
0
0
55
KD-34XBR2
SERVICE DATA LISTS
HA3 Video Processor (CXA2150P-3) Service List (4)
No.
ITEM
Initial Data Settings
Game Mode
NAME / DESCRIPTION
Comp Comp Comp Comp
The Following data depends on signal format and Picture Pallet
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SYSM
VMLV
VMMO
VMCR
VMLM
VMF0
VMDL
SHOF
SHF0
PROV
F1LV
CDSP
LTLV
LTMD
CTLV
CTMD
UBOF
UCOF
UHOF
MIDE
Band width[0:NTSC, 1:FF, 2:HD, 3:DTV]
RF
1
CV/YC
3
1
3
1
1
0
1
3
0
3
2
1
0
0
0
2
0
1
3
0
3
1
1
2
1
3
0
3
2
1
0
0
1
2
0
9
1
DTV
DTV
DTV
DTV
480i 480p 1080i 720p 480i 480p 1080i 720p Twin
1
1
3
3
1
1
3
3
2
Not Used in HA3
VM Mode (VM_LEV) [0:Off, 1:Low, 2:Mid, 3:High]
VM coring level[0:Off, 1:+-5%, 2:+-10%, 3:+-15%]
VM limitter level[0:Off, 1:+-83%, 2:+-67%, 3:+-50%]
VM f0[0:Low, 1:Mid, 2:High, 3:Inhibit]
VM delay[0:short, 3:long]
Sharpness offset[0:+0step, 1:+4step, 2:+8step, 3:+12step]
Sharpness f0[0:Low, 1:Mid, 2:High, 3:Inhibit]
Pre-Over Ratio[0: 1:1.5, 1: 1:1, 2: 1.5:1, 3: 2:1]
Sharpness f1[0:0db, 1:+1db, 2:+2db, 3:+3db]
Sharpness at color high[0:0db, 1:+2db, 2:+4db, 3:+6db]
LTI level[0:Off, 1:Low, 2:Mid, 3:High]
LTI mode[0:for B&W, 1:for Black, 2:for White, 3:Inhibit]
CTI level[0:Off, 1:Low, 2:Mid, 3:High]
CTI mode[0:for B&W, 1:for Black, for White, 3:Inhibit]
User bright offset[0:BRIGHT+0,..,3:BRIGHT+6,..,7:BRIGHT+14]
User color offset[0:COLOR+0,...,3:COLOR+6,...,7:COLOR+14]
User hue offset[0:HUE+0, 1:HUE+1 ,2:HUE+2, 3:HUE+3]
MID Enhancement setting table [0:Soft ~ 63:Sharp]
— 48 —
3
3
3
3
3
3
3
0
0
0
0
0
0
0
3
3
3
3
3
3
3
1
1
0
0
1
1
0
1
1
2
2
1
1
2
2
0
3
3
0
3
3
1
1
1
1
1
1
1
3
3
3
3
3
3
3
0
0
0
0
0
0
0
3
3
3
3
3
3
3
2
3
3
3
2
3
3
1
1
1
1
1
0
1
0
0
3
3
0
0
3
0
0
0
0
0
0
0
2
4
4
4
4
4
4
2
2
2
2
0
0
0
0
0
0
0
0
0
0
14
19
24
30
34
39
44
Title: Video Processor Service List (4)
(CXA2150P-3)
3
0
3
0
2
3
1
3
0
3
3
1
3
0
4
0
0
49
3
3
3
0
2
0
1
2
0
3
3
1
0
0
2
0
0
54
KD-34XBR2
SERVICE DATA LISTS
HA3 Video Processor (CXA2150P-3) Service List (5)
Initial Data Settings
No.
ITEM
NAME / DESCRIPTION
Pro Mode
Comp Comp Comp Comp
The Following data depends on signal format and Picture Pallet
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
SYSM
VMLV
VMMO
VMCR
VMLM
VMF0
VMDL
SHOF
SHF0
PROV
F1LV
CDSP
LTLV
LTMD
CTLV
CTMD
UBOF
UCOF
UHOF
MIDE
Band width[0:NTSC, 1:FF, 2:HD, 3:DTV]
RF
1
CV/YC
3
1
3
1
1
1
1
3
0
0
0
1
0
0
0
0
0
0
3
0
3
1
1
1
1
3
0
0
0
1
0
0
0
0
0
8
1
DTV
DTV
DTV
DTV
480i 480p 1080i 720p 480i 480p 1080i 720p Twin
2
2
3
3
2
2
3
3
2
Not Used in HA3
VM Mode (VM_LEV) [0:Off, 1:Low, 2:Mid, 3:High]
VM coring level[0:Off, 1:+-5%, 2:+-10%, 3:+-15%]
VM limitter level[0:Off, 1:+-83%, 2:+-67%, 3:+-50%]
VM f0[0:Low, 1:Mid, 2:High, 3:Inhibit]
VM delay[0:short, 3:long]
Sharpness offset[0:+0step, 1:+4step, 2:+8step, 3:+12step]
Sharpness f0[0:Low, 1:Mid, 2:High, 3:Inhibit]
Pre-Over Ratio[0: 1:1.5, 1: 1:1, 2: 1.5:1, 3: 2:1]
Sharpness f1[0:0db, 1:+1db, 2:+2db, 3:+3db]
Sharpness at color high[0:0db, 1:+2db, 2:+4db, 3:+6db]
LTI level[0:Off, 1:Low, 2:Mid, 3:High]
LTI mode[0:for B&W, 1:for Black, 2:for White, 3:Inhibit]
CTI level[0:Off, 1:Low, 2:Mid, 3:High]
CTI mode[0:for B&W, 1:for Black, for White, 3:Inhibit]
User bright offset[0:BRIGHT+0,..,3:BRIGHT+6,..,7:BRIGHT+14]
User color offset[0:COLOR+0,...,3:COLOR+6,...,7:COLOR+14]
User hue offset[0:HUE+0, 1:HUE+1 ,2:HUE+2, 3:HUE+3]
MID Enhancement setting table [0:Soft ~ 63:Sharp]
— 49 —
3
3
3
3
3
3
3
0
0
0
0
0
0
0
3
3
3
3
3
3
3
0
0
0
0
0
0
0
2
2
2
2
2
2
2
0
1
2
2
0
0
2
1
1
1
1
1
1
1
3
3
3
3
3
3
3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
2
1
1
2
2
2
0
0
0
0
0
0
0
0
0
0
0
0
0
0
13
18
23
28
33
38
43
Title: Video Processor Service List (5)
(CXA2150P-3)
3
0
3
0
2
2
1
3
0
0
0
1
0
0
2
0
0
48
3
3
3
0
2
2
1
2
0
0
0
1
0
0
2
0
0
53
KD-34XBR2
SERVICE DATA LISTS
HA3Video Processor (CXA2150P-3) Service List (6)
No.
ITEM
20
21
22
23
TVVM
VM_H
VM_M
VM_L
NAME / DESCRIPTION
Vivid
3
7
5
3
Initial VM level [0:VM off, 1:VM Low, 2:VM Mid, 3:VM High]
VM High level asignment [0:weak ~ 7:strong]
VM mid level asignment [0:weak ~ 7:strong]
VM low level asignment [0:weak ~ 7:strong]
Initial Data Settings
Standard
Movie
Game
3
1
3
7
6
7
5
4
5
3
2
3
Title: Video Processor Service List (6)
(CXA2150P-3)
Pro
0
6
4
2
HA3Video Processor (CXA2150P-4) Service List (1)
ITEM
NAME / DESCRIPTION
The following data depends on the signal source
Sub contrast adjustment [0:-1.2dB, 7:0dB, 15:+1.5dB]
SCON
0
Sub color adjustment [0:-31step, 31:+-0step, 63:+32step]
SCOL
1
SHUE
Sub HUE adjustment [0:-31step, 31:+-0step, 63:+32step]
2
The following data depends on the source or display mode
Sub contrast offset from Analog [0:-7step, 7:+-0step, 15:+8step]
SCNO
3
Sub color offset from Analog [0:-7step, 7:+-0step, 15:+8step]
SCLO
4
SHUO
Sub HUE offset from Analog [0:-7step, 7:+-0step, 15:+8step]
5
The following data depends Picture Pallet
UPIC
6
Initial Picture gain[00:-15dB, 63:0dB]
UBRT
7
Initial Brightness[00:-15IRE, 31:+-0IRE, 63:+15IRE]
UCOL
8
Initial Color[00:Color off, 31:+-0dB, 63:+6dB]
UHUE
9
Initial Hue[00:-33deg., 31:Center, 63:+33deg.]
USHP
10
Initial Sharpness[00:-10dB, 31:+2dB, 63:+8dB]
UTMP
11
Initial Color Temp[0:Low, 1:Mid, 2:High, 3:Inhibit]
AXIS
12
Color axis[0:PJ, 1:Pal/Secam, 2:Ntsc-US, 3:Ntsc-JP]
No.
— 50 —
Initial Data Settings
Analog
Digital
9
4
30
32
28
28
Analog: w/o 1080i
TWIN
7
7
7
7
7
7
Movie
Game
Vivid Standard
50
39
50
63
31
31
31
31
31
31
31
35
31
31
31
31
29
31
26
24
1
0
1
2
---3
Title: Video Processor Service List (1)
(CXA2150P-4)
Pro
31
31
31
31
31
1
--
KD-34XBR2
SERVICE DATA LISTS
HA3 Video Processor (CXA2150P-4) Service List (2)
No.
13
14
15
16
17
ITEM
NAME / DESCRIPTION
This data depends on the signal format and picture pallet
Initial Data Settings
Movie
Game
Vivid Standard
Pro
RF/CV/YC
2
0
2
4
0
2
0
2
5
0
480i
2
0
2
5
0
480p
Initial Gamma[0:Weak, 7:Strong] ; Upper 2 bit
GAMM
2
0
2
6
0
1080i
2
0
2
6
0
720p
2
0
2
5
0
TWIN
GAMMA (CXA2150P-4 13)
This data depends on the Service Item "GAMM"
0
1
2
3
4
5
6
7
Sub bright offset for Gamma[0:+-0step, 3:+3step]
GSBO
0
0
0
0
0
0
0
0
Sub color offset for Gamma[0:+-0step, 3:+3step]
GCOO
0
0
0
0
0
0
0
0
Sub hue offset for Gamma[0:+-0step, 3:+3step]
GHUO
0
0
0
0
0
0
0
0
This data depends on the signal format and picture pallet
Movie
Game
Vivid Standard
Pro
RF/CV/YC
4
0
4
7
0
4
0
4
7
1
480i
4
0
4
7
0
480p
BLK
Black level [0:No Effect, 7: Max Enhance]
4
0
4
7
0
1080i
4
0
4
7
0
720p
4
0
4
7
0
TWIN
Title: Video Processor Service List (2)
(CXA2150P-4)
— 51 —
KD-34XBR2
SERVICE DATA LISTS
HA3 Video Processor (CXA2150P-4) Service List (3)
No.
ITEM
NAME/DESCRIPTION
This data depends on the Service Item "BLK"
18
19
20
21
22
23
24
25
26
25
26
DCTR
DPIC
DSBO
ABLM
ABLT
ABLC
SPOF
PIOF
BROF
PICL
BRTL
0
1
0
7
0
DCtransferratio[0:103%,1:100%,2:93%,3:85%]
Autopedestallevel[0:Off,1:30IREkneedown,2:35,3:40]
SubbrightoffsetforUBLK[0:-7step,7:+-0step,15:+8step]
ABLmode[0:PIC,1:PIC&BRT-min,2:P&B-mid,3:P&B-max]
CurrentdetectionVth[0:Vth0.8V,15:Vth1.9V]
ABLlevel [0:Max ABL, 255:Min ABL]
Pictureoffsetforsmallareapicture[0:-0step,31:-(UPIC/63)x31]
This data depends on the signal format
Picture offset level
Brightness offset level
Maximum Picture Level
Maximum Brightness Level
1
1
0
7
1
Initial Data Settings
BLK (CXA2150P-417)
2
3
4
5
1
1
2
2
0
0
1
2
7
7
7
7
0
0
0
0
Others
Small Pic
0
0
0
0
0
--
RF/CV/YC
6
2
1
7
0
Small Picture = Normal, Twin, Freeze
480i 480p 1080i 720p TWIN
0
0
0
0
0
0
0
0
0
0
0
0
53
-----47
-----Title:VideoProcessorServiceList(3)
(CXA2150P-4)
— 52 —
7
3
2
7
1
KD-34XBR2
SERVICE DATA LISTS
HA3 Sync Selector (CXA2151) Service List
No.
0
1
2
3
4
5
6
7
8
9
10
11
ITEM
NAME / DESCRIPTION
The following data depends on the signal format
Matrix[0:Through, 1:YPbPr[J], 2:YPbPr[U], 3:RGB]
MTRX
Output gain for Video[0:6db+-2db, 1:0db, 2/3:Mute]
GAIN
The following data depends on the signal input
FIXS
SYNC type[0:Auto detect, 1:HS/VS, 2:CS, 3:SYNC on Y(G)]
The following data depends on the signal format
Output gain for Cb[0:-2db, 7:0db, 15:+2db]
CBGN
Output gain for Cr[0:-2db, 7:0db, 15:+2db]
CRGN
Output gain for Y[0:-2db, 7:0db, 15:+2db]
YGN
V SYNC sep. time constant[0:6usec, 3:18usec]
VTC
The following data depends on the signal format
H SYNC sep. time constant[0:for HD, 1:for 15.75kHz]
HTC
H SYNC width[0:Through, 1:1.4usec, 2:1.7usec, 3:3.7usec]
HWID
SYNC sep. type[0:Voltage slice, 1:Charge/Dis-charge]
HSEP
The following data depends on the signal format
H SYNC MASK during V SYNC period[0:On, 1:Off]
HMSK
The following data depends on the signal input
Matrix=3:RGB [0:Micro control, 1:Forced RGB]
FRGB
Initial Data Settings
1080i/720p
1
0
Video5
0
Analog 1080i
480p/480i
0
Video6
0
Others
7
8
8
-480p/480i
1
---
This data can't be memorized, it
is controlled by M16C micro
Chroma Dec.
0
7
8
8
0
1080i/720p
This data can't be memorized, it
0
is controlled by M16C micro
1
1
This data can't be memorized, it
720p/480p/480i
1080i
is controlled by M16C micro
0
1
Video5
Video6 Chroma Dec.
0
0
0
Title: Sync Selector Service List
(CXA2151)
— 53 —
KD-34XBR2
SERVICE DATA LISTS
HA3 MID Enhancement (CXD9509) Service List (1)
No.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ITEM
NAME / DESCRIPTION
POP
Service data effect (0 - 63)
The following data depends on the "POP" data (MID-5 0)
main h LPF y coefficient code (0 - 3)
MHLY
main h LPF c coefficient code (0 - 3)
MHLC
main v LPF y coefficient code (0 - 3)
MVLY
main v LPF c coefficient code (0 - 3)
MVLC
main h enhance y coreing code (0 - 3)
MHYR
main h enhance y cliping code (0 - 3)
MHYL
main h enhance y level code (0 - 7)
MHYE
main h enhance y coefficient code (0 - 1)
MHYO
main h enhance c coreing code (0 - 3)
MHCR
main h enhance c cliping code (0 - 3)
MHCL
main h enhance c level code (0 - 7)
MHCE
main h enhance c coefficient code (0 - 1)
MHCO
main v enhance y coreing code (0 - 3)
MVYR
main v enhance y cliping code (0 - 3)
MVYL
main v enhance y level code (0 - 7)
MVYE
main v enhance c coreing code (0 - 3)
MVCR
main v enhance c cliping code (0 - 3)
MVCL
main v enhance c level code (0 - 7)
MVCE
Applicable palllet and format:
Initial Data Settings
0
1
3
0
0
1
1
5
1
0
0
0
0
0
0
0
0
0
0
Pro
Same as "MIDE" (CXA2150P-3 19)
1
2
3
4
5
6
3
1
1
1
1
1
3
3
3
3
3
3
1
0
0
0
0
0
1
0
0
0
0
0
3
1
1
2
3
3
2
1
1
1
2
2
7
5
5
6
7
7
1
1
1
1
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
2
0
0
1
2
2
1
0
0
1
1
1
3
0
0
1
3
3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Game
Movie
Stand.
Analog Tuner
Title: MID Enhancement Service List (1)
(CXD9509)
— 54 —
7
1
3
0
0
3
2
7
1
0
0
0
0
2
1
3
0
0
0
Vivid
KD-34XBR2
SERVICE DATA LISTS
HA3 MID Enhancement (CXD9509) Service List (2)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ITEM
NAME / DESCRIPTION
The following data depends on the "POP" data (MID-5 0)
MHLY
main h LPF y coefficient code (0 - 3)
MHLC
main h LPF c coefficient code (0 - 3)
MVLY
main v LPF y coefficient code (0 - 3)
MVLC
main v LPF c coefficient code (0 - 3)
MHYR
main h enhance y coreing code (0 - 3)
MHYL
main h enhance y cliping code (0 - 3)
MHYE
main h enhance y level code (0 - 7)
MHYO
main h enhance y coefficient code (0 - 1)
MHCR
main h enhance c coreing code (0 - 3)
MHCL
main h enhance c cliping code (0 - 3)
MHCE
main h enhance c level code (0 - 7)
MHCO
main h enhance c coefficient code (0 - 1)
MVYR
main v enhance y coreing code (0 - 3)
MVYL
main v enhance y cliping code (0 - 3)
MVYE
main v enhance y level code (0 - 7)
MVCR
main v enhance c coreing code (0 - 3)
MVCL
main v enhance c cliping code (0 - 3)
MVCE
main v enhance c level code (0 - 7)
Initial Data Settings
8
1
3
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Pro
9
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
10
1
3
0
0
0
1
2
1
0
0
0
0
1
1
3
0
0
0
11
1
3
0
0
2
2
4
1
0
0
0
0
1
1
3
0
0
0
12
1
3
0
0
1
2
7
1
0
0
0
0
1
1
3
0
0
0
Game Movie Stand. Vivid
13
1
3
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
Pro
Video1-4
14
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
15
1
3
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
17
1
3
0
0
1
2
7
1
0
0
0
0
2
1
5
0
0
0
Game Movie Stand. Vivid
Video 5/6 480i
Title: MID Enhancement Service List (2)
(CXD9509)
— 55 —
16
1
3
0
0
1
2
2
1
0
0
0
0
1
1
3
0
0
0
KD-34XBR2
SERVICE DATA LISTS
HA3 MID Enhancement (CXD9509) Service List (3)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ITEM
NAME / DESCRIPTION
The following data depends on the "POP" data (MID-5 0)
MHLY
main h LPF y coefficient code (0 - 3)
MHLC
main h LPF c coefficient code (0 - 3)
MVLY
main v LPF y coefficient code (0 - 3)
MVLC
main v LPF c coefficient code (0 - 3)
MHYR
main h enhance y coreing code (0 - 3)
MHYL
main h enhance y cliping code (0 - 3)
MHYE
main h enhance y level code (0 - 7)
MHYO
main h enhance y coefficient code (0 - 1)
MHCR
main h enhance c coreing code (0 - 3)
MHCL
main h enhance c cliping code (0 - 3)
MHCE
main h enhance c level code (0 - 7)
MHCO
main h enhance c coefficient code (0 - 1)
MVYR
main v enhance y coreing code (0 - 3)
MVYL
main v enhance y cliping code (0 - 3)
MVYE
main v enhance y level code (0 - 7)
MVCR
main v enhance c coreing code (0 - 3)
MVCL
main v enhance c cliping code (0 - 3)
MVCE
main v enhance c level code (0 - 7)
Initial Data Settings
18
1
3
0
0
1
1
4
1
0
0
0
0
0
0
0
0
0
0
Pro
19
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
20
1
3
0
0
1
1
7
1
0
0
0
0
0
1
3
0
0
0
21
1
3
0
0
1
2
2
1
0
0
0
0
1
1
3
0
0
0
22
1
3
0
0
1
2
7
1
0
0
0
0
1
1
5
0
0
0
Game Movie Stand. Vivid
Video 5/6 480p
23
0
0
0
0
0
1
2
0
0
0
0
0
0
0
0
0
0
0
Pro
24
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
25
0
0
0
0
0
1
4
0
0
0
0
0
0
0
0
0
0
0
27
0
0
0
0
0
1
7
0
1
1
4
1
0
1
4
1
1
4
Game Movie Stand. Vivid
Video 5/6 1080i
Title: MID Enhancement Service List (3)
(CXD9509)
— 56 —
26
0
0
0
0
0
1
7
0
1
1
4
1
0
1
4
1
1
4
KD-34XBR2
SERVICE DATA LISTS
HA3 MID Enhancement (CXD9509) Service List (4)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ITEM
NAME / DESCRIPTION
The following data depends on the "POP" data (MID-5 0)
MHLY
MHLC
MVLY
MVLC
MHYR
MHYL
MHYE
MHYO
MHCR
MHCL
MHCE
MHCO
MVYR
MVYL
MVYE
MVCR
MVCL
MVCE
main h LPF y coefficient code (0 - 3)
main h LPF c coefficient code (0 - 3)
main v LPF y coefficient code (0 - 3)
main v LPF c coefficient code (0 - 3)
main h enhance y coreing code (0 - 3)
main h enhance y cliping code (0 - 3)
main h enhance y level code (0 - 7)
main h enhance y coefficient code (0 - 1)
main h enhance c coreing code (0 - 3)
main h enhance c cliping code (0 - 3)
main h enhance c level code (0 - 7)
main h enhance c coefficient code (0 - 1)
main v enhance y coreing code (0 - 3)
main v enhance y cliping code (0 - 3)
main v enhance y level code (0 - 7)
main v enhance c coreing code (0 - 3)
main v enhance c cliping code (0 - 3)
main v enhance c level code (0 - 7)
Initial Data Settings
28
29
30
31
0
0
0
0
0
1
2
0
0
0
0
0
0
0
0
0
0
0
Pro
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
7
0
1
1
4
1
0
1
4
1
1
4
32
0
0
0
0
0
1
7
0
1
1
4
1
0
1
4
1
1
4
Game Movie Stand. Vivid
Video 5/6 720p
33
34
35
36
1
3
0
0
0
0
0
1
0
0
0
0
0
0
0
0
0
0
Pro
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
3
0
0
1
1
2
1
0
0
0
0
1
1
5
0
0
0
1
3
0
0
1
2
2
1
0
0
0
0
1
1
7
0
0
0
1
3
0
0
1
2
7
1
0
0
0
0
2
1
5
0
0
0
Game Movie Stand. Vivid
Digital 480i
Title: MID Enhancement Service List (4)
(CXD9509)
— 57 —
37
KD-34XBR2
SERVICE DATA LISTS
HA3 MID Enhancement (CXD9509) Service List (5)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ITEM
NAME / DESCRIPTION
The following data depends on the "POP" data (MID-5 0)
MHLY
MHLC
MVLY
MVLC
MHYR
MHYL
MHYE
MHYO
MHCR
MHCL
MHCE
MHCO
MVYR
MVYL
MVYE
MVCR
MVCL
MVCE
main h LPF y coefficient code (0 - 3)
main h LPF c coefficient code (0 - 3)
main v LPF y coefficient code (0 - 3)
main v LPF c coefficient code (0 - 3)
main h enhance y coreing code (0 - 3)
main h enhance y cliping code (0 - 3)
main h enhance y level code (0 - 7)
main h enhance y coefficient code (0 - 1)
main h enhance c coreing code (0 - 3)
main h enhance c cliping code (0 - 3)
main h enhance c level code (0 - 7)
main h enhance c coefficient code (0 - 1)
main v enhance y coreing code (0 - 3)
main v enhance y cliping code (0 - 3)
main v enhance y level code (0 - 7)
main v enhance c coreing code (0 - 3)
main v enhance c cliping code (0 - 3)
main v enhance c level code (0 - 7)
Initial Data Settings
38
39
40
41
1
3
0
0
1
1
7
1
0
0
0
0
0
0
0
0
0
0
Pro
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
3
0
0
1
1
3
1
0
0
0
0
1
1
4
0
0
0
1
3
0
0
1
2
2
1
0
0
0
0
1
1
7
0
0
0
42
1
3
0
0
1
2
7
1
0
0
0
0
1
1
5
0
0
0
Game Movie Stand. Vivid
Digital 480p
43
44
45
46
0
0
0
0
0
1
2
0
0
0
0
0
0
0
0
0
0
0
Pro
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
1
4
0
0
0
0
0
0
1
4
0
0
0
0
0
0
0
0
1
7
0
1
1
4
1
0
1
4
1
1
4
0
0
0
0
0
1
7
0
1
1
4
1
0
1
4
1
1
4
Game Movie Stand. Vivid
Digital 1080i
Title: MID Enhancement Service List (5)
(CXD9509)
— 58 —
47
KD-34XBR2
SERVICE DATA LISTS
HA3 MID Enhancement (CXD9509) Service List (6)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ITEM
NAME / DESCRIPTION
The following data depends on the "POP" data (MID-5 0)
MHLY
main h LPF y coefficient code (0 - 3)
MHLC
main h LPF c coefficient code (0 - 3)
MVLY
main v LPF y coefficient code (0 - 3)
MVLC
main v LPF c coefficient code (0 - 3)
MHYR
main h enhance y coreing code (0 - 3)
MHYL
main h enhance y cliping code (0 - 3)
MHYE
main h enhance y level code (0 - 7)
MHYO
main h enhance y coefficient code (0 - 1)
MHCR
main h enhance c coreing code (0 - 3)
MHCL
main h enhance c cliping code (0 - 3)
MHCE
main h enhance c level code (0 - 7)
MHCO
main h enhance c coefficient code (0 - 1)
MVYR
main v enhance y coreing code (0 - 3)
MVYL
main v enhance y cliping code (0 - 3)
MVYE
main v enhance y level code (0 - 7)
MVCR
main v enhance c coreing code (0 - 3)
MVCL
main v enhance c cliping code (0 - 3)
MVCE
main v enhance c level code (0 - 7)
Initial Data Settings
48
0
0
0
0
0
1
2
0
0
0
0
0
0
0
0
0
0
0
Pro
49
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
50
0
0
0
0
0
1
4
0
0
0
0
0
0
1
4
0
0
0
51
0
0
0
0
0
1
7
0
1
1
4
1
0
1
4
1
1
4
52
0
0
0
0
0
1
7
0
1
1
4
1
0
1
4
1
1
4
Game Movie Stand.. Vivid
Digital 720p
53
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Pro
54
3
3
1
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
55
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
57
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Game Movie Stand.. Vivid
Twin Mode
Title: MID Enhancement Service List (6)
(CXD9509)
— 59 —
56
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
KD-34XBR2
SERVICE DATA LISTS
HA3 MID Enhancement (CXD9509) Service List (7)
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
ITEM
NAME / DESCRIPTION
The following data depends on the "POP" data (MID-5 0)
SHLY
sub h LPF y coefficient code (0 - 7)
SHLC
sub h LPF c coefficient code (0 - 7)
sub v LPF y coefficient code (0 - 7)
SVLY
SVLC
sub v LPF c coefficient code (0 - 7)
SHYR
sub h enhance y coreing code (0 - 3)
SHYL
sub h enhance y cliping code (0 - 3)
SHYE
sub h enhance y level code (0 - 7)
SHYO
sub h enhance y coefficient code (0 - 1)
SHCR
sub h enhance c coreing code (0 - 3)
SHCL
sub h enhance c cliping code (0 - 3)
SHCE
sub h enhance c level code (0 - 7)
SHCO
sub h enhance c coefficient code (0 - 1)
SVYR
sub v enhance y coreing code (0 - 3)
SVYL
sub v enhance y cliping code (0 - 3)
SVYE
sub v enhance y level code (0 - 7)
SVCR
sub v enhance c coreing code (0 - 3)
SVCL
sub v enhance c cliping code (0 - 3)
SVCE
sub v enhance c level code (0 - 7)
Initial Data Settings
0-63 (same data)
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Title: MID Enhancement Service List (7)
(CXD9509)
— 60 —
KD-34XBR2
SERVICE DATA LISTS
HA3 SNNR Service List (1)
NAME / DESCRIPTION
No.
ITEM
0
1
SNNR
SNFX
2
The following Data Sets the Threshold for SNNR
Threshold of SNNR
WSLT
Initial Data Settings
Data is controlled by M16C Micro
SNNR Data Label
0
0:SNNR is controlled by Micro; 1:SNNR controlled by Service
A
15
Normally 0
B
31
C
45
To choose the SNNR Level the following equations apply
0
<= WSL < WSLT(A)
Select SNNR(0)
WSLT(A) <= WSL < WSLT(B)
Select SNNR(1)
WSLT(B) <= WSL < WSLT(C)
Select SNNR(2)
WSLT(C) <= WSL < WSLT(D)
Select SNNR(3)
WSLT(D) <= WSL < WSLT(E)
Select SNNR(4)
WSLT(E) <= WSL < WSLT(F)
Select SNNR(5)
WSLT(F) <= WSL < WSLT(G)
Select SNNR(6)
WSLT(G) <= WSL < 255
Select SNNR(7)
— 61 —
D
63
E
85
F
110
G
127
KD-34XBR2
SERVICE DATA LISTS
HA3 SNNR Service List (2)
No.
3
4
5
6
7
8
9
10
11
12
13
14
15
ITEM
NAME / DESCRIPTION
Initial Data Settings
SNNR Offset Data
CPFG
uPD64082:YPFG (-Offset Data)
CPFT
uPD64082:YPFT (-Offset Data)
uPD64082:YHCOR (-Offset Data)
CCOR
CHCG
uPD64082:YHCGAIN (-Offset Data)
CAPG
uPD64082:YAPGAIN (-Offset Data)
3SHP
CXA2103-M:SHAP (-Offset Data)
5SHP
CXA2150P-4:USHP (-Offset Data)
5YF1
CXA2150P-3:F1LV (-Offset Data)
5CDS
CXA2150P-3:CDSP (-Offset Data)
5LTI
CXA2150P-3:LTLV (-Offset Data)
5CTI
CXA2150P-3:CTLV (-Offset Data)
5VMC CXA2150P-3:VMCR (+Offset Data)
MIDD CXA2150P-3:MIDE offset for SN (-Offset Data)
SNNR (0)
SNNR (1)
SNNR (2)
SNNR (3)
SNNR (4)
SNNR (5)
SNNR (6)
SNNR (7)
0
0
0
0
1
0
0
0
0
0
0
0
0
0
1
0
0
0
1
0
0
0
0
0
0
0
0
0
2
1
0
1
1
0
1
1
1
0
0
0
1
1
3
1
0
1
1
0
1
1
1
0
0
0
1
1
4
2
0
1
1
0
2
3
2
0
0
0
2
2
5
2
0
1
1
0
2
3
2
0
0
0
2
2
uses no Offset Data
uses Offset Data(0)
uses Offset Data(1)
uses Offset Data(2)
uses Offset Data(3)
uses Offset Data(4)
uses Offset Data(5)
uses Offset Data(6)
HA3 A/D Convertor (CXA3506) Service List
No.
ITEM
0
1
2
3
4
MCON
SCOR
SCOG
SCOB
RGB
Initial Data Settings
NAME / DESCRIPTION
1080i/720p/480p
64
108
155
153
0
main contrast (0 - 255)
sub contrast Y (0-255)
sub contrast Cb (0-255)
sub contrast Cr (0-255)
RGB out select (0 - 1)
480i (sub)
64
113
150
153
0
Title: CXA3506 Service List
— 62 —
6
2
0
1
1
0
2
3
2
0
0
0
2
2
7
3
0
1
1
0
3
4
3
0
0
0
3
3
KD-34XBR2
SERVICE DATA LISTS
HA3 Deflection (CXA2150D-1) Service List
NAME / DESCRIPTION
No.
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
ITEM
VPOS
VSIZ
VSIZ0
VLIN
VSCO
VCEN
VPIN
NSCO
HTPZ
ZOOM
APSW
ASPT
SCRL
UVLN
LVLN
DESIGN PRESET DATA
FACTORY ADJUSTMENT DATA
VERTICAL POSITION
VERTICAL SIZE
V SIZE OFF SET (PJ only)
VERTICAL LINEARITY
VERTICAL S CORRECTION
VERTICAL CENTERING
VERTICAL PIN
ROTATION
HORIZONTAL TRAPEZOID
ZOOM SW
ASPECT SWITCH
ASPECT RATIO
VERTICAL SCROLL
UPPER VERTICAL LINEARITY
LOWER VERTICAL LINEARITY
Initial Data Settings
WIDE ZOOM
ZOOM
960i
960I
FULL/INDEX
960I
1080I
960I
31
22
0
7
10
7
7
31
15
15
7
15
1
1
24
31
4
4
1
1
48
31
0
0
0
1
0
31
0
3
31
0
0
Title: Deflection Service List
(CXA2150D-1)
— 63 —
NORMAL
1
0
31
0
0
KD-34XBR2
SERVICE DATA LISTS
HA3 Deflection (CXA2150D-2) Service List
NAME / DESCRIPTION
No.
ITEM
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
HCNT
HPOS
HSIZ
SLIN
MPIN
PIN
PIN0
UCP
LCP
UXCG
LXCG
UXCP
LXCP
XCPP
PPHA
VANG
LANG
VBOW
LBOW
CPY1
DESIGN PRESET DATA
FACTORY ADJUSTMENT DATA
HORIZONTAL CENTERING
HORIZONTAL POSITION
HORIZONTAL SIZE
HORIZONTAL S CORRECTION
HORIZONTAL MIDDLE PIN
HORIZONTAL PIN
PIN OFF SET (PJ only)
UPPER CORNER PIN
LOWER CORNER PIN
UPPER EXTRA CORNER PIN GAIN
LOWER EXTRA CORNER PIN GAIN
UPPER EXTRA CORNER PIN POSITION
LOWER EXTRA CORNER PIN POSITION
EXTRA CORNER PIN POLARITY
PIN PHASE
AFC ANGLE
LINEARITY ANGLE
AFC BOW
LINEARITY BOW
COPY FUNCTION 1 Refer to *1
Initial Data Settings
WIDE ZOOM
ZOOM
960i
960I
FULL/INDEX
960I
1080I
31
31
49
44
6
7
31
10
10
40
0
31
31
1
1
2
2
0
31
31
31
1
1
2
2
0
31
31
31
31
31
0
Title: Deflection Service List
(CXA2150D-2)
— 64 —
NORMAL
960I
KD-34XBR2
SERVICE DATA LISTS
HA3 Deflection (CXA2150D-3) Service List
NAME / DESCRIPTION
No.
ITEM
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
HBLK
LBLK
RBLK
VBLK
TBLK
BBLK
VCMP
HCMP
ACMP
PCMP
AFCM
VFRQ
VON
JUMP
VDJP
VDST
EWDC
AKBT
DESIGN PRESET DATA
Initial Data Settings
FACTORY ADJUSTMENT DATA
HORIZONTAL BLANKING SWITCH
LEFT BLANKING
RIGHT BLANKING
VERTICAL BLANKING SWITCH
TOP BLANKING
BOTTOM BLANKING
VERTICAL COMPENSATION
HORIZONTAL COMPENSATION
AFC COMPENSATION
PIN COMPENSATION
AFC LOOP GAIN
VERTICAL FREQUENCY
VERTICAL DRIVE ON
REFERENCE PULSE JUMP SWITCH
VERTICAL DRIVE JUMP SWITCH
VERTICAL DRIVE START SWITCH
PIN DC LEVEL SHIFT
AKB TIMING
WIDE ZOOM
ZOOM
960i
960I
FULL/INDEX
960I
1080I
960I
1
48
30
0
7
7
0
0
0
0
0
7
7
0
0
0
0
1
3
4
0
0
4
4
0
0
0
0
3
1
3
4
0
0
0
0
2
1
1
1
0
0
1
0
15
15
0
0
1
1
0
15
9
Title: Deflection Service List
(CXA2150D-3)
— 65 —
NORMAL
0
0
0
0
15
KD-34XBR2
SERVICE DATA LISTS
HA3 DF/DQP (CXA2026) Service List
Initial Data Settings
NAME / DESCRIPTION
No.
0
1
2
3
4
5
6
7
8
9
10
11
12
ITEM
DFON
DQP
DF
DQPD
QPDV
DVS
QPDY
DQPA
QPAV
AVS
NORM
CPY3
200V
DESIGN PRESET DATA
FACTORY ADJUSTMENT DATA
DF ON/OFF SWITCH
DQP PHASE
DF PHASE
DQP DC LEVEL
DQP DC LEVEL VERTICAL MODULATION
DQP DC LEVEL TILT
DQP DC LEVEL AT TOP & BOTTOM AREA
DQP AMPLITUDE
DQP AMPLITUDE VERTICAL MODULATION
DQP AMPLITUDE TILT
COPY FUNCTION 2 Refer to *1
200V REGULATOR ADJUSTMENT
WIDE ZOOM
ZOOM
960i
960I
FULL/INDEX
960I
1080I
0
23
119
1
44
0
12
7
44
3
0
0
31
Title: DF/DQP Service List
(CXA2026)
— 66 —
NORMAL
960I
KD-34XBR2
SERVICE DATA LISTS
HA3 Dynamic Convergence (CXA8070) Service List
NAME / DESCRIPTION
No.
0
1
2
3
4
5
6
7
8
9
10
ITEM
DESIGN PRESET DATA
SBHS
YBWU
YBWL
RSAP
RUBW
RLBW
LSAP
LUBW
LLBW
CADJ
CPY2
Initial Data Settings
FACTORY ADJUSTMENT DATA
WIDE ZOOM
ZOOM
960i
960I
FULL/INDEX
960I
1080I
NORMAL
960I
31
31
31
31
31
31
31
31
31
48
0
Title: Dynamic Convergence Service List
DC SHIFT
UPPER YBOW
LOWER YBOW
RIGHT H AMP
RIGHT UPPER BOW
RIGHT LOWER BOW
LEFT H AMP
LEFT UPPER BOW
LEFT LOWER BOW
OFFSET ADJ
COPY FUNCTION 2 Refer to *1
(CXA8070)
MODEL
ID-0
ID-1
ID-2
ID-3
ID-4
ID-5
ID-6
ID-7
10-5 FEATURE ID MAP
KD-34XBR2
89
255
111
106
203
177
62
24
— 67 —
KD-34XBR2
SECTION 11: FIRMWARE UPGRADES
11-1. OVERVIEW
6. If the status LED ßashes the “Flash Error” (ßash memory) pattern or
the “System Error” pattern shown above, remove the Memory Stick
and start over again from step 1.
From time to time the KD-34XBR2 may require an upgrade to its
Þrmware.
The Q-box inside the set allows for upgrading the Þrmware via a Memory
Stick® slot. At such times that upgrades are required, pre-programmed
Memory Sticks will be made available to the service network. Be sure to
check the Sony Service Company’s web site to see if any upgrades are
available for correcting the problems you are trying to resolve.
7. If the status LED ßashes the “Memory Stick Error” pattern you must
obtain a new Memory Stick and start over from step 1.
8. If the status LED ßashes the “System Error” pattern the Q-Box needs
repair and start over from step 1.
DISCLAIMER:
Any use of the Memory Stick port for any reason
other than a Sony authorized upgrade will void the
product warranty. All related repair charges will be the
responsibility of the customer.
11-2. TRANSFERRING THE NEW FIRMWARE
FROM THE MEMORY STICK TO THE
Q-BOX.
1. Turn the TV on.
2. Insert the Memory Stick containing the new Þrmware into the Memory
Stick slot on the back of the set.
3. If the inserted Memory Stick is the correct type, and its Þles are
correct for the KD-34XBR2 and are not damaged (corrupted), the
upgrade process will begin automatically. The screen will display
“Memory Upgrade Mode” for 3 seconds, after which the screen will go
black until the upgrade is completed.
NOTE: The user controls are inoperative while this upgrade is
in progress.
4. A status LED is located above the Memory Stick slot. This LED will
ßash in several distinct patterns dependent upon the status of the
upgrade, as follows:
0s
1s
2s
3s 3.2s
Memory Stick Input Location
Pending/
Busy
Success
Memory
Stick Error
Flash
Error
System
Error
Key:
LED On
LED Off
5. When the status LED ßashes the “Success” pattern shown above,
the upgrade has completed successfully. Remove the Memory Stick
and the set will return to the operating state it was in before the
upgrade began.
— 68 —
KD-34XBR2
SECTION 12: DIAGRAMS
12-1. CIRCUIT BOARDS LOCATION
The components identified by shading and ! symbol are critical for safety.
Replace only with part number specified.
W Board
indicates a fast operating fuse and is displayed on the
The symbol
component side of the board. Replace only with fuse of the same rating as
marked.
C Board
B Board
QM Board
QI Board
(All 3 Boards
below shield)
S Board
Les composants identifies par un trame et une marque ! sont critiques pour
la securite. Ne les remplacer que par une piece portant le numero specifie.
indique une fusible a action rapide. Doit etre remplace par
Le symbole
une fusible de meme yaleur, comme maque.
A Board
U Board
HA Board
D Board
(Mounted to
U Bracket)
The components identified by X in this basic schematic diagram
have been carefully factory-selected for each set in order to
satisfy regulations regarding X-ray radiation. Should replacement
be necessary, replace only with the value originally used (Refer
to Safety Related Adjustments on page 33).
HB Board
When replacing components identified by Y, make the
necessary adjustments as indicated. If the results do not meet
the specified value, change the component identified by X and
repeat the adjustment until the specified value is achieved.
12-2. PRINTED WIRING BOARDS AND
SCHEMATIC DIAGRAMS
When replacing the parts listed in the table below, it is important
to perform the related adjustments.
All capacitors are in µF unless otherwise noted. pF : µµF 50WV or less are not
indicated except for electrolytics and tantalums.
Part Replaced (Y)
Adjustment (X)
All resistors are in ohms. K = 1000, M = 1000K.
D BOARD:
D BOARD:
Indication of resistance, which does not have one for rating electrical
power, is as follows: Pitch : 5mm
Rating electrical power : 1/ 4 W
D8004, D8014, IC6503, IC8001,
IC8003, IC8004, R6590, R8016,
R8021, R8028, R8041, R8042,
R8044, R8072, R8073, R8074,
R8077, R8078, R8080, R8081,
R8082, R8091, R8095
RV8001, RV8002
All electrolytics are in 50V unless otherwise specified.
1
/ 4 W in resistance, 1/10 W and 1/ 8 W in chip resistance.
: nonflammable resistor.
: fusible resistor.
: internal component.
: panel designation and adjustment for repair.
All variable and adjustable resistors have characteristic curve B, unless
otherwise noted.
Readings are taken with a color-bar signal input.
Readings are taken with a 10MΩ digital multimeter.
Voltages are DC with respect to ground unless otherwise noted.
Voltage variations may be noted due to normal production tolerances.
All voltages are in V.
S : Measurement impossibillity.
: B+line.
REFERENCE INFORMATION
RESISTOR
: RN
METAL FILM
: RC
SOLID
: FPRD NONFLAMMABLE CARBON
: FUSE NONFLAMMABLE FUSIBLE
: RW
NONFLAMMABLE
WIREWOUND
: RS
NONFLAMMABLE METAL
OXIDE
: RB
NONFLAMMABLE CEMENT
:
ADJUSTMENT RESISTOR
: B-line. (Actual measured value may be different).
COIL
: LF-8L MICRO INDUCTOR
: signal path. (RF)
Circled numbers are waveform references.
— 69 —
CAPACITOR
: TATANTALUM
: PS
STYROL
: PP
POLYPROPYLENE
: PT
MYLAR
: MPS METALIZED POLYESTER
: MPP METALIZED
POLYPROPYLENE
: ALB BIPOLAR
: ALT HIGH TEMPERATURE
: ALR HIGH RIPPLE
KD-34XBR2
12-3. BLOCK DIAGRAM & SCHEMATICS
BLOCK DIAGRAM
Analog Signal Flow
VA IN6
TV IN
VA IN4
VA IN3
VIDEO 1
Y
Signal
Detector
S
L/R
VIDEO 2
Y/C/CV/S1
L/R
CV
CV
VA IN5
Sub Tuner
L/R
Main Tuner
U
VIDEO 3
L/R
Y/C/CV/S/S1
A
L(Lt)/R(Rt)
Y
B
VIDEO 4
RF
RF
Q BOX
H
Y/C/CV/S/S1
RF
Q BOX
L/R
AUX
RF
Antenna SW
Y/C/CV/S/S1
RF
L/R
ANT
Direct View
VA IN2
VA IN1
CXA2069Q
CV/Y2
YPbPrHV
H
YPbPr OUT
YPbPr
EXT
YPbPr
480i
480i
IN3
DRC-MF
D/A
YPbPrHV
YGV619
MID-XA
VIDEO
Graphics
LOGIC
CONTROL
SWITCH
R/G/B/YsYm
— 70 —
C
A
YPbPrHV
CXA2150
OR x4
RGB
R/G/B/Ys
R
AMP
R
1080i
A/D
[R:Front]SP
LPF
(30M/15M/15M)
L
HV
A/D
[L:Front]SP
IN4
HV
YPbPr
LPF
(6M/3M/3M)
Decoder
AMP
HV
HV
YPbPr
LOGIC
CONTROL
SWITCH
R
IN2
IN1
L
YPbPrHV
CXA2151
480i/480p/1080i/720p
NJM2181
L
480i
K
BH3868
LOGIC
CONTROL
SWITCH
LOGIC
CONTROL
SWITCH
480i
L(Lt)
R(Rt)
L(Lt)
L(Lt)
R(Rt)
VIDEO 6
YPbPrHV
CV/Y2
YPbPrHV
Q
Vout
Vout
VAR/FIX
YPbPr OUT
EXT
RGB
EXT
YPbPr
MULTI COMPONENT (YPbPr:701/601)
YsYm
EXT
RGB
YsYm
MON
OUT
480i
YPbPr
Y
RGB
MON
OUT
RGB
IN2
IN2
VIDEO 5
CV/Y/C IN1
CXA2103
SUB
CCD/V-CHIP
/ID-1
Y/HV
CV/Y/C IN1
CXA2103
MAIN
CCD/V-CHIP
/ID-1
COMB
Y/C IN
U
COMB
Y/C IN
Y/HV
NJM2521 x2
IN1
Y
MONITOR
OUT
SW2
SW1
IN1
CV
Y/C
Y/C
U
IN3
MULTI COMPONENT (YPbPr:701/601)
3Line
comb
R(Rt)
L(Lt)
C
CVorY
CV
L(Lt)/R(Rt)
CV
IN3
3D comb
filter
DC out
VA OUT2
R(Rt)
VA OUT1
VA OUT3
C
CVorY
VA OUT3
Video
OUT
M16C
KD-34XBR2
A BOARD SCHEMATIC DIAGRAM (1 OF 2)
AUDIO L
VIDEO
Q2002
2SB709A
SYNC-SEP
C2019
0.047
16V
B:1608
—
R2010
10k
1/16W
:CHIP
C2035
0.047
16V
B:1608
Q2004
2SB709A
SYNC-SEP
R2021
4.7k
1/16W
:CHIP
S-R
C2032
1
16V
F:CHIP
R2027
1M
1/16W
:CHIP
R2025
10k
1/16W
:CHIP
R2023
10k
1/16W
:CHIP
2
E
+B OVP
+B OCP
6
7
8
P SW (-)
12
PROT1
P-ON
P SW (+)
11
SIRCS
9
10
GND
STBY +5V
7
8
STBY LED
REPEAT LED
6
GND
TIMER LED
3
4
5
GND
KEY
WP
SIRCS
ISTBY LED
TIMER LED
STBY/ST LED
KEY
P ON
CN5501
SET ON
CN3173
8P
:B-TO-B
MAIN-RLY
C2039
2.2
V-FBP
R2031
2.2k
1/16W
:CHIP
HP-IN
SCP
Q3172
DTA143EKA
LATCH
R3171
22k
1/16W
:CHIP
Q3170
2SD601A
LATCH
C2034
220p
B:1608
C3170
1
16V
F:CHIP
IIC-1
220
R3176
:CHIP
1/16W
B-INT
R3170
10k
1/16W
:CHIP
R3174
22k
1/16W
:CHIP
R3173
22k
1/16W
:CHIP
R3172
22k
1/16W
:CHIP
C3171
1
16V
F:CHIP
1
V FBP
2
E
3
HP IN
4
SCP
5
E
6
DAT1
Q3173
2SD601A
LATCH
CLK1/S CLK
8
DAT1/S DAT
8
3.3 Vp-p (H)
3.5 Vp-p (H)
10
11
CN3103
10P
:B-TO-B
TP51
H DRIVE
R
R
R3165
2.2k
1/16W
:CHIP
—
0.6 Vp-p (H)
7
3.1 Vp-p (H)
9
CN5505
MAIN 9V
R3162
100
1/16W
:CHIP
6
5
0.5 Vp-p (H)
—
C3153
100
16V
1.4 Vp-p (H)
TO D BOARD
9
Q3110
2SD601A
BUFFER
1.9 Vp-p (H)
1.9 Vp-p (H)
B-INT
7
R3175
10k
1/16W
:CHIP
TU-OUT
F
4
TO D BOARD
OVP
AC-RLY
:CHIP
1/16W
1M
3
OCP
CLK1
ST-HS
S-CV
E
R2016
2.2k
1/16W
:CHIP
C2018
220p
B:1608
R2014
1M
1/16W
:CHIP
R2013
10k
1/16W
:CHIP
A BOARD WAVEFORMS
C3172
0.0022mF
CHIP
SUB 5V
R2015
100k
:CHIP
C2015
1
16V
F:CHIP
20
R3184
100
CHIP
Q3171
DTA143EKA
LATCH
M-R
R2009
4.7k
1/16W
:CHIP
|
M-L
SUB 5V
19
STBY 5V
R2028
100k
1/16W
:CHIP
+5V
MT-HS
+5V
|
NVM
MA111
R2036
Q2006
DTA114EKA
SWITCH
C2057
0.47
B:CHIP
DET OUT
33V
1
NC
TP99
TP84
TP81
18
D3113
MTZJ-T-77-6.8B
CONTROL PANEL
15V
S-L
TP92
D
2
L OUT
R OUT
NC
IIC-1
DET OUT
C2056
0.47
B:CHIP
CN6506
|
1
M-CV
TU-CONT
MAIN 33V
TO D CN6506
D3114
MTZJ-T-77-6.8B
MA111
D2008
+5V
—
CN6504
17
STBY 15V
AUDIO R
VIDEO
TO D BOARD
|
AUDIO R
1
VIDEO
CN3171
8P
:B-TO-B
STBY 7V
:LHLZ06
VIDEO
C2025
100
16V
C2022
0.0022
B:1608
CLK1
DAT1
CLK1
C2012
0.0022
B:1608
D2007
L2007
C2031
0.0022
B:1608
C2028
470
16V
+9V
DAT1
SUB 9V
SUB 9V
C
2
R2006
680
1/16W
:RN-CP
16
P-SW(-)
AUDIO L
C2010
0.0022
B:1608
C2008
100
16V
R2003
47
1/16W
:CHIP
|
STBY 5V
R2034
10k
1/16W
:CHIP
SUB 5V
R2002
47
1/16W
:CHIP
CN01
R2033
10k
1/16W
:CHIP
MONO-1
MODE
ST-1
R2029
680
1/16W
:RN-CP
BIL-1
R2024
33k
1/16W
:CHIP
AFT1
C2029
0.01
25V
B:1608
MUTE
MODE
F MONO
ST IND
SAP IND
DET OUT
GND
9V
AFT OUT
VIF
AS
RF AGC
SCL
1/16W
1/16W
100
L2006
:LHLZ06
R2020
10k
1/16W
:CHIP
100
C2024
100
10V
C2021
0.0022
B:1608
R2018
R2011
10k
1/16W
:CHIP
TO HA BOARD
C2038
10
16V
:BP
R2032
100
1/16W
:CHIP
R2030
560
1/16W
:RN-CP
R2022
0
1/16W
:CHIP
C2026
0.0022
B:1608
15
CN3170
8P
:B-TO-B
MAIN TUNER
(C6h)
C2037
10
16V
:BP
C2036
10
R2026
22k
1/16W
:CHIP
C2030
22
AGC
L2005
:LHLZ06
TU2002
BTF-WA412
Q2005
2SD601A
VIDEO-BUFFER
R2037
4.7k
1/16W
:CHIP
R2038
10k
:CHIP
:CHIP
:CHIP
Q2003
2SD601A
INVERTER
:LHLZ06
SUB 5V
SDA
9V
C2020
0.0022
B:1608
:CHIP
+33V
R2007
560
1/16W
:RN-CP
30V
R2017
0
C2023 1/16W
100 :CHIP
16V
C2017
10
16V
:BP
1/16W
10k
5V
L OUT
NC
R OUT
MUTE
MODE
F MONO
NC
ST IND
SAP IND
DET OUT2
DET OUT
:CHIP
100
SUB TUNER
(C0h)
R2019
L2002
R2012
MONO-2
:LHLZ06
C2006
100
16V
C2016
10
16V
:BP
C2014
10
R2008
L2003
GND
9V
AFT OUT
22k
+9V
TU2001
BTF-WA412
MODE
C2004
0.0022
B:1608
+33V
C2009
0.01
25V
B:1608
Q2001
2SD601A
VIDEO-BUFFER
BIL-2
C2003
47
—
:CHIP
RF AGC
:LHLZ06
C2005
0.0022
B:1608
R2005
33k
1/16W
:CHIP
R2004
B
C2007
22
L2001
ST-2
R2001
0
1/16W
:CHIP
C2001
0.0022
B:1608
VIF
SDA
AS
5V
C2002
100
10V
AFT2
—
SCL
9V
30V
A
DET OUT2
CN2001
12P
WHT
:S-MICRO
|
E
14
NVM5V
|
3
13
4
|
5
12
CLK0/B CLK
|
DAT0/B DAT
11
1
|
2
10
BCLK
|
BDAT
9
NORMAL
|
WP
8
E
|
8
7
E
|
5
6
6
|
7
5
E
|
E
4
4
|
3
3
AC RLY
|
MAIN RLY
2
1
|
2
1
B
1
H CENT
2
H DRV
3
E
4
V COMP IN
5
H COMP IN
6
E
7
V PROT
8
H PROT
9
R
10
B
B
2.9 Vp-p (H)
1.7 Vp-p (V)
1.5 Vp-p (V)
HP-IN
R3140
2.7k
1/16W
:CHIP
C3116
47
R3120
100
1/16W
:CHIP
R3110
100
1/16W
:CHIP
31
30
29
56
ABL_IN
HS_IN
28
57
ABL_FIL
58
IK_IN
59
60
61
IC3101
CXA2150AQ
YUV-JUNGLE
SCP
27
SCL
26
SABL_IN
SDA
25
PRE_RGB
F1
24
VCC_OUT
F0
23
3
4
5
6
7
9
C3129
0.1
16V
B:1608
C3125
0.1
16V
B:1608
R3131
100
1/16W
:CHIP
8
C3128
0.1
16V
B:1608
10
11
12
13
14
15
16
17
18
19
C3134
0.47
16V
B:CHIP
R3143
12k
1/16W
:CHIP
IIC-1
:CHIP
1/16W
CLK1
PIC-MUTE
10
DAT1
:CHIP
1/16W
47
R3159
IK
MAIN 12V
PR
8
PB
B:1608
16V
0.1
C3146
PB
B:1608
16V
0.1
C3147
PR
B:1608
16V
0.1
C3148
B
Y
7
G
6
L3103
E
8
IK
7
+12V
16
12
17
10 9
6
6
E
5
B-DRV
4
E
3
G-DRV
2
E
CB_IN 21
SUB 5V
- SHARPNESS
- PRE/OVER
- SHP_F0
- F1_LEV
- SHP_CD
C3154
0.01
25V
B:1608
SHP
LTI
Y
CbCr
Y
R-Y
G-Y
B-Y
MAT
AXIS
YS
YM
G
AFC
2.7MHz
VCO
CERA 33
TIMING
DECODER
- CLP_PHASE
- CLP_GATE
- LEFT_BLK
- RIGHT_BLK
- SYNC_PHASE
- H_POSITION
- AFC_BOW
- AFC_ANGLE
- HBLK_SW
- AFC_COMP
P
—
— 71 —
WP
BCLK
BDAT
STBY 5V
GND
GND
B-INT
GND
R RESET
MT-L
GND
GND
MT-CV
MT-R
GND
ST-L
GND
GND
ST-CV
GND
ST-R
ST HSYNC
GND
ST MONO
SAP S
ST STEREO
- V_LIN
- V_COMP
- V_ON
V-FUNC
VSAW0,1
REG
18
31
29
30
55
19
48 49
61
1
3
41
44
15
53
52
37
50
51
VBIAS
VCC9
VCC5
V_OSC
VCC_OUT
GND OUT
GND_SIG
GND_H
GND_V
VPROT
V_DRV+
V_DRV-
VCOMP_IN
VSAW0
VSAW1
V_AGC
IK_IN
56
ABL_IN
57
ABL_FIL
59
SABL_IN
PRE_RGB
39
HP_IN
34
HPROT
40
H_DRV
36
HCCMP_IN
47
EW_DRV
DF_PARA
46
DF_PARA
MP_PARA
45
MP_PARA
43
HC_PARA
- MP_PARA_DC, AMP
HC_PARA
VREG5
BCLK
BDAT
WP
A1
B1
B2
A2
B3
A3
A4
B4
A6
B5
A5
B6
A7
B7
B8
A8
A9
B9
A11
A10
B10
B11
B12
A12
B13
A13
A14
GND
MODE
MT MONO
MT HSYNC
SAP M
MT STEREO
GND
ST AFT
MT AFT
AGC ATT
GND
SDAT
SCLK
GND
OFF-MUTE
GND
FIX/VAR R
GND
- V_SIZE
- V_POS
- S_COR
- VSAW0, 1_DCL,H
- VSAW0, 1_AMP
- VSAW_SW
IREF_HV
M-L
M-CV
M-R
S-L
S-CV
S-R
ST-HS
MT-HS
B15
B14
A15
B16
A16
B17
A17
B18
A18
A20
B19
A19
B20
A21
A22
B21
A23
B22
A24
B24
B23
R
GND
FIX/VAR L
CN002
A25
B25
TO B BOARD
58
-PIN_PHASE
-H_SIZE
-EW_DC
-UP,LO_UCP,UCG -H_COMP
-PIN_AMP
-UP,LO_CPIN -UC_POL
-PIN_COMP
IREF_YC
ST-2
BIL-2
MONO-2
MONO-1
MODE
ST-1
BIL-1
AGC
AFT2
AFT1
OFF-MUTE
V/F-R
V/F-L
SP-L
SP-R
DAT1
NVM
B_OUT
L2_FIL
EW-FUNC
W-FUNC
9V-DEF 5V-SIG
G_OUT
62
38
- HC_PARA_DC, AMP, PHASE VSAW0, 1_
STBY 5V
TUNER,YUV-JUNGLE
R
L
R
AGC
VOSC
5V-DEF
R_OUT
63
60
HD
- V_SCROLL
- V_ASPECT
- UP, LO_VLIN
- JMP_SW
- ZOOM_SW
- ASP_SW
COUNT
PABL_FIL
64
PABL
B-INT
9-965-916-02<HA3>A P1
L
CN3022
50P
SP MUTE
A1
C1
SMODE
AUDIO-MUTE
C2
A2
GND
+3.3V
A3
GND
C3
A4
C4
+9V
GND
+3.3V
C5
A5
GND
+9V
A6
C6
+5V
GND
C7
A7
GND
A8
GND
+5V
ISTBY SW
C9
C8
A9
GND
GND
C10
A10
A11
GND
C11
A12
GND
OSD B
C13
C12
A13
GND
OSD G
OSD R
A14
C14
VM MOD
A MASK
C15
A15
GND
A16
GND
L
BLK
ABL
LOOP2
IREF
TU-CONT
TU-OUT
SMODE
DRV
- ABL_MODE
- ABL_TH
- P_ABL
- S_ABL
SCP
- V_FREQ
- AKBTIM
- UP,LO_BLK
- VBLK_SW
- RST_SW
A-MUTE
V MNO Y
C16
A17
GND
V MNO PB
C18
3
AKB
11
B
VTIM 54
SUB 3.3V
5
C17
A18
GND
V MNO HS
SP-MUTE
SUB 5V
4
V MNO PR
C19
A19
GND
V MNO VS
A20
C20
HP
GND
C21
A22
A21
GND
VP
CLK1
YSYM
OSD-B
OSD-G
OSD-R
A MASK
VM MOD
ISTBY SW
Y
GAM
DCOL
LIMT
BRT
A MASK
R3158
3.9k
1/16W
:CHIP
IIC-1
SUB 9V
PIC
- R,G,B_CUTOFF
- BLK_BTN
- PIC_ON
- GAMMA,L
- R,G,B_ON
- DCOL
- AKBOFF
- DCOL_TEMP
- LIMIT_LEV
- R,G,B_DRIVE
- WB_SW
- AFC_MODE
HS_IN 28
VS_IN 42
TP85
YS
YM
CLP PULSE
CLK PULSE
F1 24
SCP 27
R
+9V
R3169
56
1/16W
:RN-CP
2
- COLOR_AXIS
- COLOR
NTSC-JPN
- HUE
NTSC-US
- CB_OFFSET
PAL
- CR_OFFSET
NTSC-PJ
- CTI_LEV
- CTI_MODE
I2C BUS
DECODER
DPIC
COL
HUE
CbCr
R-DRV
CLP
- DC_TRAN
- Y_OFFSET
CTI
F0 23
C3144
47p
CH:1608
R3135
4.7k
1/16W
:CHIP
R3168
56
1/16W
:RN-CP
4
- PICTURE
- SUB_CONT
- BRIGHT
- SUB_BRIGHT
- DPIC_LEV
- AGING_W
- AGING_B
- LT1_LEV,MODE
- SYSTEM
AFC_FIL 32
D3111
0
5
0~-9dB
CLP
CR_IN 22
SDA 25
Q3108
2SA1226
BUFF
BOUT
7
- LRGB2_LEV
+9V
C3149
0.47
16V
B:CHIP
8
VM
Y
Y_IN 20
SCL 26
MAIN 5V
C3145
100
16V
C3140
0.1
16V
B:1608
13
P-MUTE
9
1
R
D3112
1SS133
:LHLZ06
R3157
47
1/16W
:CHIP
R3145
100
1/16W
:CHIP
47
- VM_LEV
- VM_DLY
- VM_COR
- VM_F0
- VM_LMT
CN3101
10P
WHT
:S-MICRO
SCP
R3155
470
1/16W
:CHIP
C3138
1
16V
:CHIP
CN9001
HS
R3160
15 14
TO C BOARD
Y
C3139
2.2
6.3V
B:CHIP
C3137
0.15
16V
B:CHIP
:CHIP
1/16W
1k
R3178
+9V
C3158
0.22
B:1608
C3155
0.1
16V
B:1608
R3161
:RN-CP
1/16W
10k
R3152
4.7k
:RN-CP
C3133
0.1
16V
B:1608
C3130
0.1
16V
B:1608
VCC5
2
BPH
1
IREF_YC
20
CLP_C
Y_IN
VM_MOD
R_OUT
YF_OFF
64
R1_IN
21
PABL_FIL
22
CB_IN
DPDT_OFF
CR_IN
G_OUT
B1_IN
B_OUT
63
G1_IN
62
C3156
100
16V
E
1
R2_IN
G2_IN
B2_IN
YSYM2
IREF_HV
C3150
0.0047
B:1608
VM
2
R1_IN
G1_IN
B1_IN
YSYM
32
Q3112
2SD601A
CURRENT-DRIVE
BPH
CERA
VPROT
HPROT
VCOMP_IN
HCOMP_IN
AFC_FIL
3
C3159
0.47
B:CHIP
C3151
0.47
16V
B:CHIP
DPDT_OFF
:CHIP
1/16W
HP_IN
L2_FIL
VS_IN
GND_H
H_DRV
GND_V
HC_PARA
DF_PARA
MP_PARA
EW_DRV
V_OSC
VSAW1
VSAW0
33
VREG5
ROUT
R3167
56
1/16W
:RN-CP
PB
GND
C22
A23
C23
A PROT
P-MUTE
PROT/MUTE
C24
A24
GND
LB ERROR
A25
+B OVP
C25
+B OCP
C26
A26
MAIN SW
A27
GND
AC RELAY
C28
A28
C27
DH MUTE
STBY 5V
DGC RELAY
A29
KEY
C29
SIRCS
C30
A30
TIMER LED
STBY/ ST LED
A31
GND
34
VBIAS
B
Y
SIG-H
SIG-V
P-MUTE
PROT-MUTE
LB-ERROR
OVP
OCP
MAIN-RLY
AC-RLY
STBY 5V
DGC-RLY
DH-MUTE
KEY
SIRCS
TIMER LED
STBY/ST LED
P ON
ISTBY LED
C31
35
:LHLZ06
PB
PR
ISTBY LED
36
VM MOD
Y
C32
37
C3157
0.1
B:1608
A BOARD: IC3101 CXA2150AQ
SUB 9V
PB
PR
HS
VS
CONTROL PANEL
A32
38
TP89
PR
P ON
39
R3164
8.2k
1/16W
:CHIP
CN3102
3P
WHT
:S-MICRO
L3101
TP86
GND
40
Q3107
2SA1226
BUFF
TP88
R3180
1k
1/16W
:CHIP
—
CN001
41
C3152
0.22
16V
B:1608
TP87
Q3102
2SA1226
BUFF
Q3101
2SA1226
BUFF
M
TO B BOARD
42
+9V
R3107
100
1/16W
:CHIP
X3101
2.7MHz
VTIM
C3127
0.1
16V
B:1608
R
Q3181
2SB709A
BUFFER
R2051
0
:CHIP
R3121
390
1/4W
R3114
390
1/4W
43
CN9101
C3141
10
C3136
0.01
25V
B:1608
VCC9
C3123
0.47
16V
B:CHIP
C3122
0.47
16V
B:CHIP
44
TO W BOARD
PROT-MUTE
55
G2_IN
C3118
0.1
16V
B:1608
C3115
0.0022
B:1608
45
R3137
3.3M
1/16W
:CHIP
R3183
3.3k
1/16W
:CHIP
CN3020
64P
:DIN
C3120
100
16V
Q3111
DTC144EKA
PROT-SW
C3142
10
54
B2_IN
R
R3112
10k
1/16W
:CHIP
R3108
390
1/4W
R3181
1k
1/16W
:CHIP
SIG-H
—
G
SET 9V
R3182
3.3k
1/16W
:CHIP
D2053
1SS133
PROT
SIG-V
—
:CHIP
R3122
100
1/16W
:CHIP
R2053
0
:CHIP
N
1/16W
B
Q3103
2SD601A
ABL
OFF-MUTE
—
—
0.1
Q2053
2SB709A
MUTE
Q3180
2SB709A
BUFFER
L
10k
46
LINE MUTE
K
B:1608
C3113
16V B:1608
D2057
MA111
D2054
MA111
R2054
10k
1/16W
:CHIP
C3105
0.22
16V
B:1608
C3112
4.7
6.3V
B:CHIP
16V
R3125
V_DRV+
47
OSD-G
R2058
4.7k
1/16W
:CHIP
R3111
0
1/16W
:CHIP
C3111
4.7
6.3V
B:CHIP
0.068
C3114
100
16V
53
48
OSD-B
Q2050
2SB709A
MUTE
D2052
DAN202K
OR
D3105
O2CZ5.6
LIMIT
D2058
MA111
R2062
4.7k
1/16W
:CHIP
D3106
MA111
ABL SW
R3106
10k
1/16W
:CHIP
R3113
100k
1/16W
:CHIP
C3117
R3144
10k
1/16W
:CHIP
IK
D2051
DAN202K
OR
D2050
DAN202K
OR
D2055
MA111
C2055
1000
16V
R3118
100k
1/16W
:CHIP
R3109
0
1/16W
:CHIP
D2059
MA111
PROT
C3109
4.7
6.3V
B:CHIP
V_DRV-
49
GND_OUT
C2050
470
16V
R2059
1k
1/16W
:CHIP
C3101
100
16V
B
J
D2056
MA111
PROT
D3103
MA111
52
YSYM
R2055
4.7k
1/16W
:CHIP
R3101
330
1/16W
:CHIP
MAIN 12V
UNREG 11V
P-MUTE
PIC-MUTE
SPKR-MUTE
SP-MUTE
A-MUTE
AUD-MUTE
R3104
10k
1/16W
:CHIP
50
YSYM2
R3115
2.2k
1/16W
:CHIP
—
O
Q3106
2SD601A
ABL-SW
10
I
—
51
VS
R3153
100
1/16W
:CHIP
R3154
560
:CHIP
GND_SIG
9
C3124
0.1
16V
B:1608
V_AGC
R3116
2.2k
1/16W
:CHIP
8
G
M PIN
Q3105
2SB709A
ABL-SW
7
R
DF PARA
R3117
4.7k
1/16W
:B CHIP
6
R3150
100
1/16W
:CHIP
C3143
0.01
25V
B:1608
CLP_C
5
:PP
E
100
C3126
R3141
4
N/S
:CHIP
3.3k
V DRV-
R3139
3
V PIN
1/16W
R3177
V DRV+
R2_IN
2
YSYM1
V TIM
V DRV
OSD-R
1
EW DRV
—
11
10
ABL S
1k
TP52
GND
H
CN3174
10P
:B-TO-B
OSD YSYM
—
1/16W
CN5503
YF_OFF
D3109
1SS133
SUB 9V
:CHIP
TO D BOARD
VM_OUT
G
C3160
0.001
B:1608
R3151
100k
1/16W
:CHIP
R3146
10k
1/16W
:CHIP
VM_OUT
+9V
VM_MOD
L3102
:LHLZ06
MAIN 9V
KD-34XBR2
A BOARD SCHEMATIC DIAGRAM (2 OF 2)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
E
CN6009
1P TAB
R6036
10k
:CHIP
1
Q6004
2SD601A
LOWB ERROR
CN6701
33
C6019
0.01
800V
:PP
R6018
0.33
2W
:RS
R6019
0.33
2W
:RS
3
14
2
15
1
UNREG 7V
R6048
1k
16
11
C6009
47
25V
4
R6022
470
:CHIP
1
3
2
PH6001
ON3171-R
MA111
R6028
1k
1/16W
:CHIP
R6027
220
1/16W
:CHIP
R6030
1k
1/16W
:CHIP
D6013
MA111
DGC-RLY
UNREG 11V
R6026
330k
1/16W
:CHIP
2
3
DGC-RLY
E
STBY 7V
STBY 15V
5
6
R6025
330k
1/16W
:CHIP
7
8
SDA
15
E
SCL
12
14
VF-R
11
13
E
VF-L
10
SP-L
SP-R
8
7
9
SMODE
SUB 9V
6
W-R
E
5
W-L
3
4
DAT1
IC4405
TA8216H
AMP-H
D6030
1SS133
PROTECT
TP104
H-L
R6061
1k
1/16W
:CHIP
C6022
0.1
25V
F:1608
R6062
100
1/16W
:CHIP
C6049
1
50V
TP95
SUB 5V
IC6006
PQ05RF21
5V-REG
I
C6035
470
16V
G
O
R4473
2.2k
1/16W
:CHIP
R6064
10k
1/16W
:CHIP
SUB 5V
Q6010
DTC114EKA
ISTBY SWITCH
Q6011
DTC114EKA
ISTBY SWITCH
C6041
1000
10V
R4427
22k
1/16W
:CHIP
AUD-MUTE
R4431
100k
1/16W
:CHIP
R6065
1k
1/16W
:CHIP
D6023
MA111
IC6005
PQ3RD083
3.3V-REG
UNREG 11V
D6022
MA111
1
2
3
MAIN 5V
E
MAIN 9V
E
33V
7
STBY 5V
6
MAIN 12V
5
MAIN 5V
4
3
MAIN 9V
2
1
D6037
1SS133T-77
L6001
MAIN 33V
STBY 7V
I
G
C6017
1
IC6002
BA05T
STBY 5V REG
D4404
1SS133
C4426
2.2
R4457
10k
1/16W
:CHIP
R4446
2.2k
1/16W
:CHIP
C4462
10
R4454
1k
1/16W
:CHIP
Q4404
DTC114EKA
MUTE
SUB 3.3V
D6032
1SS133
PROTECT
Q4402
2SD601A
MUTE-SW
R4425
1k
1/16W
V/F-L
:CHIP
R4423
470k
1/16W
:CHIP
R4429
2.2k
1/16W
:CHIP
R4424
1k
1/16W
:CHIP
V/F-R
R4422
470k
1/16W
:CHIP
STBY 5V
MAIN 33V
Q4401
2SD601A
MUTE-SW
R4428
2.2k
1/16W
:CHIP
7
8
10
11
D4413
MA111
PROTECTOR
12
R4483
4.7k
:CHIP
R4492
10k
D4410
MA111
PROTECTOR
D4409
MA113
C4492
2200
TP103
H-L
R4486
1k
1/16W
:CHIP
C4497
0.1
25V
F:1608
D4406
MA111
W-R
R4487
2.2
:FPRD
R4489
2.2
:FPRD
C4499
0.1
:MPS
C4501
0.1
:MPS
1
2
3
4
5
6
7
8
9
10
R4484
4.7k
1/16W
:CHIP
11
12
D4415
MTZJ-22B
D6036
1SS133
PROTECT
W-R
W-L
R4478
0
1/16W
:CHIP
C4483
470
16V
R4476
10k
1/16W
:CHIP
C4487
1
C4485
1
D4414
MA111
PROTECTOR
UNREG 7V
P-SW(-)
D4412
MA111
PROTECTOR
D4411
MA113
C4505
2200
35V
C4489
470
16V
Q4410
DTC114EKA
MUTE
AUD-MUTE
C4493
220
16V
C4496
2200
35V
W-L
C4495
0.1
:MPS
C4498
0.1
25V
F:1608
C4494
0.001
B:1608
R4485
1k
1/16W
:CHIP
R4472
10k
1/16W
:CHIP
R4488
2.2
:FPRD
C4500
0.1
:MPS
D6035
MTZJ-22B
PROTECT
Q4411
DTC114EKA
MUTE
Q4406
DTC114EKA
MUTE
R4494
10k
Q4407
DTC114EKA
MUTE
SUB-POWER SUPPLY, AUDIO-AMP
1
2
6.5V
9-965-916-02<HA3>A P2
6.5V
4
3
GND
GND
6
8
5
5V
9V
GND
33V
7
N
—
TO QM BOARD
CN7001
O
— 72 —
H-R-OUT
E
5
W-L-OUT
6
E
7
H-L-OUT
8
E
8
AUDIO 24V
7
AUDIO 24V
6
AUDIO GND
5
AUDIO GND
4
AUDIO PROT
3
SET ON
2
SUB 7V
1
P-SW(-)
CN4403
8P
WHT
:S-MICRO
TO D BOARD
C4506
2200
35V
R4490
2.2
R4493
:FPRD
10k
C4504
0.1
:MPS
Q+6.5V
CN6005
8P
:VH
3
4
AUDIO 24V
Q+9V
Q+5V
W-R-OUT
E
W-L
W-R
R4470
2.2k
:CHIP
W-L
1
2
D4416
MTZJ-22B
C4482
1
C4478
10
H-R
H-L
Q4408
DTC114EKA
MUTE
IC4406
TA8216H
AMP-W
R4471
2.2k
1/16W
:CHIP
R4491
10k
TP102
Q4405
DTC114EKA
MUTE
R4455
22k
1/16W
:CHIP
CN4404
8P
BLK
:S-MICRO
W-R
H-R
C4503
1000
25V
35V
C4491
0.1
:MPS
C4488
220
16V
SPEAKER OUT
TP101
C4502
1000
25V
H-R
Q4409
DTC114EKA
MUTE
C4477
10
V/F-R
9
C4490
0.001
B:1608
R4456
10k
1/16W
:CHIP
R4477
2.2k
1/16W
:CHIP
C6040
100
16V
6
C4481
1
OFF-MUTE
4
5
R4480
15k
1/16W
:CHIP
C4484
1
SUB 3.3V
R6037
100
1/16W
:CHIP
C6020
47
25V
R4475
0
1/16W
:CHIP
R4436
10k
1/16W
:CHIP
STBY 5V
O
Q4403
2SD601A
MUTE
TP98
UNREG 7V
OFF-MUTE
C4439
1000
16V
R4433
0
1/16W
:CHIP
4
SET ON
MAIN 12V
8
3
H-L
R4447
2.2k
1/16W
:CHIP
SPKR-MUTE
TP94
STBY 5V
2
C4480
470
16V
D4403
MA113
POP SUPPRESSOR
ISTBY SW
D6031
1SS133
PROTECT
R6033
1k
1/16W
:CHIP
C6023
100
16V
R6063
4.7k
1/16W
:CHIP
UNREG 7V
D6020
MTZJ-4.7B
PROTECT
D6017
MTZJ-T-77-6.8B
1
H-R
V/F-L
CN6001
8P
:B-TO-B
E
—
R6041
7.5k
1/16W
:RN-CP
D6019
MA111-TX
PROTECTOR
D6034
MTZJ-12
CN6505
+9V
C6046
1000
16V
R6045
220k
1/16W
:CHIP
D6024
1SS133
OR
R6031
10k
1/16W
:CHIP
TO D BOARD
O
R6040
4.7k
1/16W
:RN-CP
Q6003
2SB709A
MUTE-SW
R6024
10k
1/16W
:CHIP
—
M
R6038
1k
1/16W
:CHIP
2
4
E
—
B:1608
7V-REG
CN6002
8P
WHT
:S-MICRO
E
Q6008
2SD601A
OCP
IC6003
CN6710
STBY 15V
L
25V
1
R6032
10k
1/16W
:CHIP
1
+9V
G
L4401
:LAV35
:CHIP
R6055
2.2k
1/16W
:CHIP
C6039
100
16V
SUB 9V
R6060
1k
1/16W
:CHIP
C4479
1
D6015
MTZJ-7.5B
7V-OVP
AC DET
K
0.022
3
R6021
0
:CHIP
SUB +12V
R6052
10k
1/16W
:CHIP
C6051
220
16V
STBY 5V
TO F BOARD
—
C6026
10000
10V
1/16W
SUB 9V
R6056
1k
1/16W
:CHIP
I
Q6007
2SB709A
OCP
1k
TP93
IC6007
PQ09RF21
9V-REG
C6042
470
25V
R6053
D6018
D5SC4M
5V-RECT
I
J
CLK1
:LHL10
C6025
—
—
R6054
0.22
1W
:RS
:LHL08
IC6008
PQ09RF21
9V-REG
C6021
1000p
250V
:RN-CP
D6002
UNREG 11V
L6005
C6052
220pF
B:1608
MUTE
R6009
R6059
2.2k
1/16W
:CHIP
Q6009
2SD601A
OCP
Q+9V
O
G
PGND
R6005
100
:RN-CP
VC2
OCP
C6048
100
16V
UNREG 11V
C6050
100
16V
FB6005
0UH
10
8
H
9
C6002
0.001
B:1608
P-GND
VC1
C6036
0.1
:PT
R6049
470
:RN:CP
Q6013
2SD601A
OCP
R6071
10k
1/4W
:CHIP
13
C6004
47
—
MA111
C6028
3300
16V
R6066
47k
:RN-CP
R6072
100
1/16W
:CHIP
R6057
1k
1/16W
:CHIP
R6058
10k
1/16W
:CHIP
VF-R
MUTE
VG(L)
SS
4
S
R6015
10k
:CHIP
D6027
I
Q+5V
L6003
12
7
C6005
2.2
D6004
UF4005
PUMP-UP
C6030
1
O
G
W-R
UNREG 11V
C6034
100
25V
VCC
TIMER
13
6
G
R6012
10
:FPRD
I
Q6012
2SB709A
OCP
R6070
2.2k
1/16W
:CHIP
FB6008
0UH
R6050
1.5k
:RN:CP
PGND
15
C6007
10
11
12
Q6001
2SK2876-F122
CONVERTER
C6008
0.1
100V
:PT
6
R6068
1k
1/16W
:CHIP
VCC
5
VB
GND
14
4
R6008
15k
:RN-CP
—
VS
10
R6017
22
3W
S
R6014
10k
:CHIP
1
RT
7
:CHIP
0 :CHIP
E
VG(H)
CT
R6011
10
:FPRD
C6016
680p
1kV
:R
D6014
D5SC4M
5V-RECT
1/16W
SGND
D6021
1SS133
PROTECT
9
1k
:CHIP
3
CN6012
1P TAB
Q6002
2SK2876-F122
CONVERTER
18
F/B.
C6006
0.001
:PP
VD
17
VSENSE
R6006
10k
:RN-CP
8
FB6009
0UH
R6029
1.0 :FPRD
T6002
:PIT
FB6001
0UH
R6010
1k
:FPRD
16
R6004
330k
:RN
R6003
330k
:RN
IC6001
MCZ3001D
DRIVER
C6003
0.01
50V
B:1608
1
R6001
330k
:RN
—
F
R6020
10
:FPRD
CN6501
2
E
FB6002
0UH
R6046
R6067
0.33
2W
5%/:RS
15k
TO D BOARD
C6001
1.0
450V
:PP
R6023
10
:FPRD
W-L
D6025
1SS133
PROTECT
R4482
R6002
0.47
1/2W
:RF
C6014
100
FB6007
0UH
D6026
1SS133
IC6004
PQ30RV31
5V-REG
16V
CN6003
6P
WHT
:VH
C6018
100
VF-L
H-R
R4479
6
Q6005
2SB709A
R6034
4.7k
1/16W
:CHIP
C6032
0.1
:PT
C6031
470
10V
:CC
5W
0.1
470
GND
D6011
D1NL20U
SUB-VCC-RECT
R6043
D6012
D1NL20U
MAIN-VCC-REG
C4486
5
Q+6.5V
0 :CHIP
PRI PRE 15V
FB6004
0UH
PRI PRE15V
4
H-L
:LHL10
R4481
3
NC
R6039
5W :CC
SGND
AC RECT-
2
L6004
0.1
:CHIP
NC
SP-R
R6042
4.7k
:CHIP
C6024
5600
10V
D6016
D10SC4M
6.5V RECT
SP-R
R6074
47k
FB6006
0UH
1
SP-L
LB-ERROR
R6073
2.2k
3.3k
AC RECT+
SP-L
Q6006
2SB709A
LOW B ERROR
C6027
1
L6002
—
SMODE
R6035
10k
:CHIP
:LHL10
D
IIC-1
1
TO F BOARD
—
H-L
STBY 5V
E
C
SMODE
CN6702
R6069
1/16W
—
H-R
TO F BOARD
CN6010
1P TAB
B
1
—
CN4402
15P
:B TO B
2
TO S CN4401
A
CN6503
KD-34XBR2
A
[TUNER, YUV-JUNGLE, SUB-POWER SUPPLY, AUDIO AMP]
COMPONENT SIDE
1
2
3
4
5
6
7
8
9
10
A
1
6
1
L6001
C6021
CN6003
8
A
1
K
FB6004
8
CN6001
R6048
CN3170
CN3171
8
1
D3113
10
1
CN3174
10
T P52
D3114
L6005
R6020
12
V CO MP IN
H C OMP I N
MAI N 12V
11
1
8
1
CN3173
TP5 1
CN3103
V DRV
H D RI VE
R6067
C6050
C6034
C6030
C6001
C6033
R6049
FB6002
D6033
Q6007
R6053
R6052
I
D6001
O
(172001111)
C6037
G
TP 92
B
IC6007
R6050
IC6004
R6006
I
R6055
C6047
G
O
1
O
G
I O
R6008
G
DIODE
T P98
D6004
C6032
D6010
D6005
TP9 3
1
R6044
YUV/J
8
TP 81
TU2001
R3118
D6016
D3108
C3113
R3112
R OU T
Q3106
C6016
Q6001
C6015
R6042
Q6004
C3124
C2005
Q2050
R3114
C3128
R3163
X3101
Q6006
R3151
E
E
R3142
CN3172
1
STB Y 5V
C4498
KE Y
CN4402
TP9 4
C4494
D4406
I
O
R4474
TIM ER LE D
1
C4489
O
I
2
R2036
R2028
C2033
C2030
C2036
R2038
C2024
AC R ELA Y
C2028
R2029
L2008
R2021
PR
TP 86
PB
TP 89
TP 84
Q4402
Q4401
C2027
DET O UT
Y
R4435
C4439
TP 85
D4404
Q4403
HP
MT ST ERE O
OSD R
LI NE MU TE
CN3020
R4471
P- ON
C2031
C2021
L4401
14
D4403
C4426
R4476
C2026
C2029
L2007
Q4406
REP EAT L ED
31
L3101
SDA
STB Y LED
G ND
6
21
15
11
Q2003
15
IC6002
C4482
GN D
C3116
C3155
Q3112
GN D
MA IN TU
L3103
R3160
E
TU2002
P- MUT E
VM
C3156
C3145
R2014
R2013
R2010
CN6016
IK
C3157
1
SI RCS
+ 12 V
+9V
R3140
L2003
E
R3145
D3111
CN6013
C2008
B -DR V
R3121
C3134
R6030
SUPPLY
C2002
E
T P87
R3182
C3127
C2014
C2010
R2006
G- DR V
B- OUT
C3117
R3115
D
C2007
R2015
C2011
C2009
D2001
E
R3131
C2018
C2001
R- DR V
T P88
R3104
5
31
R2005
C3153
POWER
15
11
6
R3113
Q3104
Q6002
R6017
21
SUB T U
1
Q3103
CN6005
E
B
D ET OU T
D3109
L3102
C6019
R6015
SU B 5V
S UB 9V
R6046
R6029
FB6005
D6006
E
B
C1
32
C2034
R2027
R2025
R2023
MOD E
B2 5
Q2006
32
C4487
C4485
K EY
G ND
C4496
DG C REL AY
T IME R LED
MA IN SW
PRO T/M UT E
A MA SK
A UDI O-M UT E
C4483
D4415
G
W -R -OU T
E
AUDIO
C4492
H- R- OUT
AMP
E
W -L -OU T
W-L
E
TP1 03
C4499
H -R
R4487
H- L- OUT
R4493
C4479
E
C4490
H
R4469
R4479
TP 104
H -L
Q4404
C4488
R4466
R4480
C4502
C4486
C4484
R6033
C4480
1 5V
TP 99
1
Q4409
CN6002
Q4405
R4456
CN6018
T P1 02
8
C4481
I
DG C-R LY
SU B +12 V
S TBY 1 5V
A1
A2 5
SP MUT E
S UB 7V
SET ON
STB Y 5 V
R4470
C4477
D6035
P -S W(- )
A1
ST -CV
B1
C4478
D6036
S UB 3. 3V
TP 95
10
C6010
D6032
D6031
D6026
C6002
18
C6044
A BOARD LOCATOR LIST
(COMPONENT SIDE)
C6043
D2058
9
IC6001
C
O
D6030
G
I
R6061
FB6008
L6004
R6010
IC6006
3 3V
R6060
I
IC6008
F
IC6005
C6049
1-681-828-11
C6048
R6054
S TB Y 7 V
— 73 —
CN3022
MT MO NO
D2007
D2008
D2054
D2055
D2056
D2057
D2058
D2059
D3109
D3111
D3112
D3113
D3114
D4403
D4406
D4410
D4413
D4416
D6002
D6004
D6016
D6018
D6019
D6021
D6026
D6030
D6031
D6032
D6034
D6036
F-1
F-1
D-4
D-4
D-4
B-7
B-7
B-8
C-8
D-6
C-7
A-8
A-8
E-4
E-3
H-2
G-2
G-1
C-2
C-2
C-4
C-4
H-2
C-4
B-6
B-9
B-10
B-11
A-3
F-1
TRANSISTOR
Q2001
Q2002
Q2003
Q2004
Q2005
Q2006
Q2050
Q2053
Q3103
Q3105
Q3106
Q3112
Q3180
Q4401
Q4402
Q4403
Q4404
Q4405
Q4406
Q4407
Q4408
Q4409
Q4410
Q4411
Q6001
Q6002
Q6004
Q6005
Q6006
Q6007
Q6008
C-10
D-11
E-9
E-10
E-10
F-1
D-4
D-4
C-7
D-5
D-6
E-5
D-6
F-9
F-9
F-3
H-3
I-3
F-4
F-3
H-3
H-3
F-3
E-3
D-2
C-1
D-4
C-5
D-4
B-6
B-6
KD-34XBR2
A
[TUNER, YUV-JUNGLE, SUB-POWER SUPPLY, AUDIO AMP]
CONDUCTOR SIDE
1
2
3
4
5
6
7
8
9
10
11
12
AC DE T
S UB +1 2V
S TB Y 7 V
DGC -RL Y
ST BY 15 V
E
E
E
R4483
11
AUDIO
C4495
10
G- DR V
R- DR V
C2014
1
6
11
15
21
31
CN6017
D3105
R3167
C3105
R3111
R3105
R3102
C3101
D3107
33V
D3104
C3120
GND
C3111
9V
D3102
D3106
TP 93
C6046
DE T O UT
TP9 8
D3112
C6040
C2055
O
I
G
C6049
C6035
TP9 2
33V
I
Q6010
O
G
I
IC6006
O
G
IC6005
CN6011
V FBP
E
HP IN
SCP
E
CLK1/S CLK
B-INT
CN3103
DAT1/S DAT
H DRV
H CENT
E
H COMP IN
V COMP IN
E
V PROT
C2003
B
R
CN3174
H PROT
R6063
R6064
ABL S
V TIM
N/S
V DRV-
V DRV+
V PIN
E
EW DRV
DF PARA
CN3171
C3172
M PIN
CLK0/B CLK
PROT1
D3114
D3113
E
R3184
NVM5V
E
R3170
R3171
Q3171
C3170
R3175
C3171
Q3170
+B OVP
Q3172
L6001
IC6007
C6048
R6054
Q3173
NO RMA L
E
8
E
1
E
33V
E
E
E
M AIN 9V
AC R LY
SU B 3.3 V
8
1
10
MA IN RL Y
— 74 —
1
10
GND
D2050
D2051
D2052
D2053
D3103
D3105
D3106
D4404
D4409
D4411
D4412
D4414
D4415
D6011
D6012
D6013
D6014
D6015
D6017
D6020
D6022
D6023
D6024
D6025
D6027
D6035
D-9
D-9
D-6
F-4
F-7
G-7
G-7
D-4
B-3
D-3
D-2
E-2
C-1
I-2
I-2
I-1
H-4
F-3
A-1
F-4
A-1
A-2
F-4
H-5
H-5
D-1
IC
IC3101
A-1299- 501-A
DAT0/B DAT
Q6013
SU B 5 V
D6031
D6030
Q6011
Q6009
D6033
C6050
CN3170
T P8 1
TP 95
C6051
D6032
R6059
R6058
+B OCP
R6070
R6069
SUB TU
SUB 9 V
C6041
C6036
C6039
G
R3174
Q6012
TU2001
D3109
CN6005
R6051
C6030
R6071
L6005
A
MA IN 5V
CN6015
C2002
E
1
Q3101
C2006
C3102
1
8
S TBY 5V
MAI N 1 2V
CN6009
C2017
C2016
L2004
L2001
L2002
Q3107
R3120
C3110
R3169
C2008
C2007
E
R3107
C3104
D3103
B- DR V
M AIN TU
CN6016
L2003
E
R3168
R3110
R3108
+ 12V
(172001111)
O
I
CN6014
C2038
3
R3122
1
R3183
TP8 8 R3114
C6042
R3173
FB6009
D6034
R6023
D6012
PRI P RE 15V
C6018
GND
AC RE CT-
NC
NC
AC RE CT+
BDAT
GND
B-INT
MT-L
MT-CV
C2037
R RESET
ST-L
MT-R
ST-CV
ST-R
ST HSYNC
MT HSYNC
ST MONO
ST STEREO
ST AFT
MODE
SDAT
OFF-MUTE
FIX/VAR L
FIX/VAR R
MT STEREO
L2008
31
R3172
I
WP
GND
GND
GND
GND
GND
GND
GND
GND
GND
SAP S
GND
SAP M
SCLK
GND
MT AFT
GND
GND
GND
R
L
D2051
LINE MUTE
AGC ATT
21
TU2002
IK
1-681-828-11
IC6004
R6068 D6027
CN6001
15
11
D6026
C6034
R6038
IC6003
D2050
L2006
L2005
C2023
C2025
YUV/J
CN3101
SMODE
+3.3V
+3.3V
+9V
+5V
+9V
+5V
GND
ISTBY SW
OSD YSYM
OSD R
OSD B
OSD G
VM MOD
V MNO Y
V MNO PR
V MNO HS
V MNO VS
V MNO PB
VP
R O UT
C6031
L6003
C6028
C6025
R6067
K
R6048
6
P-M UT E
Q3102
R3101
C3107
I
E
R6047
C2036
C2030
IC6008
D6025
C6026
R6072
WP
C6021
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
R3180
Q3108
R3152
C3139
C3138
C3118
C3112
C3122
C3123
C3109
5V
GND
GND
6.5V
6.5V
C3103
8
O
D6014
1
PH6001
R6022
9
R6040
2
R6028
R6027
3
8
R6020
FB6004
4
D6011
T P84
1
C3106
R3119
1
G
C6029
R6018
C6014
FB6002
DET OU T
CN3022
C2024
R3109
FB6008
L2007
C2028
L6004
R6045
R6041
B1
BC LK
ST BY 5V
R3106
C6009
C6007
B -OU T
L3102
C6005
C6006
D6001
L6002
HP
A PROT
C3140
C3146
.
1
.
R3125
C3114
Q3110
R6039
C6024
R6043
R6044
R6019
R6004
R6001
C6004
6
CN6003
1
C3149
.
.
.
D2053
D6021
C3153
R3165
C6032
C6001
R3121
T P87
16
T6002
1
64
C3133
C3130
C3129
+9V
R3155
R6029
10
9
A1
A25
E
C3108
Q3181
52
D6016
D6004
1
P-MUTE
LB ERROR
SDA
DH MUTE
+B OCP
AC RELAY
STBY 5V
E
VF-R
SCL
SIRCS
VF-L
R3161
C3152
C3150
C3151
.
C3136
D6018
D6007
FB6005
R6012
D6005
D6010
D6006
R6011
FB6006
C6019
18
R6003
R6002
H
E
FB6001
FB6003
IC6001
R6010
C6008
B
Q6002
FB6007
R6016
E
Q6001
MT MO NO
L3101
C3115
E
R3157
R3150
. R3137
C3141
R3162
R6017
B
S P M UT E
VM
C3137
.
C3142
R3153
R3144
19
51
G
C3116
C3145
20
R3154
C6015
C6016
GND
GND
KEY
P ON
GND
ISTBY LED
STBY/ST LED
SP-L
SUB 9V
SP-R
W-R
W-L
32
R3164
33
Q3111
C2050
C6027
D6024
D6015
C3148
L3103
CN3102
C3126
HOT
F
E
H-L
C6020
C6017
C3156
L4401
IC3101
X3101
SUPPLY
POWER
R3178
R3177
12
D6020
CN3172
1
R2052
S TB Y 5 V
CN6013
5
R2053
15
C3147
R4477
CN4402
R2050
C2051 R2051
14
1
.
11
D2052
C2052
2
TP 94
COLD
DGC-MUTE
DH-MUTE
E
MAIN 5V
MAIN 9V
I
C4462
D4414
R4484
C4505
1
E
O
SMODE
C4439
C4482
A UD IO- MUT E
A1
I
O
K EY
G ND
A MAS K
C1
D4404
C3160
GN D
CN3020
IC6002
D4411
D4412
T IM ER LED
GND
32
E
C4489
IC4406
ST BY LE D
CN2001
C4478
C4487
R4488
RE PEA T L ED
GND
B25
2
1
MA IN SW
P ROT /M UTE
T IM ER LED
DGC R ELA Y
+B O VP
32
C4426
C4506
C2039
S IR CS
STBY +5V
R4490
P SW (+)
C4493
12
P S W ( -)
H-R
C4496
C4485
1
P- SW( -)
GND
C4483
C4500
SU B 7 V
D6035
G ND
DIODE
C4504
D6036
C4477
CN4403
A UDI O GND
D4415
SE T O N
A BOARD LOCATOR LIST
(CONDUCTOR SIDE)
CN6012
8
AU DIO 24 V
A UDI O 24V
D4416
AUDIO GND
AUDIO PROT
C4492
AMP
1
W -R- OU T
P- ON
D
CN6010
C4503
E
C4499
12
H-R-OUT
R4494
W-L-OUT
E
R4473
R4487
T P10 3
E
TP 101
C4479
H -R
C4491
R4491
R4493
C4488
D4409
R4492
R4489
C4501
C4486
W-L
C
1
C6023
D6017
CN4404
8
E
W-R
C4484
2
H- L
CL6001
CN6018
C4480
Q6003
T P10 4
H- L-O UT
TP 102
C4481
C4502
D6023
R6037
R6026
R6025
D6022
C6022
R6024
CN6002
IC4405
A
B
CL6002
8
1
1
8
1
CN3173
E-5
IC4405
IC4406
IC6001
IC6002
IC6003
IC6004
IC6005
IC6006
IC6007
IC6008
B-2
D-3
G-1
E-4
I-3
H-6
H-11
H-10
H-9
H-7
TRANSISTOR
Q3101
Q3102
Q3107
Q3108
Q3110
Q3111
Q3170
Q3171
Q3172
Q3173
Q3181
Q6003
Q6009
Q6010
Q6011
Q6012
Q6013
F-8
F-8
F-7
F-6
F-5
E-5
I-6
I-6
I-6
I-6
F-6
A-2
H-7
H-9
H-9
I-4
H-6
KD-34XBR2
A BOARD IC VOLTAGE LIST (1 OF 2)
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
IC3101
pin
volt
1
GND
2
0.0
3
GND
4
3.1
5
3.1
6
3.1
7
0.0
8
3.6
9
3.6
10
3.6
11
0.0
12
0.5
13
0.5
2.3
3.7
2.7
2.6
1.1
4.9
3.6
3.4
3.4
GND
N/C
4.6
4.6
0.7
0.0
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
5.0
5.6
1.3
3.0
1.6
0.0
0.0
0.2
0.0
3.2
1.1
2.8
GND
0.0
3.8
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
GND
2.8
3.6
3.9
4.4
5.4
3.5
3.8
3.4
3.5
1.0
9.0
1.0
4.3
3.9
59
60
61
62
63
64
1.7
1.7
9.0
2.3
2.5
2.3
All voltages are in V.
A BOARD TRANSISTOR VOLTAGE LIST (1 OF 2)
Q2001
Q2002
Q2003
Q2004
Q2005
Q2006
Q2050
Q2053
Q3101
Q3102
Q3103
Q3105
B
4.3
4.5
0.1
4.6
6.2
0.6
0.0
0.0
2.3
2.5
0.6
4.5
C
9.0
0
7.5
1.1
9.0
11.2
0.3
0.4
GND
GND
0.0
GND
E
3.6
5.0
GND
5.0
5.5
14.6
0.0
0.0
3.2
3.2
0.0
3.9
Q3106
Q3107
Q3108
Q3110
Q3111
Q3112
Q3170
Q3171
Q3172
Q3173
Q3180
Q3181
B
4.4
2.0
2.2
2.8
0
5.6
0.0
0.0
0.0
0.0
2.0
2.0
C
8.7
GND
GND
11.5
0
9.0
0.0
0.0
0.0
0.0
GND
GND
E
3.9
3.2
3.2
0.0
GND
5.0
GND
0.0
0.0
GND
7.6
7.6
All voltages are in V.
— 75 —
KD-34XBR2
A BOARD IC VOLTAGE LIST (2 OF 2)
IC4405
pin
volt
1
1.5
2
0.0
3
0.0
4
0.0
5
1.5
6
8.0
7
11.1
8
5.0
9
23.8
10
0.0
11
4.1
12
10.8
IC4406
pin
volt
1
1.5
2
0.0
3
0.0
4
0.0
5
1.5
6
8.0
7
11.1
8
5.0
9
23.8
10
0.0
11
4.1
12
10.8
IC6001
pin
volt
1
3.3
2
1.8
3
2.2
4
2.5
5
GND
6
0.0
7
4.6
8
17.3
9
0.0
10
10.4
11
GND
12
4.7
13
N/C
14
160.6
15
150.4
16
154.6
17
N/C
18
303.1
IC6002
pin
volt
1
7.3
2
GND
3
2.5
IC6003
pin
volt
1
5.7
2
GND
3
3.3
IC6004
pin
volt
1
6.0
2
GND
3
5.1
IC6005
pin
volt
1
6.3
2
3.3
3
GND
4
5.0
IC6006
pin
volt
1
6.3
2
5.0
3
GND
IC6007
pin
volt
1
6.3
2
GND
3
5.0
IC6008
pin
volt
1
9.9
2
9.0
3
GND
4
2.1
All voltages are in V.
A BOARD TRANSISTOR VOLTAGE LIST (2 OF 2)
Q4401
Q4402
Q4403
Q4404
Q4405
Q4406
Q4407
Q4408
Q4409
Q4410
Q4411
Q6001
B
0.7
0.7
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
0.0
-147.8
C
0.0
0.0
8.9
0.0
0.0
8.0
0.0
4.1
0.0
0.0
0.0
-1.3
E
GND
GND
-0.2
GND
GND
GND
GND
GND
GND
GND
GND
-152.2
Q6002
Q6003
Q6004
Q6005
Q6006
Q6007
Q6008
Q6009
Q6010
Q6011
Q6012
Q6013
B
2.6
0.2
0.0
6.2
5.0
9.9
0.1
9.9
0.0
5.0
6.1
0.0
C
151.8
0.0
5.0
-0.2
0.0
0.0
5.0
2.1
5.0
0.0
0.0
2.0
E
-1.5
0.0
GND
6.3
5.0
10.2
GND
GND
GND
GND
6.3
GND
All voltages are in V.
— 76 —
KD-34XBR2
B BOARD SCHEMATIC DIAGRAM (1 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
R
GND
3
4
L
GND
1
GND
5
DMIX_R
R
C_Y1
C_PB 1
C_PR1
TO P2
B
COMPONENT2
C_Y2
G
62
C_PB 2
61
60
F:1608
C104
0.1
25V
R111
220
1/16W
58
59
F:1608
25V
V_ OUT
:CHIP
1/16W
C107
10V B:1608
R
:RN-CP
:RN-CP
1/16W
C106
25V F:1608
C_PR 2
:CHIP
1/16W
0.1
L_OU T
R_OU T
R117
1M
1/16W
:CHIP
FV _R
C110
0.1
16V
B:1608
R119
1/16W
:CHIP
C130
220p
CH
1608
L1
+5V
3D +5V
R3
L101
L100
Q101
2SB709A
SW
220k
R122
1/16W
R4
47k
R125
1/16W
80
79
78
77
76
75
74
73
72
CVDD
56
G_OUT4
FIL
55
G_OUT5
CVSS
54
G_OUT6
VIN
10k
R137
R142
16V
0.1
C118
C119
25V
0.1
GND
A3
C1
C3
GND
A4
V3
C4
GND
A5
Y3
C5
GND
A6
C3
C6
GND
A7
SW3
C7
GND
A8
V4
C8
GND
A9
Y4
C9
GND
A10
C4
C10
GND
A11
SW4
C11
GND
A12
C_Y1
C12
GND
A13
C_PB1
C13
GND
A14
C_PR1
C14
GND
A15
C_Y2
C15
GND
A16
C_PB2
C16
GND
A17
C_PR2
C17
GND
A18
V_OUT
C18
GND
A19
L_OUT
C19
GND
A20
R_OUT
A21
A22
C_L2
R131
0
1/16W
:CHIP
R133
10k
1/16W
:CHIP
Q107
2SD601A
SW
TO P2
MCCD_IN
TO P2
GND
FIX/VAR_L
GND
FIX/VAR_R
GND
A23
R1
C23
L1
A24
GND
C24
R3
A25
L3
C25
GND
A26
R4
C26
L4
A27
GND
C27
C_R1
A28
C_L1
C28
GND
A29
C_R2
C29
C_L2
A30
GND
C30
GND
A31
S_IN
C31
S_OUT
A32
GND
C32
B BOARD WAVEFORMS
1
GND
CN003
64P
:B TO B-P
TO U MO UNT
2
0.6 Vp-p (H)
4
3
1.5 Vp-p (H)
0.6 Vp-p (H)
5
6
CN4001
1.4 Vp-p (V)
1.5 Vp-p (H)
8
7
1.5 Vp-p (H)
9
MAI N_V
R139
47k
1/16W
:CHIP
1/16W
10k
:CHIP
:CHIP
R143
220
R144
220
1/16W
0.1
16V
220
1/16W
1/16W
:CHIP
TO P2
G
+5V
TO P3
10
3D+5V
3.5 Vp-p (H)
1.3 Vp-p (H)
1.1 Vp-p (H)
B
F:1608
R145
11
12
B:1608
:CHIP
R
59
58
Y1
C2
B:1608
C120
R146
3.3k
R149
:CHIP
3.9k
1/16W
1k
R148
0.1
C124
10V
0.47
:RN-CP
1/16W
:RN-CP
L102
C122
100
16V
C123
25V F:1608
3.3 Vp-p (V)
:LB2016
13
R152
2.2k
1/16W
:CHIP
Q108
2SB709A
BUFFER
C128
100
16V
1.5 Vp-p (H)
1.1 Vp-p (H)
B:1608
R151
1M
1/16W
:CHIP
15
14
C127
0.1
16V
B:1608
MAIN_Y
3.4 Vp-p (H)
1.1 Vp-p (H)
R153
1.8k :CHIP
R155
10k
1/16W
:CHIP
X101
10MHz
+9V
:CHIP
1/16W
R138
47k
1/16W
:CHIP
Q518
2SD601A
INV.
C126
0.1
25V
F:1608
C129
0.1
25V
F:1608
C_R2
MAI N_H
57
52
ID-1
50 CCD1
49 XDS
48 VCHIP
47 ADDR2
46 ADDR1
45 ADDR0
44 VDD
43 EXTAL
42 XTAL
41 VSS
40 XRES(XRES)
39 VSS
38
37
36
DEMO
51
DAIREF
R132
100k
1/16W
:CHIP
MAIN_CCD
R585
2.2k
1/16W
:CHIP
R136
4.7k
1/16W
:CHIP
71
G_OUT3
DAVRF
34
Q517
2SD601A
INV.
70
63
62
G_OUT2
R_OUT
A2
YS
60
G_OUT1
53
VG
VDD1
BLOCK STATUS
C_L1
Q103
2SB709A
SW
Q105
2SD601A
BUFF
R135
100k
1/16W
:CHIP
D204
DAN202K
:CHIP
C_R1
R126
100k
1/16W
:CHIP
Q106
2SD601A
INV
R559
10k
1/16W
:CHIP
61
DAVD
L4
Q104
2SB709A
SW
R130
10k
1/16W
:CHIP
R134
220k
1/16W
:CHIP
69
68
DAVS
G_OUT
TO P3
C114
0.1
16V
B:1608
D100
DAN202K
C115
0.1
25V
F:1608
R584
2.2k
1/16W
:CHIP
ST BY+5V
:CHIP
COMPONENT_LR
R123
2.2k
1/16W
:CHIP
64
B_OUT
L3
:LB2016
:LB2016
81
82
83
AVDD
AVREF
84
G_IN0
85
G_IN1
86
88
PWE
G_IN2
89
VDD
87
90
VSS
G_IN3
91
G_IN4
92
VB
GND
C22
R1
SU B_Y
AVSS
67
VREF
TESTC/VSYNC0
66
19
VSS
HSYNC0
V1
C1
C21
R118
2.2k
:CHIP
R558
10k
1/16W
:CHIP
A1
C20
FV_L
65
18
SCL2
OSD_VS(VSYNC1)
MAIN CCD/VCHIP/ID1
SEL_R
L
DMIX_L
:CHIP
1/16W
1.2k
68
67
66
65
R578
80
79
78
77
76
75
74
73
72
71
70
69
64
63
COMPONENT1
D203
DAP202K
:CHIP
1/16W
57
56
55
54
53
52
51
50 CCD1
49 XDS
48 VCHIP
47 ADDR2
46 ADDR1
45 ADDR0
44 VDD
43 EXTAL
42 XTAL
41 VSS
40 XRES(XRES)
SEL_L
81
AVSS
82
83
AVDD
AVREF
85
86
84
G_IN0
G_IN1
88
87
89
PWE
G_IN2
90
VDD
G_IN3
91
VSS
92
93
G_IN4
G_IN5
95
96
94
G_IN6
G_IN7
HS0
97
COUNT_HS(HS1)
98
99
100
1
2
3
4
5
6
7
8
10
11
1
2
3
4
5
6
7
A2
2
GND
DMIX_R
4
DMIX_L
3
SUB_OSD
1
2
GND
11
GND
FR_V_IN
9
10
V2
GND
FR_L_IN
7
8
L2
GND
FR_Y_IN
5
6
Y2
GND
FR_R_IN
3
4
R2
SW2
SW2
FR_C_IN
1
A_PROT
A_PROT
S_MUTE
LB_ERR
+B_OCP
+B_OVP
9
10
17
SDA2
20
11
11
12
13
14
15
16
SCL1(FTXD)
STBT +5V
SDAT
C131
220p
CH
1608
16
17
3.4 Vp-p (V)
18
L103
:LB2016
+9V
+9V
+9V
TO P2
AVSW+9V
TO P3
SCLK
B11
MT_HSYNC
SDAT
— 77 —
0.5 Vp-p (H)
BCLK
BDAT
WP
0.6 Vp-p (H)
MICRO (MAIN,CCD)
TO P3
MT_L
B1
A1
WP
BCLK
B2
A2
BDAT
STBY+5V
B3
A3
GND
/BINT
A4
GND
B4
/A_RESET
A5
GND
B5
MT_L
21
20
22
A6
B6
22
GND
MT_R
B7
MT_R
GND
A8
ST_L
B8
ST_L
A9
GND
ST_CV
B9
ST_CV
A10
GND
B10
ST_R
A11
GND
B11
ST_HSYNC
B12
A12
GND
ST_FMONO
A13
B13
/ST_STR
/ST_SAP
B14
A14
GND
MT_HSYNC
A15
B15
MODE
MT_FMONO
A16
B16
/MT_STR
/MT_SAP
B17
A17
GND
ST_AFT
A18
MT_AFT
B18
A19
GND
AGC_ATT
A20
B19
SDAT
SCLK
B20
OFF_MUTE
B21
A21
GND
A22
GND
ST_R
FV_R
TUNER
R
FIX/VAR_R
/BINT
/A_RESET
ST_HSYNC
ST_FMONO
/ST_SAP
/ST_STR
MT_HSYNC
MODE
MT_FMONO
/MT_STR
/MT_SAP
ST_AFT
19
21
5.0 Vp-p (H)
STBT +5V
3D+3.3V
MT_AFT
SCLK
AGC_ATT
BCLK
BDAT
WP
FV_L
B22
B23
A23
L
GND
SEL_R
A24
GND
B24
A25
R
FIX/VAR_L
CN 3020
SEL_L
TO A BOARD
F_SP_MUTE
B25
L
LINE_MUTE
A1
A_MUTE
C1
S_MODE
C2
A2
GND
SUB+3.3V
C3
A3
GND
A4
GND
SUB+3.3V
C4
SUB+9V
C5
A5
GND
SUB+9V
C6
A6
GND
A7
GND
SUB+5V
C7
A8
GND
SUB+5V
C8
ISTBY_SW
C9
A9
GND
MODEL
A10
GND
C10
OSD_YSYM
C11
A11
GND
OSD_B
C12
A12
GND
OSD_G
A13
GND
CN001
64P
:B TO B-P
SEL_R
SEL_L
STBY+5V
F_SP_MUTE
LINE_MUTE
A_MUTE
S_MODE
ISTBY_SW
MODEL
A_MASK
SYNCSW+3.3V
C13
19
5.3 Vp-p (V)
+5V
20
A14
C17
18
V_MNO_PR
A18
C18
A19
GND
V_MNO_HS
C19
V_MNO_VS
A20
GND
A21
C20
HP
GND
C21
VP
C22
A22
GND
PIC_MUTE
A23
C23
A_PROT
PROT_MUTE
C24
A24
GND
LB_ERR
A25
+B_OVP
A26
C25
+B_OCP
MAIN_SW
C26
A27
GND
AC_RLY
C27
A28
DGC_RLY
DH_MUTE
17
OSD_R
HP
VP
PIC_MUTE
A_PROT
PROT_MUTE
LB_ERR
+B_OCP
+B_OVP
MAIN_SW
AC_RLY
DGC_RLY
KEY
C28
A29
KEY
STBY+5V
C29
SIRCS
C30
A30
TIMER_LED
STBY/ST_LED
C31
A31
GND
A32
P_ON
ISTBY_LED
C32
16
GND
Y
PR
GND
—
TIMER_LED
STBY/ST_LED
ISTBY_LED
P_ON
O
ST_HSYNC
+3.3V
PB
MT_CV
15
C2
ONOFF_MUTE
9
10
FIX_MUTE
S_MUTE
6
7
8
C_MUTE
F_MUTE
GND
4
5
GND
SCLK
3
1
2
MID_BUSY
TXD
P_ON
STBY/ST_LED
:CHIP
1/16W
470
R004
9
39 VSS
IO_BDAT
31
IO_BCLK
O_YS
IO_SCLK
NC
NC
NC
NC
O_OSD_OSC
I_HSYNC_M
I_OSD_OSC
/BINT
SDA1(FRXD)
MT_CV
A11
SCL0
IC101
CXP961064
R154
0
1/16W
:CHIP
AGC_ATT
/BINT
A _MASK
A10
0.1
TO P2
A MASK
EXT_SCL
OSD_HS(HSYNC1)
TXD
SDA0
X STATUS
B9
B10
R147
10k
1/16W
:CHIP
SDAT
TO P2
VSS
V_DRCI _VS
VM_MOD
GND
3D_SDAT
R557
:CHIP
1/16W
C14
EXT_SDA
SCLK
TO P2
TO P3
RXD
DOTCK
A7
A9
DYS
TESTB
R092
220
1/16W
:CHIP
MN_SB_SW
V_DRCI _HS
YS
GND
B8
MN_SB_SW
A_MSK
V_DRCI _PR
14
A8
V_DRCI_VS
C034
0.1
25V
F:1608
13
A7
B7
YM
33
B6
47
V_DRCI _PB
VM_MOD
V_DRCI_HS
12
C15
GND
V _DRCI_Y
A6
3D_SCLK
Q013
2SD601A
BUFF
V_ MIDI_VS
A5
B5
11
A15
V_DRCI_PR
10
GND
GND
V_ MIDI_HS
C121
0.1
25V
F:1608
R091
220
1/16W
:CHIP
V_MNO_Y
GND
V_DRCI_PB
C031
0.1
25V
F:1608
TO P2
V_ MIDI_PR
A16
V_DRCI_Y
A4
B4
V_ MIDI_PB
GND
GND
V_MIDI_VS
TO P3
R556
47
:CHIP
V_DRCI
DR0
32
B3
C030
100
16V
V_MI DI_Y
9
DG1
DG0
DR1
31
V_MIDI_HS
R141
100
1/16W
:CHIP
Q011
2SD601A
BUFF
7
8
SIRCS
29
A3
TESTA
30
B2
V_MIDI_PR
4
DB0
21
C029
0.1
25V
F:1608
C16
GND
A2
3
DB1
22
9
L005
TO P2
R555
47
:CHIP
R090
220
1/16W
:CHIP
A17
V_MIDI_PB
2
Q009
2SD601A
BUFF
6
A1
1
R140
100
1/16W
:CHIP
:LB2016
B1
5
23
3Y
TO P2
R579
1.2k
1/16W
:CHIP
R577
1.2k
1/16W
:CHIP
C117
0.1
25V
F:1608
24
10
GND
SW4
SU B_V
C113
100
16V
25
3B
A_THR
220
C103
0.47
C111
100
16V
26
RXD_5
TO P3
GND
GND
6
STBY +5V
3A
R110
R120
10k
1/16W
:CHIP
8
16
15
14
RXD_3.3
V_MNO_PB
V_MIDI_Y
7
IC004
M24C32-WMN6T(A)
NVM1
A_ VS
TO QM BOARD
CN80 01
NC
VCC
PR
A_ PR
TO P2
SU B_H
Q100
2SB709A
27
V_MIDI
8
A_ HS
12
5
RXD_3.3
VS_OUT
6
D_VS
7
4
A_VS
8
HS_OUT
ST
+9V
K
D_HS
VCC
SCCD_IN
C4
:CHIP
1/16W
220
F:1608
25V
0.1
C102
R109
R105
47k
1/16W
:CHIP
:CHIP
1/16W
10k
R108
R104
47k
1/16W
:CHIP
Q520
2SD601A
INV.
C109
0.1
25V
F:1608
13
1
A_HS
3
SEL
2
A_PR
—
CN005
22P
BLK
:PHD
R589
100
1/16W
:CHIP
G_IN5
16
PB
C028
25V F:1608
ID-1
28
0.1
DEMO
C116
0.1
25V
F:1608
R084
100
1/16W
:CHIP
C025
0.1
25V
F:1608
R082
330
1/16W
:CHIP
TO P2
R124
220k
1/16W
:CHIP
R083
100
1/16W
:CHIP
R085
47k
1/16W
:CHIP
R076
680
1/16W
:CHIP
Q006
2SD601A
BUFF
R079
100
1/16W
:CHIP
SUB_CCD
Q102
2SD601A
BUFF
Y
IC006
TC74HCT157AF
SYNC SW
Q519
2SD601A
INV.
:CHIP
+3.3V
GND
RXD
R576
2.2k
1/16W
:CHIP
R102
4.7k
1/16W
:CHIP
1.8k
C112
0.1
25V
F:1608
R103
1/16W
C035
5p
CH:CHIP
IC003
PST9143NL
RESET
/HD_PA SS
TXD
O_YM
I_OSC
3
I_HSYNC_S
VSS
OUT
2
VIN
R121
0
1/16W
:CHIP
Y4
R086
3.9k
1/16W
:CHIP
C020
0.1
25V
F:1608
Q005
2SD601A
BUFF
G_OUT6
X100
10MHz
C3
YS
R055
100
1/16W
:CHIP
R071
10k
1/16W
:CHIP
R070
10k
1/16W
:CHIP
R072
1k
1/16W
:CHIP
C022
22p
CH:1608
A_PB
1
R066
100
1/16W
:CHIP
A1
B11
C015
0.1
25V
F:1608
VCC
2
4
D _PR
X003
CSTCW2500MXW01
25MHz
CVSS
93
:CHIP
G ND
A _PR
R054
4.7k
1/16W
:CHIP
Y3
V4
10k
3.3k
G_OUT5
G_IN6
R158
1/16W
C ONT
A_PB
30
TO P 3
D202
DAP202K
R586
2.2k
:CHIP
1k
FIL
94
100
A _PB
29
D201
DAN202K
R115
CVDD
G_IN7
:CHIP
C ONT
C024
0.1
25V
F:1608
28
LR
R561
10k
1/16W
:CHIP
R114
G_OUT4
95
100
PR
P B_OUT
P R_OUT
V CC
27
R069
4.7k
1/16W
:CHIP
C037
22p
CH
:CHIP
4
26
R065
100
1/16W
:CHIP
R064
100
1/16W
:CHIP
R068
0
:CHIP
X001
10MHz
5
25
DAVRF
DAIREF
G_OUT3
HS0
:CHIP
R157
1/16W
G ND
G ND
D _PB
24
R560
10k
1/16W
:CHIP
3.9k
G_OUT1
35
R089
:CHIP
1/16W
R078
1k
1/16W
:CHIP
R156
100 1/16W
Y _OUT
23
R063
47k
:CHIP
R074
10k
1/16W
:CHIP
A_Y
22
A0
M16C_RXD
21
R051
10k
1/16W
:CHIP
M16C B
47
R088
:CHIP
1/16W
PB
:CHIP
1/16W
C ONT
3
1
47
R087
:CHIP
1/16W
Y
5
47
B10
A11
20
C036
22p
CH
:CHIP
A10
M16C_TXD
19
M16C G
B9
18
M16C R
GND
17
GND
A9
16
GND
OSD_B
15
NC
B8
1k
R077
5
R075
:CHIP
1/16W
1k
10
A8
GND
14
STBT +5V
A_Y
9
OSD_G
V_MNO_Y
4
A _Y
6
B7
13
R062
0
:CHIP
:LB2016
D _Y
7
A7
GND
12
R060
100
1/16W
:CHIP
L003
V_MNO_PB
C019
22 16V
3
B5
OSD_R
11
31
:CHIP
1/16W
V3
SEL_R
SW3
R112
G_OUT2
96
V_MNO_PR
C018
22 16V
A5
B6
10
100
VG
R_OUT
COUNT_HS(HS1)
IC002
M52055FP
VIDEO SW
15
B4
V_MNO_VS
9
C011
0.1
25V
F:1608
16V
14
2
B3
A6
8
BOX_R ST
22
A4
V_MNO_HS
7
O_OSC
6
IO_SDAT
R046
VDD
MID _BUSY
C014
13
A3
:LB2016
12
V_MNO_PR
+9V
1
11
A2
GND
5
C010
100
16V
L001
B1
B2
GND
4
R059
100
:CHIP
MID_BUSY
V_MNO_PB
3
O_SUB_OSC
2
NC
1
NC
C009
0.1
25V
F:1608
O_AGC_ATT
(NOT USED)
O_VM_MOD
100 I_CVIN
I_RESET
32
I_SUB_OSC
O_R
CNVSS
99 AVCC
I_SIRCS
33
BYTE
O_G
(NOT USED)
98 (NOT USED)TBSETB
I_HLF
34
BLOCK STATUS
DAVD
38
35
O_B
VDD1
G_OUT
37
O_TXD
97 I_OSD_H
VSS
VREF
36
96 AVSS
R113
10k
1/16W
:CHIP
DAVS
35
36
R053
10k
1/16W
:CHIP
A1
37
I_RXD
I_VHOLD
(NOT USED)
R048
100
1/16W
:CHIP
O_DHMUTE
R044
220k
1/16W
:CHIP
R041
10k
1/16W
:CHIP
38
95 I_OSD_V
C105
0.1
25V
F:1608
:CHIP
100
39
NC
94 I_KEY
R039
B_OUT
SCL2
VB
34
:CHIP
40
SDA2
HSYNC0
TESTC/VSYNC0
97
1/16W
O_GRANT
93 I_AFT_M
41
SCL1(FTXD)
98
100
NC
SDA1(FRXD)
OSD_VS(VSYNC1)
SUB CCD/VCHIP/ID1
33
I_BINT
92 I_AFT_S
C006
0.1
25V
F:1608
42
SCL0
IC100
CXP961064
99
R045
R047
4.7k
1/16W
:RN-CP
43
SDA0
32
I_LB_ERR
I_MID_BUSY
R107
100
1/16W
:CHIP
12
44
C004
0.1
25V
F:1608
OSD_HS(HSYNC1)
TXD
13
45
I_OCP
F:1608
1 10V
VSS
14
I_OVP
87 O_A_MUTE
C005
DOTCK
15
46
RXD
16
I_MPWR_SW
:CHIP
1/16W
100
R034
TESTB
17
47
R106
100
1/16W
:CHIP
C003
0.1
25V
F:1608
YS
DYS
18
O_NVM_WP
RXD
C_MUTE
48
IC001
M306V2ME-154FP
MAIN MICRO
TIMER_LED
ISTBY_LED
/A_RESET
:CHIP
1/16W
100
R025
O_A_RST
O_HD_PASS
I_XSTATUS
O_STBY/ST_LED
R032
10k
1/16W
:CHIP
YM
100
KEY
:CHIP
SDAT
SUB+9V
4
GND
ANT_S
/HD_PASS
XSTATUS
PROT_MUTE
:CHIP
:CHIP
1/16W
100
100
R023
R024
O_ANT_M
O_PROT_MUTE
:CHIP
100
R022
1/16W
NC
(PJ)O_VCOMP
I_MODEL
NC
O_BOX_RST
NC
VCC
VSS
O ANT S
1/16W
100
R021
1/16W
MODEL
BOX_RST
:CHIP
F_SP_MUTE
S_MUTE
O_PMUTE
O_SPMUTE
PIC_MUTE
:CHIP
:CHIP
1/16W
1/16W
100
100
R019
R020
AC_RLY
DGC_RLY
O_DGC_RLY
ISTBY_SW
R581
R017
100
100
1/16W
1/16W
:CHIP
:CHIP
SYNC_SW
TO P2
:CHIP
1/16W
100
1/16W
1/16W
100
R016
R014
R015
100
:CHIP
:CHIP
MAIN_SW
C_MUTE
:CHIP
1/16W
100
:CHIP
:CHIP
1/16W
1/16W
100
100
R012
R013
R018
O_AC_RLY
49
DG0
DR0
19
:CHIP
1/16W
VM_ MOD
MICON_RST
YSYM
—
50
O_TIMER_LED
R030
10k
1/16W
:CHIP
DB0
DG1
DR1
20
:CHIP
1/16W
100
8
GND
GND
P
R583
10k
1/16W
:CHIP
O_ISTBY_LED
R008
1k
1/16W
:CHIP
Q003
2SD601A
LED-SW
51
86 O_SAP_M
CN88 01
V_MNO_Y
—
52
SIRCS
TO P3
21
1/16W
100
R043
C008
100
16V
TO QM BOARD
GND
N
53
TESTA
22
100
R042
C007
0.0047
B:1608
GRANT
—
54
3D_RST
R006
1k
1/16W
:CHIP
SEL_L
3D +5V
DB1
23
R040
CN004
22P
WHT
:PHD
M
55
R007
1k
1/16W
:CHIP
M16C R
ST_ AFT
MT_ AFT
G
—
56
88 O_S_MODE
HP
L
57
Q001
2SD601A
BUFF
24
:CHIP
VP
—
58
91 NC
—
J
59
R002
39k
1/16W
:CHIP
C1
R574
100
1/16W
:CHIP
R575
1k
1/16W
:CHIP
25
:CHIP
90 NC
—
60
85 I_STEREO_M
89 NC
F
61
V1
TO P3
DMIX_R
Q521
2SD601A
BUFFER
C101
0.1
25V
F:1608
26
1/16W
100
62
EXT_SIG
C562
0.1
25V
F:1608
27
1/16W
63
NO CONN ECT
TO P3
+3.3V
TO P2
28
R038
100
64
CN7402
CN1200
CN010
4P
BLK
:S-MICRO
Y1
29
R037
65
Q002
2SD601A
LED-SW
TO QM BOA RD
TO HB BOARD
DMIX_L
R001
10k
1/16W
:CHIP
R005
1k
1/16W
:CHIP
CN009
5P
WHT
:S-MICRO
CN008
11P
WHT
:S-MICRO
VIDEO2
30
/MT _SAP
66
Q522
2SD601A
LED-SW
TO P3
M16C B
:CHIP
:CHIP
67
R003
100
1/16W
:CHIP
R582
470
1/16W
:CHIP
ONOFF_MUTE
C100
0.1
25V
F:1608
BCLK
1/16W
1/16W
68
C002
0.1
25V
F:1608
NO CO NNECT
BDAT
100
100
84 O_MODE
69
R098
47k
1/16W
:CHIP
CN007
10P
RED
:S-MICRO
D001
DAN202K
WP
R035
R036
A_M UTE
83 O_FMONO_M
:CHIP
70
(PJ)O_SMUTE
:CHIP
1/16W
1/16W
100
/MT _STR
S_M ODE
I
C001
0.1
25V
F:1608
M16C G
R033
71
O_ISTBY_SW
100
R031
MT_ FMONO
MODE
I_STEREO_S
82 I_SAP_S
72
O_SCAN_SYNC_SW
:CHIP
73
O_MAIN_SW
1/16W
74
I_BLOCK_S
100
75
I_BLOCK_M
R029
76
I_AC_OFF
:CHIP
77
O_YPBPR_SW_S
1/16W
81
/ST _SAP
—
100
78
O_LMUTE
/ST _STR
E
R028
79
O_FMONO_S
80
O_YPBPR_SW_M
—
(PJ)O_CMUTE
ST_FMONO
LINE_MUTE
R010
R009
STBT +5V
:CHIP
:CHIP
1/16W
1/16W
100
100
D
1/16W
YPBPR_SW_S
100
YPBPR_SW_M
:CHIP
TO P2
TO P2
R011
+9V
—
—
TO ANT SW
FB001
OUH
:CHIP
C
H
CN006
4P
WHT
:S-MICRO
+9V
—
—
2
1
B
3
ANT_M
—
2
A
CN002
50P
:B TO B-P
9-965-916-02<HA3>B P1
TO A BOAR D
CN 3022
1.9 Vp-p (H)
1.4 Vp-p (H)
1.9 Vp-p (H)
B BOARD SCHEMATIC DIAGRAM (2 OF 3)
|
5
|
C_Y2
A
SUB_V
:CHIP
:CHIP
1/16W
1/16W
100
100
R219
ADRS
SCL
R220
47
XTAL
41
40
22 Y_OUT
EXT_PR
39
23 PB_OUT
EXT_PB
38
24 PR_OUT
EXT_Y
37
27
28
29
B:1608
16V
16V
0.1
0.1
PB_IN
PR_IN
APED
31
32
33
34
35
36
C262
0.1
16V
B:1608
C230
0.1
10V
B:1608
16V
Y
B:1608
L200
:LB2016
C236
470p
CH:1608
15k
1/16W
:CHIP
X201
3.58MHz
C243
16V B:1608
C248
16V B:1608
C254
16V B:1608
C256
16V B:1608
0.1
0.1
0.1
C239
0.47
10V
B:1608
C241
15pF
CH:1608
C258
100
16V
C259
4.7
50V
L201
LB2016
C272
0.1
25V
F:1608
R311
1k
1/16W
:CHIP
+3.3V
U3 I
VC C
GN D
UO UT
CO NT
VO UT
UE X3I
CO NT
GN D
VE X3I
V3 I
:CHIP
1/16W
47k
SUB PB
MAIN PB
R566
GN D
YO UT
47k
R563
1/16W
:CHIP
SUB PR
19
18
17
R325
10k
1/16W
:CHIP
Q230
2SD601A
SW
Q231
2SD601A
SW
C305
100
16V
R224
100
1/16W
:CHIP
R225
680
1/16W
:CHIP
C_Y2
Q205
2SD601A
BUFF
R233
100
1/16W
:CHIP
C_Y2
C238
100
16V
R234
22k
1/16W
:CHIP
Q208
2SD601A
BUFF
COMPONENT2
TO P1
R243
100
1/16W
:CHIP
R244
680
1/16W
:CHIP
L203
C268
100
16V
L204
:LB2016
:LB2016
VCV
29
PLVD
30
PLVS
31
CLPEN
32
CLPO
NC
DVDD
DVSS
TST3
2
3
4
5
AYO
28
6
7
8
C290
0.1
25V
F:1608
R299
5.6k
1/16W
:RN-CP
SUB_C
TO P3
R290
220
1/16W
:CHIP
1
R306
470
1/16W
:CHIP
R305
180
1/16W
:CHIP
2
3
FL200
6
4
R285
22k
1/16W
:CHIP
Q219
2SD601A
BUFF
R292
560
1/16W
:RN-CP
C292
0.1
16V
B:1608
R307
470
1/16W
:CHIP
MOD1
15
MOD2
14
INIT
13
IRF
12
VB
11
VG
10
VRF
9
R257
0
1/16W
:CHIP
R264
3.3k
1/16W
:RN-CP
C278
0.1
16V
B:1608
R270
3.3k
1/16W
:RN-CP
C280
0.1
16V
B:1608
+5V
Q220
2SD601A
BUFF
R283
22k
1/16W
:CHIP
Y
R294
150
1/16W
:CHIP
C281
100
16V
R273
2.2k
1/16W
:RN-CP
C282
0.1
25V
F:1608
C
R296
33k
1/16W
:CHIP
R288
470
1/16W
:CHIP
16
C287
0.1
25V
F:1608
C286
0.1
25V
F:1608
V
APCN
C293
100
16V R295
33k
1/16W
:CHIP
R289
470
1/16W
:CHIP
R302
470
1/16W
:CHIP
1
R300
150
1/16W
:CHIP
C297
15p
CH:1608
C296
15p
CH:1608
TO P3
TO P3
2
3
FL201
6
C301
10
MAIN_COMB_C
Q221
2SD601A
BUFF
4
R303
5.6k
1/16W
:RN-CP
Q227
2SD601A
BUFF
C300
0.1
25V
F:1608
R317
1k
1/16W
:RN-CP
R322
1k
1/16W
:CHIP
R323
4.7k
1/16W
:RN-CP
1
2
Q228
2SD601A
BUFF
R315
560
1/16W
:RN-CP
V
C302
15p
CH:1608
3
TO P3
SUB_V/Y
R314
100
1/16W
R319 :CHIP
1k
1/16W
:CHIP
FL202
L208
:LB2016
9V
6
C_PR1
C307
25V F:1608
0.1
C306
100
16V
B:1608
10V
:CHIP
:CHIP
1/16W
1/16W
100
100
R333
R334
ADRS
SCL
CGND
CVCC
47
15 VTIM
Y_IN
46
Y_CLAMP
IC207
CXA2103Q
MAIN YCT
41
PR_IN
APED
35
36
0.1
16V
B:1608
PB_IN
34
B:1608
33
C351
0.1
C348
16V
0.1
16V
0.1
C347
C340
0.1
25V
F:1608
32
B:1608
31
16V
30
16V
29
B:1608
28
B:1608
27
B:1608
26
SVCC
37
Y_IN
EXT_Y
B_IN
24 PR_OUT
G_IN
38
R_IN
EXT_PB
YPBPRSW
23 PB_OUT
EXT_B
39
EXT_R
40
EXT_G
CLAMP
25
C336
4.7
50V
R351
15k
X202
1/16W
C323
470p
:CHIP CH:1608
C326
0.47
10V
B:1608
3.58MHz
C329
15pF
CH:1608
PB
C330
0.1
16V
B:1608
C331
0.1
16V
B:1608
M_PB2
C333
R329
22k
1/16W
:CHIP
Q235
2SD601A
BUFF
0.1
16V
B:1608
M_Y2
Q240
2SD601A
BUFF
C324
0.1
25V
F:1608
R355
680
1/16W
:CHIP
M_PR2
R360
680
1/16W
:CHIP
C_Y1
+5V
R352
100
1/16W
:CHIP
Q243
2SD601A
PB
BUFF
C334
0.1
16V
B:1608
C337
100
16V
C_PR1
C315
100
16V
C_PB1
C321
16V B:1608
42
XTAL
EXT_PR
C346
—
43
22 Y_OUT
16V
O
44
SGND
R339
100
1/16W
:CHIP
R340
680
1/16W
:CHIP
C_PB1
0.1
R328
100
1/16W
:CHIP
R326
22k
1/16W
:CHIP
PR
45
FSC
APCFIL
21 YSYM
MAIN PR
Q232
2SD601A
BUFF
R332
680
1/16W
:CHIP
FSC
TO P3
20 HTIM
MAIN PB
—
1
17 SEL OUT
C240
22pF
MAIN_H
2
14 C3_IN
18 SYNC IN
C314
0.1
25V
F:1608
C319
0.1
25V
F:1608
48
19 SCP
MAIN Y
3
16 Y3_IN
C322
10V B:1608
Y
C352
100
16V
4
0.1
0.47
5
0.1
C320
6
:LB2016
PR
C349
0.47
7
+5V
L209
C353
100
16V
C350
—
8
4
C_PR1
L210
LB2016
TO P1
MAIN_Y
C_IN
13 HGND
MAIN_V
9
HVCC
AFCFIL
MAIN V
10
C313
0.01
25V
B:1608
C1_IN
11
Y2_IN
12
TEST
C317
100
16V
M
C312
0.47
10V
B:1608
R327
3.9k
1/16W
:CHIP
SDA
C311
4.7
50V
Y1_IN
V_MIDI_VS
C310
0.01
25V
B:1608
C2_IN
C309
0.47
10V
B:1608
+5V
TO P1
MCCD_IN
M_Y2
R346
22k
1/16W
:CHIP
C_PB1
C327
100
16V
R353
22k
1/16W
:CHIP
R359
100
1/16W
:CHIP
C_Y1
Q248
2SD601A
BUFF
C341
0.1
25V
F:1608
R368
22k
1/16W
:CHIP
C_Y1
Y
R373
680
1/16W
:CHIP
Q250
2SD601A
BUFF
R371
100
1/16W
:CHIP
C342
100
16V
R372
22k
1/16W
:CHIP
TO P1
TO P1
MAIN_CCD
B
R
G
YS
Y
P
R308
470
1/16W
:CHIP
Y
V
MAIN_COMB_Y
C291
0.1
25V
F:1608
R291
560
1/16W
:RN-CP
+9V
Y
R228
22k
1/16W
:CHIP
FB201
OUH
:1608
IC204
CXD2073Q
SUB COMB FILTER
DAVS
CPO
ADIN
C
Q224
2SB709A
BUFF
47k
+9V
20
NC
YS
R
R287
2.2k
1/16W
:CHIP
R298
180
1/16W
:CHIP
C299
0.1
25V
F:1608
MAIN PR
R313
10k
1/16W
:CHIP
Q222
2SB709A
BUFF
MAIN_Y
(IC001 71PIN)
TO P1
CO NT
R284
220
1/16W
:CHIP
Q218
2SD601A
BUFF
MON OUT
16
15
14
11
10
GND
SYNC_SW
R324
100
1/16W
:CHIP
MAIN Y
YE X3I
Y3 I
21
C
C304
0.01
25V
B:1608
R320
22k
1/16W
:CHIP
13
SV
C303
0.1
25V
F:1608
12
1
2
SELV
MID_VS
7
8
TO P1
ST
MID_HS
6
—
SH
VCC
R321
47k
1/16W
:CHIP
R316
10k
1/16W
:CHIP
CKSL
27
Q217
2SD601A
BUFF
Y
R282
2.2k
1/16W
:CHIP
9
R330
47
1/16W
:CHIP
SEL
SELH
3
C339
47p
CH:1608
4
R318
68
1/16W
:CHIP
5
V_MIDI_HS
C338
47p
CH:1608
Q229
2SD601A
BUFF
IC206
TC74LVX157FT
SCAN SYNC SW
Q216
2SD601A
BUFF
IC205
M52055FP
MAIN VIDEO SW
22
1
C285
100
16V
C284
0.1
25V
F:1608
:CHIP
R310
1k
1/16W
:CHIP
A_VS
—
:RN-CP
26
TO P1
1/16W
R304
1k
1/16W
:CHIP
C298
100
16V
R377
470
1/16W
:CHIP
1/16W
23
:LB2016
R567
+9V
Y
R565
47k
1/16W
:CHIP
16
:CHIP
:LB2016
SUB Y
R281
10
1/16W
:CHIP
15
1/16W
L205
V_DRCI_Y
R562
47k
1/16W
:CHIP
14
470
V_DRCI_Y
R564
47k
1/16W
:CHIP
13
R277
L206
12
:CHIP
560
:RN-CP
1/16W
+9V
R271
10
1/16W
:CHIP
11
1/16W
56k
24
F_IN
+9V
10
470
R259
C277
0.1
25V
F:1608
V_DRCI
C295
100 16V
C275
0.001
B:1608
R258
9
:CHIP
:CHIP
R592
1k
1/16W
:CHIP
DVSS
TO P1
C276
0.022
25V
B:1608
1
C355
47p
CH:1608
R212
22k
1/16W
:CHIP
Q204
2SD601A
BUFF
:1608
OUH
FB200
C271
0.1
25V
F:1608
R260
10
1/16W
:CHIP
V_DRCI_PB
C_PB2
C210
100
16V
+5V
:LB2016
V_DRC1_PR
V_DRC1_PB
R216
680
1/16W
:CHIP
M_Y2
MAIN V
R268
100
1/16W
:CHIP
R210
22k
1/16W
:CHIP
R211
100
1/16W
:CHIP
M_Y2
25
2
MV
C_PB2
+5V
DAVD
16
15
14
SUBV
12
13
MAINV
R263
100
1/16W
:CHIP
11
SV
10
SH
GND
MAINV
V_DRCI_PR
R206
100
1/16W
:CHIP
R236
680
1/16W
:CHIP
+9V
SUB V
R203
22k
1/16W
:CHIP
Q201
2SD601A
BUFF
C237
0.1
25V
F:1608
EXT_Y
9
2
4
5
6
7
MAINH
8
MH
SUBH
ST
SUBV
:CHIP
R378
R309
470
1/16W
:CHIP
MAINH
SUBH
C274
0.1
25V
F:1608
C231
100
16V
YPBPR_SW_S
TO P1
SUB_CCD
:LB2016
VCC
C_PR2
C202
100
16V
L211
B:1608
B:1608
16V
0.1
C264
C265
30
C261
0.1
25V
F:1608
16V
26
0.47
0.1
0.1
25
C229
R235
42
CLAMP
C267
SUB PB
R200
22k
1/16W
:CHIP
R202
100
1/16W
:CHIP
R208
680
1/16W
:CHIP
M_PB2
C
43
21 YSYM
Y_IN
SUB Y
16V
C
3
R379 470 1/16W
R276 470 1/16W
24
M_PB2
44
20 HTIM
+5V
TO P1
4
1/16W
C294
100
16V
|
C_Y2
45
SGND
SVCC
100
C228
0.01
25V
B:1608
46
APCFIL
B:1608
C253
SUB PR
16V
100
IC202
CXA2103Q
SUB YCT
16V
C247
5
470
A_HS
N
48
FSC
0.1
SUB_H
+9V
6
R275
R297
470
1/16W
:CHIP
R312
470
1/16W
:CHIP
J
C234
100
16V
R280
470
1/16W
:CHIP
R279
470
1/16W
:CHIP
A_PR
—
—
C_IN
CVCC
Y_IN
19 SCP
C223
0.1
25V
F:1608
1
Y_CLAMP
18 SYNC IN
C235
0.47
10V
B:1608
C246
22pF
:CHIP
SUB PR
7
A_Y
R278
470
1/16W
:CHIP
A_PB
L
2
15 VTIM
SUB V
R232
470
1/16W
:RN-CP
8
I
K
3
16 Y3_IN
C242
100
16V
V_DRCI_VS
TO P1
A_PR
SEL
3
1
C288
0.1
25V
F:1608
+9V
V_DRCI_HS
—
A_THR
4
+5V
R266
100
1/16W
:CHIP
23
Q203
2SD601A
BUFF
DVDD
+3.3V
6
17 SEL OUT
R253
39
1/16W
:CHIP
A_PB
|
Q200
2SD601A
BUFF
EXT_PB
ADVO
MAIN PR
5
SDA
16
14 C3_IN
L104
IC203
TC74LVX157FT
SYNC SW
R262
47
:CHIP
22
M_PR2
ACO
V3I
VEX3I
13 HGND
:LB2016
V_MIDI_Y
R331
68
1/16W
:CHIP
|
TO P1
TST1
GND
7
CGND
UEX3I
SYNCSW+3.3V
H
21
TST2
R231
470
1/16W
:RN-CP
VOUT
CONT
SUB PB
+5V
C354
47p
CH:1608
|
ADVS
PR
R226
470
1/16W
:RN-CP
CONT
8
C266
C249
0.1
25V
F:1608
V_MIDI_PB
A_Y
20
SUB_Y
37
+5V
—
|
C221
0.1
25V
F:1608
MON OUT
PB
UOUT
9
HVCC
R227
470
1/16W
:RN-CP
10
C1_IN
B:1608
10V
11
C263
V_MIDI_PB
V_MIDI_Y
19
C260
100
16V
G_IN
0.47
12
C225
0.1
25V
F:1608
C255
100 16V
—
G
|
M_PR2
B_IN
C227
VCC
GND
MAIN PB
TEST
C_PR1
GND
U3I
CONT
YOUT
Y1_IN
R222
470
1/16W
:RN-CP
C2_IN
Y
C_PB1
Y2_IN
C_Y1
AFCFIL
B:1608
B:1608
C232
0.47
10V
B:1608
C244
0.47
10V
B:1608
10V
B:1608
0.47
C251
10V
B:1608
0.47
C250
10V
1/16W
10V
10V
C218
0.47
10V
B:1608
C214
0.47
10V
B:CHIP
R_IN
IN1_H/L1
36
0.47
0.47
YEX3I
Y3I
C220
0.01
25V
B:1608
EXT_B
IN1_3
35
C222
C224
SUB Y
R223
470
1/16W
:RN-CP
L202
R248
39
1/16W
:CHIP
18
+5V
YPBPRSW
IN1_1
IN1_2
34
B:1608
33
R215
3.9k
1/16W
:CHIP
R241
F
|
C_PB2
C213
4.7
50V
C219
0.1
25V
F:1608
100
1/16W
—
100
:CHIP
C245
0.1
25V
F:1608
17
C
Y
C212
0.01
25V
B:1608
0.47
32
R242
V_MIDI_PR
|
C201
0.1
25V
F:1608
C252
SDA
ADDRESS
NC
SCL
31
:CHIP
SELYOUT
VCC2
V_MIDI_PR
SCLK
EXT_G
38
30
SDAT
TO P1
EXT_R
IN1_L3
29
TO P1
B:1608
40
23 SELVOUT
IN1_V/L2
R214
100
1/16W
:CHIP
41
39
28
16
B
IN2_1
27
|
G
42
VCC1
26
15
MN_SB_SW
15
43
IN1_SW
25
|
IC201
M52055FP
SUB VIDEO SW
14
IN2_3
IN2_2
22 SELHOUT
24 GND2
14
MAIN Y
R213
100
1/16W
:CHIP
13
44
21 NC
X200
4MHz
TO P1
R239
39
1/16W
:CHIP
46
IN2_H/L1
—
E
IN2_L3
17 NC
SELPBOUT
V_MIDI
47
45
SELPROUT
D
IN2_SW
20 EXTCLK/XTAL
C226
0.1
16V
B:1608
|
EXT_Y
48
IN2_V/L2
IC200
CXA2151Q-2
COMPONENT I/F
C217
0.1
25V
F:1608
C216
0.1
25V
F:1608
16 YG_IN
19 NC
13
+5V
1
GND1
18 IREF
|
SCCD_IN
12
:RN-CP
1/16W
12
11
10k
|
10
R221
11
9
—
|
R204
680
1/16W
:CHIP
1
2
15 YG_OUT
C215
16V B:1608
10
2
3
14 V_PH
0.1
|
3
4
13 H_PH
C211
1
6.3V
B:1608
9
EXT_PR
IN3_1
5
IN3_2
6
IN3_H
7
IN3_3
8
GND3
9
|
C206
0.47
10V
B:1608
IN3_V
10
IN4_2
C
VCC3
C209
0.01
25V
B:1608
11
IN4_H
12
IN4_3
Q202
2SB709A
BUFF
IN4_V
—
C208
0.1
25V
F:1608
8
C203
0.47
10V
B:1608
R205
100
1/16W
:CHIP
IN4_1
R207
1k
1/16W
:CHIP
|
C205
0.47
10V
B:1608
C204
0.1
25V
F:1608
+5V
7
C_PR2
R201
100
1/16W
:CHIP
B
|
C_PR2
C200
0.1
25V
F:1608
—
6
4
4
5
|
6
3
7
|
8
2
C_PR2
|
C_PB2
1
KD-34XBR2
R376
680
1/16W
:CHIP
COMPONENT1
R375
100
1/16W
:CHIP
TO P1
YPBPR_SW_M
VIDEO PROCESSOR
—
9-965-916-02<HA3>B P2
— 78 —
B BOARD SCHEMATIC DIAGRAM (3 OF 3)
1
|
2
|
3
KD-34XBR2
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
A
23
|
C400
0.1
25V
F:1608
:CHIP
:CHIP
8
7
6
5
2
3
4
DMIX_L
DMIX_R
LR
1/16W
L401
L_3
:CHIP
R433
10k
1/16W
:CHIP
R441
220
1/16W
:CHIP SDAT
R444
220
1/16W
:CHIP
R445
100
1/16W
:CHIP
+9V
Q403
2SD601A
BUFF
C417
0.1
25V
F:1608
C420
0.47
10V
B:1608
R460
2.2k
1/16W
:CHIP
R474
2.2k
1/16W
:CHIP
R475
470
1/16W
:CHIP
OUT
VCC
IN3
IN2
SW2
5
GND
SW2
C_L2
6
IN1
IN3
IN2
4
7
SW1
OUT
VCC
SW1
3
8
1
2
3
4
C_R1
C_L2
C402
0.1
25V
F:1608
IC403
NJM2521M(TE2)
AUDIO SW R
C_R2
C_R1
C_R2
GND
IN1
2
C401
0.1
25V
F:1608
COMPONENT_LR
TO P1
:LB2016
R439
1k
1/16W
:CHIP
C409
0.1
25V
F:1608
R463
56
1/16W
:CHIP
C415
470
16V
C411
0.1
25V
F:1608
C413
10
R446
470k
1/16W
:CHIP
Q404
2SB709A
BUFF
R447
470
1/16W
:CHIP
R451
75
1/16W
:RN-CP
C412
100
16V
Q406
2SD601A
MUTE
R452
1k
1/16W
:CHIP
R464
470k
1/16W
:CHIP
L_3
V_3
MAIN_Y
TO P2
R_5
5
L402
C410
100
16V
Q405
2SD601A
CURRENT SOURCE
C418
0.1
25V
F:1608
Q401
2SB709A
BUFF
6
TO P1
R
:LB2016
R434
47
1/16W
:CHIP
SCLK
R428
180k
1/16W
:CHIP
R
L
100
R_3
C408
25V F:1608
0.1
R430
:CHIP
1/16W
7
C_L1
R427
100k
1/16W
:CHIP
R572
120k
1/16W
:CHIP
C561
10
R_2
1
C_L1
51
50
49
48
47
46
45
44
100
5.6k
5.6k
100
Q400
2SD601A
BUFF
R421
100k
1/16W
:CHIP
C
Q412
2SB709A
BUFF
SW4
C4
R4
5OV
V_3
R425
R466
2.2k
1/16W
:CHIP
R450
1/16W
R459
:CHIP
1/16W
R449
1/16W
:CHIP
:CHIP
:CHIP
100
5.6k
100
Y4
C421
O.1
25V
F:CHIP
C407
0.1
25V
F:1608
43
41
40
39
37
38
42
53
52
L_OUT1
54
V_OUT1
56
55
R_OUT1
TRAP1
57
VGND
Y_OUT1
59
MT_L
MT_CV
:CHIP
:CHIP
100
100
Q413
2SD601A
SW
10
+5V
9V
:CHIP
1/16W
MT_L
:CHIP
1/16W
100
5.6k
R408
R409
MT_R
MT_CV
:CHIP
1/16W
5.6k
60
R407
ST_L
:CHIP
1/16W
5.6k
R406
61
62
MT_R
ST_L
58
SCL
L_5
SW3
FB504
OUH
:1608
:CHIP
R479
1k
1/16W
:CHIP
R480
4.7k
1/16W
:CHIP
R477
100k
1/16W
:CHIP
R476
10k
1/16W
:CHIP
ST_CV
SDA
VIDEO 4
R481
1k
1/16W
:CHIP
G
C_OUT1
1
R3
C3
AGND
T O P1
8
R571
100k
1/16W
:CHIP
Q410
2SB709A
BUFF
R465
1k
1/16W
:CHIP
C419
10
R468
470
1/16W
:CHIP
Q409
2SD601A
MUTE
R470
1k
1/16W
:CHIP
Q411
2SB709A
BUFF
R469
470k
1/16W
:CHIP
R473
1k
1/16W
:CHIP
R_3
R471
47k
1/16W
:CHIP
ONOFF_MUTE
TO P1
R_OUT
:CHIP
1/16W
DC_OUT
VIDEO 3
5.6k
—
1/16W
100
L3
Y3
C423
L_2
Q414
2SD601A-QRS
C416
0.1
25V
F:1608
R461
1M
1/16W
:CHIP
C_OUT3
L4
Q407
2SB709A
SYNC SEP
L_OUT3
V4
F
R448
56k
1/16W
:CHIP
R568
10k
1/16W
:CHIP
SW2
V3
:CHIP
C414
0.1
25V
F:1608
Y_OUT3
20 S2_3
Q415
2SB709A-QRS
+9V
S2_2
R453
1/16W
R454
1/16W
R455
1/16W
R456
1/16W
R457
1/16W
R458
1/16W
—
5.6k
R443
C3
:CHIP
1/16W
C560
1
L
IC402
NJM2521M(TE2)
AUDIO SW L
R417
4.7k
1/16W
:CHIP
L_OUT
R440
R3
100
C422
10
5OV
R_2
AVSW+9V
C406
100
16V
V_OUT
R438
R_OUT3
:CHIP
1/16W
C_2
36
5.6k
R403
6.8k
1/16W
:RN-CP
DMIX_L
C559
1
L_2
R486
6.8k
1/16W
:CHIP
L400
35
R437
R570
120k
1/16W
:CHIP
R483
4.7k
1/16W
:CHIP
R485
6.8k
1/16W
:CHIP
:LB2016
34
L3
V_OUT3
VIDEO 1
C405
0.47
10V
B:1608
C404
100
16V
33
:CHIP
R484
4.7k
1/16W
:CHIP
R_5
32 ADR
1/16W
R2
C2
31 R5
:CHIP
100
VCC
30 V5
1/16W
R432
L_OUT2
29 L5
1k
V3
Y3
R482
220
1/16W
:CHIP
:CHIP
21 SW3
E
Y2
V/Y_OUT2
IC401
CXA2069Q
AV SWITCH
28 SW4
R429
R478
10k
1/16W
:CHIP
:CHIP
1/16W
1/16W
MUTE
R_OUT2
27 S2_4
100
Y_IN1
11
5.6k
R424
BIAS
12
R423
C1
C_IN1
13
R1
L2
:CHIP
1/16W
C403
0.1
25V
F:1608
14
100
V2
:CHIP
1/16W
L_5
15
R422
Y1
SW1
26 C4
:CHIP
25 R4
1/16W
24 Y4
100
R411
100
1/16W
:CHIP
DMIX_R
C558
10
+9V
R410
100
1/16W
:CHIP
TRAP2
23 L4
V1
R419
S2_1
TO P 2
R401
5.6k
1/16W
:RN-CP
SUB_V/Y
C_OUT2
C1
22 V4
:CHIP
:CHIP
ST_R
1/16W
1/16W
ST_CV
64
100
5
SW2
R418
6
:CHIP
7
1/16W
R402
6.8k
1/16W
:RN-CP
TO P2
VIDEO 2
8
100
SUB_C
MAIN TUNER
9
R416
5.6k
R1
SUB_C
SUB_V/Y
SUB TUNER
10
C2
R420
Y1
:CHIP
1/16W
16
5.6k
L1
17
100
R415
2
:CHIP
R414
R2
V1
3
1/16W
Y2
L1
—
:CHIP
:CHIP
18
D
1/16W
1/16W
19
R413
L2
—
100
5.6k
R412
V2
4
ST_R
C
100
VIDEO2
T O P1
63
—
R404
5.6k
1/16W
:CHIP
R405
B
R569
100k
1/16W
:CHIP
R400
5.6k
1/16W
:RN-CP
TO P1
1
R_5
TUNER
24
IC400
NJM4558M-T2
AUDIO BUFF
L_5
—
|
EXT_SIG
TO P1
—
MA7
MA8
MA6
MA5
MA4
IO13
IO12
IO11
IO10
IO14
22
21
C500
33p
CH:1608
GND
23
A4
A7
24
A5
25
A6
26
A8
27
*OE
28
T O P1
VCC
IO5
IO6
IO7
IO8
NC
NC
*WE
*RAS
NC
A0
A1
A2
A3
VCC
C507
0.1
25V
F:1608
IO4
IC500
UPD424210LE-60
FRAME MEMORY
*LCAS
29
*UCAS
IO10
30
NC
31
IO9
32
IO3
IO12
33
IO11
34
GND
35
IO2
IO14
36
IO1
IO15
37
IO13
38
VCC
GND
39
IO16
40
C505
0.1
25V
F:1608
I
L500
:LB2016
C506
0.1
25V
F:1608
—
IO9
IO8
H
IO15
+5V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
C501
0.1
25V
F:1608
3D+5V
C508
4.7
6.3V
B:CHIP
C514
10p
CH:1608
MA3
MA2
MA1
FB500
OUH
:1608
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
MA8
V
Q505
2SD601A
BUFF
+3.3V
C515
4.7
6.3V
B:CHIP
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
XI
MIO0
MIO1
MIO2
MIO3
MIO4
MIO5
MIO6
MIO7
MIO8
MIO9
MIO10
MIO11
MIO12
MIO13
MIO14
MIO15
MOE
MWE
MCAS
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
DGND
XO
DV DD
MA8
99
33
H O3
MRAS
98
34
H O2
AGND
97
35
H O1
ACI
96
36
H O0
VRBC
95
37
HW CK
VRTC
94
38
HR CK
39
HR ST
40
DG ND
41
42
43
AVDD
93
AVDD
92
VRTY
91
H I3
VRBY
90
H I2
VCL
89
IC501
3D COMB FILTER
H I1
AYI
88
44
H I0
AGND
87
45
DV DD
AGND
86
46
AV DD
CBPY
85
47
FS CO
AYO
84
48
AG ND
ACO
83
DYCO8
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
DGND
DYCO7
58
KIL
DYCO6
57
LINE
DYCO5
56
TEST
DYCO4
55
CSI
DYCO3
54
DYCO9
DYCO2
53
ALTF
DYCO1
52
DYCO0
51
DVDD
81
NSTD
82
AVDD
ST1
CBPC
FS C1
ST0
AG ND
50
SDA
49
74
75
76
77
78
79
80
0.1
0
0
O
—
1k
1/16W
0.1
C526
25V F:1608
0.1
C527
25V F:1608
0.1
C531
25V F:1608
0.1
R521
470
1/16W
:RN-CP
4
C524
1
6.3V
B:1608
R523
5.6k
1/16W
:RN-CP
Q508
2SB709A
BUFF
FL501
6
R524
560
1/16W
:RN-CP
3
4
C520
15p
CH:1608
L504
:LB2016
FB502
OUH
:1608
R525
1k
1/16W
:CHIP
C530
100
16V
+9V
R527
1k
1/16W
:CHIP
Y
C535
25V F:1608
470
R532
1/16W
:CHIP
Y
Q512
2SB709A
BUFF
R528
5.6k
1/16W
:RN-CP
C533
15p
CH:1608
R531
560
1/16W
:RN-CP
R538
470
1/16W
:CHIP
C529
0.1
25V
F:1608
Q509
2SD601A
BUFF
R534
680
1/16W
:CHIP
1
2
3
FL502
C538
0.1
25V
F:1608
2
C
R522
100
1/16W
:CHIP
6
R533
2.2k
1/16W
:CHIP
R529
1k
1/16W
:CHIP
Q510
2SD601A
BUFF
R530
33k
1/16W
:CHIP
Q511
2SD601A
AMP
R594
470
1/16W
:CHIP
Y
TO P 2
MAIN_COMB_Y
R535
820
1/16W
:RN-CP
R537
1k
1/16W
:CHIP
R536
12k
1/16W
:CHIP
4
C539
8p
CH:1608
C536
0.1
25V
F:1608
C537
100
16V
V
:CHIP
FB503
OUH :CHIP
C544
100
16V
TO P1
L505
+9V
:LB2016
3D_RST
R542
1k
1/16W
:CHIP
T O P1
3D_SDAT
T O P1
3D_SCLK
C
P
Q516
2SB709A
BUFF
R543
5.6k
1/16W
:RN-CP
R546
560
1/16W
:RN-CP
SDAT
C546
0.1
25V
F:1608
R548
680
1/16W
:CHIP
1
SCLK
Q513
2SD601A
BUFF
C548
15p
CH:1608
2
3
FL503
—
6
Q507
2SD601A
BUFF
C
1
R526
2.2k
1/16W
:CHIP
3D+3.3V
FB505
OUH
:1608
FB506
OUH
:1608
T O P1
R596
C509
15p
CH:1608
Y
C518
0.1
25V
F:1608
Q506
2SD601A
BUFF
C532
22
+3.3V
C542
0.1
25V
F:1608
R590
1k
1/16W
:CHIP
C543
0.1
25V
F:1608
0.1
0.1
C541
0.1
25V
F:1608
3
R515
1.5k
1/16W
:CHIP
R517
470k
1/16W
:CHIP
R520
470
1/16W
:RN-CP
C
C521
16V B:1608
C522
25V F:1608
C523
25V F:1608
C525
25V F:1608
0.1
R588
2
FL500
+9V
Y
V
R587
C513
1
6.3V
B:1608
1
R510
220
1/16W
:CHIP
SUB V/Y_2
R508
1k
1/16W
:CHIP
Y
100
32
R516
22k
1/16W
:CHIP
C512
1
10V
F:1608
R580
220
1/16W
:CHIP
C517
0.1
25V
F:1608
DVDD
SCL
—
TO P2
R591
1k
1/16W
:CHIP
21
SLA0
FSC
22
RSTB
C540
0.01
25V
B:1608
23
CLK8
N
C534
0.1
25V
F:1608
24
DGND
—
25
AVDD
C528
0.1
25V
F:1608
26
CKMD
M
27
RPLL
3.3V
—
28
CPLL
C519
0.1
25V
F:1608
29
R511
10k
1/16W
:CHIP
Q502
2SB709A
BUFF
V
R512
22k
1/16W
:CHIP
R507
560
1/16W
:RN-CP
+3.3V
3.3V
31
30
DGND
—
R593
0
1/16W
:CHIP
R518
22k
1/16W
:CHIP
:LB2016
FB501
OUH
:1608
C511
0.1
25V
F:1608
Q504
2SD601A
BUFF
R514
22k
1/16W
:CHIP
L503
L
C510
100
16V
Q503
2SB709A
BUFF
RB505
RB504
—
K
R509
5.6k
1/16W
:RN-CP
:LB2016
:LB2016
R505
100
1/16W
:CHIP
Q501
2SD601A
BUFF
R506
220
1/16W
:CHIP
V
L502
L501
RB506
IO15
IO13
IO14
IO11
RB503
IO12
IO10
IO9
IO8
IO7
IO6
IO5
IO4
MA0
IO7
IO6
IO5
RB502
RB501
IO3
IO2
IO0
IO1
RB500
J
IO4
IO3
IO1
IO0
—
IO2
3D +5V
C503
0.1
25V
F:1608
C502
100
16V
Q500
2SD601A
BUFF
R504
1k
1/16W
:CHIP
+9V
6
4
R547
2.2k
1/16W
:CHIP
C550
8p
CH:1608
R544
1k
1/16W
:CHIP
R545
33k
1/16W
:CHIP
Q515
2SD601A
AMP
R595
470
1/16W
:CHIP
Q514
2SD601A
BUFF
C547
100
16V
R549
820
1/16W
:RN-CP
C549
0.1
25V
F:1608
R550
12k
1/16W
:CHIP
C
TO P2
MAIN_COMB_C
R551
1k
1/16W
:CHIP
3D-COMB,AV-SW
9-965-916-02<HA3>B P3
— 79 —
A32
P_ON
GND
GND
OSD_B
C32
GND
C1
A1
CN001
MAIN MICRO
B25
A25
MT_AFT
/ST_SAP
R243
C315
R009
YUV BUFF
C231
R208
R206
R204
R202
A-1131- 736-A
CN002
R122
R123
C111
X100
31
81
Q204
Q203
C314
Q201
L401
R433
R236
R233
R473
R134
Q106
B1
A1
R452
R224
R216
R211
L101
R132
C113
R470
R225
L402
Q411
Q104
R130
R135
C115
R478
R482
C416
R448
R466
Q413
C327
R460
Q103
R124
R438
C414
Q205
C415
R465
R131
R133
R115
R111
R110
R576
100
SUB VBI
R421
C423
Q400
C408
R417
R568
Q412
Y4
C4
C_Y1
SW4
C_Y2
R_OUT
FIX/VAR_L
FIX/VAR_R
R1
GND
L3
GND
R4
C_L1
C_R2
GND
S_IN
GND
R125
R126
Q105
1
R415
8
R510
R521
8
1
R401
C422
4
5
52
64
R486
R483
51
1
4
5
1
IC402
8
4
5
C401
C404
R410
R409
R408
R407
R406
R405
G ND
DMI X_R
G ND
DM IX_ L
SU B_O SD
C559
R404
R508
R507
C509
R504
R509
Q500
R506
C501
C560
R505
Q501
R412
R413
IC400
R400
Q507
IC403
R418
C407
C420
R450
R428
R458
R425
R459
R449
R430
Q401
33
R424
R455
R456
R441
R444
32
R423
IC401
R454
R453
R461
20
19
R432
R429
R420
C406
C502
R422
C503
R522
R523
Q502
R515
R511
C511
C514
L
G ND
R
GND
SW 2
GN D
F R_V _I N
GN D
F R_L _I N
GN D
FR _Y_ IN
G ND
FR _R_ IN
GN D
F R_C _I N
|
CN003
81
R443
R437
L500
C537
R530
Q506
Q504
C513
C403
C1
A1
X101
R480
R440
Q510
R537
Q508
C536
R536
R517
R416
R484
C 32
R340
R339
50
R479
R481
R477
11
A 32
R244
R476
Q414
C131
IC101
R155
Q407
Q404
C117
R414
C413
R119
CN008
Q410
Q200
30
Q514
|
R439
Q208
R569
R447
R117
C421
C547
1
R468
C109
1
L103
L504
4
C419
R579
L100
10
Q107
C110
R570
IC100
R120
V1
GND
Y1
GND
C1
GND
V3
GND
R109
Y3
GND
D201
C3
GND
SW3
GND
V4
GND
30
C122
C128
CN010
Q406
1
R118
R151
Q108
Q409
R360
C410
R139
51
R153
C412
R584
C127
R152
C549
R548
FB502
R471
L102
80
Q518
R149
R317
Q517
C126
MAIN VBI
L206
R314
Q515
Q511
R529
Q102
D203
C558
D100
R270
C130
R138
R319
Q228
R315
C302
Q216
Q509
C529
R533
R419
BCLK
FB201
R137
R136
|
WP
R352
C561
BDAT STBY+5V
R578
R571
C114
51
R302
R572
1
/BINT
80
L203
R577
R585
C285
Q227
FL202
R284
C284
R282
FL503
R543
FB504
L502
9
GND
D001
Q101
Q235
D204
24
R323
R322
MT_L
Q250
Q100
17
C301
5
C238
L204
D202
C268
R254
R298
/A_RESET
Q240
C210
C562
Q521
R574
R258
R259
Q222
R296
R288
R544
GND
R031
C530
GND
Q232
C300
C202
R040
R257
R575
C276
R285
R545
MT_CV
C324
C278
C286
C292
Q513
C546
R547
R534
MT_R
Q243
C342
C518
GND
R028
1
IC204
Q218
R305
R593
C512
R516
R520
GND
R373
R525
ST_L
Q248
16
R524
GND
C282
25
1
ST_CV
R294
|
GND
R029
32
ST_R
R074
L200
R273
R264
C281
R283
R371
IC003
8
R290
R535
GND
R033
R287
FB001
R551
FL501
ST_HSYNC
C341
R375
C205
9
FL500
GND
R036
C296
R308
C280
R291
C228
R594
R595
R550
/ST_STR
R037
R549
C520
ST_FMONO
R042
Q224
R306
R299
C297
R307
R518
R512
GND
MODE
R032
FL502
R514
A
MT_HSYNC
R048
C539
C550
MT_FMONO
R043
8
GND
R005
C548
R526
/MT_STR
R038
C510
/MT_SAP
C007
R328
R007
R527
Q505
21
40
3D COMB FILTER
GND
L003
R359
R068
|
AGC_ATT
ST_AFT
C258
R300
R303
C213
R289
Q217
C333
4
SDAT
C254
C001
OFF_MUTE
X201
R546
C293
C230
Q219
FL200
C522
C523
GND
R034
Q516
R528
C533
SCLK
SUB CHROMA
R295
C260
R542
C535
FIX/VAR_L
R292
Q221
X202
G ND
C538
ANT _S
CN006
R531
FIX/VAR_R
L205
C532
SUB +9V
C544
FL201
1
Q512
C527
C526
Q220
C531
C525
A NT _M
20
IC500
Q503
GND
C229
COMB FILTER
1
RB506
L211
100
1
LP001
7
GND
C259
L201
80 81
30
RB505
SEL_L
IC001
R047
L505
FB503
31
RB500
SEL_R
R001
FB505
R035
X003
C008
C248
50
C
R011
100
C024
48
51
RB504
R010
81
R063
1
R079
R012
80
37
R220
R219
C220
R590 FB506
R013
X001
C212
R215
RB501
R501
GND
R017
R015
1
R016
R023
C256
36
|
LINE_MUTE
R021
C266
C267
25
RB503
R014
C031
R082
12
R018
R030
6
F_SP_MUTE
R582
C218
MAIN CHROMA
R020
R003
C262
13
C235
R351
IC207
C326
RB502
R581
Q003
C265
24
C331
C321
IC501
R019
R041
Q005
48
R022
IC004
Q006
C203
R006
R008
C264
IC202
C336
48
C312
C311
—
R098
R072
30
8
C020
C263
C247
37
R334
R333
C313
R327
B
S _MO DE
SYNC SW
5
C025
C253
R207
C334
C310
—
R002
R086
C022
|
A_ MU TE
A MASK
5
SUB +3. 3V
C303
1
R024
R070
4
R025
R076
51
C035
31
C274
R055
C224
Q001
50
R268
R066
R069
R583
C227
R084
C222
R054
C242
R083
C206
SUB +9V
L004
Q522
C029
Q002
37
C255
C211
SUB +5V
C030
R004
R241
IC200
C351
13
|
IS TBY _S W
O SD_ YSY M
C244
C209
R085
13
R071
24
Q202
C350
R051
1
R223
12
C215
C348
36
MO DE L
16
C349
24
C353
4
OS D_G
9
X200
25
O SD_ R
L104
C232
C346
C337
L210
C322
A_PROT
1
VM _MO D
R313
IC206
1
YUV SW
IC203
25
C347
V _MN O_ PB
9
C304
R325
36
C320
ONOFF_MUTE
FIX_MUTE
12
V_ MNO _Y
Q009
16
Q231
8
L202
C252
V _MN O_ HS
1
R279
R262
R278
8
R266
R242
C305
S_MUTE
|
V _MN O_ PR
C034
R321
R320
C245
R330
R316
Q229
Q230
R324
C352
GND
F_MUTE
C_MUTE
SCLK
GND
—
V _MN O_ VS
GND
GND
IC205
C317
SDAT
D
HP
BYPASS SW
VP
GND
GND
V_MNO_VS
C234
L208
L005
GND
MICON_RST
GND
C288
16
C306
3
GND
GND
GND
M16C_RXD
C298
9
R271
PI C_M UT E
—
16
1
10
A_ PRO T
PRO T_ MUT E
M16C_TXD
9
R304
07
0
CN
GN D
OSD_B
Q011
OSD_G
R312
L B_E RR
YSYM
R280
+B_OVP
OSD_R
IC002
V_MNO_PB
R309
L001
V_MNO_HS
C028
MID_BUSY
V_MNO_PR
16
V_MNO_Y
R297
Q013
EXT_SCL
+ B_O CP
EXT_SDA
R377
V_DRCI_HS
A C_R LY
GRANT
|
MAIN_SW
I
MN_SB_SW
8
—
V_DRCI_PR
DH_ MU TE
1
V_DRCI_PB
9
B11
GND
ISTBY_LED
STBY/ST_LED
SIRCS
STBY+5V
DH_MUTE
AC_RLY
+B_OCP
LB_ERR
A_PROT
PIC_MUTE
VP
HP
V_MNO_VS
V_MNO_HS
V_MNO_PR
V_MNO_PB
P-ON
GND
TIMER_LED
KEY
DGC_RLY
GND
MAIN_SW
+B_OVP
GND
PROT_MUTE
GND
GND
GND
GND
GND
GND
GND
GND
A MASK
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
A_MUTE
F_SP_MUTE
GND
GND
GND
GND
SCLK
GND
MT_AFT
GND
— 80 —
V_DRCI_Y
R90
GND
IC201
V_MIDI_PR
C295
V_MIDI_PB
R91
C019
C338
VM_MOD
OSD_R
OSD_G
MODEL
V_MNO_Y
OSD_YSYM
ISTBY_SW
SUB+5V
SUB+5V
SUB+9V
SUB+9V
SUB+3.3V
SUB+3.3V
S_MODE
LINE_MUTE
SEL_L
SDAT
MT_FMONO
/MT_SAP
L
V_MIDI_Y
R378
G
R92
C018
R157
FIX/VAR_L
FIX/VAR_R
OFF_MUTE
AGC_ATT
MODE
GND
/ST_SAP
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
BDAT
WP
—
1
S TBY +5 V
—
R310
DG C_R LY
B1
A1
C014
C355
C339
TP MNO PR
ST_R
ST_CV
ST_L
MT_R
MT_CV
MT_L
K
R260
8
—
R277
B11
CN004
C354
TP MNO PB
TP MNO Y
TP SUB+5V
TP SUB+9V
TP SUB+3.3V
/MT_STR
SEL_R
/BINT
/ST_STR
MT_HSYNC
ST_AFT
BCLK
STBY+5V
/A_RESET
ST_FMONO
ST_HSYNC
—
R311
—
TI MER _L ED
SI RCS
B1
A11
C294
C295
C298
C234
R331
R213
C006
R053
R059
R332
C419
J
2
KE Y
A1
R226
R564
R214
C216
X001
H
R281
1
R562
A_MSK
GND
/BINT
8
CROSS SW
GND
GND
V_MIDI_HS
V_MIDI_VS
R276
E
9
F
GND
GND
GND
V_DRCI_VS
16
CN005
C306
C317
R566
R221
C305
C208
C236
C008
R355
C202
1
R563
R567
C352
X200
R235
R102
Q519
8
SDAT
GND
SCLK
GND
F_MUTE
C_MUTE
S_MUTE
FIX_MUTE
ONOFF_MUTE
A_PROT
C337
C223
C239
C271
R104
—
|
ST BY/ ST _LE D
1
R222
A
|
R227
C353
C307
C319
C272
C268
Q520
C107
C412
C413
K
12
R231
C311
C540
R143
R144
C112
C102
G
|
C294
11
R379
R591
C543
C541
—
|
C010
10
IC006
|
IS TBY _L ED
9
GND
C506
C505
C542
R532
D
|
R275
8
C014
|
C019
7
G ND
|
R596
R588
ANT_M
GND
ANT_S
SUB+9V
C285
R145
C118
—
C517
C532
C
C508
L501
C521
TP MAIN C
TP MAIN Y
—
6
CN004
|
C018
LP001
R403
TP MAIN Y/V
C561
C400
R402
C406
F
C507
SUB_OSD
C560
C559
R148
C100
C410
Q405
A32
C32
—
5
A1
|
CN005
4
DMI X_L
GND
DMIX_R
GND
L
R121
C105
R106
—
GND
C120
R140
Q403
—
R
C121
R141
R114
I
GND
R411
—
SW2
C404
—
FR _C_ IN
GND
FR _R_ IN
G ND
E
|
A11
3
B1
G ND
FR _Y_ IN
A1
J
GND
CN003
H
FR _L_ IN
C423
—
C422
C402
B
|
B11
2
A11
—
F R_ V_I N
G ND
C1
—
|
B1
1
A1
CONDUCTOR SIDE
R592
B
B11
KD-34XBR2
[MICRO (MAIN, CCD), VIDEO PROCESSOR, 3D-COMB, AV-SW]
COMPONENT SIDE
12
|
CN009
11
R485
R427
R445
R474
C418
R475
AV SW
Q415
31
1-681-830-11
C116
100 R113
50
GND
GND
GND
C_PB1
GND
GND
C_PR1
GND
C_PB2
GND
GND
C_PR2
V_OUT
GND
GND
L_OUT
GND
GND
GND
GND
L1
GND
R3
C_R1
L4
GND
C_L2
GND
S_OUT
GND
KD-34XBR2
C BOARD SCHEMATIC DIAGRAM
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
G4
IC9001
TDA6120Q/N2/S1
RED-VIDEO-OUT
A
R9046
JW(5)
R9089
7.5k
:RN
B
C9046
100
16V
1
R9048
1k
:CHIP
NC
V-OUT
VOF
NC
200V
IK
FB
12V
GND
RC+
VB
RCR9001
180
:RN-CP
12V
12
13
C9022
0.01
F
C9019
0.1
25V
B:CHIP
R9036
27k
:CHIP
R9047
220
1/2W
:RC
G1-3
9
11
12
KR
H ST
R9024
JW(5)
G1-2
D9010
MTZJ-10
G1-REG
KB
KG
9
8
R9057
560k
1/2W
:RC
200V
12V
6
7
8
9
10
VOF
5
NC
4
V-OUT
3
200V
2
GND
1
NC
10
IK
3
11
12
13
D9013
1SS119
G2-DUMP
B
5
R9094
0
:CHIP
C9035
100
16V
IC9002
TDA6120Q/N2/S1
GREEN-VIDEO-OUT
VB
R9018
180
:RN-CP
12V
—
C9023
0.01
F
C9009
30p
CH:CHIP
R9035
180k
:CHIP
R9029
10k
:CHIP
C9021
10
250V
:HT
E
Q9015
2SC3624A
IK BUFF
R9020
100
:CHIP
C9026
0.1
25V
B:CHIP
200V
R9043
33k
3W
:RS
R9021
180k
:CHIP
C9049
0.1
25V
B:CHIP
R9026
1.1k
:RN-CP
L9003
R9038
JW(5)
C9036
10
F
+12V
—
C9044
220
16V
C9042
330
25V
G
R9013
1k
:CHIP
D9001
1SS119
PROTECT
R9004
8.2k
D9015
1SS119
PROTECT
D9003
1SS119
PROTECT
R9076
3.3M
1/2W
Q9012
2SC3311A
G2-REF
D9017
1SS119
PROTECT
D9016
1SS119
PROTECT
R9005
2.2k
R9007
1.1k
:RN-CP
C9045
0.1
25V
B:CHIP
R9019
180
:RN-CP
200V
C9017
JW(5)
E
E
3.6
GND
3.2
3.2
2.1
10.4
4.8
3.9
4.0
3.9
4.8
10.9
11.1
10.2
All voltages are in V.
CN9004
1P
R9009
10k
9
10
C9027
0.01
F
C9010
30p
CH:CHIP
C9020
10
250V
:HT
11
12
13
Q9013
2SC3624A
IK BUFF
R9032
180k
:CHIP
R9030
10k
:CHIP
C9024
0.1
25V
B:CHIP
R9099
JW(5)
IC9003
TDA6120Q/N2/S1
BLUE-VIDEO-OUT
36RV2
R9003
JW(5)
R9044
33k
3W
:RS
R9027
180k
:CHIP
R9025
100
:CHIP
VOF
8
NC
7
R9098
JW(5)
NL9001
JW(5)
R9052
220
1/2W
:RC
L9004
:EL0606
C9016
JW(7.5)
R9017
JW(5)
R9040
JW(15)
R9045
JW(5)
D9008
HSS83TD
PROTECT
R9069
JW(15)
C BOARD IC VOLTAGE LIST
C9014
0.0047
500V
E
R9042
27k
:CHIP
H
9-965-916-02<HA3>C
C BOARD WAVEFORMS
3
3.5 Vp-p (H)
1
C
GND
11.1
12.0
12.0
12.0
12.0
12.0
GND
GND
GND
10.5
12.0
450.0
12.0
TO CRT GND
CRT DRIVE
3.1 Vp-p (H)
E
C9047
0.01
B:CHIP
RV9002
100k
C9037
2.2
R9012
JW(5)
2
TO CRT GND
1
Q9002
2SC3311A
MUTE
R.G.B. DRIVE
1
CN9003
1P
C9001
330
25V
R9081
3.3k
Q9001
2SB709A
IK-BUFF
—
R9055
180k
1/2W
B
7.5
0.2
2.1
2.1
3.2
11.3
5.4
3.2
3.2
3.2
5.4
11.6
11.7
11.0
R9083
39k
V-OUT
6
200V
5
NC
4
GND
FB
12V
3
IK
RC+
VB
RC-
2
C9050
0.1
25V
B:CHIP
R9034
2k
:RN
12V
R9006
10k
1
R9033
3.9k
:RN
B
Q9001
Q9002
Q9003
Q9004
Q9005
Q9007
Q9008
Q9009
Q9010
Q9011
Q9012
Q9013
Q9014
Q9015
R9010
10k
C9025
220
16V
:HT
D9005
MA111-TX
TO D BOARD CN5003
6
V-IN
—
H1
:LHL08
D9014
1SS119
PROTECT
C9038
4.7
R9095
0
:CHIP
R9067
3.3M
1/2W
Q9014
2SC4632
G2-REF
D9007
HSS83TD
PROTECT
R9041
27k
:CHIP
E
4
C BOARD TRANSISTOR
VOLTAGE LIST
L9005
R9077
1k
R9079
5.6k
R9051
220
1/2W
:RC
C9011
0.0047
500V
E
200V
:LHL10
R9078
6.8k
:EL0606
G2
R9063
100k
1/2W
Q9008
2SC3311A
G2-REF
G
CN3101
R9061
100
1/2W
:RC
1
2
3
L9006
R9064
180k
1/2W
R9085
180k
1/2W
R9059
1k
1/2W
:RC
C9004
0.0047
2kV
E
R9084
180k
1/2W
C9033
22
250V
D9009
GP08D
D1-RESET
R
NL9003
D9006
HSS83TD
PROTECT
R9062
100k
1/2W
6
7
10
11
10
H2
G
TO A BOARD
D
13
5
L9001
JW(5)
C9032
680p
2kV
B
C9031
680p
2kV
B
H1
Q9011
2SB709A
BUFFER
6
9
8
R9056
100
1/2W
:RC
4
G1-1
7
13
RV9001
110M
1/2W
7
E
6
L9002
C9018
10
250V
:HT
Q9010
2SB709A
BUFFER
5
8
5
1
C9012
0.0047
500V
E
R9022
10k
:CHIP
G2
3
:EL0606
R9072
100
B
R9023
180k
:CHIP
3
2
12 C V
Q9007
2SC3624A
IK BUFF
R9039
100
:CHIP
C9015
30p
CH:CHIP
R9049
1k
:CHIP
Q9009
2SB709A
BUFFER
3
IK
POWER-MUTE
11
R9037
33k
3W
:RS
12V
—
10
FB
E
12V
9
R9028
180k
:CHIP
C9048
0.1
25V
B:CHIP
R9031
1.1k
:RN-CP
R9071
100
G
4
8
G4
1
2
7
RC+
E
6
VB
G DRV
B DRV
R9070
100
R
5
RC-
C
E
2
4
V-IN
R DRV
3
J9001
R9016
220
R9091
2.2k
:RN
CN9001
10P
WHT
:S-MICRO
2
R9015
220
R9014
220
R9073
1k
:CHIP
—
1
CN9002
4P
WHT
:MINI(LOCK)
NL9002
JW(5)
R
C9013
0.047
F:CHIP
RV9003
JW(5)
4
V-IN
—
Q9005
2PD601AR
BLK-LMT
Q9004
2PD601AR
BLK-LMT
Q9003
2PD601AR
BLK-LMT
R9092
0
:CHIP
4
3.3 Vp-p (H)
5
145.0 Vp-p (H)
6
134.0 Vp-p (H)
118.0 Vp-p (H)
IC9001
pin
volt
1
3.0
2
3.7
3
2.9
4
3.6
5
2.0
6
12.0
7
11.4
8
GND
9
N/C
10 200.0
11 N/C
12 144.0
13 136.0
IC9002
pin
volt
1
3.2
2
3.9
3
2.9
4
3.6
5
2.0
6
12.0
7
11.7
8
GND
9
N/C
10 200.0
11
N/C
12 155.0
13 129.0
IC9003
pin
volt
1
3.1
2
3.8
3
2.9
4
3.6
5
2.0
6
12.0
7
11.7
8
GND
9
N/C
10 200.0
11
N/C
12 162.0
13 134.0
All voltages are in V.
— 81 —
KD-34XBR2
[R.G.B. DRIVE, CRT DRIVE]
12
RV9001
E
R9083
NL9001
G2
CN9005
R9055
1
—
R9076
R9067
CN9008
—
(1-720-015-11)
E
E
R9062
CN9007
E
CN9004
E 1
2 E
1-681-837-11
E
A-1332- 184-A
G
CN9005
E
E
CN9003
CLP9002
—
— 82 —
CN9003
CN9004
E
CN9007
D9011
E
CN9008
R9085
R9062
R9090
Q9002
R9005
B
L9005
E
D9017
D9016
R9079
JW9015
D9003
C9037
D9001
Q9014
R9077
G2
R9055
R9064
C9031
R9084
1-681-837-11
(1-720-015-11)
R9011
E
E2
R9069
C9016
2
R9064
R9063
R9004
EY9001
R9069
R9085
G
G2
E1
R9040
R9056
D9011
R9003
F
C9028
20 0V
1
R9040
H1
E
EY9003
0
0
9
J
NL9001
L9005
JW9023
G1-1
E1
E2
R9003
—
C
C9032
—
G2
F
R9006
B
JW9016
NL9002
C9004
G1-1
C9028
L9006
SG9001
H1
2 00 V
C9036
C9027
R9061
EY9005
H1
E
E
NL9003
H ST
C9004
H1
R9012
C9042
C9014
D9009
H2
SG9001
—
IK
E
+12
R9045
G 1- 2
G1-3
H2
E
R9057
EY9007
R9050
NL9003
L9006
KB
CN9002
—
KR
R9038
D9010
C9033
4
KB
G1-2
E
2
E
C9005
EY9011
R9017
R9084
1
KG
R9061
L9002
R9099
R9050
KG
EY9009
JW9017
—
C9033
KR
R9024
R9098
R9099
G1 -3
D9009
B
E
13
D
C9005
R9045
EY9013
C9003
SG9002
R9098
C9001
L9001
R9017
E
JW9022
R9059
R9057
JW9013
R9053
EY9015
R9038
B
E
C9020
L9004
L9002
R9024
B
R9052
C9021
R9054
D9010
Q9012
Q9008
C9035
R9053
C9003
G
EY9021
C9018
—
R9093
R9051
R9047
R9052
D
C
R9051
R9096
C9047
JW9012
EY9020
EY9019
L9003
C9001
—
1
EY9018
13
C9020
R9081
JW9014
D9013
EY9017
JW9008
R9046
C
C
B
D9008
C9019
C9026
EY9016
R9010
D9014
12
C9024
JW9003
JW9011
—
RV9002
R9078
JW9010
C9015
C9048
C9050
R9065
EY9010
R9044
Q9007
Q9012
D9017
IC9001
IC9001
R9026
C9009
C9049
Q9015
8
CLP9004
10 C9038
IC9003
JW9020
13
C9010
|
G2-VR
JW9021
IC9002
JW9009
C9023
Q9013
7
D9015
C9011
R9007
Q9008
B
D9018
|
POWER-MUTE
C9017
1
R9001
B
E
IC9002
D9019
2
IC9003
6
R9088
R9072
EY9012
12
R9019
D9020
1
|
CN9001
JW9006
R9043
D9002
D9014
R9018
C9022
R9094
R9008
5
R9009
JW9004
C9012
R9013
C9044
D9006
R9078
C9025
R9036
R9042
EY9014
JW9002
R9092
R9095
D9015
—
R9048
|
R
R9015
RV9003
R9034
R9049
4
JW9007
R9033
|
R9016
R9034
3
R9087
A
|
R9071
B
CLP9001
R9072
C9017
R9081
—
2
CN9006
RV9003
JW9001
Q9001
B E
|
C9046
R9065
B
1
8
Q9011
R9088
—
|
Q9020
C9046
R9009
R9005
R9010
7
R9086
1
C9038
A
|
CN9006
JW9019
6
D9007
|
R9070
5
Q9003
CN9001
10
|
JW9005
4
R9014
|
JW9018
RV9002
3
R9089
|
C9039
2
1
G2-VR
|
2
1
CONDUCTOR SIDE
R9091
COMPONENT SIDE
R9037
C
R9063
R9067
R9076
CLP9003
KD-34XBR2
D BOARD SCHEMATIC DIAGRAM (1 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
A
SUB 7V
—
AC RECT+
C6504
0.01
B:CHIP
R6552
22k
:CHIP
R6518
15k
:RN-CP
R6543
330k
:RN-CP
5
—
R6541
15k
:CHIP
4
R6526
0.1
1/2W
:RF
E
C6584
0.047
125V
AC OUT
1
AC OUT
2
C6585
0.001
250V
B
R6516
3.3
10W
:RB
RY6501
4
C6591
0.001
250V
B
1
3
C6588
0.0047
250V
F
AC RECT+
C6590
1200
250V
JW6503
7.5MM
C6503
1200
250V
CN6003
AC RECT+
AC RECT-
G
2
D6534
DIN40TA2
3
NC
PRI 15V
—
4
3
1
2
R6519
0
:CHIP
4
D6533
MA111
PROTECT
5
GND
6
PRI 15V
D6502
UF4005
PUMP-UP
D6509
ERC04-06SE
VC2
OCP
R6521
1k
1/2W
:FPRD
R6556
0.05
2W
:RB
D6510
ERCO4-06SE
H
E
3
E
4
E
5
NORMAL
—
200V
D6515
S2L60F
200V-RECT
7
12
C6547
220
250V
13
FB6501
1.1UH
+135V
C6544
330
160V
D6513
D8LC40F
135V RECT
L6505
1
4
2
3
R6598
0.27
1W
:RS
:LHL10
TO A
D6517
S2L60F
200V-RECT
FB6505
0UH
4
C6508
47
25V
3
R6501
91
:RN-CP
1
C6505
470pF
500V
15
R6557
100k
:CHIP
:LHL08
+15V
+15V
+15V
(800MA)
L6503
C6545
2200
25V
:LHL08
R6525
470
:CHIP
4
1
3
2
SUB 7V
R6591
0.22
1W
:RS
MAIN RLY
17
18
R6599
D6514
D4SBS6-F
15V RECT
R6596
10k
:RN
WP
W.P
R6600
10k
:RN
Q6521
2SC3311A
OCP LATCH
+B OCP
SUB7V
+15V
R6542
1k
:CHIP
R6590
680
:FPRD
IC6503
DM-58
CONTROL
MAIN RLY
4
3
IC6505
SE-140N
+B OVP
1
R6593
100
:FPRD
R6602
1k
:CHIP
R6605
2.2k
:CHIP
Q6522
2SA1309A
OVP SW
2
1
C6551
0.022
B:CHIP
R6506
0.47
:FPRD
TO A BOARD
C6561
1
R6614
3.3
1/2W
:FPRD
-15V
R6583
15k
:CHIP
CN6504
8P
R6603
10k
:CHIP
R6612
47k
:CHIP
R6547
1.5k
:CHIP
P-SW(-)
8
Q6524
2SA1309A
OCP LATCH
C6506
470pF
500V
5
7
1k
D6522
MA111
BIAS
6
E
R6604
10k
:CHIP
Q6520
2SA1208S
+B OCP
R6597
100k
:RN
-
CN6503
8P
WHT
:S-MICRO
STBY 5V
16
R6544
0
:CHIP
R6524
0
:CHIP
TO P2
-15V
(300MA)
PH6502
ON3171-R
MAIN CONTROL
+
C6546
4700
25V
3
CN3170
R6539
22k
3W
:RS
—
J
R6508
10k
:CHIP
TO A BOARD
CN6505
8P
—
8
E
MAIN 5V
4
MAIN12V
33V
1
33V
Q6532
2SD601A
LATCH-1
R6530
4.7k
:CHIP
1
CLK0/B CLK
DAT0/B DAT
2
DAT0/B DAT
E
R6538
10k
:CHIP
4
NVM5V
5
OVP
R6534
33k
:CHIP
C6594
0.1
25V
B:CHIP
Q6529
2SD601A
LATCH
Q6528
2SD601A
VC-SW-2
R6511
10k
:CHIP
PH6503
ON3171-R
MAIN SW
R6522
10k
:CHIP
4
1
3
2
R6540
1k
:CHIP
STBY 5V
Q6531
2SD601A
MAIN-SW
200V-OCP
R6536
10k
:CHIP
R6537
10k
:CHIP
D6508
MTZJ-33C
33V
R6512
10k
:CHIP
D6501
MA111
D6537
MA111
200V-OCP
3
PROT1
E
R6527
68k
:CHIP
C6595
100
25V
Q6530
2SB709A
LATCH-2
C6596
1
R6550
4.7k
:CHIP
Q6527
2SD2114
AC-RLY-DRV
+B OCP
CN3171
CLK0/B CLK
+B OCP
MAIN 5V
MAIN9V
TO A BOARD
—
R6532
10k
:CHIP
MAIN5V
MAIN 9V
2
CN6506
8P
M
MAIN 12V
7
3
E
L
AC RLY
5
E
R6509
4.7k
:CHIP
STBY5V
6
MAIN 9V
—
R6528
100
:CHIP
STBY 5V
STBY 5V
MAIN 12V
K
Q6526
2SB709A
LATCH
CN6001
R6523
22k
:CHIP
NVM5V
6
33V
7
+B OCP
8
—
9-965-916-02<HA3>D P1
N
— 83 —
BOARD
CN4403
L6504
R6510
22
1W
:RS
2
200V
14
PH6501
ON3171-R
RESISTOR SHORT
1
11
2
R6503
100
:RN-CP
FB6506
0UH
8
6
D6507
0
:CHIP
-15V
AC RLY
C6532
0.056
800V
:PP
C6516
0.001
B:CHIP
PRI 15V
R6507
4.7k
:CHIP
CN6501
6P
WHT
:VH
MAIN RLY
I
S
R6535
10k
:CHIP
SUB 7V
—
C6525
0.001
1kV
R
D6532
ERA22-08
STOPPER
1
NC
F
RY6502
AC RECT+
R6502
470k
1/2W
P-GND
VC1
AU GRD
135V
C6507
47
JW6504
7.5MM
TO A BOARD
—
R6515
470k
1/2W
VG(L)
SS
12
C6587
0.0047
250V
F
PS6501
ICP N70
10
FB6504
1.1UH
R6531
10
:FPRD
C6517
4.7
C6589
0.0047
250V
F
2
TIMER
T6501
:PIT
S
11
—
CN6502
2P
WHT
:MINI(LOCK)
VB
GND
AU +24V
C6548
3300
35V
Q6506
IRFIB7N50A
CONVERTER
C6510
0.1
:PT
PS6502
ICP N70
+
C6526
0.001
1kV
R
9
10
CN6709
D6530
D6SB60L
AC-RECT
7
C6586
0.0047
250V
F
8
TO F BOARD
9
D
VS
RT
R6533
10k
:CHIP
C6519
10
6
R6553
330k
:CHIP
VG(H)
CT
18
F/B.
C6518
0.001
:PP
VD
17
R6504
10k
:CHIP
C
VSENSE
C6511
0.01
B:CHIP
-
16
R6517
8.2k
:RN-CP
15
—
Q6507
IRFIB7N50A
CONVERTER
R6529
10
:FPRD
14
R6513
330k
:RN
D6516
D4SBS6-F
AU RECT
FB6509
0.45UH
FB6502
0.45UH
13
AC RECT
R6514
330k
:RN
1
R6646
330k
:RN
2
POWER SUPPLY
FB6508
0.45UH
IC6501
MCZ3001D
DRIVER
Q6503
2SD601A
3
B
JR6501
0
:CHIP
8
AUDIO 22V
7
AUDIO 22V
6
AUDIO GND
5
AUDIO GND
4
AUDIO-PROT
3
SET ON
2
SUB 7V
1
P-SW(-)
|
28
KD-34XBR2
D BOARD SCHEMATIC DIAGRAM (2 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
TO P3
A
ABL
DF DRV
MAIN 9V
MAIN 9V
D BOARD WAVEFORMS
DF PARA
IC5003
PQ12RF21
12V REG
—
10
R5501
220
:CHIP
:LHL10
11
MAIN5V
C5102
47
25V
CLK0/B CLK
SDA
R5685
1.5k
:RN-CP
R5506
10k
:CHIP
R5712
0.47
1/2W
:FPRD
R5689
47
:CHIP
R5711
0.47
1/2W
:FPRD
C5505
10
R5514
0
:CHIP
R5717
68k
:CHIP
R5692
1.5k
:RN-CP
C5603
0.0047
B:CHIP
R5648
0.33
3W
:RS
C5576
220
25V
-15V
C5590
330p :CHIP
R5649
100
2W
:RS
C5577
220
25V
R5694
4.7k R5693
:RN-CP 4.7k
:RN-CP
V_DY-CONV
H-AGC_C
H_STAT
A_VCC
V_STAT
R5699
22k
:CHIP
1W
C5621
0.1
:MPS
:RS
C5625
100p
CH:CHIP
1
2
3
4
5
C5628
100
16V
C5602
47
16V
R5679
15
:FPRD
C5611
0.1
25V
F:CHIP
C5601
0.1
:MPS
C5623
100
16V
MAIN 12V
1
IC5510
LA6500
NS-OUT
R5680
1.5
:FPRD
2
3
4
R5697
180
:RN-CP
R5688
1k
:RN-CP
TO DY
12 Vp-p (H)
4
5
R5615
15
:FPRD
R5700
15k
:RN-CP
C5600
47
16V
-12V
1.0 KVp-p (H)
H COMP IN
CN5501
8P
7.3 Vp-p (V)
IC5512
NJM79M12
-12V-REG
-15V
O
CN3173
6
D5031
UDZ-1710B
7
S
8
SCLK
F
CN5506
11P
:B-TO-B
HOLD DOWN
BUSCON
5
7
E
8
R5536
15k
:RN-CP
D5506
MA111
R5528
R5522
22k
10k
:CHIP
:CHIP
6
EW DRV
15
7
8
R5513
4.7k
:CHIP
9
M PIN
C5509
330p
CH:CHIP
7
6
5
4
3
2
1
D5503
MA111
TEMP C
10
R5523
47k
:RN-CP
TO A BOARD
CN3174
C5514
0.01
B:CHIP
8
9
10
11
12
13
3
R5519
47k
:RN-CP
C5506
4.7
D5502
MA111
TEMP C
Q5506
2SD601A
H.SAW.RST
R5525
10k
:RN-CP
R5516
2.7k
:RN-CP
-15V
R5108
36k
:RN-CP
C5045
0.1
F:CHIP
-15V
14
7
C5044
0.1
F:CHIP
13
K
R5103
2.2k
:RN-CP
11
R5101
4.7k
:RN-CP
10
Q5018
2SD601A
H PROT
9
TO A BOARD
12
R5125
4.7k
:CHIP
R5102
1k
:RN-CP
D5018
MTZJ-15B
CLAMP
R5111
4.7k
:CHIP
Q5021
2SD601A
BUFFER1
R5114
4.7k
R5036 C5013
33k 0.0022
:CHIP B:CHIP
4
R5044
10k
:CHIP
Q5037
2SD601A
S-COR-BUFF
L
R5159
100
:CHIP
R5058
470k
:CHIP
5
R5038
12k
:CHIP
C5028
4.7
D5009
MA111
OFF-PROT2
C5519
0.047
B:CHIP
R5059
4.7k
:CHIP
C5027
4.7
6
7
M
Q5033
2SB709A
BUFF
+15V
R5008
10k
:CHIP
MAIN 12V
Q5008
2SB709A
PROT-OUT
Q5004
2SA1208S
HOCP
R5009
120k
:CHIP
R5020
5.6k
:RN-CP
BE TAKEN NOT TO
C5081
0.022
50V
:PT
ALLOW HEAT SINK
TO TOUCH ANY
R5599
10k
:CHIP
R5041
1.5
:FPRD
C5080
0.022
50V
:PT
R5131
3.3k
:RN-CP
7
Vee
R5053
470
2W
:RS
C5016
0.33
:MPS
C5019
100
C5070
0.1
B:CHIP
R5127
470
2W
:RS
D5027
MA111
R5029
4.7k
:RN-CP
200V
R5046
1.8
1/2W
:RN
Q5035
2SD601A
H DR BUFF
R5154
10k
:CHIP
R5071
15k
:RN-CP
3
4
D5015
RGP10G
200V-RECT
5
R5085
470k
:CHIP
R5086
4.7k
:CHIP
C5031
0.0015
B:CHIP
D5011
RD2.OES-T1B1
CLAMP
R5092
1k
:CHIP
Q5017
2SC2688
200V.DET
+135V
C5026
47
250V
R5710
270
1W
:RS
R5075
100k
:RN-CP
R5076
100k
:RN-CP
R5077
27k
:RN-CP
R5078
100k
:RN-CP
R5072
15k
:RN-CP
R5052
1.5
1/2W
:RN
N/S COIL +
11
N/S COIL NC
9
135V
8
NC
7
E
6
QP-
5
NC
4
QP+
3
NC
2
V PIN+
1
V PINCN5509
12P
RED
:S-MICRO
C5025
0.001
:PT
R5087
4.7k
:CHIP
1
D5016
ERC91-02
CENT-VEE
10
2
C5033
0.1
:MPS
R5097
0.82
:FPRD
C5041
470
16V
C5032
0.047
B:CHIP
R5093
11k
:RN-CP
D5017
ERC91-02
CENT-VCC
L5003
4mH :HCC
R5090
1.8
2W
:RS
L5004
:LHL08
D5014
D5LC20U
HEATER-RECT
R5098
0.68
:FPRD
R5095
0.47
:FPRD
8
4
5
T5001
:HOT
R5096
0.47
:FPRD
C5040
470
16V
D5032
MA111
12
1
11
2
10
3
9
8
5
7
6
6
R5091
4.7
:FPRD
C5036
470
25V
R5094
1k
1W
:RS
D5012
RGP02-20EL
G2-RECT
R5132
1.2k
3W
:RS
C5072
0.01
B:CHIP
R5133
1.2k
3W
:RS
R5134
1.2k
3W
:RS
1
Q5026
2SD601A
DRIVE1
2
R5129
100
:CHIP
R5126
100
:CHIP
S
Q5036
2SD601A
BUFF
Q5027
2SB709A
DRIVE2
R5069
470k
:CHIP
C5037
10
400V
R5156
47k
:CHIP
D5028
MA111
R5068
220k
:CHIP
12
10
Q5028
2SK2182
DRIVE
R5130
47
:FPRD
C5053
0.22
200V
:PT
C5056
0.001
500V
B
R5141
470
3W
:RS
R5135
1.2k
3W
:RS
3
R5136
1.2k
3W
:RS
R5142
0.56
3W
:RS
T5002
:HDT
R5137
1.2k
3W
:RS
7
Q5030
2SC3997S
H-OUT
R5143
0.47
3W
:RS
4
3
5
2
6
1
R5144
0.47
3W
:RS
FB5002
0UH
R5145
10
2W
:RS
G
VC
C5035
100
16V
C5034
0.0047
4
C5057
470p
2kV
B
O
I
IC5006
PQ6RD83B
HEATER-OUT
D5023
PG124S15
DUMPER
C5058
680p
2kV
B
L5005
:HLC
C5063
0.0082
1.5kV
:MPP
C5059
680p
2kV
B
C5061
0.0082
1.5kV
:MPP
1
H/V DRIVE
5
3
2
C5060
0.0047
200V
:PT
C5064
0.56
250V
:MPP
C5065
0.56
400V
:MPP
H/V DY
4
C5066
0.0015
500V
B
R5148
220
1W
:RS
R5146
47k
:CHIP
H.DY
Q5031
2SK3262
S S-COR-OUT
R5051
560
R5043
4.7k
:RN-CP
TH5001
C5071
0.1
B:CHIP
R5153
10k
:CHIP
L5001
R5147
3.3k
:RN-CP
R5138
1k
:CHIP
2
R5089
1.8
2W
:RS
C5073
0.0022
B:CHIP
R5139
1k
:CHIP
R5150
4.7k
:CHIP
D5006
MTZJ-3.9B
REF-VOLT
1.1UH
R5067
3.3k
:RN-CP
IC5005
LA6500FA
H-CENT
VCC
R5084
10k
:CHIP
D5019
MA111
PROT
C5024
0.001
500V
E
8
TO DY
CN5002
6P
:DY
— 84 —
V.DY(+)
6
OTHER COMPONENTS
R5025
5.6k
:RN-CP
R5019
10k
5
2.9 Vp-p (H)
R5026
1k
:CHIP
R5082
10k
:RN-CP
Q5013
2SB709A
H-CENT-2
1
5
IS -15V CARE MUST
6
Q5007
2SB709A
ABL-CONT
9
200V
CN5003
4P
WHT
:MINI(LOCK)
TO C BOARD
CN9002
15
R5028
47k
:RN-CP
R5083
2.2k
:RN-CP
R5110
47
:FPRD
R5151
4.7k
:CHIP
R5022
27k
:RN-CP
2.0 Vp-p (H)
5.1 Vp-p (V)
14
R5081
100k
:RN-CP
R5080
4.7k
:CHIP
VEE
4
IC5004 HEAT SINK
3
D5026
MA111
-15V
R5012
22k
:RN-CP
R5024
47k
:CHIP
R5018
4.7k
:CHIP
13
R5027
68k
:RN-CP
R5065
240k
:RN-CP
C5050
0.01
B:CHIP
H.DY(-)
Q5005
2SD601A
BUFFER
1
R5152
10k
:CHIP
IC5004
STV9379
V-OUT
Q5034
2SD601A
H DUTY
R5017
120k
:RN-CP
R5021
68k
:RN-CP
CN9102
R5079
15k
:RN-CP
C5075
0.1
B:CHIP
R5157
47k
:CHIP
Q5006
2SD601A
LATCH-1
R5016
120k
:RN-CP
C5006
10
R5070
470k
:CHIP
D5013
RGP10G
PROTECT
R5064
240k
:RN-CP
Q5012
2SC2688
H-CENT-1
V.DY(-)
CAUTION !
R5023
4.7k
:CHIP
R5149
4.7k
:CHIP
C5023
0.01
B:CHIP
R5055
10k
:CHIP
R5063
20k
:RN-CP
R5158
4.7k
:CHIP
R5155
22k
:CHIP
C5069
0.1
B:CHIP
5
R5140
2.2k
:CHIP
C5022
0.0047
:PT
1.3 Vp-p (H)
R5014
2.2k
:RN-CP
R5011
120k
:CHIP
R5007
120k
:CHIP
12
C5609
100
25V
TO W BOARD
C5030
0.01
:MPS
R5107
47
:FPRD
R5160
100
:CHIP
R5088
1k
:CHIP
6
Vcc(OUT)
D5001
MTZJ-5.1B
CLAMP
4
F.B.-PLS
7
2
V-DRV-
N
OUT-PUT
C5009
470
25V
Vcc
JR5010
0
:CHIP
C5007
470
25V
—
D5002
GP08DPKG23
PUMP-UP
V-DRV+
-15V
P
C5004
0.047
200V
:PT
R5074
100k
:RN-CP
R5066
2.7k
:RN-CP
C5079
0.01
B:CHIP
R5039
4.7k
:CHIP
R5112
220
:CHIP
C5047
0.001
F:CHIP
Q5020
2SB709A
S-COR-DRIVE2
—
R5004
120k
:CHIP
C5005
100
6.3V
:BP
94.6 Vp-p (H)
1.9 Vp-p (V)
11
10
R5073
100k
:RN-CP
Q5014
2SD601A
200V REF
C5021
470p
CH:CHIP
IC5002
NJM2903M
PWM-CONT
8
Q5023
2SD601A
HSAW-SW
R5116
4.7k
:CHIP
R5049
2.2k
:CHIP
1
C5046
0.001
F:CHIP
R5109
12k
:RN-CP
Q5019
2SD601A
S-COR-DRIVE1
R5161
2.2k
:CHIP
—
O
S
Q5003
IRFI9630G
PWM-OUT
FB5001
R5054
2.2k
:CHIP
R5050
2.2k
:CHIP
D5008
MA111
OFF-PROT
R5057
10k
:CHIP
2
C5017
0.033
B:CHIP
R5037
2.2k
:CHIP
D5010
D5007
MA111
RD2.OES-T1B1
ON-PROT
ON-PROT2
3
C5076
0.1
B:CHIP
—
C5002
0.047
200V
:PT
D5003
ERC91-02
DUMPER
Q5011
2SD601A
HSAW-SW
C5077
0.1
B:CHIP
R5005
220
:CHIP
Q5022
2SB709A
BUFFER2
TH5002
10K
D5501
MA111
PROTECT
R5547
22k
:CHIP
C5049
0.001
B:CHIP
R5163
3.9k
:CHIP
R5128
4.7k
:CHIP
R5548
47k
:CHIP
R5117
2.2k
:CHIP
R5113
4.7k
8
10
IC5007
NJM2901M
H-PROT-CONT1
R5106
4.7k
:CHIP
R5105
47k
:CHIP
1
9
B
R5104
10k
:CHIP
2
R
D5005
MA111
BIAS
Q5015
2SC2688
200V REG2
C5012
0.0047
B:CHIP
R5115
1k
MAIN 9V
3
7
8
4
V PROT
H PROT
R5511
0
:CHIP
C5522
0.001
CH:CHIP
:CHIP
6
CN3103
—
C5507
0.001
:CHIP
R5518
47k
:RN-CP
-15V
5
E
4.7k
R5526
13
4
H COMP IN
—
2
5
E
V COMP IN
J
R5520
27k
:RN-CP
1
H DRV
6
H CENT
R5505
270k
:RN-CP
R5535
10k
:RN-CP
CN5505
10P
Q5503
DTC144EKA
AFC BUFF2
R5504
270k
:RN-CP
14
R5033
1k
:CHIP
Q5509
2SB709A
DF-DRV-2
Q5504
2SD601A
DF-OFFSW
:CHIP
V PIN
E
—
R5532
10
:CHIP
R5530
100
:CHIP
4
5
R5030
0
:CHIP
R5531
10
:CHIP
3
4
D5004
UDZ-12B
CLAMP
R5003
10k
:CHIP
C5001
0.0022
B:CHIP
R5588
2.2
1W
:RS
R5045
10k
:CHIP
C5018
0.01
B:CHIP
2
V DRV-
Q5508
2SD601A
DF-DRV-1
R5031
1k
:RN-CP
IC5001
NJM2904M
ERROR AMP
1
3
IC5502
NJM2901M
DQP-DF-CONT
C5503
100
25V
H/DY(+)
V DRV+
MAIN 12V
C5504
47
16V
R5512
4.7k
:CHIP
R5529
10k
:CHIP
R5527
4.7k
:CHIP
H.DY(-)
2
R5521
10k
:CHIP
H/DY(+)
V TIM
C5051
0.1
B:CHIP
R5002
220
:CHIP
R5048
6.8k
:RN-CP
R5047
2.2k
:CHIP
C5020
1000
16V
8
1
Q5501
2SD601A
DF PHASE
7
14
ABL S
R5508
100
:CHIP
R5042
22k
:CHIP
R5040
47k
:CHIP
6
11
R5001
10
:CHIP
MAIN 12V
1
CLK1/S CLK
Q5001
2SD601A
PWM-DRV-1
R5013
2.2
3W
:RS
Q5016
2SC2688
200V REG1
2
10
DF PARA
I
R5585
470k
:RN-CP
R5577
180k
:RN-CP
MAIN 9V
3
DAT1/S DAT
N/S
—
R5554
:RN-CP
JR5502
0
:CHIP
5
C5502
470
25V
9
CN5503
10P
H
C5542
0.0033
B:CHIP
:CHIP
4
R5502
0
:CHIP
R5581
10k
:RN-CP
R5578
18k
:RN-CP
3
Q5002
2SB709A
PWM-DRV-2
220k
—
18k
C5501
47
25V
2
R5510
100
:CHIP
6
B
1
2
SCP
B INT
22k
R5573
R5576
15
:FPRD
5
1
4
4
G2
NC
3
R5579
470k
:CHIP
2
3
G
C5533
0.0022
:PT
R5544
18k
:RN-CP
1
NC
R
R5563
6.2k
:RN-CP
2
C5011
220
160V
200V
HOLD DOWN
D5513
1SS133
R5056
—
E
R5565
100k
:RN-CP
R5545
33k
:RN-CP
Q5505
DTC144EKA
DQP-PROT
SDAT
1
4
DAT1/S DAT
R5564
100k
:RN-CP
Q5507
IRF614
DQP-OUT
3
B INT
CLK1/S CLK
E
5
C5548
0.47
:MPS
D5515
D1NL20
PEAK-DET
C5518
0.0039
630V
:PP
R5124
0
:CHIP
H1
E
R5123
0
:CHIP
9
I
G
C5598
47
16V
-15V
VCC
4
VEE
3
SCP
L5505
10mH
:LHL13
C5550
0.015
200V
:PP
IC5506
LA6500
DQP-AMP1
IC5504
LA6500
DQP-AMP2
C5531
0.1
:MPS
VCC
2
HP IN
L5504
10mH
:LHL13
D5514
D1NL20
DQP-SW
Q5502
DTC144EKA
AFC BUFF
VEE
1
E
FOR DX/H3
—
V FBP
5
E
60.2 Vp-p (V)
8.0 Vp-p (V)
C5616
0.1
:MPS
C5617
47
16V
+15V
TO A BOARD
6
8
7
+135V
—
12.8Vp-p (H)
152.4 Vp-p (H)
5
R5713
470
1W
:RS
R5704
1
:RN
R5678
8.2k
:RN-CP
-12V
3
R5702
1k
:RN-CP
R5705
1
:RN
D
2
CY-
VCC
C5592
0.1
B:CHIP
C5618
0.33
:MPS
IC5513
CXA8070AP
DY-CONV.CONT
R5657
4.7k
:RN-CP
270
R5708
C5619
270p
CH:CHIP
VCC
:EL0606
1
CN5510
3P
WHT
:S-MICRO
IC5514
LA6500
V-PIN-OUT
C5612
10
R5669
2k
:RN-CP
L5601
VEE
HD-IN
CY+
NC
R5698
6.2k
:RN-CP
R5670
39k
:RN-CP
VEE
H_DY-CONV
H-SAW_C
17
18
NC
REF.V-OUT
REF.V-IN
R5714
100k
:CHIP
16
SDL
D_VCC
R5716
1k
:CHIP
R5715
100k
:CHIP
15
V_SAW
14
1
R5686
680
:RN-CP
2
9
8
3
11
8
7
7
R5690
47
:CHIP
IC5511
CXA2026AS
DQP-CONTROLLER
R5672
330k
:CHIP
6
13
SCL
H-PARA
5
12
V IN
PARA0
4
4
10
9
ADRS
PARA1
3
5
VCC
H IN
C5614
10
6
PARA2
12
2
5
12
13
14
HSAW
SUB
1
V_SIN
11
MAIN9V
C5043
1000
16V
D5505
MA153
PROT
R5507
47
:CHIP
R5650
47k
:CHIP
V GEN
GND
C5607
B:CHIP
0.033
SCL
R5709
47
:CHIP
R5707
47
:CHIP
D_GND
A_GND
10
C5038
47
16V
C5594
0.1
:MPS
V AGC
H-TILT
R5696
8.2k
:RN-CP
6
MAIN RLY
MA111
D5021
R5122
10k
:CHIP
L5002
C5587
0.047
B:CHIP
R5645
47k
:CHIP
TO P1
IREF
OUTPUT
MUTE
C5610
470
16V
1
2
3
D5523
MTZJ-12
PROT
D5522
MTZJ-12
PROT
C5613
0.033
B:CHIP
4
:CHIP
PWM
IC5515
STK390-910
CONV AMP
7
7
1k
R5120
DAC0
SW0
3
5
C5588
0.01
:MPS
SW1
DAC1
R5647
100
:RN-CP
2
4
R5666
56k
:CHIP
H AGC
1
3
8
2
R5121
10k
:CHIP
6
4
D5507
MA153
PROT
R5503
47
:CHIP
DAT0/B DAT
R5623
2.2k
:CHIP
MAIN 9V
5
3
2
1
1
C
FV-SW
IC5008
BA51W12ST-V5
5V/9V-REG
C5511
100
16V
IC5501
M24C04
NVM
MAIN12V
C5052
0.1
B:CHIP
15
D5029
MA111
—
MAIN12V
C5015
1000
16V
16
O
17
G
18
R5509
100
:CHIP
NVM 5V
NVM5V
I
C5008
330
25V
C5508
0.01
F:CHIP
19
W.P
20
+15V
+135V
21
+15V
B
MAIN 9V
R5684
4.7k
:RN-CP
C5596
1
8
+15V
9
AFC-PLS
TO P1/P3
22
—
1 :MPS
C5605
DF SW
9-965-916-02<HA3>D P2
H.DY V.DY
V.DY
1.7 Vp-p (V).
1.5 Vp-p (V)
KD-34XBR2
D BOARD SCHEMATIC DIAGRAM (3 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
A
—
+135V
+135V
B
+15V
+15V
R8019
47k :CHIP
C8014
10
C8024
47
C8025
47
25V
VC2
OCP
P.GND
C8027
0.1
:PT
15
+15V
HOLD DOWN
16
R8004
22k
:CHIP
+135V
14
13
12
11
10
9
IC8001
NJM2901M
PROT-DETECT-1
200V
—
HV-PROT-ADJ
C8021
0.01
:PT
1
2
3
4
5
6
7
I
R8016
3.3k
:CHIP
R8008
22k
:CHIP
D8004
MTZJ-5.1B
IK-PROT-REF
—
D8007
MA111
IK-PROT1-SW
C8011
2.2
50V
C8013
10
C8005
47
25V
R8023
22k
:CHIP
R8024
10k
:CHIP
D8005
MA111
IK-PROT2-SW
C8009
10
R8022
10k
:CHIP
C8012
33
7
6
—
1
2
+15V
C8032
680p
:PP
R8070
0.1
2W
:RB
C8030
0.047
B:CHIP
R8081
0.47
:FPRD
R8056
8.2k
:RN-CP
R8145
100
:CHIP
C8051
10
R8091
470k
:RN
4
15
5
16
6
17
7
FV
R8095
470k
:RN
C8018
10
C8017
10
R8029
68k
:RN-CP
R8027
68k
:RN-CP
C8041
0.47
:MPS
R8077
220k
:RN-CP
Q8015
2SC2688
DF ON/OFF SW1
R8030
100k
:RN-CP
C8020
0.1
200V
:MPP
1
D8021
MA111
R8047
100k
:CHIP
D8020
MA111
R8065
47k
:CHIP
D8025
MTZJ-33B
Q8010
2SD601A
VD PROT
R8038
9.1k
:RN
C8022
100
16V
R8093
150k
:CHIP
R8103
6.8k
:CHIP
T8002
:DFT
R8089
47k
:CHIP
JR8003
0
:CHIP
C8047
180p
2kV
B
JR8006
0
:CHIP
R8100
100k
R8099
100k
R8111
6.8k
3W
:RS
JR8002
0
:CHIP
D8013
D1NL20U
STOPPER
R8041
1k
:RN-CP
JR8001
0
:CHIP
R8035
8.2k
:RN-CP
R8060
470
:RN-CP
4
R8059
0
:CHIP
1
2
PH8001
ON3171-R
HV FEEDBACK
R8066
1k
:CHIP
C8042
0.1
200V
:PP
R8069
1.5k
C8039
0.01
B:CHIP
CATHODE
ANODE
JR8007
0
:CHIP
R8071
10k
:CHIP
R8068
0
:CHIP
REF.
R8119
5.6k
3W
:RS
3
C8054
220p
500V
B
1
C8055
0.0018
:PP
L8005
3.3mH
D8016
ERA22-08TP3
SNUBBER
R8124
10k
:CHIP
R8125
10
:CHIP
R8123
100
:CHIP
C8053
100p
500V
B
Q8022
2SB709A
DF-DRV-2
C8050
0.022
630V
:PP
D8017
ERA22-08TP3
DF DAMP
Q8023
2SD601A
DF-DRV-1
R8126
10
:CHIP
C8058
0.47
:MPS
R8115
1k
:CHIP
R8082
3.3M
:CHIP
D8019
MTZJ-15B
RV8002
2k
8
7
6
5
C8040
220
R8074
3.0k
:RN-CP
R8072
1k
:RN-CP
R8116
5.6k
3W
:RS
C8060
4.7
160V
Q8018
2SC3840K
DF OUT
SG8005
R8114
6.8k
3W
:RS
D8018
D1NL40TA
2
6
C8046
100p
2kV
B
JR8004
0
:CHIP
R8109
6.8k
3W
:RS
R8098
100k
R8037
9.1k
:RN
R8036
9.1k
:RN
Q8019
DTC144EKA
DF PROT
R8112
100k
:CHIP
C8059
47
10V
Q8016
2SA1776
DF ON/OFF SW2
R8101
150k
:CHIP
4
R8080
15k
R8039
9.1k
:RN
R8031
100k
:RN-CP
R8117
100k
:CHIP
C8056
0.01
B:CHIP
R8104
47k
:CHIP
R8102
22k
:CHIP
JR8005
0
:CHIP
12
D8014
RGP10G
R8078
220k
:RN-CP
+135V
3
K
C8048
0.1
:PT
R8108
100k
:CHIP
Q8020
2SD601A
INVER
R8118
33k
:CHIP
3
D8051
MTZJ-15
R8040
9.1k
:RN
Q8008
2SD601A
IK-PROT1
C8015
33
Q8007
2SD601A
IK-PROT2
—
V SENSE
R8113
680k
:CHIP
D8026
MA111
R8146
1k :CHIP
T8001
NX-6000
:RHT
2
S
R8057
13k
:RN-CP
R8085
10k
1/2W
DF SW
DF DRV
R8018
22k
:CHIP
J
VD
R8061
10
:FPRD
+135V
R8013
0
:CHIP
D8002
MA111
LATCH-2
F/B
C8037
47000p
C8035
800V
680p
:MPP
1kV
:R
R8044
200k
:RN-CP
+15V
R8005
22k
:CHIP
CT
R8063
10k
:CHIP
14
C8063
0.01
630V
:MPS
R8096
0
:CHIP
C8045
1000p
11
R8042
10k
:RN-CP
DF SW
ABL
VG(H)
13
10
Q8013
IRFI644G
CONVERTER
R8127
0
R8009
220k
:CHIP
DF DRV
RT
9
SG8002
C8033
10
D8022
MA111
R8086
47k
1/2W
RV8001
20k
200V
AFC-PLS
GND
VS
17
8
C8002
0.22
:MPS
+15V
+15V
H
R8028
33k
:RN-CP
C8016
0.1
:PT
+135V
—
R8144
100
:CHIP
R8021
1k
:CHIP
VB
D8050
MTZJ-15
C8031
22
25V
R8087
0
:CHIP
HV
15V
G
D8006
MTZJ-13C
LIMIT
R8006
220k
:CHIP
18
R8003
22k :CHIP
TIMER
8
5
F
D8010
D1NL40
PUMP-UP
14
D8027
MA111
200V-OCP
SS
C8036
680p
1kV
:R
S
R8053
330k
:RN-CP
4
VG(L)
13
12
—
—
VC1
L8002
R8062
10k
:CHIP
R8054
330k
:RN-CP
200V-OCP
+135V
5
C8028
0.0022
B:CHIP
11
C8007
0.01
:PT
R8026
220k
:CHIP
R8049
100
:RN-CP
R8058
10
:FPRD
R8055
330k
:RN-CP
+15V
FB8001
0.45UH
10
E
R8020
22k
:CHIP
+15V
Q8014
IRFI644G
CONVERTER
IC8002
MCZ3001D
DRIVER
8
D8003
MA111
STOPPER
R8152
56k
:CHIP
R8050
33
:RN-CP
6
R8011
220k
:CHIP
C8023
820
250V
R8151
56k
:CHIP
R8017
0
:CHIP
Q8004
2SD601A
HV-STOP-4
R8137
1k
:FPRD
3
C8004
100
10V
R8199
4.7
:FPRD
R8150
56k
:CHIP
3
—
R8007
47k
:CHIP
R8051
0.47
1/2W
:RF
D8028
1SS133
2
R8002
4.7k
:CHIP
R8149
47k
:RN-CP
D8009
MA111
BIAS
2
R8001
10k
:CHIP
R8034
56k
:CHIP
Q8009
2SA1091
+B-OCP
200V
:LHL10
1
D
C8006
1
Q8002
2SD601A
HV-STOP-3
Q8001
2SD601A
BUFF
R8148
68k
:RN-CP
Q8003
2SD601A
HV-STOP-2
L8001
R8033
910
:RN-CP
R8032
10k
:CHIP
1
—
200V
9
R8147
68k
:RN-CP
R8010
220k
:CHIP
R8043
1
1W
:RS
C8019
100
10V
8
C
DEFLECTION
15V
R8025
68k
:RN-CP
10
—
IC8004
NJM2904M
BUFF
R8073
2.2k
:RN-CP
1
2
3
4
IC8003
CONTROL
L
—
M
9-965-916-02<HA3>D P3
—
N
— 85 —
27
|
28
|
KD-34XBR2
D
[POWER SUPPLY, AC RECT, H/V DRIVE, H/V DY, DEFLECTION]
COMPONENT SIDE
1
2
3
C
LK
1/
S CL
K
CN5505
AT
DA
T1
/S D
CN5501
4
R5117
1
10
8
1
5
6
C5076
R5156
R5157
C5072
CN5503
V COM
P IN
H CO
MP IN
Q5037
1
C5044
8
1
39
14
40
B
R5112
D5018
SC
P
B
C5058
C5059
E
C6587
R6514
R6513
R6529
C6511
HOT
A
C RE
CT
-
8
R5039
C6526
R5048
IC5001
R5040
C5079
NC
R6541
R6533
C5022
R5047
R5054
D BOARD LOCATOR LIST
(COMPONENT SIDE)
N
C
R6517
FB6509
C5999
CN6502
A
C RE
CT
+
C5008
R5142
Q5020
C5075
CN6501
Q5001
R5125
R5034
R5104
R5140 R5126
E
Q5019
4
R5001
FB6508
R5151
R5145
N
C
R5160
C5047
B
R5107
1
R5121
R5120
C5051
4
D5023
R5163
N
C
R6614
D6518
FB6502
C5021
R5109
R5108
R5150
C5046
D5027
CN5502
R5115
R5128
NC
R5049
R5055
R5042
R5088
TP 29
C5060
R6510
MA
IN 1
2V
C5012
JR5003
VP
RO
T
R
8
IC5008
R5045
1
4
IC5007
2
C5048
1
8
CN6504
R5030
8
C5070
Q5021
1
C5018
C5511
R5035
E
CN6503
8
1
IC5002
R5118
B IN
T
12
JR6501
5
7
HP
RO
T
11
MAI
N 5V
CN6505
R5503 R5509
4
R5106
R5102
10
1
C5045
R5101
DAT I/S DAT
T P3 0
9
8
1
0
R5119
Q5024
8
CN6506
C5077
R5116
C5049
1
A
7
1
2
R6518
P
RI 1
5V
R5110
I
D5022
S
C5053
C5052
G
O
R5144
R6502
C6519
IC5003
R6553
C6510
D6503
D6510
C6507
R5095
C6508
Q5026
T P28
R5146
C6584
D6502
D5029
Q5031
C
G
ND
R6543
R5143
C5063
G
R5130
C5061
R6503
10
RY6501
C6586
R6557
12V
R6531
R6501
C6503
C6517
R6516
C6588
Q6506
B
E
S
G
R6534
C6594
Q6526
Q5028
R5094
L5005
R6521
C6504
D5016
L5004
R6552
Q6528
R6524
C5033
D
R5019
D5001
C5039
R5148
C5019
H
/D
Y(
+)
D5002
R5020
R5084
L5001
V
.D
Y(
+)
R5046
R5051
G
C6502
R6591
B
R5505
C5026
C5035
Q5004
R5504
R5004
C8040
R8088
R8102
R5014
C8045
D8016
R8115
R8116
Q8020
C8062
C8059
C8039
R8084
R8069
C6547
R8049
C8024
IC5510
C8025
R8066
TP-HV-200V
3
D8009
R8059
R8112
G
R8038
R8148
C8031
R8109
C8054
1
C5611
R5679
C5600
R8037
D8010
C5601
R8057
C8063
R8056
C8030
C8027
L5504
R5669
R8149
C8033
Q8017
R5680
CN5508
R5615
3
R5573
R8062
1
N
C
R
57
11
D8012
1
8
E
Q8024
B
T8002
R8055
C8034
1
D5007
R5544
R5713
C5604
R8002
IC5512
R8017
R8058
Q5008
R8129
D8050
Q8002
R8019
I
R8128
R8052
1-678-582-31
C8029
R8051
CN8004
C5628
Q8003
R8028
C8003
R8027
R8030
C8010
R8083
R8029
9
C8005
14
4
R8
C8042
R8031
C8015
R5692
D8025
C5603
R5693
C5590
R5027
R8006 R8003
Q5506
RV8003
TP2 2
TP-VREF
C8008
D8006
R8012
TP2 1
TP-VD
C5519
ABL
-1
5V
R5623
C5588
C5623
R5657
R5648
1
C5605
R5513
CY-
CN5510
N
C
R5524
R5022
1
D5506
E
R5501
1
5V
R5650
7
R5527
R5684
R5516
C5506
R5525
R5696
+
CY
D8007
C8022
R8079
8
C5509
14
8
D8004
14
R5686
R8005
R8045
Q8
01
0
R5528
C5510
R5534
C5625
C8018
JR8002
R8082
R5539
VTIM
MAIN 9V
1
R8004
D8021
R8065
C8041
SG8005
DAT1/S DAT
R5056
IC5502
C8021
R8018
R8080
D8014
Q5504
18
R8041
7
L8003
C5027
D5008
R5547
Q5509
C5621
1
0
C8020
R8081
JR8001
D5031
C5618
C8006
R8008
RV8001
D5513
Q5502
R5538
Q8012
R8022
L8002
O
R8020
C8037
I
R5565
R5564
R5058
D5010
R5057
T8
001
E
R5563
2
R5705
R8060
R8130
H
C5531
R5702
1
5
2
R5588
IC5514
5
R8147
C8070
2
4
2
4
R8039
C8014
C8055
1
TP2 0
R8050
4
R5577
C8019
D8051
R8138
R8111
C8056
4
L5505
2
1
R8090
1
V PI
N+
C5624
R8113
R8108
1
35V
5
R8068
4
R8097
8
IC8005
CN5509
C6599
C6545
R8141
5
C6600
IC8004
1
4
C6561
IC6503
12
D6514
R8072
R8143
B
R6604
IC6505
R6593
R5011
R8092
E
D6513
C6506
5
R8123
1
E
L6505
C6505
L6503
R8074
8
R8126
R6602
B
R5012
R8124
C8048
R8094
E
R6600
B
B
R5008
D8019
R6605
TP 23
FB6501
R5013
R6612
Q6521
135V
E
R8125
AU-23V
D6522 R6583
C6551
R6598
Q5014
C8044
TP 27
I
O
E
Q5
01
3
D8015
R8118
C6548
R5007
R8099
Q8019
D6537
R6532
D6501
T6501
R5073
C5024
R8119
R8093
Q6530
D5024
R5078
Q8015
R6512
D6516
C5025
R5006
R5010
R8114
D5013
IC5006
R5076
D8013
R8098
Q6531
PH6503
B
R5074
R5075
R5079
Q5
01
2
R5080
C5007
R5015
C8060
R5083
Q5017
C5009
1
Q5015
E
R5069
E
JR5012
C5081
R8131
2
R6536
E
B
V
.D
Y(
-)
R8136
F
B
D5032
R5086
C5016
R5029
R5052
4
Q5016
H
.DY
()
Q8027
3
R6528
4
R5068
E
D6533
R5136
H.
DY
()
C
508
0
PH6501
1
R6542
R5087
R5041
Q6503
PH6502
R6544
C5002
2
00
V
TP 24
R5025
4
R6522
2
FB5001
5
R5147
C5014
3
C6532
IC5005
1
H/
DY
(+)
JR5010
COLD
C5004
R5091
C8011
D8001
C8013
IC8001
— 86 —
Q5006
R5021
Q5007
R5026
C5504
R5535
R5554
C5587
R5601
R5517
DIODE
D5001
D-12
D5002
D-12
D5003
D-7
D5006
I-2
D5007
H-2
D5011
D-9
D5012
D-10
D5013
D-7
D5014
C-8
D5015
D-8
D5016
C-9
D5017
D-9
D5018
B-11
D5023
B-10
D5024
E-7
A-3
D5025
D5513
H-2
D5514
H-2
D5515
H-2
D5522
H-3
D5523
H-3
D6502
C-5
D6508
E-2
D6509
C-4
D6510
C-3
D6513
F-3
D6514
G-6
D6515
F-4
D6516
D-2
D6517
F-4
D6532
C-2
D8004
I-5
D8006
I-5
D8017
F-11
D8018
G-12
D8019
F-9
D8025
I-6
IC
IC5004
D-11
IC5005
D-9
IC5006
E-7
IC5504
H-2
IC5506
F-1
IC5510
G-4
IC5511
I-2
IC5512
H-3
IC5513
H-3
IC5514
G-3
IC5515
H-4
IC6501
C-4
IC6503
E-2
IC6505
E-2
IC8002
G-7
IC8003
F-8
TRANSISTOR
Q5003
D-7
Q5004
F-7
Q5030
B-9
Q5031
B-11
Q5507
G-2
Q6507
B-5
Q6521
E-1
Q6522
E-1
Q6524
E-1
Q8009
G-6
Q8013
G-6
Q8014
G-6
Q8015
F-11
Q8018
F-11
KD-34XBR2
D
[POWER SUPPLY, AC RECT, H/V DRIVE, H/V DY, DEFLECTION]
CONDUCTOR SIDE
E
H CENT
E
V FBP
CN5501
B INT
E
TP30
H DRV
E
V COMP IN
H COMP IN
R
V PROT
B
ABL S
V TIM
N/S
V DRV+
V PIN
V DRV-
EW DRV
M PIN
DF PARA
E
OVP
K1
CL
LK
/S C
/S D
T1
DA
AT
R5114
R
B
E
H PROT
E
E
H CENT
ABL S
DAT1/S DAT
B INT
R5113
V COMP
CN5506
SCP
E
E
V PROT
E
IN
M PIN
C5057
EW DRV
E
E
V TIM
TP29
E
CLK
CLK I/S
E
MAIN9V
6
C5065
C5064
L5003
1
R5098
1
G2
2
IC5004
1
200V
C5016
CN5002
C5080
7
R5127
H/DY(-)
R5053
H/DY(-)
4
V.DY(-)
C5009
E
Q8016
B
R8100
B
B
C8053
R8099
Q8015
R8094
D8016
E
C8058
C8060
R8098
D8017
C8040
RV8002
6
TP24
E
CN5003
H1
C5041
C5034
C5040
D5017
C5066
D5012
C5042
R5097
D5015
R5090
L5001
C8044
R8119
C8031
E
D8018
C8055
SG8002
C8051
9
R8085
R8120
R8116
C8059
R8091
C8057 L8005
C8064
R8086
D8028
R8095
10
C8026
R8061
D8011
C5081
R5015
C8050
R8111
C8054
R8109
R8110
C8063
1
B
Q8025
B
C8032
R8137
Q8024
E
FB8001
S
18
E
E
D8012
R8058
D8050
D8025
D8014
R8083
C8041
T P21
TP-VD
C8047
T8002
C8061
R8081
L8002
C8046
C8005
RV8003
D8004
D8006
C8011
RV8001
L8003
C8037
C8016
R8080
C8002
C8015
C5623
R8114
B
Q8017
C8033
R8132
C8006
C8018
C8021
C8001
R5649
9
C8013
+
CY
R5010
A
PH8001
R8199
C8025
G
C8036
C8034
C8004
R8036
1
C5618
C5577
15V
9
3
N
C
1
D8010
Q8014
C5576
IC5515
C5598
R5708
R5712
CLP5001
C5503
N/S COIL-
N/S COIL+
D5006
C5504
C8048
D8013
TH5001
R5006
T P25
YC
R5041
R5046
R5051
C8009
C8003
IC5513
1
C5506
C5614
NC
12
1
CLP5002
4
C8020
18
R5648
R5032
C8045
C8012
C8017
C5605
11
1
IC5511
C8010
1
0
R8051
C8029
C8007
C5621
D5522
CN5510
22 CN5005
C5588
C5505
I
D5523
BL
A
Q8013
C8035
E
L8001
R5711
L5601
C5533
G
C5609
D5513
C5596
V
IN 5
MA
V
15
IC5512
R5713
3
D5002
Q8018
1
C8070
C8023
R8037
C5628
C5594
C5610
A
S
PL
FC
E
R5705
O
IN 9V
MA
5V
-1
D5514
D5515
C5027
C5028
R5704
-15V
1
2
IC5504
10
DAT1/S DAT
V
M
TI
TP 26
D5007
R5680
2
IC8002
R5679
G
R5615
1
R8039
R8038
C5600
C8027
C5617
5
C8014
3
R5576
C8024
S
IC5510
C5602
1
CN5508
C8019
TP-HV-200V
4
R8070
Q5507
S
C5548
5
4
C5601
IC5514
C5612
5
1
G
Q8009
C5616
C5615
R5710
C5501
TP 20
2
4
D8019
R8040
R8043
R8069
C6545
D8051
2
C5025
IC8003
R5019
D5001
R5052
(+
DY
V.
)
D8015
D6514
B
C5518
2
1
R5588
L5504
C5531
C5026
E
Q5004
L5505
NC
G
C8049
C5005
C6598
C6547
R8046
5
4
NC
CLK1/S CLK
B
R5013
Q
P-
+
QP
Q5012
E
SG8001
-
C5550
E
B
C5024
+
NC
C5624
E
E
Q5016
C5035
C6506
R5148
C5007
B
C5006
FB6505
FB6506
C6600
C6599
NC
E
Q5017
C6505
12
Q5031
C5019
K
C6544
D6515
R6599
IC5506
1
35V
Q5015
L6503
C6597
R6590
R6593
IL
S CO
N/
S CO
+
IL
N/
E
B
I
D6517
Q6520
CN5509
1
FB6504
C6561
B
E
R5089
G
R5133
R5132
R5135
D5024
L5005
(+)
DY
H/
D5011
2
G
L6505
D6513
E
TH5002
(+)
DY
H/
IC5005
1
IC5006
FB6501
D BOARD LOCATOR LIST
(CONDUCTOR SIDE)
TP 31
R5094
C5033
4
D5013
R5164
R6591
C5502
P
IN
D5016
C5002
L6504
C6546
R6539
R6597
R6598
1
B
V
7
R5096
Q5003
R5136
T6501
E
R6589
R6600
E
C5037
D5003
FB5001
S
3
C6595
C5039
C5011
2
2
135V
N
C
R5107
JL1
R5134
L5004
C5036
T P2 3
S
CP
NC
R5110
R5091
PH6503
B
B
IC6505
D6508
R6596
E
B
E
P
+
IN
12
C6525
G
3
IC6503
Q6521
Q6524
C5058
C5063
R5095
C6532
AU-23V
Q6522
V
R5144
S
Q6506
O
E
R
C5060
D5023
T5001
C5056
R5137
C5015
9
R6556
B
E
4
TP27
1
B
C5061
5
-
4
0
R5115
D5014
Q5028
COLD
D6516
MAIN12V
C5030
IC5008
R5141
T5002
R5130
TP 28
R6505
C6592
C6596
+
-15V
PROT1
E
E
1
2
5
C5008
G
O
C6510
Q6507
12V
R6531
D6532
1
R6520
C6548
HP I
N
B
C6526
D6502
10
C5053
3
1
D5018
S
C5004
4
B
C5999
I
2
PH6501
Q5030
E
C6508
3
4
K1
CL
LK
/S C
HOLD DOWN
PH6502
R6521
3
9
C5059
C6517
C6588
R5145
R5142
C5022
IC5003
IC6501
C6503
RY6502
C5020
R5143
C6507
C
C6586
R6516
CN5502
E
18
R6529
FB6509
R6506
D6509
R6515
JW6503
JW6504
D6530
C6519
D6510
H DRV
E
4
R6646
FB6502
R6526
1
C6518
C6589
RY6501
JW6501
JW6502
R6502
D F P AR A
1
2
C5102
FB6508
CN6501
1
A-1346- 948-A
IN
5V
MA
C5511
8
HC
P IN
OM
C5038
HOT
R6514
C6584
1
AT
AT I
/S D
10 D
1
CN5503
1
C6590
C6587
2
1-678-582-31
10
NC
CN6502
D
1
A
C RE
CT
R6513
B
NVM5V
NC
PR
I 15V
AC OUT
AC OUT
L5002
A
C RE
+
CT
C6585
C6591
CN6504
C5043
SUB 7V
E
PROT
GND
R6510
8
1
8
1
CN6505
P-SW(-)
22V
22V
8
D5025
1
GND
PS6501
PS6502
8
GN
D
I
CN5505
C
O/
LK
K
B CL
T
TO
DA
/B DA
12
JL2
CN6503
R6614
H
11
A
UD
IO
A
F
10
H PROT
CN6506
9
SCP
8
HP IN
7
+B OCP
E
MAIN RLY
6
AC RLY
AC OFF
E
E
WP
NORMAL
5
33V
E
MAIN 5V
E
MAIN 9V
4
MAIN 12V
3
STBY 5V
2
E
1
T P22
C8008
TP-VREF
R8079
C8022
SG8005
T8001
C8042
— 87 —
E
CN8004
DIODE
D5004
E-6
D5005
F-6
D5008
H-12
D5009
H-12
D5010
H-11
D5019
B-3
D5021
B-6
D5026
B-4
D5027
B-4
D5028
B-4
D5029
C-7
D5031
H-10
D5032
E-4
D5501
I-12
D5502
I-11
D5503
I-12
A-6
D5505
D5506
H-11
D5507
B-5
D6501
D-11
D6507
B-8
D6522
E-11
D6530
C-10
D6531
C-11
D6533
D-11
D6537
E-11
D8002
I-8
D8003
I-8
D8005
I-8
D8007
I-8
D8009
G-7
D8010
G-6
D8013
F-4
D8014
I-6
D8016
F-2
D8020
I-7
D8021
D8022
D8026
D8027
I-6
G-6
G-5
G-8
IC
IC5001
B-5
A-6
IC5002
IC5003
C-7
A-5
IC5007
A-7
IC5008
A-6
IC5501
IC5502
H-11
IC8001
I-8
IC8004
F-4
TRANSISTOR
Q5001
B-7
Q5002
B-7
Q5005
D-2
Q5006
I-11
Q5007
I-11
Q5008
G-12
A-6
Q5011
Q5012
E-4
Q5013
E-4
Q5014
E-4
Q5015
E-5
Q5016
E-5
Q5017
E-4
Q5018
B-5
Q5019
B-1
Q5020
B-2
Q5021
B-2
Q5022
B-2
A-4
Q5023
Q5026
C-6
Q5027
C-6
Q5028
C-7
Q5033
Q5034
Q5035
Q5036
Q5037
Q5501
Q5502
Q5503
Q5504
Q5505
Q5506
Q5508
Q5509
Q6503
Q6506
Q6520
Q6526
Q6527
Q6528
Q6529
Q6530
Q6531
Q6532
Q8001
Q8002
Q8003
Q8004
Q8007
Q8008
Q8010
Q8016
Q8019
Q8020
Q8022
Q8023
B-4
B-4
B-4
B-5
A-5
H-10
H-10
H-10
H-11
H-11
H-12
H-11
H-11
D-10
D-7
F-11
C-10
D-11
D-9
D-11
D-11
D-10
D-11
H-8
H-8
H-8
H-8
H-8
I-8
I-7
F-1
F-1
F-2
F-4
F-4
KD-34XBR2
D BOARD IC VOLTAGE LIST (1 OF 3)
IC6501
pin
volt
1
2.5
2
1.8
3
2.2
4
2.5
5
GND
6
0.0
7
4.0
8
17.2
9
GND
10
10.4
11
0.0
12
4.6
13
N/C
14
163.6
15
153.5
16
157.6
17
N/C
18
1.7
IC6503
pin
volt
1
134.0
2
N/C
3
2.5
4
11.8
5
GND
IC6505
pin
volt
1
134.9
2
15.7
3
GND
All voltages are in V.
D BOARD TRANSISTOR
VOLTAGE LIST (1 OF 3)
B
Q6503 0.0
Q6520 131.0
Q6521 0.0
Q6522 15.7
Q6524 2.1
Q6526 5.9
Q6527 0.6
Q6528 0.6
Q6529 0.0
Q6530 4.7
Q6531 0.6
Q6532 0.0
C
2.5
0.0
2.1
GND
0.4
0.0
0.0
0.0
5.9
0.0
0.0
4.7
E
0.0
132.0
GND
15.7
4.9
5.9
0.0
0.0
0.0
4.7
GND
GND
D
Q6506 4.7
Q6507 154.4
G
149.2
303.3
S
0.0
150.0
All voltages are in V.
— 88 —
KD-34XBR2
D BOARD IC VOLTAGE LIST (2 OF 3)
IC5001
pin
volt
1
11.0
2
11.0
3
1.7
4
GND
5
4.0
6
4.0
7
5.9
8
12.1
IC5002
pin
volt
1
0.1
2
6.0
3
3.8
4
GND
5
2.3
6
3.7
7
2.9
8
12.1
IC5003
pin
volt
I
15.6
G
GND
O
12.1
IC5004
pin
volt
1
1.2
2
15.6
3
-12.6
4
-14.5
5
0.2
6
16.2
7
1.2
IC5005
pin
volt
1
100.0
2
99.7
3
95.3
4
100.0
5
104.6
IC5006
pin
volt
I
7.8
G
GND
O
6.3
VCC
2.7
IC5007
pin
volt
1
3.1
2
0.6
3
12.1
4
1.5
5
2.3
6
3.9
7
2.8
8
0.0
9
3.0
10
1.4
11
6.1
12
GND
13
2.5
14
0.6
IC5008
pin
volt
1
9.1
2
12.0
3
GND
4
5.0
5
5.2
IC5501
pin
volt
1
GND
2
5.0
3
5.0
4
GND
5
4.6
6
4.6
7
5.0
8
5.0
IC5502
pin
volt
1
5.4
2
2.4
3
12.1
4
3.6
5
3.4
6
3.4
7
3.9
8
1.0
9
1.0
10
0.0
11
0.0
12
GND
13
3.7
14
0.0
IC5504
pin
volt
1
4.2
2
4.2
3
GND
4
5.5
5
9.0
IC5506
pin
volt
1
4.3
2
4.3
3
-15.5
4
4.4
5
9.0
IC5510
pin
volt
1
0.6
2
0.6
3
-11.9
4
2.4
5
12.1
IC5511
pin
volt
1
4.6
2
4.6
3
4.0
4
4.2
5
9.0
6
4.2
7
GND
8
4.2
9
1.9
10
4.4
11
4.4
12
6.4
13
N/C
14
8.2
15
1.9
16
4.0
17
4.9
18
N/C
19
3.6
20
9.0
21
0.9
22
3.4
IC5512
pin
volt
I
-15.8
G
GND
O
-12.0
IC5513
pin
volt
1
4.5
2
4.9
3
4.9
4
4.6
5
5.0
6
5.0
7
N/C
8
5.0
9
5.0
10
12.1
11
4.0
12
5.0
13
5.0
14
0.5
15
1.1
16
4.6
17
4.6
18
GND
IC5514
pin
volt
1
0.3
2
0.3
3
-12.0
4
0.7
5
9.0
IC5515
pin
volt
1
3.4
2
3.4
3
-9.6
4
-15.3
5
GND
6
12.0
7
-14.0
8
2.7
9
GND
All voltages are in V.
D BOARD TRANSISTOR VOLTAGE LIST (2 OF 3)
Q5001
Q5002
Q5003
Q5004
Q5005
Q5006
Q5007
Q5008
Q5011
Q5012
Q5013
B
C
E
B
C
E
B
2.9
12.0
3.3 Q5014 6.6
12.1
6.1 Q5027 5.2
2.9
GND
3.3 Q5015 202.8 212.4 203.2 Q5030 132.0
127.4 134.1 23.3 Q5016 203.2 212.4 202.6 Q5033 10.0
132.0 0.0 133.0 Q5017 6.5 164.8 6.1 Q5034 0.0
-0.5
15.6
0.1 Q5018 0.6
1.9
GND Q5035 0.0
-12.0
1.0
-12.6 Q5019 3.7
12.1
2.9 Q5036 0.1
4.4
-12.6
4.8 Q5020 3.7
GND
2.9 Q5037 3.1
11.9
0.0
10.7 Q5021 0.4
9.0
0.5 Q5501 2.4
0.1
3.9
GND Q5022 0.4
GND
1.1 Q5502 0.5
3.7
97.7
3.2 Q5023 0.4
3.9
GND Q5503 0.5
3.1
GND
3.7 Q5026 5.2
12.1
5.2 Q5504 0.0
— 89 —
C
0.0
0.0
1.4
1.4
2.5
5.2
12.1
12.1
5.4
2.4
4.0
E
5.2
GND
10.5
GND
GND
GND
GND
3.7
GND
GND
GND
Q5505
Q5506
Q5508
Q5509
B
0.0
0.3
4.0
4.0
C
4.2
3.6
12.1
GND
E
GND
GND
4.6
4.6
All voltages are in V.
Q5028
Q5031
Q5507
D
5.2
2.9
5.4
G
33.5
12.6
6.9
S
0.0
GND
GND
All voltages are in V.
KD-34XBR2
D BOARD IC VOLTAGE LIST (3 OF 3)
IC8001
pin
volt
1
0.1
2
0.0
3
15.6
4
5.0
5
0.0
6
5.0
7
0.0
8
5.0
9
4.2
10
5.0
11
0.1
12
GND
13
0.1
14
0.1
IC8002
pin
volt
1
1.6
2
1.8
3
2.2
4
2.5
5
6
7
8
9
10
11
12
13
14
15
GND
0.0
4.7
15.6
0.0
10.4
GND
4.5
N/C
104.8
94.8
16
99.0
17
N/C
18
198.0
IC8003
pin
volt
1
2.4
2
GND
3
11.0
IC8004
pin
volt
1
14.0
D BOARD TRANSISTOR
VOLTAGE LIST (3 OF 3)
B
Q8001 0.1
Q8002 0.0
Q8003 0.2
Q8004 0.0
Q8007 0.6
Q8008 0.6
Q8009 196.0
Q8010 2.1
Q8015 0.5
Q8016 134.5
Q8018 -5.5
Q8019 3.5
Q8020 0.0
Q8022 4.6
Q8023 4.6
C
0.0
1.6
1.6
1.6
0.0
0.0
0.0
0.0
0.0
134.7
94.4
0.0
0.5
GND
15.5
E
GND
GND
GND
GND
GND
GND
196.0
GND
GND
135.1
GND
GND
GND
4.9
4.9
D
4.6
99.0
G
94.8
198.0
S
GND
93.2
Q8013
Q8014
All voltages are in V.
— 90 —
2
3
4
5
6
7
8
0.9
0.9
GND
7.1
7.1
7.1
15.2
All voltages are in V.
KD-34XBR2
F BOARD SCHEMATIC DIAGRAM
1
|
2
|
3
|
4
|
5
|
6
|
D6703
1SS133
AC OFF DET
A
7
|
D6704
1SS133
AC OFF DET
2
3
9
4
8
C6714
1000
25V
2
AC (N)
1
All voltages are in V.
4
TO A BOARD
3
4
—
C6701
0.47
125V
:AC
VD6701
ERZV10D271
L6702
:LFC
CN6502
CN6709
2P
WHT
:MINI(LOCK)
R6705
0.39
20W
:RF
VD6702
ERZV10D271
2
AC (L)
1
AC (N)
2
AC (L)
C6703
0.47
125V
:AC
L6701
:LFC
FH6702
FH6701
3
F6701
6.3
1
AC
IN
TO D BOARD
2
CN6703
2P
WHT
:PW-CN
1
Q6701
—
C
R6704
0.39
20W
:RF
R6702
1M
1/2W
FOR
CN6702
1P
TAB(CONTACT)
D
E
CHECK
CN6708
2P
WHT
:MINI
CN6010
R6701
2.2M
1/2W
:RC
1
1
CHECK
2
CHECK
1
DGC
2
NC
3
DGC
TH6701
E
—
RY6701
1
C6704
470p
250V
B
CN6701
1P
TAB(CONTACT)
C6702
470p
250V
B
C6705
470p
250V
B
R6706
JW(15)
TO A BOARD
E
CN6009
C6706
470p
250V
B
Q6701
2SC3311A
DGC-RLY-DRV
—
C6709
0.22
125V
D6701
1SS133
PROT
R6707
4.7k
1
2
R6703
3
1
6
7
8
9
C6714
10
CN6702
CN6701
D6702
E
B
Q6701
D6701
R6708
COLD
R6706
D6704
250V
6.3A
F6701
7
9
D6703
HOT
172001212
1-681-829-12
TH6701
4
B
T6703
1
DGC
FH6702
DGC
R6704
C6710
DGC
C6712
C
DGC
CN6704
C6713
8
E
C6708
A
5
CN6705
CN6710
R6707
4
R6705
CHECK
C6707
CHECK
— 91 —
FH6701
CN6703
E
8
7
6
5
3
4
E
STBY 7V
E
AC DET
DGC-RLY
STBY 15V
TO A CN6002
2
1
[AC, DGC, STANDBY]
9-965-916-02<HA3>F
E
CN6710
8P
WHT
:S-MICRO
SUB+12V
F
1
DGC
2
NC
3
DGC
CN6706
3P
WHT
:MINI(LOCK)
R6703
10k
AC,DGC,STANDBY
F
10
C6713
470
7
E
-0.2
|
R6709
22k
B
C
10.2
9
C6715
0.1
:PT
D6702
S1VB20
—
B
0.0
|
R6708
1k
T6703
:SBT
1
F BOARD TRANSISTOR
VOLTAGE LIST
8
CN6707
3P
WHT
:MINI(LOCK)
DGC
DGC
DGC
DGC
KD-34XBR2
HA BOARD SCHEMATIC DIAGRAM
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
HA
[KEY INPUT, LED, RMC]
1
|
2
|
R04
A
KEY INPUT
LED
RMC
—
R23
1.2k
S01
A
—
D07
D05
R09
R05
R03
B
—
R24
1.8k
CN01
12P
WHT
:S-MICRO
B
—
D
—
E
R03
10k
12
11
P-ON
10
C
STBY
R04
2.2
TIMER
R11
—
9
STBY +5V
8
GND
7
STBY-LED
D02
R
P SW (+)
REPEAT-LED
—
G
CN2001
SIRCS
R24
D03
SPR-325MVW
TO A BOARD
P SW(-)
D06
C03
S01
ILINK
C
C05
6
R21
390
:RN
VOL-
VOL+
R22
470
:RN
R20
560
:RN
CH-
R19
680
:RN
CH+
R18
820
:RN
TV/VIDEO
SELECT
R17
1.2k
:RN
RIGHT
R16
1.5k
:RN
DOWN
R15
1.8k
:RN
UP
R14
3.3k
:RN
4
GND
3
KEY
2
GND
1
MENU
R13
10k
:RN
D02
LNK0120022G1
R12
4.7k
:RN
5
TIMER-LED
LEFT
S11
S08
S10
S09
S07
S06
S05
S04
S03
(1-720-014-11)
D
1-681-832-11
—
S02
R25
JW(5)
IC01
IC SBX3081-01(20
R05
100
VCC
OUT
E
GND
C05
10
—
—
F
C02
F
—
R09
22k
D07
RD5.6ES-T1B2
PROTECT
—
G
G
—
9-965-916-02<HA3>HA
HA BOARD
IC VOLTAGELIST
pin
1
2
3
—
H
IC01
volt
4.9
0.0
4.3
—
I
All voltages are in V.
— 92 —
R13
KD-34XBR2
HB BOARD SCHEMATIC DIAGRAM
1
|
2
|
3
A
4
4
5
6
7
5
VD4605
7.5V
:1608
R4603
75
:RN-CP
R4607
75
:RN-CP
|
6
|
7
|
C4604
0.1
25V
B:CHIP
C4603
0.47
FL4602
EMI FILTER
8
3
1
3
1
|
VD4604
7.5V
:1608
2
4
FL4601
EMI FILTER
J4600
2
6
7
R4606
1k
:CHIP
VD4603
7.5V
:1608
5
3
2
4
—
|
B
8
1
CN4600
11P
WHT
:S-MICRO
V
VD4602
7.5V
:1608
R4602
75
:RN-CP
C4602
0.47
TO B BOARD CN008
C4601
1
3
6
7
5
1
2
VD4601
7.5V
:1608
R4601
470k
:CHIP
C4600
1
GND
FR R IN
C
FR Y IN
GND
9
VD4600
7.5V
:1608
FRONT TERMINAL
9-965-916-02<HA3>HB
HB
[FRONT TERMINAL]
FR C IN
SW2
G ND
FR R IN
FR Y IN
2
GND
A
GN D
GN D
FR V IN
FR L IN
|
GN D
1
—
R4605
C4604
—
R4608
R4604
B
C
—
D
— 93 —
|
3
|
GND
6
7
8
R4600
470k
:CHIP
FR C IN
3
5
FL4600
EMI FILTER
SW2
4
8
R
1
—
2
4
L
FR L IN
GND
10
FR V IN
11
GND
KD-34XBR2
QI BOARD SCHEMATIC DIAGRAM (1 OF 4)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
A
EBBUS
GND
A3
GND
B3
D3
A4
D5
B4
D4
A5
D6
GND
B5
GND
A6
—
EBD11
EBD13
EBD14
EBD15
EBA0
XRST
EBA1
EBA2
EBA4
EBA3
EBA5
EBA6
EBWAI T
EBRXW
EBXCE
27MCLK
XIRQ2
RB9202
22
DMXI_BUS
TSOUT0
TSOUT1
TSOUT2
TSOUT3
B12
D15
B13
XRST
A14
A2
B14
GND
A15
GND
B15
A3
A16
A5
B16
A4
A17
A6
B17
GND
A18
GND
+3.3V
D9201
SML-210MT-T86
GREEN
C9203
0.1
25V
F
HBBUS
R9211
0
SYNC_XRESET
A7
LIN KXIRQ
A9
TSOUT6
TSOUT7
A8
A10
B20
GND
A21
GND
B21
A11
A22
XOE
B22
A12
A23
GND
B23
WAIT
A24
RXW
B24
XCE
A25
27MHZ
B25
GND
A26
IRQ
B26
GND
A27
TSRXD0
GND
8
B27
7
A28
GND
3
6
B28
TSRXD1
5
A29
TSRXD3
B29
TSRXD2
A30
TSRXD4
RB9201
22
TSOUT5
B19
A20
1
TSOUT4
1
8
B30
GND
2
7
A31
GND
TSRXD5
3
6
B31
4
5
A32
TSRXD7
B32
TSRXD6
RXBYTEC LK
A33
J
A34
R9205
PERROROUT
STARTOU T
TSDIN0
K
TSDIN1
TSDIN3
TSDIN2
TSDIN4
—
TSDIN5
L
TSDIN7
TSDIN6
TXBYTEC K
B35
TSRXPCLK
TSENIN
B37
TSTXD1
A38
TSTXD3
B38
TSTXD2
A39
TSTXD4
B39
GND
A40
GND
B40
TSTXD5
A41
TSTXD7
B41
TSTXD6
A43
R9204
PERRORIN
R9203
0
M
3.3V
C9295
10
16V
5V
N
C9296
0.1
25V
F
EMI
G
EMI
C9201
10
16V
C9202
0.1
25V
F
FL9202
NFM2012P13C224RT
2A
G
B44
TSTXPCLK
R9216
1k
1/16W
R9219
1k
1/16W
GND
GND
B46
GND
3.3V
B47
3.3V
GND
A48
B48
GND
A49
5V
5V
B49
B50
D9206
SML-210MT-T86
GREEN
D9203
SML-210MT-T86
GREEN
XILM-DET
A47
A50
0
0
GND
B45
FL9201
NFM2012P13C224RT
2A
—
1394BIAS_SW
R9206
GND
TSTXERR
A46
CYCLE_OUT
TSTXPVAL
A44
A45
0
R9207
IC9201
TC74L
CX541FT(EL)
LED BUFFER
TSTXBCLK
B43
0
R9208
D9207
SML-210MT-T86
GREEN
GND
GND
B42
—
PHY_XRST
D9205
SML-210MT-T86
GREEN
TSTXD0
A37
A42
LINK_XRST
D9204
SML-210MT-T86
GREEN
R9220
1k
1/16W
GND
TSRXERR
B36
TSD_BUS
0
0
D9210
SML-210MT-T86
3.3V
GREEN
R9218
1k
1/16W
GND
A35
A36
R9210
R9209
FLASH_MODE
D9202
SML-210MT-T86
GREEN
R9217
1k
1/16W
R9215
1k
1/16W
TSRXPVAL
B34
0
EXT IOINT
R9214
1k
1/16W
R9213
1k
1/16W
TSRXBCLK
B33
TSENOUT
—
3.3V
A1
2
4
I
—
GND
12
EBA11
—
GND
A12
11
EBOEN
—
D14
3
EBA10
H
A11
B11
4
EBA7
—
D12
A19
EBA9
G
D13
B10
B18
EBA8
—
D11
5
F
B9
A10
6
—
GND
GND
A13
0
E
B8
A9
7
R9201
D8
D10
8
—
B7
A8
9
D
EBD12
D7
D9
20
EBD8
EBD10
B6
A7
19
EBD9
18
EBD7
C
17
EBD6
D2
16
EBD4
—
A2
B2
15
EBD5
D0
14
EBD3
D1
B1
13
B
A1
1
EBD2
2
EBD1
EBD0
10
—
GND
GND
CN9201
100P
RECEPTACLE
TO QM BOARD
O
C N7002
—
9-965-916-02<HA3>QI P1
P
—
— 94 —
|
20
|
21
KD-34XBR2
QI BOARD SCHEMATIC DIAGRAM (2 OF 4)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
A
TSD_BUS
—
RB9203
22
TSOUT7
TSOUT6
TSOUT5
TSOUT4
TSOUT3
TSOUT2
TSOUT1
8
7
6
5
8
7
6
1
2
3
4
1
2
3
STARTOUT
PERRORIN
TSOUT0
RXBYTECLK
B
TSENOUT
DMXI_BUS
RB9204
22
5
PERROROUT
C9301
0.1
25V
F
4
C9206
0.1
25V
F
+3.3V
—
R9231
0
D
R9228
0
R9379
0
R9237
0
R9236
0
TSOE
3.3V
R9229
0
R9272
56
1/16W
FL9203
ACM2012-201-2P
R9273
56
1/16W
3
1
4
2
3
1
73
72
71
70
69
68
67
66
65
64
63
62
61
AVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
NC
NC
DVDD
NC
NC
57
58
56
55
4
3
54
51
3
1
4
2
3
49
48
47
46
AVDD1
D3
AVSS
DVDD
C9297
C9213
0.1 25V
C9214
0.1 25V
F
C9298
0.1
25V
F
F
FB9204
OUH
C9315
0.1
25V
F
C9314
0.1
25V
F
C9313
0.1
25V
C9299
0.1 25V
F
F
C9211
0.1 25V
0.1
R9263
56
1/16W
F
25V
25V
R9260
470
1/16W
C9224
25V
0.01
R9257
18k
1/16W
CH
C9228
270p
50V
CH
R9269
5.1k
1/16W
R9271
47k
1/16W
D9208
MA152WA-TX
R9264
120
1/16W
Q9201
2SD2216J
CABLE BIAS
B
R9259
330
1/16W
R9261
180
1/16W
C9230
1000
50V
B:CHIP
8
C9226
0.1
25V
F
7
6
5V
R9277
10k
1/16W
FL9206
ACM2012-201-2P
5V
AVSS
C9220
50V
R9270
56
1/16W
R9262
150
1/16W
R9278
10k
1/16W
1394BIAS_SW
5
IC9204
LM358P
WR-12
CABLE BIAS
OP AMPS
1
C9221
22p
50V
CH
82p
R9266
56
1/16W
42
R9258
1k
1/16W
R9265
56
1/16W
C9227
0.1
25V
F
F
R9254
1.2k
1/16W
R9253
1.8k
1/16W
C9219
47p
50V
CH
C9210
22
16V
0.1
R9256
10k 1/16W
40
VCOR
39
LF
38
AVDD1
AVSS
36
AVSS
35
AVSS
34
X1
33
XO
32
AVDD1
31
AVSS
30
AVDD1
29
PURB
28
DVSS
27
DVDD
26
DVDD
25
DVSS
24
VREF
C9223
41
REXT
DVSS
43
D2
45
TPBIAS1
TPBIAS2
44
D1
DVSS
2
74
AVDD2
53
52
4
2
50
1
DVSS
CPS
CN9204
1
75
DVSS
TPB2N
21
C9212
22
16V
FL9204
ACM2012-201-2P
FL9205
ACM2012-201-2P
C9225
0.1
25V
F
C9305
0.1
25V
F
FB9202
OUH
R9275
5.1k
1/16W
CN9203
60
76
TEST1
TPB2P
TPBIAS0
3.3V
R9276
56
1/16W
59
77
TEST0
78
DIRECT
79
CMC/LINK ON
80
PC0
D0
DVSS
C9309
0.1
25V
F
DVDD
1
2
3
4
5
13
6
7
8
9
10
11
12
DVDD
TPA2P
TPA2N
IC
23
DATA 3
R9223
10k
1/16W
K
CTL1
DVSS
1
F
CTL0
TPB1P
TPB1N
14
D ATA3 8
C9310
0.1 25V
DVSS
IC9203
CXD1945R
i.LINK
PHYSICAL LAYER
15
2
DVDD
SCLK
TPB0N
16
D ATA2 7
DATA 2
CYCLEOUT
NCLKOUT
VSS
TEST14
TEST13
TEST12
TEST11
TEST10
TEST9
TEST7
TEST8
TEST6
TEST5
VSS
TEST4
VDD
TEST2
TEST3
TEST0
TEST1
XDACK2
XDDONE2
XDREQ2
XDACK1
74
XDDONE1
3
CTL1
73
75
XDREQ1
D ATA1 6
TPA1N
76
VSS
CTL0
DATA 1
77
XCS
4
TPA1P
LREQ
DVSS
78
XAS
RB9213
56
+3.3V
C9205
0.1
25V
F
F
LPS
22
79
XDS
1
C9308
0.1 25V
DATA 0
80
XDSACK
8
D ATA0 5
81
XWR/RD
F
82
INTERRUPT
25V
83
XRESET
0.1
84
BUSCK
3
2
SCLK
C9306
85
VDD
6
7
TPB0P
DVSS
DVSS
72
71
70
69
68
67
66
65
64
63
62
61
60
59
R9234
10k
1/16W
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
C9304
0.1
25V
F
S CLK
LREQ
86
36
—
R9235
10k
1/16W
R9233
10k
1/16W
4
C TL0
C TL1
87
35
TEST15
VST
R9232
10k
1/16W
5
TPA0P
TPA0N
17
88
TEST16
J
4
2
C9216
0.1
25V
F
18
89
34
TENA1
TD0
VDD
T SDIN1
90
TEST17
C9207
0.1
25V
F
T SDIN0
91
33
TD1
L REQ
T SDIN2
92
TEST18
RB9224
56
T SDIN3
93
VSS
TRST
TCK
R9247
10k
1/16W
T SDIN4
94
D3
32
D2
VDD
31
VSS
PC1
PC2
T SDIN6
T SDIN5
95
D1
T SENIN
T SDIN7
C9232
270p
50V
CH
+3.3V
R9250
10k
1/16W
TX BYTECK
96
ADD0
C9307
0.1
25V
F
R9381
0
19
97
D0
R9274
56
1/16W
20
98
VSS
+3.3V
C9215
22
16V
99
ADD2
ADD1
C9209
0.1
25V
F
37
VDD
STARTOUT
TSOUT7
TSOUT6
TSOUT5
TSOUT4
TSOUT3
TSOUT2
TSOUT1
TSOUT0
TSENOUT
VSS
VSS
RXBYTECK
AICK
QCLKOUT
1/8FSOUT
TSREFOUT
VSS
256FSIN
VSS
MCKOUT
VDD
BITCLK
DAOUT
VSS
LRCK
OPTDI
OPTDO
RXAERR
27MCLK
PERRORIN
TEST24
VSS
PERROROUT
108 107 106 105 1044 103 102 101 100
TEST25
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
CTL0
CTL1
30
—
131
ADD4
ADD3
29
F
VDD
28
25V
SYSCLK
27
I
0.1
ADD6
ADD5
26
C9303
VSS
25
H BA0
ADD7
24
H BA1
LREQ
23
—
VDD
VDD
ADD8
22
H BA2
TSDIN1
TSDIN0
21
H BA3
TSDIN3
TSDIN2
20
H BA4
IC9202
IC CXD3203R
i. LINK
LINK LAYER LSI
19
H BA6
H BA5
132
18
H BA7
133
HD1
HD0
F
134
6
5
25V
135
3
4
0.1
136
7
2
137
HD3
H BA8
H
TSDIN4
HD2
C9302
—
TSDIN5
17
8
HD5
HD4
16
H BD1
H BD0
1
TSDIN7
TSDIN6
15
H BD2
6
5
HD7
HD6
14
RB9228
22
3
4
TSENIN
13
H BD3
G
8
7
VSS
12
H BD4
1
2
TSOE
TXBYTECK
11
H BD6
H BD5
138
10
VSS
5
139
9
HD8
4
140
HD10
8
RB9227
22
REFIN
HD9
7
H BD7
—
HD11
8
7
H BD8
OVF1
1
6
EMPTY1
HD13
6
5
2
OVF2
HD12
3
4
3
EMPTY2
6
H BD10
H BD9
HD14
VSS
5
RB9226
22
F
HD15
7
C9208
47
16V
4
H BD11
8
2
3
H BD13
H BD12
1
2
—
H BD14
141
1
H BD15
RB9225
22
VDD
142
E
143
144
C9204
0.1
25V
F
1
2
—
4
C
3
—
2
3
4
C9229
1000
50V
B:CHIP
C9222
0.1
25V
F
R9268
47k
1/16W
R9267
120
1/16W
F
C9231
0.1
25V
F
R9251
0
0
1/16W
ISOLATED_GND
10k
R9222
R9226
0
L
LINKXCS
HBXDS
HBXAS
HBR/XW
LINKXIRQ
HBXDSACK1
25MHZ_LINK
—
M
PHY_XRST
R9252
220
1/16W
R9391
—
HBBUS
LINK_XRST
—
N
CYCLE_OUT
—
O
—
9-965-916-02<HA3>QI P2
— 95 —
|
28
|
KD-34XBR2
QI BOARD SCHEMATIC DIAGRAM (3 OF 4)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
A
TCK
TDI
TMS
TSOE
FLASH_MODE
0
—
TRST
TDO
JTAG_BUS
0
0
LINK_XRST
R9285
EBD0
EBD1
R9286
0
R9283
EBD2
EBD3
EBD4
EBD5
EBD6
EBD7
EBD8
EBD9
EBD10
EBD11
C9237
0.1
25V
F
EBD12
EBD13
EBD14
EBD15
EBWAIT
EBXCE
EBRXW
EBOEN
EBA0
EBA1
EBA2
EBA3
EBA4
EBA5
EBA6
EBA7
EBA8
EBA9
EBA11
3.3V
B
EBA10
R9284
EBBUS
R9287
0
C9244
0.1
25V
F
PHY_XRST
XIRQ2
C9233
10
16V
—
+3.3V
C9247
10
16V
197
196
195
194
193
192
191
190
189
188
187
186
185
184
NEC_TCK
RAM_TEB
NEC_IDD
NEC_LFT
TEST0
TEST1
TEST2
BUNRI
P1
P2
P3
P4
P5
P6
P7
P8
29
30
31
34
HB_D13
HB_D12
HB_D11
36
33
HB_D14
SYSAD19
35
32
HB_D15
37
SYSAD23
38
SYSAD24
39
SYSAD24
HB_D7
GND
VDD
42
HB_D8
VDD
41
HB_D9
40
HB_D10
SYSCMD4
GND
HB_D5
HB_D4
SYSCMD1
45
HB_D6
44
43
SYSCMD3
SYSCMD2
SYSCMD1
SYSCMD0
47
SYSAD26
SYSAD28
SYSAD30
HB_D2
HB_D1
HB_D0
HB_A20
HB_A19
SYSAD30
HB_A18
53
SYSAD29
SYSAD29
HB_D3
52
SYSAD28
51
SYSAD27
SYSAD27
50
SYSAD26
49
SYSAD25
48
46
SYSCMD0
SYSAD25
SYSAD31
HB_A17
54
PMASTER_N
HB_A16
55
COLDRESET_N
HB_A15
PCIINT
C9249
0.1
25V
F
HBSIZ0
HBSIZ1
14
13
12
11
10
9
8
IC9207
TC4069UBFT(EL,N)
TIMER
HBXDSACK0
HBXDSACK1
CLK INVERTERS
LINKXCS
1
2
3
4
5
6
7
GAXCS
R9290
10M
1/16W
R9291
330k
1/16W
HBR/XW
ROMXWE
ROMXOE
C9251
220p
50V
CH
R9292
0
ROMXCE
FLASHXCE0
FLASHXCE1
HBXDS
HBXAS
C9248
22p
50V
CH
X9202
32.768KHz
C9250
22p
50V
CH
HBD15
HBD14
ROM_BUS
HBD13
HBD12
HBD11
HBD10
HBD9
HBD8
HBD7
C9245
0.1
25V
F
HBD6
HBD5
HBD4
HBD3
HBD2
HBD1
HBD0
HBA20
HBA19
HBA18
HBA17
HBA16
HBA15
HBA14
HBA13
HBA12
HB_A3
HB_A4
HB_A5
HB_A6
HB_A7
HB_A8
HB_A9
HB_A10
HB_A11
109
110
111
112
113
114
115
116
117
118
119
120
HB_A2
108
GND
EXTIOINT
VDD
HB_A1
107
GND
HB_A0
106
1
SDRAMCLK
2
105
3
SD_D15
4
104
98
1
SD_D14
97
2
103
96
3
SD_D13
95
4
102
94
1
SD_D12
93
2
101
92
3
GND
91
4
SD_D11
90
1
99
89
2
100
88
3
VDD
87
4
SD_D10
SD_D9
SD_D8
SD_A13
SD_A12
SD_A11
SD_A10
SD_A9
SD_A8
SD_A7
SD_A6
SD_A5
86
79
SD_A4
78
85
SD_D6
77
SD_A3
SD_D5
76
84
SD_D4
75
SD_A2
SD_D3
74
83
SD_D2
73
SD_A1
SD_D1
72
82
SD_D0
71
SD_A0
WE_N
70
81
DQM0
69
SD_D7
DQM1
68
80
CAS_N
67
VDD
RAS_N
66
GND
CS_N0
65
61
CS_N1
VDD
64
60
XVALIDOUT
TCLOCK
59
GND
63
HB_A12
MCLOCK
58
EOK_N
GND
62
57
HB_A13
RESET_N
HB_A14
INOUT_N
56
PVALID_N
EVALID_N
3.3V
4
198
GND
28
SYSAD17
SYSAD18
R9289
47k
1/16W
LINKXIRQ
3
199
27
GND
1394BIAS_SW
R9293
1k
1/16W
:CHIP
1
200
VDD
26
HBDS_N
R9382
10k
1/16W
C9246
0.1
25V
F
2
201
NEC_TMS
25
ROMCE2_N
180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121
202
NEC_TRST
VDD
203
NEC_TDI
181
204
NEC_TDO
P10
205
EB_D0
182
206
EB_D1
P9
207
EB_D2
183
208
EB_D3
EB_D4
209
210
EB_D7
EB_D5
213
EB_D8
211
214
EB_D9
EB_D6
215
EB_D10
212
216
EB_D11
GND
217
221
EB_D14
EB_D12
222
EB_D15
218
223
EB_WAIT
EB_D13
224
EB_XCE_N
219
225
EB_RXW
VDD
226
EB_OE_N
220
227
EB_A1
EB_A0
229
EB_A2
228
230
EB_A3
EB_A4
231
232
EB_A5
24
ROMCE1_N
"EXTERNAL AGENT"
HBAS_N
SYSAD22
0
ROMCE0_N
B-CHIP
SYSAD16
SYSAD23
XRELEASE
ROMOE_N
IC9205
SYSAD15
SYSAD22
SYSAD_BUS
233
23
ROMWE_N
SYSAD21
SYSAD31
EB_A6
22
21
HBRW_N
SYSAD21
SYSCMD3
234
20
HBCS2_N
SYSAD20
SYSCMD4
EB_A7
EB_A9
19
VDD
VDD
SYSAD14
C9234
0.1
25V
F
235
EB_A10
18
GND
SYSAD12
SYSAD17
EB_A8
237
EB_A11
17
GND
SYSAD13
SYSAD16
236
238
VDD
16
15
HBCS1_N
SYSAD12
SYSAD19
R9279
HBCS0_N
SYSAD11
SYSAD18
XRST
SYSAD5
SYSAD6
SYSAD11
SYSCMD2
J
HBDSACK0_N
HBDSACK1_N
SYSAD9
SYSAD20
—
SYSAD3
SYSAD4
SYSAD10
SYSAD15
I
HBSIZ1
SYSAD9
SYSAD14
SYSCMD_BUS
HBSIZ0
SYSAD8
SYSAD13
—
INTIN2_N
SYSAD8
SYSAD10
H
INTIN1_N
SYSAD7
SYSAD7
—
RTCB
SYSAD0
14
—
C9235
0.1
25V
F
G
INTIN0_N
SYSAD3
SYSAD6
—
INTINRSV_N
RDA
SYSAD2
SYSAD5
P00
TIMER_CLK
RDB
SYSAD2
SYSAD4
F
SCAN_AMC
13
SA_BUS
P15
SCAN_SCK
SYSAD1
SYSAD1
E
P14
TDA
12
SYSAD0
P13
11
RDA
SCAN_SMC
SCAN_SIN
10
—
P12
9
TDA
P11
8
4
TDB
GND
7
GND
RTSB
GND
6
3
GND
5
GND
GND
4
2
3
1
RDA
2
D
TDA
R9296
100
1/16W
:CHIP
1
—
R9295
100
1/16W
:CHIP
239
CN9206
4P
:S-MICRO
240
C
XVALIDIN
—
XRDRDY
+3.3V
F
RB9206
56
25MHZ_B
HBA11
HBA10
HBA9
HBA8
HBA7
HBA6
HBA5
HBA4
HBA3
SD_D15
SD_D13
SD_D14
SD_D12
SD_D10
SD_D8
SD_D11
8
SD_D9
HBA2
HBA0
HBBUS
R9288
33
1/16W
:CHIP
RB9212
56
RB9211
56
RB9207
56
7
6
SD_A13
5
SD_A12
SD_A11
8
7
SD_A10
SD_A9
6
SD_A8
5
8
7
SD_A7
6
SD_A6
SD_A4
5
SD_A5
8
SD_A3
7
SD_A2
SD_A0
SD_D7
SD_D6
SD_D5
SD_D4
SD_D3
SD_D2
SD_D1
0
SD_D0
R9280
XBE0
SYNC_XRESET
XBE1
CPU_XINT
L
6
5
SD_A1
—
HBA1
25V
C9243
R9281
K
0.1
0
C9236
0.1
25V
F
R9282
0
TCLOCK
3.3V
C9241
0.1
25V
F
C9270
10
16V
—
C9242
0.1
25V
F
SD_A0
SD_A1
—
P
SD_A2
SD_A3
C9238
0.1
25V
F
C9239
0.1
25V
F
47
46
45
44
CKE
37
CS
N.C.
36
4
6
3
7
2
8
1
SD_D15
SD_D14
SD_D13
SD_D12
RB9210
56
5
4
6
3
7
2
8
1
SD_D11
SD_D10
SD_D9
42
39
SD_D8
XBE1
38
CLK
5
43
RAS
41
CAS
N.C.
40
WE
VSS
DQMU
RB9209
56
54
52
51
50
49
48
53
2
3
4
5
6
7
8
DQML
DQ8
A11
A9
A10
A8
A0
A7
A1
A6
A2
A5
A3
A4
VCC
VSS
33
34
35
A13
A12
32
SD_A10
DQ7
VCC
31
SD_A12
VSSQ VCCQ
30
SD_A13
DQ9
29
O
XBE0
DQ10
DQ6
28
—
9
1
10
8
SD_D7
DQ5
11
2
12
3
7
DQ11
13
6
SD_D6
VCCQ VSSQ
14
SD_D5
DQ4
15
N
4
16
5
DQ12
17
SD_D4
DQ3
18
RB9208
56
DQ13
19
SD_D3
DQ2
VSSQ VCCQ
20
1
DQ14
21
8
DQ1
22
2
23
3
7
DQ15
24
6
SD_D2
DQ0
VCCQ VSSQ
25
—
SD_D1
VSS
26
4
5
VCC
27
M
1
+3.3V
RB9205
56
SD_D0
SD_A11
SD_A9
SD_A8
SD_A7
SD_A6
SD_A5
SD_A4
IC9206
MT48LC4M16A2TGSDRAM
9-965-916-02<HA3>QI P3
— 96 —
KD-34XBR2
QI BOARD SCHEMATIC DIAGRAM (4 OF 4)
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
SYSAD11
42
SYSAD12
41
111
SYSCMD4
VDD
40
112
DIVMODE1
GND
39
113
VDD
114
GND
SYSAD24
VDD
36
116
DIVMODE0
GND
35
SYSAD14
120
GND
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
GND
VDD
VDD
119
SYSAD17
33
XINT4
34
SYSAD16
SYSAD18
SYSAD15
VDD
SYSAD23
XINT3
SYNCIN
117
1
27
28
29
30
TCK
TRST
SYSAD12
VDD
32
GND
31
L9204
C9286
10p
50V
CH
C9287
10p
50V
CH
SYSAD13
SYSAD14
37
118
—
SYSAD11
38
115
C9278
0.1
25V
F
C9288
0.01
25V
B
R9372
82
1/16W
C9289
10p
50V
CH
SYSAD15
SYSAD16
IC9214
TC74VHC04FT(EL)
24.5625MHZ
INVERTERS
2CK
2XPR
14
13
12
11
2D
1CK
1XPR
1Q
10
X9203
49.125MHz
VCC
2XCLR
1XQ
2Q
GND
2XQ
1A
VCC
1Y
6A
2A
6Y
9
SYSCMD3
XCOLDRESET
1XCLR
1D
8
109
110
R9368
220
1/16W
SYSAD10
C9279
0.1
25V
F
C9290
0.1
25V
F
14
43
7
13
44
GND
6
12
VDD
SYSAD13
SYSAD9
45
VDD
GND
5
2Y
5A
3A
5Y
3Y
4A
GND
4Y
C9292
0.1
25V
F
11
SYSAD10
107
108
4
10
46
3
9
47
XINT0
2
8
SYSCMD32
SYSAD9
1
R9367
100k
1/16W
1
LBB
VR4300
RISC MICROPRCESSOR
48
IC9215
TC74LCX74FT(EL)
FREQ DIVIDER
D-FLIP FLOP
2
XRESET
XEVALID
GND
SYSAD8
+3.3V
3
104
105
49
8
4
SYSCMD1
50
VDD
9
5
103
SYSAD8
IC9209
10
6
GND
SYSAD7
11
7
VDD
TMS
12
1
101
102
51
13
2
52
14
3
JTMS
SYSAD7
IC9213
TC74VHC04FT(EL)
49.125MHZ
INVERTERS
4
53
5
54
GND
6
VDD
SYSAD25
4Y
GND
98
SYSAD6
GND
97
C9285
0.1
25V
F
SYSAD5
5Y
55
4A
56
SYSAD6
3Y
SYSAD5
TCK
5A
57
XPMASTER
XEREQ
R9361
10k
1/16W
58
3A
JTCK
6Y
59
6A
60
GND
FB9211
OUH
C9281
0.1
25V
F
2Y
VDD
VDD
SYSCMD0
R9369
2.2k
1/16W
61
96
99
R9375
2.2k
1/16W
R9371
47k
1/16W
VCC
62
GND
SYSAD4
63
VDD
64
JTDI
65
JTDO
GND
VDD
66
SYSAD3
SYSAD2
GND
SYSAD1
VDD
SYSAD0
GND
XPREQ
VDD
GND
SYSAD31
XPVALID
VDD
SYSAD30
XEOK
GND
SYSAD29
67
3.3V
7
SYSAD3
SYSAD4
SYSAD1
SYSAD2
SYSAD0
SYSAD31
SYSAD30
SYSAD29
SYSAD27
SYSAD28
VDD
SYSAD28
SYSAD27
68
GND
C9254
0.1
25V
F
69
SYSAD19
E
70
GND
0
R9348
10k
1/16W
71
SYNCOUT
R9351
SYSAD23
72
TCLOCK
SYSAD24
73
VDD
—
0
74
MASTERCLOCK
R9345
75
GND
0
76
VDD
R9344
SYSCMD4
77
PLLCAP1
SYSCMD3
XRST
78
XINT1
100
R9366
47k
1/16W
C9282
0.1
25V
F
95
106
C9256
0.1
25V
F
79
VDDP
SYSCMD2
80
GNDP
0
XVALIDIN
81
GNDP
R9349
SYNC_XRESET
82
PLLCAP0
SYSCMD1
SYSAD26
83
VDDP
C9257
0.1
25V
F
94
84
SYSAD20
0
XNMI
85
VDD
R9346
SYSCMD0
93
86
GND
SYSAD25
GND
87
SYSAD21
XRELEASE
VDD
92
C9268
0.1
25V
F
3.3V
VDD
SYSAD26
91
SYSAD22
R9347
0
88
VDD
B
89
GND
VDD
90
XINT2
C9258
0.1
25V
F
C
1/16W
10k
C9261
0.1
25V
F
C9259
100
6.3V
AL-CP
GND
C9253
100
6.3V
AL-CP
3.3V
TMS
JTAG_BUS
TDO
—
D
|
XRDRDY
R9352
—
12
XVALIDOUT
3.3V
—
|
1A
|
1Y
2
2A
A
|
TDI
1
R9377
47
1/16W
R9378
68
1/16W
25MHZ_LINK
25MHZ_B
25MHZ_PCI
L9202
C9260
0.1
25V
F
C9265
470p
50V
CH
C9277
0.1
25V
F
R9358
0
R9374
82
1/16W
+3.3V
C9276
0.1
25V
F
C9263
0.1
25V
F
C9264
0.1
25V
F
C9311
0.1 25V
C9312
0.1 25V
R9373
0
R9359
10k
1/16W
CPU_XINT
F
SYSAD_BUS
F
SYSAD17
C9267
470p
50V
CH
SYSAD18
SYSAD20
SYSAD22
—
SYSAD21
C9262
10
16V
SYSAD19
F
R9376
22
1/16W
TCLOCK
SYSCMD_BUS
G
IC9211
MBM29LV160BE-90
TN
3.3V
REGULAR FLASH 1
A14
3
A13
R9355
4
DQ14
DQ13
9
10
N.C.
11
XWE
IC9212
MBM29LV160BE-90-
HBD10
FLASH
HBD9
HBA8
HBA16
3
41
40
HBD14
HBD6
HBD13
HBD5
38
37
HBD12
39
36
35
A5
DQ0
HBD4
HBD11
HBD3
29
28
HBD10
34
HBD2
33
HBD9
32
HBD1
31
HBD8
30
XOE
VSS
A2
XCE
26
A1
A0
25
A4
A3
27
26
29
25
ROMXWE
42
HBD0
C9284
0.1 25V
F
C9283
0.1 25V
F
R9362
0
HBA1
HBD2
ROMXCE
D9209
MA111-TX
43
HBA2
HBD7
44
HBA3
HBD15
45
HBD3
HBD10
DQ8
24
HBA4
A6
23
HBD11
DQ1
22
HBA5
A7
21
C9271
0.1
25V
F
DQ9
20
HBA6
DQ2
A17
19
HBD4
DQ10
RY/XBY
A18
18
HBA7
DQ3
17
HBD12
N.C.
16
HBA8
DQ11
15
HBD5
N.C.
14
XCE
A0
DQ4
VCC
XRESET
13
27
A2
IC9210
MBM29LV160BE-90
HBA18
DQ12
N.C.
XWE
12
VSS
A1
HBD13
DQ5
11
28
A3
24
HBA2
XOE
30
HBA3
A4
23
HBA4
DQ8
DQ0
22
R9342
4.7k
1/16W
A6
A5
21
HBA5
DQ1
20
HBA6
R9343
47k
1/16W
A7
19
HBA7
DQ2
DQ9
31
N
HBA8
A18
A17
32
HBA18
HBA19
DQ13
10
7
33
6
34
5
18
4
DQ3
DQ10
17
3
RY/XBY
VCC
DQ11
16
2
N.C.
15
1
HBA19
14
IC9208
TC74LCX125FT(EL)
TJ
BUFFERS
XRESET
N.C.
9
8
35
9
36
10
37
11
HBD6
38
12
13
13
12
14
DQ4
39
11
C9252
0.1
25V
F
XWE
DQ12
HBD14
40
10
N.C.
DQ5
41
9
A19
HBD7
42
DQ13
43
8
M
O
A8
HBA20
3.3V
—
DQ6
HBA9
—
—
7
HBXDSACK1
DQ14
A10
A9
HBA10
HBXDSACK0
DQ7
6
GAXCS
A11
R9360
10k
1/16W
HBD15
44
5
HBA11
A12
R9353
10k
1/16W
R9356
0
45
4
HBA12
HBA17
A8
A19
HBA20
46
3
DQ15/A-1
HBA13
L
VSS
A13
DQ6
8
2
HBA14
A16
XBYTE
A9
HBA9
47
A15
A14
HBA15
DQ14
HBA10
HBA1
48
1
—
A10
HBA11
FLASHXCE1
HBA16
DQ7
7
26
A0
A11
6
XCE
HBA12
A12
5
27
A2
A1
VSS
DQ15/A-1
4
VSS
XBYTE
HBA17
R9365
0
46
2
A14
HBA13
+3.3V
25
28
K
HBA2
R9341
470
1/16W
R9340
470
1/16W
A3
24
HBA3
XOE
23
HBA4
3.3V
A4
22
HBA5
21
—
A16
A15
A13
HBA14
HBD0
29
HBA6
HBA15
HBD8
30
HBA7
HBD1
31
J
TN
WRITE-PROTECTED
HBD2
47
DQ0
HBD3
48
DQ8
+3.3V
1
20
DQ1
3.3V
HBD11
32
19
A5
DQ9
HBD4
33
18
A6
DQ2
HBD12
34
17
A7
DQ3
DQ10
HBD5
35
16
A17
VCC
DQ11
HBD13
36
15
A18
DQ4
37
N.C.
RY/XBY
DQ12
38
N.C.
14
HBA18
XRESET
13
HBA19
12
—
DQ5
39
8
A8
A19
HBA20
HBD6
40
DQ6
C9273
1
10V
F
HBD14
41
7
A9
HBA9
C9240
100
6.3V
AL-CP
HBD7
42
6
A10
HBA10
HBA17
HBD15
43
DQ7
44
A11
HBA11
I
A12
5
HBA12
45
DQ15/A-1
HBA13
—
VSS
0
46
HBA14
XBYTE
47
HBA15
H
A16
48
A15
2
—
1
HBA16
HBD9
HBD1
HBD8
HBBUS
ROM_BUS
HBD0
ROMXOE
FLASHXCE0
HBA1
TN
R9364
4.7k
1/16W
REGULAR FLASH 0
XRST
—
P
9-965-916-02<HA3>QI P4
—
— 97 —
21
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (1 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
A
TU7001
BTD-DA403
—
7
8
FB7002
0 UH
P VALID
TS GND6
D3.3V
P ERROR
IRQ
SYNC LOCK
RESET
DGND
TU DAT
DEM SDA
TU CLK
DEM SCL
D1.8V
P SYNC
P CLK
DATA7
TS GND5
TS GND4
DATA6
TS GND3
DATA5
DATA4
DATA3
TS GND2
TS GND1
DATA2
A3.3V
DATA1
DGND
DATA0
CATV/AIR
AGC OUT
IF IN
A9V
A5V
IF OUT
A5V
AGC IN
TU SCL
D1.8V
FB7006
0UH
L7006
FB7005
0UH
Q7005
2SD2216J-(TX)
LED DRIVER
C7037
0.1
25V
F:CHIP
10k
R7014
100
1/16W
:CHIP
R7013
100
1/16W
:CHIP
FEVAL
GND
+33V
:CHIP
C7028
0.1
25V
F:CHIP
FEERR
6
C7023
100
10V
:AL-CP
FEPCLK
+9V
L7007
A5V
FEBCLK
5
R7224
0
1/16W
FB7003
0 UH
FED7
+5V
C7031
47
16V
:AL-CP
A5V
R7019
470
1/16W
:CHIP
C7036
0.1
25V
F:CHIP
FED6
3
4
R7012
0
1/16W
:CHIP
FED5
—
GND
GND
:CHIP
C7030
0.1
25V
F:CHIP
FED4
2
C7024
10
50V
:AL-CP
FED3
1
+33V
L7008
FED2
+6.5V
+6.5V
R7011
1k
1/16W
:CHIP
FED0
C
FB7004
0 UH
R7023
470
1/16W
:CHIP
R7022
470
1/16W
:CHIP
D7005
MA2S111-(TX)
FB7017
CN6005
CN7001
8P
D7006
SML-210VTT86
RED
D3.3V
TO ABOARD
—
D7007
SML-210MT-T86
GREEN
0UH
:CHIP
+9V
TU SDA
C7025
47
16V
:AL-CP
FED1
L7009
ADR
B
A33V
A9V
ISOLATE
47k
C7038
0.1
25V
F:CHIP
R7020
:CHIP
1/16W
R7021
:CHIP
1/16W
Q7006
2SD2216J-(TX)
LED DRIVER
D3.3V
:CHIP
FB7001
0UH
D5V
D5V
L7005
D
:CHIP
C7022
100
10V
:AL-CP
R7039
0
1/16W
:CHIP
C7027
0.1
25V
F:CHIP
R7016
100
1/16W
:CHIP
R7017
100
1/16W
:CHIP
STTS
ST-SCL
ST-SDA
C7021
47
16V
:AL-CP
—
+6.5V
R7031
0
1/16W
:CHIP
L
—
M
—
N
—
O
—
P
A18
A7
B18
A9
A19
A8
B19
A10
A20
GND
B20
GND
A21
A11
B21
XOE
A22
A12
B22
GND
A23
B23
RXW
A24
XCE
B24
B25
IRQ
A26
GND
B26
TSRXD0
A27
GND
B27
GND
A28
TSRXD1
B28
A2
A4
A5
A6
1
8
2
7
3
6
4
5
A9
A7
A8
A8
A10
A30
B30
GND
A31
TSRXD5
B31
TSRXD7
A32
TSRXD6
B32
2
7
3
6
4
5
1
8
2
7
A11
A12
XOE
A12
XOE
WAIT
WAIT
RXW
XCE
XCE
C7008
0.1
25V
F:1608
MEMADR7
27
25
26
28
24
23
SGND
PGND
68k
R7010
:RN-CP
1/16W
C7053
1000p
50V
B:1608
3.3VOUT
TH2
VOSENSE2
SW2
SENSE2-
TG2
BG2
BOOST2
SENSE2+
RUN-SS2
EMIBUS
ILM27MHZ
6
4
5RB7010
1
8
2
7
3
6
8
7
D1
6
D2
5
D2
C7061
10V F:CHIP
D1.8V
C7013
10V F:CHIP
C7004
D3.3V
C7014
6.3V B:CHIP
10V
B:CHIP
FB7009
0UH
:1608
C7010
0.1
25V
F:1608
C7062
6.3V
D3.3V
B:CHIP
C7063
6.3V
B:CHIP
C7064
6.3V
B:CHIP
FB7010
0UH
:1608
L7003
5.8A
:CHIP
R7004
0.015
:CHIP
FB7014
0UH
4A
D7002
MBRS140T3
Q7002
SI4922DY
3.3V
SWITCH FET
FB7015
0UH
4A
FB7016
0UH
4A
DUAL DC-DC CONV.
MEMADR12
22
22
IC7002
LTC1628CG#TR
MEMADR11
3
C7057
0.1
25V
F:1608
10V
B:CHIP
D3.3V
MEMADR8
MEMADR10
RXW
C7049
50V B:1608
C7052
1000p
50V
B:1608
R7030
15k
1/16W
:CHIP
MEMADR9
MEMADR6
INTVCC
C7002
4.7
R7009
22k
1/16W
:RN-CP
MEMADR5
A10
A11
D1
1
S1
2
MEMADR2
8
1
1000p
MEMADR4
RB7009
22
A9
A6
A7
MEMADR3
TH1
8
A4
A5
ILMCTRL
ILMRXW
XILMOE
ILMWAIT
XILMCE
5
4
RB7011
22
XILMIRQ
ID0
TS_FROM_ILM
ILMTS
D3.3V
TS_TO_ILM
ID1
ID3
4
3
2
4
1
3
2
4
1
3
2
1
ID2
B29
GND
3
G1
RB7008
22
EXTVCC
7
A3
S2
4
XILMRST
A3
A29
TSRXD4
R7028
1M
1/16W
:CHIP
FCB
R7029
:CHIP
1/16W
C7003
0.01
50V
F:1608
XMEMBE3
A25
GND
G2
15k
D1
GND
TSRXERR
MEMDAT15
+6.5V
B:CHIP
C7059
D1
A6
A17
GND
MEMDAT12
D15
A2
10V
6
B16
GND
5
C7058
R7033
10
1/16W
:CHIP
D2
A4
TSRXPVAL
6
4
BG1
5
A5
A16
TSRXBCLK
3
STBYMD
MEMDAT13
D2
B15
TSRXD2
7
C7060
10V
F:CHIP
D7004
MA2S111-(TX)
1
A3
TSRXD3
D15
8
2
FB7008
0UH
:1608
S1
GND
A15
27MHZ
D12
MEMDAT14
1
VIN
R7024
0
1/16W
2
B14
WAIT
—
A14
GND
J
D13
D14
B13
B17
—
D14
D12
A13
GND
—
D13
FREQSET
BOOST1
C7009
0.1
25V
F:1608
D7003
MA2S111-(TX)
D11
RB7007
22
SW1
G1
A2
MEMDAT11
VOSENSE1
R7046
:RN-CP
1/16W
3
A1
XRST
5
68k
S2
B12
6
4
R7007
22k
1/16W
:RN-CP
4
D15
3
MEMDAT9
MEMDAT8
R7003
0.060
:CHIP
1.4A
:CHIP
FB7013
0UH
2A
G2
GND
A12
7
22
B11
8
2
TG1
21
A11
GND
D11
1
SENSE1-
20
D14
D9
D8
C7048
1000p
50V
B:1608
FB7007
0UH
:1608
19
B10
D8
D10
MEMDAT10
18
A10
RB7006
22
D10
SENSE+
17
D13
D12
D9
FLTCPL
RUN-SS1
L7004
16
B9
D7
R7008
47k
1/16W
:RN-CP
1
D11
C7007
0.1
25V
F:1608
2
A9
MEMDAT7
3
B8
GND
5
4
GND
6
4
R7026
1M
1/16W
:CHIP
5
A8
3
Q7001
SI4922DY
1.8V
SWITCH FET
MEMDAT6
MEMDAT4
6
B7
D10
8
7
15
—
D8
D7
1
2
7
G
A7
D4
8
B6
D6
D6
9
D7
D9
D4
MEMDAT5
10
A6
RB7005
22
D5
11
B5
GND
D1.8V
D5
12
GND
—
K
A5
MEMDAT3
13
B4
5
D3
14
D4
D6
6
4
2A
ID4
ID5
ID7
RB7014
10k
RB7013
10k
RB7012
10k
5
6
7
8
5
6
7
8
5
6
7
8
IERR
A4
3
0UH
FB7012
0UH
2A
MEMDAT2
MEMDAT0
IVAL
B3
8
7
IPCLK
D3
D5
D3
1
2
ID6
A3
D0
ID4
B2
GND
D2
ID7
GND
D0
D2
ID5
A2
ID2
B1
D2
MEMDAT1
D1
ID0
D0
D1
ID3
A1
D7001
MBRS140T3
FB7011
RB7004
22
ID1
D1
F
—
C7006
0.1
25V
F:1608
CN7002
100P
PLUG
—
I
XFERST
+6.5V
5.8A
CN9201
H
D1.8V
R7036
0
1/16W
:CHIP
L7002
TO QI BOARD
E
C7026
0.1
25V
F:CHIP
ID6
IBCLK
A33
B33
IVAL
A34
B34
A35
TSRXPCLK
B35
GND
A36
GND
B36
GND
A37
GND
B37
GND
A38
GND
B38
GND
A39
GND
B39
GND
A40
GND
B40
GND
A41
GND
B41
GND
A42
GND
B42
GND
A43
GND
B43
GND
A44
GND
B44
XILM-DET
A45
GND
B45
GND
A46
GND
B46
3.3V
A47
3.3V
B47
GND
A48
GND
B48
5V
A49
5V
B49
GND
A50
GND
B50
IERR
IPCLK
XILM-DET
R7025
10k
1/16W
:CHIP
D3.3V
D3.3V
D5V
—
9-965-916-02<HA3>QM P1
— 98 —
23
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (2 OF 9)
1
|
2
|
A
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
EMIBUS
XFLASHCSROM
—
D3.3V
IC7202
MBM29LV160BE70TN
16M FLASH
B
48
47
1
8
2
7
6
5
PIO4_4
PIO4_3
PIO4_2
PIO4_1
PIO4_0
PIO3_7
PIO3_6
PIO3_5
VDD
PIO3_4
PIO3_3
PIO3_2
PIO3_1
1284XSTROBE/AVERROR
A3
14
13
6
O1
B3
9
GND
O3
8
5
B1
12
O2
11
B2
A1
10
1
2
O0
7
RESET THRESHOLD = 3.0V
A2
B0
3
GND
VCC
A0
4
2
VCC
RESET
C7234
0.1
25V
F:CHIP
X7000RST
R7264
0
1/16W
:CHIP
R7275
10k
1/16W
:CHIP
XSYSRST
HDELAY
XFERST
D3.3V
XYGVRST
XRST
R7271
10k
1/16W
:CHIP
XSYNC
XMSTRST
M2
BS
XILM-DET
XDIAG_BOOT
CN7202
10P
MEMORY STICK
R7263
10k
1/16W
:CHIP
R7270
10k
1/16W
:CHIP
1
GND
2
BS
3
RB7221
22
DIO
INS
1
8
2
7
3
6
4
5
INS
BS
CLK
CLK
DIO
D3.3V
RESERVED
4
DIO
5
RESERVED
6
INS
7
RESERVED
8
SCLK
9
VCC
10
GND
C7235
O.1
25V
F:CHIP
D3.3V
D3.3V
XWD_DIS
R7261
10k
1/16W
:CHIP
RB7224
10k
8
7
6
DIAG-TXD
TCK
TMS
TDI
F:CHIP
25V
TRIGOUT
4
3
:CHIP
1
A2
XRST
4
B2
TDO
3
A3
GND
TCK
7
2
B3
TDI
TMS
8
1
A4
GND
B4
TCK
TRIGIN
A5
R7268
:CHIP
1/16W
4
5
C7222
0.1
25V
JTAG_TRIG_OUT
3
B6
7
2
A7
XDIAG_BOOT
1
B7
DIAG_TXD
A8
GND
TXD_TO_TV
R7236
10k
1/16W
:CHIP
JTAG_TRIG_IN
8
6
R7285
0
:CHIP
B8
DIAG_RXD
A9
GND
R7286
:CHIP
A10
B9
D5V
FB7201
0UH
:CHIP
TMS
A6
DIAG-RXD
RXD_FR_TV
F:CHIP
GND
B5
DIAG-TXD
C7225
CH:CHIP
50V
22p
XTRST
5
RB7222
22
R7238
10k :CHIP
D5V
B1
6
47
2
A1
TDI
TRIGOUT
330k
JTAG_ST
4
TDO
XMSTRST
X7201
32.7680KHz
R7239
3
XDIAG_BOOT
TRIGIN
C7226
10p
50V
CH:CHIP
2
XRST
XTRST
0.1
1
RB7223
22
XTRST
TDO
C7223
R7262
10k
1/16W
:CHIP
R7257
10k
1/16W
:CHIP
C7224
0.1
25V
F:CHIP
D5V
5
DIAG-RXD
0
XWD_DIS
RXD_FR_TV
GND
B10
TXD_TO_TV
A11
GND
B11
XWD_DIS
CN7201
22P
INT0
GND
1284DATA0/AVDATA0
1284DATA1/AVDATA1
1284DATA2/AVDATA2
1284DATA3/AVDATA3
VDD
1284DATA4/AVDATA4
1284DATA5/AVDATA5
1284DATA6/AVDATA6
GND
1284DATA7/AVDATA7
MR
1
1/16W
100
R7222
GND
XWDRST
1284XACK/AVBYTECLK
1284BUSY/AVPACCLK
1284PERROR/AVBYTECLKVAL
1284SEL/AVPACTAG0
VDD
1284XAUTOFD/AVPACTAG1
1284XFAULT/AVPACTAG2
1284XINIT/AVPACTAG3
GND
1284XSELIN
INT1
R7274
10k
1/16W
:CHIP
D3.3V
D3.3V
DIAG
D3.3V
R7259
10k
1/16W
:CHIP
R7260
10k
1/16W
:CHIP
FB7202
0UH
XMEMCAS2
XMEMCAS3
D5V
D3.3V
R7254
39
1/16W
:CHIP
14
13
2A
6Y
12
R7250
100
1/16W
:CHIP
6A
2Y
5A
11
R7247
100
1/16W
:CHIP
VCC
3A
5Y
3Y
4A
GND
4Y
R7251
0
:CHIP
ILM27MHZ
AUD27MHZ
10
C7229
56p
50V
CH:CHIP
1A
1Y
9
R7248
1M
1/16W
:CHIP
8
R7244
100k
1/16W
:CHIP
X7202
27 MHz
1
C7230
56p
50V
CH:CHIP
2
R7243
100k
1/16W
:CHIP
R7252
39
1/16W
:CHIP
C7232
0.1
25V
F:CHIP
R7249
10k
1/16W
:CHIP
3
FEERR
FEVAL
FEPCLK
FEBCLK
FED7
FED6
FED5
FED4
FED3
FED2
STTS
R7288
4.7
1/16W
:CHIP
:CHIP
C7231
100p
50V
CH:CHIP
4
D7203
HVU359TRF
:VARICAP
L7201
5
XAUDIRQ
IERR
Q7201
2SD2216J-(TX)
VCXO CTL.
XVIDIRQ
ID0
ID1
ID2
ID3
ID4
ID5
ID6
ID7
MEMDAT31
MEMDAT30
MEMDAT29
MEMDAT28
MEMDAT26
MEMDAT27
MEMDAT25
C7227
0.1
25V
F:CHIP
D7202
HVU359TRF
:VARICAP
FED0
—
MEMDAT24
MEMDAT20
MEMADR8
MEMDAT23
ILMTS
R7245
100k
1/16W
:CHIP
R7246
2.2k
1/16W
:CHIP
6
:CHIP
MEMADR10
IBCLK
IVAL
MEMADR11
IPCLK
MEMADR12
R7216
MEMADR13
C7228
0.1
25V
F:CHIP
R7277
0
1/16W
:CHIP
33 1/16W
C7217
0.1
25V
F:CHIP
MEMADR9
C7219
0.1
25V
F:CHIP
7
XMEMOE
FED1
38
37
36
C7233
0.1
25V
F:CHIP
3
:CHIP
:CHIP
R7220
100
R7219
PIO4_5
VDD
PIO4_6
MEMREQ
XCDREQ0
XMEMOE
MEMGRANT
XCDREQ1
VCLAMP
TSINERROR/AVERROR
TSINPACKETCLK/AVSYNC
TSINBYTECLKVALID/AVVALID
TSINBYTECLK/AVCLK
VDD
TSINDATA7
TSINDATA6
TSINDATA5
TSINDATA4
TSINDATA3
TSINDATA2
TSINDATA1
TSINDATA0
VDD
MEMDATA31
MEMDATA30
MEMDATA29
MEMDATA28
GND
MEMDATA27
MEMDATA26
MEMDATA25
VDD
MEMDATA24
MEMDATA23
GND
RB7205
22
35
34
33
32
31
30
29
28
IC7209
TC74LVX08FT(EL)
RESET
D5V
MEMDAT24
26
27
Q7202
2SD2216J-(TX)
INVERTER
D3.3V
IC7208
MAX811TEUS-T
RESET CONTROL
R7266
10k
1/16W
:CHIP
R7267
10k
1/16W
:CHIP
D3.3V
R7258
10k
1/16W
:CHIP
4
XAMUTE
100
1/16W
1/16W
:CHIP
RXD_FR_TV
TXD_TO_TV
GRANT
XAUDCDRQ
XVIDCDRQ
MEMREQ
:CHIP
1/16W
R7208
47
F:CHIP
25V
0.1
C7218
:CHIP
:CHIP
1/16W
1/16W
10k
100
R7206
R7207
MEMWAIT
BOOTSOURCE0
GND
BOOTSOURCE1
VDD
PROCCLKOUT
XCS1
XCS0
XMEMBE0
XCDSTRB1
XMEMBE1
XCDSTRB0
XMEMBE2
GND
XMEMBE3
XMEMRAS2
MEMRD/XWR
VDD
XMEMCSROM
XMEMRAS3
XMEMRAS1
GND
XMEMCAS0
XMEMRAS0
XMEMCAS1
29
28
27
26
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
50
49
48
47
46
45
44
43
42
41
R7276
10k
1/16W
:CHIP
39
40
XMEMOE
MEMWAIT
XVIDCS
XAUDCS
XVIDCDST
XAUDCDST
XMEMBE0
XMEMBE1
XMEMBE2
XMEMBE3
MEMRXW
XMEMRAS2
XMEMCAS3
48
47
46
40
39
38
37
36
35
34
14
15
16
17
20
21
22
23
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
16
17
D3.3V
XBOXRST
104
103
9
157
TTXTREQ
TTXTEVEN/XODD
102
10
158
101
11
159
12
160
99
100
13
161
98
14
162
97
15
163
96
18
164
95
19
165
94
20
166
93
21
167
92
22
168
91
23
169
VCLAMP
TTXTDATA
90
24
170
89
88
87
86
85
84
83
82
81
80
79
78
77
76
25
D3.3V
MICON_RST
156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105
171
176
172
177
173
178
174
179
175
180
182
181
183
184
75
VSS
74
VCC
73
A8
72
A7
71
A9
70
A10
69
A5
A6
68
A11
MEMDAT25
67
C7201
0.1
25V
F:CHIP
A4
MEMDAT26
66
A12
MEMDATA19
65
A3
MEMDATA17
MEMDATA18
64
NC
NC
VCLAMP
MEMDATA16
CLKIN
63
MEMADR7
6
5
NC
A13
7
3
NC
NC
2
8
4
NC
A2
MEMDATA15
62
MEMADR6
XOE
SPEEDSEL1
SPEEDSEL0
61
NC
MEMDATA13
MEMDATA14
MEMDAT27
1
LPCLKOSC
60
XLCAS
XUCAS
MEMDAT19
LPCLKIN
59
XWE
XRAS
MEMDAT18
MEMDATA12
XRST
RTCVDD
58
MEMADR5
NC
VSS
MEMDAT17
GND
CPUANALYZE/TRIGIN
57
MEMADR4
I/O9
5
MEMDAT28
MEMDATA10
MEMDATA11
GND
56
MEMADR3
I/O10
4
MEMDAT29
MEMDATA9
CPURST
55
MEMADR2
NC
VCC
I/O12
I/O11
7
6
MEMDAT16
VDD
MEMDATA8
ERROUT/TRIGOUT
54
I/O7
I/O8
VSS
2
3
MEMDAT30
MEMDATA7
53
7
I/O13
8
185
I/O4
VCC
MEMDAT31
1
C7213
0.1
25V
F:CHIP
TDI
52
I/O14
6
M
N
I/O3
5
XMEMRAS0
VSS
I/O16
I/O15
RB7206
22
MEMDATA6
51
MEMRXW
VCC
I/O1
I/O2
3
C7202
0.1
25V
F:CHIP
MEMDAT14
MEMDAT15
4
2
MEMDAT13
TCK
TMS
50
—
—
MEMDAT12
IC7203
GM71VS65163CLT-5
64M DRAM
I/O5
8
MEMDAT10
D3.3V
I/O6
1
MEMDAT9
TDO
MEMDATA5
49
MEMDAT23
0.1
25V
F:CHIP
MEMADR8
LINKIN
XTRST
48
MEMDAT22
5 C7203
MEMDAT8
LINKOUT
47
MEMDAT21
4
RB7201
22
MEMADR9
GND
MEMDATA4
VDD
46
MEMDAT20
7
6
MEMADR10
PIO0_2
PIO0_1
45
L
2
3
C7214
0.1
25V
F:CHIP
MEMDATA3
44
MEMDAT19
8
MEMDAT7
MEMDATA2
43
MEMDAT18
1
MEMADR11
MEMDAT11
MEMDAT16
MEMDAT17
VSS
MEMDAT6
MEMDATA1
IC7205
ST20TP4CX60S
CPU/DEMUX
PIO0_0
42
—
C7204
0.1
25V
F:CHIP
RB7202
22
VCC
MEMADR12
VDD
MEMDATA0
41
C7205
0.1
25V
F:CHIP
K
MEMADR13
MEMDAT5
186
A8
MEMDAT4
MEMADDR22
MEMADDR23
40
A7
MEMDAT3
PIO0_4
PIO0_3
39
MEMADR7
MEMDAT2
MEMADDR20
MEMADDR21
38
A9
:CHIP
:CHIP
PIO0_7
PIO0_6
PIO0_5
37
A10
1/16W
1/16W
MEMADDR18
MEMADDR19
GND
36
A5
A6
MEMADR6
22
22
GND
35
A11
R7202
R7201
187
NC
NC
A4
XMEMCAS1
MEMDAT1
MEMADDR17
34
NC
NC
A12
MEMDAT0
PIO1_0
33
MEMADR5
NC
A3
XMEMCAS0
MEMADDR16
32
MEMADR4
XOE
NC
A13
MEMADR23
XMEMOE
NC
A2
MEMADR22
PIO1_1
31
MEMADR3
XUCAS
MEMDAT8
VDD
30
MEMADR2
VSS
XLCAS
MEMADR21
PIO1_2
29
J
XRAS
5
MEMADR20
MEMDAT9
MEMADDR15
28
VCC
XWE
4
NC
MEMDAT10
PIO1_3
27
XMEMRAS0
7
6
MEMADDR14
26
MEMRXW
I/O9
8
1
2
PIO1_5
PIO1_4
25
I/O8
NC
C7206
0.1
25V
F:CHIP
MEMADR19
MEMDAT11
3
MEMADDR12
MEMADDR13
24
5
MEMADR18
VDD
23
4
MEMDAT12
PIO1_6
22
I/O11
I/O10
7
6
—
—
I/O6
I/O7
2
3
5
MEMADDR11
GND
21
8
I/O12
4
RB7207
22
PIO1_7
20
MEMDAT7
1
I/O5
VSS
MEMADR17
MEMADDR10
19
MEMDAT6
I/O13
I/O4
VCC
6
MEMADR16
PIO2_1
PIO2_0
18
MEMDAT5
C7207
0.1
25V
F:CHIP
3
MEMDAT14
MEMDAT13
MEMADDR8
MEMADDR9
17
5
I/O14
7
PIO2_3
PIO2_2
16
4
RB7203
MEMDAT4 22
I/O3
2
PIO2_4
MEMADDR6
MEMADDR7
VDD
15
6
I/O15
8
GND
14
3
I/O2
MEMDAT15
1
188
MEMADDR5
13
I
7
I/O16
PIO2_7
PIO2_6
12
MEMDAT3
2
I/O1
MEMADR15
RB7208
22
Q7203
2SD2216J
LED DRIVER
D3.3V
PIO3_0
11
MEMDAT2
8
R7235
1k
1/16W
:CHIP
10
MEMDAT1
1
MEMADR13
MEMADR14
VSS
R7256
10k
1/16W
:CHIP
9
MEMDAT0
MEMADR12
IC7204
GM71VS65163CLT-5
64M DRAM
VCC
R7210
10k
1/16W
:CHIP
R7283
56
1/16W
:CHIP
D7201
SML-210VTT86
RED
8
—
RB7204
22
C7221
0.1
25V
F:CHIP
7
MEMADR9
MEMADR11
C7208
0.1
25V
F:CHIP
R7211
10k
1/16W
:CHIP
PIO2_5
6
C7215
0.1
25V
F:CHIP
MEMADR10
C7209
10
6.3V
B:CHIP
R7282
10k
1/16W
:CHIP
GND
MEMADR6
MEMADR8
D3.3V
H
R7273
10k
1/16W
:CHIP
MEMADDR4
MEMADR7
—
189
MEMADR2
MEMADDR3
190
MEMADR5
MEMADR3
191
MEMADR4
XMEMOE
192
VSS
193
DQ0
XOE
MEMADDR2
194
MEMADR2
195
A0
MEMDAT16
196
MEMDAT24
197
MEMDAT17
198
MEMDAT25
D5V
199
18
MEMDAT18
200
A1
C7212
10
6.3V
B:CHIP
201
19
MEMDAT26
202
XCE
R7281
10k
1/16W
:CHIP
MEMDAT19
203
A2
R7284
56
1/16W
:CHIP
5
MEMADR3
A3
R7215
47
1/16W
:CHIP
D7204
LN25RPS0
:RED
4
MEMADR4
A5
A4
4
3
2
D5V
3
MEMADR5
DQ8
1
4
D3.3V
MEMDAT27
204
MEMADR6
DQ1
A6
DQ9
3
C7216
0.1
25V
F:CHIP
2
G
A7
DQ2
2
1
4
MEMDAT28
1
MEMADR7
A17
DQ10
3
MEMDAT20
C7210
0.1
25V
F:CHIP
205
MEMADR8
A18
DQ3
2
1
4
3
2
206
MEMADR9
NC
RDY/XBSY
1
207
MEMADR19
DQ11
24
MEMADR20
VDD
5
6
7
MEMDAT21
208
—
DQ4
NC
MEMDAT29
33
XRESET
DQ5
DQ12
8
5
6
MEMDAT22
32
11
XWE
MEMDAT30
31
9
10
NC
12
XSYSRST
A19
13
F
XMEMBE0
7
8
5
6
R7212
10k
1/16W
:CHIP
R7214
47
1/16W
:CHIP
R7205
10k
1/16W
:CHIP
MEMDATA22
DQ6
DQ13
MEMADR21
7
8
5
MEMDAT22
A9
A8
MEMADR10
6
7
VDD
7
MEMADR11
45
DQ14
8
R7213
47
1/16W
:CHIP
RB7217
22
RB7214
22
MEMDAT23
44
A10
MEMADR12
8
—
RB7216
22
RB7215
22
MEMDAT31
43
DQ7
42
4
5
A11
MEMADR13
41
VSS
DQ15
MEMADR14
MEMADR18
30
2
3
A13
A12
6
MEMADR15
A16
XBYTE
XMEMRAS0
MEMADR2
25
1
A15
A14
MEMADR16
SDA_EXT
XMEMOE
XMEMCSROM
A0
4
ST-SDA
XMEMCAS0
XCE
A1
MEMADR17
3
MEMDAT0
XMEMCAS1
A2
ST-SDA
ST-SCL
MEMDAT8
XMEMCAS2
VSS
SCL_EXT
MEMDAT1
IC7201
MBM29LV160BE70TN
16M FLASH
E
4
43
42
41
40
36
35
33
XOE
ST-SCL
2
3
MEMDAT9
28
A4
A3
1
MEMDAT2
MEMDATA21
DQ0
CN7204
4P
WHT
:S-MICRO
MEMDAT10
32
A5
SCL_EXT
SDA_EXT
XILMRST
MEMDAT11
31
DQ8
C7211
0.1
25V
F:CHIP
30
A6
XILMIRQ
MEMDAT4
29
17
18
DQ1
19
DQ9
A7
R7265
47k
1/16W
:CHIP
IC7206
M24C32-WMN6T(A)
ST20 NVM
XYGVIRQ
39
38
37
8
9
10
12
13
14
15
DQ2
27
MEMADR3
DQ10
A18
SCL
SDA
MEMDAT3
26
MEMADR4
RDY/XBSY
A17
MEMDAT5
25
MEMADR5
DQ3
16
11
MEMADR6
DQ11
NC
20
MEMADR7
VDD
XRESET
NC
21
MEMADR8
DQ4
22
MEMADR9
XWE
E2
VSS
R7223
4.7k
1/16W
:CHIP
MEMDAT13
MEMDAT12
DQ12
23
MEMADR19
—
NC
DQ5
24
MEMADR20
D
A8
A19
MEMADR21
VCC
XWC
MEMDAT6
MEMDAT21
DQ13
MEMADR10
MEMDAT14
XMEMCAS3
DQ6
DQ14
E0
E1
MEMDAT7
XMEMCAS2
7
A9
MEMDAT15
MEMDATA20
6
A10
MEMADR11
46
DQ7
45
4
A11
MEMADR12
R7221
4.7k
1/16W
:CHIP
44
3
VSS
MEMADR13
—
XBYTE
DQ15
MEMADR14
XMEMBE0
A14
A13
A12
5
MEMADR15
A16
A15
MEMADR18
34
1
2
MEMADR16
C
D5V
D5V
MEMADR17
—
C7220
0.1
25V
F:CHIP
IC7207
TC74LVX04FT(EL)
CLOCK BUFFER
27MHZ
VID27MHZ
R7253
39
1/16W
:CHIP
O
9-965-916-02<HA3>QM P2
—
P
—
— 99 —
24
|
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (3 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
A
TO B BOARD
CN 009
AUDIO OUT
—
CN7402
22P
R7447
A1
100
MEMDAT0
MEMDAT1
C7412
0.1
25V
F:CHIP
MEMDAT2
MEMDAT3
MEMDAT4
A_MNO_C
9
8
7
6
5
4
3
2
1
AOUTR
A7
A6
A5
A4
A3
A2
A1
A0
NC
VDD
GND
GND
VDD
D7
D6
D5
VDD
GND
D4
D3
D2
D1
78
VDD
77
GND
76
29
VDD
30
GND
PCM_OUT2
75
PCM_OUT1
74
PCM_OUT0
73
31
VDASYS
32
VCSYS
33
VSASYS
VDD
72
34
VDD
GND
71
35
GND
36
CLK
37
38
IC7401
STI4600BCV-2.0
AUDIO DECODER
VSADAC
49
50
51
52
53
54
55
56
57
58
59
60
LRCLK
48
SCLK
47
1958OUT
46
PTS
45
REO
44
DEEMPH
43
IRQ
SIN
MAIN12CADR
42
SFREO
67
VDD
68
PCMCLK
VDD
VDADAC
CS
GND
WAIT
SMODE
69
41
61
62
63
64
R7411
47
1/16W
:CHIP
PCMOUT2
R7410
47
1/16W
:CHIP
PCMOUT1
R7409
47
1/16W
:CHIP
PCMOUT0
10
R7424
1/16W
10k
VDD
66
GND
65
PCMOUT1
C7418
0.0022
50V
B:CHIP
R7417
1/16W
:CHIP
SDATA
SCLK
SCLK
LRCLK
AGND
AOUTR
—
K
10
LRCLK
1
SDATA
2
PCMOUT2
A_MNO_C
SCLK
R
LRCK
AGND
6
MCLK
AOUTR
5
VA+
3
AOUTL
10
L
A_MNO_RL
C7432
3300p
50V
B:CHIP
R7419
270k
1/16W
:CHIP
C7422
0.1
25V
F:CHIP
R7430
560
1/16W
:CHIP
R7412
100
1/16W
:CHIP
VCC
Y
5
GND
R7418
270k
1/16W
:CHIP
D5V
C7437
0.1
25V
F:1608
R7445
100
1/16W
:CHIP
R
A_MNO_RR
C7431
3300p
50V
B:CHIP
CN7401
GP1FH500TZ
OPTICAL OUT
VCC
VIN
4
1
2
B
3
IC7405
TC7SET08FU TE85R
OPTICAL MUTE
A_MNO_LF
C7433
3300p
50V
B:CHIP
R7431
560
1/16W
:CHIP
C7419
10V F:CHIP
D5V
GND
C7417
0.1
25V
F:CHIP
—
9-965-916-02<HA3>QM P3
L
— 100 —
NC
A2
A_MNO_FL
B2
GND
A3
A_MNO_FR
A4
GND
A_MNO_FL
B4
A_MNO_FR
A5
A_MNO_C
B5
GND
A6
A_MNO_RL
B6
A_MNO_RR
A7
A_MNO_LF
B7
A5V
IC7402
CS4339KSR
AUDIO DAC
PCMCLK
A
:CHIP
:CHIP
C7423
0.1
25V
F:CHIP
R7420
270k
1/16W
:CHIP
LRCLK
R7444
10k
1/16W
:CHIP
1/16W
1/16W
L
R7432
560
1/16W
:CHIP
SCLK
XAMUTE
:CHIP
C7434
3300p
50V
B:CHIP
R7421
270k
1/16W
:CHIP
6.3V
AL-CP
R7408
10k
1/16W
:CHIP
XAUDCDRQ
—
J
C7420
10V F:CHIP
XSYSRST
XAUDIRQ
I
VA+
4
—
AOUTL
C7425
C7413
0.1
25V
C7414
0.1 F:CHIP
25V
F:CHIP
:CHIP
R7414
47
1/16W
:CHIP
H
C7411
0.1
25V
F:CHIP
100
:CHIP
PCMCLK
47
R7415
R7413
47
1/16W
:CHIP
C7409
0.1
25V
F:CHIP
100
1/16W
R
R7433
560
1/16W
:CHIP
LRCK
SCLK
R7405
0
1/16W
:CHIP
R7442
R7443
1/16W
100
:CHIP
C7435
3300p
50V
B:CHIP
R7422
270k
1/16W
:CHIP
MCLK
PCMCLK
C7416
100p
50V
CH:CHIP
D3.3V
R7403
1k
1/16W
:CHIP
100
1/16W
C7424
0.1
25V
F:CHIP
IC7403
CS4339KSR
AUDIO DAC
:CHIP
70
VCDAC
DSTR
0.1
A_MNO_LF
R7441
100
A_MNO_FR
6
VDD
VDD
A_MNO_RR
A_MNO_FL
R7440
C7436
3300p
50V
B:CHIP
C7415
25V F:CHIP
5
GND
28
40
—
79
27
39 LRCLKIN
XAUDCDST
GND
C7421
10V F:CHIP
L
R7434
560
1/16W
:CHIP
1
CLKOUT
80
2
26
D0
3
VDD
4
25
8
MCLK
PCMCLK
8
10
7
11
8
12
GND
XAUDCS
13
VDD
—
14
GND
AUD27MHZ
C7404
0.1
25V
F:CHIP
15
TEST
C7403
0.001
50V
B:CHIP
16
VDD
F
R7401
5.6k
1/16W
:CHIP
17
GND
C7402
47p
50V
CH:CHIP
18
SCLK12C
—
C7406
0.1
25V
F:CHIP
19
SEL12C
:CHIP
20
RESET
E
C7405
0.1
25V
F:CHIP
21
SDA12C
L7401
22
GND
R7289
4.7
1/16W
:CHIP
23
A_MNO_RL
R7435
560
1/16W
:CHIP
R7423
270k
1/16W
:CHIP
7
AGND
10
6
3
LRCK
155MV_RMS(-18DB)
:CHIP
5
1
2
VA+
LRCLK
R/W
—
SCLK
SCLK
24
AOUTL
SDATA
4
PCMOUT0
D3.3V
C7407
0.1
25V
F:CHIP
L7403
IC7404
CS4339KSR
AUDIO DAC
D3.3V
C7401
10
6.3V
B:CHIP
R7439
A_MNO_FR
7
MEMDAT5
MEMDAT6
MEMDAT7
XMEMBE2
XMEMBE3
MEMADR2
MEMADR3
MEMADR4
MEMADR5
MEMADR6
XMEMBE0
MEMADR7
C7410
0.1
25V
F:CHIP
SUB_OSD
B1
B3
R7438
:CHIP
1/16W
100
A_MNO_FL
A5V
—
G
R7437
:CHIP
1/16W
EMIBUS
C
D
:CHIP
R7436
1/16W
:CHIP
100
—
0
SUB_OSD
B
GND
A8
NC
B8
NC
A9
NC
B9
NC
A10
NC
B10
NC
A11
NC
B11
NC
28
|
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (4 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
A
D3.3V
—
C7611
10
6.3V
B:CHIP
C7610
10
6.3V
B:CHIP
VIDMD39
VIDMD38
VIDMD37
VIDMD36
VIDMD35
VIDMD34
VIDMD33
VIDMD32
VIDMD31
VIDMD30
VIDMD29
VIDMD28
VIDMD27
VIDMD26
VIDMD25
VIDMD24
VIDMD23
VIDMD22
VIDMD21
VIDMD20
VIDMD19
VIDMD18
VIDMD17
VIDMD16
VIDMD15
VIDMD14
VIDMD13
VIDMD12
VIDMD11
VIDMD10
VIDMD9
VIDMD8
VIDMD7
VIDMD5
VIDMD4
85
84
86
1
83
82
79
78
77
6
7
C7630
25V F:CHIP
5
4
Y3
6
3
Y2
GND
2
Y1
Y1
1
Y0
Y0
79
CLK
VS
HS
CR7
CR4
CR6
CR2
CR3
CR1
CR5
TCK
52
RB7637
22
CBCROUT2
CBCROUT4
85
YIN3
CBCROUT5
CBCROUT6
YIN2
GNDIO
CBCROUT7
YIN0
YOUT0
IC7604
EPM3128ATC100-5
V1.0
VIDEO MUX/
86 GNDINT
87
PIXCLKIN
88 VSYNCIN
89
90 CLK2
91
YOUT1
VCCINT
GNDINT
CTL.PLD
XRESET
YOUT2
YOUT3
VCCINT
YOUT4
92 CBIN0
CB1
93
CB2
CB4
GNDIO
94 CBIN2
YOUT5
GNDIO
YOUT6
96 CBIN3
YOUT7
97
CB5
VCCIO
CBIN1
95
CB3
CBIN4
XYRD
98 CBIN5
CB6
XTV-H
99 CBIN6
CB7
XYGV-H
5
6
7
8
9
100 CBIN7
RB7625
47
C7625
1
6.3V
B:CHIP
C0
1
2
3
4
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
GNDIO
50
49
48
46
5
44
43
C2
C3
RB7636
22
C4
8
1
45
2
7
3
6
4
5
C5
C6
C7
42
41
RB7635
22
40
C7636
0.1
25V
F:CHIP
39
38
Y0
37
36
1
8
2
7
3
6
Y1
Y2
Y3
5
4
35
RB7634
22
C7635
0.1
25V
F:CHIP
34
33
Y4
32
31
30
29
22
1
8
2
7
3
6
4
5
Y5
Y6
Y7
R7650
:CHIP
1/16W
28
XTV-H
27
XYGV-H
26
25
D3.3V
:CHIP
TCK
R7640
56
1/16W
:CHIP
R7639
56
1/16W
:CHIP
56
1/16W
R7638
56
1/16W
:CHIP
R7622
1k
1/16W
:CHIP
R7627
1k
1/16W
:CHIP
PLD PROG
TDO
TMS
R7630
1k
1/16W
:CHIP
XYGVRD
XYGVCSIO
XYGVWAIT
TDI
XYGVCSMEM
XYGVDREQ
R7651
ILMRXW
:CHIP
1/16W
56
R7643
XILMOE
MEMREQ
MEMADR22
MEMADR23
MEMRXW
XMEMRAS2
XILMCE
XMEMCSROM
MEMWAIT
ILMWAIT
R7619
56
R7617
56
1/16W
:CHIP
ILMCTRL
4
C7633
0.1
25V
F:CHIP
TMS
1/16W
:CHIP
R7642
56
1/16W
:CHIP
—
7
6
C1
XFLASHCSROM
C7631
0.1
25V
F:CHIP
N
2
3
47
D3.3V
VID27MHZ
8
1
HDELAY
I/O
84 YIN1
CB0
51
VCCIO
53
GNDIO
54
CBCROUT1
55
I/O
56
HSYNCOUT
57
CBCROUT0
58
VSYNCOUT
CRIN7
GNDIO
TCK
59
CBCROUT3
83
—
O
60
YIN5
YGVGCK
8
61
HSYNCIN
XSYSRST
C7628
0.1
25V
F:CHIP
62
82 VCCIO
VS
C7647
10
6.3V
B:CHIP
63
C7634
25V F:CHIP
80 YIN4
81
CLK
C7629
0.1
25V
F:CHIP
64
78 GNDIO
Y2
7
65
XILINKWAIT
77
Y3
8
66
XFLASHCSROM
Y5
Y4
67
I/O
Y5
Y4
68
XYCSIO
2
1
69
I/O
7
70
76 YIN6
HS
8
0.1
HDELAY
XYCSMEM
Y6
8
XYWAIT
Y7
71
XYDREQ
4
3
72
VCCIO
5
73
ILINKRXW
5
8
Y6
RB7628
47
6
74
ILINKOEN
7
75
CRIN6
CR0
RB7629
47
C7640
25V F:CHIP
TMS
1
8
7
6
0.1
CRIN5
CR2
CR1
5
MEMREQ
3
2
CRIN4
6
7
MEMADDR22
6
1
D3.3V
GNDIO
CR3
MEMADDR23
4
C7632
0.1
25V
F:CHIP
R7652
100
1/16W
:CHIP
VCCIO
5
D3.3V
CRIN3
CR4
CRIN2
1
CRIN1
DD40
5
CR0
VDD
CB0
8
GNDIO
V IDMD56
CR6
CR5
MEMRXW
1
3
2
NOTMEMRAS2
8
8
RB7624
47
:CHIP
X7000RST
6
7
0.1
2
RB7632
22
NOTMEMCSROM
V IDMD57
7
3
CR7
ILINKXCE
2
1
4
5
CB0
7
6
CB1
V IDMD58
2
4
RB7630
47
YS_IN
DD39
CB1
R7614
10k
1/16W
:CHIP
CRIN0
DD38
CB2
VIDMD62
VIDMD63
I/O
DD37
CB3
VDD
P2VDD
VIDMD60
VIDMD61
TDO
DD36
5
CB2
3
3
R7641
10k
1/16W
:CHIP
TDO
GND
D3.3V
CB3
6
4
1
CB4
V IDMD59
2
CB5
4
3
A_MSK
VIDMD59
RB7626
47
L7601
5
4
R7613
0
:CHIP
CLK
C7612
0.1
25V
F:CHIP
1
CB7
RB7609
47
2
CB6
V IDMD60
3
HS
1
C7626
0.1
25V
F:CHIP
4
VS
8
MEMADR7
V IDMD61
MEMADR6
V IDMD62
2
MEMADR5
3
7
C7638
0.1
25V
F:CHIP
C7627
10p
50V
CH:CHIP
V IDMD63
MEMADR3
4
VIDMD58
C7641
25V F:CHIP
0.1
MEMWAIT
RB7610
47
D3.3V
A_MSK_PLD
YS_OUT
DD35
P2GND
VIDMD56
VIDMD57
TDI
DD34
CB4
VIDMD54
VIDMD55
RB7627
47
C7639
0.1
25V
F:CHIP
C7637
0.1
25V
F:CHIP
DTVOUT
VCCIO
DD33
CB5
VIDMD52
VIDMD53
Y7
DD31
DD32
CB7
CB6
VIDMD51
YIN7
VDD
DHDRIVE
VIDMD49
VIDMD50
TDI
C7624
0.1
25V
F:CHIP
C7642
25V F:CHIP
0.1
GNDIO
DD30
GND
VIDMD47
VIDMD48
I/O
DD29
DVDRIVE
OSD
PIXCKO
VDD
VSYNC
TEST
HSYNC
GND
GNDCORE
VDDCORE
YCI7
YCI6
YCI4
YCI5
YCI3
YCI2
YCI1
YCI0
VDD
VCLK
USRCLK3
USRCLK2
USRCLK1
USRCLK0
CLK
GND
P1VDD
P1GND
P0VDD
XRST
P0GND
TEST
VDD
A_A7
A_A5
VIDMD45
VIDMD46
I/O
DD28
DD19
DD20
DD27
VDD
GND
DD18
DD25
DD17
DD26
DD16
VDD
DD15
DD24
GND
GND
DD14
DD23
DD13
SDCKO
DD12
VDD
DD11
DD21
DD10
DD22
VDD
GND
DD9
SDCKI
DD8
GNDCORE
DD6
DD7
VDDCORE
DD5
GND
A_A3
A_A6
64
63
52
49
48
47
A_A4
76
75
74
73
72
71
70
69
68
67
66
65
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
55
C7613
0.1 5
25V
F:CHIP 6
53
51
50
54
56
57
58
59
VID MDQM
44
46
VIDMD43
VIDMD44
104
103
102
45
VIDMD42
VID MA4
VID MA3
MEMADR4
80
81
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
34
42
43
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
157
20
158
101
21
159
22
160
99
D3.3V
100
23
161
98
24
162
97
25
163
96
26
164
95
27
165
94
28
166
93
29
167
92
30
168
91
31
169
90
32
170
89
33
171
88
34
172
87
35
173
86
36
174
85
37
175
84
83
38
176
YC0
82
39
177
YC1
isolate gnd
81
40
178
YC2
80
41
179
A_A1
A_A2
isolate gnd
79
42
180
A_A0
78
43
181
YC3
VIDMD41
156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105
182
GND
77
VSS
183
VCC
YC4
76
VSSQ
DQ24
184
VCCQ
DQ23
R/XW
75
DQ25
185
DQ22
VDD
74
DQ26
186
DQ21
YC5
XCS
73
VCCQ
187
DQ27
NC
72
DQ20
VSSQ
188
DQ28
YC6
71
DQ19
YC7
D7
VID MA7
VID MA6
189
VSSQ
D6
70
VCCQ
CR0
VID MA8
VID MA5
190
DQ29
GND
VDD
69
DQ18
D5
68
VCCQ
DQ30
GNDCORE
67
C7601
0.1
25V
F:CHIP
VSSQ
DQ17
VDDCORE
D4
66
6
5
NC
DQ31
R7604
:CHIP
1/16W
GNDCORE
65
3
4
VSS
CR1
64
7
NC
DQ16
DQM3
CR2
VDDCORE
63
VIDM D55
2
8
DQM2
VCC
MEMADR 2
D3
62
VIDM D54
1
A4
A3
XMEMBE 3
VID MA9
CR3
61
RB7601
47
A1
A2
XMEMBE 2
CR4
D2
60
5
A5
XMEMBE 0
10k
D1
59
4
A6
A0
C7619
25V F:CHIP
MEMDAT 6
XVIDCS
VDD
58
6
VIDM D52
VIDM D53
M
3
A10(AP)
MEMDAT 5
MEMDAT 7
VID MDQM
D0
57
—
8
7
A7
1
8
C7620
25V F:CHIP
MEMDAT 4
0.1
CR6
CR5
56
VIDM D51
1
2
BA1
V IDMD41
V IDMD40
XSTRB
XIRQ
55
VIDM D49
VIDM D50
A8
2
CR7
54
RB7602
47
VIDM D48
CKE
BA0
7
XREQ
53
C7602
0.1
25V
F:CHIP
CLK
XCS
A9
C7614
0.1
25V
F:CHIP
SDI
52
VIDM DQM
XRAS
NC
3
DD63
XWE
51
VID MA1
VID MA2
NC
6
GND
50
VID MA10
VID MA0
XCAS
NC
V IDMD43
V IDMD42
GND
49
XVID MCS1
XWE
VSS
DQM1
4
5
DD62
48
XVIDMCS 0
VID MA11
L
VCC
DQM0
NC
MEMDAT 3
0.1
XCAS
XRAS
47
XVIDMRA S
—
NC
DQ8
MEMDAT 1
MEMDAT 2
RB7611
47
DD61
:CHIP
MEMDAT 0
DD60
46
XVIDMCA S
K
DQ9
VCCQ
V IDMD45
V IDMD44
1/16W
AA11
45
XVIDMWE
DQ6
VSSQ
2
1
10k
AA10
DD59
44
VIDMDQM
DQ10
DQ7
7
8
R7605
VDD
VDD
DD58
IC7603
STI7000AQA
VIDEO DECODER
43
5
DQ5
V IDMD46
XVIDIR Q
AA8
AA9
42
4
3
V IDMD47
DD56
DD57
41
6
DQ11
VSSQ
5
4
AA6
AA7
40
3
F:CHIP
DQ4
VCCQ
6
DD55
39
7
VCCQ
DQ12
3
RB7617
47
GND
38
2
VSSQ
DQ3
8
7
DD54
37
8 25V
DQ14
DQ13
1
2
0.1
GND
AA5
36
VIDM D38
VIDM D39
C7603
0.1
1
DQ1
DQ2
4
6
5
XVIDCD ST
RB7612
47
5
4
C7621
25V F:CHIP
AA4
35
VIDM D36
—
DQ15
VSSQ
6
DD53
34
5
RB7603
47
VIDM D37
J
DQ0
VCCQ
3
DD52
AA3
33
7
6
4
I
—
XVIDCD RQ
8
7
AA2
32
2
3
XVIDMR AS
1
2
VDDCORE
GNDCORE
31
VIDM D34
VIDM D35
VIDMA1 1
XVIDMW E
VSS
VCC
RB7618
47
GNDCORE
30
VIDM D33
8
VIDMA1 0
IC7601
TC59S6432CFT-80(
YB)
64M-SDRAM
6
5
VIDMA8
VIDMA9
XVIDMC AS
VIDM D32
1
V IDMD24
3
4
DD51
VDD
VDDCORE
29
RB7604
47
1
D3.3V
H
—
8
8
7
DD50
28
C7605
0.1
25V
F:CHIP
C7604
0.1
25V
F:CHIP
V IDMD25
191
VSS
2
192
VCC
DQ24
7
VIDMA7
1
2
AA1
27
DQ23
V IDMD27
V IDMD26
5
RB7620
47
DD49
26
VSSQ
4
3
VIDMA6
C7622
0.1
25V
F:CHIP
AA0
25
VCCQ
5
6
7
6
VCC
XCS1
24
DQ25
C7615
0.1
25V
F:CHIP
VIDMA4
VIDMA5
RB7613
47
DD48
23
DQ22
8
2
3
4
DD47
22
VCCQ
DQ26
1
V IDMD28
8
RB7619
47
GND
XCS0
:CHIP
21
VSSQ
DQ21
2
7
VIDMA3
193
DQ27
V IDMD30
V IDMD29
194
DQ20
3
195
VSSQ
DQ28
6
VIDMA2
DD46
20
VCCQ
DQ19
V IDMD31
4
DQM
19
—
DQ29
VIDMA1
RB7614
47
5
GND
DD45
18
6
5
DQ18
R7606
10k :CHIP
1
47
VDD
DD0
:CHIP
1/16W
VIDMA0
C7616
0.1
25V
F:CHIP
R7603
196
DQ30
XVIDMC S1
39
197
VCCQ
VID MDQM
R7607
10k
:CHIP
R7602
:CHIP
1/16W
39
R7601
198
VSSQ
DQ17
DD44
17
3
4
DQ31
DD43
16
8
7
VSS
NC
NC
DQ16
5
1
DQM3
XVIDMC S0
199
VCC
4
2
A3
A2
DQM2
VID MA4
VID MA3
VIDMDQ M
200
A4
:CHIP
201
A1
VID MA5
10k
202
A5
R7608
203
A0
VID MA6
C7623
0.1
25V
F:CHIP
VIDMD0
204
A6
VID MA8
VID MA7
205
A10(AP)
DD2
DD1
VIDMD2
VIDMD1
DD41
15
VIDM D23
A7
DD42
14
VIDM D22
A8
6
VIDM D20
VIDM D21
BA0
DD4
DD3
VIDMD3
VID MA9
D3.3V
13
G
A9
BA1
3
RB7605
47
NC
CLK
CKE
VID MDQM
12
VIDM D19
8
7
NC
11
—
1
2
DQM1
VIDMD40
10
VIDM D17
VIDM D18
NC
VSS
V IDMD9
V IDMD8
9
RB7606
47
VIDM D16
NC
5
8
F
C7606
0.1
25V
F:CHIP
XCS
4
V IDMD10
7
VIDM DQM
XCAS
XRAS
6
6
VID MA1
VID MA2
XWE
3
C7617
0.1
25V
F:CHIP
5
—
VID MA0
DQM0
8
7
C7643
0.1
25V
F:CHIP
C7644
0.1
25V
F:CHIP
4
VID MA10
VCC
1
2
C7645
0.1
25V
F:CHIP
3
VID MA11
XVID MCS1
DQ8
DQ7
V IDMD11
2
E
VCCQ
C7646
0.1
25V
F:CHIP
RB7615
47
1
XVIDMCS 0
VSSQ
V IDMD12
R7612
10
1/16W
:CHIP
R7611
150
1/16W
:CHIP
R7610
120
1/16W
:CHIP
206
XVIDMCA S
XVIDMRA S
DQ9
C7618
22
10V
F:CHIP
V IDMD13
207
XVIDMWE
DQ6
V IDMD14
208
VIDMDQM
—
VSSQ
DQ10
NC
7
6
25
5
2
5
VCCQ
D3.3V
V IDMD15
8
3
26
4
RB7616
47
1
4
DQ5
27
6
DQ11
28
3
DQ4
29
7
DQ12
30
1
2
DQ3
31
C7608
0.1
8 25V
F:CHIP
DQ13
VCCQ
32
RB7607
47
DQ2
VSSQ
33
D
VIDM D7
6
5
DQ14
35
VIDM D6
3
4
DQ1
36
VIDM D5
7
37
VIDM D4
2
38
—
VSSQ
8
39
VIDM D3
VCCQ
1
40
VIDM D2
DQ15
41
VIDM D1
VSS
DQ0
4
VIDM D0
VCC
2
RB7608
47
3
C7609
0.1
25V
F:CHIP
—
C
IC7602
TC59S6432CFT-80(
YB)
64M-SDRAM
VIDMD6
B
A1
TCK
B1
GND
A2
TDO
B2
VCC
A3
TMS
B3
NC
A4
NC
B4
NC
A5
TDI
B5
GND
CN7602
10P
YGVCTRL
EMIBUS
—
P
9-965-916-02<HA3>QM P4
—
— 101 —
25
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (5 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
A
B
DQ0
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
XWE
XRAS
XCAS
A11
XCS
A0
A10
A2
A1
A3
—
DQ1
RB7810
47
RB7807
47
8
7
6
5
4 F:CHIP
1
2
3
4
9
6
5
4
3
8
7
6
5
1
2
3
D3.3V
C7827
0.1
25V
—
25
23
22
21
20
19
18
10
8
7
2
1
DQ7
DQ6
VSSQ
DQ5
DQ4
VCCQ
DQ3
DQ2
VSSQ
DQ1
DQ0
VCC
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
VSSQ
DQ14
DQ15
VSS
35
11
VCCQ
34
12
VCCQ
33
13
NC
NC
32
14
LDQM
CS
ADDR9
31
UDOM
ADDR11
ADDR8
30
WE
ADDR10
ADDR7
29
CLK
ADDR0
ADDR6
28
15
CAS
ADDR1
ADDR5
27
16
CKE
ADDR2
ADDR4
26
17
RAS
ADDR3
VSS
—
24
VCC
C
36
37
38
39
40
41
42
43
44
45
46
47
48
49
IC7803
NT56V1616A0T-7
16M-SDRAM
50
C7826
0.1
25V
F:CHIP
D
7
8
6
5
8
7
:CHIP
A5V
V_DRCI
RB7809
47
D3.3V
D1.8V
L7806
C7871
0.1
25V
F:CHIP
5
6
RB7806
47
—
C7870
100
6.3V
:AL-CP
C7831
0.1
25V
F:CHIP
D3.3V
2
1
3
4
1
2
4
3
DRCMCLK
CLK
57
58
203
59
202
60
201
61
200
199
85
86
87
174
88
173
89
172
90
171
91
170
92
169
93
168
94
167
95
166
96
165
97
164
98
163
99
162
100
161
101
160
102
159
103
158
157
104
156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105
1
3
2
6
1
2
3
CLP
CLK2
8
7
6
41
5
47
46
45
44
43
42
1
49
GND(B)
40
2
50
VIN(B)
39
3
51
VCC(B)
38
4
52
VRT(B)
48
53
CLPV(B)
54
IBIAS(B)
56
CLK
55
57
EXTCLP
58
CLPEN
59
XSYNC
60
IBIAS(A)
37
C7849
10
10V
F:CHIP
CLP
36
35
C7859
0.1
25V
F:CHIP
C7863
10
10V
F:CHIP
R7911
5.6k
1/16W
:CHIP
V_DRC1_PB
PB
FL7801
3.6M
R7916
470
1/16W
:CHIP
V-C
Q7803
2SD2216J-(TX)
3.3V REG
L7803
33
L7804
1
33
R7873
:CHIP
1/16W
:CHIP
IC7805
TLC2932IPWR
WRITE PLL
R7874
:CHIP
1/16W
3
4
5
LOGICVDD
VCO VDD
SELECT
R BIAS
VCO OUT
VCO IN
FINA
VCO GND
FINB
VCO INHBIT
PFD OUT
PFD INHBIT
LOGIC GND
NC
C7853
0.1
25V
F:CHIP
C7854
10
10V
F:CHIP
R7888
5.1k
1/16W
:CHIP
C7882
10V
B:CHIP
680k
R7881
820
1/16W
:CHIP
R7885
1k
1/16W
:CHIP
R7897
330
1/16W
:CHIP
R7899
330
1/16W
:CHIP
R7896
47k
1/16W
:CHIP
L7805
:CHIP
D5V
C7865
10
10V
F:CHIP
3.3V
:CHIP
C7847
F:CHIP
R7890
100
1/16W
:CHIP
D7803
UDZ-TE-17-3.9B
R7887
680k
1/16W
:CHIP
R7889
1/16W
:CHIP
C7851
0.01
25V
B:CHIP
C7848
4.7
6.3V
B:2012
R7876
100
1/16W
:CHIP
CB7
CB5
CB6
CB3
CB4
CB1
CB2
CB0
CR7
CR6
CR4
CR5
CR3
CR2
CR1
CR0
Y7
Y5
C7874
0.1
25V
F:CHIP
D5V
R7919
100
1/16W
:CHIP
R7913
560
1/16W
:CHIP
1
82
175
Y6
R7908
100
1/16W
:CHIP
2
81
84
Y4
Q7804
2SB1462J-(TX)
BUFFER
Q7807
2SD2216J-(TX)
BUFFER
6
80
176
Y2
34
79
83
Y3
33
78
177
Y0
32 GND(C)
77
178
Y1
31 VIN(C)
179
CLK
30 VCC(C)
180
76
14
29 VRT(C)
181
75
13
28 CLPV(C)
74
12
HS
FOR_SDRAM
Q7802
2SB1462J-(TX)
VCO LIM
27 IBIAS(C)
73
187
182
R7872
100
1/16W
:CHIP
4
3
26 VDD
72
188
2
25 DGND
71
189
1
4
3
24 D(B)1
70
190
2
23 D(B)2
69
191
1
4
C0
68
192
3
C7867
0.1
25V
F:CHIP
R7904
470
1/16W
:CHIP
A5V
D5V
C7835
25V F:CHIP
RB7814
47
RB7811
47
C7873
10
16V
:AL-CP
CLK1
R7871
100
1/16W
:CHIP
5
6
22 D(B)3
67
193
2
7
C1
66
194
1
8
R7880
1.3k
:RN-CP
C7840
0.1
25V
F:CHIP
5
4
61
65
195
DRCMCLK
3
CLPV(A)
64
196
R7869
33
1/16W
:CHIP
2
IN B+
Q7812
2SB1462J-(TX)
CURRENT BUFFER
C1
CLK 2
1
V-
IN B-
ISLAND_GROUND_FOR_ANALOG
CLK 1
5
6
21 D(B)4
63
197
7
8
C2
62
198
4
62
52
56
3
2
VRT(A)
51
204
1
RB7805
47
IN A+
R7877
1k
:CHIP
C3
RB7813
47
5
20 D(B)5
50
55
6
C3
49
205
CLP
VS14
DBO9
DBO8
DBO7
DBO6
DBO5
DBO4
DBO3
DBO2
DBO1
DBO0
AVS5
AVD5
VS13
VD9
DRO9
DRO8
DRO7
7
63
48
ADHD
8
VCC(A)
47
VS10
4
19 D(B)6
46
RCON
3
OE(C)
VRB(C)
C7856
0.1
16V
B:CHIP
C5
6
45
54
183
C7
7
44
BCON
2
C4
43
HD2
VD7
1
64
42
WPLLHD
RB7804
47
VIN(A)
41
W13I
VD2O
R7867
220
1/16W
:RN-CP
GND(A)
40
IVD
V9O
R7868
33
1/16W
:CHIP
18 D(B)7
39
206
184
17 D(B)8
38
VS15
C7821
0.1
25V
F:CHIP
C7855
0.1
25V
F:CHIP
OUT B
VRB
C0
XH9O
RB7808
47
C7880
IN A-
C2
XV9O
6
C5
37
53
185
C7837
0.1
25V
F:CHIP
R7886
1.2k
:RN-CP
C7879
V+
OUT A
14
36
208
186
C7846
0.1
25V
F:CHIP
Y1
13
35
DIC0
7
B-Y
R7878
1k
:CHIP
VRT
R7893
15k
1/16W
:CHIP
12
34
33
C54I
DRO6
10V
B:CHIP
VDD(QB)
A5V
R7879
1.3k
:RN-CP
11
32
DIC1
C7818
0.1
25V
F:CHIP
DGND(QB)
VDD(QC)
C7881
10
31
DIC2
RPLLHD
R7864
270
1/16W
:CHIP
VDD(QA)
IC7807
LMV358IPWR
VOLTAGE REF
9
30
HREF
8
R7917
470
1/16W
:CHIP
8
29
DIC3
R7863
220
1/16W
:RN-CP
D(C)7
D(C)8
D(A)2
D(A)1
C7
28
DIC4
DRO5
C7891
C7810
0.1
25V
F:CHIP
D(C)6
C4
FFSW
DRO4
R7828
470k
1/16W
:CHIP
D(C)5
D(A)3
C6
VD6
R7866
220
1/16W
:RN-CP
D(C)4
D(A)4
C6
27
DIC5
C7819
0.1
25V
F:CHIP
1
26
FPD
R7862
620
1/16W
:RN-CP
2
25
DIC6
C7833
0.1
25V
F:CHIP
3
24
DIC7
FPO
C7832
0.1
25V
F:CHIP
4
23
VD10
5
5
22
RXI
XOC
6
6
21
VS16
7
7
20
DIY0
8
8
19
LEVEL
C7828
0.1
25V
F:CHIP
D(A)5
D(C)3
Q7811
2SD2216J-(TX)
CURRENT BUFFER
D3.3V
Y3
Y0
XCLH
D(C)2
D(A)7
Y5
Y2
DIY1
5
D3.3V
IC7806
TLC5733AIPM
TRIPLE 8-BIT A/D
D(C)1
D(A)6
Y4
DIY2
6
Y7
DGND(QC)
9
18
207
DIY5
D(A)8
Y6
ORDER
7
Y2
VD11
INSEL
8
Y3
Y
DGND(QA)
Y4
C7838
0.1
25V
F:CHIP
TCK
DIY6
MODE0
MODE1
Y6
TDI
DIY7
NT/PAL
TEST
Y5
C0
VRB(B)
R-Y
OE(B)
Y7
C2
Y1
DIY3
C7824
0.1
25V
F:CHIP
C5
C4
Y0
VS9
C7823
0.1
25V
F:CHIP
OE(A)
TMS
DIY4
C7820
0.1
25V
F:CHIP
VRB(A)
C6
C1
AVS3
R7865
3.3k
1/16W
:RN-CP
Y0
C7839
0.1
25V
F:CHIP
10
17
TDO
0.1
R7914
560
1/16W
:CHIP
A5V
11
16
TRST
AVD3
PR
C7878
12
15
VD5
S1
V_DRC1_PR
VRT
13
14
VS17
S0
FL7802
3.6M
R7912
5.6k
1/16W
:CHIP
R7920
100
1/16W
:CHIP
Y2
14
13
DICD0
RBSL
CYD1
Y4
15
12
M1
DRO3
C7808
10
10V
F:CHIP
11
11
DICD1
DRO2
R7822
3.6k
1/16W
:CHIP
10
10
DICD2
DRO1
9
VD1
OCKSL
FSEL
R7894
15k
1/16W
:CHIP
R7892
15k
1/16W
:CHIP
C3
M0
DRO0
L7802
8
VS1
DICD3
VS12
1
W13ID
GAME
DYO9
2
IHDD
DICD4
DYO8
3
IVDD
DICD5
CRCT
DYO7
4
MODE
DICD6
DYO6
5
XCAS
VS7
CYD0
Y6
C7
XRST
DYO5
6
XRAS
DICD7
DYO4
7
9
8
7
6
5
4
3
2
1
XWE
DOM
XCS
VS2
VDL1
DYO3
R7811
3.3k
1/16W
:CHIP
VD12
DYO2
C7805
0.1
25V
F:CHIP
VDL0
DYO1
R7809
:CHIP
1/16W
VS18
DYO0
C7803
47
16V
:AL-CP
1k
DIYD0
IC7804
CXD2095AQ
FILM MODE DETECT
DRC-MF
C7850
0.1
25V
F:CHIP
Y7
R7909
100
1/16W
:CHIP
C7875
0.1
25V
F:CHIP
C7860
C7857
0.1
0.1
25V
16V
B:CHIP F:CHIP
C7852
0.1
16V
B:CHIP
Q7808
2SD2216J-(TX)
BUFFER
Q7805
2SB1462J-(TX)
BUFFER
Y1
VDPR
VS8
R7905
470
1/16W
:CHIP
V-B
Y3
VDCL
C27O
R7808
220
1/16W
:CHIP
DIYD1
VS11
C7801
0.01
25V
B:CHIP
FILM
C54O
R7801
470k
1/16W
:CHIP
DIYD2
VD8
—
VSTILL1
AVS4
:CHIP
DIYD3
AVD4
1/16W
DIYD4
ABO
100
R7803
22k
1/16W
:CHIP
FH
B2
C7841
0.1
25V
F:CHIP
Y5
PXI
DAVS
R7804
DIYD5
DAVD
R7807
100
1/16W
:CHIP
O
D3.3V
R7837
10k
1/16W
:CHIP
:CHIP
LOGIC VDD
VCO VDD
SELECT
R BIAS
VCO OUT
VCO IN
FINA
VCO GND
FINB
VCO INHBIT
PFD OUT
PFD INHBIT
LOGIC GND
NC
FV
VG
R7805
330
1/16W
:CHIP
C7802
0.1
25V
F:CHIP
DIYD6
D1.8V
:CHIP
IC7801
TLC2933IPWR-12
READ PLL
DIYD7
ARO
R7806
220
1/16W
:CHIP
DLINIT
IFPCT
VB
R7802
0
1/16W
:CHIP
C7815
0.1
25V
F:CHIP
Q7810
2SD2216J-(TX)
VCC DROP
L7801
AVD6
IRF
D5V
C7804
10
10V
F:CHIP
AVS6
VRF
—
N
VS6
DVSFT
AYO
R7857
22
1/16W
:CHIP
DQ7
HS
DQ6
M
DQ5
VS
DQ4
R7858
22
1/16W
:CHIP
DQ3
—
DQ2
L
DQ1
R7829
10k
1/16W
:CHIP
DQ0
R7859
10k
1/16W
:CHIP
VD2
R7833
10k
1/16W
:CHIP
R7826
10k
1/16W
:CHIP
VS3
:CHIP
AVD1
1/16W
AVS1
4.7k
DQ15
R7812
DRC_FFSW
:CHIP
DQ14
—
1/16W
4.7k
R7813
DRC_LEVEL
DQ13
:CHIP
1/16W
4.7k
R7814
DRC_INSEL
DQ12
K
C7811
0.1
25V
F:CHIP
DQ11
C7812
0.1
25V
F:CHIP
Q7813
2SD2216J-QR(TX)
INVERTER
DQ10
—
DQ9
C7813
0.1
25V
F:CHIP
DQ8
R7823
47k
1608
TENA3
DRC_BLK
ADDR11
J
R7850
10k
1/16W
:CHIP
ADDR10
R7817
4.7k
1/16W
:CHIP
ADDR9
—
ADDR8
R7842
10k
1/16W
:CHIP
ADDR7
DRC_LINE_W
ADDR6
R7818
4.7k
1/16W
:CHIP
ADDR5
I
ADDR4
C7814
0.1
25V
F:CHIP
VD3
R7840
10k
1/16W
:CHIP
VS5
R7831
10k
1/16W
:CHIP
—
C13O
DRC_FILM
ADDR3
:CHIP
ADDR2
4.7k
R7819
1/16W
ADDR1
DRC_PXI
ADDR0
H
AVD2
R7820
4.7k
1/16W
:CHIP
AVS2
—
VD4
C7816
0.1
25V
F:CHIP
VS4
G
Y
A5V
C7866
10
16V
:AL-CP
D1.8V
16
C7836
0.1
25V
F:CHIP
C7817
0.1
25V
F:CHIP
HS
D3.3V
V_DRC1_Y
R7918
470
1/16W
:CHIP
R7915
560
1/16W
:CHIP
3
HS
C7834
0.1
25V
F:CHIP
2
C7830
0.1
25V
F:CHIP
4
XCAS
VS
—
C7829
0.1
25V
F:CHIP
C7825
0.1
25V
F:CHIP
FL7803
R7910
5.6k
1/16W
:CHIP
R7921
100
1/16W
:CHIP
Q7809
2SD2216J-(TX)
BUFFER
6
XWE
XRAS
XCS
DQM
DQ7
DQ6
DQ4
DQ5
DQ2
DQ3
DQ1
DQ0
R7907
100
1/16W
:CHIP
C7876
0.1
25V
F:CHIP
C7822
0.1
25V
F:CHIP
Q7806
2SA1226-T1E3E4
BUFFER
4
DQ14
DQ15
DQ12
DQ13
DQ11
DQ13
C7861
10
16V
:AL-CP
F
P
R7906
470
1/16W
:CHIP
V-A
DQ15
DQ10
DQ12
DQ14
DQ8
DQ9
DQ10
DQ11
DQ9
DQM
DQ8
A11
A7
A8
A7
A8
A9
A6
A6
A9
A5
A5
A10
A4
A4
A2
A3
A1
A0
—
—
A5V
DTVOUT
4
E
VS
DRCOUT
HS
R7884
100
1/16W
:CHIP
—
9-965-916-02<HA3>QM P5
— 102 —
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (6 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
A5V
A
—
C8651
0.1
25V
F:CHIP
L8601
:CHIP
TO B BOAR D
3.3V REG
C N005
HS
6
5
1
2
3
4
R8637
1.1 Vp-p (H)
4
0.1
J
V_MIDI_PR
C8624
0.1
25V
F:CHIP
3.5 Vp-p (H)
0.1
6
K
A5V
GA7
GA5
DVCCADTTL
GA6
GB0
GB1
DGNDADTTL
GB3
GB2
DGNDAD3
GB5
GB4
AGNDAD3
DGNDAD3
GB7
GB6
DGNDADTTL
71
GA2
70
GA1
69
GA0
68
66
65
117
AGNDVCO
BB7
64
118
RC1
BB6
63
119
RC2
BB5
62
120
AVCCIR
BB4
61
121
IREF
BB3
60
122
DPGND
123
AGNDIR
BB2
58
124
G/YIN1
BB1
57
125
AVCCAMPG
BB0
56
126
C/YIN2
127
AGNDAMPG
128
G/YCLP
DGNDAD3
V OUT
V ADJ
GND
+5VA_SUBAD
A5V
C8639
47
16V
:AL-CP
IC8601
CXA3506R
A/D
DGNDADTTL
55
DVCCADTTL
54
BA7
B/CbCLP
BA6
52
R/CrCLP
BA5
51
131
DPGND
SOGIN1
DGNDDAD3
50
BA4
49
133
B/CbIN1
BA3
48
134
AVCCAMPB
BA2
47
135
SOGIN2
BA1
46
136
B/CbIN2
BA0
45
137
AGNDAMPB
DGNDADTTL
44
138
DPGND
DGNDAD3
43
139
R/CrIN1
DVCCADTTL
42
140
AVCCAMPR
RB7
41
141
R/CrIN2
RB6
40
142
AGNDAMPR
RB5
39
143
G/YOUT
RB4
38
144
DAC
TEST
OUT
RB3
37
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
4
C8642
0.1
25V
F:CHIP
Y3
6
3
Y2
7
2
Y1
8
1
Y0
C8647
0.1
25V
F:CHIP
C8645
0.1
25V
F:CHIP
C8643
0.1
25V
F:CHIP
C8641
10
10V
F:CHIP
C8644
0.1
25V
F:CHIP
C8646
0.1
25V
F:CHIP
C8649
0.1
25V
F:CHIP
C8648
0.1
25V
F:CHIP
RB8605
22
53
129
132
RB8606
22
5
C8640
10
10V
F:CHIP
59
130
5
4
C7
6
3
C6
7
2
C5
8
1
C4
5
4
C3
6
3
C2
7
2
C1
8
1
C0
RB8604
22
ISOLATED_GND
C8631
0.1
25V
F:CHIP
R8645
1k
1/16W
:CHIP
1.1 Vp-p (H)
R8648
5.6k
1/16W
:CHIP
R8647
10k
1/16W
:CHIP
R8650
10k
1/16W
:CHIP
10
M
C8630
0.1
25V
F:CHIP
R8653
10k
1/16W
:CHIP
C8636
0.1
25V
F:CHIP
8
7
6
8
5
7
6
5
DGND
RB8602
22
R8652
10k
1/16W
:CHIP
C8633
0.1
25V
F:CHIP
RB8601
22
1
2
3
4
1
2
3
R7
R8646
1k
1/16W
:CHIP
R8643
1k
1/16W
:CHIP
3.4 Vp-p (H)
72
DVCCADTTL
8
9
GA4
GA3
DGNDAD3
1.5 Vp-p (H)
1.1 Vp-p (H)
R8657
3.3k
1/16W
RN:CP
L8603
D5V
AVCCVCO
L
—
73
DGNDPLL
R6
7
74
115
R5
3.3 Vp-p (V)
75
116
R4
—
C8623
0.1
25V
F:CHIP
76
67
R3
5
C8657
25V F:CHIP
77
DGNDADTTL
R2
1.3 Vp-p (H)
78
CLPIN
R1
—
C8612
0.1
16V
B:CHIP
C8656
25V F:CHIP
79
DVCCPLL
R0
3
V_MIDI_PB
80
113
:CHIP
C8615
0.1
16V
B:CHIP
81
114
B:CHIP
1.5 Vp-p (H)
1/16W
82
6.3V
—
R8636
1k
1/16W
:CHIP
1k
83
RB2
I
0.1
84
RB1
2
C8625
25V F:CHIP
85
RB0
R8638
1k
1/16W
:CHIP
86
DGNDADTTL
C8613
0.1
16V
B:CHIP
—
1
C8655
0.1
25V
F:CHIP
87
DVCCADTTL
V_MIDI_Y
R8642
3k
1/16W
:RN-CP
88
RA7
QM BOARD WAVEFORMS
(SCHEMATIC 6 OF 9)
C8621
0.1
25V
F:CHIP
C8617
0.1
25V
F:CHIP
89
DGNDAD3
C8608
0.33
10V
B:CHIP
90
RA6
—
91
AGNDAD3
C8610
100p
50V
CH:CHIP
R8639
3.3k
1/16W
:RN-CP
92
RA4
4
C8622
0.1
25V
F:CHIP
SYNCIN2
93
RA5
R8622
300
1/16W
:RN-CP
SYNCIN1
94
RA3
6
C8611
100p
50V
CH:CHIP
C8609
3300p
50V
B:CHIP
111
112
95
DGNDAD3
3
FL8601
17M LPF
CLKIN
96
RA2
G
2
R8626
100
1/16W
:CHIP
109
XCLKIN
110
97
RA1
1
R8641
1k
1/16W
:CHIP
98
RA0
R8612
820
1/16W
:CHIP
V_MIDI_PR
Q8606
2SA1226-T1E3E4
BUFFER
99
DGNDADTTL
—
R8629
1.5k
1/16W
:CHIP
R8618
300
1/16W
:RN-CP
108 107 106 105 1044 103 102 101 100
DVCCAD
R8609
100
1/16W
:CHIP
R8658
3.3k
1/16W
RN:CP
:CHIP
SUBAD_PLL_LOCK
C8629
0.01
25V
B:CHIP
Q8601
2SC2223
BUFFER
C8638
22
10V
F:CHIP
R8649
100
1/16W
:CHIP
DVCCADTTL
F
V IN
Y4
Y5
Y6
Y7
R8644
100k
1/16W
:CHIP
V_DRCI
A5V
—
7
D5V
DVCCAD3
4
DVCCADTTL
6
D 5V
R8623
300
1/16W
:RN-CP
/BINT
—
H
8
C8637
0.1
25V
F:CHIP
VRB
FL8602
17M LPF
1
:CHIP
C8634
1
6.3V
B:CHIP
R8744
22
1/16W
:CHIP
DVCCAD3
:CHIP
R8651
22
1/16W
:CHIP
Q8607
2SA1226-T1E3E4
BUFFER
R8627
100
1/16W
:CHIP
3
C8635
0UH
2
D7008
1SS355TE-17
C8653
0.1
25V
F:CHIP
L8602
VRT
1
SCL_EXT
FB7603
C8654
100
6.3V
:AL-CP
:CHIP
AVCCAD3
R8613
820
1/16W
:CHIP
SDA_EXT
5
ADC3V
C8632
0.1
25V
F:CHIP
AVCCAD3
0UH
R8619
300
1/16W
:RN-CP
AGNDDADREF
:CHIP
A_MSK
4
R8656
1k
1/16W
RN:CP
MN_SB_SW
:CHIP
AVCCADREF
B11
FB7602
0UH
1/16W
DVCCPLLTTL
A11
FB7601
1k
DPGND
GND B10
:CHIP
1/16W
R8604
DGNDPLLTTL
A10
1k
3
ADC3V
3WIRE/I2C
EXT_SDA
R8605
V_MIDI_PB
SEROUT
B9
R8630
1.5k
1/16W
:CHIP
CLK
A9
A_MSK
Q8602
2SC2223
BUFFER
VS
2
RB8603
22
XCLK
MN_SB_SW
R8610
100
1/16W
:CHIP
XSENABLE
B8
/BINT
10
A8
V_DRCI_VS
EXT_SCL
9
SUBAD_XDOTCLK
SCL
B7
PR
SUBAD_DOTCLK
A7
PB
1/2CLK
E
V_DRC1_PR
1/2XCLK
—
7
SDA
V_DRCI_HS
8
DVCCREG
GND
B6
V_DRC1_PB
OSD_HS
4
SUBAD_DSYNC
V_DRCI_PR
B5
A6
6
Y
DPGND
D
OSD_VS
V_DRC1_Y
R8624
200
1/16W
:RN-CP
DSYNC/DIVOUT
GND
V_MIDI_VS
XPOWER SAVE
GND
FL8603
34M LPF
6
DGNDREG
A5
3
SOGOUT
B4
V_DRCI_Y
2
C8652
47
16V
:AL-CP
Q8608
2SA1226-T1E3E4
BUFFER
R8628
100
1/16W
:CHIP
XUNLOCK
V_MIDI_VS
V_DRCI_PB
1
B3
5
1
A5V
R8620
200
1/16W
:RN-CP
R8614
820
1/16W
:CHIP
V_MIDI_PR
NC
—
4
A3
A4
GND
3
V_MIDI_Y
NC
V_MIDI_HS
V_MIDI_PB
A2
B2
R8631
1.5k
1/16W
:CHIP
SUBAD_PLLHOLD
C
2
HOLD
V_MIDI_PR
B1
XTLOAD
GND
Q8603
2SC2223
BUFFER
R/CrOUT
V_MIDI_PB
V_MIDI_Y
EVEN/ODD
—
GND
1
A1
B/CbOUT
V_MIDI_Y
R8611
100
1/16W
:CHIP
ADDRESS
CN8601
22P
V CONT
VIDEO_IN
SUBAD_EXTCLP
B
IC8709
PQ07VZ012P
C8650
47
16V
:AL-CP
4
SUBAD_OUT
ADC3V
3.4 Vp-p (V)
SDA_M3
N
SCL_M3
—
O
Y_ CL
CB_CL
—
CR_ CL
680
680
680
R8608
:CHIP
1/16W
R8607
:CHIP
1/16W
100
R8616
:CHIP
1/16W
100
R8606
:CHIP
1/16W
C8601
0.01
25V
B:CHIP
P
R8625
1k
1/16W
:CHIP
R8621
1k
1/16W
:CHIP
SUBAD_CLVL
C8602
10
6.3V
B:CHIP
R8615
:CHIP
1/16W
10
C8604
6.3V B:CHIP
C8606
10
6.3V
B:CHIP
C8603
0.01
25V
B:CHIP
A5V
R8632
1k
1/16W
:CHIP
Q8604
2SB1462J-(TX)
BUFFER
100
R8617
:CHIP
1/16W
Q8605
2SB1462J-(TX)
BUFFER
Q8609
2SB1462J-(TX)
BUFFER
C8607
0.1
25V
F:CHIP
C8605
0.01
25V
B:CHIP
9-965-916-02<HA3>QM P6
—
— 103 —
27
|
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (7 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
A
A5
A4
A7
A6
A9
A2
A1
A10
A0
A12
A8
109
SUBAD_ DSYNC
—
33
R8709
:CHIP
1/16W
SUB AD_EXTC LP
H
R8713
10k
1/16W
:CHIP
196 VDOCLKOUT
SDDAT27
105
SDDAT28
104
SDDAT29
SDDAT30
100
202 XVDOHS
SDDAT31
99
203 XOSDHS
XSM
98
204 XOSDVS
MST
97
TMODENB
96
IICCKSEL
95
IICSCL
94
IICSDA
93
OVDD21
92
DXT1IN
91
208 ANCRIN
IC8703
CXD9509AQ
MID-X
210 ANCBIN
213 ANREF1
I
VSS
90
VDD1
89
DXT1OUT
88
AVCCSD
87
214 AVCCAD1
DTVOUT
Y7
Y6
Y5
Y4
J
215 ANYGIN
AGND
86
216 AVSSAD1
AGND
85
217 DTVYIN7
DSPLPFI
84
218 DTVYIN6
DSPLPFO
83
219 DTVYIN5
AVCCDSP
82
220 DTVYIN4
DXT2OUT
81
221 VDD1
XTST
222 VSS
CLK
DSPCLK
Y3
Y2
Y1
Y0
C7
C6
C5
R3
R2
R1
78
77
225 DTVYIN3
DXT2IN
76
226 DTVYIN2
OVSS3
75
227 DTVYIN1
XDSPYS
74
228 DTVYIN0
XDSPVS
73
229 DTVCIN7
XDSPHS
72
230 DTVCIN6
DSPCR0
71
231 DTVCIN5
DSPCR1
70
232 AUXCIN3
DSPCR2
69
233 AUXCIN2
DSPCR3
68
235
VSS
67
VDD2
66
48
49
50
51
52
53
54
DSPCB2
47
DSPCB1
46
DSPCB3
45
DSPCB4
44
VSS
43
DSPCB5
42
VDD2
41
DSPCB6
40
DSPY0
39
DSPCB7
38
DSPY2
37
DSPY1
36
DSPY3
35
DSPY5
34
DSPY4
33
DSPY7
32
DSPY6
31
VDD1
30
VSS
29
DRCYIN0
28
DRCYIN2
27
DRCYIN1
26
OVSS1
25
DRCDCLK
24
VDD1
23
DRCYIN3
22
DRCYIN5
21
DRCYIN4
20
DRCYIN6
19
VSS
18
DRCYIN7
17
DRCCRIN1
16
DRCCRIN0
15
DRCCRIN3
14
DRCCRIN2
13
VDD1
12
DRCCRIN4
11
DRCCRIN5
10
DRCCRIN7
9
DRCCRIN6
8
DRCCBIN0
7
VSS
6
DRCCBIN1
5
VDD2
4
DRCCBIN2
3
DRCCBIN3
2
DRCCBIN4
1
M
DRCCBIN6
61
DRCCBIN5
DSPCB0
DRCCBIN7
62
240 DTVCIN0
XDRCHS
DSPCR7
XDRCVS
63
239 DTVCIN1
VSS
DSPCR6
DTVHSYNC
64
238 DTVCIN2
VDD2
DSPCR5
DTVCLKOUT
C0
65
237 DTVCIN3
DTVCLAMP
C1
DSPCR4
DTVYCLVL
C2
236 DTVCIN4
DTVVSYNC
C3
AUXCIN0
DTVPHLD
C4
—
55
56
57
58
59
60
D18
D3.3V
D19
D31
R8719
10k
R8718
10k
1/16W
:CHIP
R8717
10k
1/16W
:CHIP
Q8701
2SK1399
LEVEL-SHIFT
:CHIP
1/16W
R8733
10k
1/16W
:CHIP
R8724
0
1/16W
:CHIP
C8728
12p
50V
CH:CHIP
SCL_M5
C8731
1
5
4
D21
6
3
D22
7
2
D23
8
1
A11
A7
A10
A6
A0
A5
A1
A4
A2
A3
DQM2
DQM3
VCC
VSS
N.C.
N.C.
DQ16
DQ31
VSSQ
VCCQ
DQ17
DQ30
DQ18
DQ29
VCCQ
VSSQ
DQ19
DQ28
DQ20
DQ27
VSSQ
VCCQ
DQ21
DQ26
DQ22
DQ25
VCCQ
VSSQ
DQ23
DQ24
VCC
VSS
86
85
84
83
82
81
80
79
78
77
76
2
D9
8
1
D8
RB8714
47
D3.3V
DQM0
0.1
C8742
25V F:CHIP
CLK IN
69
70
71
72
73
74
75
7
68
C LK
67
C KE
66
A9
A8
65
A8
D1 0
A7
A6
A5
A4
A3
DQM1
RB8717
47
5
4
D3 1
6
3
D3 0
7
2
D2 9
8
1
D2 8
C8741
0.1
25V
F:CHIP
5
4
D27
6
3
D26
7
2
D25
8
1
D24
RB8716
47
C8739
0.1
25V
F:CHIP
SDA_M3
:CHIP
:CHIP
0.0047
50V
R8737
10
1/16W
:CHIP
R8715
10k
1/16W
:CHIP
C8722
0.1
25V
F:CHIP
2
8
A12
D1 1
3
SCL_M3
1/16W
270
R8725
7
A9
4
SDA_M5
:CHIP
1/16W
10
10k
3
D2 0
Q8702
2SK1399
LEVEL-SHIFT
0 :CHIP
R8716
4
RB8712
47
R8734
10k
1/16W
:CHIP
C8733
0.1
25V
F:CHIP
C8729
12p
50V
CH:CHIP
R8736
5
6
X8701
18.543956MHz
C8726
0.1
25V
F:CHIP
R8726
C8738
0.1
25V
F:CHIP
N.C.
5
6
64
1
3
4
13
14
15
16
17
18
19
D1 7
D30
79
VSS
234 AUXCIN1
R0
L
C8723
0.1
25V
F:CHIP
80
VDD1
223 DTVCLKIN
224 OVSS2
—
D16
S
207 AGND
212 ANREF2
K
103
201 XVDOVS
RB8713
47
D29
VDD1 101
211 AGND
—
D27
D28
VSS 102
206 AVCCAD3
D3.3V
—
D26
106
197 VDD1
209 AVCCAD2
—
DQM 1
VDDSD 107
SDDAT26
205 VDOCLAMP
C8708
0.1
25V
F:CHIP
A1
A2
42
V_MIDI_VS
108
D24
D25
CKE
D1 2
63
SDDAT24
A0
CS
D1 3
1
62
192 VDOCIN0
D23
CLK
2
8
61
110
N.C.
7
60
SDDAT23
CAS
RAS
D1 4
59
191 VDOCIN1
A 11
A1 0
N.C.
D1 5
3
58
111
D21
D22
WE
4
6
57
SDDAT22
A12
D20
DQM1
5
56
190 VDOCIN2
CS
VSS
DQM0
55
112
C8724
25V F:CHIP
0.1
N.C.
54
SDDAT21
CAS
RAS
N.C.
VCC
53
189 AUXCIN4
D18
D19
DQ8
52
113
WE
DQ7
51
SDDAT20
D17
VCCQ
50
188 AUXCIN5
DQM 0
DQ9
49
VDD2 114
D16
DQ6
VSSQ
48
187 AUXCIN6
SDDAT25
RB8710
47
116
VSS 115
200 VDOHLFCK
1/16W
R8703
:CHIP
1/16W
2
1
21
SDDAT19
186 AUXCIN7
DQ10
20
118
117
VSSQ
DQ5
22
SDADR5
SDADR4
SDADR7
SDADR6
VDD2
SDADR8
VSS
SDADR9
SDCS
SDADR12
VSSSD
SDCLKIN
VSS
VDD2
SDCLK
SDCKE
SDRAS
SDCAS
SDWE
VDD1
SDDQM1
SDDAT7
SDDQM0
SDDAT6
VSS
SDDAT5
SDDAT3
SDDAT4
SDDAT1
SDDAT2
VDD1
SDDAT0
SDDAT15
SDDAT13
SDDAT14
VDD1
SDDAT12
VSS
SDDAT11
SDDAT10
SDDAT9
SDDAT8
VDOYCLVL
VDOCBCLVL
VDOYIN7
VDOYIN6
VDD2
VDOYIN5
SDDAT17
198 VSS
10k
100
119
199 XRESET
:CHIP
XBOXRST
R8712
G
C8709
0.1
25V
F:CHIP
7
DQ11
47
SUBAD_ PLLHOLD
R8711
22
1/16W
:CHIP
SDDAT16
194 VDOCLKIN
D6
DQ4
VCCQ
43
—
120
SDDAT18
195 OVDD11
3
DQ12
46
SUBAD_ DOTCLK
SDADR3
183 VDOCIN5
193 OVDD22
6
DQ3
RB8715
47
45
C0
D5
A3
S
F
4
VCCQ
44
C1
5
DQ13
23
R4
C2
D4
DQ2
VSSQ
24
R5
1
DQ14
27
R6
R8720
22
1/16W
:CHIP
184 VDOCIN4
185 VDOCIN3
R7
2
8
VSSQ
31
C3
7
D3
VCCQ
DQ1
37
C4
—
VSS
182 VDOCIN6
C5
E
VDOCRCLVL
C6
VDOYIN4
181 VDOCIN7
VDOYIN3
C7
D2
D7
180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121
—
4
3
10
D3.3V
C8746
22
10V
F:CHIP
5
6
11
C8719
0.1
25V
F:CHIP
D0
D1
12
4
25
3
2
26
1
28
C8717
0.1
25V
F:CHIP
C8714
0.1
25V
F:CHIP
4
29
3
2
30
1
4
32
3
2
33
1
34
RB8704
47
4
35
3
2
DQ15
36
1
4
VSS
DQ0
38
3
2
VCC
2
C8737
0.1
25V
F:CHIP
RB8708
47
5
5
6
6
7
7
8
47
8
5 RB8706
6
7
39
2.5V
VDOYIN2
D
C8712
0.1
25V
F:CHIP
VDOYIN0
R8748
1k
1/16W
:RN-CP
8
5
40
R8747
1k
1/16W
:RN-CP
D8701
1SS355TE-17
6
7
41
1
D3.3V
C8745
0.1
25V
F:CHIP
A11
CS
RAS
CKE
CLK
WE
CAS
DQM1
DQM0
D7
D6
D5
D3
D4
D2
D1
D0
D15
D14
D13
D12
D11
D9
CLKIN
8
C8740
0.1
25V
F:CHIP
9
Y7
Y6
Y5
Y4
Y3
Y1
Y_CL
5 47
SDADR1
5
6
7
SDADR2
4
8
5
SDADR0
3
6
7
SDADR10
GND
2
8
SDADR11
V ADJ
1
IC8704
TC59S6432CFT-80(
YB)
64M-SDRAM
RB8711
47
VDOYIN1
—
V OUT
C
V IN
R8752
0
:CHIP
D3.3V
RB8702
RB8701
47
IC8706
PQ07VZ012P
V CONT
—
Y0
2.5V REG
D3.3V
Y2
SUBAD_OUT
CB_CL
B
CR_CL
SUBAD_CLVL
D10
D8
—
B:CHIP
C8734
0.1
25V
F:CHIP
CLK
R8728
22
1/16W
:CHIP
SUBAD_XDOTCLK
56
R8727
:CHIP
1/16W
A_MSK_PLD
R8722
0 1/16W
:CHIP
MIDE_XVS
R8721
:CHIP
0 1/16W
C8721
0.1
25V
F:CHIP
D3.3V
SYNCSW
D3.3V
2.5V
D3.3V
3
2
1
4
2
1
3
C0
C1
C2
C3
C4
C5
C6
C7
Y0
Y1
Y2
Y3
Y5
Y4
Y7
Y6
Y0
Y1
Y2
CLK
Y3
Y4
Y5
Y6
Y7
CR0
CR1
CR3
CR2
CR4
CR5
CR6
CR7
CB0
CB1
CB2
CB3
CB4
CB6
CB5
CB7
HS
VS
VS
HS
15
4B
14
1Y
13
2
3
2A
4Y
2B
3A
2Y
3B
G
3Y
12
2Y
IC8708
TC7WH04FU
SYNC INVERT
R8751
22
1/16W
:CHIP
DRCOUT
G
4A
4
1
4
—
O
3A
C8748
0.1
25V
F:CHIP
11
RB8707
22
2A
XST
10
4
3
1Y
9
2
3Y
1A
1B
5
1
4
3
V
6
2
1
1A
V
7
5
S
8
6
7
8
RB8709
22
HS
VS
5
6
RB8705
22
RB8703
22
N
7
8
8
6
7
7
8
6
5
6
C8725
1000
6.3V
:AL-CP
5
7
8
C8720
0.1
5 25V
F:CHIP
1
C8718
0.1
25V
F:CHIP
C8716
0.1
25V
F:CHIP
2
C8715
0.1
25V
F:CHIP
C8713
0.1
25V
F:CHIP
3
R8714
10k
1/16W
:CHIP
2.5V
4
C8706
10
6.3V
B:CHIP
—
16
2.5V
IC8707
TC74VCX157FT
SYNC SW
R8750
22
1/16W
:CHIP
MIDOUT
—
P
—
9-965-916-02<HA3>QM P7
— 104 —
|
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (8 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
A
—
R8829
0
1/16W
:1608
B
OS D_R
R8828
0
1/16W
:1608
OS D_G
MID_BUSY
VIDEO OUT
—
GRANT
OS D_B
TO B BOARD
R8827
0
1/16W
:1608
CN0 04
R8852
1k
1/16W
:CHIP
C
1k
MICON_RST
—
CN8801
22P
R8851
:CHIP
1/16W
V_MNO_P R
1
V_MNO_P B
2
V_MNO_Y
D
R8850
100
1/16W
3
:CHIP
V_MNO_H S
V_MNO _VS
A5V
—
M2
C8841
0.1
25V
F:CHIP
RPr5
21
22
41
RPr6
AVDD
40
RPr7
COMP
39
FSADJ
38
VREF
37
57
D23
SA11
58
D22
SBA1
59
D21
/SCS
60
VDD
/RAS
SA5
SA2
SA7
D3.3V
C8832
0.1
25V
F:CHIP
SA6
SA0
D Q16
5
4
SA8
D Q17
6
3
SA10
D Q18
7
2
SA9
D Q19
8
1
RB8809
47
SA11
C8831
0.1
25V
F:CHIP
D Q20
5
D Q21
6
3
D Q22
7
2
D Q23
8
1
CS
RAS
AVDD2
AVSS2
WE
C AS
120
119
118
/CAS 117
SDCLK
VSS 115
DQM1 116
/WE 114
VDD 113
DQM0 112
SDQ8 111
SDQ7 110
VSS 108
SDQ9 109
106
SDQ6 107
SDQ10
104
SDQ5 105
SDQ4 103
SDQ11
101
VSS 102
SDQ12
99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
VDD 100
SDQ3
SDQ13
SDQ2
SDQ14
VSS
SDQ1
SDQ15
SDQ0
/TEST0
/TEST1
/TEST2
VDD
SYCKIN
VSS
D0
D1
D2
D3
D4
D5
D6
D7
VSS
D8
D9
D10
VDD
D11
D12
D13
D14
D15
VSS
D16
D17
D18
D19
D20
SYCKOUT
C8830
0.1
25V
F:CHIP
CS
S A11
S A10
S A0
S A1
S A2
S A3
GY2
NC
GY3
NC
GY4
GY1
GY5
GY0
GY7
GY6
V_MNO_PB
B4
GND
A5
V_MNO_Y
B5
GND
A6
V_MNO_HS
B6
V_MNO_VS
A7
OSD_R
B7
GND
A8
OSD_G
B8
GND
A9
OSD_B
R8841
470
1/16W
:CHIP
RXD_ FR_TV
V_MNO_Y
V_MNO_Y
GND
A10
YSYM
B10
GND
A11 M16C_RXD
TXD_ TO_TV
B11
FB7802
0UH
:CHIP
M16C_TXD
FB7801
0UH
:CHIP
C8844
47
6.3V
:AL-CP
14
13
12
100
C8843
47
6.3V
:AL-CP
68
R8836
:CHIP
1/16W
R8844
22
1/16W
:CHIP
10
Q8805
2SC2223
BUFFER
PB
R8840
470
1/16W
:CHIP
R8835
100
1/16W
:CHIP
V_MNO_Y
Q8804
2SC2223
BUFFER
R8820
:CHIP
1/16W
R8843
22
1/16W
:CHIP
R8839
470
1/16W
:CHIP
V_MNO_PR
V_MN O_PR
V_MNO_PB
V_MNO_ PB
XTV-H
Y0
Y1
Y2
Y3
Y4
Y5
Y6
Y7
R8845
22
1/16W
:CHIP
R8854
100
1/16W
:CHIP
4
3
DQ10
7
2
D Q9
8
1
D Q8
C8838
0.1
25V
F:CHIP
ADDR10
ADDR8
ADDR0
ADDR7
ADDR1
ADDR6
ADDR2
ADDR5
ADDR3
ADDR4
VCC
VSS
2A
6Y
2Y
5A
V_ MNO_HS
3A
5Y
3Y
4A
GND
V_ MNO_VS
14
13
6A
C8852
0.1
25V
F:CHIP
4Y
DQM1
36
ADDR9
VCC
12
4
6
1A
1Y
11
5
DQ11
10
RB8815
47
C LK
35
ADDR11
DQ12
9
1
8
8
D3.3V
IC8807
TC74LVX04FT(EL)
INVERTER
1
DQ13
2
2
3
7
4
DQ15
DQ14
5
50
49
4
3
39
40
43
42
41
38
37
34
NC
33
44
47
46
45
48
1
2
3
4
5
6
7
CKE
CS
5
6
D3.3V
R8870
22
1/16W
CHIP
QM BOARD WAVEFORMS
(SCHEMATIC 8 OF 9)
YGVGCK
S A9
S A8
S A7
S A6
S A5
1
S A4
2
3
IC8803
NT56V1616A0T-7
SDRAM
VSS
VCC
DQ0
DQ15
DQ1
DQ14
VSSQ
VSSQ
DQ2
DQ13
DQ3
DQ12
VCCQ
VCCQ
DQ4
DQ11
DQ5
DQ10
VSSQ
VSSQ
DQ6
DQ9
DQ7
DQ8
VCCQ
VCCQ
LDQM
NC
WE
UDOM
CAS
CLK
RAS
CKE
CS
NC
ADDR11
ADDR9
ADDR10
ADDR8
ADDR0
ADDR7
ADDR1
ADDR6
ADDR2
ADDR5
ADDR3
ADDR4
VCC
VSS
5
4
DQ31
6
3
DQ30
7
2
DQ29
8
1
DQ28
4
5
RB8813
47
5
4
DQ27
6
3
DQ26
7
2
DQ25
1
DQ24
8
1.5 Vp-p (H)
C8837
0.1
25V
F:CHIP
DQM3
C LK
D3.3V
S A9
S A8
S A7
GRAPHICS
S A6
S A5
S A4
—
9-965-916-02<HA3>QM P8
— 105 —
0.6 Vp-p (H)
0.6 Vp-p (H)
RB8814
47
CLK
DQM1
CAS
WE
DQM0
DQ7
DQ8
DQ9
DQ6
DQ10
DQ11
DQ5
DQ4
DQ12
DQ3
DQ13
DQ14
DQ2
DQ1
DQ0
DQ15
MEMDAT0
MEMDAT1
MEMDAT2
MEMDAT3
MEMDAT4
MEMDAT5
MEMDAT6
MEMDAT7
MEMDAT8
MEMDAT9
MEMDAT10
C8829
0.1
25V
F:CHIP
RAS
16 M
RB8810
47
SA1
CLK
32
C8833
0.1
25V
F:CHIP
CAS
31
S A3
UDOM
30
S A2
NC
WE
29
S A1
SA4
SA3
D3.3V
A4
ISLAND_GROUND_FOR_ANALOG
R8817
6.8k
:CHIP
28
DQM2
LDQM
27
SA0
VCCQ
26
S A10
DQM 3
C8823
0.1
25V
F:CHIP
GND
RB8816
47
50
S A11
VCCQ
49
CS
DQ16
DQ8
48
R AS
DQ7
47
DQ17
DQ31
DQ9
46
C AS
DQ6
45
DQ30
8
WE
9
DQ18
10
D QM0
VSSQ
11
C8834
0.1
25V
F:CHIP
DQ29
VSSQ
12
2
1
DQ10
13
7
8
DQ11
DQ5
14
D Q6
D Q7
DQ4
15
DQ28
DQ19
VCCQ
16
3
VCCQ
17
4
6
DQ12
18
5
D Q5
DQ13
DQ3
19
D Q4
DQ20
DQ2
20
DQ27
VSSQ
VSSQ
21
0.1
1
C8835
25V F:CHIP
22
8
23
D Q3
24
DQ26
D QM2
C8821
0.1
25V
F:CHIP
SYNC_T
CLK
7
44
56
VSS
D Q2
DQ14
43
55
VSS
2
DQ22
DQ1
42
VDD
SBA0
3
VSS
DQ15
41
54
D25
D24
6
VCC
DQ0
40
SA12
4
39
53
D26
DQ1
5
38
52
SA9
V_MNO_PR
B3
SDRAM
37
SA10
D27
D Q0
16 M
36
51
D28
BOX_RST
A3
IC8804
NT56V1616A0T-7
35
50
SA8
DQ2 4
D3.3V
34
SA0
36
33
49
D30
D29
35
32
SA1
48
VDD
34
31
SA6
C8836
0.1
25V
F:CHIP
RB8812
47
RB8811
47
0.1
33
MID_BUSY
B2
XYGV-H
DQ21
C8824
25V F:CHIP
32
30
47
D31
CLK
DQ2 5
C8825
25V F:CHIP
31
C8839
0.1
25V
F:CHIP
DQ23
0.1
30
R8821
68
1/16W
:CHIP
R8818
680
1/16W
:CHIP
C6
R8811
:CHIP
1/16W
C8826
25V F:CHIP
29
29
46
VSS
0.1
28
28
45
/INT
47
27
Q8806
2SC2223
BUFFER
C8840
0.1
25V
F:CHIP
R8819
100k
1/16W
:CHIP
C7
R8813
22
1/16W
:CHIP
R8871
47
1/16W
:CHIP
26
27
SA2
SA7
6
5
25
26
44
/READY
/WAIT
3
4
C5
25
SA5
8
7
1
43
VSS
C4
1
2
R8857
47
1/16W
:CHIP
XSYNC
2
42
VDD
RB8808
22
3
41
SA3
/DREQ
MEMDAT11
4
42
AGY
4
40
/SYCKS
MEMDAT12
5
AVSS
V_MNO_PR
FL8801
AF9309
9
RPr4
20
A5V
PR
8
19
R8837
:CHIP
1/16W
11
43
A2
DIAG
1
ARPR
GND
Y
2
RPr3
5
39
SA4
MEMDAT13
C8845
47
6.3V
:AL-CP
3
18
6
DQM2
LWD
/LEND
MEMDAT14
bpb6
44
7
38
DQM3
MEMDAT15
bpb7
17
AVDD
IC8805
THS8134BCPHP
TRIPLE
8 BIT DAC
8
VSS
/CSMEM
MEMDAT16
bpb5
45
RPr2
9
37
/CSREG
SDQ16
MEMDAT17
bpb4
46
ABPB
10
36
VDD
MEMDAT18
bpb2
AVSS
RPr1
11
SDQ17
SDQ31
MEMDAT19
bpb3
RPr0
16
12
/RD
/RESET
MEMDAT20
bpb1
15
R AS
P
bpb0
47
13
SDQ30
R8810
22
1/16W
:CHIP
NC
48
M1
14
/WR0
—
NC
M2
NC
15
SDQ18
C8820
0.1
25V
F:CHIP
DVDD
NC
14
16
VSS
/WR1
C8818
0.1
25V
F:CHIP
1
17
SDQ29
C8813
0.1
25V
F:CHIP
2
18
VDD
VSS
C8810
0.1
25V
F:CHIP
3
19
SDQ28
SDQ19
O
4
20
/WR2
5
21
SDQ20
A1/WR3
6
22
SDQ27
IC8801
YGV619
GRAPHICS
7
23
VSS
A4
A3
8
24
SDQ21
VDD
A2
9
25
SDQ26
A5
10
CLK
100p
C8913
SDQ22
A7
180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121
A8
A6
11
DVSS
C3
C2
C1
C0
Y7
Y5
Y6
Y4
Y3
Y1
Y2
Y0
:CHIP
1/16W
47
R8809
:1608
:CHIP
1/16W
47
:1608
CH
R8808
C8912
R8860
100p
:CHIP
:AL-CP
:CHIP
:CHIP
4.7k
1/16W
1/16W
47
0.1
C8816
R8807
25V
R8806
470 1/16W
C8817
10 16V
0.1
:AL-CP
16V
C8815
C7
C6
C3
C4
C1
C2
Y7
C0
Y5
Y6
Y4
C5
10
CH
181 DRO0
182 DGO5
183 DGO4
184 VSS
185 DGO3
186 DGO2
187 DGO1
188 DGO0
189 DBO5
190 VSS
191 DBO4
192 DBO3
193 VDD
194 DBO2
195 DBO1
196 DBO0
197 VSS
198 AVSS4
199 B
200 AVSS4
201 G
202 AVSS4
203 R
204 AVSS4
205 REXT
206 AVDD4
207 AVDD3
208 AVSS3
209 DRI5
210 DRI4
211 DRI3
212 DRI2
213 VSS
214 DRI1
215 VDD
216 DRI0
217 DGI5
218 DGI4
219 DGI3
220 DGI2
221 DGI1
222 DGI0
223 DBI5
224 DBI4
225 VSS
226 DBI3
227 DBI2
228 DBI1
229 VDD
230 DBI0
231 GCKIN
232 /GCKS
233 /HSIN
SDQ25
35
C8803
0.1
25V
F:CHIP
VSS
34
MEM DAT22
MEM DAT21
SDQ23
33
MEM DAT23
VSS
A10
32
MEM DAT25
MEM DAT24
SDQ24
31
MEM DAT26
VDD
A9
30
MEM DAT27
A11
29
MEM DAT28
A12
28
MEM DAT29
/HSYNC
/CSYNC
27
MEM DAT30
C8804
0.1
25V
F:CHIP
A14
A13
26
MEM DAT31
FSC
/BLANK
25
XYGVIRQ
234 /VSIN
AT1
24
XYG VWAIT
235 /TCKS
VSS
A17
23
—
—
VDD
22
XYG VDREQ
N
AT0
21
D3.3V
GCKOUT
VSS
A18
20
L
236 TCK80
DRO4
DRO5
19
XYG VCSMEM
237 VSS
A20
A19
18
XYG VCSIO
C8805
0.1
25V
F:CHIP
238 DCKOUT
DRO3
A16
12
13
24
XSYNC
C8827
0.1
25V
F:CHIP
A21
A15
R8822
68
1/16W
:CHIP
23 XBLANK
17
XYGVRST
C6
16
XYG VRD
C5
15
XME MBE0
C4
14
XME MBE2
XME MBE1
4
VSS
13
YGVCTRL
3
DRO2
12
XME MBE3
2
11
MEM ADR3
MEM ADR2
1
4
10
MEM ADR4
3
9
—
C8806
0.1
25V
F:CHIP
C3
2
1
8
MEM ADR5
3
7
MEM ADR7
MEM ADR6
2
6
J
1
C2
D3.3V
C8819
0.1
25V
4 F:CHIP
5
MEM ADR8
C0
C1
4
MEM ADR10
MEM ADR9
RB8807
22
3
MEM ADR11
—
5
2
MEM ADR12
6
1
MEM ADR14
MEM ADR13
7
A22
MEM ADR18
MEM ADR15
8
5 22
A23
MEM ADR20
I
6
VDD
MEM ADR19
MEM ADR17
7
8
DRO1
MEM ADR21
MEM ADR16
RB8806
RB8805
22
AVSS1
MEM ADR23
C8807
0.1
25V
F:CHIP
5
AVDD1
MEM ADR22
—
6
C7
239 DCKIN
—
C8802
0.1
25V
F:CHIP
7
C8808
0.1
25V
F:CHIP
240 VDD
C8801
10
16V
:AL-CP
H
F:CHIP
F:CHIP
EMIBUS
—
Y2
25V
G
M
Y3
C8811
0.1
25V
F:CHIP
C8814
:CHIP
C8812
0.1
25V
F:CHIP
C8911
100p
CH
:1608
8
100
C8851
0.1
25V
F:CHIP
C8850
47
16V
:AL-CP
V_MNO_PB
6
:CHIP
GRANT
B1
B9
C8861
0.1
25V
F:CHIP
7
:CHIP
FB8801
0UH
6
L8803
C8860
0.1
25V
F:CHIP
7
L8802
L8801
AUD27MHZ
—
Y1
Y0
CLK
HS
VS
—
5
OSD_B
A5V
C8828
0.1
25V
F:CHIP
—
D3.3V
:CHIP
:CHIP
E
MIDOUT
1/16W
4
OSD_G
L8805
K
100
D3.3V
D3.3V
F
R8849
OSD_R
A1
1.4 Vp-p (V)
1.5 Vp-p (H)
KD-34XBR2
QM BOARD SCHEMATIC DIAGRAM (9 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
28
A
R8912
10
1/16W
:CHIP
—
SDA_EXT
10
SCL_EXT
R8911
:CHIP
1/16W
Q8904
2SB1462J-(TX)
PULL-UP
R8904
0
1/16W
:CHIP
SDA_M5
SUBAD_PLL_LOCK
79
78
77
O_7M_XENA
O_34M_XENA
I_SUB_PLL_LOCK
I_VP_MAIN
54
O_55MCK_E
O_SUB_BUSY
0.1
C8910
R8930
4.7k
1/16W
:CHIP
R8921
100
1/16W
:CHIP
25V
VS
F:CHIP
1 6.3V
2B
2Y
GND
B:CHIP
D5V
R8931
4.7k
1/16W
:CHIP
R8928
10k
1/16W
:CHIP
2A
4Y
3A
16
15
14
13
3B
10
C8909
OSD_VS
12
4B
XST
C8914
0.1
25V
F:CHIP
11
1
2
3
1Y
VCC
3Y
9
R8932
22k
1/16W
:CHIP
IC8903
TC74LVX157FT(EL)
SYNC SELECT
R8924
10k
1/16W
:CHIP
D8905
MA2S111-(TX)
R8926
100
1/16W
:CHIP
MID_BUSY
Q8902
2SD2216QR(TX)
INVERTER
52
48
47
46
45 I_RESET
4A
4
R8933
22k
1/16W
:CHIP
51
C8903
0.1
25V
F:CHIP
44 VDD
43 X1
42 X0
41 GND
40
39
38
37
36
35
O_NVM_WP
33
32
O_NVM_RST
O_PLL_CS
34 I_SYNC_THLD
O_74MCKE
O_MN_SB_SW
67
66
65
64
58
I_XBINT
1B
D 5V
59
O_MID_OK
O_DRC_INSEL
1A
HS
SUB_OSD
R8929
100
1/16W
:CHIP
62
I_OSD_VSYNC
63
O_BINT
I_OSD_HSYNC
OSD_HS
5
61
60
O_OSD_VOB
C8908
56p
CH:CHIP
SEL
6
MID_OK
O_OSD_IOUT
C8907
47p
50V
CH:CHIP
7
76
O_DRC_LEVEL
R8914
100
1/16W
:CHIP
L
75
O_DRC_S1
31
—
74
O_DRC_S0
27
K
MN_SB_SW
73
72
71
O_EXPAND17
29
R8937
10k
1/16W
:CHIP
R8938
4.7k
1/16W
:CHIP
80
70
69
O_EXPAND16
IC8902
MB94P918PF-G
MID-UCOM
68
O_EXPAND15
28
SYNCSW
81
83
O_OSD_BOUT
O_EXPAND14
30
—
82
84
I_STB/XTV
85
I_DTV/XDRC
86
I_JPN/XUS
87
I_BX/XBC
91
O_PLL_CLK
88
92
89
93
O_PLL_DAT
95
94
96
IO_SDA1
IO_SDA0
O_PLL_SIN
97
98
IO_SCL0
IO_SCL1
IO_SDA2
IO_SCL2
1
2
3
4
5
6
7
8
9
10
O_OSD_GOUT
26
J
O_EXPAND13
D3.3V
C8906
47
16V
:AL-CP
57
—
O_OSD_ROUT
AVSS
L8906
:CHIP
56
MID_OK
DRC_INSEL
O_EXPAND12
C8905
0.1
25V
F:CHIP
55
I
O_EXPAND11
V_DRCI
53
DRC_LEVEL
O_EXPAND10
AVDD
50
—
O_EXPAND07
I_AN_APL
49
H
O_EXPAND06
11
—
O_EXPAND05
12
G
O_EXPAND04
13
DRC_FFSW
—
O_EXPAND03
14
DRC_BLK
O_EXPAND02
15
F
O_EXPAND01
16
DRC_LINE_W
0_EXPAND00
17
DRC_PXI
—
18
DRC_FILM
99
100
C8901
0.01
50V
F:1608
19
E
C8902
0.1
25V
F:CHIP
R8906
47
1/16W
:CHIP
20
SDA
21
VSS
22
SCL
23
E2
R8916
2.2k
1/16W
:CHIP
VDD
47k
IC8901
M24C32-WMN6T(A)
MIDX NVM
—
R8917
100k
1/16W
:CHIP
R8915
2.2k
1/16W
:CHIP
R8909
:CHIP
1/16W
24
WC
E1
D 5V
7
VCC
6
4
D
E0
5
3
2
1
—
Q8903
2SB1462J-(TX)
PULL-UP
8
R8907
47
1/16W
:CHIP
R8903
0
1/16W
:CHIP
90
SCL_M5
25
C
D5V
R8918
100k
1/16W
:CHIP
VSS
—
D 5V
8
B
MIDE_XVS
R8925
10k
1/16W
:CHIP
D 5V
R8920
0
1/16W
:CHIP
R8919
0
1/16W
:CHIP
—
M
X8901
2
N
R8905
47k
1/16W
:CHIP
R8901
10k
1/16W
:CHIP
—
MICON_RST
/BINT
D5V
—
O
20MHz
R8902
10k
1/16W
:CHIP
3
C8904
0.01
50V
F:1608
Q8901
2SD2216J-(TX)
INVERTER
R8934
1.8k
1/16W
:CHIP
R8935
3.3k
1/16W
:CHIP
—
9-965-916-02<HA3>QM P9
P
— 106 —
|
QI
QM
[BOARD TO BOARD CONNECTOR, LINK-AND-PHY, B-CHIP-AND-SDRAM, FLASH-AND-PROM]
COMPONENT SIDE
1
|
2
|
3
|
4
|
5
|
KD-34XBR2
[FE-PS, ST-20 SYSTEM MICRO, AUDIO, VIDEO DECODE, MPEG, AD-DRC, HD-ADC, MID-XA, YGV GRAPHICS, MID-UCOM]
COMPONENT SIDE
1
|
A
A
—
—
B
B
—
—
C
C
—
—
D
D
—
—
E
E
—
—
F
F
—
—
G
G
—
—
H
H
—
—
I
I
—
—
2
|
— 107 —
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
QI
QM
[BOARD TO BOARD CONNECTOR, LINK-AND-PHY, B-CHIP-AND-SDRAM, FLASH-AND-PROM]
CONDUCTOR SIDE
1
|
2
|
3
|
4
|
5
|
KD-34XBR2
[FE-PS, ST-20 SYSTEM MICRO, AUDIO, VIDEO DECODE, MPEG, AD-DRC, HD-ADC, MID-XA, YGV GRAPHICS, MID-UCOM]
CONDUCTOR SIDE
1
|
A
A
—
—
B
B
—
—
C
C
—
—
D
D
—
—
E
E
—
—
F
F
—
—
G
G
—
—
H
H
—
—
I
I
—
—
2
|
— 108 —
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
KD-34XBR2
S BOARD SCHEMATIC DIAGRAM
4
0.22
C4428
C4417
0.0047
C4423
0.22
10V
B:1608
C4421
0.1
16V
L
7
6
5
R4408
1k
1/16W
:CHIP
1
7
2
6
3
VF-R
R-OUT
1
32
2
0.1
16V
31
BBASA1
27
7
BBASB2
BBASB1
26
8
BTREA2
BTREA1
25
9
BTREB2
BTREB1
24
10
BAS2
29
28
TRE1
22
LOUT
VC2
VCC
SDA
CHIP
SCL
C4434
1000
16V
C4447
4.7
0.47
C4460
0.22
:MPS
R4442
47k
1/16W
:CHIP
C4446
0.22
:MPS
4
5
R4438
39k
1/16W
:CHIP
R4419
100
1/16W
:CHIP
R4440
39k
1/16W
:CHIP
SDA
15
VF-R
E
SCL
14
VF-L
H-R
39k
1/16W
:CHIP
2.2
R4464
1k
1/16W
:CHIP
C4466
0.082
:MPS
R4414
22k
1/16W
:CHIP
R4453
39k
1/16W
:CHIP
R4459
1.5k
1/16W
:CHIP
R4460
0
1/16W
:CHIP
C4471
100p
CH:1608
W-L
C4470
0.0047
:MPS
4
3
2
1
5
6
7
8
47
R4463
470
1/16W
:CHIP
IC4404
NJM4558E
WOOFER LPF
H
L4402
:LAV35
R-OUT
C4425
1
39k
R4450
:CHIP
1/16W
SUB 9V
C4469
47
25V
W-R
C4468
0.027
:MPS
V/F-R
D4402
UDZS-10B
—
11
H-L
L-OUT
C4473
I
12
R4441
47
1/16W
:CHIP
L-OUT
—
13
W-R
C4459
0.027
:MPS
—
SP-L
W-L
VF-L
G
E
H-L
H-R
R4451
R4412
47k
1/16W
:CHIP
10
SP-L
C4454
0.033
16V
B:1608
L-OUT
C4448
19
BC
18
TC
VC1
C4453
0.0047
B:1608
20
TRE2
ROUT
21
BAS1
SP-R
D4408
HZU11B1
R4443
22k
1/16W
:CHIP
C4457
0.1
16V
B:1608
C4455
0.0033
B:1608
V/F-L
SUB 9V
C4456
0.033
16V
B:1608
23
PS2
LIN
SP-L
B:1608
R4444
33k
1/16W
:CHIP
C4458
0.1
16V
B:1608
30
3
4
5
6
BBASA2
R4420
100
1/16W
:CHIP
C4415
—
C4431
0.1
16V
B:1608
RIN
14
C4441
4.7
IC4402
NJM4558E
V/F BUFFER
F
0.47
PS1
LS2
SOUT
17
E
C4442
AGCAOJ
11
R-OUT
FILTER
12
C4436
16V B:1608
C4435
B:1608
0.0047
GND
LS1
13
C4432
1
C4440
B:1608
0.0047
C4438
0.033
16V
B:1608
0.033
C4418
470 25V
SUB 9V
V/F-R
15
R4434
4.7k
:CHIP
S BOARD IC VOLTAGE LIST
SP-R
C4449
100
C4429
1
C4437
B:1608
0.0033
C4416
2.2
SP-R
IC4403
BH3868AFS-E2
AUDIO PROCESSOR
16
—
7
C4433
10
8
CN4401
15P
B TO B
C4420
100
25V
R4430
1M
1/16W
:CHIP
TO A CN4402
C4422
10
9
C4419
100
25V
D
8
C4424
R4448
39k
1/16W
:CHIP
C4464
0.082
:MPS
R4462
1k
1/16W
:CHIP
R4452
1.5k
1/16W
:CHIP
1
V/F-L
D4401
UDZS-10B
13
B:1608
R4432
1M
1/16W
:CHIP
3
|
R
IC4401
NJM2181M
TRUSURROUND
2
12
C4443
10
E
MODE3
1
|
B:1608
W-R
VREFOUT
R4413
1/16W
:CHIP
11
C4430
0.01
25V
B:1608
B:1608
10V
C4450
47k
|
R4418
4.7k
1/16W
:CHIP
—
—
10
SMODE
MODE2
R4415
22k
:CHIP
|
5
VREFIN
R4407
1k
1/16W
:CHIP
9
6
22
21
18
17
20
1
2
3
4
5
6
MODE1
C4410
10
|
W-L
C
ROUT
FIL8
FIL9
GND
8
4
C4401
10
R4406
100
1/16W
:CHIP
LOUT
V+
|
H-R
R4401
0
1/16W
:CHIP
FIL7
15
C4405
0.1
16V
B:1608
FIL11
FIL10
FIL5
FIL6
14
C4406
0.0047
B:1608
FIL13
FIL12
7
—
FIL3
FIL4
8
C4402
0.0047
B:1608
C4407
0.22
10V
B:1608
LIN
RIN
9
R4404
62k
:CHIP
FIL1
FIL2
10
C4408
0.01
25V
B:1608
R4410
47k
:CHIP
7
R
L
:CHIP
|
:CHIP
R4421
4.7k
1/16W
:CHIP
11
B
R4402
56k
1/16W
:CHIP
1.8k
R4411
C4403
0.0047
B:1608
C4409
0.1
16V
B:1608
R4409
2.2M
1/16W
:CHIP
6
H-L
R4403
1.5k
1/16W
:CHIP
R4416
4.7k
1/16W
:CHIP
C4413
10
R4405
33k
1/16W
:CHIP
1/16W
12
—
C4404
0.01
25V
B:1608
4.7k
R4417
SP-R
|
1
C4414
10
SP-L
5
3
A
|
2
|
24
3
23
|
19
2
16
|
13
1
R4449
0
1/16W
:CHIP
C4465
100p
CH:1608
C4467
0.0047
:MPS
R4468
0
1/16W
:CHIP
S BOARD
C4472
47
AUDIO PROCESSOR, SURROUND
R4461
470
1/16W
:CHIP
J
9-965-916-02<HA3>S
— 109 —
IC4101
pin
volt
1
4.5
2
4.3
3
4.5
4
4.5
5
4.5
6
4.5
7
4.5
8
4.5
9
4.5
10
0.0
11
0.0
12
GND
13
GND
14
4.5
15
4.5
16
9.0
17
4.5
18
4.5
19
4.5
20
4.5
21
4.5
22
4.5
23
4.5
24
4.5
IC4102
pin
volt
1
4.5
2
4.5
3
4.5
4
GND
5
4.5
6
4.5
7
4.5
8
9.0
IC4103
pin
volt
1
GND
2
0.0
3
0.0
4
4.5
5
4.5
6
4.5
7
4.5
8
4.5
9
4.5
10
4.5
11
4.5
12
4.5
13
1.6
14
2.0
15
9.0
16
9.0
17
4.6
18
4.5
19
2.0
20
1.5
21
4.5
22
4.5
23
4.5
24
4.5
25
4.5
26
4.5
27
4.5
28
4.5
29
4.5
30
4.5
31
3.6
32
4.5
IC4104
pin
volt
1
4.5
2
4.5
3
4.5
4
GND
5
4.5
6
4.5
7
4.5
8
9.0
All voltages are in V.
KD-34XBR2
S
[AUDIO PROCESSOR, SURROUND]
COMPONENT SIDE
1
|
2
|
3
|
IC4402
C4424
4
C4401
A
1
5
C4410
R4403
C4421
C4459
8
R4465
C4446
R4445
C4420
—
R4463
C4427
D4401
C4403
R4451
C4418
1
C4460
4
C4469
R4458
C4468
B
8
5
L4402
C4449
R4449
E
—
C4465
R4462
C4467
R4452
R4443
V F-L
C4458
E
C4436
C4457
C4464
C4454
S P-R
SP -L
C4453
C4435
SUB 9 V
C
C4448
SMO DE
C4451
E
W -R
C4452
W -L
H-R
—
1-681-834-11
H- L
(172001111)
CN4401
D
CONDUCTOR SIDE
1
|
2
D4407
D4405
2
1
D4408
E
C4461
R4434
C4476
1
C4464
C4467
R4468
R4440
R4448
R4450
R4439
C4468
C4474
C4450
C4429
C4433
C4475
C4469
C4463
R4453
C4466
C4460
C4418
C4420
C4446
C4471
R4420
R4459
R4418
IC4401
R4419
12
1
C4470
C4416
C4415
C4410
C4404
R4414
C4445
— 110 —
C4427
C4459
R4415
D
R4413
C4424
R4407
R4408
R4412
C4401
C4412
C4406
C4411
R4409
C4409
R4410
R4411
R4404
—
C4432
32
C4443
L4402
13
24
C4441
C4440
C4438
C4456
C4449
C4425
C4413
C4417
C4419
C
R4421
C4422
R4416
R4417
14
15
CN4401
D4402
16
C4414
VF-L
SCL
SDA
—
C4437
C4455
SP -R
E
VF -R
E
17
C4448
S UB 9V
S P- L
C4472
C4442
IC4403
C4447
W- R
SM OD E
B
|
(172001111)
C4434
W- L
R4442
H- R
—
3
1-681-834-11
R4441
H-L
A
|
A-1395- 037-A
C4473
KD-34XBR2
U BOARD SCHEMATIC DIAGRAM
1
|
A
2
|
3
|
VG
B
R4001
75
1/16W
:RN-CP
VD4002
7.5V
:1608
R4002
75
1/16W
:RN-CP
VD4003
7.5V
:1608
R4003
75
1/16W
:RN-CP
C4001
1
VD4004
7.5V
:1608
R4004
470k
1/16W
:RN-CP
C4002
1
VD4005
7.5V
:1608
R4005
470k
1/16W
:RN-CP
VD4006
7.5V
:1608
R4006
75
1/16W
:RN-CP
VR
—
L
R
C
|
6
|
7
|
8
|
9
10
C PB1
C PR1
C L1
C R1
VG
C Y2
D
VB
VD4007
7.5V
:1608
VD4008
7.5V
:1608
VD4009
7.5V
:1608
C1
V3
C4003
1
R4009
470k
1/16W
:CHIP
R
C L2
C3
C4004
1
C R2
SW3
V4
C4005
0.47
10V
B:1608
VD4011
7.5V
:1608
J4003
VIDEO-1
VD4012
7.5V
:1608
2
C Y1
V
R4013
75
1/16W
:RN-CP
R4014
470k
1/16W
:CHIP
1
L1
C PB2
1
C4009
R
VD4015
7.5V
:1608
V OUT
—
J4004
VIDEO-3
Y3
VD4017
7.5V
:1608
2
—
VD4018
7.5V
:1608
V
J
R4017
75
1/16W
:RN-CP
FIX/VAR L
VD4019
7.5V
:1608
L
VD4020
7.5V
:1608
R
R4018
1k
1/16W
:CHIP
1
VD4022
7.5V
:1608
J4005
VIDEO-4
R4022
75
1/16W
:RN-CP
R4
VD4023
7.5V
:1608
R4023
75
1/16W
:RN-CP
VD4024
7.5V
:1608
C L2
Y4
C4
R4024
:CHIP
1/16W
0.47
R4025
75
1/16W
:RN-CP
VD4026
7.5V
:1608
R4026
470k
1/16W
:CHIP
VD4027
7.5V
:1608
R4027
470k
1/16W
:CHIP
R
C4018
C4019
GND
A3
C1
C3
GND
A4
V3
C4
GND
A5
Y3
C5
GND
A6
C3
C6
GND
A7
SW3
C7
GND
A8
V4
C8
GND
A9
Y4
C9
GND
A10
C4
C10
GND
A11
SW4
C11
GND
A12
C Y1
C12
GND
A13
C PB1
C13
GND
A14
C PR1
C14
GND
A15
C Y2
C15
GND
A16
C PB2
C16
GND
A17
C PR2
C17
GND
A18
V OUT
C18
GND
A19
L OUT
C19
GND
A20
R OUT
GND
A23
R1
C23
L1
A24
GND
C24
R3
A25
L3
C25
GND
A26
R4
C26
L4
A27
GND
C27
C R1
A28
C L1
C28
GND
A29
C R2
C29
C L2
A30
GND
C30
GND
A31
S-IN
C31
S-OUT
A32
GND
C32
GND
CN003
L4
1
R4
VD4029
7.5V
:1608
VD4030
7.5V
:1608
N
VD4031
7.5V
:1608
VD4032
7.5V
:1608
R4028
100
1/16W
:CHIP
—
R4029
100
1/16W
:CHIP
VD4033
7.5V
:1608
VD4034
7.5V
:1608
J4006
MONITOR OUT
R
L
TERMINAL BLOCK
J4008
SIRCS IN
R
L
J4007
V
GND
FIX/VAR R
TO B MOUNT
V4
1
VD4028
7.5V
:1608
GND
FIX/VAR L
CN4001
64P
:B TO B-P
SW4
C4017
10V B:1608
V OUT
VD4025
7.5V
:1608
L
C R1
C R2
C4016
0.1
16V
B:1608
1k
M
R3
C L1
4
2
V
V3
1
L OUT
3
L1
L3
C4015
0.47
10V
B:1608
1
SW3
R4021
470k
1/16W
:CHIP
K
Y1
C2
A22
L4
C4014
A2
C22
R3
VD4021
7.5V
:1608
—
FIX/VAR R
R1
C4013
R4020
470k
1/16W
:CHIP
GND
A21
L3
R4019
75
1/16W
:RN-CP
V1
C1
C21
C3
C4012
10V B:1608
0.47
A1
C20
C4011
0.1
16V
B:1608
4
1
—
L OUT
R OUT
R4016
75
1/16W
:RN-CP
I
3
C PR2
R1
R4015
470k
1/16W
:CHIP
C4010
0.47
10V
B:1608
VD4016
7.5V
:1608
C PR1
V1
C Y2
C4008
L
H
C PB1
C4007
0.47
10V
B:1608
VD4014
7.5V
:1608
SW4
C1
R4012
75
1/16W
:RN-CP
G
VD4013
7.5V
:1608
Y4
C4
C4006
0.1
16V
B:1608
4
1
—
Y1
FIX/VAR R
3
R4011
75
1/16W
:RN-CP
FIX/VAR L
—
Y3
R4010
470k
1/16W
:CHIP
VD4010
7.5V
:1608
F
Y1
C PR2
R4008
75
1/16W
:RN-CP
L
—
C PB2
R4007
75
1/16W
:RN-CP
VR
E
V1
R OUT
—
O
|
J4002
VIDEO-6
(HD/DVD)
—
—
5
C Y1
VD4001
7.5V
:1608
VB
—
|
J4001
VIDEO-5
(HD/DVD)
—
L
4
— 111 —
J4009
SIRCS OUT
9-965-916-02<HA3>U
KD-34XBR2
U
[TERMINAL BLOCK]
COMPONENT SIDE
1
|
2
J4002
V1
—
Y1
GND
C1
GND
Y3
GND
C3
GND
GND
GND
C4
GND
SW4
GND
C Y1
GND
VIDEO-4
VIDEO-3
VIDEO-1
VD4016
VD4022
C4
|
VD4011
Y3
C3
VD4023
R4007
R4002
C PB1
C PB2
5
J4003
R4001
Y1
C1
VD4017
VD4012
J4006
MONITOR OUT
VD4007
172001311
VD4002
GND
V4
Y4
|
J4004
Y4
GND
V3
C PB1
—
C Y1
GND
SW3
B
4
J4005
VD4001
VD4006
C Y2
|
V IDE O-5
R4006
C1
A1
3
J4001
VI DEO -6
A
|
1-681-831-11
V OUT
R4008
C PR2
VD4003
C PR1
V3
V4
J4007
V1
FIX/VAR OUT
VD4008
R4003
GND
C PR1
GND
C Y2
GND
FIX/VAR L
L OUT
R4009
C L2
C PB2
L1
L3
L4
R4004
C L1
GND
C PR2
GND
V OUT
VD4009
GND
VD4004
L OUT
GND
R OUT
FIX/VAR
L
FIX/VAR
R
F IX/ VA R
GND
GND
C
L1
R3
L3
GND
R4
L4
R
R3
R4
R OUT
R1
VD4005
VD4010
R4005
C R1
GND
GND
C L2
C R2
GND
GND
S-IN
S-OUT
GND
GND
A32
D
C R1
GND
R1
GND
C L1
—
R4010
C R2
C32
CN4001
J4008
J4009
SIRCS IN
SIRCS OUT
CONDUCTOR SIDE
1
|
2
|
3
|
4
|
5
|
3
VIDEO-5
VIDEO-6
J4001
A
VIDEO-1
VIDEO-3
J4003
J4004
J4002
VIDEO-4
J4005
172001311
C1
1-681-831-11
MONITOR OUT
—
J4006
FIX/VAR OUT
B
J4007
—
33
V1
1
34
Y1
2
GND
35
C1
3
GND
36
V3
4
GND
37
Y3
5
GND
38
GND
39
GND
40
V4
GND
41
Y4
GND
42
GND
43
GND
44
45
46
GND
47
GND
48
49
50
51
C4009
C4002
—
C4008
C4014
C4013
C4019
C4018
C4001
C4004
SIRCS IN
SIRCS OUT
J4008
J4009
C4003
9
11
C Y1
12
13
14
C Y2
C PB2
15
16
17
V OUT
18
19
20
52
FIX/VAR L
53
21
FIX/VAR R
22
54
R3
56
57
58
C R1
59
R1
GND
L3
R4
23
24
25
26
GND
27
C L1
28
GND
60
C L2
61
C-R2
29
GND
62
GND
30
63
S-IN
31
S-OUT
GND
64
C32
D
8
10
L OUT
55
L4
7
R OUT
L1
GND
C4
SW4
6
C PR2
GND
GND
GND
SW3
C PR1
GND
GND
C3
C PB1
GND
GND
GND
C
A1
GND
GND
GND
32
A32
CN4001
A-1373-
— 112 —
858-A
KD-34XBR2
W BOARD SCHEMATIC DIAGRAM
1
|
2
|
3
A
—
R9102
1
1/4W
:FPRD
CN9102
3P
WHT
:S-MICRO
|
4
1
E
2
VM
C9108
22
250V
C9104
100
16V
7
|
8
|
9
1
C9106
0.1
25V
F:1608
CN9101
3P
BLK
:S-MICRO
N/S COIL+
3
2
R9101
47
:CHIP
C9105
1000p
50V
B:1608
1
R9106
9.1k
1/16W
:CHIP
Q9101
2SD601A
BUFF
R9105
22k
1/16W
:CHIP
R9107
100
1/16W
:CHIP
R9104
820
:CHIP
N/S COIL+
12
N/S COIL-
+135V
10
9
NC
8
E
7
QP-
C9101
0.1
200V
:PT
JW9100
JW(5)
Q9109
2SD601A
BUFF
R9117
4.7
1/4W
:FPRD
R9119
4.7
1/4W
:FPRD
R9125
4.7k
1/16W
:CHIP
C9114
10
160V
R9113
4.7
1/4W
:FPRD
R9115
4.7
1/4W
:FPRD
R9112
4.7
R9110
1/4W
47
:FPRD
1/16W
:CHIP
R9114
4.7
1/4W
:FPRD
R9116
4.7
1/4W
:FPRD
C9113
0.1
250V
:MP
C9115
0.1
250V
:MP
Q9102
2SB709A
BUFF
Q9104
2SB709A
BUFF
Q9106
2SB709A
BUFF
R9123
180k
1/16W
:CHIP
R9118
4.7
1/4W
:FPRD
R9121
180k
1/16W
:CHIP
Q9108
2SB709A
BUFF
0.01
R9120
4.7k
1/16W
:CHIP
C9112
25V B:1608
R9129
470
CHIP
1/16W
R9127
47
1/16W
:CHIP
R9124
150k
1/16W
:CHIP
R9122
150k
1/16W
:CHIP
Q9111
2SA2005
VM DRIVE
5
4
C9117
0.47
250V
:MP
2
V PIN-
1
V-PIN+
3
QP+
4
QP+
5
QP-
6
QP-
Q9110
2SC5511
VM DRIVE
R9126
47
1/16W
:CHIP
C9116
0.1
25V
F:1608
VM
9-965-916-02<HA3>W
W BOARD TRANSISTOR
VOLTAGE LIST
Q9102
Q9103
Q9104
Q9105
Q9106
Q9107
Q9108
Q9109
Q9110
Q9111
3.6
5.5
3.6
5.5
3.6
5.5
3.6
5.5
0.6
133.7
GND
9.0
GND
9.0
GND
9.0
GND
9.0
68.9
68.9
4.3
4.9
4.3
4.9
4.3
4.9
4.3
4.9
0.0
134.2
All voltages are in V.
— 113 —
E
8
E
9
VM
VM
11
V-PIN-
12
V-PINCN9103
12P
:B-TO-B
R9128
470
2W
:RS
3
V PIN+
V-PIN+
2
10
6
NC
QP+
NC
L9100
:LHL08
Q9107
2SD601A
BUFF
C9111
10
50V
R9108
470
1/16W
:CHIP
R9103
680
:CHIP
11
NC
Q9105
2SD601A
BUFF
47
1/16W
:CHIP
Q9100
2SD601A
BUFF
1
7
Q9103
2SD601A
R9111 BUFF
C9110
0.1
25V
F:1608
CN9100
12P
RED
:S-MICRO
CN5509
D
|
C9109
0.0047
500V
E
3
TO D BOARD
—
6
FB9101
1.1UH
FB9100
1.1UH
CN204
N/S COIL-
C
|
+135V
TO A BOARD
NC
—
5
3
9V
+9V
B
|
|
10
KD-34XBR2
W
[VM]
COMPONENT SIDE
1
|
2
|
3
|
4
|
5
|
6
|
CN9103
12
1
A
—
R9128
C9117
1
C9109
12
CN9100
R9120
Q9106
Q9104
C9103
Q9101
Q9102
C9100
3
C9110
(1-720-015-11)
C9102
1
CN9102
CONDUCTOR SIDE
1
|
2
|
3
|
4
|
5
|
6
|
Q.P+
NC
V PIN +
Q.P-
NC
E
NC
+135V
NC
—
CN9102
3
1
C9
10
2
F
B
91
0
0
V PIN V PIN -
12
E
VM
E
Q.P-
Q.P-
VM
Q.P+
EY9103
EY9101
11
Q9
1
R9118
R9116
R9114
R9112
R9113
R9115
R9119
9V
E
C9
1
04
E
B
A-1372- 977-A
—
C
LP
9
10
2
E
B
0
8
C
91
1
10
Q9
C9111
2
R
0
91
L
91
0
0
C9
10
3
C9113
CN9101
JW9102
N/S COIL1
C9114
3
FB9101
J
W
91
0
1
EY9102
C9115
EY9100
C9101
CN9100
1
1
17
C9
C
Q.P+
CN9103
R
9
12
8
C
9
10
9
12
B
V PIN +
12
1
J
10
0
W9
1
N/S COIL-
A
V PIN +
3
10
LP
9
C
VM
1-681-836-11
FB9100
C9105
R9117
Q9111
Q9108
N/S COIL+
C
B
NC
C9112
3
1
CN9101
N/S COIL+
Q9110
—
L9100
R9102
C9108
E
E
V PIN -
B
1-681-836-11
(1-720-015-11)
C
LP
9
10
1
— 114 —
KD-34XBR2
12-4. SEMICONDUCTORS
BR24C04F-WE2
BR24C08
NJM2901M-TE2
NJM2903M
NJM2904M
NJM4558E(TE2)
TC7WU04FU(TE12R)
TDA2822D
8pin
28pin
16pin
14pin
M52055FP
MC74HC4066F
TLC2932IPW
TLC2933IPWR-12
CXD2085M-T4
SN74LV4053ANSR
CXD2057M-T6
TEA6422DT
MARKING SIDE VIEW
32pin
MSM56V16160F-10TS-K
1
TOP VIEW
14pin
TOP VIEW
MCZ3001D
1
5pin
8pin
86pin
PST9120NL
PST9145NL
TC7SET08FU(TE85L)
MB81F643242B-10FN
1
UPC1406HA
TOP VIEW
18pin
IR2112
1
50pin
BH3868AFS-E2
1
1
32pin
22pin
CXA2103Q
CXA2150Q
CXD2309Q
CXD2073Q-T4
CXA2026AS
51
1
TOP VIEW
208pin
64pin
TLC5733AIPM
CXD2090Q
33
52
32
64
20
1
240pin
TOP VIEW
19
CXD9509AQ
CXA2069Q
80
51
81
80
50
INDEX
31
1
50
30
MB94918-DX1MID
INDEX
CXA2150Q
100
51
81
M306V2ME-102FP
31
100
1
TOP VIEW
30
TOP VIEW
— 115 —
TOP VIEW
48pin
KD-34XBR2
SEMICONDUCTORS (continued)
3
*
1
2
DTC114TKA-T146
DTC143EKA-T146
DTC144EKA-T146
2SA1162-G
2SA1226
2SC1623-L5L6
2SC4081-R
2SD601A-Q
2SD601A-Q-TX
2SD601A-S
+
4
-
4
3
1
1
5
PC123FV2
LA6500-FA
NJM79M12FA
DTA114EKA-T146
DTA143EK
DTA144EKA-T146
DTC114EK
G
S
B
C
B
D
C
E
2SA2005
2SK1572S
G
E
2SK2036(TE85L)
2SC5511
PQ09RD21
PQ05RF21
PQ09RF21
PQ12RF21
PQ30RF21
B
C
E
2SC4632LS-CB7
PQ07VZ012P
D S
IRF614
IRFI644
IMB12-140-F153A
TDA6111Q/N4
E C
B
STV9379
2SA1776TV2Q
LETTER SIDE
2SA1175-HFE
2SC3311A-QRSTA
UPC2412AHF
2SC3997S-SONY
UPC1093J
E C
B
ETTER SIDE
2SC2688-LK
2SA1208S-TP
2SC3840(3)
D S
IRFI9630GS
E
E C
B
C B
— 116 —
KD-34XBR2
SECTION 13: EXPLODED VIEWS
Components not identiÞed by a part number or
description are not stocked because they are seldom
required for routine service.
NOTE: The components identiÞed by shading and
Replace only with part number speciÞed.
* Items marked with an asterisk are not stocked since
The component parts of an assembly are indicated by
the reference numbers in the far right column of the parts
list and within the dotted lines of the diagram.
!
mark are critical for safety.
they are seldom required for routine service. Expect
some delay when ordering these components.
NOTE: Les composants identiÞes per un trame et une marque ! sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero speciÞe.
13-1. PICTURE TUBE
7-685-663-71 SCREW +BVTP 4X16
15
16
6
8
7
11
4
5
10
2
9
13
14
12
3
1b
4
18
1a
17
Note: When removing the screws from the CRT, damage will
occur to the Spacer, CRT. After removal, it is necessary to replace these components. (See 17, below)
REF.NO.
PART NO.
DESCRIPTION
1a
1b
2
! 3
4
5
4-080-281-04
X-4038-679-3
X-4038-670-2
8-735-060-05
4-064-944-01
4-053-005-01
BEAM
SPACER -36 ASSY
HOLDER, DGC ASSY
CRT 36RV2
SUPPORTER, CRT
SPACER, DY
6
7
8
! 9
4-083-414-01
1-452-032-00
4-051-734-21
8-451-498-22
PIECE A(110), CONV CORRECT
MAGNET,DISC
PIECE B(120), CONV. CORRECT
DY Y36RVC-M2
REF.NO.
PART NO.
DESCRIPTION
10
*
11
! 12
*
13
14
1-451-498-31
A-1372-977-A
8-453-009-21
A-1332-184-A
4-065-852-01
COIL, NA ROTATION
W BOARD, MOUNTED
NA325-M2 (NECK ASSEMBLY)
C BOARD, MOUNTED
SPRING, EXTENSION
! 15
16
! 17
! 18
1-416-837-11
4-066-488-03
4-080-267-01
4-080-811-01
COIL, DEGAUSSING
HOLDER (M), DGC
SPACER, CRT
SCREW, TAPPING (7) + CROWN WASHER
— 117 —
KD-34XBR2
NOTE: The components identiÞed by shading and
Replace only with part number speciÞed.
!
NOTE: Les composants identiÞes per un trame et une marque ! sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero speciÞe.
mark are critical for safety.
13-2. CHASSIS
7-685-663-79 SCREW +BVTP 4X16 TYPE2 TT(B)
4-064-929-02 SCREW, TP+TWH 4X25
52
50
56
53
54
49
36
33
48
34
20
51
55
33
35
31
47
40
37
27
29
46
41
30
28
26
38
45
44
39
43
42
25
23
24
22
21
REF.NO.
PART NO.
DESCRIPTION
REF.NO.
PART NO.
DESCRIPTION
[Assembly Includes]
*
*
*
20
21
22
23
24
1-544-883-11
1-544-883-21
4-075-830-03
A-1372-978-A
4-081-596-01
SPEAKER BOX (LEFT)
SPEAKER BOX (RIGHT)
BRACKET, H
HA BOARD, MOUNTED
BRACKET, MAIN
*
!
!
!
41
42
43
44
45
1-557-056-31
1-453-346-11
1-900-805-19
1-251-715-12
3-704-372-31
CABLE, P-P
FBT ASSY NX-6000//JIJ4
WIRE ASSY, FOCUS HV
CAP ASSY, HIGH-VOLTAGE
HOLDER, HV CABLE
*
25
A-1348-066-A
D BOARD, COMPLETE
*
46
*! 47
A-1395-038-A
4-081-597-02
U BOARD, COMPLETE
BRACKET, U
The high voltage leads associated with the FBT on this board are not
included and must be ordered separately (see 43-44).
*
*
*
*
26
27
28
29
A-1372-979-A
A-1241-489-A
A-1299-501-A
A-1395-037-A
The labels associated with the U Bracket are not included and must be ordered separately
(see 48-49).
HB BOARD, MOUNTED
F BOARD, MOUNTED
A BOARD, COMPLETE
S BOARD, COMPLETE
30
31
33
34
! 35
SEE SUPPLEMENT-1
SEE SUPPLEMENT-1
3-682-691-00
NUT, WASHER HEXAGON
1-757-970-11
CORD WITH CONNECTOR (F-TYPE)
1-786-183-11
SWITCH, ANTENNA
36
! 37
38
39
*
40
4-083-269-01
1-790-316-21
8-598-542-20
8-598-542-20
1-555-400-00
*
*
SHIELD, Q-B
CORD, AC POWER (WITH CONNECTOR)
TUNER, FSS BTF-WA412
TUNER, FSS BTF-WA412
CABLE, PIN
[43-44]
48
49
50
4-083-094-01
4-083-095-01
X-4039-221-1
LABEL, TERMINAL (A)
LABEL, TERMINAL (B)
COVER ASSY, REAR
[51]
The label associated with the Rear Cover is not included and must be ordered separately
(see 52).
*
— 118 —
51
52
53
54
55
56
4-079-345-02
4-083-096-01
1-500-386-11
4-081-602-01
4-385-948-01
1-500-082-11
CUSHION, REAR COVER (18 X 18)
LABEL, SERIAL NUMBER
FILTER, CLAMP
COVER, U BRACKET
HOLDER, PWB
CLAMP, SLEEVE FERRITE
KD-34XBR2
NOTE: The components identiÞed by shading and
Replace only with part number speciÞed.
!
mark are critical for safety.
NOTE: Les composants identiÞes per un trame et une marque ! sont critiques
pour la securite. Ne les remplacer que par une piece portant le numero speciÞe.
13-3. BEZNET
7-685-663-71
7-685-648-71
SCREW +BVTP 4X16
SCREW +BVTP 3X12
76
75
(x14)
74
60
(x6)
77
61
79
78
73
69
67
68
62
70
63
64
65
66
REF.NO.
PART NO.
DESCRIPTION
60
61
62
63
64
X-4038-596-1
X-4038-597-1
4-076-673-03
4-072-630-01
4-080-379-31
BEZNET ASSY
BEZEL ASSY
DAMPER, DOOR
CUSHION, DOOR
DOOR
65
66
67
68
69
4-080-364-11
4-042-593-01
3-704-179-01
4-080-363-11
4-080-362-11
BUTTON, POWER
SPRING, COMPRESSION
EMBLEM (NO.9), SONY
BUTTON, MENU
BUTTON, MULTI
[Assembly Includes]
REF.NO.
[61-79]
[62-70]
— 119 —
PART NO.
DESCRIPTION
70
73
74
4-080-361-11
4-081-324-01
X-4039-164-1
GUIDE, LED
DAMPER (DT)
HANDLE ASSY, LEFT
75
76
77
78
79
4-081-009-01
4-064-943-11
X-4039-165-1
4-064-943-11
4-081-009-01
TAPE (D)
COVER, HANDLE
HANDLE ASSY, RIGHT
COVER, HANDLE
TAPE (D)
[Assembly Includes]
[75-76]
[78-79]
KD-34XBR2
SECTION 14: ELECTRICAL PARTS LIST
NOTE: The components identified by shading
and ! mark are critical for safety. Replace only
with part number specified.
NOTE: Les composants identifies per un trame et
une marque ! sont critiques pour la securite.
Ne les remplacer que par une piece portant le
numero specifie.
REF.NO.
PART NO.
DESCRIPTION
The components in this manual identified by the following
symbol:
indicate parts that have been carefully factoryselected to satisfy regulations regarding X-ray radiation for
each set.
Should replacement be required for one of these
components, replace only with the value originally used.
* Items marked with an asterisk are not stocked since they
are seldom required for routine service. Expect some delay
when ordering these components.
REF.NO.
VALUES
B
*
SEE SUPPLEMENT-1
B BOARD, COMPLETE
CAPACITOR
C001
C002
C003
C004
C005
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-115-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
1µF
25V
25V
25V
25V
10V
C006
C007
C008
C009
C010
1-164-156-11
1-162-968-11
1-126-933-11
1-164-156-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
0.1µF
.0047µF 10%
100µF
20%
0.1µF
100µF
20%
25V
50V
16V
25V
16V
C011
C014
C015
C018
C019
1-164-156-11
1-107-715-11
1-164-156-11
1-107-715-11
1-107-715-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
ELECT
0.1µF
22µF
0.1µF
22µF
22µF
25V
16V
25V
16V
16V
C020
C022
C024
C025
C028
1-164-156-11
1-162-919-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
22pF
0.1µF
0.1µF
0.1µF
C029
C030
C031
C034
C035
1-164-156-11
1-126-933-11
1-164-156-11
1-164-156-11
1-162-910-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
100µF
0.1µF
0.1µF
5pF
25V
20% 16V
25V
25V
0.25pF 50V
C036
C037
C100
C101
C102
1-162-919-11
1-162-919-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
22pF
22pF
0.1µF
0.1µF
0.1µF
5%
5%
C103
C104
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
20%
20%
20%
5%
25V
50V
25V
25V
25V
50V
50V
25V
25V
25V
25V
25V
— 120 —
B
RESISTORS
• All resistors are in ohms
• F : nonflammable
• All variable and adjustable resistors
have characteristic curve B, unless
otherwise noted.
When ordering parts by reference
number, please include the board name.
PART NO.
DESCRIPTION
VALUES
C105
C106
C107
C109
C110
1-164-156-11
1-164-156-11
1-125-891-11
1-164-156-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.47µF
0.1µF
0.1µF
C111
C112
C113
C114
C115
1-126-933-11
1-164-156-11
1-126-933-11
1-107-826-11
1-164-156-11
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
100µF
0.1µF
100µF
0.1µF
0.1µF
C116
C117
C118
C119
C120
1-164-156-11
1-164-156-11
1-107-826-11
1-164-156-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
C121
C122
C123
C124
C126
1-164-156-11
1-126-933-11
1-164-156-11
1-125-891-11
1-164-156-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
100µF
0.1µF
0.47µF
0.1µF
C127
C128
C129
C130
C131
1-107-826-11
1-126-933-11
1-164-156-11
1-164-230-11
1-164-230-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
100µF
0.1µF
220pF
220pF
C200
C201
C202
C203
C204
1-164-156-11
1-164-156-11
1-126-933-11
1-125-891-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
100µF
0.47µF
0.1µF
C205
C206
C208
C209
C210
1-125-891-11
1-125-891-11
1-164-156-11
1-162-970-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.47µF
0.47µF
0.1µF
0.01µF
100µF
10%
20%
10V
10V
25V
25V
16V
C211
C212
C213
1-125-837-91
1-162-970-11
1-126-963-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
1µF
0.01µF
4.7µF
10%
10%
20%
6.3V
25V
50V
10%
10%
20%
20%
10%
10%
10%
20%
10%
10%
20%
5%
5%
20%
10%
10%
10%
25V
25V
10V
25V
16V
16V
25V
16V
16V
25V
25V
25V
16V
25V
16V
25V
16V
25V
10V
25V
16V
16V
25V
50V
50V
25V
25V
16V
10V
25V
KD-34XBR2
B
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
C214
C215
C216
C217
C218
1-125-891-11
1-107-826-11
1-164-156-11
1-164-156-11
1-125-891-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47µF
0.1µF
0.1µF
0.1µF
0.47µF
C219
C220
C221
C222
C223
1-164-156-11
1-162-970-11
1-164-156-11
1-125-891-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.01µF
0.1µF
0.47µF
0.1µF
C224
C225
C226
C227
C228
1-125-891-11
1-164-156-11
1-107-826-11
1-125-891-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47µF
0.1µF
0.1µF
0.47µF
0.01µF
10%
C229
C230
C231
C232
C234
1-125-891-11
1-107-826-11
1-126-933-11
1-125-891-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
C235
C236
C237
C238
C239
1-125-891-11
1-164-315-11
1-164-156-11
1-126-933-11
1-125-891-11
C240
C241
C242
C243
C244
PART NO.
DESCRIPTION
VALUES
10V
16V
25V
25V
10V
C263
C264
C265
C266
C267
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
10%
10%
10%
10%
10%
16V
16V
16V
16V
16V
25V
25V
25V
10V
25V
C268
C271
C272
C274
C275
1-126-933-11
1-164-156-11
1-164-156-11
1-164-156-11
1-162-964-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100µF
20%
0.1µF
0.1µF
0.1µF
0.001µF 10%
16V
25V
25V
25V
50V
10%
10%
10%
10V
25V
16V
10V
25V
C276
C277
C278
C280
C281
1-164-227-11
1-164-156-11
1-107-826-11
1-107-826-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.022µF
0.1µF
0.1µF
0.1µF
100µF
25V
25V
16V
16V
16V
0.47µF
0.1µF
100µF
0.47µF
100µF
10%
10%
20%
10%
20%
10V
16V
16V
10V
16V
C282
C284
C285
C286
C287
1-164-156-11
1-164-156-11
1-126-933-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
100µF
0.1µF
0.1µF
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
0.47µF
470pF
0.1µF
100µF
0.47µF
10%
5%
20%
10%
10V
50V
25V
16V
10V
C288
C290
C291
C292
C293
1-164-156-11
1-164-156-11
1-164-156-11
1-107-826-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.1µF
0.1µF
0.1µF
0.1µF
100µF
10%
20%
25V
25V
25V
16V
16V
1-162-919-11
1-162-917-11
1-126-933-11
1-107-826-11
1-125-891-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
22pF
15pF
100µF
0.1µF
0.47µF
5%
5%
20%
10%
10%
50V
50V
16V
16V
10V
C294
C295
C296
C297
C298
1-126-933-11
1-126-933-11
1-162-917-11
1-162-917-11
1-126-933-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
100µF
100µF
15pF
15pF
100µF
20%
20%
5%
5%
20%
16V
16V
50V
50V
16V
C245
C246
C247
C248
C249
1-164-156-11
1-162-919-11
1-126-933-11
1-107-826-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1µF
22pF
100µF
0.1µF
0.1µF
5%
20%
10%
25V
50V
16V
16V
25V
C299
C300
C301
C302
C303
1-164-156-11
1-164-156-11
1-126-964-11
1-162-917-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
10µF
15pF
0.1µF
C250
C251
C252
C253
C254
1-125-891-11
1-125-891-11
1-125-891-11
1-126-933-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
0.47µF
0.47µF
0.47µF
100µF
0.1µF
10%
10%
10%
20%
10%
10V
10V
10V
16V
16V
C304
C305
C306
C307
C309
1-162-970-11
1-126-933-11
1-126-933-11
1-164-156-11
1-125-891-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.01µF
100µF
100µF
0.1µF
0.47µF
10%
20%
20%
C255
C256
C258
C259
C260
1-126-933-11
1-107-826-11
1-126-933-11
1-126-963-11
1-126-933-11
ELECT
CERAMIC CHIP
ELECT
ELECT
ELECT
100µF
0.1µF
100µF
4.7µF
100µF
20%
10%
20%
20%
20%
16V
16V
16V
50V
16V
C310
C311
C312
C313
C314
1-162-970-11
1-126-963-11
1-125-891-11
1-162-970-11
1-164-156-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01µF
4.7µF
0.47µF
0.01µF
0.1µF
10%
20%
10%
10%
25V
50V
10V
25V
25V
C261
C262
1-164-156-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
10%
25V
16V
C315
C317
1-126-933-11
1-126-933-11
ELECT
ELECT
100µF
100µF
20%
20%
16V
16V
10%
10%
10%
10%
10%
— 121 —
10%
10%
10%
20%
20%
20%
5%
10%
25V
25V
16V
25V
25V
25V
25V
50V
50V
25V
25V
16V
16V
25V
10V
KD-34XBR2
B
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
DESCRIPTION
C319
C320
C321
C322
C323
1-164-156-11
1-125-891-11
1-107-826-11
1-125-891-11
1-164-315-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.47µF
0.1µF
0.47µF
470pF
10%
10%
10%
5%
25V
10V
16V
10V
50V
C324
C326
C327
C329
C330
1-164-156-11
1-125-891-11
1-126-933-11
1-162-917-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.47µF
100µF
15pF
0.1µF
10%
20%
5%
10%
C331
C333
C334
C336
C337
1-107-826-11
1-107-826-11
1-107-826-11
1-126-963-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
0.1µF
0.1µF
0.1µF
4.7µF
100µF
C338
C339
C340
C341
C342
1-162-923-11
1-162-923-11
1-164-156-11
1-164-156-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
C346
C347
C348
C349
C350
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
C351
C352
C353
C354
C355
C417
C418
C419
C420
C421
1-164-156-11
1-164-156-11
1-126-964-11
1-125-891-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
10µF
0.47µF
0.1µF
25V
10V
16V
50V
16V
C422
C423
C500
C501
C502
1-126-964-11
1-126-964-11
1-162-921-11
1-164-156-11
1-126-933-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
10µF
10µF
33pF
0.1µF
100µF
10%
10%
10%
20%
20%
16V
16V
16V
50V
16V
C503
C505
C506
C507
C508
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-127-760-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
4.7µF
47pF
47pF
0.1µF
0.1µF
100µF
5%
5%
C509
C510
C511
C512
C513
1-162-917-11
1-126-933-11
1-164-156-11
1-115-156-11
1-125-837-91
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
15pF
100µF
0.1µF
1µF
1µF
5%
20%
20%
50V
50V
25V
25V
16V
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
10%
10%
10%
10%
10%
16V
16V
16V
16V
16V
C514
C515
C517
C518
C519
1-162-915-11
1-127-760-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10pF
4.7µF
0.1µF
0.1µF
0.1µF
0.50pF 50V
10% 6.3V
25V
25V
25V
1-107-826-11
1-126-933-11
1-126-933-11
1-162-923-11
1-162-923-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1µF
100µF
100µF
47pF
47pF
10%
20%
20%
5%
5%
16V
16V
16V
50V
50V
C520
C521
C522
C523
C524
1-162-917-11
1-107-826-11
1-164-156-11
1-164-156-11
1-125-837-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
15pF
0.1µF
0.1µF
0.1µF
1µF
5%
10%
C400
C401
C402
C403
C404
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.1µF
0.1µF
0.1µF
0.1µF
100µF
20%
25V
25V
25V
25V
16V
C525
C526
C527
C528
C529
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
C405
C406
C407
C408
C409
1-125-891-11
1-126-933-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47µF
100µF
0.1µF
0.1µF
0.1µF
10%
20%
10V
16V
25V
25V
25V
C530
C531
C532
C533
C534
1-126-933-11
1-164-156-11
1-126-965-91
1-162-917-11
1-164-156-11
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
100µF
0.1µF
22µF
15pF
0.1µF
C410
C411
C412
C413
C414
1-126-933-11
1-164-156-11
1-126-933-11
1-126-964-11
1-164-156-11
ELECT
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
100µF
0.1µF
100µF
10µF
0.1µF
20%
16V
25V
16V
50V
25V
C535
C536
C537
C538
C539
1-164-156-11
1-164-156-11
1-126-933-11
1-164-156-11
1-162-913-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
100µF
0.1µF
8pF
25V
25V
20% 16V
25V
0.50pF 50V
C415
C416
1-126-935-11
1-164-156-11
ELECT
CERAMIC CHIP
470µF
0.1µF
20%
16V
25V
C540
C541
1-162-970-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
0.01µF
0.1µF
10%
20%
20%
— 122 —
VALUES
20%
10%
20%
20%
5%
25V
25V
50V
10V
25V
20%
50V
50V
50V
25V
16V
10%
25V
25V
25V
25V
6.3V
10V
10%
10%
50V
16V
25V
6.3V
50V
16V
25V
25V
6.3V
25V
25V
25V
25V
25V
20%
20%
5%
16V
25V
50V
50V
25V
25V
25V
KD-34XBR2
B
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
C542
C543
C544
C546
C547
1-164-156-11
1-164-156-11
1-126-933-11
1-164-156-11
1-126-933-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
0.1µF
0.1µF
100µF
0.1µF
100µF
C548
C549
C550
C558
C559
1-162-917-11
1-164-156-11
1-162-913-11
1-126-964-11
1-136-177-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
FILM
15pF
0.1µF
8pF
10µF
1µF
50V
25V
0.50pF 50V
20% 50V
5%
50V
C560
C561
C562
1-136-177-00
1-126-964-11
1-164-156-11
FILM
ELECT
CERAMIC CHIP
1µF
10µF
0.1µF
5%
20%
20%
20%
25V
25V
16V
25V
16V
FL502
FL503
*
*
*
*
*
CN001
CN002
CN003
CN006
CN007
CN008
CN009
CN010
1-793-923-11
1-793-173-11
1-793-922-11
1-564-507-11
1-764-333-11
1-764-334-11
1-564-508-11
1-564-507-11
5%
50V
50V
25V
CONNECTOR, DIN (PLUG)
64P
PIN, PCCONNECTOR(PC BOARD) 50P
CONNECTOR, DIN (RECEPTACLE) 64P
PLUG,CONNECTOR
4P
PLUG,CONNECTOR
10P
PLUG,CONNECTOR
11P
PLUG,CONNECTOR
5P
PLUG,CONNECTOR
4P
DIODE
D001
D100
D201
D202
D203
D204
8-719-914-43
8-719-914-43
8-719-914-43
8-719-914-44
8-719-914-44
8-719-914-43
1-239-848-21
1-239-848-21
DESCRIPTION
VALUES
FILTER, LOW PASS
FILTER, LOW PASS
IC
CONNECTOR
*
PART NO.
DIODE DAN202K-T-146
DIODE DAN202K-T-146
DIODE DAN202K-T-146
DIODE DAP202K-T-146
DIODE DAP202K-T-146
DIODE DAN202K-T-146
IC001
IC002
IC003
IC004
IC006
SEE SUPPLEMENT-1
8-759-548-56
IC M52055FP
8-759-352-91
IC PST9143NL
8-759-682-41
IC M24C32-WMN6T(A)
8-759-240-87
IC TC74HCT157AF(EL)
IC100
IC101
IC200
IC201
IC202
8-752-927-57
8-752-927-57
8-752-093-84
8-759-548-56
8-752-089-50
IC CXP961064-002Q
IC CXP961064-002Q
IC CXA2151Q
IC M52055FP
IC CXA2103Q
IC203
IC204
IC205
IC206
IC207
6-700-205-01
8-752-394-69
8-759-548-56
6-700-205-01
8-752-089-50
IC TC74LVX157FT(EL)
IC CXD2073Q-T4
IC M52055FP
IC TC74LVX157FT(EL)
IC CXA2103Q
IC400
IC401
IC402
IC403
IC500
IC501
8-759-100-96
8-752-080-04
8-759-526-64
8-759-526-64
8-759-568-27
8-759-594-44
IC NJM4558M-T2
IC CXA2069Q
IC NJM2521M(TE2)
IC NJM2521M(TE2)
IC UPD424210LE-60-E2
IC UPD64082GF-3BA
COIL
FERRITE BEAD
L001
L003
L005
L100
L101
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
10µH
10µH
10µH
FB001
FB200
FB201
FB500
FB501
1-469-981-21
1-414-229-11
1-414-229-11
1-469-179-21
1-469-179-21
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
0µH
0µH
L102
L103
L104
L200
L201
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
10µH
10µH
10µH
FB502
FB503
FB504
FB505
FB506
1-414-229-11
1-414-229-11
1-469-835-21
1-469-179-21
1-469-179-21
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
0µH
0µH
L202
L203
L204
L205
L206
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
10µH
10µH
10µH
L208
L209
L210
L211
L400
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
10µH
10µH
10µH
FILTER
FL200
FL201
FL202
FL500
FL501
1-239-848-21
1-239-848-21
1-239-848-21
1-239-848-21
1-239-848-21
FILTER, LOW PASS
FILTER, LOW PASS
FILTER, LOW PASS
FILTER, LOW PASS
FILTER, LOW PASS
— 123 —
KD-34XBR2
B
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
L401
L402
L500
L501
L502
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
10µH
10µH
10µH
Q235
Q240
Q243
Q248
Q250
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
L503
L504
L505
1-469-555-21
1-469-555-21
1-469-555-21
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
10µH
Q400
Q401
Q403
Q404
Q405
8-729-422-27
8-729-424-02
8-729-422-27
8-729-424-02
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR
Q001
Q002
Q003
Q005
Q006
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q406
Q407
Q409
Q410
Q411
8-729-422-27
8-729-424-02
8-729-422-27
8-729-424-02
8-729-424-02
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
Q009
Q011
Q013
Q100
Q101
8-729-422-27
8-729-422-27
8-729-422-27
8-729-424-02
8-729-424-02
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
Q412
Q413
Q414
Q415
Q500
8-729-424-02
8-729-422-27
8-729-422-27
8-729-424-02
8-729-422-27
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q102
Q103
Q104
Q105
Q106
8-729-422-27
8-729-424-02
8-729-424-02
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q501
Q502
Q503
Q504
Q505
8-729-422-27
8-729-424-02
8-729-424-02
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q107
Q108
Q200
Q201
Q202
8-729-422-27
8-729-424-02
8-729-422-27
8-729-422-27
8-729-424-02
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
Q506
Q507
Q508
Q509
Q510
8-729-422-27
8-729-422-27
8-729-424-02
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q203
Q204
Q205
Q208
Q216
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q511
Q512
Q513
Q514
Q515
8-729-422-27
8-729-424-02
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q217
Q218
Q219
Q220
Q221
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q516
Q517
Q518
Q519
Q520
8-729-424-02
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q222
Q224
Q227
Q228
Q229
8-729-424-02
8-729-424-02
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q521
Q522
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q230
Q231
Q232
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
RESISTOR
R001
R002
R003
R004
— 124 —
1-216-833-11
1-216-840-11
1-216-809-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
39K
100
470
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
KD-34XBR2
B
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
R005
R006
R007
R008
R009
1-216-821-11
1-216-821-11
1-216-821-11
1-216-821-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
1K
1K
1K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R060
R062
R063
R064
R065
1-216-809-11
1-216-864-11
1-216-841-11
1-216-809-11
1-216-809-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
100
5%
1/16W
47K
100
100
5%
5%
5%
1/16W
1/16W
1/16W
R010
R011
R012
R013
R014
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R066
R068
R069
R070
R071
1-216-809-11
1-216-864-11
1-216-829-11
1-216-833-11
1-216-833-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
100
5%
1/16W
4.7K
10K
10K
5%
5%
5%
1/16W
1/16W
1/16W
R015
R016
R017
R018
R019
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R072
R074
R075
R076
R077
1-216-821-11
1-216-833-11
1-216-821-11
1-216-819-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
10K
1K
680
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R020
R021
R022
R023
R024
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R078
R079
R082
R083
R084
1-216-821-11
1-216-809-11
1-216-815-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
100
330
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R025
R028
R029
R030
R031
1-216-809-11
1-216-809-11
1-216-809-11
1-216-833-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
10K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R085
R086
R087
R088
R089
1-216-841-11
1-216-828-11
1-216-805-11
1-216-805-11
1-216-805-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
3.9K
47
47
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R032
R033
R034
R035
R036
1-216-833-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
100
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R090
R091
R092
R098
R102
1-216-813-11
1-216-813-11
1-216-813-11
1-216-841-11
1-216-829-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220
220
220
47K
4.7K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R037
R038
R039
R040
R041
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
100
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R103
R104
R105
R106
R107
1-216-833-11
1-216-841-11
1-216-841-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
47K
47K
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R042
R043
R044
R045
R046
1-216-809-11
1-216-809-11
1-216-849-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
220K
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R108
R109
R110
R111
R112
1-216-833-11
1-216-813-11
1-216-813-11
1-216-813-11
1-218-706-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
10K
220
220
220
3.9K
5%
5%
5%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R047
R048
R051
R053
R054
1-218-708-11
1-216-809-11
1-216-833-11
1-216-833-11
1-216-829-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
100
10K
10K
4.7K
0.50%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R113
R114
R115
R117
R118
1-216-833-11
1-218-692-11
1-216-827-11
1-216-857-11
1-216-825-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
1K
3.3K
1M
2.2K
5%
0.50%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R055
R059
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
100
100
5%
5%
1/16W
1/16W
R119
R120
1-216-824-11
1-216-833-11
RES-CHIP
RES-CHIP
1.8K
10K
5%
5%
1/16W
1/16W
— 125 —
KD-34XBR2
B
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
R214
R215
R216
R219
R220
1-216-809-11
1-216-828-11
1-216-819-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
3.9K
680
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
R221
R222
R223
R224
R225
1-218-716-11
1-218-684-11
1-218-684-11
1-216-809-11
1-216-819-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
10K
470
470
100
680
0.50%
0.50%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R226
R227
R228
R231
R232
1-218-684-11
1-218-684-11
1-216-837-11
1-218-684-11
1-218-684-11
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
METAL CHIP
470
470
22K
470
470
0.50%
0.50%
5%
0.50%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
47K
100
100
10K
220
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R233
R234
R235
R236
R239
1-216-809-11
1-216-837-11
1-216-835-11
1-216-819-11
1-216-804-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
22K
15K
680
39
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
METAL CHIP
220
220
3.9K
10K
1K
5%
5%
0.50%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R241
R242
R243
R244
R248
1-216-809-11
1-216-809-11
1-216-809-11
1-216-819-11
1-216-804-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
680
39
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
1-216-827-11
1-216-857-11
1-216-825-11
1-216-824-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
3.3K
1M
2.2K
1.8K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R253
R257
R258
R259
R260
1-216-804-11
1-216-864-11
1-218-686-11
1-218-734-11
1-216-797-11
RES-CHIP
SHORT
METAL CHIP
METAL CHIP
RES-CHIP
39
5%
1/16W
560
56K
10
0.50% 1/16W
0.50% 1/16W
5%
1/16W
R155
R156
R157
R158
R200
1-216-833-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-837-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
100
100
100
22K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R262
R263
R264
R266
R268
1-216-805-11
1-216-809-11
1-218-704-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
47
100
3.3K
100
100
5%
5%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R201
R202
R203
R204
R205
1-216-809-11
1-216-809-11
1-216-837-11
1-216-819-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
22K
680
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R270
R271
R273
R275
R276
1-218-704-11
1-216-797-11
1-218-700-11
1-216-817-11
1-216-817-11
METAL CHIP
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
3.3K
10
2.2K
470
470
0.50%
5%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R206
R207
R208
R210
R211
1-216-809-11
1-216-821-11
1-216-819-11
1-216-837-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
1K
680
22K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R277
R278
R279
R280
R281
1-216-817-11
1-216-817-11
1-216-817-11
1-216-817-11
1-216-797-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
470
470
470
470
10
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R212
R213
1-216-837-11
1-216-809-11
RES-CHIP
RES-CHIP
22K
100
5%
5%
1/16W
1/16W
R282
R283
1-216-825-11
1-216-837-11
RES-CHIP
RES-CHIP
2.2K
22K
5%
5%
1/16W
1/16W
R121
R122
R123
R124
R125
1-216-864-11
1-216-849-11
1-216-825-11
1-216-849-11
1-216-841-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
R126
R130
R131
R132
R133
1-216-845-11
1-216-833-11
1-216-864-11
1-216-845-11
1-216-833-11
R134
R135
R136
R137
R138
220K
2.2K
220K
47K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
100K
10K
5%
5%
1/16W
1/16W
100K
10K
5%
5%
1-216-849-11
1-216-845-11
1-216-829-11
1-216-833-11
1-216-841-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220K
100K
4.7K
10K
47K
R139
R140
R141
R142
R143
1-216-841-11
1-216-809-11
1-216-809-11
1-216-833-11
1-216-813-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
R144
R145
R146
R147
R148
1-216-813-11
1-216-813-11
1-218-706-11
1-216-833-11
1-218-692-11
R149
R151
R152
R153
R154
— 126 —
KD-34XBR2
B
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
R284
R285
R287
R288
R289
1-216-813-11
1-216-837-11
1-216-825-11
1-216-817-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220
22K
2.2K
470
470
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R334
R339
R340
R346
R351
1-216-809-11
1-216-809-11
1-216-819-11
1-216-837-11
1-216-835-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
680
22K
15K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R290
R291
R292
R294
R295
1-216-813-11
1-218-686-11
1-218-686-11
1-216-811-11
1-216-839-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
220
560
560
150
33K
5%
0.50%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R352
R353
R355
R359
R360
1-216-809-11
1-216-837-11
1-216-819-11
1-216-809-11
1-216-819-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
22K
680
100
680
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R296
R297
R298
R299
R300
1-216-839-11
1-216-817-11
1-216-812-11
1-218-710-11
1-216-811-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
33K
470
180
5.6K
150
5%
5%
5%
0.50%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R368
R371
R372
R373
R375
1-216-837-11
1-216-809-11
1-216-837-11
1-216-819-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
22K
100
22K
680
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R302
R303
R304
R305
R306
1-216-817-11
1-218-710-11
1-216-821-11
1-216-812-11
1-216-817-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
470
5.6K
1K
180
470
5%
0.50%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R376
R377
R378
R379
R400
1-216-819-11
1-216-817-11
1-216-817-11
1-216-817-11
1-218-710-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
680
470
470
470
5.6K
5%
5%
5%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R307
R308
R309
R310
R311
1-216-817-11
1-216-817-11
1-216-817-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
470
470
470
1K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R401
R402
R403
R404
R405
1-218-710-11
1-218-712-11
1-218-712-11
1-216-830-11
1-216-809-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
5.6K
6.8K
6.8K
5.6K
100
0.50%
0.50%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R312
R313
R314
R315
R316
1-216-817-11
1-216-833-11
1-216-809-11
1-218-686-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
470
10K
100
560
10K
5%
5%
5%
0.50%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R406
R407
R408
R409
R410
1-216-830-11
1-216-830-11
1-216-809-11
1-216-830-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
5.6K
5.6K
100
5.6K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R317
R318
R319
R320
R321
1-218-692-11
1-216-807-11
1-216-821-11
1-216-837-11
1-216-841-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
68
1K
22K
47K
0.50%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R411
R412
R413
R414
R415
1-216-809-11
1-216-809-11
1-216-830-11
1-216-809-11
1-216-830-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
5.6K
100
5.6K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R322
R323
R324
R325
R326
1-216-821-11
1-218-708-11
1-216-809-11
1-216-833-11
1-216-837-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
4.7K
100
10K
22K
5%
0.50%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R416
R417
R418
R419
R420
1-216-809-11
1-216-829-11
1-216-809-11
1-216-809-11
1-216-830-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
4.7K
100
100
5.6K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R327
R328
R329
R330
R331
1-216-828-11
1-216-809-11
1-216-837-11
1-216-805-11
1-216-807-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
3.9K
100
22K
47
68
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R421
R422
R423
R424
R425
1-216-845-11
1-216-809-11
1-216-830-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100K
100
5.6K
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R332
R333
1-216-819-11
1-216-809-11
RES-CHIP
RES-CHIP
680
100
5%
5%
1/16W
1/16W
R427
R428
1-216-845-11
1-216-848-11
RES-CHIP
RES-CHIP
100K
180K
5%
5%
1/16W
1/16W
— 127 —
KD-34XBR2
B
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
R429
R430
R432
R433
R434
1-216-821-11
1-216-809-11
1-216-809-11
1-216-833-11
1-216-805-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
100
100
10K
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R483
R484
R485
R486
R504
1-216-829-11
1-216-829-11
1-216-831-11
1-216-831-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
4.7K
6.8K
6.8K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R437
R438
R439
R440
R441
1-216-830-11
1-216-809-11
1-216-821-11
1-216-830-11
1-216-813-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
5.6K
100
1K
5.6K
220
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R505
R506
R507
R508
R509
1-216-809-11
1-216-813-11
1-218-686-11
1-216-821-11
1-218-710-11
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
METAL CHIP
100
220
560
1K
5.6K
5%
5%
0.50%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R443
R444
R445
R446
R447
1-216-809-11
1-216-813-11
1-216-809-11
1-216-853-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
220
100
470K
470
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R510
R511
R512
R514
R515
1-216-813-11
1-216-833-11
1-216-837-11
1-216-837-11
1-216-823-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220
10K
22K
22K
1.5K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R448
R449
R450
R451
R452
1-216-842-11
1-216-830-11
1-216-830-11
1-218-665-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
56K
5.6K
5.6K
75
1K
5%
5%
5%
0.50%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R516
R517
R518
R520
R521
1-216-837-11
1-216-853-11
1-216-837-11
1-218-684-11
1-218-684-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
22K
470K
22K
470
470
5%
5%
5%
0.50%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R453
R454
R455
R456
R457
1-216-809-11
1-216-809-11
1-216-830-11
1-216-809-11
1-216-830-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
5.6K
100
5.6K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R522
R523
R524
R525
R526
1-216-809-11
1-218-710-11
1-218-686-11
1-216-821-11
1-216-825-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
100
5.6K
560
1K
2.2K
5%
0.50%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R458
R459
R460
R461
R463
1-216-809-11
1-216-809-11
1-216-825-11
1-216-857-11
1-216-806-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
2.2K
1M
56
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R527
R528
R529
R530
R531
1-216-821-11
1-218-710-11
1-216-821-11
1-216-839-11
1-218-686-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
1K
5.6K
1K
33K
560
5%
0.50%
5%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R464
R465
R466
R468
R469
1-216-853-11
1-216-821-11
1-216-825-11
1-216-817-11
1-216-853-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
470K
1K
2.2K
470
470K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R532
R533
R534
R535
R536
1-216-817-11
1-216-825-11
1-216-819-11
1-218-690-11
1-216-834-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
470
2.2K
680
820
12K
5%
5%
5%
0.50%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R470
R471
R473
R474
R475
1-216-821-11
1-216-841-11
1-216-821-11
1-216-825-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
47K
1K
2.2K
470
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R537
R538
R542
R543
R544
1-216-821-11
1-216-817-11
1-216-821-11
1-218-710-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
1K
470
1K
5.6K
1K
5%
5%
5%
0.50%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R476
R477
R478
R479
R480
1-216-833-11
1-216-845-11
1-216-833-11
1-216-821-11
1-216-829-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
100K
10K
1K
4.7K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R545
R546
R547
R548
R549
1-216-839-11
1-218-686-11
1-216-825-11
1-216-819-11
1-218-690-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
33K
560
2.2K
680
820
5%
0.50%
5%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R481
R482
1-216-821-11
1-216-813-11
RES-CHIP
RES-CHIP
1K
220
5%
5%
1/16W
1/16W
R550
R551
1-216-834-11
1-216-821-11
RES-CHIP
RES-CHIP
12K
1K
5%
5%
1/16W
1/16W
— 128 —
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
VALUES
R555
R556
R557
R558
R559
1-216-805-11
1-216-805-11
1-216-805-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
47
47
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R560
R561
R562
R563
R564
1-216-833-11
1-216-833-11
1-216-841-11
1-216-841-11
1-216-841-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
47K
47K
47K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R565
R566
R567
R568
R569
1-216-841-11
1-216-841-11
1-216-841-11
1-216-833-11
1-218-740-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
47K
47K
47K
10K
100K
5%
5%
5%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R570
R571
R572
R574
R575
1-218-742-11
1-218-740-11
1-218-742-11
1-216-809-11
1-216-821-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
120K
100K
120K
100
1K
0.50%
0.50%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R576
R577
R578
R579
R580
1-216-825-11
1-216-822-11
1-216-822-11
1-216-822-11
1-216-813-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
2.2K
1.2K
1.2K
1.2K
220
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R581
R582
R583
R584
R585
1-216-809-11
1-216-817-11
1-216-833-11
1-216-825-11
1-216-825-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
470
10K
2.2K
2.2K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R586
R587
R588
R589
R590
1-216-825-11
1-216-864-11
1-216-864-11
1-216-809-11
1-216-821-11
RES-CHIP
SHORT
SHORT
RES-CHIP
RES-CHIP
2.2K
5%
1/16W
100
1K
5%
5%
1/16W
1/16W
R591
R592
R593
R594
R595
R596
1-216-821-11
1-216-821-11
1-216-864-11
1-216-817-11
1-216-817-11
1-216-821-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
1K
1K
5%
5%
1/16W
1/16W
470
470
1K
5%
5%
5%
1/16W
1/16W
1/16W
220
220
220
220
220
-3216
-3216
-3216
-3216
-3216
1-233-411-21
1-233-411-21
1-233-411-21
1-233-411-21
1-233-411-21
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
REF.NO.
PART NO.
DESCRIPTION
VALUES
RB505
RB506
1-233-411-21
1-233-411-21
RES, CHIP NETWORK 220
RES, CHIP NETWORK 220
-3216
-3216
CRYSTAL
X001
X003
X100
X101
X200
1-781-931-21
1-795-371-21
1-579-175-11
1-579-175-11
1-577-358-21
VIBRATOR, CRYSTAL
VIBRATOR, CERAMIC
VIBRATOR, CERAMIC
VIBRATOR, CERAMIC
VIBRATOR, CERAMIC
X201
X202
1-567-505-11
1-567-505-11
OSCILLATOR, CRYSTAL
OSCILLATOR, CRYSTAL
A-1241-489-A
F BOARD, MOUNTED
F
*
CAPACITOR
!
!
!
!
!
C6701
C6702
C6703
C6704
C6705
1-136-311-11
1-113-910-11
1-136-311-11
1-113-910-11
1-113-910-11
MYLAR
CERAMIC
MYLAR
CERAMIC
CERAMIC
0.47µF
470pF
0.47µF
470pF
470pF
20%
10%
20%
10%
10%
125V
250V
125V
250V
250V
! C6706
! C6709
C6713
C6714
C6715
1-113-910-11
1-136-346-21
1-126-971-11
1-126-942-61
1-130-495-00
CERAMIC
MYLAR
ELECT
ELECT
MYLAR
470pF
0.22µF
470µF
1000µF
0.1µF
10%
20%
20%
20%
5%
250V
125V
50V
25V
50V
(POWER)
(PC BOARD)
(PC BOARD)
CONNECTOR
CN6701
CN6702
! CN6703
*
CN6706
*
CN6707
1-695-915-11
1-695-915-11
1-580-843-11
1-766-241-11
1-766-241-11
TAB (CONTACT)
TAB (CONTACT)
PIN,CONNECTOR
PIN,CONNECTOR
PIN,CONNECTOR
*
*
*
1-508-786-00
1-766-240-11
1-564-511-11
PIN,CONNECTOR
PIN,CONNECTOR
PLUG,CONNECTOR
CN6708
CN6709
CN6710
(5MM PITCH)
(PC BOARD)
DIODE
D6701
D6702
D6703
D6704
RESISTOR BRIDGE
RB500
RB501
RB502
RB503
RB504
BF
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
8-719-991-33
8-719-511-40
8-719-991-33
8-719-991-33
DIODE 1SS133T-77
DIODE S1VB20
DIODE 1SS133T-77
DIODE 1SS133T-77
FUSE
! F6701
— 129 —
1-532-506-51
FUSE
6.3A/250V
3P
3P
2P
2P
8P
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
FUSE HOLDER
FH6701
FH6702
1-533-223-11
1-533-223-11
HOLDER, FUSE
HOLDER, FUSE
COIL
! L6701
! L6702
1-423-835-11
1-423-835-11
TRANSFORMER, LINE FILTER (LFT)
TRANSFORMER, LINE FILTER (LFT)
TRANSISTOR
Q6701
8-729-423-33
TRANSISTOR 2SC3311A-QRSTA
RESISTOR
! R6701
! R6702
R6703
! R6704
! R6705
1-219-776-11
1-260-135-11
1-249-429-11
1-244-155-11
1-244-155-11
CARBON
CARBON
CARBON
CEMENTED
CEMENTED
2.2M
1M
10K
0.39
0.39
10%
5%
5%
5%
5%
1/2W
1/2W
1/4W
20W
20W
R6707
R6708
R6709
1-249-425-11
1-249-417-11
1-249-433-11
CARBON
CARBON
CARBON
4.7K
1K
22K
5%
5%
5%
1/4W
1/4W
1/4W
RELAY
! RY6701
1-755-178-11
RELAY, AC POWER
TRANSFORMER
! T6703
1-435-675-11
TRANSFORMER, STANDBY
THERMISTOR
! TH6701
1-803-629-11
THERMISTOR, POSITIVE
VARISTOR
! VD6701
! VD6702
A
*
1-801-074-41
1-801-074-41
VARISTOR
VARISTOR
ERZV10D271
ERZV10D271
A-1299-501-A
A BOARD, COMPLETE
4-382-854-11
SCREW (M3X10), P, SW (+)
CAPACITOR
C2001
C2002
C2003
C2004
C2005
1-162-966-11
1-104-665-11
1-126-967-11
1-162-966-11
1-162-966-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
FA
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
0.0022µF
100µF
47µF
0.0022µF
0.0022µF
10%
20%
20%
10%
10%
50V
10V
50V
50V
50V
— 130 —
PART NO.
DESCRIPTION
VALUES
C2006
C2007
C2008
C2009
C2010
1-126-933-11
1-126-965-91
1-126-933-11
1-162-970-11
1-162-966-11
ELECT
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
100µF
22µF
100µF
0.01µF
0.0022µF
20%
20%
20%
10%
10%
16V
50V
16V
25V
50V
C2012
C2014
C2015
C2016
C2017
1-162-966-11
1-126-964-11
1-164-346-11
1-107-714-11
1-107-714-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
ELECT
0.0022µF
10µF
1µF
10µF
10µF
10%
20%
20%
20%
50V
50V
16V
16V
16V
C2018
C2019
C2020
C2021
C2022
1-162-960-11
1-165-176-11
1-162-966-11
1-162-966-11
1-162-966-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
220pF
0.047µF
0.0022µF
0.0022µF
0.0022µF
10%
10%
10%
10%
10%
50V
16V
50V
50V
50V
C2023
C2024
C2025
C2026
C2028
1-126-933-11
1-104-665-11
1-126-933-11
1-162-966-11
1-126-935-11
ELECT
ELECT
ELECT
CERAMIC CHIP
ELECT
100µF
100µF
100µF
0.0022µF
470µF
20%
20%
20%
10%
20%
16V
10V
16V
50V
16V
C2029
C2030
C2031
C2032
C2034
1-162-970-11
1-126-965-91
1-162-966-11
1-164-346-11
1-162-960-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01µF
22µF
0.0022µF
1µF
220pF
10%
20%
10%
10%
25V
50V
50V
16V
50V
C2035
C2036
C2037
C2038
C2039
1-165-176-11
1-126-964-11
1-107-714-11
1-107-714-11
1-126-961-11
CERAMIC CHIP
ELECT
ELECT
ELECT
ELECT
0.047µF
10µF
10µF
10µF
2.2µF
10%
20%
20%
20%
20%
16V
50V
16V
16V
50V
C2050
C2055
C2056
C2057
C3101
1-126-935-11
1-126-767-11
1-107-823-11
1-107-823-11
1-126-933-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
470µF
1000µF
0.47µF
0.47µF
100µF
20%
20%
10%
10%
20%
16V
16V
16V
16V
16V
C3105
C3109
C3111
C3112
C3113
1-127-715-91
1-127-760-11
1-127-760-11
1-127-760-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.22µF
4.7µF
4.7µF
4.7µF
0.1µF
10%
10%
10%
10%
10%
16V
6.3V
6.3V
6.3V
16V
C3114
C3115
C3116
C3117
C3118
1-126-933-11
1-162-966-11
1-126-967-11
1-110-563-11
1-107-826-11
ELECT
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
100µF
0.0022µF
47µF
0.068µF
0.1µF
20%
10%
20%
10%
10%
16V
50V
50V
16V
16V
C3120
C3122
1-126-933-11
1-107-823-11
ELECT
CERAMIC CHIP
100µF
0.47µF
20%
10%
16V
16V
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
A
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
C3123
C3124
C3125
C3126
C3127
1-107-823-11
1-107-826-11
1-107-826-11
1-136-244-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
FILM
CERAMIC CHIP
0.47µF
0.1µF
0.1µF
0.1µF
0.1µF
10%
10%
10%
5%
10%
16V
16V
16V
50V
16V
C4483
C4484
C4485
C4486
C4487
1-126-935-11
1-126-960-11
1-126-960-11
1-126-935-11
1-126-960-11
ELECT
ELECT
ELECT
ELECT
ELECT
470µF
1µF
1µF
470µF
1µF
20%
20%
20%
20%
20%
16V
50V
50V
16V
50V
C3128
C3129
C3130
C3133
C3134
1-107-826-11
1-107-826-11
1-107-826-11
1-107-826-11
1-107-823-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.47µF
10%
10%
10%
10%
10%
16V
16V
16V
16V
16V
C4488
C4489
C4490
C4491
C4492
1-126-934-11
1-126-935-11
1-162-964-11
1-136-165-00
1-126-953-11
ELECT
ELECT
CERAMIC CHIP
FILM
ELECT
220µF
470µF
0.001µF
0.1µF
2200µF
20%
20%
10%
5%
20%
16V
16V
50V
50V
35V
C3136
C3137
C3138
C3139
C3140
1-162-970-11
1-164-492-11
1-164-346-11
1-125-838-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01µF
0.15µF
1µF
2.2µF
0.1µF
10%
10%
10%
10%
25V
16V
16V
6.3V
16V
C4493
C4494
C4495
C4496
C4497
1-126-934-11
1-162-964-11
1-136-165-00
1-126-953-11
1-164-156-11
ELECT
CERAMIC CHIP
FILM
ELECT
CERAMIC CHIP
220µF
0.001µF
0.1µF
2200µF
0.1µF
20%
10%
5%
20%
16V
50V
50V
35V
25V
C3141
C3142
C3143
C3144
C3145
1-126-964-11
1-126-964-11
1-162-970-11
1-162-923-11
1-126-933-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
10µF
10µF
0.01µF
47pF
100µF
20%
20%
10%
5%
20%
50V
50V
25V
50V
16V
C4498
C4499
C4500
C4501
C4502
1-164-156-11
1-136-165-00
1-136-165-00
1-136-165-00
1-126-942-61
CERAMIC CHIP
FILM
FILM
FILM
ELECT
0.1µF
0.1µF
0.1µF
0.1µF
1000µF
5%
5%
5%
20%
25V
50V
50V
50V
25V
C3146
C3147
C3148
C3149
C3150
1-107-826-11
1-107-826-11
1-107-826-11
1-107-823-11
1-162-968-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.47µF
.0047µF
10%
10%
10%
10%
10%
16V
16V
16V
16V
50V
C4503
C4504
C4505
C4506
C6001
1-126-942-61
1-136-165-00
1-126-953-11
1-126-953-11
1-117-227-11
ELECT
FILM
ELECT
ELECT
MYLAR
1000µF
0.1µF
2200µF
2200µF
1µF
20%
5%
20%
20%
10%
25V
50V
35V
35V
450V
C3151
C3152
C3153
C3154
C3155
1-107-823-11
1-127-715-91
1-126-933-11
1-162-970-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
0.47µF
0.22µF
100µF
0.01µF
0.1µF
10%
10%
20%
10%
10%
16V
16V
16V
25V
16V
C6002
C6003
C6004
C6005
C6006
1-163-009-91
1-163-021-91
1-126-967-11
1-126-961-11
1-136-479-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
FILM
0.001µF
0.01µF
47µF
2.2µF
0.001µF
10%
10%
20%
20%
2%
50V
50V
50V
50V
50V
C3156
C3157
C3158
C3159
C3160
1-126-933-11
1-107-826-11
1-115-467-11
1-107-823-11
1-162-964-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
100µF
0.1µF
0.22µF
0.47µF
0.001µF
20%
10%
10%
10%
10%
16V
16V
10V
16V
50V
C6007
C6008
C6009
C6014
C6016
1-126-964-11
1-130-777-00
1-126-947-11
1-126-968-11
1-125-969-91
ELECT
MYLAR
ELECT
ELECT
CERAMIC
10µF
0.1µF
47µF
100µF
680pF
20%
5%
20%
20%
10%
50V
100V
25V
50V
1KV
C3170
C3171
C3172
C4426
C4439
1-164-346-11
1-164-346-11
1-162-966-11
1-126-961-11
1-126-767-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
1µF
1µF
0.0022µF 10%
2.2µF
20%
1000µF 20%
16V
16V
50V
50V
16V
C6017
C6018
C6019
C6020
! C6021
1-126-960-11
1-126-968-11
1-135-945-21
1-126-947-11
1-119-887-51
ELECT
ELECT
FILM
ELECT
CERAMIC
1µF
100µF
10000pF
47µF
1000pF
20%
20%
3%
20%
20%
50V
50V
800V
25V
250V
C4462
C4477
C4478
C4479
C4480
1-126-964-11
1-126-964-11
1-126-964-11
1-126-960-11
1-126-935-11
ELECT
ELECT
ELECT
ELECT
ELECT
10µF
10µF
10µF
1µF
470µF
20%
20%
20%
20%
20%
50V
50V
50V
50V
16V
C6022
C6023
C6024
C6025
C6026
1-164-156-11
1-126-933-11
1-115-746-11
1-163-037-11
1-128-546-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
ELECT
0.1µF
100µF
0.0056F
0.022µF
10000µF
20%
20%
10%
20%
25V
16V
10V
50V
10V
C4481
C4482
1-126-960-11
1-126-960-11
ELECT
ELECT
1µF
1µF
20%
20%
50V
50V
C6027
C6028
1-126-960-11
1-126-936-11
ELECT
ELECT
1µF
3300µF
20%
20%
50V
16V
— 131 —
KD-34XBR2
A
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
C6030
C6031
C6032
C6034
C6035
1-126-960-11
1-126-935-11
1-130-495-00
1-104-665-11
1-126-935-11
ELECT
ELECT
MYLAR
ELECT
ELECT
1µF
470µF
0.1µF
100µF
470µF
20%
20%
5%
20%
20%
C6036
C6039
C6040
C6041
C6042
1-130-495-00
1-126-933-11
1-126-933-11
1-126-926-11
1-126-941-11
MYLAR
ELECT
ELECT
ELECT
ELECT
0.1µF
100µF
100µF
1000µF
470µF
C6046
C6048
C6049
C6050
C6051
C6052
1-126-767-11
1-126-933-11
1-126-960-11
1-126-933-11
1-126-934-11
1-162-960-11
ELECT
ELECT
ELECT
ELECT
ELECT
CERAMIC CHIP
1000µF
100µF
1µF
100µF
220µF
220pF
50V
10V
50V
25V
16V
D2057
D2058
D2059
D3103
D3105
8-719-404-50
8-719-404-50
8-719-404-50
8-719-404-50
8-719-025-31
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
DIODE 02CZ5.6-TE85L
5%
20%
20%
20%
20%
50V
16V
16V
10V
25V
D3106
D3109
D3111
D3112
D3113
8-719-404-50
8-719-991-33
1-216-864-11
8-719-991-33
8-719-109-97
DIODE MA111-TX
DIODE 1SS133T-77
SHORT
DIODE 1SS133T-77
DIODE MTZJ-T-77-6.8B
20%
20%
20%
20%
20%
10%
16V
16V
50V
16V
16V
50V
D3114
D4403
D4404
D4406
D4409
8-719-109-97
8-719-041-97
8-719-991-33
8-719-404-50
8-719-041-97
DIODE MTZJ-T-77-6.8B
DIODE MA113-(TX)
DIODE 1SS133T-77
DIODE MA111-TX
DIODE MA113-(TX)
D4410
D4411
D4412
D4413
D4414
8-719-404-50
8-719-041-97
8-719-404-50
8-719-404-50
8-719-404-50
DIODE MA111-TX
DIODE MA113-(TX)
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
D4415
D4416
D6002
D6004
D6011
8-719-924-13
8-719-924-13
8-719-404-50
8-719-979-64
8-719-063-73
DIODE MTZJ-T-77-22B
DIODE MTZJ-T-77-22B
DIODE MA111-TX
DIODE µF4005PKG23
DIODE D1NL20U-TR
D6012
D6013
D6014
D6015
D6016
8-719-063-73
8-719-404-50
8-719-031-79
8-719-921-63
8-719-510-12
DIODE D1NL20U-TR
DIODE MA111-TX
DIODE D5SC4M
DIODE MTZJ-T-77-7.5B
DIODE D10SC4M
D6017
D6018
D6019
D6020
D6021
8-719-109-97
8-719-031-79
8-719-404-50
8-719-921-40
8-719-991-33
DIODE MTZJ-T-77-6.8B
DIODE D5SC4M
DIODE MA111-TX
DIODE MTZJ-T-77-4.7B
DIODE 1SS133T-77
D6022
D6023
D6024
D6025
D6026
8-719-404-50
8-719-404-50
8-719-991-33
8-719-991-33
8-719-991-33
DIODE MA111-TX
DIODE MA111-TX
DIODE 1SS133T-77
DIODE 1SS133T-77
DIODE 1SS133T-77
D6027
D6030
D6031
D6032
D6034
8-719-404-50
8-719-991-33
8-719-991-33
8-719-991-33
8-719-923-78
DIODE MA111-TX
DIODE 1SS133T-77
DIODE 1SS133T-77
DIODE 1SS133T-77
DIODE MTZJ-T-77-12
D6035
D6036
D6037
8-719-924-13
8-719-991-33
8-719-991-33
DIODE MTZJ-T-77-22B
DIODE 1SS133T-77
DIODE 1SS133T-77
CONNECTOR
*
*
1-564-515-11
1-793-922-11
1-793-174-11
1-764-333-11
1-564-506-11
PLUG,CONNECTOR
CONNECTOR, DIN (RECEPTACLE)
SOCKET,PCCONNECTOR (PC BOARD)
PLUG,CONNECTOR
PLUG,CONNECTOR
12P
64P
*
*
CN2001
CN3020
CN3022
CN3101
CN3102
*
*
*
*
*
CN3103
CN3170
CN3171
CN3173
CN3174
1-779-892-11
1-779-891-11
1-779-891-11
1-779-891-11
1-779-892-11
CONNECTOR, BOARD TO BOARD
CONNECTOR, BOARD TO BOARD
CONNECTOR, BOARD TO BOARD
CONNECTOR, BOARD TO BOARD
CONNECTOR, BOARD TO BOARD
10P
8P
8P
8P
10P
*
*
*
*
*
CN4402
CN4403
CN4404
CN6001
CN6002
1-691-616-21
1-564-511-11
1-564-511-61
1-779-891-11
1-564-511-11
CONNECTOR, BOARD TO BOARD
PLUG,CONNECTOR
PLUG,CONNECTOR
CONNECTOR, BOARD TO BOARD
PLUG,CONNECTOR
15P
8P
8P
8P
8P
*
*
CN6003
CN6005
CN6009
CN6010
CN6012
1-766-176-11
1-691-757-11
1-695-915-11
1-695-915-11
1-695-915-11
PIN,CONNECTOR (PC BOARD)
PIN,CONNECTOR (PC BOARD)
TAB (CONTACT)
TAB (CONTACT)
TAB (CONTACT)
6P
8P
10P
3P
DIODE
D2007
D2008
D2050
D2051
D2052
8-719-404-50
8-719-404-50
8-719-914-43
8-719-914-43
8-719-914-43
DIODE MA111-TX
DIODE MA111-TX
DIODE DAN202K-T-146
DIODE DAN202K-T-146
DIODE DAN202K-T-146
D2053
D2054
D2055
D2056
8-719-991-33
8-719-404-50
8-719-404-50
8-719-404-50
DIODE 1SS133T-77
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
— 132 —
DESCRIPTION
VALUES
KD-34XBR2
A
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
FERRITE BEAD
FB6001
FB6002
FB6004
FB6005
FB6006
1-412-911-11
1-412-911-11
1-412-911-11
1-412-911-11
1-412-911-11
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
0µH
0µH
FB6007
FB6008
FB6009
1-412-911-11
1-412-911-11
1-412-911-11
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
IC
IC3101
IC4405
IC4406
IC6001
IC6002
8-752-100-25
8-759-246-70
8-759-246-70
8-759-670-30
8-759-450-47
IC CXA2150AQ
IC TA8216H
IC TA8216H
IC MCZ3001D
IC BA05T
IC6003
IC6004
IC6005
IC6006
IC6007
IC6008
8-759-140-85
8-759-284-06
8-759-648-72
8-759-513-71
8-759-198-03
8-759-198-03
IC UPC1093J-T
IC PQ30RV31
IC PQ3RD083
IC PQ05RF21
IC PQ09RF21
IC PQ09RF21
COIL
L2001
L2002
L2003
L2005
L2006
1-469-320-21
1-469-320-21
1-469-317-21
1-469-320-21
1-469-320-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
100µH
100µH
10µH
100µH
100µH
L2007
L3101
L3102
L3103
L4401
1-469-317-21
1-469-317-21
1-469-317-21
1-469-317-21
1-414-185-41
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
10µH
10µH
22µH
L6001
L6002
L6003
L6004
L6005
1-469-317-21
1-406-665-11
1-406-659-11
1-406-661-11
1-412-525-31
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
100µH
10µH
22µH
10µH
PHOTO COUPLER
ON3171-R
PHOTO COUPLER
PH6001
8-749-924-35
TRANSISTOR
Q2001
Q2002
Q2003
Q2004
8-729-422-27
8-729-424-02
8-729-422-27
8-729-424-02
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
PART NO.
DESCRIPTION
VALUES
Q2005
Q2006
Q2050
Q2053
Q3101
8-729-422-27
8-729-027-23
8-729-424-02
8-729-424-02
8-729-122-63
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR DTA114EKA-T146
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SA1226-T1E4
Q3102
Q3103
Q3105
Q3106
Q3107
8-729-122-63
8-729-422-27
8-729-424-02
8-729-422-27
8-729-122-63
TRANSISTOR 2SA1226-T1E4
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SA1226-T1E4
Q3108
Q3110
Q3111
Q3112
Q3170
8-729-122-63
8-729-422-27
1-801-806-11
8-729-422-27
8-729-422-27
TRANSISTOR 2SA1226-T1E4
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR DTC144EKA-T146
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q3171
Q3172
Q3173
Q3180
Q3181
8-729-901-47
8-729-901-47
8-729-422-27
8-729-424-02
8-729-424-02
TRANSISTOR DTA143EKA-T146
TRANSISTOR DTA143EKA-T146
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
Q4401
Q4402
Q4403
Q4404
Q4405
8-729-422-27
8-729-422-27
8-729-422-27
8-729-900-53
8-729-900-53
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR DTC114EKA-T146
TRANSISTOR DTC114EKA-T146
Q4406
Q4407
Q4408
Q4409
Q4410
8-729-900-53
8-729-900-53
8-729-900-53
8-729-900-53
8-729-900-53
TRANSISTOR DTC114EKA-T146
TRANSISTOR DTC114EKA-T146
TRANSISTOR DTC114EKA-T146
TRANSISTOR DTC114EKA-T146
TRANSISTOR DTC114EKA-T146
Q4411
Q6001
Q6002
Q6003
Q6004
8-729-900-53
8-729-052-29
8-729-052-29
8-729-424-02
8-729-422-27
TRANSISTOR DTC114EKA-T146
TRANSISTOR 2SK2876-01MR-F122
TRANSISTOR 2SK2876-01MR-F122
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q6005
Q6006
Q6007
Q6008
Q6009
8-729-424-02
8-729-424-02
8-729-424-02
8-729-422-27
8-729-422-27
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q6010
Q6011
Q6012
Q6013
8-729-900-53
8-729-900-53
8-729-424-02
8-729-422-27
TRANSISTOR DTC114EKA-T146
TRANSISTOR DTC114EKA-T146
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
RESISTOR
R2001
R2002
— 133 —
1-216-864-11
1-216-805-11
SHORT
RES-CHIP
47
5%
1/16W
KD-34XBR2
A
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
R2003
R2004
R2005
R2006
R2007
1-216-805-11
1-216-837-11
1-216-839-11
1-218-688-11
1-218-686-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
47
22K
33K
680
560
5%
5%
5%
0.50%
0.50%
R2008
R2009
R2010
R2011
R2012
1-216-809-11
1-216-829-11
1-216-833-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
4.7K
10K
10K
10K
R2013
R2014
R2015
R2016
R2017
1-216-833-11
1-216-857-11
1-216-845-11
1-216-825-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
R2018
R2019
R2020
R2021
R2022
1-216-809-11
1-216-809-11
1-216-833-11
1-216-829-11
1-216-864-11
R2023
R2024
R2025
R2026
R2027
DESCRIPTION
1/16W
1/16W
1/16W
1/16W
1/16W
R3109
R3110
R3111
R3112
R3113
1-216-864-11
1-216-809-11
1-216-864-11
1-216-833-11
1-216-845-11
SHORT
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R3114
R3115
R3116
R3117
R3118
1-249-412-11
1-216-825-11
1-216-825-11
1-216-829-11
1-216-845-11
10K
1M
100K
2.2K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R3120
R3121
R3122
R3125
R3131
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
100
100
10K
4.7K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1-216-833-11
1-216-839-11
1-216-833-11
1-216-837-11
1-216-857-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
33K
10K
22K
1M
5%
5%
5%
5%
5%
R2028
R2029
R2030
R2031
R2032
1-216-845-11
1-218-688-11
1-218-686-11
1-216-825-11
1-216-809-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
100K
680
560
2.2K
100
R2033
R2034
R2036
R2037
R2038
1-216-833-11
1-216-833-11
1-216-857-11
1-216-829-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
1M
4.7K
10K
R2051
R2053
R2054
R2055
R2058
1-216-864-11
1-216-864-11
1-216-833-11
1-216-829-11
1-216-829-11
SHORT
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
10K
4.7K
4.7K
R2059
R2062
R3101
R3104
R3106
1-216-821-11
1-216-829-11
1-216-815-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
R3107
R3108
1-216-809-11
1-249-412-11
RES-CHIP
CARBON
VALUES
100
5%
1/16W
10K
100K
5%
5%
1/16W
1/16W
CARBON
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
390
2.2K
2.2K
4.7K
100K
5%
5%
5%
5%
5%
1/4W
1/16W
1/16W
1/16W
1/16W
1-216-809-11
1-249-412-11
1-216-809-11
1-216-833-11
1-216-809-11
RES-CHIP
CARBON
RES-CHIP
RES-CHIP
RES-CHIP
100
390
100
10K
100
5%
5%
5%
5%
5%
1/16W
1/4W
1/16W
1/16W
1/16W
R3135
R3137
R3139
R3140
R3141
1-216-829-11
1-216-863-11
1-216-827-11
1-216-826-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
3.3M
3.3K
2.7K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
R3143
R3144
R3145
R3146
R3150
1-216-834-11
1-216-833-11
1-216-809-11
1-216-833-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
12K
10K
100
10K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
5%
0.50%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R3151
R3152
R3153
R3154
R3155
1-216-845-11
1-218-708-11
1-216-809-11
1-216-818-11
1-216-817-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100K
4.7K
100
560
470
5%
0.50%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R3157
R3158
R3159
R3160
R3161
1-216-805-11
1-216-828-11
1-216-805-11
1-216-805-11
1-218-716-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
47
3.9K
47
47
10K
5%
5%
5%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
5%
5%
5%
1/16W
1/16W
1/16W
R3162
R3164
R3165
R3167
R3168
1-216-809-11
1-216-832-11
1-216-825-11
1-218-662-11
1-218-662-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
100
8.2K
2.2K
56
56
5%
5%
5%
0.50%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
1K
4.7K
330
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R3169
R3170
R3171
R3172
R3173
1-218-662-11
1-216-833-11
1-216-837-11
1-216-837-11
1-216-837-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
56
10K
22K
22K
22K
0.50%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
100
390
5%
5%
1/16W
1/4W
R3174
R3175
1-216-837-11
1-216-833-11
RES-CHIP
RES-CHIP
22K
10K
5%
5%
1/16W
1/16W
— 134 —
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
A
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
R3176
R3177
R3178
R3180
R3181
1-216-813-11
1-216-821-11
1-216-821-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220
1K
1K
1K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4494
R6001
R6002
R6003
R6004
1-249-429-11
1-215-481-00
1-220-926-11
1-215-481-00
1-215-481-00
CARBON
METAL
FUSIBLE
METAL
METAL
10K
330K
0.47
330K
330K
5%
1%
10%
1%
1%
1/4W
1/4W
1/2W
1/4W
1/4W
R3182
R3183
R3184
R4422
R4423
1-216-827-11
1-216-827-11
1-216-809-11
1-216-853-11
1-216-853-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
3.3K
3.3K
100
470K
470K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R6005
R6006
R6008
R6009
R6010
1-216-627-11
1-216-675-91
1-216-679-11
1-216-615-91
1-249-417-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
CARBON
100
10K
15K
33
1K
0.50%
0.50%
0.50%
0.50%
5%
1/10W
1/10W
1/10W
1/10W
1/4W
R4424
R4425
R4427
R4428
R4429
1-216-821-11
1-216-821-11
1-216-837-11
1-216-825-11
1-216-825-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
1K
22K
2.2K
2.2K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R6011
R6012
R6014
R6015
R6017
1-249-393-11
1-249-393-11
1-216-073-91
1-216-073-91
1-215-907-11
CARBON
CARBON
RES-CHIP
RES-CHIP
METAL OXIDE
10
10
10K
10K
22
5%
5%
5%
5%
5%
1/4W
1/4W
1/10W
1/10W
3W
R4431
R4433
R4436
R4446
R4447
1-216-845-11
1-216-864-11
1-216-833-11
1-216-825-11
1-216-825-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
100K
5%
1/16W
10K
2.2K
2.2K
5%
5%
5%
1/16W
1/16W
1/16W
R6018
R6019
R6020
R6021
R6022
1-216-363-00
1-216-363-00
1-249-393-11
1-216-295-91
1-216-041-00
METAL OXIDE
METAL OXIDE
CARBON
SHORT
RES-CHIP
0.33
0.33
10
5%
5%
5%
2W
2W
1/4W
470
5%
1/10W
R4454
R4455
R4456
R4457
R4470
1-216-821-11
1-216-837-11
1-216-833-11
1-216-833-11
1-216-825-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
22K
10K
10K
2.2K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R6023
R6024
R6025
R6026
R6027
1-249-393-11
1-216-833-11
1-216-851-11
1-216-851-11
1-216-033-00
CARBON
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10
10K
330K
330K
220
5%
5%
5%
5%
5%
1/4W
1/16W
1/16W
1/16W
1/10W
R4471
R4472
R4473
R4475
R4476
1-216-825-11
1-216-833-11
1-216-825-11
1-216-864-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
2.2K
10K
2.2K
5%
5%
5%
1/16W
1/16W
1/16W
10K
5%
1/16W
R6028
R6029
R6030
R6031
R6032
1-216-821-11
1-249-381-11
1-216-821-11
1-216-833-11
1-216-833-11
RES-CHIP
CARBON
RES-CHIP
RES-CHIP
RES-CHIP
1K
1
1K
10K
10K
5%
5%
5%
5%
5%
1/16W
1/4W
1/16W
1/16W
1/16W
R4477
R4478
R4479
R4480
R4481
1-216-825-11
1-216-864-11
1-216-864-11
1-216-835-11
1-216-864-11
RES-CHIP
SHORT
SHORT
RES-CHIP
SHORT
2.2K
5%
1/16W
15K
5%
1/16W
R6033
R6034
R6035
R6036
R6037
1-216-821-11
1-216-829-11
1-216-833-11
1-216-833-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
4.7K
10K
10K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4482
R4483
R4484
R4485
R4486
1-216-835-11
1-216-829-11
1-216-829-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
15K
4.7K
4.7K
1K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R6038
! R6039
R6040
R6041
R6042
1-216-049-11
1-219-718-11
1-218-708-11
1-218-713-11
1-216-829-11
RES-CHIP
CEMENTED
METAL CHIP
METAL CHIP
RES-CHIP
1K
0.1
4.7K
7.5K
4.7K
5%
10%
0.50%
0.50%
5%
1/10W
5W
1/16W
1/16W
1/16W
R4487
R4488
R4489
R4490
R4491
1-249-385-11
1-249-385-11
1-249-385-11
1-249-385-11
1-249-429-11
CARBON
CARBON
CARBON
CARBON
CARBON
2.2
2.2
2.2
2.2
10K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
! R6043
R6045
R6046
R6048
R6049
1-219-718-11
1-216-849-11
1-216-821-11
1-249-417-11
1-218-684-11
CEMENTED
RES-CHIP
RES-CHIP
CARBON
METAL CHIP
0.1
220K
1K
1K
470
10%
5%
5%
5%
0.50%
5W
1/16W
1/16W
1/4W
1/16W
R4492
R4493
1-249-429-11
1-249-429-11
CARBON
CARBON
10K
10K
5%
5%
1/4W
1/4W
R6050
R6052
1-218-696-11
1-216-833-11
METAL CHIP
RES-CHIP
1.5K
10K
0.50% 1/16W
5%
1/16W
— 135 —
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
VALUES
R6053
! R6054
R6055
R6056
R6057
1-216-821-11
1-216-341-11
1-216-825-11
1-216-821-11
1-216-821-11
RES-CHIP
METAL OXIDE
RES-CHIP
RES-CHIP
RES-CHIP
1K
0.22
2.2K
1K
1K
5%
5%
5%
5%
5%
1/16W
1W
1/16W
1/16W
1/16W
R6058
R6059
R6060
R6061
R6062
1-216-833-11
1-216-825-11
1-216-821-11
1-216-821-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
2.2K
1K
1K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R6063
R6064
R6065
R6066
! R6067
1-216-829-11
1-216-833-11
1-216-821-11
1-218-732-11
1-216-363-00
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL OXIDE
4.7K
10K
1K
47K
0.33
5%
5%
5%
0.50%
5%
1/16W
1/16W
1/16W
1/16W
2W
R6068
R6069
R6070
R6071
R6072
1-216-821-11
1-216-827-11
1-216-825-11
1-216-833-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
3.3K
2.2K
10K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R6073
R6074
1-249-421-11
1-249-437-11
CARBON
CARBON
2.2K
47K
5%
5%
1/4W
1/4W
TRANSFORMER
T6002
1-435-577-11
TRANSFORMER, CONVERTER (PIT)
REF.NO.
PART NO.
C9014
C9015
C9018
C9019
C9020
C9021
1-161-830-00
1-163-104-00
1-107-961-91
1-164-004-11
1-107-961-91
1-107-961-91
CERAMIC
CERAMIC CHIP
ELECT
CERAMIC CHIP
ELECT
ELECT
.0047µF
30pF
10µF
0.1µF
10µF
10µF
C9022
C9023
C9024
C9025
C9026
1-101-004-00
1-101-004-00
1-164-004-11
1-104-653-11
1-164-004-11
CERAMIC
CERAMIC
CERAMIC CHIP
ELECT
CERAMIC CHIP
C9027
C9031
C9032
C9033
C9035
1-101-004-00
1-162-116-00
1-162-116-00
1-107-662-11
1-126-933-11
C9036
C9037
C9038
C9042
C9044
C9045
C9046
C9047
C9048
C9049
C9050
TUNER
TU2001
TU2002
8-598-542-20
8-598-542-20
C
*
1-760-895-21
DESCRIPTION
5%
20%
10%
20%
20%
500V
50V
250V
25V
250V
250V
0.01µF
0.01µF
0.1µF
220µF
0.1µF
10%
20%
10%
50V
50V
25V
16V
25V
CERAMIC
CERAMIC
CERAMIC
ELECT
ELECT
0.01µF
680pF
680pF
22µF
100µF
10%
10%
20%
20%
50V
2KV
2KV
250V
16V
1-126-964-11
1-126-961-11
1-126-963-11
1-126-940-11
1-126-934-11
ELECT
ELECT
ELECT
ELECT
ELECT
10µF
2.2µF
4.7µF
330µF
220µF
20%
20%
20%
20%
20%
50V
50V
50V
25V
16V
1-164-004-11
1-126-933-11
1-163-021-91
1-164-004-11
1-164-004-11
1-164-004-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
100µF
0.01µF
0.1µF
0.1µF
0.1µF
10%
20%
10%
10%
10%
10%
25V
16V
50V
25V
25V
25V
*
*
CN9001
CN9002
CN9003
CN9004
1-764-333-11
1-766-242-11
1-695-915-11
1-695-915-11
PLUG,CONNECTOR
PIN,CONNECTOR (PC BOARD)
TAB (CONTACT)
TAB (CONTACT)
VIBRATOR, CERAMIC
DIODE
A-1332-184-A
C BOARD, MOUNTED
4-382-854-11
SCREW (M3X10), P, SW (+)
VALUES
CONNECTOR
TUNER, FSS BTF-WA412
TUNER, FSS BTF-WA412
CRYSTAL
X3101
AC
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
CAPACITOR
C9001
C9004
C9009
C9010
C9011
1-126-940-11
1-162-114-00
1-163-104-00
1-163-104-00
1-161-830-00
ELECT
CERAMIC
CERAMIC CHIP
CERAMIC CHIP
CERAMIC
330µF
20%
.0047µF
30pF
5%
30pF
5%
.0047µF
25V
2KV
50V
50V
500V
C9012
C9013
1-161-830-00
1-163-035-00
CERAMIC
CERAMIC CHIP
.0047µF
0.047µF
500V
50V
— 136 —
D9001
D9003
D9005
D9006
D9007
8-719-911-19
8-719-911-19
8-719-404-50
8-719-051-85
8-719-051-85
DIODE 1SS119-25TD
DIODE 1SS119-25TD
DIODE MA111-TX
DIODE HSS83TD
DIODE HSS83TD
D9008
D9009
D9010
D9013
D9014
8-719-051-85
8-719-908-03
8-719-110-17
8-719-911-19
8-719-911-19
DIODE HSS83TD
DIODE GP08DPKG23
DIODE MTZJ-T-77-10
DIODE 1SS119-25TD
DIODE 1SS119-25TD
D9015
D9016
D9017
8-719-911-19
8-719-911-19
8-719-911-19
DIODE 1SS119-25TD
DIODE 1SS119-25TD
DIODE 1SS119-25TD
10P
4P
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
R9019
R9020
R9021
R9022
R9023
1-216-633-11
1-216-025-11
1-216-103-00
1-216-073-91
1-216-103-00
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
180
100
180K
10K
180K
0.50%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R9025
R9026
R9027
R9028
R9029
1-216-025-11
1-216-652-11
1-216-103-00
1-216-103-00
1-216-073-91
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
1.1K
180K
180K
10K
5%
0.50%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R9030
R9031
R9032
R9033
R9034
1-216-073-91
1-216-652-11
1-216-103-00
1-215-435-00
1-215-428-00
RES-CHIP
METAL CHIP
RES-CHIP
METAL
METAL
10K
1.1K
180K
3.9K
2K
5%
0.50%
5%
1%
1%
1/10W
1/10W
1/10W
1/4W
1/4W
GAP, DISCHARGE
R9035
R9036
R9037
R9039
R9041
1-216-103-00
1-216-083-00
1-215-926-00
1-216-025-11
1-216-083-00
RES-CHIP
RES-CHIP
METAL OXIDE
RES-CHIP
RES-CHIP
180K
27K
33K
100
27K
5%
5%
5%
5%
5%
1/10W
1/10W
3W
1/10W
1/10W
IC
IC9001
IC9002
IC9003
8-759-680-01
8-759-680-01
8-759-680-01
IC TDA6120Q/N2/S1
IC TDA6120Q/N2/S1
IC TDA6120Q/N2/S1
JACK
! J9001
1-451-470-21
SOCKET, CRT
COIL
L9002
L9003
L9004
L9005
L9006
1-408-399-00
1-408-592-11
1-408-592-11
1-406-666-21
1-412-526-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
1.5µH
1.2µH
1.2µH
150µH
12µH
NEON LAMP
NL9003
1-519-421-11
C
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
TRANSISTOR
DESCRIPTION
VALUES
Q9001
Q9002
Q9003
Q9004
Q9005
8-729-424-02
8-729-423-33
8-729-422-33
8-729-422-33
8-729-422-33
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SC3311A-QRSTA
TRANSISTOR 2PD601AR-115
TRANSISTOR 2PD601AR-115
TRANSISTOR 2PD601AR-115
R9042
R9043
R9044
R9047
R9048
1-216-083-00
1-215-926-00
1-215-926-00
1-202-557-00
1-216-049-11
RES-CHIP
METAL OXIDE
METAL OXIDE
SOLID
RES-CHIP
27K
33K
33K
220
1K
5%
5%
5%
20%
5%
1/10W
3W
3W
1/2W
1/10W
Q9007
Q9008
Q9009
Q9010
Q9011
8-729-141-73
8-729-423-33
8-729-424-02
8-729-424-02
8-729-424-02
TRANSISTOR 2SC3624A-T1L15L16
TRANSISTOR 2SC3311A-QRSTA
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
R9049
R9051
R9052
R9055
R9056
1-216-049-11
1-202-557-00
1-202-557-00
1-260-126-81
1-202-549-00
RES-CHIP
SOLID
SOLID
CARBON
SOLID
1K
220
220
180K
100
5%
20%
20%
5%
20%
1/10W
1/2W
1/2W
1/2W
1/2W
Q9012
Q9013
Q9014
Q9015
8-729-423-33
8-729-141-73
8-729-823-81
8-729-141-73
TRANSISTOR 2SC3311A-QRSTA
TRANSISTOR 2SC3624A-T1L15L16
TRANSISTOR 2SC4632LS-CB7
TRANSISTOR 2SC3624A-T1L15L16
R9057
R9059
R9061
R9062
R9063
1-202-847-00
1-202-818-00
1-202-549-00
1-260-123-11
1-260-123-11
SOLID
SOLID
SOLID
CARBON
CARBON
560K
1K
100
100K
100K
20%
20%
20%
5%
5%
1/2W
1/2W
1/2W
1/2W
1/2W
R9064
R9067
R9070
R9071
R9072
1-260-126-81
1-219-769-11
1-247-807-31
1-247-807-31
1-247-807-31
CARBON
CARBON
CARBON
CARBON
CARBON
180K
3.3M
100
100
100
5%
5%
5%
5%
5%
1/2W
1/2W
1/4W
1/4W
1/4W
R9073
R9076
R9077
R9078
R9079
1-216-049-11
1-219-769-11
1-249-417-11
1-249-427-11
1-249-426-11
RES-CHIP
CARBON
CARBON
CARBON
CARBON
1K
3.3M
1K
6.8K
5.6K
5%
5%
5%
5%
5%
1/10W
1/2W
1/4W
1/4W
1/4W
R9081
R9083
1-247-843-11
1-249-436-11
CARBON
CARBON
3.3K
39K
5%
5%
1/4W
1/4W
RESISTOR
R9001
R9004
R9005
R9006
R9007
1-216-633-11
1-249-428-11
1-249-421-11
1-249-429-11
1-216-652-11
METAL CHIP
CARBON
CARBON
CARBON
METAL CHIP
180
8.2K
2.2K
10K
1.1K
0.50%
5%
5%
5%
0.50%
1/10W
1/4W
1/4W
1/4W
1/10W
R9009
R9010
R9013
R9014
R9015
1-249-429-11
1-249-429-11
1-216-049-11
1-249-409-11
1-249-409-11
CARBON
CARBON
RES-CHIP
CARBON
CARBON
10K
10K
1K
220
220
5%
5%
5%
5%
5%
1/4W
1/4W
1/10W
1/4W
1/4W
R9016
R9018
1-249-409-11
1-216-633-11
CARBON
METAL CHIP
220
180
5%
1/4W
0.50% 1/10W
— 137 —
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
R9084
R9085
R9089
R9091
R9092
1-260-126-81
1-260-126-81
1-215-442-00
1-215-429-00
1-216-295-91
CARBON
CARBON
METAL
METAL
SHORT
R9094
R9095
1-216-295-91
1-216-295-91
SHORT
SHORT
VALUES
180K
180K
7.5K
2.2K
REF.NO.
5%
5%
1%
1%
1/2W
1/2W
1/4W
1/4W
VARIABLE RESISTOR
! RV9001
RV9002
D
*
1-241-714-11
1-241-788-11
A-1348-066-A
RES, ADJ, METAL FILM 110M
RES, ADJ, CARBON
100K
D BOARD, COMPLETE
The high voltage leads associated with the FBT on this board are not
included and must be ordered separately. Order the following leads
when requesting this board.
!
!
1-251-715-12
1-900-805-19
CAP ASSY, HIGH-VOLTAGE
WIRE ASSY, FOCUS HV
4-047-285-01
4-382-854-01
4-382-854-21
SHEET, INSULATING
SCREW (M3X8), P, SW (+)
SCREW (M3X14), P, SW (+)
SILICONE
*
A5004
7-322-065-48
CD
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
RUBBER, SILICONE RTV (KE-3490)
CAPACITOR
C5001
C5002
C5004
C5005
C5006
1-164-161-11
1-106-383-00
1-106-383-00
1-126-235-11
1-126-964-11
CERAMIC CHIP
MYLAR
MYLAR
ELECT
ELECT
0.0022µF
0.047µF
0.047µF
100µF
10µF
10%
10%
10%
20%
20%
50V
200V
200V
6.3V
50V
C5007
C5008
C5009
C5011
C5012
1-126-941-11
1-126-940-11
1-126-941-11
1-107-641-11
1-163-017-00
ELECT
ELECT
ELECT
ELECT
CERAMIC CHIP
470µF
330µF
470µF
220µF
.0047µF
20%
20%
20%
20%
10%
25V
25V
25V
160V
50V
C5013
C5015
C5016
C5017
C5018
1-164-161-11
1-107-884-11
1-136-171-00
1-115-185-11
1-163-021-91
CERAMIC CHIP
ELECT
FILM
CERAMIC CHIP
CERAMIC CHIP
0.0022µF
1000µF
0.33µF
0.033µF
0.01µF
10%
20%
5%
10%
10%
50V
16V
50V
50V
50V
C5019
C5020
C5021
1-126-968-11
1-126-767-11
1-163-133-00
ELECT
ELECT
CERAMIC CHIP
100µF
1000µF
470pF
20%
20%
5%
50V
16V
50V
— 138 —
PART NO.
DESCRIPTION
VALUES
C5022
C5023
C5024
C5025
C5026
1-137-368-11
1-163-021-91
1-102-038-00
1-130-471-00
1-107-655-11
MYLAR
CERAMIC CHIP
CERAMIC
MYLAR
ELECT
.0047µF
0.01µF
0.001µF
0.001µF
47µF
5%
20%
50V
50V
500V
50V
250V
C5027
C5028
C5030
C5031
C5032
1-126-963-11
1-126-963-11
1-136-153-00
1-163-011-11
1-104-760-11
ELECT
ELECT
FILM
CERAMIC CHIP
CERAMIC CHIP
4.7µF
4.7µF
0.01µF
0.0015µF
0.047µF
20%
20%
5%
10%
10%
50V
50V
50V
50V
50V
C5033
C5034
C5035
C5036
C5037
1-136-165-00
1-162-114-00
1-126-933-11
1-126-941-11
1-107-670-11
FILM
CERAMIC
ELECT
ELECT
ELECT
0.1µF
.0047µF
100µF
470µF
10µF
5%
50V
2KV
16V
25V
400V
C5038
C5040
C5041
C5043
C5044
1-126-947-11
1-126-935-11
1-126-935-11
1-126-767-11
1-165-319-11
ELECT
ELECT
ELECT
ELECT
CERAMIC CHIP
47µF
470µF
470µF
1000µF
0.1µF
20%
20%
20%
20%
16V
16V
16V
16V
50V
C5045
C5046
C5047
C5049
C5050
1-165-319-11
1-163-025-11
1-163-025-11
1-163-009-91
1-163-021-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.001µF
0.001µF
0.001µF 10%
0.01µF 10%
50V
50V
50V
50V
50V
C5051
C5052
C5053
C5056
C5057
1-115-339-11
1-115-339-11
1-107-372-11
1-162-318-11
1-162-134-11
CERAMIC CHIP
CERAMIC CHIP
MYLAR
CERAMIC
CERAMIC
0.1µF
0.1µF
0.22µF
0.001µF
470pF
10%
10%
10%
10%
10%
50V
50V
200V
500V
2KV
C5058
C5059
C5060
C5061
C5063
1-162-116-00
1-162-116-00
1-137-417-11
1-117-838-11
1-117-838-11
CERAMIC
CERAMIC
MYLAR
FILM
FILM
680pF
680pF
.0047µF
8200pF
8200pF
10%
10%
10%
3%
3%
2KV
2KV
200V
1.5KV
1.5KV
C5064
C5065
C5066
C5069
C5070
1-117-668-31
1-109-837-11
1-109-921-11
1-115-339-11
1-115-339-11
FILM
FILM
CERAMIC
CERAMIC CHIP
CERAMIC CHIP
0.56µF
0.56µF
0.0015µF
0.1µF
0.1µF
5%
5%
10%
10%
10%
250V
400V
500V
50V
50V
C5071
C5072
C5073
C5075
C5076
1-115-339-11
1-163-021-91
1-164-161-11
1-115-339-11
1-115-339-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.01µF
0.0022µF
0.1µF
0.1µF
10%
10%
10%
10%
10%
50V
50V
50V
50V
50V
C5077
C5079
C5080
1-115-339-11
1-163-021-91
1-137-372-11
CERAMIC CHIP
CERAMIC CHIP
MYLAR
0.1µF
10%
0.01µF 10%
0.022µF 5%
50V
50V
50V
5%
10%
20%
20%
20%
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
D
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
C5081
C5102
C5501
C5502
C5503
1-137-372-11
1-107-888-11
1-107-888-11
1-126-941-11
1-104-665-11
MYLAR
ELECT
ELECT
ELECT
ELECT
0.022µF
47µF
47µF
470µF
100µF
5%
20%
20%
20%
20%
50V
25V
25V
25V
25V
C5623
C5625
C5628
C6503
C6504
1-126-933-11
1-163-251-11
1-126-933-11
1-131-940-11
1-163-021-91
ELECT
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
100µF
100pF
100µF
1200µF
0.01µF
20%
5%
20%
20%
10%
16V
50V
16V
250V
50V
C5504
C5505
C5506
C5507
C5508
1-126-947-11
1-126-964-11
1-126-963-11
1-163-141-00
1-163-031-91
ELECT
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
47µF
10µF
4.7µF
0.001µF
0.01µF
20%
20%
20%
5%
16V
50V
50V
50V
50V
C6505
C6506
C6507
C6508
C6510
1-165-127-11
1-165-127-11
1-126-967-11
1-126-947-11
1-130-495-00
CERAMIC
CERAMIC
ELECT
ELECT
MYLAR
470pF
470pF
47µF
47µF
0.1µF
10%
10%
20%
20%
5%
500V
500V
50V
25V
50V
C5509
C5511
C5514
C5518
C5519
1-163-263-11
1-126-933-11
1-163-021-91
1-129-709-61
1-104-760-11
CERAMIC CHIP
ELECT
CERAMIC CHIP
FILM
CERAMIC CHIP
330pF
100µF
0.01µF
0.0039µF
0.047µF
5%
20%
10%
5%
10%
50V
16V
50V
630V
50V
C6511
C6516
C6517
C6518
C6519
1-163-021-91
1-163-009-91
1-126-963-11
1-136-479-11
1-126-964-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
FILM
ELECT
0.01µF
0.001µF
4.7µF
0.001µF
10µF
10%
10%
20%
2%
20%
50V
50V
50V
50V
50V
C5522
C5531
C5533
C5542
C5548
1-163-275-11
1-136-165-00
1-137-366-11
1-164-182-11
1-137-194-81
CERAMIC CHIP
FILM
MYLAR
CERAMIC CHIP
FILM
0.001µF
0.1µF
0.0022µF
0.0033µF
0.47µF
5%
5%
5%
10%
5%
50V
50V
50V
50V
50V
C6525
C6526
C6532
C6544
C6545
1-164-143-11
1-164-143-11
1-135-998-21
1-107-855-12
1-126-943-11
CERAMIC
CERAMIC
FILM
ELECT(BLOCK)
ELECT
0.001µF
0.001µF
56000pF
330µF
2200µF
10%
10%
3%
20%
1KV
1KV
800V
160V
25V
C5550
C5576
C5577
C5587
C5588
1-129-716-00
1-104-666-11
1-104-666-11
1-104-760-11
1-136-153-00
FILM
ELECT
ELECT
CERAMIC CHIP
FILM
0.015µF
220µF
220µF
0.047µF
0.01µF
5%
20%
20%
10%
5%
200V
25V
25V
50V
50V
C6546
C6547
C6548
C6551
C6561
1-128-548-11
1-113-610-11
1-128-549-11
1-163-037-11
1-126-960-11
ELECT
ELECT(BLOCK)
ELECT
CERAMIC CHIP
ELECT
4700µF
220µF
3300µF
0.022µF
1µF
20%
20%
20%
10%
20%
25V
250V
35V
50V
50V
C5590
C5592
C5594
C5596
C5598
1-163-263-11
1-115-339-11
1-136-165-00
1-126-960-11
1-126-947-11
CERAMIC CHIP
CERAMIC CHIP
FILM
ELECT
ELECT
330pF
0.1µF
0.1µF
1µF
47µF
5%
10%
5%
20%
20%
50V
50V
50V
50V
16V
! C6584
! C6585
C6586
C6587
C6588
1-136-344-11
1-119-899-51
1-113-924-11
1-113-924-11
1-113-924-11
MYLAR
CERAMIC
CERAMIC
CERAMIC
CERAMIC
0.047µF
1000pF
.0047µF
.0047µF
.0047µF
20%
10%
20%
20%
20%
125V
250V
125V
125V
125V
C5600
C5601
C5602
C5603
C5605
1-126-947-11
1-136-165-00
1-126-947-11
1-163-017-00
1-136-177-00
ELECT
FILM
ELECT
CERAMIC CHIP
FILM
47µF
0.1µF
47µF
.0047µF
1µF
20%
5%
20%
10%
5%
16V
50V
16V
50V
50V
C6589
C6590
! C6591
C6594
C6595
1-113-924-11
1-131-940-11
1-119-899-51
1-164-004-11
1-104-665-11
CERAMIC
ELECT
CERAMIC
CERAMIC CHIP
ELECT
.0047µF
1200µF
1000pF
0.1µF
100µF
20%
20%
10%
10%
20%
125V
250V
250V
25V
25V
C5607
C5609
C5610
C5611
C5612
1-115-185-11
1-104-665-11
1-126-935-11
1-163-038-91
1-126-964-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
ELECT
0.033µF
100µF
470µF
0.1µF
10µF
10%
20%
20%
20%
50V
25V
16V
25V
50V
C6596
C8002
C8004
C8005
C8006
1-126-960-11
1-136-169-00
1-104-665-11
1-126-947-11
1-126-960-11
ELECT
FILM
ELECT
ELECT
ELECT
1µF
0.22µF
100µF
47µF
1µF
20%
5%
20%
20%
20%
50V
50V
10V
25V
50V
C5613
C5614
C5616
C5617
C5618
1-115-185-11
1-126-964-11
1-136-165-00
1-126-947-11
1-136-171-00
CERAMIC CHIP
ELECT
FILM
ELECT
FILM
0.033µF
10µF
0.1µF
47µF
0.33µF
10%
20%
5%
20%
5%
50V
50V
50V
16V
50V
C8007
C8009
C8011
C8012
C8013
1-137-150-11
1-126-964-11
1-126-961-11
1-126-966-11
1-126-964-11
MYLAR
ELECT
ELECT
ELECT
ELECT
0.01µF
10µF
2.2µF
33µF
10µF
5%
20%
20%
20%
20%
50V
50V
50V
50V
50V
C5619
C5621
1-163-127-00
1-136-165-00
CERAMIC CHIP
FILM
270pF
0.1µF
5%
5%
50V
50V
C8014
C8015
1-126-964-11
1-126-966-11
ELECT
ELECT
10µF
33µF
20%
20%
50V
50V
— 139 —
KD-34XBR2
D
REF.NO.
PART NO.
DESCRIPTION
VALUES
C8016
C8017
C8018
C8019
C8020
1-130-495-00
1-126-964-11
1-126-964-11
1-104-665-11
1-136-103-00
MYLAR
ELECT
ELECT
ELECT
FILM
0.1µF
10µF
10µF
100µF
0.1µF
5%
20%
20%
20%
5%
50V
50V
50V
10V
200V
C8021
C8022
C8023
C8024
C8025
1-137-150-11
1-126-933-11
1-113-611-11
1-126-967-11
1-126-947-11
MYLAR
ELECT
ELECT(BLOCK)
ELECT
ELECT
0.01µF
100µF
820µF
47µF
47µF
5%
20%
20%
20%
20%
50V
16V
250V
50V
25V
C8027
C8028
C8030
C8031
C8032
1-130-495-00
1-164-161-11
1-163-809-11
1-128-551-11
1-136-813-11
MYLAR
CERAMIC CHIP
CERAMIC CHIP
ELECT
FILM
0.1µF
0.0022µF
0.047µF
22µF
680pF
5%
10%
10%
20%
2%
50V
50V
25V
25V
50V
C8033
C8035
C8036
C8037
C8039
1-126-964-11
1-125-969-91
1-125-969-91
1-135-946-21
1-163-021-91
ELECT
CERAMIC
CERAMIC
FILM
CERAMIC CHIP
10µF
680pF
680pF
47000pF
0.01µF
20%
10%
10%
3%
10%
50V
1KV
1KV
800V
50V
C8040
C8041
C8042
C8045
C8046
1-126-969-11
1-137-194-81
1-136-103-00
1-130-471-00
1-107-444-11
ELECT
FILM
FILM
MYLAR
CERAMIC
220µF
0.47µF
0.1µF
0.001µF
100pF
20%
5%
5%
5%
10%
50V
50V
200V
50V
2KV
C8047
C8048
C8050
C8051
C8053
1-162-130-11
1-130-495-00
1-129-718-61
1-126-964-11
1-162-117-00
CERAMIC
MYLAR
FILM
ELECT
CERAMIC
180pF
0.1µF
0.022µF
10µF
100pF
10%
5%
5%
20%
10%
2KV
50V
630V
50V
500V
C8054
C8055
C8056
C8058
C8059
1-102-244-00
1-136-535-61
1-163-021-91
1-137-194-81
1-126-947-11
CERAMIC
FILM
CERAMIC CHIP
FILM
ELECT
220pF
0.0018µF
0.01µF
0.47µF
47µF
10%
5%
10%
5%
20%
500V
630V
50V
50V
10V
C8060
C8063
1-107-635-11
1-136-203-11
ELECT
MYLAR
4.7µF
0.01µF
20%
10%
160V
630V
*
*
*
*
*
CN5002
CN5003
CN5501
CN5503
CN5505
1-580-798-11
1-766-242-11
1-779-889-11
1-779-890-11
1-779-890-11
CONNECTOR PIN (DY)
PIN,CONNECTOR (PC BOARD)
CONNECTOR, BOARD TO BOARD
CONNECTOR, BOARD TO BOARD
CONNECTOR, BOARD TO BOARD
6P
4P
8P
10P
10P
*
*
*
CN5506
CN5509
CN5510
CN6501
1-573-979-21
1-564-515-11
1-564-506-11
1-766-176-11
CONNECTOR, BOARD TO BOARD
PLUG,CONNECTOR
PLUG,CONNECTOR
PIN,CONNECTOR (PC BOARD)
11P
12P
3P
6P
PART NO.
CN6502
CN6503
CN6504
CN6505
CN6506
1-766-240-11
1-564-511-11
1-779-889-11
1-779-889-11
1-779-889-11
DESCRIPTION
— 140 —
VALUES
PIN,CONNECTOR (PC BOARD)
PLUG,CONNECTOR
CONNECTOR, BOARD TO BOARD
CONNECTOR, BOARD TO BOARD
CONNECTOR, BOARD TO BOARD
DIODE
CONNECTOR
*
*
*
*
*
REF.NO.
D5001
D5002
D5003
D5004
D5005
8-719-109-85
8-719-908-03
8-719-920-67
8-719-083-82
8-719-404-50
DIODE MTZJ-T-77-5.1B
DIODE GP08DPKG23
DIODE ERC91-02E
DIODE UDZS-TE17-12B
DIODE MA111-TX
D5006
D5007
D5008
D5009
D5010
8-719-109-72
8-719-109-51
8-719-404-50
8-719-404-50
8-719-404-50
DIODE MTZJ-T-77-3.9B
DIODE RD2.0ES-T1B1
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
D5011
D5012
D5013
D5014
D5015
8-719-109-63
8-719-018-82
8-719-302-43
8-719-510-37
8-719-302-43
DIODE RD3.0ES-T1B2
DIODE RGP02-20EL-6394
DIODE RGP10GPKG23
DIODE D5LC20U
DIODE RGP10GPKG23
D5016
D5017
D5018
D5019
D5021
8-719-920-67
8-719-920-67
8-719-110-41
8-719-404-50
8-719-404-50
DIODE ERC91-02E
DIODE ERC91-02E
DIODE MTZJ-T-77-15B
DIODE MA111-TX
DIODE MA111-TX
D5023
D5026
D5027
D5028
D5029
8-719-061-21
8-719-404-50
8-719-404-50
8-719-404-50
8-719-404-50
DIODE PG124S15
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
D5031
D5032
D5501
D5502
D5503
8-719-977-28
8-719-404-50
8-719-404-50
8-719-404-50
8-719-404-50
DIODE UDZSTE-1710B
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
DIODE MA111-TX
D5505
D5506
D5507
D5513
D5514
8-719-800-76
8-719-404-50
8-719-800-76
8-719-991-33
8-719-063-70
DIODE MA153-TX
DIODE MA111-TX
DIODE MA153-TX
DIODE 1SS133T-77
DIODE D1NL20U-TA2
D5515
D5522
D5523
D6501
D6502
8-719-063-70
8-719-923-78
8-719-923-78
8-719-404-50
8-719-979-64
DIODE D1NL20U-TA2
DIODE MTZJ-T-77-12
DIODE MTZJ-T-77-12
DIODE MA111-TX
DIODE µF4005PKG23
2P
8P
8P
8P
8P
KD-34XBR2
D
REF.NO.
PART NO.
DESCRIPTION
D6507
D6508
D6509
D6510
D6513
1-216-295-91
8-719-982-27
8-719-068-00
8-719-068-00
8-719-500-71
SHORT
DIODE MTZJ-T-77-33C
DIODE ERC04-06SE
DIODE ERC04-06SE
DIODE D8LC40F
D6514
D6515
D6516
D6517
D6522
8-719-060-89
8-719-060-90
8-719-060-89
8-719-060-90
8-719-404-50
DIODE D4SBS6-F
DIODE S2L60F
DIODE D4SBS6-F
DIODE S2L60F
DIODE MA111-TX
D6530
D6532
D6533
D6534
D6537
8-719-022-99
8-719-948-45
8-719-404-50
8-719-052-90
8-719-404-50
DIODE D6SB60L
DIODE ERA22-08TP3
DIODE MA111-TX
DIODE D1NL40-TA2
DIODE MA111-TX
D8002
D8003
D8004
D8005
D8006
8-719-404-50
8-719-404-50
8-719-109-85
8-719-404-50
8-719-921-89
DIODE MA111-TX
DIODE MA111-TX
DIODE MTZJ-T-77-5.1B
DIODE MA111-TX
DIODE MTZJ-T-77-13C
D8007
D8009
D8010
D8013
D8014
8-719-404-50
8-719-404-50
8-719-052-90
8-719-063-70
8-719-302-43
DIODE MA111-TX
DIODE MA111-TX
DIODE D1NL40-TA2
DIODE D1NL20U-TA2
DIODE RGP10GPKG23
D8016
D8017
D8018
D8019
D8020
8-719-948-45
8-719-948-45
8-719-052-90
8-719-110-41
8-719-404-50
DIODE ERA22-08TP3
DIODE ERA22-08TP3
DIODE D1NL40-TA2
DIODE MTZJ-T-77-15B
DIODE MA111-TX
D8021
D8022
D8025
D8026
D8027
8-719-404-50
8-719-404-50
8-719-982-26
8-719-404-50
8-719-404-50
DIODE MA111-TX
DIODE MA111-TX
DIODE MTZJ-T-77-33B
DIODE MA111-TX
DIODE MA111-TX
D8028
D8050
D8051
8-719-991-33
8-719-923-86
8-719-923-86
DIODE 1SS133T-77
DIODE MTZJ-T-77-15
DIODE MTZJ-T-77-15
VALUES
REF.NO.
PART NO.
FB6509
FB8001
1-410-396-41
1-410-396-41
DESCRIPTION
FERRITE
FERRITE
IC
IC5001
IC5002
IC5003
IC5004
IC5005
8-759-701-01
8-759-700-07
8-759-518-68
8-759-192-71
8-759-803-42
IC NJM2904M(TE2)
IC NJM2903M-TE2
IC PQ12RF21
IC STV9379
IC LA6500-FA
IC5006
IC5007
IC5008
IC5501
IC5502
8-749-013-76
8-759-981-61
8-759-675-90
6-700-149-01
8-759-981-61
IC PQ6RD83B
IC NJM2901M-TE2
IC BA51W12ST-V5
IC M24C04-MN6T(A)
IC NJM2901M-TE2
IC5504
IC5506
IC5510
IC5511
IC5512
8-759-803-42
8-759-803-42
8-759-803-42
8-752-074-64
8-759-929-65
IC LA6500-FA
IC LA6500-FA
IC LA6500-FA
IC CXA2026AS
IC NJM79M12FA
IC5513
IC5514
IC5515
IC6501
IC6503
8-759-595-52
8-759-803-42
8-749-016-08
8-759-670-30
8-749-012-13
IC CXA8070AP
IC LA6500-FA
IC STK390-910
IC MCZ3001D
IC DM-58
IC6505
IC8001
IC8002
IC8003
IC8004
8-749-921-86
8-759-981-61
8-759-670-30
8-759-198-31
8-759-701-01
IC SE-140N
IC NJM2901M-TE2
IC MCZ3001D
IC UPC1093J-1-T
IC NJM2904M(TE2)
CHIP CONDUCTOR
FERRITE BEAD
FB5001
FB5002
FB6501
FB6502
FB6504
1-410-397-21
1-543-298-11
1-410-397-21
1-410-396-41
1-410-397-21
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
1.1µH
0µH
1.1µH
0.45µH
1.1µH
FB6505
FB6506
FB6508
1-412-911-11
1-412-911-11
1-410-396-41
FERRITE
FERRITE
FERRITE
0µH
0µH
0.45µH
— 141 —
JR5006
JR5007
JR5010
JR5502
JR6501
1-216-295-91
1-216-295-91
1-216-295-91
1-216-295-91
1-216-295-91
SHORT
SHORT
SHORT
SHORT
SHORT
JR8001
JR8002
JR8003
JR8004
JR8005
1-216-295-91
1-216-295-91
1-216-295-91
1-216-295-91
1-216-295-91
SHORT
SHORT
SHORT
SHORT
SHORT
JR8006
JR8007
JR8050
JR8051
1-216-295-91
1-216-295-91
1-216-295-91
1-216-295-91
SHORT
SHORT
SHORT
SHORT
VALUES
0.45µH
0.45µH
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
VALUES
COIL
L5001
L5002
L5003
L5004
L5005
1-406-665-11
1-406-663-21
1-406-892-21
1-412-525-31
1-419-181-11
INDUCTOR
100µH
INDUCTOR
47µH
INDUCTOR
4MH
INDUCTOR
10µH
COIL, HORIZONTAL LINEARITY
L5504
L5505
L5601
L6503
L6504
1-406-989-21
1-406-989-21
1-408-612-31
1-412-525-31
1-412-525-31
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10MH
10MH
56µH
10µH
10µH
L6505
L8001
L8002
L8005
1-406-665-11
1-406-670-11
1-419-658-11
1-406-674-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
100µH
680µH
107µH
3.3MH
PHOTO COUPLER
PH6501
! PH6502
! PH6503
PH8001
8-749-924-35
8-749-924-35
8-749-924-35
8-749-924-35
PHOTO COUPLER
PHOTO COUPLER
PHOTO COUPLER
PHOTO COUPLER
ON3171-R
ON3171-R
ON3171-R
ON3171-R
IC LINK
! PS6501
! PS6502
1-576-390-91
1-576-390-91
D
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
LINK, IC
LINK, IC
TRANSISTOR
Q5001
Q5002
Q5003
Q5004
Q5005
8-729-422-27
8-729-424-02
8-729-015-28
8-729-019-57
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR IRFI9630G
TRANSISTOR 2SA1208S-TP
TRANSISTOR 2SD601A-QRS-TX
Q5006
Q5007
Q5008
Q5011
Q5012
8-729-422-27
8-729-424-02
8-729-424-02
8-729-422-27
8-729-119-80
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SC2688-LK
Q5013
Q5014
Q5015
Q5016
Q5017
8-729-424-02
8-729-422-27
8-729-119-80
8-729-119-80
8-729-119-80
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SC2688-LK
TRANSISTOR 2SC2688-LK
TRANSISTOR 2SC2688-LK
Q5018
Q5019
Q5020
Q5021
Q5022
8-729-422-27
8-729-422-27
8-729-424-02
8-729-422-27
8-729-424-02
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
— 142 —
REF.NO.
PART NO.
DESCRIPTION
VALUES
Q5023
Q5026
Q5027
Q5028
Q5030
8-729-422-27
8-729-422-27
8-729-424-02
8-729-322-27
8-729-052-71
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SK2182
TRANSISTOR 2SC3997S-SONY-RA
Q5031
Q5033
Q5034
Q5035
Q5036
8-729-053-24
8-729-424-02
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SK3262-01MR
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q5037
Q5501
Q5502
Q5503
Q5504
8-729-422-27
8-729-422-27
1-801-806-11
1-801-806-11
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR DTC144EKA-T146
TRANSISTOR DTC144EKA-T146
TRANSISTOR 2SD601A-QRS-TX
Q5505
Q5506
Q5507
Q5508
Q5509
1-801-806-11
8-729-422-27
8-729-931-45
8-729-422-27
8-729-424-02
TRANSISTOR DTC144EKA-T146
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR IRF614
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
Q6503
Q6506
Q6507
Q6520
Q6521
8-729-422-27
8-729-052-32
8-729-052-32
8-729-019-57
8-729-423-33
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR IRFIB7N50A-LF31
TRANSISTOR IRFIB7N50A-LF31
TRANSISTOR 2SA1208S-TP
TRANSISTOR 2SC3311A-QRSTA
Q6522
Q6524
Q6526
Q6527
Q6528
8-729-119-76
8-729-119-76
8-729-424-02
8-729-023-22
8-729-422-27
TRANSISTOR 2SA1309A-QRSTA
TRANSISTOR 2SA1309A-QRSTA
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD2114KT146
TRANSISTOR 2SD601A-QRS-TX
Q6529
Q6530
Q6531
Q6532
Q8001
8-729-422-27
8-729-424-02
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q8002
Q8003
Q8004
Q8007
Q8008
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q8009
Q8010
Q8013
Q8014
Q8015
8-729-200-17
8-729-422-27
8-729-044-42
8-729-044-42
8-729-119-80
TRANSISTOR 2SA1091O-TPE2
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR IRFI644G-LF36
TRANSISTOR IRFI644G-LF36
TRANSISTOR 2SC2688-LK
Q8016
Q8018
Q8019
8-729-045-65
8-729-043-95
1-801-806-11
TRANSISTOR 2SA1776TV2Q
TRANSISTOR 2SC3840K
TRANSISTOR DTC144EKA-T146
KD-34XBR2
D
REF.NO.
PART NO.
Q8020
Q8022
Q8023
8-729-422-27
8-729-424-02
8-729-422-27
DESCRIPTION
VALUES
REF.NO.
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
RESISTOR
PART NO.
DESCRIPTION
VALUES
R5050
R5051
R5052
R5053
R5054
1-216-057-00
1-249-414-11
1-214-796-00
1-215-890-11
1-216-057-00
RES-CHIP
CARBON
METAL
METAL OXIDE
RES-CHIP
2.2K
560
1.5
470
2.2K
5%
5%
1%
5%
5%
1/10W
1/4W
1/2W
2W
1/10W
R5001
R5002
R5003
R5004
R5005
1-216-001-00
1-216-033-00
1-216-073-91
1-216-099-00
1-216-033-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10
220
10K
120K
220
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5055
R5056
R5057
R5058
R5059
1-216-073-91
1-216-105-91
1-216-073-91
1-216-113-00
1-216-065-91
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
220K
10K
470K
4.7K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5007
R5008
R5009
R5011
R5012
1-216-099-00
1-216-073-91
1-216-099-00
1-216-099-00
1-208-814-91
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
120K
10K
120K
120K
22K
5%
5%
5%
5%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R5063
R5064
R5065
R5066
R5067
1-208-813-11
1-218-761-11
1-218-761-11
1-208-792-11
1-208-794-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
20K
240K
240K
2.7K
3.3K
0.50%
0.50%
0.50%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R5013
R5014
R5016
R5017
R5018
1-216-393-00
1-208-790-11
1-208-832-11
1-208-832-11
1-216-065-91
METAL OXIDE
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
2.2
2.2K
120K
120K
4.7K
5%
0.50%
0.50%
0.50%
5%
3W
1/10W
1/10W
1/10W
1/10W
R5068
R5069
R5070
R5071
R5072
1-216-105-91
1-216-113-00
1-216-113-00
1-208-810-11
1-208-810-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
220K
470K
470K
15K
15K
5%
5%
5%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R5019
R5020
R5021
R5022
R5023
1-249-429-11
1-208-800-11
1-208-826-11
1-216-685-11
1-216-065-91
CARBON
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
10K
5.6K
68K
27K
4.7K
5%
0.50%
0.50%
0.50%
5%
1/4W
1/10W
1/10W
1/10W
1/10W
R5073
R5074
R5075
R5076
R5077
1-208-830-11
1-208-830-11
1-208-830-11
1-208-830-11
1-216-685-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
100K
100K
100K
100K
27K
0.50%
0.50%
0.50%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R5024
R5025
R5026
R5027
R5028
1-216-089-91
1-208-800-11
1-216-049-11
1-208-826-11
1-208-822-11
RES-CHIP
METAL CHIP
RES-CHIP
METAL CHIP
METAL CHIP
47K
5.6K
1K
68K
47K
5%
0.50%
5%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R5078
R5079
R5080
R5081
R5082
1-208-830-11
1-208-810-11
1-216-065-91
1-208-830-11
1-208-806-11
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
METAL CHIP
100K
15K
4.7K
100K
10K
0.50%
0.50%
5%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R5029
R5030
R5031
R5033
R5036
1-208-798-11
1-216-295-91
1-208-782-11
1-216-049-11
1-216-085-91
METAL CHIP
SHORT
METAL CHIP
RES-CHIP
RES-CHIP
4.7K
0.50% 1/10W
1K
1K
33K
0.50% 1/10W
5%
1/10W
5%
1/10W
R5083
R5084
R5085
R5086
R5087
1-208-790-11
1-216-073-91
1-216-113-00
1-216-065-91
1-216-065-91
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
2.2K
10K
470K
4.7K
4.7K
0.50%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5037
R5038
R5039
R5040
R5041
1-216-057-00
1-216-075-00
1-216-065-91
1-216-089-91
1-249-383-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
CARBON
2.2K
12K
4.7K
47K
1.5
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/4W
R5088
R5089
R5090
R5091
R5092
1-216-049-11
1-216-372-11
1-216-372-11
1-249-389-11
1-216-049-11
RES-CHIP
METAL OXIDE
METAL OXIDE
CARBON
RES-CHIP
1K
1.8
1.8
4.7
1K
5%
5%
5%
5%
5%
1/10W
2W
2W
1/4W
1/10W
R5042
R5043
R5044
R5045
R5046
1-216-081-00
1-208-798-11
1-216-073-91
1-216-073-91
1-214-798-21
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
METAL
22K
4.7K
10K
10K
1.8
5%
0.50%
5%
5%
1%
1/10W
1/10W
1/10W
1/10W
1/2W
R5093
R5094
R5095
R5096
R5097
1-208-807-11
1-215-869-11
1-249-443-11
1-249-443-11
1-249-380-11
METAL CHIP
METAL OXIDE
CARBON
CARBON
CARBON
11K
1K
0.47
0.47
0.82
0.50%
5%
5%
5%
5%
1/10W
1W
1/4W
1/4W
1/4W
R5047
R5048
R5049
1-216-057-00
1-216-671-11
1-216-057-00
RES-CHIP
METAL CHIP
RES-CHIP
2.2K
6.8K
2.2K
5%
1/10W
0.50% 1/10W
5%
1/10W
R5098
R5101
R5102
1-249-379-11
1-208-798-11
1-208-782-11
CARBON
METAL CHIP
METAL CHIP
0.68
4.7K
1K
5%
1/4W
0.50% 1/10W
0.50% 1/10W
— 143 —
KD-34XBR2
D
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
R5103
R5104
R5105
R5106
R5107
1-208-790-11
1-216-073-91
1-216-089-91
1-216-065-91
1-249-401-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
CARBON
2.2K
10K
47K
4.7K
47
0.50%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/4W
R5152
R5153
R5154
R5155
R5156
1-216-073-91
1-216-073-91
1-216-073-91
1-216-081-00
1-216-089-91
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
10K
22K
47K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5108
R5109
R5110
R5111
R5112
1-208-819-11
1-208-808-11
1-249-401-11
1-216-065-91
1-216-033-00
METAL CHIP
METAL CHIP
CARBON
RES-CHIP
RES-CHIP
36K
12K
47
4.7K
220
0.50%
0.50%
5%
5%
5%
1/10W
1/10W
1/4W
1/10W
1/10W
R5157
R5158
R5159
R5160
R5161
1-216-089-91
1-216-065-91
1-216-025-11
1-216-025-11
1-216-057-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
4.7K
100
100
2.2K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5113
R5114
R5115
R5116
R5117
1-249-425-11
1-249-425-11
1-249-417-11
1-216-065-91
1-216-057-00
CARBON
CARBON
CARBON
RES-CHIP
RES-CHIP
4.7K
4.7K
1K
4.7K
2.2K
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/10W
1/10W
R5163
R5501
R5502
R5503
R5504
1-216-063-91
1-216-033-00
1-216-295-91
1-216-017-91
1-208-840-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
METAL CHIP
3.9K
220
5%
5%
1/10W
1/10W
47
270K
5%
1/10W
0.50% 1/10W
R5120
R5121
R5122
R5123
R5124
1-216-049-11
1-216-073-91
1-216-073-91
1-216-295-91
1-216-295-91
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
SHORT
1K
10K
10K
5%
5%
5%
1/10W
1/10W
1/10W
R5505
R5506
R5507
R5508
R5509
1-208-840-11
1-216-073-91
1-216-017-91
1-216-025-11
1-216-025-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
270K
10K
47
100
100
0.50%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5125
R5126
R5127
R5128
R5129
1-216-065-91
1-216-025-11
1-215-890-11
1-216-065-91
1-216-025-11
RES-CHIP
RES-CHIP
METAL OXIDE
RES-CHIP
RES-CHIP
4.7K
100
470
4.7K
100
5%
5%
5%
5%
5%
1/10W
1/10W
2W
1/10W
1/10W
R5510
R5511
R5512
R5513
R5514
1-216-025-11
1-216-295-91
1-216-065-91
1-216-065-91
1-216-295-91
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
SHORT
100
5%
1/10W
4.7K
4.7K
5%
5%
1/10W
1/10W
R5130
R5131
R5132
R5133
R5134
1-249-401-11
1-208-794-11
1-216-481-11
1-216-481-11
1-216-481-11
CARBON
METAL CHIP
METAL OXIDE
METAL OXIDE
METAL OXIDE
47
3.3K
1.2K
1.2K
1.2K
5%
0.50%
5%
5%
5%
1/4W
1/10W
3W
3W
3W
R5516
R5518
R5519
R5520
R5521
1-208-792-11
1-208-822-11
1-208-822-11
1-216-685-11
1-216-073-91
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
2.7K
47K
47K
27K
10K
0.50%
0.50%
0.50%
0.50%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5135
R5136
R5137
R5138
R5139
1-216-481-11
1-216-481-11
1-216-481-11
1-216-049-11
1-216-049-11
METAL OXIDE
METAL OXIDE
METAL OXIDE
RES-CHIP
RES-CHIP
1.2K
1.2K
1.2K
1K
1K
5%
5%
5%
5%
5%
3W
3W
3W
1/10W
1/10W
R5522
R5523
R5525
R5526
R5527
1-216-073-91
1-208-822-11
1-208-806-11
1-216-065-91
1-216-065-91
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
10K
47K
10K
4.7K
4.7K
5%
0.50%
0.50%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5140
R5141
R5142
R5143
R5144
1-216-057-00
1-215-915-11
1-216-386-11
1-216-385-11
1-216-385-11
RES-CHIP
METAL OXIDE
METAL OXIDE
METAL OXIDE
METAL OXIDE
2.2K
470
0.56
0.47
0.47
5%
5%
5%
5%
5%
1/10W
3W
3W
3W
3W
R5528
R5529
R5530
R5531
R5532
1-216-081-00
1-216-073-91
1-216-025-11
1-216-001-00
1-216-001-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
22K
10K
100
10
10
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5145
R5146
R5147
R5148
R5149
1-215-880-00
1-216-089-91
1-208-794-11
1-215-865-11
1-216-065-91
METAL OXIDE
RES-CHIP
METAL CHIP
METAL OXIDE
RES-CHIP
10
47K
3.3K
220
4.7K
5%
5%
0.50%
5%
5%
2W
1/10W
1/10W
1W
1/10W
R5535
R5536
R5544
R5545
R5547
1-208-806-11
1-208-810-11
1-208-812-11
1-208-818-11
1-216-081-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
10K
15K
18K
33K
22K
0.50%
0.50%
0.50%
0.50%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R5150
R5151
1-216-065-91
1-216-065-91
RES-CHIP
RES-CHIP
4.7K
4.7K
5%
5%
1/10W
1/10W
R5548
R5554
1-216-089-91
1-208-812-11
RES-CHIP
METAL CHIP
47K
18K
5%
1/10W
0.50% 1/10W
— 144 —
PART NO.
DESCRIPTION
VALUES
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
D
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
R5563
R5564
R5565
R5573
R5576
1-208-801-11
1-208-830-11
1-208-830-11
1-216-081-00
1-249-395-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
CARBON
6.2K
100K
100K
22K
15
0.50%
0.50%
0.50%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/4W
R5710
R5711
R5712
R5713
R5714
1-216-429-00
1-260-288-11
1-260-288-11
1-215-867-00
1-216-097-11
METAL OXIDE
CARBON
CARBON
METAL OXIDE
RES-CHIP
270
0.47
0.47
470
100K
5%
5%
5%
5%
5%
1W
1/2W
1/2W
1W
1/10W
R5577
R5578
R5579
R5581
R5585
1-208-836-11
1-208-812-11
1-216-113-00
1-208-806-11
1-208-846-11
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
METAL CHIP
180K
18K
470K
10K
470K
0.50%
0.50%
5%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R5715
R5716
R5717
R6501
R6502
1-216-097-11
1-216-049-11
1-216-093-91
1-208-757-11
1-260-131-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
CARBON
100K
1K
68K
91
470K
5%
5%
5%
0.50%
5%
1/10W
1/10W
1/10W
1/10W
1/2W
R5588
R5599
R5615
R5623
R5645
1-216-353-00
1-216-073-91
1-249-395-11
1-216-057-00
1-216-089-91
METAL OXIDE
RES-CHIP
CARBON
RES-CHIP
RES-CHIP
2.2
10K
15
2.2K
47K
5%
5%
5%
5%
5%
1W
1/10W
1/4W
1/10W
1/10W
R6503
R6504
R6506
R6507
R6508
1-208-758-11
1-216-073-91
1-249-377-11
1-216-065-91
1-216-073-91
METAL CHIP
RES-CHIP
CARBON
RES-CHIP
RES-CHIP
100
10K
0.47
4.7K
10K
0.50%
5%
5%
5%
5%
1/10W
1/10W
1/4W
1/10W
1/10W
R5647
R5648
R5649
R5650
R5657
1-208-758-11
1-216-383-11
1-215-886-11
1-216-089-91
1-208-798-11
METAL CHIP
METAL OXIDE
METAL OXIDE
RES-CHIP
METAL CHIP
100
0.33
100
47K
4.7K
0.50%
5%
5%
5%
0.50%
1/10W
3W
2W
1/10W
1/10W
R6509
R6510
R6511
R6512
R6513
1-216-065-91
1-215-859-00
1-216-073-91
1-216-073-91
1-215-481-00
RES-CHIP
METAL OXIDE
RES-CHIP
RES-CHIP
METAL
4.7K
22
10K
10K
330K
5%
5%
5%
5%
1%
1/10W
1W
1/10W
1/10W
1/4W
R5666
R5669
R5670
R5672
R5678
1-216-091-00
1-208-789-11
1-208-820-11
1-216-109-00
1-208-804-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
56K
2K
39K
330K
8.2K
5%
0.50%
0.50%
5%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R6514
R6515
! R6516
R6517
R6518
1-215-481-00
1-260-131-11
1-202-962-11
1-208-804-11
1-208-810-11
METAL
CARBON
CEMENTED
METAL CHIP
METAL CHIP
330K
470K
3.3
8.2K
15K
1%
5%
5%
0.50%
0.50%
1/4W
1/2W
10W
1/10W
1/10W
R5679
R5680
R5684
R5685
R5686
1-249-395-11
1-249-383-11
1-208-798-11
1-216-655-11
1-208-778-11
CARBON
CARBON
METAL CHIP
METAL CHIP
METAL CHIP
15
1.5
4.7K
1.5K
680
5%
5%
0.50%
0.50%
0.50%
1/4W
1/4W
1/10W
1/10W
1/10W
R6519
R6521
R6522
R6523
R6524
1-216-295-91
1-260-328-11
1-216-073-91
1-216-081-00
1-216-295-91
SHORT
CARBON
RES-CHIP
RES-CHIP
SHORT
1K
10K
22K
5%
5%
5%
1/2W
1/10W
1/10W
R5688
R5689
R5690
R5692
R5693
1-208-782-11
1-216-017-91
1-216-017-91
1-216-655-11
1-208-798-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
1K
47
47
1.5K
4.7K
0.50%
5%
5%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R6525
R6526
R6527
R6528
R6529
1-216-041-00
1-202-933-61
1-216-093-91
1-216-025-11
1-249-393-11
RES-CHIP
FUSIBLE
RES-CHIP
RES-CHIP
CARBON
470
0.1
68K
100
10
5%
10%
5%
5%
5%
1/10W
1/2W
1/10W
1/10W
1/4W
R5694
R5696
R5697
R5698
R5699
1-208-798-11
1-208-804-11
1-208-764-11
1-208-801-11
1-216-081-00
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
4.7K
8.2K
180
6.2K
22K
0.50%
0.50%
0.50%
0.50%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R6530
R6531
R6532
R6533
R6534
1-216-065-91
1-249-393-11
1-216-073-91
1-216-073-91
1-216-085-91
RES-CHIP
CARBON
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
10
10K
10K
33K
5%
5%
5%
5%
5%
1/10W
1/4W
1/10W
1/10W
1/10W
R5700
R5702
R5704
R5705
R5707
1-208-810-11
1-208-782-11
1-214-657-11
1-214-657-11
1-216-017-91
METAL CHIP
METAL CHIP
METAL
METAL
RES-CHIP
15K
1K
1
1
47
0.50%
0.50%
1%
1%
5%
1/10W
1/10W
1/4W
1/4W
1/10W
R6535
R6536
R6537
R6538
R6539
1-216-073-91
1-216-073-91
1-216-073-91
1-216-073-91
1-215-877-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
METAL OXIDE
10K
10K
10K
10K
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1W
R5708
R5709
1-216-429-00
1-216-017-91
METAL OXIDE
RES-CHIP
270
47
5%
5%
1W
1/10W
R6540
R6541
1-216-049-11
1-216-077-91
RES-CHIP
RES-CHIP
1K
15K
5%
5%
1/10W
1/10W
— 145 —
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
REF.NO.
PART NO.
DESCRIPTION
D
NOTE: Les composants identiÞes per un trame et une
marque !
sont critiques pour la securite. Ne les
remplacer que par une piece portant le numero speciÞe.
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
1-216-105-91
1-208-826-11
1-208-818-11
1-208-826-11
1-208-830-11
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
220K
68K
33K
68K
100K
5%
0.50%
0.50%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R6542
R6543
R6544
R6547
R6550
1-216-049-11
1-208-842-11
1-216-295-91
1-216-053-00
1-216-065-91
RES-CHIP
METAL CHIP
SHORT
RES-CHIP
RES-CHIP
1K
330K
5%
1/10W
0.50% 1/10W
1.5K
4.7K
5%
5%
1/10W
1/10W
R8026
R8027
R8028
R8029
R8030
R6552
R6553
R6556
R6557
R6583
1-216-081-00
1-216-109-00
1-217-625-00
1-216-097-11
1-216-077-91
RES-CHIP
RES-CHIP
METAL
RES-CHIP
RES-CHIP
22K
330K
0.05
100K
15K
5%
5%
10%
5%
5%
1/10W
1/10W
2W
1/10W
1/10W
R8031
R8032
R8033
R8034
! R8035
1-208-830-11
1-216-073-91
1-208-781-11
1-216-091-00
1-208-804-11
METAL CHIP
RES-CHIP
METAL CHIP
RES-CHIP
METAL CHIP
100K
10K
910
56K
8.2K
0.50%
5%
0.50%
5%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
! R6590
R6591
R6593
R6596
R6597
1-249-415-11
1-216-341-11
1-249-405-11
1-215-445-00
1-215-469-00
CARBON
METAL OXIDE
CARBON
METAL
METAL
680
0.22
100
10K
100K
5%
5%
5%
1%
1%
1/4W
1W
1/4W
1/4W
1/4W
!
!
!
!
!
R8036
R8037
R8038
R8039
R8040
1-215-444-00
1-215-444-00
1-215-444-00
1-215-444-00
1-215-444-00
METAL
METAL
METAL
METAL
METAL
9.1K
9.1K
9.1K
9.1K
9.1K
1%
1%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R6598
R6599
R6600
R6602
R6603
1-216-342-21
1-249-417-11
1-215-445-00
1-216-049-11
1-216-073-91
METAL OXIDE
CARBON
METAL
RES-CHIP
RES-CHIP
0.27
1K
10K
1K
10K
5%
5%
1%
5%
5%
1W
1/4W
1/4W
1/10W
1/10W
R8041
R8042
R8043
R8044
R8047
1-208-782-11
1-208-806-11
1-216-349-00
1-208-837-11
1-216-097-11
METAL CHIP
METAL CHIP
METAL OXIDE
METAL CHIP
RES-CHIP
1K
10K
1
200K
100K
0.50%
0.50%
5%
0.50%
5%
1/10W
1/10W
1W
1/10W
1/10W
R6604
R6605
R6612
R6614
R6646
1-216-073-91
1-216-057-00
1-216-089-91
1-260-298-51
1-215-481-00
RES-CHIP
RES-CHIP
RES-CHIP
CARBON
METAL
10K
2.2K
47K
3.3
330K
5%
5%
5%
5%
1%
1/10W
1/10W
1/10W
1/2W
1/4W
R8049
R8050
R8051
R8053
R8054
1-208-758-11
1-216-615-11
1-220-926-11
1-208-842-11
1-208-842-11
METAL CHIP
METAL CHIP
FUSIBLE
METAL CHIP
METAL CHIP
100
33
0.47
330K
330K
0.50%
0.50%
10%
0.50%
0.50%
1/10W
1/10W
1/2W
1/10W
1/10W
R8001
R8002
R8003
R8004
R8005
1-216-073-91
1-216-065-91
1-216-081-00
1-216-081-00
1-216-081-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
4.7K
22K
22K
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R8055
R8056
R8057
R8058
R8059
1-208-842-11
1-208-804-11
1-208-809-11
1-249-393-11
1-216-295-91
METAL CHIP
METAL CHIP
METAL CHIP
CARBON
SHORT
330K
8.2K
13K
10
0.50%
0.50%
0.50%
5%
1/10W
1/10W
1/10W
1/4W
R8006
R8007
R8008
R8009
R8010
1-216-105-91
1-216-089-91
1-216-081-00
1-216-105-91
1-216-105-91
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220K
47K
22K
220K
220K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R8060
R8061
R8062
R8063
R8065
1-208-774-11
1-249-393-11
1-216-073-91
1-216-073-91
1-216-089-91
METAL CHIP
CARBON
RES-CHIP
RES-CHIP
RES-CHIP
470
10
10K
10K
47K
0.50%
5%
5%
5%
5%
1/10W
1/4W
1/10W
1/10W
1/10W
R8011
R8013
R8016
R8017
R8018
1-216-105-91
1-216-295-91
1-216-061-91
1-216-295-91
1-216-081-00
RES-CHIP
SHORT
RES-CHIP
SHORT
RES-CHIP
220K
5%
1/10W
1/10W
1/10W
22K
5%
1/10W
RES-CHIP
SHORT
CARBON
METAL
RES-CHIP
5%
5%
1-216-049-11
1-216-295-91
1-249-419-11
1-217-611-00
1-216-073-91
1K
3.3K
R8066
R8068
R8069
R8070
R8071
1.5K
0.1
10K
5%
10%
5%
1/4W
2W
1/10W
R8019
R8020
R8021
R8022
R8023
1-216-089-91
1-216-081-00
1-216-049-11
1-216-073-91
1-216-081-00
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
22K
1K
10K
22K
5%
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R8072
R8073
R8074
R8077
R8078
1-208-782-11
1-208-790-11
1-208-793-11
1-218-760-11
1-218-760-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
1K
2.2K
3K
220K
220K
0.50%
0.50%
0.50%
0.50%
0.50%
1/10W
1/10W
1/10W
1/10W
1/10W
R8024
R8025
1-216-073-91
1-208-826-11
RES-CHIP
METAL CHIP
10K
68K
5%
1/10W
0.50% 1/10W
R8080
R8081
1-249-431-11
1-249-377-11
CARBON
CARBON
15K
0.47
5%
5%
1/4W
1/4W
— 146 —
KD-34XBR2
NOTE: The components identiÞed by shading
and ! mark are critical for safety. Replace only
with part number speciÞed.
D HA
A component identiÞed by this symbol indicates that it
has been carefully factory-selected to satisfy regulations
regarding X-ray radiation. Should replacement be required,
replace only with the value originally used.
REF.NO.
PART NO.
DESCRIPTION
VALUES
R8082
R8085
R8086
R8087
R8089
1-216-133-91
1-219-749-91
1-219-751-91
1-216-295-91
1-216-089-91
RES-CHIP
CARBON
CARBON
SHORT
RES-CHIP
3.3M
10K
47K
5%
5%
5%
1/10W
1/2W
1/2W
47K
5%
1/10W
R8091
R8093
R8095
R8096
R8098
1-215-485-00
1-216-101-00
1-215-485-00
1-216-295-91
1-249-441-11
METAL
RES-CHIP
METAL
SHORT
CARBON
470K
150K
470K
1%
5%
1%
1/4W
1/10W
1/4W
100K
5%
1/4W
R8099
R8100
R8101
R8102
R8103
1-249-441-11
1-249-441-11
1-216-101-00
1-216-081-00
1-216-069-00
CARBON
CARBON
RES-CHIP
RES-CHIP
RES-CHIP
100K
100K
150K
22K
6.8K
5%
5%
5%
5%
5%
1/4W
1/4W
1/10W
1/10W
1/10W
R8104
R8108
R8109
R8111
R8112
1-216-089-91
1-216-097-11
1-215-922-11
1-215-922-11
1-216-097-11
RES-CHIP
RES-CHIP
METAL OXIDE
METAL OXIDE
RES-CHIP
47K
100K
6.8K
6.8K
100K
5%
5%
5%
5%
5%
1/10W
1/10W
3W
3W
1/10W
R8113
R8114
R8115
R8116
R8117
1-216-117-00
1-215-922-11
1-216-049-11
1-216-485-11
1-216-097-11
RES-CHIP
METAL OXIDE
RES-CHIP
METAL OXIDE
RES-CHIP
680K
6.8K
1K
5.6K
100K
5%
5%
5%
5%
5%
1/10W
3W
1/10W
3W
1/10W
R8118
R8119
R8123
R8124
R8125
1-216-085-91
1-216-485-11
1-216-025-11
1-216-073-91
1-216-001-00
RES-CHIP
METAL OXIDE
RES-CHIP
RES-CHIP
RES-CHIP
33K
5.6K
100
10K
10
5%
5%
5%
5%
5%
1/10W
3W
1/10W
1/10W
1/10W
R8126
R8127
R8137
R8144
R8145
1-216-001-00
1-216-295-91
1-249-417-11
1-216-025-11
1-216-025-11
RES-CHIP
SHORT
CARBON
RES-CHIP
RES-CHIP
10
5%
1/10W
1K
100
100
5%
5%
5%
1/4W
1/10W
1/10W
R8146
R8147
R8148
R8149
R8150
1-216-049-11
1-208-826-11
1-208-826-11
1-208-822-11
1-216-091-00
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
1K
68K
68K
47K
56K
5%
0.50%
0.50%
0.50%
5%
1/10W
1/10W
1/10W
1/10W
1/10W
R8151
R8152
R8199
1-216-091-00
1-216-091-00
1-249-389-11
RES-CHIP
RES-CHIP
CARBON
56K
56K
4.7
5%
5%
5%
1/10W
1/10W
1/4W
REF.NO.
PART NO.
DESCRIPTION
VALUES
RELAY
! RY6501
! RY6502
1-755-395-11
1-755-214-11
RELAY (AC POWER)
RELAY, AC POWER
SPARK GAP
SG8002
SG8005
1-517-499-21
1-517-499-21
GAP, SPARK
GAP, SPARK
TRANSFORMER
T5001
T5002
! T6501
! T8001
T8002
1-435-621-11
1-435-636-11
1-435-576-12
1-453-346-11
1-433-934-11
TRANSFORMER, HORIZONTAL OUTPUT
TRANSFORMER, HORIZONTAL DRIVE
TRANSFORMER, CONVERTER (PIT)
FBT ASSY NX-6000//JIJ4
TRANSFORMER, FERRITE (DFT)
THERMISTOR
TH5001
TH5002
HA
*
1-800-193-00
1-807-796-11
THERMISTOR
THERMISTOR
A-1372-978-A
HA BOARD, MOUNTED
4-081-603-01
HOLDER, LED
CAPACITOR
C05
1-126-964-11
ELECT
10µF
PLUG,CONNECTOR
12P
20%
50V
CONNECTOR
*
CN01
1-564-515-11
DIODE
D02
D03
D07
8-719-074-84
8-719-064-11
8-719-109-89
DIODE LNK0120022G1
DIODE SPR-325MVW
DIODE RD5.6ES-T1B2
IC
IC01
8-742-212-20
HYB IC SBX3081-71
RESISTOR
VARIABLE RESISTOR
X!RV8001
X!RV8002
1-225-630-91
1-225-627-91
RES, VAR, ADJ, CERMET
RES, VAR, ADJ, CERMET
20K
2K
— 147 —
R03
R04
R05
R09
R12
1-249-429-11
1-249-385-11
1-247-807-31
1-249-433-11
1-215-437-00
CARBON
CARBON
CARBON
CARBON
METAL
10K
2.2
100
22K
4.7K
5%
5%
5%
5%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R13
R14
1-215-445-00
1-215-433-00
METAL
METAL
10K
3.3K
1%
1%
1/4W
1/4W
KD-34XBR2
HA HB S
REF.NO.
PART NO.
DESCRIPTION
VALUES
R15
R16
R17
R18
R19
1-215-427-00
1-215-425-00
1-215-423-00
1-215-419-00
1-215-417-00
METAL
METAL
METAL
METAL
METAL
1.8K
1.5K
1.2K
820
680
1%
1%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
R20
R21
R22
R23
R24
1-215-415-00
1-215-411-00
1-215-413-00
1-215-423-00
1-215-427-00
METAL
METAL
METAL
METAL
METAL
560
390
470
1.2K
1.8K
1%
1%
1%
1%
1%
1/4W
1/4W
1/4W
1/4W
1/4W
1-571-032-11
1-762-837-11
1-762-837-11
1-762-837-11
1-762-837-11
SWITCH PUSH (1 KEY)
SWITCH TACTILE
SWITCH TACTILE
SWITCH TACTILE
SWITCH TACTILE
S06
S07
S08
S09
S10
S11
1-692-431-21
1-692-431-21
1-692-431-21
1-692-431-21
1-692-431-21
1-692-431-21
SWITCH TACTILE
SWITCH TACTILE
SWITCH TACTILE
SWITCH TACTILE
SWITCH TACTILE
SWITCH TACTILE
HB
*
A-1372-979-A
1-126-960-11
1-126-960-11
1-126-959-11
1-126-959-11
1-164-004-11
*
1-764-334-11
PLUG,CONNECTOR
1µF
1µF
0.47µF
0.47µF
0.1µF
20%
20%
20%
20%
10%
50V
50V
50V
50V
25V
11P
FILTER
FL4600
FL4601
FL4602
1-239-583-21
1-239-583-21
1-239-583-21
FILTER, EMI
FILTER, EMI
FILTER, EMI
JACK
J4600
1-770-053-11
TERMINAL BLOCK, S (LIGHT ANGLE)
RESISTOR
R4600
R4601
1-216-113-00
1-216-113-00
RES-CHIP
RES-CHIP
DESCRIPTION
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
VALUES
75
75
1K
75
5%
5%
5%
5%
1/10W
1/10W
1/10W
1/10W
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
A-1395-037-A
S BOARD, COMPLETE
CAPACITOR
CONNECTOR
CN4600
1-216-022-00
1-216-022-00
1-216-049-11
1-216-022-00
S
HB BOARD, MOUNTED
ELECT
ELECT
ELECT
ELECT
CERAMIC CHIP
R4602
R4603
R4606
R4607
VD4600
VD4601
VD4602
VD4603
VD4604
VD4605
CAPACITOR
C4600
C4601
C4602
C4603
C4604
PART NO.
VARISTOR
SWITCH
S01
S02
S03
S04
S05
REF.NO.
470K
470K
5%
5%
1/10W
1/10W
— 148 —
C4401
C4402
C4403
C4404
C4405
1-126-964-11
1-162-968-11
1-162-968-11
1-162-970-11
1-107-826-11
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
.0047µF
.0047µF
0.01µF
0.1µF
20%
10%
10%
10%
10%
50V
50V
50V
25V
16V
C4406
C4407
C4408
C4409
C4410
1-162-968-11
1-115-467-11
1-162-970-11
1-107-826-11
1-126-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT
.0047µF
0.22µF
0.01µF
0.1µF
10µF
10%
10%
10%
10%
20%
50V
10V
25V
16V
50V
C4413
C4414
C4415
C4416
C4417
1-126-964-11
1-126-964-11
1-126-961-11
1-126-961-11
1-162-968-11
ELECT
ELECT
ELECT
ELECT
CERAMIC CHIP
10µF
10µF
2.2µF
2.2µF
.0047µF
20%
20%
20%
20%
10%
50V
50V
50V
50V
50V
C4418
C4419
C4420
C4421
C4422
1-126-941-11
1-104-665-11
1-104-665-11
1-107-826-11
1-126-964-11
ELECT
ELECT
ELECT
CERAMIC CHIP
ELECT
470µF
100µF
100µF
0.1µF
10µF
20%
20%
20%
10%
20%
25V
25V
25V
16V
50V
C4423
C4424
C4425
C4428
C4429
1-115-467-11
1-126-960-11
1-126-960-11
1-115-467-11
1-126-960-11
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
ELECT
0.22µF
1µF
1µF
0.22µF
1µF
10%
20%
20%
10%
20%
10V
50V
50V
10V
50V
C4430
C4431
C4432
C4433
C4434
1-162-970-11
1-107-826-11
1-126-960-11
1-126-964-11
1-126-767-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
ELECT
0.01µF
0.1µF
1µF
10µF
1000µF
10%
10%
20%
20%
20%
25V
16V
50V
50V
16V
KD-34XBR2
S
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
C4435
C4436
C4437
C4438
C4440
1-162-968-11
1-164-677-11
1-162-967-11
1-164-677-11
1-162-968-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
.0047µF
0.033µF
0.0033µF
0.033µF
.0047µF
10%
10%
10%
10%
10%
50V
16V
50V
16V
50V
C4441
C4442
C4443
C4446
C4447
1-126-963-11
1-126-959-11
1-126-964-11
1-136-169-00
1-126-963-11
ELECT
ELECT
ELECT
FILM
ELECT
4.7µF
0.47µF
10µF
0.22µF
4.7µF
20%
20%
20%
5%
20%
50V
50V
50V
50V
50V
C4448
C4449
C4450
C4453
C4454
1-126-959-11
1-126-968-11
1-107-826-11
1-162-968-11
1-164-677-11
ELECT
ELECT
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.47µF
100µF
0.1µF
.0047µF
0.033µF
20%
20%
10%
10%
10%
50V
50V
16V
50V
16V
C4455
C4456
C4457
C4458
C4459
1-162-967-11
1-164-677-11
1-107-826-11
1-107-826-11
1-136-158-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
FILM
0.0033µF
0.033µF
0.1µF
0.1µF
0.027µF
10%
10%
10%
10%
5%
50V
16V
16V
16V
50V
C4460
C4464
C4465
C4466
C4467
1-136-169-00
1-136-164-00
1-162-927-11
1-136-164-00
1-137-368-11
FILM
FILM
CERAMIC CHIP
FILM
MYLAR
0.22µF
0.082µF
100pF
0.082µF
.0047µF
5%
5%
5%
5%
5%
50V
50V
50V
50V
50V
C4468
C4469
C4470
C4471
C4472
C4473
1-136-158-00
1-126-947-11
1-137-368-11
1-162-927-11
1-126-967-11
1-126-967-11
FILM
ELECT
MYLAR
CERAMIC CHIP
ELECT
ELECT
0.027µF
47µF
.0047µF
100pF
47µF
47µF
5%
20%
5%
5%
20%
20%
50V
25V
50V
50V
50V
50V
CN4401
1-691-632-21
CONNECTOR, BOARD TO BOARD 15P
DIODE
D4401
D4402
D4408
8-719-977-28
8-719-977-28
8-719-071-74
DIODE UDZSTE-1710B
DIODE UDZSTE-1710B
DIODE HZU11B1TRF
IC
IC4401
IC4402
IC4403
IC4404
8-759-828-60
8-759-331-71
8-759-678-92
8-759-331-71
IC NJM2181M
IC NJM4558E(TE2)
IC BH3868AFS-E2
IC NJM4558E(TE2)
COIL
L4402
1-414-187-11
INDUCTOR
DESCRIPTION
VALUES
RESISTOR
CONNECTOR
*
PART NO.
47µH
— 149 —
R4401
R4402
R4403
R4404
R4405
1-216-864-11
1-216-842-11
1-216-823-11
1-216-092-00
1-216-839-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
56K
1.5K
62K
33K
5%
5%
5%
5%
1/16W
1/16W
1/10W
1/16W
R4406
R4407
R4408
R4409
R4410
1-216-809-11
1-216-821-11
1-216-821-11
1-216-861-11
1-216-841-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
1K
1K
2.2M
47K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4411
R4412
R4413
R4414
R4415
1-216-824-11
1-216-841-11
1-216-841-11
1-216-837-11
1-216-837-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.8K
47K
47K
22K
22K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4416
R4417
R4418
R4419
R4420
1-216-829-11
1-216-829-11
1-216-829-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
4.7K
4.7K
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4421
R4430
R4432
R4434
R4438
1-216-829-11
1-216-857-11
1-216-857-11
1-216-829-11
1-216-840-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
1M
1M
4.7K
39K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4440
R4441
R4442
R4443
R4444
1-216-840-11
1-216-805-11
1-216-841-11
1-216-837-11
1-216-839-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
39K
47
47K
22K
33K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4448
R4449
R4450
R4451
R4452
1-216-840-11
1-216-864-11
1-216-840-11
1-216-840-11
1-216-823-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
39K
5%
1/16W
39K
39K
1.5K
5%
5%
5%
1/16W
1/16W
1/16W
R4453
R4459
R4460
R4461
R4462
1-216-840-11
1-216-823-11
1-216-864-11
1-216-817-11
1-216-821-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
39K
1.5K
5%
5%
1/16W
1/16W
470
1K
5%
5%
1/16W
1/16W
R4463
R4464
R4468
1-216-817-11
1-216-821-11
1-216-864-11
RES-CHIP
RES-CHIP
SHORT
470
1K
5%
5%
1/16W
1/16W
KD-34XBR2
U
REF.NO.
U
*
PART NO.
A-1395-038-A
DESCRIPTION
VALUES
U BOARD, COMPLETE
CAPACITOR
C4001
C4002
C4003
C4004
C4005
1-126-960-11
1-126-960-11
1-126-960-11
1-126-960-11
1-125-891-11
ELECT
ELECT
ELECT
ELECT
CERAMIC CHIP
1µF
1µF
1µF
1µF
0.47µF
20%
20%
20%
20%
10%
50V
50V
50V
50V
10V
C4006
C4007
C4008
C4009
C4010
1-107-826-11
1-125-891-11
1-126-960-11
1-126-960-11
1-125-891-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
0.1µF
0.47µF
1µF
1µF
0.47µF
10%
10%
20%
20%
10%
16V
10V
50V
50V
10V
C4011
C4012
C4013
C4014
C4015
1-107-826-11
1-125-891-11
1-126-960-11
1-126-960-11
1-125-891-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
CERAMIC CHIP
0.1µF
0.47µF
1µF
1µF
0.47µF
10%
10%
20%
20%
10%
16V
10V
50V
50V
10V
C4016
C4017
C4018
C4019
1-107-826-11
1-125-891-11
1-126-960-11
1-126-960-11
CERAMIC CHIP
CERAMIC CHIP
ELECT
ELECT
0.1µF
0.47µF
1µF
1µF
10%
10%
20%
20%
16V
10V
50V
50V
CN4001
1-793-923-11
CONNECTOR, DIN (PLUG)
64P
JACK
J4001
J4002
J4003
J4004
J4005
1-774-358-11
1-774-358-11
1-750-515-11
1-750-515-11
1-750-515-11
JACK BLOCK, PIN
JACK BLOCK, PIN
TERMINAL BLOCK, S
TERMINAL BLOCK, S
TERMINAL BLOCK, S
J4006
J4007
J4008
J4009
1-750-517-11
1-750-516-21
1-764-143-11
1-764-143-11
JACK BLOCK, PIN
JACK BLOCK, PIN
JACK
JACK
PART NO.
DESCRIPTION
R4008
R4009
R4010
R4011
R4012
1-218-665-11
1-216-853-11
1-216-853-11
1-218-665-11
1-218-665-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
75
470K
470K
75
75
0.50%
5%
5%
0.50%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R4013
R4014
R4015
R4016
R4017
1-218-665-11
1-216-853-11
1-216-853-11
1-218-665-11
1-218-665-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
75
470K
470K
75
75
0.50%
5%
5%
0.50%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R4018
R4019
R4020
R4021
R4022
1-216-821-11
1-218-665-11
1-216-853-11
1-216-853-11
1-218-665-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
1K
75
470K
470K
75
5%
0.50%
5%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R4023
R4024
R4025
R4026
R4027
1-218-665-11
1-216-821-11
1-218-665-11
1-216-853-11
1-216-853-11
METAL CHIP
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
75
1K
75
470K
470K
0.50%
5%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4028
R4029
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
100
100
5%
5%
1/16W
1/16W
VARISTOR
CONNECTOR
*
REF.NO.
3P
3P
3P
3P
2P
RESISTOR
R4001
R4002
R4003
R4004
R4005
1-218-665-11
1-218-665-11
1-218-665-11
1-216-853-11
1-216-853-11
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
75
75
75
470K
470K
0.50%
0.50%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R4006
R4007
1-218-665-11
1-218-665-11
METAL CHIP
METAL CHIP
75
75
0.50% 1/16W
0.50% 1/16W
— 150 —
VD4001
VD4002
VD4003
VD4004
VD4005
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VD4006
VD4007
VD4008
VD4009
VD4010
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VD4011
VD4012
VD4013
VD4014
VD4015
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VD4016
VD4017
VD4018
VD4019
VD4020
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VD4021
VD4022
VD4023
VD4024
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VALUES
KD-34XBR2
U QM
REF.NO.
PART NO.
DESCRIPTION
VD4025
VD4026
VD4027
VD4028
VD4029
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
VD4030
VD4031
VD4032
VD4033
VD4034
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
1-803-974-21
VALUES
REF.NO.
PART NO.
DESCRIPTION
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
C7058
C7059
C7060
C7061
C7062
1-117-808-91
1-117-808-91
1-119-667-11
1-119-667-11
1-127-692-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
10µF
22µF
22µF
10µF
10%
10%
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
VARISTOR, CHIP
C7063
C7064
C7201
C7202
C7203
1-127-692-11
1-127-692-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
10µF
0.1µF
0.1µF
0.1µF
10%
10%
The QM board is not field repairable and cannot be ordered independently. If
service is required, use the following part number to order a replacement Q-box
which includes the complete QM and QI board assemblies.
C7204
C7205
C7206
C7207
C7208
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
C7209
C7210
C7211
C7212
C7213
1-127-692-11
1-164-156-11
1-164-156-11
1-127-692-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
10µF
0.1µF
6.3V
50V
10V
25V
16V
C7214
C7215
C7216
C7217
C7218
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C7219
C7220
C7221
C7222
C7223
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
QM
*
SEE SUPPLEMENT-1
*
7-322-065-48
Q-BOX, COMPLETE
RUBBER, SILICONE RTV (KE-3490)
CAPACITOR
10%
VALUES
10%
10V
10V
10V
10V
6.3V
6.3V
6.3V
25V
25V
25V
25V
25V
25V
25V
25V
10%
10%
6.3V
25V
25V
6.3V
25V
C7002
C7003
C7004
C7006
C7007
1-127-760-11
1-162-974-11
1-117-808-91
1-164-156-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
4.7µF
0.01µF
10µF
0.1µF
0.1µF
C7008
C7009
C7010
C7013
C7014
1-107-826-11
1-164-156-11
1-164-156-11
1-119-667-11
1-127-692-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
22µF
10µF
10%
16V
25V
25V
10V
6.3V
C7021
C7022
C7023
C7024
C7025
1-126-204-11
1-128-393-11
1-128-393-11
1-126-197-11
1-126-204-11
ELECT CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
ELECT CHIP
47µF
100µF
100µF
10µF
47µF
20%
20%
20%
20%
20%
16V
10V
10V
50V
16V
C7224
C7225
C7226
C7227
C7228
1-164-156-11
1-162-919-11
1-162-915-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
22pF
10pF
0.1µF
0.1µF
25V
5%
50V
0.50pF 50V
25V
25V
C7026
C7027
C7028
C7030
C7031
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-126-204-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1µF
0.1µF
0.1µF
0.1µF
47µF
C7229
C7230
C7231
C7232
C7233
1-162-924-11
1-162-924-11
1-162-927-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
56pF
56pF
100pF
0.1µF
0.1µF
5%
5%
5%
20%
25V
25V
25V
25V
16V
C7036
C7037
C7038
C7048
C7049
1-164-156-11
1-164-156-11
1-164-156-11
1-162-964-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.001µF 10%
0.001µF 10%
25V
25V
25V
50V
50V
C7234
C7235
C7401
C7402
C7403
1-164-156-11
1-164-156-11
1-127-692-11
1-162-923-11
1-162-964-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
10µF
10%
47pF
5%
0.001µF 10%
25V
25V
6.3V
50V
50V
C7052
C7053
C7057
1-162-964-11
1-162-964-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.001µF 10%
0.001µF 10%
0.1µF
50V
50V
25V
C7404
C7405
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
25V
25V
10%
10%
10%
— 151 —
50V
50V
50V
25V
25V
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
C7406
C7407
C7409
C7410
C7411
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
C7412
C7413
C7414
C7415
C7416
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
100pF
25V
25V
25V
25V
25V
C7624
C7625
C7626
C7627
C7628
1-164-156-11
1-125-837-91
1-164-156-11
1-162-915-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
1µF
0.1µF
10pF
0.1µF
25V
6.3V
25V
0.50pF 50V
25V
25V
25V
25V
25V
50V
C7629
C7630
C7631
C7632
C7633
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C7417
C7418
C7419
C7420
C7421
1-164-156-11
1-162-966-11
1-117-370-11
1-117-370-11
1-117-370-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.0022µF 10%
10µF
10µF
10µF
25V
50V
10V
10V
10V
C7634
C7635
C7636
C7637
C7638
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C7422
C7423
C7424
C7425
C7431
1-164-156-11
1-164-156-11
1-164-156-11
1-126-206-11
1-162-967-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
100µF
20%
0.0033µF 10%
25V
25V
25V
6.3V
50V
C7639
C7640
C7641
C7642
C7643
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C7432
C7433
C7434
C7435
C7436
1-162-967-11
1-162-967-11
1-162-967-11
1-162-967-11
1-162-967-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.0033µF
0.0033µF
0.0033µF
0.0033µF
0.0033µF
50V
50V
50V
50V
50V
C7644
C7645
C7646
C7647
C7801
1-164-156-11
1-164-156-11
1-164-156-11
1-127-692-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
10µF
0.01µF
25V
25V
25V
6.3V
25V
C7437
C7601
C7602
C7603
C7604
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C7802
C7803
C7804
C7805
C7808
1-164-156-11
1-126-204-11
1-117-370-11
1-164-156-11
1-117-370-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
47µF
10µF
0.1µF
10µF
C7605
C7606
C7608
C7609
C7610
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-127-692-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
10µF
25V
25V
25V
25V
6.3V
C7810
C7811
C7812
C7813
C7814
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C7611
C7612
C7613
C7614
C7615
1-127-692-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
0.1µF
0.1µF
6.3V
25V
25V
25V
25V
C7815
C7816
C7817
C7818
C7819
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C7616
C7617
C7618
C7619
C7620
1-164-156-11
1-164-156-11
1-119-667-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
22µF
0.1µF
0.1µF
25V
25V
10V
25V
25V
C7820
C7821
C7822
C7823
C7824
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C7621
C7622
C7623
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
25V
25V
25V
C7825
C7826
C7827
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
25V
25V
25V
5%
10%
10%
10%
10%
10%
10%
10%
— 152 —
DESCRIPTION
VALUES
10%
10%
10%
20%
25V
16V
10V
25V
10V
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
DESCRIPTION
C7828
C7829
C7830
C7831
C7832
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
C7833
C7834
C7835
C7836
C7837
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
C7838
C7839
C7840
C7841
C7846
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
C7847
C7848
C7849
C7850
C7851
25V
25V
25V
25V
25V
C8603
C8604
C8605
C8606
C8607
1-162-970-11
1-127-692-11
1-162-970-11
1-127-692-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01µF
10µF
0.01µF
10µF
0.1µF
10%
10%
10%
10%
25V
6.3V
25V
6.3V
25V
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8608
C8609
C8610
C8611
C8612
1-128-934-91
1-162-967-11
1-162-927-11
1-162-927-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.33µF
0.0033µF
100pF
100pF
0.1µF
20%
10%
5%
5%
10%
10V
50V
50V
50V
16V
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8613
C8615
C8617
C8621
C8622
1-107-826-11
1-107-826-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
10%
10%
16V
16V
25V
25V
25V
1-164-156-11
1-127-760-11
1-117-370-11
1-164-156-11
1-162-970-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
4.7µF
10µF
0.1µF
0.01µF
25V
6.3V
10V
25V
25V
C8623
C8624
C8625
C8629
C8630
1-164-156-11
1-164-156-11
1-164-156-11
1-162-970-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.01µF
0.1µF
C7852
C7853
C7854
C7855
C7856
1-107-826-11
1-164-156-11
1-117-370-11
1-164-156-11
1-107-826-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
10µF
0.1µF
0.1µF
10%
16V
25V
10V
25V
16V
C8631
C8632
C8633
C8634
C8635
1-164-156-11
1-164-156-11
1-164-156-11
1-125-837-91
1-125-837-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
1µF
1µF
C7857
C7859
C7860
C7861
C7863
1-107-826-11
1-164-156-11
1-164-156-11
1-124-779-00
1-117-370-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
10µF
10µF
10%
16V
25V
25V
16V
10V
C8636
C8637
C8638
C8639
C8640
1-164-156-11
1-164-156-11
1-119-667-11
1-126-204-11
1-117-370-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1µF
0.1µF
22µF
47µF
10µF
C7865
C7866
C7867
C7870
C7871
1-117-370-11
1-124-779-00
1-164-156-11
1-126-206-11
1-164-156-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
10µF
10µF
0.1µF
100µF
0.1µF
10V
16V
25V
6.3V
25V
C8641
C8642
C8643
C8644
C8645
1-117-370-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
0.1µF
0.1µF
10V
25V
25V
25V
25V
C7873
C7874
C7875
C7876
C7878
1-124-779-00
1-164-156-11
1-164-156-11
1-164-156-11
1-119-667-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
0.1µF
22µF
16V
25V
25V
25V
10V
C8646
C8647
C8648
C8649
C8650
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-126-204-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1µF
0.1µF
0.1µF
0.1µF
47µF
25V
25V
25V
25V
16V
C7879
C7880
C7881
C7882
C7891
1-164-156-11
1-164-156-11
1-164-156-11
1-115-467-11
1-115-467-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.22µF
0.22µF
10%
10%
25V
25V
25V
10V
10V
C8651
C8652
C8653
C8654
C8655
1-164-156-11
1-126-204-11
1-164-156-11
1-126-206-11
1-164-156-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
0.1µF
47µF
0.1µF
100µF
0.1µF
C8601
C8602
1-162-970-11
1-127-692-11
CERAMIC CHIP
CERAMIC CHIP
0.01µF
10µF
10%
10%
25V
6.3V
C8656
C8657
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
10%
10%
10%
20%
20%
20%
20%
— 153 —
VALUES
10%
10%
10%
20%
20%
20%
20%
25V
25V
25V
25V
25V
25V
25V
25V
6.3V
6.3V
25V
25V
10V
16V
10V
25V
16V
25V
6.3V
25V
25V
25V
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
C8706
C8708
C8709
C8712
C8713
1-127-692-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
0.1µF
0.1µF
6.3V
25V
25V
25V
25V
C8817
C8818
C8819
C8820
C8821
1-124-779-00
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
0.1µF
0.1µF
C8714
C8715
C8716
C8717
C8718
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8823
C8824
C8825
C8826
C8827
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8719
C8720
C8721
C8722
C8723
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8828
C8829
C8830
C8831
C8832
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8724
C8725
C8726
C8728
C8729
1-164-156-11
1-110-530-11
1-164-156-11
1-162-916-11
1-162-916-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
1000µF
0.1µF
12pF
12pF
25V
6.3V
25V
50V
50V
C8833
C8834
C8835
C8836
C8837
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8731
C8733
C8734
C8737
C8738
1-162-968-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
.0047µF 10%
0.1µF
0.1µF
0.1µF
0.1µF
50V
25V
25V
25V
25V
C8838
C8839
C8840
C8841
C8843
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-126-205-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1µF
0.1µF
0.1µF
0.1µF
47µF
25V
25V
25V
25V
6.3V
C8739
C8740
C8741
C8742
C8745
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8844
C8845
C8850
C8851
C8852
1-126-205-11
1-126-205-11
1-126-204-11
1-164-156-11
1-164-156-11
ELECT CHIP
ELECT CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
47µF
47µF
47µF
0.1µF
0.1µF
C8746
C8748
C8801
C8802
C8803
1-119-667-11
1-164-156-11
1-124-779-00
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
22µF
0.1µF
10µF
0.1µF
0.1µF
10V
25V
16V
25V
25V
C8860
C8861
C8901
C8902
C8903
1-164-156-11
1-164-156-11
1-162-974-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.01µF
0.1µF
0.1µF
25V
25V
50V
25V
25V
C8804
C8805
C8806
C8807
C8808
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C8904
C8905
C8906
C8907
C8908
1-162-974-11
1-164-156-11
1-126-204-11
1-162-923-11
1-162-924-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.01µF
0.1µF
47µF
47pF
56pF
20%
5%
5%
50V
25V
16V
50V
50V
C8810
C8811
C8812
C8813
C8814
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-124-779-00
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1µF
0.1µF
0.1µF
0.1µF
10µF
25V
25V
25V
25V
16V
C8909
C8910
C8911
C8912
C8913
1-164-156-11
1-125-837-91
1-162-927-11
1-162-927-11
1-162-927-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
1µF
100pF
100pF
100pF
10%
5%
5%
5%
25V
6.3V
50V
50V
50V
C8815
C8816
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
25V
25V
C8914
1-164-156-11
CERAMIC CHIP
0.1µF
10%
20%
5%
5%
20%
20%
— 154 —
DESCRIPTION
VALUES
20%
20%
20%
20%
20%
16V
25V
25V
25V
25V
6.3V
6.3V
16V
25V
25V
25V
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
VALUES
CONNECTOR
*
*
*
*
*
*
*
REF.NO.
PART NO.
FB7602
FB7603
FB7801
FB7802
FB8801
1-414-229-11
1-414-229-11
1-414-229-11
1-414-229-11
1-469-835-21
DESCRIPTION
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
VALUES
0µH
0µH
0µH
0µH
0µH
CN7001
CN7201
CN7202
CN7204
CN7401
1-794-660-11
1-815-176-11
1-793-150-12
1-564-507-11
8-749-019-67
PIN,CONNECTOR (WITH SHIELD) 8P
PIN,CONNECTOR(WITH SHIELD) 22P
CONNECTOR, MEMORY STICK
PLUG,CONNECTOR
4P
IC GP1FH500TZ
CN7402
CN8601
CN8801
1-815-178-11
1-815-176-11
1-815-177-11
PIN,CONNECTOR(WITH SHIELD) 22P
PIN,CONNECTOR(WITH SHIELD) 22P
PIN,CONNECTOR(WITH SHIELD) 22P
FL7801
FL7802
FL7803
FL8601
FL8602
1-234-557-21
1-234-557-21
1-234-558-21
1-234-559-21
1-234-559-21
FILTER, LOW PASS
FILTER, LOW PASS
FILTER, LOW PASS
FILTER, LOW PASS
FILTER, LOW PASS
FL8603
FL8801
1-234-560-21
1-781-923-21
FILTER, LOW PASS
FILTER, LOW PASS (SMD)
FILTER
DIODE
D7001
D7002
D7003
D7004
D7005
8-719-048-40
8-719-048-40
8-719-046-91
8-719-046-91
8-719-046-91
DIODE MBRS140T3
DIODE MBRS140T3
DIODE MA2S111-TX
DIODE MA2S111-TX
DIODE MA2S111-TX
D7006
D7007
D7008
D7201
D7202
8-719-066-99
8-719-060-99
8-719-988-61
8-719-066-99
8-719-031-68
DIODE SML-210VTT86
DIODE SML-210MT-T86
DIODE 1SS355TE-17
DIODE SML-210VTT86
DIODE HVU359TRF
D7203
D7204
D7803
D8701
D8905
8-719-031-68
8-719-820-12
8-719-056-77
8-719-988-61
8-719-046-91
DIODE HVU359TRF
DIODE LN25RP
DIODE UDZ-TE-17-3.9B
DIODE 1SS355TE-17
DIODE MA2S111-TX
IC
FERRITE BEAD
FB7001
FB7002
FB7003
FB7004
FB7005
1-500-241-22
1-412-911-11
1-412-911-11
1-412-911-11
1-500-241-22
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
0µH
0µH
FB7006
FB7007
FB7008
FB7009
FB7010
1-500-241-22
1-469-835-21
1-469-835-21
1-469-835-21
1-469-835-21
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
0µH
0µH
FB7011
FB7012
FB7013
FB7014
FB7015
1-469-869-21
1-469-869-21
1-469-869-21
1-400-089-21
1-400-089-21
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
0µH
0µH
FB7016
FB7017
FB7201
FB7202
FB7601
1-400-089-21
1-500-241-22
1-414-231-22
1-414-229-11
1-414-229-11
FERRITE
FERRITE
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
0µH
0µH
— 155 —
IC7002
IC7201
IC7202
IC7203
IC7204
8-759-597-57
6-700-201-01
6-700-201-01
8-759-679-88
8-759-679-88
IC LTC1628CG#TR
IC MBM29LV160BE70TN
IC MBM29LV160BE70TN
IC GM71VS65163CLT-5
IC GM71VS65163CLT-5
IC7205
IC7206
IC7207
IC7208
IC7209
8-759-712-93
8-759-682-41
6-700-226-01
6-700-202-01
8-759-538-95
IC ST20TP4CX60S
IC M24C32-WMN6T(A)
IC TC74LVX04FT(EL)
IC MAX811TEUS-T
IC TC74LVX08FT(EL)
IC7401
IC7402
IC7403
IC7404
IC7405
8-759-698-88
6-700-203-01
6-700-203-01
6-700-203-01
8-759-485-79
IC STI4600BCV-2.0
IC CS4339KSR
IC CS4339KSR
IC CS4339KSR
IC TC7SET08FU(TE85L)
IC7601
IC7602
IC7603
IC7604
IC7801
8-759-675-89
8-759-675-89
6-700-087-01
6-700-273-01
8-759-669-78
IC TC59S6432CFT-80(YB)
IC TC59S6432CFT-80(YB)
IC STI7000AQA
IC EPM3128ATC100-5-V1.0
IC TLC2933IPWR-12
IC7803
IC7804
IC7805
IC7806
IC7807
6-700-134-01
8-752-409-78
8-759-669-75
8-759-447-90
6-700-274-01
IC NT56V1616A0T-7-T&R
IC CXD2095AQ
IC TLC2932IPWR
IC TLC5733AIPM
IC LMV358IPWR
IC8601
IC8703
IC8704
IC8706
IC8707
8-752-093-03
8-759-672-57
8-759-675-89
8-749-015-18
6-700-225-01
IC CXA3506R
IC CXD9509AQ
IC TC59S6432CFT-80(YB)
IC PQ07VZ012ZP
IC TC74VCX157FT(EL)
IC8708
IC8709
8-759-531-92
8-749-015-18
IC TC7WH04FU(TE12R)
IC PQ07VZ012ZP
KD-34XBR2
QM
REF.NO.
PART NO.
IC8801
IC8803
IC8804
IC8805
IC8807
6-700-321-01
6-700-134-01
6-700-134-01
6-700-248-01
6-700-226-01
IC8901
IC8902
IC8903
8-759-682-41
6-800-514-01
6-700-205-01
DESCRIPTION
VALUES
REF.NO.
PART NO.
IC YGV619
IC NT56V1616A0T-7-T&R
IC NT56V1616A0T-7-T&R
IC THS8134BCPHP
IC TC74LVX04FT(EL)
Q7805
Q7806
Q7807
Q7808
Q7809
8-729-037-53
8-729-122-63
8-729-037-52
8-729-037-52
8-729-037-52
TRANSISTOR 2SB1462J-QR(TX).SO
TRANSISTOR 2SA1226-T1E3E4
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
IC M24C32-WMN6T(A)
IC MB94918RpF-G-141-BND
IC TC74LVX157FT(EL)
Q7810
Q7811
Q7812
Q7813
Q8601
8-729-037-52
8-729-037-52
8-729-037-53
8-729-037-52
8-729-102-07
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SB1462J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SC2223-T1F13F14
COIL
DESCRIPTION
VALUES
L7002
L7003
L7004
L7005
L7006
1-469-848-21
1-469-848-21
1-416-606-11
1-414-755-11
1-414-755-11
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
47µH
22µH
22µH
Q8602
Q8603
Q8604
Q8605
Q8606
8-729-102-07
8-729-102-07
8-729-037-53
8-729-037-53
8-729-122-63
TRANSISTOR 2SC2223-T1F13F14
TRANSISTOR 2SC2223-T1F13F14
TRANSISTOR 2SB1462J-QR(TX).SO
TRANSISTOR 2SB1462J-QR(TX).SO
TRANSISTOR 2SA1226-T1E3E4
L7007
L7008
L7009
L7201
L7401
1-414-755-11
1-414-755-11
1-414-755-11
1-469-555-21
1-469-555-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
22µH
22µH
22µH
10µH
10µH
Q8607
Q8608
Q8609
Q8701
Q8702
8-729-122-63
8-729-122-63
8-729-037-53
8-719-012-57
8-719-012-57
TRANSISTOR 2SA1226-T1E3E4
TRANSISTOR 2SA1226-T1E3E4
TRANSISTOR 2SB1462J-QR(TX).SO
TRANSISTOR 2SK1399-T1B
TRANSISTOR 2SK1399-T1B
L7403
L7601
L7801
L7802
L7803
1-469-555-21
1-469-555-21
1-469-561-21
1-469-561-21
1-469-561-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
100µH
100µH
100µH
Q8804
Q8805
Q8806
Q8901
Q8902
8-729-102-07
8-729-102-07
8-729-102-07
8-729-037-52
8-729-037-52
TRANSISTOR 2SC2223-T1F13F14
TRANSISTOR 2SC2223-T1F13F14
TRANSISTOR 2SC2223-T1F13F14
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
L7804
L7805
L7806
L8601
L8602
1-469-561-21
1-469-555-21
1-469-555-21
1-469-555-21
1-469-553-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
100µH
10µH
10µH
10µH
4.7µH
Q8903
Q8904
8-729-037-53
8-729-037-53
TRANSISTOR 2SB1462J-QR(TX).SO
TRANSISTOR 2SB1462J-QR(TX).SO
L8603
L8801
L8802
L8803
L8805
L8906
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
1-469-555-21
1-469-553-21
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
10µH
10µH
10µH
10µH
10µH
4.7µH
RESISTOR
TRANSISTOR
Q7001
Q7002
Q7005
Q7006
Q7201
8-729-056-25
8-729-056-25
8-729-037-52
8-729-037-52
8-729-037-52
TRANSISTOR SI4922DY
TRANSISTOR SI4922DY
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
Q7202
Q7203
Q7802
Q7803
Q7804
8-729-037-52
8-729-037-52
8-729-037-53
8-729-037-52
8-729-037-53
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SB1462J-QR(TX).SO
TRANSISTOR 2SD2216J-QR(TX).SO
TRANSISTOR 2SB1462J-QR(TX).SO
— 156 —
R7003
R7004
R7007
R7008
R7009
1-220-994-21
1-220-851-21
1-218-724-11
1-218-732-11
1-218-724-11
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
0.06
0.015
22K
47K
22K
1%
1%
0.50%
0.50%
0.50%
1W
1W
1/16W
1/16W
1/16W
R7010
R7011
R7012
R7013
R7014
1-218-736-11
1-216-821-11
1-216-864-11
1-216-809-11
1-216-809-11
METAL CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
68K
1K
0.50% 1/16W
5%
1/16W
100
100
5%
5%
1/16W
1/16W
R7016
R7017
R7019
R7020
R7021
1-216-809-11
1-216-809-11
1-216-817-11
1-216-841-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
470
47K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7022
R7023
R7024
R7025
1-216-817-11
1-216-817-11
1-216-864-11
1-216-833-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
470
470
5%
5%
1/16W
1/16W
10K
5%
1/16W
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
R7026
R7028
R7029
R7030
R7031
1-216-857-11
1-216-857-11
1-216-835-11
1-216-835-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
1M
1M
15K
15K
5%
5%
5%
5%
R7033
R7036
R7039
R7046
R7201
1-216-797-11
1-216-864-11
1-216-864-11
1-218-736-11
1-216-801-11
RES-CHIP
SHORT
SHORT
METAL CHIP
RES-CHIP
10
5%
68K
22
R7202
R7205
R7206
R7207
R7208
1-216-801-11
1-216-833-11
1-216-833-11
1-216-809-11
1-216-805-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
R7210
R7211
R7212
R7213
R7214
1-216-833-11
1-216-833-11
1-216-833-11
1-216-805-11
1-216-805-11
R7215
R7216
R7219
R7220
R7221
1/16W
1/16W
1/16W
1/16W
R7259
R7260
R7261
R7262
R7263
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
10K
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
0.50% 1/16W
5%
1/16W
R7264
R7265
R7266
R7267
R7268
1-216-864-11
1-216-841-11
1-216-833-11
1-216-833-11
1-216-805-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
10K
10K
47
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
22
10K
10K
100
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7270
R7271
R7273
R7274
R7275
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
10K
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
10K
47
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7276
R7277
R7281
R7282
R7283
1-216-833-11
1-216-864-11
1-216-833-11
1-216-833-11
1-216-806-11
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
10K
5%
1/16W
10K
10K
56
5%
5%
5%
1/16W
1/16W
1/16W
1-216-805-11
1-216-803-11
1-216-809-11
1-216-809-11
1-216-829-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
33
100
100
4.7K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7284
R7285
R7286
R7288
R7289
1-216-806-11
1-216-864-11
1-216-864-11
1-216-793-11
1-216-793-11
RES-CHIP
SHORT
SHORT
RES-CHIP
RES-CHIP
56
5%
1/16W
4.7
4.7
5%
5%
1/16W
1/16W
R7222
R7223
R7224
R7235
R7236
1-216-809-11
1-216-829-11
1-216-864-11
1-216-821-11
1-216-833-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
100
4.7K
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
1/16W
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
5%
5%
5%
5%
1-216-830-11
1-216-821-11
1-216-864-11
1-216-833-11
1-216-805-11
5.6K
1K
1K
10K
R7401
R7403
R7405
R7408
R7409
10K
47
5%
5%
1/16W
1/16W
R7238
R7239
R7243
R7244
R7245
1-216-833-11
1-216-851-11
1-216-845-11
1-216-845-11
1-216-845-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
330K
100K
100K
100K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7410
R7411
R7412
R7413
R7414
1-216-805-11
1-216-805-11
1-216-809-11
1-216-805-11
1-216-805-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
47
100
47
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7246
R7247
R7248
R7249
R7250
1-216-825-11
1-216-809-11
1-216-857-11
1-216-833-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
2.2K
100
1M
10K
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7415
R7417
R7418
R7419
R7420
1-216-805-11
1-216-833-11
1-216-850-11
1-216-850-11
1-216-850-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47
10K
270K
270K
270K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7251
R7252
R7253
R7254
R7256
1-216-864-11
1-216-804-11
1-216-804-11
1-216-804-11
1-216-833-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
39
39
39
10K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R7421
R7422
R7423
R7424
R7430
1-216-850-11
1-216-850-11
1-216-850-11
1-216-797-11
1-216-818-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
270K
270K
270K
10
560
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7257
R7258
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
10K
10K
5%
5%
1/16W
1/16W
R7431
R7432
1-216-818-11
1-216-818-11
RES-CHIP
RES-CHIP
560
560
5%
5%
1/16W
1/16W
— 157 —
DESCRIPTION
VALUES
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
R7433
R7434
R7435
R7436
R7437
1-216-818-11
1-216-818-11
1-216-818-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
560
560
560
100
100
5%
5%
5%
5%
5%
R7438
R7439
R7440
R7441
R7442
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
100
100
R7443
R7444
R7445
R7447
R7601
1-216-809-11
1-216-833-11
1-216-809-11
1-216-864-11
1-216-804-11
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
R7602
R7603
R7604
R7605
R7606
1-216-804-11
1-216-805-11
1-216-833-11
1-216-833-11
1-216-833-11
R7607
R7608
R7610
R7611
R7612
1/16W
1/16W
1/16W
1/16W
1/16W
R7807
R7808
R7809
R7811
R7812
1-216-809-11
1-216-813-11
1-216-821-11
1-216-827-11
1-216-829-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
220
1K
3.3K
4.7K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7813
R7814
R7817
R7818
R7819
1-216-829-11
1-216-829-11
1-216-829-11
1-216-829-11
1-216-829-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
4.7K
4.7K
4.7K
4.7K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
100
10K
100
5%
5%
5%
1/16W
1/16W
1/16W
39
5%
1/16W
R7820
R7822
R7823
R7826
R7828
1-216-829-11
1-218-705-11
1-216-841-11
1-216-833-11
1-216-853-11
RES-CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
3.6K
47K
10K
470K
5%
0.50%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
39
47
10K
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7829
R7831
R7833
R7837
R7840
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
10K
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
1-216-833-11
1-216-833-11
1-216-810-11
1-216-811-11
1-216-797-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
120
150
10
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7842
R7850
R7857
R7858
R7859
1-216-833-11
1-216-833-11
1-216-801-11
1-216-801-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
22
22
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7613
R7614
R7617
R7619
R7622
1-216-864-11
1-216-833-11
1-216-806-11
1-216-806-11
1-216-821-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
56
56
1K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R7862
R7863
R7864
R7865
R7866
1-218-687-11
1-218-676-11
1-216-814-11
1-218-704-11
1-218-676-11
METAL CHIP
METAL CHIP
RES-CHIP
METAL CHIP
METAL CHIP
620
220
270
3.3K
220
0.50%
0.50%
5%
0.50%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R7627
R7630
R7638
R7639
R7640
1-216-821-11
1-216-821-11
1-216-806-11
1-216-806-11
1-216-806-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
1K
56
56
56
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7867
R7868
R7869
R7871
R7872
1-218-676-11
1-216-803-11
1-216-803-11
1-216-809-11
1-216-809-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220
33
33
100
100
0.50%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7641
R7642
R7643
R7650
R7651
1-216-833-11
1-216-806-11
1-216-806-11
1-216-801-11
1-216-806-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
56
56
22
56
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7873
R7874
R7876
R7877
R7878
1-216-803-11
1-216-803-11
1-216-809-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
33
33
100
1K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7652
R7801
R7802
R7803
R7804
1-216-809-11
1-216-853-11
1-216-864-11
1-216-837-11
1-216-809-11
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
100
470K
5%
5%
1/16W
1/16W
22K
100
5%
5%
1/16W
1/16W
R7879
R7880
R7881
R7884
R7885
1-218-695-11
1-218-695-11
1-216-820-11
1-216-809-11
1-216-821-11
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.3K
1.3K
820
100
1K
0.50%
0.50%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7805
R7806
1-216-815-11
1-216-813-11
RES-CHIP
RES-CHIP
330
220
5%
5%
1/16W
1/16W
R7886
R7887
1-218-694-11
1-216-855-11
METAL CHIP
RES-CHIP
1.2K
680K
0.50% 1/16W
5%
1/16W
— 158 —
DESCRIPTION
VALUES
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
R7888
R7889
R7890
R7892
R7893
1-218-709-11
1-216-855-11
1-216-809-11
1-218-720-11
1-218-720-11
METAL CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
5.1K
680K
100
15K
15K
0.50%
5%
5%
0.50%
0.50%
R7894
R7896
R7897
R7899
R7904
1-218-720-11
1-216-841-11
1-216-815-11
1-216-815-11
1-216-817-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
15K
47K
330
330
470
R7905
R7906
R7907
R7908
R7909
1-216-817-11
1-216-817-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
R7910
R7911
R7912
R7913
R7914
1-216-830-11
1-216-830-11
1-216-830-11
1-216-818-11
1-216-818-11
R7915
R7916
R7917
R7918
R7919
1/16W
1/16W
1/16W
1/16W
1/16W
R8624
R8625
R8626
R8627
R8628
1-218-675-11
1-216-821-11
1-216-809-11
1-216-809-11
1-216-809-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
200
1K
100
100
100
0.50%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
0.50%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8629
R8630
R8631
R8632
R8636
1-216-823-11
1-216-823-11
1-216-823-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.5K
1.5K
1.5K
1K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
470
470
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8637
R8638
R8639
R8641
R8642
1-216-821-11
1-216-821-11
1-218-704-11
1-216-821-11
1-218-703-11
RES-CHIP
RES-CHIP
METAL CHIP
RES-CHIP
METAL CHIP
1K
1K
3.3K
1K
3K
5%
5%
0.50%
5%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
5.6K
5.6K
5.6K
560
560
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8643
R8644
R8645
R8646
R8647
1-216-821-11
1-216-845-11
1-216-821-11
1-216-821-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
100K
1K
1K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
1-216-818-11
1-216-817-11
1-216-817-11
1-216-817-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
560
470
470
470
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8648
R8649
R8650
R8651
R8652
1-216-830-11
1-216-809-11
1-216-833-11
1-216-801-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
5.6K
100
10K
22
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R7920
R7921
R8604
R8605
R8606
1-216-809-11
1-216-809-11
1-216-821-11
1-216-821-11
1-216-819-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
100
1K
1K
680
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8653
R8656
R8657
R8658
R8703
1-216-833-11
1-218-692-11
1-218-704-11
1-218-704-11
1-216-809-11
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
10K
1K
3.3K
3.3K
100
5%
0.50%
0.50%
0.50%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8607
R8608
R8609
R8610
R8611
1-216-819-11
1-216-819-11
1-216-809-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
680
680
100
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8709
R8711
R8712
R8713
R8714
1-216-803-11
1-216-801-11
1-216-833-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
33
22
10K
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8612
R8613
R8614
R8615
R8616
1-216-820-11
1-216-820-11
1-216-820-11
1-216-809-11
1-216-809-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
820
820
820
100
100
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8715
R8716
R8717
R8718
R8719
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
10K
10K
10K
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8617
R8618
R8619
R8620
R8621
1-216-809-11
1-218-679-11
1-218-679-11
1-218-675-11
1-216-821-11
RES-CHIP
METAL CHIP
METAL CHIP
METAL CHIP
RES-CHIP
100
300
300
200
1K
5%
0.50%
0.50%
0.50%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8720
R8721
R8722
R8724
R8725
1-216-801-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-814-11
RES-CHIP
SHORT
SHORT
SHORT
RES-CHIP
22
5%
1/16W
270
5%
1/16W
R8622
R8623
1-218-679-11
1-218-679-11
METAL CHIP
METAL CHIP
300
300
0.50% 1/16W
0.50% 1/16W
R8726
R8727
1-216-864-11
1-216-806-11
SHORT
RES-CHIP
56
5%
1/16W
— 159 —
DESCRIPTION
VALUES
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
R8728
R8733
R8734
R8736
R8737
1-216-801-11
1-216-833-11
1-216-833-11
1-216-797-11
1-216-797-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
22
10K
10K
10
10
5%
5%
5%
5%
5%
R8744
R8747
R8748
R8750
R8751
1-216-801-11
1-218-692-11
1-218-692-11
1-216-801-11
1-216-801-11
RES-CHIP
METAL CHIP
METAL CHIP
RES-CHIP
RES-CHIP
22
1K
1K
22
22
R8752
R8806
R8807
R8808
R8809
1-216-864-11
1-216-817-11
1-216-805-11
1-216-805-11
1-216-805-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
R8810
R8811
R8813
R8817
R8818
1-216-801-11
1-216-805-11
1-216-801-11
1-218-712-11
1-218-688-11
R8819
R8820
R8821
R8822
R8827
1/16W
1/16W
1/16W
1/16W
1/16W
R8903
R8904
R8905
R8906
R8907
1-216-864-11
1-216-864-11
1-216-841-11
1-216-805-11
1-216-805-11
SHORT
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
47K
47
47
5%
5%
5%
1/16W
1/16W
1/16W
5%
0.50%
0.50%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8909
R8911
R8912
R8914
R8915
1-216-841-11
1-216-797-11
1-216-797-11
1-216-809-11
1-216-825-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
10
10
100
2.2K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
470
47
47
47
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R8916
R8917
R8918
R8919
R8920
1-216-825-11
1-216-845-11
1-216-845-11
1-216-864-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
SHORT
2.2K
100K
100K
5%
5%
5%
1/16W
1/16W
1/16W
RES-CHIP
RES-CHIP
RES-CHIP
METAL CHIP
METAL CHIP
22
47
22
6.8K
680
5%
5%
5%
0.50%
0.50%
1/16W
1/16W
1/16W
1/16W
1/16W
R8921
R8924
R8925
R8926
R8928
1-216-809-11
1-216-833-11
1-216-833-11
1-216-809-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
10K
10K
100
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
1-218-740-11
1-218-664-11
1-218-664-11
1-218-664-11
1-216-864-11
METAL CHIP
METAL CHIP
METAL CHIP
METAL CHIP
SHORT
100K
68
68
68
0.50%
0.50%
0.50%
0.50%
1/16W
1/16W
1/16W
1/16W
R8929
R8930
R8931
R8932
R8933
1-216-809-11
1-216-829-11
1-216-829-11
1-216-837-11
1-216-837-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
4.7K
4.7K
22K
22K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8828
R8829
R8835
R8836
R8837
1-216-864-11
1-216-864-11
1-216-809-11
1-216-809-11
1-216-809-11
SHORT
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
100
100
100
5%
5%
5%
1/16W
1/16W
1/16W
R8934
R8935
R8937
R8938
1-216-824-11
1-216-827-11
1-216-833-11
1-216-829-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1.8K
3.3K
10K
4.7K
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R8839
R8840
R8841
R8843
R8844
1-216-817-11
1-216-817-11
1-216-817-11
1-216-801-11
1-216-801-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
470
470
470
22
22
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8845
R8849
R8850
R8851
R8852
1-216-801-11
1-216-809-11
1-216-809-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
22
100
100
1K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8854
R8857
R8860
R8870
R8871
1-216-809-11
1-216-805-11
1-216-829-11
1-216-801-11
1-216-805-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
47
4.7K
22
47
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R8901
R8902
1-216-833-11
1-216-833-11
RES-CHIP
RES-CHIP
10K
10K
5%
5%
1/16W
1/16W
— 160 —
DESCRIPTION
VALUES
RESISTOR BRIDGE
RB7004
RB7005
RB7006
RB7007
RB7008
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
22
22
22
22
RB7009
RB7010
RB7011
RB7012
RB7013
1-233-575-11
1-233-575-11
1-233-575-11
1-236-908-11
1-236-908-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
22
22
10K
10K
RB7014
RB7201
RB7202
RB7203
RB7204
1-236-908-11
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
10K
22
22
22
22
RB7205
RB7206
1-233-575-11
1-233-575-11
RES, CHIP NETWORK 22
RES, CHIP NETWORK 22
-3216
-3216
-3216
KD-34XBR2
QM
REF.NO.
PART NO.
DESCRIPTION
RB7207
RB7208
RB7214
RB7215
RB7216
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RB7217
RB7221
RB7222
RB7223
RB7224
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
1-236-908-11
RB7601
RB7602
RB7603
RB7604
RB7605
VALUES
REF.NO.
PART NO.
DESCRIPTION
VALUES
22
22
22
22
22
RB7809
RB7810
RB7811
RB7813
RB7814
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
47
47
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
22
22
22
10K
-3216
RB8601
RB8602
RB8603
RB8604
RB8605
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
22
22
22
22
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
47
47
-3216
-3216
-3216
-3216
-3216
RB8606
RB8701
RB8702
RB8703
RB8704
1-233-575-11
1-239-409-11
1-239-409-11
1-233-575-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
47
47
22
47
RB7606
RB7607
RB7608
RB7609
RB7610
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
47
47
-3216
-3216
-3216
-3216
-3216
RB8705
RB8706
RB8707
RB8708
RB8709
1-233-575-11
1-239-409-11
1-233-575-11
1-239-409-11
1-233-575-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
47
22
47
22
RB7611
RB7612
RB7613
RB7614
RB7615
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
47
47
-3216
-3216
-3216
-3216
-3216
RB8710
RB8711
RB8712
RB8713
RB8714
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
47
47
-3216
-3216
-3216
-3216
-3216
RB7616
RB7617
RB7618
RB7619
RB7620
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
47
47
-3216
-3216
-3216
-3216
-3216
RB8715
RB8716
RB8717
RB8805
RB8806
1-239-409-11
1-239-409-11
1-239-409-11
1-233-575-11
1-233-575-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
22
22
-3216
-3216
-3216
RB7624
RB7625
RB7626
RB7627
RB7628
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
47
47
-3216
-3216
-3216
-3216
-3216
RB8807
RB8808
RB8809
RB8810
RB8811
1-233-575-11
1-233-575-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
22
47
47
47
-3216
-3216
-3216
RB7629
RB7630
RB7632
RB7634
RB7635
1-239-409-11
1-239-409-11
1-233-575-11
1-233-575-11
1-233-575-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
22
22
22
-3216
-3216
RB8812
RB8813
RB8814
RB8815
RB8816
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
47
47
47
47
47
-3216
-3216
-3216
-3216
-3216
RB7636
RB7637
RB7804
RB7805
RB7806
1-233-575-11
1-233-575-11
1-239-409-11
1-239-409-11
1-239-409-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
22
47
47
47
-3216
-3216
-3216
RB7807
RB7808
1-239-409-11
1-239-409-11
RES, CHIP NETWORK 47
RES, CHIP NETWORK 47
-3216
-3216
-3216
-3216
-3216
-3216
-3216
-3216
-3216
-3216
-3216
-3216
TUNER
TU7001
— 161 —
8-598-583-00
UNIT, DIGITAL TUNER BTD-DA403
KD-34XBR2
QM QI
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
PART NO.
DESCRIPTION
C9236
C9237
C9238
C9239
C9240
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-126-206-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1µF
0.1µF
0.1µF
0.1µF
100µF
C9241
C9242
C9243
C9244
C9245
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
C9246
C9247
C9248
C9249
C9250
1-164-156-11
1-124-779-00
1-162-919-11
1-164-156-11
1-162-919-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
10µF
22pF
0.1µF
22pF
16V
25V
25V
25V
25V
C9251
C9252
C9253
C9254
C9256
1-164-230-11
1-164-156-11
1-126-206-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
220pF
0.1µF
100µF
0.1µF
0.1µF
25V
25V
16V
25V
16V
C9257
C9258
C9259
C9260
C9261
1-164-156-11
1-164-156-11
1-126-206-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
100µF
0.1µF
0.1µF
25V
16V
25V
25V
16V
C9262
C9263
C9264
C9265
C9267
1-124-779-00
1-164-156-11
1-164-156-11
1-164-188-11
1-164-188-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
470pF
470pF
25V
50V
50V
50V
25V
C9268
C9270
C9271
C9273
C9276
1-164-156-11
1-124-779-00
1-164-156-11
1-115-156-11
1-164-156-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
10µF
0.1µF
1µF
0.1µF
25V
25V
25V
25V
25V
C9277
C9278
C9279
C9281
C9282
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
50V
50V
50V
25V
50V
C9283
C9284
C9285
C9286
C9287
1-164-156-11
1-164-156-11
1-164-156-11
1-162-915-11
1-162-915-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
10pF
10pF
25V
25V
25V
0.50pF 50V
0.50pF 50V
16V
25V
25V
C9288
C9289
1-162-970-11
1-162-915-11
CERAMIC CHIP
CERAMIC CHIP
0.01µF
10pF
10% 25V
0.50pF 50V
CRYSTAL
X7201
X7202
X8701
X8901
1-579-886-21
1-767-262-31
1-781-887-21
1-781-945-21
VIBRATOR, CRYSTAL
VIBRATOR, CRYSTAL
VIBRATOR, CRYSTAL
VIBRATOR, CERAMIC
QI
The QM board is not Þeld repairable and cannot be ordered independently. If
service is required, use the following part number to order a replacement Q-box
which includes the complete QM and QI board assemblies.
*
SEE SUPPLEMENT-1
Q-BOX, COMPLETE
CAPACITOR
C9201
C9202
C9203
C9204
C9205
1-124-779-00
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
0.1µF
0.1µF
20%
C9206
C9207
C9208
C9209
C9210
1-164-156-11
1-164-156-11
1-126-204-11
1-164-156-11
1-126-395-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
ELECT CHIP
0.1µF
0.1µF
47µF
0.1µF
22µF
C9211
C9212
C9213
C9214
C9215
1-164-156-11
1-126-395-11
1-164-156-11
1-164-156-11
1-126-395-11
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
0.1µF
22µF
0.1µF
0.1µF
22µF
C9216
C9219
C9220
C9221
C9222
1-164-156-11
1-162-923-11
1-162-926-11
1-162-919-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
47pF
82pF
22pF
0.1µF
C9223
C9224
C9225
C9226
C9227
1-164-156-11
1-162-970-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.01µF
0.1µF
0.1µF
0.1µF
C9228
C9229
C9230
C9231
C9232
1-164-388-91
1-162-964-11
1-162-964-11
1-164-156-11
1-164-388-91
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
270pF
0.001µF
0.001µF
0.1µF
270pF
5%
10%
10%
C9233
C9234
C9235
1-124-779-00
1-164-156-11
1-164-156-11
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
10µF
0.1µF
0.1µF
20%
20%
20%
20%
20%
5%
5%
5%
10%
5%
— 162 —
VALUES
20%
25V
25V
25V
25V
6.3V
25V
25V
25V
25V
25V
20%
5%
5%
5%
25V
16V
50V
25V
50V
20%
50V
25V
6.3V
25V
25V
20%
25V
25V
6.3V
25V
25V
20%
2%
2%
20%
16V
25V
25V
50V
50V
25V
16V
25V
10V
25V
KD-34XBR2
QI
REF.NO.
PART NO.
DESCRIPTION
VALUES
C9290
C9292
C9295
C9296
C9297
1-164-156-11
1-164-156-11
1-124-779-00
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
ELECT CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
10µF
0.1µF
0.1µF
C9298
C9299
C9301
C9302
C9303
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C9304
C9305
C9306
C9307
C9308
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C9309
C9310
C9311
C9312
C9313
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
0.1µF
0.1µF
0.1µF
25V
25V
25V
25V
25V
C9314
C9315
1-164-156-11
1-164-156-11
CERAMIC CHIP
CERAMIC CHIP
0.1µF
0.1µF
25V
25V
20%
25V
25V
16V
25V
25V
CN9203
CN9204
CN9206
1-815-164-11
1-815-164-11
1-564-507-11
PART NO.
FL9203
FL9204
FL9205
FL9206
1-781-667-21
1-781-667-21
1-781-667-21
1-781-667-21
DESCRIPTION
INDUCTOR
INDUCTOR
INDUCTOR
INDUCTOR
VALUES
0µH
0µH
0µH
0µH
IC
IC9201
IC9202
IC9203
IC9204
IC9205
8-759-475-53
8-752-400-16
8-752-396-41
8-759-669-46
8-759-680-30
IC TC74LCX541FT(EL)
IC CXD3203R
IC CXD1945R
IC LM358PWR-12
IC UPD82442GN-001-LMU
IC9206
IC9207
IC9208
IC9209
IC9210
8-759-589-36
8-759-530-29
8-759-475-43
6-700-335-01
8-759-689-92
IC MT48LC4M16A2TG-75
IC TC4069UBFT(EL,N)
IC TC74LCX125FT(EL)
IC UPD30200GD-80-LBB
IC MBM29LV160BE-90TN
IC9211
IC9212
IC9213
IC9214
IC9215
8-759-689-92
6-800-499-01
8-759-491-46
8-759-491-46
8-759-475-39
IC MBM29LV160BE-90TN
IC MBM29LV160BE-90TN-V1.0
IC TC74VHC04FT(EL)
IC TC74VHC04FT(EL)
IC TC74LCX74FT(EL)
COIL
L9202
L9204
CONNECTOR
*
*
*
REF.NO.
CONNECTOR, I LINK (FLANGE TYPE)
CONNECTOR, I LINK (FLANGE TYPE)
PLUG,CONNECTOR 4P
1-414-078-11
1-543-949-22
INDUCTOR
FERRITE
10µH
0µH
TRANSISTOR
Q9201
8-729-037-52
TRANSISTOR 2SD2216J-QR(TX).SO
DIODE
D9201
D9202
D9203
D9204
D9205
8-719-060-99
8-719-060-99
8-719-060-99
8-719-060-99
8-719-060-99
DIODE SML-210MT-T86
DIODE SML-210MT-T86
DIODE SML-210MT-T86
DIODE SML-210MT-T86
DIODE SML-210MT-T86
D9206
D9207
D9208
D9209
D9210
8-719-060-99
8-719-060-99
8-719-820-05
8-719-404-50
8-719-060-99
DIODE SML-210MT-T86
DIODE SML-210MT-T86
DIODE MA152WA-TX
DIODE MA111-TX
DIODE SML-210MT-T86
RESISTOR
FERRITE BEAD
FB9202
FB9204
FB9211
1-414-760-21
1-414-760-21
1-414-760-21
FERRITE
FERRITE
FERRITE
0µH
0µH
0µH
FILTER
FL9201
FL9202
1-400-087-21
1-400-087-21
FILTER, EMI REMOVAL (SMD)
FILTER, EMI REMOVAL (SMD)
— 163 —
R9201
R9203
R9204
R9205
R9206
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
R9207
R9208
R9209
R9210
R9211
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
SHORT
SHORT
SHORT
SHORT
R9213
R9214
R9215
R9216
R9217
1-216-821-11
1-216-821-11
1-216-821-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
1K
1K
1K
1K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9218
R9219
R9220
1-216-821-11
1-216-821-11
1-216-821-11
RES-CHIP
RES-CHIP
RES-CHIP
1K
1K
1K
5%
5%
5%
1/16W
1/16W
1/16W
KD-34XBR2
QI
REF.NO.
PART NO.
DESCRIPTION
R9222
R9223
R9226
R9228
R9229
1-216-864-11
1-216-833-11
1-216-864-11
1-216-864-11
1-216-864-11
SHORT
RES-CHIP
SHORT
SHORT
SHORT
R9231
R9232
R9233
R9234
R9235
1-216-864-11
1-216-833-11
1-216-833-11
1-216-833-11
1-216-833-11
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
R9236
R9237
R9247
R9250
R9251
1-216-864-11
1-216-864-11
1-216-833-11
1-216-833-11
1-216-864-11
SHORT
SHORT
RES-CHIP
RES-CHIP
SHORT
R9252
R9253
R9254
R9256
R9257
1-216-813-11
1-216-824-11
1-216-822-11
1-216-833-11
1-216-836-11
R9258
R9259
R9260
R9261
R9262
VALUES
10K
10K
10K
10K
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
REF.NO.
PART NO.
DESCRIPTION
R9285
R9286
R9287
R9288
R9289
1-216-864-11
1-216-864-11
1-216-864-11
1-216-803-11
1-216-841-11
SHORT
SHORT
SHORT
RES-CHIP
RES-CHIP
R9290
R9291
R9292
R9293
R9295
1-219-570-11
1-216-851-11
1-216-864-11
1-216-821-11
1-216-809-11
R9296
R9340
R9341
R9342
R9343
VALUES
33
47K
5%
5%
1/16W
1/16W
RES-CHIP
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
10M
330K
5%
5%
1/16W
1/16W
1K
100
5%
5%
1/16W
1/16W
1-216-809-11
1-216-817-11
1-216-817-11
1-216-829-11
1-216-841-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
100
470
470
4.7K
47K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
10K
5%
1/16W
10K
10K
5%
5%
1/16W
1/16W
10K
10K
10K
5%
5%
5%
1/16W
1/16W
1/16W
4.7K
5%
1/16W
47K
100K
5%
5%
1/16W
1/16W
10K
10K
5%
5%
1/16W
1/16W
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
220
1.8K
1.2K
10K
18K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9344
R9345
R9346
R9347
R9348
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-833-11
SHORT
SHORT
SHORT
SHORT
RES-CHIP
1-216-821-11
1-216-815-11
1-216-817-11
1-216-812-11
1-216-811-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
1K
330
470
180
150
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9349
R9351
R9352
R9353
R9355
1-216-864-11
1-216-864-11
1-216-833-11
1-216-833-11
1-216-864-11
SHORT
SHORT
RES-CHIP
RES-CHIP
SHORT
R9263
R9264
R9265
R9266
R9267
1-216-806-11
1-216-810-11
1-216-806-11
1-216-806-11
1-216-810-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
56
120
56
56
120
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9356
R9358
R9359
R9360
R9361
1-216-864-11
1-216-864-11
1-216-833-11
1-216-833-11
1-216-833-11
SHORT
SHORT
RES-CHIP
RES-CHIP
RES-CHIP
R9268
R9269
R9270
R9271
R9272
1-216-841-11
1-218-272-11
1-216-806-11
1-216-841-11
1-216-806-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
47K
5.1K
56
47K
56
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9362
R9364
R9365
R9366
R9367
1-216-864-11
1-216-829-11
1-216-864-11
1-216-841-11
1-216-845-11
SHORT
RES-CHIP
SHORT
RES-CHIP
RES-CHIP
R9273
R9274
R9275
R9276
R9277
1-216-806-11
1-216-806-11
1-218-272-11
1-216-806-11
1-216-833-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
56
56
5.1K
56
10K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9368
R9369
R9371
R9372
R9373
1-216-813-11
1-216-825-11
1-216-841-11
1-216-808-11
1-216-864-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
SHORT
220
2.2K
47K
82
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
R9278
R9279
R9280
R9281
R9282
1-216-833-11
1-216-864-11
1-216-864-11
1-216-864-11
1-216-864-11
RES-CHIP
SHORT
SHORT
SHORT
SHORT
10K
5%
1/16W
R9374
R9375
R9376
R9377
R9378
1-216-808-11
1-216-825-11
1-216-801-11
1-216-805-11
1-216-807-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
82
2.2K
22
47
68
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9283
R9284
1-216-864-11
1-216-864-11
SHORT
SHORT
R9379
R9381
1-216-864-11
1-216-864-11
SHORT
SHORT
— 164 —
KD-34XBR2
QI W
REF.NO.
PART NO.
R9382
R9391
1-216-833-11
1-216-833-11
DESCRIPTION
RES-CHIP
RES-CHIP
VALUES
10K
10K
REF.NO.
5%
5%
1/16W
1/16W
RESISTOR BRIDGE
RB9201
RB9202
RB9203
RB9204
RB9205
1-233-575-11
1-233-575-11
1-233-575-11
1-233-575-11
1-234-525-21
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
22
22
22
22
56
RB9206
RB9207
RB9208
RB9209
RB9210
1-234-525-21
1-234-525-21
1-234-525-21
1-234-525-21
1-234-525-21
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
56
56
56
56
56
RB9211
RB9212
RB9213
RB9224
RB9225
1-234-525-21
1-234-525-21
1-234-525-21
1-234-525-21
1-233-575-11
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
RES, CHIP NETWORK
56
56
56
56
22
RB9226
RB9227
RB9228
1-233-575-11
1-233-575-11
1-233-575-11
RES, CHIP NETWORK 22
RES, CHIP NETWORK 22
RES, CHIP NETWORK 22
PART NO.
DESCRIPTION
VALUES
CONNECTOR
*
*
*
*
CN9100
CN9101
CN9102
CN9103
1-564-515-11
1-564-506-11
1-564-506-11
1-770-747-11
PLUG,CONNECTOR 12P
PLUG,CONNECTOR 3P
PLUG,CONNECTOR 3P
CONNECTOR, BOARD TO BOARD 12P
FERRITE BEAD
FB9100
FB9101
1-410-397-21
1-410-397-21
FERRITE
FERRITE
1.1µH
1.1µH
INDUCTOR
10µH
COIL
L9100
1-412-525-31
TRANSISTOR
CRYSTAL
X9202
X9203
W
*
1-579-886-21
1-767-779-21
VIBRATOR, CRYSTAL
VIBRATOR, CRYSTAL
A-1372-977-A
W BOARD, MOUNTED
4-382-854-01
SCREW (M3X8), P, SW (+)
Q9100
Q9101
Q9102
Q9103
Q9104
8-729-422-27
8-729-422-27
8-729-424-02
8-729-422-27
8-729-424-02
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
Q9105
Q9106
Q9107
Q9108
Q9109
8-729-422-27
8-729-424-02
8-729-422-27
8-729-424-02
8-729-422-27
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
TRANSISTOR 2SB709A-QRS-TX
TRANSISTOR 2SD601A-QRS-TX
Q9110
Q9111
8-729-045-04
8-729-045-05
TRANSISTOR 2SC5511
TRANSISTOR 2SA2005
RESISTOR
CAPACITOR
C9101
C9104
C9105
C9106
C9108
1-104-999-11
1-126-933-11
1-162-964-11
1-164-156-11
1-107-662-11
MYLAR
ELECT
CERAMIC CHIP
CERAMIC CHIP
ELECT
0.1µF
100µF
0.001µF
0.1µF
22µF
C9109
C9110
C9111
C9112
C9113
C9114
C9115
1-161-830-00
1-164-156-11
1-126-964-11
1-162-970-11
1-137-528-11
1-107-636-11
1-137-528-11
CERAMIC
CERAMIC CHIP
ELECT
CERAMIC CHIP
MYLAR
ELECT
MYLAR
.0047µF
0.1µF
10µF
0.01µF
0.1µF
10µF
0.1µF
C9116
C9117
1-164-156-11
1-117-450-11
CERAMIC CHIP
MYLAR
0.1µF
0.47µF
10%
20%
10%
20%
200V
16V
50V
25V
250V
20%
10%
10%
20%
10%
500V
25V
50V
25V
250V
160V
250V
10%
25V
250V
— 165 —
R9101
R9102
R9103
R9104
R9105
1-216-017-91
1-249-381-11
1-216-819-11
1-216-820-11
1-216-837-11
RES-CHIP
CARBON
RES-CHIP
RES-CHIP
RES-CHIP
47
1
680
820
22K
5%
5%
5%
5%
5%
1/10W
1/4W
1/16W
1/16W
1/16W
R9106
R9107
R9108
R9110
R9111
1-218-715-11
1-216-809-11
1-216-817-11
1-216-805-11
1-216-805-11
METAL CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
9.1K
100
470
47
47
0.50%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9112
R9113
R9114
R9115
R9116
1-249-389-11
1-249-389-11
1-249-389-11
1-249-389-11
1-249-389-11
CARBON
CARBON
CARBON
CARBON
CARBON
4.7
4.7
4.7
4.7
4.7
5%
5%
5%
5%
5%
1/4W
1/4W
1/4W
1/4W
1/4W
R9117
R9118
R9119
1-249-389-11
1-249-389-11
1-249-389-11
CARBON
CARBON
CARBON
4.7
4.7
4.7
5%
5%
5%
1/4W
1/4W
1/4W
KD-34XBR2
W
REF.NO.
PART NO.
DESCRIPTION
VALUES
REF.NO.
R9120
R9121
R9122
R9123
R9124
1-216-829-11
1-216-848-11
1-216-847-11
1-216-848-11
1-216-847-11
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
RES-CHIP
4.7K
180K
150K
180K
150K
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
1/16W
1/16W
R9125
R9126
R9127
R9128
R9129
1-216-829-11
1-216-805-11
1-216-805-11
1-215-890-11
1-216-817-11
RES-CHIP
RES-CHIP
RES-CHIP
METAL OXIDE
RES-CHIP
4.7K
47
47
470
470
5%
5%
5%
5%
5%
1/16W
1/16W
1/16W
2W
1/16W
ACCESSORIES AND PACKING MATERIALS
*
*
*
*
4-066-845-02
4-081-507-02
4-081-640-02
4-081-641-01
4-084-766-01
BAG, PROTECTION
CARTON, HSC
CUSION, UPPER
CUSION, LOWER
CUSHION, CENTER SUPPORT
*
4-396-077-01
4-083-273-22
4-083-273-31
JOINT
MANUAL, INSTRUCTION
MANUAL, INSTRUCTION
REMOTE COMMANDER
1-476-689-11
4-081-888-01
REMOTE COMMANDER (RM-Y185)
BATTERY COVER FOR RM-Y185
— 166 —
PART NO.
DESCRIPTION
VALUES
KD-34XBR2
Sony Corporation
9-965-916-03
Sony Technology Center
Technical Services
Service Promotion Department
English
2001JJ74WEB-1
Printed in USA
©2001.10
A BOARD SCHEMATIC DIAGRAM (1 OF 2)
14
SUB 9V
CLK1
C2028
470
16V
+9V
C2012
0.0022
B:1608
DAT1
SUB 9V
C
2
R2006
680
1/16W
:RN-CP
AUDIO L
VIDEO
DET OUT
DET OUT
R2014
1M
1/16W
:CHIP
P-ON
P SW (+)
P SW (-)
11
12
SIRCS
9
10
GND
STBY +5V
7
8
STBY LED
REPEAT LED
5
6
GND
TIMER LED
3
4
GND
P ON
SIRCS
STBY/ST LED
ISTBY LED
TIMER LED
MAIN-RLY
C2039
2.2
Q3171
DTA143EKA
LATCH
D
C2035
0.047
16V
B:1608
Q2004
2SB709A
SYNC-SEP
C2018
220p
B:1608
R2021
4.7k
1/16W
:CHIP
S-R
S-CV
E
R2013
10k
1/16W
:CHIP
SET ON
SUB 5V
R2016
2.2k
1/16W
:CHIP
ST-HS
R2010
10k
1/16W
:CHIP
C2015
1
16V
F:CHIP
AC-RLY
:CHIP
1/16W
1M
C2032
1
16V
F:CHIP
R2023
10k
1/16W
:CHIP
R2025
10k
1/16W
:CHIP
R2027
1M
1/16W
:CHIP
R2031
2.2k
1/16W
:CHIP
R3171
22k
1/16W
:CHIP
Q3170
2SD601A
LATCH
C2034
220p
B:1608
C3170
1
16V
F:CHIP
M-L
R2009
4.7k
1/16W
:CHIP
—
R2015
100k
:CHIP
0
R2028
100k
1/16W
:CHIP
+5V
MT-HS
SUB 5V
C2019
0.047
16V
B:1608
M-R
Q2002
2SB709A
SYNC-SEP
+5V
33V
S-L
D
R3184
100
CHIP
MA111
R2036
Q2006
DTA114EKA
SWITCH
C2057
0.47
B:CHIP
TP84
C2056
0.47
B:CHIP
TP92
STBY 5V
CONTROL PANEL
15V
TP81
MAIN 33V
KEY
WP
TP99
M-CV
TU-CONT
D3113
MTZJ-T-77-6.8B
D3114
MTZJ-T-77-6.8B
MA111
D2008
+5V
—
TU-OUT
—
Q3110
2SD601A
BUFFER
F
MAIN 9V
TP51
C3153
100
16V
R3162
100
1/16W
:CHIP
H DRIVE
R3165
2.2k
1/16W
:CHIP
—
HP-IN
R3140
2.7k
1/16W
:CHIP
L3102
+9V
MAIN 9V
D3109
1SS133
J
D2056
MA111
PROT
MAIN 12V
UNREG 11V
P-MUTE
SPKR-MUTE
SP-MUTE
A-MUTE
AUD-MUTE
PIC-MUTE
R2055
4.7k
1/16W
:CHIP
R3101
330
1/16W
:CHIP
R2059
1k
1/16W
:CHIP
D2059
MA111
D3103
MA111
C3101
100
16V
R3118
100k
1/16W
:CHIP
R3109
0
1/16W
:CHIP
R3106
10k
1/16W
:CHIP
D3106
MA111
ABL SW
R3111
0
1/16W
:CHIP
R3113
100k
1/16W
:CHIP
C3109
4.7
6.3V
B:CHIP
Q3103
2SD601A
C3117
C3111
4.7
6.3V
B:CHIP
0.068
C3114
100
16V
C3112
4.7
6.3V
B:CHIP
0.1
C3113
16V B:1608
B
G
16V
R3125
B:1608
10k
1/16W
:CHIP
1/16W
:CHIP
100
1/16W
R3141
R3139
PROT-MUTE
C3141
10
X3101
2.7MHz
45
44
43
42
41
40
39
38
GND_V
GND_H
H_DRV
HP_IN
L2_FIL
V_DRV-
53
V_DRV+
37
36
35
34
33
CERA
46
VPROT
47
HPROT
48
52
AFC_FIL
32
IREF_HV
31
VTIM
VBIAS
30
VCC9
VREG5
29
56
ABL_IN
HS_IN
28
57
ABL_FIL
IC3101
CXA2150AQ
YUV-JUNGLE
SCP
27
58
IK_IN
SCL
26
59
SABL_IN
SDA
25
60
PRE_RGB
F1
24
F0
23
61
VCC_OUT
62
B_OUT
63
G_OUT
CR_IN
CB_IN
C3152
0.22
16V
B:1608
R3164
8.2k
1/16W
:CHIP
55
54
R3104
10k
1/16W
:CHIP
49
VS_IN
R3115
2.2k
1/16W
:CHIP
50
HC_PARA
10
51
DF_PARA
Q3106
2SD601A
ABL-SW
Q3111
DTC144EKA
PROT-SW
C3142
10
R3154
560
:CHIP
MP_PARA
R3116
2.2k
1/16W
:CHIP
8
9
C3124
0.1
16V
B:1608
EW_DRV
E
I
—
Q3105
2SB709A
ABL-SW
7
VS
R3153
100
1/16W
:CHIP
C3136
0.01
25V
B:1608
V_OSC
6
:PP
V_AGC
R3117
4.7k
1/16W
:B CHIP
5
C3143
0.01
25V
B:1608
R3144
10k
1/16W
:CHIP
VSAW1
V PIN
M PIN
C3126
4
N/S
DF PARA
1k
3
V DRV-
EW DRV
—
3.3k
2
:CHIP
1/16W
V TIM
V DRV
R3177
1
V DRV+
H
11
10
ABL S
R3150
100
1/16W
:CHIP
VSAW0
—
TP52
HCOMP_IN
SUB 9V
CN5503
R3151
100k
1/16W
:CHIP
R3146
10k
1/16W
:CHIP
:CHIP
TO D BOARD
VCOMP_IN
:LHLZ06
G
CN3174
10P
:B-TO-B
CN6506
STBY 15V
IIC-1
AUDIO R
VIDEO
TO D CN6506
AUDIO R
1
VIDEO
CN6504
STBY 7V
:LHLZ06
VIDEO
C2025
100
16V
C2022
0.0022
B:1608
D2007
L2007
C2031
0.0022
B:1608
1
KEY
AUDIO L
C2010
0.0022
B:1608
CLK1
C2008
100
16V
R2003
47
1/16W
:CHIP
DAT1
R2002
47
1/16W
:CHIP
TO D BOARD
16
CN3171
8P
:B-TO-B
P-SW(-)
R2034
10k
1/16W
:CHIP
SUB 5V
|
STBY 5V
R2033
10k
1/16W
:CHIP
MONO-1
MODE
ST-1
R2029
680
1/16W
:RN-CP
BIL-1
R2024
33k
1/16W
:CHIP
CN01
2
L OUT
NC
R OUT
NC
MUTE
MODE
F MONO
ST IND
SAP IND
DET OUT
DET OUT2
GND
9V
C2029
0.01
25V
B:1608
TO HA BOARD
C2038
10
16V
:BP
R2032
100
1/16W
:CHIP
R2030
560
1/16W
:RN-CP
AFT1
R2020
10k
1/16W
:CHIP
VIF
RF AGC
C2030
22
15
CN3170
8P
:B-TO-B
MAIN TUNER
(C6h)
C2037
10
16V
:BP
C2036
10
R2026
22k
1/16W
:CHIP
R2022
0
1/16W
:CHIP
C2026
0.0022
B:1608
TU2002
BTF-WA412
Q2005
2SD601A
VIDEO-BUFFER
R2037
4.7k
1/16W
:CHIP
R2038
10k
:CHIP
AGC
1/16W
L2006
:LHLZ06
100
C2024
100
10V
C2021
0.0022
B:1608
R2018
R2011
10k
1/16W
:CHIP
AS
SCL
:CHIP
L2005
:LHLZ06
:CHIP
C2020
0.0022
B:1608
1/16W
+33V
100
:CHIP
Q2003
2SD601A
INVERTER
:LHLZ06
SUB 5V
SDA
5V
9V
R2017
0
C2023 1/16W
100 :CHIP
16V
C2017
10
16V
:BP
1/16W
30V
L OUT
NC
R OUT
F MONO
NC
MODE
ST IND
SAP IND
DET OUT2
MUTE
10k
SUB TUNER
(C0h)
R2019
L2002
DET OUT
:CHIP
100
R2007
560
1/16W
:RN-CP
R2012
MONO-2
:LHLZ06
C2006
100
16V
C2016
10
16V
:BP
C2014
10
R2008
L2003
GND
9V
AFT OUT
22k
+9V
R2004
C2009
0.01
25V
B:1608
TU2001
BTF-WA412
MODE
C2004
0.0022
B:1608
+33V
Q2001
2SD601A
VIDEO-BUFFER
BIL-2
C2003
47
—
:LHLZ06
C2005
0.0022
B:1608
R2005
33k
1/16W
:CHIP
AFT2
B
C2007
22
L2001
ST-2
R2001
0
1/16W
:CHIP
C2001
0.0022
B:1608
:CHIP
RF AGC
C2002
100
10V
VIF
SDA
AS
SCL
9V
—
5V
30V
A
AFT OUT
CN2001
12P
WHT
:S-MICRO
|
E
|
PROT1
13
3
|
4
12
CLK0/B CLK
|
DAT0/B DAT
11
1
|
2
10
BCLK
|
BDAT
9
WP
|
8
8
NORMAL
|
E
7
7
|
E
6
6
|
E
5
E
|
4
4
5
|
3
3
AC RLY
|
MAIN RLY
2
1
|
2
1
22
21
C3157
0.1
B:1608
C3150
0.0047
B:1608
10k
C3159
0.47
B:CHIP
C3151
0.47
16V
B:CHIP
C3156
100
16V
R3161
:RN-CP
1/16W
R3178
1k
:CHIP
1/16W
Q3112
2SD601A
CURRENT-DRIVE
C3158
0.22
B:1608
C3155
0.1
16V
B:1608
IIC-1
HS
SCP
47
R3160
R3159
C3148
C3147
C3
6
47
0.1
0.1
0
1/16W
1/16W
16V
16V
6
:CHIP
CLK1
DAT1
:CHIP
B:1608
B:1608
608
PR
PB
PR
PB
R3170
10k
1/16W
:CHIP
R31
22
1/1
:CH
R3172
22k
1/16W
:CHIP
R3173
22k
1/16W
:CHIP
R3
1
1/
:C
KD-34XBR2
|
17
|
18
|
19
|
20
E
+B OVP
+B OCP
6
7
8
PROT1
NVM5V
5
E
4
3
A BOARD WAVEFORMS
2
1
3
4
BDAT
2
DAT0/B DAT
16
NVM
114
77-6.8B
1.9 Vp-p (H)
1.9 Vp-p (H)
R3184
100
CHIP
1.4 Vp-p (H)
6
5
0.6 Vp-p (H)
8
7
C3172
0.0022mF
CHIP
0.5 Vp-p (H)
OCP
3.5 Vp-p (H)
3.1 Vp-p (H)
TO D BOARD
OVP
CN5501
CN3173
8P
:B-TO-B
V-FBP
HP-IN
SCP
Q3172
DTA143EKA
LATCH
IIC-1
220
R3176
:CHIP
1/16W
B-INT
3
HP IN
4
SCP
5
E
DAT1
Q3173
2SD601A
LATCH
2.9 Vp-p (H)
CLK1/S CLK
8
DAT1/S DAT
R3175
10k
1/16W
:CHIP
11
1.7 Vp-p (V)
1.5 Vp-p (V)
B-INT
7
TO D BOARD
CN5505
CN3103
10P
:B-TO-B
9
R
R
B
1
H CENT
2
H DRV
3
E
4
V COMP IN
5
H COMP IN
6
E
7
V PROT
8
H PROT
9
R
10
B
B
C3160
0.001
B:1608
TO W BOARD
CN9101
CN3102
3P
WHT
:S-MICRO
3
VM
2
E
1
+9V
TO C BOARD
CN9001
CN3101
10P
WHT
:S-MICRO
MAIN 12V
8
B
E
8
IK
7
+12V
6
E
5
B-DRV
A BOARD: IC3101 CXA2150AQ
OFF
IK
P-MUTE
9
F
10
OD
PIC-MUTE
UT
C3171
1
16V
F:CHIP
V FBP
E
6
CLK1
R3174
22k
1/16W
:CHIP
1
2
10
9
3.3 Vp-p (H)
R3120
100
1/16W
:CHIP
R3110
100
1/16W
:CHIP
C3127
0.1
16V
B:1608
IREF_YC
VCC5
15
CLP_C
14
BPH
13
VM_OUT
12
VM_MOD
11
DPDT_OFF
10
YF_OFF
G1_IN
9
16
17
18
19
C3130
0.1
16V
B:1608
C3139
2.2
6.3V
B:CHIP
C3137
0.15
16V
B:CHIP
C3146
0.1
16V
B:1608
L3103
PB
PR
PB
Y
MAIN 5V
C3145
100
16V
C3140
0.1
16V
B:1608
SUB 5V
+9V
C3154
0.01
25V
B:1608
C3149
0.47
16V
B:CHIP
R3157
47
1/16W
:CHIP
R3145
100
1/16W
:CHIP
R3143
12k
1/16W
:CHIP
D3112
1SS133
:LHLZ06
R3155
470
1/16W
:CHIP
C3138
1
16V
:CHIP
C3134
0.47
16V
B:CHIP
B:1608
Y
R3152
4.7k
:RN-CP
C3133
0.1
16V
B:1608
OSD-R
C3128
0.1
16V
B:1608
R1_IN
8
C3129
0.1
16V
B:1608
C3125
0.1
16V
B:1608
R3131
100
1/16W
:CHIP
7
PABL_FIL
6
YSYM1
5
B1_IN
4
G2_IN
3
R2_IN
GND_SIG
B2_IN
GND_OUT
YSYM2
2
20
16V
Q3108
2SA1226
BUFF
VM MOD
BOUT
C3144
47p
CH:1608
D3111
0
Q3107
2SA1226
BUFF
TP88
A MASK
R3158
3.9k
1/16W
:CHIP
R3135
4.7k
1/16W
:CHIP
ROUT
B
+9V
MONO-2
ST-2
BIL-2
MODE
MONO-1
ST-1
BIL-1
AGC
AFT2
AFT1
OFF-MUTE
V/F-R
SP-R
V/F-L
—
— 71 —
BCLK
WP
A1
WP
B1
BCLK
B2
A2
STBY 5V
B3
A3
GND
GND
P
B-INT
B4
A4
R RESET
B5
A5
MT-L
GND
B6
A6
GND
MT-CV
B7
A7
MT-R
GND
B8
A9
GND
A8
B9
ST-CV
GND
A10
GND
ST-L
B10
ST-R
B11
A11
GND
ST HSYNC
B12
A12
GND
SAP S
ST MONO
B13
A13
ST STEREO
B14
A14
GND
MT HSYNC
B15
MODE
A15
SAP M
MT MONO
B16
A16
MT STEREO
B17
A17
ST AFT
GND
A18
MT AFT
A19
B18
GND
AGC ATT
A20
B19
GND
SDAT
B21
A21
FIX/VAR R
SCLK
A22
GND
B20
B22
FIX/VAR L
OFF-MUTE
A23
B23
R
GND
A24
B24
L
GND
B25
CN002
A25
TO B BOARD
SP MUTE
A1
AUDIO-MUTE
C1
SMODE
C2
A2
GND
+3.3V
C3
A3
GND
+3.3V
C4
A4
A5
GND
+9V
GND
C5
+9V
A6
C6
+5V
GND
C7
A7
GND
A8
GND
+5V
C8
ISTBY SW
C9
A9
GND
GND
C10
A10
GND
C11
A11
GND
OSD B
C12
A12
GND
OSD G
A13
GND
C13
OSD R
A14
C14
VM MOD
A MASK
C15
A15
GND
CN3022
50P
BDAT
BDAT
M-L
M-CV
M-R
S-CV
S-L
S-R
ST-HS
R
L
R
A-MUTE
V MNO Y
C16
A16
GND
V MNO PB
C17
L
SMODE
MT-HS
3
5
A17
B-INT
STBY 5V
SUB 3.3V
4
GND
SP-L
SUB 9V
Y
V MNO PR
SP-MUTE
SUB 5V
TP85
LINE MUTE
SIG-H
C18
A18
GND
V MNO HS
A19
GND
V MNO VS
C19
A20
C20
HP
GND
C21
A22
A21
GND
VP
CLK1
YSYM
ISTBY SW
DAT1
IIC-1
OSD-B
OSD-G
OSD-R
A MASK
VM MOD
Y
R3168
56
1/16W
:RN-CP
R3169
56
1/16W
:RN-CP
IK
R3167
56
1/16W
:RN-CP
PB
GND
A23
C22
P-MUTE
PROT/MUTE
C23
A PROT
C24
A24
GND
LB ERROR
A25
+B OVP
C25
+B OCP
C26
A26
MAIN SW
A27
GND
AC RELAY
C27
DH MUTE
A28
C28
STBY 5V
DGC RELAY
A29
KEY
C29
SIRCS
C30
A30
TIMER LED
STBY/ ST LED
A31
GND
1
Y_IN
0.1
:LHLZ06
PB
PR
HS
VS
SIG-V
PROT-MUTE
P-MUTE
LB-ERROR
OVP
OCP
MAIN-RLY
AC-RLY
DH-MUTE
STBY 5V
DGC-RLY
KEY
SIRCS
TIMER LED
STBY/ST LED
P ON
ISTBY LED
C31
ISTBY LED
C32
R_OUT
21
PR
B:1608
16V
0.1
C3147
SUB 9V
PB
PR
A32
C3122
0.47
16V
B:CHIP
C3116
47
Y
P ON
64
C3148
22
CB_IN
TP89
PR
GND
G_OUT
23
TP87
Q3102
2SA1226
BUFF
Q3101
2SA1226
BUFF
R3180
1k
1/16W
:CHIP
CONTROL PANEL
CN001
63
F0
CR_IN
L3101
TP86
—
B_OUT
+9V
R3107
100
1/16W
:CHIP
Q3181
2SB709A
BUFFER
—
TO B BOARD
VCC_OUT
62
C3123
0.47
16V
B:CHIP
R
M
CN3020
64P
:DIN
61
R3137
3.3M
1/16W
:CHIP
R3183
3.3k
1/16W
:CHIP
R2051
0
:CHIP
R3121
390
1/4W
R3114
390
1/4W
R3108
390
1/4W
R3181
1k
1/16W
:CHIP
SIG-H
O
C3118
0.1
16V
B:1608
C3115
0.0022
B:1608
SET 9V
R3182
3.3k
1/16W
:CHIP
D2053
1SS133
PROT
SIG-V
—
C3120
100
16V
R3122
100
1/16W
:CHIP
R2053
0
:CHIP
N
R3112
10k
1/16W
:CHIP
OFF-MUTE
—
—
R
Q2053
2SB709A
MUTE
Q3180
2SB709A
BUFFER
L
G
B
K
B
D2057
MA111
D2054
MA111
R2054
10k
1/16W
:CHIP
C3105
0.22
16V
B:1608
B:CHIP
Q3103
2SD601A
ABL
OSD-G
R2058
4.7k
1/16W
:CHIP
D3105
O2CZ5.6
LIMIT
D2058
MA111
R2062
4.7k
1/16W
:CHIP
R3113
100k
1/16W
:CHIP
OSD-B
Q2050
2SB709A
MUTE
D2052
DAN202K
OR
C2055
1000
16V
R3111
0
1/16W
:CHIP
YSYM
D2055
MA111
D3106
MA111
ABL SW
R3106
10k
1/16W
:CHIP
D2059
MA111
PROT
G
D2051
DAN202K
OR
R2059
1k
1/16W
:CHIP
OSD YSYM
—
C2050
470
16V
D2056
MA111
PROT
R
J
D2050
DAN202K
OR
M
U
P
P
S
S
A
A
R2055
4.7k
1/16W
:CHIP
E
R1_IN
G1_IN
B1_IN
YSYM
R2_IN
G2_IN
B2_IN
YSYM2
R
G-DRV
2
BPH
6
DPDT_OFF
G
3
CLP_C
7
+12V
E
YF_OFF
B
7
6
VM_OUT
8
VM_MOD
MAIN 12V
1
R-DRV
15 14
13
16
12
17
10 9
6
5
B-DRV
4
E
- VM_LEV
- VM_DLY
- VM_COR
- VM_F0
- VM_LMT
CB_IN 21
SDA 25
- SHARPNESS
- PRE/OVER
- SHP_F0
- F1_LEV
- SHP_CD
SHP
LTI
Y
- LT1_LEV,MODE
- SYSTEM
CbCr
CLP
DPIC
- DC_TRAN
- Y_OFFSET
COL
HUE
CTI
R
Y
R-Y
G-Y
B-Y
MAT
AXIS
YS
YM
G
AFC
2.7MHz
VCO
CERA 33
TIMING
DECODER
- CLP_PHASE
- CLP_GATE
- LEFT_BLK
- RIGHT_BLK
- SYNC_PHASE
- H_POSITION
- AFC_BOW
- AFC_ANGLE
- HBLK_SW
- AFC_COMP
SCP
- V_SCROLL
- V_ASPECT
- UP, LO_VLIN
- JMP_SW
- ZOOM_SW
- ASP_SW
AGC
VOSC
COUNT
- V_FREQ
- AKBTIM
- UP,LO_BLK
- VBLK_SW
- RST_SW
WP
G_OUT
62
B_OUT
58
IK_IN
56
ABL_IN
57
ABL_FIL
59
SABL_IN
60
PRE_RGB
38
L2_FIL
39
HP_IN
34
HPROT
40
H_DRV
36
HCCMP_IN
47
EW_DRV
DF_PARA
46
DF_PARA
MP_PARA
45
MP_PARA
43
HC_PARA
DRV
BLK
PABL
HD
LOOP2
NT
NVM
R_OUT
63
ABL
VTIM 54
TUNER,YUV-JUNGLE
64
AKB
- ABL_MODE
- ABL_TH
- P_ABL
- S_ABL
TU-CONT
TU-OUT
PABL_FIL
- AFC_MODE
AFC_FIL 32
VS_IN 42
GAM
DCOL
LIMT
BRT
11
B
CLP PULSE
CLK PULSE
HS_IN 28
Y 5V
YS
YM
PIC
- R,G,B_CUTOFF
- BLK_BTN
- PIC_ON
- GAMMA,L
- R,G,B_ON
- DCOL
- AKBOFF
- DCOL_TEMP
- LIMIT_LEV
- R,G,B_DRIVE
- WB_SW
- COLOR_AXIS
- COLOR
NTSC-JPN
- HUE
NTSC-US
- CB_OFFSET
PAL
- CR_OFFSET
NTSC-PJ
- CTI_LEV
- CTI_MODE
I2C BUS
DECODER
F1 24
SCP 27
2
- PICTURE
- SUB_CONT
- BRIGHT
- SUB_BRIGHT
- DPIC_LEV
- AGING_W
- AGING_B
F0 23
+9V
4
0~-9dB
CbCr
SCL 26
5
- LRGB2_LEV
CLP
CR_IN 22
7
VM
Y
Y_IN 20
8
5V-DEF
EW-FUNC
-PIN_PHASE
-H_SIZE
-EW_DC
-UP,LO_UCP,UCG -H_COMP
-PIN_AMP
-UP,LO_CPIN -UC_POL
-PIN_COMP
W-FUNC
- V_SIZE
- V_POS
- S_COR
9V-DEF 5V-SIG
- VSAW0, 1_DCL,H
- VSAW0, 1_AMP
- VSAW_SW
- V_LIN
- V_COMP
- V_ON
V-FUNC
VSAW0,1
REG
IREF
- MP_PARA_DC, AMP
HC_PARA
31
29
30
55
19
48 49
61
1
3
41
44
15
53
52
37
50
51
VREG5
VBIAS
VCC9
VCC5
V_OSC
VCC_OUT
GND OUT
GND_SIG
GND_H
GND_V
VPROT
V_DRV+
V_DRV-
VCOMP_IN
VSAW0
VSAW1
V_AGC
18
IREF_HV
WP
9-965-916-02<HA3>A P1
IREF_YC
A1
- HC_PARA_DC, AMP, PHASE VSAW0, 1_
A BOARD SCHEMATIC DIAGRAM (2 OF 2)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
A
—
TO F BOARD
CN6702
STBY 5V
CN6010
1P TAB
1
R6035
10k
:CHIP
CN6009
1P TAB
E
R6036
10k
:CHIP
1
Q6004
2SD601A
LOWB ERROR
TO F BOARD
C
CN6701
NC
NC
PRI PRE 15V
GND
1
2
D6011
D1NL20U
SUB-VCC-RECT
6
CN6003
6P
WHT
:VH
R6002
0.47
1/2W
:RF
C6014
100
C6001
1.0
450V
:PP
R6020
10
:FPRD
3
18
F/B.
VD
VG(H)
CT
Q6002
2SK2876-F122
CONVERTER
R6011
10
:FPRD
C6016
680p
1kV
:R
5
VS
GND
VB
15
RT
14
4
R6008
15k
:RN-CP
R6014
10k
:CHIP
D6021
1SS133
PROTECT
TIMER
13
6
C6007
10
7
SS
VG(L)
12
8
VC1
P-GND
11
C6005
2.2
D6004
UF4005
PUMP-UP
R6012
10
:FPRD
10
6
11
D6014
D5SC4M
5V-RECT
H
R6005
100
:RN-CP
4
R6009
33
:RN-CP
D6002
MA111
R6067
0.33
2W
5%/:RS
1k
1/16W
C6031
470
10V
R6068
1k
1/16W
:CHIP
I
MA111
G
Q6013
2SD601A
OCP
R6071
10k
1/4W
:CHIP
C6028
3300
16V
D6026
1SS133
D6025
1SS133
PROTECT
O
R6072
100
1/16W
:CHIP
Q6012
2SB709A
OCP
R6070
2.2k
1/16W
:CHIP
C6032
0.1
:PT
R6050
1.5k
:RN:CP
C6030
1
D6027
IC6004
PQ30RV31
5V-REG
:CHIP
C6050
100
16V
UNREG 11V
C6034
100
25V
I
Q+5V
R6066
47k
:RN-CP
UNREG 11V
C6019
0.01
800V
:PP
R6018
0.33
2W
:RS
13
C6048
100
16V
R6019
0.33
2W
:RS
3
14
R6054
0.22
1W
:RS
:LHL08
C6042
470
25V
2
15
1
Q6007
2SB709A
OCP
R6053
D6018
D5SC4M
5V-RECT
C6026
10000
10V
R6048
1k
16
+9V
R6059
2.2k
1/16W
:CHIP
UNREG 11V
L6005
UNREG 7V
R6057
1k
1/16W
:CHIP
R6058
10k
1/16W
:CHIP
C6036
0.1
:PT
R6049
470
:RN:CP
:LHL10
FB6005
0UH
R6052
10k
1/16W
:CHIP
C6039
100
16V
1k
1/16W
Q6009
2SD601A
OCP
Q+9V
O
G
C6052
220pF
B:1608
IC6008
PQ09RF21
9V-REG
C6051
220
16V
R6056
1k
1/16W
:CHIP
R6060
1k
1/16W
:CHIP
IC6007
PQ09RF21
9V-REG
I
G
O
C6046
1000
16V
:CHIP
R6055
2.2k
1/16W
:CHIP
Q6008
2SD601A
OCP
D6030
1SS133
PROTECT
C6021
1000p
250V
STBY 5V
C6025
C6009
47
25V
10
9
VC2
OCP
R6046
FB6008
0UH
C6004
47
C6002
0.001
B:1608
:CC
5W
0.1
L6003
S
R6015
10k
:CHIP
7
12
Q6001
2SK2876-F122
CONVERTER
C6008
0.1
100V
:PT
9
R6017
22
3W
S
1
—
8
:LHL10
Q6005
2SB709A
FB6009
0UH
R6029
1.0 :FPRD
T6002
:PIT
R6039
5W :CC
Q+6.5V
R6034
4.7k
1/16W
:CHIP
FB6007
0UH
R6023
10
:FPRD
FB6001
0UH
R6010
1k
:FPRD
17
VSENSE
C6006
0.001
:PP
CN6012
1P TAB
E
—
FB6002
0UH
16
R6004
330k
:RN
1
R6003
330k
:RN
2
R6001
330k
:RN
IC6001
MCZ3001D
DRIVER
C6003
0.01
50V
B:1608
R6006
10k
:RN-CP
G
D6012
D1NL20U
MAIN-VCC-REG
C6018
100
0.1
R6043
CN6501
—
F
FB6004
0UH
PRI PRE15V
4
5
L6004
C6024
5600
10V
D6016
D10SC4M
6.5V RECT
3
TO D BOARD
E
R6042
4.7k
:CHIP
3.3k
AC RECT+
AC RECT-
—
R6074
47k
C6027
1
L6002
D
LB-ERROR
R6073
2.2k
FB6006
0UH
:LHL10
—
Q6006
2SB709A
LOW B ERROR
:CHIP
—
E
R6069
1/16W
B
R6022
470
:CHIP
4
1
3
2
PH6001
ON3171-R
R6028
1k
1/16W
:CHIP
R6027
220
1/16W
:CHIP
0.022
25V
3
1
R6030
1k
1/16W
:CHIP
B:1608
R6038
1k
1/16W
:CHIP
R6041
7.5k
1/16W
:RN-CP
R6040
4.7k
1/16W
:RN-CP
2
IC6003
R6045
220k
1/16W
:CHIP
UNREG 7V
R6061
1k
1/16W
:CHIP
R6062
100
1/16W
:CHIP
KD-34XBR2
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
SDA
15
DAT1
E
SCL
14
12
CLK1
VF-R
11
13
E
VF-L
10
SP-L
SP-R
8
7
SMODE
9
SMODE
SUB 9V
6
W-R
E
W-L
3
4
5
H-L
H-R
1
CN4402
15P
:B TO B
2
TO S CN4401
IIC-1
SMODE
SP-L
SP-L
SP-R
SP-R
H-L
VF-L
H-R
W-L
W-R
VF-R
TP93
SUB 9V
SUB 9V
L4401
+9V
:LAV35
IC4405
TA8216H
AMP-H
TP104
R6062
100
1/16W
:CHIP
D4403
R4475
0
1/16W
:CHIP
C4480
470
16V
5
6
0 :CHIP
R4473
2.2k
1/16W
:CHIP
R6064
10k
1/16W
:CHIP
4
H-L
16V
R6063
4.7k
1/16W
:CHIP
3
7
8
10
MUTE
PGND
9
11
12
R4483
4.7k
:CHIP
D4413
MA111
PROTECTOR
D4409
MA113
C4492
C4491
R4492
10k
H-R
D4410
MA111
PROTECTOR
R4479
H-R
2
470
1
C4479
1
C4486
Y 5V
VCC
SGND
H-L
2200
SPEAKER OUT
TP101
C4502
1000
25V
TP103
H-L
C4503
1000
25V
H-R
W-R
35V
R4487
R4489
CN4404
8P
BLK
:S-MICRO
W-R
R4491
10k
1
W-R-OUT
2
E
R6005
100
:RN-CP
R6009
33
PH6001
ON3171-R
:RN-CP
D6002
MA111
—
R6
220
1/16W
:CHIP
R6030
1k
1/16W
:CHIP
D6015
MTZJ-7.5B
7V-OVP
TO F BOARD
J
CN6710
CN6002
8P
WHT
:S-MICRO
D6013
MA111
SUB +12V
—
1
E
DGC-RLY
3
AC DET
R6026
330k
1/16W
:CHIP
DGC-RLY
E
STBY 7V
E
6
R6025
330k
1/16W
:CHIP
7
8
TO D BOARD
L
—
CN6505
2
3
SUB 3.3V
4
UNREG 7V
SUB 3.3V
R6037
100
1/16W
:CHIP
D6032
1SS133
PROTECT
C6040
100
16V
TP94
STBY 5V
E
MAIN 5V
E
MAIN 9V
—
1
TP98
V/F-L
CN6001
8P
:B-TO-B
MAIN 12V
M
C6041
1000
10V
IC6005
PQ3RD083
3.3V-REG
UNREG 11V
D6022
MA111
D6019
MA111-TX
PROTECTOR
D6034
MTZJ-12
E
33V
STBY 5V
8
7
6
MAIN 12V
5
MAIN 5V
4
3
MAIN 9V
2
1
D6037
1SS133T-77
L6001
MAIN 33V
STBY 7V
I
G
STBY 5V
V/F-R
STBY 5V
O
C6017
1
IC6002
BA05T
STBY 5V REG
MAIN 33V
C6020
47
25V
Q+9V
Q+5V
Q+6.5V
4
3
2
1
GND
6.5V
6.5V
5V
GND
6
5
9V
8
7
GND
CN6005
8P
:VH
33V
N
—
Q60
DTC114
ISTBY SW
R6065
1k
1/16W
:CHIP
OFF-MUTE
R6031
10k
1/16W
:CHIP
—
G
SUB 5V
D6023
MA111
R6033
1k
1/16W
:CHIP
C6022
0.1
25V
F:1608
C6035
470
16V
O
D6031
1SS133
PROTECT
Q6003
2SB709A
MUTE-SW
R6024
10k
1/16W
:CHIP
STBY 15V
5
I
D6020
MTZJ-4.7B
PROTECT
D6017
MTZJ-T-77-6.8B
C6023
100
16V
SUB 5V
IC6006
PQ05RF21
5V-REG
D6024
1SS133
OR
4
STBY 15V
K
UNREG 11V
2
C6049
1
50V
TP95
7V-REG
R6032
10k
1/16W
:CHIP
100
1/16W
:CHIP
1/16W
:CHIP
IC6003
R6021
0
:CHIP
I
—
4 7k
1/16W
:RN-CP
2
TO QM BOARD
CN7001
O
— 72 —
SPKR-MUTE
C4462
10
R4454
1k
1/16W
:CHIP
R4456
10k
1/16W
:CHIP
D4406
MA111
R4455
22k
1/16W
:CHIP
R4423
470k
1/16W
:CHIP
R4429
2.2k
1/16W
:CHIP
R4424
R4422
470k
1/16W
:CHIP
V/F-L
:CHIP
1k
1/16W
:CHIP
Q4401
2SD601A
MUTE-SW
R4428
2.2k
1/16W
:CHIP
C4477
10
R4470
2.2k
:CHIP
1
2
3
4
5
3
H-R-OUT
4
E
5
W-L-OUT
6
E
7
H-L-OUT
8
E
8
AUDIO 24V
7
AUDIO 24V
AUDIO 24V
6
7
8
9
10
R4484
4.7k
1/16W
:CHIP
11
12
D4415
MTZJ-22B
D6036
1SS133
PROTECT
W-R
W-L
R4478
0
1/16W
:CHIP
0 :CHIP
C4483
470
16V
R4476
10k
1/16W
:CHIP
C4487
1
C4485
1
D4414
MA111
PROTECTOR
UNREG 7V
P-SW(-)
D4412
MA111
PROTECTOR
D4411
MA113
C4505
2200
35V
C4489
470
16V
Q4410
DTC114EKA
MUTE
AUD-MUTE
V/F-R
W-R-OUT
E
W-L
W-R
C4478
10
1
2
D4416
MTZJ-22B
C4482
1
R4471
2.2k
1/16W
:CHIP
W-L
C4493
220
16V
C4496
2200
35V
W-L
C4495
0.1
:MPS
C4498
0.1
25V
F:1608
C4494
0.001
B:1608
R4485
1k
1/16W
:CHIP
R4472
10k
1/16W
:CHIP
R4488
2.2
:FPRD
C4500
0.1
:MPS
6
AUDIO GND
5
AUDIO GND
4
AUDIO PROT
3
SET ON
2
SUB 7V
1
P-SW(-)
CN4403
8P
WHT
:S-MICRO
TO D BOARD
C4506
2200
35V
R4490
2.2
R4493
:FPRD
10k
C4504
0.1
:MPS
R4494
10k
D6035
MTZJ-22B
PROTECT
Q4411
DTC114EKA
MUTE
Q4406
DTC114EKA
MUTE
SET ON
1/16W
C4501
0.1
:MPS
H-R
H-L
Q4408
DTC114EKA
MUTE
IC4406
TA8216H
AMP-W
R4477
2.2k
1/16W
:CHIP
1k
C4499
0.1
:MPS
R4491
10k
TP102
Q4405
DTC114EKA
MUTE
OFF-MUTE
R4425
R4489
2.2
:FPRD
Q4409
DTC114EKA
MUTE
R4436
10k
1/16W
:CHIP
Q4402
2SD601A
MUTE-SW
R4487
2.2
:FPRD
MUTE
D4404
1SS133
C4426
2.2
C4490
0.001
B:1608
W-R
35V
R4486
1k
1/16W
:CHIP
C4497
0.1
25V
F:1608
VCC
Q4403
2SD601A
MUTE
R4446
2.2k
1/16W
:CHIP
C4481
1
PGND
R4431
100k
1/16W
:CHIP
C4439
1000
16V
R4433
0
1/16W
:CHIP
Q4404
DTC114EKA
MUTE
SGND
AUD-MUTE
R4457
10k
1/16W
:CHIP
C4488
220
16V
:CHIP
R4427
22k
1/16W
:CHIP
C4484
1
2200
C4491
0.1
:MPS
R4480
15k
1/16W
:CHIP
15k
Q6011
DTC114EKA
ISTBY SWITCH
R4447
2.2k
1/16W
:CHIP
R4481
Q6010
DTC114EKA
STBY SWITCH
D4403
MA113
POP SUPPRESSOR
ISTBY SW
C4492
R4482
C6049
1
50V
C4480
470
16V
25V
D4409
MA113
C4486
100
1/16W
:CHIP
Q4407
DTC114EKA
MUTE
SUB-POWER SUPPLY, AUDIO-AMP
9-965-916-02<HA3>A P2
CN6503
B BOARD SCHEMATIC DIAGRAM (1 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
A
:CHIP
100
R158
1/16W
:CHIP
C ONT
G ND
A _PR
D _PR
A_PB
1
2
3
IC003
PST9143NL
RESET
R079
100
1/16W
:CHIP
X003
CSTCW2500MXW01
25MHz
C022
22p
CH:1608
C020
0.1
25V
F:1608
R070
10k
1/16W
:CHIP
R072
1k
1/16W
:CHIP
R071
10k
1/16W
:CHIP
S_MUTE
ONOFF_MUTE
A_PROT
8
9
10
C_MUTE
FIX_MUTE
6
7
GND
F_MUTE
4
GND
5
+B_OCP
A_PROT
S_MUTE
LB_ERR
/BINT
93
92
G_IN5
91
94
G_IN6
G_IN4
95
G_IN7
96
HS0
97
COUNT_HS(HS1)
98
99
100
1
2
3
4
5
6
7
8
9
32
IO_BDAT
O_YS
A_PB
IO_BCLK
NC
OUT
15
A _PB
R069
4.7k
1/16W
:CHIP
10
R055
100
1/16W
:CHIP
X100
10MHz
R086
3.9k
1/16W
:CHIP
C035
5p
CH:CHIP
Q006
2SD601A
BUFF
R082
330
1/16W
:CHIP
R083
100
1/16W
:CHIP
R085
47k
1/16W
:CHIP
R076
680
1/16W
:CHIP
R084
100
1/16W
:CHIP
C025
0.1
25V
F:1608
R589
100
1/16W
:CHIP
C116
0.1
25V
F:1608
8
7
6
5
91
R157
1/16W
C ONT
R066
100
1/16W
:CHIP
G_IN4
:CHIP
100
PR
P B_OUT
P R_OUT
Q005
2SD601A
BUFF
30
92
/HD_PA SS
:CHIP
4
29
G_IN5
R089
:CHIP
1/16W
1/16W
R078
1k
1/16W
:CHIP
R156
100 1/16W
C024
0.1
25V
F:1608
5
28
93
R088
:CHIP
1/16W
1k
A_Y
27
G_IN6
47
R074
10k
1/16W
:CHIP
26
R065
100
1/16W
:CHIP
94
47
R087
:CHIP
1/16W
V CC
G ND
C015
0.1
25V
F:1608
STBT +5V
25
IO_SCLK
NC
C037
22p
CH
:CHIP
24
R064
100
1/16W
:CHIP
R068
0
:CHIP
X001
10MHz
C036
22p
CH
:CHIP
23
G_IN7
C010
100
16V
22
NC
O_OSD_OSC
21
R063
47k
:CHIP
NC
I_OSD_OSC
20
I_HSYNC_M
VCC
19
NC
I_OSC
18
O_YM
VSS
17
I_HSYNC_S
O_OSC
I_SUB_OSC
O_SUB_OSC
CNVSS
I_RESET
I_SIRCS
BYTE
16
95
B10
15
R051
10k
1/16W
:CHIP
HS0
GND
14
R062
0
:CHIP
R054
4.7k
1/16W
:CHIP
:CHIP
96
B9
A10
13
31
1/16W
S1)
GND
YSYM
12
100
97
B8
A9
11
IO_SDAT
R046
R113
10k
1/16W
:CHIP
98
GND
10
GND
47
D _PB
14
R077
5
A8
OSD_B
9
GND
A7
PB
Y _OUT
13
B6
Y
A _Y
G ND
10
1k
A_Y
D _Y
C ONT
9
R075
:CHIP
1/16W
1
V_MNO_Y
4
A6
B7
8
L003
2
A5
B5
GND
7
:LB2016
V_MNO_PB
C019
22 16V
3
3
B4
OSD_R
OSD_G
V_MNO_PR
C018
22 16V
A4
4
V_MNO_VS
IC002
M52055FP
VIDEO SW
5
V_MNO_HS
6
R060
100
1/16W
:CHIP
C011
0.1
25V
F:1608
16V
6
GND
2
B3
22
7
V_MNO_Y
C014
8
GND
5
VCC
A3
GND
4
NC
B2
V_MNO_PR
V_MNO_PB
3
NC
2
NC
(NOT USED)
BOX_R ST
16
MICON_RST
SCLK
G_OUT6
:LB2016
MID _BUSY
3
32
L001
+9V
1
A2
12
B1
+B_OVP
O_R
1
11
GND
MID_BUSY
SDAT
G_OUT5
99 AVCC
R059
100
:CHIP
A1
1
33
CN88 01
GRANT
MID_BUSY
O_G
C009
0.1
25V
F:1608
VM_ MOD
TXD
G_OUT4
98 (NOT USED)TBSETB
(NOT USED)
R053
10k
1/16W
:CHIP
RXD
34
35
100 I_CVIN
C008
100
16V
CN004
22P
WHT
:PHD
STBY/ST_LED
O_B
36
O_TXD
O_AGC_ATT
G
:CHIP
G_OUT3
97 I_OSD_H
I_RXD
96 AVSS
O_VM_MOD
HP
1/16W
G_OUT2
37
95 I_OSD_V
I_HLF
R048
100
1/16W
:CHIP
VP
470
BLOCK STATUS
O_DHMUTE
I_VHOLD
(NOT USED)
R047
4.7k
1/16W
:RN-CP
38
G_OUT1
NC
94 I_KEY
—
TO QM BOARD
93 I_AFT_M
VREF
VDD1
31
:CHIP
R044
220k
1/16W
:CHIP
R041
10k
1/16W
:CHIP
99
:CHIP
1/16W
39
100
1/16W
100
C007
0.0047
B:1608
40
SCL2
VSS
22
100
O_GRANT
C105
0.1
25V
F:1608
:CHIP
23
R043
R045
KEY
NC
92 I_AFT_S
100
24
MT_ AFT
:CHIP
R039
25
:CHIP
1/16W
41
I
CXP9
SUB CCD/V
40 XRES(XRES)
I_BINT
SDA2
26
1/16W
100
42
I_MID_BUSY
SCL1(FTXD)
27
100
R042
C006
0.1
25V
F:1608
SDA1(FRXD)
28
R040
43
SCL0
39 VSS
I_LB_ERR
R107
100
1/16W
:CHIP
SDA0
38
44
C004
0.1
25V
F:1608
37
45
I_OCP
F:1608
36
I_OVP
87 O_A_MUTE
1 10V
35
86 O_SAP_M
C005
RXD
TXD
34
46
:CHIP
33
47
1/16W
TESTB
11
O_NVM_WP
I_MPWR_SW
100
R034
R106
100
1/16W
:CHIP
C003
0.1
25V
F:1608
12
48
R032
10k
1/16W
:CHIP
13
O_STBY/ST_LED
R030
10k
1/16W
:CHIP
14
49
P_ON
C_MUTE
50
91 NC
ST_ AFT
TIMER_LED
ISTBY_LED
O_A_RST
R583
10k
1/16W
:CHIP
O_ISTBY_LED
IC001
M306V2ME-154FP
MAIN MICRO
Q003
2SD601A
LED-SW
51
O_TIMER_LED
88 O_S_MODE
R004
:CHIP
100
R025
1/16W
/A_RESET
/HD_PASS
52
O_HD_PASS
I_XSTATUS
53
15
:CHIP
2
SUB+9V
4
GND
ANT_S
3
ANT_M
XSTATUS
PROT_MUTE
:CHIP
:CHIP
1/16W
1/16W
100
100
R023
R024
O_ANT_M
O_PROT_MUTE
:CHIP
100
R022
O ANT S
NC
I_MODEL
(PJ)O_VCOMP
1/16W
MODEL
BOX_RST
NC
NC
VCC
VSS
O_BOX_RST
S_MUTE
:CHIP
100
R021
1/16W
PIC_MUTE
:CHIP
:CHIP
1/16W
100
100
R019
1/16W
F_SP_MUTE
O_SPMUTE
AC_RLY
DGC_RLY
ISTBY_SW
:CHIP
:CHIP
1/16W
1/16W
100
R018
1/16W
R581
100
100
1/16W
100
R016
R017
SYNC_SW
:CHIP TO P2
1/16W
:CHIP
1/16W
100
R014
R015
100
:CHIP
:CHIP
MAIN_SW
C_MUTE
:CHIP
1/16W
100
R013
:CHIP
:CHIP
1/16W
1/16W
100
100
R011
R012
R020
O_PMUTE
(PJ)O_SMUTE
54
SIRCS
16
:CHIP
90 NC
—
55
85 I_STEREO_M
89 NC
F
56
R008
1k
1/16W
:CHIP
17
1/16W
57
TESTA
TO P3
18
1/16W
100
58
3D_RST
R006
1k
1/16W
:CHIP
19
S_M ODE
100
59
Q001
2SD601A
BUFF
20
R038
60
R002
39k
1/16W
:CHIP
21
R037
61
R007
1k
1/16W
:CHIP
R001
10k
1/16W
:CHIP
29
/MT _SAP
84 O_MODE
62
TO P3
30
:CHIP
:CHIP
63
ONOFF_MUTE
M16C B
1/16W
1/16W
64
Q002
2SD601A
LED-SW
BDAT
100
100
65
Q522
2SD601A
LED-SW
R005
1k
1/16W
:CHIP
BCLK
R035
R036
66
R003
100
1/16W
:CHIP
R582
470
1/16W
:CHIP
WP
/MT _STR
A_M UTE
83 O_FMONO_M
:CHIP
67
C002
0.1
25V
F:1608
NO CO NNECT
C100
0.1
25V
F:160
M16C G
—
1/16W
100
68
R098
47k
1/16W
:CHIP
CN007
10P
RED
:S-MICRO
D001
DAN202K
VDD
MODE
I
C001
0.1
25V
F:1608
M16C R
R033
I_STEREO_S
82 I_SAP_S
69
O_DGC_RLY
81
70
O_AC_RLY
:CHIP
71
O_ISTBY_SW
1/16W
72
O_SCAN_SYNC_SW
MT_ FMONO
100
73
O_MAIN_SW
:CHIP
R031
74
I_BLOCK_S
E
75
I_BLOCK_M
:CHIP
1/16W
76
I_AC_OFF
1/16W
100
77
(PJ)O_CMUTE
100
R029
/ST _STR
78
O_LMUTE
R028
/ST _SAP
79
O_FMONO_S
80
O_YPBPR_SW_S
—
O_YPBPR_SW_M
:CHIP
:CHIP
LINE_MUTE
ST_FMONO
STBT +5V
1/16W
D
100
YPBPR_SW_S
100
TO P2
R010
YPBPR_SW_M
R009
TO P2
1/16W
+9V
—
—
TO ANT SW
FB001
OUH
:CHIP
C
H
CN006
4P
WHT
:S-MICRO
+9V
—
—
1
B
2
—
KD-34XBR2
R
3
NO CONN ECT
|
22
VIDEO2
4
V1
TO P3
DMIX_R
Y1
69
68
66
63
10k
1/16W
C102
R109
220
R105
47k
1/16W
:CHIP
DMIX_L
SW4
COMPONENT1
C_Y1
C_PB 1
R579
1.2k
1/16W
:CHIP
R577
1.2k
1/16W
:CHIP
C_PR1
25V
0.1
F:1608
TO P2
B
COMPONENT2
C_Y2
:CHIP
1/16W
R110
220
C103
0.1
:CHIP
1/16W
25V
G
C_PB 2
C104
0.1
25V
R111
220
1/16W
R112
3.9k
R114
1k
R115
3.3k
55
54
VIN
53
DEMO
52
CVSS
ID-1
51
FIL
F:1608
C106
25V F:1608
0.47
C107
10V B:1608
V_ OUT
:RN-CP
:CHIP
1/16W
0.1
R
:RN-CP
1/16W
1/16W
C_PR 2
:CHIP
L_OU T
R_OU T
R117
1M
1/16W
:CHIP
C109
0.1
25V
F:1608
50 CCD1
F:1608
FV _R
C110
0.1
16V
B:1608
R120
10k
1/16W
:CHIP
R119
1/16W
C130
220p
CH
1608
:CHIP
L1
+5V
3D +5V
81
AVSS
82
83
AVDD
AVREF
84
G_IN0
85
G_IN1
86
88
PWE
G_IN2
89
VDD
87
90
VSS
G_IN3
91
R3
L101
L100
L3
:LB2016
:LB2016
Q101
2SB709A
SW
R123
2.2k
1/16W
:CHIP
220k
C115
0.1
25V
F:1608
R122
1/16W
ST BY+5V
R4
:CHIP
TO P3
L4
COMPONENT_LR
C114
0.1
16V
B:1608
D100
DAN202K
47k
R124
220k
1/16W
:CHIP
G_IN4
GND
A2
Y1
C2
GND
A3
C1
C3
GND
A4
V3
C4
GND
A5
Y3
C5
GND
A6
C3
C6
GND
A7
SW3
C7
GND
A8
V4
C8
GND
A9
Y4
C9
GND
A10
C4
C10
GND
A11
SW4
C11
GND
A12
C_Y1
C12
GND
A13
C_PB1
C13
GND
A14
C_PR1
C14
GND
A15
C_Y2
C15
GND
A16
C_PB2
C16
GND
A17
C_PR2
C17
GND
A18
V_OUT
C18
GND
A19
L_OUT
C19
GND
A20
R_OUT
A21
A22
C22
R1
SU B_Y
C113
100
16V
C117
0.1
25V
F:1608
V1
C1
C21
R118
2.2k
:CHIP
Q100
2SB709A
C111
100
16V
A1
C20
FV_L
Q102
2SD601A
BUFF
92
C4
D203
DAP202K
+3.3V
93
R
TO P2
:CHIP
1.8k
G_IN6
SEL_R
81
AVSS
L
SCCD_IN
TO P2
SU B_V
:CHIP
82
SEL_L
TO P2
SU B_H
1/16W
83
AVDD
AVREF
49 XDS
48 VCHIP
R108
:CHIP
1.2k
84
47 ADDR2
46 ADDR1
45 ADDR0
44 VDD
43 EXTAL
CVDD
42 XTAL
71
85
G_IN0
DAVRF
DAIREF
41 VSS
70
86
G_IN1
VG
R_OUT
40 XRES(XRES)
67
87
G_IN2
DAVD
R103
1/16W
R104
47k
1/16W
:CHIP
Q520
2SD601A
INV.
61
88
G_IN3
G_OUT
Q519
2SD601A
INV.
65
64
DAVS
SUB_CCD
62
B_OUT
Y4
R576
2.2k
1/16W
:CHIP
R102
4.7k
1/16W
:CHIP
60
89
PWE
VB
G_IN5
C3
YS
59
90
VDD
TESTC/VSYNC0
C116
0.1
25V
F:1608
Y3
V4
10k
58
91
VSS
HSYNC0
C112
0.1
25V
F:1608
TO P 3
D202
DAP202K
R586
2.2k
:CHIP
57
92
G_IN4
OSD_VS(VSYNC1)
R121
0
1/16W
:CHIP
LR
R561
10k
1/16W
:CHIP
D201
DAN202K
R578
80
79
77
76
75
YS
OSD_HS(HSYNC1)
X100
10MHz
V3
SEL_R
SW3
R560
10k
1/16W
:CHIP
72
YM
74
DR0
73
DG0
DR1
VSS
39 VSS
78
DB0
DOTCK
UB CCD/VCHIP/ID1
SEL_L
3D +5V
DB1
DYS
IC100
CXP961064
C1
R574
100
1/16W
:CHIP
R575
1k
1/16W
:CHIP
56
93
G_IN6
G_IN5
C101
0.1
25V
F:1608
DG1
38
Q521
2SD601A
BUFFER
DMIX_R
C562
0.1
25V
F:1608
+3.3V
C100
0.1
25V
F:1608
23
EXT_SIG
TO P3
DMIX_L
TO P2
|
GND
L
GND
1
GND
5
CN010
4P
BLK
:S-MICRO
2
GND
DMIX_R
4
DMIX_L
21
CN7402
11
9
10
3
TO QM BOA RD
SUB_OSD
TO HB BOARD
|
V2
7
8
L2
5
6
Y2
3
4
R2
1
2
C2
20
CN009
5P
WHT
:S-MICRO
CN1200
SW2
|
1
19
2
|
CN008
11P
WHT
:S-MICRO
GND
GND
18
FR_V_IN
GND
FR_L_IN
GND
|
FR_Y_IN
GND
FR_R_IN
17
SW2
|
FR_C_IN
16
R130
10k
1/16W
:CHIP
Q106
2SD601A
INV
R125
1/16W
:CHIP
C_R1
C_L1
Q103
2SB709A
SW
Q104
2SB709A
SW
C_L2
R126
100k
1/16W
:CHIP
Q105
2SD601A
BUFF
R132
100k
1/16W
C_R2
R131
0
1/16W
:CHIP
R133
GND
FIX/VAR_L
GND
FIX/VAR_R
GND
A23
R1
C23
L1
A24
GND
C24
R3
A25
L3
C25
GND
A26
R4
C26
L4
A27
GND
C27
C_R1
A28
C_L1
C28
GND
A29
C_R2
C29
C_L2
A30
GND
C30
GND
A31
S_IN
C31
S_OUT
A32
GND
C32
B BOARD WAVEFORMS
1
GND
CN003
64P
:B TO B-P
2
0.6 Vp-p (H)
4
3
0.6 Vp-p (H)
5
1.5 Vp-p (H)
6
GND
—
+B_OCP
A_PROT
VP
A_MUTE
S_MODE
GND
SUB+3.3V
GND
SUB+3.3V
GND
SUB+9V
GND
SUB+9V
GND
SUB+5V
GND
SUB+5V
GND
ISTBY_SW
GND
MODEL
C10
CN001
64P
:B TO B-P
TO A BOARD
CN 3020
B14
MT_HSYNC
B12
— 77 —
A10
B9
A9
B8
A8
B7
ST_CV
GND
ST_L
GND
MT_R
ST_CV
21
MT_R
ST_L
40 XRES(XRES)
39 VSS
38
37
36
35
G_OUT6
GND
G_OUT4
34
G_OUT2
B10
BLOCK STATUS
33
16
SCL1(FTXD)
ST_R
R
ST_R
13
14
15
SDA1(FRXD)
A11
VREF
32
18
SDA0
SCL0
GND
R092
220
1/16W
:CHIP
31
17
SDA2
SCL2
ST_HSYNC
19
VSS
20
11
RXD
12
TXD
B11
21
VDD1
22
10
9
8
7
6
5
2
1
93
92
G_IN5
91
94
G_IN6
G_IN4
95
G_IN7
96
97
98
99
10
HS0
COUNT_HS(HS1)
3
4
SIRCS
ST_HSYNC
23
G_OUT1
24
TESTA
A12
25
G_OUT3
26
5
GND
27
G_OUT5
28
Q013
2SD601A
BUFF
29
R147
10k
1/16W
:CHIP
ST_FMONO
R557
:CHIP
1/16W
30
SCLK
/ST_SAP
/ST_STR
3D_SDAT
ST_FMONO
C121
0.1
25V
F:1608
B13
R141
100
1/16W
:CHIP
A13
R140
100
1/16W
:CHIP
/ST_STR
IC004
M24C32-WMN6T(A)
NVM1
/ST_SAP
3D_SCLK
MT_HSYNC
SDAT
MODE
R091
220
1/16W
:CHIP
MT_FMONO
SDAT
SCLK
C030
100
16V
A14
A15
MT_FMONO
/MT_SAP
/MT_STR
ST_AFT
MT_AFT
AGC_ATT
BCLK
BDAT
WP
Q009
2SD601A
BUFF
GND
A16
B15
MODE
B16
/MT_STR
FV_R
FV_L
SDAT
/MT_SAP
B17
A17
GND
A18
MT_AFT
ST_AFT
A19
B18
SDAT
GND
A20
B19
SCLK
AGC_ATT
B20
OFF_MUTE
A21
B21
L
GND
FIX/VAR_R
R
A22
L
GND
SYNCSW+3.3V
A23
TO P2
B22
TO P2
GND
TO P3
FIX/VAR_L
STBY+5V
R556
47
:CHIP
SEL_R
V_MI DI_Y
A24
TO P3
B23
Q011
2SD601A
BUFF
GND
4
F_SP_MUTE
BDAT
GND
3
SEL_R
SEL_L
WP
BCLK
A2
2
B24
VDD
A0
A1
Y
1
SEL_L
20
LINE_MUTE
A_ HS
6
B25
A_ VS
7
A25
MT_HSYNC
ST_HSYNC
8
LINE_MUTE
A_MUTE
S_MODE
ISTBY_SW
MODEL
R589
100
1/16W
:CHIP
F_SP_MUTE
A1
C1
A2
C2
A3
C3
A4
C4
A5
C5
A6
C6
A7
C7
A8
C8
A9
C9
A10
PB
GND
OSD_YSYM
C11
19
A11
18
M16C B
IC003
PST9143NL
RESET
GND
Y
A12
PR
GND
MN_SB_SW
330
1/16W
:CHIP
OSD_B
C034
0.1
25V
F:1608
C12
17
R555
47
:CHIP
OSD_G
47
M16C G
:CHIP
A13
16
M16C R
:CHIP
GND
V_DRCI _PB
A_MASK
12
C13
PR
OSD_R
V _DRCI_Y
VM_MOD
11
C14
C028
25V F:1608
A14
PB
A MASK
V_ MIDI_PB
VM_MOD
V_ MIDI_VS
C15
7
A15
V_DRCI _PR
R090
220
1/16W
:CHIP
GND
C031
0.1
25V
F:1608
V_MNO_Y
13
C16
V_ MIDI_PR
A16
6
GND
V_ MIDI_HS
V_MNO_PB
TO P2
C17
TO QM BOARD
C029
0.1
25V
F:1608
A17
L005
GND
STBY +5V
IC006
TC74HCT157AF
SYNC SW
V_MNO_PR
:LB2016
C18
AGC_ATT
A_ PR
A18
HP
TXD
GND
A19
C19
A20
C20
VP
16
/HD_PA SS
V_MNO_HS
GND
V_MNO_VS
GND
HP
C21
A_THR
A21
PIC_MUTE
13
1
15
2
3
14
4
12
TO P3
GND
C22
A22
A_PROT
PROT_MUTE
11
10
9
5
A_PR
GND
PIC_MUTE
C23
A23
TO P2
PROT_MUTE
C24
A24
+B_OCP
+B_OVP
LB_ERR
A _MASK
GND
LB_ERR
C25
A25
—
+B_OVP
O
AC_RLY
A11
15
MAIN_SW
/BINT
B10
C26
A10
A26
EXT_SDA
AC_RLY
EXT_SCL
A9
MAIN_SW
B9
V_DRCI _HS
C27
A_MSK
14
A27
B8
GND
A8
V_DRCI_VS
A28
V_DRCI_HS
DGC_RLY
GND
B7
DH_MUTE
MN_SB_SW
B6
KEY
GND
A7
DGC_RLY
GND
A6
C28
V_DRCI_PR
A5
A29
V_DRCI_PB
B5
10
3Y
KEY
GND
A4
GND
STBY+5V
V_DRCI_Y
B4
V_DRCI
3B
TIMER_LED
A3
B3
9
3A
RXD_5
C29
V_MIDI_PR
V_MIDI_HS
8
RXD_3.3
SIRCS
GND
A2
HS_OUT
D_VS
RXD_3.3
VS_OUT
STBY/ST_LED
V_MIDI_VS
B2
ST
C30
GND
A1
A_VS
A30
V_MIDI_PB
B1
A_HS
D_HS
VCC
TIMER_LED
GND
V_MIDI
SEL
STBY/ST_LED
P
CN005
22P
BLK
:PHD
6
K
7
—
8
0.1
A31
—
CN80 01
RXD
GND
N
B11
P_ON
—
M16C_RXD
ISTBY_LED
V_MIDI_Y
B10
R158
1/16W
C31
M
A11
100
ISTBY_LED
—
GND
R089
:CHIP
1/16W
C32
L
M16C_TXD
47
A32
—
B9
A10
P_ON
+9V
J
GND
YSYM
TESTB
I
CXP9
MAIN CCD/V
V_DRCI _VS
TO P2
X STATUS
STBT +5V
+9V
SCLK
+9V
B11
+5V
3D+3.3V
79
DB0
77
75
YS
73
YM
DYS
72
DR0
74
DR1
76
78
DG1
DG0
68
67
HSYNC0
66
TESTC/VSYNC0
VB
DAVS
63
G_OUT
62
58
56
55
52
VIN
DEMO
ID-1
51
CVSS
54
FIL
53
CVDD
10k
R142
C118
16V
0.1
MCCD_IN
TO P2
TO U MO UNT
0.6 Vp p (H)
4
C119
25V
0.1
1/16W
10k
220
6
1.5 Vp-p (H)
8
7
1.5 Vp-p (H)
1.4 Vp-p (V)
9
MAI N_V
:CHIP
R144
220
1/16W
0.1
16V
220
1/16W
:CHIP
1/16W
1.1 Vp-p (H)
B
:CHIP
TO P2
G
+5V
F:1608
R145
5
1.5 Vp p (H)
R139
47k
1/16W
:CHIP
R143
C120
0.6 Vp p (H)
CN4001
B:1608
TO P3
10
3D+5V
3.5 Vp-p (H)
1.3 Vp-p (H)
11
12
B:1608
:CHIP
R
R146
3.3k
R149
:CHIP
3.9k
1/16W
R148
1k
0.1
:RN-CP
1/16W
:RN-CP
C124
10V
0.47
L102
C122
100
16V
C123
25V F:1608
3.3 Vp-p (V)
:LB2016
13
R151
1M
1/16W
:CHIP
C128
100
16V
R152
2.2k
1/16W
:CHIP
15
14
C127
0.1
16V
B:1608
MAIN_Y
1.1 Vp-p (H)
R153
1.8k :CHIP
R155
10k
1/16W
:CHIP
X101
10MHz
1.1 Vp-p (H)
1.5 Vp-p (H)
B:1608
Q108
2SB709A
BUFFER
C129
0.1
25V
F:1608
:CHIP
1/16W
R138
47k
1/16W
:CHIP
Q518
2SD601A
INV.
C126
0.1
25V
F:1608
50 CCD1
49 XDS
48 VCHIP
47 ADDR2
46 ADDR1
45 ADDR0
44 VDD
43 EXTAL
42 XTAL
41 VSS
40 XRES(XRES)
39 VSS
DAIREF
TO P2
MAI N_H
57
DAVRF
38
R136
4.7k
1/16W
:CHIP
R137
59
VG
R_OUT
R154
0
1/16W
:CHIP
Q517
2SD601A
INV.
61
DAVD
Q107
2SD601A
SW
MAIN_CCD
R585
2.2k
1/16W
:CHIP
64
B_OUT
R133
10k
1/16W
:CHIP
CN003
64P
:B TO B-P
YS
65
IN CCD/VCHIP/ID1
D204
DAN202K
69
OSD_HS(HSYNC1)
OSD_VS(VSYNC1)
R132
100k
1/16W
:CHIP
R135
100k
1/16W
:CHIP
R559
10k
1/16W
:CHIP
70
VSS
IC101
CXP961064
R558
10k
1/16W
:CHIP
71
DOTCK
R134
220k
1/16W
:CHIP
R584
2.2k
1/16W
:CHIP
80
DB1
60
82
83
84
85
86
81
AVSS
AVREF
AVDD
G_IN0
G_IN1
88
87
89
PWE
G_IN2
90
VDD
G_IN3
91
VSS
92
G_IN4
93
G_IN6
G_IN5
:CHIP
Q106
2SD601A
INV
C131
220p
CH
1608
16
3.4 Vp-p (V)
3.4 Vp-p (H)
17
18
L103
:LB2016
+9V
+9V
TO P2
AVSW+9V
TO P3
+3.3V
5.3 Vp-p (V)
5.0 Vp-p (H)
0.5 Vp-p (H)
STBT +5V
0.6 Vp-p (H)
MICRO (MAIN,CCD)
MT_L
TO P3
B1
A1
WP
BCLK
A2
BDAT
B2
STBY+5V
A3
GND
B3
/BINT
A4
GND
B4
/A_RESET
A5
GND
B5
MT_L
A6
22
GND
MT_CV
B6
MT_CV
A7
GND
B8
B7
MT_R
GND
ST_L
A8
ST_L
MT_R
TUNER
22
21
20
WP
BCLK
/A_RESET
/BINT
BDAT
19
CN002
50P
:B TO B-P
9-965-916-02<HA3>B P1
TO A BOAR D
CN 3022
1.9 Vp-p (H)
1.4 Vp-p (H)
1.9 Vp-p (H)
B BOARD SCHEMATIC DIAGRAM (2 OF 3)
|
5
C_Y2
A
C200
0.1
25V
F:1608
IN2_3
43
IN2_2
42
IN2_1
41
VCC1
40
IN1_SW
39
23 SELVOUT
IN1_L3
38
IN1_1
IN1_2
IN1_3
IN1_H/L1
32
33
34
35
36
|
14
TO P1
SDAT
TO P1
SCLK
B:1608
10V
0.47
C251
B:1608
10V
0.47
C250
0.47
10V
B:1608
C224
0.47
10V
B:1608
C_Y1
C_PB1
R222
470
1/16W
:RN-CP
C_PR1
C227
0.47
B:1608
10V
R227
470
1/16W
:RN-CP
PB
37
PR
C232
0.47
10V
B:1608
C244
0.47
10V
B:1608
C249
0.1
25V
F:1608
R226
470
1/16W
:RN-CP
R231
470
1/16W
:RN-CP
YEX3I
Y3I
CONT
GND
YOUT
U3I
VCC
16
R223
470
1/16W
:RN-CP
Y
GND
UOUT
CONT
UEX3I
VOUT
CONT
GND
VEX3I
V3I
MAIN PB
SUB PB
C225
0.1
25V
F:1608
MAIN PR
SUB_V
SUB V
R232
470
1/16W
:RN-CP
SUB PR
SUB_H
+9V
C242
100
16V
SUB PR
C247
100
100
16V
C253
C246
22pF
:CHIP
16V
SUB Y
SUB PB
C255
100 16V
R241
100
1/16W
—
100
:CHIP
C245
0.1
25V
F:1608
R242
V_MIDI_PR
1/16W
V_MIDI_PR
B:1608
31
10V
30
13
0.47
29
|
C252
28
SDA
27
ADDRESS
26
:CHIP
25
NC
—
IN1_V/L2
SELYOUT
24 GND2
C222
15
44
22 SELHOUT
VCC2
TO P1
R239
39
1/16W
:CHIP
45
IN2_H/L1
21 NC
SELPBOUT
V_MIDI
12
SUB Y
14
IC200
CXA2151Q-2
COMPONENT I/F
SELPROUT
D
|
MN_SB_SW
R214
100
1/16W
:CHIP
13
46
IN2_V/L2
20 EXTCLK/XTAL
X200
4MHz
11
IC201
M52055FP
SUB VIDEO SW
12
47
IN2_L3
19 NC
|
MAIN Y
R213
100
1/16W
:CHIP
48
15 YG_OUT
18 IREF
C226
0.1
16V
B:1608
C216
0.1
25V
F:1608
GND1
17 NC
C217
0.1
25V
F:1608
1
IN2_SW
16 YG_IN
:RN-CP
1/16W
10
11
10k
|
10
R221
9
9
2
14 V_PH
SCL
—
0.1
C215
16V B:1608
|
1
3
13 H_PH
C211
1
6.3V
B:1608
8
2
4
IN3_1
5
IN3_2
6
IN3_H
7
IN3_3
8
GND3
9
IN3_V
10
IN4_2
VCC3
C
11
IN4_H
12
C209
0.01
25V
B:1608
IN4_3
Q202
2SB709A
BUFF
IN4_V
—
C208
0.1
25V
F:1608
|
C206
0.47
10V
B:1608
R205
100
1/16W
:CHIP
IN4_1
R207
1k
1/16W
:CHIP
7
C203
0.47
10V
B:1608
C204
0.1
25V
F:1608
+5V
|
C205
0.47
10V
B:1608
R201
100
1/16W
:CHIP
B
6
3
—
E
|
4
4
5
|
6
3
7
|
8
2
C_PR2
|
C_PB2
1
L202
V_MIDI_PB
+5V
R248
39
1/16W
:CHIP
:LB2016
V_MIDI_PB
—
SYNCSW+3.3V
L104
IC203
TC74LVX157FT
SYNC SW
C
:LB2016
R312
470
1/16W
:CHIP
R309
470
1/16W
:CHIP
470
1/16W
:CHIP
R277
470
1/16W
:CHIP
R377
470
1/16W
:CHIP
16
15
14
13
12
11
10
9
:LB2016
+9V
SUB Y
R281
10
1/16W
:CHIP
R304
1k
1/16W
:CHIP
C298
100
16V
R310
1k
1/16W
:CHIP
Y
R565
47k
1/16W
:CHIP
IC205
M52055FP
MAIN VIDEO SW
:CHIP
1
2
4
L205
V_DRCI_Y
R564
47k
1/16W
:CHIP
R562
47k
1/16W
:CHIP
1/16W
A_PR
R378
V_DRCI_Y
C295
100 16V
+9V
V_DRC1_PB
R271
10
1/16W
:CHIP
V_DRCI
:CHIP
:CHIP
:CHIP
V_DRCI_PB
MAIN Y
Y3 I
CO NT
YE X3I
GN D
YO UT
U3 I
GN D
VC C
UO UT
CO NT
47k
R297
470
1/16W
:CHIP
R268
100
1/16W
:CHIP
C355
47p
CH:1608
SUB PB
MAIN PB
R566
1/16W
MAIN V
C299
0.1
25V
F:1608
P
470
MV
R260
10
1/16W
:CHIP
16
R275
C294
100
16V
SUBV
R263
100
1/16W
:CHIP
V_DRC1_PR
15
C234
100
16V
MAINV
V_DRCI_PR
14
J
R280
470
1/16W
:CHIP
R379 470 1/16W
R276 470 1/16W
A_PB
—
R279
470
1/16W
:CHIP
MAINV
+9V
SUB V
13
A_Y
R278
470
1/16W
:CHIP
GND
SUBV
SV
C274
0.1
25V
F:1608
12
I
TO P1
SH
ST
1
+9V
A_THR
A_PR
R266
100
1/16W
:CHIP
MAINH
VCC
V_DRCI_VS
—
C288
0.1
25V
F:1608
V_DRCI_HS
R331
68
1/16W
:CHIP
5
H
MH
SUBH
6
A_PB
SUBH
7
R262
47
:CHIP
C354
47p
CH:1608
SEL
MAINH
8
—
A_Y
3
R253
39
1/16W
:CHIP
2
+3.3V
3
V_MIDI_Y
V_MIDI_Y
4
G
+5V
TO P1
+5V
5
F
R282
2.2k
1/16W
:CHIP
Q222
2SB709A
BUFF
KD-34XBR2
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
C_PR2
C_PR2
C201
0.1
25V
F:1608
EXT_PR
R204
680
1/16W
:CHIP
+5V
TO P1
M_PR2
SUB_Y
SCCD_IN
:CHIP
:CHIP
1/16W
1/16W
R219
4
3
SCL
SDA
6
2
16 Y3_IN
19 SCP
47
FSC
44
SGND
43
APCFIL
42
39
23 PB_OUT
EXT_PB
38
24 PR_OUT
EXT_Y
37
R_IN
EXT_PR
EXT_B
22 Y_OUT
YPBPRSW
40
27
28
29
G_IN
B_IN
SVCC
Y_IN
PB_IN
PR_IN
APED
32
33
34
35
36
B:1608
B:1608
16V
0.1
C267
C262
0.1
16V
B:1608
C
0.47
C230
0.1
R235
15k
10V
B:1608
16V
1/16W
:CHIP
X201
3.58MHz
C243
16V B:1608
C248
16V B:1608
C254
16V B:1608
C256
16V B:1608
0.1
0.1
0.1
Y
B:1608
L200
C231
100
16V
:LB2016
C236
470p
CH:1608
C239
0.47
10V
B:1608
C241
15pF
CH:1608
+5V
R236
680
1/16W
:CHIP
M_Y2
M_Y2
C259
4.7
50V
C258
100
16V
L201
LB2016
FB200
C271
0.1
25V
F:1608
C272
0.1
25V
F:1608
17
DVSS
DVDD
NC
DVDD
DVSS
TST3
F_IN
CPO
28
VCV
29
PLVD
30
PLVS
CLPEN
32
CLPO
ADIN
31
IC204
CXD2073Q
SUB COMB FILTER
TO P1
1
2
3
4
5
AYO
CKSL
27
DAVS
26
+9V
L206
18
NC
:RN-CP
19
DAVD
1/16W
C277
0.1
25V
F:1608
20
ADVO
560
:RN-CP
1/16W
21
ACO
56k
22
ADVS
R259
23
TST1
R592
1k
1/16W
:CHIP
C275
0.001
B:1608
24
TST2
TO P1
R258
6
7
8
:LB2016
R224
100
1/16W
:CHIP
C_Y2
R244
680
1/16W
:CHIP
R233
100
1/16W
:CHIP
Q208
2SD601A
BUFF
R228
22k
1/16W
:CHIP
R234
22k
1/16W
:CHIP
C_Y2
C238
100
16V
COMPONENT2
TO P1
R243
100
1/16W
:CHIP
OUH
:1608
L203
C268
100
16V
L204
:LB2016
:LB2016
C290
0.1
25V
F:1608
Y
Q218
2SD601A
BUFF
C
SUB_C
TO P3
R290
220
1/16W
:CHIP
R299
5.6k
1/16W
:RN-CP
1
R306
470
1/16W
:CHIP
R305
180
1/16W
:CHIP
9V
2
3
FL200
6
4
R285
22k
1/16W
:CHIP
Q219
2SD601A
BUFF
R292
560
1/16W
:RN-CP
C297
15p
CH:1608
R288
470
1/16W
:CHIP
R307
470
1/16W
:CHIP
C292
0.1
16V
B:1608
R296
33k
1/16W
:CHIP
R300
150
1/16W
:CHIP
FB201
OUH
:1608
APCN
16
MOD1
15
MOD2
14
INIT
13
IRF
12
VB
11
VG
10
VRF
9
R257
0
1/16W
:CHIP
R264
3.3k
1/16W
:RN-CP
C278
0.1
16V
B:1608
C280
0.1
16V
B:1608
C287
0.1
25V
F:1608
C286
0.1
25V
F:1608
V
Q217
2SD601A
BUFF
C285
100
16V
C284
0.1
25V
F:1608
Q224
2SB709A
BUFF
R212
22k
1/16W
:CHIP
Q204
2SD601A
BUFF
+5V
:LB2016
C276
0.022
25V
B:1608
R287
2.2k
1/16W
:CHIP
C_PB2
C210
100
16V
R211
100
1/16W
:CHIP
Q205
2SD601A
BUFF
B
R
R225
680
1/16W
:CHIP
C237
0.1
25V
F:1608
EXT_Y
25
R298
180
1/16W
:CHIP
R216
680
1/16W
:CHIP
M_PB2
+5V
R284
220
1/16W
:CHIP
R210
22k
1/16W
:CHIP
M_PB2
YPBPR_SW_S
TO P1
SUB_CCD
Q216
2SD601A
BUFF
C_PB2
L211
16V
16V
0.1
C265
31
0.1
B:1608
16V
0.1
C264
30
C266
B:1608
16V
0.1
C263
C229
0.1
C261
0.1
25V
F:1608
B:1608
EXT_G
41
EXT_R
XTAL
CLAMP
26
R206
100
1/16W
:CHIP
C_Y2
45
21 YSYM
25
C223
0.1
25V
F:1608
C228
0.01
25V
B:1608
46
20 HTIM
YS
C
IC202
CXA2103Q
SUB YCT
18 SYNC IN
G
UB Y
PB
48
Y_CLAMP
17 SEL OUT
V
C_IN
CVCC
Y_IN
15 VTIM
C235
0.47
10V
B:1608
EXT_PB
1
14 C3_IN
46
pF
HIP
R203
22k
1/16W
:CHIP
Q201
2SD601A
BUFF
Q203
2SD601A
BUFF
C221
0.1
25V
F:1608
MON OUT
5
CGND
7
HVCC
8
C1_IN
TEST
AFCFIL
13 HGND
9
Y1_IN
10
C2_IN
11
Y2_IN
12
C260
100
16V
100
100
C220
0.01
25V
B:1608
C218
0.47
10V
B:1608
C214
0.47
10V
B:CHIP
C202
100
16V
+5V
C213
4.7
50V
C219
0.1
25V
F:1608
R215
3.9k
1/16W
:CHIP
C_PR2
R202
100
1/16W
:CHIP
C_PB2
R220
C212
0.01
25V
B:1608
R208
680
1/16W
:CHIP
M_PR2
C
Y
ADRS
EXT_Y
R200
22k
1/16W
:CHIP
Q200
2SD601A
BUFF
C282
0.1
25V
F:1608
Y
R294
150
1/16W
:CHIP
C281
100
16V
R273
2.2k
1/16W
:RN-CP
+5V
R283
22k
1/16W
:CHIP
C
R270
3.3k
1/16W
:RN-CP
C293
100
16V R295
33k
1/16W
:CHIP
Q220
2SD601A
BUFF
R289
470
1/16W
:CHIP
R291
560
1/16W
:RN-CP
R302
470
1/16W
:CHIP
C291
0.1
25V
F:1608
1
C296
15p
CH:1608
3
FL201
6
Y
2
Q221
2SD601A
BUFF
4
R303
5.6k
1/16W
:RN-CP
R308
470
1/16W
:CHIP
16
15
14
11
10
GND
C304
0.01
25V
B:1608
R320
22k
1/16W
:CHIP
SYNC_SW
R324
100
1/16W
:CHIP
(IC001 71PIN)
TO P1
R325
10k
1/16W
:CHIP
:CHIP
1/16W
12
11
47k
Q231
2SD601A
SW
SUB PR
C305
100
16V
R563
1/16W
:CHIP
47k
MAIN PR
R313
10k
1/16W
:CHIP
Q230
2SD601A
SW
13
4
5
V3 I
C299
0.1
25V
F:1608
+9V
L208
:LB2016
9V
C309
0.47
10V
B:1608
V_MIDI_VS
C310
0.01
25V
B:1608
C311
4.7
50V
R327
3.9k
1/16W
:CHIP
M_Y2
—
C307
25V F:1
0.1
C306
100
16V
9
7
L
8
TO P1
SV
MID_VS
C303
0.1
25V
F:1608
13
MID_HS
SELV
R321
47k
1/16W
:CHIP
R316
10k
1/16W
:CHIP
12
SH
6
—
2
R330
47
1/16W
:CHIP
ST
SELH
3
C339
47p
CH:1608
Q229
2SD601A
BUFF
VCC
SEL
4
K
R318
68
1/16W
:CHIP
C338
47p
CH:1608
5
V_MIDI_HS
1
IC206
TC74LVX157FT
SCAN SYNC SW
VE X3I
MAIN PB
R567
—
GN D
10
A_VS
UE X3I
VO UT
CO NT
9
R311
1k
1/16W
:CHIP
+3.3V
CO NT
6
A_HS
VC C
GN D
UO UT
7
R310
1k
1/16W
:CHIP
8
1/16W
:CHIP
J
C317
100
16V
AFCFIL
C2_IN
EXT_B
10
EXT_R
MAIN V
11
EXT_G
M
Y2_IN
12
B
25
26
27
13 HGND
14 C3_IN
MAIN_V
—
0.47
C320
0.47
B:1608
10V
C322
10V B:1608
15 VTIM
16 Y3_IN
17 SEL OUT
18 SYNC IN
Y
19 SCP
N
C352
100
16V
20 HTIM
C240
22pF
MAIN_H
MAIN Y
21 YSYM
22 Y_OUT
MAIN PB
23 PB_OUT
24 PR_OUT
TO P1
TO P1
MAIN_CCD
YPBPR_SW_M
—
— 78 —
B:1608
B:1608
16V
0.1
C348
B:1608
0.1
C347
16V
0.1
C346
B
P
YS
—
R
O
16V
MAIN PR
G
—
2SB709A
BUFF
1/16W
:CHIP
470
1/16W
:CHIP
180
1/16W
:CHIP
1/16W
:CHIP
:CHIP
6
4
C297
15p
CH:1608
CH:1608
6
V
C301
10
MAIN_COMB_Y
TO P3
MAIN_COMB_C
TO P3
1/16W
:RN-CP
:CHIP
Y
+9V
Y
4
Q227
2SD601A
BUFF
R317
1k
1/16W
:RN-CP
R322
1k
1/16W
:CHIP
C
C300
0.1
25V
F:1608
R323
4.7k
1/16W
:RN-CP
1
2
Q228
2SD601A
BUFF
R315
560
1/16W
:RN-CP
V
R314
100
1/16W
R319 :CHIP
1k
1/16W
:CHIP
C302
15p
CH:1608
3
TO P3
SUB_V/Y
FL202
6
C_PR1
:CHIP
:CHIP
1/16W
1/16W
100
100
R333
R334
4
3
2
1
C_IN
48
CVCC
47
Y_IN
46
PB_IN
PR_IN
APED
37
B:1608
B:1608
0.1
0.1
0.1
C349
C350
C351
16V
B_IN
0.1
41
EXT_Y
36
C336
4.7
50V
R351
15k
X202
1/16W
C323
470p
:CHIP CH:1608
C326
0.47
10V
B:1608
3.58MHz
C329
15pF
CH:1608
PB
C330
0.1
16V
B:1608
C331
0.1
16V
B:1608
M_PB2
C333
R329
22k
1/16W
:CHIP
Q235
2SD601A
BUFF
0.1
16V
B:1608
M_Y2
Q240
2SD601A
BUFF
C324
0.1
25V
F:1608
R355
680
1/16W
:CHIP
M_PR2
R360
680
1/16W
:CHIP
C_Y1
+5V
R352
100
1/16W
:CHIP
Q243
2SD601A
PB
BUFF
C334
0.1
16V
B:1608
C337
100
16V
C_PR1
C315
100
16V
C_PB1
C321
16V B:1608
42
XTAL
38
35
16V
G_IN
43
EXT_PB
34
0.1
16V
SGND
39
33
C348
16V
44
40
32
C347
C340
0.1
25V
F:1608
FSC
R339
100
1/16W
:CHIP
R340
680
1/16W
:CHIP
C_PB1
0.1
R328
100
1/16W
:CHIP
R326
22k
1/16W
:CHIP
PR
45
CLAMP
SVCC
R_IN
31
Q232
2SD601A
BUFF
R332
680
1/16W
:CHIP
FSC
TO P3
EXT_PR
Y_IN
YPBPRSW
30
B:1608
EXT_B
29
C314
0.1
25V
F:1608
C319
0.1
25V
F:1608
APCFIL
16V
EXT_R
28
B:1608
27
B:1608
EXT_G
IC207
CXA2103Q
MAIN YCT
26
:LB2016
PR
Y_CLAMP
5
L209
TO P1
MAIN_Y
C353
100
16V
ADRS
5
+5V
LB2016
MON OUT
6
CGND
7
HVCC
8
C1_IN
TEST
9
Y1_IN
AFCFIL
10
C2_IN
11
Y2_IN
2
C313
0.01
25V
B:1608
SCL
C312
0.47
10V
B:1608
27
9k
6W
IP
SDA
11
7
0V
4
C_PR1
L210
MAIN_Y
C307
25V F:1608
+5V
TO P1
MCCD_IN
R346
22k
1/16W
:CHIP
C_PB1
C327
100
16V
R353
22k
1/16W
:CHIP
R359
100
1/16W
:CHIP
C_Y1
Q248
2SD601A
BUFF
C341
0.1
25V
F:1608
R368
22k
1/16W
:CHIP
C_Y1
Y
R373
680
1/16W
:CHIP
Q250
2SD601A
BUFF
R371
100
1/16W
:CHIP
C342
100
16V
R372
22k
1/16W
:CHIP
G
B
Y
R376
680
1/16W
:CHIP
COMPONENT1
R375
100
1/16W
:CHIP
TO P1
VIDEO PROCESSOR
9-965-916-02<HA3>B P2
B BOARD SCHEMATIC DIAGRAM (3 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
1
A
—
TO P1
:CHIP
V3
100
1/16W
:CHIP
L3
R437
5.6k
1/16W
:CHIP
100
1/16W
:CHIP
R3
C3
:CHIP
1/16W
MT_L
:CHIP
1/16W
100
60
59
58
57
56
55
54
53
52
MT_L
C_OUT1
VGND
Y_OUT1
TRAP1
R_OUT1
V_OUT1
L_OUT1
R409
R407
R408
5.6k
MT_R
:CHIP
1/16W
5.6k
MT_CV
:CHIP
1/16W
ST_L
:CHIP
1/16W
100
5.6k
R405
62
ST_L
R406
63
MT_CV
C_OUT
AG
S
20 S2_3
S
:CHIP
R450
1/16W
R_5
SW4
C4
R4
Y4
C421
O.1
25V
F:CHIP
C420
0.47
10V
B:1608
Q412
2SB709A
BUFF
L_5
Q413
2SD601A
SW
R466
2.2k
1/16W
:CHIP
5.6k
100
100
5.6k
100
5.6k
R459
:CHIP
1/16W
R449
1/16W
:CHIP
:CHIP
:CHIP
:CHIP
R479
1k
1/16W
:CHIP
:CHIP
R480
4.7k
1/16W
:CHIP
:CHIP
Q414
2SD601A-QRS
SW3
R476
10k
1/16W
:CHIP
FB504
OUH
:1608
L_OUT
VIDEO 4
100
G
Y_OUT
DC_OU
R481
1k
1/16W
:CHIP
R477
100k
1/16W
:CHIP
R_OUT
VIDEO 3
100
C416
0.1
25V
F:1608
Y3
5.6k
—
R461
1M
1/16W
:CHIP
:CHIP
V
V_OUT
L4
Q407
2SB709A
SYNC SEP
L3
L_OUT
VIDEO 1
V4
F
R448
56k
1/16W
:CHIP
R568
10k
1/16W
:CHIP
V3
:CHIP
5.6k
R443
SW2
V/Y_OUT
IC401
CXA2069Q
AV SWITCH
:CHIP
C414
0.1
25V
F:1608
1/16W
S2_2
TRAP
R_OUT
R453
1/16W
R454
1/16W
R455
1/16W
R456
1/16W
R457
1/16W
R458
1/16W
+9V
R440
C3
100
4
—
Q415
2SB709A-QRS
:CHIP
R432
R3
R482
220
1/16W
:CHIP
:CHIP
:CHIP
R438
C2
:CHIP
1/16W
Y3
R2
:CHIP
1k
1/16W
5
E
6
R478
10k
1/16W
:CHIP
7
R429
1/16W
8
100
9
R424
10
C1
1/16W
11
5.6k
12
R423
Y2
13
R1
1/16W
L2
14
100
V2
15
R422
Y1
1/16W
SW1
16
5.6k
R420
S2_1
32 ADR
:CHIP
1/16W
31 R5
1/16W
100
30 V5
100
R419
MU
C_OUT
29 L5
R418
V1
C_IN
VIDEO 2
R1
C1
28 SW4
SW2
:CHIP
27 S2_4
:CHIP
1/16W
R411
100
1/16W
:CHIP
BIA
26 C4
1/16W
SUB_V/Y
R410
100
1/16W
:CHIP
Y_IN
25 R4
100
T
MAIN TUNER
24 Y4
5.6k
Y1
SUB TUNER
23 L4
R415
R416
L1
22 V4
R2
V1
64
:CHIP
ST_R
1/16W
1
100
2
R414
C2
L1
—
:CHIP
:CHIP
17
Y2
D
1/16W
1/16W
18
—
100
R413
19
L2
5.6k
R412
V2
3
C
SUB_C
61
R404
5.6k
1/16W
:CHIP
VIDEO2
ST_CV
T O P1
21 SW3
—
SUB_C
MT_R
B
ST_CV
ST_R
TUNER
22
21
A5
A4
GND
MA7
23
A6
MA8
24
A8
MA6
25
A7
MA5
26
*OE
MA4
27
*LCAS
NC
28
*UCAS
IO14
C500
33p
CH:1608
T O P1
NC
*WE
*RAS
NC
A0
A1
A2
A3
VCC
C507
0.1
25V
F:1608
NC
IC500
UPD424210LE-60
FRAME MEMORY
29
IO8
IO12
IO9
IO13
GND
30
IO7
IO14
IO13
31
IO10
IO12
IO15
32
IO6
GND
33
IO5
34
IO11
IO11
35
VCC
36
IO4
37
IO3
38
IO16
IO10
IO9
39
IO2
C505
0.1
25V
F:1608
40
IO1
I
C506
0.1
25V
F:1608
VCC
—
IO8
H
IO15
—
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
C501
0.1
25V
F:1608
3D+5V
R504
1k
1/16W
:CHIP
C508
4.7
6.3V
B:CHIP
C514
10p
CH:1608
MA3
MA2
MA1
FB500
OUH
:1608
:LB2016
:LB2016
RB504
V
Q501
2SD601A
BUFF
R506
220
1/16W
:CHIP
L502
L501
RB506
15
13
14
11
RB503
12
10
O9
O8
O7
O6
O5
O4
MA0
IO7
IO6
IO5
RB502
RB501
O3
O2
O1
O0
RB500
J
IO4
IO3
IO2
—
IO1
IO0
3D +5V
C503
0.1
25V
F:1608
C502
100
16V
Q500
2SD601A
BUFF
RB505
Q503
2SB709A
BUFF
C510
100
16V
C511
0.1
25V
F:1608
R511
10k
1/16W
:CHIP
R512
22k
1/16W
:CHIP
Q504
V
Q502
2SB709A
BUFF
R509
5.6k
1/16W
:RN-CP
R510
220
1/16W
:CHIP
1
2
3
FL500
6
4
R507
560
1/16W
:RN-CP
C509
15p
CH:1608
R5
1
1/1
:CH
KD-34XBR2
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
IC400
NJM4558M-T2
AUDIO BUFF
L_5
C400
0.1
25V
F:1608
7
6
8
R403
6.8k
1/16W
:RN-CP
Y
R570
120k
1/16W
:CHIP
C408
25V F:1608
0.1
100
1/16W
R_3
L401
L_3
:CHIP
R433
10k
1/16W
:CHIP
36
R430
:CHIP
1/16W
R441
220
1/16W
:CHIP SDAT
220
32 ADR
R444
1/16W
:CHIP
R445
100
1/16W
:CHIP
+9V
LR
C417
0.1
25V
F:1608
C420
0.47
10V
B:1608
R474
2.2k
1/16W
:CHIP
R475
470
1/16W
:CHIP
R460
2.2k
1/16W
:CHIP
C409
0.1
25V
F:1608
R463
56
1/16W
:CHIP
R446
470k
1/16W
:CHIP
Q404
2SB709A
BUFF
C415
470
16V
C411
0.1
25V
F:1608
C413
10
R447
470
1/16W
:CHIP
R451
75
1/16W
:RN-CP
L_3
MAIN_Y
V_OUT
+5V
03
1
5V
608
+9V
R505
100
1/16W
:CHIP
SUB V/Y_2
R508
1k
1/16W
:CHIP
R
OUT
VCC
IN3
IN2
SW2
SW2
2
3
4
IC403
NJM2521M(TE2)
AUDIO SW R
C_R2
C_R1
C_R1
C_L2
C_L1
1
C402
0.1
25V
F:1608
COMPONENT_LR
C412
100
16V
Q406
2SD601A
MUTE
R452
1k
1/16W
:CHIP
R464
470k
1/16W
:CHIP
V_3
L500
5
TO P1
Q410
2SB709A
BUFF
R465
1k
1/16W
:CHIP
C419
10
R468
470
1/16W
:CHIP
Q409
2SD601A
MUTE
R470
1k
1/16W
:CHIP
Q411
2SB709A
BUFF
R469
470k
1/16W
:CHIP
R473
1k
1/16W
:CHIP
R_3
EXT_SIG
:LB2016
6
GND
IN3
IN2
C_L2
7
IN1
OUT
VCC
SW1
4
8
SW1
GND
IN1
3
C401
0.1
25V
F:1608
:LB2016
R439
1k
1/16W
:CHIP
TO P2
R_5
5
2
TO P1
R
L402
C410
100
16V
Q405
2SD601A
CURRENT SOURCE
C418
0.1
25V
F:1608
R466
2.2k
1/16W
:CHIP
Q403
2SD601A
BUFF
Q401
2SB709A
BUFF
6
1
C_L1
R427
100k
1/16W
:CHIP
R572
120k
1/16W
:CHIP
:LB2016
R434
47
1/16W
:CHIP
SCLK
R428
180k
1/16W
:CHIP
7
R_OUT
46
9V
5OV
Q400
2SD601A
BUFF
R421
100k
1/16W
:CHIP
C
Q412
2SB709A
BUFF
C407
0.1
25V
F:1608
45
10
+5V
L_OUT
SDA
SCL
T O P1
IC402
NJM2521M(TE2)
AUDIO SW L
R417
4.7k
1/16W
:CHIP
V_3
100
R425
35
AGND
C423
L_2
34
DC_OUT
AVSW+9V
C406
100
16V
C422
10
5OV
R_2
33
C_OUT3
C_2
44
41
L_OUT3
37
Y_OUT3
39
R_OUT3
38
V_OUT3
40
VCC
:LB2016
43
L_OUT2
L400
C404
100
16V
8
R571
100k
1/16W
:CHIP
C561
10
R_2
L
L_2
R486
6.8k
1/16W
:CHIP
R485
6.8k
1/16W
:CHIP
42
V/Y_OUT2
C405
0.47
10V
B:1608
51
50
49
MUTE
R_OUT2
R_5
47
BIAS
Y_IN1
48
C_IN1
TRAP2
08
C560
1
C559
1
52
L_OUT1
C403
0.1
25V
F:1608
C_OUT2
9
DMIX_L
L
R483
4.7k
1/16W
:CHIP
DMIX_L
R484
4.7k
1/16W
:CHIP
DMIX_R
+9V
L_5
DMIX_R
C558
10
C_R2
TO P 2
SUB_V/Y
R401
5.6k
1/16W
:RN-CP
5
TO P2
2
R402
6.8k
1/16W
:RN-CP
3
R569
100k
1/16W
:CHIP
R400
5.6k
1/16W
:RN-CP
4
_C
1
R_5
TO P1
24
TO P1
R471
47k
1/16W
:CHIP
ONOFF_MUTE
TO P1
MA7
MA8
MA6
MA5
MA4
MA3
MA2
MA1
—
Q505
2SD601A
BUFF
L503
+3.3V
K
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
XI
MIO0
MIO1
MIO2
MIO3
MIO4
MIO5
MIO6
MIO7
MIO8
MIO9
MIO10
MIO11
MIO12
MIO13
MIO14
MIO15
MOE
MWE
MCAS
MA0
MA1
MA2
MA3
MA4
MA5
MA6
MA7
DGND
100
DV DD
MA8
99
H O3
MRAS
98
34
H O2
AGND
97
35
H O1
ACI
96
36
H O0
VRBC
95
37
HW CK
VRTC
94
38
HR CK
39
HR ST
40
DG ND
41
42
43
IC501
3D COMB FILTER
AVDD
93
AVDD
92
VRTY
91
H I3
VRBY
90
H I2
VCL
89
H I1
AYI
88
44
H I0
AGND
87
45
DV DD
AGND
86
46
AV DD
CBPY
85
47
FS CO
AYO
84
DYCO9
ALTF
CSI
TEST
LINE
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
0
O
—
0.1
C526
25V F:1608
0
0.1
C527
25V F:1608
0.1
C531
25V F:1608
C
1
R526
2.2k
1/16W
:CHIP
C524
1
6.3V
B:1608
R523
5.6k
1/16W
:RN-CP
Q508
2SB709A
BUFF
R527
1k
1/16W
:CHIP
Y
C535
25V F:1608
470
R532
1/16W
:CHIP
Y
Q512
2SB709A
BUFF
R528
5.6k
1/16W
:RN-CP
C533
15p
CH:1608
R531
560
1/16W
:RN-CP
FL501
6
R524
560
1/16W
:RN-CP
3
4
C520
15p
CH:1608
R525
1k
1/16W
:CHIP
C530
100
16V
C529
0.1
25V
F:1608
Q509
2SD601A
BUFF
R534
680
1/16W
:CHIP
1
2
3
FL502
R538
470
1/16W
:CHIP
C538
0.1
25V
F:1608
2
R522
100
1/16W
:CHIP
+9V
C532
22
0.1
R521
470
1/16W
:RN-CP
Q507
2SD601A
BUFF
6
R533
2.2k
1/16W
:CHIP
R529
1k
1/16W
:CHIP
Q510
2SD601A
BUFF
R530
33k
1/16W
:CHIP
Q511
2SD601A
AMP
R594
470
1/16W
:CHIP
Y
MA
R535
820
1/16W
:RN-CP
R537
1k
1/16W
:CHIP
R536
12k
1/16W
:CHIP
4
C539
8p
CH:1608
C536
0.1
25V
F:1608
C537
100
16V
80
1/16W
V
:CHIP
FB503
OUH :CHIP
C544
100
16V
TO P1
L505
+9V
:LB2016
3D_RST
R542
1k
1/16W
:CHIP
T O P1
3D_SDAT
T O P1
3D_SCLK
C
P
Q516
2SB709A
BUFF
R543
5.6k
1/16W
:RN-CP
R546
560
1/16W
:RN-CP
SDAT
C546
0.1
25V
F:1608
R548
680
1/16W
:CHIP
1
SCLK
Q513
2SD601A
BUFF
C548
15p
CH:1608
2
3
FL503
—
Y
C518
0.1
25V
F:1608
Q506
2SD601A
BUFF
3D+3.3V
FB505
OUH
:1608
FB506
OUH
:1608
T O P1
1k
0.1
0.1
+3.3V
C542
0.1
25V
F:1608
R590
1k
1/16W
:CHIP
C543
0.1
25V
F:1608
R596
R517
470k
1/16W
:CHIP
R520
470
1/16W
:RN-CP
C
C521
16V B:1608
C522
25V F:1608
C523
25V F:1608
C525
25V F:1608
0.1
C541
0.1
25V
F:1608
DGND
DYCO8
53
KIL
DYCO7
52
DYCO6
51
DYCO5
81
DYCO4
AVDD
DYCO3
FS C1
DYCO2
50
DYCO1
82
DYCO0
83
CBPC
DVDD
ACO
AG ND
NSTD
AG ND
49
ST1
48
0.1
R588
R515
1.5k
1/16W
:CHIP
+9V
Y
V
R587
4
Y
R580
220
1/16W
:CHIP
C517
0.1
25V
F:1608
DVDD
R516
22k
1/16W
:CHIP
C512
1
10V
F:1608
C513
1
6.3V
B:1608
6
+3.3V
3.3V
19
ST0
R591
1k
1/16W
:CHIP
20
SDA
TO P2
21
SCL
FSC
22
SLA0
C540
0.01
25V
B:1608
23
RSTB
N
C534
0.1
25V
F:1608
24
CLK8
—
25
DGND
C528
0.1
25V
F:1608
33
26
AVDD
M
32
27
CKMD
3.3V
—
XO
28
RPLL
C519
0.1
25V
F:1608
31
29
CPLL
L
30
DGND
—
—
FB501
OUH
:1608
C515
4.7
6.3V
B:CHIP
R593
0
1/16W
:CHIP
R518
22k
1/16W
:CHIP
:LB2016
:CHIP
Q504
2SD601A
BUFF
R514
22k
1/16W
:CHIP
V
R511
10k
1/16W
:CHIP
16V
Q503
2SB709A
BUFF
RB505
RB504
MA0
IO14
IO15
IO12
IO13
IO10
IO11
IO8
IO9
IO7
IO6
IO5
IO4
IO3
IO2
IO0
IO1
RB506
J
6
4
R547
2.2k
1/16W
:CHIP
C550
8p
CH:1608
R544
1k
1/16W
:CHIP
R545
33k
1/16W
:CHIP
Q515
2SD601A
AMP
R595
470
1/16W
:CHIP
Q514
2SD601A
BUFF
C547
100
16V
R549
820
1/16W
:RN-CP
C549
0.1
25V
F:1608
R550
12k
1/16W
:CHIP
— 79 —
C
MA
R551
1k
1/16W
:CHIP
C
L504
:LB2016
FB502
OUH
:1608
TO P 2
MAIN_COMB_Y
TO P2
MAIN_COMB_C
3D-COMB,AV-SW
9-965-916-02<HA3>B P3
LP001
C507
C559
C560
SUB_OSD
DMI X_L
GND
DMIX_R
GND
L
R
GND
GND
FR _C_ IN
SW2
GND
FR _R_ IN
G ND
G ND
FR _Y_ IN
FR _L_ IN
GND
F R_ V_I N
G ND
C505
C506
C508
R403
R411
R402
C400
C561
TP MAIN Y/V
L501
C404
C402
C422
C517
C521
C423
C542
R532
R591
C543
C541
TP MAIN C
TP MAIN Y
C532
R588
R596
C406
C311
C540
C353
C307
SDAT
GND
SCLK
GND
F_MUTE
S_MUTE
C_MUTE
FIX_MUTE
R563
CN005
C306
C317
R566
C223
C268
C271
C239
R567
C352
C272
R140
R144
R143
C118
R145
C337
ONOFF_MUTE
A_PROT
C319
ANT_M
ANT_S
GND
SUB+9V
C285
R148
C120
C121
R141
A1
B1
C102
C105
R104
R221
C305
C208
C236
R562
X200
R235
Q520
R114
R121
C112
C107
CN003
C1
A1
R102
R106
Q519
R564
R226
G
G
F
F
—
—
E
E
C216
C100
X
B11
A11
C008
R214
—
—
A
A
—
—
—
—
D
D
—
—
C
C
—
—
B
B
—
—
COMPON
CONDUCTOR SIDE
1
|
12
|
11
|
10
|
9
|
8
|
7
|
6
|
5
|
4
|
3
|
2
|
1
[MICRO (MAIN, CCD), VIDEO PROCESSOR, 3D-COMB, AV-SW]
B
B11
EXT_SCL
C252
C242
C227
C222
C224
48
4
IC004
1
5
8
R079
X003
R074
1
IC003
R283
R273
C282
R294
R574
C281
51
L203
R302
FB201
L204
D203
R270
R578
R579
R139
Q518
L102
C122
R120
R118
C110
C109
C231
R119
L100
C111
R117
81
C117
50
81
C131
R155
R476
X101
X100
31
Q413
R477
R448
R466
Q407
SUB VBI
R478
C414
R568
Q412
R115
R111
R110
R576
Y4
100
C4
C Y1
SW4
Q400
C422
C407
R417
R486
R483
4
5
1
IC402
8
4
5
C401
C404
SW 2
GN D
F R_V _I N
GN D
F R_L _I N
GN D
FR _Y_ IN
G ND
FR _R_ IN
GN D
F R_C _I N
R484
IC403
1
8
51
R410
R409
R408
R407
R406
R405
R404
|
C420
R450
R421
R425
R428
R430
R458
R424
R459
R449
IC401
C423
C403
Q401
C408
R416
R455
R456
R441
33
52
64
R412
R
G ND
11
R454
R453
R444
32
1
R413
R569
R461
R415
L
GND
1
R482
R418
CN008
C416
20
19
R432
R423
C559
G ND
DMI X_R
G ND
DM IX_ L
SU B_O SD
CN010
R480
R438
L504
R443
R429
R414
R479
Q514
R481
FB502
R437
1
IC400
R570
Q414
C547
R440
R422
C558
R420
R419
4
IC101
C128
R400
4
5
C560
R505
R508
R507
C509
R504
R509
Q500
R506
C501
1
|
CN003
R317
C406
8
R401
R571
C421
R153
10
C1
A1
R136
|
IC100
R298
5
30
Q108
L103
Q507
R510
R521
Q501
R515
Q502
C561
R151
C502
R529
51
R545
C127
R544
R149
R534
C503
C518
R522
R523
Q506
R511
C511
C514
9
1
R584
R323
R322
R572
Q517
C530
L500
C537
R530
R520
80
C301
R152
Q510
R537
Q508
C536
R536
Q504
C513
R525
R137
C300
MAIN VBI
C549
R548
R535
C126
Q515
Q511
FL501
R138
L206
R314
Q228
R315
C302
Q216
R517
R524
C130
R585
R319
R284
C284
R282
Q509
C529
R533
R593
FB504
L502
|
V1
GND
Y1
GND
C1
GND
V3
GND
R109
Y3
GND
D201
C3
GND
SW3
GND
V4
GND
30
16
1
R577
25
C285
Q227
FL202
Q222
R296
R288
R551
D204
R258
R259
C276
R285
FL503
R543
R516
C512
R518
R514
FL500
Q100
32
24
C286
C292
Q513
C546
R547
FL502
Q505
R512
D202
9
C520
C268
17
1
Q218
R305
R549
R254
R308
IC204
C228
8
C296
Q224
R290
R287
FB001
C548
R594
R595
R550
C562
SUB CHROMA
R300
4
C539
C550
Q521
C258
C001
R291
C213
R528
C533
R526
R257
C254
R527
C523
R575
X201
C510
R264
C230
R546
R303
R292
Q219
R306
R299
C297
R307
C535
R289
C333
Q217
1
Q512
21
40
LP001
3D COMB FILTER
C278
C260
Q516
FL200
CN006
R531
8
80
C205
C544
|
C280
C259
IC500
20
1
Q503
C293
C229
R542
C538
Q221
X202
C532
FL201
L505
C522
C526
G ND
FB505
C527
C525
ANT _S
C531
1
30
RB505
SUB +9V
R590 FB506
7
R295
36
RB506
A NT _M
100
31
RB500
R501
Q220
1
|
COMB FILTER
80 81
50
RB504
L211
25
RB503
FB503
51
RB501
L201
48
12
C248
37
IC207
C326
MAIN CHROMA
R220
C321
R351
48
C312
C311
IC501
C256
R219
C331
37
R334
R333
C313
R327
6
C008
C266
C267
C220
C218
C212
R215
C336
C334
C310
C353
RB502
C024
C203
R082
C262
13
C235
C247
C351
13
L210
C322
A_PROT
|
L200
C206
C265
IC202
24
C211
Q005
37
5
Q006
C244
C209
C264
13
C253
R207
CROSS SW
C020
24
C255
YUV SW
C350
Q202
C348
24
C320
ONOFF_MUTE
FIX_MUTE
S_MUTE
36
C263
R223
12
C215
C349
C347
X200
C346
C337
C352
GND
F_MUTE
C_MUTE
SCLK
GND
25
|
C025
R241
IC200
25
C245
1
L208
36
R242
C305
IC205
C317
SDAT
07
0
CN
1
R084
EXT_SDA
16
C306
12
R083
MN_SB_SW
9
1
10
4
R085
V_DRCI_HS
16
R271
|
R071
V_DRCI_PR
3
C232
V_DRCI_PB
|
C234
V_DRCI_Y
R304
1
C298
GND
9
V_MIDI_PR
8
R260
IC201
R311
GND
GND
V_MIDI_HS
V_MIDI_VS
C295
V_MIDI_Y
1
R310
8
V_MIDI_PB
R222
A_MSK
GND
/BINT
R227
R281
R231
GND
GND
GND
V_DRCI_VS
C294
A1
2
R051
CN005
B1
|
R592
1
A11
KD-34XBR2
PONENT SIDE
12
|
CN009
11
R485
R427
R445
R474
C418
R475
AV SW
Q415
31
1-681-830-11
C116
100 R113
50
GND
GND
GND
GND
B1
A1
CN004
C294
C295
C298
C234
R331
R213
X001
B11
A11
C008
0
C354
Q403
C014
C006
R053
R355
R059
C355
C410
C018
R157
C019
B11
C338
TP MNO PR
C339
C412
TP MNO Y
TP MNO PB
R332
C202
Q405
C413
TP SUB+5V
TP SUB+9V
TP SUB+3.3V
C419
GND
ISTBY_LED
SIRCS
STBY/ST_LED
DH_MUTE
STBY+5V
AC_RLY
+B_OCP
LB_ERR
PIC_MUTE
A_PROT
VP
HP
V_MNO_VS
V_MNO_HS
V_MNO_PR
V_MNO_PB
OSD_G
OSD_R
VM_MOD
V_MNO_Y
OSD_YSYM
MODEL
SEL_L
SEL_R
FIX/VAR_L
FIX/VAR_R
OFF_MUTE
AGC_ATT
ST_AFT
/MT_STR
MODE
/ST_STR
MT_HSYNC
ST_R
ST_CV
ST_L
MT_R
MT_CV
MT_L
BCLK
STBY+5V
/BINT
/A_RESET
ST_FMONO
ST_HSYNC
SDAT
LINE_MUTE
S_MODE
SUB+3.3V
SUB+3.3V
SUB+9V
SUB+9V
SUB+5V
SUB+5V
ISTBY_SW
A32
C32
WP
BDAT
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
/ST_SAP
GND
MT_FMONO
/MT_SAP
GND
MT_AFT
GND
SCLK
GND
GND
GND
GND
F_SP_MUTE
A_MUTE
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
A MASK
GND
GND
GND
GND
GND
GND
GND
GND
PROT_MUTE
GND
+B_OVP
MAIN_SW
GND
DGC_RLY
KEY
TIMER_LED
GND
P-ON
—
—
K
K
—
—
J
J
—
—
I
I
—
—
H
H
L
— 80 —
—
A32
P_ON
GND
GN D
+ B_O CP
GND
V _MN O_ PR
O SD_ R
VM _MO D
OSD_B
C32
GND
C1
A1
CN001
B25
A25
MT_AFT
C
100
Q205
R460
R211
A-1131- 736-A
CN002
R122
R123
R134
L101
R132
Q106
B1
A1
C113
C415
R470
R225
L402
Q411
Q103
R465
Q104
R133
R131
R130
R124
R135
C115
C 32
C410
SUB VBI
A 32
R233
R452
Q404
R433
C413
L401
Q406
C327
R439
C314
R447
Q203
R468
R236
C412
Q204
C419
R224
R216
Q409
R360
Q410
R473
R471
Q201
Q102
C238
Q
C02
81
Q107
R202
C114
R204
D100
R206
BCLK
R208
WP
C210
R243
/BINT
C315
C202
R244
BDAT STBY+5V
D001
Q101
L200
C231
GND
/A_RESET
YUV BUFF
GND
R009
MT_CV
R340
R339
MT_L
MT_R
Q200
GND
ST_L
GND
GND
R371
Q208
GND
ST_CV
ST_R
/ST_SAP
GND
R028
GND
R352
ST_HSYNC
Q235
GND
Q240
/ST_STR
R375
Q250
ST_FMONO
R029
C342
GND
MODE
R031
MT_HSYNC
R040
MT_FMONO
C324
R359
Q243
GND
Q232
R328
C341
/MT_STR
R373
/MT_SAP
R033
SDAT
Q248
AGC_ATT
ST_AFT
R036
OFF_MUTE
R047
R074
GND
MAIN MICRO
R037
GND
R042
FIX/VAR_R
R048
GND
R043
SCLK
R032
SEL_R
C007
FIX/VAR_L
R038
GND
L003
GND
R005
LINE_MUTE
R007
SEL_L
1
R068
GND
R034
R035
100
L205
R010
81
R063
R011
80
X001
IC001
F_SP_MUTE
R013
R015
R019
30
C02
R079
R012
R016
R017
R014
C031
R001
R018
R023
R022
31
R083
R084
R071
R085
R051
X003
R581
R582
R021
R030
R020
R003
R006
SYNC SW
R098
Q003
S _MO DE
R041
R002
R008
SUB +3. 3V
R072
R024
R070
8
A_ MU TE
A MASK
R086
C022
R025
50
R076
51
C035
R583
C303
5
Q001
R066
R069
R054
C274
R055
L202
C242
1
SUB +9V
L004
Q522
16
1
C
C
C
4
SUB +5V
C029
Q002
9
8
R262
C288
R377
R277
C
C224
IS TBY _S W
C030
R004
L104
IC203
R325
R266
R324
8
R379
R378
R276
B11
A11
C227
MO DE L
O SD_ YSY M
16
1
R320
R268
OS D_G
IC206
R313
V_ MNO _Y
9
8
C304
V _MN O_ PB
Q009
V _MN O_ HS
R321
Q230
IC002
Q231
V _MN O_ VS
1
L001
R279
R330
R316
Q229
C028
R278
HP
VP
L005
Q011
Q013
C034
PI C_M UT E
A_ PRO T
PRO T_ MUT E
L B_E RR
16
9
R312
+B_OVP
GND
GND
M16C_RXD
9
OSD_R
MAIN_SW
BYPASS SW
R90
GND
GND
V_MNO_VS
R91
GND
MICON_RST
GND
DH_ MU TE
16
R275
CN004
R280
A C_R LY
1
R309
S TBY +5 V
GND
GND
R92
C010
M16C_TXD
DG C_R LY
IC006
OSD_B
KE Y
8
OSD_G
TI MER _L ED
SI RCS
V_MNO_PB
C014
MID_BUSY
V_MNO_PR
IS TBY _L ED
YSYM
R297
ST BY/ ST _LE D
V_MNO_HS
C019
V_MNO_Y
C018
A1
B1
GRANT
GND
G ND
A11
B11
EXT_SCL
SW4
C4
GND
C_Y1
GND
C_PB1
GND
GND
C_PR1
C_Y2
GND
C_PB2
GND
GND
C_PR2
V_OUT
GND
GND
L_OUT
R_OUT
GND
FIX/VAR_L
GND
FIX/VAR_R
GND
R1
GND
GND
L1
L3
GND
R3
GND
R4
C_R1
L4
C_L1
C_R2
GND
GND
GND
C_L2
S_IN
GND
S_OUT
R125
R126
GND
Q105
D BOARD SCHEMATIC DIAGRAM (1 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
A
—
AC
—
E
CN6502
2P
WHT
:MINI(LOCK)
C6584
0.047
125V
AC OUT
1
AC OUT
2
C6585
0.001
250V
B
R6516
3.3
10W
:RB
RY6501
C6591
0.001
250V
B
4
3
1
2
C6588
0.0047
250V
F
—
CN6003
AC RECT+
AC RECT-
G
2
D6534
DIN40TA2
3
NC
PRI 15V
—
4
3
1
2
4
D6533
MA111
PROTECT
5
GND
6
R6519
0
:CHIP
PRI 15V
CN6501
6P
WHT
:VH
R6521
1k
1/2W
:FPRD
R6507
4.7k
:CHIP
4
2
3
R6510
22
1W
:RS
AC RLY
1
MAIN RLY
2
E
H
3
E
4
E
5
NORMAL
—
R6515
470k
1/2W
D6509
ERC04-06SE
C6503
1200
250V
R6502
470k
1/2W
D6510
ERCO4-06SE
PH6501
ON3171-R
RESISTOR SHORT
SUB 7V
SUB 7V
—
C6590
1200
250V
PRI 15V
1
6
E
7
TO P2
MAIN RLY
VG(L)
VC1
P-GND
OCP
18
15
16
17
SS
AC RECT+
C6507
47
VC2
C6516
0.001
B:CHIP
R6503
100
:RN-CP
D6532
ERA22-08
STOPPER
1
NC
F
RY6502
AC RECT+
C6587
0.0047
250V
F
JW6504
7.5MM
TO A BOARD
TIMER
C6517
4.7
C6589
0.0047
250V
F
JW6503
7.5MM
VB
GND
C6510
0.1
:PT
C6519
10
12
CN6709
D6530
D6SB60L
AC-RECT
VS
11
C6586
0.0047
250V
F
RT
R6543
330k
:RN-CP
VG(H)
R6557
100k
:CHIP
R6501
91
:RN-CP
10
TO F BOARD
R6518
15k
:RN-CP
14
R6541
15k
:CHIP
R6553
330k
:CHIP
D
CT
C6518
0.001
:PP
VD
13
—
R6552
22k
:CHIP
1
R6526
0.1
1/2W
:RF
2
C6504
0.01
B:CHIP
F/B.
C6511
0.01
B:CHIP
R6504
10k
:CHIP
C
VSENSE
3
R6517
8.2k
:RN-CP
4
—
5
R6513
330k
:RN
6
R6514
330k
:RN
7
R6646
330k
:RN
AC RECT
IC6501
MCZ3001D
DRIVER
Q6503
2SD601A
8
POWER SUPPLY
9
B
JR6501
0
:CHIP
D6507
0
:CHIP
KD-34XBR2
5
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
SUB 7V
AC RECT+
FB6508
0.45UH
D6516
D4SBS6-F
AU RECT
FB6509
0.45UH
FB6502
0.45UH
Q6507
IRFIB7N50A
CONVERTER
R6529
10
:FPRD
R6533
10k
:CHIP
-
AU +24V
C6548
3300
35V
C6526
0.001
1kV
R
T6501
:PIT
S
9
PS6501
ICP N70
AU GRD
FB6506
0UH
200V
200V
10
D6515
S2L60F
200V-RECT
FB6504
1.1UH
Q6506
IRFIB7N50A
CONVERTER
6510
0.1
:PT
PS6502
ICP N70
+
8
11
7
12
C6547
220
250V
135V
D6502
UF4005
PUMP-UP
R6531
10
:FPRD
C6525
0.001
1kV
R
S
R6535
10k
:CHIP
R6556
0.05
2W
:RB
C6532
0.056
800V
:PP
6
13
FB6501
1.1UH
+135V
C6544
330
160V
D6513
D8LC40F
135V RECT
L6505
:LHL10
TO A
14
507
0
HIP
D6517
S2L60F
200V-RECT
FB6505
0UH
4
C6508
47
25V
3
2
1
C6505
470pF
500V
15
:LHL08
+15V
+15V
+15V
C6546
4700
25V
(800MA)
L6503
C6545
2200
25V
:LHL08
-15V
R6524
0
:CHIP
-15V
(300MA)
PH6502
ON3171-R
MAIN CONTROL
4
1
3
2
+
R6591
0.22
1W
:RS
CN6503
8P
WHT
:S-MICRO
STBY 5V
16
R6604
10k
:CHIP
Q6520
2SA1208S
+B OCP
17
18
R6599
D6514
D4SBS6-F
15V RECT
1k
D6522
MA111
BIAS
R6597
100k
:RN
-
R6596
10k
:RN
R6600
10k
:RN
Q6524
2SA1309A
OCP LATCH
R6603
10k
:CHIP
R6612
47k
:CHIP
C6561
1
Q6521
2SC3311A
OCP LATCH
C6506
470pF
500V
-15V
R6547
1.5k
:CHIP
+15V
R6542
1k
:CHIP
R6590
680
:FPRD
R6544
0
:CHIP
IC6503
DM-58
CONTROL
5
R6583
15k
4
3
BOARD
CN4403
L6504
R6525
470
:CHIP
R6598
0.27
1W
:RS
IC6505
SE-140N
+B OVP
1
R6593
R6602
1k
:CHIP
R6605
2.2k
:CHIP
Q6522
R6614
3.3
1/2W
:FPRD
+B OCP
SUB7V
8
AUDIO 22V
7
AUDIO 22V
6
AUDIO GND
5
AUDIO GND
4
AUDIO-PROT
3
SET ON
2
SUB 7V
1
P-SW(-)
|
28
NORMAL
—
6
E
WP
I
7
P-SW(-)
8
W.P
MAIN RLY
CN6504
8P
R6506
0.47
:FPRD
TO A BOARD
CN3170
—
J
R6508
10k
:CHIP
TO A BOARD
CN6505
8P
—
K
8
E
MAIN 12V
7
MAIN12V
MAIN 5V
5
MAIN5V
4
MAIN 9V
3
33V
2
33V
TO A BOARD
DAT0/B DAT
E
1
CLK0/B CLK
C6595
100
25V
Q6530
2SB709A
LATCH-2
C6596
1
2
DAT0/B DAT
4
NVM5V
5
E
OVP
R6527
68k
:CHIP
R6538
10k
:CHIP
R6534
33k
:CHIP
C6594
0.1
25V
B:CHIP
Q6529
2SD601A
LATCH
Q6528
2SD601A
VC-SW-2
R6511
10k
:CHIP
200V-OCP
R6537
10k
:CHIP
D6501
MA111
D6537
MA111
200V-OCP
3
PROT1
+B OCP
Q6532
2SD601A
LATCH-1
R6550
4.7k
:CHIP
Q6527
2SD2114
AC-RLY-DRV
R6530
4.7k
:CHIP
+B OCP
CN3171
CLK0/B CLK
—
R6532
10k
:CHIP
MAIN 5V
MAIN9V
1
CN6506
8P
M
AC RLY
6
E
R6509
4.7k
:CHIP
STBY5V
MAIN 12V
E
L
R6528
100
:CHIP
STBY 5V
STBY 5V
MAIN 9V
—
Q6526
2SB709A
LATCH
CN6001
R6523
22k
:CHIP
NVM5V
6
7
8
—
N
— 83 —
SE-140N
+B OVP
R6583
15k
:CHIP
R6593
100
:FPRD
1
C6551
0.022
B:CHIP
3
R6539
22k
3W
:RS
PH6503
ON3171-R
MAIN SW
R6522
10k
:CHIP
4
1
3
2
R6540
1k
:CHIP
Q6522
2SA1309A
OVP SW
2
D6508
MTZJ-33C
STBY 5V
Q6531
2SD601A
MAIN-SW
R6536
10k
:CHIP
33V
R6512
10k
:CHIP
33V
+B OCP
9-965-916-02<HA3>D P1
D BOARD SCHEMATIC DIAGRAM (2 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
TO P3
A
ABL
DF DRV
MAIN 9V
DF PARA
IC5003
PQ12RF21
12V REG
AFC-PLS
TO P1/P3
+15V
—
MAIN RLY
D5507
MA153
PROT
R5507
47
:CHIP
C5038
47
16V
L5002
R5650
47k
:CHIP
MAIN9V
C5043
1000
16V
R5122
10k
:CHIP
10
R5501
220
:CHIP
:LHL10
D5505
MA153
PROT
11
MAIN5V
C5102
47
25V
CLK0/B CLK
R5672
330k
:CHIP
HSAW
H IN
ADRS
V IN
SCL
H-PARA
SDA
PWM
VCC
PARA1
PARA0
C5610
470
16V
R5696
8.2k
:RN-CP
C5607
B:CHIP
0.033
7
SUB
1
C5614
10
6
PARA2
12
C5613
0.033
B:CHIP
2
3
4
5
6
7
9
8
R5686
680
:RN-CP
5
GND
IC5515
STK390-910
CONV AMP
R5685
1.5k
:RN-CP
4
H-TILT
R5647
100
:RN-CP
OUTPUT
MUTE
8
11
V GEN
10
V AGC
DAC0
9
IREF
DAC1
R5690
47
:CHIP
3
:CHIP
C5594
0.1
:MPS
SW0
2
1k
MA111
C5587
0.047
B:CHIP
SW1
1
R5120
D5021
R5645
47k
:CHIP
TO P1
C5588
0.01
:MPS
12
R5121
10k
:CHIP
5
R5666
56k
:CHIP
13
4
8
7
R5503
47
:CHIP
DAT0/B DAT
3
6
4
C
2
MAIN 9V
5
3
2
1
1
IC5501
M24C04
NVM
R5623
2.2k
:CHIP
H AGC
14
—
FV-SW
IC5008
BA51W12ST-V5
5V/9V-REG
C5511
100
16V
R5684
4.7k
:RN-CP
C5596
1
MAIN12V
15
D5029
MA111
MAIN12V
C5052
0.1
B:CHIP
16
NVM5V
C5015
1000
16V
17
NVM 5V
O
18
C5508
0.01
F:CHIP
R5509
100
:CHIP
G
19
W.P
I
C5008
330
25V
20
B
+15V
+135V
21
+15V
22
—
1 :MPS
C5605
DF SW
R5506
10k
:CHIP
IC5511
CXA2026AS
DQP-CONTROLLER
R5712
0.47
1/2W
:FPRD
R5689
47
:CHIP
R5711
0.47
1/2W
:FPRD
C5505
10
R5514
0
:CHIP
R5717
68k
:CHIP
C5603
0.0047
B:CHIP
R5648
0.33
3W
:RS
C5576
220
25V
-15V
C5590
330p :CHIP
R5649
100
2W
:RS
C5577
220
25V
R5694
4.7k R5693
:RN-CP 4.7k
:RN-CP
R5692
1.5k
:RN-CP
R5657
4.7k
:RN-CP
D
+15V
+135V
—
H COMP IN
CN5501
8P
-15V
TO A BOARD
CN3173
4
E
5
B INT
R5123
0
:CHIP
D5515
D1NL20
PEAK-DET
C5518
0.0039
630V
:PP
R5124
0
:CHIP
6
D5031
UDZ-1710B
7
CLK1/S CLK
DAT1/S DAT
S
8
SCLK
F
HOLD DOWN
BUSCON
E
HOLD DOWN
3
4
SCP
5
R
6
B
7
E
:CHIP
R5554
:RN-CP
1
C5501
47
25V
R5578
18k
:RN-CP
C5542
0.0033
B:CHIP
2
R5581
10k
:RN-CP
JR5502
0
:CHIP
3
C55
47
25
R5
47
:RN
R5577
180k
:RN-CP
MAIN 9V
3
4
MAIN 12V
IC5502
NJM2901M
DQP-DF-CONT
C5504
47
16V
R5512
4.7k
:CHIP
R5529
10k
:CHIP
R5527
4.7k
:CHIP
Q5508
2SD601A
DF-DRV-1
R5536
15k
:RN-CP
D5506
MA111
R5528
R5522
22k
10k
:CHIP
:CHIP
R5030
0
:CHIP
R5531
10
:CHIP
R5532
10
:CHIP
R5530
100
:CHIP
4
5
C5503
100
25V
6
EW DRV
15
7
8
R5513
4.7k
:CHIP
9
M PIN
C5509
330p
CH:CHIP
7
6
5
4
3
2
D5503
MA111
TEMP C
10
R5523
47k
:RN-CP
TO A BOARD
CN3174
C5514
0.01
B:CHIP
8
9
10
11
12
13
14
R5535
10k
:RN-CP
CN5505
10P
H CENT
R5520
27k
:RN-CP
1
H DRV
E
2
3
4
R5526
13
R5518
47k
C5507
0.001
R5519
47k
:RN-CP
C5506
4.7
4.7k
D5502
MA111
TEMP C
R5516
:CHIP
R5525
10k
:RN-CP
Q5506
2SD601A
H.SAW.RST
Q5503
DTC144EKA
AFC BUFF2
R5504
270k
:RN-CP
R5505
270k
:RN-CP
R5511
0
:CHIP
C5522
0.001
CH:CHIP
R5547
R5033
1k
:CHIP
Q5509
2SB709A
DF-DRV-2
Q5504
2SD601A
DF-OFFSW
1
R5548
47k
:CHIP
D5501
MA111
PROTECT
C5519
0.047
B:CHIP
R5042
22k
:CHIP
D5010
D5007
MA111
RD2.OES-T1B1
ON-PROT
ON-PROT2
R5047
2.2k
:CHIP
R504
6.8
:RN-
R5045
10k
:CHIP
C5018
0.01
B:CHIP
R5036 C5013
33k 0.0022
:CHIP B:CHIP
R5044
10k
:CHIP
R5058
470k
:CHIP
R5057
10k
:CHIP
C5028
4.7
D5009
MA111
OFF-PROT2
R5059
4.7k
:CHIP
Q5008
2SB709A
PROT-OUT
4
3
2
1
5
6
7
8
C5017
0.033
B:CHIP
R5038
12k
:CHIP
D5008
MA111
OFF-PROT
C5027
C5020
1000
16V
C5012
0.0047
B:CHIP
R5037
2.2k
:CHIP
:CHIP
V PIN
R5040
47k
:CHIP
R5031
1k
:RN-CP
IC5001
NJM2904M
ERROR AMP
8
V DRV+
V DRV-
R5521
10k
:CHIP
7
2
Q5501
2SD601A
DF PHASE
6
1
V TIM
R5508
100
:CHIP
5
14
ABL S
V COMP IN
22k
18k
1
11
DF PARA
—
R5573
R5576
15
:FPRD
5
R5579
470k
:CHIP
2
10
CLK1/S CLK
E
I
4
8
DAT1/S DAT
N/S
—
3
9
CN5503
10P
H
C5533
0.0022
:PT
2
R5510
100
:CHIP
220k
—
1
2
NC
B INT
R5563
6.2k
:RN-CP
R5564
100k
:RN-CP
R5544
18k
:RN-CP
1
NC
G
D5513
1SS133
R5056
—
R5565
100k
:RN-CP
R5545
33k
:RN-CP
Q5505
DTC144EKA
DQP-PROT
SDAT
CN5506
11P
:B-TO-B
Q5507
IRF614
DQP-OUT
VEE
3
SCP
IC5506
LA6500
DQP-AMP1
IC5504
LA6500
DQP-AMP2
C5531
0.1
:MPS
VCC
HP IN
L5504
10mH
:LHL13
D5514
D1NL20
DQP-SW
Q5502
DTC144EKA
AFC BUFF
2
VEE
1
E
FOR DX/H3
—
V FBP
3
E
MAIN 12V
R5039
4.7k
:CHIP
N
P
C5079
0.01
B:CHIP
C5030
0.01
:MPS
R5063
20k
:RN-CP
Q5012
2SC2688
H-CENT-1
R5079
KD-34XBR2
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
MAIN 9V
D BOARD WAVEFORMS
MAIN 9V
8
A_VCC
V_STAT
R5699
22k
:CHIP
C5621
0.1
:MPS
C5625
100p
CH:CHIP
1
VCC
3
4
5
C5628
100
16V
C5602
47
16V
R5679
15
:FPRD
C5611
0.1
25V
F:CHIP
C5601
0.1
:MPS
C5623
100
16V
MAIN 12V
1
IC5510
LA6500
NS-OUT
C5618
0.33
:MPS
IC5513
CXA8070AP
DY-CONV.CONT
2
R5680
1.5
:FPRD
2
3
4
R5697
180
:RN-CP
R5688
1k
:RN-CP
TO DY
R5700
15k
:RN-CP
R5713
470
1W
:RS
R5704
1
:RN
R5678
8.2k
:RN-CP
C5600
47
16V
-12V
5
O
2
3
VCC
C5011
220
160V
4
5
Q5001
2SD601A
PWM-DRV-1
R5502
0
:CHIP
R5585
470k
:RN-CP
C5051
0.1
B:CHIP
R5002
220
:CHIP
C5502
470
25V
7
k
CP
R5001
10
:CHIP
D5005
MA111
BIAS
C5002
0.047
200V
:PT
S
C5001
0.0022
B:CHIP
R5588
2.2
1W
:RS
D5004
UDZ-12B
CLAMP
R5003
10k
:CHIP
Q5003
IRFI9630G
PWM-OUT
R5004
120k
:CHIP
C5004
0.047
200V
:PT
FB5001
C5616
0.1
:MPS
C5617
47
16V
Q5015
2SC2688
200V REG2
Q5014
2SD601A
200V REF
Q5011
2SD601A
HSAW-SW
R5066
2.7k
:RN-CP
R5054
2.2k
:CHIP
R5049
2.2k
:CHIP
C5021
470p
CH:CHIP
R5050
2.2k
:CHIP
IC5002
NJM2903M
PWM-CONT
C5022
0.0047
:PT
R5055
10k
:CHIP
C5023
0.01
B:CHIP
R5068
220k
:CHIP
R5070
470k
:CHIP
R5069
470k
:CHIP
Q5017
2SC2688
200V.DET
R5067
3.3k
:RN-CP
D5013
RGP10G
PROTECT
1.3 Vp-p (H)
Q5004
2SA1208S
HOCP
Q5006
2SD601A
LATCH-1
R5016
120k
:RN-CP
R5017
120k
:RN-CP
R5009
120k
:CHIP
-15V
R5012
22k
:RN-CP
R5021
68k
:RN-CP
R5024
47k
:CHIP
R5018
4.7k
:CHIP
R5022
27k
:RN-CP
13
R5027
68k
:RN-CP
Q5007
2SB709A
ABL-CONT
R5071
15k
:RN-CP
R5075
100k
:RN-CP
R5076
100k
:RN-CP
R5077
27k
:RN-CP
R5078
100k
:RN-CP
R5072
15k
:RN-CP
C5025
0.001
:PT
D5006
MTZJ-3.9B
REF-VOLT
12
N/S COIL +
11
N/S COIL -
10
+135V
R5710
270
1W
:RS
NC
9
135V
8
NC
7
E
6
QP-
5
NC
4
QP+
3
NC
2
V PIN+
1
V PINCN5509
12P
RED
:S-MICRO
TO W BOARD
CN9102
R5063
20k
:RN-CP
012
2688
NT-1
R5079
R5064
240k
:RN-CP
R5080
4.7k
:CHIP
R5065
240k
:RN-CP
R5081
100k
:RN-CP
R5083
2.2k
:RN-CP
14
2.9 Vp-p (H)
R5026
1k
:CHIP
200V
C5026
47
250V
2.0 Vp-p (H)
5.1 Vp-p (V)
15
R5028
47k
:RN-CP
R5073
100k
:RN-CP
R5074
100k
:RN-CP
12
C5609
100
25V
R5014
2.2k
:RN-CP
R5011
120k
:CHIP
94.6 Vp-p (H)
1.9 Vp-p (V)
11
10
1.1UH
MAIN 12V
R5048
6.8k
:RN-CP
R5008
10k
:CHIP
C5006
10
Q5016
2SC2688
200V REG1
047
2k
HIP
C5005
100
6.3V
:BP
R5007
120k
:CHIP
D5003
ERC91-02
DUMPER
Q5002
2SB709A
PWM-DRV-2
R5013
2.2
3W
:RS
9
8
7
60.2 Vp-p (V)
I
G
C5598
47
16V
-15V
C5548
0.47
:MPS
VEE
1
L5505
10mH
:LHL13
6
8.0 Vp-p (V)
7.3 Vp-p (V)
C5550
0.015
200V
:PP
12.8Vp-p (H)
152.4 Vp-p (H)
1.0 KVp-p (H)
IC5512
NJM79M12
-12V-REG
5506
6500
-AMP1
3
R5702
1k
:RN-CP
R5705
1
:RN
-12V
12 Vp-p (H)
4
5
R5615
15
:FPRD
2
CY-
VCC
:RS
VEE
1W
VEE
C5592
0.1
B:CHIP
1
CN5510
3P
WHT
:S-MICRO
IC5514
LA6500
V-PIN-OUT
C5612
10
R5669
2k
:RN-CP
15
14
13
C5619
270p
CH:CHIP
270
R5698
6.2k
:RN-CP
R5670
39k
:RN-CP
L5601
16
17
18
7
V_DY-CONV
H-AGC_C
H_STAT
R5714
100k
:CHIP
R5708
12
H_DY-CONV
H-SAW_C
HD-IN
11
NC
REF.V-OUT
REF.V-IN
R5716
1k
:CHIP
R5715
100k
:CHIP
:EL0606
10
2
4
D_VCC
5
3
1
5692
.5k
N-CP
SDL
6
V_SAW
9
693
7k
-CP
V_SIN
SCL
R5709
47
:CHIP
R5707
47
:CHIP
D_GND
A_GND
CY+
NC
3
D5523
MTZJ-12
PROT
D5522
MTZJ-12
PROT
C5613
0.033
B:CHIP
1
2
1.7 Vp-p (V).
1.5 Vp-p (V)
R5518
47k
:RN-CP
-15V
5
C5506
4.7
D5502
MA111
TEMP C
R5516
2.7k
:RN-CP
-15V
R5108
36k
:RN-CP
Q5018
2SD601A
H PROT
R5101
4.7k
:RN-CP
R5103
2.2k
:RN-CP
4
K
14
TO A BOARD
13
R5125
4.7k
:CHIP
12
10
IC5007
NJM2901M
H-PROT-CONT1
R5106
4.7k
:CHIP
R5105
47k
:CHIP
C5045
0.1
F:CHIP
7
C5044
0.1
F:CHIP
-15V
R5102
1k
:RN-CP
D5018
MTZJ-15B
CLAMP
R5111
4.7k
:CHIP
R5114
4.7k
C5049
0.001
B:CHIP
R5163
3.9k
:CHIP
R5128
4.7k
:CHIP
R5547
22k
:CHIP
R5059
4.7k
:CHIP
C5027
4.7
2SC2688
H-CENT-1
PROT-OUT
R5079
15k
:RN-CP
C5050
0.01
B:CHIP
R5005
220
:CHIP
Q5023
2SD601A
HSAW-SW
R5116
4.7k
:CHIP
R5113
4.7k
1
R5084
10k
:CHIP
D5019
MA111
PROT
Q5022
2SB709A
BUFFER2
L
R5159
100
:CHIP
—
R5107
47
:FPRD
Q5019
2SD601A
S-COR-DRIVE1
R5161
2.2k
:CHIP
R5160
100
:CHIP
Q5033
2SB709A
BUFF
+15V
C5070
0.1
B:CHIP
R5127
470
2W
:RS
D5027
MA111
Vcc(OUT)
D5028
MA111
S
Q5036
2SD601A
BUFF
Q5027
2SB709A
DRIVE2
Q5028
2SK2182
DRIVE
R5130
47
:FPRD
C5056
0.001
500V
B
R5141
470
3W
:RS
3
5
2
6
1
R5144
0.47
3W
:RS
FB5002
0UH
R5145
10
2W
:RS
L5005
:HLC
C5063
0.0082
1.5kV
:MPP
C5059
680p
2kV
B
C5061
0.0082
1.5kV
:MPP
1
5
3
2
C5060
0.0047
200V
:PT
C5064
0.56
250V
:MPP
C5065
0.56
400V
:MPP
4
C5066
0.0015
500V
B
R5148
220
1W
:RS
R5146
47k
:CHIP
Q5031
2SK3262
S S-COR-OUT
R5051
560
TO DY
CN5002
6P
:DY
— 84 —
9
2
8
1
R5052
1.5
1/2W
:RN
C5024
0.001
500V
E
H/DY(+)
R5043
4.7k
:RN-CP
R5046
1.8
1/2W
:RN
Q5035
2SD601A
H DR BUFF
R5154
10k
:CHIP
R5129
100
:CHIP
R5126
100
:CHIP
R5143
0.47
3W
:RS
4
C5058
680p
2kV
B
H/DY(+)
Vee
R5029
4.7k
:RN-CP
TH5001
C5071
0.1
B:CHIP
R5153
10k
:CHIP
L5001
R5147
3.3k
:RN-CP
R5150
4.7k
:CHIP
R5138
1k
:CHIP
2
7
D5023
PG124S15
DUMPER
4
R5599
10k
:CHIP
R5131
3.3k
:RN-CP
R5053
470
2W
:RS
C5016
0.33
:MPS
C5019
100
1
Q5026
2SD601A
DRIVE1
T5002
:HDT
R5137
1.2k
3W
:RS
C5057
470p
2kV
B
3
P
OTHER COMPONENTS
R5025
5.6k
:RN-CP
C5080
0.022
50V
:PT
7
R5139
1k
:CHIP
R5151
4.7k
:CHIP
C5053
0.22
200V
:PT
R5142
0.56
3W
:RS
4
Q5030
2SC3997S
H-OUT
H.DY(-)
TO TOUCH ANY
—
C5081
0.022
50V
:PT
ALLOW HEAT SINK
R5041
1.5
:FPRD
5
D5026
MA111
Q5034
2SD601A
H DUTY
R5134
1.2k
3W
:RS
C5073
0.0022
B:CHIP
3
R5136
1.2k
3W
:RS
H.DY(-)
BE TAKEN NOT TO
R5019
10k
3
R5133
1.2k
3W
:RS
R5135
1.2k
3W
:RS
6
O
R5020
5.6k
:RN-CP
1
R5132
1.2k
3W
:RS
C5072
0.01
B:CHIP
R5155
22k
:CHIP
R5152
10k
:CHIP
IC5004
STV9379
V-OUT
R5157
47k
:CHIP
5
IC5004 HEAT SINK
IS -15V CARE MUST
R5023
4.7k
:CHIP
Q5005
2SD601A
BUFFER
6
R5156
47k
:CHIP
V.DY(-)
CAUTION !
6
R5088
1k
:CHIP
C5069
0.1
B:CHIP
5
R5149
4.7k
:CHIP
R5091
4.7
:FPRD
R5110
47
:FPRD
V.DY(+)
—
4
F.B.-PLS
7
D5001
MTZJ-5.1B
CLAMP
2
V-DRV-
N
OUT-PUT
C5009
470
25V
Vcc
JR5010
0
:CHIP
C5007
470
25V
—
D5002
GP08DPKG23
PUMP-UP
V-DRV+
-15V
R5140
2.2k
:CHIP
R5090
1.8
2W
:RS
C5075
0.1
B:CHIP
Q5020
2SB709A
S-COR-DRIVE2
M
R5089
1.8
2W
:RS
R5112
220
:CHIP
C5047
0.001
F:CHIP
R50
4.
:CH
R5158
4.7k
:CHIP
C5076
0.1
B:CHIP
Q5037
2SD601A
S-COR-BUFF
R508
470
:CHI
R5086
4.7k
:CHIP
C5046
0.001
F:CHIP
R5109
12k
:RN-CP
TH5002
10K
C5519
0.047
B:CHIP
C5077
0.1
B:CHIP
R5117
2.2k
:CHIP
Q5021
2SD601A
BUFFER1
11
B
R5104
10k
:CHIP
10
9
9
R
D5501
MA111
PROTECT
R5115
1k
MAIN 9V
8
7
8
1
V PROT
H PROT
:CHIP
Q5506
2SD601A
H.SAW.RST
R5525
10k
:RN-CP
6
CN3103
—
R5519
47k
:RN-CP
2
E
C5507
0.001
:CHIP
3
—
13
5
H COMP IN
J
3
4
6
E
V COMP IN
2688
NT-1
R5083
2.2k
:RN-CP
R5079
15k
:RN-CP
R5082
10k
:RN-CP
Q5013
2SB709A
H-CENT-2
1
2
IC5005
LA6500FA
H-CENT
VCC
VEE
3
4
D5015
RGP10G
200V-RECT
5
084
0k
HIP
L5004
:LHL08
C5037
10
400V
R5085
470k
:CHIP
86
7k
IP
C5031
0.0015
B:CHIP
D5011
RD2.OES-T1B1
CLAMP
R5092
1k
:CHIP
D5016
ERC91-02
CENT-VEE
L5003
4mH :HCC
1
10
2
C5033
0.1
:MPS
R5097
0.82
:FPRD
C5041
470
16V
C5032
0.047
B:CHIP
R5093
11k
:RN-CP
D5017
ERC91-02
CENT-VCC
C5040
470
16V
D5032
MA111
R5087
4.7k
:CHIP
58
7k
IP
D5014
D5LC20U
HEATER-RECT
R5098
0.68
:FPRD
R5095
0.47
:FPRD
8
4
5
T5001
:HOT
R5096
0.47
:FPRD
12
1
11
2
10
3
9
8
5
7
6
6
R5091
4.7
:FPRD
C5036
470
25V
R5094
1k
1W
:RS
D5012
RGP02-20EL
G2-RECT
O
I
IC5006
PQ6RD83B
HEATER-OUT
G
VC
C5035
100
16V
C5034
0.0047
H/V DRIVE
H/V DY
H.DY
2
1
G2
E
200V
4
3
H1
H/DY(+)
1
200V
CN5003
4P
WHT
:MINI(LOCK)
TO C BOARD
CN9002
9-965-916-02<HA3>D P2
H.DY V.DY
V.DY
D BOARD SCHEMATIC DIAGRAM (3 OF 3)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
A
—
+135V
B
+15V
R8019
47k :CHIP
—
Q8002
2SD601A
HV-STOP-3
R8002
4.7k
:CHIP
R8011
220k
:CHIP
D8003
MA111
STOPPER
E
R8152
56k
:CHIP
R8026
220k
:CHIP
C8014
10
+15V
C8024
47
R8050
33
:RN-CP
R8049
100
:RN-CP
C8028
0.0022
B:CHIP
C8025
47
25V
VC2
OCP
P.GND
C8027
0.1
:PT
15
+15V
HOLD DOWN
16
R8004
22k
:CHIP
R8006
220k
:CHIP
+135V
14
13
12
11
10
9
8
C8002
0.22
:MPS
+15V
+15V
IC8001
NJM2901M
PROT-DETECT-1
200V
H
—
HV-PROT-ADJ
DF DRV
C8021
0.01
:PT
R8053
330k
:RN-CP
1
2
3
4
5
6
VB
GND
RT
CT
F/B
VD
V SENSE
7
6
R8057
13k
:RN-CP
C8032
680p
:PP
C8030
0.047
B:CHIP
R8056
8.2k
:RN-CP
R8145
100
:CHIP
R8044
200k
:RN-CP
R8009
220k
:CHIP
+15V
+135V
Q8013
IRFI644G
CONVERTER
R8061
10
:FPRD
RV8001
20k
R8042
10k
:RN-CP
7
D8050
MTZJ-15
R8063
10k
:CHIP
C8033
10
D8022
MA111
VS
VG(H)
C8031
22
25V
R8127
0
200V
AFC-PLS
R8028
33k
:RN-CP
C8016
0.1
:PT
+135V
—
R8144
100
:CHIP
R8021
1k
:CHIP
SS
TIMER
17
D8006
MTZJ-13C
LIMIT
18
R8003
22k :CHIP
G
VC1
R8062
10k
:CHIP
5
12
VG(L)
13
F
D8010
D1NL40
PUMP-UP
14
D8027
MA111
200V-OCP
R8058
10
:FPRD
R8054
330k
:RN-CP
200V-OCP
—
—
Q8014
IRFI644G
CONVERTER
IC8002
MCZ3001D
DRIVER
R8055
330k
:RN-CP
11
C8007
0.01
:PT
R8020
22k
:CHIP
R8137
1k
:FPRD
C8023
820
250V
R8151
56k
:CHIP
R8017
0
:CHIP
Q8004
2SD601A
HV-STOP-4
R8199
4.7
:FPRD
R8150
56k
:CHIP
4
—
R8007
47k
:CHIP
C8004
100
10V
R8051
0.47
1/2W
:RF
D8028
1SS133
3
R8001
10k
:CHIP
R8149
47k
:RN-CP
D8009
MA111
BIAS
2
Q8001
2SD601A
BUFF
200V
:LHL10
1
D
C8006
1
R8034
56k
:CHIP
Q8009
2SA1091
+B-OCP
L8001
R8033
910
:RN-CP
R8032
10k
:CHIP
R8148
68k
:RN-CP
Q8003
2SD601A
HV-STOP-2
200V
9
R8147
68k
:RN-CP
R8010
220k
:CHIP
R8043
1
1W
:RS
C8019
100
10V
8
C
15V
R8025
68k
:RN-CP
10
—
D8051
MTZJ-15
KD-34XBR2
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
+135V
+15V
DEFLECTION
14
44G
TER
+15V
FB8001
0.45UH
+135V
1
2
5
L8002
C8036
680p
1kV
:R
8
R8086
47k
1/2W
9
10
8
6
S
R8087
0
:CHIP
HV
13
SG8002
10
13
44G
RTER
C8037
47000p
C8035
800V
680p
:MPP
1kV
:R
2
S
14
C8063
0.01
630V
:MPS
R8085
10k
1/2W
R8096
0
:CHIP
C8045
1000p
DF SW
R8113
680k
:CHIP
D8026
MA111
R8146
1k :CHIP
C8048
0.1
:PT
T8001
NX-6000
:RHT
C8051
10
R8091
470k
:RN
R8095
470k
:RN
R8108
100k
:CHIP
R8104
47k
:CHIP
R8102
22k
:CHIP
R8117
100k
:CHIP
C8056
0.01
B:CHIP
Q8020
2SD601A
INVER
R8118
33k
:CHIP
Q8019
DTC144EKA
DF PROT
R8112
100k
:CHIP
C8059
47
10V
3
051
J-15
+15V
R8070
0.1
2W
:RB
R8081
0.47
:FPRD
4
15
5
16
6
17
7
FV
Q8015
2SC2688
DF ON/OFF SW1
R8093
150k
:CHIP
R8078
220k
:RN-CP
+135V
R8077
220k
C8041
0.47
:MPS
12
D8014
RGP10G
4
R8080
15k
JR8005
0
:CHIP
1
D8021
MA111
JR8003
0
:CHIP
JR8004
0
:CHIP
R8103
6.8k
:CHIP
T8002
:DFT
R8089
47k
:CHIP
11
Q8016
2SA1776
DF ON/OFF SW2
R8101
150k
:CHIP
C8046
100p
2kV
B
C8047
180p
2kV
R8111
6.8k
3W
:RS
R8114
6.8k
3W
:RS
R8116
5.6k
3W
:RS
R8119
5.6k
3W
:RS
D8018
D1NL40TA
C8060
4.7
160V
3
2
6
R8109
6.8k
3W
:RS
C8054
220p
500V
B
1
C8055
0.0018
:PP
L8005
3.3mH
D8016
ERA22 08TP3
C8053
R8124
10k
:CHIP
R8125
10
:CHIP
R8123
100
Q8023
2SD601A
DF-DRV-1
26
|
27
|
28
|
—
R8044
200k
:RN-CP
R8009
220k
:CHIP
DF DRV
+15V
DF SW
ABL
R8005
22k
:CHIP
I
R8016
3.3k
:CHIP
R8008
22k
:CHIP
D8007
MA111
IK-PROT1-SW
R8023
22k
:CHIP
R8013
0
:CHIP
D8002
MA111
LATCH-2
D8004
MTZJ-5.1B
IK-PROT-REF
—
C8011
2.2
50V
C8013
10
R8018
22k
:CHIP
J
C8005
47
25V
D8005
MA111
IK-PROT2-SW
C8009
10
R8022
10k
:CHIP
C8012
33
K
R8040
9.1k
:RN
Q8008
2SD601A
IK-PROT1
R8039
9.1k
:RN
R8031
100k
:RN-CP
C8015
33
Q8007
2SD601A
IK-PROT2
—
—
+135V
R8024
10k
:CHIP
C8018
10
C8017
10
R8029
68k
:RN-CP
R8027
68k
:RN-CP
R8030
100k
:RN-CP
C8020
0.1
200V
:MPP
R8038
9.1k
:RN
R8037
9.1k
:RN
R8036
9.1k
:RN
R8041
1k
:RN-CP
R8035
8.2k
:RN-CP
R8060
470
:RN-CP
R8059
0
:CHIP
4
1
3
2
PH8001
ON3171-R
HV FEEDBACK
R8066
1k
:CHIP
CATHO
ANOD
JR8007
0
:CHIP
RE
IC8
CONT
L
—
M
—
N
— 85 —
C8041
0.47
:MPS
R8077
220k
:RN-CP
MA111
R8080
15k
R8047
100k
:CHIP
D8020
MA111
R8065
47k
:CHIP
D8025
MTZJ-33B
Q8010
2SD601A
VD PROT
15V
C8022
100
16V
B
JR8004
0
:CHIP
C8047
180p
2kV
B
JR8006
0
:CHIP
R8100
100k
R8099
100k
3.3mH
D8016
ERA22-08TP3
SNUBBER
C8053
100p
500V
B
Q8022
2SB709A
DF-DRV-2
C8050
0.022
630V
:PP
D8017
ERA22-08TP3
DF DAMP
R8066
1k
:CHIP
JR8001
0
:CHIP
C8042
0.1
200V
:PP
R8069
1.5k
R8071
10k
:CHIP
R8068
0
:CHIP
C8039
0.01
B:CHIP
REF.
1
ANODE
2
3
CATHODE
R8115
1k
:CHIP
R8082
3.3M
:CHIP
D8019
MTZJ-15B
RV8002
2k
8
7
6
5
C8040
220
R8074
3.0k
:RN-CP
R8072
1k
:RN-CP
Q8018
2SC3840K
DF OUT
SG8005
R8126
10
:CHIP
DF DRV
JR8002
0
:CHIP
Q8023
2SD601A
DF-DRV-1
C8058
0.47
:MPS
R8098
100k
D8013
D1NL20U
STOPPER
R8123
100
:CHIP
R8073
2.2k
:RN-CP
IC8004
NJM2904M
BUFF
1
2
3
4
IC8003
CONTROL
9-965-916-02<HA3>D P3
QI BOARD SCHEMATIC DIAGRAM (1 OF 4)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
A
EBBUS
—
EBD1
EBD0
EBD2
B
EBD3
EBD5
EBD4
—
EBD6
A1
D1
B1
D0
A2
D2
B2
GND
A3
GND
B3
D3
A4
D5
B4
D4
A5
D6
B5
A6
EBD7
C
EBD9
EBD8
EBD10
—
EBD11
EBD13
D
EBD12
EBD14
—
EBD15
EBA0
R9201
0
EBA1
EBA4
EBA3
EBA5
F
EBA6
EBA7
EBA9
EBA10
G
B7
D8
A8
D10
B8
GND
A9
GND
B9
D11
A10
D13
B10
D12
A11
D14
B11
GND
A12
GND
B12
D15
EBOEN
EBA11
A14
A2
B14
GND
A15
GND
B15
A3
A16
A5
B16
A4
A17
A6
B17
GND
A18
GND
EBWAI T
A19
A9
A8
A20
A10
B20
GND
A21
GND
B21
A11
A22
XOE
B22
A12
B23
EBRXW
EBXCE
27MCLK
H
XIRQ2
RB9202
22
TSOUT2
TSOUT3
XCE
A25
27MHZ
TSOUT7
GND
TSRXD0
B27
GND
2
7
A28
GND
3
6
B28
TSRXD1
5
A29
TSRXD3
B29
TSRXD2
A30
TSRXD4
TSOUT4
TSOUT6
IRQ
B26
A27
RB9201
22
TSOUT5
GND
A26
8
4
I
—
RXW
B24
1
TSOUT0
TSOUT1
GND
WAIT
A24
B25
DMXI_BUS
—
A7
B19
A23
—
A1
XRST
B18
EBA8
—
D7
D9
B13
EBA2
—
B6
A7
A13
XRST
E
GND
GND
1
8
B30
GND
2
7
A31
GND
3
6
B31
TSRXD5
4
5
A32
TSRXD7
B32
TSRXD6
HBBUS
SYNC_XRESET
LIN KXIRQ
EXT IOINT
FLASH_MODE
LINK_XRST
PHY_XRST
CYCLE_OUT
1394BIAS_SW
KD-34XBR2
|
13
|
14
|
15
|
16
|
17
|
18
|
19
3.3V
+3.3V
D9201
SML-210MT-T86
GREEN
C9203
0.1
25V
F
5
6
7
8
0
20
19
18
17
12
0
11
_SW
R9206
16
0
R9207
D9204
SML-210MT-T86
GREEN
15
R9208
9
XRST
_OUT
IC9201
TC74L
CX541FT(EL)
LED BUFFER
10
XRST
D9210
SML-210MT-T86
3.3V
GREEN
14
2
3
0
0
4
R9210
R9209
MODE
D9202
SML-210MT-T86
GREEN
R9217
1k
1/16W
R9215
1k
1/16W
13
1
R9211
0
ET
R9214
1k
1/16W
R9213
1k
1/16W
D9206
SML-210MT-T86
GREEN
D9203
SML-210MT-T86
GREEN
R9216
1k
1/16W
R9219
1k
1/16W
R9218
1k
1/16W
D9205
SML-210MT-T86
GREEN
R9220
1k
1/16W
D9207
SML-210MT-T86
GREEN
|
20
|
21
TSOUT7
6
3
5
A32
TSRXD7
B32
TSRXD6
RXBYTEC LK
A33
J
A34
GND
TSRXPVAL
GND
B34
0
R9205
PERROROUT
STARTOU T
TSDIN0
A35
TSRXERR
B35
TSRXPCLK
A36
TSTXD0
GND
B36
TSD_BUS
K
TSDIN1
TSDIN3
TSDIN2
TSDIN4
—
TSDIN5
L
TSDIN7
TSDIN6
TXBYTEC K
A37
GND
B37
TSTXD1
A38
TSTXD3
B38
TSTXD2
A39
TSTXD4
B39
GND
A40
GND
B40
TSTXD5
A41
TSTXD7
B41
TSTXD6
A42
TSTXBCLK
GND
B42
—
TSENIN
A43
R9204
PERRORIN
R9203
0
3.3V
TSTXERR
B44
TSTXPCLK
FL9201
NFM2012P13C224RT
2A
5V
N
C9296
0.1
25V
F
EMI
G
EMI
C9201
10
16V
C9202
0.1
25V
F
XILM-DET
GND
B45
A46
C9295
10
16V
GND
A44
A45
—
TSTXPVAL
B43
0
M
—
TSRXBCLK
B33
TSENOUT
—
TSRXD5
3
4
FL9202
NFM2012P13C224RT
2A
G
GND
B46
GND
A47
3.3V
B47
3.3V
GND
A48
B48
GND
A49
5V
5V
B49
A50
B50
GND
GND
CN9201
100P
RECEPTACLE
TO QM BOARD
O
C N7002
—
P
—
— 94 —
9-965-916-02<HA3>QI P1
QI BOARD SCHEMATIC DIAGRAM (2 OF 4)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
A
TSD_BUS
—
RB9203
22
TSOUT7
TSOUT6
TSOUT5
TSOUT4
TSOUT3
TSOUT2
TSOUT1
8
7
6
5
8
7
6
1
2
3
4
1
2
3
STARTOUT
PERRORIN
TSOUT0
RXBYTECLK
B
TSENOUT
DMXI_BUS
RB9204
22
5
PERROROUT
—
C9301
0.1
25V
F
4
C9206
0.1
25V
F
+3.3V
C
—
R9231
0
D
R9228
0
R9237
0
R9236
0
3.3V
R9229
0
—
VDD
1
2
90
87
85
84
82
81
79
TRST
VSS
78
80
D3
2
1
3
4
6
7
C9308
0.1 25V
F
C9310
0.1 25V
F
RB9213
56
SCLK
C9306
0.1
25V
F
D ATA0 5
4
CTL0
D ATA1 6
3
CTL1
D ATA2 7
2
D ATA3 8
1
83
D2
VDD
7
8
LREQ
86
VSS
C TL0
C TL1
10
88
D0
D1
4
3
11
89
ADD1
ADD0
5
6
8
T SDIN0
L REQ
S CLK
12
91
C9207
0.1
25V
F
9
T SDIN2
T SDIN1
5
RB9224
56
13
92
VSS
R9247
10k
1/16W
T SDIN4
T SDIN3
14
93
CTL1
T SDIN6
T SDIN5
15
94
ADD3
ADD2
T SENIN
T SDIN7
16
95
VDD
CTL0
TX BYTECK
DATA 0
17
96
ADD5
ADD4
R9381
0
DATA 1
18
97
VSS
SYSCLK
+3.3V
DATA 2
19
98
99
LREQ
C9209
0.1
25V
F
DATA 3
C9309
0.1
25V
F
3 3V
20
STARTOUT
TSOUT7
TSOUT6
TSOUT5
TSOUT4
TSOUT3
TSOUT2
TSOUT1
TSOUT0
TSENOUT
VSS
VSS
RXBYTECK
AICK
QCLKOUT
1/8FSOUT
TSREFOUT
VSS
256FSIN
VSS
MCKOUT
VDD
BITCLK
DAOUT
VSS
LRCK
OPTDI
OPTDO
RXAERR
27MCLK
PERRORIN
TEST24
VSS
PERROROUT
108 107 106 105 1044 103 102 101 100
TEST25
109
110
111
112
113
114
115
116
117
118
119
VDD
31
F
TSDIN0
30
25V
TSDIN1
29
0.1
TSDIN3
TSDIN2
28
C9303
TSDIN4
27
H BA0
TSDIN6
TSDIN5
26
I
H BA1
IC9202
IC CXD3203R
i. LINK
LINK LAYER LSI
TSENIN
TSDIN7
25
—
VSS
24
H BA3
H BA2
ADD6
TSOE
TXBYTECK
23
H BA4
ADD7
22
H BA5
ADD8
21
H
VDD
20
H BA7
H BA6
HD0
19
H BA8
18
—
F
120
HD1
5
121
HD3
HD2
25V
122
8
7
0.1
123
1
2
4
124
HD4
C9302
125
5
17
H BD0
126
4
6
127
HD5
3
128
6
16
H BD2
H BD1
129
HD6
3
15
RB9228
22
130
8
7
14
G
131
1
2
13
H BD4
H BD3
132
VSS
12
H BD6
H BD5
OVF1
REFIN
11
RB9227
22
HD12
10
—
OVF2
EMPTY1
HD11
HD7
H BD7
133
5
134
4
135
9
HD8
7
6
136
HD10
HD9
2
3
137
8
138
5
1
8
H BD8
4
7
H BD10
H BD9
HD13
VSS
EMPTY2
6
RB9226
22
HD14
6
C9208
47
16V
5
F
7
3
4
H BD12
H BD11
2
3
H BD14
H BD13
139
HD15
140
2
—
1
141
VDD
8
H BD15
RB9225
22
142
1
E
143
144
C9204
0.1
25V
F
KD-34XBR2
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
R9379
0
TSOE
4
2
3
1
4
2
3
3
1
4
FL9203
ACM2012-201-2P
R9273
56
1/16W
1
2
R9272
56
1/16W
R9274
56
1/16W
C9215
22
16V
72
71
70
69
68
67
66
65
64
63
62
61
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
NC
NC
DVDD
NC
NC
56
55
4
3
3
54
51
53
52
4
2
1
4
2
3
50
1
49
47
D2
AVDD1
D3
AVSS
DVDD
VSS
COR
F
VDD1
VSS
VSS
VSS
1
O
VDD1
VSS
VDD1
URB
VSS
VDD
VDD
VSS
VSS
VSS
VSS
VREF
C9297
0.1
0.1
R9256
10k 1/16W
25V
R9263
56
1/16W
F
25V
C9227
0.1
25V
F
F
R9260
470
1/16W
R9258
1k
1/16W
R9265
56
1/16W
R9266
56
1/16W
R9270
56
1/16W
C9228
270p
50V
CH
R9269
5.1k
1/16W
D9208
MA152WA-TX
5V
C9224
25V
0.01
B
R9264
120
1/16W
C9230
1000
50V
B:CHIP
5V
R9277
10k
1/16W
FL9206
ACM2012-201-2P
R9271
47k
1/16W
R9262
150
1/16W
42
REXT
DVSS
DVSS
C9223
41
CPS
43
D1
DVSS
45
TPBIAS1
TPBIAS2
46
48
TPB2N
TPBIAS0
CN9204
2
73
AVSS
TPB2P
FL9205
ACM2012-201-2P
C9225
0.1
25V
F
1
74
AVDD2
60
75
DVSS
59
58
76
TEST1
IC
57
77
78
TEST0
TPA2P
TPA2N
44
D0
DIRECT
79
PC0
DVDD
CMC/LINK ON
80
DVDD
12
3
5
6
7
8
9
10
11
CTL1
TPB1P
TPB1N
14
CTL0
IC9203
CXD1945R
i.LINK
PHYSICAL LAYER
TPA1P
TPA1N
15
DVSS
TPB0P
TPB0N
16
SCLK
TPA0P
TPA0N
17
DVDD
R9275
5.1k
1/16W
CN9203
FL9204
ACM2012-201-2P
C9216
0.1
25V
F
18
LPS
LREQ
13
DVSS
4
1
+3.3V
R9250
10k
1/16W
DVSS
19
F
PC2
20
F
PC1
2
C9307
0.1
25V
F
C9232
270p
50V
CH
R9276
56
1/16W
Q9201
2SD2216J
CABLE BIAS
R9278
10k
1/16W
1394BIAS_SW
27
|
28
|
TEST14
NCLKOUT
CYCLEOUT
TEST13
VSS
TEST11
TEST12
TEST9
TEST10
TEST7
TEST8
TEST5
VSS
TEST6
TEST4
VDD
TEST2
TEST3
TEST0
XDDONE2
TEST1
XDREQ2
XDACK2
XDACK1
XDDONE1
XDREQ1
XAS
XCS
XDS
VSS
XDSACK
INTERRUPT
XWR/RD
BUSCK
XRESET
74
VDD
75
VDD
C9309
0.1
25V
F
3.3V
C9305
0.1
25V
F
FB9202
OUH
+3.3V
C9205
0.1
25V
F
FB9204
OUH
10k
LINKXCS
HBXDS
HBXAS
HBR/XW
LINKXIRQ
—
R9391
L
HBXDSACK1
R9226
0
HBBUS
LINK_XRST
—
N
C921
0.1 25
C9315
1/16W
0
R9222
—
C9212
22
16V
C9314
R9223
10k
1/16W
K
20
DATA 3
73
76
72
77
71
68
70
67
69
66
65
63
64
62
R9234
10k
1/16W
61
59
R9235
10k
1/16W
R9233
10k
1/16W
60
58
56
57
55
54
52
53
51
C9304
0.1
25V
F
50
47
—
49
46
R9232
10k
1/16W
48
45
44
37
43
36
VST
42
35
TEST15
41
34
TEST16
40
33
TENA1
TD0
39
TEST18
TEST17
38
TCK
TD1
J
M
D3
VSS
32
—
VDD
TRST
78
F
79
25V
31
0.1
30
C9303
I
CYCLE_OUT
—
O
—
— 95 —
C9313
C9315
0.1
25V
F
0.1
25V
F
0.1
25V
C9299
0.1 25V
F
C9211
0.1 25V
VCOR
R9264
120
1/16W
41
AVSS
LF
C9224
25V
0.01
R9257
18k
1/16W
40
39
38
AVDD1
VREF
B
R9259
330
1/16W
R9261
180
1/16W
C9220
50V
CH
8
C9226
0.1
25V
F
7
6
5
IC9204
LM358P
WR-12
OP AMPS
1
C9221
22p
50V
CH
82p
2SD2216J
CABLE BIAS
C9230
1000
50V
B:CHIP
CABLE BIAS
R9254
1.2k
1/16W
R9253
1.8k
1/16W
C9219
47p
50V
CH
C9210
22
16V
F
37
AVSS
AVSS
36
35
X1
AVSS
34
XO
C9298
0.1
25V
F
F
33
32
AVSS
AVDD1
31
30
PURB
AVDD1
29
28
DVDD
DVSS
27
26
DVSS
DVDD
25
24
DVSS
DVSS
C9214
0.1 25V
F
C9314
C9313
23
DVSS
21
C9213
0.1 25V
22
20
DVSS
2
3
4
C9229
1000
50V
B:CHIP
C9222
0.1
25V
F
R9268
47k
1/16W
R9267
120
1/16W
F
C9231
0.1
25V
F
R9251
0
ISOLATED_GND
PHY_XRST
R9252
220
1/16W
25MHZ_LINK
9-965-916-02<HA3>QI P2
QI BOARD SCHEMATIC DIAGRAM (3 OF 4)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
TCK
TMS
0
0
R9285
EBD0
EBD1
R9283
EBD2
EBD3
EBD4
EBD5
EBD6
EBD7
EBD8
EBD9
EBD10
EBD11
EBD12
EBD13
EBD14
EBD15
EBWAIT
EBXCE
EBRXW
EBOEN
EBA0
EBA1
EBA2
EBA3
EBA4
EBA5
EBA6
EBA7
R9287
0
C9244
0.1
25V
F
208
207
206
205
204
203
202
201
200
199
198
197
196
195
194
193
192
191
190
189
188
187
186
185
184
EB_D3
EB_D2
EB_D1
EB_D0
NEC_TDO
NEC_TDI
NEC_TRST
NEC_TMS
VDD
GND
NEC_TCK
RAM_TEB
NEC_IDD
NEC_LFT
TEST0
TEST1
TEST2
BUNRI
P1
P2
P3
P4
P5
P6
P7
P8
S
S
S
S
S
S
S
S
S
SDR
EB_D4
209
EB_D7
EB_D5
EB_D8
210
213
EB_D9
EB_D6
214
EB_D10
211
215
212
216
EB_D12
EB_D11
GND
217
EB_D14
218
221
EB_D15
VDD
222
EB_WAIT
EB_D13
223
219
224
EB_RXW
EB_XCE_N
220
225
EB_A0
EB_OE_N
226
227
EB_A1
228
229
EB_A4
EB_A3
EB_A5
EB_A2
232
EB_A6
230
233
231
234
22
SYSAD7
23
SYSAD8
SYSAD9
24
SYSAD9
SYSAD10
25
SYSAD10
SYSAD11
26
SYSAD11
27
SYSAD12
SYSAD13
28
SYSAD13
SYSAD14
30
SYSAD15
SYSAD16
SYSAD18
SYSAD20
SYSAD21
SYSAD21
SYSAD22
37
SYSAD22
38
SYSAD20
36
SYSAD19
35
SYSAD18
SYSAD19
34
SYSAD17
33
SYSAD16
SYSAD17
32
SYSAD14
SYSAD15
31
29
SYSAD23
39
SYSAD24
40
VDD
41
GND
42
SYSCMD4
SYSCMD3
43
SYSCMD3
SYSCMD2
45
SYSCMD1
SYSCMD0
SYSAD26
SYSAD28
SYSAD29
SYSAD29
SYSAD30
52
SYSAD30
53
SYSAD28
51
SYSAD27
50
SYSAD26
SYSAD27
49
SYSAD25
48
SYSCMD0
SYSAD25
47
SYSCMD2
SYSCMD1
46
44
SYSAD31
IC9205
B-CHIP
"EXTERNAL AGENT"
54
PMASTER_N
55
COLDRESET_N
56
PVALID_N
57
EVALID_N
59
S
T
M
GND
RE
EOK_N
GND
IN
58
0
21
R9279
20
XRELEASE
EB_A7
19
SYSAD_BUS
GND
VDD
SYSAD8
SYSAD31
235
18
SYSAD5
SYSAD6
SYSCMD4
EB_A8
SYSAD5
C9234
0.1
25V
F
236
SYSAD4
SYSAD24
I
EB_A9
17
15
16
14
13
SYSAD3
SYSAD4
SYSAD23
SYSCMD_BUS
12
SYSAD3
SYSAD12
H
11
SYSAD2
SYSAD7
—
SYSAD0
SYSAD1
SYSAD2
C9235
0.1
25V
F
G
RDA
SYSAD1
—
—
RDB
RTCB
SYSAD0
SYSAD6
F
237
SCAN_SCK
SCAN_AMC
10
SA_BUS
EB_A10
TDA
9
RDA
EB_A11
SCAN_SMC
SCAN_SIN
8
—
238
TDA
RTSB
TDB
VDD
4
7
GND
GND
6
3
5
GND
GND
4
2
3
1
RDA
2
D
TDA
R9296
100
1/16W
:CHIP
1
—
R9295
100
1/16W
:CHIP
239
CN9206
4P
:S-MICRO
240
C
—
C9237
0.1
25V
F
R9286
0
C9233
10
16V
—
—
EBA8
B
EBA9
EBA11
3.3V
EBA10
R9284
EBBUS
E
TDI
0
—
TRST
TDO
A
KD-34XBR2
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
JTAG_BUS
TSOE
FLASH_MODE
LINK_XRST
PHY_XRST
XIRQ2
+3.3V
C9247
10
16V
P14
P15
P00
TIMER_CLK
INTINRSV_N
INTIN0_N
INTIN1_N
INTIN2_N
HBSIZ0
HBSIZ1
HBDSACK0_N
HBDSACK1_N
HBCS0_N
HBCS1_N
GND
VDD
HBCS2_N
HBRW_N
ROMWE_N
ROMOE_N
ROMCE0_N
ROMCE1_N
ROMCE2_N
HBDS_N
GND
HBAS_N
HB_D15
HB_D14
HB_D13
HB_D12
HB_D11
HB_D10
HB_D9
HB_D8
HB_D7
VDD
GND
HB_D6
HB_D5
HB_D4
HB_D3
HB_D2
HB_D1
HB_D0
HB_A20
HB_A19
HB_A18
HB_A17
HB_A16
HB_A15
HB_A14
HB_A13
HB_A12
GND
H
H
GND
R9289
47k
1/16W
LINKXIRQ
3.3V
EXTIOINT
PCIINT
C9249
0.1
25V
F
HBSIZ0
HBSIZ1
14
13
12
11
10
9
8
IC9207
TC4069UBFT(EL,N)
TIMER
HBXDSACK0
HBXDSACK1
CLK INVERTERS
LINKXCS
1
2
3
4
5
6
7
GAXCS
R9290
10M
1/16W
R9291
330k
1/16W
HBR/XW
ROMXWE
ROMXOE
4
P13
1394BIAS_SW
R9293
1k
1/16W
:CHIP
3
P12
1
P11
180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 1
GND
2
181
P9
P8
VDD
P7
P10
184
P6
182
185
183
186
GND
R9382
10k
1/16W
C9246
0.1
25V
F
C9251
220p
50V
CH
R9292
0
ROMXCE
FLASHXCE0
FLASHXCE1
HBXDS
HBXAS
C9248
22p
50V
CH
X9202
32.768KHz
C9250
22p
50V
CH
HBD15
HBD14
HBD13
HBD12
HBD11
HBD10
HBD9
HBD8
HBD7
C9245
0.1
25V
F
HBD6
HBD5
HBD4
HBD3
HBD2
HBD1
HBD0
HBA20
HBA19
HBA18
HBA17
HBA16
HBA15
HBA14
HBA13
HBA12
ROM_BUS
HB_A8
HB_A9
114
115
116
117
8
HB_A7
7
113
6
HB_A6
5
112
8
HB_A5
7
111
6
HB_A4
5
110
8
HB_A3
7
109
6
HB_A2
5
108
8
HB_A1
7
107
6
HB_A0
5
106
1
SDRAMCLK
2
105
3
SD_D15
98
4
104
97
1
SD_D14
96
2
103
95
3
SD_D13
94
4
102
93
1
SD_D12
92
2
101
91
3
GND
90
4
SD_D11
89
1
99
88
2
100
87
3
VDD
86
4
SD_D10
SD_D9
SD_D8
SD_A13
SD_A12
SD_A11
SD_A10
SD_A9
SD_A8
SD_A7
SD_A6
SD_A5
SD_A4
79
85
78
SD_A3
SD_D6
77
84
SD_D5
76
SD_A2
SD_D4
75
83
SD_D3
74
SD_A1
SD_D2
73
82
SD_D1
72
SD_A0
SD_D0
71
81
WE_N
70
SD_D7
DQM0
69
80
DQM1
68
VDD
CAS_N
67
GND
RAS_N
66
65
CS_N0
64
CS_N1
TCLOCK
63
61
MCLOCK
VDD
XVALIDOUT
62
GND
RESET_N
0
INOUT_N
R9279
GND
60
XRST
EOK_N
59
J
58
XRELEASE
XVALIDIN
—
XRDRDY
+3.3V
L
SD_D14
SD_D15
SD_D12
SD_D13
SD_D10
SD_D11
SD_D8
SD_D9
SD_A13
SD_A11
SD_A12
SD_A10
SD_A8
SD_A9
SD_A7
SD_A6
R9288
33
1/16W
:CHIP
RB9212
56
RB9211
56
RB9207
56
TCLOCK
3.3V
C9241
0.1
25V
F
C9270
10
16V
—
C9242
0.1
25V
F
SD_A0
SD_A1
—
P
SD_A2
SD_A3
C9238
0.1
25V
F
C9239
0.1
25V
F
54
52
51
50
49
CAS
RAS
CKE
37
CS
N.C.
4
6
3
7
2
8
1
SD_D15
SD_D14
SD_D13
SD_D12
RB9210
56
5
4
6
3
7
2
8
1
SD_D11
SD_D10
SD_D9
40
39
SD_D8
XBE1
38
CLK
42
41
N.C.
DQMU
RB9209
56
5
43
WE
36
44
47
46
45
48
53
2
3
5
6
7
8
DQML
VSS
A11
A9
A10
A8
A0
A7
A1
A6
A2
A5
A3
A4
VCC
VSS
33
34
35
A13
A12
32
SD_A10
VCC
DQ8
31
SD_A12
VSSQ VCCQ
DQ7
30
SD_A13
DQ9
29
O
XBE0
DQ10
DQ6
28
—
9
1
10
8
SD_D7
DQ5
11
2
12
3
7
13
6
SD_D6
14
SD_D5
VCCQ VSSQ
15
N
4
16
5
DQ11
17
SD_D4
DQ12
DQ3
DQ4
18
RB9208
56
DQ13
19
SD_D3
DQ2
VSSQ VCCQ
20
1
DQ14
21
8
DQ1
22
2
23
3
7
DQ15
24
6
SD_D2
DQ0
VCCQ VSSQ
25
—
SD_D1
VSS
26
4
5
VCC
27
RB9205
56
SD_D0
4
1
+3.3V
M
SD_A11
SD_A9
SD_A8
SD_A7
SD_A6
SD_A5
SD_A4
IC9206
MT48LC4M16A2TGSDRAM
— 96 —
HBA8
HBA9
HBA7
HBA6
HBA5
HBA4
HBA3
HBA2
HBA1
HBA0
0.1
25V
RB9206
56
25MHZ_B
SD_A5
SD_A4
SD_A3
SD_A2
SD_A1
SD_D7
SD_D6
SD_D5
SD_D4
SD_D3
SD_D2
SD_D1
0
SD_D0
R9280
XBE1
CPU_XINT
SYNC_XRESET
XBE0
—
SD_A0
C9243
R9282
0
F
C9236
0.1
25V
F
0
R9281
K
119
HBA11
118
HBA10
117
HBA9
HB_A11
116
HBA8
HB_A10
115
120
HB_A9
VDD
HB_A8
GND
HB A7
HBA7
GND
123 122 121
HBA12
HB_A12
HBBUS
9-965-916-02<HA3>QI P3
QI BOARD SCHEMATIC DIAGRAM (4 OF 4)
1
A
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
XRDRDY
TDO
SYSAD4
SYSAD3
61
GND
62
VDD
63
JTDI
SYSAD4
JTDO
GND
VDD
SYSAD3
SYSAD2
SYSAD1
GND
SYSAD1
SYSAD2
SYSAD0
VDD
GND
XPREQ
VDD
SYSAD31
GND
XPVALID
SYSAD0
SYSAD31
SYSAD30
VDD
SYSAD30
SYSAD29
XEOK
GND
SYSAD29
SYSAD28
VDD
SYSAD27
GND
64
C9282
0.1
25V
F
VDD
60
GND
59
XINT1
JTCK
57
XPMASTER
SYSAD5
56
VDD
SYSAD6
55
97
GND
98
SYSAD25
99
XEREQ
VDD
54
GND
53
JTMS
52
100
SYSCMD0
SYSAD7
51
101
VDD
SYSAD8
50
102
GND
103
SYSCMD1
104
XRESET
IC9209
LBB
VR4300
RISC MICROPRCESSOR
XEVALID
106
SYSCMD32
107
VDD
VDD
49
GND
48
SYSAD9
47
XINT0
46
SYSAD10
44
GND
43
108
GND
SYSCMD3
SYSAD11
42
110
XCOLDRESET
SYSAD12
41
111
SYSCMD4
VDD
40
GND
39
112
DIVMODE1
113
VDD
SYSAD13
38
114
GND
SYSAD14
37
115
SYSAD24
VDD
36
GND
35
34
118
XINT3
SYSAD16
33
119
VDD
120
GND
3
4
5
6
C9260
0.1
25V
F
7
8
9
10
11
12
13
14
15
16
17
18
19
C9265
470p
50V
CH
20
21
22
23
24
25
26
VDD
SYSAD15
GND
SYSAD23
SYSAD17
DIVMODE0
117
XINT4
116
2
27
28
29
30
R9361
10k
1/16W
TCK
SYSAD5
SYSAD6
TMS
SYSAD7
SYSAD8
SYSAD9
SYSAD10
45
VDD
109
1
C9281
0.1
25V
F
58
96
—
L9202
65
SYSAD18
C9254
0.1
25V
F
66
GND
E
0
R9348
10k
1/16W
67
VDD
R9351
SYSAD23
68
SYNCIN
SYSAD24
69
GND
—
0
70
SYNCOUT
R9345
71
SYSAD19
SYSCMD4
72
TCLOCK
XRST
73
VDD
0
74
MASTERCLOCK
R9344
75
GND
SYSCMD3
76
GNDP
D
77
VDD
C9256
0.1
25V
F
C9268
0.1
25V
F
95
105
SYSCMD2
78
PLLCAP1
XVALIDIN
79
VDDP
0
80
GNDP
R9349
81
PLLCAP0
SYSCMD1
SYNC_XRESET
SYSAD26
82
VDDP
C9257
0.1
25V
F
94
83
SYSAD20
0
XNMI
84
VDD
R9346
93
85
GND
SYSAD25
SYSCMD0
GND
86
VDD
XRELEASE
VDD
92
87
SYSAD22
SYSAD26
91
88
SYSAD21
R9347
0
VDD
B
89
XINT2
VDD
90
SYSAD28
C9261
0.1
25V
F
C9259
100
6.3V
AL-CP
C9258
0.1
25V
F
C
1/16W
GND
C9253
100
6.3V
AL-CP
—
10k
SYSAD27
R9352
—
12
XVALIDOUT
3.3V
—
|
VDD
32
GND
31
C9279
0.1
25V
F
SYSAD11
SYSAD12
SYSAD13
SYSAD14
C9278
0.1
25V
F
SYSAD15
SYSAD16
C9277
0.1
25V
F
R9358
0
+3.3V
G
C9276
0.1
25V
F
C9263
0.1
25V
F
C9264
0.1
25V
F
C9311
0.1 25V
C9312
0.1 25V
IC9211
MBM29LV160BE-90
R9359
10k
1/16W
F
F
TN
SYSAD17
C9267
470p
50V
CH
SYSAD18
SYSAD20
SYSAD21
SYSAD22
—
C9262
10
16V
SYSAD19
F
3.3V
REGULAR FLASH 1
A14
3
A13
R9355
DQ14
10
11
XWE
38
37
N.C.
DQ3
DQ9
HBA17
C9240
100
6.3V
AL-CP
C9273
1
10V
F
HBD15
HBD7
HBD14
HBD6
HBD13
HBD5
HBD12
HBD4
HBD11
+3.3V
HBD3
IC9212
MBM29LV160BE-90-
HBD10
HBD9
TN
WRITE-PROTECTED
HBD2
FLASH
HBA16
A15
A16
4
17
A17
32
DQ2
33
16
A18
34
15
DQ10
RY/XBY
35
DQ11
36
N.C.
14
VCC
XRESET
13
HBA18
DQ4
12
HBA19
DQ12
39
9
N.C.
DQ5
40
8
A19
HBA20
41
DQ6
DQ13
42
7
A9
A8
HBA9
43
6
A10
HBA10
44
DQ7
45
5
A11
HBA11
—
A12
0
46
4
HBA12
I
VSS
DQ15/A-1
HBA13
—
XBYTE
47
HBA15
HBA14
H
A16
48
A15
2
—
1
HBA16
KD-34XBR2
|
13
|
14
|
15
|
16
|
17
|
18
|
19
|
20
|
R9366
47k
1/16W
3.3V
TCK
TMS
TRST
TDI
JTAG_BUS
3.3V
R9375
2.2k
1/16W
R9371
47k
1/16W
R9369
2.2k
1/16W
3.3V
+3.3V
13
12
2
3
5
6
7
2XQ
8
14
VCC
6A
6Y
2Y
5A
3A
5Y
3Y
4A
9
1
1A
1Y
2A
GND
4Y
8
IC9214
TC74VHC04FT(EL)
24.5625MHZ
INVERTERS
4
1
C9289
10p
50V
CH
2Q
GND
2
R9372
82
1/16W
2XPR
1Q
1XQ
3
C9288
0.01
25V
B
2D
2CK
4
C9287
10p
50V
CH
1XPR
5
L9204
C9286
10p
50V
CH
VCC
2XCLR
6
X9203
49.125MHz
1XCLR
1D
1CK
7
R9368
220
1/16W
14
C9290
0.1
25V
F
R9367
100k
1/16W
11
7
10
6
9
5
13
4
12
4Y
GND
3
C9292
0.1
25V
F
11
5Y
4A
3Y
2
IC9215
TC74LCX74FT(EL)
FREQ DIVIDER
D-FLIP FLOP
10
5A
8
3A
9
6Y
1
10
2Y
11
6A
12
1Y
13
2A
IC9213
TC74VHC04FT(EL)
49.125MHZ
INVERTERS
14
VCC
C9285
0.1
25V
F
1A
FB9211
OUH
R9377
47
1/16W
R9378
68
1/16W
25MHZ_LINK
25MHZ_B
25MHZ_PCI
R9374
82
1/16W
R9376
22
1/16W
R9373
0
CPU_XINT
SYSAD_BUS
TCLOCK
SYSCMD_BUS
3.3V
TN
4
HBA17
21
26
24
A0
4
HBA5
41
40
39
38
37
36
30
A5
DQ0
29
A4
XOE
28
A3
VSS
27
A2
XCE
26
A1
A0
HBD2
HBD9
HBD1
HBD8
HBD0
ROMXOE
FLASHXCE0
HBA1
TN
R9364
4.7k
1/16W
REGULAR FLASH 0
—
P
—
— 97 —
C
0.1
C
0.1
25
HBA2
31
HBA3
32
HBD3
HBD10
33
HBA4
34
HBD11
35
26
25
27
ROMXWE
42
D9209
MA111-TX
43
29
A0
IC9210
MBM29LV160BE-90
44
30
A1
HBA5
24
31
VSS
XCE
HBA6
DQ1
DQ8
23
28
32
A3
A2
HBD4
C9271
0.1
25V
F
A7
A6
22
33
XOE
HBA7
21
34
A4
HBA8
DQ2
DQ9
20
35
DQ0
HBD5
HBD12
A18
A17
19
36
HBA2
A5
24
HBA3
DQ8
23
HBA4
A6
22
R9342
4.7k
1/16W
37
HBA5
DQ9
DQ1
HBA18
18
38
HBA6
R9343
47k
1/16W
A17
A7
21
HBA7
DQ2
20
N
HBA8
A18
19
HBA18
DQ10
HBA19
DQ3
DQ10
17
39
HBA19
7
RY/XBY
18
6
DQ3
17
5
N.C.
16
4
DQ11
15
3
N.C.
HBD6
HBD13
RY/XBY
16
40
8
14
2
DQ4
VCC
XRESET
13
9
IC9208
TC74LCX125FT(EL)
TJ
BUFFERS
1
XWE
12
10
11
11
DQ12
HBD14
N.C.
15
DQ5
10
12
DQ11
N.C.
14
A19
HBD7
13
41
9
13
12
42
8
14
11
43
7
DQ6
DQ13
N.C.
DQ4
VCC
10
6
A9
A8
R9360
10k
1/16W
HBD15
44
5
C9252
0.1
25V
F
45
4
M
O
DQ14
HBA20
3.3V
—
A10
HBA9
—
—
DQ7
HBA10
HBXDSACK1
XWE
XRESET
A19
N.C.
R9356
0
A11
HBA11
HBXDSACK0
A12
DQ5
DQ12
9
3
HBA12
GAXCS
VSS
DQ15/A-1
HBA13
L
XBYTE
R9353
10k
1/16W
46
A14
A13
HBA14
HBA20
47
2
HBA15
DQ6
DQ13
HBA9
HBA17
48
1
—
A16
A15
A9
A8
HBA10
HBA1
FLASHXCE1
HBA16
DQ14
HBA11
25
K
HBA2
R9341
470
1/16W
R9340
470
1/16W
DQ7
A10
8
HBA3
A12
A11
7
3.3V
HBA12
+3.3V
6
HBA4
5
—
VSS
DQ15/A-1
HBA13
45
XCE
HBA14
HBD0
R936
0
46
27
23
A2
A1
HBD8
A16
XBYTE
47
VSS
A13
HBA15
48
28
22
A3
A14
3
XOE
A15
2
29
21
A4
1
DQ8
DQ0
30
A6
A5
HBA16
HBD1
31
DQ1
FLASH
HBD9
32
A7
20
HBA6
DQ9
19
HBA7
A17
HBD2
33
HBA8
DQ2
18
J
A18
17
HBA18
16
HBA19
48
HBA17
R9365
0
47
46
45
HBD15
44
HBD7
43
HBD14
42
HBD6
41
HBD13
40
HBD5
39
HBD12
38
HBD4
37
36
HBD11
35
HBD3
34
HBD10
33
HBD2
32
HBD9
31
HBD1
30
HBD8
29
HBD0
28
F
C9283
0.1 25V
F
27
C9284
0.1 25V
R9362
0
26
ROMXCE
25
HBA1
HBBUS
ROM_BUS
XRST
9-965-916-02<HA3>QI P4
QM BOARD SCHEMATIC DIAGRAM (1 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
A
—
B
+9V
TO ABOARD
—
CN6005
CN7001
8P
+6.5V
C
+6.5V
GND
—
FB7004
0 UH
+33V
1
A5V
2
R7224
0
1/16W
3
GND
4
+5V
5
+9V
6
GND
7
+33V
8
FB7003
0 UH
A5V
FB7002
0 UH
FB7001
0UH
D5V
D5V
D
—
L7002
+6.5V
5.8A
TO QI BOARD
CN9201
I
—
4
5
A15
B15
A16
A4
B16
A6
A17
GND
B17
GND
A18
A7
B18
A9
A19
B19
A10
A20
GND
B20
GND
A21
A11
B21
A4
A5
A4
A2
A5
A6
15k
RB7008
22
2
7
3
6
A6
A9
A7
A8
A8
A10
1
2
7
3
6
4
5
1
8
2
7
A11
3
6
XOE
A12
C7049
50V B:1608
C7058
10V
MEMADR2
R7009
22k
1/16W
:RN-CP
MEMADR5
C7008
0.1
25V
F:1608
MEMADR6
MEMADR7
28
27
INTVCC
TH1
SGND
3.3VOUT
TH2
VOSENSE2
SW2
SENSE2-
TG2
PGND
68k
R7010
:RN-CP
1/16W
C7053
1000p
50V
B:1608
BG2
BOOST2
SENSE2+
RUN-SS2
EMIBUS
MEMADR11
ILM27MHZ
MEMADR12
10V
B:CHIP
22
8
7
D1
6
D2
5
D2
C7061
10V F:CHIP
C7013
10V F:CHIP
C7004
C7014
6.3V B:CHIP
10V
B:CHIP
FB7009
0UH
:1608
C7010
0.1
25V
F:1608
C7062
6.3V
B:CHIP
C7063
6.3V
B:CHIP
C7064
6.3V
B:CHIP
FB7010
0UH
:1608
L7003
5.8A
:CHIP
R7004
0.015
:CHIP
D3.3V
MEMADR8
MEMADR10
R7033
10
1/16W
:CHIP
C7057
0.1
25V
F:1608
+6.5V
B:CHIP
C7059
C7002
4.7
C7052
1000p
50V
B:1608
R7030
15k
1/16W
:CHIP
MEMADR9
8
A10
A11
1000p
MEMADR4
5
RB7009
22
A9
A7
MEMADR3
8
EXTVCC
FCB
R7029
:CHIP
1/16W
C7003
0.01
50V
F:1608
R7028
1M
1/16W
:CHIP
1
4
D1
1
S1
2
G1
MEMDAT15
XILMRST
A3
A3
3
G2
MEMDAT12
XMEMBE3
A2
S2
4
7
6
BG1
C7060
10V
F:CHIP
D7004
MA2S111-(TX)
8
A14
GND
A8
2
3
STBYMD
FB7008
0UH
:1608
MEMDAT13
D15
B13
B14
A5
D15
A13
GND
A3
D12
MEMDAT14
8
1
R7024
0
1/16W
D1
—
D14
RB7007
22
D14
D13
VIN
C7009
0.1
25V
F:1608
7
A2
D12
FREQSET
BOOST1
D7003
MA2S111-(TX)
D11
D13
VOSENSE1
SW1
D1
XRST
MEMDAT11
SENSE1-
R7046
:RN-CP
1/16W
IC7002
LTC1628CG#TR
DUAL DC-DC CONV.
6
B12
A1
5
MEMDAT8
68k
D2
D15
6
4
R7007
22k
1/16W
:RN-CP
5
A12
3
MEMDAT9
D2
GND
7
1
B11
D11
8
2
S1
A11
GND
D8
1
C7048
1000p
50V
B:1608
R7003
0.060
:CHIP
1.4A
:CHIP
2
D14
D9
MEMDAT10
FB7007
0UH
:1608
G1
B10
D8
D10
RB7006
22
D10
TG1
3
A10
D9
SENSE+
S2
D13
D12
D7
R7008
47k
1/16W
:RN-CP
FB701
0UH
2A
4
B9
C7007
0.1
25V
F:1608
L7004
G2
D11
MEMDAT7
FLTCPL
RUN-SS1
26
A9
5
R7026
1M
1/16W
:CHIP
25
B8
GND
6
4
MEMDAT4
24
GND
3
Q7001
SI4922DY
1.8V
SWITCH FET
MEMDAT6
23
A8
D7
8
7
22
B7
D10
D4
MEMDAT5
1
2
21
D8
D6
20
A7
D5
19
B6
D6
18
H
D7
D9
D4
17
—
A6
D1.8V
RB7005
22
16
G
B5
GND
D5
15
—
GND
MEMDAT3
1
D6
A5
5
D3
2
B4
6
4
3
D4
3
2A
FB7012
0UH
2A
MEMDAT2
MEMDAT0
4
D5
A4
D3
8
7
5
D3
B3
D0
MEMDAT1
1
2
6
A3
D2
7
B2
GND
D1
8
GND
D0
D2
9
D2
A2
10
B1
11
A1
12
F
D1
D0
D1
D7001
MBRS140T3
0UH
FB7011
RB7004
22
13
—
C7006
0.1
25V
F:1608
CN7002
100P
PLUG
14
E
D7002
MBRS140T3
FB7015
0UH
4A
FB7016
0UH
4A
KD-34XBR2
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
TU7001
BTD-DA403
P VALID
TS GND6
D3.3V
P ERROR
IRQ
SYNC LOCK
RESET
DGND
TU DAT
DEM SDA
TU CLK
DEM SCL
D1.8V
P SYNC
P CLK
DATA7
TS GND5
TS GND4
DATA6
TS GND3
DATA5
DATA4
DATA3
TS GND2
TS GND1
DATA2
A3.3V
DATA1
DGND
DATA0
CATV/AIR
AGC OUT
IF IN
A9V
A5V
IF OUT
A5V
AGC IN
TU SCL
TU SDA
0UH
FEVAL
FEERR
FEPCLK
FB7005
0UH
FEBCLK
FB7006
0UH
L7006
FED7
D1.8V
Q7005
2SD2216J-(TX)
LED DRIVER
C7037
0.1
25V
F:CHIP
10k
R7014
100
1/16W
:CHIP
R7013
100
1/16W
:CHIP
FED6
C7028
0.1
25V
F:CHIP
FED5
C7023
100
10V
:AL-CP
R7019
470
1/16W
:CHIP
C7036
0.1
25V
F:CHIP
C7031
47
16V
:AL-CP
FED4
:CHIP
R7012
0
1/16W
:CHIP
FED3
L7007
C7030
0.1
25V
F:CHIP
R7023
470
1/16W
:CHIP
R7022
470
1/16W
:CHIP
D7005
MA2S111-(TX)
FED2
:CHIP
C7024
10
50V
:AL-CP
D7006
SML-210VTT86
RED
D3.3V
FED1
L7008
D7007
SML-210MT-T86
GREEN
FB7017
:CHIP
R7011
1k
1/16W
:CHIP
ADR
C7025
47
16V
:AL-CP
FED0
L7009
A33V
A9V
ISOLATE
47k
C7038
0.1
25V
F:CHIP
R7020
:CHIP
1/16W
R7021
:CHIP
1/16W
Q7006
2SD2216J-(TX)
LED DRIVER
D3.3V
:CHIP
L7005
:CHIP
C7022
100
10V
:AL-CP
R7039
0
1/16W
:CHIP
C7027
0.1
25V
F:CHIP
R7016
100
1/16W
:CHIP
R7017
100
1/16W
:CHIP
STTS
ST-SCL
ST-SDA
C7021
47
16V
:AL-CP
C7026
0.1
25V
F:CHIP
D1.8V
+6.5V
R7031
0
1/16W
:CHIP
FB7013
0UH
2A
D1.8V
D3.3V
D3.3V
FB7014
0UH
4A
Q7002
SI4922DY
3.3V
SWITCH FET
7015
0UH
4A
7016
0UH
4A
R7036
0
1/16W
:CHIP
XFERST
23
—
L
XCE
B24
27MHZ
B25
IRQ
A26
GND
B26
TSRXD0
A27
GND
B27
GND
A28
TSRXD1
B28
—
B29
TSRXD4
A30
GND
B30
GND
A31
TSRXD5
B31
TSRXD7
A32
TSRXD6
B32
GND
TSRXPVAL
GND
TSRXERR
M
—
N
—
O
—
P
WAIT
RXW
XCE
XCE
7
3
6
4
5
ILMCTRL
ILMRXW
XILMOE
ILMWAIT
XILMCE
RB7011
22
XILMIRQ
ID0
TS_FROM_ILM
ILMTS
D3.3V
TS_TO_ILM
ID1
ID3
A29
TSRXD2
TSRXBCLK
WAIT
A25
GND
TSRXD3
2
22
4
3
2
4
1
3
2
4
1
3
2
1
ID2
ID4
ID5
ID7
RB7014
10k
RB7013
10k
RB7012
10k
5
6
7
8
5
6
7
8
5
6
7
8
IERR
K
A24
8
IVAL
—
B23
RXW
XOE
IPCLK
WAIT
5RB7010
1
ID6
A23
4
RXW
FB7016
0UH
4A
DUAL DC-DC CONV.
MEMADR12
ID4
GND
A12
ILM27MHZ
ID7
B22
7
6
ID5
A22
A12
A12
XOE
IC7002
LTC1628CG#TR
MEMADR11
2
3
ID2
XOE
A11
A11
ID0
B21
ID3
A21
ID1
J
GND
A11
ID6
IBCLK
A33
B33
IVAL
A34
B34
A35
TSRXPCLK
B35
GND
A36
GND
B36
GND
A37
GND
B37
GND
A38
GND
B38
GND
A39
GND
B39
GND
A40
GND
B40
GND
A41
GND
B41
GND
A42
GND
B42
GND
A43
GND
B43
GND
A44
GND
B44
XILM-DET
A45
GND
B45
GND
A46
GND
B46
3.3V
A47
3.3V
B47
GND
A48
GND
B48
5V
A49
5V
B49
GND
A50
GND
B50
IERR
IPCLK
XILM-DET
R7025
10k
1/16W
:CHIP
D3.3V
D3.3V
D5V
—
— 98 —
7016
0UH
4A
9-965-916-02<HA3>QM P1
QM BOARD SCHEMATIC DIAGRAM (2 OF 9)
1
|
2
|
A
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
EMIBUS
XFLASHCSROM
—
D3.3V
IC7202
MBM29LV160BE70TN
16M FLASH
48
47
A7
DQ1
A6
DQ8
A5
DQ0
A4
XOE
A3
VSS
A2
XCE
A1
A0
C7211
0.1
25V
F:CHIP
33
32
31
30
29
8
:CHIP
:CHIP
1/16W
100
R7222
R7219
R7220
100
100
1/16W
1/16W
:CHIP
TXD_TO_TV
XAMUTE
:CHIP
1/16W
47
R7208
F:CHIP
25V
0.1
C7218
:CHIP
:CHIP
1/16W
1/16W
10k
100
R7206
GRANT
XAUDCDRQ
XVIDCDRQ
MEMREQ
XMEMOE
MEMWAIT
XAUDCS
XVIDCDST
XAUDCDST
XMEMBE0
XMEMBE1
XMEMBE2
XMEMBE3
MEMRXW
XMEMRAS2
XMEMCSROM
XMEMCAS0
XVIDCS
R7207
41
40
GND
XWDRST
PIO4_4
PIO4_3
PIO4_2
PIO4_1
PIO4_0
PIO3_7
PIO3_6
PIO3_5
VDD
PIO3_4
PIO3_3
PIO3_2
PIO3_1
VDD
PIO4_5
MEMREQ
PIO4_6
XMEMOE
MEMGRANT
XCDREQ0
VCLAMP
XCDREQ1
MEMWAIT
BOOTSOURCE0
GND
BOOTSOURCE1
VDD
PROCCLKOUT
XCS1
XCS0
XMEMBE0
XCDSTRB1
XMEMBE1
XCDSTRB0
XMEMBE2
GND
XMEMBE3
XMEMRAS2
MEMRD/XWR
VDD
XMEMCSROM
31
30
29
25
50
49
48
47
46
45
44
43
42
41
40
39
38
37
GND
37
33
28
27
26
32
17
18
19
20
21
22
1
2
3
4
5
6
7
157
8
158
9
159
10
160
11
161
12
162
13
163
14
164
MEMDAT2
:CHIP
165
XMEMOE
1/16W
166
MEMDAT1
22
167
XMEMCAS1
R7201
168
MEMDAT0
:CHIP
169
XMEMCAS0
1/16W
170
MEMADR23
22
171
5
R7202
172
MEMADR22
PIO
PIO
MEMADDR20
MEMADDR21
MEMADDR22
MEMADDR23
VDD
MEMDATA0
MEMDATA1
3
4
MEMDAT8
PIO
GND
30
XOE
6
MEMADR21
MEMADDR17
MEMADDR18
MEMADDR19
29
XUCAS
3
MEMADR20
MEMDAT9
PIO
28
NC
XLCAS
7
PIO
MEMADDR16
27
XRAS
VSS
2
MEMDAT10
PIO
26
XWE
NC
8
PIO
25
XMEMRAS0
VCC
I/O9
MEMADR19
MEMDAT11
1
MEMADDR14
MEMADDR15
VDD
24
MEMRXW
C7206
0.1
25V
F:CHIP
I/O8
NC
MEMADR18
PIO
PIO
23
—
5
I/O10
RB7207
22
MEMDAT12
MEMADDR12
MEMADDR13
22
4
I/O7
6
5
MEMADR17
173
PIO
21
6
I/O11
3
4
MEMDAT13
174
PIO
GND
20
3
I/O6
7
MEMADR16
175
PIO
MEMADDR10
MEMADDR11
19
7
I/O12
2
MEMDAT14
176
PIO
MEMADDR9
18
2
I/O5
VSS
8
177
PIO
MEMADDR8
17
MEMDAT7
8
I/O14
I/O13
1
178
PIO
16
MEMDAT6
1
I/O3
I/O4
VCC
MEMDAT15
179
PIO
15
MEMDAT5
C7207
0.1
25V
F:CHIP
I/O15
MEMADR15
RB7208
22
180
MEMADDR6
MEMADDR7
VDD
14
RB7203
22
MEMDAT4
MEMADR14
PIO
13
6
5
MEMADR13
PIO
12
3
4
MEMADR12
PIO
11
MEMADR9
PIO
10
C7215
0.1
25V
F:CHIP
181
MEMADDR5
MEMADR6
182
MEMADDR4
183
MEMADR2
IC7204
GM71VS65163CLT-5
64M DRAM
I/O2
R7256
10k
1/16W
:CHIP
9
7
C7221
0.1
25V
F:CHIP
8
I
2
R7211
10k
1/16W
:CHIP
7
MEMDAT3
8
R7273
10k
1/16W
:CHIP
R7210
10k
1/16W
:CHIP
184
A0
GND
6
MEMDAT2
1
4
185
A1
MEMADDR2
MEMADDR3
MEMADR3
MEMADR11
MEMDAT1
3
186
MEMADR5
VSS
5
187
XCE
I/O16
6
188
A2
MEMADR2
189
MEMADR4
VCC
2
190
VSS
XMEMOE
191
A3
MEMDAT16
192
XOE
I/O1
1
4
193
A4
MEMDAT24
MEMADR10
C7208
0.1
25V
F:CHIP
3
194
DQ0
D3.3V
RB7204
22
2
195
DQ8
A5
196
A6
D5V
MEMDAT17
MEMADR7
MEMDAT0
1
4
197
A7
MEMADR8
—
3
198
MEMDAT25
A17
C7209
10
6.3V
B:CHIP
2
199
C7212
10
6.3V
B:CHIP
MEMDAT18
23
13
36
35
34
MEMDAT26
—
H
7
R7215
47
1/16W
:CHIP
MEMDAT19
5
MEMADR3
8
5
C7216
0.1
25V
F:CHIP
4
MEMADR4
6
D3.3V
MEMDAT27
3
MEMADR5
7
MEMDAT20
C7210
0.1
25V
F:CHIP
2
G
MEMADR6
8
5
MEMDAT28
1
MEMADR7
6
200
MEMADR8
DQ9
DQ1
1
4
201
MEMADR9
DQ2
3
202
A18
2
203
DQ10
1
204
DQ3
7
MEMDAT21
205
MEMADR19
MEMDAT29
206
DQ11
NC
8
5
R7205
10k
1/16W
:CHIP
207
NC
RDY/XBSY
6
MEMDAT22
24
MEMADR20
XMEMCAS1
XMEMCAS3
38
VDD
7
208
—
47
DQ4
XRESET
8
MEMDAT30
R7212
10k
1/16W
:CHIP
R7214
47
1/16W
:CHIP
RB7214
22
MEMDAT23
R7213
47
1/16W
:CHIP
RB7217
22
46
39
XWE
14
XSYSRST
15
XMEMBE0
RB7216
22
RB7215
22
MEMDAT31
45
DQ12
DQ5
16
F
MEMADR18
44
10
NC
MEMADR21
DQ6
DQ13
XMEMRAS0
MEMADR2
RXD_FR_TV
28
XMEMOE
42
8
9
A19
MEMADR10
7
MEMDAT0
43
6
7
A9
A8
11
MEMADR11
DQ14
12
—
XBYTE
A10
6
MEMDAT8
XMEMRAS0
DQ7
MEMADR12
5
MEMDAT1
XMEMRAS3
DQ15
A11
MEMADR13
1
MEMDAT9
XMEMRAS1
4
A12
MEMADR14
2
MEMDAT2
XMEMCAS0
VSS
MEMADR15
3
35
34
MEMDAT10
48
1
2
3
A13
MEMADR16
1
:
MEMDAT3
A16
A15
A14
5
MEMADR17
R
XILMRST
MEMDAT11
IC7201
MBM29LV160BE70TN
16M FLASH
E
4
43
42
41
40
DQ9
27
38
A17
SCL
SDA
IC7206
M24C32-WMN6T(A)
ST20 NVM
XYGVIRQ
XILMIRQ
MEMDAT4
36
DQ2
26
37
9
12
13
14
15
—
MEMADR3
16
MEMADR4
DQ10
A18
17
MEMADR5
RDY/XBSY
18
MEMADR6
DQ3
19
MEMADR7
NC
20
MEMADR8
VDD
DQ11
21
MEMADR9
DQ4
XRESET
NC
22
MEMADR19
XWE
MEMDAT5
MEMDAT12
23
MEMADR20
DQ5
DQ12
24
—
D
NC
11
XMEMBE0
A19
10
MEMADR21
E2
VSS
R7
4
1/
:C
MEMDAT13
XMEMCAS1
DQ13
VCC
XWC
MEMDAT6
XMEMCAS2
A8
MEMADR10
MEMDAT14
VDD
DQ6
DQ14
E0
E1
MEMDAT7
XMEMCAS3
7
A9
MEMDAT15
XMEMCAS2
6
A10
8
MEMADR12
46
DQ7
45
DQ15
A11
MEMADR13
R7221
4.7k
1/16W
:CHIP
44
2
3
4
A12
MEMADR14
MEMADR11
C
XBYTE
VSS
MEMADR15
—
A16
A15
A14
A13
5
MEMADR16
D5V
MEMADR18
39
1
MEMADR17
25
B
C7220
0.1
25V
F:CHIP
MEMDATA2
PIO
IC7205
ST20TP4CX60S
CPU/DEMUX
PIO
PIO
PIO
PIO
LINKO
LIN
KD-34XBR2
14
|
15
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
D5V
D5V
R7223
4.7k
1/16W
:CHIP
R7265
47k
1/16W
:CHIP
SCL_EXT
SDA_EXT
CN7204
4P
WHT
:S-MICRO
1
ST-SCL
2
SCL_EXT
3
ST-SDA
4
SDA_EXT
ST-SCL
ST-SDA
D7204
LN25RPS0
:RED
Q7203
2SD2216J
LED DRIVER
D3.3V
157
PIO3_1
A3
14
13
O1
B3
9
GND
O3
8
B1
12
O2
11
B2
A1
10
1
2
3
O0
6
RESET THRESHOLD = 3.0V
A2
B0
4
GND
VCC
A0
5
VCC
RESET
7
Q7202
2SD2216J-(TX)
INVERTER
C7233
0.1
25V
F:CHIP
MR
C7234
0.1
25V
F:CHIP
X7000RST
R7264
0
1/16W
:CHIP
D3.3V
PIO3_0
PIO2_7
PIO2_6
PIO2_5
GND
PIO2_4
PIO2_3
PIO2_2
PIO2_1
PIO2_0
PIO1_7
PIO1_6
VDD
PIO1_5
PIO1_4
PIO1_3
PIO1_2
PIO1_1
PIO1_0
GND
PIO0_7
PIO0_6
PIO0_5
PIO0_4
PIO0_3
PIO0_2
PIO0_1
PIO0_0
VDD
LINKOUT
LINKIN
156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 1
158
PIO3_2
R7267
10k
1/16W
:CHIP
IC7209
TC74LVX08FT(EL)
RESET
IC7208
MAX811TEUS-T
RESET CONTROL
R7266
10k
1/16W
:CHIP
MICON_RST
D3.3V
R7258
10k
1/16W
:CHIP
D3.3V
2
R7276
10k
1/16W
:CHIP
D7201
SML-210VTT86
RED
R7235
1k
1/16W
:CHIP
D3.3V
XBOXRST
1
R7222
R7282
10k
1/16W
:CHIP
R7283
56
1/16W
:CHIP
3
100
100
R7220
R7281
10k
1/16W
:CHIP
4
R7284
56
1/16W
:CHIP
1/16W
1/16W
:CHIP
:CHIP
D5V
R7274
10k
1/16W
:CHIP
R7275
10k
1/16W
:CHIP
XSYSRST
HDELAY
XFERST
D3.3V
XYGVRST
XRST
R7271
10k
1/16W
:CHIP
XSYNC
XMSTRST
M2
XDIAG_BOOT
CN7202
10P
MEMORY STICK
R7263
10k
1/16W
:CHIP
R7270
10k
1/16W
:CHIP
BS
XILM-DET
1
GND
2
BS
3
RB7221
22
DIO
INS
1
8
2
7
3
6
4
5
INS
BS
CLK
CLK
DIO
D3.3V
RESERVED
4
DIO
5
RESERVED
6
INS
7
RESERVED
8
SCLK
9
VCC
10
GND
C7235
O.1
25V
F:CHIP
D3.3V
D3.3V
XWD_DIS
R7261
10k
1/16W
:CHIP
RB7224
10k
8
7
6
DIAG-TXD
C7224
0.1
25V
F:CHIP
D5V
5
DIAG-RXD
R7262
10k
1/16W
:CHIP
R7257
10k
1/16W
:CHIP
1
RB7223
2
3
JTAG_ST
4
A1
D5V
|
24
|
INT0
TSINERROR/AVERROR
GND
TSINPACKETCLK/AVSYNC
1284XSTROBE/AVERROR
TSINBYTECLKVALID/AVVALID
1284DATA0/AVDATA0
TSINBYTECLK/AVCLK
1284DATA1/AVDATA1
VDD
1284DATA2/AVDATA2
TSINDATA7
1284DATA3/AVDATA3
TSINDATA6
VDD
TSINDATA5
1284DATA4/AVDATA4
TSINDATA4
1284DATA5/AVDATA5
TSINDATA3
1284DATA6/AVDATA6
TSINDATA2
GND
TSINDATA1
1284DATA7/AVDATA7
TSINDATA0
1284XACK/AVBYTECLK
VDD
1284BUSY/AVPACCLK
MEMDATA31
1284PERROR/AVBYTECLKVAL
MEMDATA30
1284SEL/AVPACTAG0
MEMDATA29
VDD
MEMDATA28
1284XAUTOFD/AVPACTAG1
GND
1284XFAULT/AVPACTAG2
MEMDATA27
1284XINIT/AVPACTAG3
MEMDATA26
GND
MEMDATA25
1284XSELIN
VDD
MEMDATA24
MEMDATA22
MEMDATA23
35
I
D3.3V
XMEMCAS2
XMEMCAS3
XMEMOE
:CHIP
R72
1/1
:CH
XVIDIRQ
IERR
ID0
ID1
ID2
ID3
ID4
ID5
ID6
FEERR
FEPCLK
FEVAL
FEBCLK
FED7
FED6
FED5
FED4
FED3
FED2
FED0
MEMDAT31
MEMDAT30
MEMDAT29
MEMDAT28
MEMDAT26
MEMDAT27
MEMDAT25
MEMDAT24
MEMDAT23
MEMDAT22
MEMDAT20
—
MEMDAT21
ILMTS
MEMADR8
ID7
MEMADR10
IBCLK
IVAL
MEMADR11
IPCLK
MEMADR12
R7216
MEMADR13
MEMADR9
C7219
0.1
25V
F:CHIP
33 1/16W
C7217
0.1
25V
F:CHIP
FED1
50
49
48
47
46
43
42
40
28
29
30
31
32
27
26
TTXT
TTXTEVEN/XOD
D5V
MEMDAT24
RB7205
22
35
36
37
38
34
33
39
41
44
45
MEMDATA21
33
32
31
30
29
28
27
26
19
20
21
22
23
24
25
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
104
25
103
98
102
97
101
96
99
95
100
94
VSS
93
VCC
TTXTDA
92
A8
91
A7
90
A9
89
81
A6
88
80
A10
87
79
A5
86
78
A11
85
77
A4
84
76
A13
A12
83
75
A2
A3
VCL
82
74
NC
73
NC
72
NC
71
NC
70
NC
69
NC
68
N
C7201
0.1
25V
F:CHIP
XOE
67
MEMADR7
NC
66
MEMADR6
XRAS
65
MEMADR5
VSS
VCC
MEMDAT25
64
MEMADR4
5
63
MEMADR3
4
MEMDAT26
62
MEMADR2
7
6
61
M
2
XWE
XUCAS
MEMDATA19
MEMDAT27
3
NC
XLCAS
MEMDATA17
MEMDATA18
60
XMEMRAS0
NC
I/O9
MEMDAT19
59
C7202
0.1
25V
F:CHIP
I/O8
8
MEMDAT18
58
5
I/O11
I/O10
1
MEMDAT17
57
4
I/O6
I/O7
VSS
I/O12
5
MEMDAT28
CL
56
7
6
VCC
I/O5
4
MEMDAT29
MEMDATA16
55
2
3
0.1
25V
F:CHIP
I/O13
7
6
MEMDAT16
SPEEDSE
54
8
I/O4
2
3
MEMDAT30
MEMDATA14
MEMDATA15
VCLAMP
53
1
I/O15
I/O14
8
C7213
0.1
25V
F:CHIP
52
RB7201
22
I/O2
I/O3
MEMDAT31
1
LPCLKO
SPEEDSE
51
MEMRXW
5 C7203
I/O16
RB7206
22
MEMDATA12
50
—
4
I/O1
VSS
X
RTC
MEMDATA13
49
MEMDAT23
7
6
VCC
CPUANALYZE/TRIGIN
LPCL
48
MEMDAT22
2
MEMDAT14
MEMDAT15
8
3
MEMDAT13
MEMDATA11
GND
47
MEMDAT20
MEMDAT21
—
MEMDAT12
IC7203
GM71VS65163CLT-5
64M DRAM
MEMDATA9
MEMDATA10
46
L
D3.3V
CPU
45
MEMDAT19
MEMDAT10
MEMDATA8
ERROUT/TRIGOU
44
MEMDAT18
1
MEMDAT9
MEMDAT11
MEMDAT16
MEMDAT17
MEMADR8
VDD
43
RB7202
22
MEMDAT8
42
—
C7204
0.1
25V
F:CHIP
A8
VSS
MEMADR9
41
K
A7
VCC
C7214
0.1
25V
F:CHIP
MEMADR10
MEMDATA5
MEMDATA6
MEMDATA7
40
C7205
0.1
25V
F:CHIP
A9
A6
MEMDAT7
39
A10
MEMDAT6
XT
38
A5
MEMADR12
MEMADR11
MEMDATA4
37
A12
A11
MEMDAT5
GND
36
A13
A3
A4
MEMDAT4
MEMADR13
LIN
MEMDATA3
MEMDATA20
NC
LINKO
MEMDATA2
GND
34
NC
MEMADR6
MEMADR7
38
NC
MEMDAT3
MEMDATA0
MEMDATA1
35
MEMADR5
37
NC
MEMDAT2
36
16
NC
17
13
XOE
NC
18
14
15
NC
A2
MEMDAT1
XMEMOE
34
—
MEMADR4
MEMDAT0
XMEMCAS1
33
MEMADR3
XMEMCAS0
32
MEMADR2
XLCAS
XUCAS
31
J
XWE
XRAS
30
F:CHIP
XMEMRAS0
29
MEMRXW
STTS
O
—
P
—
— 99 —
LINKIN
TDO
XTRST
TCK
TMS
TDI
UT/TRIGOUT
CPURST
GND
YZE/TRIGIN
XRST
RTCVDD
LPCLKIN
LPCLKOSC
SPEEDSEL1
SPEEDSEL0
CLKIN
VCLAMP
1284XSTROBE/AVERROR
TTXTDATA
TTXTREQ
XTEVEN/XODD
TDO
TCK
TMS
TDI
F:CHIP
25V
TRIGOUT
4
3
R7239
330k
:CHIP
1
C7222
0.1
25V
4
B2
TDO
3
A3
GND
2
B3
TDI
TMS
8
1
A4
GND
B4
TCK
5
R7268
:CHIP
1/16W
TMS
5
4
A6
JTAG_TRIG_IN
6
3
B6
JTAG_TRIG_OUT
DIAG-TXD
7
2
A7
XDIAG_BOOT
DIAG-RXD
8
1
B7
DIAG_TXD
A8
GND
TXD_TO_TV
R7236
10k
1/16W
:CHIP
GND
B5
TRIGOUT
R7285
0
:CHIP
B8
DIAG_RXD
A9
GND
B9
D5V
FB7201
0UH
:CHIP
A5
TRIGIN
RXD_FR_TV
F:CHIP
XRST
6
C7225
CH:CHIP
50V
22p
XTRST
7
RB7222
22
R7238
10k :CHIP
D5V
B1
A2
TCK
47
2
A1
TDI
XMSTRST
X7201
32.7680KHz
JTAG_ST
4
XDIAG_BOOT
TRIGIN
C7226
10p
50V
CH:CHIP
3
XRST
XTRST
0.1
2
RB7223
22
XTRST
TDO
C7223
:CHIP
1
0
R7286
:CHIP
A10
XWD_DIS
RXD_FR_TV
GND
B10
TXD_TO_TV
A11
GND
B11
XWD_DIS
CN7201
22P
INT0
INT1
10k
1/16W
:CHIP
C7224
0.1
25V
F:CHIP
128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105
VDD
LINKOUT
104
103
D3.3V
DIAG
D3.3V
R7259
10k
1/16W
:CHIP
R7260
10k
1/16W
:CHIP
FB7202
0UH
D5V
C7228
0.1
25V
F:CHIP
R7245
100k
1/16W
:CHIP
C7227
0.1
25V
F:CHIP
D3.3V
3A
5Y
3Y
4A
GND
4Y
VCC
R7254
39
1/16W
:CHIP
14
13
12
5A
11
R7250
100
1/16W
:CHIP
6Y
2Y
10
R7247
100
1/16W
:CHIP
6A
2A
9
C7229
56p
50V
CH:CHIP
1A
1Y
8
R7248
1M
1/16W
:CHIP
1
R7244
100k
1/16W
:CHIP
X7202
27 MHz
2
C7230
56p
50V
CH:CHIP
3
R7243
100k
1/16W
:CHIP
R7252
39
1/16W
:CHIP
C7232
0.1
25V
F:CHIP
R7249
10k
1/16W
:CHIP
4
D7202
HVU359TRF
:VARICAP
R7288
4.7
1/16W
:CHIP
:CHIP
5
D7203
HVU359TRF
:VARICAP
L7201
C7231
100p
50V
CH:CHIP
6
XAUDIRQ
XVIDIRQ
IERR
Q7201
2SD2216J-(TX)
VCXO CTL.
R7246
2.2k
1/16W
:CHIP
7
R7277
0
1/16W
:CHIP
IC7207
TC74LVX04FT(EL)
CLOCK BUFFER
R7251
0
:CHIP
ILM27MHZ
AUD27MHZ
27MHZ
VID27MHZ
R7253
39
1/16W
:CHIP
9-965-916-02<HA3>QM P2
QM BOARD SCHEMATIC DIAGRAM (3 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
16
A
—
B
A5V
MEMDAT0
MEMDAT1
C7412
0.1
25V
F:CHIP
MEMDAT2
MEMDAT3
MEMDAT4
—
1
8
7
LRCK
AGND
6
MCLK
AOUTR
5
12
11
10
9
8
7
6
5
4
3
2
1
A7
A6
A5
A4
A3
A2
A1
A0
NC
VDD
GND
GND
VDD
D7
D6
D5
VDD
GND
D4
D3
D2
D1
PCMCLK
VDD
78
28
VDD
VDD
77
29
VDD
GND
76
30
GND
PCM_OUT2
31
VDASYS
32
VCSYS
33
VSASYS
IC7401
STI4600BCV-2.0
AUDIO DECODER
75
PCM_OUT1
74
PCM_OUT0
73
VDD
72
34
VDD
35
GND
VSADAC
70
36
CLK
VCDAC
69
37
WAIT
VDADAC
68
38
CS
PCMCLK
67
D3.3V
50
51
52
53
54
55
56
57
58
SCLK
49
LRCLK
48
PTS
47
1958OUT
46
REO
45
DEEMPH
44
SFREO
SEL12C
43
IRQ
SDA12C
42
VDD
RESET
41
DSTR
GND
SIN
40
VDD
GND
59
60
61
62
63
64
R7411
47
1/16W
:CHIP
PCMOUT2
R7410
47
1/16W
:CHIP
PCMOUT1
R7409
47
1/16W
:CHIP
PCMOUT0
R7424
66
GND
65
1/16W
10k
71
VDD
10
10
R7423
270k
1/16W
:CHIP
C7421
10V F:CHIP
C7424
0.1
25V
F:CHIP
C7415
25V F:CHIP
0.1
:CHIP
IC7403
CS4339KSR
AUDIO DAC
PCMOUT1
C7418
0.0022
50V
B:CHIP
R7417
1/16W
:CHIP
C7416
100p
50V
CH:CHIP
R74
27
1/1
:CH
SCLK
SDATA
AOUTL
SCLK
VA+
LRCK
AGND
6
GND
MCLK
AOUTR
5
79
27
1
80
GND
2
D0
CLKOUT
3
VDD
26
4
25
8
13
LRCLK
PCMCLK
10
C7420
10V F:CHIP
R742
270
1/16
:CHI
C7423
0.1
25V
F:CHIP
PCMCLK
R7415
R7414
47
1/16W
:CHIP
47
C7413
0.1
25V
C7414
0.1 F:CHIP
25V
F:CHIP
:CHIP
C7425
6.3V
AL-CP
R
1
:
LRCLK
SCLK
H
2
14
MAIN12CADR
—
VA+
3
15
39 LRCLKIN
XAUDCDST
SCLK
4
16
GND
XAUDCS
17
VDD
AUD27MHZ
C7404
0.1
25V
F:CHIP
18
SMODE
C7403
0.001
50V
B:CHIP
19
TEST
F
R7401
5.6k
1/16W
:CHIP
20
GND
C7402
47p
50V
CH:CHIP
21
VDD
—
22
SCLK12C
:CHIP
C7406
0.1
25V
F:CHIP
23
GND
L7401
E
C7405
0.1
25V
F:CHIP
24
GND
C7407
0.1
25V
F:CHIP
R7289
4.7
1/16W
:CHIP
—
AOUTL
LRCLK
C7401
10
6.3V
B:CHIP
:CHIP
SDATA
SCLK
D3.3V
—
G
PCMOUT0
D3.3V
R/W
D
L7403
IC7404
CS4339KSR
AUDIO DAC
7
C7410
0.1
25V
F:CHIP
MEMDAT5
MEMDAT6
MEMDAT7
XMEMBE2
XMEMBE3
MEMADR2
MEMADR3
MEMADR4
MEMADR5
C
MEMADR6
XMEMBE0
EMIBUS
MEMADR7
—
R7413
47
1/16W
IC7402
CS4339KSR
AUDIO DAC
A5V
KD-34XBR2
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
27
|
TO B BOARD
CN 009
AUDIO OUT
CN7402
22P
R7447
0
:CHIP
SUB_OSD
A1
R7436
1/16W
:CHIP
100
100
R7439
A_MNO_FR
155MV_RMS(-18DB)
A_MNO_RL
R7435
560
1/16W
:CHIP
7423
270k
/16W
CHIP
L
A_MNO_RR
A_MNO_FL
C7436
3300p
50V
B:CHIP
P
R
A_MNO_FR
C7435
3300p
50V
B:CHIP
R7422
270k
1/16W
:CHIP
R7433
560
1/16W
:CHIP
L
A_MNO_C
C7434
3300p
50V
B:CHIP
R7421
270k
1/16W
:CHIP
23
1
V
IP
R7432
560
1/16W
:CHIP
R
A_MNO_LF
C7433
3300p
50V
B:CHIP
R7420
270k
1/16W
:CHIP
R7431
560
1/16W
:CHIP
R7441
100
100
R7442
R7443
100
1/16W
1/16W
100
:CHIP
1/16W
1/16W
100
:CHIP
:CHIP
:CHIP
1/16W
A_MNO_FL
B2
GND
A3
A_MNO_FR
:CHIP
A4
L
A MNO RL
GND
A_MNO_FL
B4
A_MNO_FR
A5
A_MNO_C
B5
GND
A6
A_MNO_RL
B6
A_MNO_RR
A7
A_MNO_LF
B7
4
R7434
560
1/16W
:CHIP
A_MNO_LF
R7440
NC
A2
B3
R7438
:CHIP
1/16W
100
A_MNO_FL
A_MNO_C
R7437
:CHIP
1/16W
SUB_OSD
B1
GND
A8
NC
B8
NC
A9
NC
B9
NC
A10
NC
B10
NC
A11
NC
B11
NC
28
|
SCLK
—
K
SCLK
VA+
LRCK
AGND
6
MCLK
AOUTR
5
LRCLK
PCMCLK
10
C7419
10V F:CHIP
R74
27
1/1
:CH
C7422
0.1
25V
F:CHIP
B
GND
VCC
Y
5
A
R741
270
1/16
:CHI
D5V
C7437
0.1
25V
F:1608
CN7401
GP1FH500TZ
OPTICAL OUT
VCC
VIN
4
1
R7444
10k
1/16W
:CHIP
IC7405
TC7SET08FU TE85R
OPTICAL MUTE
2
XAMUTE
R7412
100
1/16W
:CHIP
3
XAUDCDRQ
XSYSRST
—
J
2
C7411
0.1
25V
F:CHIP
3
C7409
0.1
25V
F:CHIP
XAUDIRQ
I
R7405
0
1/16W
:CHIP
AOUTL
4
R7403
1k
1/16W
:CHIP
—
SCLK
R7408
10k
1/16W
:CHIP
SDATA
8
PCMOUT2
1
H
7
CS4339KSR
AUDIO DAC
R7413
47
1/16W
:CHIP
R7445
100
1/16W
:CHIP
D5V
GND
C7417
0.1
25V
F:CHIP
—
L
— 100 —
R7431
560
1/16W
:CHIP
L
A_MNO_RL
C7432
3300p
50V
B:CHIP
R7419
270k
1/16W
:CHIP
2
P
R7430
560
1/16W
:CHIP
R7418
270k
1/16W
:CHIP
R
A_MNO_RR
C7431
3300p
50V
B:CHIP
9-965-916-02<HA3>QM P3
QM BOARD SCHEMATIC DIAGRAM (4 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
A
D3.3V
—
C7611
10
6.3V
B:CHIP
C7610
10
6.3V
B:CHIP
V IDMD40
VIDMD28
VIDMD27
VIDMD26
VIDMD25
VIDMD24
VIDMD23
VIDMD22
VIDMD21
VIDMD20
VIDMD19
VIDMD18
VIDMD17
VIDMD16
VIDMD15
VIDMD14
VIDMD13
VIDMD12
VIDMD11
VIDMD10
VIDMD9
VIDMD8
VIDMD7
VIDMD5
DD19
DD20
DD27
VDD
DD28
DD18
GND
DD17
DD25
DD16
DD26
DD15
VDD
GND
DD24
DD14
GND
DD13
DD23
DD12
SDCKO
DD11
VDD
DD10
DD21
VDD
DD22
DD9
GND
DD8
SDCKI
DD6
DD7
GNDCORE
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
86
85
84
83
82
81
80
79
78
77
76
75
74
73
1
VDDCORE
82
80
81
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
32
36
37
38
39
40
1
2
3
4
5
6
7
8
9
10
11
12
13
14
8
172
V IDMD41
173
2
174
7
175
V IDMD42
176
3
177
6
178
V IDMD43
179
4
MEMDAT 0
MEMDAT 2
MEMDAT 3
C7620
25V F:CHIP
MEMDAT 4
MEMDAT 5
0.1
C7619
25V F:CHIP
MEMDAT 6
MEMDAT 7
10k
XSTRB
XIRQ
:CHIP
MEMDAT 1
0.1
5
180
V IDMD44
181
NC
1
182
DQ8
8
1/16W
R7604
:CHIP
1/16W
D0
D1
D2
D3
VDDCORE
GNDCORE
D4
D5
VDD
D6
D7
46
NC
VCCQ
XWE
XREQ
45
VSSQ
DQ7
V IDMD46
V IDMD45
183
5
3
2
RB7611
47
C7614
0.1
25V
F:CHIP
5
10k
184
4
DQ9
4
R7605
185
DQ6
6
7
XVIDIR Q
186
6
V IDMD47
187
3
DQ10
GND
44
DQ5
XRAS
6
43
7
2
3
42
2
VSSQ
4
AA11
XCAS
RB7617
7 47
41
VCCQ
1
8
40
VIDM D39
DQ11
1
39
VIDM D38
DQ4
5
VDD
AA10
38
VIDM D37
C7603
0.1
8 25V
F:CHIP
VCCQ
DQ12
4
C7621
25V F:CHIP
0.1
37
RB7603
47
VSSQ
DQ3
6
36
6
5
3
AA8
AA9
35
3
4
DQ14
DQ13
8
7
34
DQ1
DQ2
1
2
AA6
AA7
33
8
7
RB7618
47
XVIDCD ST
RB7612
47
5
5
32
1
2
DQ15
VSSQ
4
31
DQ0
VIDM D36
—
XVIDCD RQ
VCCQ
GND
30
I
XVIDMR AS
XVIDMW E
VSS
6
29
D3.3V
188
XVIDMC AS
189
VIDMA1 1
VIDMA9
190
VIDMA1 0
VSS
VCC
AA5
3
VIDMA8
VCC
IC7601
TC59S6432CFT-80(
YB)
64M-SDRAM
AA4
28
VIDM D35
V IDMD24
8
7
27
VIDM D34
1
VSSQ
DQ24
VIDM D32
VIDM D33
8
1
2
26
RB7604
47
V IDMD26
V IDMD25
VCCQ
H
—
3
2
VIDMA7
DQ23
C7605
0.1
25V
F:CHIP
C7604
0.1
25V
F:CHIP
6
7
AA2
AA3
25
—
V IDMD27
191
6
5
4
5
VIDMA6
GNDCORE
5
24
3
4
DQ26
DQ25
VIDMA5
RB7613
47
C7615
0.1
25V
F:CHIP
VIDMA4
VDD
VDDCORE
23
DQ21
DQ22
V IDMD28
C7622
0.1
25V
F:CHIP
RB7620
47
4
192
7
VCCQ
1
7
6
RB7619
47
193
8
2
DQ27
8
2
3
AA0
AA1
22
1
VSSQ
DQ28
V IDMD30
V IDMD29
8
21
DQ19
DQ20
3
2
VIDMA3
194
VSSQ
6
7
VIDMA2
195
VCCQ
V IDMD31
196
DQ30
DQ29
4
197
DQ17
DQ18
VIDMA1
RB7614
47
5
XCS1
20
5
VCCQ
R7606
10k :CHIP
VIDMA0
C7616
0.1
25V
F:CHIP
GND
XCS0
:CHIP
1/16W
1
DQM
:CHIP
19
4
VSSQ
DQ31
XVIDMC S1
39
47
18
7
6
NC
VID MDQM
R7601
R7603
198
DQ16
VSS
XVIDMC S0
R7607
10k
:CHIP
R7602
:CHIP
1/16W
39
199
NC
DQM3
VIDMDQ M
VDD
DD0
200
DQM2
VCC
VID MA3
:CHIP
201
A3
10k
202
A2
VID MA5
VID MA4
R7608
203
A5
A4
VIDMD0
204
A0
A1
VID MA7
VID MA6
C7623
0.1
25V
F:CHIP
17
VIDM D23
A7
A6
DD2
DD1
VIDMD1
16
VIDM D21
BA1
A10(AP)
VID MA9
VID MA8
15
2
3
VIDM D20
VIDM D22
A9
A8
8
RB7605
47
G
NC
BA0
DD4
DD3
14
VIDM D19
VIDMD2
13
—
CKE
12
VIDM D17
VIDM D18
1
VIDMD3
XCS
11
RB7606
47
VIDM D16
NC
CLK
10
F
C7606
0.1
25V
F:CHIP
XCAS
XRAS
9
VIDM DQM
VID MDQM
8
VID MA2
NC
V IDMD9
7
VID MA0
VID MA1
5
C7644
0.1
25V
F:CHIP
V IDMD8
6
—
4
C7617
0.1
25V
F:CHIP
C7645
0.1
25V
F:CHIP
V IDMD10
5
VID MA10
6
4
XVID MCS1
3
3
VID MA11
8
7
2
E
XWE
1
VSS
DQM1
V IDMD11
2
NC
C7646
0.1
25V
F:CHIP
RB7615
47
1
XVIDMCS 0
VCC
DQM0
DQ8
V IDMD12
205
XVIDMCA S
XVIDMRA S
DQ7
NC
VCCQ
6
5
R7612
10
1/16W
:CHIP
R7611
150
1/16W
:CHIP
R7610
120
1/16W
:CHIP
206
XVIDMWE
VSSQ
3
4
C7618
22
10V
F:CHIP
V IDMD13
207
—
DQ9
7
208
VIDMDQM
DQ6
27
5
4
VSSQ
DQ10
28
6
VCCQ
DQ5
29
3
DQ11
30
7
DQ4
31
VIDM D7
1
2
DQ12
33
VIDM D5
DQ3
34
VIDM D4
VIDM D6
D
C7608
0.1
8 25V
F:CHIP
DQ13
VCCQ
35
—
RB7607
47
DQ2
VSSQ
2
V IDMD14
DD5
6
5
8
GND
4
3
4
D3.3V
V IDMD15
1
41
VIDM D3
2
RB7616
47
42
VIDM D2
DQ14
86
7
DQ1
8
1
VSSQ
43
C
VIDM D1
85
2
3
VCCQ
VIDM D0
VSS
DQ15
84
1
VCC
DQ0
RB7608
47
83
C7609
0.1
25V
F:CHIP
—
VIDMD4
IC7602
TC59S6432CFT-80(
YB)
64M-SDRAM
VIDMD6
B
NC
IC7603
STI7000AQA
VIDEO DECODER
KD-34XBR2
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
VIDMD39
VIDMD38
16
VIDMD37
VIDMD36
|
VIDMD35
VIDMD34
VIDMD33
VIDMD32
VIDMD31
15
VIDMD30
VIDMD29
|
VIDMD28
VIDMD27
14
C7643
0.1
25V
F:CHIP
YC7
YC6
YC5
CLK
RB7632
22
CR4
5
4
CR3
6
3
CR2
7
2
CR1
1
CR0
D3.3V
75
RB7629
Y6
5
4
Y7
6
3
Y6
7
2
Y5
5
6
7
8
HDELAY
D3.3V
0.1
47
C7640
25V F:CHIP
RB7628
47
C7632
0.1
25V
F:CHIP
R7652
100
1/16W
:CHIP
HS
Y5
76 YIN6
77
HSYNCIN
78 GNDIO
79
YIN5
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
C7634
25V F:CHIP
51
RB7637
22
VCCIO
1
GNDIO
8
CBCROUT1
CR6
CR5
I/O
3
2
XILINKWAIT
CR0
6
0.1
1
CR7
7
8
2
HSYNCOUT
GND
VS
DD39
VDD
DD40
GNDCORE
HS
DD38
CR1
VDDCORE
4
5
CBCROUT0
DD37
CR2
3
VSYNCOUT
DD36
CR3
CR7
GND
CR4
4
RB7630
47
GNDIO
DD35
VDD
CR6
DD34
CR6
CR5
R7614
10k
1/16W
:CHIP
CRIN6
DD33
SDI
CR7
VIDMD62
VIDMD63
CRIN7
DD31
DD32
DD63
VIDMD60
VIDMD61
TCK
VDD
GND
R7641
10k
1/16W
:CHIP
TCK
DD30
DD62
A_MSK
CR4
DD29
DD61
VIDMD58
VIDMD59
CR5
DD28
DD60
0.1
D3.3V
A_MSK_PLD
C7641
25V F:CHIP
CRIN4
GND
DD59
156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111
VDD
DD58
VIDMD56
VIDMD57
CRIN5
157
DD56
DD57
VIDMD54
VIDMD55
GNDIO
158
DD55
DTVOUT
VCCIO
159
GND
DD54
VIDMD52
VIDMD53
CR2
160
DD53
CR3
161
DD52
VIDMD51
CRIN3
162
VDDCORE
VIDMD49
VIDMD50
CR1
163
DD51
GNDCORE
C7642
25V F:CHIP
CRIN2
164
DD50
0.1
CRIN1
165
VCC
DD49
VIDMD47
VIDMD48
CR0
166
DD48
YS_IN
167
DD47
VIDMD45
VIDMD46
CRIN0
168
DD46
TDO
169
GND
DD45
VIDMD43
VIDMD44
TDO
170
DD44
YS_OUT
171
DD43
VIDMD41
VIDMD42
GNDIO
172
DD41
DD42
Y7
173
D3.3V
YIN7
174
DD27
VIDMD40
C0
HDELAY
I/O
CBCROUT2
CBCROUT3
50
49
48
47
1
8
2
7
3
6
4
5
RB7636
C1
C2
C3
25
60
OSD
VDD
PIXCKO
VSYNC
TEST
GND
HSYNC
VDDCORE
GNDCORE
YCI6
YCI7
YCI4
YCI5
YCI1
YCI2
YCI0
YCI3
VDD
VCLK
USRCLK3
USRCLK0
USRCLK1
USRCLK2
GND
CLK
P1GND
P1VDD
P0GND
P0VDD
TEST
XRST
A_A7
VDD
A_A5
A_A6
A_A3
A_A4
5
6
C7637
0.1
25V
F:CHIP
RB7610
47
V IDMD62
7
2
V IDMD61
8
1
V IDMD60
MEMADR6
3
RB7609
47
C7612
0.1
25V
F:CHIP
C7638
0.1
25V
F:CHIP
C7627
10p
50V
CH:CHIP
MEMADR7
V IDMD63
MEMADR4
4
C7626
0.1
25V
F:CHIP
R7613
0
:CHIP
D3.3V
L7601
5
4
V IDMD59
6
3
V IDMD58
7
2
V IDMD57
8
1
V IDMD56
RB76
47
:CHIP
X7000RST
C7625
1
6.3V
B:CHIP
CLK
51
50
49
48
47
46
C7624
0.1
25V
F:CHIP
MEMADR5
C7613
0.1 5
25V
F:CHIP 6
52
55
56
54
53
57
58
59
VID MDQM
VID27MHZ
44
45
3
VID MA4
VID MA3
MEMADR3
74
73
72
70
69
67
65
63
62
61
64
66
68
71
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
87
89
86
88
85
4
D3.3V
—
N
—
O
84
VSS
83
VCC
82
VSSQ
DQ24
81
VCCQ
DQ23
80
C7601
0.1
25V
F:CHIP
DQ25
79
5
DQ22
78
4
VCCQ
DQ26
77
6
VSSQ
DQ21
76
3
DQ28
DQ27
75
8
7
DQ19
DQ20
74
1
2
DQ29
VSSQ
73
DQ18
VCCQ
72
6
5
71
3
4
DQ30
70
DQ17
69
7
VCCQ
68
2
NC
DQ31
67
8
VSS
66
1
DQM3
65
DQM2
VCC
64
A4
A3
63
A1
A2
VID MA5
62
A5
61
VIDM D55
A0
VID MA7
VID MA6
60
M
A6
A_A2
59
VIDM D54
A7
VSSQ
VIDM D52
VIDM D53
BA1
A10(AP)
MEMADR 2
VID MA9
VID MA8
58
—
A8
NC
RB7601
47
A9
BA0
DQ16
RB7602
47
CKE
isolate gnd
57
VIDM D51
XCS
NC
A_A1
56
VIDM D50
XMEMBE 3
GND
A_A0
55
C7602
0.1
25V
F:CHIP
VIDM D49
XMEMBE 2
54
VIDM DQM
VIDM D48
L
NC
CLK
53
VID MA1
VID MA2
—
XCAS
XRAS
XCS
R/XW
52
VID MA0
XMEMBE 0
D7
NC
51
K
VID MA10
VID MDQM
NC
10k
D6
50
XVID MCS1
XVIDCS
R7604
:CHIP
1/16W
49
VID MA11
DQM1
MEMDAT 7
48
—
XVIDMCS 0
VSS
F:CHIP
47
XVIDMCA S
XVIDMRA S
DQM0
XWE
NC
46
XVIDMWE
VCC
DQ8
45
VIDMDQM
NC
44
J
DQ7
EMIBUS
—
P
—
— 101 —
90 CLK2
93
CB2
YOUT4
VCCIO
CBIN1
GNDIO
94 CBIN2
95
CB3
YOUT5
GNDIO
YOUT6
96 CBIN3
CB4
97
CB5
YOUT7
CBIN4
XYRD
98 CBIN5
CB6
XTV-H
99 CBIN6
CB7
8
VCCINT
92 CBIN0
CB1
100
XYGV-H
5
6
7
8
9
CBIN7
RB7625
47
1
2
3
4
10
11
12
13
14
15
16
17
18
19
20
21
22
23
I/O
7
YOUT3
24
XFLASHCSROM
RB7624
47
6
YOUT2
XYCSIO
5
8
CTL.PLD
XRESET
I/O
7
GNDINT
XYCSMEM
6
VCCINT
XYWAIT
5
91
CB0
YOUT1
XYDREQ
8
PIXCLKIN
88 VSYNCIN
89
C7628
0.1
25V
F:CHIP
IC7604
EPM3128ATC100-5
V1.0
VIDEO MUX/
VCCIO
7
87
YGVGCK
C7629
0.1
25V
F:CHIP
YOUT0
86 GNDINT
CLK
XSYSRST
C7647
10
6.3V
B:CHIP
CBCROUT7
YIN0
ILINKRXW
6
85
VS
RB7626
47
GNDIO
49
47
46
44
43
C4
8
2
7
3
6
4
5
C5
C6
C7
42
41
RB7635
22
40
C7636
0.1
25V
F:CHIP
39
38
Y0
37
36
1
8
2
7
3
6
4
5
Y1
Y2
Y3
35
RB7634
22
C7635
0.1
25V
F:CHIP
34
33
Y4
31
30
29
8
1
32
22
2
7
3
6
4
5
Y5
Y6
Y7
R7650
:CHIP
1/16W
28
XTV-H
27
XYGV-H
26
25
:CHIP
TCK
R7640
56
1/16W
:CHIP
R7639
56
1/16W
:CHIP
56
1/16W
R7638
56
1/16W
:CHIP
R7622
1k
1/16W
:CHIP
R7627
1k
1/16W
:CHIP
PLD PROG
TDO
TMS
R7630
1k
1/16W
:CHIP
XYGVRD
XYGVCSIO
XYGVCSMEM
TDI
XYGVWAIT
XYGVDREQ
R7651
ILMRXW
:CHIP
1/16W
56
R7643
XILMOE
:CHIP
1/16W
MEMREQ
MEMADR22
MEMADR23
MEMRXW
XMEMRAS2
XMEMCSROM
XILMCE
MEMWAIT
R7619
56
R7617
56
1/16W
:CHIP
D3.3V
C7633
0.1
25V
F:CHIP
TMS
TDI
R7642
56
1/16W
:CHIP
ILMWAIT
CB1
CB0
CB2
CB4
CB6
CB5
CB7
VS
RB7636
22
1
45
C3
5
4
XFLASHCSROM
C7631
0.1
25V
F:CHIP
ILMCTRL
6
3
48
D3.3V
CB3
5
84 YIN1
TMS
1
Y1
Y0
ILINKOEN
2
Y1
Y0
GNDIO
MEMREQ
3
2
1
YIN2
MEMADDR22
4
1
7
83
CBCROUT6
GNDIO
2
82 VCCIO
Y2
8
CBCROUT5
MEMADDR23
3
Y2
CBCROUT4
YIN3
MEMRXW
4
3
CBCROUT3
81
NOTMEMRAS2
1
6
YIN5
80 YIN4
NOTMEMCSROM
2
Y3
Y3
ILINKXCE
GND
CB0
CB2
CB1
CB3
VDD
P2GND
P2VDD
CB5
CB4
CB7
CB6
GND
DHDRIVE
OSD
DVDRIVE
3
4
104
103
102
101
99
100
98
97
96
95
94
93
92
91
90
89
88
87
4
5
79
Y4
C7630
25V F:CHIP
RB7627
47
C7639
0.1
25V
F:CHIP
HS
VDD
PIXCKO
YC0
0.1
I/O
CBCROUT2
I/O
YC1
isolate gnd
Y4
1
8
HSYNCIN
78 GNDIO
MEMWAIT
YC2
2
77
HS
Y5
TDI
YC3
Y6
Y5
I/O
VDD
YC4
7
3
VCCIO
YC5
6
I/O
YC6
13 112 111 110 109 108 107 106 105
YC7
A1
TCK
B1
GND
A2
TDO
B2
VCC
A3
TMS
B3
NC
A4
NC
B4
NC
A5
TDI
B5
GND
CN7602
10P
YGVCTRL
9-965-916-02<HA3>QM P4
QM BOARD SCHEMATIC DIAGRAM (5 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
A
B
DQ0
DQ2
DQ3
DQ4
DQ5
DQ6
DQ7
DQM
XWE
XRAS
XCAS
A11
XCS
A0
A10
A2
A1
A3
—
DQ1
RB7810
47
RB7807
47
8
7
6
5
4 F:CHIP
1
2
3
4
9
6
5
4
3
8
7
6
5
1
2
3
D3.3V
C7827
0.1
25V
—
25
23
22
21
20
19
18
10
8
7
2
1
DQ7
DQ6
VSSQ
DQ5
DQ4
VCCQ
DQ3
DQ2
VSSQ
DQ1
DQ0
VCC
DQ8
DQ9
VSSQ
DQ10
DQ11
VCCQ
DQ12
DQ13
VSSQ
DQ14
DQ15
VSS
35
11
VCCQ
34
12
VCCQ
33
13
NC
NC
32
14
LDQM
CS
ADDR9
31
UDOM
ADDR11
ADDR8
30
WE
ADDR10
ADDR7
29
CLK
ADDR0
ADDR6
28
15
CAS
ADDR1
ADDR5
27
16
CKE
ADDR2
ADDR4
26
17
RAS
ADDR3
VSS
—
24
VCC
C
36
37
38
39
40
41
42
43
44
45
46
47
48
49
IC7803
NT56V1616A0T-7
16M-SDRAM
50
C7831
0.1
25V
F:CHIP
D3.3V
C7826
0.1
25V
F:CHIP
D
7
8
6
5
8
7
5
6
RB7809
47
RB7806
47
—
D3.3V
D1.8V
2
1
3
4
1
2
4
3
DRCMCLK
XCAS
—
C7829
0.1
25V
F:CHIP
C7825
0.1
25V
F:CHIP
C7822
0.1
25V
F:CHIP
C7830
0.1
25V
F:CHIP
HS
VS
F
CLK
XWE
XRAS
XCS
DQM
DQ7
DQ6
DQ4
DQ5
DQ2
DQ3
DQ1
DQ0
DQ15
DQ14
DQ12
DQ13
DQ11
DQ13
DQ15
DQ10
DQ12
DQ14
DQ8
DQ9
DQ10
DQ11
DQ9
DQM
DQ8
A11
A7
A8
A7
A8
A9
A6
A6
A9
A5
A5
A10
A4
A4
A2
A3
A0
—
A1
E
C7834
0.1
25V
F:CHIP
D3.3V
C7836
0.1
25V
F:CHIP
C7817
0.1
25V
F:CHIP
9
8
7
6
5
4
3
2
1
XWE
XRAS
XCAS
MODE
IVDD
IHDD
W13ID
VS1
VD1
10
DOM
11
XCS
12
VS2
13
DQ7
14
DQ6
15
DQ5
16
DQ4
17
DQ3
18
DQ2
19
DQ1
20
DQ0
21
VD2
22
VS3
23
AVD1
24
AVS1
25
DQ15
26
DQ14
27
DQ13
28
DQ12
29
DQ11
30
DQ10
31
DQ9
32
DQ8
34
33
TENA3
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
VS6
AVS6
208
54
DVSFT
AVD6
207
55
DLINIT
DIYD7
206
56
IFPCT
DIYD6
205
57
FV
DIYD5
204
58
FH
DIYD4
203
59
PXI
DIYD3
202
60
VSTILL1
DIYD2
201
61
FILM
DIYD1
200
62
VDPR
DIYD0
199
63
VDCL
VS18
198
64
VDL0
VD12
197
65
VDL1
DICD7
196
66
VS7
DICD6
195
67
XRST
DICD5
194
68
CRCT
DICD4
193
69
GAME
DICD3
192
70
OCKSL
DICD2
191
71
M0
DICD1
190
72
M1
DICD0
189
73
RBSL
VS17
188
74
VD5
TRST
187
R7850
10k
1/16W
ADDR11
J
R7817
4.7k
1/16W
ADDR10
—
ADDR9
R7842
10k
1/16W
:CHIP
ADDR8
DRC_LINE_W
ADDR7
R7818
4.7k
1/16W
:CHIP
ADDR6
I
ADDR5
C7814
0.1
25V
F:CHIP
ADDR4
—
R7840
10k
1/16W
:CHIP
VD3
R7831
10k
1/16W
:CHIP
VS5
DRC_FILM
C13O
:CHIP
ADDR3
R7819
1/16W
ADDR2
4.7k
ADDR1
DRC_PXI
ADDR0
H
AVD2
R7820
4.7k
1/16W
:CHIP
AVS2
—
VD4
C7816
0.1
25V
F:CHIP
VS4
G
D1.8V
C7841
0.1
25V
F:CHIP
C7839
0.1
25V
F:CHIP
C7838
0.1
25V
F:CHIP
KD-34XBR2
|
15
|
16
|
17
|
18
|
19
|
20
|
21
C7870
100
6.3V
:AL-CP
|
22
|
23
|
24
|
L7806
:CHIP
A5V
C7871
0.1
25V
F:CHIP
V_DRCI
A5V
Y7
R7894
15k
1/16W
:CHIP
Y4
Q7808
2SD2216J-(TX)
BUFFER
R7914
560
1/16W
:CHIP
2
FL7802
3.6M
R7912
5.6k
1/16W
:CHIP
R7920
100
1/16W
:CHIP
V_DRC1_PR
PR
1
Q7805
2SB1462J-(TX)
BUFFER
R7909
100
1/16W
:CHIP
C7875
0.1
25V
F:CHIP
C7860
C7857
0.1
0.1
25V
16V
B:CHIP F:CHIP
R7892
15k
1/16W
:CHIP
Y5
R7905
470
1/16W
:CHIP
V-B
6
CLP
A5V
C7866
10
16V
:AL-CP
C7852
0.1
16V
B:CHIP
Y6
Y
R7918
470
1/16W
:CHIP
R7915
560
1/16W
:CHIP
3
C7850
0.1
25V
F:CHIP
FL7803
R7910
5.6k
1/16W
:CHIP
4
41
1
V
IP
CLK2
HS
C7876
0.1
25V
F:CHIP
V_DRC1_Y
1
R7907
100
1/16W
:CHIP
R7921
100
1/16W
:CHIP
Q7809
2SD2216J-(TX)
BUFFER
2
C7861
10
16V
:AL-CP
Q7806
2SA1226-T1E3E4
BUFFER
6
V-A
3
R7906
470
1/16W
:CHIP
4
DTVOUT
R7917
470
1/16W
:CHIP
A5V
Y3
VRT
Y2
C7878
C7879
R7886
1.2k
:RN-CP
C7880
R7880
IN A+
V-
8
47
OUT B
7
IN A-
V+
IN B-
6
49
GND(B)
46
45
41
VRT
OUT A
IN B+
5
50
VIN(B)
40
1
51
VCC(B)
D(C)6
R7878
1k
:CHIP
2
52
VRT(B)
D(C)5
D(A)3
C7881
A5V
R7879
1.3k
:RN-CP
3
53
CLPV(B)
D(C)4
D(A)4
IC7807
LMV358IPWR
VOLTAGE REF
4
54
IBIAS(B)
48
55
56
CLK
EXTCLP
59
57
60
IBIAS(A)
58
61
CLPV(A)
CLPEN
62
VRT(A)
XSYNC
63
D(A)5
39
D(C)3
Q7811
2SD2216J-(TX)
CURRENT BUFFER
44
D(C)2
38
Y2
D(C)1
D(A)6
Y4
Y3
IC7806
TLC5733AIPM
TRIPLE 8-BIT A/D
43
D(A)7
42
5
6
D(A)8
Y6
Y5
DGND(QC)
DGND(QA)
7
Y7
8
38
1
V
IP
MODE0
MODE1
9
C0
NT/PAL
TEST
10
C2
C1
R-Y
OE(B)
Y
11
C3
VCC(A)
C5
C4
64
1
2
OE(A)
C7
3
C6
VRB(B)
4
VRB(A)
VIN(A)
Y0
39
1
V
IP
GND(A)
Y1
R7877
1k
:CHIP
Q7812
2SB1462J-(TX)
CURRENT BUFFER
25
RBSL
VS17
188
74
VD5
TRST
187
75
VS8
TDO
186
76
B2
TMS
185
TDI
184
TCK
183
101
160
102
159
103
158
104
157
C7891
10V
B:CHIP
R7865
3.3k
1/16W
:RN-CP
C7820
0.1
25V
F:CHIP
C7819
0.1
25V
F:CHIP
R7862
620
1/16W
:RN-CP
14
13
12
R7828
470k
1/16W
:CHIP
0.1
C7810
0.1
25V
F:CHIP
R7863
220
1/16W
:RN-CP
R7864
270
1/16W
:CHIP
C7824
0.1
25V
F:CHIP
8
7
6
C7828
0.1
25V
F:CHIP
5
8
7
6
C7832
0.1
25V
F:CHIP
5
1
RB7804
47
2
3
4
8
7
6
1
5
3
2
4
7
8
5
6
RB7805
47
R7867
220
1/16W
:RN-CP
R7869
33
1/16W
:CHIP
DRCMCLK
1
2
3
C7833
0.1
25V
F:CHIP
8
7
6
5
1
2
3
4
C7835
25V F:CHIP
RB7813
47
RB7808
47
R7868
33
1/16W
:CHIP
C7821
0.1
25V
F:CHIP
R7866
220
1/16W
:RN-CP
C7818
0.1
25V
F:CHIP
C7823
0.1
25V
F:CHIP
8
7
5
6
RB7814
47
RB7811
47
1
4
2
1
4
3
2
4
3
CB7
CB6
CB4
CB5
CB2
CB3
CB0
CB1
CR6
CR7
CR4
CR5
CR2
CR3
CR0
CR1
Y6
Y7
Y4
Y5
Y2
Y3
Y0
Y1
CLK
FOR_SDRAM
Q7802
2SB1462J-(TX)
VCO LIM
C7838
0.1
25V
F:CHIP
C7837
0.1
25V
F:CHIP
C7840
0.1
25V
F:CHIP
R7872
100
1/16W
:CHIP
R787
100
1/16W
:CHI
156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105
C7808
10
10V
F:CHIP
11
99
100
161
R7822
3.6k
1/16W
:CHIP
10
98
162
9
97
163
8
96
164
1
95
165
2
94
166
3
93
167
4
92
168
5
91
169
6
90
170
7
89
CLP
L7802
VS14
DBO9
DBO8
DBO7
DBO6
DBO5
DBO4
DBO3
DBO2
DBO1
DBO0
AVS5
AVD5
VS13
VD9
DRO9
DRO8
DRO7
DRO6
DRO5
DRO4
DRO3
DRO2
DRO1
DRO0
VS12
DYO9
DYO8
DYO7
DYO6
DYO5
DYO4
R7811
3.3k
1/16W
:CHIP
ADHD
DYO3
C7805
0.1
25V
F:CHIP
VS10
DYO2
R7809
:CHIP
1/16W
RCON
DYO1
C7803
47
16V
:AL-CP
1k
BCON
VD7
DYO0
R7808
220
1/16W
:CHIP
WPLLHD
HD2
C27O
P
C7801
0.01
25V
B:CHIP
W13I
VD2O
VS11
R7801
470k
1/16W
:CHIP
IVD
C54O
R7803
22k
1/16W
:CHIP
—
XV9O
V9O
VD8
:CHIP
VS15
AVS4
1/16W
DIC0
XH9O
AVD4
100
DIC1
C54I
ABO
R7804
LOGIC VDD
VCO VDD
SELECT
R BIAS
VCO OUT
VCO IN
FINA
VCO GND
FINB
VCO INHBIT
PFD OUT
PFD INHBIT
LOGIC GND
NC
DIC2
RPLLHD
DAVS
R7807
100
1/16W
:CHIP
O
D3.3V
R7837
10k
1/16W
:CHIP
:CHIP
DIC3
HREF
DAVD
R7805
330
1/16W
:CHIP
C7802
0.1
25V
F:CHIP
DIC4
VD6
D1.8V
:CHIP
IC7801
TLC2933IPWR-12
READ PLL
DIC5
FFSW
VG
R7806
220
1/16W
:CHIP
Q7810
2SD2216J-(TX)
VCC DROP
L7801
DIC6
FPD
ARO
—
R7802
0
1/16W
:CHIP
C7804
10
10V
F:CHIP
DIC7
FPO
VB
N
VD10
IRF
D5V
C7815
0.1
25V
F:CHIP
VS16
RXI
VRF
—
DIY0
XOC
AYO
R7857
22
1/16W
:CHIP
XCLH
DIY1
171
HS
88
M
LEVEL
DIY2
172
VS
87
R7858
22
1/16W
:CHIP
INSEL
DIY3
173
—
86
L
ORDER
DIY4
174
R7829
10k
1/16W
:CHIP
85
R7859
10k
1/16W
:CHIP
VS9
DIY5
175
R7833
10k
1/16W
:CHIP
R7826
10k
1/16W
:CHIP
84
:CHIP
AVS3
DIY6
176
1/16W
83
4.7k
:CHIP
AVD3
DIY7
177
—
R7812
DRC_FFSW
1/16W
4.7k
R7813
82
DRC_INSEL
DRC_LEVEL
S1
VD11
178
:CHIP
1/16W
4.7k
R7814
C7811
0.1
25V
F:CHIP
81
K
S0
179
Q7813
2SD2216J-QR(TX)
INVERTER
80
C7812
0.1
25V
F:CHIP
FSEL
180
—
CYD1
79
C7813
0.1
25V
F:CHIP
CYD0
IC7804
CXD2095AQ
FILM MODE DETECT
DRC-MF
181
R7823
47k
1608
78
DRC_BLK
77
J
R7850
10k
1/16W
:CHIP
182
73
R7817
4.7k
1/16W
:CHIP
DRCOUT
—
— 102 —
C0
C1
C2
C3
C4
C5
C7
C6
C7855
0.1
25V
F:CHIP
C7
C5
Q7807
2SD2216J-(TX)
BUFFER
R7908
100
1/16W
:CHIP
C7863
10
10V
F:CHIP
C4
R7911
5.6k
1/16W
:CHIP
V_DRC1_PB
PB
1
FL7801
3.6M
2
C7874
0.1
25V
F:CHIP
R7919
100
1/16W
:CHIP
R7913
560
1/16W
:CHIP
6
Q7804
2SB1462J-(TX)
BUFFER
D5V
C7859
0.1
25V
F:CHIP
C7856
0.1
16V
B:CHIP
C6
R7904
470
1/16W
:CHIP
A5V
3
C7867
0.1
25V
F:CHIP
R7893
15k
1/16W
:CHIP
C7846
0.1
25V
F:CHIP
Y1
Y0
5
4
40
39
38
37
34
33
C7873
10
16V
:AL-CP
4
Y2
IN B+
35
OE(C)
VRB(C)
D3.3V
Y3
V-
R7880
1.3k
:RN-CP
VRB
32 GND(C)
31 VIN(C)
30 VCC(C)
29 VRT(C)
B-Y
28 CLPV(C)
27 IBIAS(C)
26 VDD
25 DGND
24 D(B)1
Y4
23 D(B)2
Y5
22 D(B)3
17 D(B)8
Y6
21 D(B)4
VDD(QB)
20 D(B)5
DGND(QB)
VDD(QC)
19 D(B)6
VDD(QA)
C7880
36
9
10
11
D(C)7
D(C)8
D(A)2
D(A)1
18 D(B)7
D3.3V
D(C)6
12
Y7
D(C)5
D(A)3
13
Y0
D(C)4
D(A)4
14
Y1
D(A)5
15
Y3
Y2
16
38
1
V
IP
R7916
470
1/16W
:CHIP
V-C
ISLAND_GROUND_FOR_ANALOG
C3
C2
C1
D5V
C0
7840
0.1
25V
CHIP
CLK1
C7849
10
10V
F:CHIP
CLP
Q7803
2SD2216J-(TX)
3.3V REG
L7803
C7847
F:CHIP
R7890
100
1/16W
:CHIP
R7885
1k
1/16W
:CHIP
D7803
UDZ-TE-17-3.9B
12
14
13
C7882
10V
B:CHIP
680k
R7881
820
1/16W
:CHIP
D5V
C7865
10
10V
F:CHIP
11
LOGICVDD
VCO VDD
SELECT
R BIAS
VCO OUT
VCO IN
FINA
VCO GND
FINB
VCO INHBIT
PFD OUT
PFD INHBIT
LOGIC GND
NC
C7854
10
10V
F:CHIP
R7888
5.1k
1/16W
:CHIP
R7896
47k
1/16W
:CHIP
:CHIP
10
2
5
4
3
CLK 2
R7873
:CHIP
1/16W
C7853
0.1
25V
F:CHIP
L7805
9
1
33
R7899
330
1/16W
:CHIP
8
33
CLK 1
:CHIP
IC7805
TLC2932IPWR
WRITE PLL
R7874
:CHIP
1/16W
R7897
330
1/16W
:CHIP
3.3V
:CHIP
L7804
6
R7871
100
1/16W
:CHIP
HS
7
R7872
100
1/16W
:CHIP
R7887
680k
1/16W
:CHIP
R7889
1/16W
:CHIP
C7851
0.01
25V
B:CHIP
C7848
4.7
6.3V
B:2012
R7876
100
1/16W
:CHIP
VS
HS
R7884
100
1/16W
:CHIP
9-965-916-02<HA3>QM P5
QM BOARD SCHEMATIC DIAGRAM (6 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
A5V
A
—
C8651
0.1
25V
F:CHIP
L8601
:CHIP
TO B BOAR D
C N005
—
GND
V_MIDI_PB
GND
V_MIDI_PR
C
V_MIDI_HS
E
B2
GND
B7
V_DRCI_VS
B8
A9
A_MSK
B9
EXT_SDA
A10
GND B10
/BINT
4
R8614
820
1/16W
:CHIP
V_MIDI_PR
5
R8620
200
1/16W
:RN-CP
V_MIDI_VS
OSD_VS
V_DRC1_Y
V_DRC1_PB
OSD_HS
8
7
A11
B11
9
V_DRC1_PR
10
1k
6
:CHIP
1k
R8604
FB7602
0UH
1/16W
R8610
100
1/16W
:CHIP
A_MSK
R8613
820
1/16W
:CHIP
SDA_EXT
R8624
200
1/16W
:RN-CP
Q8602
2SC2223
BUFFER
R8630
1.5k
1/16W
:CHIP
R8619
300
1/16W
:RN-CP
1
2
3
:CHIP
:CHIP
FL8602
17M LPF
/BINT
6
—
V_MIDI_PB
4
R8627
100
1/16W
:CHIP
Q8607
2SA1226-T1E3E4
BUFFER
D 5V
R8623
300
1/16W
:RN-CP
R8644
100k
1/16W
:CHIP
V_DRCI
A5V
F
R8629
1.5k
1/16W
:CHIP
R8618
300
1/16W
:RN-CP
R8612
820
1/16W
:CHIP
G
C8629
0.01
25V
B:CHIP
Q8601
2SC2223
BUFFER
R8609
100
1/16W
:CHIP
—
1
2
3
FL8601
17M LPF
6
—
H
Q8608
2SA1226-T1E3E4
BUFFER
MN_SB_SW
:CHIP
:CHIP
0UH
0UH
4
R8628
100
1/16W
:CHIP
PR
SCL_EXT
FB7603
3
PB
HS
1/16W
FB7601
2
V_MIDI_Y
Y
VS
R8605
1
FL8603
34M LPF
6
A7
A8
EXT_SCL
3
B5
B6
R8631
1.5k
1/16W
:CHIP
V_MIDI_PB
A6
V_DRCI_HS
MN_SB_SW
Q8603
2SC2223
BUFFER
B3
B4
V_DRCI_PR
2
A3
A5
GND
V_MIDI_Y
A2
V_DRCI_Y
GND
—
B1
V_MIDI_VS
V_DRCI_PB
D
1
A1
A4
GND
—
C8650
47
16V
:AL-CP
4
R8626
100
1/16W
:CHIP
R8622
300
1/16W
:RN-CP
V_MIDI_PR
R8641
1k
1/16W
:CHIP
Q8606
2SA1226-T1E3E4
BUFFER
C8609
3300p
50V
B:CHIP
C8622
0.1
25V
F:CHIP
C8610
100p
50V
CH:CHIP
C8608
0.33
10V
B:CHIP
QM BOARD WAVEFORMS
(SCHEMATIC 6 OF 9)
1
V_MIDI_Y
I
R8637
—
1.1 Vp-p (H)
1.5 Vp-p (H)
3
R8636
1k
1/16W
:CHIP
C8655
0.1
25V
F:CHIP
C8613
0.1
16V
B:CHIP
R8638
1k
1/16W
:CHIP
2
C8621
0.1
25V
F:CHIP
C8617
0.1
25V
F:CHIP
—
J
XCLKIN
109
C8611
100p
50V
CH:CHIP
R8639
3.3k
1/16W
:RN-CP
0.1
1k
1/16W
108 10
C8625
25V F:CHIP
R8642
3k
1/16W
:RN-CP
110
CLKIN
111
SYNCIN1
112
SYNCIN2
113
CLPIN
114
DVCCPLL
115
DGNDPLL
116
AVCCVCO
117
AGNDVCO
118
RC1
119
RC2
120
AVCCIR
121
IREF
122
DPGND
123
AGNDIR
124
G/YIN1
125
AVCCAMPG
126
C/YIN2
127
AGNDAMPG
128
G/YCLP
129
B/CbCLP
130
R/CrCLP
:CHIP
V_MIDI_PB
C8615
0.1
16V
B:CHIP
4
0 1
C8656
25V F CHIP
131
DPGND
132
SOGIN1
133
B/CbIN1
134
AVCCAMPB
135
SOGIN2
XTLOAD
V_MIDI_Y
R8611
100
1/16W
:CHIP
EVEN/ODD
CN8601
22P
SUBAD_EXTCLP
B
VIDEO_IN
KD-34XBR2
|
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
|
3.3V REG
V IN
V CONT
V OUT
V ADJ
GND
IC8709
PQ07VZ012P
1
2
3
4
5
C8654
100
6.3V
:AL-CP
A5V
SUBAD_DOTCLK
SUBAD_DSYNC
SUBAD_XDOTCLK
D7008
1SS355TE-17
C8653
0.1
25V
F:CHIP
R8658
3.3k
1/16W
RN:CP
R8657
3.3k
1/16W
RN:CP
R8656
1k
1/16W
RN:CP
Y4
Y5
Y6
SUBAD_PLLHOLD
Y7
C8652
47
16V
:AL-CP
ADC3V
8
7
6
5
1
2
3
4
RB8603
22
ADC3V
L8602
:CHIP
C8632
0.1
25V
F:CHIP
R8651
22
1/16W
:CHIP
C8634
1
6.3V
B:CHIP
R8744
22
1/16W
:CHIP
D 5V
C8638
22
10V
F:CHIP
C8637
0.1
25V
F:CHIP
L8603
:CHIP
D5V
+5VA_SUBAD
A5V
C8639
47
16V
:AL-CP
SUBAD_PLL_LOCK
IN1
80
79
78
77
76
75
74
73
GA5
81
GA7
82
GA6
83
DVCCADTTL
84
GB0
85
DGNDADTTL
DGNDADTTL
86
DGNDAD3
DVCCAD
DVCCADTTL
N
87
GB1
VRB
DVCCAD3
IN2
88
AGNDAD3
89
GB3
90
GB2
91
GB5
92
GB4
93
DGNDAD3
94
GB7
95
GB6
96
AVCCAD3
XCLK
97
AGNDDADREF
98
DVCCPLLTTL
99
DGNDPLLTTL
1/2CLK
1/2XCLK
DPGND
XUNLOCK
HOLD
SOGOUT
XTLOAD
DSYNC/DIVOUT
N
EVEN/ODD
108 107 106 105 1044 103 102 101 100
CLK
R8649
100
1/16W
:CHIP
D5V
GA4
72
GA3
71
GA2
70
GA1
69
GA0
68
PLL
DGNDADTTL
67
PLL
DGNDAD3
66
VCO
DVCCADTTL
65
VCO
IR
D
BB7
64
BB6
63
BB5
62
BB4
61
BB3
60
DGNDAD3
BB2
58
N1
BB1
57
BB0
56
N2
AMPG
IC8601
CXA3506R
A/D
DGNDADTTL
55
DVCCADTTL
54
LP
BA7
53
CLP
BA6
52
CLP
BA5
51
DGNDDAD3
50
N1
BA4
49
IN1
BA3
48
D
4
Y3
6
3
Y2
7
2
Y1
8
1
Y0
59
IR
AMPG
RB8606
22
5
AMPB
BA2
47
N2
BA1
46
RB8605
22
5
4
C7
6
3
C6
7
2
C5
8
1
C4
5
4
C3
6
3
C2
7
2
C1
8
1
C0
C8640
10
10V
F:CHIP
C8642
0.1
25V
F:CHIP
C8647
0.1
25V
F:CHIP
C8645
0.1
25V
F:CHIP
C8643
0.1
25V
F:CHIP
C8641
10
10V
F:CHIP
C8644
0.1
25V
F:CHIP
C8646
0.1
25V
F:CHIP
C8649
0.1
25V
F:CHIP
C8648
0.1
25V
F:CHIP
27
|
0.1
J
V_MIDI_PR
—
C8612
0.1
16V
B:CHIP
C8624
0.1
25V
F:CHIP
3.5 Vp-p (H)
1.3 Vp-p (H)
0.1
6
5
K
A5V
—
3.3 Vp-p (V)
7
C8656
25V F:CHIP
C8657
25V F:CHIP
C8623
0.1
25V
F:CHIP
134
AVCCAMPB
135
SOGIN2
136
B/CbIN2
137
AGNDAMPB
138
DPGND
139
R/CrIN1
140
AVCCAMPR
141
R/CrIN2
142
AGNDAMPR
143
G/YOUT
144
DAC
TEST
OUT
ADDRESS
4
B/CbOUT
3
1
1.5 Vp-p (H)
8
L
R8646
1k
1/16W
:CHIP
R8643
1k
1/16W
:CHIP
—
R8645
1k
1/16W
:CHIP
1.1 Vp-p (H)
1.1 Vp-p (H)
10
9
M
—
3.4 Vp-p (H)
3.4 Vp-p (V)
SDA_M3
N
SCL_M3
—
O
Y_ CL
CB_CL
—
CR_ CL
680
680
680
R8608
:CHIP
1/16W
R8607
:CHIP
1/16W
100
R8616
:CHIP
1/16W
100
R8606
:CHIP
1/16W
C8601
0.01
25V
B:CHIP
P
R8625
1k
1/16W
:CHIP
R8621
1k
1/16W
:CHIP
SUBAD_CLVL
C8602
10
6.3V
B:CHIP
R8615
:CHIP
1/16W
10
C8604
6.3V B:CHIP
C8606
10
6.3V
B:CHIP
C8603
0.01
25V
B:CHIP
R8632
1k
1/16W
:CHIP
Q8604
2SB1462J-(TX)
BUFFER
100
R8617
:CHIP
1/16W
Q8605
2SB1462J-(TX)
BUFFER
Q8609
2SB1462J-(TX)
BUFFER
C8607
0.1
25V
F:CHIP
C8605
0.01
25V
B:CHIP
—
— 103 —
R8
1/
:C
AMPB
BA2
47
N2
BA1
46
IN2
BA0
45
AMPB
DGNDADTTL
44
D
DGNDAD3
43
IN1
DVCCADTTL
42
28
29
30
31
32
RB2
27
RB1
26
DGNDADTTL
25
RB0
24
DVCCADTTL
23
DGNDAD3
22
RA7
21
AGNDAD3
20
RA6
19
RA4
18
RA5
17
RA2
16
RA3
15
RA1
14
DGNDAD3
13
DGNDADTTL
12
RA0
11
DVCCAD3
10
DVCCADTTL
9
VRT
8
AVCCAD3
7
DPGND
6
AVCCADREF
5
3WIRE/I2C
4
SEROUT
3
SCL
2
XSENABLE
1
SDA
37
DVCCREG
38
RB3
DGNDREG
RB4
XPOWER SAVE
39
UT
NC
RB5
NC
40
AMPR
ADDRESS
41
RB6
R/CrOUT
RB7
IN2
B/CbOUT
AMPR
33
34
35
36
C2
6
3
7
2
C1
8
1
C0
RB8604
22
ISOLATED_GND
R8648
5.6k
1/16W
:CHIP
R8653
10k
1/16W
:CHIP
C8636
0.1
25V
F:CHIP
8
7
6
8
5
7
6
5
DGND
RB8602
22
C8633
0.1
25V
F:CHIP
2
3
R7
1
R6
4
R5
3
R4
2
R3
1
R1
RB8601
22
R2
R8652
10k
1/16W
:CHIP
R0
R8650
10k
1/16W
:CHIP
1
6.3V
R8647
10k
1/16W
:CHIP
C8630
0.1
25V
F:CHIP
C8635
8646
1k
/16W
CHIP
B:CHIP
C8631
0.1
25V
F:CHIP
4
SUBAD_OUT
ADC3V
A5V
9-965-916-02<HA3>QM P6
QM BOARD SCHEMATIC DIAGRAM (7 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
A
R8747
1k
1/16W
:RN-CP
C8746
22
10V
F:CHIP
C5
C3
R7
A1
A2
A9
A8
A7
A6
A5
A4
CLKIN
CS
RAS
CLK
WE
DQM1
DQM0
D7
D6
D5
D3
D4
D2
D1
D0
D15
D14
D13
D12
D11
D9
CKE
4
1
2
6
3
5 47
6
5
8
7
6
5 RB8706
8
7
6
5
RB8704
47
4
1
2
3
4
1
2
3
4
1
2
3
4
C8717
0.1
25V
F:CHIP
47
RB8708
47
C8719
0.1
25V
F:CHIP
R6
—
C2
C1
F
C0
SUBAD_ DOTCLK
—
—
R8709
:CHIP
1/16W
SUB AD_EXTC LP
H
C8708
0.1
25V
F:CHIP
R8713
10k
1/16W
:CHIP
D3.3V
Y5
Y4
SDADR5
SDADR4
SDADR7
SDADR6
VDD2
SDADR8
VSS
SDADR9
SDADR1
SDADR2
SDCS
VSSSD
SDCLKIN
VSS
VDD2
SDRAS
SDCLK
SDCAS
SDCKE
SDWE
113
189 AUXCIN4
SDDAT21
112
190 VDOCIN2
SDDAT22
111
191 VDOCIN1
SDDAT23
110
192 VDOCIN0
SDDAT24
109
193 OVDD22
SDDAT25
108
VDDSD 107
195 OVDD11
SDDAT26
106
196 VDOCLKOUT
SDDAT27
105
197 VDD1
SDDAT28
104
198 VSS
SDDAT29
103
199 XRESET
VSS 102
200 VDOHLFCK
201 XVDOVS
SDDAT30
100
202 XVDOHS
SDDAT31
99
VDD1 101
203 XOSDHS
XSM
98
204 XOSDVS
MST
97
205 VDOCLAMP
206 AVCCAD3
207 AGND
208 ANCRIN
210 ANCBIN
214 AVCCAD1
Y6
VDD1
VDD2 114
SDDAT20
213 ANREF1
Y7
SDDQM1
VSS 115
188 AUXCIN5
212 ANREF2
DTVOUT
SDDAT7
116
211 AGND
I
SDDQM0
VSS
SDDAT6
SDDAT4
SDDAT5
SDDAT3
SDDAT1
SDDAT2
VDD1
SDDAT0
SDDAT14
SDDAT15
SDDAT13
VDD1
SDDAT12
VSS
SDDAT11
SDDAT9
SDDAT10
SDDAT8
VDOYCLVL
VDOCBCLVL
VDOCRCLVL
VDOYIN7
VDOYIN6
VDD2
VDOYIN5
VSS
SDDAT19
209 AVCCAD2
—
VDOYIN3
185 VDOCIN3
:CHIP
SUBAD_ DSYNC
33
118
117
1/16W
R8703
:CHIP
1/16W
10k
XBOXRST
C8709
0.1
25V
F:CHIP
R8712
R8711
22
1/16W
:CHIP
V_MIDI_VS
SDDAT17
SDDAT18
194 VDOCLKIN
SUBAD_ PLLHOLD
120
119
183 VDOCIN5
187 AUXCIN6
R4
SDADR3
SDDAT16
184 VDOCIN4
186 AUXCIN7
R5
100
A10
Y7
Y6
Y5
Y4
CAS
3
7
C8714
0.1
25V
F:CHIP
182 VDOCIN6
C4
E
VDOYIN4
181 VDOCIN7
VDOYIN2
C7
C6
G
7
Y_CL
2
8
180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121
—
J
Y3
2.5V
VDOYIN0
R8748
1k
1/16W
:RN-CP
C8712
0.1
25V
F:CHIP
VDOYIN1
D8701
1SS355TE-17
D
—
Y1
Y0
1
5
D3.3V
C8745
0.1
25V
F:CHIP
A0
5
6
SDADR0
4
7
SDADR10
3
A12
GND
2
A11
V ADJ
1
8
RB8702
8
SDADR11
V OUT
C
V IN
R8752
0
:CHIP
—
RB8701
47
IC8706
PQ07VZ012P
SDADR12
D3.3V
V CONT
—
Y2
SUBAD_OUT
2.5V REG
CB_CL
B
CR_CL
SUBAD_CLVL
D10
D8
—
IC8703
CXD9509AQ
MID-X
TMODENB
96
IICCKSEL
95
IICSCL
94
IICSDA
93
OVDD21
92
DXT1IN
91
VSS
90
VDD1
89
DXT1OUT
88
AVCCSD
87
215 ANYGIN
AGND
86
216 AVSSAD1
AGND
85
217 DTVYIN7
DSPLPFI
84
218 DTVYIN6
DSPLPFO
83
219 DTVYIN5
AVCCDSP
82
220 DTVYIN4
DXT2OUT
81
80
KD-34XBR2
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
26
D3.3V
IC8704
TC59S6432CFT-80(
YB)
64M-SDRAM
108
A1
A2
D27
96
R8718
10k
1/16W
:CHIP
R8717
10k
1/16W
:CHIP
Q8701
2SK1399
LEVEL-SHIFT
:CHIP
R8733
10k
1/16W
:CHIP
R8724
0
1/16W
:CHIP
95
SCL_M5
91
90
89
87
D
86
C8726
0.1
25V
F:CHIP
85
84
R8726
R8716
C8733
0.1
25V
F:CHIP
C8729
12p
50V
CH:CHIP
R8725
:CHIP
1/16W
270
:CHIP
83
C8731
82
81
80
R8715
10k
Q8702
2SK1399
LEVEL-SHIFT
7
2
8
1
0.0047
50V
R8737
10
1/16W
B:CHIP
C8734
0.1
N.C.
A9
A12
A8
A11
A7
A10
A6
A0
A5
A1
A4
A2
A3
DQM2
DQM3
VCC
VSS
N.C.
N.C.
DQ16
DQ31
VSSQ
VCCQ
DQ17
DQ30
DQ18
DQ29
VCCQ
VSSQ
DQ19
DQ28
DQ20
DQ27
VSSQ
VCCQ
DQ21
DQ26
DQ22
DQ25
VCCQ
VSSQ
DQ23
DQ24
VCC
VSS
86
85
84
83
82
81
80
79
78
77
76
D9
1
D8
8
RB8714
47
D3.3V
DQM0
70
71
72
73
74
75
2
0.1
C8742
25V F:CHIP
CLK IN
69
CKE
D1 0
7
C LK
68
CS
3
C KE
67
CLK
4
A9
66
N.C.
D1 1
5
6
A8
65
CAS
RAS
D1 2
A7
64
N.C.
1
A6
63
23
29
32
33
36
D22
D23
C8739
0.1
25V
F:CHIP
SDA_M3
:CHIP
1/16W
10
10k
3
SDA_M5
SCL_M3
0 :CHIP
R8736
4
6
X8701
18.543956MHz
88
D
5
D21
42
C8728
12p
50V
CH:CHIP
D2 0
43
92
S
93
RB8712
47
R8734
10k
1/16W
:CHIP
S
94
1
37
97
1/16W
2
8
38
T
10k
7
39
D31
R8719
3
40
98
D19
4
34
D18
D3.3V
D30
5
6
35
D1 7
99
M
D16
D29
C8723
0.1
25V
F:CHIP
100
C8738
0.1
25V
F:CHIP
31
D28
104
101
RB8713
47
41
106
30
D26
105
103
28
DQM 1
107
WE
8
A5
62
D24
D25
24
A0
25
D23
DQM1
D1 3
A4
61
109
A 11
A1 0
26
110
D21
D22
27
112
111
22
A12
D20
113
VSS
DQM0
2
A3
60
21
114
N.C.
D1 4
7
D1 5
DQM1
59
20
0.1
CS
N.C.
VCC
3
58
C8724
25V F:CHIP
DQ8
4
6
RB8717
47
57
CAS
RAS
VCCQ
5
56
15
D18
D19
16
WE
17
D17
VSSQ
DQ7
55
117
116
DQM 0
18
118
D16
19
119
S 102
1
14
RB8710
47
A3
120
S 115
1
13
R8720
22
1/16W
:CHIP
DQ9
54
D7
DQ6
53
2
DQ10
52
7
VSSQ
DQ5
51
D6
DQ11
50
3
DQ4
VCCQ
49
6
DQ12
48
D5
VCCQ
47
4
VSSQ
DQ3
46
5
DQ13
RB8715
47
5
4
D3 1
6
3
D3 0
7
2
D2 9
8
1
D2 8
C8741
0.1
25V
F:CHIP
5
4
D27
6
3
D26
7
2
D25
8
1
D24
45
D4
DQ2
44
1
3
8
4
D3
5
2
DQ14
6
7
VSSQ
7
D2
VCCQ
DQ1
8
3
9
4
6
DQ15
11
5
D1
VSS
12
D3.3V
D0
VCC
DQ0
10
RB8711
47
2
C8737
0.1
25V
F:CHIP
08
S
C8740
0.1
25V
F:CHIP
RB8716
47
|
27
|
Y5
Y4
J
219 DTVYIN5
AVCCDSP
82
220 DTVYIN4
DXT2OUT
81
221 VDD1
XTST
222 VSS
CLK
DSPCLK
Y3
Y2
Y1
Y0
C7
C6
C5
R3
R2
R1
75
227 DTVYIN1
XDSPYS
74
228 DTVYIN0
XDSPVS
73
229 DTVCIN7
XDSPHS
72
230 DTVCIN6
DSPCR0
71
231 DTVCIN5
DSPCR1
70
232 AUXCIN3
DSPCR2
69
233 AUXCIN2
DSPCR3
68
235
VSS
67
VDD2
66
46
47
48
49
50
51
52
53
54
55
56
57
DSPCB1
45
DSPCB3
44
DSPCB2
43
DSPCB5
42
DSPCB4
41
VDD2
40
VSS
39
DSPCB7
38
DSPCB6
37
DSPY1
36
DSPY0
35
DSPY3
34
DSPY2
33
DSPY5
32
DSPY4
31
DSPY7
30
DSPY6
29
VDD1
28
VSS
27
DRCYIN1
26
DRCYIN0
25
OVSS1
24
DRCYIN2
23
VDD1
22
DRCDCLK
21
DRCYIN4
20
DRCYIN3
19
DRCYIN6
18
DRCYIN5
17
VSS
16
DRCYIN7
15
DRCCRIN0
14
DRCCRIN2
13
DRCCRIN1
12
VDD1
11
DRCCRIN3
10
DRCCRIN5
9
DRCCRIN4
8
DRCCRIN7
7
DRCCRIN6
6
DRCCBIN0
5
VSS
4
DRCCBIN1
3
VDD2
2
DRCCBIN2
1
M
DRCCBIN4
61
DRCCBIN3
DSPCB0
DRCCBIN6
62
240 DTVCIN0
DRCCBIN5
DSPCR7
XDRCHS
63
239 DTVCIN1
DRCCBIN7
DSPCR6
DTVHSYNC
64
238 DTVCIN2
XDRCVS
C0
DSPCR5
VDD2
C1
65
237 DTVCIN3
VSS
C2
DSPCR4
DTVCLKOUT
C3
AUXCIN0
236 DTVCIN4
DTVYCLVL
C4
—
OVSS3
234 AUXCIN1
R0
L
76
226 DTVYIN2
DTVCLAMP
—
77
DXT2IN
DTVVSYNC
K
78
VDD1
225 DTVYIN3
DTVPHLD
—
79
VSS
223 DTVCLKIN
224 OVSS2
80
58
59
60
2.5V
C8706
10
6.3V
B:CHIP
—
R8714
10k
1/16W
:CHIP
2.5V
C8715
0.1
25V
F:CHIP
C8713
0.1
25V
F:CHIP
C8718
0.1
25V
F:CHIP
C8716
0.1
25V
F:CHIP
7
8
5
6
7
8
5
6
5
6
6
7
8
5
RB8709
22
2
1
HS
VS
7
8
RB8705
22
RB8703
22
N
C8720
0.1
25V
F:CHIP
1
4
3
2
4
3
RB8707
22
3
2
1
4
2
1
3
4
DRCOUT
—
P
—
— 104 —
C0
C1
C2
C3
C4
C5
C7
C6
Y1
Y0
Y2
Y3
Y5
Y4
Y7
Y6
Y0
Y1
Y2
CLK
Y3
Y4
Y5
Y6
Y7
CR0
CR2
CR1
CR3
CR5
CR4
CR6
CR7
CB0
CB2
CB1
CB4
CB3
CB6
CB5
CB7
VS
O
HS
—
F
82
81
T
79
S
R8737
10
1/16W
:CHIP
R8715
10k
1/16W
:CHIP
80
C8722
0.1
25V
F:CHIP
78
77
C8734
0.1
25V
F:CHIP
CLK
R8728
22
1/16W
:CHIP
SUBAD_XDOTCLK
76
75
56
R8727
:CHIP
1/16W
A_MSK_PLD
74
R8722
73
0 1/16W
:CHIP
MIDE_XVS
72
R8721
:CHIP
0 1/16W
71
70
69
68
S
C8721
0.1
25V
F:CHIP
67
66
65
64
63
62
61
D3.3V
SYNCSW
D3.3V
D3.3V
HS
15
4
4B
14
3
4A
1Y
2A
4Y
2B
3A
2Y
3B
10
G
3Y
9
11
12
5
XST
C8748
0.1
25V
F:CHIP
13
2
1A
1B
6
2Y
V
7
G
S
8
3A
6
8
1Y
5
7
2
3Y
2A
IC8708
TC7WH04FU
SYNC INVERT
R8751
22
1/16W
:CHIP
VS
V
3
RB8709
22
1A
4
1
1
C8725
1000
6.3V
:AL-CP
16
2.5V
IC8707
TC74VCX157FT
SYNC SW
R8750
22
1/16W
:CHIP
MIDOUT
9-965-916-02<HA3>QM P7
QM BOARD SCHEMATIC DIAGRAM (8 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
A
—
B
—
C
—
D
—
D3.3V
D3.3V
M2
E
L8802
L8803
:CHIP
:CHIP
C8828
0.1
25V
F:CHIP
C3
4
C4
C5
C7
DVDD
NC
NC
bpb0
bpb1
bpb2
bpb3
bpb4
bpb5
bpb6
bpb7
NC
NC
15
RPr0
16
RPr1
17
RPr2
AV
AB
IC8805
THS8134BCPHP
TRIPLE
8 BIT DAC
AV
18
RPr3
19
RPr4
20
RPr5
A
21
RPr6
AV
22
RPr7
AR
AV
CO
13
14
A14
/HSYNC
15
A13
/CSYNC
16
A12
17
A11
VDD
SDQ24
18
19
SDQ23
20
VSS
SDQ25
2
VSS
A10
A9
A8
SDQ22
47
0.1
NC
GY2
32
NC
GY3
31
GY1
GY4
30
GY0
GY5
29
33
34
35
36
Y1
CLK
Y0
F
XYGV-H
R8811
:CHIP
1/16W
C8826
25V F:CHIP
28
C8836
0.1
25V
F:CHIP
RB8812
47
DQ2 4
DQ23
DQ2 5
DQ22
D Q0
DQ1
D Q2
5
4
6
3
7
2
D3.3V
IC8804
NT56V1616A0T-7
16 M
SDRAM
VCC
VSS
50
12
FSC
/BLANK
R8871
47
1/16W
:CHIP
27
C7
R8813
22
1/16W
:CHIP
R8857
47
1/16W
:CHIP
26
DQ0
DQ15
49
11
AT1
6
5
25
C6
DQ1
DQ14
VSSQ
VSSQ
48
10
VSS
A17
3
4
C5
7
9
VDD
8
7
Y2
8
AT0
C4
1
2
VR
Y3
7
GCKOUT
VSS
A18
XSYNC
Y4
DRO4
DRO5
180 179 178 177 176 175 174 173 172 171 170 169 168 167 166 165 164 163 162 161 16
A20
A19
RB8808
22
FSA
Y5
181 DRO0
182 DGO5
183 DGO4
184 VSS
185 DGO3
186 DGO2
187 DGO1
188 DGO0
189 DBO5
190 VSS
191 DBO4
192 DBO3
193 VDD
194 DBO2
195 DBO1
196 DBO0
197 VSS
198 AVSS4
199 B
200 AVSS4
201 G
202 AVSS4
203 R
204 AVSS4
205 REXT
206 AVDD4
207 AVDD3
208 AVSS3
209 DRI5
210 DRI4
211 DRI3
212 DRI2
213 VSS
214 DRI1
215 VDD
216 DRI0
217 DGI5
218 DGI4
219 DGI3
220 DGI2
221 DGI1
222 DGI0
223 DBI5
224 DBI4
225 VSS
226 DBI3
227 DBI2
228 DBI1
229 VDD
230 DBI0
231 GCKIN
232 /GCKS
233 /HSIN
234 /VSIN
235 /TCKS
236 TCK80
237 VSS
238 DCKOUT
VSS
DRO3
24
XSYNC
C8827
0.1
25V
F:CHIP
A22
A16
1
23 XBLANK
A21
A15
2
GY7
3
3
GY6
2
4
Y6
1
4
5
1
3
6
2
2
7
3
1
8
SYNC_T
3
9
DVSS
C3
C2
C1
C0
Y7
Y5
Y6
Y4
Y3
Y2
2
C2
D3.3V
10
CLK
C8913
1
C8819
0.1
25V
4 F:CHIP
11
Y7
:CHIP
1/16W
47
:1608
CH
C1
100p
:1608
C8912
R8860
100p
CH
R8809
:CHIP
:CHIP
:CHIP
:AL-CP
1/16W
47
:CHIP
1/16W
4.7k
R8808
1/16W
47
R8807
F:CHIP
25V
0.1
C8816
R8806
470 1/16W
C8817
10 16V
0.1
:AL-CP
10
C8815
C7
C6
C5
C3
C4
C1
C2
Y7
C0
Y5
Y6
14
C0
6
MEM ADR8
RB8807
22
5
J
5
4
MEM ADR10
MEM ADR9
6
3
MEM ADR11
7
2
—
8
1
MEM ADR13
5 22
DRO2
MEM ADR18
MEM ADR12
6
A23
MEM ADR20
MEM ADR14
7
VDD
MEM ADR19
MEM ADR15
RB8806
8
DRO1
MEM ADR22
MEM ADR17
RB8805
22
AVSS1
MEM ADR21
MEM ADR16
5
AVDD1
MEM ADR23
C8807
0.1
25V
F:CHIP
6
C6
239 DCKIN
C8802
0.1
25V
F:CHIP
7
C8808
0.1
25V
F:CHIP
240 VDD
C8801
10
16V
:AL-CP
—
I
Y4
C8811
0.1
25V
F:CHIP
13
8
12
CLK
EMIBUS
C8812
0.1
25V
F:CHIP
C8911
100p
CH
:1608
C8814
:CHIP
G
—
Y2
L8801
AUD27MHZ
H
Y1
16V
—
Y3
D3.3V
Y0
CLK
VS
25V
MIDOUT
HS
F
F:CHIP
Y0
Y1
—
RB8816
47
5
6
7
KD-34XBR2
16
|
17
|
18
|
19
|
20
|
21
|
22
R8829
0
1/16W
:1608
|
23
|
24
|
OS D_R
R8828
0
1/16W
:1608
OS D_G
MID_BUSY
VIDEO OUT
GRANT
OS D_B
TO B BOARD
R8827
0
1/16W
:1608
CN0 04
R8852
1k
1/16W
:CHIP
1k
MICON_RST
CN8801
22P
R8851
:CHIP
1/16W
V_MNO_P R
1
V_MNO_P B
2
V_MNO_Y
R8850
100
1/16W
3
:CHIP
V_MNO_H S
V_MNO _VS
R8849
100
1/16W
:CHIP
OSD_R
A5V
4
OSD_G
L8805
5
:CHIP
OSD_B
A5V
FB8801
0UH
C8841
0.1
25V
F:CHIP
C8861
0.1
25V
F:CHIP
C8851
0.1
25V
F:CHIP
C8850
47
16V
:AL-CP
V_MNO_PB
R8822
68
1/16W
:CHIP
C8845
47
6.3V
:AL-CP
R8837
:CHIP
1/16W
Q8806
2SC2223
BUFFER
bpb7
4
A5V
AGY
41
AVDD
40
COMP
39
FSADJ
38
VREF
V_MNO_PR
C8844
47
6.3V
:AL-CP
14
100
C8843
47
6.3V
:AL-CP
R8818
680
1/16W
:CHIP
NC
R8819
100k
1/16W
:CHIP
36
68
R8836
:CHIP
1/16W
Q8805
2SC2223
BUFFER
PB
C8840
0.1
25V
F:CHIP
37
R8835
100
1/16W
:CHIP
V_MNO_Y
Q8804
2SC2223
BUFFER
R8820
:CHIP
1/16W
R8839
470
1/16W
:CHIP
ISLAND_GROUND_FOR_ANALOG
R8817
6.8k
:CHIP
RB8816
47
5
4
DQ15
6
3
DQ14
7
2
DQ13
D3.3V
IC8807
TC74LVX04FT(EL)
INVERTER
R8844
22
1/16W
:CHIP
R8840
470
1/16W
:CHIP
R8843
22
1/16W
:CHIP
XTV-H
C8839
0.1
25V
F:CHIP
R8821
68
1/16W
:CHIP
9
42
8
43
FL8801
AF9309
6
5
PR
7
ARPR
AVSS
V_MNO_Y
13
44
12
45
AVDD
V_MNO_Y
R8854
100
1/16W
:CHIP
GND
A2
MID_BUSY
B2
BOX_RST
A3
V_MNO_PR
B3
GND
A4
V_MNO_PB
B4
GND
A5
V_MNO_Y
B5
GND
A6
V_MNO_HS
B6
V_MNO_VS
A7
OSD_R
B7
GND
A8
OSD_G
B8
GND
A9
OSD_B
V_MNO_PR
V_MN O_PR
V_MNO_PB
V_MNO_ PB
GND
A10
YSYM
B10
GND
A11 M16C_RXD
TXD_ TO_TV
B11
FB7802
0UH
:CHIP
DIAG
2
46
ABPB
RXD_ FR_TV
Y
3
AVSS
R8845
22
1/16W
:CHIP
R8841
470
1/16W
:CHIP
11
47
10
48
M1
1
M2
GRANT
B1
B9
C8860
0.1
25V
F:CHIP
100
1
A1
FB7801
0UH
:CHIP
M16C_TXD
25
SA11
D Q20
5
4
D Q21
6
3
D Q22
7
2
D Q23
8
1
CS
RAS
AVSS2
AVDD2
118
119
120
/CAS 117
SDCLK
VSS 115
DQM1 116
/WE 114
VDD 113
DQM0 112
SDQ8 111
SDQ7 110
VSS 108
SDQ9 109
106
SDQ6 107
SDQ10
104
SDQ5 105
SDQ4 103
SDQ11
101
VSS 102
SDQ12
99
VDD 100
85
98
84
SDQ3
VSS
83
97
D0
82
SDQ13
D1
81
96
D2
80
SDQ2
D3
79
95
D4
78
SDQ14
D5
77
94
D6
76
VSS
D7
75
93
VSS
74
SDQ1
D8
73
92
D9
72
SDQ15
D10
71
91
VDD
70
SDQ0
D11
69
90
D12
68
/TEST0
D13
67
89
D14
66
/TEST1
D15
65
88
VSS
64
/TEST2
D16
63
87
D17
62
VDD
D18
61
86
D19
SYCKIN
D20
SYCKOUT
D QM2
C8830
0.1
25V
F:CHIP
WE
C AS
R AS
C8821
0.1
25V
F:CHIP
O
C8810
0.1
25V
F:CHIP
C8820
0.1
25V
F:CHIP
C8818
0.1
25V
F:CHIP
C8813
0.1
25V
F:CHIP
CS
S A11
D3.3V
S A10
S A0
S A1
—
R8810
22
1/16W
:CHIP
S A2
S A3
49
48
46
44
43
42
RB8815
47
5
6
7
8
36
D3.3V
26
27
28
29
30
31
32
33
34
35
37
38
39
40
41
45
47
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
VCCQ
DQ4
DQ5
VSSQ
DQ6
DQ7
VCCQ
LDQM
WE
CAS
RAS
CKE
CS
NC
ADDR9
ADDR8
50
DQ3
DQ12
49
VSSQ
DQ13
VCCQ
DQ11
DQ10
VSSQ
DQ9
DQ8
VCCQ
NC
UDOM
CLK
ADDR11
ADDR10
ADDR0
ADDR7
ADDR1
ADDR6
ADDR2
ADDR5
ADDR3
ADDR4
VCC
VSS
CLK
DQM1
CAS
WE
DQ8
DQM0
DQ9
DQ7
DQ6
DQ5
DQ10
DQ4
DQ11
DQ12
DQ13
DQ3
DQ14
DQ2
DQ1
DQ0
DQ15
MEMDAT0
MEMDAT1
MEMDAT2
MEMDAT3
MEMDAT4
MEMDAT5
MEMDAT6
MEMDAT7
MEMDAT8
MEMDAT9
MEMDAT10
MEMDAT11
MEMDAT12
MEMDAT13
MEMDAT14
MEMDAT15
MEMDAT16
MEMDAT17
MEMDAT18
MEMDAT19
P
MEMDAT20
C8829
0.1
25V
F:CHIP
DQ2
48
C8831
0.1
25V
F:CHIP
RB8809
47
VSSQ
47
1
DQ14
46
2
8
8
—
— 105 —
5
6
7
8
45
7
D Q19
DQ1
DQ15
44
D Q18
SA9
DQ0
43
SA10
VSS
VCC
42
3
41
6
40
4
D Q17
39
5
SA8
38
D Q16
37
SA0
6
7
SDRAM
36
C8823
0.1
25V
F:CHIP
16 M
RB8810
47
SA1
5
IC8803
NT56V1616A0T-7
35
SA6
VSS
34
D3.3V
C8832
0.1
25V
F:CHIP
ADDR4
VCC
33
SA2
SA7
ADDR5
ADDR3
32
SA5
ADDR2
31
C8833
0.1
25V
F:CHIP
ADDR6
30
C8824
25V F:CHIP
S A3
ADDR7
ADDR1
29
S A2
ADDR8
ADDR0
28
SA4
ADDR9
ADDR11
ADDR10
27
S A1
NC
26
DQM2
SA3
0.1
SA0
CKE
CS
19
S A10
DQM 3
RAS
20
S A11
UDOM
CLK
21
CS
DQ16
WE
CAS
1
R AS
NC
2
DQ17
DQ31
VCCQ
LDQM
3
WE
C AS
VCCQ
4
DQ18
DQ30
DQ8
DQ7
5
D QM0
DQ9
DQ6
22
C8834
0.1
25V
F:CHIP
DQ29
VSSQ
VSSQ
23
1
24
8
25
2
D Q7
6
60
/RAS
7
DQ19
DQ10
DQ5
7
/SCS
VDD
3
D Q5
D Q6
8
D21
6
DQ20
DQ28
VCCQ
DQ11
VCCQ
DQ4
9
D22
59
SA11
SBA1
58
D23
4
10
VSS
VSS
5
DQ13
DQ12
11
SBA0
C8825
25V F:CHIP
D Q4
DQ2
DQ3
12
55
D24
0.1
C8835
25V F:CHIP
13
54
VDD
57
SA12
56
53
D26
D25
DQ27
0.1
VSSQ
14
SA9
RB8811
47
VSSQ
15
SA10
D27
1
8
DQ21
DQ14
16
D28
2
DQ15
DQ1
17
SA8
D Q3
7
DQ0
18
D29
DQ26
3
19
SA0
D Q2
4
6
20
SA1
D30
DQ22
5
21
VDD
DQ1
22
VSS
SA6
52
C8803
0.1
25V
F:CHIP
/INT
D31
51
MEM DAT21
SA2
SA7
50
MEM DAT23
MEM DAT22
/READY
/WAIT
49
MEM DAT24
SA5
48
MEM DAT25
VSS
D Q0
23
VDD
DQ2 5
24
/DREQ
DQ23
25
SA4
SA3
162 161 160 159 158 157 156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121
/LEND
47
MEM DAT26
DQM2
46
MEM DAT27
LWD
45
MEM DAT28
DQM3
44
MEM DAT29
/CSMEM
/SYCKS
43
MEM DAT30
C8804
0.1
25V
F:CHIP
VSS
42
MEM DAT31
SDQ16
41
XYGVIRQ
—
VDD
/CSREG
40
XYG VWAIT
N
SDQ17
SDQ31
39
—
—
/RD
/RESET
38
D3.3V
XYG VDREQ
M
SDQ18
SDQ30
37
L
VSS
/WR0
36
XYG VCSMEM
VSS
35
XYG VCSIO
C8805
0.1
25V
F:CHIP
/WR1
VDD
SDQ29
34
XYGVRST
/WR2
SDQ28
SDQ19
IC8801
YGV619
GRAPHICS
33
XYG VRD
A1/WR3
VSS
32
—
A3
A2
31
XME MBE0
SDQ20
30
XME MBE1
A4
29
XME MBE2
SDQ27
28
YGVCTRL
A5
VDD
27
K
SDQ26
SDQ21
26
MEM ADR2
XME MBE3
A7
A6
25
MEM ADR4
MEM ADR3
SDQ22
24
—
C8806
0.1
25V
F:CHIP
A8
23
MEM ADR5
SDQ25
22
MEM ADR7
MEM ADR6
SDQ23
VSS
21
J
A9
20
MEM ADR8
19
MEM ADR9
5
6
7
8
F
D3.3
DQ15
3
DQ10
7
2
D Q9
8
1
D Q8
C8838
0.1
25V
F:CHIP
2A
6Y
2Y
5A
V_ MNO_HS
3A
5Y
3Y
4A
GND
V_ MNO_VS
14
6A
13
VCC
12
4
6
1A
1Y
C8852
0.1
25V
F:CHIP
11
5
DQ11
10
RB8815
47
9
DQ12
8
1
1
8
D3.3V
IC8807
TC74LVX04FT(EL)
INVERTER
2
DQ13
3
2
4
DQ14
7
5
3
6
4
6
7
5
4Y
DQM1
C LK
D3.3V
R8870
22
1/16W
CHIP
QM BOARD WAVEFORMS
(SCHEMATIC 8 OF 9)
YGVGCK
S A9
S A8
S A7
S A6
S A5
1
S A4
2
3
0.6 Vp-p (H)
0.6 Vp-p (H)
RB8814
47
5
4
DQ31
6
3
DQ30
7
2
DQ29
8
1
DQ28
4
5
RB8813
47
5
4
DQ27
6
3
DQ26
7
2
DQ25
1
DQ24
8
1.5 Vp-p (H)
C8837
0.1
25V
F:CHIP
DQM3
C LK
D3.3V
S A9
S A8
S A7
GRAPHICS
S A6
S A5
S A4
9-965-916-02<HA3>QM P8
1.4 Vp-p (V)
1.5 Vp-p (H)
QM BOARD SCHEMATIC DIAGRAM (9 OF 9)
1
|
2
|
3
|
4
|
5
|
6
|
7
|
8
|
9
|
10
|
11
|
12
|
13
|
14
|
15
|
A
R8912
10
1/16W
:CHIP
—
SDA_EXT
B
SCL_EXT
10
R8911
:CHIP
1/16W
Q8904
2SB1462J-(TX)
PULL-UP
R8904
0
1/16W
:CHIP
R8918
100k
1/16W
:CHIP
SDA_M5
—
DRC_LEVEL
I
MID_OK
DRC_INSEL
O_EXPAND11
O_EXPAND12
O_EXPAND13
O_EXPAND14
O_EXPAND15
O_EXPAND16
O_EXPAND17
O_DRC_S0
O_DRC_S1
O_DRC_LEVEL
MID_OK
O_MID_OK
O_DRC_INSEL
O_7M_XENA
O_34M_XENA
83
82
84
I_STB/XTV
85
I_DTV/XDRC
86
I_BX/XBC
I_JPN/XUS
87
88
91
O_PLL_CLK
89
92
90
93
O_PLL_SIN
95
IO_SDA0
O_PLL_DAT
96
94
97
IO_SDA1
98
IO_SCL0
99
IO_SCL1
IO_SDA2
1
2
3
4
5
6
7
8
9
10
H
O_EXPAND07
O_EXPAND10
11
—
O_EXPAND06
12
G
O_EXPAND05
13
—
O_EXPAND04
14
DRC_FFSW
O_EXPAND03
15
DRC_BLK
O_EXPAND02
16
F
O_EXPAND01
17
DRC_LINE_W
0_EXPAND00
18
—
19
DRC_PXI
IO_SCL2
100
C8901
0.01
50V
F:1608
20
IC8901
M24C32-WMN6T(A)
MIDX NVM
C8902
0.1
25V
F:CHIP
R8906
47
1/16W
:CHIP
21
SDA
22
SCL
VSS
R8916
2.2k
1/16W
:CHIP
VDD
7
E2
6
47k
DRC_FILM
—
R8917
100k
1/16W
:CHIP
R8915
2.2k
1/16W
:CHIP
R8909
:CHIP
1/16W
23
E
WC
D 5V
24
—
E1
VCC
5
3
4
D
E0
Q8903
2SB1462J-(TX)
PULL-UP
8
R8907
47
1/16W
:CHIP
R8903
0
1/16W
:CHIP
2
—
SCL_M5
1
C
VSS
—
I_
O_OSD
IC8902
MB94P918PF-G
MID-UCOM
O_OSD
O_OSD
O_OSD
O_OS
O_
I_OSD
I_OSD
I_
KD-34XBR2
16
|
17
|
18
|
19
|
20
|
21
|
22
|
23
|
24
|
25
|
D 5V
78
79
80
81
82
D5V
77
V_DRCI
60
61
62
R8930
4.7k
1/16W
:CHIP
R8921
100
1/16W
:CHIP
1 6.3V
5
VS
F:CHIP
2B
2Y
GND
B:CHIP
D5V
R8931
4.7k
1/16W
:CHIP
R8928
10k
1/16W
:CHIP
R8924
10k
1/16W
:CHIP
3A
16
15
14
13
3B
10
C8910
25V
4Y
3Y
9
0.1
2A
6
C8909
OSD_VS
XST
12
4B
VCC
11
1
2
1Y
7
R8933
22k
1/16W
:CHIP
R8932
22k
1/16W
:CHIP
59
58
57
I_XBINT
4A
D 5V
8
65
_OSD_HSYNC
1B
HS
SUB_OSD
R8929
100
1/16W
:CHIP
1A
3
OSD_HS
SEL
4
C8908
56p
CH:CHIP
69
66
O_BINT
_OSD_VSYNC
C8907
47p
50V
CH:CHIP
63
O_OSD_VOB
64
O_OSD_IOUT
70
71
O_OSD_BOUT
68
O_OSD_GOUT
67
O_OSD_ROUT
D3.3V
C8906
47
16V
:AL-CP
72
AVSS
74
AVDD
L8906
:CHIP
73
I_AN_APL
75
76
C8905
0.1
25V
F:CHIP
IC8903
TC74LVX157FT(EL)
SYNC SELECT
C8914
0.1
25V
F:CHIP
26
|
27
|
28
|
23
24
I_SUB_PLL_LOCK
I_
I_VP
R8914
100
1/16W
:CHIP
L
C8903
0.1
25V
F:CHIP
X8901
R8919
0
1/16W
:CHIP
—
N
2
R8905
47k
1/16W
:CHIP
R8901
10k
1/16W
:CHIP
—
MICON_RST
O
20MHz
D5V
R8902
10k
1/16W
:CHIP
3
C8904
0.01
50V
F:1608
Q8901
2SD2216J-(TX)
INVERTER
—
P
— 106 —
49
R89
0
1/1
:CH
—
M
48
47
46
45 I_RESET
44 VDD
43 X1
42 X0
41 GND
40
39
38
37
36
35
O_NVM_WP
34 I_SYNC_THLD
O_PLL_CS
O_NVM_RST
O_MN_SB_SW
33
—
O_SUB
O_74MCKE
31
MN_SB_SW
32
R8937
10k
1/16W
:CHIP
K
R8938
4.7k
1/16W
:CHIP
28
SYNCSW
29
—
O_55MCK_E
30
27
26
J
O_34M_XENA
25
SUBAD_PLL_LOCK
O_7M_XENA
58
1/16W
:CHIP
1/16W
:CHIP
:CHIP
57
100
55
R8926
100
1/16W
:CHIP
MID_BUSY
Q8902
2SD2216QR(TX)
INVERTER
50
49
51
52
O_SUB_BUSY
SYNC SELECT
53
54
I_VP_MAIN
10k
1/16W
:CHIP
D8905
MA2S111-(TX)
56
I_XBINT
R8921
MIDE_XVS
R8925
10k
1/16W
:CHIP
D 5V
/BINT
R8920
0
1/16W
:CHIP
R8934
1.8k
1/16W
:CHIP
R8935
3.3k
1/16W
:CHIP
9-965-916-02<HA3>QM P9
PRINTING THE SERVICE MANUAL
The PDF of this service manual is not designed to be printed from cover to cover. The pages vary in size, and must therefore be printed in sections
based on page dimensions.
NON-SCHEMATIC PAGES
Data that does NOT INCLUDE schematic diagrams are formatted to 8.5 x 11 inches and can be printed on standard letter-size and/or A4-sized paper.
SCHEMATIC DIAGRAMS
The schematic diagram pages are provided in two ways, full size and tiled. The full-sized schematic diagrams are formatted on paper sizes between
8.5” x 11” and 18” x 30” depending upon each individual diagram size. Those diagrams that are LARGER than 11” x 17” in full-size mode have been
tiled for your convience and can be printed on standard 11” x 17” (tabloid-size) paper, and reassembled.
TO PRINT FULL SIZE SCHEMATIC DIAGRAMS
If you have access to a large paper plotter or printer capable of outputting the full-sized diagrams, output as follows:
1) Note the page size(s) of the schematics you want to output as indicated in the middle window at the bottom of the viewing screen.
2) Go to the File menu and select Print Set-up. Choose the printer name and driver for your large format printer. Confirm that the printer settings
are set to output the indicated page size or larger.
3) Close the Print Set Up screen and return to the File menu. Select “Print...” Input the page number of the schematic(s) you want to print in the
print range window. Choose OK.
TO PRINT TILED VERSION OF SCHEMATICS
Schematic pages that are larger than 11” x 17” full-size are provided in a 11” x 17” printable tiled format near the end of the document. These can be
printed to tabloid-sized paper and assembled to full-size for easy viewing.
If you have access to a printer capable of outputting the tabloid size (11” x 17”) paper, then output the tiled version of the diagram as follows:
1) Note the page number(s) of the schematics you want to output as indicated in the middle window at the bottom of the viewing screen.
2) Go to the File menu and select Print Set-up. Choose the printer name and driver for your printer. Confirm that the plotter settings are set to output
11” x 17”, or tabloid size paper in landscape (
) mode.
3) Close the Print Set Up screen and return to the File menu. Select “Print...” Input the page number of the schematic(s) you want to print in the
print range window. Choose OK.
TO PRINT SPECIFIC SECTIONS OF A SCHEMATIC
To print just a particular section of a PDF, rather than a full page, access the Graphics Select tool in the Acrobat Reader tool bar.
1) To view the Graphics Select Tool, press and HOLD the mouse button over the Text Select Tool which looks like: T
This tool will expand to reveal to additional tools.
Choose the Graphics Select tool by placing the cursor over the button on of the far right that looks like:
2) After selecting the Graphics Select Tool, place your cursor in the document window and the cursor will change to a plus (+) symbol. Click and
drag the cursor over the area you want to print. When you release the mouse button, a marquee (or dotted lined box) will be displayed outlining
the area you selected.
3) With the marquee in place, go to the file menu and select the “Print...” option. When the print window appears, choose the option under the section
called “Print Range” which says “Selected Graphic”.
Select OK and the output will print only the area that you outlined with the marquee.
(continued >)
ON-SCREEN SEARCH OPTION
All of the text within the service manual PDF is content searchable. This means that you can enter any text, word, phrase or reference number that
appears in the manual, and the PDF software will search, find and move the cursor to the location where you requested text first appears. This feature
can be particularly useful in locating components on a specific schematic or printed wire circuit board (PWB) diagrams.
Follow these steps to effectively locate a component on a schematic diagram:
1) Locate the schematic you want to search by clicking on the corresponding bookmark on the left side of the screen. The view on the right of the
screen will then jump to the desired schematic page.
2) Magnify the diagram to at least 400% before conducting a component search. This will enable you to easily view the reference number when
it is highlighted on screen. To do this, click on the magnifying glass button on the tool bar at the top of the screen. Move the cursor over the
diagram and RIGHT click you mouse. Select the 400% magnification option on the pop-up menu. Click on the button with the icon of the open
hand to deactivate the magnification tool
3) Search the diagram (or the entire manual) by clicking on the binocular button tool at the top of the screen. The “Find” window will appear and
allow you to type in your desired text. Type in a reference designator, such as R502, and click on the “Find” button. If the component is not on the
diagram, but is listed anywhere else in the manual, the cursor will jump to the first location the text is found in the file. To find another instance of
that same text, click on the binocular button again and select “Find Again.”
4-083-273-21
Digital High Definition TV
Operating Instructions
If, after reading this instruction manual, you have additional
questions related to the use of your Sony TV, please call one
of the following numbers (English only).
Customers in the continental United States contact
the Sony Customer Information Service Center at:
1-800-222-SONY (7669)
Sony Corporation
Printed in U.S.A.
Customers in Canada contact the
Sony Customer Relations Center at:
(416) 499-SONY (7669)
© 2001 by Sony Corporation
KD-34XBR2
WARNING
Note on Cleaning the TV
To reduce the risk of fire or shock hazard, do not expose the TV to
rain or moisture.
Clean the TV with a soft dry cloth. Never use strong solvents such
as thinner or benzine, which might damage the finish of the
cabinet.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
Note to CATV System Installer
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.
Use of this television receiver for other than private viewing of
programs broadcast on UHF or VHF or transmitted by cable
companies for the use of the general public may require
authorization from the broadcaster/cable company and/or
program owner.
NOTIFICATION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION
When using TV games, computers, and similar products with your
TV, keep the brightness and contrast functions at low settings. If a
fixed (non-moving) pattern is left on the screen for long periods of
time at a high brightness or contrast setting, the image can be
permanently imprinted onto the screen. Continuously watching
the same program can cause the imprint of station logos onto the
TV screen. These types of imprints are not covered by your
warranty because they are the result of misuse.
Note on Caption Vision
This television receiver provides display of television closed
captioning in accordance with §15.119 of the FCC rules.
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
❑
❑
❑
Reorient or relocate the receiving antennas.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
❑ Consult the dealer or an experienced radio/TV technician for
help.
You are cautioned that any changes or modifications not expressly
approved in this manual could void your authority to operate this
equipment.
Safety
❑ Operate the TV only on 120 V AC.
❑ The plug is designed, for safety purposes, to fit into the wall
❑
outlet only one way. If you are unable to insert the plug fully
into the outlet, contact your dealer.
If any liquid or solid object should fall inside the cabinet,
unplug the TV immediately and have it checked by qualified
service personnel before operating it further.
Installing
❑ To prevent internal heat buildup, do not block the ventilation
❑
❑
openings.
Do not install the TV in a hot or humid place, or in a place
subject to excessive dust or mechanical vibration.
The AC power cord is attached to the rear of the TV with
hooks. Do not attempt to remove the cord from these hooks.
Doing so could cause damage to the TV.
Owner’s Record
The model and serial numbers are provided on the front of this
instruction manual and at the rear of the TV. Refer to them
whenever you call upon your Sony dealer regarding this product.
Trademark Information
TruSurround is a trademark of SRS
Labs, Inc. SRS and the SRS symbol are
registered trademarks of SRS Labs, Inc.
in the United States and selected
foreign countries. SRS and TruSurround are incorporated under
license from SRS Labs, Inc. and is protected under United States
Patent Nos. 4,748,669 and 4, 841, 572 with numerous additional
issued and pending foreign patents. Purchase of this product does
not convey the right to sell recordings made with the TruSurround
technology.
Manufactured under license from Dolby
Laboratories Licensing Corporation.
Dolby and the double-D symbol are
trademarks of Dolby Laboratories
Licensing Corporation.
XBR and CineMotion are trademarks of Sony.
BBE and BBE Symbol are trademarks of BBE Sound, Inc. and are
licensed by BBE Sound, Inc. under U.S. Patent No. 4,638,258 and
4,482,866.
i.LINK is a trademark of Sony used only to designate that a
product contains an IEEE 1394 connector. All products with an
i.LINK connector may not communicate with each other.
As an ENERGY STAR® Partner,
Sony has determined that this
product or product models meets
the ENERGY STAR ® guidelines
for energy efficiency.
ENERGY STAR® is a U.S. registered mark.
Important Safeguards
For your protection, please read these instructions completely, and
keep this manual for future reference.
Carefully observe and comply with all warnings, cautions and
instructions placed on the set or described in the operating
instructions or service manual.
WARNING
To guard against injury, the following basic safety precautions
should be observed in the installation, use and servicing of the set.
Use
Power Sources
This set should be operated only from the type
of power source indicated on the serial/model
plate. If you are not sure of the type of electrical
power supplied to your home, consult your
dealer or local power company. For those sets
designed to operate from battery power, refer
to the operating instructions.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the set.
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth lightly
dampened with water for cleaning the exterior
of the set.
Installation
Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug (a plug
having one blade wider than the other), or with a three-wire
grounding type plug (a plug having a third pin for
grounding).Follow the instructions below:
For the set with a polarized AC power cord plug
This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug still fails to fit, contact your electrician to have
a suitable outlet installed. Do not defeat the safety purpose of the
polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire grounding type AC plu g
This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the grounding plug.
Overloading
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Accessories
Do not place the set on an unstable cart, stand,
table or shelf. The set may fall, causing serious
injury to a child or an adult and serious damage
to the set. Use only a cart or stand recommended
by Sony for the specific model of TV. No part of
the TV set should overhang any edge of the TV
cart or stand; any overhanging edge is a safety
hazard. An appliance and cart combination
should be moved with care. Quick stops,
excessive force, and uneven surfaces may cause
the appliance and cart combination to overturn.
Do not overload wall outlets, extension cords or
convenience receptacles beyond their capacity,
since this can result in fire or electric shock.
Ventilation
Always turn the set off when it is not being
used. When the set is left unattended and
unused for long periods of time, unplug it
from the wall outlet as a precaution against
the possibility of an internal malfunction that
could create a fire hazard.
❑
Never cover the slots and openings with a
cloth or other materials.
❑
Never block the slots and openings by
placing the set on a bed, sofa, rug or other
similar surface.
❑
Never place the set in a confined space, such
as a bookcase or built-in cabinet, unless
proper ventilation is provided.
❑
Do not place the set near or over a radiator
or heat register, or where it is exposed to
direct sunlight.
If a snapping or popping sound from a TV set is
continuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
The slots and openings in the cabinet and in the back or bottom are
provided for necessary ventilation. To ensure reliable operation of
the set, and to protect it from overheating, these slots and openings
must never be blocked or covered.
Power-Cord Protection
Lightning
Do not allow anything to rest on or roll over the
power cord, and do not place the set where the
power cord is subject to wear or abuse.
For added protection for this television receiver during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna.
This will prevent damage to the receiver due to lightning and
power-line surges.
About the Unit’s High Glossy Finish
Service
The unit surface is finished with high glossy
paint. Due to the nature of this finish the
following precautions must be observed to
avoid discoloration, distortion and scratch
marks.
❑
❑
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
Do not bang the TV with any items or
objects.
Do not place any hot coffee cups and/or
heavy items, such as a vase, on top of
the TV. (Any water seepage may cause
fire or electric shock.)
Antennas
Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or
where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and
Section 54 of the Canadian Electrical Code in Canada provides
information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
❑
When the power cord or plug
is damaged or frayed.
❑
If liquid has been spilled into
the set.
❑
If the set has been exposed to
rain or water.
❑
If the set has been subject to
excessive shock by being
dropped, or the cabinet has
been damaged.
❑
If the set does not operate
normally when following the
operating instructions. Adjust
only those controls that are
specified in the operating
instructions. Improper
adjustment of other controls
may result in damage and
will often require extensive
work by a qualified technician
to restore the set to normal operation.
❑
When the set exhibits a distinct change in performance, it
indicates a need for service.
Antenna Grounding According to the NEC
Servicing
Refer to section 54-300 of Canadian Electrical Code for Antenna
Grounding.
Do not attempt to service the set yourself since
opening the cabinet may expose you to dangerous
voltage or other hazards. Refer all servicing to
qualified service personnel.
Antenna lead-in wire
Ground clamp
Antenna discharge unit
(NEC Section 810-20)
Electrical wire
equipment
When replacement parts are required, be sure the service
technician certifies in writing that he has used replacement parts
specified by the manufacturer that have the same characteristics as
the original parts.
Unauthorized substitutions may result in fire, electric shock or
other hazards.
Ground clamps
Antenna lead-in wire
NEC: National Electrical Code
Replacement Parts
Power service grounding electrode
system (NEC Art 250 Part H)
Safety Check
Upon completion of any service or repairs to the
set, ask the service technician to perform routine
safety checks (as specified by the manufacturer) to
determine that the set is in safe operating
condition, and to so certify. When the set reaches
the end of its useful life, improper disposal could
result in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
Contents
Introducing the Digital TV (DTV)
Overview .......................................................1
Presenting the FD Trinitron Wega .............1
Features..........................................................2
Package Contents .........................................3
Using the Remote Control...........................3
Frequently Asked Questions ......................7
Connecting and Setting Up the DTV
Overview .......................................................9
DTV Controls and Connectors .................10
Basic Connections.......................................12
Connecting a VCR and Cable ...................14
Connecting a VCR and Cable Box............15
Connecting Two VCRs for Tape Editing 17
Connecting a Satellite Receiver ................18
Connecting a Satellite Receiver
with a VCR ...........................................19
Connecting an Audio Receiver.................21
Connecting a DVD Player with
Component Video Connectors ..........22
Connecting a DVD Player
with A/V Connectors .........................23
Connecting a Camcorder...........................24
Connecting a Device with
an Optical IN Connector ....................25
Connecting i.LINK Compatible Devices.26
Using the CONTROL S Feature ...............30
Setting Up the DTV Automatically..........31
Using the DTV Features
Overview .....................................................33
Using the Program Guide .........................34
Using the Scrolling Index..........................35
Using Favorite Channels...........................36
Using Wide Screen Mode..........................39
Using Twin View........................................40
Using the Freeze Function ........................43
Using the i.LINK Control Panel ...............44
Using the Timer ..........................................45
Using the DTV Menus
Overview .....................................................47
Using the Video Menu...............................48
Using the Audio Menu ..............................50
Using the Screen Mode Menu ..................52
Using the Channel Setup Menu ...............54
Using the Parental Control Menu ............56
Using the Setup Menu ...............................60
Other Information
Overview .....................................................63
Programming the Remote Control ..........64
Operating Other Components with Your
DTV Remote Control ..........................67
About i.LINK ..............................................69
Troubleshooting..........................................70
Specifications...............................................72
Index.............................................................73
Introducing the Digital TV (DTV)
Overview
This chapter gives an overview of the DTV features, defines the
package contents, describes the remote control, and provides answers
to frequently asked questions.
Topic
Page
Presenting the FD Trinitron Wega
1
Features
2
Package Contents
3
Using the Remote Control
3
Frequently Asked Questions
7
Presenting the FD Trinitron Wega
The FD Trinitron Wega (pronounced VAY-GAH) is characterized by
outstanding contrast, uncompromising accuracy, and corner-tocorner detail.
You’ll recognize the superiority of Wega technology almost
immediately. The first thing you’ll notice is minimal glare from the
flat picture tube. This flat-screen technology improves picture detail
without distortion, unlike conventional curved screens. The FD
Trinitron delivers outstanding image detail not only at the screen
center, but also at the corners — so you can enjoy a bright, clear
picture from any location in a room.
About the Unit’s High Glossy Finish
The unit surface is finished with high glossy paint. Due to the nature of this finish
the following precautions must be observed to avoid discoloration, distortion and
scratch marks:
❑ Do not bang the TV with any items or objects.
❑ Do not place any hot coffee cups and/or heavy items, such as a vase, on top of
the TV. (Any water seepage may cause fire or electric shock.)
1
Introducing the Digital TV (DTV)
Features
Some of the features that you will enjoy with your new DTV include:
2
❑
Built-in Digital Television (DTV) Receiver: You can watch
digital television programs and enjoy the improved audio/video
quality that these programs offer.
❑
Wide Screen Mode: Watch conventional 4:3 aspect ratio
broadcasts in wide screen (16:9) mode.
❑
DRC (Digital Reality Creation): Unlike conventional line
doublers, the DRC feature doubles vertical and horizontal lines,
resulting in four times the density for quality sources such as
DVD, satellite, and digital camcorder.
❑
Twin View™: Using the Multi-Image Driver (MIDX), Twin View
allows you to watch two programs side by side, with the ability
to zoom in one picture. You can watch pictures from two different
sources (1080i, 720p, 480p, and 480i) simultaneously.
❑
Program Guide: Lets you select digital channels and subchannels
and review program information from an on-screen list.
❑
Scrolling Index: Lets you to preview and select programs from a
scrolling index of video pictures.
❑
Favorite Channels: Allows you to preview and select from 16 of
your favorite channels.
❑
Velocity Modulation: Vertical line enhancement that sharpens
picture definition.
❑
Steady Sound: Equalizes volume levels so there is consistent
output between programs and commercials.
❑
Parental Control: V-Chip technology allows parents to block
unsuitable programming for younger viewers.
❑
Component Video Inputs: Offers the best video quality for DVD
(480p, 480i), and digital set-top box (HD1080i, 720p) connections.
❑
S-VIDEO Inputs: Provides a high-quality video signal from
connected equipment.
❑
CineMotion™: Provides optimal picture quality for film-based
sources (media originally shot in 24 frames-per-second format).
❑
i.LINK: Provides a secure digital interface to other digital home
entertainment devices, including digital cable set-top boxes.
i.LINK allows for the secure transfer of copyright-protected highdefinition content between these devices and your digital
television.
Introducing the Digital TV (DTV)
Package Contents
Along with your new digital TV, the package contains a remote
control and two AA batteries. No additional cables are included.
These items are all you need to set up and operate the DTV in its basic
configuration.
Most components (VCRs, DVD players, etc.) come with the necessary
cables to connect them. If you want to set up a complex system, you
may need to buy extra cables, connectors, etc. Be sure to have these
on hand before you start to connect your system.
Using the Remote Control
Although some of the DTV’s functionality can be controlled using
buttons located on the front panel of the DTV (see page 10), you’ll
find the remote control to be more convenient while watching TV.
Inserting Batteries
Insert two size AA (R6) batteries (supplied) by matching the + and –
on the batteries to the diagram inside the battery compartment.
✍ Remove the batteries to avoid damage from possible battery leakage whenever
you anticipate that the remote control will not be used for an extended period.
Handle the remote control with care; avoid dropping it, getting it wet, placing
it in direct sunlight, near a heater, or where the humidity is high.
3
Introducing the Digital TV (DTV)
Button Descriptions
The following table describes the buttons on the remote control’s
outside and inside panels.
Outside Panel
Button
1 MUTING
1
2
3
4
5
qj
2 SLEEP
qk
ql
3 PIC MODE
w;
4 ANT
6
7
8
5 WIDE MODE
wa
9
6
q;
ws
qa
wd
qs
qd
qf
qg
qh
wf
wg
wh
wj
wk
7
8 INDEX
9 MENU
0 VOL
qa
Move the joystick B bVv to move the on-screen cursor. To
select an item, press the center of the joystick ( ).
qs ADD
FAVORITE
qd DISPLAY
Press to add the current channel to the Favorite Channels
list. For details, see page 36.
Press once to display the channel number, channel label
(if set), time, and other information. Press again to turn
Display off.
Press to freeze the window picture. Press again to restore
the picture. For details, see page 43.
Press while a menu is displayed (pages 47 to 62) to reset
the settings to the factory defaults.
qf FREEZE
qg RESET
4
Description
Press to mute the sound. Press again or press VOL+ to
restore the sound.
Press repeatedly until the DTV displays the time in
minutes (15, 30, 45, 60, or 90) that you want the DTV to
remain on before shutting off automatically. Cancel by
pressing until Sleep Off appears. While the Sleep feature is
set, press once to view remaining time.
Press repeatedly to step through the video picture modes:
Vivid, Standard, Movie, Game, Pro. Also available in the Video
menu. For details, see page 48.
Press to change between the VHF/UHF input and the
CABLE input.
Press repeatedly to step through the Wide Mode settings:
Wide Zoom, Normal, Full, Zoom. Also available in the Screen
Mode menu. For details, see pages 39 and 52.
Use with 0 – 9 and ENTER buttons to select subchannels
(for example, 2.1). For details on selecting subchannels,
see page 34.
Press to display the i.LINK Control Panel. There is also an
i.LINK button on the front panel of the DTV (see page 10).
For details on using the i.LINK Control Panel, see
page 44.
Press to display the Scrolling Index. For details, see
page 35.
Press to display the DTV on-screen menu. Press again to
exit from the menus. For details, see page 47.
Press to adjust the volume.
Introducing the Digital TV (DTV)
Button
qh MTS/SAP
qj
qk
ql
w;
Description
Press repeatedly to step through the Multi-channel TV
Sound (MTS) options: Stereo, Auto SAP, and Mono. Also
available in the Audio menu. For details, see page 51.
POWER buttons Press to turn on and off the DTV and other audio/video
equipment you have programmed into the remote
(GREEN)
control. For instructions, see “Programming the Remote
Control” on page 64.
FUNCTION
Press to select the equipment (SAT/CABLE or TV) that
you want to operate. The indicator lights up momentarily
buttons
when pushed to show which device the remote control is
(WHITE)
operating.
TV/VIDEO
Press repeatedly to step through the video equipment
connected to your DTV’s video inputs.
0 – 9 and ENTER Press 0 - 9 to select a channel — the channel changes after
2 seconds. Press ENTER to select immediately.
wa GUIDE
ws CH
wd EXIT
wf SURF FAVORITE
wg JUMP
wh
wj DRC
CINEMOTION
wk TIMER
Press to display the program guide. For details, see
page 34.
Press to scan through channels. To scan rapidly through
channels, press and hold down either CH button.
Press to exit the on-screen menu or display and return to
normal viewing.
Press to display the Favorite Channels list. For details, see
page 37.
Press to jump back and forth between two channels. The
DTV alternates between the current channel and the last
channel that was selected.
Press to turn on and off Twin View. For details, see pages
40 to 42.
Press repeatedly to step through the available highresolution picture modes: Interlaced, Progressive and
CineMotion. Also available in the Video menu. For details,
see page 49.
Press to program the DTV to turn on and off and tune to a
specific channel at two scheduled viewing times (see
page 45). Also available in the Setup menu (see page 62).
5
Introducing the Digital TV (DTV)
Inside Panel
You can access the following buttons by lifting up the outside panel.
1
2
3
Description
Press to change the VHF/UHF output of the VCR.
2 Transport
Buttons
m Rewind
N Play
z Record (press together with N)
x Stop
M Fast-forward
X Pause (press again to resume normal playback)
Press to display the DVD menu.
Press B bVv to move the on-screen cursor.
Press to display the DTV on-screen menu. Press again to
exit from the menus.
Used for programming the remote control to operate
non-Sony video equipment. For details, see
“Programming the Remote Control” on page 64.
Press to turn on and off the DTV and other audio/video
equipment you have programmed into the remote
control. For instructions, see “Programming the Remote
Control” on page 64.
Use to switch control for connected video equipment.
You can program one video source for each switch
position. For details, see “Programming the Remote
Control” on page 64.
Press to display the DVD title.
Press to select.
Press repeatedly to step through the Audio Effect
options: TruSurround, Simulated, and Off. Also available in
the Audio menu. For details, see page 50.
6
7
8
9
q;
4
5
Button
1 TV/VCR
qa
3 DVD MENU
4 B bVv
5 MENU
6 CODE SET
7 POWER
8
9 DVD TITLE
0 ENTER
qa
6
Introducing the Digital TV (DTV)
Frequently Asked Questions
What is digital TV
(DTV)?
Digital television (or “DTV”) refers to the over-the-air television
broadcast standards adopted by the Federal Communications
Commission in 1996. Developed by the Advanced Television Systems
Committee (ATSC), a group of manufacturing companies, these
standards define the specifications for 18 digital broadcast formats.
There are six formats in the ATSC DTV standard that are described as
“High Definition Television.” The remaining 12 video formats are
described as “Standard Definition Television.”
Although the technical aspects of these standards are transparent to
television viewers, the benefits are as dramatic as those experienced
when digital music on compact disk was introduced — probably
even more so.
Your Sony DTV is capable of receiving all 18 formats of digital TV
formats, including high-definition.
What are the
benefits of DTV?
Do I need a special
antenna to receive
digital television?
For the television viewer, digital TV represents one of the most
significant advances in television since color television replaced black
and white. Here are just a few of the benefits:
❑
Dramatically superior picture quality, with up to six times the
picture detail of today’s analog television.
❑
Multichannel digital sound, including Dolby® Digital sound.
❑
Widescreen. DTV can provide the same type of widescreen
presentation as you see in movie theaters. The new screen size
has a 16:9 width-to-height (or “aspect”) ratio, compared with a
4:3 aspect ratio of today’s conventional television. This means
that digital broadcasts of movies no longer need to be
“reformatted” for television.
No. Initially, digital television will arrive through a standard, overthe-air VHF/UHF antenna, which means you can receive digital
broadcasts using the same terrestrial (“rooftop”) antenna you
currently use to receive conventional programming. However, if you
currently receive your VHF/UHF programming via cable, you will
need to install a VHF/UHF antenna in order to receive digital
programming. Your Sony DTV, however, is also equipped with
connectors that may allow you to connect DTV-compatible cable
boxes when they become available.
7
Introducing the Digital TV (DTV)
Can this TV receive
conventional analog
broadcasts that are
available today?
Yes. This TV is designed to receive conventional analog broadcasts,
cable TV, as well as all formats of digital broadcasts. Of course, you
can also connect VCRs, DVD players, digital broadcast (satellite)
receivers, and other audio/video components.
When is digital
broadcasting being
introduced?
The transition from today’s analog broadcasting system to digital
television will take time to complete. In the fall of 1998, some
networks started to broadcast digital programs.
How can I select
digital channels?
Digital channels are indicated by the use of a decimal or “dot” in the
subchannel number (for example, “2.1”). This number appears when
you press the CH +/- buttons or press the DISPLAY button. To select a
subchannel directly, use the 0-9 buttons,
button, and the ENTER
button.
For example, to select subchannel 2.1, press:
2+
+ 1 + ENTER
You can also select digital channels using an on-screen program
guide. See page 34 for details.
8
Connecting and Setting Up the DTV
Overview
This chapter includes illustrated instructions for setting up your DTV.
Note About the AC
Power Cord
Topic
Page
Basic Connections
12
Connecting a VCR and Cable
14
Connecting a VCR and Cable Box
15
Connecting Two VCRs for Tape Editing
17
Connecting a Satellite Receiver
18
Connecting a Satellite Receiver with a VCR
19
Connecting an Audio Receiver
21
Connecting a DVD Player with Component Video
Connectors
22
Connecting a DVD Player with A/V Connectors
23
Connecting a Camcorder
24
Connecting a Device with an Optical IN Connector
25
Connecting i.LINK Compatible Devices
26
Using the CONTROL S Feature
30
Setting Up the DTV Automatically
31
The AC power cord is attached to the rear of the DTV with a hook.
Use caution when removing the AC plug from its holder. Gently slide
the plug in the upward direction to remove from hook. Once
removed, the AC power plug should automatically disengage from
its stored location.
You can detach
the cord from
this hook
AC Power cord
9
Connecting and Setting Up the DTV
DTV Controls and Connectors
Front Panel Controls
1
The front panel provides convenient inputs for audio/video
components you plan to connect temporarily, such as a camcorder or
digital camera. It includes several buttons that you’ll also find on the
remote control.
2
3
4
5
6
7
8
9
q; qa
qs
Control
Description
1 S VIDEO 2 INPUT
Connects to the S VIDEO OUT jack of your camcorder or other S VIDEOequipped video component. Provides better picture quality than the
VHF/UHF jacks or the Video IN jack.
2 VIDEO 2 INPUT
VIDEO/L(MONO)-AUDIO-R
Connect to the audio and video OUT jacks on your camcorder or other video
component.
3 MENU
Press to display the DTV on-screen menu. Press again to exit from the menus.
For details, see page 47.
4
i.LINK
5 B bVv
6
SELECT
Press to display the i.LINK Control Panel. For details on using the i.LINK
Control Panel, see page 44.
Press B bVv to move the on-screen cursor and press SELECT to select.
Press to select the on-screen highlighted item.
7 TV/VIDEO
Press repeatedly to step through the video equipment connected to your DTV’s
video inputs.
8 -VOLUME+
Press to adjust the volume.
9 -CHANNEL+
Press to scan through channels.
0 TIMER
When lit, indicates one of the timers is set. For details, see pag e45.
qa STANDBY/
i.LINK STANDBY
When lit in orange, indicates that i.LINK Standby is On. When lit in red,
indicates that i.LINK Standby is Off. For details, see page 61.
qs POWER
Press to turn on and off the DTV.
10
Connecting and Setting Up the DTV
DTV Rear Panel
2
1
7
9
q;
3
qa
4
8
5
Connection
6
Description
1
VHF/UHF
Connects to your VHF/UHF antenna.
2
CABLE
Connects to your cable source.
3
S VIDEO IN 1/3/4
Connects to the S VIDEO OUT jack of your VCR or other S VIDEOequipped video component. Provides better picture quality than the
VHF/UHF jacks or the Video IN jack.
4
VIDEO IN 1/3/4
VIDEO/L(MONO)-AUDIO-R
Connect to the audio and video OUT jacks on your VCR or other video
component. A 6th video input (VIDEO 2) is located on the front panel of
the DTV. The Audio and Video IN jacks provide better picture quality than
the VHF/UHF IN jack.
5
SELECT OUT
Connect to the audio and video IN jacks on your VCR or other video
component. The output signal is determined by the SELECT OUT setting in
the Setup menu (see page 60).
6
AUDIO OUT (VAR/FIX)
L(MONO)-AUDIO-R
Connect to the left and right audio inputs of your audio or video
component.
7
HD/DVD IN
(1080i/720p/480p/480i)
VIDEO IN 5/6
Connect to your DVD player’s or digital set-top box’s component video (Y,
PB, P R) and audio (L/R) jacks.
8
CONTROL S
IN/OUT
Allows the DTV to receive (IN) and send (OUT) remote control signals to
other Sony infrared-controlled audio or video components.
9
DIGITAL AUDIO
OPTICAL OUTPUT
(DOLBY DIGITAL/PCM)
Connect to the optical audio input of an audio component that is Dolby
Digital and PCM compatible.
0
i.LINK S200
Used for connecting i.LINK equipped devices.
qa
Service Only
For Sony service use only.
11
Connecting and Setting Up the DTV
Basic Connections
This section describes how to connect a VHF/UHF antenna, CATV
cable, and CATV cable box.
Connecting a
VHF/UHF Antenna
The connection you choose depends on the type of VHF/UHF
antenna you have in your home.
Newer homes are usually equipped with 75-ohm coaxial cable:
VHF Only or VHF/UHF
VHF/UHF
75-ohm
coaxial
cable
Rear of DTV
Older homes may have 300-ohm twin lead cable:
VHF Only or UHF Only or VHF/UHF
300-ohm twin lead cable
VHF/UHF
Rear of DTV
Antenna connector
Some homes may have both 75-ohm coaxial and 300-ohm twin lead
cables:
VHF and UHF
75-ohm coaxial cable
VHF/UHF
Rear of DTV
U/V Splitter
(not supplied)
300-ohm twin lead cable
12
Connecting and Setting Up the DTV
Connecting a CATV
Cable or a
CATV Cable Box
CATV Cable
CABLE
75-ohm
coaxial
cable
Rear of DTV
CATV Cable Box
Cable
CABLE
Rear of DTV
IN
OUT
Cable Box
13
Connecting and Setting Up the DTV
Connecting a VCR and Cable
Use this hookup if you have cable TV that does not require a cable
box.
1 Connect the cable TV cable to the VCR’s IN jack.
2 Using a coaxial cable, connect the VCR’s OUT jack to the DTV’s
CABLE jack.
3 Using an A/V cable, connect the VCR’s Audio and Video OUT
jacks to the DTV’s Audio and Video IN jacks.
✍ If the VCR you are connecting has an S VIDEO jack, you can use an S VIDEO
cable for improved picture quality (compared to a combination audio/video
cable). Because an S VIDEO cable carries only the video signal, you will also
need audio cables for sound.
Coaxial cable
DTV
VCR
Cable
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
A/V cable
14
Connecting and Setting Up the DTV
Connecting a VCR and Cable Box
Use this hookup if
❑ Your cable TV company scrambles some channels, but not all of
them (pay channels vs. regular cable channels), so you need to
use a cable box
❑
You want to use the Twin View or Scrolling Index feature.
With this setup you can
❑ Use the DTV remote control to change channels using your cable
box when the signal is scrambled.
❑
Use the DTV remote control to change channels using your DTV
when the signal is not scrambled. (Your DTV’s tuner provides a
better signal than the cable box.)
❑
Use the Twin View and Scrolling Index features.
❑
Record both regular cable TV and scrambled channels.
To connect a cable box and a VCR, you will need
❑ A small inexpensive device known as a splitter.
❑
Three short coaxial cables.
❑
Either a combination audio/video cable, or an S VIDEO cable
and audio cables.
1 Connect the CATV cable to the single (input) jack of the splitter.
2 Use a coaxial cable to connect one of the two output jacks of the
splitter to the DTV’s CABLE jack.
3 Use a coaxial cable to connect the other output jack of the splitter
to the input jack of the cable box.
4 Use a coaxial cable to connect the output jack of the cable box to
the input jack of the VCR.
5 Use the video line (yellow) of a combination audio/video (A/V)
cable to connect the video output jack of the VCR to the video
input jack of the DTV.
✍ If your VCR has an S VIDEO jack, you can substitute an S VIDEO cable for
the video line of an A/V cable. The S VIDEO cable will provide improved
video signal quality.
6 Connect the left (white) and right (red) audio output channels of
the VCR to the respective input jacks on the DTV.
(Continued on the next page)
15
(Continued from the previous page)
Connecting and Setting Up the DTV
VCR
A/V cable
Cable box
Coaxial
cable
DTV
Coaxial
cable
Coaxial
cable
CATV
Splitter
(not included)
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
✍ IMPORTANT - To use the Twin View or Scrolling Index feature or to watch
premium (scrambled) channels the VCR MUST BE TURNED ON; otherwise,
you will be unable to view them.
16
Connecting and Setting Up the DTV
Connecting Two VCRs for Tape Editing
Connecting two VCRs together, then into the DTV, allows you to
switch between the two to be sure that what you are playing on one is
recording on the other.
1 Using an A/V cable, connect the playback VCR’s Audio and
Video OUT jacks to the recording VCR’s Audio and Video IN
jacks.
2 Using an A/V cable, connect the recording VCR’s Audio and
Video OUT jacks to the DTV’s Audio and Video IN jacks.
DTV
VCR (playback)
VCR (recording)
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
A/V cable
A/V cable
3 If necessary, change the video input on your VCR. (For details,
see your VCR’s instruction guide.)
To do tape editing
❑ Set the DTV to the video input intended for playback by pressing
the TV/VIDEO button on the remote control.
✍ If the VCRs you are connecting have S VIDEO jacks, you can use S VIDEO
cables for improved picture quality (compared to a combination audio/video
cable). Because S VIDEO cables carry only the video signal, you will also need
audio cables for sound.
17
Connecting and Setting Up the DTV
Connecting a Satellite Receiver
1 Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2 Using an A/V cable, connect the satellite receiver’s Audio and
Video OUT jacks to the DTV’s Audio and Video IN jacks.
3 Connect a coaxial cable from your cable or antenna to the DTV’s
CABLE jack.
✍ If the receiver you are connecting has an S VIDEO jack, you can use an S VIDEO
cable for improved picture quality (compared to a combination audio/video
cable). Because S VIDEO cables carry only the video signal, you will also need
audio cables for sound.
Coaxial
cable
DTV
Satellite receiver
Satellite
antenna
cable
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
A/V cable
18
Connecting and Setting Up the DTV
Connecting a Satellite Receiver with a VCR
1 Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2 Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3 Using a coaxial cable, connect the VCR’s OUT jack to the DTV’s
CABLE jack.
4 Using an A/V cable, connect the satellite receiver’s Audio and
Video OUT jacks to the VCR’s Audio and Video IN jacks.
5 Using an A/V cable, connect the VCR’s Audio and Video OUT
jacks to the DTV’s Audio and Video IN jacks.
6 If necessary, change the video input on your VCR. (For details,
see your VCR’s instruction guide.)
Satellite
antenna
cable
CATV
cable
DTV
Coaxial
cable
Satellite receiver
VCR
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
A/V cable
✍ If the peripherals you are connecting have S VIDEO jacks, you can use S VIDEO
cables for improved picture quality (compared to combination audio/video
cables). Because S VIDEO cables carry only the video signal, you will also need
audio cables for sound.
(Continued on the next page)
19
Connecting and Setting Up the DTV
(Continued from the previous page)
To watch satellite TV, or the VCR
❑ Press TV/VIDEO on the remote control to select the video input. (The
DTV must be turned on.)
To watch cable TV
❑ Press TV/VIDEO on the remote control to select Cable. (The DTV
must be turned on.)
20
Connecting and Setting Up the DTV
Connecting an Audio Receiver
For better sound quality, you may want to connect your DTV to your
stereo system’s audio receiver.
To connect to an audio receiver
❑ Use audio cables to connect the DTV’s Audio OUT jacks to the
audio receiver’s audio LINE IN jacks.
DTV
AUDIO-R
(red)
AUDIO-L
(white)
Line
input
21
Connecting and Setting Up the DTV
Connecting a DVD Player with Component
Video Connectors
This is the preferred hookup to use if your DVD player has
component video out jacks.
1 Using three separate component video cables, connect the DVD
player’s Y, PB and PR jacks to the Y, P B and PR jacks on the DTV.
Use the HD/DVD IN 5 or 6 connections.
✍ The Y, PB and PR jacks on your DVD player are sometimes labeled Y, C B and
CR, or Y, B-Y and R-Y. If so, connect the cables to like colors.
2 Using an audio cable, connect the DVD player’s Audio OUT
jacks to the DTV’s Audio IN jacks. Be sure to use the same
column of inputs that you used for the video connection
(HD/DVD IN 5 or 6).
Component video cables
DTV
DVD player
AUDIO-R (red)
AUDIO-L (white)
Audio cable
✍ You cannot record the signal from any equipment connected into the Y, P B, PR
jacks.
22
Connecting and Setting Up the DTV
Connecting a DVD Player with A/V Connectors
Use this hookup if your DVD player does not have component video
out jacks (as shown on page 22).
✍ An S VIDEO connection will give a good-quality video signal, but if your DVD
player has component video, that connection (described on page 22) will give
an even better signal.
1 Using audio cables, connect the DVD player’s Audio OUT jacks
to the DTV’s Audio IN jacks.
2 Using an S VIDEO cable, connect the DVD player’s S VIDEO jack
to the DTV’s S VIDEO jack.
DTV
S VIDEO
cable
DVD player
AUDIO-R (red)
AUDIO-L (white)
Audio cable
To switch between your DTV, VCR and DVD
❑ Use the TV/VIDEO button on the DTV’s remote control to switch
from one input device to another.
23
Connecting and Setting Up the DTV
Connecting a Camcorder
For easy connection of the camcorder, the DTV has front Audio and
Video inputs (shown below). If you prefer, you can connect the
camcorder to the DTV’s rear Audio and Video IN jacks.
❑
Using A/V cables, connect the camcorder’s Audio and Video
OUT jacks to the DTV’s Audio and Video IN jacks.
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
A/V output
If you have a mono camcorder, connect its audio output to theDTV’s
AUDIO L jack.
✍ If the camcorder you are connecting has an S VIDEO jack, you can use an
S VIDEO cable for improved picture quality (compared to a combination
audio/video cable). Because S VIDEO cables carry only the video signal, you
will also need audio cables for sound.
24
Connecting and Setting Up the DTV
Connecting a Device with an Optical IN Connector
You can use the DTV’s DIGITAL AUDIO OPTICAL OUTPUT jack to
connect an audio device that is Dolby Digital and PCM compatible,
such as an audio amplifier.
❑
Using an optical cable, connect the device’s OPTICAL IN jack to
the DTV’s DIGITAL AUDIO OPTICAL OUTPUT jack.
Audio amplifier
LINE
OUT
AUDIO
OPTICAL
IN
LINE
IN
Optical cable
DTV
✍ You might also want to connect the DTV’s analog audio out connectors to the
amplifier’s analog audio in connectors, as described on page 21.
25
Connecting and Setting Up the DTV
Connecting i.LINK Compatible Devices
This DTV is equipped with i.LINK, which provides a secure digital
interface to other digital home entertainment devices, including
digital cable set-top boxes. i.LINK allows for the secure transfer of
copyright-protected high-definition content between these devices
and your digital television.
✍ At the time this DTV went to market, the Sony digital cable set-top box (DHG-
M55CV) is the only i.LINK device that is verified to be compatible with this DTV.
For more information about i.LINK, see “About i.LINK” on page 69.
Using i.LINK Cables
This DTV has two 4-pin S200 i.LINK terminals. You can use any of the
following i.LINK cables with the DTV:
4-pin i.LINK cable
Sony Model Number
Length
VMC-IL4415
1.5 meters
VMC-IL4435
3.5 meters
✍ Do not use cables other than the ones listed above.
26
Connecting and Setting Up the DTV
Connecting Cables
✍ Before connecting this unit to i.LINK-compatible equipment, see the instruction
manual of the i.LINK device to be connected.
1 Using an A/V cable, connect the i.LINK device’s Audio and
Video OUT jacks to the DTV’s Audio and Video IN jacks.
2 Using an i.LINK cable (see page 26), connect the device’s i.LINK
jack to either of the DTV’s i.LINK jacks.
DTV
i.LINK cable
Sony digital cable
set-top box
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
A/V cable
✍
i.LINK devices can be “hotplugged” (connected and disconnected while they
are still powered on). The DTV automatically recognizes the device and displays
the screen shown on pag e29.
27
Connecting and Setting Up the DTV
Notes on Connecting
i.LINK Devices
❑
To connect two or more i.LINK-capable devices, use i.LINK
cables to connect them as shown below.
A
B
C
i.LINK
❑
D
i.LINK
i.LINK
You can connect up to 63 i.LINK devices. However, the
maximum number of cables in any serial route is 16.
A
B
C
i.LINK
D
i.LINK
i.LINK
F
E
i.LINK
G
i.LINK
❑
E
i.LINK
i.LINK
Do not connect i.LINK devices in a way that creates a loop.
i.LINK
A
B
i.LINK
❑
28
C
i.LINK
Connecting non-compatible devices, such as PCs or PC
peripherals, may result in malfunctions.
Connecting and Setting Up the DTV
Completing i.LINK
Setup
Before you can use an i.LINK device with the DTV, you need to
register the device as follows.
1 After you’ve connected the cables (as described on page 26), first
turn on the DTV, and then turn on the i.LINK device(s). The
following screen automatically appears.
To add the i.LINK device, highlight Add and press
.
✍ If you select Cancel, the i.LINK device is set up as “hidden” and it does
not appear in the i.LINK Control Panel. To see the device in the i.LINK
Control Panel, change the i.LINK Setup option from Hide to Show in the
Setup menu (see page 61).
2 If you selected Add in step 1, and the device requires an analog
video connection, the following screen appears.
✍ Depending on the i.LINK device you are setting up, this screen may not be
displayed. In this case, the device’s video input will be displayed as N/A.
3 Move the joystick V and v to highlight the video input (VIDEO 1-4)
that connects the i.LINK device to the DTV. If you don’t need an
analog video connection, select None. Then press
.
A confirmation screen appears, which indicates the i.LINK device
name and video input. The device is now available in the i.LINK
Control Panel (see page 44).
For more information
❑ To change the setup of the i.LINK device, use the Setup menu.
For details, see page 61.
❑
For information on using the i.LINK Control Panel, see page 44.
❑
For general information about i.LINK, see pag e69.
29
Connecting and Setting Up the DTV
Using the CONTROL S Feature
CONTROL S allows you to control your system and other Sony
equipment with one remote control. In addition to allowing you to
control multiple devices with one remote control, the CONTROL S
feature allows you to always point your remote control at your DTV,
instead of having to point it at the other equipment, which might be
hidden or out of direct line of sight.
Use CONTROL S IN to send signals to the DTV.
Use CONTROL S OUT to send signals to connected equipment.
DTV
30
Connecting and Setting Up the DTV
Setting Up the DTV Automatically
z The initial setup screens appear
only after turning on the DTV the
first time, or after selecting Factory
Reset in the Setup menu (pag e60).
If you need to set the clock at a
later time, press the TIMER button
on the remote control (see
page 45).
You can also run Auto Program at
any time from the Channel Setup
menu (see page 54).
The first time you turn on the DTV, a series of screens guide you
through the initial setup of the DTV. During this setup, you are
prompted to set the clock and start Auto Program, which searches for
and stores a list of analog and digital channels you are receiving for
VHF/UHF and CABLE inputs.
✍ Be sure to complete all connections before turning on the DTV the first time.
1 Press POWER to turn on the DTV and display the Welcome screen.
to come
2 Press to continue Setup. The set clock screen appears.
3 Move the joystick V and v to set the current day and time (hour,
minute, and AM/PM). Press
or move the joystick b to confirm
each setting and move to the next setting. Move the joystick B to
go back to the previous setting.
4 After you’ve set the clock, move the joystick b to highlight Next
and press
appears.
to continue Setup. The Auto Program screen
5 To start Auto Program, press
to select Auto Program. The DTV
automatically creates a channel list of analog and digital
channels. (This may take a few minutes.)
6 When the channel list is complete, a Congratulations screen
z You can run the
demonstration again by
selecting Demo from the Setup
menu (see pages 60 to 62).
appears.
To see a short demonstration of the features of the DTV, press
to select Demo. A self-running introduction to the features of the
DTV begins. To exit the demo at any time, press any button on
the remote control (or front panel).
To skip the demo and exit Setup, move the joystick b to highlight
.
Done and press
31
Using the DTV Features
Overview
This chapter describes how to use features of your DTV.
Topic
Page
Using the Program Guide
34
Using the Scrolling Index
35
Using Favorite Channels
36
Using Wide Screen Mode
39
Using Twin View
40
Using the Freeze Function
43
Using the i.LINK Control Panel
44
Using the Timer
45
33
Using the DTV Features
Using the Program Guide
The Program Guide lets you select digital channels and subchannels
and review program information from an on-screen list. Subchannels
are additional channels of programming broadcast simultaneously.
For example, channel 4 might include six subchannels (4.1, 4.2, 4.3,
4.4, 4.5) that are showing programs at the same time.
✍ Analog channels are not available in the Guide.
1 Press GUIDE.
z The Guide is not available
while using any of the
multipicture functions, such as
Twin View, Freeze, Scrolling
Index, or Favorites.
z As an alternative to using
the Guide you can select
subchannels directly using the
0-9 buttons and the
button
on the remote control. For
example, to select channel 4.1,
press 4 +
+ 1 and then
ENTER.
The Program Guide appears, with the currently selected program
showing in the background.
✍ Program information in the Program Guide is provided by the broadcasters. As a
result, the Program Guide may sometimes include only the channel number
without a program title or description.
2 Move the joystick V and v to highlight the channel you want to
watch.The program on that channel appears in the background.
3 To remove the Program Guide and watch the highlighted
channel, press
.
To exit the Program Guide without changing the channel
❑ Press EXIT or GUIDE.
34
Using the DTV Features
Using the Scrolling Index
The Scrolling Index lets you select programs from a scrolling index of
video pictures.
1 Press INDEX.
The Scrolling Index appears, with the currently selected program
in the main (left) window, and four scrolling video pictures in the
right.
Live preview
window
As each picture on the right scrolls to the live preview window, it
changes briefly from a frozen video picture to a live video. The
right side continues to scroll through the entire channel list.
2 To change the direction of the scrolling, move the joystick V or v.
3 To change the speed of the scrolling, move and hold the joystick
V or v.
4 To change a frozen video picture to a live video, move the
joystick V or v to highlight the picture, then press
.
5 To move the live video (from step 4) from the right to the main
(left) window of the Scrolling Index, press
again.
To exit the Scrolling Index
❑ Press EXIT or INDEX.
35
Using the DTV Features
Using Favorite Channels
You can store up to 16 of your favorite channels in the Favorite
Channels list. You can use the Surf Favorites feature to preview and
select channels directly from the list. You can also edit the Favorite
Channels list to change the channels that are included in the list.
Adding Favorite
Channels
1 Tune to the channel you want to save to the Favorite Channels list
and press ADD.
A message appears, indicating that the channel was stored in the
Favorite Channels list.
2 To add more channels (to a total of 16), repeat step 1.
If you try to add more than 16 channels to the Favorite Channels list
A message appears, indicating that the Favorite Channels list is full.
To change the Favorite Channels list, select Edit (then see “Editing the
Favorite Channels List” on page 38). Or to cancel storing the channel,
select Cancel.
If you try to add a digital subchannel to the Favorite Channels list
Only the major channel number is saved as a Favorite Channel. For
example, if you are watching channel 51.4 and you press ADD, only
channel 51 is saved as a Favorite Channel. Then, when you surf to
Favorite Channel 51, the DTV tunes to channel 51 or the first
available digital subchannel it finds (channel 51.1, 51.2, etc).
36
Using the DTV Features
Surfing the Favorite
Channels List
1 Press SURF.
The Surf Favorites screen appears, with the currently selected
program in the main (left) window.
z The letter “C” indicates that
the Favorite Channel is a cable
channel.
Preview
Window
Main
Window
2
5
C8
10
18
C5
22
C11
Favorite
Channels
2 To see a preview of a program on your Favorite Channels, move
the joystick V or v through the Surf Favorites list. A preview of
the highlighted channel, when available, appears in the preview
window.
✍ Digital channels are displayed as a black box in the preview window.
If more than eight Favorite Channels are set, indicated by scroll
arrows (V v), move the joystick V or v to see the additional
Favorite Channels.
3 To remove the Surf Favorites list and watch the highlighted
channel, press
.
To exit the Surf Favorites list without changing the channel
❑ Press EXIT or SURF.
37
Using the DTV Features
Editing the Favorite
Channels List
1 Press MENU.
2 Move the joystick to highlight the Channel Setup icon
press
and
.
3 Move the joystick to highlight Favorite Channels and press
.
The Favorite Channels list appears.
z The letter “C” indicates
that the Favorite Channel is a
cable channel.
If more than nine Favorite Channels are set, move the joystick V
or v to see the other Favorite Channels.
4 To select a Favorite (1-16) to edit, move the joystick V or v to
highlight the number and press
.
5 Move the joystick V or v to scroll through the channel list. A
preview of the highlighted channel, when available, appears in
the preview window.
✍ Digital channels are displayed as a black box in the preview window.
6 To set the channel to the Favorite Channel list, press
.
To set additional channels (to a total of 16)
❑ Repeat steps 4 to 6.
To clear a Favorite Channel from the list
❑ After step 4, press the RESET button on the remote control.
To exit the Edit Favorites list
❑ Press EXIT.
38
Using the DTV Features
Using Wide Screen Mode
Wide Screen mode lets you watch 4:3 normal broadcasts in several
Wide Screen modes (16:9 aspect ratio).
z You can also access the
Wide Mode settings in the
Screen Mode menu. For details,
see page 52.
❑
Press WIDE MODE repeatedly to toggle through the following Wide
Mode settings.
Wide Zoom enlarges the 4:3
picture, while the upper and
lower parts of the picture are
condensed to fit the 16:9 screen.
Wide Zoom
m
z When you change channels
or inputs, the Wide Mode
settings revert to Wide Zoom (or
the 4:3 Default setting in the
Screen Mode menu). To retain
the current Wide Mode setting
as channels and inputs are
changed, set 4:3 Default to Off.
For details, see page 52.
Normal returns the 4:3 picture to
its original size.
Normal
m
Full Mode stretches the 4:3
picture horizontally only, to fill
the 16:9 screen.
Full
m
Zoom Mode enlarges the 4:3
picture horizontally and
vertically to an equal aspect ratio
that fills the 16:9 screen. Useful
for watching Letterbox movies.
Zoom
39
Using the DTV Features
Using Twin View
Twin View lets you see two pictures from two sources — from an
antenna, VCR, DVD, etc., — on the screen at the same time. (You hear
the sound from only one of the sources at a time. You choose which
source’s sound is selected.) You can change the relative size of each of
the pictures.
Displaying Twin
Pictures
1 Tune the DTV to a working channel.
2 Press .
A second picture-window appears.
,
,
To cancel twin pictures and watch the active picture
or
❑ Press
.
40
Using the DTV Features
With Twin View, the picture highlighted in blue is active. In the active
picture, you can:
❑
Change channels.
❑
Adjust the volume.
❑
Switch the input sources (to go from UHF/VHF to cable, for
example, press ANT or TV/VIDEO on the remote control).
❑
Change the picture size by moving the joystick V or v.
To activate the right picture
❑ Move the joystick b.
To activate the left picture
❑ Move the joystick B.
,
,
Activating the
Factors affecting Twin View
❑ If you use a cable box to view all channels, the same channel
appears in both windows of Twin View because the cable box
unscrambles only one channel at a time.
❑
If you use a cable box, you can view the cable box output in one
Twin View window and view a signal from a different source
(such as a VCR or DVD player) in the second window.
❑
Digital channels and equipment connected to VIDEO 5 or VIDEO
6 inputs display in the left Twin View window, but not the right.
❑
If you are viewing a 4:3 source and a 16:9 enhanced source (such
as a DVD) side by side in Twin View, the 4:3 source will appear
larger.
❑
Twin View is not available while viewing i.LINK devices.
41
Using the DTV Features
Changing the
Picture Size
The zoom feature lets you vary the relative size of the left and right
pictures.
1 Activate the picture whose size
you want to change.
2 Move the joystick V to enlarge
the picture.
3 Move the joystick v to make the
picture smaller.
When you adjust the twin screen sizes, the DTV memorizes the
change. The next time you use the Twin View function, the
memorized sizes appear.
42
Using the DTV Features
Using the Freeze Function
The FREEZE button allows you to temporarily capture a program’s
picture. You can use this feature to write down information such as
phone numbers, recipes, etc.
✍ The Freeze feature is not available while using Twin View.
1 When the program information you want to capture is displayed,
press the FREEZE button.
2 The DTV switches to Twin View mode and displays the “frozen”
picture on the right, while the current program continues on the
left.
Current program
in progress
Frozen
Call 555-1234
3 To cancel and return to normal viewing, press the FREEZE or EXIT
button.
43
Using the DTV Features
Using the i.LINK Control Panel
The i.LINK Control Panel lets you see a list of i.LINK devices that are
connected to and communicating with the DTV.
✍ At the time this DTV went to market, the Sony digital cable set-top box (DHGz You can also access the
i.LINK Control Panel using the
the button on the DTV’s front
panel. For details, see page 10.
M55CV) is the only i.LINK device that is verified to be compatible with this DTV.
1 To display the i.LINK Control Panel, press the button.
The i.LINK Control Panel appears, which displays a list of i.LINK
devices that are set to Show in the i.LINK Setup menu (pag e61).
✍ If the i.LINK device is not listed in the i.LINK Control Panel, you need to
change the i.LINK Setup option from Hide to Show (see page 61).
DTV is always the first device listed. If other i.LINK devices are
connected, they are listed according to their manufacturer’s
model name. If there are duplicate models connected, they are
also designated a number (1,2,3, etc.). If a device is unknown, it is
listed as “Device.”
If no i.LINK devices are connected to the DTV, the message
“There are no i.LINK devices available” is displayed.
2 To check the status of an i.LINK device, move the joystick V or v
to highlight the device name. The background continues to
display the video of the device that is selected.
3 To select a new i.LINK device and change the background video
to that device, press
.
4 To exit the i.LINK Control Panel and return to normal viewing,
press the
44
button (or EXIT).
Using the DTV Features
Using the Timer
You can use the Timer to program the DTV to turn on and off and
tune to a specific channel at two scheduled viewing times.
The first time you turned on the DTV, a setup screen prompted you to
set the clock (see “Setting Up the DTV Automatically” on page 31). If
you didn’t set the clock during this initial setup, you need to set it
before you can use the Timer (see page 46).
Setting the Timer
z You can also access the
Timer through the Setup menu.
For details, see page 60.
1 Press TIMER.
The Set Clock/Timers screen appears, with the current timer
settings shown.
2 To set the Timer, move the joystick V or v to highlight Timer 1 or
Timer 2, then press
.
✍ The clock must be set before you can set either of the Timers. If the clock
is not set, Timer 1 and Timer 2 cannot be selected. To set the clock, see
“Setting the Clock” on pag e46.
3 Move the joystick V or v to highlight one of the following
options, then press
.
Set
Select to set or change the timer settings for the selected
Timer (Timer 1 or Timer 2).
On
Select to turn on the timer settings for the selected Timer
(Timer 1 or Timer 2).
Off
Select to turn off the timer settings for the selected Timer
(Timer 1 or Timer 2).
4 If you selected Set in step 3, the setup screen for the selected Timer
(Timer 1 or Timer 2) appears.
45
Using the DTV Features
5 Move the joystick V and v to set the day(s), time (hour, minute,
AM/PM), duration, and channel number. Press
or b to
confirm each setting and move to the next setting. Press B to go
back to the previous setting.
6 After you’ve set the channel number, press
to save the Timer
settings. The settings are displayed in the Timer screen and the
Timer is set to On.
The DTV is now set to turn on, tune to the channel you’ve set, and
then turn off at the times you set for that Timer. The Timer indicator
on the front panel indicates the Timer is set.
To turn a Timer setting on or off
❑ Select On or Off in step 3 (page 45).
To change a Timer setting
❑ Set the timer (Timer 1 or Timer 2) again. The old timer setting is
overwritten.
To set a second Timer setting
❑ Set the other unset timer (Timer 1 or Timer 2).
Setting the Clock
z You can also access the
Timer through the Setup menu.
For details, see page 60.
If you didn’t set the clock during the DTV’s initial setup (see page 31),
you need to set it before you can set either of the Timers.
1 Press TIMER.
The Timer Setup screen appears (as shown on pag e45).
2 Move the joystick V or v to highlight Set the Clock, then press .
3 Move the joystick V and v to set the current day and time (hour,
minute, and AM/PM). Press
or move the joystick b to confirm
each setting and move to the next setting. Move the joystick B to
go back to the previous setting.
4 When you finish setting the day and time, press
clock settings.
46
to save the
Using the DTV Menus
Overview
To open and choose a menu
1 Press MENU to display the menu screen.
2 Move the joystick V or v to highlight the icon of the menu you
want to select and press
.
3 Move the joystick V or v to scroll through the options.
4 See the specific menu page for instructions on moving through
the menu.
The Menu gives you access to the following features:
Menu Icon Description
Page
The Video menu allows you to make adjustments to 48
your picture settings, lets you customize the Picture
Mode based on the type of program you are viewing,
and more.
The Audio menu offers enhanced audio options such 50
as listening to second audio programming (SAP),
customizing the Effect of the sound on your DTV,
and more.
To end a menu session
Press EXIT.
To move from one menu to
another
Move the joystick B to
return to the menu icons.
Move the joystick V or v to
choose the next menu icon
and press
to select it.
52
The Screen Mode menu allows you to make Wide
Mode adjustments and make changes to the screen’s
vertical center and vertical size.
The Channel Setup menu allows you to edit your
Favorite Channels list, run the Auto Program
function, and more.
54
The Parental Control menu lets you control the
viewing of programs based on their ratings.
56
The Setup menu provides options for setting up
your system, including selecting closed caption
modes, setting the Timer, labeling Video inputs,
changing the status of i.LINK devices, selecting the
language of the on-screen menus, and more.
60
47
Using the DTV Menus
Using the Video Menu
To select the Video menu
1
2
Press MENU.
Move the joystick V or v to highlight the
Video icon
and press
.
3
Move the joystick V or v to scroll through
the features.
4
Press
to select a feature. That feature’s
adjustment appears.
5
Use the joystick to make the desired
adjustments.
6
7
Press
to select/set.
Press EXIT to exit the menu screen.
To restore the factory default settings for Picture, Brightness, Color, Hue, and
Sharpness, Color Temp and VM
❑ Press RESET on the remote control when in the Video menu.
The factory default settings are restored only for the Picture Mode
that is currently selected.
Selecting Video
Options
z To change from one Video
Mode to another, use the PIC
MODE button on the remote
control.
The Video menu includes the following options.
Option
z You can customize each
Picture Mode (Vivid, Standard,
Movie, etc.) by changing the
other video menu options
(Picture, Brightness, Color, etc).
48
Description
Picture Mode Vivid
Preset picture
viewing
Standard
modes
Select for enhanced picture contrast and
sharpness.
Recommended for Normal viewing
conditions.
Movie
Select to display a finely detailed picture for
low-light environments.
Game
Select to reduce the visibility of artifacts,
which often appear in graphics and
animation (such as in a video game). Game
can also be used to improve the picture
quality on channels with noisy or poor signal
reception.
Pro
Select to display a picture with minimum
enhancements.
Adjust to increase picture contrast and deepen the color or
decrease picture contrast and soften the color.
Brightness
Adjust to brighten or darken the picture.
Color
Adjust to increase or decrease color intensity.
Using the DTV Menus
z To change from one DRC
Mode to another, use the DRC
button on the remote control.
Option
Description
Hue
Adjust to increase or decrease the green tones.
Sharpness
Adjust to sharpen or soften the picture.
Color
Temperature
White
intensity
adjustment
Choose from three color temperatures:
VM
Velocity
Modulation
Sharpens picture definition to give every object a sharp, clean
edge. Select from High, Low, Medium, Off.
DRC Mode
Digital
Reality
Creation
Creates a high-resolution picture with 4x density, for high
quality sources (i.e., DVD player, satellite receiver).
Alternate
Video
Cool
Select to give the white colors a blue tint.
Neutral
Select to give the white colors a neutral tint.
Warm
Select to give the white colors a red tint
(NTSC-Standard).
Interlaced
Recommended for moving pictures.
Progressive
Recommended for still images and text.
CineMotion
Provides an optimized display by
automatically detecting film content and
applying a reverse 3/2 pulldown process.
Moving pictures will appear clearer and
more natural-looking.
Allows you to select from the available video streams for the
current program. (For example, a sporting event that
broadcasts multiple video streams.)
To select an alternate video source, move the joystick V or v
to select an alternate video option and press
. (Unavailable
when alternate video streams are not broadcast.)
49
Using the DTV Menus
Using the Audio Menu
To select the Audio menu
1
2
Press MENU.
Move the joystick V or v to highlight the
Audio icon
and press
.
3
Move the joystick V or v to scroll through
the options.
4
Press
to select an option. That option’s
settings appear.
5
Use the joystick to scroll through the
settings.
6
7
Press
to select the desired setting.
Press EXIT to exit the menu screen.
To restore the factory default settings for Treble, Bass, and Balance
❑ Press RESET on the remote control when in the Audio menu.
Selecting Audio
Options
The Audio menu includes the following options:
Option
Description
Treble
Adjust to increase or decrease higher-pitched sounds.
Bass
Adjust to increase or decrease lower-pitched sounds.
Balance
Adjust to emphasize left or right speaker balance.
Steady Sound
On
Select to stabilize the volume.
Off
Select to turn off Steady Sound.
TruSurround
Select for surround sound (for stereo
programs only).
Simulated
Adds a surround-like effect to mono
programs.
Off
Normal stereo or mono reception.
z To change from one Effect to
another, use the button on the
inside panel of the remote
control.
50
Effect
Using the DTV Menus
z To change from one MTS
Mode to another, use the
MTS/SAP button on the remote
control.
Option
Description
MTS
Enjoy stereo,
bilingual and
mono programs
Stereo
Select for stereo reception when viewing a
program broadcast in stereo.
Auto SAP
Select to automatically switch the DTV to
second audio programs when a signal is
received. (If no SAP signal is present, the DTV
remains in Stereo mode.)
Mono
Select for mono reception. (Use to reduce
noise during weak stereo broadcasts.)
On
Select to turn on the DTV speakers.
Off
Select to turn off the DTV speakers and listen
to the DTV's sound only through your
external audio system speakers.
Variable
The DTV’s speakers are turned off, but the
volume output from your audio system can
still be controlled by the DTV’s remote
control.
Fixed
The DTV’s speakers are turned off and the
volume output of the DTV is fixed. Use your
audio receiver’s remote control to adjust the
volume through your audio system.
Speaker On/Off
Audio Output
Easy control of
volume
adjustments
Alternate Audio
Allows you to select from the available audio tracks for the
current program. (For example, a sporting event that
broadcasts multiple commentators.)
To select an alternate audio track, move the joystick V or v
to select an alternate audio option and press
.
(Unavailable when alternate audio tracks are not
broadcast.)
51
Using the DTV Menus
Using the Screen Mode Menu
To select the Screen Mode menu
1
2
Selecting Screen
Mode Options
z To change from one Wide
Mode to another, use the WIDE
MODE button on the remote
control.
z If 4:3 Default is set to
anything but Off, the Wide Mode
setting changes only for the
current channel. When you
change channels (or inputs),
Wide Mode is automatically
replaced with the 4:3 Default
setting. To retain the current
Wide Mode setting as channels
and inputs are changed, set 4:3
Default to Off.
52
Press MENU.
Move the joystick V or v to highlight the
Screen Mode icon
and press
.
3
Move the joystick V or v to scroll through
the features.
4
Press
to select a feature. That feature’s
options appear.
5
Use the joystick to scroll through the
options.
6
7
Press
to select the desired option.
Press EXIT to exit the menu screen.
The Screen Mode menu includes the following options:
Option
Description
Wide Mode
Select a Wide
Mode to use for
4:3 sources.
Wide Zoom
Select to enlarge the 4:3 size picture, while
the upper and lower parts of the picture are
condensed to fit the wide screen.
Normal
Select to return the 4:3 picture to normal
mode.
Full
Select to enlarge the 4:3 picture
horizontally only, to fill the wide screen.
Zoom
Select to enlarge the 4:3 picture
horizontally and vertically to an equal
aspect ratio that fills the wide screen.
(Wide Mode is unavailable while in Twin View.)
4:3 Default
Wide Zoom
Select the default
Screen Mode to
use for 4:3 sources. Normal
Select to enlarge the 4:3 size picture, while
the upper and lower parts of the picture are
condensed to fit the wide screen.
Select to return the 4:3 picture to normal
mode.
Full
Select to enlarge the 4:3 picture
horizontally only, to fill the wide screen.
Zoom
Select to enlarge the 4:3 picture
horizontally and vertically to an equal
aspect ratio that fills the wide screen.
Off
Select to continue using the current Wide
Mode setting when the channel or input is
changed.
Using the DTV Menus
Option
Description
Vertical Center
Allows you to move the position of the picture up and
down in the window. (Available only in Wide Zoom and
Zoom modes.)
Move the joystick V or v to choose a position and press
.
Vertical Size
Allows you to adjust the vertical size of the picture.
(Available only in Wide Zoom and Zoom modes.)
Move the joystick V or v to choose a correction and press
.
53
Using the DTV Menus
Using the Channel Setup Menu
To select the Channel Setup menu
1
2
Selecting Channel
Setup Options
Press MENU.
Move the joystick V or v to highlight the
Channel Setup icon
and press
.
3
Move the joystick V or v to scroll through
the features.
4
Press
to select a feature. That feature’s
options appear.
5
Use the joystick to scroll through the
options.
6
7
Press
to select the desired option.
Press EXIT to exit the menu screen.
The Channel Setup menu includes the following options:
Option
Description
Favorite Channels
Edit
Channel Fix
Off
Useful when you VIDEO 1
have a cable box or
satellite receiver
2-6
connected
Cable 2-6
Auto Program
54
Select to edit the Favorite Channels list. For
details, see “Editing the Favorite Channels
List” on page 38.
Turns off Channel Fix.
Use this setting if you have connected the
device to the Audio and Video IN jacks.
“Fix” your DTV’s channel setting to
channels 2-6 and use the cable box, VCR or
satellite receiver to change channels. Select
one of these settings if you connected the
device to the VHF/UHF jack.
Same as 2-6, except you select one of these
settings if you connected the device to the
CABLE jack.
Automatically programs the DTV for all receivable
channels.
Find and
Overwrite
Select to automatically program the DTV
for all receivable channels for the selected
input (Cable or VHF/UHF).
DTV Auto Add
Select to automatically add new digital
channels to the digital channel list.
(Available only for VHF/UHF input.)
Using the DTV Menus
Option
Description
Channel
Skip/Add
Allows you to customize the channel list that appears
when using the CH+/- buttons on the remote control. The
DTV maintains separate channel lists for digital and
analog channels.
Channel Logo
Digital
Select to add or skip digital channels.
Analog
Select to add or skip analog channels.
1
Move the joystick V or v to scroll through the
channels until you find the channel you want to
skip/add.
2
3
Press
4
Move the joystick B to return to the Channel Setup
menu, or press EXIT to exit the menus.
to select it.
Move the joystick V or v to toggle between Add and
to select.
Skip. Then press
Allows you to assign logos to channel numbers.
Channel List
Select to display the channel list.
To assign a logo for a channel number:
Digital Signal
Strength
1
Move the joystick V or v to highlight the channel
number to which you want to assign a logo. Then
press
to select that channel number.
2
Move the joystick B bVv to highlight one of the logos.
Then press
to assign that logo to the selected
channel number.
3
Move the joystick B to return to the Channel Setup
menu, or press EXIT to exit the menus.
Displays the strength of the terrestrial digital broadcast
signal, to help you adjust your antenna to optimize signal
reception. When the DTV is receiving a good signal (the
signal is locked and there are no errors in the signal), the
green light appears next to Signal OK. Adjust the antenna
until the green light appears.
55
Using the DTV Menus
Using the Parental Control Menu
The Parental Control menu allows you to set up the DTV to block
programs according to their content and rating levels. These ratings
are assigned by a federal rating board. Not all programs are rated.
Using the Parental Lock blocks programs with a specific rating, but it
does not block an entire channel.
To select the Parental Control menu
1
2
Press MENU.
Move the joystick V or v to highlight the
Parental Control icon
and press
.
3
Use the 0-9 buttons on the remote control to
enter your four-digit password.
4
If this is your first time setting a password,
confirm your password by entering it
again. (The Parental Control menu options
appear.)
5
6
7
Move the joystick V or v to scroll through the settings.
Press
to select the desired option.
Press EXIT to exit the menu screen.
✍ You need your password for any future access into the Parental Control
menu. If you lose your password, see “Lost password” on page 71.
56
Using the DTV Menus
Using the Parent
Menu
z If you are not familiar with
the Parental Guideline rating
system, you should select Child,
Youth, or Young Adult to help
simplify the rating selection. To
set more restrictive ratings,
select Custom.
The Parent menu includes the following options.
Option
Description
Parental Lock
Off
Turn ratings
on/off and select a Child
rating system
Parental lock is off. No programs are
blocked from viewing.
Maximum ratings permitted are:
❏ US: TV-Y, TV-G, G
❏ Canada: TV-Y, C, G
Youth
Maximum ratings permitted are:
❏ US: TV-PG, PG
❏ Canada: TV-PG, PG, 8 ans+
Young Adult
Maximum ratings permitted are:
❏ US: TV-14, PG-13
❏ Canada: TV-14, 14+, 13 ans+
Custom
Select to set ratings manually.
❏ US: See page 58 for details.
❏ Canada: See page 59 for details.
Change Password
For changing your password.
Select Country
USA
Select to use USA ratings (see pag e58).
Canada
Select to use Canadian ratings (see
page 59).
57
Using the DTV Menus
United States:
Selecting Custom
Rating Options
For the United States, the Custom Rating Menu includes the
following options. (For Canada, see page 59.)
Option
Description
Movie Rating
G
All children and General Audience.
PG
Parental Guidance suggested.
PG-13
Parental Guidance for children under 13.
R
Restricted viewing, parental guidance is
suggested for children under 17.
NC-17
and X
No one 17 and under allowed.
z To ensure maximum
blocking capability, the agebased ratings should be
blocked.
z The content ratings will
increase depending on the level
of the age-based rating. For
example, a program with a TVPG V (Violence) rating may
contain moderate violence,
while a TV-14 V (Violence)
rating may contain more intense
violence.
TV Rating
Block programs
by their rating,
content or both
58
TV-Y
All children.
TV-Y7
Directed to older children.
TV-G
General Audience.
TV-PG
Parental Guidance suggested.
TV-14
Parents Strongly cautioned.
TV-MA
Mature Audience only.
Content-Based Options
z If you block unrated TV
programs, be aware that the
following types of programs
may be blocked: emergency
broadcasts, political programs,
sports, news, public service
announcements, religious
programs and weather.
Age-Based Options
Unrated
Block programs
or movies that
are broadcast
without a rating
FV
Fantasy Violence.
D
Suggestive Dialogue.
L
Strong Language.
S
Sexual situations.
V
Violence.
Block
Blocks all programs and movies that are
broadcast without a rating.
Allow
Allows programs and movies that are
broadcast without a rating.
Using the DTV Menus
Canada:
Selecting Custom
Rating Options
For Canada, the Custom Rating Menu includes the following options.
(For the US, see page 58.)
Option
Description
English Rating
C
All children.
C8+
Children 8 years and older.
G
General programming.
PG
Parental Guidance.
14+
Viewers 14 and older.
French Rating
USA TV Rating
Viewing Blocked
Programs
18+
Adult programming.
G
General programming.
8 ans+
Not recommended for young children.
13 ans+
Not recommended for ages under 13.
16 ans+
Not recommended for ages under 16.
18 ans+
Programming restricted to adults.
See page 58 for details.
You can view a blocked program by pressing the ENTER button when
tuned to a blocked program. Entering the correct password
temporarily switches off the Parental Lock. To reactivate the Parental
Lock settings, turn off the DTV. When the DTV is turned on again,
your Parental Controls settings are reactivated.
59
Using the DTV Menus
Using the Setup Menu
To select the Setup menu
1
2
Selecting
Setup Options
Press MENU.
Move the joystick V or v to highlight the
Setup icon
and press
.
3
Move the joystick V or v to scroll through
the features.
4
Press
to select a feature. (That feature’s
options appear.)
5
Move the joystick V or v to scroll through
the options.
6
7
Press
to select the desired option.
Press EXIT to exit the menu screen.
The Setup Menu includes the following options:
Option
Description
Caption Vision
Allows you to select from three closed caption modes (for
programs that are broadcast with closed caption).
CC1, CC2,
CC3, CC4
Displays a printed version of the dialog or
sound effects of a program. (Should be set to
CC1 for most programs.)
TEXT1, TEXT2, Displays network/station information
TEXT3, TEXT4 presented using either half or the whole
screen (if available). For closed captioning,
set to CC1.
Select Out
60
Info Banner
Displays the program name and the time
remaining in the program (if the broadcaster
offers this service). Displays when the
channel is changed or the DISPLAY button is
pressed.
Off
Turns off Caption Vision.
Allows you to select which input to pass through to the
equipment connected to the SELECT OUT jacks on the
DTV.
Monitor
Outputs the picture displayed on the screen.
TV
Outputs the signal that the TV is tuned to
(regardless of the picture displayed on the
screen).
VIDEO 1-4
Outputs the signal input to the TV
(regardless of the picture displayed on the
screen).
Using the DTV Menus
z You can also use the
Video Input option to assign
video inputs to i.LINK devices.
When you select that video
input, an i.LINK connection is
established. Only i.LINK
devices that are set to Show
(see “i.LINK Setup”) and
which support video input
connection are listed.
Option
Description
Video Input
Allows you to select labels to help you recognize devices
connected to the audio/video jacks on the DTV. For
example, if you have a DVD player connected to the
VIDEO 2 jack, you can select the label DVD for the VIDEO 2
input.
To select a label for a video input:
1
Move the joystick V or v to highlight the video input
(VIDEO 1-6) that you want to assign a label. Then
press
to select the input.
2
Move the joystick V or v to highlight one of the
displayed labels. Then press
to select it.
If you select the label Skip, your DTV skips this connection
when you press the TV/VIDEO button. i.LINK devices
cannot be assigned to VIDEO 5 or 6.
Language
Select to display all on-screen menus in your language of
choice (English, Espanol, Francais).
i.LINK Setup
Select to display a list of i.LINK devices that are connected
to the DTV. To change the status of an i.LINK device:
1
Move the joystick V or v to highlight an i.LINK
device. Then press
to select the device.
2
Move the joystick V or v to highlight one of the
following options. Then press
to select it.
z For details about using
the i.LINK Control Panel, see
page 44.
z For details about power
i.LINK Standby
Show
Select to display this device in the i.LINK
Control Panel.
Hide
Select to not display this device in the
i.LINK Control Panel. This is for devices that
are connected to, but not communicating
with, the DTV (or for devices that you don’t
want to appear in the i.LINK Control Panel).
Delete
Select for i.LINK devices that you have
disconnected from the DTV. To reconnect the
device, see page 29.
On
Allows the i.LINK signal to pass through to
connected i.LINK devices even when the
DTV is turned off. Front panel LED is
orange. The DTV uses more standby power
than when this option set to Off.
Off
Does not allow the i.LINK signal to pass
through to connected i.LINK devices when
the DTV is turned off. Front panel LED is
red. The DTV uses less standby power than
when this option is set to On.
consumption in standby
modes, see “Specifications”
on page 72.
61
Using the DTV Menus
z You can also access the Timer
using the TIMER button on the
remote control.
Option
Description
Set Clock/Timers
Select to set the clock and to program your DTV to turn on
and off at two scheduled viewing times. For details, see
page 45.
Vertical Correction
Allows you to make a vertical correction to the picture
within the DTV screen.
z Both Vertical Correction and
Tilt Correction are done while the
picture is in Full Mode. However,
the adjustments are also reflected
in other viewing modes: Wide
Zoom, Zoom, Normal, Twin View,
etc.
Move the joystick V or v to choose a correction between +5
and -5 and press
. You can use the horizontal bars at the
top and bottom of the screen for reference as you make the
adjustment.
Normally, vertical correction only needs to be adjusted the
first time you turn on the unit and after the unit is moved
to a new location.
Tilt Correction
Allows you to correct any tilt of the picture.
Move the joystick V or v to choose a correction between +7
and -7 and press
. You can use the horizontal bars at the
top and bottom of the screen for reference as you make the
adjustment.
Normally, tilt correction only needs to be adjusted the first
time you turn on the unit and after the unit is moved to a
new location.
62
Demo
Runs a demonstration of the features of the DTV.
Factory Reset
Restores all menu options to their original factory settings.
WARNING: Factory Reset clears all settings from
memory, including channel lists, favorite channels, menu
settings, timers, clock, etc.
Other Information
Overview
This chapter includes the following topics:
Topic
Page
Programming the Remote Control
64
Operating Other Components with
Your DTV Remote Control
67
About i.LINK
69
Troubleshooting
70
Specifications
72
Index
73
63
Other Information
Programming the Remote Control
The remote control is preset to operate Sony brand video equipment.
Sony
Equipment
Switch Position
on Remote Control
Programmable
Code Number
Beta, ED Beta VCRs
AV1
303
8 mm VCR
AV2
302
VHS VCR
AV3
301
DVD Player
DVD
751
If you have video equipment other than Sony brand that you want to
control with the DTV’s remote control, use the following procedures
to program the remote control.
3
2
✍ The equipment must have infrared (IR) remote capability in order to be used
with the remote control.
1 Check the list of the “Manufacturer’s Codes” listed on page 66,
and find the three-digit code number for the manufacturer for
your equipment. (If more than one code number is listed, start
with the number listed first.)
2 Open the lid on the remote control. Then move the slide switch to
one of the four positions (AV1, AV2, AV3, DVD).
3 Press CODE SET.
✍ You must perform step 4 within 10 seconds of step 3.
4 Close the lid on the remote control and enter the three-digit
manufacturer’s code number.
5
6
64
5 Press ENTER.
6 To check if the code number works, aim the DTV’s remote control
at the equipment and press the green POWER button that
corresponds with that equipment. If it responds, you are done. If
not, try using another code listed for that manufacturer.
Other Information
Tips
❑ If more than one code number is listed, try entering them one by
one until you come to the correct code for your component.
❑
If you enter a new code number, the code number you previously
entered at that setting is erased.
❑
In some cases, you may not be able to operate your component
with the Sony remote control. In such cases, use the component’s
own remote control unit.
❑
Whenever you remove the batteries to replace them, the code
numbers may revert to the factory setting and must be reset.
65
Other Information
Manufacturer’s Codes
VCRs
Manufacturer
Sony
Admiral
(M. Ward)
Aiwa
Audio
Dynamic
Broksonic
Canon
Citizen
Craig
Criterion
Curtis Mathes
Daewoo
DBX
Dimensia
Emerson
Fisher
Funai
General
Electric
Go Video
Goldstar
Hitachi
Code
301
327
338, 344
314, 337
319, 317
309, 308
332
302, 332
315
304, 338, 309
341, 312, 309
314, 336, 337
304
319, 320, 316,
317, 318, 341
330, 335
338
329, 304, 309
322, 339, 340
332
306, 304,
305,338
Instant Replay 309, 308
JC Penney
309, 305, 304,
330, 314, 336,
337
JVC
314, 336, 337,
345, 346, 347
Kenwood
314, 336, 332,
337
LXI (Sears)
332, 305, 330,
335, 338
Magnavox
308, 309, 310
Marantz
314, 336, 337
Marta
332
Memorex
309, 335
Minolta
305, 304
Mitsubishi/
323, 324, 325,
MGA
326
Multitech
325, 338, 321
NEC
314, 336, 337
Olympic
309, 308
Optimus
327
66
Manufacturer Code
Orion
317
Panasonic
308, 309, 306,
307
Pentax
305, 304
Philco
308, 309
Philips
308, 309, 310
Pioneer
308
Quasar
308, 309, 306
RCA/
304, 305, 308,
PROSCAN
309, 311, 312,
313, 310, 329
Realistic
309, 330, 328,
335, 324, 338
Sansui
314
Samsung
322, 313, 321
Sanyo
330, 335
Scott
312, 313, 321,
335, 323, 324,
325, 326
Sharp
327, 328
Shintom
315
Signature 2000 338, 327
(M. Ward)
SV2000
338
Sylvania
308, 309, 338,
310
Symphonic
338
Tashiro
332
Tatung
314, 336, 337
Teac
314. 336, 338,
337
Technics
309, 308
Toshiba
312, 311
Wards
327, 328, 335,
331, 332
Yamaha
314, 330, 336,
337
Zenith
331
Laserdisc Players
Manufacturer
Sony
Panasonic
Pioneer
Code
701
704, 710
702
DVD Players
Manufacturer
Sony
GE
Hitachi
JVC
Magnavox
Mitsubishi
Oritron
Panasonic
Philips
Pioneer
RCA/
PROSCAN
Samsung
Toshiba
Zenith
Cable Boxes
Manufacturer
Sony
Hamlin/Regal
Jerrold/G. I.
Oak
Panasonic
Pioneer
Scientific
Atlanta
Tocom
Zenith
Code
751
755
758
756
757
761
759
753
757
752
755
758
754
760
Code
230
222, 223, 224,
225, 226
201, 202, 203,
204, 205, 206,
207, 208, 218
227, 228, 229
219, 220, 221
214, 215
209, 210, 211
216, 217
212, 213
Satellite Receivers
Manufacturer Code
Sony
801
Dish Network 810
Echostar
810
General
802
Electric
Hitachi
805
Hughes
804
Mitsubishi
809
Panasonic
803
RCA/
802, 808
PROSCAN
Toshiba
806, 807
Other Information
Operating Other Components with Your DTV Remote Control
Operating a VCR
Operating a DVD
Player
Move the slide switch to the position you programmed for the VCR.
To Do This ...
Press
Turn on/off
POWER
Select VCR
TV/VIDEO
Change channels
CH +/-
Record
N and REC simultaneously.
Play
N
Stop
x
Fast forward
M
Rewind the tape
m
Pause
X (press again to resume normal playback)
Search the picture
forward or backward
M or m during playback
(release to resume normal playback)
Change input mode
TV/VCR
Move the slide switch to the position you programmed for the DVD
player.
To Do This ...
Press
Turn on/off
POWER
Select DVD
TV/VIDEO
Play
N
Stop
x
Pause
X (press again to resume normal playback)
Step through different
tracks of an audio disc
M to step forward or m to step backward
Step through different
chapters of a video disc
CH+ to step forward or CH- to step backward
Display the DVD menu
DVD MENU
Select tracks directly
0-9 buttons
Display the menu
(Setup)
MENU
67
Other Information
Operating a Cable
Box
Operating a Satellite
Receiver
To Do This ...
Press
Turn on/off
SAT/CABLE (green POWER button)
Select Cable Box
SAT/CABLE (white FUNCTION button)
Select a channel
0-9 buttons, ENTER
Change channels
CH +/-
Back to previous channel
JUMP
To Do This ...
Press
Turn on/off
SAT/CABLE (green POWER button)
Select Satellite Receiver
SAT/CABLE (white FUNCTION button)
Select a channel
0-9 buttons, ENTER
Change channels
CH +/-
Back to previous channel
JUMP
Display channel number
DISPLAY
Display satellite guide
GUIDE
Display satellite menu
MENU
Move highlight (cursor)
Move joystick B bVv
Select item
Operating an MDP
(Laserdisc Player)
68
button
Move the slide switch to the position you programmed for the MDP.
To Do This ...
Press
Turn on/off
POWER
Select MDP
TV/VIDEO
Play
N
Stop
x
Pause
X (press again to resume normal playback)
Search the picture
forward or backward
M or m during playback
(release to resume normal playback)
Search a chapter
forward or backward
CH +/-
Other Information
About i.LINK
i.LINK is a digital serial interface for handling digital video, digital
audio, and other data in two directions between equipment having
an i.LINK jack, and for controlling other equipment.
i.LINK compatible equipment can be connected using a single i.LINK
cable. Possible applications are operations and data transactions with
various digital AV equipment. When two or more i.LINK compatible
devices are connected to the DTV, operations and data transactions
are possible not only with the equipment that this unit is connected
to, but also with the other devices via the directly connected
equipment.
Note, however, that the method of operation sometimes varies
according to the characteristics and specifications of the equipment to
be connected, and that operations and data transactions are
sometimes not possible on some connected equipment.
✍ Before connecting this unit to i.LINK compatible equipment, refer to the
instruction manual of the equipment to be connected.
About the Name
i.LINK
i.LINK is Sony’s term for the IEEE 1394 data transport bus, and is a
trademark approved by many corporations. IEEE 1394 is an
international standard standardized by the Institute of Electrical
Electronic Engineers.
i.LINK as a Repeater
This device functions as a repeater or node, so that the i.LINK specific
digital signals provided by one device will be relayed to another
device that is connected to the first device. This will occur even when
the second device does not have the means to use the repeater digital
signals.
When i.LINK devices are connected to this DTV, the maximum bit
rate (the speed at which data can be sent or received) is 200 Mbps
(megabits per second).
To use this DTV as an i.LINK repeater when the unit is powered off,
be sure that the i.LINK Standby option is set to On, as described on
page 61.
69
Other Information
Troubleshooting
Problem
Possible Remedies
No picture
(screen not lit),
no sound
❏
❏
If your DTV does not turn on, and a red light keeps flashing, your DTV
may need service. Call your local Sony Service Center.
Make sure the power cord is plugged in.
Push the power button on the front of the DTV.
Check to see if the TV/VIDEO setting is correct: when watching TV, set to
TV. When watching connected equipment, set to VIDEO 1, 2, 3, 4, 5 or 6, as
appropriate.
Try another channel (it could be station trouble).
Remote control
does not operate
❏
❏
❏
❏
❏
Batteries could be weak. Replace the batteries.
Press TV (FUNCTION) when operating the DTV.
Make sure the DTV’s power cord is connected securely to the wall outlet.
Locate the DTV at least 3-4 feet away from fluorescent lights.
Check the orientation of the batteries.
Dark, poor or no
picture (screen lit),
good sound
❏
❏
❏
Adjust the Picture setting in the Video menu (see page 48).
Adjust the Brightness setting in the Video menu (see page 48).
Check antenna/cable connections.
Good picture,
no sound
❏
Press MUTING so that Muting disappears from the screen (see page 4).
Cannot receive upper
channels (UHF) when
using an antenna
❏
Use Auto Program in the Channel Setup menu to add receivable channels
that are not presently in memory (see page 54).
No color
❏
Adjust the Color settings in the Video menu (see page 48).
Only snow and noise
appear on the screen
❏
❏
❏
Check the antenna/cable connections.
Try another channel (it could be station trouble).
Press ANT to change the input mode (see page 4).
Picture is displayed, but
snow or noise is obvious
❏
Try setting the Picture Mode to Game (see page 48).
❏
❏
❏
Only a black screen appears ❏
Dotted lines
or stripes
❏
❏
DTV is fixed to one channel ❏
❏
Indicates there is no signal for the digital channel you are tuned to.
Adjust the antenna.
Move the DTV away from noise sources such as cars, neon signs, or hairdryers.
Use Auto Program in the Channel Setup menu to add receivable channels
that are not presently in memory (see page 54).
Check your Channel Fix settings (see pag e54).
Double images or ghosts
❏
Use a highly directional outdoor antenna or a cable (if the problem is
caused by reflections from nearby mountains or tall buildings).
Cannot select menu item
❏
If the item you want to choose appears in gray, it is not available to be
selected.
Cannot receive any
channels when using
cable TV
❏
Use Auto Program in the Channel Setup menu to add receivable channels
that are not presently in memory (see page 54).
Check your cable settings.
70
❏
Other Information
Problem
Possible Remedies
Cannot gain enough volume ❏
when using a cable box
Increase the volume of the cable box using the cable box’s remote control.
Then press TV (FUNCTION) and adjust the DTV’s volume.
Cannot receive channels
❏
Use Auto Program in the Channel Setup menu to add receivable TV channels
that are not presently in memory (see page 54).
Unable to select a channel
❏
Use Auto Program in the Channel Setup menu to add receivable TV channels
that are not presently in memory (see page 54).
Lost password
❏
In the password screen (see page 56), enter the following master password:
4357. The master password clears your previous password; it cannot be
used to temporarily unblock channels.
Cannot change channels
with the remote control
❏
❏
Be sure you have not inadvertently switched your DTV from channel 3 or 4
setting if you are using another device to change channels.
If you are using another device to control channels, be sure the “function”
button for that device has been pressed. For example, if you are using your
satellite receiver to control channels, be sure to press the SAT/CABLE button.
Cannot cycle through the
other video equipment
connected to the DTV
❏
Be sure the Video Input feature has not been set to Skip (see page 61).
There is a black box on the
screen
❏
You have selected a text option in the Setup menu and no text is available.
(See page 60 to reset Setup selections.) To turn this feature off, select Off in
the Caption Vision option. If you were trying to get closed captioning,
select CC1 instead of Text 1-4.
There is no Twin Picture
or it is just static
❏
Be sure your twin picture is set to a video source/channel that has a
program airing.
You may be tuned to a video input with nothing connected to it. Try
cycling through your video inputs using the TV/VIDEO button.
❏
The right Twin Picture
window is just a black box
❏
You can display digital channels in the left Twin View window, but not the
right. Pressing
while the black box is active will exit Twin View and
tune to that digital channel.
I get the same program
in the window picture
as in the main picture
❏
Both may be set to the same channel. Try changing channels in either the
main picture or the window picture.
You may be running all your channels through a cable box. The cable box
will only unscramble one signal at a time, so you cannot use the Twin View
feature. If possible, run a direct cable to your DTV’s CABLE input. (This
will only work if your cable system provides an unscrambled signal.)
I cannot get anything
but TV channels in my
second picture
❏
❏
Be sure the Video Input feature has not been set to Skip (see page 61).
If, after reading these operating instructions, you have additional questions related to the use of your Sony
television, please call our Customer Information Services Center at 1-800-222-SONY (7669) (U.S. residents
only) or (416) 499-SONY (7669) (Canadian residents only).
71
Other Information
Specifications
Picture Tube
Antenna
Television System
Channel Coverage
DTV
VHF
UHF
CATV
Power Requirements
Inputs/Outputs
Video (IN)
S Video (IN)
FD Trinitron® tube
75 ohm external terminal for VHF/UHF
NTSC, American TV Standard, ATSC
1 -99
2-13
14-69
1-125
120V, 60 Hz
4 total (1 on front panel)
4
1
C: 0.286 Vp-p (Burst signal), 75 ohms
Y: 1.0 Vp-p, 75 ohms unbalanced, sync
negative; PB: 0.7 Vp-p, 75 ohms
PR: 0.7 Vp-p, 75 ohms
500 mVrms (100% modulation)
Impedance: 47 kilohm
More than 408 mVrms at the maximum volume
setting (Variable)
More than 408 mVrms (Fixed)
Impedance (output): 2 kilohms
1 Vp-p, 75 ohms unbalanced, sync negative
More than 408 mVrms (100% modulation)
Impedance (output): 2 kilohms
Optical Rectangular (1)
1
2
4-pin S200 i.LINK terminal (2)
Component Video Input
2 (Y, PB , PR)
Audio (IN)
6 total (1 on front panel)
Audio (OUT)
1
SELECT OUT
1 Video
1 Audio
Digital Audio Optical Output
Dolby Digital/PCM
CONTROL S (IN/OUT)
i.LINK S200
Supplied Accessories
Remote Control
AA (R6) Batteries
Optional Accessories
AV Cable
Audio Cable
i.LINK Cable
Component Video Cable
TV Stand
Visible Screen Size
Actual CRT Size
Speaker Output
Dimensions (W x H x D)
Mass
Power Consumption
In Use
In Standby
In i.LINK Standby
1 Vp-p, 75 ohms unbalanced, sync negative
Y: 1 Vp-p, 75 ohms unbalanced, sync negative
RM-Y185
2 supplied for remote control
VMC-810/820/830 HG
RKC-515HG
VMC-IL4415 (4-pin to 4-pin, 1.5 meters), VMC-IL4435 (4-pin to 4-pin, 3.5 meters)
VMC-10/30 HG
SU-34XBR2
34 in (855.7 mm) picture measured diagonally
36 in (926.4 mm) picture measured diagonally
15 x 2
994 x 622 x 591.3 mm (39 3/16 x 24 1/2 x 23 5/16 in)
93 kg (206 lbs)
330 W
2.5 W
34 W
Design and specifications are subject to change without notice.
72
Index
0 – 9 buttons 5
3-D sound, setting 50
4:3 aspect ratio 39
4:3 Default settings 52
A
ADD FAVORITE button 4, 36
Alternate Audio, setting 51
Alternate Video, setting 49
ANT button 4
antenna, connecting 12
Audio menu 47, 50
AUDIO OUT (VAR/FIX) L (MONO)/R jacks,
described 11
Audio Output, setting 51
audio receiver, connecting 21
Auto Program (channel setup) 31, 54
Auto-SAP setting 51
AV1-3/DVD slide switch 6
B
Channel Logo, setting 55
Channel Setup menu 47, 54
Channel Skip/Add, setting 55
channels, changing 5
clock, setting 31
closed caption modes 47, 60
CODE SET button 6
color temperature, adjusting 49
color, adjusting 48
CONTROL S 30
CONTROL S IN/OUT jacks, described 11
Country, setting 57
cursor movement buttons 6, 10
D
Delete setting, in i.LINK Setup 61
Demo
running 31
setting 62
digital channels
using the Guide 34
balance, adjusting 50
bass, adjusting 50
batteries
inserting in remote 3
bilingual audio, setting 51
blocking programs. See ratings.
brightness, adjusting 48
C
cable
box, connecting with VCR 15
connecting 12
with VCR, connecting 14
cable box, using with TV remote control 68
CABLE jack, described 11
camcorder, connecting 24
Caption Vision, setting 60
CATV. see cable
CH buttons 5
Change Password 57
Channel Fix, setting 54
Digital Reality Creation
described 2
setting 49
Digital Signal Strength 55
digital TV FAQs 7
DISPLAY button 4
DRC CINEMOTION button 5
DVD MENU button 6
DVD player
using with TV remote control 67
with A/V connectors, connecting 23
with component video connectors,
connecting 22
DVD TITLE button 6
E
ENTER button 5
EXIT button 5
F
Factory Reset, setting 62
73
Index
Fast-forward button 6
Favorite Channel
clearing 38
editing 54
exiting 37
using 36–38
features 2
Fixed, Audio Output setting 51
FREEZE button 4, 43
Freeze, using 43
frequently asked questions 7
front panel controls, described 10
Full 52
Full mode, setting 52
FUNCTION buttons 5
G
L
labels, assigning to video inputs 61
Language, setting 61
logos, assigning to channels 55
M
MDP, using with TV remote control 68
MENU button 4, 6, 10
menus
Audio 47, 50
Channel Setup 47, 54
Parental Control 47, 56
Screen Mode 47, 52
Setup 47, 60
Video 47, 48
Mono setting 51
Game, Picture Mode setting 48
Guide
Movie, Picture Mode setting 48
MTS setting 51
MTS/SAP button 5
MUTING button 4
GUIDE button 5, 34
N
exiting 34
using 34
H
HD/DVD IN (1080i/720p/480p/480i) jacks,
described 11
Hide setting, in i.LINK Setup 61
hue, adjusting 49
I
i.LINK
cables 26
daisy-chaining devices 28
-equipped devices, connecting 2, 26
setup screens 29
i.LINK button 4, 10
i.LINK S200 jacks, described 11
i.LINK Setup 61
i.LINK Standby 10, 61
INDEX button 4, 35
J
joystick 4
JUMP button 5
74
Normal mode, setting 52
O
off, turning off the DTV 5, 10
on, turning on the DTV 5, 10
Optical IN-equipped devices, connecting 25
OPTICAL OUTPUT (Dolby Digital/PCM) jack,
described 11
P
Parental Control menu 47, 56
parental control, described 2
Parental Lock, setting 57
password, changing 57
Pause button 6
PIC MODE button 4
picture contrast, adjusting 48
picture definition, setting 49
Picture Mode, setting 48
Play button 6
POWER button 5, 6, 10
power cord, removing from holder 9
powering on/off, the DTV 5, 10
presetting channels 54
Index
Pro, Picture Mode setting 48
problems, troubleshooting 70–71
Program Guide, see Guide
R
ratings, setting 56–59
ratings, viewing blocked programs 59
rear panel connectors, described 11
Record buttons 6
remote control
inserting batteries 3
programming 64–66
RESET button 4
resetting
Audio options 50
Video options 48
resetting settings 62
Rewind button 6
S
S VIDEO jack, described 10, 11
SAT/CABLE button 5
satellite receiver
connecting, with VCR 19
using with TV remote control 68
Screen Mode menu 47, 52
Scrolling Index, using 35
SELECT button 10
SELECT OUT jacks, described 11
Select Out, setting 60
setting up 31
Setup menu 47, 60
sharpness, adjusting 49
Show setting, in i.LINK Setup 61
signal, displaying level 55
SLEEP button 4
sound effect (3-D), setting 50
Speaker setting 51
speakers
turning on/off 51
using external speakers 51
specifications 72
Standard, Picture Mode setting 48
STANDBY/i.LINK STANDBY 10
Steady Sound, described 2
Steady Sound, setting 50
Stereo setting 51
Stop button 6
SURF FAVORITE button 5
SURF FAVORITES button 37
T
tape-to-tape editing 17
Tilt Correction, setting 62
tilt, correcting 62
TIMER button 5
Timer Setup 62
transport buttons 6
treble, adjusting 50
troubleshooting 70–71
TruSurround 50
turning on/off the DTV 5, 10
TV/VCR button 6
TV/VIDEO button 5, 10
Twin View
described 2
using 40–42
Twin View button 5
V
Variable, Audio Output setting 51
VCR
connecting two, for tape editing 17
using with TV remote control 67
with cable box, connecting 15
with cable, connecting 14
with satellite receiver, connecting 19
Velocity Modulation 2
Velocity Modulation, setting 49
Vertical Center, adjusting 53
Vertical Correction, setting 62
Vertical Size, adjusting 53
VHF/UHF jack, described 11
VIDEO (L/R)/AUDIO jacks, described 10, 11
Video Input, setting 61
Video menu 47, 48
Vivid, Picture Mode setting 48
VOL buttons 4, 10
volume, adjusting 4
75
Index
W
Wega, described 1
Welcome screen 31
what is digital TV? 7
Wide 52
Wide Mode 52
WIDE MODE button 4
Wide Screen mode 39
Wide Screen, described 2
Wide Zoom mode, setting 52
Z
zoom feature, with Twin View 42
Zoom mode, setting 52
76
Self Diagnosis
Supported model
HA3 CHASSIS
SERVICE MANUAL
MODEL NAME
REMOTE COMMANDER
KD-34XBR2
RM-Y185
DESTINATION
US
CHASSIS NO.
SCC-S57A-A
SUPPLEMENT - 1
SUBJECT:
B BOARD, Q-BOX ASSEMBLY P/N CORRECTION;
IC001 P/N CORRECTION
Correct the service manual as shown.
File this Supplement with the service manual.
TRINITRON® COLOR TELEVISION
Sony Corporation
9-965-916-81
Sony Technology Center
Technical Services
Service Promotion Department
English
2002HJ74WEB-1
Printed in USA
© 2002.08
KD-34XBR2
☛
: Corrected Item
Section 13: Exploded Views
13-2. Chassis (Page 118)
INCORRECT
REF. NO.
30
31
PART NO.
DESCRIPTION
A-1136-203-A
B BOARD, COMPLETE
T-9986-097-0
Q-BOX ASSEMBLY (includes QM and QI boards)
CORRECT
REF. NO.
PART NO.
☛
☛
30
A-1136-203-A
B BOARD, COMPLETE
(S/N’s up to and including 8011844)
A-1136-203-B
B BOARD, COMPLETE
(S/N’s 8011845 and higher)
☛
☛
31
30
DESCRIPTION
.
T-9986-079-0
Q-BOX ASSEMBLY (includes QM and QI boards)
(S/N’s up to and including 8011844)
T-9986-093-9
Q BOX ASSEMBLY (includes QM and QI boards)
(S/N’s 8011845 and higher)
31
Section 14: Electrical Parts List (Page 120)
INCORRECT
REF. NO.
PART NO.
CORRECT
DESCRIPTION
A-1136-203-A
B BOARD, COMPLETE
REF. NO.
PART NO.
DESCRIPTION
☛
A-1136-203-A
B BOARD, COMPLETE
(S/N’s up to and including 8011844)
☛
A-1136-203-B
B BOARD, COMPLETE
(S/N’s 8011845 and higher)
.
Section 14: Electrical Parts List (Page 123)
INCORRECT
REF. NO.
PART NO.
IC001
6-800-670-01
CORRECT
DESCRIPTION
IC M306V2ME-154FP
REF. NO.
PART NO.
DESCRIPTION
☛
IC001
6-801-826-01
IC M306V2ME-155FP
(S/N’s up to and including 8011844)
☛
IC001
6-801-856-01
IC M306V2ME-156FP
(S/N’s 8011845 and higher)
.
Section 14: Electrical Parts List (Page 151, 162)
INCORRECT
REF. NO.
PART NO.
DESCRIPTION
T-9986-097-0
Q-BOX ASSEMBLY
CORRECT
REF. NO.
☛
☛
PART NO.
DESCRIPTION
T-9986-079-0
Q-BOX ASSEMBLY
(S/N’s up to and including 8011844)
T-9986-093-9
Q BOX ASSEMBLY
(S/N’s 8011845 and higher)
.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
