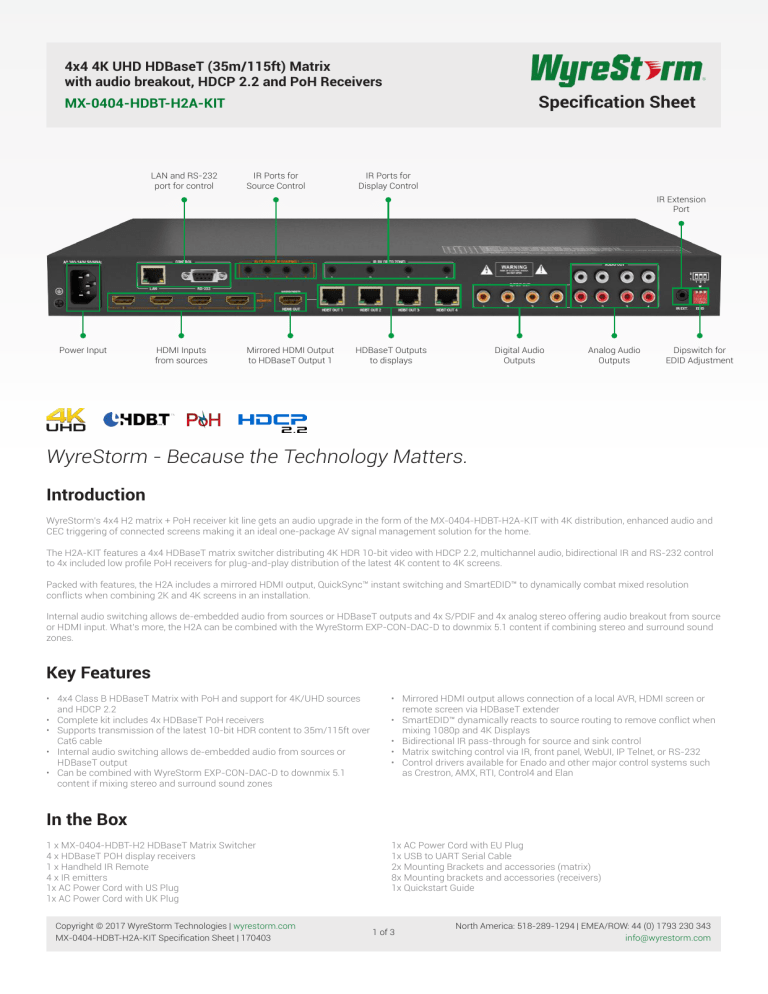

MX-0404-HDBT-H2A-KIT
4x4 4K UHD HDBaseT (35m/115ft) Matrix
with audio breakout, HDCP 2.2 and PoH Receivers
Specification Sheet
MX-0404-HDBT-H2A-KIT
LAN and RS-232
port for control
IR Ports for
Source Control
IR Ports for
Display Control
IR Extension
Port
Power Input
HDMI Inputs
from sources
Mirrored HDMI Output
to HDBaseT Output 1
HDBaseT Outputs
to displays
Digital Audio
Outputs
Analog Audio
Outputs
Dipswitch for
EDID Adjustment
WyreStorm - Because the Technology Matters.
Introduction
WyreStorm’s 4x4 H2 matrix + PoH receiver kit line gets an audio upgrade in the form of the MX-0404-HDBT-H2A-KIT with 4K distribution, enhanced audio and
CEC triggering of connected screens making it an ideal one-package AV signal management solution for the home.
The H2A-KIT features a 4x4 HDBaseT matrix switcher distributing 4K HDR 10-bit video with HDCP 2.2, multichannel audio, bidirectional IR and RS-232 control
to 4x included low profile PoH receivers for plug-and-play distribution of the latest 4K content to 4K screens.
Packed with features, the H2A includes a mirrored HDMI output, QuickSync™ instant switching and SmartEDID™ to dynamically combat mixed resolution
conflicts when combining 2K and 4K screens in an installation.
Internal audio switching allows de-embedded audio from sources or HDBaseT outputs and 4x S/PDIF and 4x analog stereo offering audio breakout from source
or HDMI input. What’s more, the H2A can be combined with the WyreStorm EXP-CON-DAC-D to downmix 5.1 content if combining stereo and surround sound
zones.
Key Features
• 4x4 Class B HDBaseT Matrix with PoH and support for 4K/UHD sources
and HDCP 2.2
• Complete kit includes 4x HDBaseT PoH receivers
• Supports transmission of the latest 10-bit HDR content to 35m/115ft over
Cat6 cable
• Internal audio switching allows de-embedded audio from sources or
HDBaseT output
• Can be combined with WyreStorm EXP-CON-DAC-D to downmix 5.1
content if mixing stereo and surround sound zones
• Mirrored HDMI output allows connection of a local AVR, HDMI screen or
remote screen via HDBaseT extender
• SmartEDID™ dynamically reacts to source routing to remove conflict when
mixing 1080p and 4K Displays
• Bidirectional IR pass-through for source and sink control
• Matrix switching control via IR, front panel, WebUI, IP Telnet, or RS-232
• Control drivers available for Enado and other major control systems such
as Crestron, AMX, RTI, Control4 and Elan
In the Box
1 x MX-0404-HDBT-H2 HDBaseT Matrix Switcher
4 x HDBaseT POH display receivers
1 x Handheld IR Remote
4 x IR emitters
1x AC Power Cord with US Plug
1x AC Power Cord with UK Plug
Copyright © 2017 WyreStorm Technologies | wyrestorm.com
MX-0404-HDBT-H2A-KIT Specification Sheet | 170403
1x AC Power Cord with EU Plug
1x USB to UART Serial Cable
2x Mounting Brackets and accessories (matrix)
8x Mounting brackets and accessories (receivers)
1x Quickstart Guide
1 of 3
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
Specifications
Audio and Video
Inputs
Matrix: 4x HDMI 19-pin type A female | Receiver: 1x HDBaseT 8-pin RJ-45 female
Outputs
Matrix:
4x HDBaseT 8-pin RJ-45 female
4x S/PDIF Out RCA Digital Coax | 4x Audio Out Stereo Pairs RCA Analog Coax (Audio from Source or HDMI Output)
Receiver:
1x HDMI 19-pin type A female
Audio Formats
HDMI/HDBaseT: 2ch PCM | Multichannel: LPCM and Up to DTS-X and Dolby Atmos
S/PDIF: 2ch PCM | Multichannel: Up to 5.1 DTS and Dolby Digital
Analog: 2ch Analog
HDMI
1920x1080p @60Hz 12bit (15m/50ft) | @60Hz 16bit (7m/23ft)
3840x2160p @30Hz 4:4:4 8bit (7m/23ft) | @24Hz 4:2:0 HDR 10bit per channel (3m/9.8ft)
4096x2160p @60Hz 8bit 4:2:0 (7m/23ft) | @60Hz 8bit 4:4:4 (7m/23ft)
Using Cat6
1920x1080p @60Hz 12bit (70m/230ft) | 16bit (70m/230ft)
3840x2160p @30Hz 4:4:4 8bit (35m/114ft) | @24Hz 4:2:0 HDR 10bit (35m/114ft)
4096x2160p @60Hz 4:2:0 8bit (35m/114ft)
Video Resolutions (Max)
Using Cat6a/7
1920x1080p @60Hz 12bit (70m/230ft) | @60Hz 16bit (70m/230ft)
3840x2160p @30Hz 4:4:4 8bit (40m/131ft) | @24Hz 4:2:0 HDR 10bit (40m/131ft)
4096x2160p @60Hz 4:2:0 8bit (40m/131ft)
Color Depth
1080p: 16bit | 4K UHD: 8bit | HDR @24p: 10bit BT.2020
Maximum Pixel Clock
HDMI: 600MHz | HDBaseT: 297MHz
Communication and Control
HDMI
HDMI | HDCP 2.2 | EDID | DVI-D with adapter (not included)
HDBaseT
HDMI | HDCP 2.2 | EDID | CEC | 1-way PoH to receiver | Bidirectional IR
Ethernet
Matrix Only: 1x 8-pin RJ-45 female | 10/100 Mbps auto-negotiating | Built-in Web UI | IP Control
IR
Matrix:
1x Front Panel IR Sensor | 1x IR Ext 3.5mm (1/8in) TRS Stereo | Matrix Control
4x IR TX 3.5mm (1/8in) TS Mono | 4x IR RX 3.5mm (1/8in) Stereo | Transmits via HDBaseT
Receiver:
1x IR TX 3.5mm (1/8in) TS Mono | 1x IR RX 3.5mm (1/8in) TRS Stereo | Transmits via HDBaseT
RS-232
Matrix Only: 1x 9-pin DB9 Female | Matrix Control (Telnet commands supported)
Power
Dimensions and Weight
Matrix
Receivers
Power Supply
100~240V AC 50/60Hz
Rack Units/Wall Box
1U
0.34U
PoH
48V 15.4W (each HDBT output)
Max Power Consumption
70w
Height With |
Without Feet
51.3mm/2.02in |
43.5mm/1.72in
N/A |
15mm/0.6in
Width With |
Without Brackets
482.6mm/19in |
440mm/17.33in
N/A |
135mm/5.32in
Depth With |
Without Handles
N/A |
300.1mm/11.82in
N/A |
742mm/29.22in
Weight
4kg/8.8lbs
0.4kg/0.88lbs
Environmental
Operating Temperature
32°F ~ 113°F (0°C ~ 45°C) | 10% ~ 90%,
non-condensing
Storage Temperature
-4°F to ~ 158°F (-20°C ~ +70°C) | 10% ~ 90%,
non-condensing
Maximum BTU
Regulatory
239 BTU/hr
Safety and Emission
Copyright © 2017 WyreStorm Technologies | wyrestorm.com
MX-0404-HDBT-H2A-KIT Specification Sheet | 170403
2 of 3
CE | FCC | RoHS
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
Right Product for the Right Application.
Note: The IR RX can only be
used for source control at the
matrix. Matrix control is not
supported
RS-232 Control System
HDMI to display
HDMI to display
IR RX
IR TX
IR RX
IR TX
Receivers
powered by
LAN Cat5/5e/6
MX-0404-HDBT-H2A-KIT (Receiver)
IR RX CAB-IR-LINK (Sold Separately)
IR Control System
MX-0404-HDBT-H2-KIT (Matrix)
AC Mains
Power
Blu-ray Player
HDMI from source
IR TX
HDMI to display
or
KEY
Satellite Box
Amplifier
HDMI from source
HDMI
HDBaseT / Ethernet
IR TX
IR
RS-232
Display Mirrored to
HDBaseT Output
Copyright © 2017 WyreStorm Technologies | wyrestorm.com
MX-0404-HDBT-H2A-KIT Specification Sheet | 170403
3 of 3
Power
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
