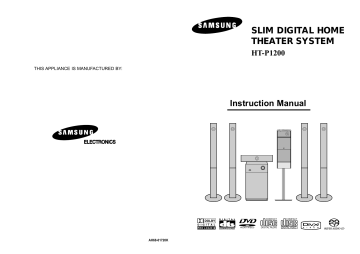

SLIM DIGITAL HOME
THEATER SYSTEM
HT-P1200
THIS APPLIANCE IS MANUFACTURED BY:
Instruction Manual
COMPACT
DIGITAL AUDIO
AH68-01720K
COMPACT
DIGITAL VIDEO
Safety Warnings
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE REAR COVER. NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CLASS 1 LASER PRODUCT
This Compact Disc player is classified
as a CLASS 1 LASER product.
GB
Use of controls, adjustments or performance of procedures other
than those specified herein may result in hazardous radiation
exposure.
PREPARATION
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1
Precautions
CAUTION-INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM.
This symbol indicates that dangerous voltage which
can cause electric shock is present inside this unit.
This symbol alerts you to important operating and
maintenance instructions accompanying the unit.
Ensure that the AC power supply in your house complies with the identification sticker located on the back of your player. Install your
player horizontally, on a suitable base (furniture), with enough space around it for ventilation (3~4inches). Make sure the ventilation
slots are not covered. Do not stack anything on top of the player. Do not place the player on amplifiers or other equipment which may
become hot. Before moving the player, ensure the disc tray is empty. This player is designed for continuous use. Switching off the DVD
player to the stand-by mode does not disconnect the electrical supply. In order to disconnect the player completely from the power supply, remove the main plug from the wall outlet, especially when left unused for a long period of time.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT, FULLY
INSERT.
During thunderstorms, disconnect AC main plug from the
wall outlet.
Voltage peaks due to lightning could damage the unit.
Do not expose the unit to direct sunlight or other heat
sources.
This could lead to overheating and malfunction of the unit.
Phones
Protect the player from moisture(i.e. vases) , and excess heat
(e.g.fireplace) or equipment creating strong magnetic or electric fields
(i.e.speakers...). Disconnect the power cable from the AC supply if the
player malfunctions. Your player is not intended for industrial use.
Use of this product is for personal use only.
Condensation may occur if your player or disc has been stored in cold
temperatures.
If transporting the player during the winter, wait approximately 2 hours
until the unit has reached room temperature before using.
1
The batteries used with this product contain chemicals
that are harmful to the environment.
Do not dispose of batteries in the general household
trash.
2
Features
Contents
GB
PREPARATION
Multi-Disc Playback & FM Tuner
DVD-Audio compatible
Experience the super high-quality audio performance of DVD-Audio.
The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of
dynamic range, low-level resolution and high-frequency detail.
PREPARATION
The HT-P1200 combines the convenience of multi-disc playback capability, including
DVD-AUDIO, DVD-VIDEO, VCD, SACD, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD-R/RW,
with a sophisticated FM tuner, all in a single player.
Safety Warnings.....................................................................................................................................................................1
Precautions ............................................................................................................................................................................2
Features.................................................................................................................................................................................3
Notes on Discs.......................................................................................................................................................................5
Description .............................................................................................................................................................................7
CONNECTIONS
Installing the DVD player .......................................................................................................................................................11
Installing Speakers ................................................................................................................................................................13
Connecting the Speakers ......................................................................................................................................................15
Connecting the Video Out to TV............................................................................................................................................18
HDMI Function.......................................................................................................................................................................19
Connecting External Components .........................................................................................................................................21
Connecting the FM Antenna ..................................................................................................................................................22
OPERATION
USB Host Play
You can enjoy media files such as pictures, movies and tunes saved in an MP3 player, digital camera,
or USB memory by connecting the storage device to the USB port of the home theater.
SACD Play
You can listen to high quality multi-channel sound that exceeds regular
CD playback.
SDSM-EX (360 Degree Surround Sound)
SDSM-EX is a proprietary audio technology that provides 360-degree
surround technology.
Logo Sound
When you turn on the power, a ‘sound logo’ will be heard.
TV Screen Saver Function
The HT-P1200 automatically brightens and darkens the brightness of the TV screen after
3 minutes in the stop mode.
The HT-P1200 automatically switches itself into the power saving mode after 20 minutes in the
screen saver mode.
AV SYNC Function
Video may lag behind the audio if the unit is connected to a digital TV.
To compensate for this, you can adjust the audio delay time to sync up with the video.
Before Using Your Home Theater..........................................................................................................................................23
Disc Playback ........................................................................................................................................................................25
SACD (Super Audio CD) Playback........................................................................................................................................27
MP3-CD Playback .................................................................................................................................................................28
JPEG File Playback ...............................................................................................................................................................29
Checking the Remaining Time...............................................................................................................................................30
DivX Playback........................................................................................................................................................................31
Playing Media Files using the USB HOST feature ................................................................................................................33
Displaying Disc Information ...................................................................................................................................................35
Fast/Slow Playback ...............................................................................................................................................................36
Skipping Scenes/Songs.........................................................................................................................................................36
Repeat Playback....................................................................................................................................................................37
A-B Repeat Playback.............................................................................................................................................................38
Step Function.........................................................................................................................................................................39
Angle Function.......................................................................................................................................................................39
Zoom (Screen Enlarge) Function ..........................................................................................................................................40
EZ VIEW Function .................................................................................................................................................................40
Bonus Group / Navigating Pages ..........................................................................................................................................41
Selecting Audio/Subtitle Language ........................................................................................................................................42
Moving Directly to a Scene/Song ..........................................................................................................................................43
Using Disc Menu....................................................................................................................................................................44
Using the Title Menu..............................................................................................................................................................44
SETUP
Setting the Language.............................................................................................................................................................45
Setting TV Screen type..........................................................................................................................................................47
Setting Parental Controls (Rating Level) ...............................................................................................................................49
Setting the Password.............................................................................................................................................................50
Setting the Wallpaper ............................................................................................................................................................51
DVD Audio Disc Playback Mode ...........................................................................................................................................53
SACD Playback Mode ...........................................................................................................................................................54
Setting the Speaker Mode .....................................................................................................................................................55
Setting the Test Tone .............................................................................................................................................................56
Setting the Delay Time ..........................................................................................................................................................57
Setting the Audio Quality .......................................................................................................................................................59
Setting the DRC (Dynamic Range Compression) .................................................................................................................61
AV SYNC Setup.....................................................................................................................................................................62
Dolby Pro Logic II Mode ........................................................................................................................................................63
Dolby Pro Logic II Effect ........................................................................................................................................................64
Auto Sound Calibration Setup ...............................................................................................................................................65
Live Surround Mode ..............................................................................................................................................................67
RADIO OPERATION
HDMI
HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture.
3
Listening to Radio ..................................................................................................................................................................69
Presetting Stations.................................................................................................................................................................70
MISCELLANEOUS
Convenient Functions ............................................................................................................................................................71
Operating a TV with the Remote Control ..............................................................................................................................73
Before Calling for Service......................................................................................................................................................75
Cautions on Handling and Storing Discs...............................................................................................................................77
Language Code List...............................................................................................................................................................78
USB Host Feature Supported Products.................................................................................................................................79
Specifications.........................................................................................................................................................................81
Memo .....................................................................................................................................................................................82
4
Notes on Discs
GB
DVD (Digital Versatile Disc) offers fantastic audio and video, thanks to Dolby Digital sur-
Disc Recording Format
PREPARATION
round sound and MPEG-2 video compression technology. Now you can enjoy these realistic
effects in the home, as if you were in a movie theater or concert hall.
CD-R Discs
DVD players and the discs are coded by region. These regional codes must match in order
for the disc to play. If the codes do not match, the disc will not play.
The Region Number for this player is given on the rear panel of the player.
(Your DVD player will only play DVDs that are labeled with identical region codes.)
Mark (Logo)
Do not use CD-R disk over 700MB/80 minute as much as possible since it may not be played back.
may not be able to fully play the disc.
Recorded Signals
Disc Size
12cm
DVD-AUDIO
DVD-VIDEO
Audio + Video
8cm
COMPACT
VIDEO-CD
DIGITAL VIDEO
Audio + Video
COMPACT
Audio
AUDIO-CD
condition of the disc.
• Use a 650MB/74 minute CD-R disc.
• Some CD-RW (Rewritable) media, may not be playable.
• Only CD-Rs that are properly "closed" can be fully played. If the session is closed but the disc is left open, you
Playable Discs
Disc Type
• Some CD-R discs may not be playable depending on the disc recording device (CD-Recorder or PC) and the
DIGITAL AUDIO
Max. Playing Time
Approx. 240 min. (single-sided)
Approx. 480 min. (double-sided)
Approx. 80 min. (single-sided)
Approx. 160 min. (double-sided)
12cm
74 min.
8cm
20 min.
12cm
74 min.
8cm
20 min.
74 min.
DivX
MPEG4
MP3
12cm
8cm
20 min.
Super Audio CD
Audio
12cm
74 min.
CD-R MP3 Discs
• Only CD-R discs with MP3 files in ISO 9660 or Joliet format can be played.
• MP3 file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Use discs recorded with a compression/decompression data rate greater than 128Kbps.
• Only files with the ".mp3" and ".MP3" extensions can be played.
• Only a consecutively written Multisession disc can be played. If there is a blank segment in the Multisession disc,
the disc can be played only up to the blank segment.
• If the disc is not closed, it will take longer to begin playback and not all of the recorded files may be played.
• For files encoded in Variable Bit Rate (VBR) format, i.e. files encoded in both low bit rate and high bit rate
(e.g., 32Kbps ~ 320Kbps), the sound may skip during playback.
• A maximum of 500 tracks can be played per CD.
• A maximum of 300 folders can be played per CD.
Do not use the following types of disc!
• LD, CD-G, CD-I, CD-ROM and DVD-ROM discs cannot be played on this player.
If such discs are played, a "WRONG DISC FORMAT" message appears on the TV screen.
• DVD discs purchased abroad may not play on this player.
If such discs are played, a "WRONG REGION CODE" message appears on the TV screen.
Copy Protection
•
•
5
Many DVD discs are encoded with copy protection. Because of this, you should only connect
your DVD player directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD discs.
This product incorporates copyright protection technology that is protected by methods claims of certain
U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and
is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
Corporation. Reverse engineering or disassembly is prohibited.
CD-R JPEG Discs
• Only files with the ".jpeg" and ".JPEG" extensions can be played.
• If the disc is not closed, it will take longer to start playing and not all of the recorded files may be played.
• Only CD-R discs with JPEG files in ISO 9660 or Joliet format can be played.
• JPEG file names should be 8 characters or less in length and contain no blank spaces or special characters (. / = +).
• Only a consecutively written multisession disc can be played. If there is a blank segment in the multisession disc, the
disc can be played only up to the blank segment.
• A maximum of 9,999 images can be stored on a single CD.
• When playing a Kodak/Fuji Picture CD, only the JPEG files in the picture folder can be played.
• Picture discs other than Kodak/Fuji Picture CDs may take longer to start playing or may not play at all.
6
Description
GB
—Rear Panel—
10
Power (
) button
Function button
Tuning Down & Skip (
1
Stop ( ) button
Play/Pause (
) button
Open/Close ( ) button
Tuning UP & Skip (
) button
Volume control
) button
PREPARATION
—Front Panel—
11
2
3
1 FM Antenna Connector
2 USB Connector
4
3 HDMI Output Connector
5
6
9
4 COMPONENT VIDEO OUTPUT jacks
5 Video Output Connector
6 External Audio Input Connector
7
7 External Digital Optical Input Connectors
8 Audio Output Connector
8
9 Wire Hanger
10 ASC Input Connector
Disc Tray
11 Headphone Jack
Accessories
Display
PRO LOGIC II indicator
DOLBY DIGITAL indicator
STEREO indicator
TUNER indicator
GROUP indicator
TITLE indicator
DTS Disc indicator
DVD AUDIO indicator
CHAPTER indicator
TRACK indicator
PROGRAM indicator
Remote Control
Video Cable
Auto Sound Calibration
Microphone
System Status Display
ASC indicator
LINEAR PCM indicator
HDMI indicator
7
DSP indicator
RADIO FREQUENCY indicator
REPEAT indicator
SACD indicator
MPEG indicator
FM Antenna
DIN Audio
Connection Cable
User's Manual
Vertical Stand
Screw Middle : 6EA
Screw Large : 4EA
8
Description
GB
PREPARATION
—Remote Control—
Insert Remote Batteries
TV indicator
TV, DVD POWER button
MODE button
SLEEP button
DVD RECEIVER indicator
OPEN/CLOSE button
TV/VIDEO, DIMMER button
DVD button
Number(0~9) buttons
REMAIN button
AUX button
TUNER button
1
Remove the battery
cover on the back
of the remote by
pressing down and
sliding the cover in
the direction of the
arrow.
2
Insert two 1.5V AAA
batteries, paying attention to the correct
polarities (+ and –).
3
Replace the battery
cover.
CANCEL button
Play/Pause button
Stop button
Tuning Preset/CD Skip button
MUTE button
VOLUME button
MENU button
SUB TITLE button
SUPER 5.1, Virtual Headphone button
TUNING/CH button
INFO. button
AUDIO button
Cursor/Enter button
RETURN button
MOVIE button
MUSIC button
EZ VIEW, NT/PAL button
STEP button
HDMI AUDIO SELECT button
ZOOM button
Auto Sound Calibration button
PL II MODE button
TUNER MEMORY, DCDi button
REPEAT button
SD/HD button
9
TEST TONE button
SOUND EDIT button
Caution
Follow these precautions to avoid leaking or cracking cells:
• Place batteries in the remote control so they match the polarity:(+) to (+)and (–)to (–).
• Use the correct type of batteries.Batteries that look similar may differ in voltage.
• Always replace both batteries at the same time.
• Do not expose batteries to heat or flame.
Range of Operation of the Remote Control
The remote control can be used up to approximately 23 feet/7 meters in a straight line.
It can also be operated at a horizontal angle of up to 30° from the remote control sensor.
LOGO COPY button
PL II EFFECT button
MO/ST, SLOW button
10
Installing the DVD player
GB
Tidying Cables Up
1
Combine the round board
and the stand with the
screws (4).
Stand
Round Board
1
Push the cables connected to the
HDMI OUT, Component OUT, Video
OUT ports into the groove shown
in figure 1 using the Wire Hanger.
3
Open the holder cover of the round
board on the bottom of the stand and
pass the cables through the holder.
4
Fully tighten the screws to
secure the stand to the DVD
player.
4
Squeeze the cables into the groove on
the holder of the round board.
5
Insert the remaining four
screws & tighten.
5
2
3
Align the stand with the two
screws.
1
Rear Side of
the Main Unit
2
Round Board Holder
Close the holder cover.
Caution • Keep the main unit and speakers out of the reach of children as the equipment could tip over.
11
CONNECTIONS
2
Push the cables connected to the
Audio IN, Anynet IN/OUT, Optical
Digital Audio IN and Audio OUT ports
into the groove shown in figure 2.
Insert two screws in the top
holes, but only screw them in
1/2 way.
Wire Hanger
12
Installing Speakers
GB
Assembling the Speakers
CONNECTIONS
1
2
3
Set the front speaker on the
front stand.
Connect the front speaker
cable to the rear side of the
front stand.
Fix the speaker and the
stand with the screws.
Note
Speaker Packages
Please confirm that all the following contents are
included in the package.
• Connect the speaker cable to the connection port of either the front speaker or the front stand. Both of
the connection ports will work.
• If you have combined the front speaker and the stand, connecting the speaker cable to the connection
port on the rear side of the front stand is recommended.
To mount the speakers on the wall
Front/Rear Speaker (4EA)
Front/Rear Stand (4EA)
Drive screws (2) into the wall for each
speaker and then hook the front and rear
speakers over them.
Speaker Accessories
Subwoofer Speaker
13
Center Speaker
Speaker Cable (5EA)
Hook the speakers
so that the screws are
in the position of the
figure.
Screw (8EA)
14
Connecting the Speakers
GB
Before moving or installing the product, be sure to turn off the power and disconnect the power cord.
Rear of Subwoofer
C
SW
L
Rear of Main unit
R
Center Speaker
SL
SR
Rear Speaker (L)
Rear Speaker (R)
Position of the DVD Player
• Place it on a stand or cabinet shelf, or under
the TV stand.
Selecting the Listening Position
The listening position should be located about 2.5 to 3
times the distance of the TV's screen size away from the
TV. Example: For 32" TVs 2~2.4m (6~8feet)
For 55" TVs 3.5~4m (11~13feet)
Connecting the Speakers
1
Press down the terminal
tab on the back of the
speaker.
Front Speakers L R
• Place these speakers in front of your listening position, facing inwards (about 45°) toward you.
• Place the speakers so that their tweeters will be at
the same height as your ear.
• Align the front face of the front speakers with the
front face of the center speaker or place them
slightly in front of the center speakers.
CONNECTIONS
Front Speaker (L)
Front Speaker (R)
2
Insert the black wire into the
black terminal (–) and the gray
wire into the gray (+) terminal,
and then release the tab.
Black
Rear Speakers SL SR
• Place these speakers behind your listening position.
• If there isn't enough room, place these speakers so they face each other.
• Place them about 60 to 90cm (2 to 3feet) above your ear, facing slightly
3
Connect the correct color speaker cable
to the same color speaker output terminal
on the rear of the subwoofer, according
to the polarity markings (+/–).
Example: Connect the green center speaker cable
to the green center speaker output terminal on the rear of the subwoofer according to the polarity markings (+/–).
Gray
downward.
Unlike the front and center speakers, the rear speakers are used to
* handle
mainly sound effects and sound will not come from them all
the time.
Center Speaker C
• It is best to install it at the same height as the front
speakers.
• You can also install it directly over or under the TV.
Caution
Subwoofer SW
• The position of the subwoofer is not so critical.
Place it anywhere you like.
15
• Do not let children play with or near the speakers.
They could get hurt if a speaker falls.
• When connecting the speaker wires to the speakers,
make sure that the polarity (+/–) is correct.
Note
• If you place a speaker near your TV set,
screen color may be distorted because of
the magnetic field generated by the speaker. If this occurs, place the speaker away
from your TV set.
16
Connecting the Speakers (con’t)
Connecting the Video Out to TV
GB
Choose one of the three methods for connecting to a TV.
Connecting the Main Unit and Sub Woofer
1
METHOD 3
Press the power button of the sub woofer to turn it
on.
CONNECTIONS
2
Connect the DIN Audio Out of the main unit and
the DIN Audio In of the sub woofer with the DIN
audio cable.
Rear of Subwoofer
METHOD 2
Rear of Main unit
HT-P1200
METHOD 1
(supplied)
Sub Woofer Functions
Subwoofer: With the built-in, dedicated 150W amplifier, the subwoofer generates rich bass sounds.
Crossover: The Crossover sets the cutoff frequency for the subwoofer. Set the Crossover control
for the best bass response in your room.
• You can adjust the bass or treble output from the front, rear, center speakers and the
subwoofer.
• To the left increases the bass and to the right, treble.
TV
METHOD 1 Composite Video ....... (Good Quality)
- Connect the supplied video cable from the VIDEO OUT jack on the back panel of the system
to the VIDEO IN jack on your TV.
METHOD 2 Component ....... (Better Quality)
1
1 Power LED
2
3
4
5
2 Power button
3 External Audio Input Connector
- If your television is equipped with Component Video inputs, connect a component video cable
(not supplied) from the Pr, Pb and Y jacks on the back panel of the system to the corresponding
jacks on your TV.
METHOD 3 HDMI ....... (Best Quality)
- Connect the HDMI out to the HDMI input on your TV.
4 Crossover Controller
5 Speaker Output Terminals
Note
• This product operates in Progressive scan mode(Only 480p) for Component Output.
• If the TV only supports a resolution of 576i(480i), the screen may be divided into 2
screens, or display nothing.
17
18
HDMI Function
GB
What is HDMI (High Definition Multimedia Interface)?
This device transmits DVD video signal digitally without the process of converting to analog.
You can get sharper digital pictures by connecting the video to your TV using an HDMI connection cable.
Resolution Selection
• This function allows the user to select screen resolution for HDMI output.
• The audio signals transmitted over the HDMI Cable can be toggled ON/OFF.
• SD(Standdard Definition) means resolution of 480p and HD (High Definition) means resolution
of 720p/1080i.
Press the HDMI AUDIO SELECT button on the
remote control.
• This toggles between “AUDIO ON” and “AUDIO OFF” on the display.
• AUDIO ON : Both video and audio signals are transmitted over the HDMI
connection cable, and audio output is through the TV speakers only.
• AUDIO OFF : Video is transmitted over the HDMI connection cable only,
and audio output is through the home theater speakers only.
Note
Example: If the TV supports resolution up to 480p
Press the SD/HD button.
• A 480p video signal is output through the HDMI output.
• If the TV does not support the configured resolution, you will not be able to see the picture properly.
• The default setting value of this product is HDMI AUDIO OFF.
• HDMI AUDIO is automatically down-mixed to 2ch for TV speakers.
• If you turn the unit off and on, or switch functions when the HDMI
AUDIO is automatically set to OFF.
Note
• Since this product has an embedded Video Upscaler function with Faroudja DCDi technology, it can
enhance a 576i(480i) DVD resolution output to 480p/720p/1080i.
DCDi (Directional Correlational Deinterlacing) Function
Converts the interlace signal to progressive to prevent flickering and to
remove distortion or noise on the edge of screen.
Press and hold DCDi button on the remote control for
over 3 seconds.
• You do not have to make separate adjustments, since the Home Theater and TV will be automatically
adjust themselves to the optimal resolution and aspect ratio if connected to HDMI. (If the TV is an
HDTV and has an HDMI Input jack, output is automatically converted to 1080i resolution
(if supported by the TV).)
• For component video output, only 480P is supported.
• When both HDMI and COMPONENT jacks are connected, COMPONENT video is not displayed.
• See your TV owner's manual for more information on how to select the TV's Video Input source.
• Each time the button is pressed, the selection alternates between DCDi ON
and DCDi OFF.
19
20
CONNECTIONS
HDMI Audio ON/OFF function
In Stop mode, press and hold the SD/HD (Standard Definition/High
Definition)button on the remote control.
Connecting External Components
Connecting the FM Antenna
GB
Connecting an External Digital, Analog Component
Example: Digital signal components such as a Set-top Box or CD Recorder.
Analog signal components such as a VCR or TV.
Audio Cable
CONNECTIONS
Optical Cable
(not supplied)
If the external analog component has only one Audio Out,
connect either left or right.
(not supplied)
FM antenna connection
External Digital
Component
External Analog
Component
1
Connect the Digital In 1 or 2 (OPTICAL) on the main unit to the Digital Output on the external digital
component.
2
Connect Audio In on the Home Theater to Audio Out on the external analog component.
3
Press AUX on the remote control to select ‘D.IN 1 / D.IN 2 / AUX’.
1
2
Connect the FM antenna supplied to the FM 75Ω COAXIAL terminal.
Slowly move the antenna wire around until you find a location where reception is
good, then fasten it to a wall or other rigid surface.
• Be sure to match connector colors.
Cooling Fan
• Each time the button is pressed, the selection changes as follows: USB ➝D.IN 1 ➝D.IN 2 ➝AUX.
• You can also use the FUNCTION button on the main unit.
The mode switches as follows: DVD/CD ➝ D.IN 1 ➝D.IN 2 ➝ AUX ➝ USB ➝ FM.
The cooling fan supplies cool air to the unit to prevent overheating.
Please observe the following cautions for your safety.
• Make sure the unit is well-ventilated. If the unit has poor ventilation, the temperature inside the unit could rise
and may damage it.
• Do not obstruct the cooling fan or ventilation holes. (If the cooling fan or ventilation holes are covered with a
newspaper or cloth, heat may build up inside the unit and fire may result.)
Note
• To listen to the audio from the TV in 5.1 channel through the main unit, press the Dolby Pro
Logic II or the SUPER 5.1 button.
• You can connect Video Output jack on the VCR to the TV, and connect Audio Output jack on
the VCR to this product.
21
22
Before Using Your Home Theater
GB
Your Home Theater is capable of playing DVD, CD, MP3, DivX and JPEG discs.
Depending on the disc you are using, these instructions may vary slightly. Read the instructions carefully before using.
To Operate the TV and DVD Player with a Single Remote Control
1
Plug the main unit's power
cord into the AC power supply.
2
Press MODE button until
the TV indicator lights red.
TV
5
Press the MODE button
until the DVD RECEIVER
indicator lights green.
TV
6
Press FUNCTION button on
the main unit or DVD on the
remote to select DVD/CD
mode.
DVD RECEIVER
DVD RECEIVER
Note
• Buttons Enabled for TV Operation: POWER, CHANNEL, VOL•
23
UME, TV/VIDEO, and Numeric (0-9) buttons.
By default, the remote control is set to work with Samsung TVs.
See page 75 for more information on the operation of the remote
control.
Selecting the Video Format
Press and hold NT/PAL button on the remote controller for over 5 seconds while the power is turned off.
• By default, the video format is set to "PAL".
• "NTSC" or "PAL" will appear in the display.
At this time, press the NT/PAL button shortly to select between "NTSC" and "PAL".
• Each country has a different video format standard.
• For normal playback, the video format of the disc must be the same as the video format of your TV.
24
OPERATION
4
Press TV/VIDEO button to
select VIDEO mode.
3
Press POWER button to turn on
the main unit and then press
DVD button to select “DVD/CD”
function of the remote control.
Disc Playback
GB
Disc terminology
Groups and tracks (DVD-AUDIO)
1
Press OPEN/CLOSE button to open the
disc tray.
• DVD-audio is divided into several large sections called "groups" and smaller sections called
"tracks". Numbers are allotted to these sections.
These numbers are called "group numbers" and "track numbers".
GROUP 1
TRACK 1
2
Insert the disc so that the printed side
faces out.
TRACK 2
GROUP 2
TRACK 3
TRACK 1
TRACK 2
Titles and chapters (DVD-VIDEO)
• DVD-video is divided into several large sections called "titles" and smaller sections called
"chapters". Numbers are allotted to these sections.
These numbers are called "title numbers" and "chapter numbers".
TITLE 1
CHAPTER 1
CHAPTER 2
TITLE 2
CHAPTER 3
CHAPTER 1
OPERATION
3
Press OPEN/CLOSE button to close the disc
window.
CHAPTER 2
• The disc plays automatically when the disc window is closed.
• The disc menu may appear differently depending on the disc.
DVD
VCD
SACD
CD
Tracks (SACD, Video and music CDs)
• Playback starts automatically.
• Video and music CDs are divided into sections called "tracks".
Numbers are allotted to these sections. These numbers are called "track numbers".
Note
• Depending on the content of the disc, the initial screen
may appear different.
TRACK 1
TRACK 2
TRACK 3
TRACK 4
TRACK 5
To stop playback, press STOP during playback.
• If pressed once, “PRESS PLAY” is displayed and the stop position will be stored in
memory. If PLAY/PAUSE (
) button or ENTER button is pressed, playback
resumes from the stop position. (This function works only with DVDs.)
• If pressed twice, “STOP” is displayed, and if PLAY/PAUSE (
) button is
Files (DivX)
• DivX is divided into sections called "files".
Numbers are allotted to these sections. These numbers are called "file numbers".
pressed, playback starts from the beginning.
FILE 1
FILE 2
To temporarily pause playback, press PLAY/PAUSE during playback.
• To resume playback, press PLAY/PAUSE (
) button again.
Note
25
• In this manual, the instructions marked with "DVD (
DVD )" are applicable
to DVD-VIDEO, DVD-AUDIO, and DVD-R/RW discs.
Where a particular DVD type is mentioned, it is indicated separately.
• Depending on the content of the disc, the initial screen may appear different.
26
SACD (Super Audio CD) Playback
You can listen to the high quality original sound of multi-channels that produces sound exceeding the limit of
human sense.
1
Open the disk
tray by using the
OPEN/ CLOSE
button and then
insert SACD.
• SACD menu appears and the
play begins.
2
When the play is
stopped, select a
track using the
button and press
the ENTER button.
3
Press the STOP
button to stop
playback.
GB
Data CDs (CD-ROM, CD-R, CD-RW) encoded in MP3 format can be played.
1
Press the
OPEN/CLOSE button
to open the disc tray,
and then load the
MP3 disc.
• The MP3 menu screen will appear and
•
•
• During the play, you cannot select
a track using the
MP3-CD Playback
playback will start.
The appearance of the menu depends on
the MP3 disc.
WMA-DRM files cannot be played.
2
In Stop mode, use
to select
the album, and then
press the ENTER
button.
• User
to select the track.
button.
Disc Spec
4
Press the STOP
button to stop
playback.
• To select another album and track,
Item
CD
SACD
DVD Audio
Number of Channels and
Play Time
2 Channels: 70 Minutes
2 Channels: 110 Minutes
5.1 Channels: 81 Minutes
2 Channels: 120 Minutes
5.1 Channels: 89 Minutes
Sampling Frequency
44.1 KHz
2822.4 KHz
(64 Times of CD)
44.1~192 KHz
(4.4 Times of CD)
Dynamic Range
96 dB
120 dB
144 dB
Play Frequency
~20 KHz
~100 KHz
~96 KHz
Note
• SACD has three kinds of formats: Single Layer Disc that has 1 HD layer, Dual Layer Disc
that has 2 HD layers and Hybrid Disc that has both CD and HD layers.
Hybrid Discs can play in regular CD players.
27
repeat Steps 2 and 3 above.
Note
• Depending on the recording mode, some MP3-CDs may not play.
• Table of contents of a MP3-CD varies depending on the MP3 track format
recorded on the disc.
To play a file icon in the screen,
Press the
button when it is in stop
status and select a desired icon from the top
part of the menu.
• To play music files only, select the
• To view image files only, select the
• To view movie files only, select the
Icon.
• To select all files select the
Icon.
Icon.
• Music File Icon
• Image File Icon
• Movie File Icon
• All File Icon
Icon.
28
OPERATION
3
To change the album,
use
to
select another album
in Stop mode, and
then press the
ENTER button.
JPEG File Playback
JPEG
Checking the Remaining Time
GB
Images captured with a digital camera or camcorder, or JPEG files on a PC can be stored on a CD and then
played back with this DVD player.
Press the REMAIN button.
Press the OPEN/CLOSE button to open the disc windows, and
then load the JPEG disc.
• For checking the total and remaining time of a title or chapter being
played.
• Playback will start automatically and each image will show for 5 seconds before moving to
the next image.
Each time the REMAIN button is pressed
DVDVIDEO
DVDAUDIO
GROUP ELAPSED
During playback, press
.
TITLE REMAIN
GROUP REMAIN
Rotate vertically
Rotate 90° counterclockwise
Rotate horizontally
Rotate 90° clockwise
CHAPTER ELAPSED
TRACK ELAPSED
CHAPTER REMAIN
TRACK REMAIN
VCD
JPEG limitation
The maximum resolution is 5120 x 3840 (or 19.0 MPixel) for baseline images, and 2048 x 1536
(3.0 MPixel) for progressive images.
There is no filesize limitation.
The decoder is device independent, thus above applies to USB and other devices as well.
☞ Progressive JPEG images — those that appear gradually as the image is being downloaded.
29
CD
MP3
TRACK ELAPSED
TRACK REMAIN
TRACK REMAIN
TRACK ELAPSED
TOTAL ELAPSED
TOTAL REMAIN
30
OPERATION
TITLE ELAPSED
To rotate the image
DivX Playback
ENG
Subtitle Display
Press the SUBTITLE button.
Skip Forward/Back
During playback, press the
button.
• Goes to the next file whenever you press
button, if there are over
• Each time you press the button, your selection will toggle between “SUBTITLE ON” (1/1, 1/2 ...) and
“SUBTITLE OFF”.
• If the disc has only one subtitle file, it will be played automatically.
2 files in the disk.
• Goes to the previous file whenever you press
button, if there are
over 2 files in the disk.
Audio Display
Press the AUDIO button.
Fast playback
• Each time you press the button, your selection will toggle between “AUDIO ON” (1/1, 1/2 ...) and
To play back the disc at a faster speed,
press and hold
or
during playback.
change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
•"
”.
" is displayed when there is one supported language in the disc.
DivX(Digital internet video eXpress)
DivX is a video file format developed by Microsoft and is based on MPEG4 compression technology
to provide audio and video data over the Internet in real-time.
MPEG4 is used for video encoding and MP3 for audio encoding so that the users can watch a movie
at near DVD-quality video and audio.
1. Supported Formats
• This product only provides the following media formats. If both video and audio formats are not sup-
5 Minute Skip function
ported, the user may experience problems such as broken images or no sound.
●
During playback, press the
,
button.
• Playback skips 5 minutes forward whenever you press
• Playback skips 5 minutes back whenever you press
Format
Supported Versions
button.
button.
●
•
Press ZOOM
button.
31
WMV
V1/V2/V3/V7
MP3
WMA
80~384kbps
56~128kbps
44.1khz
AC3
128~384kbps
44.1/48khz
DTS
1.5Mbps
44.1khz
• DivX files, including audio and video files, created in the DTS format can only support up to 6Mbps.
• Aspect Ratio: Although default DivX resolution is 640*480 pixels (4:3), this product supports up to
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
Each time you press the button,
your selection will toggle between
“ZOOM X2” and “ZOOM OFF”.
Note
AVI
DivX3.11 ~ 5.1
Supported Audio Formats
Format
Bit Rate
Sampling Frequency
Zoom Function
1
Supported Video Formats
• DivX file can be zoomed only in ZOOM X2 mode.
• DivX files have .Avi file extensions, however, not all .Avi files are DivX and may not be playable in this unit.
720*480 pixels (16:9). TV screen resolutions higher than 800 will not be supported.
• When you play a disc whose sampling frequency is higher than 48khz or 320kbps, you may experience shaking on the screen during playback.
2. Caption Function
• You must have some experience with video extraction and editing in order to use this feature properly.
• To use the caption function, save the caption file (*.smi) in the same file name as that of the DivX
•
media file (*.avi) within the same folder.
Example. Root
Samsung_Bluetek_007CD1.avi
Samsung_Bluetek_007CD1.smi
Up to 60 alphanumeric characters or 30 East Asian characters (2 byte characters such as Korean and
Chinese) for the file name.
32
OPERATION
• Each time you press and hold either button, the playback speed will
Note
“
Playing Media Files using the USB HOST feature
Skip Forward/Back
During playback, press the
You can enjoy media files such as pictures, movies and music saved in an MP3 player, USB memory or
digital camera in high quality video with 5.1 channel home theater sound by connecting the
storage device to the USB port of the home theater.
1
Connect the USB
device to the USB
port on the reside of
the unit.
2
button.
• When there is more than one file, when you press the
• When there is more than one file, when you press the
Press the FUNCTION
button on the main
unit or the AUX button
on the remote control
to select the USB
mode.
button, the next file is selected.
button, the previous file is selected.
Fast playback
To play back the disc at a faster speed, press and hold
during playback.
or
• Each time you press and hold either button, the playback speed will change as follows:
2x ➞ 4x ➞ 8x ➞ 32x ➞ Normal.
• “USB” appears on the display screen
•
GB
and then disappear.
USB SORTING screen appears on the
TV screen and the saved file is played.
Compatible Devices
) button.
Safe USB Removal
To prevent damage to the memory stored in the USB device, perform safe removal
before disconnecting the USB cable.
(1) Press the stop button twice in a row.
The display will show REMOVE ➞ USB.
(2) When the main unit is powered off, or in a different function mode, remove the USB cable.
●
Supported Formats
File name
Still Picture
Music
JPG
MP3
WMA
File
extension
Bit rate
.JPG .JPEG
–
.MP3
128~320kbps
.WMA
56~128kbps
Version
Pixel
Sampling
Frequency
–
–
V8
640*480
–
–
–
32k/44.1k/48kHz
32k/44.1k/48kHz
• A device using NTFS file system is not supported.
(Only FAT 16/32 (File Allocation Table 16/32) file system is supported.)
• The USB host function of this product does not support all USB devices.
For information on the supported devices, see pages 81~82.
33
34
OPERATION
To stop playback, press the STOP (
1. USB devices that support USB Mass Storage v1.0.
(USB devices that operate as a removable disk in Windows
(2000 or later) without additional driver installation.)
2. MP3 Player: HDD and flash type MP3 player.
3. CBI (Control/Bulk/Interrupt) is not supported.
4. Digital camera: PTP protocol is not supported.
• Devices which require additional program installation when you have connected it to a computer, are not supported.
5. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1.
• You may experience a difference in playback quality when you connect a USB1.1 device.
• For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation.
6. USB card Reader: One slot USB card reader and Multi slot USB card reader
• Depending on the manufacturer. the USB card reader may not be supported.
• If you install multiple memory devices into a multi card reader, you may experience problems.
7. If you use a USB extension cable, the USB device might not be recognized.
Displaying Disc Information
Fast/Slow Playback
GB
You can view disc playback information on the TV screen.
Fast Playback
DVD
Press INFO button.
VCD
SACD
CD
Press and hold
• Each time the button is pressed, the display changes as follows:
Slow Playback
MP3
Press SLOW button.
.
• Each time the button is held down during playback,
the playback speed changes as follows:
DVD
VCD
CD
MP3
DivX
• Each time the button is pressed during playback,
the playback speed changes as follows:
JPEG
DVD
Display disappears
VCD
DivX
Display disappears
• Reverse slow playback does not
•
appears on the TV screen!
work with VCD, SACD and DivX.
If this symbol appears on the TV screen while buttons are being operated, that
operation is not possible with the disc currently being played.
Display disappears
• What is a Group?
Skipping Scenes/Songs
A section of tracks contained in a DVD-AUDIO disc.
Note
• Depending on the disc, the disc informa•
tion display may appear different.
Depending on the disc, you can also
select DTS, DOLBY DIGITAL, or PRO
LOGIC.
Briefly press
• What is a Title?
.
• Each time the button is pressed briefly during playback, the previous or next chapter, track,
A movie contained in a DVD-VIDEO disc.
or directory (file) will be played.
• What is a Chapter?
Each title on a DVD disc is divided into several smaller sections called "chapters".
• What is a Track (File)?
A section of video or a music file recorded on a DVD-AUDIO, CD, or MP3-CD.
• You cannot skip chapters consecutively.
DVD
VCD
SACD
MP3
TITLE 01/05 CHAPTER 002/040
Screen Display
DVD display
VCD display
CD display
MP3 CD display
DivX display
DVD DVD-AUDIO display
AUDIO
TITLE display
GROUP display
CHAPTER display
REPEAT PLAYBACK display
STEREO (L/R) display
TRACK (FILE) display
AUDIO LANGUAGE display
DOLBY DIGITAL display
ELAPSED TIME display
SUBTITLE display
ANGLE display
TITLE 01/05 CHAPTER 004/040
SACD display
• When watching a VCD with a track
35
longer than 15 minutes, each time
is pressed, playback
will skip back or forward 5 minutes.
36
OPERATION
Note
Repeat Playback
A-B Repeat Playback
Repeat playback allows you to repeatedly play a chapter, title, track (song), or directory (MP3 file).
DVD
VCD
SACD
CD
MP3
You can repetitively play back a designated section of a DVD.
JPEG
DVD
Press REPEAT button.
• Each time the button is pressed during playback, the repeat playback mode changes as follows:
DVDVIDEO
GB
DVDAUDIO
Repeat Playback Options
CHAPTER
Repeatedly plays the selected chapter.
1
VCD
CD
Press INFO button
twice.
2
Press Cursor button
to move to REPEAT
PLAYBACK ( ) display.
4
Press ENTER
button at the end
of the desired
segment.
• For a VCD or CD, press INFO
button once.
TITLE
Repeatedly plays the selected title.
GROUP
Repeatedly plays the selected group.
JPEG
VCD
SACD
CD
RANDOM
Plays tracks in random order.
(A track that has already been played may be
played again.)
TRACK
Repeatedly plays the selected track.
DIR
Repeatedly plays all tracks in the selected folder.
3
Press Cursor , buttons
to select ‘A-’ and then press
ENTER button at the beginning
of the desired segment.
• When ENTER button is pressed,
the selected position will be stored
in memory.
• The specified segment will be
played repeatedly.
A-
DISC
Repeatedly plays the entire disc.
A-B
REPEAT : A—B
OFF
Cancels Repeat Playback.
A -?
REPEAT : A—
To Select a Repeat Playback Mode in the Disc Information Screen
Note
• Repeat playback operation is
not possible with version 2.0
VCD discs if PBC is turned
on. To use Repeat Playback
on a VCD with PBC, you
should set the PBC to OFF in
the disc menu. (See page
44.)
37
1
2
Press INFO button twice.
3
Press Cursor button
to select the desired
Repeat Playback mode.
4
Press ENTER button.
DVD
To return to normal playback, press Cursor
buttons to select
OFF.
,
Press Cursor button to
move to REPEAT PLAYBACK ( ) display.
Note
VCD
CD
MP3 and JPEG discs, you cannot select Repeat
* For
Play from the information display screen.
• The A-B Repeat function will not work on an SACD, MP3 or JPEG disc.
38
OPERATION
MP3
Step Function
DVD
Zoom (Screen Enlarge) Function
VCD
This function allows you to enlarge a particular area of the displayed image.
DVD
GB
VCD
Press STEP button.
• The picture moves forward one frame each time the button is pressed
during playback.
Note
• During fast playback of a SACD, CD or MP3-CD, sound is heard only at 2x
•
speed, and not at 4x, 8x, and 32x speeds.
No sound is heard during slow playback and step motion playback.
1
Press ZOOM button.
2
Press Cursor , ,
, buttons to
move to the area
you want to enlarge.
3
Press ENTER button.
• Each time the button is pressed, the
zoom level changes as follows:
SELECT ZOOM POSITION
Angle Function
DVD
This function allows you to view the same scene in different angles.
2
Press Cursor button to move to
ANGLE ( ) display.
1/3
Note
• When a DivX disc is being played, only the 2:1 zoom-in is available.
1/3
EZ VIEW Function
3
OPERATION
1
Press INFO button.
Press Cursor , or numeric buttons to
select the desired angle.
DVD
Press EZ VIEW button.
• Each time the button is pressed, the angle changes as follows:
1/3
2/3
• Each time the button is pressed, the zoom function will switch between On
and Off.
• When a movie is played in Widescreen format, black bars at the top and bottom of the TV screen can be removed by pressing the EZ VIEW button.
3/3
EZ VIEW
Note
• The Angle function works only with discs on which multiple
angles have been recorded.
39
EZ VIEW OFF
Note
• This function will not work if the DVD is recorded with multi-camera angle format.
• Black bars may not disappear because some DVD discs have a built-in horizontal to vertical ratio.
• This feature is not supported for DivX discs.
40
Bonus Group / Navigating Pages
Bonus Group
Selecting Audio/Subtitle Language
Audio Language Selection Function
DVDAUDIO
Some DVD-Audio discs have an extra ‘bonus’ group that requires a 4-digit key
number to access. See the disc packaging for details and the-key number.
1
Press INFO button
twice.
When you play a DVD-Audio disc that has a
bonus group, the key number input screen
appears automatically.
2
GB
DVD
Press Cursor ,
buttons or numeric buttons to select the
desired audio language.
• Depending on the number of languages on a
DVD disc, a different audio language (ENGLISH, SPANISH, FRENCH, etc.) is selected
each time the button is pressed.
SP 2/3
FR 3/3
BONUS GROUP
OPERATION
KEY NUMBER :
Note
• You can use the AUDIO button on the remote control to
select a audio language.
Subtitle Language Selection Function
Note
• If you eject the disc, switch the power off, or unplug the player, you will need to re-enter
the key number.
Navigating Pages
3
Press Cursor
button or numeric
buttons to select
the desired subtitle.
2
Press Cursor
button to move to
SUBTITLE ( )
display.
DVDAUDIO
During playback, press the TUNING/CH button
on the remote control.
• You can select the desired image from a DVD-Audio disc containing still images.
• With some discs, you may not be able to select images depending on how the
disc was manufactured.
1
Press INFO button
twice.
DVD
EN 1/3
EN 01/ 03
OFF
Note
SP 02/ 03
FR 03/ 03
OFF / 03
• To operate this function, you can also press the Select AUDIO
or Select SUBTITLE buttons on the remote control.
• You can use the SUBTITLE button on the remote control to
select a subtitle language.
41
• Depending on the disc, the Subtitle and Audio Language functions may not work.
42
Moving Directly to a Scene/Song
Using Disc Menu
GB
DVD
You can use the menus for the audio language, subtitle language, profile, etc.
DVD menu contents differ from disc to disc.
DVD
1
VCD
SACD
CD
Press INFO button.
01/05
001/040
0:00:37
025/040
0:00:01
Moving to a Chapter
Press Cursor , buttons
or numeric buttons to select
the desired title/track and then
press ENTER button.
03/05
001/002
0:00:01
3
1/1
1
• When playing a VCD (version
2.), this toggles between PBC
ON and OFF.
01/05
1/1
Moving to a Specific Time
5
Press Cursor ,
buttons to move to
Chapter ( ) display.
In Stop mode,
press MENU
button.
001/040
0:00:01
2
Press Cursor ,
buttons to move to
‘DISC MENU’ and then
press ENTER button.
3
Press Cursor ,
, buttons to
select the desired
item.
• When you select the disc menu that is not support-• Press ENTER button.
ed by the disc, the "This menu is not supported"
message appears on the screen.
1/1
Moving to a Specific Time
Press Cursor ,
buttons to move to
time display.
6
Press the numeric
buttons to select the
desired time and then
press ENTER button.
• Disc menu display may be different depending on the disc.
Note
PBC (Playback Control) Function
When playing a VCD (version 2.0), you can select and view various scenes according to the menu screen.
PBC ON: This VCD disc is version 2.0. The disc is played back according to the menu screen. Some functions
may be disabled. When some functions are disabled, select "PBC OFF" to enable them.
PBC OFF: This VCD disc is version 1.1. The disc is played back in the same way as with a music CD.
01/05
025/040
1:17:30
1/1
01/05
028/040
1:30:00
1/1
Using the Title Menu
DVD
For DVDs containing multiple titles, you can view the title of each movie.
Depending on the disc, the availability of this feature may vary.
MP3
JPEG
Press the numeric
buttons.
• The selected file will be played.
• An MP3 or JPEG disc cannot be moved
Note
1
In Stop mode,
press MENU button.
• You can press
•
2
Press Cursor ,
button to move to
‘Title Menu’.
on the
remote control to move directly to the
desired title, chapter, or track.
Depending on the disc, you may not
be able to move to the selected title
or time.
3
Press ENTER button.
• The title menu appears.
in the disc information screen.
• When playing an MP3 or JPEG disc, you
cannot use
,
to move to a folder.
To move a folder, press (Stop) and
then press
, .
43
Press MENU button to exit the setup screen.
Note
• Title menu display may be different depending on the disc.
44
OPERATION
Press Cursor , buttons or numeric buttons to
select the desired chapter
and then press ENTER button.
01/05
2
1/1
Moving to a Chapter
4
Moving to a Title/Track
Setting the Language
GB
OSD (On-Screen Display) language is set to English by default.
1
In Stop mode,
press MENU
button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
3
Select ‘Language’
and then press
ENTER button
4
Press Cursor ,
button to select ‘OSD
Language’ and then
press ENTER button.
5
Press Cursor ,
button to select the
desired language and then
press ENTER button.
• Once the setup is complete, if the language was
set to English, OSD will be displayed in English.
Press MENU button to exit the setup screen.
Note
• To select another language, select OTHER and enter the language code of your country.
(See page 78 for language codes)
AUDIO, SUB TITLE and DISC MENU language can be selected.
Selecting the
OSD Language
Selecting the
Audio Language
(recorded on the disc)
Selecting the
Subtitle Language
(recorded on the disc)
Selecting the Disc Menu
Language (recorded on the disc)
language you selected is
* Ifnottherecorded
on the disc, menu
language will not change even
if you set it to your desired
language.
45
46
SETUP
Press RETURN button to return to the previous level.
Setting TV Screen type
GB
Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio.
1
In Stop mode,
press MENU
button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
Adjusting the TV Aspect Ratio (Screen Size)
The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high
definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different
screen sizes, you should adjust the aspect ratio to fit your TV or monitor.
• For a standard TV, select either "4:3LB" or "4:3PS" option according to personal preference.
Select "16:9" if you have a widescreen TV.
WIDE
: Select this to view a 16:9 picture in the full-screen
mode on your widescreen TV.
• You can enjoy the widescreen aspect.
4:3LB
3
Press Cursor
button to move to ‘TV
DISPLAY’ and then
press ENTER button.
4
Press Cursor ,
button to select the
desired item and then
press ENTER button.
• Once the setup is complete, you will
(4:3 Letterbox)
: Select this to play a 16:9 picture in the letter box
mode on a conventional TV.
• Black bars will appear at the top and bottom of the screen.
4:3PS
(4:3 Pan&Scan)
: Select this to play a 16:9 picture in the pan & scan
mode on a conventional TV.
Note
SETUP
• You can see the central portion of the screen only (with the
sides of the 16:9 picture cut off).
be taken to the previous screen.
• If a DVD is in the 4:3 ratio, you cannot view it in widescreen.
• Since DVD discs are recorded in various image formats, they will look different depending on
the software, the type of TV, and the TV aspect ratio setting.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
47
48
Setting Parental Controls (Rating Level)
Use this to restrict playback of adult or violent DVDs you do not want children to view.
1
3
4
Press Cursor , button
to select the desired rating
level and then press
ENTER button.
• If you have selected Level 6, you
•
cannot view DVDs with Level 7 or
higher.
The higher the level, the closer the
content is to violent or adult material.
2
You can set the password for the Parental (rating level) setting.
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
1
3
5
Enter the password
and then press
ENTER button.
Press Cursor button to
move to ‘PASSWORD’
and then press ENTER
button.
Press MENU button.
4
Press ENTER
button.
5
Enter the password
and then press
ENTER button.
password, and confirm new password.
• The setting is complete.
• The password is set to "7890" by default.
• Once the setup is complete, you will be
taken to the previous screen.
• This function works only if a DVD disc contains the rating level information.
• The password is set to "7890" by default.
If you have forgotten the rating level password, do the following:
• While the player is in the no disc mode, hold the main unit's
Press RETURN button to return to the previous level.
49
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
• Enter the old password, a new
Note
Note
GB
SETUP
Press Cursor
button to move to
‘PARENTAL’ and then
press ENTER button.
In Stop mode,
press MENU
button.
Setting the Password
Press MENU button to exit the setup screen.
on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
button for longer than 5 seconds. “INITIALIZE” appears
50
Setting the Wallpaper
JPEG
DVD
GB
VCD
While watching a DVD, VCD or JPEG CD, you can set the image you like as background wallpaper.
Setting the Wallpaper
1
During playback, press
PLAY/PAUSE button
when an image you
like appears.
To select one of the 3 wallpaper settings you've made
2
Press LOGO
button.
1
In Stop mode,
press MENU
button.
4
Press to select
the desired ‘USER’,
and then press
ENTER.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
5
Press MENU
button to exit the
setup screen.
3
Press Cursor
button to move to
‘LOGO’ and then
press ENTER button.
• “COPY LOGO DATA” will be
displayed on the TV screen.
COPY LOGO DATA
PAUSE
3
The power will
turn off and then
back on.
SETUP
• The selected wallpaper will be
displayed.
• You can select up to 3 wallpaper
settings.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
51
Select this to set the
Samsung Logo image as
your wallpaper.
Select this to set the desired
image as your wallpaper.
52
DVD Audio Disc Playback Mode
Some DVD-Audio discs contain DVD-Video as well as DVD-Audio.
To play back the DVD-Video portion of the DVD-Audio disc, set the unit to DVD-Video mode.
1
3
Press the MENU
button while the
disc tray is open.
Press Cursor
button to move to
‘DVD TYPE’ and then
press ENTER button.
2
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
4
Press Cursor ,
button to move to
‘DVD VIDEO’ and then
press ENTER button.
• Set steps 1 ~ 4 again if you want to
switch to DVD AUDIO Play mode.
SACD Playback Mode
GB
If the SACD is created in HYBRID disc format, you can play the disc in CDDA MODE as well.
3
Press Cursor
button to move to
‘SACD TYPE’ and
then press ENTER
button.
2
4
Press Cursor
button to move to
‘Setup’ and then
press ENTER button.
Press Cursor ,
button to move to
‘SACD MODE’ and
then press ENTER
button.
SETUP
1
Press the MENU
button while the
disc tray is open.
• Set steps 1 ~ 4 again if you want to
switch to CDDA Play mode.
When Selecting DVD Play Mode:
• DVD VIDEO : set to play the DVD video
•
Note
contents contained on a
DVD audio disc.
DVD AUDIO : set to play the default
DVD audio.
• SACD MODE : Set this mode to play
• DVD Play mode is set to DVD Audio as factory default setting.
• Powering off the main unit will automatically switch to the DVD Audio mode.
SACD.
• CDDA MODE : Set this mode to play
CDDA contents included
in a disc.
DivX (R) registration
Note
• Powering off the main unit will automatically switch to the SACD mode.
• Please use the Registration code to register this player
53
with the DivX (R) video on demand format. To learn more,
go to www.divx.com/vod.
54
Setting the Speaker Mode
Setting the Test Tone
Signal outputs and frequency responses from the speakers will automatically be adjusted according to your
speaker configuration and whether certain speakers are used or not.
1
In Stop mode,
press MENU
button.
2
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
GB
Use the Test Tone feature to check the speaker connections.
1
In Stop or no disc
mode, press
MENU button.
2
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
3
Press Cursor button
to move to ‘TEST
TONE’ and then press
ENTER button.
• The test tone will be sent to L ➝ C ➝
R ➝ SR ➝ SL ➝ SW in order.
If the ENTER button is pressed again
at this time, the test tone will stop.
3
In the Speaker
Setup, press the
ENTER button again.
4
Press Cursor , ,
, buttons to move
to the desired
speaker and then
press ENTER button.
Press RETURN button to return to the previous level.
• For C, SL, and SR, each time the button
SETUP
•
is pressed, the mode switches
alternately as follows: SMALL ➝ NONE.
For L and R, the mode is set to SMALL.
Press MENU button to exit the setup screen.
Alternate method: press the TEST TONE button on the remote.
Press TEST TONE button.
L: Front Speaker (L)
R: Front Speaker (R)
C: Center Speaker
SL: Rear Speaker (L)
SW: Subwoofer
SR: Rear Speaker (R)
• Test tone will be produced as follows:
SMALL : Select this when using the speakers.
NONE : Select this when no speakers are connected.
•
When playing a DVD or CD, this will work only in Stop
mode.
Use this function to check that each speaker is correctly
connected and that there is no problem.
To end the test tone,
press TEST TONE button again.
Multi-Channel Pro Logic Mode
Start
Note
• Depending on PRO LOGIC and STEREO settings, the speaker mode may vary (see page 63).
55
56
Setting the Delay Time
GB
If the speakers cannot be placed at equal distances from the listening position, you can adjust the delay time of
the audio signals from the center and rear speakers.
1
In Stop mode,
press MENU
button.
2
Press Cursor button
to move to ‘Audio’ and
then press ENTER
button.
3
Press Cursor button
to move to ‘DELAY
TIME’ and then press
ENTER button.
4
Press Cursor , ,
, buttons to move
to the desired
speaker and then
press ENTER button.
5
Press Cursor ,
to set the Delay
time.
• You can set the delay time for C
between 00 and 05mSEC and for
SL and SR between 00 and
15mSEC.
SETUP
Setting up the Speaker Delay Time
When 5.1CH Surround Sound is played, you can enjoy the best sound if
the distance between you and each speaker is the same. Since the sounds
arrive at the listening position at different times depending on the
placement of speakers, you can adjust this difference by adding a delay
effect to the sound of the Center Speaker and Surround Speakers.
Note
(Dolby Pro Logic II), the delay time may be different for each mode.
• With
• With AC-3 and DTS, the delay time can be set between 00 and 15mSEC.
• The Center channel is only adjustable on 5.1 channel discs.
57
• Setting CENTER SPEAKER
If the distance of Dc is equal to or longer than the
distance of Df in the figure, set the mode as 0ms.
Otherwise, change the setting according to the table.
Distance between Df and Dc
0.00 m
0.34 m
0.68 m
1.02 m
1.36 m
1.70 m
Delay Time
0 ms
1 ms
2 ms
3 ms
4 ms
5 ms
• Setting REAR (SURROUND) SPEAKERS
If the distance of Df is equal to the distance of Ds
in the figure, set the mode as 0ms. Otherwise,
change the setting according to the table.
Distance between Df and Ds
0.00 m
1.02 m
2.04 m
3.06 m
4.08 m
5.10 m
Ideal CENTER
SPEAKER placement
Delay Time
0 ms
3 ms
6 ms
9 ms
12 ms
15 ms
Ideal
SURROUND
SPEAKER
placement
It is desirable to place all speakers within this circle.
Df: The distance from FRONT SPEAKER
Dc: The distance from CENTER SPEAKER
Ds: The distance from SURROUND SPEAKER
58
Setting the Audio Quality
GB
You can adjust the balance and level for each speaker.
Method 1
When adjusting the audio quality using the setup screen
1
In Stop mode,
press MENU
button.
3
Press Cursor button
to move to ‘SOUND
EDIT’ and then press
ENTER button.
2
Press Cursor
button to move to
‘Audio’ and then press
ENTER button.
4
Press Cursor ,
buttons to select and
adjust the desired item.
Press the , buttons
to adjust the settings.
Method 2
When manually adjusting with the SOUND EDIT button
Adjusting Front Speaker Balance
1
Press SOUND
EDIT button and
then press Cursor
, .
Adjusting Rear Speaker Level
Adjusting Center Speaker Level
Press SOUND
EDIT button and
then press Cursor
, .
Press SOUND
EDIT button and
then press Cursor
, .
2
3
Adjusting Subwoofer Speaker Level
5
Press SOUND
EDIT button and
then press Cursor
, .
SETUP
4
Press SOUND
EDIT button and
then press Cursor
, .
Adjusting Rear Speaker Balance
Note
Press RETURN button to return to the previous level.
• The adjustments will appear on the main unit's display, not on your TV screen.
Adjusting Front/Rear Speaker Balance
Press MENU button to exit the setup screen.
59
• You can select between 00 and –06 and OFF.
• The volume decreases as you move closer to –6.
Adjusting Center/Rear/Subwoofer Speaker Level
• The volume level can be adjusted in steps from +6dB to –6dB.
• The sound gets louder as you move closer to +6dB and quieter as you get closer to -6dB.
60
Setting the DRC (Dynamic Range Compression)
You can use this function to enjoy Dolby Digital sound when watching movies at low volume at night.
1
In Stop mode,
press MENU
button.
2
Press Cursor
button to move to
‘Audio’ and then
press ENTER button.
AV SYNC Setup
Video may look slower than the audio if it is connected to a digital TV.
If this occurs, adjust the audio delay time to to match the video.
1
Press the MENU button.
• Setup menu appears.
3
Press Cursor
button to move to
‘DRC’ and then press
ENTER button.
4
Press Cursor
to adjust the
‘DRC’.
Press Cursor , buttons
to move to ‘Audio’ and then
press ENTER button.
2
• 'Audio' menu appears.
,
• When the Cursor
3
• AV-SYNC screen appears.
4
Press Cursor
, buttons
to select the AV-SYNC Delay
Time and then press the
ENTER button.
• You can set the audio delay time between 0 ms
and 300 ms. Set it to the optimal status.
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
61
Press RETURN button to return to the previous level.
Press MENU button to exit the setup screen.
62
SETUP
button is pressed, the
effect is greater, and when the Cursor
button is pressed, the effect is smaller.
Press Cursor ,
buttons
to move to ‘AV-SYNC’ and
then press ENTER button.
Dolby Pro Logic II Mode
You can select the desired Dolby Pro Logic II audio mode.
Press
PL II MODE button.
• Each time the button is pressed, the mode changes as follows.
Dolby Pro Logic II Effect
GB
This function works only in Dolby Pro Logic MUSIC mode.
1
Press
PL II MODE
button to select ‘MUSIC’
mode.
2
Press
PL II EFFECT button
to select Panorama, then press
Cursor , buttons to select
the desired effect setting.
• You can select either 0 or 1.
• This mode extends the front stereo image to
include the surround speakers for an exciting
"wraparound" effect with side wall imaging.
PRO LOGIC II
• MUSIC: When listening to music, you can experience sound effects as if you are
listening to the actual performance.
• CINEMA: Adds realism to the movie soundtrack.
• PRO LOGIC: You will experience a realistic multi-channel effect, as if using five
CMX
speakers, while using just the front left and right speakers.
• MATRIX: You will hear silmulated 5.1 channel surround sound.
STEREO: Select this to listen to sound from the front left and right speakers
and the subwoofer only.
MPEG-2 AAC MPEG
• You can select between 0 and 7.
• This sets the width of the center image.
• You can select between 0 and 6.
• Incrementally adjusts the sound field (DSP)from
The higher the setting, the less sound comes from
the center speaker.
Note
4
Press
PL II EFFECT button
to select Dimension, then press
the Cursor , buttons to
select the desired setting.
the front or rear.
• When selecting Pro Logic II mode, connect your external device to the
AUDIO INPUT jacks (L and R) on the player. If you connect to only one of
the inputs (L or R), you cannot listen to surround sound.
TA
Note
TUNED
• When playing a DVD disc encoded with two or more channels, multi-channel mode will be
selected automatically and
63
(Dolby Pro Logic II) button does not work.
64
SETUP
3
Press
PL II EFFECT button
to select C-Width, then press
Cursor , buttons to select
the desired effect setting.
Auto Sound Calibration Setup
GB
* This function is available only for DVD/CD playback.
Auto Sound Calibration
By setting the auto sound calibration function just once when you relocate or install the unit, you can have
the unit automatically recognize the distance between speakers, levels between channels, and frequency
characteristics to create a 5.1-channel sound field optimized for the listener's environment.
* The following images are for illustrative purposes only and may differ from the actual product.
1
2
3
Plug the auto sound calibration
microphone into the auto sound
calibration input jack.
Place the auto sound calibration
microphone at the listener's position.
Adjust the volume control on the main
unit as follows:
• If the distance between the listener and the speaker is over 5 m:
Set the main unit's volume to over 25.
• If the distance between the listener and the speaker is 3 to 5 m:
Set the main unit's volume to 25.
• If the distance between the listener and the speaker is less than 3 m:
Set the main unit's volume to 15.
4
Auto Sound Calibration
Microphone
Press ASC button.
• To create the optimal 5.1 channel sound filed, the selections are in the
following sequence: L ➝ C ➝ R ➝ SR ➝ SL ➝ SW
• The auto sound calibration setup takes about 2 minutes to complete.
Note
R: Front Speaker (R)
SW: Subwoofer
SR: Rear Speaker (R)
A bell sounds and the
setup finishes.
• If you purchased the unit for the first time or initialized it, pressing the Auto Sound Calibration button without
•
•
connecting the auto sound calibration microphone will display the message "PLEASE SET ASC FUNCTION FIRST"
in the display.
Because the volume level of the tone is fixed during the auto sound calibration setup, you cannot adjust the volume
using the volume control buttons.
If the auto sound microphone is disconnected during the auto sound calibration setup, the setup will be cancelled.
To Turn the Sound Logo On/Off
When you turn on the power, the unit produces a sound logo after
the disc is read to notify that the unit is optimized for playback.
1
press ASC button.
2 Briefly
• Each time the button is pressed, the selection alternates
between S.LOGO ON and S.LOGO OFF.
65
• If you select "S.LOGO ON", a sound logo will be output
when the disc reading is finished after power-on. If you
select "S.LOGO OFF", no sound logo will be output.
5
A result for each speaker is displayed.
When the message "REMOVE MIC"
appears in the display, unplug the auto
sound calibration microphone.
To Verify the Auto Sound Calibration
To cancel the auto sound calibration setup, press ASC button.
1
Press and hold ASC button twice.
• The tone output stops, "CANCEL ASC" appears in the display followed by "REMOVE MIC", and the setup is cancelled.
2
Briefly press ASC button.
Press and hold ASC button.
• "S.LOGO ON" or "S.LOGO OFF" appears in the display.
A tone is output.
• "ASC CHECK" appears in the display.
• Distance and level values specified for
each channel will appear in the display.
To listen in the auto sound calibration mode, briefly press ASC button.
• The selection alternates between ASC ON and ASC OFF in the display.
• If you select "ASC ON", you will hear sound in the auto sound calibration mode.
If you select "ASC OFF", you will hear sound in the mode set in the audio setting of the setup screen.
66
SETUP
L: Front Speaker (L)
C: Center Speaker
SL: Rear Speaker (L)
Live Surround Mode
SUPER 5.1
You can reproduce a 2-channel sound source, such
as CD, and radio broadcast, in 5.1-channel
surround sound.
Press SUPER5.1
button.
• Each time the button is pressed, the
•
selection alternates between SUPER
5.1 and SUPER OFF.
Select "SUPER 5.1" to play 2-channel
sound in 5.1 channels.
MUSIC
GB
MOVIE
If you press the MUSIC button when listening to a
You can select from 4 different sound field
2-channel sound source, it will be reproduced in
modes for movies.
4.1-channel surround sound so that you can enjoy a
dynamic sound with a sense of presence.
Press MOVIE
button.
Press MUSIC button.
• Each time the button is pressed,
the selection changes as follows:
CONCERT1 ➝ CONCERT2 ➝
JAZZ CLUB ➝ CATHEDRAL ➝
BYPASS.
• Each time the button is pressed,
Virtual Headphone Function
Use headphones (not supplied) for private listening pleasure.
You can enjoy dynamic sound effects similar to that of 5.1 channel surround
sound using conventional stereo headphones.
1
Plug the
headphones into the
headphone jack.
• You can purchase headphones
from most Electronics stores.
the selection changes as follows:
VIRTUAL 9.1 ➝ EX.MOVIE ➝
CINEMA ➝ SPORTS ➝ BYPASS.
2
Press V-H/P
button.
• Each time the button is pressed, the
selection alternates between V-H/P
ON and V-H/P OFF.
☞ VIRTUAL 9.1: Provides surround
sound effect for audiences at
home that simulates 9.1 channel
surround sound of a movie theater.
SETUP
Note
• When you insert a DVD recorded in 2-channel or multi-channel format and press the SUPER 5.1 button, the
message "THIS FUNCTION APPLIES ONLY 2CH SOURCE" appears in the display and it will not work.
• This function does not work with SACD or DVD-AUDIO discs.
• 5.1 channel outputs are available in VIRTUAL 9.1 or EX. MOVIE mode only.
Note
• Do not listen at extremely high volume levels when using headphones.
Extended, high-volume listening can lead to permanent hearing loss.
• VIRTUAL HEADPHONE ON: Select to enjoy a 5.1-channel surround sound that
•
67
gives the feeling of being in a baseball park or
concert hall.
VIRTUAL HEADPHONE OFF: Select to listen to a standard 2-channel stereo
sound.
68
Listening to Radio
Presetting Stations
GB
You can store up to: 15 FM stations
Remote Control Unit
1
Press TUNER
button.
Example: Presetting FM 89.1 in the memory
2
Tune in to the
desired station.
Automatic Tuning 1
Automatic Tuning 2
Manual Tuning
1
Press the TUNER
button and select
the FM band.
2
Press TUNING/CH
to select "89.10".
3
• Refer to Step 2 on page 69 to
When
is pressed, a
preset broadcast station is
selected.
Press and hold TUNING/CH
to automatically search for
active broadcasting stations.
Press the TUNER
MEMORY button.
• “PRGM” flashes in the display.
automatically or manually tune in
to a station.
Briefly press TUNING/CH
to increase or decrease the
frequency incrementally.
Main Unit
1
Press the Function
button to select the
desired band (FM).
2
Select a broadcast
station.
Press the STOP ( )
button to select
PRESET and then press
button to select the preset station.
Automatic Tuning 1
4
Press
to select preset
number.
• You can select between 1 and
15.
5
6
Press the TUNER
MEMORY button
again.
To preset another
station, repeat
steps 2 to 5.
• Press the TUNER MEMORY button before
‘PRGM’ disappears from the display.
• ‘PRGM’ disappears from the display and
the station is stored in memory.
RADIO OPERATION
Press the STOP ( ) button
to select "MANUAL" and
then press and hold
button to
automatically search the band.
Automatic Tuning 2
Press STOP ( ) to select
Manual Tuning MANUAL
and then briefly
press
to tune in to a lower or
higher frequency.
Press MO/ST button to listen in Mono/Stereo.
•
•
69
Each time the button is pressed, the sound switches between "STEREO" and "MONO".
In a poor reception area, select MONO for a clear, interference-free broadcast.
To tune in to a preset station, press
remote control to select a channel.
on the
70
Convenient Functions
GB
Sleep Timer Function
You can set the time that the DVD player will shut itself off.
Press SLEEP button.
time changes as follows: 10 ➝ 20 ➝ 30 ➝ 60 ➝ 90 ➝ 120 ➝ 150 ➝ OFF.
CHAP PRGM RDS RT
ST
You can adjust the brightness of the display on the main unit so it won't interfere
with your movie viewing.
Press DIMMER button.
• "SLEEP" will be displayed. Each time the button is pressed the preset
TITLE
Adjusting Display Brightness
• Each time the button is press, the brightness changes as follows:
DARK ➞ BRIGHT.
TUNED
kHz
MHz
To confirm the sleep timer setting,
press SLEEP button.
•The remaining time before the DVD player will shut itself off is displayed.
•Pressing the button again changes the sleep time from what you have set earlier.
Mute Function
To cancel the sleep timer, press SLEEP button until
OFF appears on the display.
This is useful when answering a doorbell or telephone call.
Press MUTE button.
• ‘MUTE’ flash in the display.
• To switch the sound back on (at the same volume as before),
press MUTE again or the VOLUME buttons.
TITLE
CHAP PRGM RDS RT
ST
TUNED
kHz
MHz
MISCELLANEOUS
71
72
Operating a TV with the Remote Control
GB
When operating a TV with the remote control
1
2
3
4
Press the MODE button to make the TV
indicator on the remote control flash.
TV
No.
Brand
Code
No.
Brand
Code
1
SAMSUNG
00(Initial Value), 01, 02, 03, 04, 05, 73
30
BRANDT
41
2
ANAM
06~11, 59
31
FERGUSON
41
3
DAEWOO
12~18, 20, 21
32
PIONEER
41, 48, 74
4
LG
05, 20, 21, 22, 53
33
TELEAVA
41
5
HITACHI
23, 40, 41, 49
34
FINLUX
05, 42, 47
DVD RECEIVER
Press POWER button to turn on the TV.
Point the remote control toward the TV.
While holding down POWER, enter the code
corresponding to your brand of TV.
• If the code matches the TV's code, the TV will be turned off.
• If there is more than one code listed for your TV in the table,
enter one at a time to determine which code works.
Example: For a Samsung TV
While holding down POWER, use the number buttons to enter 00,
01, 02, 03, 04, and 05.
5
TV Brand Code List
Point the remote control toward the TV and
press POWER. If the TV turns off or on, the
setting is complete.
buttons (0~9).
JVC
24, 55
35
FISHER
31
7
SHARP
27, 33, 34, 35, 54
36
AKAI
31
8
SONY
27, 36
37
YOKO
05
9
TOSHIBA
27, 37, 42, 43, 44, 46
38
PHONOLA
05, 45, 47
10
SANYO
27, 30, 31, 32
39
RADIOLA
05, 45
11
MITSUBISHI
05, 27, 28
40
SCHNEIDER
05
12
MATSUSHITA
09, 26
41
NEWSAN
58
13
TELEFUNKEN
41, 49, 51, 57
42
CONTINENTAL EDISON
49
14
RCA
29, 61
43
SALORA
48
15
PANASONIC
07, 09, 26, 48, 49, 50
44
SELECO
48
16
SABA
40, 41, 47, 48, 49
45
NOKIA
48
17
PHILIPS
05, 45, 47, 64, 65, 66, 67, 68, 69
46
REX
48
18
GRUNDIG
39, 42, 46, 70, 71, 72
47
MIVAR
46
19
ZENITH
38
48
IMPERIAL
46
20
MIVAL
52
49
CGE
46
21
NOBLEX
56
50
BANG & OLUFSEN
47
22
EMERSON
19
51
BRIONVEGA
47
23
MAGNAVOX
25
52
FORMENTI
47
24
LOEWE
05, 60
53
METZ
47
25
THOMSON
40, 41, 49, 62, 63
54
WEGA
47
26
NORDMENDE
40, 41, 49
55
RADIOMARELLI
47
27
LOEWE OPTA
36, 47, 05
56
SINGER
47
28
BLAUPUNKT
39
57
SINUDYNE
47
29
SIEMENS
39
MISCELLANEOUS
• You can use the TV POWER, VOLUME, CHANNEL, and Numeric
6
Note
• The remote control may not work on some brands of TVs. Also some operations may not be
possible depending on your brand of TV.
• If you do not set the remote control with the code for your brand of TV, the remote control will
work on a Samsung TV by default.
73
74
Before Calling for Service
GB
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or
if the instruction below does not help, turn off the unit, disconnect the power cord, and contact the nearest authorized dealer
or Samsung Electronics Service Center.
Symptom
Disc tray does not open.
Playback does not start.
Check/Remedy
• Is the power cord plugged securely into the outlet?
• Turn off the power and then turn it back on.
• Check the region number of the DVD.
DVD discs purchased from abroad may not be playable.
• CD-ROMs and DVD-ROMs cannot be played on this DVD
player.
• Make sure that the rating level is correct.
Playback does not start
• Are you using a deformed disc or a disc with scratches on
the surface?
immediately when the
Play/Pause button is pressed. • Wipe the disc clean.
Sound is not produced.
• No sound is heard during fast playback, slow playback, and step
motion playback.
• Are the speakers connected properly? Is the speaker setup
•
Sound can be heard only
from a few speakers and
not all six.
Picture does not appear, sound
is not produced, or the disc
tray opens 2 to 5 seconds later.
75
• When listening to a CD or radio, sound is output to the front
•
•
speakers (L/R) only. Select "PRO LOGIC II" by pressing
(Dolby Pro Logic II) on the remote control to use all six speakers.
Make sure that the DVD disc is 5.1-CH compatible.
If you set C, SL, and SR to NONE in the speaker mode in the
audio setup of the setup screen, no sound is heard from the
center speaker and the front left and right speakers. Set C, SL,
and SR to SMALL.
• Was the DVD player suddenly moved from a cold place to a warm
one? When condensation forms inside the player, remove the disc
and let the player stand for 1 or 2 hours with the power on. (You
can use the player again after condensation disappears.)
• Is there "Dolby Digital 5.1 CH" mark on the disc? Dolby Digital 5.1
•
CH Surround Sound is produced only if the disc is recorded with
5.1 channel sound.
Is the audio language correctly set to DOLBY DIGITAL 5.1-CH in
the information display?
• Disc is rotating but no
picture is produced.
• Picture quality is poor and
picture is shaking.
Check/Remedy
• Is the TV power on?
• Are the video cables connected properly?
• Is the disc dirty or damaged?
• A poorly manufactured disc may not be playable.
The remote control does not • Is the remote control being operated within its operation range of
angle and distance?
work.
• Are the batteries exhausted?
Audio language and
subtitles do not work.
• Audio language and subtitles will not work for DVDs not containing
Menu screen does not appear even
when the menu function is selected.
• Are you using a disc that does not contain menus?
them. And depending on the disc, they may work differently.
Aspect ratio cannot be
changed.
• You can play 16:9 DVDs in 16:9 WIDE mode, 4:3 LETTER BOX
Can't receive radio
broadcast.
• The main unit is not working.
• Is the antenna connected properly?
• If the antenna's input signal is weak, install an external FM
(Example: The power goes out or
strange noise is heard.)
• The DVD player is not
working normally.
mode, or 4:3 PAN SCAN mode, but 4:3 DVDs can be seen in 4:3
ratio only. Refer to the DVD disc jacket and then select the
appropriate function.
antenna in an area with good reception.
• Turn off the power and hold the
button on the main unit for
longer than 5 seconds.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
• While “NO DISC” message appears on the display of main unit, hold
The password for rating
level has been forgotten.
the main unit's
button for longer than 5 seconds. “INITIALIZE”
appears on the display and all settings will return to the default values.
• Press the POWER button.
Using the RESET function will erase all stored settings.
Do not use this unless necessary.
76
MISCELLANEOUS
Dolby Digital 5.1 CH
Surround Sound is not
produced.
correctly customized?
Is the disc severely damaged?
Symptom
Cautions on Handling and Storing Discs
Small scratches on the disc may reduce sound and picture quality or cause skipping.
Be especially careful not to scratch discs when handling them.
Handling discs
Do not touch the playback side of the disc.
Hold the disc by the edges so that fingerprints
will not get on the surface.
Do not stick paper or tape on the disc.
Disc Storage
Keep in a cool
ventilated area
Do not keep in
direct sunlight
Caution
Keep in a clean
Protection jacket.
Store vertically.
Language Code List
GB
Enter the appropriate code number for the initial settings “Disc Audio”, “Disc Subtitle”
and/or “Disc Menu” (See page 45).
Code
Language
Code
Language
Code
Language
Code
Language
1027
Afar
1181
Frisian
1334
Latvian, Lettish
1506
Slovenian
1028
Abkhazian
1183
Irish
1345
Malagasy
1507
Samoan
1032
Afrikaans
1186
Scots Gaelic
1347
Maori
1508
Shona
1039
Amharic
1194
Galician
1349
Macedonian
1509
Somali
1044
Arabic
1196
Guarani
1350
Malayalam
1511
Albanian
1045
Assamese
1203
Gujarati
1352
Mongolian
1512
Serbian
1051
Aymara
1209
Hausa
1353
Moldavian
1513
Siswati
1052
Azerbaijani
1217
Hindi
1356
Marathi
1514
Sesotho
1053
Bashkir
1226
Croatian
1357
Malay
1515
Sundanese
1057
Byelorussian
1229
Hungarian
1358
Maltese
1516
Swedish
1059
Bulgarian
1233
Armenian
1363
Burmese
1517
Swahili
1060
Bihari
1235
Interlingua
1365
Nauru
1521
Tamil
1069
Bislama
1239
Interlingue
1369
Nepali
1525
Tegulu
1066
Bengali; Bangla
1245
Inupiak
1376
Dutch
1527
Tajik
1067
Tibetan
1248
Indonesian
1379
Norwegian
1528
Thai
1070
Breton
1253
Icelandic
1393
Occitan
1529
Tigrinya
1079
Catalan
1254
Italian
1403
(Afan) Oromo
1531
Turkmen
1093
Corsican
1257
Hebrew
1408
Oriya
1532
Tagalog
1097
Czech
1261
Japanese
1417
Punjabi
1534
Setswana
Welsh
1269
Yiddish
1428
Polish
1535
Tonga
1105
Danish
1283
Javanese
1435
Pashto, Pushto
1538
Turkish
1109
German
1287
Georgian
1436
Portuguese
1539
Tsonga
1130
Bhutani
1297
Kazakh
1463
Quechua
1540
Tatar
1142
Greek
1298
Greenlandic
1481
Rhaeto-Romance
1543
Twi
1144
English
1299
Cambodian
1482
Kirundi
1557
Ukrainian
1145
Esperanto
1300
Kannada
1483
Romanian
1564
Urdu
When you get fingerprints or dirt on the disc, clean it
with a mild detergent diluted in water and wipe with a
soft cloth.
1149
Spanish
1301
Korean
1489
Russian
1572
Uzbek
1150
Estonian
1305
Kashmiri
1491
Kinyarwanda
1581
Vietnamese
1151
Basque
1307
Kurdish
1495
Sanskrit
1587
Volapuk
•
1157
Persian
1311
Kirghiz
1498
Sindhi
1613
Wolof
1165
Finnish
1313
Latin
1501
Sangro
1632
Xhosa
1166
Fiji
1326
Lingala
1502
Serbo-Croatian
1665
Yoruba
1171
Faeroese
1327
Laothian
1503
Singhalese
1684
Chinese
1174
French
1332
Lithuanian
1505
Slovak
1697
Zulu
Handling and Storing Discs
When cleaning, wipe gently from the inside to the outside of the disc.
Note
• Condensation may form if warm air comes into contact with cold parts
inside the player. When condensation forms inside the player, the player
may not operate correctly. If this occurs, remove the disc and let the
player stand for 1 or 2 hours with the power on.
77
78
MISCELLANEOUS
1103
• Do not allow the discs to become contaminated with dirt.
• Do not load cracked or scratched discs.
USB Host Feature Supported Products
Digital Camera
Product
GB
Multi Card Reader
USB Flash Disk
Company
Type
Company
Type
Company
Type
PowerShot A70
Canon
Digital Camera
Lumix LC33
Panasonic
Digital Camera
Cruzer Micro
SanDisk
USB2.0 USB Flash Drive 128M
A90
Canon
Digital Camera
LUMIX DMC-F1
Panasonic
Digital Camera
Cruzer Mini
SanDisk
USB2.0 128M
IXY40
Canon
Digital Camera
Optio-S40
Pentax
Digital Camera
Cruzer Mini
SanDisk
USB2.0 256M
Product
Product
IXY50
Canon
Digital Camera
Optio-S50
Pentax
Digital Camera
SONY Micro Vault
SONY
USB2.0 64MB
A90
Canon
Digital Camera
Optio 33LF
Pentax
Digital Camera
FLEX DRIVE
serotech
USB2.0 32MB
A95
Canon
Digital Camera
Optio 33L
Pentax
Digital Camera
AnyDrive
A.L tech
USB2.0 128MB
G6
Canon
Digital Camera
Optio X
Pentax
Digital Camera
XTICK
LG
USB2.0 128M
S60
Canon
Digital Camera
S¥œ
Pentax
Digital Camera
Micro Mini
IOMEGA
USB2.0 128M
Exilom Z-40
Casio
Digital Camera
Optio MX
Pentax
Digital Camera
iFlash
QV-R51
Casio
Digital Camera
Digimax-420
Samsung
Digital Camera
LG
Finepix-A340
Fuji
Digital Camera
Digimax-400
Samsung
Digital Camera
RiDATA
Finepix-F810
Fuji
Digital Camera
Kenox UX4
Samsung
Digital Camera
Finepix-F610
Fuji
Digital Camera
VPC-AZ1
Sanyo
Digital Camera
Finepix-f450
Fuji
Digital Camera
Not recognize in PC
Finepix S7000
Fuji
Digital Camera
DSC-F828
Sony
Digital Camera
Finepix A310
Fuji
Digital Camera
DSC-P73
Sony
Digital Camera
Kodak
Digital Camera
DSC-T1
Sony
Digital Camera
Easy Save CX-4300
Konica
Digital Camera
DSC-F88
Sony
Digital Camera
Finecam SL300R
Kyocera
Digital Camera
DSC-M1
Sony
Digital Camera
Finecam SL400R
Kyocera
Digital Camera
DSC-W1
Sony
Digital Camera
Finecam S5R
Kyocera
Digital Camera
DSC-T3
Sony
Digital Camera
Finecam Xt
Kyocera
Digital Camera
Sora PDR-T30
Toshiba
Digital Camera
Dimage-Z1
Minolta
Digital Camera
Coolpix 5900
Nikon
Digital Camera
Dimage Z1
Minolta
Digital Camera
Coolpix S1
Nikon
Digital Camera
Dimage X21
Minolta
Digital Camera
Coolpix 7600
Nikon
Digital Camera
Coolpix4200
NIKON
Digital Camera
DMC-FX7
Panasonic
Digital Camera
Coolpix4300
NIKON
Digital Camera
DMC-LS1
Panasonic
Digital Camera
Coolpix 2200
Nikon
Digital Camera
DMC-LZ2
Panasonic
Digital Camera
Coolpix 3500
Nikon
Digital Camera
IXY-Digital600
Canon
Digital Camera
Coolpix 3700
Nikon
Digital Camera
S5i
Pentax
Digital Camera
Coolpix 4100
Nikon
Digital Camera
Dimage Xt
Coolpix 5200
Nikon
Digital Camera
AZ-1
DSC-W5
Digital Camera
Olympus
Digital Camera
u300
Olympus
Digital Camera
X-350
Olympus
Digital Camera
C-760
Olympus
Digital Camera
C-5060
Olympus
Digital Camera
X1
Olympus
Digital Camera
u-mini
Olympus
Digital Camera
Lumix-FZ20
Panasonic
Digital Camera
DMC-FX7GD
Panasonic
Digital Camera
79
USB2.0 64M
EZDrive
USB2.0 64M
Product
Company
Type
Creative MuVo NX128M
Iriver H320
yepp YH-920
yepp YH-925
I-pod
I-pod mini
yepp (YP-T7)
yepp(YP-MT6)
yepp(YP-T6)
yepp(YP-53)
yepp(YP-ST5)
yepp(YP-T5)
yepp(YP-60)
yepp(YP-780)
yepp(YP-35)
yepp(YP-55)
iAUDIO U2
iAUDIO G3
iAudio M3
SI-M500L
H10
YEPP YP-T5 VB
YEPP YP-53
Creative
Iriver
samusung
samusung
apple
Apple
samsung
samsung
samsung
samsung
samsung
samsung
samsung
samsung
samsung
samsung
COWON(Korea)
COWON(Korea)
COWON(Korea)
SHARP(Japan)
IRIVER(Korea)
Samsung(Korea)
Samsung(Korea)
128 MB MP3 Player
20G HDD MP3 player
20G HDD MP3 player
20G HDD MP3 player
HDD MP3 player(40G)
HDD MP3 Player(20G)
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
MP3 Player
HDD MP3 player
256MB MP3Player
MP3Player
MP3Player
256MB MP3Player
Minolta
Digital Camera
Olympus
Digital Camera
Sony
Digital Camera
USB2.0 Card Reader
Company
Type
Unicorn
USB 2.0 7 IN 1 CARD READER UC-601R
Billionton(Taiwan) USB 2.0 Card Reader for SD/MMC/RS-MMC(3-in-1)
USB External HDD
Company
Type
CUTIE
Product
serotech
POCKET HARD DISK DRIVE
MOMOBAY UX-2
DVICO
USB2.0
MISCELLANEOUS
Olympus
300-digital
USB2.0 64M
XTICK(M)
MP3 Player
KD-310Z
stylus 410 digital
Imation
Product
UNICORN
80
Specifications
Power Consumption
G
E
N
E
R
A
L
Weight
Dimensions (W x H x D)
T
F U
N
M E
R
V
I
D
E
O
O
U
T
P
U
T
A
M
P
L
I
F
I
E
R
MAIN UNIT
: 30W
SUBWOOFER
: 100W
MAIN UNIT
: 2.8kg
VERTICAL STAND : 8.0kg
MAIN UNIT
: 183 x 500 x 82 mm
WITH STAND
: 328 x 1200 x 328 mm
Operating Temperature Range
5°C ~ 35°C
Operating Humidity Range
10% ~ 75%
Usable Sensitivity
10dB
S/N Ratio
60dB
Distortion
0.5%
Composite Video
1.0Vp-p(75Ω load)
Y:1.0Vp-p(75Ω load)
Component Video
Pr:0.70Vp-p(75Ω load)
Pb:0.70Vp-p(75Ω load)
HDMI
Impedance: 85~115Ω
Front speaker output
130W x 2(3Ω)
Center speaker output
130W(3Ω)
Rear speaker output
130W x 2(3Ω)
Subwoofer speaker output
150W(3Ω)
Frequency range
20Hz~20kHz
S/N Ratio
70dB
Channel separation
60dB
Input sensitivity
(AUX)500mV
Speaker system
5.1ch speaker system
Front/Center/Rear speaker
Subwoofer speaker
Impedance
3Ω x 5
3Ω
Frequency range
110Hz~20kHz
20Hz~200Hz
Output sound pressure level
84dB/W/M
86dB/W/M
Rated input
130W
150W
Maximum input
260W
Front/Rear 105.6 x 1310 x 76 mm
300W
Dimensions (W x H x D)
Center
Weight
550 x 110 x 78 mm
Front/Rear 6.2kg
Center
81
GB
2.9kg
270 x 498 x 379.5 mm
MISCELLANEOUS
S
P
E
A
K
E
R
S
Memo
13kg
82
Contact Multi-all
2005.11.18
3:42 PM
Page 8
XEU (ENG)
Contact SAMSUNG WORLD WIDE
If you have any questions or comments relating to Samsung products, please contact the SAMSUNG
customer care centre.
Region
North America
Latin America
Europe
CIS
Country
CANADA
MEXICO
U.S.A
ARGENTINE
BRAZIL
CHILE
COSTA RICA
ECUADOR
EL SALVADOR
GUATEMALA
JAMAICA
PANAMA
PUERTO RICO
REP. DOMINICA
TRINIDAD & TOBAGO
VENEZUELA
BELGIUM
CZECH REPUBLIC
DENMARK
FINLAND
FRANCE
GERMANY
HUNGARY
ITALIA
LUXEMBURG
NETHERLANDS
NORWAY
POLAND
PORTUGAL
SLOVAKIA
SPAIN
SWEDEN
U.K
RUSSIA
UKRAINE
AUSTRALIA
CHINA
HONG KONG
INDIA
Asia Pacific
INDONESIA
JAPAN
MALAYSIA
PHILIPPINES
SINGAPORE
THAILAND
Middle East & Africa
TAIWAN
VIETNAM
SOUTH AFRICA
U.A.E
Customer Care Center ☎
1-800-SAMSUNG (7267864)
01-800-SAMSUNG (7267864)
1-800-SAMSUNG (7267864)
0800-333-3733
0800-124-421
800-726-7864(SAMSUNG)
0-800-507-7267
1-800-10-7267
800-6225
1-800-299-0013
1-800-234-7267
800-7267
1-800-682-3180
1-800-751-2676
1-800-7267-864
1-800-100-5303
02 201 2418
844 000 844
38 322 887
09 693 79 554
08 25 08 65 65 (0,15€/Min)
01805 - 121213 (€ 0,12/Min)
06 40 985 985
199 153 153
02 261 03 710
0900 20 200 88 (€ 0.10/Min)
231 627 22
0 801 801 881
80 8 200 128
0850 123 989
902 10 11 30
08 585 367 87
0870 242 0303
8-800-200-0400
8-800-502-0000
1300 362 603
800-810-5858, 010- 6475 1880
2862 6001
3030 8282
1600 1100 11
0800-112-8888
0120-327-527
1800-88-9999
1800-10-SAMSUNG (7267864)
1800-SAMSUNG (7267864)
1800-29-3232
02-689-3232
0800-329-999
1 800 588 889
0860 7267864 (SAMSUNG)
800SAMSUNG (7267864)
Web Site
www.samsung.com/ca
www.samsung.com/mx
www.samsung.com
www.samsung.com/ar
www.samsung.com/br
www.samsung.com/cl
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/latin
www.samsung.com/be
www.samsung.com/cz
www.samsung.com/dk
www.samsung.com/fi
www.samsung.com/fr
www.samsung.de
www.samsung.com/hu
www.samsung.com/it
www.samsung.lu
www.samsung.com/nl
www.samsung.com/no
www.samsung.com/pl
www.samsung.com/pt
www.samsung.com/sk
www.samsung.com/es
www.samsung.com/se
www.samsung.com/uk
www.samsung.ru
www.samsung.com/ur
www.samsung.com/au
www.samsung.com.cn
www.samsung.com/hk
www.samsung.com/in
www.samsung.com/id
www.samsung.com/jp
www.samsung.com/my
www.samsung.com/ph
www.samsung.com/sg
www.samsung.com/th
www.samsung.com/tw
www.samsung.com/vn
www.samsung.com/za
www.samsung.com/mea
Download PDF

advertising
