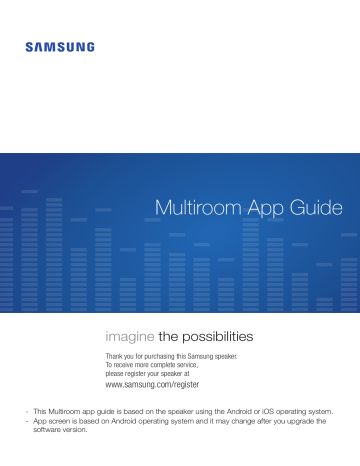

Multiroom App Guide
imagine the possibilities
Thank you for purchasing this Samsung speaker.
To receive more complete service,
please register your speaker at
www.samsung.com/register
-- This Multiroom app guide is based on the speaker using the Android or iOS operating system.
-- App screen is based on Android operating system and it may change after you upgrade the
software version.
Contents
CONNECTING TO THE
WI-FI NETWORK
Using Play Screen Features............. 20
Adding music to favourites............. 20
Preparing Connection........................ 4
Using playback options....................... 20
Launching the Samsung Multiroom app......4
Music control icons............................... 21
Current playlist................................. 20
Installing the Samsung Multiroom app..... 4
Adjusting Equaliser .............................. 22
Connecting to Wi-Fi........................... 5
Managing the current playlist................ 23
Connecting to Wi-Fi automatically........... 5
Managing a playlist............................... 25
Connecting to Wi-Fi manually.................. 8
Using the Settings Menu................. 27
Connecting with a LAN Cable
(Soundbar only)............................... 10
Add Speaker......................................... 27
Alarm.................................................... 27
Adding Additional Speaker(s)........... 11
Sleep Timer.......................................... 28
USING THE SAMSUNG
MULTIROOM APP
Input Source......................................... 29
Music Services...................................... 29
App at a Glance.............................. 13
Device Settings..................................... 30
Playing Music.................................. 14
Support................................................ 33
Information............................................ 33
Playing a music file stored in the
smart device......................................... 14
Listening to Music through
Multiroom App in Smart Watch........ 34
Listening to streaming music................. 15
Listening to Internet Radio............... 16
Galaxy Gear S: Downloading
Multiroom app...................................... 34
Following a station................................ 17
Apple Watch: Setting MultiRoom
in smart device..................................... 34
Setting presets...................................... 18
Listening to Music from Other
Devices in Network.......................... 19
Using the Multiroom app in
Smart Watch......................................... 35
44
2
CONNECTING MULTIPLE
SPEAKERS
Setting Groups................................ 37
Configuring Stereo/Surround
Sound Mode Settings...................... 40
Configuring multi-channel by
connecting TV to Multiroom speaker
wirelessly.............................................. 41
Configuring multi-channel by
connecting TV & Soundbar to
Multiroom speaker................................ 42
USING MISCELLANEOUS
FUNCTIONS
Playing Media Content Saved on
a PC................................................ 44
Samsung Link....................................... 44
Wireless Audio - Multiroom for
Desktop................................................ 45
APPENDIX
Troubleshooting............................... 47
Compatible speakers............................ 47
44
3
Connecting to the Wi-Fi network
AA Preparing Connection
Internet
Wireless Router
Smart Device
1 Requirements: Wireless Router, Smart Device
2 The wireless router should be connected to the Internet.
3 The smart device should be connected to the router via a Wi-Fi connection.
❚❚ Installing the Samsung Multiroom app
To use the speaker, you must download and then install the Samsung Multiroom app by
accessing the app through Google play or App Store.
Install Samsung Multiroom to play music saved on a smart device, music provided in music
services, or an Internet radio broadcast.
Android
Market search : Samsung Multiroom
iOS
Market search : Samsung Multiroom
❚❚ Launching the Samsung Multiroom app
Samsung
Multiroom
NOTE
99 Please terminate the Samsung Multiroom app when speaker are not used because the battery of your
smart device can be consumed quickly if the app is working.
44
4
AA Connecting to Wi-Fi
❚❚ Connecting to Wi-Fi automatically
1 Plug the speaker into an electrical outlet.
2 On your Smart device, select the Samsung Multiroom app.
3 Select NEW SETUP.
4 Select the speaker to connect.
5 Check that the speaker power is connected and is within the effective range for Wi-Fi
connection, and then select Yes.
• It searches for the device available for pairing.
6 Once an available device is found, it attempts to connect to the wireless network.
In case of secure network, the password prompt appears on the smart device screen.
Use the on-screen keyboard to enter the password.
• Depending on the network environments, the speaker(s) may not be automatically
connected. In such cases, select the Not Blinking, and then proceed the next steps
by referring to pages 8~9. Click here.
44
5
7 Select Connect.
8 To connect only the speakers found from search and finish the process, select No.
To connect an additional speaker on the same network, select Yes.
(Applicable to Android only).
• Network connection is completed.
<Android>
<iOS>
44
6
NOTES
99 To connect to your wireless network safely, you must enter the valid password.
-- For connecting to the home or work wireless network, consult your service provider or the network
administrator.
99 If the speaker is not connected to the network or the network connection does not work properly, move
the speaker closer to the router and try again.
99 The distance between devices or obstruction and interference from other wireless devices may
influence communication between the speaker and network.
99 This speaker may be found by some other Wi-Fi devices. However, they are not allowed to connect to
this speaker.
99 Once the Wi-Fi connection is established initially, it is maintained unless the wireless router is replaced
or its network settings are changed.
99 In case of mobile device that supports Quick Connect function, connection with the Speaker can be
easily done by the pop-up screen on your mobile device.
44
7
❚❚ Connecting to Wi-Fi manually
Depending on the network environments, the speaker(s) may not be automatically connected.
In that case, you can set up the speaker manually to connect to the network.
1 If an automatic connection fails, select Not Blinking.
2 WAM5500/WAM3500/WAM3501/WAM1500/WAM1501/
WAM1400 : On the lower part of the speaker, briefly press
SPK ADD/Wi-Fi SETUP and start Wi-Fi Setup.
Soundbar : After turning the speaker on, press and hold the
Wi-Fi SETUP button located at the back for 5 seconds.
WAM7500/WAM6500 : Press and hold the
Play/Pause
and Standby buttons on the speaker simultaneously for
more than 5 seconds to initiate Wi-Fi Setup.
• The speaker can wait for 2 minutes in its standby mode
until the Wi-Fi connection is established.
44
8
SPK ADD/Wi-Fi SETUP
Wi-Fi SETUP
SPK ADD
DC 24V
3 It searches for the device available for pairing.
4 If a speaker is found during search, a connection is established between the speaker and
smart device, and then a connection to the Wi-Fi network is attempted.
If the network is protected, the smart device displays a password input screen.
Use the keyboard to enter your password.
5 To connect only the speakers found from search and finish the process, select No.
To connect an additional speaker on the same network, select Yes.
(Applicable to Android only).
• Network connection is completed.
<Android>
<iOS>
44
9
AA Connecting with a LAN Cable (Soundbar only)
1 Connect one end of the LAN cable to the speaker’s LAN port and the other end to the
wireless router.
(The speaker and smart device must be connected to the same wireless router.)
2 Plug the speaker into an electrical outlet.
3 On your Smart device, select the Samsung Multiroom app.
4 At the top left of the home screen, select to display the list of speakers.
Check that the Soundbar is included in the list.
444
10
AA Adding Additional Speaker(s)
You can add additional speakers to your network using the Add Speaker function.
1 Connect the power cable of the speaker to be added to a wall outlet.
• If connecting the power cable of the speaker to a wall outlet, the Wi-Fi is automatically
switched into standby mode.
• The speaker can wait for 2 minutes in its standby mode until the Wi-Fi connection is
established.
2 On your Smart device, select the Samsung Multiroom app.
3 At the top left of the home screen, select
4 Select More.
to display the list of speakers.
5 Select Add New Speaker.
6 Select the speaker to add.
7 Check that the speaker power is connected and is within the effective range for Wi-Fi
connection, and then select Yes.
• It searches for the device available for pairing.
444
11
8 If a speaker available for connection is found, connecting to the Wi-Fi network is
attempted based on network information on the existing speaker. Select Yes.
• To connect to another network, select No. If the network is protected, the smart device
displays a password input screen. Use the keyboard to enter your password.
• Depending on the network environments, the speaker(s) may not be automatically
connected. If this occurs, refer to Click here. on pages 8~9.
9 To connect only the speakers found from search and finish the process, select No.
To connect an additional speaker on the same network, select Yes.
(Applicable to Android only).
• The additional new speaker is completely added.
444
12
Using the Samsung Multiroom App
AA App at a Glance
e
f
a
b
c
d
1
2
3
4
5
6
Check the full list of connected speakers to either change or setup.
View available sources of music.
Scroll left or right here to view available sources of music.
View files available under the selected source of music.
Several categories of music are listed below this option.
Scroll down to select the desired category of music.
Enter a keyword to search for the music desired.
Display the settings menu.
444
13
AA Playing Music
NOTES
99 You can search by artist, album, music title, and station in your mobile, network-connected device
and logged-in music services. You can search for music service(s) only if you logged in the service(s).
99 Spotify does not support the search function since it uses the Spotify Connect function.
❚❚ Playing a music file stored in the smart device
1 At the top of the home screen, select My Phone (files saved on your smart device).
2 Select the desired category from the screen.
• Albums : Lists all the music files by album.
• Artists : Lists all the music files by artist.
• Genres : Lists all the music files by genre.
• Folders : Lists all the music files by stored folder.
• Playlists : Lists all the music files by playlist.
• Songs : Lists all the music files by name.
• Favourites : Lists all the music files marked as favourites.
• Recently Added : Display a list of music files recently added.
3 After selecting a category, find and select your desired music.
444
14
❚❚ Listening to streaming music
Select a music streaming service provider and play music.
1 At the top of the home screen, select the desired music streaming service.
2 To rearrange music streaming services, drag the target service for rearrangement left or
right to the desired position.
NOTES
99 Available music streaming services depend on the area and the smart device manufacturer.
99 Some music services may require you to sign up for a membership or log in.
99 You may not subscribe to a service using your smart device.
To use a for-pay service, first subscribe to the service through your computer.
99 Some TuneIn radio channels may be restricted according to their site policy.
99 Supported music service may be added or deleted according to corresponding policy.
444
15
AA Listening to Internet Radio
1 At the top of the home screen, select TuneIn.
2 Select your desired category.
• Following : Shows the list of stations added to the preset list or marked as you are
following. By default, 3 radio stations are displayed in the preset list.
• Browse : Lists all supported Internet radio stations.
• Search : Allows you to search for a desired internet radio station using keypad input.
3 Find and select a station.
444
16
❚❚ Following a station
You can add a channel to the Following list.
1 Select the desired channel.
2 At the bottom of the screen, select the play screen to display it in full screen.
3 Select to display the pop-up menu and select Follow This Station.
• The channel you are currently listening to is added to the Following list.
NOTE
99 Followed Station appears if you attempt to add a broadcast channel that is already included in the list
under Following.
444
17
❚❚ Setting presets
You can add the internet radio channel you are following into the preset list, or rearrange the
displaying order in the list.
1 At the top of the home screen, select TuneIn.
2 Select Following.
3 Select Edit. Delete or rearrange broadcast channels in the list under Following.
• To delete a broadcast channel, select the X icon. To rearrange a broadcast channel,
press and drag to the desired position.
4 Drag the desired channel from the Following to the Presets.
NOTES
99 A maximum of 3 items can be included in the list under Presets.
99 Moving a broadcast from the list under Following to the list under Presets will delete a broadcast in the
list under Presets.
99 Moving a broadcast from the list under Presets to the list under Following does not affect the list under
Following.
5 To save changes and close the process, select Done.
444
18
AA Listening to Music from Other Devices in Network
You can listen to music stored on another device that is connected to the same network.
You can share music stored in your PC connected smart devices.
For details, refer to "Wireless Audio - Multiroom for Desktop" on pages 45~46. Click here.
1 At the top of the home screen, select the desired device connected to the network.
2 You can play music files stored in your selected device through the speaker.
444
19
AA Using Play Screen Features
Use the various features in the play screen.
❚❚
Adding music to favourites
Select
to add music currently playing to favourites. Tapping it again will delete the music
from favourites.
❚❚ Using playback options
@@ Add
to Playlist
Create a playlist. Add a music file currently playing to a playlist.
@@ Equaliser
Customise the volume for each frequency, according to the genre of music, your taste, or
the location.
@@ Play
on a Different Speaker
Play the current music via another speaker.
❚❚
Current playlist
View the list of music files currently playing. Rearrange or delete files in the list (See page 23
for details). Click here.
444
20
❚❚ Music control icons
1
@@
1
@@
@@
@@
@@
@@
1
Shuffle Off /
Shuffle On
Play music files in the current playlist, in random order.
Previous Music
1
Play the previous music.
Pause /
Play
Pause or play music.
Next Music
Play the next music.
1
Repeat
Off /
1
Repeating One 1File /
Repeating All
Repeat the current music file. Repeat a single file or all files in the current playlist.
Volume Control Bar
Use the volume control bar to customise the volume.
- Alternatively, use the volume buttons on the smart device to adjust the volume.
444
21
❚❚ Adjusting Equaliser
You can select one of the presets provided by default in the Equaliser option or create your
own settings by adjusting the frequencies manually.
1 Select .
2 The pop-up menu appears. Select Equaliser.
3 Drag each frequency up or down to adjust it, and select SAVE.
4 Select Custom, enter a title, and then select Done.
5 Select Yes.
NOTE
99 A maximum of 10 custom equaliser modes can be added.
444
22
❚❚ Managing the current playlist
@@ Adding
music to the current playlist
Add or edit a music file in the current playlist.
1 On the home screen, select the desired category.
2 Select Select.
3 Select the music file to be added to the current playlist, and select Add (to select all
files in the list, select
).
4 In the pop-up screen, select Add to Queue.
5 "Added to queue." appears at the bottom of the screen after the file is successfully
added.
NOTES
99 To manage the current playlist, select in the play screen.
99 A maximum of 360 files can be saved in the current playlist.
99 Files from station-based music streaming services, such as TuneIn and Pandora, cannot be saved to
the current playlist.
444
23
@@ Rearranging
files in the current playlist
1 On the play screen, select
2 Select Edit.
3 Select and drag
@@ Deleting
.
to rearrange the (music) files in the list.
music from the current playlist
1 On the play screen, select
.
2 To delete several music files, select Edit. If you select Edit, a checkbox appears in
front of each file. To delete all files in the current playlist, select Remove All.
3 Select the files to be deleted and select Remove.
4 Select Yes.
444
24
❚❚ Managing a playlist
@@ Creating
a playlist
You can create your own playlist to save or edit.
1 On the home screen, select Playlists.
2 Select Create Playlist
.
3 Enter a playlist name and select Done.
4 On the add songs screen, select the desired category.
5 Select the desired music files and tap Add. The playlist is added.
NOTE
99 You can save up to 360 pieces of music in the playlist.
444
25
@@ Editing
a playlist
1 On the home screen, select Playlists.
2 Select Edit.
3 To delete a playlist, select the playlist to be deleted and select Remove.
• To rename a playlist, select .
4 To use additional options, select a playlist name to display a list of music files.
5 Select Select.
6 Select the music file to play, or the music file to add or delete in the current playlist.
7 To play the selected music file, select Play. To add or delete the file in the current
playlist, select More.
444
26
AA Using the Settings Menu
1 On your Smart device, select the Samsung Multiroom app.
2 At the top of the home screen, select
.
❚❚ Add Speaker
To add additional speaker(s) to an existing speaker connection, refer to "Adding Additional
Speaker(s)" on pages 11~12. Click here.
❚❚ Alarm
1 Select Alarm and then select Add Alarm.
2 Set the time, days, music, volume, and duration.
• If two or more speakers are connected, select Change to change the speaker that will
play the alarm.
3 Select Music, and then select either Sound or TuneIn to select an alarm tone.
444
27
4 To save settings and close the process, select Done.
NOTE
99 Alarm will not play if the power plug of the speaker is not connected.
❚❚ Sleep Timer
You can turn off the speaker by setting sleep time.
1 Select Sleep Timer and then select OFF for the speaker to which to apply sleep timer.
2 Set the time and select TURN ON.
444
28
❚❚ Input Source
Change the input source for an active speaker.
<Wireless Speaker>
<Soundbar>
❚❚ Music Services
Displays a list of available services.
NOTES
99 Available music streaming services depend on the area and the smart device manufacturer.
99 Some music services may require you to sign up for a membership or log in.
99 You may not subscribe to a service using your smart device.
To use a for-pay service, first subscribe to the service through your computer.
99 Some TuneIn radio channels may be restricted according to their site policy.
99 Supported music service may be added or deleted according to corresponding policy.
444
29
❚❚ Device Settings
@@ Advanced
LED On/Off
Settings
To turn on or off the frontal LED indicator lamp on a speaker, toggle the switch right or left.
NOTE
99 This feature may not be available, if the speaker does not support it.
Audio Prompt On/Off
The audio guide feature informs the user of the current speaker status with voice or other
sound.
To turn on or off the audio guide feature, toggle the switch right or left.
444
30
Network Status
Check the network status for speakers connected over a network.
@@ Speaker
Software Update
View the current software version for speakers, and perform an update if necessary.
Turn on or off automatic updates for each speaker.
To turn on or off automatic updates, toggle the switch right or left.
NOTES
99 Updating is automatically performed if the speaker is connected to the network and the automatic
update feature is on.
99 If multiple speakers are connected to the network, keep the automatic update feature on for all
the speakers. Using different versions of software together may cause a network issue due to
incompatibility.
99 Automatic update is performed only when a speaker is in standby mode.
Manually turning on standby mode on a speaker
1) Turn on automatic update.
2) Touch and hold a touch area for 5 seconds. Touch to wake up.
444
31
Update Now
You can update your speaker's software manually using Update Now.
Select Update Now to search software available for updates. If an update is available, it will
download and install the update on your speaker. The message appears if the latest version
is already installed.
@@ Device
ID
View the connected device ID.
444
32
❚❚ Support
@@ FAQ
You are directed to the "Support" page of Samsung website.
@@ Terms
& Conditions
Lets you check the Terms & Conditions.
@@ Contact
Samsung
Provides a link to the Samsung website.
@@ Open
Source Licenses
Lets you view the Open Source Licenses.
@@ Remote
Management
Lets you view the Terms and Conditions for Remote Management.
Support
Information
❚❚ Information
@@ Samsung
Multiroom
Check the speaker model and the Wi-Fi area information.
@@ App
Version
Allows you to check the Samsung Multiroom app version.
444
33
AA Listening to Music through Multiroom App in Smart Watch
NOTES
99 To use the Multiroom app in Galaxy Gear S or Apple Watch, you have to connect your smart device to
the speaker in advance.
99 To use the Multiroom app in Galaxy Gear S, you have to download and install the exclusive Multiroom
app.
❚❚ Galaxy Gear S: Downloading Multiroom app
1 Select and launch Samsung Gear.
2 Select the Samsung Gear Apps.
3 Search and download the Multiroom.
4 Run the Multiroom app in your Galaxy Gear S.
❚❚ Apple Watch: Setting MultiRoom in smart device
1 Select Apple Watch on the smart device.
2 Select My Watch > MultiRoom.
3 Activate the Show App on Apple Watch.
444
34
❚❚ Using the Multiroom app in Smart Watch
@@ Selecting
Speaker
@@ Adjusting
Volume
Play music using a speaker of your choice, if multiple speakers are connected.
Use the - and + buttons to decrease or increase the volume when playing music.
To turn off mute mode, use the + button to increase the volume or tap the
button.
When grouped
444
35
@@ Playing
Music
You can select your desired music to enjoy while playing/pausing a music, playing previous/
next music, or looking through the Queue.
On the play screen, tap the music currently playing to display a queue list.
Scroll up or down in the queue list to select and play another music.
To go back to Play screen, touch the Queue.
Play screen
@@ Group
Queue
or Stereo display
The following screens are displayed in group and stereo modes.
Stereo mode
Grouped
NOTE
99 Group and stereo modes can be turned off by using Samsung Multiroom on the smart device.
444
36
Connecting multiple speakers
AA Setting Groups
You can group multiple speakers into one group that plays the same music.
Grouping is available only when multiple speakers are connected to the same network.
1 At the top left of the home screen, select
to display the list of speakers.
2 Select to display the pop-up menu and select Group.
3 Select the speakers to be grouped and select Create Group.
(to select all speakers, select
).
4 Specify a group name and select Done.
444
37
@@ Ungrouping
1 Select to display the pop-up menu.
2 Select Ungroup and select Yes.
@@ Editing
group
1 Select to display the pop-up menu.
2 Select Edit Group.
3 Select the speakers to be grouped and then select Done.
444
38
@@ Renaming
a group
1 Select to display the pop-up menu.
2 Select Rename.
3 Enter a group name and select Done.
@@ Adjusting
Group Volume
Use the Volume button in your smart device.
Or
Alternatively, use the volume control bar
on the play screen to adjust
the volume for all speakers in a group simultaneously.
To adjust the volume for a specific speaker, select 7 and use the volume control bar.
444
39
AA Configuring Stereo/Surround Sound Mode Settings
Use two speakers to obtain a stereo sound effect.
1 At the top left of the home screen, select
to display the list of speakers.
2 Select to display the pop-up menu and select Stereo Set-up.
3 Drag and position the speakers to use in stereo mode to Front L and Front R.
4 Select Setup and then select Start Test. (optional)
5 Adjust the volume for the left and right speakers based on the test results, and select
Done.
1
2
444
40
❚❚ Configuring multi-channel by connecting TV to Multiroom speaker
wirelessly
You can connect a Samsung TV to your Multiroom speaker(s) wirelessly to configure surround
sound system for TV audio output.
e.g. 2-channel Surround Sound System
Wireless
Surround Left
NOTES
Wireless
Surround Right
MODE
MODE
MODE
MODE
99 Both TV and Multiroom speaker(s) must be connected to the same network.
99 When configuring surround sound system with your TV and a speaker, the TV does not output any
sound.
99 You can configure 4.1 (5.1) channel surround sound system with a soundbar and 2 speakers.
99 You cannot configure surround sound system with a soundbar and one speaker.
MODE
MODE
SPK ADD/Wi-Fi SETUP SERVICE1
SERVICE2
POWER
SPK ADD/Wi-Fi SETUP SERVICE1
1 At the top left of the home screen, select
to display the list of speakers.
SERVICE2
POWER
2 On the speaker connected to the Samsung TV via Wi-Fi, select to display the pop-up
menu and then select Stereo Set-up.
444
41
3 Drag and position the speakers to use in stereo mode to Front L and Front R.
4 Select Setup and then select Start Test. (optional)
5 Adjust the volume for the left and right speakers based on the test results, and select
Done.
1
2
❚❚ Configuring multi-channel by connecting TV & Soundbar to Multiroom
speaker
If your TV supports the Multiroom function, you can configure a surround system and
Soundbar mode in your Multiroom App or TV menu.
NOTES
99 If the source of the Soundbar is DTS, only the speakers of Front L and Front R can output sound.
99 If your TV does not support the Multimroom function, you can connect the Optical/HDMI Out port of your
TV to the Soundbar to configure the 4.1 channel consisting of Soundbar and Multiroom.
444
42
1 At the top left of the home screen, select
to display the list of speakers.
2 On the Soundbar connected to the Samsung TV via Wi-Fi, select to display the pop-up
menu and then select Surround Setup.
3 Drag and position the speakers to use in surround sound mode to Surround L and
Surround R.
4 Select Setup and then select Start Test. (optional)
5 Adjust the volume for the left and right speakers based on the test results, and select
Done.
1
3
2
4
444
43
Using miscellaneous functions
AA Playing Media Content Saved on a PC
❚❚ Samsung Link
Install the Samsung Link program for easier playback of music stored in your PC through
Speaker. Visit http://link.samsung.com and download the Samsung Link application and finish
installing it.
1 Visit http://link.samsung.com and login with your Samsung account.
Follow the instructions shown to install the program.
2 Select the folder to be shared.
1) Move the mouse pointer over the Samsung Link icon from the icons tray, right click
on it and select "1".
1
2) On the screen displayed, you can add or delete shared folders.
After adding or changing contents of shared folders, make sure to press the
button.
3 Select the Devices from the Samsung Multiroom app to select PC. Shared PC folders
and music files will be displayed. (For further details, refer to page 19.) Click here.
NOTES
99 Note that the PC containing the shared folders and your Speaker must be connected to the same wireless
router.
99 Samsung Link software should have been installed on the computer. The mobile device should support
Samsung Link. For more information, visit Samsung's content and service portal at http://link.samsung.
com.
99 You may experience compatibility issues when attempting to play media files via a third-party DLNA server.
99 However, the content shared by a computer device may not play depending on the encoding type and file
format of the content. In addition, some functions may not be available.
99 The media content may not smoothly play depending on the network status. If this is the case, use a USB
storage device.
444
44
❚❚ Wireless Audio - Multiroom for Desktop
To play iTunes system and shared PC music files through speaker, install the Wireless Audio
- Multiroom for Desktop program.
Visit www.samsung.com to download the Wireless Audio - Multiroom for Desktop program
and install it.
NOTES
99 Note that the PC containing the shared folders and your speaker must be connected to the same wireless
router.
99 If the connected Windows PC or the Mac switches to off-display mode, power saving or hibernation mode,
the App will stop.
99 If the firewall of the Windows computer is activated, the App may not work. In such a case, deactivate the
firewall of Windows or other vaccine firewall.
99 The *.pkg file is for Mac while *.msi is for Windows installation. Download the appropriate file for your
computer and install it.
99 Supported OS: Windows 7 or higher, Mac OS X 10.7 or later.
1 Double click the icon created on the PC's desktop.
2 Select Next to set the shared folders.
Wireless Audio
- Multiroom for
Desktop: Off, On
You can set the app
to allow or block an
external device's access
to your PC.
444
45
3 Select the content type, and then add the selected folder to the shared folders list.
After sharing folders, make sure to press the Done button.
1
2
3
4 On your Smart device, select the Samsung Multiroom app.
5 Select desired PC on the Samsung Multiroom app, and shared folders and files stored
in the PC will be displayed. (For further details, refer to page 19.) Click here.
NOTE
99 After adding or changing contents of shared folders, make sure to press the button.
If you don't press the button, the files shared by a computer device may not displayed in the Samsung
Multiroom app.
444
46
Appendix
AA Troubleshooting
Before requesting service, please check the following.
Symptom
App doesn't work properly.
Check
•• Does an error occur when
accessing the app?
•• Make sure your smart device is
compatible with the app.
•• Make sure the app is the latest
version.
NOTE
99 If the problem persists, consult the service centre for troubleshooting.
❚❚ Compatible speakers
• Mobile : Android 4.0 (Gingerbread) or above, iOS (7.0) or above
NOTES
99 Some devices may not be compatible with the speaker.
99 Note that a speaker of an older version may not be supported.
444
47
Remedy
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
