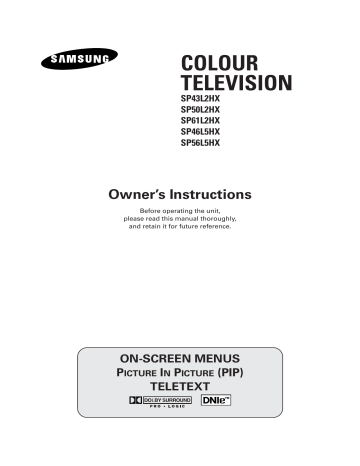

COLOUR
TELEVISION
SP43L2HX
SP50L2HX
SP61L2HX
SP46L5HX
SP56L5HX
Owner’s Instructions
Before operating the unit,
please read this manual thoroughly,
and retain it for future reference.
ON-SCREEN MENUS
PICTURE IN PICTURE (PIP)
TELETEXT
Safety Instructions
ENG
◆ Do not expose the television to extreme temperature conditions or to extreme humidity conditions.
◆ Do not expose the television to direct sunlight and other sources of heat.
◆ Do not expose the television to any liquids.
◆ Never put objects of any kind into the television, and do not place a water-containing vessel on the
television.
◆ During a storm conditions (especially when there is lightning) unplug the television from the mains
socket and aerial.
◆ Do not step on or twist the power cord.
◆ Do not overload wall outlets or extension cords as this can result in a risk of fire or electric shock.
◆ Please use a soft and dry cloth (not containing volatile matter) when you clean the TV.
◆ If the television is broken, do not try to repair it yourself. Contact qualified service personnel.
◆ If the remote control is not used for a long period of time, remove the batteries and store it in a
cool, dry place.
◆ Do not drop the remote control.
This device is not for use in industrial environments.
2
Caution
ENG
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO PREVENT ELECTRICAL SHOCK,
DO NOT REMOVE REAR COVER, NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
WARNING: TO PREVENT DAMAGE WHICH MAY RESULT
IN FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
The lightning flash and arrow head
within the triangle is a warning sign
alerting you of “dangerous voltage”
inside the product.
The exclamation point within the
triangle is a warning sign alerting
you of important instructions
accompanying the product.
☛
The main voltage is indicated on the
rear of the TV set and the frequency is
50 or 60Hz.
3
ENG
Contents
◆ FOREWORD
■
■
■
Safety Instructions .........................................................................................
Caution ..........................................................................................................
Replacing the Lamp.......................................................................................
2
3
6~7
◆ CONNECTING AND PREPARING YOUR TELEVISION
■
■
■
■
■
■
■
■
■
■
■
■
■
Control Panel of Your Television ...................................................................
Connection Panel of Your Television ............................................................
Connecting to an Aerial or Cable Television Network ...................................
Connecting a Satellite Receiver or Decoder..................................................
Connecting Additional Speakers ...................................................................
Inserting the Batteries in the Remote Control................................................
Infrared Remote Control ................................................................................
Switching Your Television On and Off...........................................................
Placing Your Television in Standby Mode .....................................................
Becoming Familiar with the Remote Control .................................................
Setting Up Your Remote Control ...................................................................
Plug & Play Feature.......................................................................................
Choosing Your Language..............................................................................
8~9
10
11
11
12
12
13
14
14
15
16
17
18
◆ SETTING THE CHANNELS
■
■
■
■
■
■
■
Storing Channels Automatically.....................................................................
19
Storing Channels Manually............................................................................ 20~21
Skipping Unwanted Channels .......................................................................
22
Sorting the Stored Channels .........................................................................
23
Assigning Names to Channels ......................................................................
24
Activating the Child Lock ...............................................................................
25
Selecting a Channel by Information...............................................................
26
◆ USING YOUR TELEVISION (continued)
■
■
■
■
■
■
■
■
■
■
■
■
4
Changing the Picture Standard .....................................................................
Adjusting the Picture Settings........................................................................
Adjusting the Picture Settings (PC or DVI Mode) ..........................................
Setting the Picture (PC Mode).......................................................................
Using the Fine Tune ......................................................................................
Viewing the Channel Scan Picture ................................................................
Using the LNA (Low Noise Amplifier) Feature...............................................
Extra Picture Settings ....................................................................................
- Size
- Digital NR
DNIeTM (Digital Natural Image engine)
...............................................
Freezing the Current Picture .........................................................................
Setting the Blue Screen.................................................................................
Selecting the Film Mode ................................................................................
27
28
29
30
31
32
32
33
34
34
35
35
ENG
Contents (continued)
◆ USING YOUR TELEVISION
■
■
■
■
■
■
■
■
■
■
■
■
■
■
■
Changing the Sound Standard ......................................................................
36
Adjusting the Sound Settings ........................................................................
37
Adjusting the Volume Automatically ..............................................................
37
Setting the Dolby Pro Logic ...........................................................................
38
Adjusting Your Dolby Preferences.................................................................
39
Setting the External Sound............................................................................
40
Selecting the Sound Mode (depending on the model) ..................................
41
Setting the Melody Sound .............................................................................
42
Setting the Sleep Timer .................................................................................
43
Setting and Displaying the Current Time.......................................................
44
Switching the Television On and Off Automatically .......................................
45
Viewing an External Signal Source ...............................................................
46
Redirecting an Input to the External Output ..................................................
47
Viewing the Picture In Picture (PIP) .............................................................. 48~49
Listening to the Sound of the Sub Picture (PC or DVI Mode)........................
50
◆ USING THE TELETEXT FEATURE
■
■
■
■
Teletext Feature ............................................................................................
Displaying the Teletext Information ...............................................................
Selecting Display Options..............................................................................
Selecting a Teletext Page..............................................................................
51
52
52
53
◆ ADDITIONAL INFORMATION AND CONNECTIONS
■
■
■
■
■
■
■
■
■
■
Connecting to the External Input/Output .......................................................
Connecting to the DVD Input.........................................................................
Connecting to the Audio Outputs...................................................................
Connecting to the Audio/Video Input .............................................................
Connecting to the S-Video Input....................................................................
Connecting to the DVI Input ..........................................................................
Connecting to the PC Input ...........................................................................
Setting up Your PC Software (Windows only) ...............................................
Input Mode (PC/DVI) .....................................................................................
Pin Configurations .........................................................................................
54
55
55
56
56
57
57
58
59
60
◆ RECOMMENDATIONS FOR USE
■
■
■
Troubleshooting: Before Contacting Service Personnel................................
Technical Specifications ................................................................................
Wiring the Mains Power Supply Plug (UK Only)............................................
Symbols
Press
☛
Important
➢
Note
5
61
62
63
Replacing the Lamp (SP43L2HX/SP50L2HX/SP61L2HX)
ENG
1
Use a screwdriver to remove the screw.
2
Remove the Lamp cover.
3
Use a screwdriver to remove the screws securing the Lamp.
There are 2 screws: one on the up and one on the down.
When the screws have been completely unfastened, they will still
be connected to the body of the Lamp.
4
Separate the Lamp from the engine by holding the handle and
pulling it out.
5
To reinstall the Lamp, follow these steps in reverse order.
Projection TV lamp is a consumable item, and should be
☛ Areplaced
from time to time for best projector operation. If the
screen image becomes dark, or timer, lamp and Temp LEDs
flicker off at the same time, you may have to replace the lamp.
When changing the lamp, you should first verify the
type/model, and then use only the correct lamp replacement.
The code for lamp regulation and usage is marked on the
label. If you remove the lamp, you can identify this
replacement code. You should only replace the lamp with the
one of the same regulation code.
◆ If you wish to buy a new lamp,please phone your Service Center
or a nearby TV dealer, and tell them the model of your projection
unit.
◆ You can identify the lamp type on the left side of TV and the
lamp cover.
◆ The TV will be damaged if you use a lamp that is different from
the original supplied by the manufacturer. Be sure the
replacement lamp is the same model.
◆ Please don't remove the lamp except when replacing with a new
one.
◆ Please turn off TV power before changing a lamp and then
unplug after waiting 1 minute.
◆ The cooling fan will help cool the lamp so you can safely remove
it. The surface of the Lamp is very hot. Please wait for 30
minutes after turning off your projection TV to handle the lamp.
◆ Please keep the old lamp away from flammable articles and
children. Dispose of properly.
◆ Don't allow dirt or dust to accumulate inside the lamp cover or on
the Lamp.
◆ A dirty cover or lamp can catch fire, explode and cause electric
shock.
◆ Please don't touch the front glass of a new lamp or the glass of
the lamp container.
◆ If a new lamp is improperly handled,the quality of the screen
image can be affected and the expected life span of the lamp
can be reduced.
◆ Be sure to tighten the lamp cover on the TV after changing the
lamp. Note that the TV will not function if the lamp cover is not
securely attached. Please tighten the holding screw on the lamp
cover after it has been attached to the TV.
6
Replacing the Lamp (SP46L5HX/SP56L5HX)
ENG
1
Use a screwdriver to remove the screw.
2
Remove the Lamp cover.
3
Use a screwdriver to remove the screws securing the Lamp.
There are 2 screws: one on the up and one on the down.
When the screws have been completely unfastened, they will still
be connected to the body of the Lamp.
4
Separate the Lamp from the engine by holding the handle and
pulling it out.
5
To reinstall the Lamp, follow these steps in reverse order.
Projection TV lamp is a consumable item, and should be
☛ Areplaced
from time to time for best projector operation. If the
screen image becomes dark, or timer, lamp and Temp LEDs
flicker off at the same time, you may have to replace the lamp.
When changing the lamp, you should first verify the
type/model, and then use only the correct lamp replacement.
The code for lamp regulation and usage is marked on the
label. If you remove the lamp, you can identify this
replacement code. You should only replace the lamp with the
one of the same regulation code.
◆ If you wish to buy a new lamp,please phone your Service Center
or a nearby TV dealer, and tell them the model of your projection
unit.
◆ You can identify the lamp type on the left side of TV and the
lamp cover.
◆ The TV will be damaged if you use a lamp that is different from
the original supplied by the manufacturer. Be sure the
replacement lamp is the same model.
◆ Please don't remove the lamp except when replacing with a new
one.
◆ Please turn off TV power before changing a lamp and then
unplug after waiting 1 minute.
◆ The cooling fan will help cool the lamp so you can safely remove
it. The surface of the Lamp is very hot. Please wait for 30
minutes after turning off your projection TV to handle the lamp.
◆ Please keep the old lamp away from flammable articles and
children. Dispose of properly.
◆ Don't allow dirt or dust to accumulate inside the lamp cover or on
the Lamp.
◆ A dirty cover or lamp can catch fire, explode and cause electric
shock.
◆ Please don't touch the front glass of a new lamp or the glass of
the lamp container.
◆ If a new lamp is improperly handled,the quality of the screen
image can be affected and the expected life span of the lamp
can be reduced.
◆ Be sure to tighten the lamp cover on the TV after changing the
lamp. Note that the TV will not function if the lamp cover is not
securely attached. Please tighten the holding screw on the lamp
cover after it has been attached to the TV.
7
Control Panel of Your Television
➢
ENG
The actual configuration on your TV may be different, depending on
your model.
SP46L5/56L5HX
a
b
c
d
LED Indicators
e
f
SP43L2/50L2HX
a
SP61L2HX
b
a e
b
c
c
d
d
e
LED Indicators
f
( a ) Input Source Selection
( d ) Volume Adjustment
( b ) Menu Display
( e ) Confirm your choice (Store or Enter)
( c ) Channel Selection
( f ) Power On/Off
8
f
Control Panel of Your Television (continued)
ENG
(
:On,
:Blinking,
TIMER
LAMP
:Off)
STAND BY/TEMP
Indication
Standby mode.
A timer pilot lights when Timer Auto On or Off is selected.
Normal operation.
Normal operation (when Timer Auto On or Off is selected).
Lamp is warming up. The normal picture comes on after 25 seconds.
The normal picture comes on after 25 seconds. (when Timer Auto On or
Off is selected)
Air vent cover in the rear of the TV is not properly installed.
Inside temperature of the TV is over normal. Clean the air vent cover in the
rear of the TV. Turn the TV back on after 1 hour.
The lamp does not work, please contact an authorized Service Center for
assistance.
➢
Using the Buttons on the Panel
If the remote control no longer works or you have lost it, you can use controls on the panel of the TV to:
◆
◆
◆
◆
Switch on the TV when it is in Standby mode and select channels ( ▲ C/P.
▼ ).
Access the menu ( MENU ).
Adjust the volume ( +
- ).
Switch among Video input modes ( SOURCE ).
9
Connection Panel of Your Television
➢
ENG
The actual configuration on your TV may be different, depending on
your model.
Side of the TV
SP43L2/50L2HX/61L2HX
SP46L5/56L5HX
a
c
b
a
b
( a ) Video Input
c
( b ) Audio Inputs
( c ) S-Video Input
Rear of the TV
d
c
i
e
f
h
a
g
b
a) 75Ω
Coaxial connector for Aerial or Cable
Network.
e) COMPONENT
Video (Y/PB/PR) and audio (L/R) inputs for
Component.
b) AV1 / AV2 / AV3
Inputs or outputs for external devices, such as
VCR, DVD, video game device or video disc
players.
f) PC AUDIO (L/R)
PC or DVI Audio inputs.
c) SURROUND SPEAKER (8Ω 15W)
Connectors for external rear speakers.
d) AUDIO OUT
Amplifier (L/R) or powered speaker (WOOFER)
connection to take full advantage of the
surround sound effect.
10
g) PC (15 Pin)
PC Video input.
h) DVI (24 Pin)
Video input for device with DVI input.
i) RS-232 (only for service)
Connecting to an Aerial or Cable Television Network
ENG
To view television channels correctly, a signal must be received by
the set from one of the following sources:
◆ An outdoor aerial
◆ A cable television network
◆ A satellite network
1
In the first three cases, connect the aerial or network input cable to
the 75Ω coaxial socket on the rear of the television.
2
If you are using an indoor aerial, you may need to turn it when
tuning your television until you obtain a picture that is both sharp
and clear.
For further details, refer to:
◆ “Storing Channels Automatically” on page 19.
◆ “Storing Channels Manually” on page 20.
Rear of the TV
or
Cable Television
Network
Connecting a Satellite Receiver or Decoder
In order to watch television programmes broadcast via a
satellite network, you must connect a satellite receiver to the
rear of TV. Also, in order to descramble a coded
transmission signal, you must connect a decoder to the rear
of TV.
Rear of the TV
◆ Using a SCART cable
Connect the receiver (or decoder) SCART cable to one of
the SCART connectors on the rear of the television.
◆ Using a coaxial cable
Connect a coaxial cable to the:
- Receiver (or Decoder) output socket.
- Television aerial input socket.
➢
If you wish to connect both a satellite receiver (or decoder)
and a VCR, you should connect the:
◆ Receiver (or Decoder) to the VCR
◆ VCR to the television
Satellite receiver/
Decoder
Otherwise, connect the receiver (or decoder) directly to
the television.
11
Connecting Additional Speakers
ENG
To take advantage of the surround sound system, connect
additional speakers.
The speaker terminals are located on the rear of the television:
◆ Two for the left-hand surround speaker (marked L)
◆ Two for the right-hand surround speaker (marked R)
➢
To improve the quality of the sound, connect the:
◆ Red wire to the red terminal
◆ Black wire to the black terminal
Inserting the Batteries in the Remote Control
You must insert or replace the batteries in the remote control when
you:
◆ Purchase the television
◆ Find that the remote control is no longer operating
correctly
12
1
Remove the cover on the rear of the remote control by pressing
the symbol ( ) downwards and then pulling firmly to remove it.
2
Insert two R03, UM4, “AAA” 1.5V or equivalent batteries taking
care to respect the polarities:
◆ - on the battery against - on the remote control
◆ + on the battery against + on the remote control
3
Replace the cover by aligning it with the base of the remote
control and pressing it back into place.
Infrared Remote Control
ENG
POWER ON/OFF
PICTURE EFFEECT SELECTION
PICTURE SIZE
WHEN YOU PRESS A BUTTON , ‘
’
APPEARS ALONG WITH SELECED MODE
(TV, VCR, CATV, DVD OR STB) AND
REMAINING BATTERIES ON LED
MAKE THE REMOTE CONTROL WORKS
FOR TV, VCR, CABLE-BOX (CATV),
DVD PLAYER, OR SET-TOP BOX (STB)
DIRECT CHANNEL SELECTION
SWITCH REPEATEDLY BETWEEN THE
LAST TWO CHANNELS DISPLAYED
ONE OR TWO-DIGIT CHANNEL
SELECTION
VOLUME INCREASE
TEMPORARY SOUND SWITCH-OFF
NEXT CHANNEL/
TELETEXT NEXT PAGE
EXTERNAL INPUT SELECTION/
TELETEXT HOLD
VOLUME DECREASE
PREVIOUS CHANNEL/
TELETEXT PREVIOUS PAGE
TUNER/CABLE NETWORK
SELECTION
DISPLAY INFORMATION/
TELETEXT REVEAL
EXIT FROM ANY DISPLAY
MENU DISPLAY/
TELETEXT INDEX
MOVE TO THE REQUIRED MENU
OPTION/
ADJUST AN OPTION VALUE
RESPECTIVELY
CONFIRM YOUR CHOICE
(STORE OR ENTER)
SOUND EFFECT SELECTION
SOUND MODE SELECTION
➢
STILL THE MAIN PICTURE
In the PIP mode, the main and
sub pictures are stilled
at the same time.
TELETEXT DISPLAY/
MIX BOTH TELETEXT INFORMATION
AND THE NORMAL BROADCAST
AUTOMATIC SWITCH-OFF/
TELETEXT CANCEL
DNIe ON/DEMO/OFF/
TELETEXT SIZE SELECTION
SET THE MBR CODE OF REMOTE
CONTROL FOR THE PRODUCTS
EXCEPT SAMSUNG PRODUCT
(OPTION)
INITIALIZE THE REMOTE CONTROL
SETTINGS WHEN IT HAS SOME
PROBLEMS OR DOESN'T WORK
WELL
➢
DISPLAY CHANNEL INFORMATION
FASTEXT TOPIC SELECTION
CURRENT TIME DISPLAY/
TELETEXT SUBPAGE
PIP FUNCTIONS;
- PIP ACTIVATING OR DEACTIVATING
(PIP ON)
- SWAPPING THE MAIN AND THE SUB
PICTURE (SWAP)
- SELECTING THE CHANNEL OF SUB
PICTURE (P^/∨)
VCR/DVD FUNCTIONS;
- STOP
- REWIND (REW)
- PLAY/PAUSE
- FAST FORWARD (FF)
Please take off the batteries while
resetting. If not so, the remote
control will get damaged.
➢
The performance of the remote control may be affected by bright light.
13
Switching Your Television On and Off
ENG
The mains lead is attached to the rear of your television.
☛
If you have purchased this television in the United
Kingdom, refer to page 63 for further instructions on
plug wiring.
TV
1
Plug the mains lead into an appropriate socket.
➢
2
The main voltage is indicated on the rear of the television
and the frequency is 50 or 60Hz.
Press the “ I ” button (On/Off) on the side of the television.
Result:
3
The Standby indicator on the side of the television
lights up.
Press the POWER (
television on.
Result:
) button on the remote control to switch the
The programme that you were watching last is reselected automatically.
you have not yet stored any channels, No clear picture
➣ Ifappears.
Refer to “Storing Channels Automatically” on page
19 or “Storing Channels Manually” on page 20.
4
To switch your television off, press the “ I ” button (On/Off) again.
Placing Your Television in Standby Mode
Your television can be placed in Standby mode, in order to reduce
the Power consumption.
The Standby mode can be useful when you wish to interrupt
viewing temporarily (during a meal, for example).
TV
1
Press the POWER (
Result:
2
) button on the remote control.
The screen is turned off and the Standby indicator on
the front of the television lights.
To switch the television back on, simply press the POWER (
button again or a numeric button.
➣ You can also switch on by pressing the P
☛
14
or
)
button.
Do not leave your television in Standby mode for long
periods of time (when you are away on holiday, for
example). Turn your television off by pressing the “ I ”
button (On/Off) on the side of the television. It is best to
unplug the set from the mains and aerial.
Becoming Familiar with the Remote Control
ENG
The remote control is used mainly to:
◆ Change channels and adjust the volume
◆ Display the on-screen menu system
The following table presents the most frequently used buttons and
their functions.
Button
to
-/--
PRE-CH
Viewing Function
Menu Function
Used to display the next
stored channel.
-
Used to display the
previous stored channel.
-
Used to display the corresponding channels.
For double digit channels, the second digit must be
pushed immediately after the first. Failure to do this will
result in a single digit channel being displayed.
➢
Used to select a channel numbered ten or over.
Press this button, and the “--” symbol is displayed.
Enter the two-digit channel number.
Used to switch repeatedly between the last two channels
displayed.
Used to increase the
volume.
-
Used to decrease the
volume.
-
MUTE
Used to switch the sound off temporarily.
To turn the sound back on, press this button again, or
press the
or
button.
MENU
Used to display the
on-screen menu system.
Used to return to the previous
menu or normal viewing.
-
Used to:
◆ Display a submenu
containing selections for
the current menu option
◆ Increase/decrease a
menu option value
-
Used to confirm your choice.
-
Used to exit from the menu
system and return to normal
viewing directly.
EXIT
➣
15
Setting Up Your Remote Control
ENG
This TV’s remote control can operate almost any VCR, Cable box,
DVD, or Set-top box, in addition to controlling the TV.
➣
VCR
The remote control is not compatible with the TV
manufactured by another company.
1
Turn off your VCR, Cable box, DVD, or Set-top box.
2
Press the SELECT button repeatedly to activate another
component (VCR, CATV, DVD, STB).
Example: If you want to program the remote control to operate
your VCR, make sure that VCR is displayed
3
Press the POWER ( ) button on the remote control.
The component you select should turn on. If it turns on, your remote
control is now set correctly.
4
Once your remote control is set up, press the SELECT button any
time you want to use the remote control to operate your VCR,
Cable box, DVD, or Set-top box.
➣
16
◆ When your remote control is in the VCR, CATV, DVD or
STB mode, the volume buttons still control your
television’s volume.
◆ When your remote control is in the TV or CATV mode,
the VCR control buttons (PLAY, PAUSE, etc.) still
operate your VCR.
Plug & Play Feature
ENG
When the television is initially powered ON, several basic customer
settings proceed automatically and subsequently. The following
settings are available.
Plug & Play
Press ENTER to start Plug & Play.
1
If the television is in Standby mode, press the POWER (
on the remote control.
Result:
) button
Start
The message Plug & Play is displayed. It flickers for
a little while, and then the Language menu is
automatically displayed.
Exit
Language
English
2
Select the appropriate language by pressing the † or … button.
3
Press the ENTER (
ЬА
Hrvatski
Result:
4
The message Antenna Input Check is displayed.
Français
Select your country by pressing the † or … button.
6
Press the ENTER (
Result:
➢
Enter
Exit
Plug & Play
Antenna Input Check
) button to confirm your choice.
Start
Exit
The Auto Store menu is displayed.
To start the search, select the Start and press the ENTER (
button.
Result:
Move
The Country menu is displayed.
5
8
Nederlands
Make sure that the antenna is connected to the TV, and then
press the ENTER (
) button.
Result:
7
Čeština
) button to confirm your choice.
)
Country
The search will end automatically. Channels are sorted
and stored in an order which reflects their position in
the frequency range, (with lowest first and highest last).
The programme originally selected is then displayed.
Austria
Belgium
Croatia
Denmark
Finland
France
Germany
To stop the search before it has finished or return to normal
viewing, press the EXIT (
) or ENTER (
) button.
When it has finished, the message Enjoy your watching is
displayed, and then the channel which has been stored will be
activated.
Move
Enter
Exit
Auto Store
Press ENTER to start channel store.
Start
Exit
Auto Store
Channel store in process.
Storing
175MHz
18%
Exit
Enjoy your watching
17
Plug & Play Feature (continued)
ENG
If you want to reset this feature...
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Setup.
The options available in the Setup group are displayed.
Result:
3
Press the ENTER (
4
Press the † or … button to select Plug & Play. Press the
ENTER (
) button.
Result:
TV
Setup
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
: English
: Off
: On
: Off
Enter
5
) button.
The message Plug & Play is displayed.
For further details on how to set, refer to the opposite page.
√
√
√
√
√
√
√
√
Return
Choosing Your Language
TV
Setup
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
TV
: English
: Off
: On
: Off
Enter
√
√
√
√
√
√
√
√
Return
Setup
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
18
English √
ЬА √
Hrvatski
: English
Čeština √
: OffNederlands √
: On Français √
Deutsch √
: Off Ellhnikav √
Maguar
√
†
Enter
Return
When you start using your television for the first time, you must
select the language which will be used for displaying menus and
indications.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Setup.
The options available in the Setup group are displayed.
Result:
3
Press the ENTER (
4
Press the † or … button to select Language. Press the ENTER
(
) button.
The languages available are listed.
Result:
5
Select the appropriate language by pressing the † or … button.
6
Press the ENTER (
7
When you are satisfied with your choice, press the EXIT (
button to return to normal viewing.
) button.
) button to confirm your choice.
)
Storing Channels Automatically
ENG
You can scan for the frequency ranges available to you, (availability
depends on your country). Automatically allocated programme
numbers may not correspond to actual or desired programme
numbers. However you can sort numbers manually and clear any
channels you do not wish to watch.
1
TV
Channel
Country
Press the MENU button.
The main menu is displayed.
Result:
√
Manual Store
√
Edit
√
Fine Tune
√
√
Ch. Scan
LNA
3
4
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
Press the ENTER (
TV
Auto Store
Manual Store
Press the † or … button to select Country. Press the ENTER
(
) button.
The countries available are listed.
Result:
Edit
Fine Tune
Ch. Scan
LNA
5
Select your country (or area) by pressing the † or … button.
➢ If you have selected the Others option but do not wish to
scan the PAL frequency range, store the channels manually
(see page 17).
7
8
Press the ENTER (
Press the † or … button to select Auto Store. Press the ENTER
(
) button.
The Auto Store menu is displayed.
Result:
Select the Start and press the ENTER (
search.
Result:
➢
9
) button to confirm your choice
) button to start the
The search will end automatically. Channels are sorted
and stored in an order which reflects their position in
the frequency range, (with lowest first and highest last).
The programme originally selected is then displayed.
To stop the search before it has finished, press the EXIT
(
) or ENTER (
) button.
When the channels have been stored, you can:
◆ Sort them in the order required (see page 23)
◆ Clear a channel (see page 22)
◆ Fine-tune channel reception if necessary (see page 31)
◆ Assign a name to the stored channels (see page 24)
◆ Activate/deactivate the Digital Noise Reduction feature
(see page 33)
Return
Austria
: Austria
Belgium
Croatia
Denmark
Finland
France
Gernamy
Iceland
: Off Ireland
†
Move
TV
Enter
√
√
√
√
√
√
√
Return
Channel
Country
6
Enter
Channel
Country
) button.
√
: Off
Move
2
√
: Austria
Auto Store
√
: Austria
Auto Store
√
Manual Store
√
Edit
√
Fine Tune
√
√
Ch. Scan
LNA
√
: Off
Move
Enter
Return
Auto Store
Press ENTER to start channel store.
Start
Return
Auto Store
Channel store in process.
Storing
175MHz
18%
Exit
19
Storing Channels Manually
ENG
TV
You can store up to television channels, including those received
via cable networks.
Channel
Country
√
: Austria
Auto Store
√
Manual Store
√
Edit
√
Fine Tune
√
Ch. Scan
√
LNA
◆ Whether or not to store each of the channels found
◆ The programme number of each stored channel which
you wish to identify
√
: Off
Move
When storing channels manually, you can choose:
Enter
Return
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
3
Press the ENTER (
4
Press the † or … button to select Manual Store. Press the
ENTER (
) button.
The Manual Store menu is displayed.
Result:
5
Manual Store
Prog.
1
Colour System Sound System
AUTO
BG
Channel
Search
Store
- --
887MHz
?
Adjust
Return
œ √ Move
Manual Store
Prog.
Colour System Sound System
) button.
AUTO
BG
Channel
Search
Store
- --
887MHz
?
If necessary, select the broadcasting standard required. Press the
œ or √ button to select Colour System and press the † or …
button. The colour standards are displayed in the following order.
(depending on the model).
Adjust
Return
◆ AUTO - PAL - SECAM
1
œ √ Move
◆ AUTO - NTSC3.58 - NTSC4.43 - PAL60
Manual Store
Prog.
6
Colour System Sound System
1
AUTO
BG
Channel
Search
Store
- --
887MHz
?
Adjust
Return
œ √ Move
20
Press the œ or √ button to select Sound System and press the †
or … button. The sound standards are displayed in the following
order. (depending on the model).
◆ BG - DK - I - L
◆ BG - DK - I - M
Storing Channels Manually (continued)
ENG
7
If you know the number of the channel to be stored, see the
following steps.
◆ Press the œ or √ button to select Channel.
◆ Press the † or … button to select C (Air channel) or S (Cable
channel).
◆ Press the √ button.
◆ Press the numeric buttons (0~9) to select indicate the required
number.
no sound or abnormal sound, re-select the sound standard
➣ Ifrequired.
8
If you do not know the channel numbers, select the Search by
pressing the œ or √ button. Press the † or … button to start the
search.
Result:
The tuner scans the frequency range until the first
channel or the channel that you selected is received
on your screen.
Manual Store
Prog.
Colour System Sound System
1
AUTO
BG
Channel
Search
Store
C --
887MHz
?
Adjust
Return
œ √ Move
Manual Store
Prog.
Colour System Sound System
1
AUTO
BG
Channel
Search
Store
C --
887MHz
?
Adjust
Return
œ √ Move
0 .. 9
Manual Store
9
10
To assign a programme number to a channel, select the Prog. by
pressing the œ or √ button. Press the † or … button until you find
the correct number.
To store the channel and associated programme number, select
the Store by pressing the œ or √ button. Press the ENTER (
)
button.
Result:
Prog.
Colour System Sound System
1
AUTO
BG
Channel
Search
Store
C --
887MHz
?
Adjust
Return
œ √ Move
The ? will be changed to OK .
Manual Store
11
Repeat Steps 7 to 10 for each channel to be stored.
Prog.
☛
Channel mode
◆ P (Programme mode): When completing tuning, the
broadcasting stations in your area have been assigned to
position numbers from P00 to max P99. You can select a
channel by entering the position number in this mode.
Colour System Sound System
1
AUTO
BG
Channel
Search
Store
C --
887MHz
OK
œ √ Move
Enter
◆ C (Real channel mode): You can select a channel by
entering the assigned number to each air broadcasting station
in this mode.
◆ S (Cable channel mode): You can select a channel by
entering the assigned number for each cable channel in this
mode.
21
Return
Skipping Unwanted Channels
ENG
◆ Skipping unwanted channels
TV
You can exclude the channels of your choice from the channel
scan operation. When you scan through the stored channels,
those that you have chosen to skip are thus not displayed. All
channels that you do not specifically choose to skip are
displayed during scanning.
Channel
Country
: Austria
√
Auto Store
√
Manual Store
√
Edit
√
Fine Tune
√
√
Ch. Scan
LNA
√
: Off
Move
Enter
TV
Add/Delete
√
Sort
√
Name
√
Child Lock
√
TV
Enter
✽
✽
✽
✽
✽
---------------------
Move
TV
Added
Deleted
Deleted
Deleted
Deleted
Enter
Return
Add/Delete
Prog.
1
2
3
4
5
---------------------
Adjust
22
✽
✽
✽
✽
✽
Added
Deleted
Deleted
Deleted
Deleted
Enter
Return
The options available in the Channel group are
displayed.
3
Press the ENTER (
4
Press the † or … button to select Edit. Press the ENTER (
button.
Result:
) button.
)
The Edit menu is displayed.
5
Press the † or … button to select Add/Delete. Press the ENTER
(
) button.
The Add/Delete menu is displayed with the current
Result:
channel automatically is selected.
6
Press the † or … button to select the channel to be deleted.
7
Press the ENTER (
) button to Add/Delete. To add or delete
the channel, select Added or Deleted by pressing the † or …
button. Press the ENTER (
) button to confirm.
Prog.
1
2
3
4
5
The main menu is displayed.
Press the † or … button to select Channel.
Result:
Return
Add/Delete
Press the MENU button.
Result:
2
Edit
Move
1
Return
Sorting the Stored Channels
ENG
This operation allows you to change the programme numbers of
stored channels. This operation may be necessary after using ATM.
You can delete those channels you do not want to keep.
1
TV
Channel
Country
Press the MENU button.
The main menu is displayed.
Result:
: Austria
√
Manual Store
√
Edit
√
Fine Tune
√
√
Ch. Scan
2
3
4
5
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
Press the ENTER (
) button.
LNA
: Off
Move
Enter
TV
Press the † or … button to select Edit. Press the ENTER (
button.
The Edit menu is displayed.
Result:
)
Press the † or … button to select Sort. Press the ENTER (
button.
The Sort menu is displayed.
Result:
)
6
Select the channel that you wish to move by pressing the † or …
button. Press the ENTER (
) button.
7
Select the number of the programme to which the channel is to be
moved by pressing the † or … button. Press the ENTER (
)
button.
The channel is moved to its new position and all other
Result:
channels are shifted accordingly.
8
Repeat Steps 6 to 7 until you have moved all the channels to the
required programme numbers.
√
Auto Store
√
Return
Edit
Add/Delete
√
Sort
√
Name
√
Child Lock
√
Move
Enter
TV
Return
Sort
Prog.
2
3
4
5
6
---------------------
✽
✽
✽
✽
✽
Move
Enter
TV
Return
Sort
Prog.
2
3
4
5
6
---------------------
Move
23
✽
✽
✽
✽
✽
----- ✽
Enter
Return
Assigning Names to Channels
ENG
TV
Channel
Country
√
: Austria
Auto Store
√
Manual Store
√
Edit
√
Fine Tune
√
LNA
√
: Off
Move
TV
Enter
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
3
Press the ENTER (
4
Press the † or … button to select Edit. Press the ENTER (
button.
The Edit menu is displayed.
Result:
5
Press the † or … button to select Name. Press the ENTER (
)
button.
The Name menu is displayed with the current channel
Result:
automatically is selected.
6
If necessary, select the channel to be assigned a new name by
pressing the † or … button. Press the ENTER (
) button.
Arrow indications are displayed around the name box.
Result:
7
Press the † or … button to select a letter (A~Z), a number (0~9)
or a symbol (-, space). Move on the previous or next letter by
pressing the œ or √ button.
8
When you have finished entering the name, press the ENTER
(
) button to confirm the name.
Return
Edit
Add/Delete
√
Sort
√
Name
√
Child Lock
√
Move
TV
Enter
Return
Name
Prog.
Name
✽
✽
✽
✽
✽
---------------------
Move
TV
Enter
Return
Name
Prog.
2
3
4
5
6
1
√
Ch. Scan
2
3
4
5
6
Channel names will be assigned automatically when channel
information is broadcast. These names can be changed, allowing
you to assign new names.
Name
✽
✽
✽
✽
✽
---------------------
œ √ Move
24
Adjust
Return
) button.
)
Activating the Child Lock
ENG
◆ Activating the child lock
This feature allows you to lock the television so that it cannot be
switched on via the front panel. It can, however, still be switched
on via the remote control. Thus, by keeping the remote control
away from unauthorised users, such as children, you can prevent
them from watching unsuitable programme.
TV
Channel
Country
: Austria
√
Manual Store
√
Edit
√
Fine Tune
√
√
Ch. Scan
1
2
Press the ENTER (
4
Press the † or … button to select Edit. Press the ENTER (
button.
The Edit menu is displayed.
Result:
Enter
TV
) button.
√
: Off
Move
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
3
5
LNA
Press the MENU button.
The main menu is displayed.
Result:
√
Auto Store
Return
Edit
Add/Delete
√
Sort
√
Name
√
Child Lock
√
)
Press the † or … button to select Child Lock. Press the ENTER
(
) button.
The Child Lock menu is displayed with the current
Result:
channel automatically is selected.
6
Press the † or … button to select the channel to be locked.
7
Press the ENTER (
) button. To lock the channel, select
Locked by pressing the † or … button (to unlock the channel,
select Unlocked). Press the ENTER (
) button to confirm.
Move
TV
Enter
Return
Child Lock
Prog.
2
3
4
5
6
✽
✽
✽
✽
✽
---------------------
Move
TV
Unlocked
Unlocked
Unlocked
Unlocked
Unlocked
Enter
Return
Child Lock
Prog.
2
3
4
5
6
---------------------
Adjust
25
✽
✽
✽
✽
✽
Unlocked
Unlocked
Unlocked
Unlocked
Unlocked
Enter
Return
Selecting a Channel by Information
ENG
You can display the list of stored channels.
1
Press the CH INFO. button.
Result:
A list is displayed with the first 5 channels. Two text
boxes to the right of the list indicate:
◆ Whether the Teletext feature is available.
◆ Which sound mode is being used.
Information
2
Prog.
2
3
4
5
6
---------------------
✽
✽
✽
✽
✽
Move
To scroll through the stored channels, press the † or … button.
Result:
The corresponding channel is displayed.
Mono
3
Press the EXIT (
Result:
Exit
➢
) button to select a specific channel.
The corresponding channel is displayed and the
Information box disappears.
◆ External inputs can be displayed and scrolled through in
the same way.
◆ You can display the name of the channel or input by
pressing the INFO (
) button.
P1 ✽
Mono
Picture Mode
Sound Mode
Surround
Sleep timer
Clock
Dynamic
Speech
Off
Off
-- : -TV
26
Changing the Picture Standard
ENG
You can select the type of picture which best corresponds to your
viewing requirements.
1
TV
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Picture.
The options available in the Picture group are
Result:
displayed.
3
Press the ENTER (
) button.
The Mode is selected.
Result:
4
Press the ENTER (
) button agin.
The options available are listed.
Result:
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
TV
5
6
Select the option by pressing the † or … button.
The following modes are available depending on the
Result:
input source.
◆ Dynamic - Standard - Movie - Custom
◆ High - Middle - Low - Custom
(PC or DVI Mode).
Press the ENTER (
➣
√
√
√
√
√
√
√
√
: Dynamic
: Normal
: 16 : 9
: On
: On
Enter
Return
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
) button to confirm.
You can also set these options simply by pressing the
P.MODE (Picture Mode) button.
27
: Dynamic
Dynamic
Standard
: Normal
Movie
: 16 : 9Custom
: On
: On
Enter
Return
Adjusting the Picture Settings
ENG
TV
Your television has several settings which allow you to control
picture quality.
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
TV
√
√
√
√
√
√
√
√
: Dynamic
: Normal
: 16 : 9
: On
: On
Enter
Custom
70
50
70
50
Enter
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Picture.
The options available in the Picture group are
Result:
displayed.
3
Press the ENTER (
4
Select the required option (Custom, Colour Tone) pressing the
† or … button.
5
Press the † or … button to select Custom. Press the ENTER
(
) button.
The Custom menu is displayed.
Result:
6
Press the ENTER (
) button to change the setting.
The options are displayed in the following order.
◆ Custom : Contrast, Brightness, Sharpness, Colour
Return
Contrast
Brightness
Sharpness
Colour
Move
1
Return
Contrast
horizontal bar is displayed. Move the horizontal bar’s
➣ The
cursor left or right by pressing the œ or √ button.
When the picture mode is set to Custom, the value of these
➣ option
may vary be changed depending on the input source
70
(ex. RF, Video, Component, PC or DVI).
TV
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
28
you make any changes to these settings, the picture
➣ Ifstandard
is automatically switched to the Custom
: Dynamic
Cool2
: Normal
Cool1
: 16 : 9Normal
: On
Warm1
: On
Warm2
Enter
) button.
Return
◆ Colour Tone : Cool2, Cool1, Normal, Warm1, Warm2
7
When you are satisfied with the settings, press the EXIT (
button to return to nomal viewing.
)
Adjusting the Picture Settings (PC or DVI Mode)
➢
1
2
Preset to the PC or DVI mode by using the SOURCE button.
ENG
Press the MENU button.
The main menu is displayed.
Result:
Press the ENTER (
4
Press the † or … button to select Custom. Press the ENTER
(
) button.
Result:
) button.
Move
The Custom menu is displayed.
Press the ENTER (
7
Press the MENU button.
9
Return
Custom
70
50
) button to confirm.
The options available in the Picture group are
displayed again.
Enter
TV
The options available are listed.
Select the option by pressing the † or … button. The following
colour tones are displayed.
Return
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Press the † or … button to select Colour Tone. Press the
ENTER (
) button.
Result:
: 16 : 9
: On
: On
Contrast
Brightness
Move
8
: Custom
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œ or √ button.
6
Result:
√
√
√
√
√
√
√
√
: Custom
Enter
TV
Press the † or … button to select the option (Contrast,
Brightness) to be adjusted. Press the ENTER (
) button.
Result:
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Press the † or … button to select Picture.
The options available in the Picture group are
Result:
displayed.
3
5
TV
Move
: Custom
: Normal
Cool
Normal
: 16 : 9
Warm
: On
: On Custom
Enter
Return
Cool - Nomal - Warm - Custom
TV
10
Press the ENTER (
11
Press the † or … button to select Colour Adjust. Press the
ENTER (
) button.
Result:
12
14
The Colour Adjust menu is displayed.
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œ or √ button.
Press the ENTER (
) button to confirm your choice
When you are satisfied with the settings, press the EXIT (
button to return to nomal viewing.
)
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Press the † or … button to select the option (Red, Green, Blue) to
be adjusted. Press the ENTER (
) button.
Result:
13
) button to confirm your choice
Move
TV
: Custom
: Custom
: 16 : 9
: On
: On
Enter
√
√
√
√
√
√
√
√
Return
Colour Adjust
Red
50
Green
50
Blue
50
Move
29
Enter
Return
Setting the Picture (PC Mode)
➢
ENG
1
TV
Preset to the PC mode by using the SOURCE button.
Press the MENU button.
Setup
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
√
√
√
√
√
√
√
√
: English
: Off
: On
: Off
Move
Enter
Result:
2
The main menu is displayed.
Press the † or … button to select Setup.
Result:
The options available in the Setup group are
displayed.
3
Press the ENTER (
4
Press the † or … button to select Image Lock.
Press the ENTER (
) button.
5
Press the † or … button to select the option (Coarse, Fine) to be
adjusted. Press the ENTER (
) button.
) button.
Return
Image Lock
TV
Coarse
Fine
50
20
Position
√
Auto Adjustment
√
Move
Enter
Return
Result:
6
Press the ENTER (
7
Press the MENU button.
Result:
Coarse
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œ or √ button.
) button to confirm your choice
The options available in the Image Lock group are
displayed again.
50
8
Press the † or … button to select Position.
Press the ENTER (
) button.
Result:
Fine
21
Position
TV
9
Adjust the position by using the †, …, œ, or √ button.
10
Press the MENU button.
Result:
11
Adjust
Enter
30
The options available in the Image Lock group are
displayed again.
To adjust the screen quality and position automatically, select the
Auto Adjustment by pressing the † or … button.
Press the ENTER (
) button.
Result:
Return
12
Auto Adjustment
The options available in the Position group are
displayed.
The Auto Adjustment is displayed. The screen quality
and position are automatically adjusted.
When you are satisfied with the settings, press the EXIT (
button to return to nomal viewing.
)
Using the Fine Tune
ENG
If reception is weak, you can fine tune a channel manually.
TV
1
2
Press the MENU button.
The main menu is displayed.
Result:
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
Channel
Country
√
Manual Store
√
Edit
√
Fine Tune
√
√
Ch. Scan
LNA
Press the ENTER (
4
Press the † or … button to select Fine tune. Press the ENTER
(
) button.
Result:
5
√
: Off
Move
3
√
: Austria
Auto Store
Enter
Return
) button.
The horizontal bar is displayed. Move the horizontal
bar’s cursor left or right by pressing the œ or √ button
to reach the required setting.
Fine tune
P1
0
Reset
Return
œ √ Adjust
Move
Press the œ or √ button until the picture and sound are both clear
and sharp.
Store
Fine tune
P 1 is fine tuned
➣
0
If you are unable to fine tune a channel, check that the
Colour System and Sound System settings are correct.
Reset
Return
œ √ Adjust
Move
Store
Fine tune
P1
3
Reset
Return
Move
Select
31
Viewing the Channel Scan Picture
ENG
TV
Channel
Country
: Austria
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
3
Press the ENTER (
4
Press the † or … button to select Ch. Scan. Press the ENTER
(
) button.
√
Auto Store
√
Manual Store
√
Edit
√
Fine Tune
√
√
Ch. Scan
LNA
: Off
Move
Enter
√
Return
Result:
Ch. Scan
) button.
You can view every memorized channel in order.
P1✽
Return
Using the LNA (Low Noise Amplifier) Feature
TV
Channel
Country
: Austria
√
Auto Store
√
Manual Store
√
Edit
√
Fine Tune
√
√
Ch. Scan
LNA
: Off
Move
TV
Enter
This function is very useful in the situation that the TV is used in
weak signal. LNA amplifies the TV signal in the weak signal area,
but not noise.
This feature is working only weak signal condition, and that is
memorized on current channel, additional.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Channel.
The options available in the Channel group are
Result:
displayed.
3
Press the ENTER (
4
Press the † or … button to select LNA. Press the ENTER (
button.
The options available are listed.
Result:
5
Select the required channel by pressing the † or … button.
Press the ENTER (
) button.
6
Select On or Off by pressing the † or … button.
Press the ENTER (
) button to confirm.
√
Return
Channel
Country
: Austria
Auto Store
) button.
Manual Store
Edit
Fine Tune
Ch. Scan
Off
√On
: Off√
LNA
Move
Enter
Return
➢
32
◆ If the picture is noisy with the LNA set to On, select Off.
◆ LNA setting is to be made for each channel.
)
Extra Picture Settings
ENG
◆ Size
You can select the picture format which best corresponds to your
viewing requirements.
TV
◆ Digital NR
You can activate this feature to reduce any static and ghosting
that may appear on the screen.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Picture.
The options available in the Picture group are
Result:
displayed.
3
Press the ENTER (
4
Press the † or … button to select Size. Press the ENTER (
button.
5
Press the œ or √ button to change the setting.
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
TV
: Dynamic
: Normal
: 16 : 9
: On
: On
Enter
√
√
√
√
√
√
√
√
Return
Size
) button.
Auto wide
16 : 9
)
√ Move
Enter
Return
◆ Size
Auto Wide
Expanding and pulling up the picture from 4:3
to 16:9 ratio.
16:9
Sets the picture to 16:9 wide mode.
Panorama
Use this mode for the wide aspect ratio of a
panoramic picture.
Zoom1
Magnify the size of the picture vertically on
screen.
Zoom2
Magnify the size of the picture more than
Zoom1.
Stretch
Using this mode, magnify the picture vertically
and horizontally to be bigger than the picture
in Zoom2.
14:9
Magnify the size of the picture more than 4:3.
4:3
Sets the picture to 4:3 normal mode.
➢
TV
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
TV
You can also select these options simply by pressing
the P.SIZE button on the remote control.
◆ Digital NR : Off or On
: Dynamic
: Normal
: 16 : 9
: On
: On
Enter
√
√
√
√
√
√
√
√
Return
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
33
: Dynamic
: Normal
: 16 : 9
: On Off
: On On
Enter
Return
DNIeTM (Digital Natural Image engine)
ENG
TV
This feature bring you more detailed image with 3D noise
reduction, detail enhancement, contrast enhancement and white
enhancement. New image compensation Algorithm gives brighter,
clearer, much detailed image to you. DNIeTM technology will fit
every signals into your eyes..
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
: Dynamic
: Normal
: 16 : 9
: On Off
: On Demo
On
Enter
Return
DNIe Demo
DNIe On
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Picture.
The options available in the Picture group are
Result:
displayed.
3
Press the ENTER (
4
Press the † or … button to select DNIe. Press the ENTER (
button.
5
Press the † or … button to change the setting. Press the ENTER
(
) button to confirm.
◆ On: Switches on the DNIe mode.
◆ Off: Switches off the DNIe mode.
◆ Demo (Option): The screen before applying DNIe appears on
the right and the screen after applying DNIe
appears on the left.
) button.
DNIe Off
➣
)
You can also set these options simply by pressing the DNIe
button.
Freezing the Current Picture
You can freeze the picture when watching a television programme
simply by pressing the “STILL” button. To return to normal viewing,
press it again.
➣
34
In the PIP mode, the main and sub pictures are stilled at
the same time.
Setting the Blue Screen
ENG
If no signal is being received or the signal is very weak, a blue
screen automatically replaces the noisy picture background. If you
wish to continue viewing the poor picture, you must set the “Blue
Screen“ mode to “Off“.
1
2
TV
Press the MENU button.
The main menu is displayed.
Result:
Press the † or … button to select Setup.
The options available in the Setup group are
Result:
displayed.
3
Press the (
4
Press the † or … button to select Blue Screen. Press the (
button.
5
Press the † or … button to change the setting. (On or Off).
Setup
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
: English
: Off
: On Off
On
: Off
Enter
Return
) button.
)
Selecting the Film Mode
You can automatically sense and process film signals from all
sources and adjust the picture for optimum quality.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Setup.
The options available in the Setup group are
Result:
displayed.
3
Press the (
4
Press the † or … button to select Film Mode Press the (
button.
5
Press the † or … button to change the setting. (Off or On).
Setup
TV
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
: Off
Enter
Return
) button.
TV
)
◆ On : Automatically senses and processes film signals from all
sources and adjusts the picture for optimum quality.
◆ Off : Switches off the Film Mode.
Setup
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
➢
: English
: Off
: On
√
√
√
√
√
√
√
√
Not available in TV, PC or DVI modes.
35
: English
: Off
: On
: Off Off
On
Enter
Return
Changing the Sound Standard
ENG
TV
You can select the type of special sound effect to be used when
watching a given broadcast.
Sound
Mode
√
: Custom
√
Custom
Auto Volume
: Off
√
Surround
: Off
√
Audio Out
: Off
√
Internal Mute
: Off
√
Move
TV
Enter
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Sound.
The options available in the Sound group are displayed.
Result:
3
Press the ENTER (
) button.
The Mode is selected.
Result:
4
Press the ENTER (
5
Select the option by pressing the † or … button. The sound
effects are displayed in the following order.
Return
Sound
Mode
: Custom
Standard
Custom
) button agin.
Music
Auto Volume
: Off
Surround
: Off Speech
Movie
Audio Out
: Off Custom
Internal Mute
: Off
Move
Enter
Standard - Music - Movie - Speech - Custom.
Return
6
Press the ENTER (
➣
36
) button to confirm.
You can also set these options simply by pressing the
S.MODE (Sound Mode) button.
Adjusting the Sound Settings
ENG
The sound settings can be adjusted to suit your personal preferences.
TV
1
2
Press the MENU button.
The main menu is displayed.
Result:
Press the ENTER (
4
Press the † or … button to select Custom. Press the ENTER
(
) button.
Result:
5
: Custom
Auto Volume
: Off
√
Surround
: Off
√
Audio Out
: Off
√
Internal Mute
: Off
√
) button.
Move
Enter
TV
The Custom menu is displayed with the current
option.
√
√
Custom
Press the † or … button to select Sound.
The options available in the Sound group are displayed.
Result:
3
Sound
Mode
Return
Custom
R
.
Select the option to be adjusted by pressing the œ or √ button.
Press the † or … button to reach the required setting.
L
100 300 1K 3K 10K
➣
√ Move
If you make any changes to the equalizer settings, the
sound standard is automatically switched to the Custom.
Adjust
Return
Adjusting the Volume Automatically
Each broadcasting station has its own signal conditions, and so it
is not easy for you to adjust the volume every time the channel is
changed. This feature lets you automatically adjust the volume of
the desired channel by lowering the sound output when the
modulation signal is high or by raising the sound output when the
modulation signal is low.
1
2
TV
Sound
Mode
√
: Off
√
Surround
: Off
√
Audio Out
: Off
√
Internal Mute
: Off
√
Move
TV
Press the ENTER (
) button.
5
Press the † or … button to select Auto Volume.
Press the ENTER (
) button.
Return
: Custom
Custom
Auto Volume
4
Enter
Sound
Mode
3
√
Auto Volume
Press the MENU button.
The main menu is displayed.
Result:
Press the † or … button to select Sound.
The options available in the Sound group are displayed.
Result:
: Custom
Custom
Surround
: Off Off
: Off On
Audio Out
: Off
Internal Mute
: Off
Select the option (Off or On) by pressing the † or … button.
Move
37
Enter
Return
Setting the Dolby Pro Logic
ENG
This mode allows you enjoy Dolby Pro Logic Surround effect fully
with only surround speakers are connected to TV. This allows
various modes for the main, center and rear speakers to be
selected.
Rear of the TV
Surround Mode
TV
Sound
Mode
: Custom
Auto Volume
: Off
√
Surround
: Off
√
Audio Out
: Off
√
Internal Mute
: Off
√
Move
TV
Enter
Return
Surround
Mode
Center
Rear
Time Delay
Test Tone
Move
: Off
:
:
:
: Off
Enter
√
0dB√
√
0dB√
√
20ms√
√
Return
Mode
Center
Rear
Time Delay
Test Tone
Move
Off
: Pro Logic
Hall 0dB√
√
:
√
: 3D Sound
0dB√
Pro
Logic
√
:
20ms√
√
: Off
Enter
✔
✔
✔
✔
3D Sound
Stereo
Mono
✔
✔
Hall
Stereo
Mono
✔
✔
Off
Stereo
Mono
✔
✔
➢
Rear
✔
✔ ; Sound
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Sound.
The options available in the Sound group are displayed.
Result:
3
Press the ENTER (
4
Press the † or … button to select Surround. Press the ENTER
(
) button.
The Surround menu is displayed with the Mode is
Result:
selected.
5
Press the ENTER (
) button.
The options available are listed.
Result:
6
Select the option by pressing the † or … button. The surround
modes are displayed in the following order.
Off - Hall - 3D Sound - Pro Logic
Return
➣
7
) button.
Woofer sound is not available in Hall mode.
If you select the Pro Logic, the options available are displayed.
➢
38
Speakers
Centre
Stereo
Mono
Surround
TV
Main
Pro Logic
√
√
Custom
Input Signal
Manufactured under license from Dolby
Laboratories. “Dolby”, “Pro Logic”, and
the double-D symbol (
) are
trademarks of Dolby Laboratories.
Adjusting Your Dolby Preferences
ENG
The following Dolby settings can be adjusted to suit your personal
preferences.
Surround
TV
◆ Volume of the centre and rear speakers
Mode
Center
Rear
Time Delay
Test Tone
◆ Pro Logic delay time for the rear speakers (between
15 and 30 ms)
: Pro Logic
√
:
0dB√
√
:
0dB√
√
:
20ms√
√
: Off
◆ Activation/deactivation of the test tone to simulate the
volume on each speaker
Move
1
Press the MENU button.
The main menu is displayed.
Result:
œ √Adjust
Surround
TV
2
Press the † or … button to select Sound.
The options available in the Sound group are displayed.
Result:
3
Press the ENTER (
4
Press the † or … button to select Surround. Press the ENTER
(
) button.
The Surround menu is displayed with the current
Result:
option.
Mode
Center
Rear
Time Delay
Test Tone
) button.
Move
Select the option (Center, Rear, Time Delay, Test Tone) by
pressing the † or … button. Press the œ or √ button to reach the
required setting.
6
When you are satisfied with the settings, press the EXIT (
button to return to nomal viewing.
Return
Surround
Mode
Center
Rear
Time Delay
Test Tone
)
: Pro Logic
√
:
0dB√
√
:
0dB√
√
:
20ms√
√
: Off
œ √Adjust
TV
5
Return
Move
: Pro Logic
√
:
0dB√
√
:
0dB√
√
:
20ms√
√
: Off
œ √Adjust
Return
Surround
TV
Mode
Center
Rear
Time Delay
Test Tone
Move
39
: Pro Logic
√
:
0dB√
√
:
0dB√
√
:
20ms√
√
: Off
Enter
Return
Setting the External Sound
ENG
TV
This feature allows you can adjust to suit your personal preferences
when the equipment with output is connected to the television.
Sound
Mode
: Custom
√
√
Custom
Auto Volume
: Off
√
Surround
: Off
√
Audio Out
: Off
√
Internal Mute
: Off
√
Move
TV
Enter
: Custom
Auto Volume
: Off
√
Surround
: Off
√
Audio Out
: Off
√
Internal Mute
: Off
√
Move
Enter
2
Press the † or … button to select Sound.
The options available in the Sound group are displayed.
Result:
3
Press the ENTER (
4
Press the † or … button to select Audio Out. Press the ENTER
(
) button.
5
Select the required option (Off or On) by pressing the † or …
button.
√
√
Custom
Press the MENU button.
The main menu is displayed.
Result:
Return
Sound
Mode
1
◆ If you want to adjust the volume level with the volume control
on the TV or external amplifier, set to Off.
◆ If you set to On...
- You can adjust the volume level with the volume control on
the audio amplifier. And the Internal Mute is set to On
automatically, and you can not select it.
- The volume control buttons (MUTE,
,
) of the
television and remote control do not work.
Return
6
Press the ENTER (
7
Press the † or … button to select Internal Mute.
If you set to On, no sound outputs of all internal and external
speakers.
➢
40
) button.
) button to confirm.
When the Audio Out is set to Off, you can select the
Internal Mute and control it.
Selecting the Sound Mode (depending on the model)
ENG
The “DUAL I-II” button displays/controls the processing and output
of the audio signal. When power is switched on, the mode is
automatically preset to either “Dual-I ” or “Stereo”, depending on
the current transmission.
NICAM
Stereo
Type of broadcast
On-screen indication
Regular broadcast
(Standard audio)
Mono (Normal use)
Regular +
NICAM Mono
NICAM Mono ↔ Mono
NICAM Stereo
A2
Stereo
NICAM Dual-I/II
NICAM Dual-I →
NICAM Dual-II →
Mono
Regular broadcast
(Standard audio)
Mono
Bilingual or Dual-I/II
Dual-I ↔ Dual-II
Stereo
➣
NICAM Stereo ↔ Mono
(Forced mono)
Stereo ↔ Mono
(Forced mono)
◆ If the receiving conditions deteriorate, listening will be
easier if the mode is set to the Mono.
◆ If the stereo signal is weak and an automatic switching
occurs, then switch to the Mono.
◆ When receiving a mono sound in the AV mode, connect
to the “AUDIO-L” input connector on the side of the
television. If the mono sound comes out only from left
speaker, press the DUAL I-II button.
41
Setting the Melody Sound
ENG
You can hear clear melody sound when the television is powered
on or off.
Setup
TV
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
: English
: Off
: On
: Off
Enter
√
√
√
√
√
√
√
√
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
42
: English
: Off Off
: On On
: Off
Enter
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Setup.
The options available in the Setup group are displayed.
Result:
3
Press the ENTER (
4
Press the † or … button to select Melody. Press the ENTER
(
) button.
5
Select the option (Off or On).
Return
Setup
TV
1
Return
) button.
Setting the Sleep Timer
ENG
You can select a time period of between 30 and 180 minutes after
which the television automatically switches to Standby mode.
1
2
The main menu is displayed.
Press the † or … button to select Setup.
Result:
The options available in the Setup group are
displayed.
3
Press the ENTER (
4
Press the † or … button to select Time. Press the ENTER (
button..
Result:
5
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Press the MENU button.
Result:
Setup
TV
: English
: Off
: On
: Off
Move
Enter
√
√
√
√
√
√
√
√
Return
) button.
Time
TV
)
The options available in the Time group are displayed.
Clock
: 00 : 00
√
Sleep Timer
: Off
√
On Timer
: Off
√
Off Timer
: Off
√
Press the † or … button to select Sleep timer. Press the
ENTER (
) button.
Result:
The Sleep timer menu is displayed with the Min is
selected.
6
Select the preset time intervals (Off, 30, 60, 90, 120, 150, 180) by
pressing the † or … button.
7
When you are satisfied with the settings, select Activation to
Yes or No by pressing the † or … button.
8
Press the ENTER (
➣
➣
Move
Enter
Return
Sleep Timer
TV
Min
Activation
Off
No
) button to confirm your selection.
◆ You can also set these options simply by pressing the
SLEEP button.
◆ If the sleep timer is not yet set, Off is displayed.
If the sleep timer is already set, the remaining time
before which the television switches to Standby mode
is displayed.
√ Move
Adjust
Return
Sleep Timer
TV
Min
Activation
10
Yes
Power Off : TV automatically turns off when it receives no
input signal for 15 minutes or longer.
œ √ Move
Adjust
Off
43
Return
Setting and Displaying the Current Time
ENG
Setup
TV
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Move
: English
: Off
: On
: Off
Enter
√
√
√
√
√
√
√
√
You can set the television’s clock so that the current time is displayed
by pressing the “INFO (
)” button. You must also set the time if
you wish to use the automatic on or off timers.
➣
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the ▼ or ▲ button to select Setup.
The options available in the Setup group are
Result:
displayed.
3
Press the ENTER (
4
Press the ▼ or ▲ button to select Time. Press the ENTER (
)
button.
The options available in the Time group are displayed
Result:
with Clock is selected.
5
Press the ENTER (
6
Press the ¦ or ‹button to move to the hour or minute.
Set the hour or minute by pressing the ▼ or ▲ button.
7
When you have finished, press the ENTER (
8
Press the INFO (
Return
Time
TV
Clock
: 00 : 00
√
Sleep Timer
: Off
√
On Timer
: Off
√
Off Timer
: Off
√
Move
Enter
Return
Clock
TV
Hour
Min
00
01
√ Move
Adjust
44
Return
When pressing the “ I ” button (On/Off) on the front of
the television, the clock setting will be reset.
) button.
) button.
) button to exit.
) button to display the current time.
Switching the Television On and Off Automatically
ENG
You can set the television’s clock and set the On or Off timers so that
the television will:
◆ Switch on automatically and tune to the channel of your
choice at the time you select
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
◆ Switch off automatically at the time you select
➣
Setup
TV
The first step is to set the television’s clock (refer to
“Setting and Displaying the Current Time” on the
previous page).
: English
: Off
: On
: Off
Move
1
Press the MENU button.
The main menu is displayed.
Result:
3
Press the ENTER (
4
Press the † or … button to select Time. Press the ENTER (
)
button.
Result:
The options available in the Time group are displayed.
5
Press the ▼ or ▲ button to select On Timer. Press the ENTER
(
) button.
Result:
The options available in the On Timer group are
displayed.
Return
Time
TV
Press the ▼ or ▲ button to select Setup.
The options available in the Setup group are
Result:
displayed.
2
Enter
√
√
√
√
√
√
√
√
Clock
: 00 : 01
√
Sleep Timer
: Off
√
On Timer
: Off
√
Off Timer
: Off
√
) button.
Move
Enter
Return
On Timer
TV
Hour
Min
00
01
Prog.
P 1
Select the Hour, Min, Prog., Volume by pressing the œ or √
button.
Set these by pressing the † or … button.
6
7
Volume
Activation
0
No
√ Move
Adjust
When you are satisfied with the settings, select Activation to
Yes or No by pressing the † or … button.
8
Press the MENU button.
The options available in the Time group are displayed
Result:
again.
9
Press the † or … button to select Off Timer. Press the ENTER
(
) button.
Result:
The Off Timer menu is displayed.
10
Select the Hour, Min or Activation by pressing the œ or √
button.
Set these by pressing the † or … button.
➣
➣
Return
Off Timer
Hour
Min
00
01
Activation
No
√ Move
Adjust
When pressing the “ I “ button (On/Off) on the side of the
television, the clock setting will be reset.
Absent Power Off
When you set the timer “On”, your television will
eventually be turned off, if you do not operate any controls
during the 3 hours after the TV is turned on by timer.
This function is available in only the timer “On” mode and
will prevent a leakage accident or overheating, caused by
your TV left on for a long time due to the timer “On”
(when you are away on holiday, for example).
45
Return
Viewing an External Signal Source
ENG
Input
TV
Source
√
: TV
Use the remote control to switch between viewing signal from
connected equipment, such as VCR, DVD, Set-Top-boxs and the TV
source (broadcast or cable)
√
Edit Name
1
Press the MENU button.
Result:
Press the ▼ or ▲ button to select Input .
2
Move
Enter
Return
Source
TV
TV
AV1
AV2
AV3
AV4
Component
PC
DVI
Move
---------------------Enter
Result:
Press the ENTER (
4
Press the ▼ or ▲ button to select Source.
Press the ENTER (
) button.
Source
➢
√
: TV
√
Edit Name
Move
Enter
AV1
AV2
AV3
AV4
Component
PC
DVI
: - - - -- - - : - - - - VCR
: - - - - DVD
: - - -Cable
STB
: - - - HD
- STB
: - -Satellite
-STB
: - -AV
- -Receiver
†
Move
Enter
When you connect equipment to the TV, you can choose
between the following sets of jacks : AV1, AV2, AV3,
Component, PC or DVI on the TV’s rear panel, and AV4 or
S-Video on the TV’s side panel.
Press the MENU button and select Input.
7
Press the ▼ or ▲ button to select Edit Name . Press the ENTER
(
) button.
Result:
The options available in the Edit Name group are
displayed.
8
Press the ▼ or ▲ button to select external device :
AV1 - AV2 - AV3 - AV4 - Component - PC - DVI.
9
Press the ENTER (
) button.
The Edit Name available are listed.
Result:
10
Select the name by pressing the † or … button.
Press the ENTER (
) button.
11
Set other signal sources (AV1, AV2, AV3, AV4, Component, PC or
DVI) using the same method as listed above.
Return
➣
46
The options available in the Source group are
displayed.
6
Return
Edit Name
TV
) button.
Press the ▼ or ▲ button to select signal source, then press the
ENTER (
) button.
5
Input
TV
The options available in the Input group are
displayed.
3
Result:
Return
The main menu is displayed.
You can also set these options simply by pressing the
SOURCE (
) button. If you change the external source
while viewing, pictures might take a short period of time to
be switched.
Redirecting an Input to the External Output
ENG
Your television enables you to choose which audio/video signals
are output to the external connector.
1
2
The main menu is displayed.
Press the † or … button to select Setup.
Result:
The options available in the Setup group are
displayed.
3
Press the ENTER (
4
Press the † or … button to select AV Setup. Press the ENTER
(
) button.
Result:
5
) button.
√
√
√
√
√
√
√
√
: English
: Off
: On
: Off
Move
Enter
Return
AV Setup
TV
AV1
: TV
AV2
: Monitor Out
AV3
: TV
√
The AV Setup menu is displayed with the AV3 is
selected.
Press the ENTER (
) button. Select the source to be directed to
the output of AV3 by pressing the † or … button.
➣
6
Time
Plug & Play
Language
Melody
Blue Screen
AV Setup
Film Mode
Image Lock
Press the MENU button.
Result:
Setup
TV
AV1 : Default (TV)
AV2 : Default (Monitor Out)
AV3 : Variable
Press the ENTER (
) button to confirm your choice.
Move
Enter
Return
AV Setup
TV
AV1
: TV
AV2
: Monitor Out
AV3
: TV
TV
AV1
AV2
AV4
Move
Enter
Return
TV
47
Viewing the Picture In Picture (PIP)
ENG
TV
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
TV
√
√
√
√
√
√
√
√
: Dynamic
: Normal
: 16 : 9
: On
: On
Enter
Return
You can display a sub picture within the main picture of TV
program or external A/V devices. In this way you can watch TV
program or monitor the video input from any connected devices
while watching TV or other video input.
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Picture.
The options available in the Picture group are
Result:
displayed.
3
Press the † or … button to select PIP. Press the ENTER (
button.
PIP
PIP
Source
Swap
Size
Position
Prog.
Sound Select
Move
TV
: On Off
: TV On
Result:
:
:
: P08
: Main
Enter
Return
)
The options available in the PIP group are displayed.
4
To activate, set the PIP to on by pressing the † or … button.
5
Press the ENTER (
6
Press the † or … button to select Source. Select a source of the
sub picture by pressing the ENTER (
) button.
) button.
PIP
PIP
Source
Swap
Size
Position
Prog.
Sound Select
Move
Result:
: On
: TV TV
AV1
AV2
:
AV3
:
AV4
: P08
Component
: MainPC
DVI
Enter
TV - AV1 - AV2 - AV3 - AV4 - Component PC - DVI
7
PIP
PIP
Source
Swap
Size
Position
Prog.
Sound Select
Move
TV
: On
: TV
√
√
:
:
: P08
: Main
√
√
√
√
Enter
Return
PIP
PIP
Source
Swap
Size
Position
Prog.
Sound Select
Move
48
: On
: TV
:
:
: P08
: Main
Enter
Return
Press the † or … button to select Swap. Press the ENTER (
button.
Result:
Return
8
TV
The sources are displayed in the following order:
The main picture and sub picture are interchanged.
Press the † or … button to select Size. Select a size of the sub
picture by pressing the ENTER (
) button.
Result:
The sizes are displayed in the following order:
(Large) - (Small) - (Double1) - (Double2)
)
Viewing the Picture In Picture (PIP) (continued)
ENG
PIP
TV
PIP
Source
Swap
Size
Position
Prog.
Sound Select
Press the † or … button to select Position. Press the ENTER
(
) button.
9
Result:
The positions available are displayed.
-
: On
: TV
:
:
: P08
: Main
Move
Press the † or … button to select Prog.. Select the channel that
you want to view through sub picture by pressing the ENTER
(
) button.
10
Enter
PC or DVI Mode
PIP
TV
➣
Return
PIP
Source
Swap
Size
Position
Prog.
Sound Select
If the sub picture is no signal and the main picture is
output from a Component, PC or DVI signal, the sub
picture will be blue. If the main picture is output from a
Video signal, the sub picture will be black.
: On
: TV
√
√
:
√
√
√
√
: P08
: Main
Move
Enter
Return
Position
Easy functions of remote control.
Buttons
Feature
PIP ON
Used to activate or deactivate the PIP function directly.
SWAP
Used to interchange the main picture and the sub
picture.
PIP Panning
Adjust
Return
TV
the main picture is in the Video mode and
➣ When
the sub picture is in the TV mode, you might not
hear the sound of main picture when pressing
the SWAP (
) button after changing the sub
picture channel. At this time, reselect the channel
of main picture.
P
/
PIP
PIP
Source
Swap
Size
Position
Prog.
Sound Select
Move
Used to select the channel of sub picture.
49
: On
: TV
√
√
:
:
: P08
: Main
√
√
√
√
Enter
Return
Listening to the Sound of the Sub Picture (PC or DVI Mode)
➢
ENG
TV
During the PIP feature is activating, you can listen to the sound of the
sub picture.
Mode
Custom
Colour Tone
Colour Adjust
Size
Digital NR
DNIe
PIP
Move
TV
: Dynamic
: Normal
: 16 : 9
: On
: On
Enter
Preset to the PC or DVI mode by using the SOURCE button.
√
√
√
√
√
√
√
√
1
Press the MENU button.
The main menu is displayed.
Result:
2
Press the † or … button to select Picture.
The options available in the Picture group are
Result:
displayed.
3
Press the † or … button to select PIP. Press the ENTER (
button.
Return
)
PIP
PIP
Source
Swap
Size
Position
Prog.
Sound Select
Result:
: On
: TV
:
:
: P08
Main
: Main
Sub
Move
Enter
4
To activate, set the PIP to on by pressing the † or … button.
5
Press the ENTER (
4
Press the † or … button to select Sound Sel.. Press the ENTER
(
) button.
5
Press the ENTER (
4
Set to Sub by pressing the † or … button.
Return
Result:
➣
50
The options available in the PIP group are displayed.
) button.
) button.
You can listen to the sound of the sub picture.
To listen the sound of current main picture, set to Main.
Teletext Feature
ENG
Most television channels provide written information services via
teletext. Information provided includes:
◆ Television programme times
◆ News bulletins and weather forecasts
◆ Sports results
◆ Travel information
This information is divided into numbered pages (see diagram).
Part
A
B
C
D
E
F
➣
Contents
Selected page number.
Broadcasting channel identity.
Current page number or search indications.
Date and time.
Text.
Status information.
FASTEXT information.
Teletext information is often divided between several
pages displayed in sequence, which can be accessed by:
◆ Entering the page number
◆ Selecting a title in a list
◆ Selecting a coloured heading (FASTEXT system)
51
Displaying the Teletext Information
ENG
You can display Teletext information at any time on your television
Teletext information to be displayed correctly,
☛ For
channel reception must be stable; otherwise:
◆ Information may be missing
◆ Some pages may not be displayed
1
Select the channel providing the Teletext service by pressing the
P or P button.
2
Press the TTX/MIX (
) button to activate the teletext mode.
The contents page is displayed. It can be redisplayed
Result:
at any time by pressing the
(index) button.
3
Press the TTX/MIX (
) button again.
The screen will be split into two. This Double Teletext
Result:
feature lets you view the actual broadcast and teletext
information separately on the screen.
4
If you wish to display the teletext information on a single screen,
press the TTX/MIX (
) button again.
5
To exit from the teletext display, press the TV (
) button.
Selecting Display Options
When you have displayed a Teletext page, you can select various
options to suit your requirements.
To display...
52
Press the...
◆ Hidden text
(answers to quiz games, for example)
(reveal)
◆ The normal screen
(reveal) again
◆ A secondary page by entering its number
(sub-page)
◆ The broadcast when searching for a page
(cancel)
◆ The next page
(page up)
◆ The previous page
(page down)
◆ Double-size letters in the:
• Upper half of the screen
• Lower half of the screen
(size)
• Once
• Twice
◆ The normal screen
• Three times
Selecting a Teletext Page
ENG
You can enter the page number directly by pressing the numeric
buttons on the remote control.
1
Enter the three-digit page number given in the content by
pressing the corresponding numeric buttons.
Result:
The current page counter is incremented and the
page is then displayed. If the selected page is linked
with several secondary pages, the secondary pages
are displayed in sequence. To freeze the display on a
given page, press the
(hold) button. Press the it
again to resume.
2
If the FASTEXT system is used by the broadcasting company,
the different topics covered on a Teletext page are colour-coded
and can be selected by pressing the coloured buttons on the
remote control.
Press the coloured button corresponding to the topic that you wish
to select; the available topics are given on the status line.
Result:
The page is displayed with other coloured information
that can be selected in the same way.
3
To display the previous or next page, press the corresponding
coloured button.
4
To display the subpage, see the following steps.
◆ Press the
(sub-page) button.
Result:
The available subpages appear.
◆ Select the required sub-page. Sub-pages can be scrolled by
pressing the
or
button.
53
Connecting to the External Input/Output
ENG
“AV1” and “AV3” are used for the equipment with an RGB output, such as
video game devices or video disc players.
Rear of the TV
VCR
DVD
①
or
Decoder /
Video game device
or
Video disc player
Satellite receiver
① This end can be fitted with:
◆ A SCART connector
◆ An S-Video connector and two audio RCA connectors (L+R)
◆ Three RCA connectors (VIDEO + AUDIO-L/R)
Input/Output Specification
Input
Connector
Output
Video
Audio (L/R)
S-Video
RGB
Video + Audio (L/R)
AV1
✔
✔
✔
✔
Only TV output is available.
AV2
✔
✔
✔
AV3
✔
✔
✔
☛
Output you are viewing.
✔
Output you can choose.
Whenever you connect an audio or video system to your
television, ensure that all elements are switched off.
Refer to the documentation supplied with your equipment
for detailed connection instructions and associated safety
precautions.
54
Connecting to the DVD Input
ENG
The RCA connectors are used for equipment with a DVD output. (480i, 480p, 576i, 576p)
Rear of the TV
DVD
Connecting to the Audio Outputs
The “AUDIO OUT” connectors are used for equipment, such as an audio system or external amplifier
(to take full advantage of the Surround sound effect).
Rear of the TV
Audio System/
External Amplifier
55
Connecting to the Audio/Video Input
ENG
The RCA (VIDEO + L-AUDIO-R) connectors are used for equipment such as camcorders, video disc
players and some video game devices.
Side of the TV
Camcorder
SP46L5HX/
SP56L5HX
Video disc player
SP43L2HX/
SP50L2HX/
SP61L2HX
Video game device
Connecting to the S-Video Input
The RCA (L-AUDIO-R) and S-VIDEO connectors are used for equipment with an S-Video output,
such as a camcorder or VCR.
Side of the TV
SP46L5HX/
SP56L5HX
①
Camcorder
and
SP43L2HX/
SP50L2HX/
SP61L2HX
① To play picture and sound, both the RCA and S-VIDEO connectors must be used.
56
VCR
Connecting to the DVI Input
ENG
The “DVI” (video) and “PC AUDIO (L+R)” connectors are used for equipment with a DVI output.
Rear of the TV
Personal Computer
and
➢
The “DVI” does not support the Analog R (red), G (green) and B (blue) signals.
Connecting to the PC Input
The “PC” (video) and “PC AUDIO (L+R)” connectors are used for interfacing with your PC.
Rear of the TV
Personal Computer
and
57
Setting up Your PC Software (Windows only)
ENG
The Windows display-settings for a typical computer are shown below. But the actual screens on your
PC will probably be different, depending upon your particular version of Windows and your particular
video card. But even if your actual screens look different, the same, basic set-up information will apply
in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)
On the windows screen, select in the following
sequence: Start ➞ Settings ➞ Control Panel.
When the control panel screen appears, click on
Display and a display dialog-box will appear.
Select the Settings tab in the display dialog-box.
The two key variables that apply the television-PC
interface are “Resolution” and “Colours”.
The correct settings for these two variables are:
◆ Size (sometimes called “Resolution”)
1024 x 768 pixels.
◆ Colour
24-bit colour (might also be expressed as “16
million colours”)
Shown at left is a typical screen for “Display”
dialog box.
If a vertical-frequency option exists on your display
settings dialog box, the correct value is 60 Hz.
Otherwise, just click OK and exit the dialog box.
58
Input Mode (PC/DVI)
ENG
Both screen position and size will vary depending on the type of PC monitor and its resolution.
The table below shows all of the display modes that are supported:
Standard
Dot x Line
VGA
640 x 480
SVGA
720 x 400
800 x 600
XGA
1024 x 768
WVGA
848 x 480
Vertical
frequency (Hz)
Horizontal
frequency (kHz)
Vertical
polarity
Horizontal
polarity
75.0
72.8
59.9
70.1
75.0
72.2
60.3
56.3
75.0
70.1
60.0
75
72
70
60
37.5
37.9
31.5
31.5
46.9
48.1
37.9
35.2
60.0
56.5
48.3
37.5
36.1
35.0
29.8
N
N
N
P
P
P
P
P
P
N
N
N
N
N
N
N
N
N
N
P
P
P
P
P
N
N
P
P
P
P
(N: Negative / P: Positive)
◆
◆
◆
◆
The interlace mode is not supported.
The television might operate abnormally if a non-standard video format is selected.
The 4:3 mode does not work with input signals from “720 x 400”.
The DVI mode does not support “1024 x 768” (85Hz).
Notes
◆ The text quality of PC screen is optimum in the XGA mode (1024 x 768), the full size displayed PC
mode is optimum in the SVGA mode (800 x 600).
◆ When this television is used as a PC display, 24-bit colour is supported (over 16 million colours).
◆ Your PC display screen might appear different depending on the manufacturer (and your particular version of
Windows). Check your PC instruction book for information about connecting your PC to a television.
◆ If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5kHz (horizontal).
In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned
off (or if the PC is disconnected). If so, press the SOURCE (
) button to enter the Video mode. Also, make
sure that the PC is connected.
◆ When connecting a notebook PC to the television, make sure that the PC screen is displayed through only the
television (Otherwise, random signals might appear).
◆ When horizontal synchronous signals seem irregular in PC mode, check PC power saving mode or cable
connections.
59
Pin Configurations
ENG
SCART Connector
(AV1/AV2/AV3)
Pin
Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
➢
DVI Input Connector
(24Pin)
Audio output R
Audio input R
Audio output L
Audio chassis return
Video chassis return (RGB blue)
Audio input L
RGB blue input
Switching voltage
Video chassis return (RGB green)
RGB green input
Video chassis return (RGB red)
RGB red input
Blanking signal (RGB switching)
Video chassis return
Blanking signal ground
Video output
Video input
Screening/chassis return
Pins 5, 7, 9, 11, 13, 15 and 16 are used for
RGB processing and are only wired on the AV1
or AV3 connector.
PC Input Connector
(15Pin)
Pin
Red (R)
Green (G)
Blue (B)
Grounding
Grounding (DDC)
Red (R) Grounding
Green (G) Grounding
Blue (B) Grounding
Reserved
Sync Grounding
Grounding
Data (DDC)
Horizontal sync.
Vertical sync.
Clock (DDC)
60
Signal
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
T.M.D.S. Data2T.M.D.S. Data2+
T.M.D.S. Data2/4 Shield
T.M.D.S. Data4T.M.D.S. Data4+
Clock (DDC)
Data (DDC)
Not Connected
T.M.D.S. Data1T.M.D.S. Data1+
T.M.D.S. Data1/3 Shield
T.M.D.S. Data3T.M.D.S. Data3+
+5V Power
5V Grounding
Hot Plug Detect
T.M.D.S. Data0T.M.D.S. Data0+
T.M.D.S. Data0/5 Shield
T.M.D.S. Data5T.M.D.S. Data5+
T.M.D.S. Clock Shield
T.M.D.S. Clock+
T.M.D.S. Clock-
RS-232 Connector
(9Pin)
PC IN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Pin
Pin
1
2
3
4
5
6
7
8
9
Signal
Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
System Ground
Data Set Ready
Request to Send
Clear to Send
Ring Indicator
Troubleshooting: Before Contacting Service Personnel
ENG
Before contacting Samsung after-sales service, perform the following simple checks.
If you cannot solve the problem using the instructions below, note the model and serial number of the
television and contact your local dealer.
No sound or picture
◆ Check that the mains lead has been connected to a wall socket.
◆ Check that you have pressed the “ I ” button (On/Off) and the
POWER ( ) button.
◆ Check the picture contrast and brightness settings.
◆ Check the volume.
Normal picture but no sound
◆ Check the volume.
◆ Check whether the volume MUTE (
has been pressed.
) button on the remote control
No picture or black and white picture
◆ Adjust the colour settings.
◆ Check that the broadcast system selected is correct.
Sound and picture interference
◆ Try to identify the electrical appliance that is affecting the television,
then move it further away.
◆ Plug your television into a different mains socket.
Blurred or snowy picture,
distorted sound
◆ Check the direction, location and connections of your aerial.
This interference often occurs due to the use of an indoor aerial.
Remote control malfunctions
◆ Replace the remote control batteries.
◆ Clean the upper edge of the remote control (transmission window).
◆ Check the battery terminals.
61
Technical Specifications
ENG
The descriptions and characteristics in this booklet are given for information purposes only and are
subject to modification without notice.
Model name
Tube type
Screen size
SP43L2HX
SP50L2HX
SP61L2HX
SP46L5HX
SP56L5HX
16:9
16:9
16:9
16:9
16:9
43 inch
(953/535.5 mm)
50 inch
(1107/623 mm)
Colour systems
61 inch
46 inch
56 inch
(1351/760 mm) (1018/573 mm) (1240/697 mm)
PAL, SECAM, NTSC NT4.43
BG, DK, I, L
TV standards
A2 Stereo, NICAM Stereo, Dolby Prologic
Sound
15 W x 4
Audio output power
Sockets
Rear
3 SCART (AV1 / AV2 / AV3)
Additional speaker outputs (+-R-- / --L-+)
Surround speaker outputs (L / R / WOOFER)
Component inputs (Y / PB / PR / L / R)
PC or DVI audio inputs (PC AUDIO-L / R)
PC video input (PC - 15Pin)
DVI video input (DVI - 24Pin)
RS-232 input (RS-232 - 9Pin)
Side
Video/Audio inputs (VIDEO + L-AUDIO-R)
S-Video Input (S-VIDEO 3)
Demensions
(H x W x D mm)
1029 x 755 x 399
27.6 kg
Weight
Acessories
62
1184 x 859 x 444 1436 x 1021 x 489 1030 x 760 x 410 1268 x 924 x 461
32.7 kg
44.5 kg
33.5 kg
Remote control, 2 Batteries (AAA), RCA cable,
Owner’s manual, Warranty card, Service network list
41.5 kg
Wiring the Mains Power Supply Plug (UK Only)
ENG
IMPORTANT NOTICE
The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indicated on the
pin face of the plug and, if it requires replacing, a fuse approved to BSI1362 of the same rating must be used. Never use the plug
with the fuse cover omitted if the cover is detachable. If a replacement fuse cover is required, it must be of the same colour as the
pin face of the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in
your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead
or consult your dealer for assistance. However, if there is no alternative to cut off the plug, remove the fuse and then safely
dispose of the plug. Do NOT connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
BLUE - NEUTRAL
BROWN - LIVE
As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as follows:
The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK.
The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.
WARNING:
DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL, WHICH IS MARKED WITH THE LETTER E OR BY
THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.
63
- AFTER SALES SERVICE
- Do not hesitate to contact your retailer or service agent
if a change in the performance of your product indicates
that a faulty condition may be present.
ELECTRONICS
BP68-00196A-00
Download PDF
