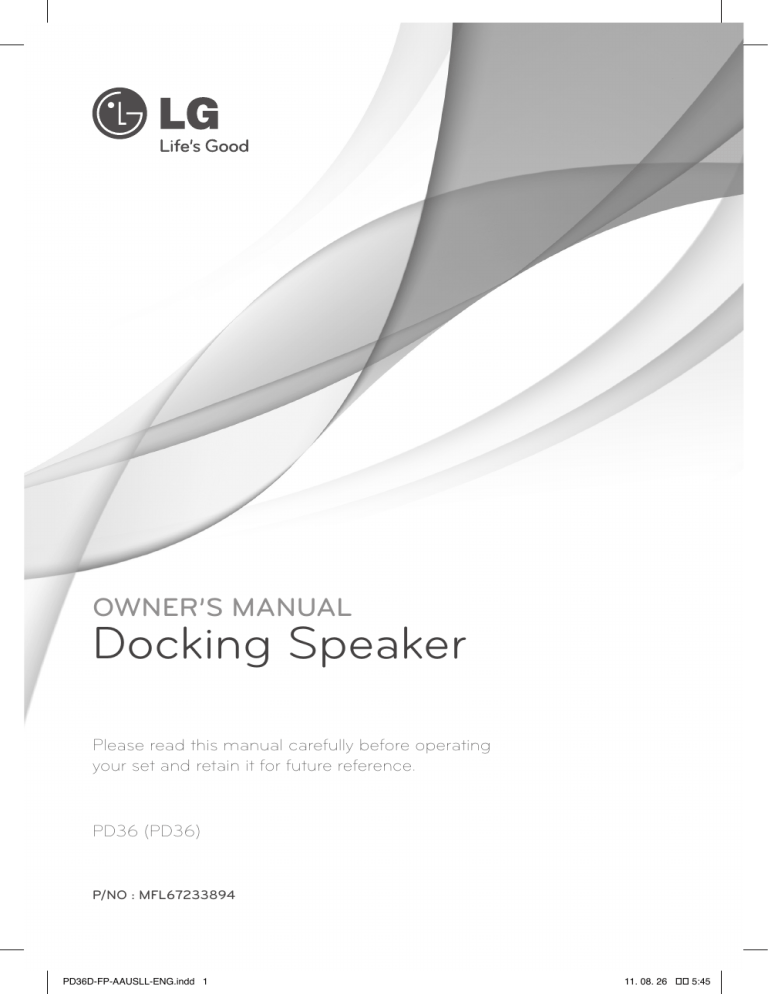

OWNER’S MANUAL
Docking Speaker
Please read this manual carefully before operating
your set and retain it for future reference.
PD36 (PD36)
P/NO : MFL67233894
PD36D-FP-AAUSLL-ENG.indd 1
11. 08. 26 �� 5:45
1
Getting Started
2
Getting Started
Safety Information
1
CAUTION
Getting Started
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK DO NOT REMOVE COVER (OR BACK) NO
USER-SERVICEABLE PARTS INSIDE REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
This lightning flash with arrowhead
symbol within an equilateral
triangle is intended to alert the
user to the presence of uninsulated
dangerous voltage within the
product’s enclosure that may be of
sufficient magnitude to constitute
a risk of electric shock to persons.
The exclamation point within an
equilateral triangle is intended
to alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the product.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon
a dedicated circuit;
That is, a single outlet circuit which powers only
that appliance and has no additional outlets or
branch circuits. Check the specification page of this
owner’s manual to be certain. Do not overload wall
outlets. Overloaded wall outlets, loose or damaged
wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous.
Any of these conditions could result in electric
shock or fire. Periodically examine the cord of your
appliance, and if its appearance indicates damage
or deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized service
center. Protect the power cord from physical or
mechanical abuse, such as being twisted, kinked,
pinched, closed in a door, or walked upon. Pay
particular attention to plugs, wall outlets, and
the point where the cord exits the appliance. To
disconnect power from the mains, pull out the
mains cord plug. When installing the product,
ensure that the plug is easily accessible.
WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK
HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN
OR MOISTURE.
WARNING: Do not install this equipment in a
confined space such as a book case or similar unit.
The main label is attached on the exterior of the
bottom of the apparatus.
PD36D-FP-AAUSLL-ENG.indd 2
11. 08. 26 �� 5:45
Getting Started
This device is equipped with a portable battery or
accumulator.
yy The appliance is not intended for use by young
children or infirm persons without supervision.
yy Young Children should be supervised to ensure
that they do not play with appliance.
yy If the appliance is supplied from a cord
extension set or an electrical portable outlet
device, the cord extension set on electrical
portable outlet device must be positioned so
that it is not subject to splashing or ingress of
moisture.
1
Getting Started
Safety way to remove the battery or the
battery from the equipment: Remove the
old battery or battery pack, follow the steps
in reverse order than the assembly. To prevent
contamination of the environment and bring on
possible threat to human and animal health, the
old battery or the battery put it in the appropriate
container at designated collection points. Do
not dispose of batteries or battery together with
other waste. It is recommended that you use
local, free reimbursement systems batteries and
accumulators. The battery shall not be exposed to
excessive heat such as sunshine, fire or the like.
3
CAUTION: The apparatus shall not be exposed to
water (dripping or splashing) and no objects filled
with liquids, such as vases, shall be placed on the
apparatus.
PD36D-FP-AAUSLL-ENG.indd 3
11. 08. 26 �� 5:45
4
Table of Contents
Table of Contents
3 Troubleshooting
16
Troubleshooting
1
Getting Started
4 Appendix
2
5
5
5
5
5
5
5
5
5
5
5
6
7
8
Safety Information
Unique Features
– Portable In
– Alarm timer
– Made for iPod/ iPhone
– USB playback
– Radio
Introduction
– Symbol Used in this Manual
Playable file Requirement
– Compatible USB Devices
– USB device requirement
– MP3/ WMA music file requirement
Top panel
Display Window 17
18
18
18
Specifications
Maintenance
– Handling the Unit
Trademarks and Licenses
2 Operating
9
9
9
10
11
11
11
11
11
12
12
13
13
14
14
14
14
14
15
15
Basic Operations
– iPod/ iPhone Operations
– Compatible iPod/ iPhone
– USB Operation
– Programmed Playback
– Resume playback
– Selecting a folder
Sound adjustment
– Setting the mode
Setting the Clock
– Using your unit as an alarm clock
– Sleep Timer Setting
– SNOOZE function
Radio Operations
– Listening to the radio
– Presetting the Radio Stations
– Deleting all the saved stations
– Improving poor FM reception
Advanced Operations
– Listening to music from your external
device
PD36D-FP-AAUSLL-ENG.indd 4
11. 08. 26 �� 5:45
Getting Started
Unique Features
5
Playable file
Requirement
Portable In
1
Compatible USB Devices
Alarm timer
• MP3 Player : Flash type MP3 player.
Sets alarm which go off at desired time.
• USB Flash Drive : Devices that support USB2.0 or USB1.1.
Made for iPod/ iPhone
• The
USB function of this unit does not support
all USB devices.
Enjoys music from iPod/ iPhone with simple
connection.
USB playback
Enjoys music from USB with simple connection.
Radio
Listens to the radio.
Getting Started
Listens to music from your portable device.
USB device requirement
• Devices which require additional program
installation connected to a computer, are not
supported.
• Do not extract the USB device while in
operation.
• For a large capacity USB, it may take longer than
a few minute to be searched.
• To prevent data loss, back up all data.
Introduction
Symbol Used in this Manual
,,Note
Indicates special notes and operating features.
• If you use a USB extension cable or USB hub, the
USB device is not recognized.
• Using NTFS file system is not supported. (Only
FAT(16/ 32) file system is supported.)
• This unit is not supported when the total
number of files is 1 000 or more.
• External HDD, Card readers, Locked devices, or
hard type usb devices are not supported.
• USB port of the unit cannot be connected to PC.
The unit can not be used as a storage device.
>>Caution
Indicates cautions for preventing possible damages
from abuse.
PD36D-FP-AAUSLL-ENG.indd 5
11. 08. 26 �� 5:45
6
1
Getting Started
Getting Started
MP3/ WMA music file
requirement
Battery Installation
MP3/ WMA file compatibility with this unit is
limited as follows :
• Sampling frequency : between 32 to 48 kHz
(MP3), within 32 to 48 kHz (WMA)
Turn the unit over. Pull the battery compartment,
and Insert the battery with the - facing in the same
direction as the - on the battery compartment.
Push the battery compartment and turn the unit
over again.
• Bit rate : between 32 to 320 kbps (MP3), 40 to
320 kbps (WMA)
• Maximum files : Under 999
• File extensions : “.mp3”/ “.wma”
You can only use AC power as power supply.
Battery is for backup purpose.
Replace the unit’s battery with 3V micro lithium
cells such as CR2032 or its equivalent.
Dispose of battery safely in accordance with local
laws. Do not dispose of in fire.
>>Warning
The battery used in this device may present
a fire or chemical burn hazard if mistreated.
Do not recharge, disassemble, incinerate, or
heat above 100 °C (212 °F). Replace the battery
with Matsushita Elec. Ind. Co., Ltd. (Panasonic),
part no. CR2032 only. Use of another battery
may present a risk of fire or explosion. Dispose
of used batteries. Keep batteries away from
children. Do not disassemble or dispose of in
fire.
,,Note
If you insert the battery upside down, the clock
won’t switch on.
PD36D-FP-AAUSLL-ENG.indd 6
11. 08. 26 �� 5:45
Getting Started
7
Top panel
1
Getting Started
a EQ
Chooses sound impressions.
gFUNC.
Selects the function or input source.
b1/! (POWER)
cMEMORY
MEMORY used for storing radio station and
scrolling through saved station. On the USB
mode, you can make your own playlist.
hSLEEP
Sets the system to turn off automatically at a
specified time.
d USB Port / PORT. IN
You can play music files by connecting the USB
device.
Listens to music from your portable device
e VOL (+ / -)
Adjusts speaker volume
Y/U
- Skip : Press Y/U
- Search : Press and hold Y/U
T
- Starts playback and pauses : press T
- Stops playback : press and hold T
CLOCK SET
For setting the clock and checking the time.
iALARM 1 / 2
With the ALARM function you can turn IPOD/
IPHONE, USB, BUZZER and TUNER on or off at a
desired time.
SNOOZE
The SNOOZE function wakes you up every 5
minutes if you press SNOOZE.
jiPod/ iPhone DOCKING
kDisplay window
fPRESET
Chooses a preset number for a radio station.
PD36D-FP-AAUSLL-ENG.indd 7
11. 08. 26 �� 5:45
8
Getting Started
Display Window 1
Getting Started
SLEEP
PM
EQ
1
2
SUN
MON
TUE
aFUNCTION indicators
IPOD
TUNER
USB
PORTABLE
bPROGRAM indicator
iPod/iPhone/Tuner/USB/Portable information
CLOCK/ ALARM/ VOLUME information
indicator
c TIMER/ CLOCK indicator
PD36D-FP-AAUSLL-ENG.indd 8
WED
THU
FRI
SAT
dSLEEP indicator
eEQ
fALARM indicator
gALARM periods
11. 08. 26 �� 5:45
2
Operating
Operating
Basic Operations
iPod/ iPhone Operations
You can enjoy the sound with your iPod/ iPhone.
For details about iPod/ iPhone, refer to the iPod/
iPhone User Guide.
To
Do this
Pause or
restart
Press T
Skip
1. Connect the iPod/ iPhone firmly. If you turn
this unit on, your iPod/ iPhone is automatically
turned on and starts recharging .
9
During playback, press Y/
U to go to the next file or to
return to the beginning of the
current file.
Press Y twice briefly to step
back to the previous file.
Search
Press and hold Y/U
during playback and release it at
the point you want to listen to.
2
Operating
Compatible iPod/ iPhone
yy The unit supports the models as follows ;
2. Press FUNC. on the unit to select iPod function.
iPod nano 1 G, 2 G, 3 G, 4 G, 5 G, 6 G/
iPod classic/
iPod 5 G/
iPod touch 1G, 2 G, 3 G, 4 G/
iPod Mini
iPhone 3 G, 3GS , 4.
For some models, the unit may not operate
depending on the firmware version.
epending on your iPod/ iPhone’s software
yy D
version, you may not control your iPod/ iPhone
from the unit.
PD36D-FP-AAUSLL-ENG.indd 9
11. 08. 26 �� 5:45
10
Operating
,,Note
yy If this unit displays an error message, follow
the message. An error message “ERROR”.
- Your iPod/ iPhone is not connected firmly.
-This unit recognizes your iPod/ iPhone as
an unknown device.
- Your iPod/ iPhone is exceptionally low in
power.
USB Operation
1. Connect the USB device to the USB port.
2. Select the USB function by pressing
FUNC. on the unit.
/ The battery needs to be charged.
/If you charge the battery while iPod/
iPhone is extremely low in power, it
may take longer to be charged.
yy iPod/ iPhone does not support recording
function when connected.
2
Operating
epending on your iPod/ iPhone ’s software
yy D
version, it may not be possible to control
your iPod/ iPhone from this unit. We
recommed installing the latest software
version.
yy If you use an application, make a call, or
send and receive SMS text message, etc. on
iPod touch or iPhone, disconnect it from
iPod dock of this unit and then use it.
yy If you have a problem with your iPod/
iPhone, please visit www.apple.com/
support/ipod.
PD36D-FP-AAUSLL-ENG.indd 10
VOL
MEMORY
PRESET
FUNC.
+
EQ
Y
T
U
SLEEP
SNOOZE
ALARM 1
CLOCK SET
ALARM 2
SNOOZE
To
Stop
Play
Pause
Do this
Press and hold T
Press T
During playback, press T
During playback, pressY/U
Skipping to to go to the next file or to return to
the next/ the beginning of the current file.
previous file Press Y twice briefly to step back
to the previous file.
Searching Press and hold Y/U during
for a section playback and release it at the point
within a file you want to listen to.
11. 08. 26 �� 5:45
Operating
Programmed Playback
The program function enables you to store your
favorite files from USB device.
A program can contain 20 files.
1. Insert a USB and wait for it to be order.
2. Press MEMORY on the unit in stop status.
3. Press Y/U to select a file.
4. Press MEMORY again to save and select a next
file
5. Press T to play the programmed music files.
6. To clear your selection, press and hold
MEMORY.
The unit memorizes the point where you pressed
the T. Press T to resume playback. If you
press and hold T, the unit will clear the stopped
point.
Sound adjustment
Setting the mode
This system has a number of pre-set sound fields.
You can select a desired sound mode by using EQ.
The displayed items for the Equalizer may be
different depending on sound sources and effects.
On Display
Description
POP
CLASSIC
ROCK
JAZZ
This program lends an
enthusiastic atmosphere to the
sound, giving you the feeling
you are at an actual pop, classic
rock or jazz concert.
BASS
BYPASS
Reinforce the treble, bass and
sound effect.
You can enjoy the sound
without equalizer effect.
2
Operating
Resume playback
11
Selecting a folder
1. Press PRESET on the unit repeatedly until a
desired folder appears.
2. Press T to play it. The first file of folder will
play. (USB only)
,,Note
yy During playback, if you turn the unit off
and on, the last file you listened to plays
normally
yy During playback, if you change the function
mode and return back to the previous
function mode, the last file you listened to
plays normally.
PD36D-FP-AAUSLL-ENG.indd 11
11. 08. 26 �� 5:45
12
Operating
Setting the Clock
Using your unit as an alarm
clock
1. Turn the unit off.
1. Turn the unit on or off
2. Press CLOCK SET for at least 2 seconds.
2. Press ALARM 1/2 for at least 2 seconds. Each
of functions flashes. (You can set ALARM 1 and
ALARM 2)
3. Choose time mode by pressing Y/U.
- 12:00 (for an AM and PM display) or 0:00 (for a
24 hour display)
4. Press CLOCK SET to confirm your selection.
5. Select the hour and the minute by pressing
Y/U.
6. Press CLOCK SET.
2
7. Select the year, month and day by pressing
Y/U.
Operating
Year
Year
Day
Day
Month
Month
8. Press CLOCK SET.
9. If you want to reset the clock, repeat steps1-8.
10.If you want to stop while setting the clock, press
and hold CLOCK SET
,,Note
yy If you want to set 12h, “PM” appears in the
display window.
yy If you want to set 24h, “PM” disappears in
the display window.
3. The hour setting flashes.
Press Y/U to change the hour and press
ALARM to save.
4. The minute setting flashes.
Press Y/U to change the minute and
press ALARM to save.
5. You can change in the following order, TUNER
-> BUZZER -> USB -> IPOD by using Y/U.
Press ALARM to save.
6. The alarm periods setting flashes.
Press Y/U to change the alarm periods,
and press ALARM to save.
alarm periods : 7Days -> 5Days -> 2Days
7Days : Everyday
5Days : Weekday
2Days : Weekend
7. The volume settings flashes.
Press Y/U to change the volume and
press ALARM to save.
8. The time when you want to stop ringing flashes.
Press Y/U to change the hour and
minute. Then press ALARM to save.
9. You can check the setting status.
10.If you want to reset the alarm, repeat steps 2-8.
PD36D-FP-AAUSLL-ENG.indd 12
11. 08. 26 �� 5:45
Operating
13
,,Note
Sleep Timer Setting
yy During the playback, if the time you set is
up, the function is switched to the function
you set for ALARM.
Press SLEEP repeatedly to select delay time
between 10 and 180 minutes. After the delay time,
unit will turn off. (You can see in the following
order, 180->150-> 120 -> 90 -> 80 -> 70 -> 60 -> 50
-> 40 -> 30 -> 20 -> 10)
yy If the function you set for alarm does not
work, tuner function works automatically.
To cancel the sleep function, press SLEEP
repeatedly until “OFF “ appears.
yy If the alarm stops, the function you set
works normally.
SNOOZE function
yy If you set ALARM1 and ALARM2 at the same
time, the ALARM1 function only works.
yy If you don’t set clock, the alarm function
doesn’t work.
yy In the TUNER, BUZZER, USB, IPOD mode, the
unit turns off at the preset time.
yy If you make a mistake while setting the
alarm, press and hold ALARM to reset the
alarm.
yy If you set the clock time, you can check the
time by pressing ALARM.
yy If you set the clock time and alarm, you
can check the alarm icon “ “and set
informaiton by pressing ALARM even
when the unit is turned off . Then this
function will work.
,,Note
yy If you set the “OFF time” between SNOOZE
time, SNOOZE time will be priority.
2
Operating
yy If you don’t connect the AC power cord to
the wall outlet, the alarm function doesn’t
work.
This function wakes you up every 5 minutes if
you press SNOOZE. If the time you set is up, the
unit turns on automatically and the alarm rings. If
you press SNOOZE, the alarm stops ringing and
then the unit power off. The alarm rings again in 5
minutes.
yy If you press ALARM, SNOOZE function stop
working.
yy Since the alarm goes off, if you don’t press
any button for 10 minute, the alarm will stop
ringing automatically. (In only the BUZZER
mode)
yy When the alarm rings, you can turn off the
alarm by pressing all the buttons.(In only
the BUZZER mode.)
PD36D-FP-AAUSLL-ENG.indd 13
11. 08. 26 �� 5:45
14
Operating
Radio Operations
Listening to the radio
1. Press FUNC. until TUNER appears in the display
window.
The last received station is tuned in.
2. Auto tuning : Press and hold Y/U for
about 2 seconds until the frequency indication
starts to change, then release. Scanning stops
when the unit tunes in a station.
2
Manual tuning: Press Y/U repeatedly.
3. Adjust the volume by pressing VOL (+/-) on the
top panel.
Deleting all the saved stations
Press MEMORY for at least two seconds. “CLEAR”
will flash up on the unit display.
Press MEMORY to erase all saved radio stations.
Improving poor FM reception
Press T on the unit. This will change the tuner
from stereo to mono and usually improve the
reception.
,,Note
Be sure to extend the antenna fully. And adjust
it to get more clear reception.
Operating
Presetting the Radio Stations
You can preset 6 stations for FM.
Before tuning, make sure that you have turned
down the volume.
1. Press FUNC. until TUNER appears in the display
window.
2. Select the desired frequency by using
Y/U
3. Press MEMORY until a preset number will flash
in the display window.
4. Press PRESET to select the preset number you
want.
5. Press MEMORY. The station is stored.
6. Repeat the steps 2 to 5 to store other stations.
7. To listen a preset station, press PRESET.
PD36D-FP-AAUSLL-ENG.indd 14
11. 08. 26 �� 5:45
Troubleshooting
15
Advanced Operations
Listening to music from your
external device
The unit can be used to play the music from many
types of external device. (Portable cable is not
supplied as an accessory with unit)
VOL
MEMORY
PRESET
FUNC.
+
EQ
Y
T
U
SLEEP
-
CLOCK SET
1. Connect the external device to the PORT. IN
connector of the unit.
SNOOZE
ALARM 1
ALARM 2
3. Select the PORTABLE function by pressing
FUNC. .
4. Turn the external device on and start it playing.
Troubleshooting
2. Turn the power on by pressing 1/! (POWER).
PD36D-FP-AAUSLL-ENG.indd 15
3
SNOOZE
11. 08. 26 �� 5:45
3
Troubleshooting
16
Troubleshooting
Troubleshooting
Problem
No Power.
There is little or no
sound.
Correction
Plug the power cord into the wall outlet securely.
Select the correct input mode of the unit so you can hear the sound from the
unit.
yy Adjust its position.
Radio stations cannot be yy Tune to the station manually.
tuned in properly.
yy Preset some radio stations, see page 14 for details.
iPod/ iPhone does not
work.
Check whether the unit is connected to the unit correctly. Connect it to the unit
correctly.
3
Troubleshooting
PD36D-FP-AAUSLL-ENG.indd 16
11. 08. 26 �� 5:45
4
Appendix
Appendix
17
Specifications
General
Power supply
Refer to the main label
Power consumption
Refer to the main label
Net Weight
0.65 kg
External dimensions (W x H x D)
200 x 112 x 176 mm
Operating conditions Temperature
5 °C to 35 °C (41 °F to 95 °F)
Operation status: Horizontal
Operating humidity
5 % to 85 %
Tuner
FM Tuning Range
87.5 to 108.0 MHz or 87.50 to 108.00 MHz
Amplifier
Output Power
1.5 W + 1.5 W
T.H.D
less than 1 %
USB
USB 2.0 or USB 1.1
Bus Power Supply
USB : DC 5 V
500 mA, iPod/ iPhone : DC 5V
Speakers
Type
1 Way 2 Speaker
Impedance
4Ω
Rated Input Power
1.5 W
Max. Input Power
2W
1A
4
Appendix
USB Version
yy Design and specifications are subject to change without notice.
PD36D-FP-AAUSLL-ENG.indd 17
11. 08. 26 �� 5:45
18
Appendix
Maintenance
Trademarks and
Licenses
Handling the Unit
When shipping the unit
Please save the original shipping carton and
packing materials. If you need to ship the unit, for
maximum protection, re-pack the unit as it was
originally packed at the factory.
Keeping the exterior surfaces clean
Do not use volatile liquids such as insecticide spray
near the unit.
Wiping with strong pressure may damage the
surface.
Do not leave rubber or plastic products in contact
with the unit for a long period of time.
Cleaning the unit
4
iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
iPhone is a trademark of Apple Inc. “Made
for iPod” and “Made for iPhone” mean that
an electronic accessory has been designed
to connect specifically to iPod or iPhone
respectively, and has been certified by the
developer to meet Apple performance standards.
Apple is not responsible for the operation of
this device or its compliance with safety and
regulatory standards.
Please note that the use of this accessory with
iPod, iPhone may affect wireless performance.
Appendix
To clean the unit, use a soft, dry cloth. If the
surfaces are extremely dirty, use a soft cloth lightly
moistened with a mild detergent solution. Do not
use strong solvents such as alcohol, benzine, or
thinner, as these might damage the surface of the
unit.
PD36D-FP-AAUSLL-ENG.indd 18
11. 08. 26 �� 5:45
PD36D-FP-AAUSLL-ENG.indd 19
11. 08. 26 �� 5:45
PD36D-FP-AAUSLL-ENG.indd 20
11. 08. 26 �� 5:45
Download PDF

advertising
