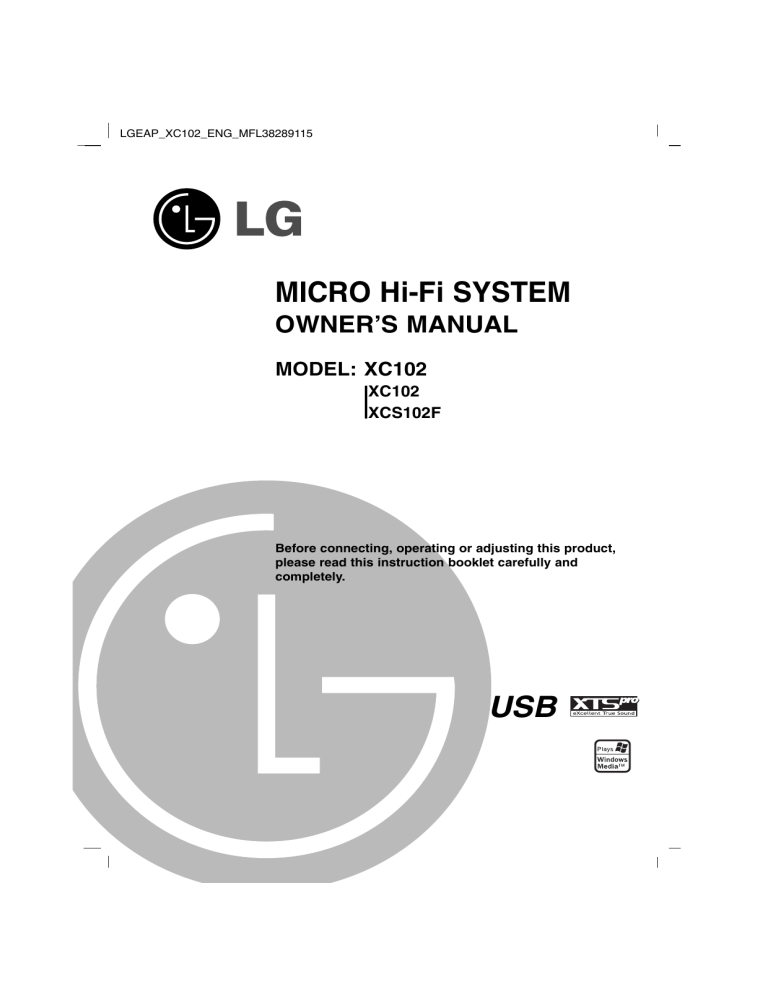

LG | XC102 | LG XC102 Owner’s Manual

LGEAP_XC102_ENG_MFL38289115
MICRO Hi-Fi SYSTEM
OWNER’S MANUAL
MODEL: XC102
XC102
XCS102F
Before connecting, operating or adjusting this product,
please read this instruction booklet carefully and
completely.
USB
Safety Precaution
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
This lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of non insulated dangerous voltage within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
WARNING: TO PREVENT FIRE OR ELECTRIC
SHOCK HAZARD, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
WARNING: Do not install this equipment in a confined space
such as a book case or similar unit.
CAUTION: The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as
vases, should be placed on the apparatus.
CAUTION concerning the Power Cord
Most appliances recommend they be placed upon a dedicated circuit;
That is, a single outlet circuit which powers only that appliance
and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.
Do not overload wall outlets. Overloaded wall outlets, loose or
damaged wall outlets, extension cords, frayed power cords, or
damaged or cracked wire insulation are dangerous. Any of these
conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates
damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part
by an authorized service agent.
Protect the power cord from physical or mechanical abuse, such
as being twisted, kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall outlets, and the point
where the cord exits the appliance.
To disconnect power from the mains, pull out the mains cord
plug. When installing the product, ensure that the plug is easily
accessible.
• The appliance is not intended for use by young children or
infirm persons without supervision.
• Young Children should be supervised to ensure that they do
not play with appliance.
• If the appliance is supplied from a cord extension set or an
electrical portable outlet device, the cord extension set on
electrical portable outlet device must be positioned so that it
is not subject to splashing or ingress of moisture.
CAUTION: Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
Slots and openings in the cabinet are provided for ventilation and
to ensure reliable operation of the product and to protect it from
over heating.
The openings should be never be blocked by placing the product
on a bed, sofa, rug or other similar surface. This product should
not be placed in a built-in installation such as a bookcase or rack
unless proper ventilation is provided or the manufacturer's
instruction has been adhered to.
CAUTION:
This product employs a Laser System.
To ensure proper use of this product, please read this owner’s
manual carefully and retain it for future reference. Should the unit
require maintenance, contact an authorized service center.
Use of controls, adjustments or the performance of procedures
other than those specified herein may result in hazardous radiation exposure.
To prevent direct exposure to laser beam, do not try to open the
enclosure. Visible laser radiation when open. DO NOT STARE
INTO BEAM.
2
POWER SAVE MODE
You can set up the unit into an economic power save mode.
In the power-on status, press and hold POWER (1/]) for about
3 seconds.
- Nothing is displayed on display window when the unit
goes into the power save mode.
To cancel power save mode, press POWER (1/]).
About the symbols for instruction
Before use
Notes on Discs . . . . . . . . . . . . .
About the symbols for instruction
About MP3/WMA . . . . . . . . . . . .
Front / Back Panel . . . . . . . . . . .
Remote Control . . . . . . . . . . . . .
Before use
Before use
Contents
. . . . . . . . .3
. . . . . . . .3
. . . . . . . . .3
. . . . . . . . .4
. . . . . . . . .5
Connection
Speaker System Connection . . . . . . . . . . . .6
Antenna (Aerial) Connection . . . . . . . . . . . .6
Auxiliary Function . . . . . . . . . . . . . . . . . . . .6
Operation
Basic Operation . . . . . . . . . . . . . . . . . . . . . .7
Sound Adjustment . . . . . . . . . . . . . . . . . . . .7
Advanced Setting . . . . . . . . . . . . . . . . . . .7-8
PORTABLE Function . . . . . . . . . . . . . . . . . . . .8
USB Function . . . . . . . . . . . . . . . . . . . . . . . .8-9
RADIO Function . . . . . . . . . . . . . . . . . . .9-10
CD Function . . . . . . . . . . . . . . . . . . . . . . . .11
Reference
Troubleshooting . . . . . . . . . . . . . . . . . . . . .12
Specifications . . . . . . . . . . . . . . . . . . . . . .12
Notes on Discs
Handling discs
Do not touch the playback side of the disc. Hold
the disc by the edges so that fingerprints do not
get on the surface. Never stick paper or tape on
the disc.
Storing discs
After playing, store the disc in its case. Do not
expose the disc to direct sunlight or sources of
heat and never leave it in a parked car exposed
to direct sunlight.
Cleaning discs
Fingerprints and dust on the disc can cause poor
picture quality and sound distortion. Before playing, clean the disc with a clean cloth. Wipe the
disc from the centre outward.
Do not use strong solvents such as alcohol,
benzine, thinner, commercially available
cleaners, or anti-static spray intended for older
vinyl records.
Indicates hazards likely to cause harm to
the unit itself or other material damage.
Indicates special notes and operating
Note features.
About MP3/WMA
MP3/WMA Disc compatibility with this unit is
limited as follows:
1. Sampling Frequency
8 - 48kHz(MP3), 32 - 48kHz(WMA)
2. Bit rate
8 - 320kbps(MP3), 48 - 320kbps(WMA)
3. CD-R physical format should be “ISO 9660”
4. If you record MP3/WMA files using the software which cannot create a FILE SYSTEM, for
example “Direct-CD” etc., it is impossible to
playback MP3 files. We recommend that you
use “Easy-CD Creator”, which creates an ISO
9660 file system.
5. File names should be named using 30 letters
or less and must incorporate “.mp3”,“.wma”
extension e.g. “********.MP3” or “********.WMA”
6. Do not use special letters such as
“/ : * ? “ < >”etc.
7. Even if the total number of files on the disc
has more than 1000, it will only be shown up
to 999.
About MULTI SESSION
- This function recognizes the multi session disc
according to a disc of CD-ROM type.
ex) If there are MP3/WMA files in the first session, the MP3/WMA files in the first session
are only played.
If there are only MP3/WMA files in the
whole session, all of the MP3/WMA files in
the session are played.
If there is an Audio CD in the first session,
only the Audio CD in the first session is
played.
3
Front / Back Panel
1
13
2
12
14
3
4
11
15
17
16
5
6
7
8
1. 1 /]] (POWER)
2. CD
3. • B[] (PLAY/PAUSE)
BB (SKIP/SEARCH)
• bb/B
TUNE.-/+
• x (STOP)
• VOLUME CONTROL KNOB
4. USB
5. • XDSS plus
• XTS pro
• EQ Master
• ST./MONO
• PROG.
• CD Z
4
10
9
6. DISC TRAY
7.
(Headphone jack) : 3.5mm
8. • DEMO
• TIMER
• CLOCK
• SET (RDS - OPTIONAL)
9.
10.
11.
12.
13.
14.
15.
16.
17.
(USB connector)
PORT.IN jack
AUX (PORTABLE)
TUNER
DISPLAY WINDOW
POWER IN (POWER CORD)
AM/FM ANTENNA TERMINAL
AUX IN (AUXILIARY INPUT) connector
SPEAKER TERMINAL
Before use
Remote Control
DIMMER
MUTE
POWER
PRESET/FOLDER(
/
)
SLEEP
B/[] (PLAY/PAUSE) •
x (STOP) •
bb/B
BB> (SKIP/SEARCH)•
.b
TUN.-/+ •
REPEAT•
EQ master
XDSS plus
XTS Pro
RANDOM
•
•
•
•
NUMERIC
3
Detach the battery cover on
the rear of the remote control,
and insert two R03 (size AAA)
batteries with 3 and #
aligned correctly.
AAA
AAA
Remote Control battery installation
• USB
• FUNCTION
VOLUME (
/
)
CLOCK
PROGRAM/MEMO
D.SKIP
RDS (Radio Data System) FUNCTION
• RDS : OPTIONAL
• PTY : OPTIONAL
• PTY SEARCH : OPTIONAL
MP3 Info
(MP3/WMA file information display)
Remote Control Operation Range
Point the remote control at the remote sensor
and press the buttons.
• Distance : About 23 ft (7 m) from the front of
the remote sensor.
• Angle
: About 30° in each direction of the
front of the remote sensor.
#
Caution
Do not mix old and new batteries. Never mix
different types of batteries (standard, alkaline,
etc.).
5
Connection
Speaker System Connection
Connect the speaker cables to the speaker terminal.
RED
Front
speaker
(Right)
Front
speaker
(Left)
BLACK
Notes:
• Be sure to match the speaker cable to the appropriate terminal on the components: + to + and – to –.
If the cords are reversed, the sound will be distorted and will lack bass.
• If you use front speakers with low maximum input rating, adjust the volume carefully to avoid excessive output on the speaker.
• Connect the Left/Right speaker correctly. If it is reversed, the sound may be distorted.
Antenna (Aerial) Connection
Auxiliary Function
Connect the supplied FM/AM antennas for
radio reception.
Connect an auxiliary device such as a TV or VCR
via the rear mounted AUX connector and press
FUNCTION or AUX repeatedly to select AUX.
FM wire antenna (supplied)
AUX IN
Auxiliary Device
AM(MW)
loop antenna
(aerial) (supplied)
For AM(MW) reception,
connect the loop antenna
(aerial) to the terminal marked AM.
Notes:
• To prevent noise pickup, keep the AM loop
antenna away from the unit and other components.
• Be sure to fully extend the FM wire antenna.
• After connecting the FM wire antenna, keep it
as horizontal as possible.
6
To AUDIO out
Note:
Turn the unit off and then connect an auxiliary
device, or it may cause a noise.
MP3 Optimizer
Basic Operation
Headphone jack
Connect a headphone plug ( 3.5 mm) into the
jack to listen to the sound through headphones.
Connecting headphones (not supplied) will switch
off the speakers.
MUTE
Press MUTE to temporarily stop the sound.
The “ ” indicator flashes on display window.
To cancel it, press VOLUME ( / ) or MUTE
again.
DIMMER
This function is optimized for compressible MP3
files so that it improves the bass sound. Each
time you press XDSS plus the setting changes
in the following order.
XDSS ON → MP3 -- OPT ON → NORMAL
XTS Pro
This function creates the optimum sound for you
to play of the original sound. Each time you
press XTS Pro, “XTS -- PRO ON” or “XTS -PRO OFF” is displayed in turn.
Note:
The XTS Pro function will not be operated when
headphones have been connected.
Pressing DIMMER one time darkens or brightens
the display window.
Advanced Setting
RANDOM
1. Press CLOCK.
2. Select a 24 hour time system or a 12 hour
time system by pressing bb/BB on the front
panel.
3. Press SET to confirm the selected hour time
system.
4. Press bb/BB on the front panel to set the
correct hours then press SET.
5. Press bb/BB on the front panel to set the
correct minutes then press SET.
6. Press CLOCK at any time, to display the time
for about 5 seconds.
Note:
If you want to reset the clock, press and hold
CLOCK for more than 2 seconds.
Press RANDOM, play tracks/files in a random
order or cancel it.
DEMO
Press DEMO in power off state to demonstrate
the function on display window. To cancel it,
press POWER (1 /]] ) or DEMO again.
Sound Adjustment
EQUALIZER Effect
You can choose 7 fixed sound impressions and
adjust the BASS, MIDDLE and TREBLE.
- You can select a desired sound mode by using
EQ master.
NORMAL → USER EQ → POP → CLASSIC
→
→
→
→
JAZZ
DRAMA
ROCK
- Press EQ master to select USER EQ.
1. To enter the “USER EQ” setting mode, press
SET while “USER EQ” is displayed.
2. In USER EQ mode, press B[] or x on the
front panel repeatedly. Then you can select
the sound effect you want among BASS, MIDDLE or TREBLE.
3. When a menu you select is displayed, press
bb/BB on the front panel to set the sound
level MIN, -4 ~ +4, MAX steps.
- Then the sound level is displayed for a
moment and the setting completed.
4. Repeat the steps from 2 to 3 to set other
sound effect.
5. Press SET.
XDSS (eXtreme Dynamic Sound System)
Operation
Operation
Setting the Clock
Sleep Timer Function
When the sleep timer is used, the power is
automatically turned off after the specified time
has elapsed.
1. Press SLEEP to set the desired sleep time.
The SLEEP indicator and sleep time appear
on display window.
2. Press SLEEP once, the setting changes in the
following order.
SLEEP 180 → 150 → 120 → 90 → 80
→ 70 → 60 → 50 → 40 → 30 → 20 → 10
→ OFF (No display) → SLEEP 180 ...
Notes:
• If you press SLEEP while the sleep time is
displayed, the SLEEP time is reset.
• To stop the function, press the SLEEP repeatedly until “SLEEP 10” appears, and then press
SLEEP again.
Press XDSS plus to reinforce treble, bass and
the surround effect.
The “XDSS ON” or “NORMAL” indicator lights.
7
Timer Function
PORTABLE Function
With the TIMER function you can turn CD, USB
play and radio reception on or off at a desired
time.
1. Press CLOCK to check the current time.
(If you don’t set clock, the timer function doesn’t work.)
2. Press TIMER to enter the timer setting mode.
If you want to correct the previously memorized TIMER setting, press and hold TIMER for
more than 2 seconds.
- The previous memorized time and “ ” indicator appear on display window.
3. Each function (TUNER → CD → USB) flashes
on display window in turn. Press SET when
the desired function is flashing.
4. a. When you select the TUNER function,
select the previously memorized preset
number by pressing bb/BB on the front
panel and press SET.
b. When you select the CD or USB function,
- ‘ON TIME’ appears for about 0.5 seconds
on display window and then disappears.
5. Set the hour to switch on pressing bb/BB on
the front panel and press SET.
6. Set the minute to switch on pressing bb/BB
on the front panel and press SET.
- ‘OFF TIME’ appears for about 0.5 seconds
on display window and then disappears.
7. Refer to the steps 5 - 6 and set the hour/
minute to switch off.
8. Adjust the volume level by pressing bb/BB
on the front panel and press SET.
9. Switch the system off.
The selected function is automatically switched
on or off at the time set.
To cancel or check the timer
Each time TIMER is pressed, you can select the
timer set or cancel. You can also check the timer
setting status.
To activate or check the timer, press the TIMER
that “ ” appears on display window.
To cancel the TIMER, press TIMER, then “ ”
disappears on display window.
When you connect a portable music playing
device to the PORT. IN jack on this device by
using a 3.5mm mini stereo cable (not supplied),
you can hear the sound being outputted from the
portable device through the speaker.
Portable Device
PORT.IN
Headphone or Line out
1. Connect the PORT.IN jack on this device to a
headphone jack on another portable one by
using a cable.
2. Press FUNCTION or AUX repeatedly to select
PORTABLE function.
3. Start playing the connected portable device.
4. Adjust the volume by using VOLUME.
Note:
The “ 3.5mm mini stereo cable” is sold separately.
USB Function
You can enjoy MP3/WMA media files saved on
the MP3 player or USB memory device by connecting the device to the USB port of this unit.
USB Memory, MP3 Player
(or Memory Card Reader,
etc.)
Compatible Devices
1. Devices which require additional program
installation when you connect it to a computer,
are not supported.
2. MP3 Player : Flash type MP3 player.
• The MP3 player requiring installation of a driver
is not supported.
3. USB Flash Drive : Devices that support
USB2.0 or USB1.1.
8
1. Connect the USB device to the USB connector
of your unit.
2. Press USB to select USB function.
“CHECKING” appears on display window, and
then the total number of files is displayed.
3. Press B/[] (PLAY/PAUSE).
In addition, you can also play using the
NUMERIC buttons.
To Remove the USB from the unit
1. Press FUNCTION repeatedly to select other
modes.
2. Remove the USB from the unit.
Note:
Besides Basic Playback, if you want to operate
other functions, see the CD Playback section.
Moving to other cards
In case that more than two memory cards are
connected to the USB port, press D.SKIP on the
remote control to select a card you want to use.
Notes:
• Do not extract the USB device while in
operation.
• A back up demands to prevent a data damage.
• If you use a USB extension cable or USB hub,
the USB device might not be recognized.
• A device using NTFS file system is not
supported (Only the FAT (16/32) file system is
supported.).
• The USB function of this unit does not support
all USB devices.
• Digital camera and mobile phones are not
supported.
• This unit is not supported when the total
number of files is 1000 or more.
RADIO Function
Presetting the Radio Stations
You can preset 50 stations for FM and AM.
1. Press FUNCTION on the remote control or
TUNER on the front panel to select the frequency (AM or FM) you want.
2. Select a station you want by pressing TUN.-/+
on the remote control or TUNE.-/+ on the front
panel.
Tuning in automatically
- Press TUN.-/+ or TUNE.-/+ for more than 0.5
second. Scanning stops when the unit tunes
in a station.
Tuning in manually
- Press TUN.-/+ or TUNE.-/+ briefly and
repeatedly.
3. Press PROGRAM/MEMO on the remote control or PROG. on the front panel. A preset number will flash on display window.
4. Press PRESET/FOLDER ( / ) to select the
preset number you want.
5. Press PROGRAM/MEMO or PROG. again.
The station is stored.
6. Repeat the steps from 1 (or 2) to 5 to store
other stations.
To delete all of the memorized stations
Press and hold PROGRAM/MEMO or PROG. for
two seconds, “ERASE ALL” appears on display
window and then PROGRAM/MEMO or PROG.
again, the stations are deleted.
For your reference
If all stations have already been entered, “FULL”
message will appear for a moment and then a
preset number will flash. To change the preset
number, follow the steps 4 - 5.
To recall presets
Press and hold PRESET/FOLDER ( / ) until
the desired preset number appears or press it
repeatedly.
Operation
Basic Playback
Listening to the Radio
1. Press FUNCTION or TUNER to select the frequency (AM or FM) you want.
The last received station is tuned in.
2. Press PRESET/FOLDER ( / ) repeatedly
to select the preset station you want.
- Each time you press the button, the unit
tunes in one preset station at a time.
3. Adjust the volume by pressing VOLUME
( / ) on the remote control [or rotating the
VOLUME control knob] repeatedly.
To listen to non-preset radio stations
Refer to the sections “Presetting the Radio
Stations” on the left.
To turn off the radio
Press POWER (1 /]] ) to turn the unit off or select
another function mode (CD, USB, AUX,
PORTABLE).
For your reference
• If an FM program is noisy;
Press ST./MONO, then “STEREO” disappears
on display window. There will be no stereo
effect, but the reception will be improved. Press
ST./MONO again to restore the stereo effect.
• To improve reception;
Reposition the supplied antennas.
9
RDS Function - OPTIONAL
Programme Search (PTY)
About RDS
A major benefit of RDS is its ability to encode
broadcasts with Programme Type (PTY) codes
that indicate the type of material being broadcast. The following list shows the abbreviations
used to indicate each PTY along with an explanation of the PTY.
This unit is equipped with RDS (Radio Data
System), which brings a wide range of
information to FM radio. RDS, now in use in
many countries, is a system for transmitting
station call signs or network information, a
description of station programme type text
message about the station or specifics of musical
selection and the correct time.
RDS Tuning
When an FM station is tuned in and it contains
RDS data, the unit will automatically display the
station’s call sign and the RDS indicator will light
on Display Window as well as indicators for the
programme type recognition (PTY), Radio Text
(RT), Clock Time (CT) and RDS services programme (PS) if transmitted by the station.
RDS Display Options
The RDS system is capable of transmitting a
wide variety of information in addition to the initial
call sign that appears when a station is first
tuned. In normal RDS operation the display will
indicate the station name, broadcast network or
call letters. Pressing RDS on the remote control
enables you to cycle through the various data
types in the sequence:
(FREQUENCY → PTY → RT → CT → PS)
• PTY (Programme type recognition)
- The name of the programme type is shown on
Display Window.
• RT (Radio text recognition)
- The name of the radio text is shown on
Display Window.
• CT (Time controlled by the channel)
- Enables the unit to receive the actual time
and show it on Display Window.
• PS (Programme Service name)
- The name of the channel is shown on Display
Window.
Note:
Some RDS stations may not choose to include
some of these additional features. If the data
required for the selected mode is not being transmitted, the Display Window will show a PTY
NONE, RT NONE, CT NONE or PS NONE
message.
10
NEWS
AFFAIRS
INFO
SPORT
EDUCATE
DRAMA
CULTURE
SCIENCE
VARIED
POP M
ROCK M
EASY M
LIGHT M
CLASSICS
OTHER M
WEATHER
FINANCE
CHILDREN
SOCIAL
RELIGION
PHONE IN
TRAVEL
LEISURE
JAZZ
COUNTRY
NATION M
OLDIES
FOLK M
DOCUMENT
TEST
ALARM !
News
Current Affairs
Information
Sports
Educational
Drama
Culture
Science
Varied Speech Programme
Popular Music
Rock Music
Easy Listening Music
Light Music
Classical Music
Other Music
Weather Information
Financial Programmes
Children’s Programmes
Social Affairs Programmes
Religious Broadcasts
Phone-In Programmes
Travel and Touring
Leisure and Hobby
Jazz Music
Country Music
National Music
Oldies Music
Folk Music
Documentary Programmes
Station Alarm Test Message
Emergency Broadcast Information
You may search for a specific Programme Type
(PTY) by following these steps.
1. Press FUNCTION to select FM mode.
2. Press PTY, the display will show the last PTY
in use.
3. Press PTY repeatedly to select a desired PTY.
4. When the PTY is selected, press and hold
PTY SEARCH. The unit will go into an automatic search mode. When a station is tuned,
the search will stop.
Basic Playback
Audio CD or Program repeat play
→ REPEAT : To play one track/file repeatedly.
REPEAT ALL : To play one disc repeatedly.
Or
To play all program repeatedly.
OFF(No display) :To cancel repeat play.
MP3/WMA/USB
→ REPEAT
: To play one file repeatedly.
→
REPEAT
: To play one folder repeatedly.
→
REPEAT ALL : To play all files repeatedly.
→
You can arrange the order of the tracks on a disc
(the MP3/WMA files on a USB) in the way you
want and create your own program.
The program can contain up to 20 tracks (files).
1. Press PROGRAM/MEMO on the remote control (or PROG. on the front panel) in stop
mode.
2. Press .bb/BB> to select the tracks
(files).
3. Press PROGRAM/MEMO or PROG..
4. Repeat the steps 1 - 3 above.
5. Press B/[] (PLAY/PAUSE).
To check the program contents
Press PROGRAM/MEMO or PROG. in stop
mode.
- A track and program number will be displayed.
Press REPEAT repeatedly during playback.
→
To Program Play
Repeat
→
1. Press FUNCTION to select the CD function.
If no disc is loaded then “NO DISC” is displayed.
2. Press CD Z and place the disc into the disc
tray.
Note:
To load an 8cm (3 inch) disc, put it onto the inner
circle of the tray.
3. Press CD Z to close the disc compartment.
4. Press B/[] (PLAY/PAUSE). You can also play
an Audio CD or MP3/WMA CD using the
NUMERIC buttons.
Pause
Press B/[] (PLAY/PAUSE) during playback.
Press this button again to resume play.
Stop
Press x (STOP) during playback.
Searching a Track
Hold .bb/BB> on the remote control (or
bb/BB on the front panel) during playback, then
release at the point you want.
Note:
This function is only available for Audio CD’s.
Skipping a Track
• Press BB> to go to the next track.
• When the .bb is pressed once midway
through a track, the player returns to the beginning of that track. When it is pressed again, a
track is skipped each time the button is
pressed.
To clear program contents
Press PROGRAM/MEMO or PROG. in stop
mode. And then press x (STOP).
To add program contents
1. Press PROGRAM/MEMO or PROG. repeatedly in the program stop mode until the Track
Number blinks.
2. Repeat the steps 2 - 3 above.
To modify program contents
1. Press PROGRAM/MEMO or PROG. to display
the program number you want to modify.
2. Repeat the steps 2 - 3 above.
Operation
CD Function
OFF(No display) :To cancel repeat play.
To check MP3/WMA file information
Press MP3 Info during MP3/WMA file playback.
- The information (Time information, Folder and
File name, Title, Artist, Album or Disk no) of the
MP3/WMA file will be shown on display
window.
- If there is no information of the MP3/WMA file,
“NO ID3 TAG” or “NO WMA TAG” indicator will
be shown in the display window.
Note:
This unit can play a CD-R or CD-RW that
contains audio titles or MP3/WMA files.
MP3/WMA file folder function
Press PRESET/FOLDER ( / ) on the remote
control to select the folder you want.
Note:
This applies in the case when there are several
folders containing MP3/WMA files.
11
Reference
Troubleshooting
Symptom
Cause
• The power cord is disconnected.
Correction
• Plug the power cord into the wall outlet
No power
securely.
• The power of the external source
• Switch on the external source
equipment is turned off.
equipment.
No sound
• The speaker cable is inserted into the
• Insert the speaker cable in to the corwrong socket.
rect socket, then turn on the unit again
by pressing POWER.
• An unplayable disc is inserted.
• Insert a playable disc.
• The disc is placed upside down.
• Place the disc with the playback side
The unit does not
down.
start playback • The disc is not placed within the guide. • Place the disc on the disc tray correctly
inside the guide.
• The disc is dirty.
• Clean the disc.
• The remote control is not pointed at the • Point the remote control at the remote
remote sensor of the unit.
sensor of the unit.
• The remote control is too far from the
• Operate the remote control within about
The remote
unit.
23 ft (7 m).
control does not
• There is an obstacle in the path of the • Remove the obstacle.
work properly
remote control and the unit.
• The batteries in the remote control are • Replace the batteries with new ones.
exhausted.
Specifications
General
Power supply
Power consumption
Net Weight
External dimensions (WxHxD)
Tuner
FM
Tuning Range
Intermediate Frequency
Signal to Noise Ratio
Frequency Response
AM
Tuning Range
Intermediate Frequency
Signal to Noise Ratio
Frequency Response
Amplifier
Output Power
T.H.D
Frequency Response
Signal-to-noise ratio
CD
Frequency response
Signal-to-noise ratio
Dynamic range
Speakers
Type
Impedance
Frequency Response
Sound Pressure Level
Rated Input Power
Max. Input Power
Net Dimensions (WxHxD)
Net Weight (1EA)
Refer to the back panel of the unit.
Refer to the back panel of the unit.
3.0 kg
174 x 245 x 278 mm
87.5 - 108.0 MHz or 65 - 74 MHz, 87.5 - 108.0 MHz
10.7 MHz
60/55 dB (MONO/STEREO)
50 - 10000 Hz
522 - 1620 kHz or 520 - 1720 kHz
450 kHz
30 dB
140 - 1800Hz
50 W + 50 W
0.5 %
40 - 20000 Hz
75 dB
40 - 20000 Hz
75 dB
75 dB
2 Way 2 Speaker
4Ω
80 - 20000 Hz
82 dB/W (1m)
50 W
100 W
160 x 243 x 174 mm
2.02 kg
Designs and specifications are subject to change without notice.
P/NO : MFL38289115
Download PDF

advertising
