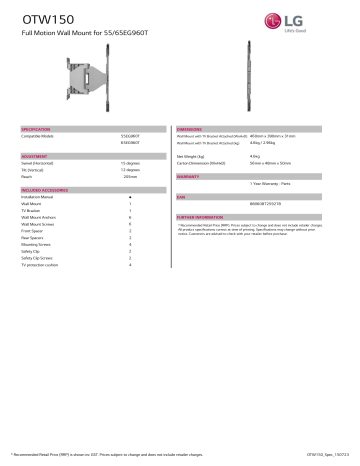

LG | OTW150 | Specification | LG OTW150 Specification

LG OTW150 Specification
OTW150
Full Motion Wall Mount for 55/65EG960T
SPECIFICATION
Compatible Models
DIMENSIONS
55EG960T
Wall Mount with TV Bracket Attached (WxHxD) 460mm x 390mm x 31mm
65EG960T
Wall Mount with TV Bracket Attached (kg)
4.6kg / 2.96kg
Net Weight (kg)
4.6kg
Carton Dimnension (WxHxD)
56mm x 48mm x 50mm
ADJUSTMENT
Swivel (Horizontal)
15 degrees
Tilt (Vertical)
12 degrees
Reach
205mm
WARRANTY
1 Year Warranty - Parts
INCLUDED ACCESSORIES
Installation Manual
●
Wall Mount
1
TV Bracket
1
Wall Mount Anchors
6
Wall Mount Screws
6
Front Spacer
2
Rear Spacers
2
Mounting Screws
4
Safety Clip
2
Safety Clip Screws
2
TV protection cushion
4
EAN
8806087259278
FURTHER INFORMATION
^ Recommended Retail Price (RRP). Prices subject to change and does not include retailer charges.
All product specifications correct at time of printing. Specifications may change without prior
notice. Customers are advised to check with your retailer before purchase.
^ Recommended Retail Price (RRP) is shown inc GST. Prices subject to change and does not include retailer charges.
OTW150_Spec_150723
Wall
Mounting
Elegance
OTW150
Full Motion Wall Mount for 55/65EG960T
Design
Hanging style
Adjustment
Swivel
Tilt
Extension
Compatible Models
55EG960T
65EG960T
Launch Details
Available: July 2015
RRP^: $149
Display your OLED TV with elegance and functionality
Display your OLED TV on your home wall, with elegance and
functionality. Our tailor made wall bracket is only 31mm thin, so it
impressively displays the slim design of LG OLED TVs.
Need to access the inputs, or want to adjust the angle of the TV?
Easy! Our full motion design allows for up to 15 degree Swivel and
12 degree Tilt, so adjustment is simple and convenient.
^ Recommended Retail Price (RRP) is shown inc GST. Prices subject to change and does not include retailer charges.
OTW150_Spec_150723
