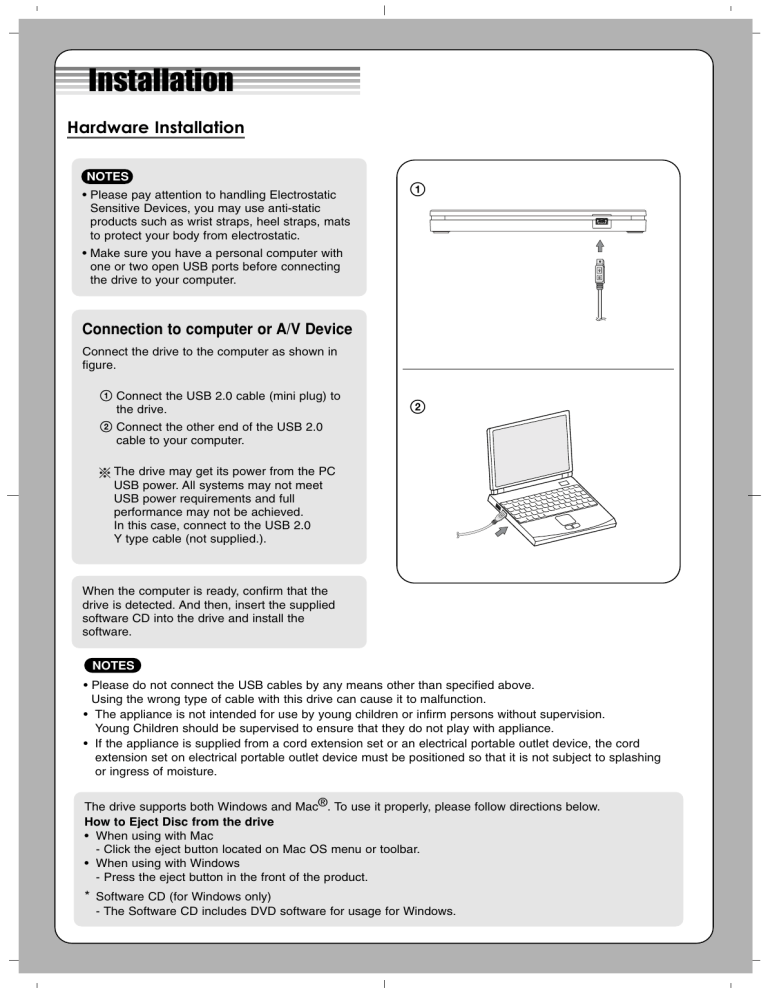

Installation
Hardware Installation
NOTES
• Please pay attention to handling Electrostatic
Sensitive Devices, you may use anti-static
products such as wrist straps, heel straps, mats
to protect your body from electrostatic.
1
• Make sure you have a personal computer with
one or two open USB ports before connecting
the drive to your computer.
Connection to computer or A/V Device
Connect the drive to the computer as shown in
figure.
1 Connect the USB 2.0 cable (mini plug) to
the drive.
2
2 Connect the other end of the USB 2.0
cable to your computer.
The drive may get its power from the PC
USB power. All systems may not meet
USB power requirements and full
performance may not be achieved.
In this case, connect to the USB 2.0
Y type cable (not supplied.).
When the computer is ready, confirm that the
drive is detected. And then, insert the supplied
software CD into the drive and install the
software.
NOTES
• Please do not connect the USB cables by any means other than specified above.
Using the wrong type of cable with this drive can cause it to malfunction.
• The appliance is not intended for use by young children or infirm persons without supervision.
Young Children should be supervised to ensure that they do not play with appliance.
• If the appliance is supplied from a cord extension set or an electrical portable outlet device, the cord
extension set on electrical portable outlet device must be positioned so that it is not subject to splashing
or ingress of moisture.
The drive supports both Windows and Mac®. To use it properly, please follow directions below.
How to Eject Disc from the drive
• When using with Mac
- Click the eject button located on Mac OS menu or toolbar.
• When using with Windows
- Press the eject button in the front of the product.
* Software CD (for Windows only)
- The Software CD includes DVD software for usage for Windows.
Location and function of controls
This following is the general figure of the design of the drive.
The drive’s appearance and specifications may change without prior notice.
Front
1. Eject Button
2. Drive activity indicator
3. Disc Slot
Insert the disc, label-side up, about
quarter-way into the drive slot till a slight
resistance is felt. Gently push the disc further
into the drive slot until the drive mechanism is
heard to engage and draw in the disc.
1 2
3
Rear
1. USB Connector (mini)
This connector is used to connect to the USB
2.0 cable.
1
What is TV Connectivity?
TV Connectivity is a function that allows you to
enjoy videos, pictures and music by connecting
this product to a compatible A/V device (e.g.
DIGITAL TV, DIGITAL PHOTO FRAME, PC)
that supports USB connectivity.
How to Use TV Connectivity
* This product is defaulted to ODD mode when it is powered on.
1 Without the disc, press and hold the ‘Eject’ button for 2 seconds.
(The LED indicator will turn on, switching to TV mode. Press and hold the button again
for 2 seconds to return to ODD mode.)
2 Insert your supported media into the drive.
The disc file system will be converted to FAT32 and will be recognized as USB flash memory.
3 Select and play the files from your A/V device to enjoy videos, pictures and music.
Refer to your A/V device owner’s manual for more information.
NOTES
• Normal operation is not guaranteed if you use a USB hub or unspecified USB extension cables.
• Due to compatibility issue of some AV devices and disc, may not work.
Quick Set-up Guide
Slim Portable DVD Writer
GP70
To install of your product, please read this guide manual carefully and completely.
Features
System Environment
•
•
•
•
Computer
Universal Serial Bus (USB) 2.0 interface for high-speed data transfer.
Buffer Under Run error protection technology
Slot loading with powered disc pull-in and eject mechanism
Combination of CD-R/RW, DVD-R/RW, DVD+R/RW, DVD+R DL, DVD-R
DL, M-Disc (DVD+R SL) and DVD-RAM drive functions into one drive.
Supports region playback control Phase II.
PC USB powered, no AC adapter needed.
Supports TV Connectivity
•
•
•
Package Items
Item
- Slim Portable DVD Writer
- USB 2.0 cable
- Software Installation disc (for Windows only)
- Quick Guide for Drive
Quantity
1
1
1
1
This unit can be operated in the system environment explained here.
System
requirements
CPU
Memory
Hard disk
Video Memory
Interface
CD-ROM drive
Software Required OS
CD-R, CD-RW,
DVD-R, DVD-RW,
DVD+R, DVD+RW,
DVD-RAM,
DVD±R DL discs
Cautions
System meeting the following requirements is needed in order to use USB 2.0
operation with this drive.
• Computer that is equipped with a USB 2.0 – compliant USB connector or PCI adapter
•
•
card, and on which the USB 2.0 EHCI (Enhanced Host Controller Interface) driver
software 1) has been installed.
1) The USB 2.0 EHCI driver software is supplied with currently available PCI adapter
cards that conform to USB 2.0. Further, Microsoft has released the USB 2.0 EHCI driver
software for Windows XP, therefore it is also possible to use this driver software with
Windows XP SP3.
If you want to know in detail, please contact your USB 2.0 adapter dealer or
consult your PC manufacturer, or consult the Microsoft Corporation Web site.
Under Windows 8 operating system, a specific mainboard with nVidia GeForce 7025
Chipset may cause an abnormal operation.
Under Mac 10.8.x operating system, built-in DVD Player may not support the USB Drive.
Pentium IV 2.4 GHz or Higher(with USB 2.0) for basic
performance (Recommended for optimal performance:
Pentium IV 3.2 GHz or Higher).
256 MB or larger (Recommended: 512 MB).
20 GB or more free space. (The free space needed for writing
depends on the quantity of data.)
64 MB (Recommended: 128 MB).
USB 2.0 port
For Software installation
Windows 8/Windows 7/Windows Vista (32 bit, 64 bit)/
Windows XP SP3, Mac OS X v.10.5.4 or Higher, Direct X 9.0 or Higher
CD-R : LG, Mitsubishi Kagaku Media, Verbatim, That’s, TDK,
Ritek or HP discs are recommended.
CD-RW : LG, Mitsubishi Kagaku Media, Verbatim are
recommended.
DVD-R : Mitsubishi Kagaku Media, Maxell, That’s are
recommended.
DVD-RW : Victor. JVC, Mitsubishi Kagaku Media, TDK are
recommended.
DVD+R : Mitsubishi Kagaku Media, That’s, Maxell are
recommended.
DVD+RW : TDK, Mitsubishi Kagaku Media, Ricoh are
recommended.
DVD-RAM : Maxell, Mitsubishi Kagaku Media are recommended.
M-Disc (DVD+R SL) : Millenniata
DVD±R DL : Mitsubishi Kagaku Media, Verbatim are
recommended.
* For Windows 8/Windows 7/ Windows Vista, 1 GB of RAM or large is recommended.
* Compatibility problem in write/read function may occur with some media depending
on the media manufacturing quality.
* To achieve maximum Record & Write speed your system may require data to be
copied first to the computer’s hard drive rather than directly from another source disc
or drive.
* Please visit http://www.m-disc.com to learn more about the M-DISCTM.
Specifications
Supported Discs
Dise Diameter
DVD-ROM(Single/Dual), DVD-RW, DVD-R,
DVD+RW, DVD+R, DVD+R Double layer, DVD-R
Dual layer, DVD- RAM, M-Disc (DVD+R SL), CDDigital Audio & CD-Extra, CD-Plus, CD-ROM, CDROM XA-Ready, CD-I FMV, CD-TEXT, CD-Bridge,
CD-R, CD-RW, Photo-CD (Single & Multi-Session),
Video CD, DVD-VIDEO
120 mm only
(80 mm disc and non-circular disc are not supported.)
USB 2.0
Interface
Read/Write Speed
Write : DVD-R: 2x, 4x, 8x
DVD-R DL: 2x, 4x, 6x
DVD-RW: 2x, 4x, 6x
DVD-RAM: 2x, 3x, 5x (Ver. 2.2)
M-Disc (DVD+R SL): 4x
DVD+R: 2.4x, 4x, 8x
DVD+R DL: 2.4x, 4x, 6x
DVD+RW: 2.4x, 4x, 8x
CD-R: 10x, 16x, 24x
CD-RW: 4x, 10x, 16x, 24x
Read : DVD-R/RW/ROM: 8x/8x/8x max.
DVD-R DL: 8x max.
DVD-RAM (Ver.2.2): 6x max.
M-Disc (DVD+R SL): 8x max.
DVD-Video (CSS Compliant Disc): 4x max.
DVD+R/+RW: 8x/8x max.
DVD+R DL: 8x max.
CD-R/RW/ROM: 24x/24x/24x max.
CD-DA (DAE): 24x max.
Data transfer rate
Sustained
CD-ROM : 3,600 kB/s (24x max)
DVD-ROM : 11.08 MB/s (8x max)
CD-ROM : 140 ms (Typical)
DVD-ROM : 160 ms (Typical)
DVD-RAM : 200 ms (Typical)
Buffer capacity
0.75 MB
MTBF
60,000 Power On Hours (Duty Cycle 10 %)
Power Requirement 5 V DC
Operating Environment
Temperature
5 °C to 40 °C
Humidity
15 % to 85 %
Storage Environment
Temperature
-30 °C to 60 °C
Humidity
10 % to 90 % RH
Average Access
Time (1/3 Stroke)
Software
Install the appropriate CD Recording Authoring Software before using this unit.
* Please uninstall any previous CD burning software you may have loaded on
your PC in order to prevent possible compatibility issues.
Once you have installed the application software, you may (if you wish) begin to
reinstall previous software, taking note for errors. We recommend using the drive
with the latest software as some problems encountered when using the drive can
be solved by updating the software.
❋ The drive’s appearance and specifications may change without prior notice.
- The maximum data transfer rate varies according to the performance
capabilities of the PC.
- For the sake of periodic improvements, specifications and appearance are
subject to change without notice.
- We have taken all possible measures to assure the quality of our products,
but we cannot be responsible for the consequences if defect occurs.
Please visit www.lgservice.com and install the program,
“LG ODD Online F/W update.” By using the program,
you can automatically check the latest information about FirmWares and
update the FirmWare.
Worldwide support ; http://www.LGservice.com
Worldwide corporate site : http://www.LG.com
Safety Instructions
PERICOLO : Il dispositivo di lettura e scrittura utilizzato in questo
masterizzatore utilizza un raggio laser che, se osservato da vicino, può
danneggiare la vista. Evitare di smontare il coperchio dell’apparecchio.
Al fine di prevenire eventuali folgorazioni, evitare di smontare
l’apparecchio. All’interno dell’apparecchio non sono presenti parti che
richiedono manutenzione da parte dell’utente. In caso di difetti o
guasti, rivolgersi ad un Centro di Assistenza Tecnica. L’esecuzione di
procedure diverse da quella espressamente indicate in questo
manuale può provocare pericolose esposizioni alle radiazioni laser.
ATTENZIONE: Al fine di evitare cortocircuiti o principi di incendio,
evitare di esporre questo apparecchio alla pioggia o ad una eccessiva
umidità ambientale.
CAUTION: The laser used in the Drive can damage your eyes. Do not
attempt to open the cover. To reduce the risk of electric shock, do not
remove the cover (or back).
There are no user-serviceable parts inside. Refer servicing to qualified
service personnel. Use of controls or performance of procedures other
than those specified herein may result in hazardous radiation exposure.
WARNING: To reduce the risk of fire or electric shock, do not expose
this appliance to rain or moisture.
VORSICHT : Der in diesem Laufwerk benutzte Laser kann Ihre Augen
schädigen. Versuchen Sie keinesfalls, die Abdeckung zu öffnen. Um
die Gefahr eines elektrischen Schocks zu reduzieren, sollten Sie die
Abdeckung (oder Rückseite) keinesfalls entfernen. Im Inneren des
Geräts befinden sich keine Teile, die vom Benutzer selbst gewartet
werden können. Überlassen Sie die Wartung qualifizierten
Kundendiensttechnikern. Beachten Sie bei der Benutzung von
Bedienelementen und der Durchführung von Prozeduren
unbedingt die Anweisungen dieses Handbuchs, da andernfalls
gefährliche Strahlung freigesetzt werden kann.
PRECAUCION: El láser utilizado en la unidad puede dañar sus ojos.
No intente abrir la tapa. Para reducir el riesgo de descarga eléctrica,
no quite la tapa (ni la parte posterior).
No hay piezas internas que deba mantener el usuario.
El servicio de mantenimiento debe efectuarlo personal técnico cualificado.
El uso de controles o la ejecución de procedimientos distintos de los
especificados en este manual pueden ser causa de exposición a
radiación peligrosa.
WARNUNG : Setzen Sie das Laufwerk keinesfalls Regen oder
Feuchtigkeit aus, um die Gefahr eines Brandes oder elektrischen
Schocks zu reduzieren.
ADVERTENCIA: Para reducir el riesgo de fuego o descarga eléctrica,
no exponga este aparato a la lluvia ni a la humedad.
ATTENTION: l'exposition au laser utilisé dans le graveur présente un
danger pour les yeux. N'essayez pas d'ouvrir le capot.
Afin de réduire les risques de chocs électriques, ne retirez pas le capot
(ni l'arrière du dispositif). Aucune pièce interne ne peut être remplacée par
l'utilisateur. Pour la maintenance de l'appareil, adressez-vous au personnel
qualifié du service de maintenance. L'utilisation de commandes ou de
procédures différentes de celles spécifiées ci-après peut entraîner une
exposition à des rayons dangereux.
CUIDADO: O laser utilizado na unidade pode causar lesões oculares.
Não tente abrir a tampa. Para reduzir o risco de choques eléctricos, não
retire a tampa (quer frontal quer superior).
A unidade não contém peças que possam ser reparadas pelo utilizador.
Deixe a manutenção para um técnico da assistência qualificado.
A utilização de controlos ou a execução de procedimentos que não
sejam os especificados neste manual podem causar a exposição a
radiações perigosas.
AVERTISSEMENT :Ne pas exposer ce matériel à la pluie ou à
l’humidité (risques d’incendie et d’électrocution).
AVISO: Para reduzir o risco de incêndio ou choque elétrico não
exponha este aparelho á chuva ou humidade.
EU Conformity Notice
FCC COMPLIANCE STATEMENT
LG Electronics hereby declares that this/these product(s) is/are
in compliance with the essential requirements and other relevant
provisions of Directive 2004/108/EC, 2006/95/EC, 2009/125/EC
and 2011/65/EU.
European representative :
LG Electronics Inc. - EU Representative
Krijgsman 1, 1186 DM Amstelveen
The Netherlands
CLASS 1
KLASSE 1
LUOKAN 1
KLASS 1
CLASE 1
CLASSE 1
LASER PRODUCT
LASER PRODUKT
LASER LAITE
LASER APPARAT
PRODUCTO LÁSER
PRODOTTO LASER
CAUTION : CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN
AND INTERLOCKS DEFEATED.AVOID EXPOSURE TO THE BEAM.
ADVARSEL : KLASSE 3B SYNLIG OG USYNLIG LASERSTRÅLING I ÅBEN TILSTAND
OG VED AFBRUDT LÅSEFUNKTION. UNDGÅ AT BLIVE RAMT AF LASERSTRÅLEN.
VARO! : LUOKKA 3B AVATTAESSA JA KUMOTTAESSA LUKITUS NÄKYVÄÄ JA
NÄKYMÄTÖNTÄ LASERSÄTEILYÄ. VÄLTÄ LASERSÄTEILLE ALTISTUMISTA.
ATTENTION : CLASSE 3B RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS
D’OUVERTURE ET ENCLENCHEMENTS DEFECTUEUX, EVITER L'EXPOSITION
AU FAISCEAU.
VORSICHT : SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG DER KLASSE
3B WENN ABDECKUNG GEÖFFNET UND SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT VERMEIDEN SIE ES, SICH DEM STRAHL AUSZUSETZEN.
ADVARSEL : KLASSE 3B SYNLIG OG USYNLIG LASERSTRÅLING NÅR ÅPNES
OG LÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN.
VARNING : KLASS 3B SYNLIG OCH OSYNLIG LASERSTRÅLNING FÖREKOMMER
NÄR OCH MELLANLÅSET FÖRSTÖRS. UNDVIK EXPONERING UNDER STRÅLEN.
Note : This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an Authorized Service Center for help.
• FCC WARNING
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
• This Drive is for use only with UL listed personal computers that have
installation instructions detailing user-installation of card cage accessory.
■
Microsoft® and Windows® are trademarks registered in the United
States and other countries by the Microsoft Corporation.
■
The company names and product names written in this manual are
trademarks or registered trademarks of the respective companies.
Download PDF

advertising
