ENGLISH

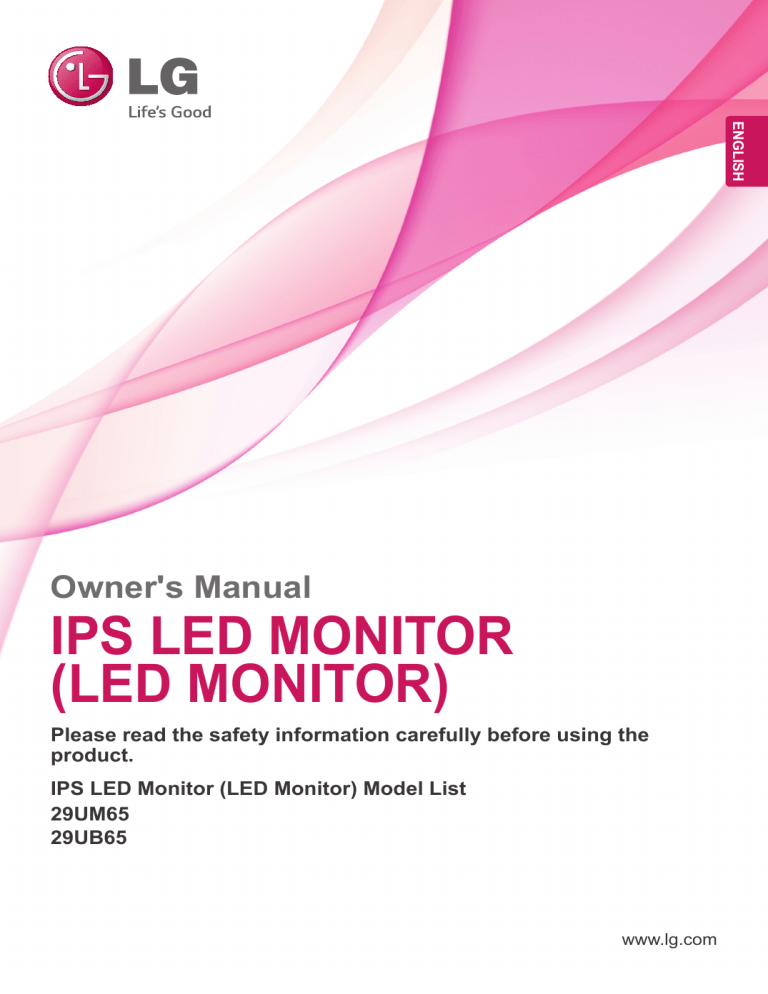

Owner's Manual
IPS LED MONITOR
(LED MONITOR)
Please read the safety information carefully before using the
product.
IPS LED Monitor (LED Monitor) Model List
29UM65
29UB65
www.lg.com
2
Contents
ENGLISH
ENG
CONTENTS
3
4
LICENSE
ASSEMBLING AND
PREPARING
4
Product Components
5
Component and Button Description
7
Moving and Lifting the Monitor
8
Installing the Monitor
8
- Assembling the stand base
9
- Using the cable holder
10
- Detaching the stand base
12
- Installing onto a table
13
- Adjusting the stand height
14
- Adjusting the angle
15
- Pivot feature
16
- Using the Kensington lock
16
- Installing the wall mount plate
17
- Installing to a wall
18
USING THE MONITOR
18
Connecting to a PC
18
- DVI connection
19
- DisplayPort connection
19
- HDMI connection
20
Connecting to AV Devices
20
- HDMI connection
21
Connecting to External Devices
21
- Headphone port connection
22 INSTALLING LG MONITOR
SOFTWARE
24 CUSTOMIZING SETTINGS
24
Activating the Main Menu
25
Customizing settings
25
- Menu Settings
25
- -Easy control
26
- -Function
27
- -PBP
28
- -Screen
29
- -Settings
30
- -Reset
31
- Reader Settings
32 TROUBLESHOOTING
34 SPECIFICATIONS
35
Factory support mode
(Preset Mode, DVI-D/HDMI/PC
DisplayPort)
35
HDMI Timing (Video)
35
Power Indicator
36 PROPER POSTURE
36
Proper Posture for Using the Monitor
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
VESA, VESA logo, Display Port Compliance Logo and Display Port
Compliance Logo for dual-mode source are all registered trademarks of the
Video Electronics Standards Association.
ENG
ENGLISH
LICENSE
3
4
ASSEMBLING AND PREPARING
ENGLISH
ENG
ASSEMBLING AND PREPARING
Product Components
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
User Manual/Card
Power Cord
AC/DC Adapter
29UB65
OPTIONAL ACCESSORIES
Display Port Cable
y yThe DisplayPort cable may not
be available in some areas.
HDMI Cable
DVI-D Dual Cable
Stand Base
(This cable is not included in all
countries.)
29UM65
(Black)
(Sliver)
Stand Base
Stand Body
Cable Holder
Screws
CAUTION
Always use genuine components to ensure safety and product performance.
yy
The product warranty will not cover damage or injury caused by the use of counterfeit components.
yy
NOTE
Note that the components may look different from those shown here.
yy
Without prior notice, all information and specifications in this manual are subject to change to imyy
prove the performance of the product.
To purchase optional accessories, visit an electronics store or online shopping site or contact the
yy
retail store where you purchased the product.
The DisplayPort cable may not be available in some areas.
yy
ASSEMBLING AND PREPARING
5
Component and Button Description
ENG
ENGLISH
29UM65
Power Indicator
y yOn: power is on
y yOff: power is off
(Power Button)
Ports
6
ASSEMBLING AND PREPARING
29UB65
ENGLISH
ENG
Power Indicator
y yOn: power is on
y yOff: power is off
(Power Button)
Ports
ASSEMBLING AND PREPARING
Moving and Lifting the Monitor
It is advisable to place the monitor in the
yy
original box or packing material before attempting to move it.
Before moving or lifting the monitor, disconyy
nect the power cord and all cables.
Hold the top and bottom of the monitor frame
yy
firmly. Do not hold the panel itself.
CAUTION
As far as possible, avoid touching the moniyy
tor screen. This may result in damage to the
screen or some of the pixels used to create
images.
29UM65
29UB65
When holding the monitor, the screen should
yy
face away from you to prevent it being
scratched.
If you use the monitor panel without the
yy
stand base, its joystick button may cause
the monitor to become unstable and fall,
resulting in damage to the monitor or human
injury. In addition, this may cause the joystick
button to malfunction.
When moving the monitor, avoid any strong
yy
shock or vibrations to the product.
When moving the monitor, keep it upright,
yy
never turn the monitor on its side or tilt it
sideways.
ENG
ENGLISH
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe transportation regardless of its shape or size.
7
8
ASSEMBLING AND PREPARING
Installing the Monitor
4 Tighten two screws into the back of the stand
body .
ENGLISH
ENG
Assembling the stand base
29UM65
1 Place the screen face down.
CAUTION
To protect the screen from scratches, cover
yy
the surface with a soft cloth.
2 First, please insert Stand Body to Stand Base, (Black)
Then tighten two screws into the back of the
stand base.
Stand Body
120 mm
Or
(Black)
Stand Base
100 mm
CAUTION
(Silver)
Applying excessive force when tightening
the screws may cause damage to the monitor. Damage caused in this way will not be
covered by the product warranty.
3 Check the direction of the standbody
(front, back) and then mount thestand body
onto the stand hinge.
CAUTION
It may hurt your foot off the stand, so be
careful.
Stand Hinge
Stand Body
ASSEMBLING AND PREPARING
29UB65
CAUTION
To protect the screen from scratches, cover
yy
the surface with a soft cloth.
Using the cable holder
29UM65
1 First, as shown in the illustration,push the
cable holder on the stand body, Second ,Fix
the cable holder to stand body.
2 Insert the stand base into the hook of the
stand body.
CAUTION
It may hurt your foot off the stand, so be
careful.
Stand Base
Stand Body
3 Fix by turning the screw to the right with a coin.
Stand Body
2 Put the cables into the cable holder.
ENG
ENGLISH
1 Place the screen face down.
9
10
ASSEMBLING AND PREPARING
Detaching the stand base
4 Remove the two screws from the Stand Base.
ENGLISH
ENG
29UM65
Remove the Stand Base from the Stand Body.
Stand Body
1 Place the screen face down.
CAUTION
To protect the screen from scratches, cover
yy
the surface with a soft cloth.
Stand Base
2 First, press the the cable holder as shown in
the illustration, Second ,Remove the cable
holder from the stand body.
(Silver)
Stand Body
3 Remove the two screws on the back of stand
body. As shown in the illustration, disconnect the
stand body from the stand hinge.
Stand Hinge
Stand Body
(Black)
or
(Black)
CAUTION
Illustrations in this document represent typiyy
cal procedures, so they may look different
from the actual product.
Do not carry the monitor upside down by just
yy
holding the stand base. This may cause the
monitor to fall off the stand and could result
in personal injury.
When lifting or moving the monitor, do not
yy
touch the monitor screen. Applying force or
pressure may damage the monitor screen.
Instead, hold the stand body or the plastic
frame of the product.
ASSEMBLING AND PREPARING
11
3 Remove the two screws from the stand body.
29UB65
Stand Body
CAUTION
To protect the screen from scratches, cover
yy
the surface with a soft cloth.
2
1 Turn the screw to the left using a coin.
2 Detach the stand base.
Stand Body
CAUTION
The components in the illustrations may difyy
fer from the actual product.
Do not carry the monitor upside down, as this
yy
may cause it to fall off its stand and result in
damage or injury.
To avoid damaging the screen when lifting
yy
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnecessary pressure on the screen.
Stand Base
ENG
ENGLISH
1 Place the screen face down.
12
ASSEMBLING AND PREPARING
Installing onto a table
2 Connect the adapter to the monitor, then plug
ENGLISH
ENG
the power cord into the power outlet.
1 Lift the monitor and place it on the table in an
upright position.
Place at least 10 cm away from the wall to
ensure sufficient ventilation.
29UM65
29UM65
10 cm
10 cm
10 cm
10 cm
29UB65
29UB65
3 Press the
10 cm
10 cm
10 cm
10 cm
(Power) button on the bottom of
the monitor to turn it on.
CAUTION
Unplug the power cord prior to moving or
yy
installing the monitor. There is risk of electric
shock.
ASSEMBLING AND PREPARING
Adjusting the stand height
13
3 The height can be adjusted up to 110.0 mm.
29UB65
1 Stand the monitor assembled with the stand
base in an upright position
2 Remove the tape attached to the bottom
back of the stand body and then pull out the
locking pin while pressing the head downward.
CAUTION
Once the pin is removed, it is not necessary
yy
to re-insert it to adjust the height.
Stand Body
Tape
Locking Pin
WARNING
Do not put your fingers or
yy
hand between the screen
and the base (chassis) when
adjusting the screen's height.
Head
Locking pin
ENG
ENGLISH
110.0 mm
14
ASSEMBLING AND PREPARING
Adjusting the angle
WARNING
ENGLISH
ENG
1 Place the monitor in an upright position, mounted on the stand base.
2 Adjust the angle of the screen. The angle of the
screen can be adjusted forwards or backwards
for a comfortable viewing experience.
29UM65
Rear Side
20
To avoid injury to the fingers when adjusting
yy
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
29UM65
20
-5
Front Side
29UB65
2
29UB65
Be careful not to touch or press the screen
yy
area when adjusting the angle of the monitor.
29UM65
Rear Side
Front Side
29UB65
ASSEMBLING AND PREPARING
15
3 Rotate the monitor clockwise as shown in the
29UB65
Pivot feature
The pivot feature allows the monitor to rotate 90
clockwise.
Head
4 Complete the installation by rotating the
monitor 90° as shown below.
Stand
WARNING
To avoid scratching the stand base, make
yy
sure that when rotating the monitor using
the pivot feature, the stand does not make
contact with the monitor.
1 Raise the monitor up to the maximum height.
WARNING
Take care when rotating the monitor if the
yy
cable is connected.
NOTE
An image displayed on the monitor's screen
yy
does not rotate according to the screen
orientation.
2 Adjust the angle of the monitor in the direction
of the arrow as shown in the figure.
ENG
ENGLISH
figure.
16
ASSEMBLING AND PREPARING
ENGLISH
ENG
Using the Kensington lock
Installing the wall mount plate
The Kensington security system connector is located at the back of the Monitor set.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
This monitor supports the specification of the standard wall mount plate or compatible device.
Connect the Kensington security system cable
between the Monitor set and a table.
1 Place the screen face down. To protect the
screen from scratches, cover the surface with a
soft cloth.
2 Place the wall mount plate onto the monitor
and align it with the screw holes.
3 Using a screwdriver, tighten the four screws to
29UM65
fix the plate onto the monitor.
Wall Mount Plate
29UB65
NOTE
The wall mount plate is sold separately.
yy
For more information on installation, refer to
yy
the wall mount plate's installation guide.
Be careful not to use excessive force when
yy
mounting the wall mount plate, as this can
damage the monitor's screen.
NOTE
Use of the Kensingtonlock is optional.
yy
The accessories can be purchased at
your local electronics store.
ASSEMBLING AND PREPARING
Installing to a wall
10 cm
10 cm
10 cm
10 cm
To install the monitor to a wall, attach a wall mounting bracket (optional) to the back of the monitor.
Make sure that the wall mounting bracket is securely
fixed to the monitor and to the wall.
1 Use the screws and wall mounting bracket that
comply with the VESA standard.
2 Screws which are longer than the standard
length may damage the inside of the monitor.
3 A non-VESA standard screw may damage the
product and cause the monitor to fall. LG Electronics is not liable for any accidents relating to
the use of non-standard screws.
4 VESA compatible only with respect to screw
mounting interface dimensions and mounting
screw specifications
5 Use it according to the VESA standard as specified below.
y y784.8 mm or less
* Thickness of the wall mount plate: 2.6 mm
* Fastening screw: Diameter 4.0 mm x Pitch 0.7
mm x Length 10 mm
y y787.4 mm or greater
* Use the wall mount plate and screws that conform to the VESA standard.
75 x 75
M4 x 10
4
CAUTION
Unplug the power cord before moving or inyy
stalling the monitor to avoid electric shocks.
Installing the monitor on the ceiling or on a
yy
slanted wall may result in the monitor falling
off, which could lead to injury. Please use
the genuine LG wall mounting bracket. For
more information, contact your local retail
store or a qualified installer.
Applying excessive force when fastening
yy
screws may cause damage to the monitor. Damage caused in this way will not be
covered by the product warranty.
Use the wall mounting bracket and screws
yy
that conform to the VESA standard. Damage caused by the use or misuse of inappropriate components will not be covered
by the product warranty.
Screw length from outer surface of back
yy
cover should be under 8mm.
Wall mount Pad
Back Cover
Wall mount Pad
Back Cover
Standard screw
Max.8mm
NOTE
Use the screws specified by the VESA stanyy
dard.
The wall mount kit includes the installation
yy
guide and all necessary parts.
The wall mounting bracket is optional. The
yy
accessories can be purchased at your local
retail store.
The length of the screw may differ for each
yy
wall mounting bracket. Ensure the correct
length screw is used.
For more information, please refer to the
yy
user manual for the wall mounting bracket.
ENG
ENGLISH
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
VESA (A x B)
Stand Screw
Required Screws
17
18
USING THE MONITOR
ENGLISH
ENG
USING THE MONITOR
29UB65
(sold separately)
Connecting to a PC
This monitor supports the *Plug and Play
yy
feature.
*Plug and Play: A feature that allows you to
add a device to your computer without having
to reconfigure anything or install any manual
drivers.
DVI connection
(sold separately)
Transmits digital video signals to the monitor. Connect the monitor using the DVI cable as illustrated
below.
Press the menu button and then select the input
option from the input menu.
To hear the sound in DVI input mode, connect the
PC's AUDIO OUT port to the monitor's AUDIO IN
(PC) port using the audio cable that came with the
product. 29UM65
(sold separately)
CAUTION
Connect the input signal cable and
yy
turn in the direction of the arrow.
To prevent disconnection secure
the cable tightly.
Do not press on the screen for a
yy
prolonged period of time. This may cause
image distortion.
Do not display a still image on the screen
yy
for a prolonged period of time. This may
cause image retention. If possible, use the
screen saver.
NOTE
(sold separately)
When connecting the power cord to the outyy
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
y yThe monitor may flicker when turned on in an
area of low temperature. This is normal.
Sometimes red, green, or blue spots may apyy
pear on the screen. This is normal.
Using a DVI to HDMI cable may cause comyy
patibility issues.
USING THE MONITOR
19
HDMI connection
Transmits the digital video and audio signals from
your PC to the monitor. Connect your PC to the
monitor using the display port cable as illustrated
below.
Press the menu button and then select the input
option from the input menu.
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
29UM65
29UM65
(sold separately)
29UB65
29UB65
(sold separately)
NOTE
There may be no video or audio output deyy
pending on the DP version of the PC.
The DisplayPort cable may not be available
yy
in some areas.
NOTE
HDMI PC may cause device compatibility
yy
issues.
Using a DVI to HDMI cable may cause comyy
patibility issues.
ENG
ENGLISH
DisplayPort connection
20
USING THE MONITOR
Connecting to AV Devices
ENGLISH
ENG
HDMI connection
29UB65
Transmits the digital video and audio signals from
your PC and A/V devices to the monitor. Connect
your PC and AV device to the monitor with the
HDMI cable as illustrated below.
Press the menu button and then select the input
option from the input menu.
29UM65
(sold separately)
(sold separately)
NOTE
Using a DVI to HDMI cable may cause comyy
patibility issues.
USING THE MONITOR
Connecting to External Devices
Use the headphone port to connect a peripheral
device to the monitor. Connect as illustrated.
NOTE
For an angle plug earphone, it is difficult
yy
connect it with a peripheral device, so use a
straight type.
29UM65
Angle Type
(sold separately)
Straight Type
NOTE
Depending on the audio settings of the PC
yy
and external device, headphone and speaker
functions may be limited.
29UB65
(sold separately)
ENG
ENGLISH
Headphone port connection
21
22
INSTALLING LG Monitor Software
ENGLISH
ENG
INSTALLING LG MONITOR SOFTWARE
Insert the the owner's manual CD included in the product package into your PC's CD driver and install the
LG Monitor Software.
1 Set the default Web browser to Internet Explorer.
4 Check "I accept the terms of the agreement" on
2 Click the "LG Monitor Software" on the CD's
5 Select the program that you want to install.
the License Agreement screen and then click
the [Next] button.
main screen. When the file download window
appears, click the Run button. (The file download window may vary depending on the operating system and the Internet Explorer version,
but the installation procedures are same.)
NOTE
CAUTION
Service Pack 1 or higher is required for
yy
Windows 7.
3 Follow the instructions to proceed with the
installation.
Screen Split: This program automatically
yy
splits the program window as desired. This program not supported Windows XP.
Auto Resolution: This is a program that
yy
automatically changes the resolution to the
optimal settings when connecting the monitor
to the PC in PBP mode.
This program is not supported in Clone
Mode. Extended Mode is not supported when
using a single display. This program not supported Windows XP &
Vista.
INSTALLING LG Monitor Software
6 The LG Monitor Software installation starts as
NOTE
If you run Screen Split, the Screen Split icon [
] appears in the system tray at the right bottom of
the PC screen.
Right-click the Screen Split icon and select a
layout you want.
7 The program you selected on the Select
Features page will install automatically.
8 When the installation is complete, restart your
system.
ENG
ENGLISH
shown below.
23
24
CUSTOMIZING SETTINGS
ENGLISH
ENG
CUSTOMIZING SETTINGS
Activating the Main Menu
Navigation OSD
Power Indicator
Power buttons
1 Press the Power( ) button, the navigation OSD appear.
up ( ), down ( ) to adjust the options.
2 Jog the Power button left ( ), right ( ),
3 Press and hold the Power( ) button to exit the OSD menu.
Button
Press the power
button center.
Jog the power
button left.
Jog the power
button right.
Jog the power
button up.
Jog the power
button down.
Description
If the menu is
disabled
Enables the navigation OSD.
If the menu is
enabled
Close the navigation OSD.
(Long pressMonitor off, This turn off method can work in any condition. Even
though OSD Off.)
Power Indicator
When the monitor is in operating mode, the power indicator will turn on. (powered
on).
When the monitor is in power-saving mode, the power indicator will blinking.
If the menu is
disabled
Adjusts the volume level of the monitor.
If the menu is
enabled
Enter to Menu OSD.In no sync mode, enter Input change OSD.
If the menu is
disabled
Adjusts the volume level of the monitor.
If the menu is
enabled
Enter to PBP OSD.
If the menu is
disabled
Enables the navigation OSD.
If the menu is
enabled
Enter to Reader OSD .
If the menu is
disabled
Enables the navigation OSD.
If the menu is
enabled
Turn the Minitor off.
CUSTOMIZING SETTINGS
25
Customizing settings
ENG
ENGLISH
Menu Settings
-Easy control
1 To view the navigation OSD, press the Power button center ( ) .
2 Jog Power button left (
) to go to Menu OSD .
3 Press Power button center ( ) or Jog Power button right (
)
to select Easy control.
4 Set the options follow up the instruction appear on right bottom of
the screen.
5 To return to the upper menu or set other menu items, Jog the
Power left(
).
Each option is described below.
Menu > Easy control
Brightness
Contrast
Volume
Description
Adjusts the color contrast and brightness of the screen.
Adjusts the volume.
NOTE
Jog Power
yy
button down (
) in the Volume menu will enable/disable the
Mute function.
Input
Selects the current input mode.
Ratio
Adjusts the screen ratio.
Wide
Displays the video in wide-screen, regardless of the video signal input.
Original
Displays a video according to the input video signal aspect ratio.
Cinema 1
Enlarges the screen with an aspect ratio of 21:9. (at 1080p)
Cinema 2
Enlarges the screen with an aspect ratio of 21:9 including the black box area
at the bottom for subtitles. (at 1080p)
1:1
The aspect ratio is not adjusted from the original.
NOTE
The display may look the same for Wide, Original and 1:1 options at the recommended resolution
yy
(2560 x 1080).
The ratio is disabled in the interlaced signal.
yy
26
CUSTOMIZING SETTINGS
-Function
ENGLISH
ENG
1 To view the navigation OSD, press the Power button
center (
).
2 Jog Power button left (
) to go to Menu OSD .
3 Jog the power button up(
) or down(
to Function.
) to go
4 Press Power button center ( ) or Jog Power button
right (
) to select Function.
5 Set the options follow up the instruction appear on
right bottom of the screen.
6 To return to the upper menu or set other menu items,
Jog the Power left(
).
Each option is described below.
Menu > Func.
SUPER ENERGY
SAVING
Picture Mode
Description
High
Saves energy by using the high-efficiency SUPER ENERGY SAVING function.
Low
Saves energy by using the low-efficiency SUPER ENERGY SAVING function.
Off
Disables the SUPER ENERGY SAVING function.
Custom
Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Optimizes the screen to view photos.
Cinema
Optimizes the screen to improve the visual effects of a video.
Game
Optimizes the screen for gameplay.
CUSTOMIZING SETTINGS
27
-PBP
center (
).
2 Jog Power button left (
) to go to Menu OSD .
3 Jog the power button up(
) or down(
to PBP.
) to go
4 Press Power button center ( ) or Jog Power button
right (
) to select PBP.
5 Set the options follow up the instruction appear on
right bottom of the screen.
6 To return to the upper menu or set other menu items,
Jog the Power left(
).
Menu > PBP
Description
PBP
Displays the screens of two input modes on one monitor.
Input
Main
Displays the video in wide-screen, regardless of the video signal input.
Sub
Displays a video according to the input video signal aspect ratio.
Audio
Changes the audio output in PBP mode.
Swap
Toggles between the main screen and sub screen in PBP mode.
Sub Full
Converts the sub screen of PBP mode to the wide screen.
Ratio
Adjusts the aspect ratio of the main screen or sub screen.
Main Wide
Sub
Displays the video to fit the Main screen, regardless of the video signal input.
Original
Displays the video in the input video signal aspect ratio on the Main screen.
Wide
Displays the video to fit the Sub screen, regardless of the video signal input.
Original
Displays the video in the input video signal aspect ratio on the Sub screen.
ENG
ENGLISH
1 To view the navigation OSD, press the Power button
28
CUSTOMIZING SETTINGS
-Screen
ENGLISH
ENG
1 To view the navigation OSD, press the Power button
center (
).
2 Jog Power button left (
) to go to Menu OSD .
3 Jog the power button up(
to Screen.
) or down(
) to go
4 Press Power button center ( ) or Jog Power button
right (
) to select Screen.
5 Set the options follow up the instruction appear on
right bottom of the screen.
6 To return to the upper menu or set other menu items,
Jog the Power left(
).
Each option is described below.
Menu > Screen
Picture Sharpness
Black Level
Description
Adjusts the sharpness of the screen.
Sets the offset level (for HDMI only).
y y Offset: as a reference for a video signal, this is the darkest color the monitor can
display.
High
The picture of the screen gets brighter.
Low
The picture of the screen gets darker.
Response Time Sets a response time for displayed pictures based on the speed of the screen. For a normal environment, it is recommended that you use Normal. For a fast-moving picture, it is
recommended that you use High.
Setting to High may cause image sticking.
Color
High
Sets the response time to High.
Middle
Sets the response time to Middle.
Low
Sets the response time to Low.
Off
Sets the response time to Off. Gamma
Custom gamma setting: When using the gamma 0, gamma 1, and gamma 2 monitor settings, higher gamma settings mean a brighter image is displayed and vice versa.
Color Temp
Custom
Red
Green
Blue
You can customize the picture color using Red, Green, and Blue colors.
Selects the factory default picture color.
Warm: Sets the screen color to a reddish tone.
Medium: Sets the screen color between a red and blue tone.
Cool: Sets the screen color to a bluish tone.
Six Color
Meets the user requirements for colors through adjusting the color and saturation of the six
colors(red_Hue, red_Saturation, green_Hue, green_Saturation, blue_Hue, blue_Saturation, cyan_Hue, cyan_Saturation, magenta_Hue, magenta_Saturation, yellow_Hue,
yellow_Saturation) and saving the settings.
*Hue: Adjusts tone of the screen.
*Saturation: Adjusts the saturation of the screen colors. The lower the value, less saturated and bright the colors become. The higher the value, the more saturated and dark the
colors become.
*Reset: Returns the color settings to the default settings.
Reset
Returns the color settings to the default settings.
CUSTOMIZING SETTINGS
29
-Settings
2 Jog Power button left (
) to go to Menu OSD .
3 Jog the power button up(
) or down(
) to go to Settings.
4 Press Power button center ( ) or Jog Power button right (
to select Settings.
)
5 Set the options follow up the instruction appear on right bottom of
the screen.
6 To return to the upper menu or set other menu items, Jog the
Power left(
).
Each option is described below.
Menu > Settings
Description
Main Audio
Main audio have four options.HDMI1, HDMI2, DP, Audio-In.
If user select Audio-in, then sound comes from stereo cable source.
Language
Sets the menu screen to the desired language.
Power LED
Turns the power indicator on the front side of the monitor on/off.
OSD Lock
On
The power indicator is automatically turned on.
Off
The power indicator is turned off.
Prevents incorrect key input.
On
Key input is disabled.
NOTE
All functions except for the OSD Lock mode and the Exit button for Brightness, Contrast,
Volume, Input, and Settings are disabled.
Off
Key input is enabled.
ENG
ENGLISH
1 To view the navigation OSD, press the Power button center ( ) .
30
CUSTOMIZING SETTINGS
-Reset
ENGLISH
ENG
1 To view the navigation OSD, press the Power button
center (
).
2 Jog Power button left (
) to go to Menu OSD .
3 Jog the power button up(
to Reset.
) or down(
) to go
4 Press Power button center ( ) or Jog Power button
right (
) to select Reset.
5 Set the options follow up the instruction appear on
right bottom of the screen.
6 To return to the upper menu or set other menu items,
Jog the Power left(
).
Each option is described below.
Menu > Reset
Description
Do you want to reset your settings?
Reset
Returns to the default settings.
Cancel
Cancel the select.
CUSTOMIZING SETTINGS
31
Reader Settings
2 Jog Power button up (
) to go to Reader OSD.
3 Set the options follow up the instruction appear on bottom of the
screen.
Each option is described below.
Reader Mode
Description
Reader 1
It is a mode that the screen is adjusted to the best for the newspaper. If you
want screen more bright, you can control brightness in Menu OSD.
Reader 2
It is a mode that the screen is adjusted to the best for the cartoon. If you want
screen more bright, you can control brightness in Menu OSD.
Reader Off
It is a mode that reader mode is off.
ENG
ENGLISH
1 To view the navigation OSD, press the Power button center ( ) .
32
TROUBLESHOOTING
ENGLISH
ENG
TROUBLESHOOTING
Nothing is displayed on the screen.
Is the monitor's power cord plugged y y Check if the power cord is correctly plugged in to the power outlet.
in?
Is the power indicator on?
y y Check the power cable connection and press the power button.
Is the power indicator displaying ? y y Check that the connected input is enabled (Menu - Input).
y y If the monitor is in power-saving mode, move the mouse or press any
key on the keyboard to switch the display on.
y y Check if the computer is turned on.
Is the "OUT OF RANGE" message y y This occurs when signals transferred from the PC (video card) are out
displayed?
of the horizontal or vertical frequency range of the monitor. Please see
the "Product Specification" section of this manual to set the appropriate frequency.
Is the "CHECK SIGNAL CONNEC- y y This is displayed when the signal cable between the PC and the moniTION" message is displayed?
tor is missing or disconnected. Check the cable and reconnect.
Is the power indicator blinking?
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
y y Displaying a still image for a prolonged time may cause damage to the
screen, resulting in the retention of the image.
y y Use a screen saver to protect the screen when using the monitor for a
prolonged period of time.
The screen is flickering.
Did you select the recommended y y If the selected resolution is HDMI 1080i 60/50 Hz, the screen
resolution?
may be flickering. Change the resolution to the recommended
resolution 1080P.
NOTE
Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per
yy
second like a fluorescent lamp.
The number of times the screen is refreshed per second is called vertical frequency or refresh rate
and is represented by Hz.
Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle.
yy
The number of horizontal lines displayed in one second can be calculated by dividing one by the horizontal cycle. This is called horizontal frequency and is represented by kHz.
TROUBLESHOOTING
33
NOTE
The display color is abnormal.
Does the display appear discolored y y Set the color to 24 bit (true color) or higher. In Windows, go to Control
(16 color)?
Panel > Display > Settings > Color Quality.
Does the display color appear unstable or in monochrome?
Are there spots on the screen?
y y Check if the signal cable is connected properly. Reconnect the cable
or reinsert the PC's video card.
y y When using the monitor, pixilated spots (red, green, blue, white or
black) may appear on the screen. This is normal for the LCD screen.
It is not an error nor is it related to the monitor's performance.
ENG
ENGLISH
Check if the video card's resolution or frequency is within the range allowed by the monitor and set to
yy
the recommended (optimal) resolution in Control Panel > Display > Settings.
Failing to set the video card to the recommended (optimal) resolution may result in blurred text, a
yy
dimmed screen, a truncated display area or misalignment of the display.
The configuration procedure may differ depending on your computer and/or operating system. Also,
yy
some video cards may not support certain resolutions. If this is the case, contact the manufacturer of
the computer or video card for assistance.
Some video cards may not support the 2560x1080 resolution. yy
If the resolution cannot be displayed, contact the manufacturer of your video card.
34
SPECIFICATIONS
ENGLISH
ENG
SPECIFICATIONS
29UM65
29UB65
LCD Screen
Type
Resolution
Pixel Pitch
Maximum Resolution
Video Signal
Input Connector
Power
AC/DC adaptor
Environmental
Conditions
73.025 cm TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Diagonal length of the screen: 73.025 cm
0.0876 mm x 0.2628 mm
2560 x 1080 @ 60 Hz
Recommended Resolution 2560 x 1080 @ 60 Hz
Horizontal Frequency
30 kHz to 90 kHz
DVI/DP:50 Hz to 75 Hz HDMI: 25 Hz to 60 Hz
Vertical Frequency
Synchronization
Separate Sync.
DVI-D IN, HDMI IN1, HDMI IN2 , DisplayPort, Audio In(PC), H/P
19 V 2.4 A
Voltage
Power consumption (Typ.) On mode: 31 W (ENERGY STAR® standard)*
Power Saving Mode ≤ 0.5 W
Off Mode ≤ 0.5 W
DA-48F19 type, Asian Power Devices Inc. production, Or LCAP35 type,LIEN CHANG ELECTRONIC ENTERPRISE production.
Output: 19 V
2.53 A
Operating Condition
Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition
Temperature: -20°C to 60°C; Humidity: 5% to 90%
Speaker Wattage 7 W + 7 W
29UM65
Stand Angle
Adjustment
Dimension
Forwards/Backwards: -5° to 20° (Head)
Weight (Without
Packaging)
6.2 kg
Monitor Size (Width x Height x Depth)
703.0 mm x 418.0 mm x 181.0 mm
With Stand
703.0 mm x 328.0 mm x 64.0 mm
Without Stand
29UB65
Stand Angle
Adjustment
Dimension
Weight (Without
Packaging)
Forwards/Backwards: -5° to 15° (Head)
Monitor Size (Width x Height x Depth)
703.0 mm x 425.0 mm x 225.0 mm With Stand
703.0 mm x 418.0 mm x 124.0 mm Without Stand
6.8 kg
The specifications are subject to change without notice.
* The power consumption level can be different by operating condition and monitor setting.
* The On mode power consumption is measured with ENERGY STAR® test standard.
* ENERGY STAR® is a US registered mark of the United States Environmental Protection Agency.
SPECIFICATIONS
Preset Mode
Horizontal Frequency Vertical Frequency
Polarity (H/V)
(kHz)
(Hz)
720 x 400
31.468
70.08
-/+
640 x 480
31.469
59.94
-/-
640 x 480
37.5
75
-/-
800 x 600
37.879
60.317
+/+
800 x 600
46.875
75
+/+
1024 x 768
48.363
60
-/-
1024 x 768
60.123
75.029
+/+
1152 x 864
67.5
75
+/+
1280 x 720
45
60
+/+
1280 x 1024
63.981
60.02
+/+
1280 x 1024
79.976
75.025
+/+
1600 x 900
60
60
+/+
1680 x 1050
65.290
59.954
-/+
1920 x 1080
67.5
60
+/-
2560 x 1080
66.7
60
-/+
HDMI Timing (Video)
Preset Mode
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
480P
31.50
60
576P
31.25
50
720P
37.50
50
720P
45.00
60
1080P
56.25
50
1080P
67.50
60
Power Indicator
Mode
LED Color
On Mode
Light On
Power-saving
Blinking
Off Mode
Off
Remarks
Remarks
ENG
ENGLISH
Factory support mode
(Preset Mode, DVI-D/HDMI/PC DisplayPort)
35
36
PROPER POSTURE
ENGLISH
ENG
PROPER POSTURE
Proper Posture for Using the Monitor
Adjust the screen so that you can comfortably view at a slight downward angle from your natural eye level.
Take a break for approximately ten minutes every hour to reduce any fatigue caused by long-time
yy
usage.
The stand of the touch monitor allows the product to be used in the optimum position.
yy
Adjust the stand angle to obtain the best view of the screen.
You should be looking
slightly down at the screen.
Adjust the angle
So that there is no reflection
or glare from the screen.
Place your hands gently on
the keyboard, keeping your
arms bent at the elbows and
extended horizontally in front
of you.
Declaration of Conformity
Trade Name: LG
Model : 29UM65D,29UB65D
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
*above information is only for USA FCC Regulatory
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an
accessible place for future reference.
The model and serial number of the SET
is located on the back and one side of the
SET. Record it below should you ever need
service.
MODEL
SERIAL
Download PDF
