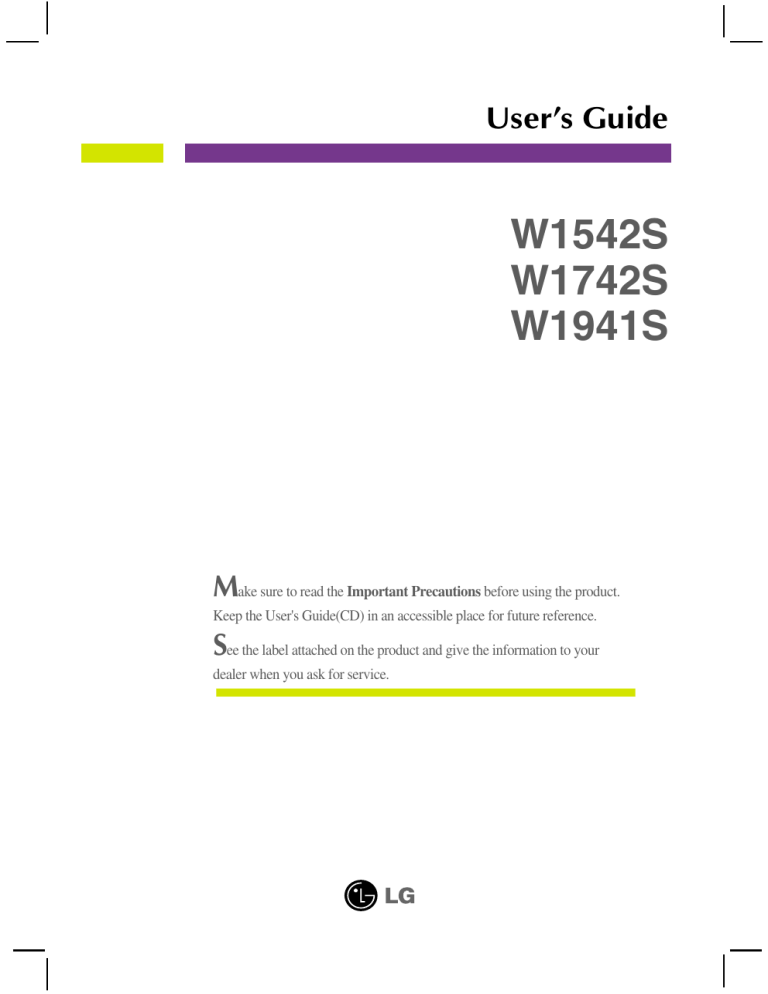

User’s Guide
W1542S
W1742S
W1941S
Make sure to read the Important Precautions before using the product.
Keep the User's Guide(CD) in an accessible place for future reference.
See the label attached on the product and give the information to your
dealer when you ask for service.
Important Precautions
This unit has been engineered and manufactured to ensure your personal safety,
however improper use may result in potential electrical shock or fire hazards. In
order to allow the proper operation of all safeguards incorporated in this display,
observe the following basic rules for its installation, use, and servicing.
On Safety
Use only the power cord supplied with the unit. In case you use another power
cord, make sure that it is certified by the applicable national standards if not being
provided by the supplier. If the power cable is faulty in any way, please contact the
manufacturer or the nearest authorized repair service provider for a replacement.
The power supply cord is used as the main disconnection device. Ensure that the
socket-outlet is easily accessible after installation.
Operate the display only from a power source indicated in the specifications of
this manual or listed on the display. If you are not sure what type of power supply
you have in your home, consult with your dealer.
Overloaded AC outlets and extension cords are dangerous. So are frayed power
cords and broken plugs. They may result in a shock or fire hazard. Call your service
technician for replacement.
Do not Open the Display:
There are no user serviceable components inside.
There are Dangerous High Voltages inside, even when the power is OFF.
Contact your dealer if the display is not operating properly.
To Avoid Personal Injury :
Do not place the display on a sloping shelf unless properly secured.
Use only a stand recommended by the manufacturer.
Do not drop an object on or apply impact to the product. Do not throw any toys
or objects on the product screen.
It can cause injury to human, problem to product and damage the display.
To Prevent Fire or Hazards:
Always turn the display OFF if you leave the room for more than a short period
of time. Never leave the display ON when leaving the house.
Keep children from dropping or pushing objects into the display's cabinet
openings. Some internal parts carry hazardous voltages.
Do not add accessories that have not been designed for this display.
When the display is to be left unattended for an extended period of time, unplug
it from the wall outlet.
In the presence of thunder and lightning, never touch the power cord and signal
cable because it can be very dangerous. It can cause electric shock.
On Installation
Do not allow anything to rest upon or roll over the power cord, and do not place
the display where the power cord is subject to damage.
1
Important Precautions
Do not use this display near water such as near a bathtub, washbowl, kitchen
sink, laundry tub, in a wet basement, or near a swimming pool.
Displays are provided with ventilation openings in the cabinet to allow the release
of heat generated during operation. If these openings are blocked, built-up heat
can cause failures which may result in a fire hazard. Therefore, NEVER:
Block the bottom ventilation slots by placing the display on a bed, sofa, rug, etc.
Place the display in a built-in enclosure unless proper ventilation is provided.
Cover the openings with cloth or other material.
Place the display near or over a radiator or heat source.
Do not rub or strike the Active Matrix LCD with anything hard as this may scratch,
mar, or damage the Active Matrix LCD permanently.
Do not press the LCD screen with your finger for a long time as this may cause
some afterimages.
Some dot defects may appear as Red, Green or Blue spots on the screen.
However, this will have no impact or effect on the display performance.
If possible, use the recommended resolution to obtain the best image quality for
your LCD display. If used under any mode except the recommended resolution,
some scaled or processed images may appear on the screen. However, this is
characteristic of the fixed-resolution LCD panel.
Leaving a fixed image on the screen for a long time may cause damage to the
screen and cause image burn-in. Make sure to use a screen saver on the product.
Burn-in and related problems are not covered by the warranty on this product.
Do not shock or scratch the front and sides of the screen with metallic objects.
Otherwise, it may cause damage to the screen.
On Cleaning
Unplug the display before cleaning the face of the display screen.
Use a slightly damp (not wet) cloth. Do not use an aerosol directly on the display
screen because over-spraying may cause electrical shock.
On Repacking
Do not throw away the carton and packing materials. They make an ideal
container in which to transport the unit. When shipping the unit to another
location, repack it in its original material.
On Disposal
The fluorescent lamp used in this product contains a small amount of mercury.
Do not dispose of this product with general household waste.
Disposal of this product must be carried out in accordance to the regulations of
your local authority.
2
Connecting the Display
Before setting up the monitor, ensure that the power to the monitor, the
computer system, and other attached devices is turned off.
Connecting the stand
1. Place the monitor with its front
2. Assemble the Stand Body into the
facing downward on a soft cloth.
monitor in the correct direction as
shown in the picture.
Stand Body
3. Assemble the Stand Base into the Stand Body in the correct direction.
Stand Base
Base Lock
4. Tie down the Base Lock to perpendicularity direction.
5. Once assembled take the monitor up carefully and face the front
side
IMPORTANT
This illustration depicts the general model of connection. Your monitor may differ from the
items shown in the picture.
Do not carry the product upside down holding only the stand base. The product may fall and
get damaged or injure your foot.
3
Connecting the Display
Disassembling the stand
1. Put a cushion or soft cloth on a flat
2. Place the monitor face down as shown
surface.
in the picture.
3. Change your lock on the monitor as it follows and turn it in the arrow direction.
If you can't release the Stand Base even the Locking Knob is at a release position,
Please push the indicated knob down and retry it.
Locking Knob
4. Pull out the Stand Base to remove.
4
Connecting the Display
5. Pushing the PUSH button, take the Stand Body from monitor.
WARNING
You can hurt your finger.
Good Position
Bad Position
Before setting up the monitor, ensure that the power to the monitor, the computer
system, and other attached devices is turned off.
Positioning your display
1. Adjust the position of the panel in various ways for maximum comfort.
Tilt Range : -5˚~20˚
ERGONOMIC
It is recommended that in order to maintain an ergonomic and comfortable viewing position,
the forward tilt angle of the monitor should not exceed 5 degrees.
5
Connecting the Display
Using the Computer
1. Make sure to turn off the computer and
product.
Connect signal input cable 1 and power cord 2 in order, then tighten the screw of
the signal cable.
A Connect D-sub(Analog signal) Cable (PC)
B Connect D-sub(Analog signal) Cable (MAC)
NOTE
This is a simplified representation of the rear view.
This rear view represents a general model; your
display may differ from the view as shown.
User must use shielded signal interface cables (D-sub 15
pin cable, DVI cable) with ferrite cores to maintain
standard compliance for the product.
PUSH
Varies according to model.
Signal Cable
Power Cord
Mac adapter
For Apple Macintosh use, a
separate plug adapter is needed
to change the 15 pin high
density (3 row) D-sub VGA
connector on the supplied cable
to a 15 pin 2 row connector.
PC
Wall-outlet type
MAC
2. Press
button on the front switch panel to turn the
power on. When monitor power is turned on, the
'Self Image Setting Function' is executed automatically.
NOTE
‘ Self Image Setting Function’? This function provides the user with optimal display
settings.When the user connects the monitor for the first time, this function automatically adjusts
the display to optimal settings for individual input signals.
‘AUTO/SET’ Function? When you encounter problems such as blurry screen, blurred letters,
screen flicker or tilted screen while using the device or after changing screen resolution, press
the AUTO/SET function button to improve resolution.
6
Control Panel Functions
Front Panel Controls
1
2
4 : 3 in Wide
Button
3
4
5
It allows you to adjust the size of screen you are watching
now.
• WIDE : Switch to full screen mode according to input
image signal.
• 4 : 3 : Change the image signal ratio into 4:3.
4 : 3 IN WIDE
4 : 3 IN WIDE
WIDE
4:3
WIDE mode
4 : 3 display mode
MENU Button
Use this button to enter or exit the On Screen Display.
OSD LOCKED/UNLOCKED
This function allows you to lock the current control
settings, so that they cannot be inadvertently changed.
Press and hold the MENU button for several seconds.
The message "OSD LOCKED" should appear.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message
"OSD UNLOCKED" should appear.
7
Control Panel Functions
Buttons
Use these buttons to select or adjust functions in the On
Screen Display.
For more information, refer to page 15.
AUTO/SET
Button
Use this button to enter a selection in the On Screen
Display.
AUTO IMAGE ADJUSTMENT
When adjusting your display settings, always press
the AUTO/SET button before entering the On Screen
Display(OSD). This will automatically adjust your
display image to the ideal settings for the current
screen resolution size (display mode).
The best display mode is
W1542S : 1280 x 720
W1742S : 1440 x 900
W1941S : 1360 x 768
Power Button &
Power Indicator
Use this button to turn the display on or off.
This Indicator lights up blue when the display operates
normally(On Mode). If the display is in Sleep Mode
(Energy Saving), this indicator color changes
to amber.
8
On Screen Display (OSD) Control Adjustment
Screen Adjustment
Making adjustments to the image size, position and operating
parameters of the display is quick and easy with the On Screen Display
Control system.
A short example is given below to familiarize you with the use of the
controls. The following section is an outline of the available adjustments
and selections you can make using the OSD.
NOTE
Allow the display to stabilize for at least 30 minutes before making image adjustments.
To make adjustments in the On Screen Display, follow these steps:
Press the MENU Button, then the main menu of the OSD appears.
To access a control, use the
or
Buttons. When the icon you want
becomes highlighted, press the AUTO/SET Button.
Use the
/
Buttons to adjust the image to the desired level. Use the
AUTO/SET Button to select other sub-menu items.
Push the MENU Button once to return to the main menu to select
another function. Push the MENU Button twice to exit from the OSD.
9
On Screen Display(OSD) Selection and Adjustment
The following table indicates all the On Screen Display control, adjustment,
and setting menus.
Main menu
Sub-menu
Reference
BRIGHTNESS
To adjust the brightness,
contrast and gamma of the
screen
CONTRAST
GAMMA
COLOR
sRGB
6500K
9300K
PRESET
To customize the color of the
screen
RED
GREEN
BLUE
TRACKING HORIZONTAL
VERTICAL
To adjust the position of the
screen
CLOCK
To improve the clarity and
stability of the screen
PHASE
SHARPNESS
SETUP
LANGUAGE
OSD
HORIZONTAL
POSITION VERTICAL
To customize the screen status
for a user's operating
environment
WHITE BALANCE
POWER INDICATOR
FACTORY RESET
FLATRON
F-ENGINE
MOVIE
To select or customize
desired image settings
INTERNET
USER
NORMAL
DEMO
: Adjustable
NOTE
The order of icons may differ depending on the model (10~15).
10
On Screen Display(OSD) Selection and Adjustment
You were introduced to the procedure of selecting and adjusting an item
using the OSD system. Listed below are the icons, icon names, and icon
descriptions of the all items shown on the Menu.
Press the MENU Button, then the main menu of the OSD appears.
Main Menu
MENU
: Exit
: Adjust (Decrease/Increase)
SET
: Enter
: Select another sub-menu
: Restart to select sub-menu
Button Tip
Menu Name
Sub-menus
Icons
NOTE
OSD (On Screen Display) menu languages on the monitor may differ from the manual.
11
On Screen Display(OSD) Selection and Adjustment
Main menu
Sub menu
Description
BRIGHTNESS To adjust the brightness of the screen.
CONTRAST
To adjust the contrast of the screen.
GAMMA
Set your own gamma value. : -50 / 0 / 50
On the monitor, high gamma values
display whitish images and low gamma
values display high contrast images.
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
COLOR
PRESET
Select the screen color.
• sRGB: Set the screen color to fit the
sRGB standard color
specification.
• 6500K: Slightly reddish white.
• 9300K: Slightly bluish white.
RED
Set your own red color levels.
GREEN
Set your own green color levels.
MENU : Exit
BLUE
: Decrease
: Increase
SET : Select another sub-menu
Set your own blue color levels.
12
On Screen Display(OSD) Selection and Adjustment
Main menu
Sub menu
Description
TRACKING
HORIZONTAL To move image left and right.
VERTICAL
To move image up and down.
CLOCK
To minimize any vertical bars or
stripes visible on the screen
background.
The horizontal screen size will also
change.
PHASE
To adjust the focus of the display.
This item allows you to remove any
horizontal noise and clear or sharpen
the image of characters.
MENU : Exit
: Decrease
SHARPNESS
: Increase
SET : Select another sub-menu
13
To adjust the clearness of the screen.
On Screen Display(OSD) Selection and Adjustment
Main menu
Sub menu
Description
SETUP
MENU : Exit
: Adjust
: Adjust
SET : Select another
sub-menu
LANGUAGE
To choose the language in which the
control names are displayed.
OSD
POSITION
To adjust position of the OSD window
on the screen.
WHITE
BALANCE
If the output of the video card is
different the required specifications,
the color level may deteriorate due
to video signal distortion. Using this
function, the signal level is adjusted
to fit into the standard output level of
the video card in order to provide the
optimal image.
Activate this function when white
and black colors are present in the
screen.
POWER
INDICATOR
Use this function to set the power
indicator on the front side of the monitor
to ON or OFF.
If you set OFF, it will go off.
If you set ON at any time, the power
indicator will automatically be turned on.
FACTORY
RESET
Restore all factory default settings except
"LANGUAGE."
Press the , buttons to reset immediately.
If this does not improve the screen image, restore the factory default settings. If necessary,
perform the white balance function again.
14
On Screen Display(OSD) Selection and Adjustment
The OSD screen will appear when you press the
front of the monitor.
button on the
Menu Name
Icons
Sub-menu Name
FLATRON F-ENGINE
Screen when applied
Screen when not applied
When you execute F-ENGINE, two tones will appear
on the screen as shown. The applied screen will
appear on the left side, whereas the non-applied
screen will appear on the right side. Press the SET
button to use the adjusted screen.
Main menu
Sub menu
Description
MOVIE
MENU : Exit
,
: Move
SET : Select
This feature lets you easily select the best desired
image condition optimized to the environment
INTERN (ambient illumination, image types etc).
ET
MOVIE: For animation images in videos or movies
INTERNET: For text images (Word processing etc.)
USER
USER
You can manually adjust brightness, ACE or RCM.
You can save or restore the adjusted value even
when using a different environment.
...BRIGHTNESS( ) : Adjusts screen brightness.
...ACE(Adaptive Clarity Enhancer): Selects the clarity mode.
To adjust the USER sub-menu
function, press the SET Button
Not applied
Weak clarity and luminosity contrast.
Strong clarity and luminosity contrast.
...RCM(Real Color Management): Selects the color mode.
MENU : Exit
: Decrease
: Increase
SET : Select another sub-menu
Not applied
Flesh tone
Green enhance
Color Enhance
Select 'YES' in
sub-menu to save adjustments.
NORMAL This is under normal operating conditions.
* Normal mode is when f-ENGINE is turned off.
DEMO
This is used for advertising in the store. The screen will
be divided to show the standard mode on the left and
video mode on the right so that the consumers can
check the difference after applying the video mode.
15
Troubleshooting
Check the following before calling for service.
No image appears
● Is the power cord of the • Check and see if the power cord is connected
properly to the power outlet.
display connected?
● Is the power indicator
light on?
• Press the Power button.
● Is the power on and the • Adjust the brightness and the contrast.
power indicator blue or
green?
● Is the power indicator
amber?
• If the display is in power saving mode, try moving
the mouse or pressing any key on the keyboard to
bring up the screen.
• Try to turn on the PC.
● Do you see an "OUT OF • This message appears when the signal from the
PC (video card) is out of horizontal or vertical
RANGE" message on
frequency range of the display. See the
the screen?
'Specifications' section of this manual and
configure your display again.
● Do you see a "CHECK
SIGNAL CABLE"
message on the
screen?
• This message appears when the signal cable
between your PC and your display is not
connected. Check the signal cable and try again.
Do you see a "OSD LOCKED" message on the screen?
● Do you see “OSD
LOCKED” when you
push MENU button?
• You can secure the current control settings,
so that they cannot be inadvertently changed.
You can unlock the OSD controls at any time
by pushing the MENU button for several
seconds: the message
“OSD UNLOCKED” will appear.
16
Troubleshooting
Display image is incorrect
● Display Position is
incorrect.
• Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, adjust the image
position using the H position and V position icon
in the on screen display.
● On the screen
background, vertical
bars or stripes are
visible.
• Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
vertical bars or stripes using the CLOCK icon in
the on screen display.
● Any horizontal noise
appearing in any
image or characters
are not clearly
portrayed.
• Press the AUTO/SET button to automatically
adjust your display image to the ideal setting.
If the results are unsatisfactory, decrease the
horizontal bars using the PHASE icon in the on
screen display.
• Check Control Panel --> Display --> Settings
and adjust the display to the recommended
resolution or adjust the display image to the ideal
setting. Set the color setting higher than 24 bits
(true color).
IMPORTANT
Check Control Panel --> Display --> Settings and see if the frequency or the
resolution were changed. If yes, readjust the video card to the recommend
resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be
blurred and the screen may be dimmed, truncated or biased. Make sure to select
the recommend resolution.
The setting method can differ by computer and O/S (Operation System),
and resolution mentioned above may not be supported by the video card
performance. In this case, please ask to the computer or the video card
manufacturer.
17
Troubleshooting
Display image is incorrect
● The screen color is
mono or abnormal.
• Check if the signal cable is properly connected
and use a screwdriver to fasten if necessary.
• Make sure the video card is properly inserted in
the slot.
• Set the color setting higher than 24 bits (true color)
at Control Panel - Settings.
● The screen blinks.
• Check if the screen is set to interlace mode and if
yes, change it to the recommend resolution.
Have you installed the display driver?
● Have you installed the
display driver?
• Be sure to install the display driver from the display
driver CD (or diskette) that comes with your
display. Or, you can also download the driver from
our web site: http://www.lge.com.
● Do you see an
"Unrecognized monitor,
Plug&Play (VESA DDC)
monitor found"
message?
• Make sure to check if the video card supports
Plug&Play function.
18
Specifications
W1542S
Display
15 inches (38.1 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size: 38.1 cm
0.2595*0.2595 mm pixel pitch
Sync Input
Horizontal Freq.
Vertical Freq.
Input Form
Video Input
Signal Input
Input Form
30 - 61 kHz (Automatic)
56 - 75 Hz (Automatic)
Separate Sync.
SOG (Sync On Green)
15 pin D-Sub Connector
RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution
Max
Recommend
VESA 1280 x 720 @ 75 Hz
VESA 1280 x 720 @ 60 Hz
Plug&Play
DDC 2B
Power
Consumption
On Mode
Sleep Mode
Off Mode
Dimensions
& Weight
With Stand
Without Stand
36.68 cm / 15.02 inches
36.68 cm / 15.02 inches
Width
Height
31.67 cm / 12.47 inches
23.17 cm / 10.25 inches
Depth
19.84 cm / 7.81 inches
5.78 cm / 2.28 inches
Weight(excl. packing)
2.3 kg (5.07 lbs)
Range
Tilt
Power Input
AC 100-240V~ 50/60Hz 0.8A
Environmental
Conditions
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity
10 % to 80 % non-Condensing
:
≤
≤
20 W(Typ.)
1W
1W
-5˚~ 20˚
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity
5 % to 90 % non-Condensing
Stand Base
Attached (
), Detached ( O )
Power cord
Wall-outlet type
NOTE
Information in this document is subject to change without notice.
19
Specifications
W1742S
Display
17 inches (43.3 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size: 43.3 cm
0.255*0.255 mm pixel pitch
Sync Input
Horizontal Freq.
Vertical Freq.
Input Form
Video Input
Signal Input
Input Form
30 - 83 kHz (Automatic)
56 - 75 Hz (Automatic)
Separate Sync.
SOG (Sync On Green)
15 pin D-Sub Connector
RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution
Max
Recommend
VESA 1440 x 900 @ 75 Hz
VESA 1440 x 900 @ 60 Hz
Plug&Play
DDC 2B
Power
Consumption
On Mode
Sleep Mode
Off Mode
Dimensions
& Weight
With Stand
Without Stand
40.49 cm / 15.94 inches
40.49 cm / 15.94 inches
Width
Height
34.98 cm / 13.77 inches
27.77 cm / 10.93 inches
Depth
19.84 cm / 7.81 inches
5.93 cm / 2.33 inches
Weight(excl. packing)
3 kg (6.61 lbs)
Range
Tilt
Power Input
AC 100-240V~ 50/60Hz 0.8A
Environmental
Conditions
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity
10 % to 80 % non-Condensing
:
≤
≤
21 W(Typ.)
1W
1W
-5˚~ 20˚
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity
5 % to 90 % non-Condensing
Stand Base
Attached (
), Detached ( O )
Power cord
Wall-outlet type
NOTE
Information in this document is subject to change without notice.
20
Specifications
W1941S
Display
18.51 inches (47.0 cm) Flat Panel Active matrix-TFT LCD
Anti-Glare coating
Visible diagonal size: 47.0 cm
0.30*0.30 mm pixel pitch
Sync Input
Horizontal Freq.
Vertical Freq.
Input Form
Video Input
Signal Input
Input Form
30 - 61 kHz (Automatic)
56 - 75 Hz (Automatic)
Separate Sync.
SOG (Sync On Green)
15 pin D-Sub Connector
RGB Analog (0.7 Vp-p/ 75 ohm)
Resolution
Max
Recommend
VESA 1360 x 768 @ 60 Hz
VESA 1360 x 768 @ 60 Hz
Plug&Play
DDC 2B
Power
Consumption
On Mode
Sleep Mode
Off Mode
Dimensions
& Weight
With Stand
Without Stand
44.84 cm / 17.65 inches
44.84 cm / 17.65 inches
Width
Height
35.79 cm / 14.09 inches
27.80 cm / 10.94 inches
Depth
19.84 cm / 7.81 inches
5.76 cm / 2.27 inches
Weight(excl. packing)
3.3 kg (7.28 lbs)
Range
Tilt
Power Input
AC 100-240V~ 50/60Hz 0.8A
Environmental
Conditions
Operating Conditions
Temperature 10˚C to 35 ˚C
Humidity
10 % to 80 % non-Condensing
:
≤
≤
21 W(Typ.)
1W
1W
-5˚~ 20˚
Storage Conditions
Temperature -20˚C to 60 ˚C
Humidity
5 % to 90 % non-Condensing
Stand Base
Attached (
), Detached ( O )
Power cord
Wall-outlet type
NOTE
Information in this document is subject to change without notice.
21
Specifications
Preset Modes (Resolution)
W1542S
Display Modes (Resolution)
1
2
3
4
5
6
7
8
9
*10
11
VGA
VGA
VGA
VESA
VESA
VESA
MAC
VESA
VESA
VESA
VESA
Horizontal Freq. (kHz)
Vertical Freq. (Hz)
31.469
31.468
31.469
37.500
37.879
46.875
49.725
48.363
60.123
44.772
56.456
70
70
60
75
60
75
75
60
75
60
75
640 x 350
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1280 x 720
1280 x 720
W1742S
Display Modes (Resolution)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
*15
16
Horizontal Freq. (kHz)
Vertical Freq. (Hz)
31.469
31.468
31.469
37.500
37.879
46.875
49.725
48.363
60.123
68.681
61.805
63.981
79.976
55.469
55.935
70.635
70
70
60
75
60
75
75
60
75
75
65
60
75
60
60
75
640 x 350
VGA
720 x 400
VGA
640 x 480
VGA
640 x 480
VESA
800 x 600
VESA
800 x 600
VESA
832 x 624
MAC
VESA 1024 x 768
VESA 1024 x 768
MAC 1152 x 870
VESA 1152 x 900
VESA 1280 x 1024
VESA 1280 x 1024
VESA 1440 x 900
VESA 1440 x 900
VESA 1440 x 900
22
Specifications
W1941S
Display Modes (Resolution)
1
2
3
4
5
6
7
8
*9
VGA
VGA
VESA
VESA
VESA
MAC
VESA
VESA
VESA
Horizontal Freq. (kHz)
Vertical Freq. (Hz)
31.468
31.469
37.500
37.879
46.875
49.725
48.363
60.123
47.712
70
60
75
60
75
75
60
75
60
720 x 400
640 x 480
640 x 480
800 x 600
800 x 600
832 x 624
1024 x 768
1024 x 768
1360 x 768
*Recommend Mode
Indicator
MODE
On Mode
Sleep Mode
Off Mode
LED Color
Blue
Amber
Off
23
Installing the Wall mount plate
This monitor satisfies the specifications of the Wall mount plate or the
interchange device.
1. Place the monitor with its front facing downward on a soft cloth.
2. Pushing the PUSH button, take the Stand Body from monitor.
3.
Install the Wall mount plate.
Wall mount plate(Separate purchase)
This is stand-type or wall mount type and is
connectable with Wall mount plate.
Please refer to the installation guide for more
details, which is provided when Wall mount plate is
purchased.
Kensington Security Slot
Connected to a locking cable that
can be purchased separately at
most computer stores.
24
Digitally yours
Download PDF
