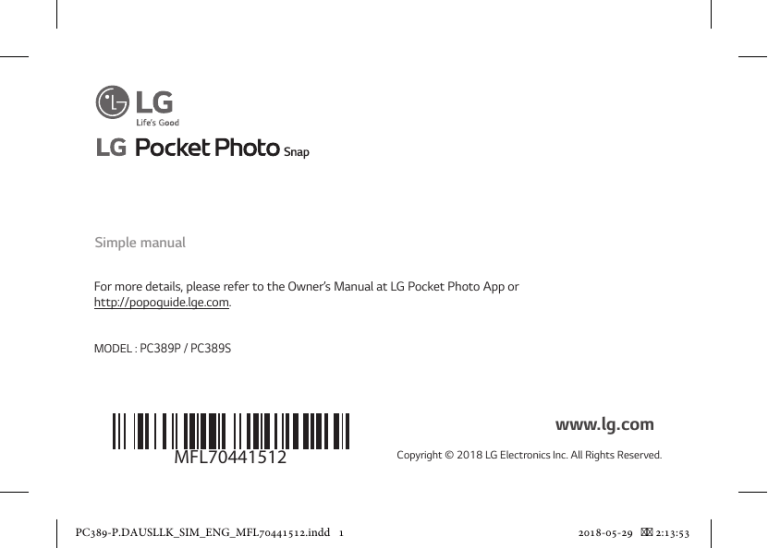

LG PC389P, PC389S User guide

LG PC389P, PC389S User guide
Simple manual
For more details, please refer to the Owner’s Manual at LG Pocket Photo App or
http://popoguide.lge.com.
MODEL : PC389P / PC389S
www.lg.com
MFL70441512
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 1
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
2018-05-29
2:13:53
STEP 1 Getting Started
English
Reset hole
You can install and use “LG Pocket Photo” app on the Play
Store (Android Market) of Android device.
LED indicator
Flash
Shutter
You can install and use “LG Pocket Photo” app on the App
Store (iPhone) of iOS device.
(Power) button
(Reprint) button
You can connect and use smartphone and Pocket Photo
app via Bluetooth.
Lens cover switch
View finder
,This device uses a built-in battery. Before using it, fully
charge the battery using a Smart phone USB cable
(USB Type C) or adapter.
※ The actual device may differ from the image.
2
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 2
2018-05-29
2:13:54
STEP 2
Printing Photo
English
3. Insert the photo cartridge with the ribbon facing
forward as shown in the following image and close
the cover.
1. Search for “LG Pocket Photo” from Play Store
(Android market) / App Store (iPhone).
on
ton
ully
e
4. Press the cover to close it completely.
2. Slide the cover button sideways to open the bottom
cover.
3
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 3
2018-05-29
2:13:54
5. Press
on.
(power) button for 2
seconds to turn
6. Search for the device to pair through Bluetooth.
ex ) LG PC389 (XX : XX)
7. When you find the device, touch the model name of
Pocket Photo on the screen.
9. If you want to print a photo you took again, press
] (reprint) button on top of Pocket Photo.
[
, During printing, the photo paper repeatedly
comes out and in about 5 times through the
paper exit slot. Please wait and do not pull out
the photo by hand until it is finally released.
8. Select a photo to print, and touch [ ] (print) on
Pocket Photo App.
yy In case of Android, if you press [ ] (print) button
of Pocket Photo app even if Bluetooth pairing is
not done, pairing with Pocket Photo is tried.
4
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 4
2018-05-29
2:13:54
Note on Photo Cartridge
yy Unpack the cartridge in dust free place and
immediately put it into the unit.
yy Do not touch the color ribbon and the photo paper
when inserting the cartridge.
yy Do not touch the inside of the Insertion part of
Photo cartridge (print head). There is a risk of burns.
Note on the print
yy The higher resolution the image has, the higher
quality the printed photo has. (The proper
resolution is more than 2560 x 1920 pixel.)
Depending on the resolution of the orginal image,
the quality of the printed image may differ.
STEP 3 Taking photos and instant printing
You can take photos with camera and print.
yy Do not pull paper out by force during printing.
yy Do not open the cover during printing or do not
print the photo, when cover is opened. It may cause
damage of Pocket Photo.
yy If there are foreign substance or dust on the inside
of the Insertion part of Photo cartridge (print head),
printed photo may has lines.
In that case, wipe the foreign substance of the
head with a cotton bud or a soft cloth. And then try
again. Refer to “Troubleshooting” to clean the part.
1. Open the lens cover.
5
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 5
2018-05-29
2:13:55
(Reprint) button
Shutter
4. If you want to print a photo you took again, press
[ ] (reprint) button on top of Pocket Photo.
(About 1 second or more)
,,Note
yy If the lens cover is closed, you can’t take a photo.
View finder
2. Hold the Pocket photo, confirm the desired
composition of the final image by using view finder.
Optimal distance for taking photo is approximately
between 0.5 m and 1.5m.
The subject may shake when taking pictures. Hold
your elbows at your body when taking photos.
yy Reprint function is not activate when the Pocket
photo is turned off or reset.
yy When shooting with the camera the shooting
range of images viewed with the viewfinder and
the images printed after shooting may differ.
yy The quality of the photos printed with the
camera and the photos printed with the Pocket
Photo app may be different.
3. Press the shutter button for 2
photo is taken with a
is printed.
seconds then
shutter sound and photo
※ The flash may turn on at dark place when taking
photos.
6
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 6
2018-05-29
2:13:55
STEP 4 Changing to black-and-white
shooting mode
Closing lens cover
You can print the photo in black and white when taking
photos with a camera.
2. Close the lens cover.
1. Press
(power) button for 2 seconds to turn on.
5 seconds
3. Press Shutter button for 5 seconds. The
LED
will light up in white and switch to black-and-white
shooting mode.
7
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 7
2018-05-29
2:13:55
Opening lens cover
,,Note
When printing via the Pocket Photo app, the
camera prints in color even if it is set to black-andwhite shooting mode.
4. Open the lens cover.
5. When you take a photo, black and white photos are
printed through Pocket Photo.
6 When you change to the color shooting mode, close
the lens cover by raising the lens cover switch, on
power on status and then press the shutter button
for 5 seconds.
LED turns off and changes to color mode.
8
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 8
2018-05-29
2:13:56
※ Basic function of Pocket Photo app
1. You can use the editing functions of the Pocket Photo
app to decorate your pictures with text, brushes
(drawing tools), frames, and more.
You can also calibrate your photos through various
filter modes.
2. Press the [ Camera] button on the main screen of
the Pocket Photo App, you can easily shoot in the app
without running the camera of the smartphone.
STEP 5 See “Manual” for details
1. Run LG Pocket Photo App on the smartphone.
2. Touch the setting menu [
user manual for details.
] / [Manual] to see
※ This product must always be operated DC 5 V.
Certified/Listed Adaptor which comply with LPS.
3. You can check device condition, battery status, total
printed photos, MAC address and firmware version on
the [ Setting] / [Device information] screen.
,,Note
If you want to change the text of a photo in the
editing function, the font is applied the same when
you change the font of your smartphone. (The
Pocket Photo app does not support font changes.)
9
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 9
2018-05-29
2:13:56
Specifications
Paper size
63 mm x 94 mm
yy Do not discard the battery arbitrarily as you are
requested to follow the local procedure for discarding
the battery.
Image Sensor
CMOS
Troubleshooting
Resolution
(Print)
310 dpi
Camera pixels
Approx. 5 mega-pixels
Shutter
Electronic shutter
Media paper
used
Dye-sublimation photo paper
(exclusive for Pocket photo)
Communication
Bluetooth 4.0
Battery capacity
1,000 mAh Lithium-ion
rechargeable battery
Dimensions
(W x H x D)
Approx. 152 mm x 108 mm x 36
mm
Pocket Photo
App supporting
version
yy iOS v9.0 or higher
Symptom
Cause / Solution
The paper
jammed before
printing.
Turn the device off and on again then
paper is ejected automatically.
At first remove the photo cartridge,
and then gently pull the remaining
photo paper out of the Insertion part
of Photo cartridge. At this time, be
careful not to touch the inside of the
Insertion part of Photo cartridge.
yy Android v4.4 or higher
10
PC389-P.DAUSLLK_SIM_ENG_MFL70441512.indd 10
2018-05-29
2:13:56
The printed
photo has lines.
If there are foreign substance or dust
on the inside of the Insertion part of
Photo cartridge (print head), printed
photo may has lines.
In that case, wipe the foreign
substance of the head with a cotton
bud or a soft cloth. And then try
again. Clean the part indicated in the
following picture.
Quality of
In case you edit an image using
printed photo is [ ] menu in the App, the quality of
too low.
the printed photo may be reduced.
Turn off the Pocket photo and insert
the new photo cartridge.
Above solutions Press Reset hole with a pointed
do not work.
thing like mechanical pencil to
initialize.
