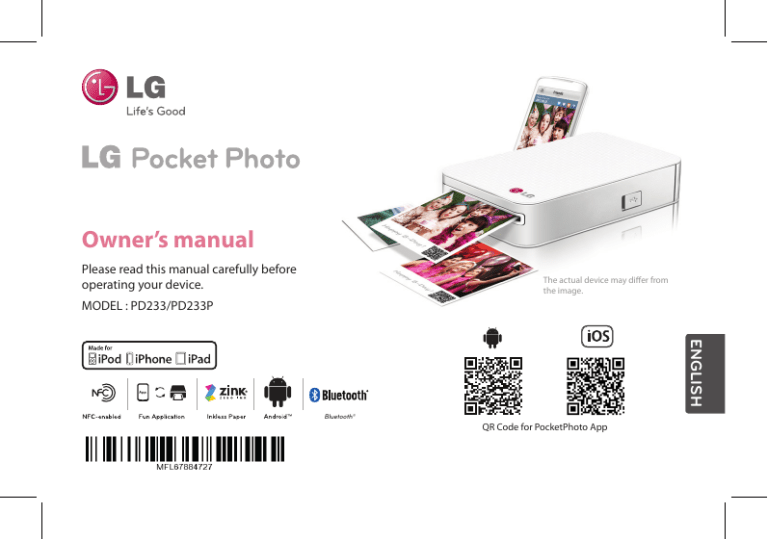

Owner’s manual

Please read this manual carefully before operating your device.

MODEL : PD233/PD233P

Bluetooth®

Bluetooth®

The actual device may differ from the image.

QR Code for PocketPhoto App

Safety information

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK) NO USER-

SERVICEABLE PARTS INSIDE REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

2

WARNING:

TO PREVENT FIRE OR ELECTRIC SHOCK

HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN

OR MOISTURE.

WARNING:

Do not install this equipment in a confined space such as a book case or similar unit.

CAUTION:

Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from over heating.

The openings shall never be blocked by placing the product on a bed, sofa, rug or other similar surface. This product shall not be placed in a builtin installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instruction has been adhered to.

NOTICE:

For safety marking information including product identification and supply ratings, please refer to the main label inside the apparatus.

NOTICE:

Only use the AC adaptor supplied with this device. Do not use a power supply from another device or another manufacturer. Using any other power cable or power supply may cause damage to the device and void your warranty.

CAUTION:

y

The apparatus should not be exposed to water

(dripping or splashing) and objects filled with liquids, such as vases, shouldn’t be placed on the apparatus. y

Minimum distance around the apparatus for sufficient ventilation, no less than 5 cm. y

The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains etc. y

No naked flame sources, such as lighted candles, should be placed on the apparatus. y

The unit’s internal lithium battery should only be serviced by an authorised service centre.

3

4

RF Radiation Exposure Statement

This printer must be installed and used at a distance greater than 20cm from your body. y

The appliance is not intended for use by young children or infirm persons without supervision.

y

Young Children should be supervised to ensure that they do not play with appliance.

y

If the appliance is supplied from a cord extension set or an electrical portable outlet device, the cord extension set on electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture.

,

Note

Device operating temperature

When operating in cold weather, the device shall not print. Bring it inside from the cold and give about 10 min to adjust to the specified operating temperature (5 °C - 40 °C). Then try printing again. (For the appropriate use, it is recommended not to operate it outdoors in winter.)

>

Caution

CAUTION when using this product in environments of low humidity

y

It may cause static electricity in environments of low humidity.

y It is recommended to use this product after touching any metal object which conducts electricity.

Contents

Safety information . . . . . . . . . . . . . . . . . . . . . .2

STEP 1 Getting Started . . . . . . . . . . . . . . . . . .6

Supplied items. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . 6

Power On / Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

STEP 2 Charging Battery . . . . . . . . . . . . . . . . .7

STEP 3 Inserting Photo Paper . . . . . . . . . . . .9

Cleaning printer head using Smart Sheet. . 9

Paper Jam Solution . . . . . . . . . . . . . . . . . . . . . .10

STEP 4 Installing App . . . . . . . . . . . . . . . . . 10

Installing App for Android phone . . . . . . . .10

App Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Installing App for iPhone . . . . . . . . . . . . . . . .12

Setting Bluetooth of iPhone . . . . . . . . . . . . .12

STEP 5 Printing Photo . . . . . . . . . . . . . . . . . 13

Printing using Android phone . . . . . . . . . . .13

Printing using iPhone . . . . . . . . . . . . . . . . . . . .16

Notes on the printing . . . . . . . . . . . . . . . . . . 18

Checking Label . . . . . . . . . . . . . . . . . . . . . . . . 19

About LED Indicator . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . 21

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 22

5

STEP 1

Getting Started

Supplied items

Product Overview

Reset hole

Paper exit slot

Micro USB port

(for recharging)

LG Pocket Photo Printer

USB cable Charger

Paper insert door

Button

(Power)

Paper insert slot

6

ZINK Photo Paper

Owner’s manual

Power On / Off

On : Press and hold for 4 sec.

Off : Press and hold for 2 sec.

STEP 2

Charging Battery

This device uses built-in battery. Before using it, charge the battery in full. (Refer to below)

,

Note

y When turning the device on, the button flashes for 5 sec. Then printing is available.

y

The LED indicator ( button) shows the device condition. For more information, see

“About LED indicator” on page 20.

Battery charging time : 1.5 hours

Checking the charging status with button y

Charging : / 100 % : (When power-off) y

10 % : flashes for about 3 sec.

y

0 % : flashes for about 30 sec. and turns off.

y

LG Pocket Photo is always charged when connected to the power supply except for being printed.

7

8

Charger (AC Adapter)

y

Model : MCS-01AT y y

Input : 100 - 240 V ~, 50 / 60 Hz y

Manufacturer : TEN PAO INTERNATIONAL LTD.

Output : 5 V

0

1.2 A

>

Caution

y

Handle with care during charging to prevent electric shock.

y

Do not place near heating appliance.

y

Do not disassemble or deform.

y

Handle with care, do not allow external impact such as dropping or kicking the

Adaptor. y Avoid too high or low temperature or humidity.

,

Note

y

You can connect the device to PC using the supplied USB cable, but charging time can be longer.

y

The operating time on battery may vary depending on the battery status, operational status and environment conditions.

y

When the battery is discharged, printing is available after charging it for more than 10 min. (Charge in full to print in a row.)

STEP 3

Inserting Photo

Paper

1. Open the Paper insert door.

2. Unwrap the pack of the photo papers.

3. Slide Smart Sheet (Blue) and photo papers together into the Paper insert slot. Smart Sheet will be ejected automatically before first printing.

y

Do not insert more than 1 pack (10 Photo papers and 1 Smart Sheet). Otherwise 2 papers may be ejected at once or paper jam may occur.

y

Refill the device after using up the papers.

y

Do not push the papers deeper into Paper insert slot.

ZINK

Photo Paper with White side up

Smart Sheet with Barcode side down

Cleaning printer head using Smart

Sheet

Smart Sheet cleans printer head and calibrates colours on photo. Keep the best print quality by using it repeatedly.

9

Paper Jam Solution

Do not pull the paper out. Turn the device off and on again, the paper will be ejected automatically.

If this problem is not solved, please refer to

“Troubleshooting”.

>

Caution

y

Do not force to pull pull the paper out during printing. It may result in malfunction.

y Do not damage or bend the papers.

y Using soiled paper may result in malfunction.

y

Using photo papers from other company may result in malfunction or paper jam.

y

Do not place inside a car or, expose to direct sunlight or moisture.

y

Do not leave in a place where the temperature or humidity is too high or low. It may reduce the quality of the printed photo.

,

Note

y

Handle with care when you touch the paper not to get dirt on.

y Ensure to use the papers within its valid date.

y

Once unpacked, the papers may begin to curl up after a period of time. It is recommended to use them as soon as possible.

STEP 4

Installing App

Installing App for Android phone

From Play Store (Android market)

Search for “LG Pocket Photo”.

Using QR code

Scan the QR code on the product box or the cover of this manual.

Bluetooth®

10

Using NFC

Refer to “Printing using NFC” on page 14.

App Setting

Bluetooth®

Set the options in [Setting].

* NFC : Near Field Communication

** GPS : Global Positioning System using a satellite

See “Help” for details

For more information about the App, touch “Help”.

y

NFC

*

: Prints using NFC (NFC-enabled phone only) y

Bluetooth : Prints using Bluetooth y

GPS

**

: Saves the location where you took a photo

11

Installing App for iPhone

From App Store

Search for “LG Pocket Photo”.

Using QR code

Scan the QR code on the product box or the cover of this manual.

Setting Bluetooth of iPhone

1. On your iPhone’s home screen, touch [Settings].

2. Touch “Bluetooth” and touch the slider to turn

Bluetooth [On].

3. To connect your Pocket Photo device to the iPhone, turn on your device and make sure it is discoverable mode.

4. When your iPhone found the device, touch the name of Pocket Photo on the iphone screen.

See “Help” for details

For more information about the App, touch “Help”.

12

STEP 5

Printing Photo

Printing using Android phone

Printing using Bluetooth ( )

Preparation : Turn the device on, and start printing with the white LED ( button) turning on.

1. Run LG Pocket Photo App on Android phone.

Bluetooth®

2. Select a photo to print, and touch [ ].

3. Touch [OK], then it will start searching for

Bluetooth devices.

4. When LG Pocket Photo is paired for the first time,

[Bluetooth pairing request] appears. To start printing, touch [Pairing] or input the PIN code ‘0000’.

y

If Smart Sheet is in the device, it will be ejected before the printing starts.

, You can print photos directly from Android phones or PC via Bluetooth without the App.

Choose a photo and select [Bluetooth] in [Share] or [Menu].

13

Printing using NFC ( )

Check whether your Android phone supports NFC first.

y

How to read NFC tag : Bring your smartphone close to the NFC tag on the device.

NFC

1. Tagging for the first time, it links to Play Store where you can download LG Pocket Photo App.

2. Go to [Setting] in the App installed, and check

[NFC].

Bluetooth®

3. Choose a photo to print and tag, then printing is started immediately. From this time, you can run the App and print a photo by just tagging.

Setting Pocket Photo App of Android phone

You can check remaining battery, the number of photos printed, device version, MAC address, and change the setting of print mode, etc.

1. Run LG Pocket Photo App on Android phone.

(To check [Device information], set to [On] the

Bluetooth of smartphone.)

14

2. Go to [Setting].

3. Touch [Device Information].

Auto Exposure

Paper Full

Image Full

Auto Power Off

Corrects colour in the image.

(ON/OFF)

Prints without white space. (The edge of the image can be cut off.)

Prints an image as a whole.

(White space can occur at the edge of the paper.)

Set a time so that the device turns itself off.

(Default is [5 min]. If you set to

[Off], the device can be on for up to 2.5 hours when fully charged.)

15

Printing using iPhone

Printing using Bluetooth ( )

with the white LED ( button) turning on.

1. Run LG Pocket Photo App on iPhone.

2. Select a photo to print, and touch [ ].

3. “Do you want to print?” message will be appeared.

Touch [OK] to start printing.

y

If Bluethooth is not connected, “ Paired device not found” message is appeared. (refer to the

Bluetooth setting for iPhone.) y

If Smart Sheet is in the device, it will be ejected before starting printing.

16

Setting iPhone Pocket Photo App

You can check remaining battery, the number of the photos printed, device version, MAC address, and change the setting of print mode, etc.

1. Run LG Pocket Photo App on iPhone.

(To check [Device information], set to [On] the

Bluetooth of iPhone.)

2. Go to [Setting].

3. Touch Setting options to change.

Auto Exposure

Paper Full

Image Full

Auto Power Off

Corrects colour in the image.

(ON/OFF)

Prints without white space. (The edge of the image can be cut off.)

Prints an image as a whole.

(White space can occur at the edge of the paper.)

Set a time so that the device turns itself off.

(Default is [5 min]. If you set to

[Off], the device can be on for up to 2.5 hours when fully charged.)

17

Notes on the printing

y

The colour of impression can be different between printed photo and image on smartphone’s display. y

Once the battery is fully charged, you can print up to 25 papers in a row. It depends on the battery condition.

y

The Bluetooth searching and transferring may fail depending on its environment. Check the

Bluetooth condition on your phone and try again.

y

If there are more than a LG Pocket Photo device, check MAC address on the label to choose one you want to use.

(Refer to “Checking Label” on page 19.)

>

Caution

y

Do not pull paper out by force during printing.

y Do not open the paper insert door during printing.

y

Do not place an object in front of the Paper exit slot.

y

If the device is vibrated or given shock, the quality of the printed photo may be reduced.

18

Checking Label

In case there are more than a LG Pocket Photo device, check MAC address on the product label to choose one you want to use.

1. Open the Paper insert door.

3. You can find the product label.

>

Caution

y

Be sure the device is turned off before opening.

Be sure the Paper insert door is opened when you close the Upper Cover.

y

It is recommended not to open the Upper cover except for checking the label.

y

Do not detach the black rubber pad. It may cause malfunction.

2. Open the Upper cover.

19

About LED Indicator

The LED indicator ( button) shows the device condition.

20

LED colour

Condition/

Power

Description

Waiting/

On

Full charge/

Off

Charging/

Off

Waits for printing.

Device turns itself off if it is left unused for a while.

To print, turn on the device.

To print, turn on the device.

Error/

On

Low battery/

On

Printing/

On

Cooling mode/

On

No paper, Paper jam, Cancelled,

Opened, Low temperature,

Unsupported file format

To print, charge the device.

Transferring data via Bluetooth,

Printing

After continuous prints the device may automatically cool down its internal temperature. Wait for a while to print again.

Specifications

Photo size

Image file type/ size

Media paper used

Media paper storage environment

Device operation environment

Optimum print environment

50 mm x 76 mm (Dot size : 640 x 1224)

JPEG (Baseline) / less than 10 MB

(Progressive JPEG is not supported.)

ZINK

TM

Photo Paper (exclusive for LG)

Allowable storage temperature

: 20 - 25 °C

Allowable storage humidity :

40 - 55 % RH

Temperature : 5 - 40 °C

Humidity : less than 70 % (35 °C)

(An temperature alert pops up in the App.)

Temperature : 15 - 32 °C

Humidity : less than 70 % (32 °C)

LED indicator

Communication

External connector

Bus Power

Supply (USB)

Battery life

Power supply

Image resolution

Power / Waiting / Bluetooth transmitting / Charged /

Discharged / Error / Condition of printer

Bluetooth 2.1 + EDR

Operation distance : about 10 m

Micro USB port for charging battery

DC 5 V 0 1.2 A

500 mAh Li-Polymer rechargeable battery

Maximum 25 prints when fully charged

500 mAh Li-Polymer rechargeable battery

AC adapter (DC 5 V 0 1.2 A)

More than 1280 x 2448 pixels

21

Dimensions (W x D x H)

72.4 mm x 120.9 mm x 24 mm

Net Weight 212 g y

Your phone may be incompatible with the device depending on its manufacturer, environment or

(Android or iOS) operating system.

y

Design and specifications are subject to change without prior notice.

Troubleshooting

Symptom

No power

Bluetooth pairng does not work well.

Cause / Solution

The battery is discharged.

Be sure the device is connected to charger or PC properly when charging.

Switch Bluetooth off and on again on your smartphone, then pair with the device in the smartphone’s settings.

Turn on the device and try printing (pairing) again in

5 sec.

Be sure the device is turned on.

22

The paper jammed before printing.

The paper jammed during printing.

The printed photo has lines.

No or incomplete image is printed.

The edge of the image on the photo is cut off.

1. Turn the device off and on again then paper is ejected automatically.

2. If above solution does not work, open the Upper cover and arrange the papers. Then insert them with Smart Sheet (Blue) or pull the paper out slowly and gently.

Open the Upper cover, arrange the papers and insert them with Smart Sheet locating at the bottom. Then try printing again. (To open the Upper cover, refer to

“Checking Label” on

19.)

Set [Print mode] to [Image

Full] in the App’s setting then the image is printed as a whole.

White space appears at the edge of the paper.

Quality of printed photo is too low.

When [Print mode] is set to

[Image Full], white space may appears if the aspect ratio of the paper and your image is not the same.

When [Pap er Full], the edge of the image can be cut off o r white space at the edge of the paper may appear.

In case you magnify an image using [ ] menu in the App, the quality of the printed photo may be reduced.

Turn off the device and insert

Smart Sheet locating at the bottom of the papers. Then try printing again.

Be sure the photo size is bigger than the proper resolution.(1280 x 2448 pixels)

23

Device does not print.

Device is turned off automatically.

Above solutions do not work.

Be sure there are papers in the device.

It may take time to print after

Smart Sheet is ejected.

Be sure the photo file is less than 10 MB.

Baseline JPEG format is supported only.

Check [Auto Power Off] time in the App’s setting.

Press Reset hole with a pointed thing like mechanical pencil to initialize.

24

Notes

25

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
