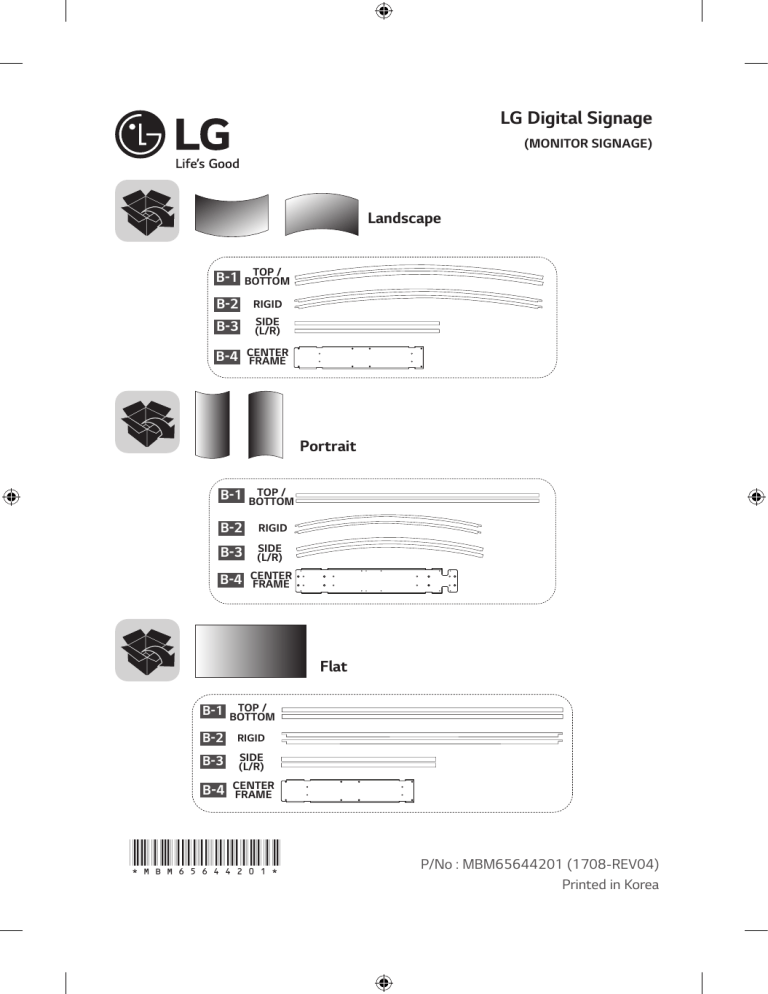

LG Digital Signage
(MONITOR SIGNAGE)
Landscape
B-1
TOP /
BOTTOM
B-2
RIGID
B-3
SIDE
(L/R)
B-4
CENTER
FRAME
Portrait
B-1
TOP /
BOTTOM
B-2
RIGID
B-3
SIDE
(L/R)
B-4
CENTER
FRAME
Flat
TOP /
B-1 BOTTOM
B-2
RIGID
B-3
SIDE
(L/R)
B-4
CENTER
FRAME
*MBM65644201*
P/No : MBM65644201 (1708-REV04)
Printed in Korea
LG Digital Signage
(MONITOR SIGNAGE)
Landscape/ Portrait/ Flat
B-7
B-5
B-6
X6
B-10
B-9
B-8
(M4 X L8)
X6
(M3 X L4.5)
X 50
X4
(M3 X L6)
X 10
B-11
(M3 X L8)
X6
(M4 X L12)
X6
B-12
B-13
* 부속품을 박스로부터 꺼낸 후 해당 모델 사용자 설명서를 참조하여 조립하세요.
자세한 적용 모델은 판매점에 문의하세요. 고객의 편의를 위해 여유분의 나사가 제공됩니다.
* Please remove the accessories from the box and assemble according to the instructions in the
user manual for your model. For details about applicable models, contact the retail store. It is
supplied some extra screws for customer’s convenience.
* 请从包装盒中取出附件,然后根据对应型号的用户手册说明进行组装。
有关适用型号的详细信息,请联系零售店。包装盒中多送了几颗螺钉,
方便客户取用。
