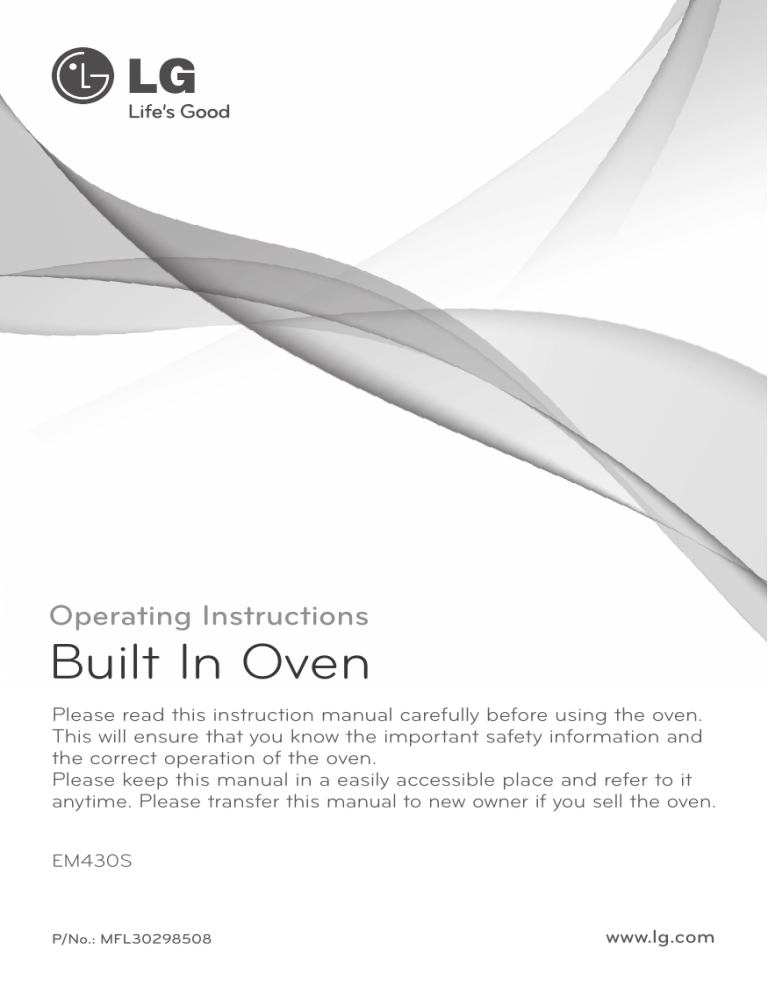

LG | EM430S | LG EM430S Owner’s Manual

Operating Instructions
Built In Oven
Please read this instruction manual carefully before using the oven.
This will ensure that you know the important safety information and
the correct operation of the oven.
Please keep this manual in a easily accessible place and refer to it
anytime. Please transfer this manual to new owner if you sell the oven.
EM430S
P/No.: MFL30298508
www.lg.com
Contents
Safety ..................................................................................... 4~14
Appliance description .............................................................. 15
Control panel ...................................................................... 16~17
Accessories ........................................................................ 18~19
Side runners .............................................................................. 20
Setting the clock ....................................................................... 21
Setting the time of day ............................................................. 21
Before using for the first time ................................................. 22
Using the oven .......................................................................... 23
Oven functions ................................................................... 24~25
Operation ............................................................................. 26~35
Switching the oven on .............................................................. 26
Switching the oven off .............................................................. 27
Clock functions and symbols .................................................... 28
Setting the timers ..................................................................... 29
Programming the overall cooking / baking time ....................... 30
Programming the end of cooking / baking time ........................ 31
Combining overall cooking / baking time and end
of cooking / baking time ..................................................... 32~33
Setting the time of day ............................................................. 34
Childproof safety device ........................................................... 35
Baking .................................................................................. 36~37
Baking Tables ...................................................................... 38~41
Roasting .............................................................................. 42~43
Roasting tables ......................................................................... 44
Grilling ................................................................................. 45~46
Defrosting .................................................................................. 47
Cleaning and care ............................................................... 48~49
Oven light .................................................................................. 50
Oven door ............................................................................ 51~55
2
Troubleshooting ................................................................. 56~57
Technical specifications .......................................................... 58
Installation instructions ........................................................... 59
Customer service & spare parts .............................................. 60
Warranty .................................................................................... 61
3
Important safety instructions
Read and follow all instructions before using your oven to prevent
the risk of fire, electric shock, personal injury, or damage when
using the appliance. This guide does not cover all possible conditions
that may occur. Always contact your service agent or manufacturer
about problems that you do not understand.
This is the safety alert symbol.This symbol alerts you to
potential hazards that can kill or hurt you and others. All
safety messages will follow the safety alert symbol and either
the word “WARNING” or “CAUTION”. These word means :
WARNING
This symbol will alert you to hazards or unsafe
practices which could cause serious bodily
harm or death.
CAUTION
This symbol will alert you to hazards or unsafe
practices which could cause bodily injury or
property damage.
• This oven must only be installed by a licensed electrician.
• The installer is responsible for the correct electrical connection of
the appliances and the observance of the relative safety
recommendations.
• Rating plate is located on the left side of the door and on the back
cover.
4
Electrical Safety
• This appliance must be connected to the mains power supply by a
specially licensed electrician only.
• Electrical leads and cables should not be allowed to touch the
oven.
WARNING
• The oven should be connected to the electricity supply by
means of a proper circuit breaker or fuse. Never use
multiple plug adapters or extension leads.
• This connection may be achieved by having the plug
accessible or by incorporation a switch in the fixed wiring in
accordance with the wiring rules.
- Failure to do so can result in a fire.
5
Safety
Damage
WARNING
• If the oven has been damaged in transport, do not connect
it.
• In the event of a fault or damage to the appliance, do not
attempt to operate it.
• Repairs of the appliance should be carried out by a
licensed technician only. Wrong repairs may result in
considerable danger. If you need repairs, contact an LG
Service Center or your dealer.
• If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
• Never remove the outer casing from the oven. If the oven
is faulty and needs servicing or you are in doubt about its
condition, unplug it from the wall socket and contact the
nearest after-sales service centre
- Failure to do so can result in malfunctioning and death or
electrical shock when using.
6
Maintenance
WARNING
• The power supply of the appliance should be turned off
when it is being repaired or cleaned.
• Be careful in connecting electrical appliances to sockets
near to this appliance.
• Do not use high-pressure water cleaners or steam jet
cleaners for electrical safety reasons.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering of the
glass.
• The appliance should be powered down before replacing
the lamp to avoid the possibility of electric shock.
- Failure to do so can result in malfunctioning and death or
electrical shock when using.
7
Safety
Safety during Operation
WARNING
• Do not touch interior parts until it has cooled down
sufficiently.
- When the oven operates, the interior parts will be very hot
and burns may occur.
WARNING
• Accessible parts may become hot during use. Young
children should be kept away.
• Accessible parts may become hot when the grill is in use,
children should be kept away.
• The appliance is not intended for use by young children or
infirm persons without supervision.
• Young children should be supervised to ensure that they do
not play with the appliance.
• Children should be kept at a safe distance when the oven
operates.
• Children should be kept at a safe distance until the oven
has cooled down after cooking.
• This appliance is not intended for use by persons
(including children)with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
8
WARNING
• Never block the air vents
- The oven may overheat and automatically switch itself off. It
will remain inoperable until it has cooled sufficiently.
• Do not cover the ventilation with cloths or paper.
- The cloths or paper may catch fire as hot air is evacuated
from the oven.
• Do not spill water in the vents.
9
Safety
Safety during Operation
WARNING
• When in use, the oven interior surfaces become very hot!
Care should be taken to avoid touching heating elements
inside the oven.
- These walls may be hot enough to burn skin even after
cooking is finished, though they do not appear to be so, keep
away from hot spot.
• The oven surfaces will become hot when the appliance is
operated at a high temperature for a long period of time.
• The oven door must be closed when cooking is
performing.
• When cooking, take care when opening the oven door as hot
air and steam will escape rapidly.
- The hot air or steam released may cause scalding.
• When cooking dishes that contain alcohol, the alcohol can
evaporate due to the high temperatures. The vapor can
catch fire if it comes into contact with a hot oven part.
• Never store flammable or easily deformable materials in
the oven. To reduce the risk of fire in the oven cavity.
• Should an oven fire occur, leave the oven door closed and
turn the oven off. If the fire continues, throw baking soda
on the fire or use a fire extinguisher. Do not put water or
flour on the fire.
- Flour may be explosive and water can cause a grease fire to
spread and cause personal injury.
• Use oven gloves when removing a dish from the oven.
- The trays and racks are hot.
10
WARNING
• The oven must be secured by properly installed anti-tip
devices. To check if the bracket is installed properly
- To reduce the risk of tipping of the oven.
• Do not store this equipment outdoors. Do not use this
product near water (for example, near a kitchen sink, in a
wet basement, or near a swimming pool, and the like)
• Be sure all packing materials are removed from the
appliance before operating it.
• Do not use this oven for commercial purposes.
- This oven has been designed only for the cooking of household
foods.
• Do not use the oven door as a rest table for hot items or cookware.
• Never use your appliance for warming or heating the room
• Do not step, lean, or sit on the door of the oven.
WARNING
• Do not touch an electric cord with a wet hand.
- It is very dangerous. You can get an electric shock.
• Be careful not to damage the power cable.
• Do not operate this appliance if it has a damaged power
cable or plug.
• Do not immerse power cable or plug in water and keep
power cable away from heated surfaces.
• Do not let cord hang over edge of table or counter.
11
Safety
Safety during Operation
WARNING
• Don’t spread aluminium foil on the bottom of the oven and
do not place any baking trays or tins on it.
- The aluminium foil blocks the heat, which may result in
damage to the enamel surfaces and cause poor cooking
results and this will result in poor baking by disturbing heat
circulation.
WARNING
• Please ensure cooking times are correctly set
- Over cooking may result in the food catching fire and
subsequent damage to your oven.
WARNING
• Don’t pour water into the oven bottom when it is hot.
- This could cause damage to the enamel surfaces.
• When cooking very moist cakes, use the deep pan.
- Dripping fruit juices from the baking tray will leave stains,
which become indelible.
• Frozen foods such as pizzas should be cooked on the wire
grill.
- If the Baking tray is used, it may become deformed due to the
great difference in temperature.
• Do not heat unopened food containers.
- Build-up of pressure may cause container to burst and result
in injury.
12
Disposal
CAUTION
• Your new oven has been correctly packaged for
transportation. Remove all of the packaging material before
putting the appliance into use.
• The packaging material can be completely recycled. You can
obtain addresses for environmentally-friendly disposal operations
from your local authority.
• If you wish to store your oven away temporarily, choose a dry,
dust-free place. Dust and damp may adversely affect the working
parts in the oven.
13
Safety
Used appliances
WARNING
Used appliances must be rendered unusable prior to
disposal so that they no longer present a risk. To achieve
this, disconnect from the mains supply and remove the
power supply cable.
For the protection of the environment, used appliances must
be Disposed of property.
• The appliance must not be disposed of along with normal
domestic waste.
• Your local authority will inform you of times for uplifting special
waste or identify public disposal facilities for you.
14
Appliance description
Overview
Control panel
Top-heating
and grill heating
element
Level 6
Level 5
Level 4
Side runners
Level 3
Level 2
Level 1
Oven light
Air outlet
Door seal
Rear wall heating
element
Oven cavity
Rating plate
Full glass door
Door
handle
Oven levels are numbered from the bottom up.
The 5 and 6 levels are mainly used for grill functions.
The cooking tables throughout this operating instructions give you
suggested oven level, however you can change these to suit
yourself.
Note : Rating plate can be located at left-hand inner edge of the
door or front-side of the oven.
15
Control panel
1. Timer button
2. Clock button
3. Operating mode knob
4. Time display
16
5. Less button
6. More button
7. Temperature knob
17
Accessories
Wire grill
For dishes,baking tins, grilling and
roasting tins.
For grilling meat, place the wire grill on
the upper level of deep pan.
Baking tray
For cakes, sponges and biscuits.
Deep pan
For moist cakes, for roasting and for
catching roasting juices or fat.
Tip :
When using the tray and wire grill with groove type oven for the first
time, smear the groove with cooking oil, using a cloth. Then wipe
the groove with a dry cloth. Now you can use them more smoothly.
Grill tray
For grilling meat, to be placed on top of
the deep pan. Dripping fat is caught in
the deep pan.
Fat filter (Feature not available all countries)
For protecting the fan against fat building up.
The filter may be in place when the fan is used for
roasting.
Note:
To install the fat filter, insert the two hooks into the holes on the fan
cover. The fat filter must cover the fan venting holes completely.
Do not use the fat filter in baking mode, as it restricts the air flow.
18
Tips on using the trays and wire grills
Ensure that the trays
and wire grills are
properly fitted onto the
Wire grill
two side oven levels.
Take particular care
Deep pan
when removing finished
gap 2cm
dishes and meals from
the oven!
Use a suitable cloth pot
holder or oven gloves.
If you are using the wire grill in combination with the deep pan or
some other tray to catch dripping liquids or fat, then do not put the
trays down on the bottom of the oven, slide them into the lower
levels.
If you place trays on the oven floor, the resulting build-up of heat
can damage the surface of the oven. For this reason, there must
always be a minimum gap of 2 cm between the accessories and the
oven floor.
Fitting the wire grill, baking tray and deep pan
Slide the tray or wire grill in at
the desired level.
The oven levels are numbered
from the bottom up to the top.
19
Side runners
Attaching the side runners
When using the oven for the first time, attach the side runners
as following procedures.
You can find the side runners in the accessory box.
1. Put the inserting bar of the side
runner into the hole
2. Align the front recess with the
front screw hole. Insert and
fasten a screw clockwise.
3. Attach the other in the same way.
20
Setting the clock
Setting the time of day
The oven cannot be used until the time of day is set.
When the appliance is connected for the first time or after a power
failure, the time display flashes at “12:00”.
Example: to set the current time of day to 13:30.
time display flashes at
1 The
“12:00” and the egg timer
the button(–/+) to
2 Press
change the clock time
symbol will blink.
(13:30, in the example).
The time will be set after 4
seconds.
21
Before using for the first time
Initial cleaning
Clean the oven carefully before using it for the first time.
Important: Do not use any caustic or abrasive cleaners. These can
damage the oven surfaces.
Appliance front
The oven with a metal front must be cleaned with standard
detergents only. Wipe the front of the appliance with a slightly damp
cloth.
Oven interior
1. Take all accessories out of the oven and wash them with warm
water and dishwashing liquid.
2. Clean the oven interior in the same way, using warm water and
dishwashing liquid.
3. Allow the oven to dry.
Heating up
Before baking or roasting for the first time, the oven should be
turned on and allowed to heat up (200~250°C) with nothing in it.
Then allow the oven to cool down thoroughly. New ovens have a
unpleasant odours. Open the window and ensure there is adequate
ventilation during this period.
1. Ensure that the time of day is set correctly.
2. Remove all accessories from the oven.
3. Use Convection heat( ), or Fan grill( ) functions to heat the
oven up.
4. Leave the oven on for at least one hour.
22
Using the oven
Operating modes
Convection heat
Oven Light
Conventional heat
Defrost
Large grill
Bottom heat
Fan grill
Description of operating modes
The individual operating modes differ in that they involve a
combination of different heating elements. The various combinations
are suitable for producing a variety of heated areas and Convection
circulation paths in the oven, as required for the optimum preparation
of various dishes.
When using the grill function( ), dial
the temperature knob by on the grill
mark.
When using the defrost( ), there are
no other settings available.
23
Oven functions
Convection heat
Convection heat mode uses only the heating element
in the back wall and the convection fan. The
recommended temperature is 150°C.
It is also possible to bake on more than one level in
Convection heat( ) mode. This means that it is
suitable for fruit cakes and stirred cake or yeast-dough, for example
a bread plait.
Conventional heat
For Conventional heat, the heating elements above
and below the oven cavity are used. This operating
mode is suitable for baking cakes, baking with a short
baking time, sensitive doughs and for roast beef and
fillet of beef on the one level. The recommended
temperature is 190°C.
Fan grill
In this mode, the grill element and the fan are on. The
recommended temperature is 190°C. This function is
suitable for pizzas, quiche lorraine or cheesecakes.
Large grill
The large grill( ) uses the entire heating element.
When using this function, dial the temperature knob
by on the grill mark( ). The large grill( ) is
suitable for cooking steaks, cutlets,fish or making
toast, and when cooking larger quantities for
browning or with a gratin topping.
24
Bottom heat
In bottom mode, only the heating element in the oven
floor is used. The recommended temperature is
170°C. This function is particularly suitable for
finishing off cakes or pizzas on one of the lower oven
levels.
Defrost
In defrost mode, the fan is used without heating. The
circulating air speeds up the defrosting process.
Place the frozen food in a suitable container to trap
the liquid produced during defrosting. Where
appropriate, you can use the wire grill and the deep pan to avoid
soiling the oven. If water is allowed to run out into the oven, the
door seals will be contaminated and an unpleasant odour may
result.
25
Operation
Switching the oven on
the desired mode
1 Select
with the Operating mode
the desired oven
2 Select
temperature.
knob.
setting the oven
3 After
temperature, the oven will
start immediately.
26
Switching the oven off
Set the Operating mode knob to “O” to
switch the oven off.
Oven fan
When the oven is switched on, the fan is automatically activated to
cool the oven surfaces. When the oven is switched off, the fan is
also switched off.
Thermal cut-out
If the oven should overheat, the power supply to the heating
elements is switched off for a period of time so as to avoid any
damage to the appliance.
Baking dishes
When using baking dishes, always ensure that the dish is suitable
for use at the temperature inside the oven. The oven can operate at
up to 250°C. Refer to the instructions provided by the manufacturer
of the dish.
27
Operation
Clock functions and symbols
End of cooking / baking time
Hour
Overall cooking /baking time display Childproof safety device
Timer
(timing clock)
Minute
display
Clock
Heating indicator
Timer
Lights up when the function timer is activated (e.g. like a minute
minder when boiling eggs).
Overall cooking time
Lights up when the overall cooking time is being set or displayed.
The oven switches off automatically after the cooking time set has
expired.
End of cooking time
Lights up when the point in time set for the end of the cooking /
baking time is set or displayed. The oven switches off automatically
at the stipulated time.
Heating indicator
This indicator is turned on only if one or more heating elements are
working on.
Clock
Lights up when the time is being set, changed or displayed.
28
Setting the timers
1 Press the timer(
) button.
the desire time with the
2 Set
More/Less(–/+) buttons.
(30min. in the example)
4 seconds, the time
3 After
will be set. And you will hear
a signal tone.
* Switching off the signal tone
Press any button once to cancel the signal tone.
29
Operation
Programming the overall cooking / baking time
The oven switches off automatically at the end of the period of time
entered.
the desired operating
1 Select
mode and temperature.
the Clock button(
2 Press
once.
)
the desired overall
4 seconds, the time
3 Set
4 After
cooking/baking time with the
will be set. And you will hear
More/Less(–/+) buttons.
(30min. in the example)
a signal tone.
Once this time has expired
you will hear a beep sound,
and the oven will switch off
automatically.
Press any button once to
cancel the audible sound.
30
Programming the end of cooking / baking time
The oven switches off automatically at the time entered.
the desired operating
1 Select
mode and temperature.
the Clock button(
2 Press
twice.
)
the desired end of
4 seconds,the time
3 Set
4 After
cooking/baking time with the
will be set. And you will hear
More/Less buttons.
(In the example, the current
time is 13:30 and the dish is
to be finished at 14:30)
a signal tone.
Once this time has expired
you will hear a beep sound,
and the oven will switch off
automatically.
Press any button once to
cancel the audible sound.
31
Operation
Combining overall cooking / baking time and end
of cooking / baking time
The overall and end of cooking time programmes can be combined
to permit the oven to be switched on and off automatically.
the desired operating
1 Select
mode and temperature.
the Clock button(
2 Press
once.
)
the desired overall
Now press the Clock button
3 Set
4
cooking/baking time with the
once to set the end of
More/Less(–/+) buttons.
(30min. in the example)
cooking before starting.
32
After 4 seconds, the time
the desired end of
5 Set
6
cooking/baking time with the
will be set. And you will hear
More/Less(–/+) buttons.
(14:30, in the example)
a signal tone.
30 minutes before the end
of cooking/baking time, the
oven switches on
automatically, at 14:00 in
the example shown.
Once this time has expired
you will hear a beep sound,
and the oven will switch off
automatically.
Press any button once to
cancel the audible sound.
33
Operation
Setting the time of day
the Clock button(
1 Press
3 times.
)
the current time with the
2 Set
More/Less(–/+) buttons.
(11:30, in the example)
4 seconds, the time
3 After
will be set. And you will hear
a signal tone.
34
Childproof safety device
The childproof safety device
prevents the oven from being
switched unintentionally.
1. Press the Clock button ( ).
Hold it down for 4 seconds until
the lock symbol( ) appears in
the display. The childproof safety
device is now activated.
2. To switch off the childproof safety device, press the Clock button
( ) until the lock symbol( ) is no longer displayed. The
childproof safety device is now deactivated and the oven is ready
for use.
35
Baking
General information
When baking, use the Convection heat(
( ) modes.
) or Conventional heat
Baking tins
• When baking in Conventional heat( ) modes, use baking tins
with a dark metal or coated surface.
• When baking with Convection heat( ), you can also use baking
tins with a bright metal surface.
• Always place cake tins in the middle of the tray or Wire grill.
• When baking with Conventional heat( ), you can place two
baking tins side by side in the
oven. This means that the baking
time is only slightly longer.
Oven levels
The oven levels are numbered from
the bottom up.
When cooking on multi-levels at the
same time, accessories are properly
fitted in the correct levels as below
Level 2 :Deep pan
Level 5 :Wire grill
(If you have a similar-sized tray)
Level 2 :Similar-sized tray
Level 5 :Deep pan
36
Using baking tables
The tables contain the temperature settings, baking time and Oven
levels for a selection of typical dishes.
• Temperatures and baking times should be regarded as reference
figures only. The actual values depend on the type of preparation,
quality of ingredients and the baking tin in use.
• We recommend first selecting a lower temperature and then
increasing it if necessary, for example if you want a higher degree
of browning or the baking time is too long.
• If you cannot work out the settings for a specific recipe, simply use
the settings for the most similar recipe.
• When baking cakes on baking trays or in tins on more than one
level, the baking time may be extended by 10–15 minutes.
• Baking with a high liquidity content (e.g. pizza, fruit cakes, etc.)
should be baked on a single level only.
• With cakes and baking with different levels of dough, uneven
browning may take place initially. In this case, do not alter the
temperature setting. The degree of browning will even itself out
over the baking process.
• For energy saving, use the residual heat for 8 minutes before
finishing cooking times.
37
Baking Tables
Baking on a single oven level
Operating mode
Recipe
Cakes in baking tins
Ring-shaped pound
cake
Biscuits / pancakes
Sponge finger
Flan base – shortcrust
pastry
Flan base – cake
mixture
Apple pie
Spicy cakes and flan
base (e.g.quiche
lorraine)
Cheesecake2)
Cakes on baking tray
Bread plaits / larger
cakes
Christmas stollen
Bread (rye bread)
initially, then later
Pie / eclair
Swiss roll
Fruit cake with
shortcrust pastry
Convection
heat
Oven
level
Conventional
heat
Temp. Oven
in °C level
Baking time
Temp.
in °C
For both types
of baking, in
hrs, mins.
2
150–160
2
160–180
0:50–1:10
2
2
3
140–160
150–160
170–180
2
2
2
150–170
160–180
190–2101)
1:10–1:30
0:25–0:40
0:10–0:25
3
150–170
2
170–190
0:20–0:25
2
2
150–170
160–180
2
2
170–190
190–210
0:50–1:00
0:30–1:10
2
140–160
2
170–190
1:00–1:30
3
160–170
4
170–190
0:30–0:40
3
2
150–1701)
180–2001)
140–160
160–1701)
150–1701)
160–1701)
4
2
160–1801)
2301)
160–180
190–210
180–2001)
170–1901)
0:40–1:00
0:20
0:30–1:00
0:15–0:30
0:10–0:20
0:40–1:20
3
3
3
38
4
4
4
Operating mode
Recipe
Slices with topping /
filling, e.g. quark,
cream, sugar,
almonds
Pizza (thick base)2)
Pizza (thin base)
Unleavened bread
Wähe (Swiss flan)
Biscuits
Shortcrust biscuits
Iced biscuits
Cake mixture biscuits
Cakes and pastries
with egg white,
meringues
Macaroons
Yeast dough biscuits
Puff pastry cakes and
pastries
Bread rolls
Convection
heat
Oven
level
Conventional
heat
Temp. Oven
in °C level
Baking time
Temp.
in °C
For both types
of baking, in
hrs, mins.
–
–
4
160–1801)
0:40–1:20
1
1
1
1
180–200
200–220
200–220
180–200
1
1
1
1
190–2101)
2301)
2301)
210–230
0:30–1:00
0:10–0:25
0:08–0:15
0:35–0:50
3
3
3
3
150–160
140–150
150–160
80–100
4
4
4
4
170–1901)
160–180
170–190
100–120
0:06–0:20
0:10–0:40
0:15–0:20
2:00–2:30
3
3
3
100–120
160–170
160–1801)
4
4
4
120–140
170–190
190–2101)
0:30–0:60
0:20–0:40
0:20–0:30
3
180–2001)
4
180–2201)
0:20–0:35
1)
2)
Preheat the oven.
Use deep pan.
Always count Oven levels from the bottom up.
39
Baking tables
Table for strudel and baked dishes
Baked pasta
Lasagne
Baked vegetables
Pizza baguette
Soufflé
Fish pie
Stuffed vegetables
Conventional heat
Oven level Temp.in °C
180–200
1
180–200
1
200–2201)
1
1
200–2201)
1
180–200
1
180–200
1
180–200
Baking time in
hrs,mins.
0:45–1:00
0:25–0:40
0:15–0:30
0:15–0:30
0:15–0:30
0:30–1:00
0:30–1:00
1)
Preheat the oven.
Always count Oven levels from the bottom up.
Baking tables for frozen ready –made dishes
Dish
Oven
level
Frozen
pizza
Baguettes
3
Fruit cake
base
Chips
3
3
3
Oven
function
Temperature
Time
Conventional Follow instructions Follow instructions
Heat
on pack.
on pack.
Conventional Follow instructions Follow instructions
Heat
on pack.
on pack.
Conventional Follow instructions Follow instructions
Heat
on pack.
on pack.
Convection
200 –220 °C
15 –25 mins.
Heat
Always count Oven levels from the bottom up.
Note: Turn chips 2 or 3 times when heating.
When heating frozen dishes, the baking tray may bend out of shape
because of the great difference in the temperature of the frozen food and
the oven.
Trays normally return to their original shape once they have cooled down.
40
Baking tips
Results of baking Possible cause
The cake base is
too light
Cake collapses
(turns lumpy,
soggy)
Solution
Use a dark baking tin or put the
cake one level lower down.
Set the temperature slightly
Oven temperature
lower.
too high
Baking time too short Set a longer baking time.
The baking time cannot be
reduced by setting a
higher temperature.
Mixture contains too Use less liquid. Follow
much liquid
instructions for dough mixing
times, especially when using
kitchen appliances.
Cakes are too dry Oven temperature
Next time set a slightly
too low
higher temperature.
Baking time too long Set a slightly shorter baking
time.
Baking temperature Set a slightly lower baking
Cakes are
browned unevenly too high and baking temperature and a slightly
time too short
higher baking time.
Mixture unevenly
Distribute the mixture evenly
distributed
over the baking tray/tin.
Temperature too low Next time set a slightly
Baking time too
long
higher temperature.
Wrong Oven level
41
Roasting
You can use the Fan grill(
for roasting.
) or Conventional heat(
) functions
TIP:
• Use heat resistant dishes when roasting (follow manufacturer’s
instructions).
• Stainless steel roasting pans are only of limited use, as they
reflect the heat to a very large extent.
• When using dishes with plastic handles, ensure that the handles
are heat resistant (follow manufacturer’s instructions).
• Large items for roasting or a number of items can be placed
directly on the deep pan or on the wire grill above the deep pan
(e.g. turkey, goose, 3~4 chickens, 3~4 knuckles of veal).
• Lean meat should be roasted in a roasting tray with a lid (e.g.
veal, braised beef, deep frozen meat). This keeps the juices in the
meat.
• For cooking crispy crusts or bacon, a casserole with no lid should
be used (e.g. minced meat, lamb, mutton, duck, knuckle of veal,
chicken, poultry meat, roast beef, fillet of beef, game birds).
TIP:
• Clean the oven as soon as possible after use if you are roasting in
an open-topped tin. It is easier to remove fat splashes when the
oven is still warm.
CAUTION
• Allow the oven to cool down enough to ensure there is no
risk of burning yourself.
42
The table contains the required temperatures, roasting times and
Oven levels for various kinds of meat. The figures stated are
approximate figures only.
• We recommend cooking meat and fish weighing over 1 kg in the
oven.
• For lean meat and fish, use Conventional heat. For all other kinds
of meat we recommend Fan grill( ) mode.
• Add a little liquid to prevent roasting juices or fat from getting
burned on.
•Turn the food over after about half or two thirds of the cooking
time.
TIP: For better roasting results, baste joints and poultry with their
own juices a number of times during the roasting process.
43
Roasting tables
Roasting Table
Food
Beef
(approx. 1kg)
Venison
(approx. 1kg)
Leg of pork
(approx.1kg)
Rolled pork
(approx.1kg)
Leg of lamb
(approx. 2kg)
Poultry
(approx. 1kg)
Poultry
(approx. 2kg)
Stuffed
Poultry
(approx.4kg)
Whole fish
(approx.1.5kg)
Oven
level
Fan grill
Conventional
heat
Temp.
Time
(°C)– (1) (mins.)
Temp.
(°C)– (1)
Time
(mins.)
22)
190
50~70
200
70~90
22)
180
75~100
200~240
100~120
22)
180~190
80~110
200
100~120
22)
180~190
90~120
200~220
110~130
2
180
110~130
200
150
22)
210
50~60
200~220
70~90
2
200
60~80
200~220
110~120
2
2
180~190
180~190
100~120
120~140
200~220
190~210
110~140
130~150
22)
160~180
35~55
200~220
35~55
This table is intended as a guide only, individual tastes and cuts of
meat will vary.
1) If
pot roasting set the temperature 20°C higher.
2) Use
the 4th level from the bottom when using Conventional heat.
44
Grilling
For grilling,you have a choice of 2 different operating modes.
Large grill
For larger quantities of flat food for grilling,for top-baking in large
tins.
Fan grill
For grilling larges pieces of meat or poultry,such as rolled roast or
turkey.
Note: When grilling, the oven door must be kept closed at all times.
As a basic principle, the oven should be preheated for 3 minutes!
Grilling dishes
Use the deep pan for grilling.Use the wire grill for making toast.
To catch dripping liquids, slide the deep pan in at Level 1 or 2.
45
Grilling
Oven levels
Use levels 5 or 6 for grilling flat pieces of meat.
CAUTION
• Exposed parts of the oven can become hot during grilling.
Keep children at a distance.
Using the grilling table
The grilling times are intended as approximate values only. The
actual times may vary depending on the quality of the actual meat
or fish.
Grilling is particularly suitable for cooking flat pieces of meat and
fish.
Turn the grilled food over about halfway through the cooking time.
Grilling table
Food for grilling
Rissoles
Pork fillet
Grilling sausages
Beef or veal steaks
Fillet of beef
(1 kg approx.)
Toast1)
Toast with topping
Oven level
5
5
5
5
4
4
4
1) Wire
Grilling time
1st side
2nd side
6–8 mins.
8–10 mins.
10 –12 mins. 6 –10 mins.
6–8 mins.
8–10 mins.
5–6 mins.
6–7 mins.
10–12 mins. 10–12 mins.
2–3 mins.
6–8 mins.
grill or deep pan
Always count the Oven levels from the bottom up.
46
2–3 mins.
–
Defrosting
Use the “Defrost(
)” operating mode to defrost food.
Defrosting dishes
• Remove the dish from its packaging, put it on a plate and place
the plate on the wire grill.
• Do not cover the dish with a plate or bowl, as this can
considerably extend the defrosting time.
• Do not use the liquid produced during defrosting for cooking the
dish to avoid the risk of salmonella. Ensure that the liquid
produced during defrosting is free to run off the food.
Oven levels
• For defrosting, use the wire grill on Level 1, or Level 2 for larger
dishes.
Defrosting table
The following table contains reference values for defrosting.
Dish
Defrosting time
(mins.)
Chicken, 1000 g
100–140
Meat, 1000 g
100–140
Meat, 500 g
90–120
Trout, 150 g
Strawberries, 300 g
23–35
20–30
Comments
Use the wire grill with the deep
pan. Turn the chicken after half
of the time.
Turn the meat after half of the
time.
Turn the meat after half of the
time.
Do not cover.
Do not cover.
47
Cleaning and care
CAUTION
• Switch the oven off before cleaning and allow to cool.
Outside
Wipe the front of the appliance with a soft cloth using a mild
detergent.
• Do not use any caustic or abrasive cleaning materials.
• For aluminium front panels use a mild window cleaner and for
stainless steel front panels use the corresponding cleaner for
stainless steel.
Oven interior
Note!
Clean the appliance after use, as soon as it has cooled down. This
makes it easier to remove any deposits and they cannot get burnt
on.
• Switch the oven light on.
• Wipe down the oven with water and dishwashing liquid. Allow to
dry. Do not use any abrasive cleaners.
• Remove persistent deposits with a special oven cleaning product.
Important: When using a spray-on cleaner, it is essential to follow
the manufacturer’s instructions!
Do not clean the door seal by hand.
Accessories
Clean the accessories (wire grill, deep pan, etc.) after use and allow
to dry fully. If necessary, treat in advance to soften deposits.
48
Cleaning by hand
Note: Allow the oven to cool down before cleaning. Danger of
burning!
The oven and accessories should be cleaned after each use.
Otherwise cleaning the next time will become more difficult
and in extreme cases impossible!
Cleaning at high temperatures:
- Remove all accessories (deep pan,wire grill) from the cavity.
- Turn the oven selector to CONVECTION.
- Turn the temperature selector to the highest setting.
Run the oven for approx. 1 hour. The length of time will depend on
the level of soiling. Any remaining soiling will gradually disappear
with each subsequent use of the oven at high temperatures. It is a
good idea to set the finish time for the process using the timer.
This way you will not forget to switch the oven off at the end.
49
Oven light
Risk of electric shock!
• Switch the oven off before replacing bulbs.
• Disconnect the appliance from the electricity supply
Note: To protect the bulbs and glass cover, a soft cloth should be
placed on the oven floor.
Replacing the oven light / cleaning the glass
cover
Step. 1
Unscrew the lam cover by turning
anti-clockwise.
Step. 2
Replace the oven lamp.
(Type E14, 230V, 25W, heatproof to 300°C)
Note: Always use a cloth to take hold of a lamp to avoid it burning
on fatty deposits.
Step. 3
Refit the glass cover.
Note: Make sure that all parts are correctly in place.
50
Oven door
Removing the oven door
Step. 1
To remove the oven door for
easier cleaning, open the door
fully.
Step. 2
To release the locking
clamps on the hinges turn
inner area of clamps
upwards and outer area of
them downwards as
illustrated.
Locking clamp
Step. 3
Then lift the door upwards as far
as it will go.
Note : Do not attempt to take the
door off the hinge guides
when it is in a horizontal
position. The guides will
close, and damage the
appliance.
Step. 4
Hold the door securely at both
sides and lift upwards off the hinge guides.
51
Oven door
Rehanging the oven door
Step.1
Hold the door securely at
both sides and carefully
fit it back onto the hinge
guides.
Note : Make sure that the
door goes back on
straight.
Step.2
Turn inner area of clamps
downwards and outer
area of them upwards as
far as they will go into a
horizontal position. Make
sure that the notches on
the locking clamps hook
into the slots on the door
as illustrated.
52
Dismantling the oven door
The oven door is fitted with three glass panels, mounted one
behind the other. The inner glass panels can be removed for
cleaning.
Note : The following steps must be performed only after the oven
door has been removed. Then place the door on a
soft and even surface with the handle facing down to
protect it from breakage and to prevent it getting
scratched.
Step. 1
Remove the two screws at
the right and left-hand side
of the door and pull the top
cover above the glass
panels forward.
Door top cover
Step. 2
Lift the innermost pane up and out from the door carefully. Then
remove the insulator.
insulator
53
Oven door
Step. 3
Lift the second pane up and
out. Then remove the spacer
from the Door.
Note : Spacers are located
next to the mount
bracket to keep the
Individual door panels in
position.
Handle them very carefully to
avoid the risk of breakage.
Door top cover
mount bracket
Spacer
Insulator
Pane #1
Pane #2
Pane #3
54
Refitting the glass panels
Step. 1
Refit the spacer and the
second pane carefully.
Step. 2
Refit the insulator and the
black printed pane. The print
should face in towards the
middle pane.
Note : Individual panes must
be located correctly in
their retainers.
Step. 3
Finally replace the top cover
and secure it by screwing onto
the door.
Note : Clean the glass panels with a mild detergent. Do not use
harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
55
Troubleshooting
Fault
The oven does not
heat up.
The oven does not
heat up even after
function and
temperature are set.
Time display in the
Electronic clock
flashes.
The oven lighting is
not operating.
Possible cause
The oven is not
switched on.
The clock is not set.
The required settings
have not been set.
Fault in the mains
power supply. The
protective electrical
system or the fuses
have been tripped.
Overall & End of
cooking time were set
to start cooking at a
later time.
There has been a
power failure.
Solution
Switch the oven on.
The oven bulb is
faulty.
Change the oven
bulb. See “Oven
light” for details.
56
Set the clock.
Check the settings.
Check out fuses
and the protective
system. If the fault
recurs, consult a
qualified electrician.
Cancel the settings
or set them again.
Set the current time
on the clock display.
If the fault connot be rectified by the above measures, contact
the LG service center
Note! If faulty, the appliance must not be used. If a fault occurs, the
appliance must be isolated by removing the mains plug or switched
off by removing the fuse.
The appliance must only be repaired by a specially trained and
qualified electrical professional only. Repairs carried out
improperly may result in considerable damage.
CAUTION
• Repairs to the appliance must be carried out by a specially
licensed technician only! Considerable danger may result
from incorrect repairs.
• Do not use the appliance if damaged. In the event of a fault
of failure, switch off at the mains. In the event of a fault,
visits by technicians from Customer Service or dealer may
not be covered by guarantee, even during the warranty
period, if the cause of failure is the result of abnormal
customer use.
57
Technical specifications
Mains connection
MAX power consumption
220-240 V~50 Hz
3000 watt
Oven installation dimensions
Height
min. 600
Width
min. 560
Depth
min. 556
Oven interior dimensions (mm)
Height x width x depth
330 x 454 x 415
Volume (useful capacity)
65L
58
Installation instructions
Important: installation should be undertaken by a qualified
professional electrician only.
The oven must be installed in compliance with the manufacturer’s
instructions.
Safety instructions for the installer
• During installation, ensure that no persons can come into contact
with live components.
• The housing in which the oven is installed must comply with the
stability requirements of the DIN 68930 standard.
• The oven must be installed by a qualified professional electrician,
in accordance with the corresponding regulations and standards.
• The oven is a heavy appliance and must be transported with great
care.
• Before initial use, remove all packaging,both external and from
inside the appliance.
• No modification may be made to the oven’s technical
characteristics.
• The integrated cooking area or hotplates is/are provided with
special connections. These may only be attached to the
appropriate corresponding connections of the same type.
59
Customer service & spare parts
If you require spare parts or a technician, contact your local LG
Customer Service Centre.
Your call will be automatically passed on to the Customer Service
Centre responsible for your post code area. You can find the
address of your local Customer Service Centre and other
information for customers on the Internet at www.lge.com
Please ensure you have the following details to hand:
1. Your name and address,including your post code.
2. Your telephone number.
3. Exact details of the nature of the problem.
4. The model,series and serial number. These details are found on
the rating plate located at the left-hand inner edge of the oven
door.
5. Your dated receipt of purchase. Please note that proof of
purchase is required for any guarantee claim. Before submitting a
guarantee claim, please ensure that you have read through the
section on “Troubleshooting”. There will be a charge for any
inspection carried out by a technician if it should transpire that
there is no mechanical or electrical fault present in the appliance.
Customer Service
For general queries on LG appliances or further details of LG
products, please contact our Customer Service Centre in writing or
by telephone or visit our website at www.lgservice.com
60
Warranty
The model,serial and production number are on
the rating plate. These information can be found
on the rating plate. The rating plate is on the left
side of the door. Rating plate is located on the
left side of door and the cover-back.
REQUIREMENTS TO MAINTAIN WARRANTY COVERAGE:
RETAIN YOUR RECEIPT TO PROVE DATE OF PURCHASE.A
COPY OF YOUR RECEIPT MUST BE SURRENDERED AT THE
TIME GUARANTEE SERVICE IS PROVED.
PRODUCT REGISTRATION CARD:
It is helpful to complete at least, your name,address, phone, model
& serial numbers and return it. This will enable LG Electronics to
assist you in the future should you lose your receipt, your units
stolen, or should modification be necessary.
To obtain information or assistance:
MODEL
SERIAL#*
DATE OF PURCHASE
*Please complete for your own record
In all cases of difficulty - consult your LG dealer from
whom the product was purchased.
61
