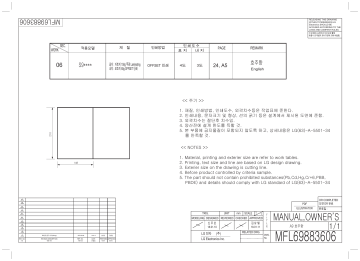

LG | A9PETNBED | LG A9MULTI2X Owner’s Manual

RELEASING THIS DRAWING
WITHOUT PERMISSION LG
Electronics SHOULD BE
ACCUSED ACCORDING TO THE
LAWS AND COMPANY RULES.
MFL69883606
이 도면은 LG전자의 자산으로 불법
유출시 관계법과 회사규정에 의해 처벌됨.
WORK
SEC.
재
적용모델
06
질
표지 : 아트지 150g 무광 Laminating
내지 : 모조지 80g OFFSET 인쇄
S9****
인쇄방법
OFFSET 인쇄
인쇄도수
표지
내지
4도
REMARK
PAGE
호주향
24, A5
3도
English
<< 주기 >>
210
1.
2.
3.
4.
5.
재질, 인쇄방법, 인쇄도수, 외곽치수등은 작업표에 준한다.
인쇄내용, 문자크기 및 형상, 선의 굵기 등은 설계에서 제시된 도면에 준함.
외곽치수는 절단후 치수임.
양산전에 설계 한도를 득할 것.
본 부품에 금지물질이 포함되지 않도록 하고, 상세내용은 LG(63)-A-5501-34
를 만족할 것.
<< NOTES >>
1.
2.
3.
4.
5.
148
Material, printing and exterier size are refer to work tables.
Printing, text size and line are based on LG design drawing.
Exterier size on the drawing is cutting line.
Before product controlled by criteria sample.
The part should not contain prohibited substances(Pb,Cd,Hg,Cr+6,PBB,
PBDE) and details should comply with LG standard of LG(63)-A-5501-34
11
10
PDF
ILLUSTRATOR
9
8
TRIG.
mm
SCALE
1
MODELING DESIGNED REVIEWED CHECKED APPROVED
7
6
5
신주은
18.01.10
4
3
2
1
헤파관련 문구 삭제 (20Page)
REV. NO.
REVISION DESCRIPTION
기호
UNIT
1
변경 사항
EKFI100190
REF. NO.
시방 번호
18.01.12
DATE
년/월/일
송상영
김남철
PREPARED APPROVED
시방자
승인자
LG 전자
(주)
LG Electronics Inc.
김남철
18.01.11
RELATED DWG.
T
I
T
L
E
DWG.
No.
DR COMPLETED
도면 DR 완료
완료일 :
MANUAL,OWNER’S
A9 호주향
1/1
MFL69883606
User's Manual
A9
Make sure to read the "Safety Cautions" carefully before starting to use this product.
Please keep this User's Manual within easy reach of the user.
As the product is only intended for domestic use such as household cleaning, it must not be used for commercial,
experimental or industrial purposes.
Make sure to fully charge the product's battery before first use of the product after purchasing it.
MFL69883606
www.lg.com
Copyright © 2018 LG Electronics Inc. All Rights Reserved.
Table of Contents
This User's Manual may contain images or contents
that differ slightly to the purchased product.
Safety Cautions..................................................... 04
Package information........................................... 10
Installation............................................................ 11
Installing the standing charging station...................................................................11
Installing the wall-mount station.................................................................................12
Uninstalling the station.....................................................................................................12
Storage of the combination tool and crevice tool...............................................12
How to Use............................................................... 13
Note about using the product........................................................................................13
Using the Product.................................................................................................................13
Charging the Product..........................................................................................................14
Power / Suction Strength button.................................................................................14
Using the nozzles..................................................................................................................15
Maintenance........................................................... 16
Cleaning the Dustbin...........................................................................................................16
Cleaning the Filters..............................................................................................................16
Cleaning the Power Drive Floor/Carpet Nozzle....................................................18
Cleaning the Bedding Power Punch............................................................................18
Points to check before contacting
customer service.................................................. 19
Disposal information.......................................... 20
Disposal of old products not related with the
purchase of a new product......................................................................................................20
Product specifications....................................... 20
03
Safety PRECAUTIONS
The following cautions are intended to protect you from unexpected risk or property loss by ensuring safe
and correct usage of the product.
Cautions are categorized into 'Warning' and 'Caution', which mean:
Pictograms are designed to draw attention to matters and uses that may pose a risk to
the user. Make sure to carefully read any item marked with this symbol and comply with
it to prevent any risk.
WARNING
Failure to comply with this warning may result in serious damage, injury or even death to
the user.
CAUTION
Failure to comply with this warning may result in damage to the product or moderate
injury to the user.
WARNING
1.This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
2.Children should be supervised to ensure that they do not play with the
appliance.
3.If the supply cord is damaged, it must be replaced by an LG Electronics
Service Agent in order to avoid a potential hazard.
4.This appliance can be used by children aged 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance must not be performed by children without
supervision.
04
Installation and Usage
Do not install, charge or store the product where it may be exposed to water, rainfall or severe moisture. Do
not use the product in any outdoor location, workshop or garage environment.
•• Such conditions will leave the product vulnerable to fire when charging the battery.
•• Please install, charge or store the product in a well-ventilated place.
Make sure to avoid places where there is a risk of leakage of flammable gas, industrial oil or metallic dust.
•• It may cause product malfunction or damage.
If you intend to use the charging station by "standing" it vertically (standing type), make sure to secure it
to the wall with the appropriate type of screws .
•• Otherwise, the charging station or product may slant and become damaged or cause property damage or injury.
Please place the charging station on an even surface.
•• Otherwise, the product may fall and sustain damage or cause an injury.
If you intend to mount the charging station on a wall (wall-mounted type), make sure to secure it tightly to
the wall using the appropriate type of screws.
•• Failure to do so may damage the product and/or cause an injury.
Please use the anchoring screws only when the wall is made of concrete or is solid enough.
•• If the Station mounting is performed on an unsuitable wall it may cause injury and damage the property or product.
Never install the charging station on a wall with any piping (gas, water, air) or power cables or wires behind
it.
•• There is a risk of injury from electric shock, fire or flooding.
Do not use or store the product at temperatures below 5 ° C or above 38 ° C.
•• Failure to do so may damage the product.
05
Power requirements
This product should only be used with AC 230~240V. Make sure to check the power specifications of the
place where you intend to use the product.
•• The wrong specifications will result in electric shock or damage the product in the event of a short-circuit.
Do not apply excessive force to the power cord to bend it, or place it under a heavy object as this will
damage it.
•• The power cord may get damaged and cause electric shock or injury.
Please refrain from using multiple power appliances in one power board or power socket and make sure to
use a power socket with a capacity of 10A.
•• Failure to do so may result in fire due to abnormal overheating of the socket.
•• Or it may activate the circuit breaker leading to a loss of power.
Never touch the power cord and plug with a wet hand.
•• This may result in injury or electric shock.
Please clear any dust or water from the power cord and plug with a dry cloth.
•• Failure to do so may result in electric shock, short circuit or fire.
When unplugging the power cord, never pull the cord itself and always hold the power plug.
•• Failure to do so will damage the cord it and may result in electric shock or fire.
Stop using the product and contact the customer service department of LG Electronics if the power cord or
power plug is damaged or the holes of the power outlet socket are loose.
•• Failure to do so may result in electric shock or fire.
Make sure to unplug the power cord when cleaning or maintaining the charging station.
•• Failure to do so may result in injury or electric shock.
Make sure to unplug the power cord when the product is not to be used for an extended period of time.
•• Failure to do so may result in electric shock, short circuit or fire.
Make sure to organize the power cord of the Adaptor while using or cleaning the product.
•• Otherwise, the cord may get tangled with the product and result in malfunction, electric shock or injury if its
disconnected or broken.
Avoid touching the pins of the power plug with your finger(s) when unplugging the power cord.
•• Failure to do so may result in electric shock or fire.
Do not to let children or pets get close to the product when using, charging or storing.
•• It may damage the product and/or result in injury.
Do not hold the charging station upside down with the battery in the charging station.
•• Otherwise, it may damage the product and/or result in injury.
06
Proper usage
Make sure that no child is allowed to use the product.
•• The product is too heavy for a child to handle properly.
Make sure that no hand, foot, hair or clothes gets stuck in the rotating brush or wheel while using or
cleaning the product.
•• Failure to do so may damage the product or result in injury.
No one other than a qualified technician/service engineer from LG Electronics may disassemble, repair or
modify the product.
•• Do not attempt to disassemble or repair the product yourself as it may result in electric shock, injury or fire.
Never use the battery, the charging station and the adaptor with other appliances other than this product.
•• It may cause a product malfunction or fire.
Do not use the battery of another appliance in the product.
•• It may cause malfunctioning or fire.
Do not arbitrarily disassemble, remove or short-circuit the battery.
•• It may result in electric shock, injury or fire.
Do not apply heat or shock to the battery.
•• It may cause electric shock, injury or fire.
Never insert a sharp metallic object such as a pin, nail or knife in a hole or gap in the product or the charging
station.
•• Otherwise, you may get injured or suffer electric shock.
Do not vacuum liquids with this product. Make sure that no water, beverage or detergent gets inside the
product or the charging station.
•• Failure to do so may result in injury or electric shock.
Do not apply or spray a flammable substance (gasoline or thinner) or surface active agent (detergent or
bath soap) on the product.
•• It may result in malfunction or fire.
In the event of a gas leakage (propane or urban gas), make sure to ventilate the area first without coming
into contact with the product or its power plug.
•• Otherwise, there may be sparks which may result in an explosion, fire or injury.
Do not use or store a heating device or flammable substance(ether, benzene, alcohol, chemicals,
combustible spray, insecticide, air freshener or cosmetics) in close proximity to the product.
•• It may result in product malfunction or fire.
Do not attempt to clean up a liquid substance (water, beverage), odorous substances (candy, chocolate, pet
excrement, etc.), metallic objects (such as blade, pins), flammable substances, surface active agents, or
glass shards with this product.
•• It may result in product malfunction or fire.
•• In the event that any liquid, metallic object, glass shard or spark gets inside the product, immediately turn off the
product and contact the customer service department of LG Electronics.
Do not use the product with the exhaust or inlet port blocked.
•• It will cause the product to overheat and result in malfunction or fire.
In the event that smoke is emitted by the product while it is charging, immediately unplug the power cord
and contact the customer service department of LG Electronics.
•• Failure to do so may cause electric shock or fire.
07
Do not expose the product, and the battery in particular, to heat, a heating device or direct sunlight.
•• It may result in electric shock, explosion or fire.
Do not keep the product or its battery inside a vehicle which is exposed to direct sunlight.
•• It may cause fire or explosion.
In the event that some kind of liquid leaks from the battery, make sure that it does not contact the skin or
eyes.
•• It may burn the skin or severely damage the eyes.
•• If liquid from the battery comes into contact with part of the skin, immediately wash it off with plenty of water and
seek medical advice.
Do not wash the inlet port with water or detergent.
•• As the inlet port contains a motor, it may result in electric shock or fire.
Always use the charging station and adaptor provided with the product to charge the product and its battery.
•• Using any charging device other than the provided station and adaptor will damage the battery and result in electric
shock, explosion or fire.
Never allow any water, beverage or detergent to get inside the battery.
•• It may cause electric shock, explosion or fire.
Do not touch the charging terminals on the product or the charging station, or insert an electrified object
inside the product or the station.
•• Otherwise, you may get injured or suffer electric shock.
Always leave the product on the floor standing or wall-mount charging station when it is not in use. Do not
leave the product on the charging station not fixed to the wall or charging station support.
•• Otherwise, the product may fall and get damaged or cause injury.
In the event that the earth leakage breaker gets activated while the product is placed on the charging
station, immediately remove the product from the station and contact the customer service department of
LG Electronics.
•• Failure to do so may cause electric shock or fire.
Do not wash the dust bin with water.
•• The water will get into the motor and cause electric shock or fire.
Do not attempt to vacuum fine dust such as cement with the product.
•• It may cause product malfunction or fire.
Make sure that no child can play with the product, charging station or battery.
•• It may damage the product and cause an injury.
•• If a child places the product or battery into its mouth, it will cause electric shock or injury, or damage the product or
battery.
When using the product, remove any wire or string from the bottom of the Charging Station.
•• Straps or wires may wrap around the product and cause a product malfunction or a broken cord.
Disposal
Discard the packing materials (plastic vinyl, styrofoam) properly so that no child comes into contact with
them.
•• Such materials may cause a child to suffocate.
When disposing of the product, make sure to remove the battery from the product's body.
•• Failure to do so may result in fire or explosion.
08
CAUTION
Proper usage
Do not apply impact to the product or drop it from a height.
•• It may damage the product and/or result in injury.
Make sure that the product does not fall.
•• It may cause injury or damage the product.
Make sure that the filter is installed in the product prior to each use.
•• Failure to install a filter may result in product malfunction.
Make sure to wipe up any liquid such as water or oil or pet excrement from the floor before using the
product.
•• Such substances will cause the unit to malfunction or cause irreparable damage
Do not clean the product with a volatile or organic solvent (thinner or acetone).
•• It may damage the product.
•• Always use a soft cloth to clean the product.
Make sure to avoid running into a person or a pet while using the product.
•• It may cause injury.
Do not kick or apply impact to the product.
•• It may cause the product to malfunction.
Do not put any object other than the product, especially a metallic or magnetic object, on the charging
station.
•• It may damage the product or cause electric shock.
Do not clean the same spot repeatedly for an extended period of time.
•• Vibration from the inlet port or rotating brush may damage the floor or the carpet.
Make sure that your finger does not get stuck when assembling the product or the charging station.
•• It may injure your finger.
Do not let a child or a pet hang onto the charging station.
•• It may cause injury or damage the product.
Do not put double-sided tape directly onto the wallpaper as it may be torn by external force.
•• Anchor the charging station with the wall anchoring screw(s) to prevent tearing of the wallpaper.
Do not apply force or impact to the filter parts or dust bin parts.
•• The parts may become deformed, compromise the performance or cause the unit to malfunction.
09
Package information
Standing type
Wall-mount type
4
1
9
1
9
6
6
2
2
5
8
4
8
3
7
3
1 Product body
2 Extension pipe
3 Power Drive Carpet Nozzle
4 Charging station
7 Charging station support
5 Charging station pipe
8 Adaptor
6 Combination tool and crevice tool 9 Battery
holder
Accessories
• Parts and accessories may vary depending on the model that you have purchased.
Product body
Extension pipe
Power Drive Carpet
Nozzle
Charging station
Adaptor
Battery
Crevice Tool
Combination Tool
Wall Anchoring Block
Double-sided tape (2)
Screw Anchor (2)
Anchoring screw for
wall-mount type (Φ
3.5 mm, length 50
mm)(2)
Anchoring screw for
standing type (Φ 3.5
mm, length 90 mm)
Pre-filter
• Please note that these parts come with their corresponding models only.
Battery
10
Power Drive Floor
Nozzle
Bedding Power Punch
Charging station pipe
Charging station
support
Installation
Installing the floor standing
charging station
1
4
Put the bottom of the charging station onto the
floor and assemble the pipe first, followed by the
upper body mount.
Put the anchoring block on the back of the charging
station and anchor the charging station with the
screw.
• Make sure to fully tighten the screw.
Wall anchoring block
Anchoring screw
for standing type
Screw
anchor
CAUTION
• Avoid getting your fingers stuck in any gap.
2
Connect the power adapter to the port on the back
of the charging station and plug the power cord
into the power outlet.
• The cord can be secured tidily by putting it
through the power cord anchoring ring located
on the back of the charging station pipe.
When using double-sided tape (do not use
if the wall is wallpapered)
1
Use double-sided tape to attach the wall anchoring
block to the charging station in step 4.
• Be sure to remove the center part of the doublesided tape before mounting it.
Wall anchoring block
②
①
3
After ensuring there are no pipes or wires insider
behind the wall, make a hole at the appropriate
height to anchor the charging station and insert
the screw anchor.
• Recommended diameter of hole: Φ6.5;
Recommended depth: 50~100 mm.
2
Use the remaining part of the tape to anchor the
station to the wall before inserting the screw.
Screw anchor
11
Uninstalling the station
CAUTION
• Avoid dropping the product and parts when taking them
out of the package. It may damage the product and/or
cause personal injury.
• Do not use double-sided tape to anchor the charging
station on papered walls. Please use the provided screws
as otherwise the wall paper will get torn by movement
of the charging station during the docking of the unit.
• We recommend anchoring the station with the
anchoring screw.
• Use the anchoring screws only when the wall is made
of concrete or is solid enough. An unsuitable wall
can cause the mountings to weaken and cause the
Charging station to fall causing injury and damage the
property or product.
Please note
• The charging station, its pipe and support cannot
be disassembled separately once they have been
assembled, and the charging station has been
attached to the wall.
• The charging station can be removed as needed. After
unscrewing it from the wall, pull the station upward
whilst the bottom of the station remains upright on
the floor.
Installing the wall-mount station
1
2
3
Keep and charge the product on the charging station
after separating extension pipe and nozzle from the
product body.
CAUTION
• Leaving the extension pipe and nozzle assembled for a
long time may cause damage the product.
Storage of the combination tool
and crevice tool
Keep the combination tool and crevice tool on the
charging station for easy access.
1
Attach the combination tool and crevice tool to the
dedicated holders.
2
Press and hold the inlet removal button and pull
downward to remove the combination tool or
crevice tool.
Connect the power adapter to the port on the back
of the charging station and plug the power cord
into the power outlet.
Make a hole 1 meter from the floor to insert the
wall plug or screw anchor.
• Recommended diameter of hole: Φ6.5;
Recommended depth: 60 mm.
Anchor the station to the wall with the provided
anchoring screws.
Wall anchoring
hole
Anchoring
screw for wallmount type
Screw
anchor
1
Please note
• A service request to change the installation location
of the charging station will incur additional costs if
required to do so by a qualified installer.
12
How to Use
Note about using the product
Using the Product
Points to be aware of when using the
product
1
Assemble the body, extension pipe, inlet port, and
battery in that order.
• Make sure that the dustbin lid is on prior to using
•
•
•
•
•
•
•
•
•
•
the product. Otherwise, the suction strength will
deteriorate and cleaning will not be satisfactory.
Support the bottom of the product when cleaning an
elevated surface.
When leaving the product unattended or unused for
an extended period, make sure to place it properly on
the charging station or lie it on the floor. Otherwise,
the product may fall and get damaged or cause an
injury.
Make sure that the exhaust filter is properly
assembled before using the product.
Environmental conditions such as temperature
and humidity may cause static to accumulate on
the product. Please contact the customer service
department of LG Electronics if the problem persists.
Any foreign object on the inlet port or extension pipe
will prevent the product from functioning properly.
Make sure to remove any foreign object such as a sock
or stocking before using the product.
The battery runtime will be shortened after using the
product repeatedly for an extended period due to its
characteristics.
When the battery is about to become fully run down
during use, the last block on the battery indicator will
start to flash and the product will power off after a
while. Fully charge the battery in this case.
Please use the product at normal room temperatures
as the battery runtime will deteriorate severely if used
at temperatures lower than 5℃ or higher than 38℃
for an extended period of time.
Refer to Product specifications for battery run time
details.
These times are a guide only and may be less
depending on the surface type.
Product
body
Inlet port
Battery
Extension pipe
2
Press the button on the extension pipe to adjust its
length.
• The pipe has 4 extendable length positions
Pipe length
extension button
3
Attach the accessory tool to the body or the
extension pipe.
Extension pipe
CAUTION
• Prolonged use of the product with the accessory tool
attached may overburden the motor.
• Using the inlet port to clean a TV, monitor or LCD
display may scratch the screen.
• Exercise caution to avoid getting your finger stuck in
any gap when assembling the attachments.
• If any foreign object is sucked into the inlet during
cleaning, operation of the vacuum cleaner might stop
in order to prevent damage to the body or motor.
Immediately stop using the vacuum cleaner and
remove the object before resuming cleaning.
13
Charging the Product
1
2
Insert the battery into the auxiliary charging
station.
Put the product on the charging station.
• The battery indicator will start to flash and
charging will proceed in 3 steps.
Charging indicator
of the auxiliary
battery
2
The battery indicator starts to flash and charging
will start.
• All of the indicators will stay on when the battery
is fully charged.
CAUTION
• Make sure to securely fit the unit on to the charging
station. Otherwise, the product may fall and get
damaged.
Please note
• The battery will not be charged if the ambient
temperature is below 5°C. only charge the battery
when ambient temperatures are between 5° and 38° C.
• The battery indicator will flash if the product is fully
charged, removed from the station, and charged again
soon. The flashing stops soon, and the indicator stays
on.
Charging the auxiliary battery
1
14
Hold the product and pull the battery by pressing
both ends of the battery.
Please note
• Make sure that the power adapter is connected to
both the charging station and the power outlet
• If the main battery is charging on the charging station,
the auxiliary battery will only start charging once the
main battery is fully charged.
• The auxiliary battery indicator flashes when charging
starts.
• The indicator will stay on when the auxiliary battery is
fully charged.
• Fully charging a single battery usually takes 4 hours,
but it will take twice as long if you charge it along with
a discharged auxiliary battery.
Power / Suction Strength button
You can adjust the suction strength with the suction
strength button located on the handle.
1
2
1 Power On/Off button
• Press the power On/Off button to activate the
Normal mode.
2 Mode button
• Press "+" once to activate the Power mode.
• Press and hold "+" for more than 3 seconds to
activate the Turbo mode.
• The unit will take a moment to switch to the
Turbo mode from the Normal mode when the "+"
button is held down.
• Press "-" to switch from Turbo to Power, or from
Power to Normal.
Using the nozzles
Crevice Tool
• Please note that the following applies to the
It is suitable for cleaning dust in a corner or a narrow
space.
corresponding models:
• The nozzle can be attached to the product body or
extension pipe.
• Use a different mode if the inlet gets stuck on the
floor, carpet or bed sheets or if you need a more
powerful mode.
CAUTION
• Do not use the product for any purpose other than
domestic household.
Combination Tool
This accessory is helpful for cleaning corners or small
gaps.
Basic
For cleaning flat surfaces such as a sofa or mattress.
Power Drive Carpet Nozzle
• It is suitable for cleaning carpets or rugs.
• It can be used to clean hard floors but will generate
some noise.
CAUTION
Brush type
• Do not use this nozzle on a play mat (PVC) for children.
For cleaning delicate surfaces such as a frame or
furniture.
Power Drive Floor Nozzle (some models
only)
Button
• It is suitable for cleaning hard floor surfaces.
Bedding Power Punch (some models only)
• Bedding Power Punch lets you clean bed sheets and
covers more effectively. This attachment can be used
to remove Pet Hair from various surfaces without hair
tangling.
• Make sure to adjust the suction level to an appropriate
setting when you vacuum-clean a blanket with a thin
outer fabric as the cleaner may attempt to suck the
outer fabric.
CAUTION
• Prolonged use of the product with an accessory tool
attached may over heat the motor.
• Using this accessory tool on a TV, monitor or LCD
display may scratch the screen.
• Avoid getting your finger stuck in any gaps when
fitting the accessory tools.
• If any foreign object is sucked into the inlet during
cleaning, operation of the unit might stop in order
to prevent damage to the body, motor or inlet.
Immediately stop using the vacuum cleaner and
remove the object before resuming cleaning.
15
Maintenance
Cleaning the the Dustbin
1
Remove the battery from the unit before cleaning
the dustbin.
2
Please empty the dustbin next to a wastebasket
or where dust and foreign objects can be emptied
easily.
3
Press the dustbin button downward to open it.
• Empty the bin.
• Be careful as dust/foreign matter may spill out
when you open the dustbin.
6
Remove the Cyclone and use the combination tool
to clean out the dust inside the dustbin.
Combination
Tool
WARNING
• Never wash the product's body with water. Water may
reach the motor and cause electric shock or fire.
• Do not apply force or any impact to the dust bin parts
or the Cyclone as it may damage them.
• Use the product only after cleaning the Cyclone and
reassembling it on the product. Failure to do so will
damage the product.
Dustbin Button
4
Insert the crevice tool into the large dust
separation device (Cyclonic Mesh Filter) and turn it
counterclockwise to remove it. Use the suction end
of the crevice tool to do this with ease.
Cleaning the Filters
The Pre-filter and exhaust filter need to be cleaned at
least once a month to maintain the cleaning performance
of the product.
1
Turn the exhaust filter counterclockwise to remove
it and take out the pre-filter.
Exhaust filter
5
Wash the large dust separation device (Cyclonic
Mesh Filter) with running water.
• Be sure to dry the device completely before
reinserting it.
2
Pre-Filter
(Yellow/
Green cloth
type)
With the unit upside down, use the combination
tool to clear dust from the motor part once the
Dust separator filter has been removed.
Large dust
separation
device
(Cyclonic
Mesh
Filter)
Combination
Tool
16
3
Clean the exhaust filter by brushing the dust off or
by washing it in running water.
• To maintain cleaning performance, remove the
dust from the exhaust filter at least once a month.
WARNING
• Never wash the product's body with water as it may
reach the motor and result in electric shock or fire.
• Make sure that no foreign object reaches the motor as
it will damage the product and may result in explosion
or fire.
• Do not insert a finger or a sharp object near the motor
as it will damage the product and may result in injury
or electric shock.
• Wash the exhaust filter in running water if it
emits an odor.
• The exhaust filter may emit an odor if it is not
dried completely after it has been cleaned in
water. Make sure to dry it completely for 24Hrs
before refitting it.
CAUTION
• Make sure to reattach the exhaust filter and Pre-filter
to the product after washing them. Using the product
without these filters will allow dust to reach the motor
inside the product and cause malfunction.
Please note
• As too much dust will reduce the suction power, we
recommend cleaning the filters before and after using
the product.
※ Removing foreign objects from inside the
product
4
Clean the pre-filter by brushing the dust off or by
washing it in running water.
• When washing the cloth type Pre-filter with
water, it must be completely dry before
reinserting. Failing to do so will cause it to emit
odours.
• The more often the filters are cleaned, the more
optimal the suction power will be.
• Filters are consumables and will wear with time
and use. Please purchase more filters from an
authorized service center.
In order to maintain product performance, be sure
to remove any foreign objects and dust from inside
the product (body, extension pipe, inlets). The foreign
materials inside the product can cause the product to
shutdown during operation, generate noise, or cause
poor suction.
Foreign objects
Foreign
objects
Product body
Extension pipe
Foreign
objects
Foreign
objects
5
To refit the filters, attach the Pre-filter first,
followed by the exhaust filter, so as to align the
white circle near the battery level indicator and
then turn it clockwise so that the white circles
align with each other.
Inlet port
※ If the inside of the product body, Extension pipe, or
Inlet port is clogged with foreign objects, the power
automatically turns off to protect the product.
Separate the battery from the product and remove
the foreign objects.
17
Cleaning the Power Drive Floor/
Carpet Nozzle
• Avoid getting your finger stuck in any gaps when
Please clean the floor and carpet nozzles as follows:
• Do not wash the rotating brush and the nozzle with
1
2
• Do not use the rotating brush as a mop.
• Do not use the nozzle to absorb any liquid.
Remove the nozzle from the product.
Turn the nozzle upside down and turn the rotating
brush removal screw counterclockwise.
• Use a coin or a flat head screwdriver to turn the
screw.
Rotating the brush
removal screw
3
CAUTION
reassembling.
water.
Cleaning the Bedding Power Punch
1
Remove the Bedding Power Punch and turn it
upside down.
2
Attach the crevice tool to the unit and use the
vacuum to remove dust/foreign objects from the
bottom of the Bedding Power Punch.
3
Use a wet towel or tissue to move any remaining
foreign matter and dust.
Pull the brush in the direction of the arrow to
remove it.
①
②
4
Attach the crevice tool to the unit and use the
vacuum to remove dust/foreign objects from the
brush and the bottom of the nozzle.
Rotating
brush
5
Use a wet towel or tissue to remove any remaining
foreign matter and dust from the brush and the
bottom of the nozzle.
Rotating
brush
WARNING
• Do not wash the Bedding Power Punch with water.
• Do not suck any liquids including water into the
6
Assemble the brush in reverse order after cleaning.
②
①
18
Bedding Power Punch.
Points to check before contacting customer service.
Please check once again if one of the following symptoms is present while using the product. The product may not be
malfunctioning.
Symptom
The product does not
operate.
Suction is too weak.
The unit does not
appear to be charging.
Hot air is expelled
from the unit.
Cause
Is the battery fully discharged?
Is the product powered off?
Is the dustbin full of dust?
Is the filter clogged?
Is the inlet clogged?
Is there a foreign object on the
rotating brush of the inlet port?
Is the power adapter connected
to the charging station?
Is the power cord plugged into
the outlet?
Is there any foreign object on the
charging terminals?
Is it operating properly?
Did you purchase the cleaner
within the last 3 months?
Is it operating properly?
Is the dustbin full of dust?
A strange odor is
coming from the
product.
Are there any foreign objects in
the filter?
Solution
• Charge the battery.
• Press the power button to power on the product.
• Empty the dustbin.
• Clean the pre-filter. If suction is still weak
after cleaning the pre-filter, please contact the
customer service department for advise
• Make sure to remove any foreign objects (thread,
hair) from the rotating brush.
• Make sure that the adapter is properly plugged
into the charging station.
• Make sure that the power cord is properly
plugged into the power outlet.
• Remove any foreign objects from the charging
terminals with a dry cloth.
• The hot air originates from cooling of the motor
and is not a sign of malfunction.
• The cleaner may emit a smell of rubber for about
3 months after purchase.
• If the cleaner is working fine, it is not malfunctioning.
• Also, dust in the bin may cause some odor. Empty
the bin and clean it.
• The filter may emit an odor if it has not been
•
Is the Pre-filter wet?
•
Is the exhaust filter wet?
The cleaner makes too
much noise.
Is it operating properly?
•
•
The unit powers off
too soon.
Is the battery fully charged?
Is there any foreign substance
in the body of the product,
Extension pipe, or Inlet port?
The rotating brush
does not rotate.
Is the brush properly attached?
Are there any foreign objects on
the rotating brush?
cleaned for some time. Clean both the pre-filter
and the exhaust filter.
Washing the pre-filter with water and not leaving
it long enough to dry completely may cause it
to smell. Make sure to dry it completely before
reassembling it on the cleaner.
Washing the exhaust filter with water and not
leaving it long enough to dry completely may
cause it to smell. Make sure to dry it completely
before reassembling it on the cleaner.
Different levels of noise is normal during
operation due to three power settings. It is not a
sign of malfunction.
The battery must be fully charged before cleaning.
If the problem persists even though the battery is
fully charged, and the pipes and attachments are
clear from obstructions, then please contact LG
customer service
• Remove the foreign objects from the body of the
product, Extension pipe, or Inlet port.
• Remove the brush, clean it if necessary and
attach it again.
• Remove any foreign objects from the rotating
brush.
19
DISPOSAL INFORMATION
Disposal of old products not related with the purchase of a new product
You must contact your local city council or the related government authority before disposing of large appliances.
PRODUCT SPECIFICATIONS
Item/Model
A9*********
Dimensions
260 mm(W) X 270 mm(L) X 1120
mm(H)
Weight
2.7 kg
Power
consumption:
400 W (Maximum power: 450 W)/
250 W/ 80 W (Turbo/Power/
Normal)
Suction power
140 W (In Turbo mode) 1)
Battery
DC 25.55 V
Battery runtime Approx. 6 minutes in Turbo
(When fully
charged, and
Approx. 9 minutes in Power
without using
the Power Drive
Approx. 40 minutes in Normal
nozzles)
Battery runtime Approx. 6 minutes in Turbo
(When fully
Approx. 9 minutes in Power
charged, and
using the Power
Drive nozzles)
Approx. 30 minutes in Normal
Item
Charger (Adaptor)
Input
100 V - 240 V~ 50/60 Hz, 0.8 A
Output
DC 29.4 V 1.0 A
Item/Model
Battery
Type
Rechargeable Li-ion Battery
Rated
DC 25.55 V , 2000 mAh, 7 cells
1) Suction Power test based on IEC 62885-2, 5.8.
20
Note
Note
Note
Download PDF
